John Deere AC-115, AC-165, AC-70 OPERATOR’S MANUAL

0 (0)

AC-70, AC-115

AND AC-165 SPACE HEATERS

Introduction

THANK YOU for purchasing a John Deere product.

READTHIS MANUALcarefully to learn how to operate and service your machine correctly. Failure to do so could result in personal injury or equipment damage. This manual and safety signs on your machine may also be available in other languages. (See your John Deere dealer to order.)

THIS MANUAL SHOULD BE CONSIDERED a permanent part of your machine and should remain with the machine when you sell it.

MEASUREMENTS in this manual are given in both metric and customary U.S. unit equivalents. Use only correct replacement parts and fasteners. Metric and inch fasteners may require a specific metric or inch wrench.

RIGHT HANDAND LEFT HAND sides are determined by facing the motor end of the machine.

The SERIAL NUMBER is located in the Specification or Identification Numbers section. Accurately record all the numbers to help in tracing the machine should it be stolen. Your dealer also needs these numbers when you order parts. File the identification numbers in a secure place off the machine.

WARRANTY is provided from your John Deere dealer for customers who operate and maintain their equipment as described in this manual. The warranty is explained on the warranty certificate shown in this manual.

This warranty provides you the assurance that your dealer will back products where defects appear within the warranty period. Should the equipment be abused, or modified to change its performance beyond the original factory specifications, the warranty will become void.

2

Operator’s Manual

Contents



Page

Safety ........................................................................

4

Controls .................................................................

10

Assembly..................................................................

11

Preparation...............................................................

12

Operation ................................................................

14

Troubleshooting .....................................................

16

Service ....................................................................

18

Storage ....................................................................

25

Specifications .........................................................

26

Warranty ..................................................................

27

Notes ........................................................................

28

All information, illustrations and specifications in this manual are based on the latest information available at the time of publication. The right is reserved to make changes at any time without notice.

Operator’s Manual

3

Safety

RECOGNIZE SAFETY INFORMATION

This is the safety alert symbol. When you see this symbol on your machine or in this manual, be alert to the potential for personal injury.

Follow recommended precautions and safe operating practices.

UNDERSTAND SIGNAL WORDS

A signal word--DANGER, WARNING or CAUTION--is used with the safety-alert symbol. DANGER identifies the most serious hazards.

DANGER or WARNING safety signs are located near specific hazards. General precautions are listed on CAUTION safety signs. CAUTION also calls attention to safety messages in this manual.

FOLLOW SAFETY INSTRUCTIONS

Carefully read all safety messages in this manual and on your machine safety signs. Keep safety signs in good condition. Replace missing or damaged safety signs. Be sure new equipment components and repair parts include the current safety signs. Replacement safety signs are available from your John Deere dealer.

Read this owner’s manual carefully and completely before trying to assemble, operate, or service this space heater. Improper use of this space heater can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning.

Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this space heater.

If you do no understand any part of this manual and need assistance, contact your John Deere dealer.



















N

















IO















UT

NSIN













CA

CAUTIO UALS





G







NSIN

O

HEMAN SIN











OT UTION LS



NIN

O

CAUTIO UALS

OCA MANUA

AR

IN

THE

MAN

IN

O

THE

W

INGS



IONS









O



CAUT

ALS





WARNANUALS.

O

HEMANU







EM

SIN

OT









TH

ING .















ARN

ALS















W

MANU















THE



















4

Operator’s Manual

CARBON MONOXIDE - POISONOUS GAS

DANGER: CARBON MONOXIDE POISONING MAY LEAD TO DEATH!

Space heaters exhaust contains carbon monoxide - a poisonous gas that can kill you. You CAN NOT smell or see this gas.

Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness, and/or nausea. If you have these signs, the space heater may not be working properly. Get fresh air at once! Have space heater serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, persons with heart or lung disease or anemia, those under the influence of alcohol, and those at high altitudes.

Never use a space heater in enclosed or partially-enclosed spaces without proper ventilation. Use only in well-vented areas. Before using space heater, provide at least a three-square-foot (2800 square cm) opening of fresh, outside air for each 100,000 Btu / Hr (30 kw) of rating. Space heaters can produce high levels of carbon monoxide very quickly. When you use a space heater, remember that you cannot smell or see carbon monoxide. Even if you can’t smell exhaust fumes, you may still be exposed to carbon monoxide.

If you start to feel sick, dizzy, or weak while using a space heater, get to fresh air RIGHTAWAY. DO NOT DELAY. The carbon monoxide from space heaters can rapidly lead to full incapacitation and death.

If you experience serious symptoms, get medical attention immediately. Inform medical staff that carbon monoxide poisoning is suspected. If you experienced symptoms while indoors, have someone call the fire department to determine when it is safe to re-enter the building.

NEVER operate the space heater in an explosive atmosphere, near combustible materials or where ventilation is not sufficient to carry away exhaust fumes. Exhaust fumes can cause serious injury or death.

Follow the instructions that come with your space heater. Locate the unit outdoors and away from doors, windows, and vents that could allow the carbon monoxide gas to come indoors.

NEVER run space heaters inside homes, garages, sheds, or other semienclosed spaces without proper ventilation. These spaces can trap poisonous gases EVEN IF you run a fan or open doors and windows. Use only in wellvented areas. Before using space heater, provide at least a three-square-foot (2800 square cm) opening of fresh, outside air for each 100,000 Btu / Hr (30 kw) of rating.

If you start to feel sick, dizzy, or weak while using the space heater, shut if off and get fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.

Install battery-operated carbon monoxide alarms or plug-in carbon monoxide alarms with battery back-up in your home, according to the manufacturer’s installation instructions. The carbon monoxide alarms should be certified to the requirements of the latest safety standards for carbon monoxide alarms. (UL 2034, IAS 6-96, or CSA 6.19.01).

Test your carbon monoxide alarm frequently and replace dead batteries.

Operator’s Manual

5

SAFETY WARNING WHEN REFUELING

Use only kerosene, #1#2 diesel / fuel oil, JET A or JP-8 fuels to avoid risk of fire or explosion. Never use gasoline, naphtha, paint thinners, alcohol, or other highly flammable fuels.

Personnel involved with fueling shall be qualified and thoroughly familiar with the manufacturer’s instructions and applicable regulations regarding the safe fueling of heating units.

Only the type of fuel specified on the space heater’s data plate shall be used.

All flame, including the pilot light, if any, shall be extinguished and the space heater allowed to cool, prior to fueling.

During fueling, all fuel lines and fuel-line connections shall be inspected for leaks. Any leaks shall be repaired prior to returning the space heater to service.

At no time shall more than one day’s supply of space heater fuel be stored inside a building in the vicinity of the space heater. Bulk fuel storage shall be outside the structure.

All fuel storage shall be located a minimum of 25 feet (762cm) from space heaters, torches, welding equipment, and similar sources of ignition (exception: the fuel reservoir integral with the space heater unit).

Whenever possible, fuel storage shall be confined to areas where floor penetrations do not permit fuel to drip onto or be ignited by a fire at lower elevation.

Fuel storage shall be in accordance with the authority having jurisdiction.

Observe all safety regulations for the safe handling of fuel. Handle fuel in safety containers. If the container does not have a spout, use a funnel.

Do not overfill the fuel tank, leave room for the fuel to expand.

Do not refill fuel tank while the engine is running. Before refueling the space heater, turn it off and let it cool down.

Fill the tank only on an area of bare ground. While fueling the tank, keep heat, sparks and open flame away. Carefully clean up any spilled fuel before starting engine.

Always fill fuel tank in an area with plenty of ventilation to avoid inhaling dangerous fumes.

NEVER store fuel for your space heater in the home. Gasoline, propane, kerosene, and other flammable liquids should be stored outside of living areas in properly-labeled, non-glass safety containers. Do not store them near a fuel-burning appliance, such as a natural gas water heater in a garage. If the fuel is spilled or the container is not sealed properly, invisible vapors from the fuel can travel along the ground and can be ignited by the appliance’s pilot light or by arcs from electric switches in the appliance.

6

Operator’s Manual

ELECTRICAL HAZARDS

DANGERIMPROPER CONNECTION OF THE EQUIPMENT-GROUNDING CONDUCTOR CAN RESULTINARISKOFELECTROCUTION.CHECK WITHAQUALIFIEDELECTRICIANORSERVICE PERSONIFYOUAREINDOUBTASTOWHETHER

THE UNIT IS PROPERLY GROUNDED.

Use only the electrical voltage and frequency specified on model plate.

Space heater must be grounded. Use only a properly grounded three-wire extension cord. Plug into grounded

outlet only. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.

The space heater is a potential source of electrical shock if not kept dry. Keep the space heater dry and do not use in rain or wet conditions. To protect from moisture, operate it on a dry surface under an open, canopy-like structure. Dry your hands if wet before touching the space heater.

Check that the entire cord is free of cuts or tears and that the plug has all three prongs, especially a grounding pin.

Operator’s Manual

7

IMPORTANT SAFETY INSTRUCTIONS

1.Use only in areas free of flammable vapors or high dust content.

2.Minimum clearance from any combustible materials: 8 feet (244 cm) from hot air outlet; 4 feet (122 cm) from top; and 4 feet (122 cm) from sides and inlet.

3.Locate space heater on a stable and level surface while hot or operating or a fire may occur.

4.Use only in well-vented areas. Before using space heater, provide at least a three-square-foot (2800 square cm) opening of fresh, outside air for each 100,000 Btu

/Hr (30 kw) of rating.

5.Keep children and animals away from space heater at all times.

6.Never start space heater when combustion chamber is hot or if fuel has accumulated in combustion chamber.

7.When used with thermostat, space heater may start at anytime.

8.When space heater is moved or stored, it must be in a level position or fuel spillage may occur.

9.Use space heater only in accordance with local ordinances and codes.

10.Never use gasoline, crankcase drainings, naphtha, paint thinners, alcohol, or other highly flammable fuels.

11.Neverusespaceheaterwheregasoline,paintthinner,or other highly flammable vapors are present.

12.Never use space heater in living or sleeping areas.

13.Never leave a space heater plugged in without adult supervision if children or animals are likely to be present.

14.Never move, handle, refuel, or service a hot, operating, or plugged-in space heater.

15.Never attach duct work to front or rear of space heater.

16.Never attach space heater to external fuel tank.

17.Space heaters used in the vicinity of tarpaulins, canvas, or similar enclosure materials shall be located a safe distance from such materials. The recommended minimum safe distance is 10 feet (304.8cm). It is further recommended that these enclosure materials be of a fire retardant nature. These enclosure materials shall be securely fastened to prevent them from igniting or from upsetting the space heater due to wind action.

18.Unplug space heater when not in use.

19.Never block air inlet (rear) or air outlet (front) of space heater.

SAVE THESE INSTRUCTIONS



















N

















IO















UT

NSIN













CA

CAUTIO UALS





G







NSIN

O

HEMAN SIN











OT UTION LS



NIN

O

CAUTIO UALS

OCA MANUA

AR

IN

THE

MAN

IN

O

THE

W

INGS



IONS

LS







O



CAUT





WARNANUALS.

O

HEMANUA





EM

SIN

OT









TH

ING .















ARN

ALS















W

MANU















THE



















8

Operator’s Manual

WEAR PROTECTIVE CLOTHING

Wear close fitting clothing and safety equipment appropriate to the job.

Wear a suitable hearing protective device such as earmuffs or earplugs to protect against objectionable or uncomfortable loud noises.

Operating equipment safely requires the full attention of the operator. Do not wear radio or music headphones while operating machine.

PREPARE FOR EMERGENCIES

Keep a first aid kit and fire extinguisher handy.

Keep emergency numbers for doctors, ambulance service, hospital and fire department near your telephone.

Be prepared if a fire starts.

INSPECT SPACE HEATER

Be sure all covers, guards and shields are tight and in place.

Locate all operating controls and safety labels.

Inspect power cord for damage before using. There is a hazard of electrical shock from crushing, cutting or heat damage.

Remove all packing items applied to space heater for

shipment. Remove all items from carton. Check items for any shipping damage. If space heater is damaged, promptly

inform dealer where you bought space heater.

SERVICE SPACE HEATER SAFELY

Before servicing the space heater, disconnect all equipment and battery (if equipped) and allow unit to cool down.

Service space heater in a clean dry flat area.

Operator’s Manual

9

John Deere AC-115, AC-165, AC-70 OPERATOR’S MANUAL









Controls





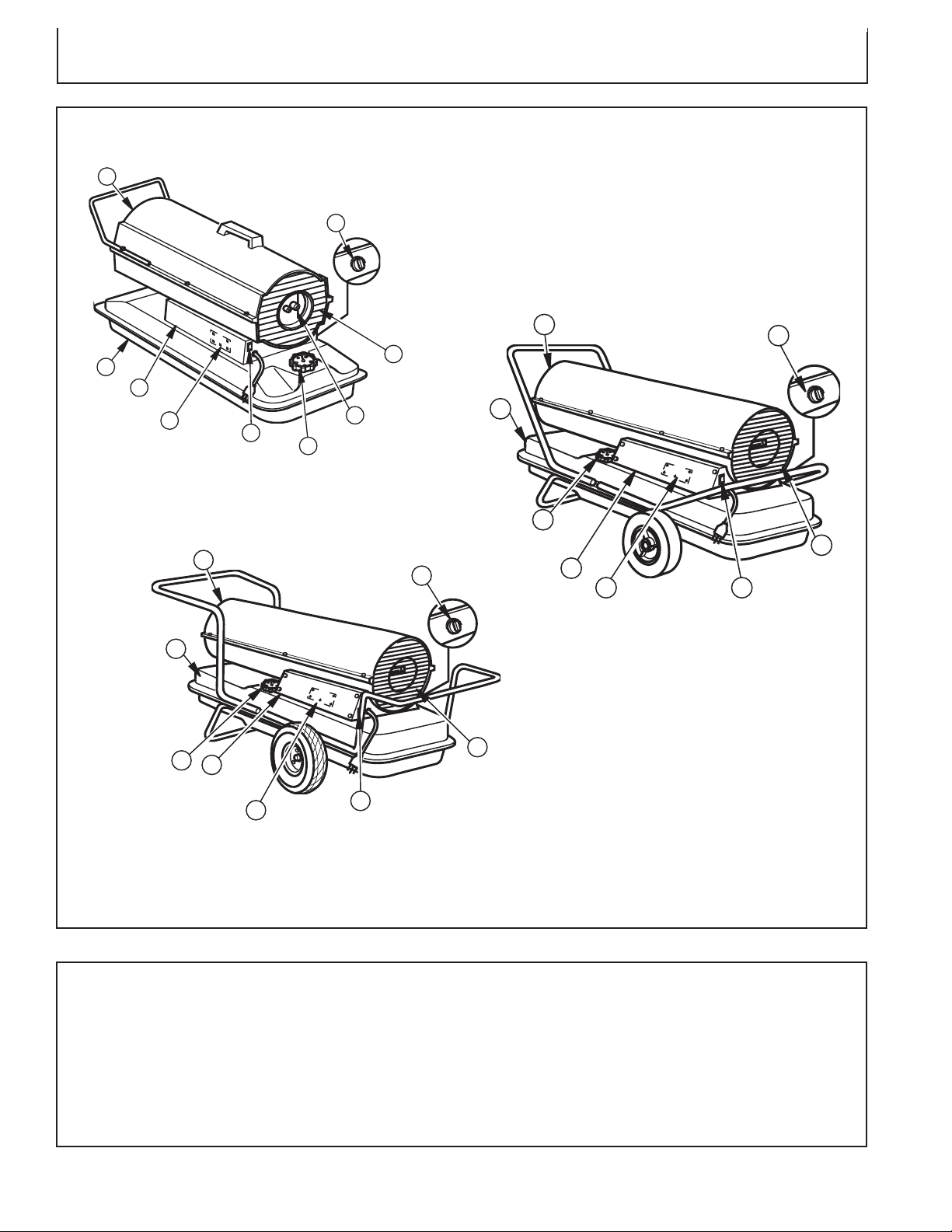

CONTROLS













A



















B















A



B









C



H























F







H





E



D

I

















G



















AC-70



















G



C



A







F







B





















E

D























AC-115

H













G

F





C



















E

D

























AC-165







A --

Hot Air Outlet

D --

ON / OFF Switch

G -- Fuel Cap / Gauge

B --

Thermostat Knob



w/ Light

H -- Fuel Tank

C --

Fan Guard

E --

Ignition Control Assembly

I -- Air Filter End Cover







(On Inside of Side Cover)







F --

Side Cover



10

Operator’s Manual

Assembly

ASSEMBLY

NOTE: For 115 and 165 Models Only

These models are furnished with wheels and a handle. Some models are furnished with a second handle also. Wheels, handle(s), and the mounting hardware are found in the shipping carton.

Tools Needed

Medium Phillips Screwdriver

3/8" Open or Adjustable Wrench

Hammer

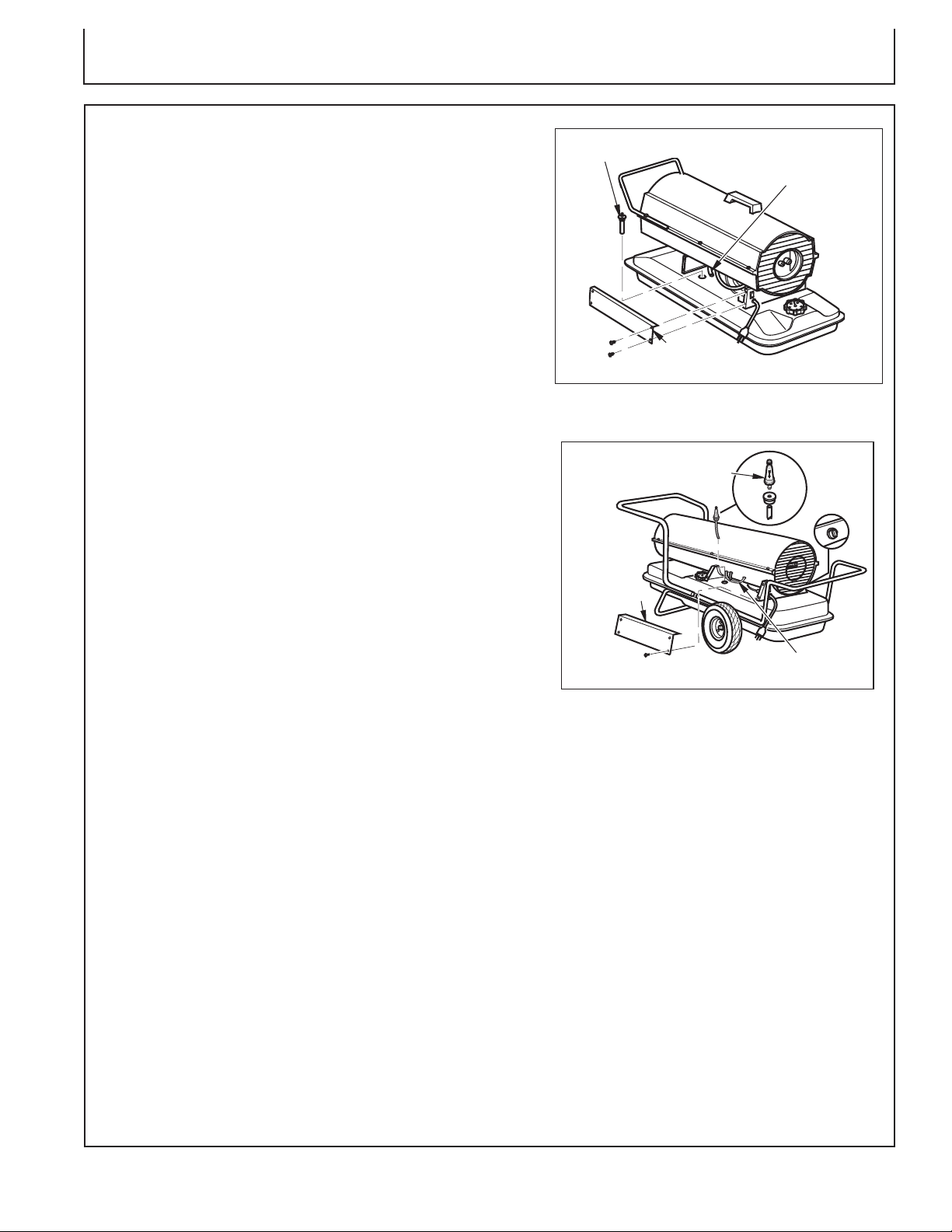

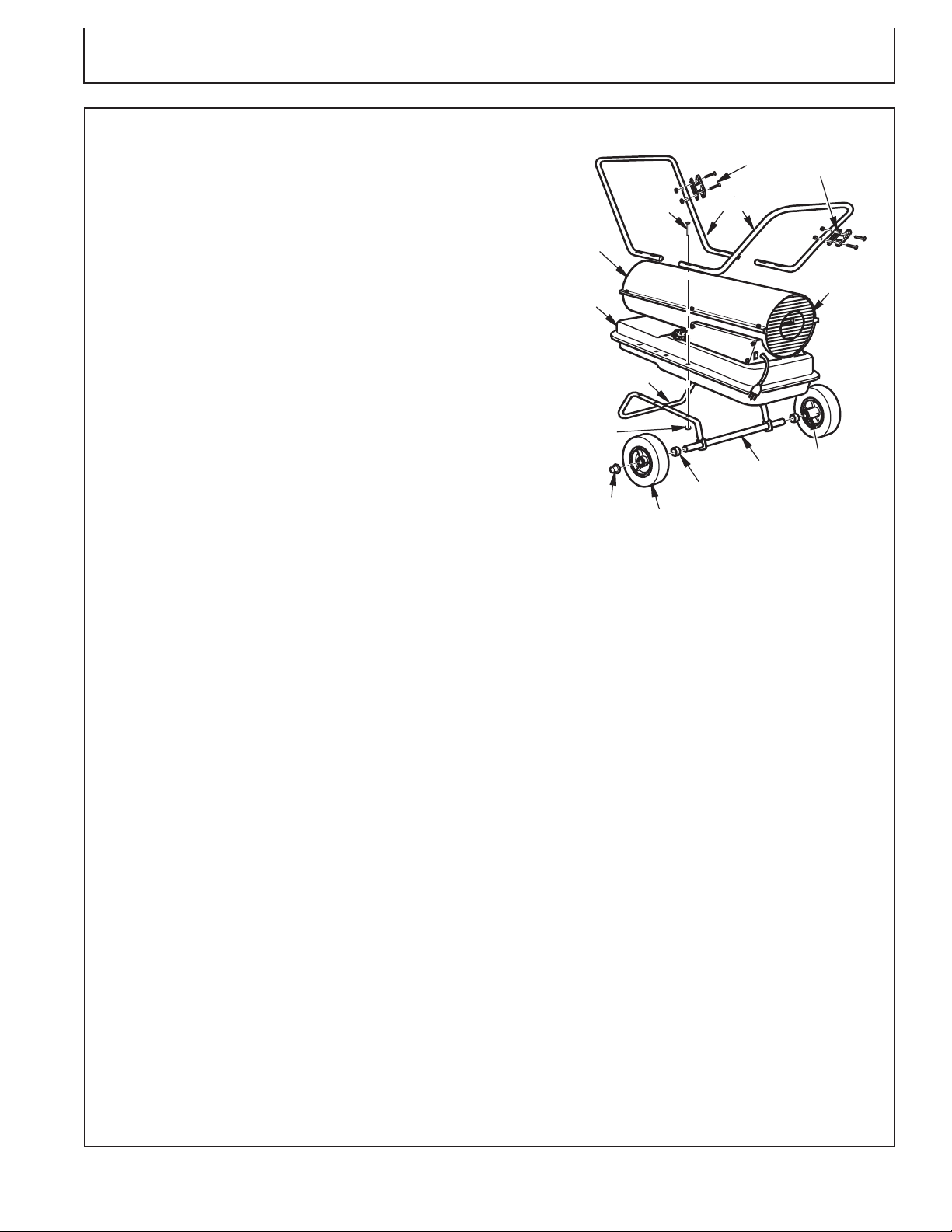

1.Slideaxlethroughwheelsupportframe.Installwheelspacers if provided. Install wheels on axle.

IMPORTANT: When installing wheels, point extended hub of wheels toward wheel support frame (Fig. 1).

2.Place cap nuts on axle ends. Gently tap with hammer to secure.

3.Place space heater on wheel support frame. Line up holes on fuel tank flange with holes on wheel support frame.

4.Place handle(s) on top of fuel tank flange. Insert screws through handle(s), fuel tank flange, and wheel support frame. Attach nut, hand tight after each screw is inserted.

5.After all screws are inserted, tighten nuts firmly.

Handle

Cord Cleat with



Bolts and Nuts



Handle



Screw





Hot Air





Outlet



Air





Fuel



Inlet





Tank





Flange





Wheel Support





Frame





Nut







Axle

Extended

Cap Nut

Wheel Spacer

Hub

(If Provided)



Wheel







(Fig. 1)



Operator’s Manual

11

Preparation

VENTILATION

WARNING: PROVIDE A FRESH AIR OPENING OF

AT LEAST THREE SQUARE FEET (2,800 SQUARE CM) FOR EACH 100,000 BTU / HR RATING. PROVIDE EXTRA FRESH AIR IF MORE SPACEHEATERSAREBEINGUSED.THEMINIMUM VENTILATION REQUIREMENTS MUST BE FOLLOWEDTOAVOIDRISKSASSOCIATEDWITH CARBON MONOXIDE POISONING. MAKE CERTAIN THESE REQUIREMENTS ARE MET PRIOR TO OPERATING SPACE HEATER.

Example: A 200,000 Btu / Hr (58.6kw) space heater requires one of the following:

a two-car garage door [16 feet (4.88 meter) opening] raised 5 inches (12.7 cm)

a single-car garage door [9 feet (2.74 meter) opening] raised 8 inches (20.3 cm)

two, 30 inch (76.2 cm) windows raised 15 inches

(38.1 cm)

FUELS

WARNING: USE ONLY KEROSENE, #1/#2 DIESEL/ FUEL OIL, JET A OR JP8 FUELS TO AVOID RISK OFFIRE OREXPLOSION.NEVERUSEGASOLINE, OIL DRAINED FROM CRANKCASES, NAPHTHA, PAINT THINNERS, ALCOHOL OR OTHER HIGHLY

FLAMMABLE FUELS.

Useonlykerosene,#1/#2diesel / fuel oil,JETAorJP-8fuels. Heavier fuels such as No. 2 fuel oil or No. 2 diesel fuel may also be used but will result in:

noticeable odor

additional fuel filter maintenance

the need for nontoxic, anti-icer additives in very cold weather

Do not use fuels heavier than No. 2 grade or heavy oils such as oil drained from crankcases. These heavy oils will not ignite properly and will contaminate the space heater.

IMPORTANT: Use a KEROSENE ONLY (blue) or DIESEL ONLY (yellow) storage container. Be sure storage container is clean. Foreign matter such as rust, dirt, or water will cause the ignition control assembly to shut down space heater. Foreign matter may also require space heater’s fuel system to be frequently cleaned.

12

Operator’s Manual

Preparation

THEORY OF OPERATION

The Fuel System: The air pump forces air through the air line. The air is then pushed through the nozzle. This air causes fuel to be lifted from the tank. A fine mist of fuel is sprayed into the combustion chamber.

The Air System: The motor turns the fan. The fan pushes air into and around the combustion chamber. This air is heated and provides a stream of clean, hot air.

The Ignition System: The ignition control assembly provides power to the ignitor. This ignites the fuel / air mixture in the combustion chamber.

The Flame-Out Control System: This system causes the space heater to shut down if the flame goes out.

Combustion

Ignitor



Air Pump

Chamber



Fan Motor

Air Intake Filter





Clean









Heated







Cool Air In

Air Out

















Air Output Filter

Fuel

Nozzle

Fuel

Air Line

Ignition Control

Tank

Air For Fuel

Filter

To Burner

Assembly





Air For

Fuel



System



Combustion







And Heating

Operator’s Manual

13

Operation

OPERATION

IMPORTANT: Review and understand the warnings in the Safety Information section. They are needed to safely operate this space heater. Follow all local ordinances and codes when using this space heater.

START SPACE HEATER:

1.Follow all ventilation and safety information.

2.Place the space heater in an area that provides maximum circulation of the heated air. Follow all location requirements noted in the Safety Information.

3.Fill fuel tank with kerosene, #1#2 diesel / fuel oil, JET A or JP-8 fuel.

4.Attach fuel cap.

5.For thermostat models, turn thermostat knob clockwise to the high position.

6.Plug space heater’s power cord into approved, grounded, three-wire extension cord. Extension cord must be at least six feet (1.8 meters) long.

Extension Cord Size Requirement:

6to10feet(1.8to3meters)long,use18AWG(0.75mm2) rated cord

11 to 100 feet (3.3 to 30.5 meters) long, use 16 AWG (1.0 mm2) rated cord

101 to 200 feet (30.8 to 61 meters) long, use 14 AWG (1.5 mm2) rated cord

7.Plug extension cord into standard 120 volt / 60 hertz, 3- prong grounded outlet. Push ON / OFF switch to ON(|) position and space heater should start in 5 seconds.

(Fig. 2) If space heater does not start, see Troubleshooting.

8.Adjust thermostat knob to the desired setting.

Note: A cold space heater may affect the thermostat setting. This thermostat is a general-heating control. It is not intended for precise temperature control. Adjust thermostat until space heater cycles at the desired setting.

STOP SPACE HEATER:

Push ON / OFF switch to OFF (O) position. Unplug space heater when not in use.

ON/OFF

Switch with

Light

Model: AC-70

ON/OFF Switch with Light

Models: AC-115 / 165

(Fig. 2)

14

Operator’s Manual

Operation

OPERATION (CONTINUED)

OPERATION WITH PORTABLE SPACE HEATER:

WARNING: BEFORE OPERATING SPACE HEATER OR ANY APPLIANCE FROM A PORTABLE SPACE HEATER, VERIFY THAT SPACE HEATER HAS BEEN PROPERLY CONNECTED TO THE GROUND (FIG. 3). IMPROPER GROUNDING OR FAILURE TO GROUND SPACE HEATER CAN RESULT IN ELECTROCUTION IF A GROUND FAULT OCCURS. REFER TO OWNER’S MANUAL SUPPLIED BY SPACE HEATER MANUFACTURER FOR PROPER GROUNDING

PROCEDURES.

Alternator

Ground Lug

Copper or Brass Grounding Point

Ground Wire (#10

AWG - Stranded-

Copper)

(Fig. 3)

The operating voltage range of the space heater is 108 to 132 Volts (120 Volts +/- 10%). Prior to plugging space heater into space heater the output voltage should be verified (if space heater is equipped with the automatic idle feature, the output voltage should be measured with the space heater running at full speed). If the voltage does not measure in this range the space heater should not be plugged into the space heater.

Refer to Operation, for starting, stopping, and resetting space heater procedures.

Operator’s Manual

15

Troubleshooting

WARNING: HIGH VOLTAGE. NEVER SERVICE SPACE HEATER WHILE IT IS PLUGGED IN, OPERATING, OR HOT. SEVERE BURNS AND ELECTRICAL SHOCK CAN OCCUR.

Symptom

Motor does not start five seconds after space heater is plugged in.

Problem

No power to space heater.

ON / OFF switch not in the ON(|) position.

Thermostat setting is too low.

Bad electrical connection between motor and ignition control assembly or ignition control assembly and power cord.

Binding pump rotor.

Defective ignition control assembly.

Defective motor.

Blown fuse or ignitor control assembly.

Solution

Check circuit breaker in electrical panel.

Verify the ON / OFF switch is in ON (|) position and light is on.

Turn thermostat knob to a higher setting.

Check all electrical connections.

If fan does not turn freely, see "Maintenance: Pump Rotor".

Replace ignition control assembly.

Replace motor.

See "Maintenance: Ignition Control Assembly".

16

Operator’s Manual

Troubleshooting

WARNING: HIGH VOLTAGE. NEVER SERVICE SPACE HEATER WHILE IT IS PLUGGED IN, OPERATING, OR HOT. SEVERE BURNS AND ELECTRICAL SHOCK CAN OCCUR.

Symptom

Motor starts and runs but space heater does not ignite

Space heater ignites but ignition control assembly shuts space heater off after a short period of time.

Problem

No fuel in tank.

Pump pressure incorrect.

Dirty fuel filter.

Obstruction in nozzle.

Water in fuel tank.

Bad electrical connection between ignitor and ignition control assembly.

Defective ignitor.

Defective ignition control assembly.

Pump pressure incorrect.

Dirty air intake, air output, and/or lint filter.

Dirty fuel filter.

Obstruction in nozzle.

Photocell assembly not properly installed (not seeing the flame).

Dirty photocell lens.

Bad electrical connection between photocell and ignition control assembly.

Defective photocell.

Defective ignition control assembly.

Solution

Fill tank with kerosene.

See "Maintenance: Pump

Pressure Adjustment".

See "Maintenance: Fuel Filter".

See "Maintenance: Nozzle

Assembly".

Drain and flush fuel tank with clean kerosene.

Check electrical connections.

Replace ignitor, see "Maintenance: Ignitor".

Replace ignition control assembly.

See "Maintenance: Pump

Pressure Adjustment".

See "Maintenance: Air Output,

Air Intake, and Lint Filters".

See "Maintenance: Fuel Filter".

See "Maintenance: Nozzle

Assembly".

Make sure photocell boot is properly seated in bracket.

Clean photocell lens.

Check electrical connections.

Replace photocell.

Replace ignition control assembly.

Operator’s Manual

17

Service

MAINTENANCE

PREVENTATIVE MAINTENANCE SCHEDULE:

WARNING: HIGH VOLTAGE. NEVER SERVICE Space heater WHILE IT IS PLUGGED IN, OPERATING, OR HOT. SEVERE BURNS AND ELECTRICAL SHOCK CAN OCCUR.

Item

How Often

How to

Fuel tank

Flush every 150-200 hours of

See "Storage: Storing,



operation or as needed.

Transporting,or Shipping".

Air output and lint

Replace every 500 hours of

See "Maintenance: Air Output,

filters

operation or once a year.

Air Intake, and Lint Filters".

Air intake filter

Wash and dry with soap and

See "Maintenance: Air Output,



water every 500 hours of opera-

Air Intake, and Lint Filters".



tion or as needed.



Fuel filter

Clean twice a heating season or

See "Maintenance: Fuel Filter".



as needed.



Ignitor

No maintenance required.



Fan blades

Clean every season or as

See "Maintenance: Fan".



needed.



Motor

Not required / permanently





lubricated.



18

Operator’s Manual

Service

MAINTENANCE (CONTINUED):

WARNING: TO AVOID RISK OF BURN AND ELECTRICAL SHOCK, NEVER ATTEMPT TO SERVICE SPACE HEATER WHILE IT IS

PLUGGED IN, OPERATING, OR HOT.

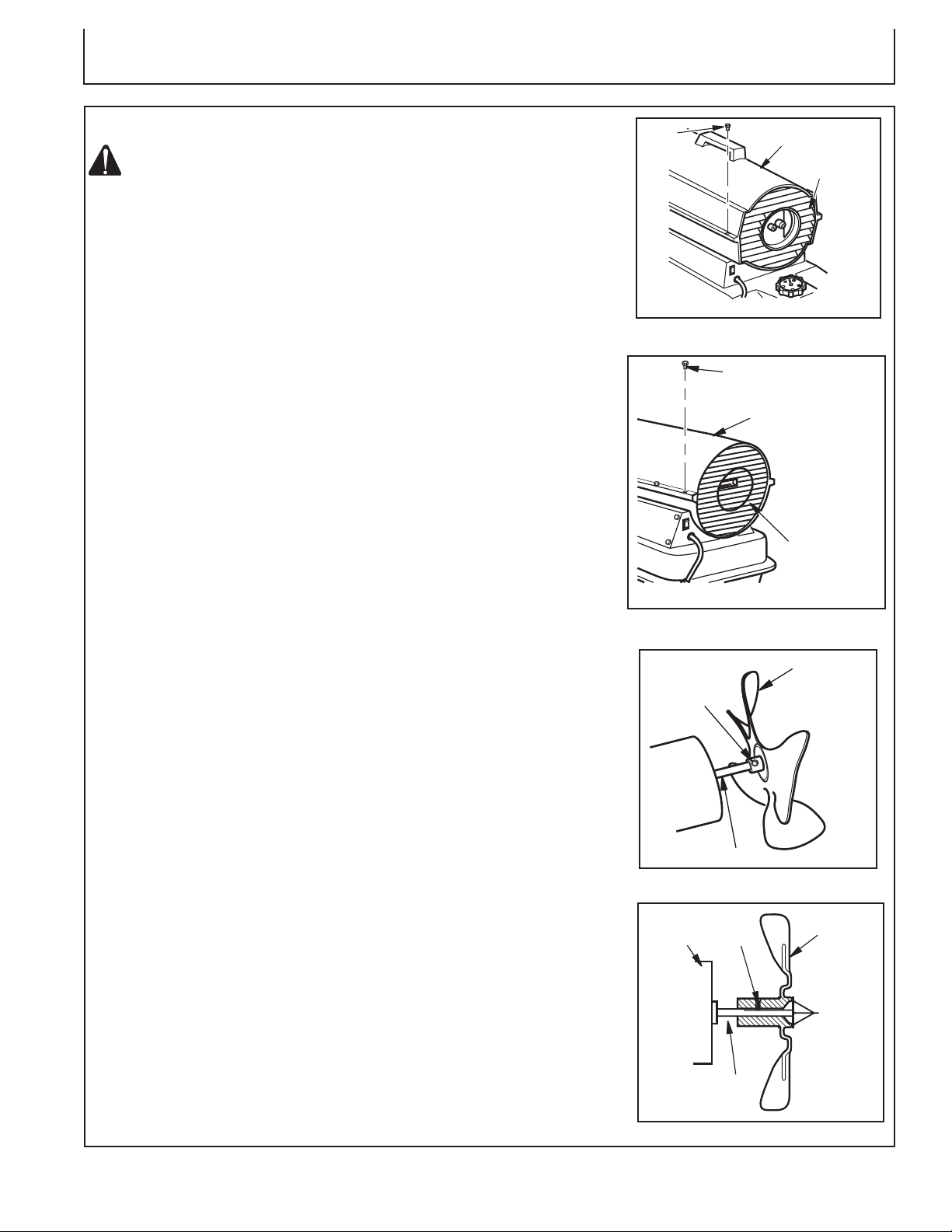

UPPER SHELL REMOVAL:

1.Remove screws along each side of space heater using 5/16" nut-driver. These screws attach upper and lower shells together. (Fig. 4 or 5)

2.Lift upper shell off.

3.Remove fan guard.

FAN:

IMPORTANT: Remove fan from motor shaft before removing motor from space heater. The weight of the motor resting on the fan could damage the fan pitch. (Fig. 6)

1.Remove upper shell. (Fig. 4 or 5)

2.Use 1/8" allen wrench to loosen setscrew which holds fan to motor shaft.

3.Slip fan off motor shaft.

Screw

Upper Shell



Fan Guard

Model: AC-70

(Fig. 4)

Screw

Upper Shell

Fan

Guard

Models: AC-115 / 165

(Fig. 5)

4.Clean fan using a soft cloth moistened with kerosene or solvent.

5.Dry fan thoroughly.

6.Replace fan on motor shaft. Place fan hub flush with end of motor shaft. (Fig. 7)

7.Place setscrew on flat of shaft. Tighten setscrew firmly (40-50 inch-pounds / 4.5-5.6 n-m).

8.Replace fan guard and upper shell.

Fan

Setscrew

Motor Shaft

(Fig. 6)

Motor Setscrew

Fan



Flush

Motor

Shaft

(Fig. 7)

Operator’s Manual

19

Service

MAINTENANCE (CONTINUED):

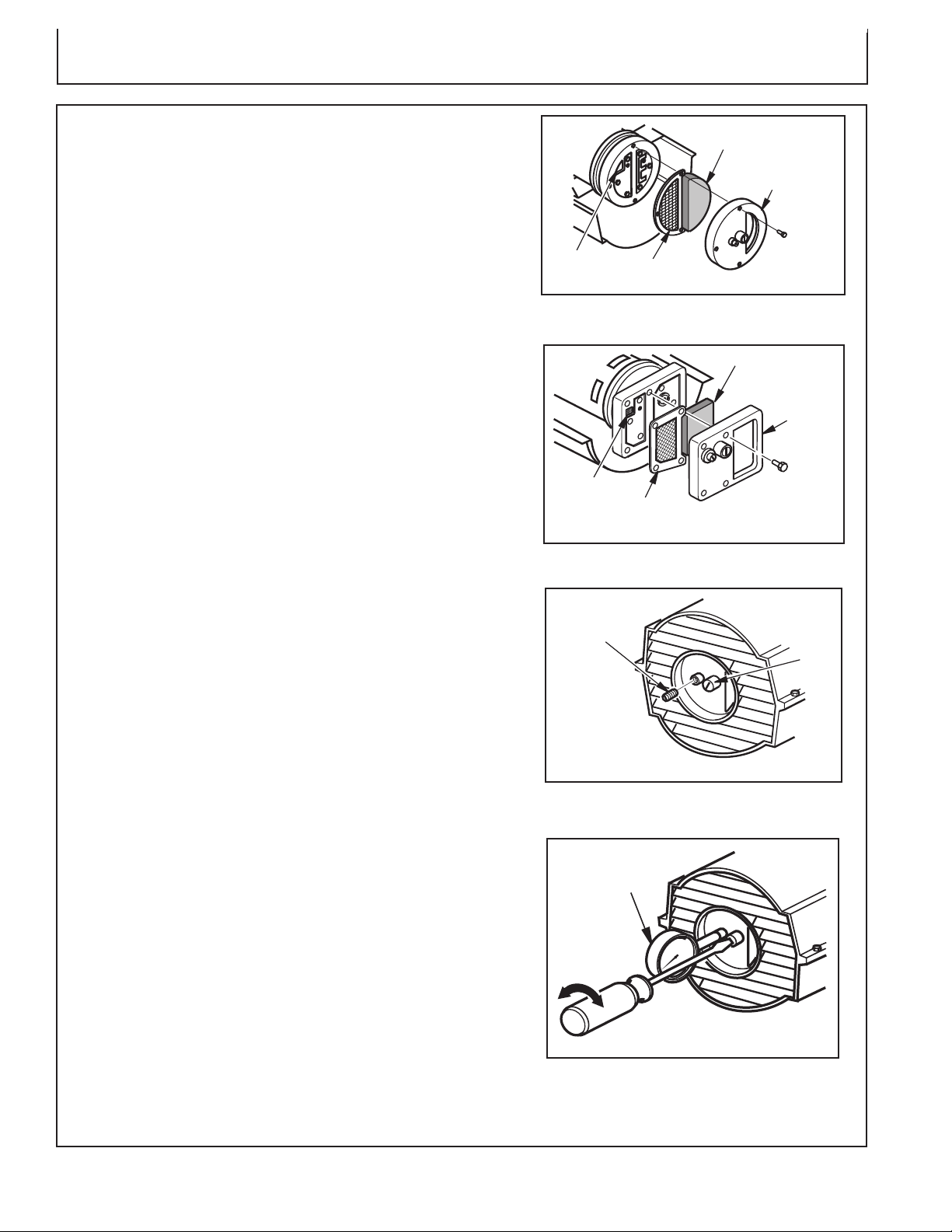

AIR OUTPUT, AIR INTAKE AND LINT FILTERS:

1.Remove upper shell. (Fig. 4 or 5)

2.Remove filter end cover screws using 5/16" nut-driver. (Fig. 8 or 9)

3.Remove filter end cover.

4.Replace air output and lint filters.

5.Wash or replace air intake filter (see "Preventative Maintenance Schedule").

Air Intake Filter

Filter End

Cover

Lint Filter Air Output Filter

Model: AC-70

(Fig. 8)

6.Replace filter end cover.

7.Replace fan guard and upper shell. IMPORTANT: Do not oil filters.

PUMP PRESSURE ADJUSTMENT:

1.Remove pressure gauge plug from filter end cover (Fig. 10).

2.Install a pressure gauge.

3.Start space heater (See "Operation"). Allow motor to reach full speed.

4.Adjust pressure. Turn relief valve to right to increase pressure. Turn relief valve to left to decrease pressure (Fig. 11). See specifications below for correct pressure for each model.

Model:

Pump Pressure:

70

4.7 PSI

115

5.1 PSI

1655.6 PSI

5.Remove pressure gauge. Replace pressure gauge plug in filter end cover.

Air Intake Filter

Filter

End

Cover

Lint Filter

Air Output Filter

Models: AC-115 / 165

(Fig. 9)

Pressure



Gauge



Plug

Relief



Valve

Model: AC-70 Shown

(Fig. 10)

Pressure

Gauge

Model: AC-70 Shown

(Fig. 11)

20

Operator’s Manual

Service

MAINTENANCE (CONTINUED):

FUEL FILTER:

1.Remove side cover screws using 5/16" nut-driver.

2.Remove side cover.

3.Pull upper fuel line off fuel filter neck (Fig. 12 or 13).

4.Carefully pry bushing, fuel filter, and lower fuel line (AC-115/165 models only) out of fuel tank (Fig. 13).

5.Wash fuel filter with clean fuel and replace in tank.

6.Attach upper fuel line to fuel filter neck.

7.Replace side cover.

Fuel Filter and

Bushing

Upper Fuel Line

Side Cover

Model: AC-70

(Fig. 12)

Fuel Filter, Bushing,

and Lower Fuel Line

Side

Cover

Upper Fuel Line

Models: AC-115 / 165

(Fig. 13)

Operator’s Manual

21

Service

MAINTENANCE (CONTINUED):

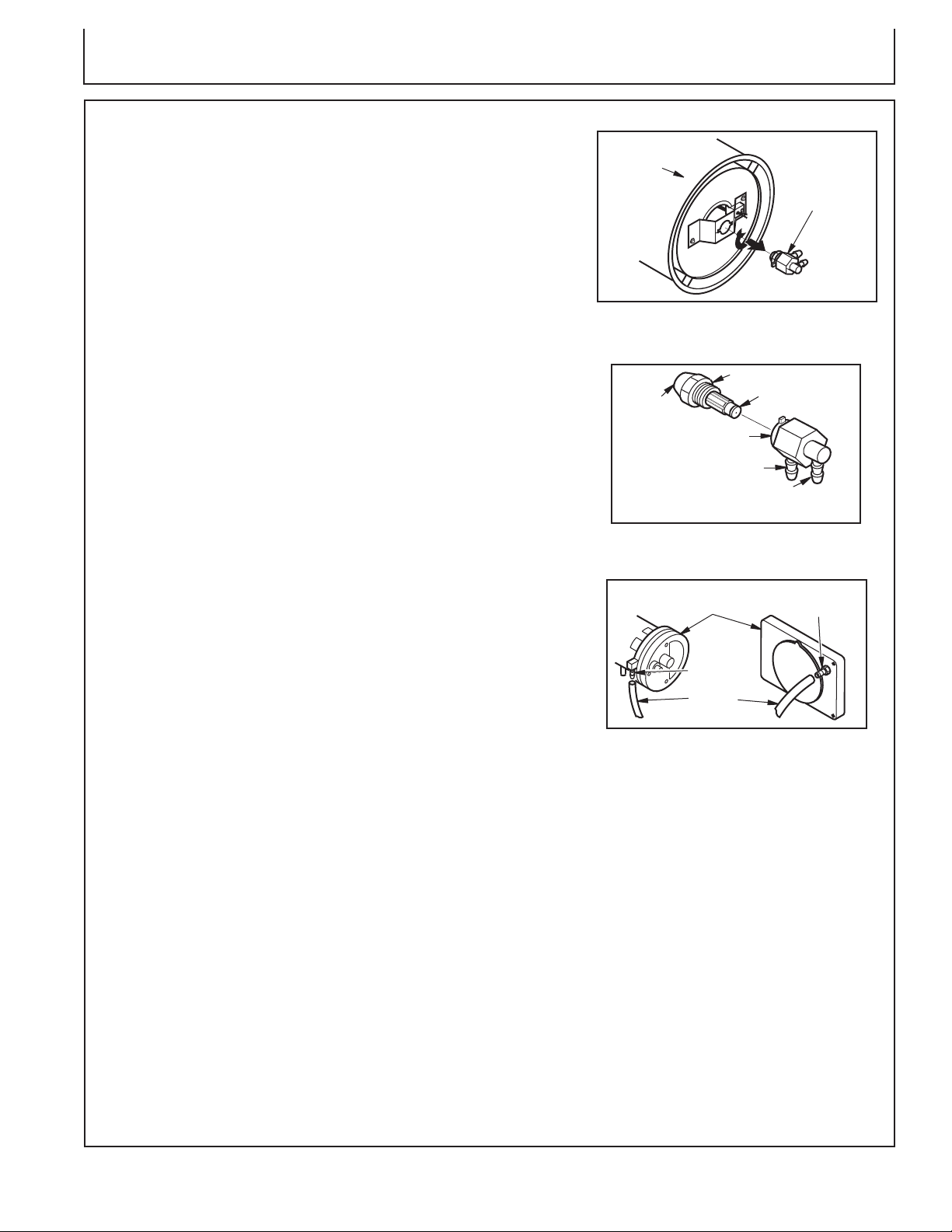

IGNITOR:

1.Remove upper shell and fan guard (See "Maintenance: Upper Shell Removal").

2.Remove fan.

3.Remove 4 side cover screws with a 5/16" nut driver. Remove side cover (Fig. 12 or 13).

4.Disconnect ignitor wires from ignition control assembly (Fig. 14). Pull the ignitor wires up through the hole in the lower shell.

5.Disconnect fuel line hose and air line hose. Remove photocell from photocell bracket (Fig. 14).

6.Remove combustion chamber. Stand combustion chamber on end with nozzle adapter bracket on top (Fig. 15).

7.Remove ignitor screw with a 1/4" nut driver. Carefully remove ignitor from nozzle adapter bracket.

CAUTION: DO NOT BEND OR STRIKE IGNITOR ELEMENT. HANDLE WITH CARE.

8.Carefully remove replacement ignitor from packing.

9.Carefully guide ignitor into opening in nozzle adapter bracket. Do not strike ignitor element. Attach ignitor to nozzle adapter bracket with screw using a 1/4" nut driver (Fig. 16). Torque .90 to 1.69 N-m (8 to 15 in-lbs) Do not over torque.

Combustion

Nozzle

Adapter

Chamber

Bracket



Air Line

Ignitor

Hose



Fuel



Line

Ignitor

Hose

Wire



Photocell



Bracket

Ignition



Photocell

Control

Assembly

Assembly



Side Cover



(Fig. 14)



Ignitor Screw/



Washer Assembly

Ignitor



Ignitor

Nozzle

Element

Photocell

Adapter

Bracket

Bracket

Combustion

Nozzle Adapter

Chamber

Bracket Opening



(Fig. 15)

10.Replace combustion chamber.

11.Route the ignitor wires back down through the hole in the lower shell. Connect wires to the ignition control assembly (Fig. 15).

12.Replace side cover (Fig. 13 or 14).

13.Connect and route fuel line hose and air line hose to nozzle adapter assembly. See "Maintenance: Fuel and Air Line Replacement and Proper Routing".

14.Replace photocell in photocell bracket. Route wires as shown in either Fig. 16 or Fig. 17.

15.Replace fan.

16.Replace fan guard and upper shell.

Combustion

Chamber

Nozzle



Adapter



Bracket

Nozzle/



Photocell

Adapter

Assembly

Bracket



Air Line

Fuel Line Hose

Hose



Model: AC-70





(Fig. 16)

Combustion



Chamber



Nozzle



Adapter



Bracket

Nozzle/

Air Line

Adapter

Assembly

Hose



Fuel



Line

Photocell

Hose

Bracket

Models: AC-115 / 165

(Fig. 17)

22

Operator’s Manual

Service

MAINTENANCE (CONTINUED):

NOZZLE ASSEMBLY:

1.Remove upper shell (See "Maintenance: Upper Shell Removal")

2.Remove fan (See "Maintenance: Fan").

3.Remove fuel and air line hoses from nozzle assembly (Fig. 16 or Fig. 17).

4.Turn nozzle assembly 1/4 turn to left and pull toward motor to remove (Fig. 18).

5.Place plastic hex-body into vise and lightly tighten.

6.Carefully remove nozzle from the nozzle adapter using 5/8" socket wrench (Fig. 19).

7.Blow compressed air through face of nozzle. This will free any dirt in nozzle area.

8.Inspect nozzle sleeve for damage.

9.Replace nozzle into nozzle adapter until nozzle seats. Tighten 1/3 turn more using 5/8" socket wrench 4.5 to 5.1 N-m (40 to 45 in-lbs). See Fig. 19.

10.Attach nozzle assembly to burner strap (Fig. 18).

11.Attach fuel and airline hoses to nozzle assembly. See "Maintenance: Fuel and Air Line Replacement and Proper Routing".

Combustion

Chamber Nozzle/

Adapter

Assembly

(Fig. 18)

Nozzle Face

Nozzle Sleeve

Nozzle

Nozzle Adapter

Air Line

Fitting Fuel L Fitting

(Fig. 19)

12.Replace fan (See "Maintenance: Fan").

13.Replace fan guard and upper shell (See "Maintenance: Upper Shell Removal").

FUEL AND AIR LINE REPLACEMENT AND PROPER ROUTING:

1.Remove upper shell (See "Maintenance: Upper Shell Removal").

2.Remove side cover screws using 5/16" nut driver (Fig. 12 or 13).

3.Remove side cover.

4.Inspect fuel and air line hoses for cracks and/or holes. If fuel line hose is damaged, disconnect from nozzle adapter (Fig. 16 or 17) and from fuel filter (See "Maintenance:Fuel Filter"). If air line hose is damaged, disconnect from nozzle adapter (Fig. 16 or 17) and from barb fitting on pump end cover (Fig. 20).

5.Install new air and/or fuel line. Attach one end of air line hose to barb fitting on pump end cover (Fig. 20) and the other end to nozzle adapter (Fig. 16 or 17). Attach one end of fuel line hose to fuel filter (see "Maintenance: Fuel Filter") and the other end to nozzle adapter (Fig. 16 or 17).

Note: Route hoses as shown in see Fig. 16 or 17, according to model. Hoses are not to touch photocell bracket.

6.Replace side cover.

7.Replace upper shell and fan guard (See "Maintenance: Upper Shell Removal").

Pump End Cover

Barb Fitting



Barb





Fitting





Air Hose



70 Models

115/165 Models

(Fig. 20)

Operator’s Manual

23

Service

MAINTENANCE (CONTINUED):

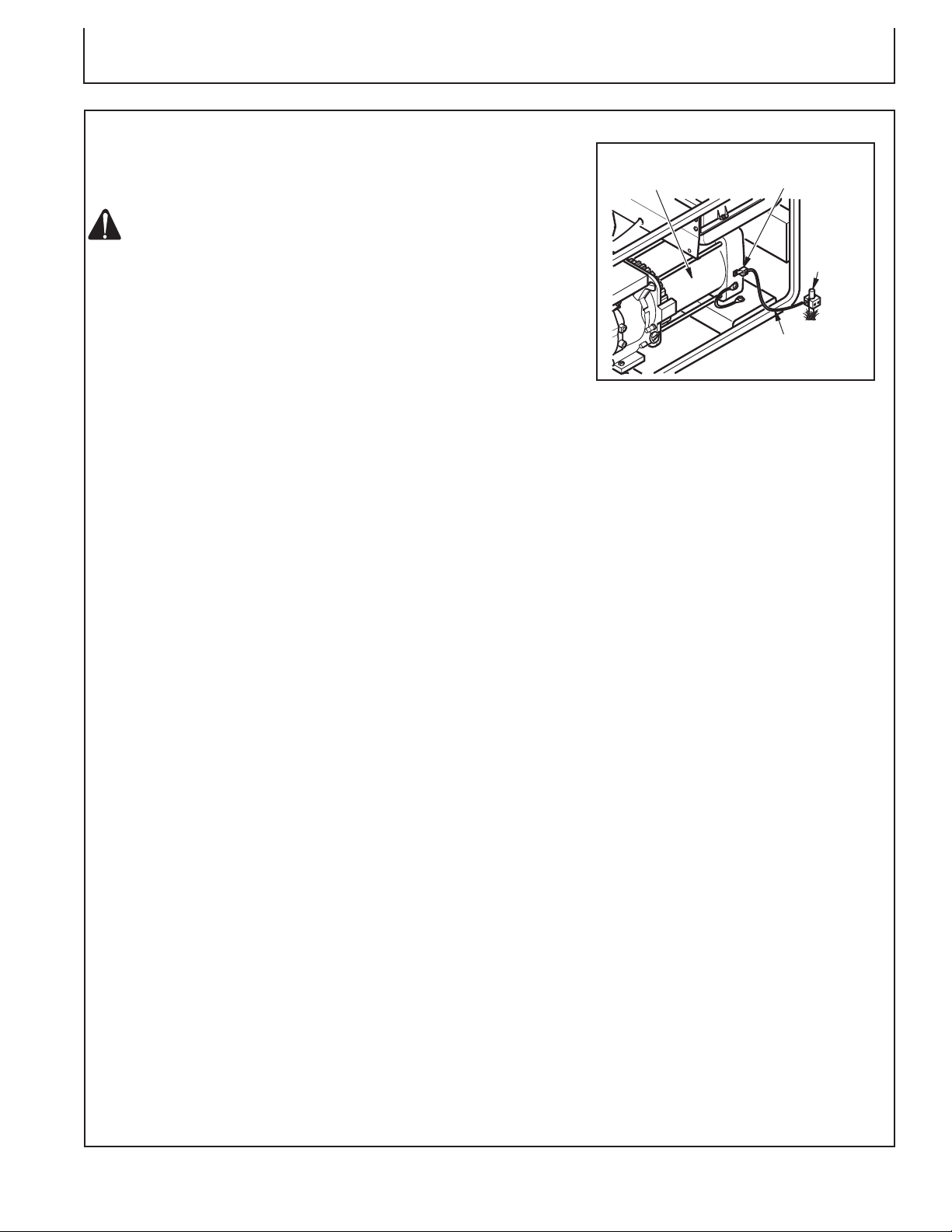

PUMP ROTOR: (Procedure if Rotor is Binding)

1.Remove upper shell (See "Maintenance: Upper Shell Removal").

2.Remove filter end cover screws using 5/16" nut driver (Fig. 21 or 22).

3.Remove filter end cover and air filters.

4.Remove pump plate screws using 5/16" nut-driver.

5.Remove pump plate.

6.Remove rotor, insert, and blades (Fig. 21 or 22).

7.Check for debris in pump. If debris is found, blow out with compressed air.

8.Install insert and rotor.

9.Check gap on rotor.Adjust to .076/.101 mm (.003”/.004”) if needed (Fig. 23).

Note: Rotate rotor one full turn to ensure the gap is

.076/.101 mm (.003"/.004") at tightest position. Adjust if needed.

10.Install blades, pump plate, air filters, and filter end cover.

11.Replace fan guard and upper shell (see "Maintenance: Upper Shell Removal").

12.Adjust pump pressure (see "Maintenance:Pump Pressure Adjustment").

Note: If rotor is still binding, proceed as follows.

13.Perform steps 1 through 6.

14.Place fine grade sandpaper (600 grit) on flat surface. Sand rotor lightly in a “figure 8” motion four times (Fig. 24).

15.Reinstall insert and rotor.

16.Perform steps 10 through 12.

IGNITION CONTROL ASSEMBLY:

WARNING: HIGH VOLTAGE!

1.Unplug space heater.

2.Remove side cover screws (4) using 5/16" nut-driver to expose ignition control assembly.

3.Remove fuse cover (Fig. 25).

4.Remove fuse from fuse clips (see Fig. 25).

5.Replace fuse with fuse of the same type and rating (GMA-10).Donotsubstituteafusewithahighercurrent rating.

6.Replace fuse cover (Fig. 25).

7.Replace side cover.



Blade



Air Intake





Pump Filter





Plate

Filter













End







Cover

Insert

Rotor





Model: AC-70

Air Output Filter









(Fig. 21)

Blade

Pump Plate

Air

Intake

Filter

Insert

Rotor

Air Output Filter

Filter End Cover

Models: AC-115 / 165

(Fig. 22)

Gap Adjusting Screw

Blade

.003”/.004”

(.076-.101 mm)

Gap Measured

With Feeler

Gauge

Rotor

Gap Adjusting Screw

(Fig. 23)

Sandpaper

(Fig. 24)

Fuse Clips

Fuse





Cover



Fuse

(Fig. 25)

24

Operator’s Manual

Storage

STORAGE

STORING, TRANSPORTING OR SHIPPING:

Note: If shipping, transport companies require fuel tanks

to be empty.

1. Drain fuel tank.

Note:Some models have drain plug on underside of fuel tank. If so, remove drain plug to drain all fuel. If space heater does not have drain plug, drain fuel through fuel cap opening. Be sure all fuel is removed.

2.Replace drain plug if provided.

3.If any debris is noted in old fuel, add 1 or 2 quarts of clean kerosene to tank, stir, and drain again. This will prevent excess debris from clogging filters during future use.

4.Replace fuel cap or drain plug. Properly dispose of old and dirty fuel. Check with local automotive service stations that recycle oil.

5.If storing, store space heater in dry place. Make sure storage place is free of dust and corrosive fumes.

IMPORTANT: Do not store kerosene over summer months for use during next heating season. Using old fuel could damage space heater.

Operator’s Manual

25

Specifications

ITEM

SPECIFICATION





Model Size

70

115

165

Output Rating (BTU / Hr)

70,000

115,000

165,000

Fuel

Use only kerosene, #1/#2 diesel / fuel oil, JET A

Fuel Tank Capacity

or JP-8 fuels*











(U.S. Gal. / Liters)

5 / 18.9

9 / 34

13.5 / 51

Fuel Consumption







(Gal. Per Hr / Liters Per Hr)

.52 / 1.97

.85 / 3.00

1.2 / 4.54

Pump Pressure (psi)

4.7

5.1

5.6

Electric Requirements

120V / 60 HZ

120V / 60 HZ

120V / 60 HZ

Amperage (Normal Run)

2.8

3.6

3.6

Motor RPM

3440

3400

3400

Hot Air Output (CFM)

360

490

575

Motor HP

1/8

1/5

1/5

Shipping Weight







(Approximate Pounds /







Kilograms)

36 / 16.3

56 / 25.4

71 / 32.2

Space heater Weight without Fuel





(Approximate Pounds /







Kilograms)

32 / 14.5

48 / 21.8

61 / 27.7

* Use of #2 diesel & fuel oil will result in noticeable odor and could require additional fuel filter maintenance. Use in extreme cold temperatures may require nontoxic anti-icer additives.

RECORD SERIAL NUMBER

Write you model number, machine serial number and date of purchase in the spaces provided below. Your dealer needs this information when ordering parts.

Model No.______________________________________________

Machine Serial No._______________________________________

Date of Purchase ________________________________________

(To be filled in by purchaser)

26

Operator’s Manual

Loading...
+ 58 hidden pages
