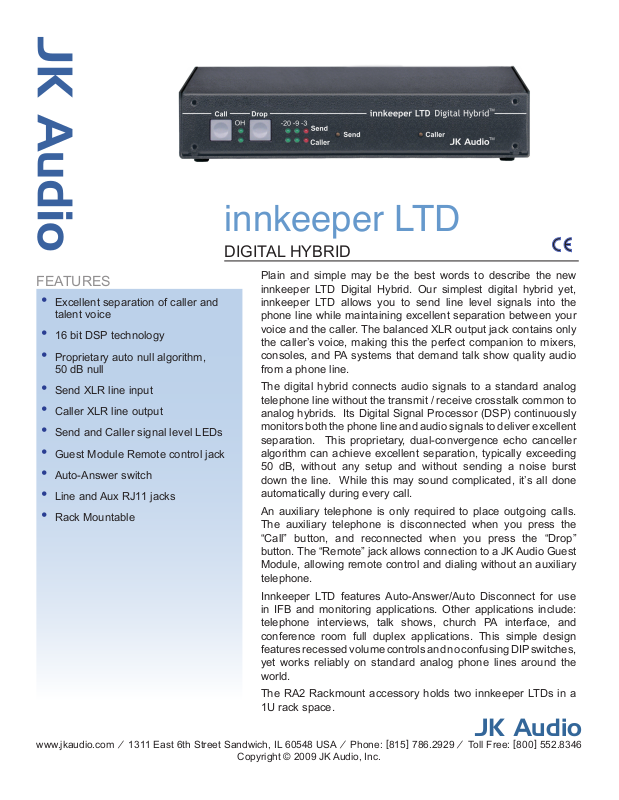

JK Audio INNLTD Datasheet
JK Audio
innkeeper LTD
DIGITAL HYBRID
FEATURES
Excellent separation of caller and
•
talent voice
16 bit DSP technology
•
Proprietary auto null algorithm,
•
50 dB null
Send XLR line input
•
Caller XLR line output
•
Send and Caller signal level LEDs
•
Guest Module Remote control jack
•
Auto-Answer switch
•
Line and Aux RJ11 jacks
•
Rack Mountable
•
Plain and simple may be the best words to describe the new
innkeeper LTD Digital Hybrid. Our simplest digital hybrid yet,
innkeeper LTD allows you to send line level signals into the
phone line while maintaining excellent separation between your
voice and the caller. The balanced XLR output jack contains only
the caller’s voice, making this the perfect companion to mixers,
consoles, and PA systems that demand talk show quality audio
from a phone line.
The digital hybrid connects audio signals to a standard analog
telephone line without the transmit / receive crosstalk common to
analog hybrids. Its Digital Signal Processor (DSP) continuously
monitors both the phone line and audio signals to deliver excellent
separation. This proprietary, dual-convergence echo canceller
algorithm can achieve excellent separation, typically exceeding
50 dB, without any setup and without sending a noise burst
down the line. While this may sound complicated, it’s all done
automatically during every call.
An auxiliary telephone is only required to place outgoing calls.
The auxiliary telephone is disconnected when you press the
“Call” button, and reconnected when you press the “Drop”
button. The “Remote” jack allows connection to a JK Audio Guest
Module, allowing remote control and dialing without an auxiliary
telephone.
Innkeeper LTD features Auto-Answer/Auto Disconnect for use
in IFB and monitoring applications. Other applications include:
telephone interviews, talk shows, church PA interface, and
conference room full duplex applications. This simple design
features recessed volume controls and no confusing DIP switches,
yet works reliably on standard analog phone lines around the
world.
The RA2 Rackmount accessory holds two innkeeper LTDs in a
1U rack space.
JK Audio
www.jkaudio.com ⁄ 1311 East 6th Street Sandwich, IL 60548 USA ⁄ Phone: [815] 786.2929 ⁄ Toll Free: [800] 552.8346
Copyright © 2009 JK Audio, Inc.
JK Audio
Phone Line
Jack
Aux Phone
Jack
Caller
Out
Caller
Send Level
Send
Input
Digital
Hybrid
innkeeper LTD
DIGITAL HYBRID
Rear View
Specications
Input Output
Balanced
Female XLR
Impedance:
Level
(Line)
Frequency
Response:
Size: 7.6” x 5.3” x 1.5” (20 x 14 x 4 cm) Weight: 2.7 pounds (1.2 kg)
www.jkaudio.com ⁄ 1311 East 6th Street Sandwich, IL 60548 USA ⁄ Phone: [815] 786.2929 ⁄ Toll Free: [800] 552.8346
20k ohms 200 ohms
500 mV RMS
(-4dBu nom.)
+12 dBu max
Telephone Side 200 Hz - 3600 Hz Power:
Balanced Male
XLR
500 mV RMS
(-4 dBu nom)
+14 dBu max
Copyright © 2009 JK Audio, Inc.
Phone Line: RJ11C
Aux. Phone: RJ11C
Isolation: 1500 VAC
Ringer: 0.8B REN
120-240 VAC
power supply (included)
