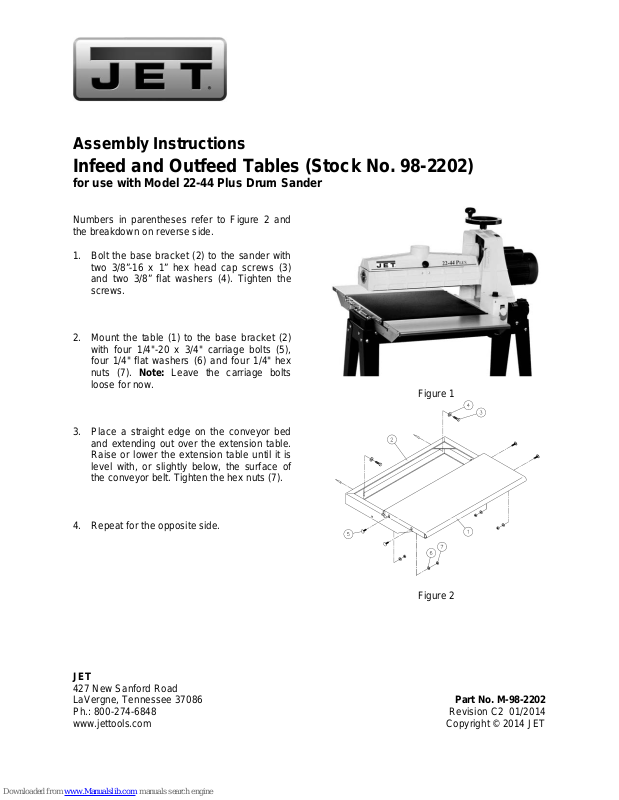

Jet 98-2202 Assembly Instructions Manual
Assembly Instructions
Infeed and Outfeed Tables (Stock No. 98-2202)
for use with Model 22-44 Plus Drum Sander
Numbers in parentheses refer to Figure 2 and
the breakdown on r ev er s e side.
1. Bolt the base bracket (2) to the sander with
two 3/8”-16 x 1” hex head cap screws (3)
and two 3/8” flat washers (4). Tighten the
screws.
2. Mount the table (1) to the base bracket (2)
with four 1/4"-20 x 3/4" carriage bolts (5),
four 1/4" flat washers (6) and four 1/4" hex
nuts (7). Note: Leave the carriage bolts
loose for now.
Figure 1
3. Place a straight edge on the conveyor bed
and extending out over the extension t able.
Raise or lower the ex tension table until it is
level with, or slightly below, the surface of
the conveyor belt . Ti ghten the hex nuts (7).
4. Repeat for the opposi te side.
JET
427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-98-2202
Ph.: 800-274-6848 Revision C2 01/2014
www.jettools.com Copyright © 2014 JET
Figure 2
Parts Breakdown for the 22-44 Plus Infeed and Outfeed Table
Index Part
No. No. Description Size Qty.
1 .......... 2244PLUS-501 .............Table ..................................................................................................... 2
2 .......... 2244PLUS-502 .............Base Bracket ......................................................................................... 2
3 .......... TS-0060051 ..................Hex Head Cap Screw .........................................3/8”-16UNC x 1” ......... 4
4 .......... TS-0680041 ..................Flat Washer ........................................................3/8”............................. 4
5 .......... 2244PLUS-505 .............Carriage Bolt ......................................................1/4"-20UNC x 3/4" ...... 8
6 .......... TS-0680021 ..................Flat Washer ........................................................1/4" ............................ 8
7 .......... TS-0561011 ..................Hex Nut ..............................................................1/4" ............................ 8
