Navigation system quick reference
Getting around the system
Joystick and ENTER button
Joystick – The joystick has eight
movements (up/down, left/right, and
diagonal), and has the following
functions:
• Highlights menu items, setup options
and text items (up/down).
• Character and number input (up/
down, left/right, and diagonal).
• Scrolling map position (up/down, left/
right, and diagonal).
ENTER button – Push the top of the
joystick. This has the following functions:
• Selects the highlighted menu item,
setup option or text item.
• After scrolling the map, shows the
map cursor location details
highlighted in a text box. (Push ENTER
again to select.)
MENU button
Displays the main menu. Highlight the
option required using the joystick (up/
down) and push ENTER.
CLEAR button
The CLEAR button has the following
functions according to the screen
currently displayed:
• Returns to the previous menu,
character input or text screen.
• Push and hold for two seconds to
change the map orientation.
REPEAT button
While under guidance, repeats the last
audible instruction. If the manoeuvre
point has been passed, the audible
instruction for the next manoeuvre point
will be heard.
ON/OFF button
Push ON/OFF at any time to turn the
screen off. The system continues to
operate and to monitor vehicle position.
Push ON/OFF again to turn the screen
back on. (The road safety caution screen
is only displayed when the ignition is
switched on.)
MAP button
The MAP button has the following
functions:
• Returns to the map display, showing
the current vehicle position, from any
other screen, or after scrolling the
map.
• While under guidance, toggles
between map and arrow view.
SCALE control
The SCALE control (up/down) has the
following functions:
• Changes the scale (reduce/enlarge)
when a map screen is displayed.
• Displays more pages of text, when the
scrolling arrows are displayed at the
top or bottom of a screen.
LIST button
Lists the turn information for the
calculated route.
Options available before driving
Changing the display colour
MENU → Setup → Display Colour → Select Day, Night or Auto.
Selecting a language
MENU → Setup → Language → Select a language.
Selecting the guide method
MENU → Setup → Guide Method → Select Hybrid, Arrow
or Map.
Editing memory points
MENU → Option → Edit Memory Points → Select a point to
edit or delete.
Editing recent destination points
MENU → Option → Edit Recent Dest. Points → Select a point to
delete, or delete all points.
Options available while driving under
guidance
Cancelling guidance
MENU → Route → Cancel Current Destination → Confirm the
on-screen prompt.
Avoiding roads
MENU → Route → Avoid Roads → Select a road → Reroute →
ENTER to Proceed.
Changing the calculating method
MENU → Route → Change Calculating Method → Select a
method.
Changing map heading
CLEAR → Push and hold for two seconds to change the map
orientation (north or vehicle heading to top of screen).
Repeating voice guidance
REPEAT → Repeats the last audible instruction.
(If the manoeuvre point has been passed, the audible instruction
for the next manoeuvre point will be heard.)
Listing turns information
LIST → Displays the turn information for the calculated route.

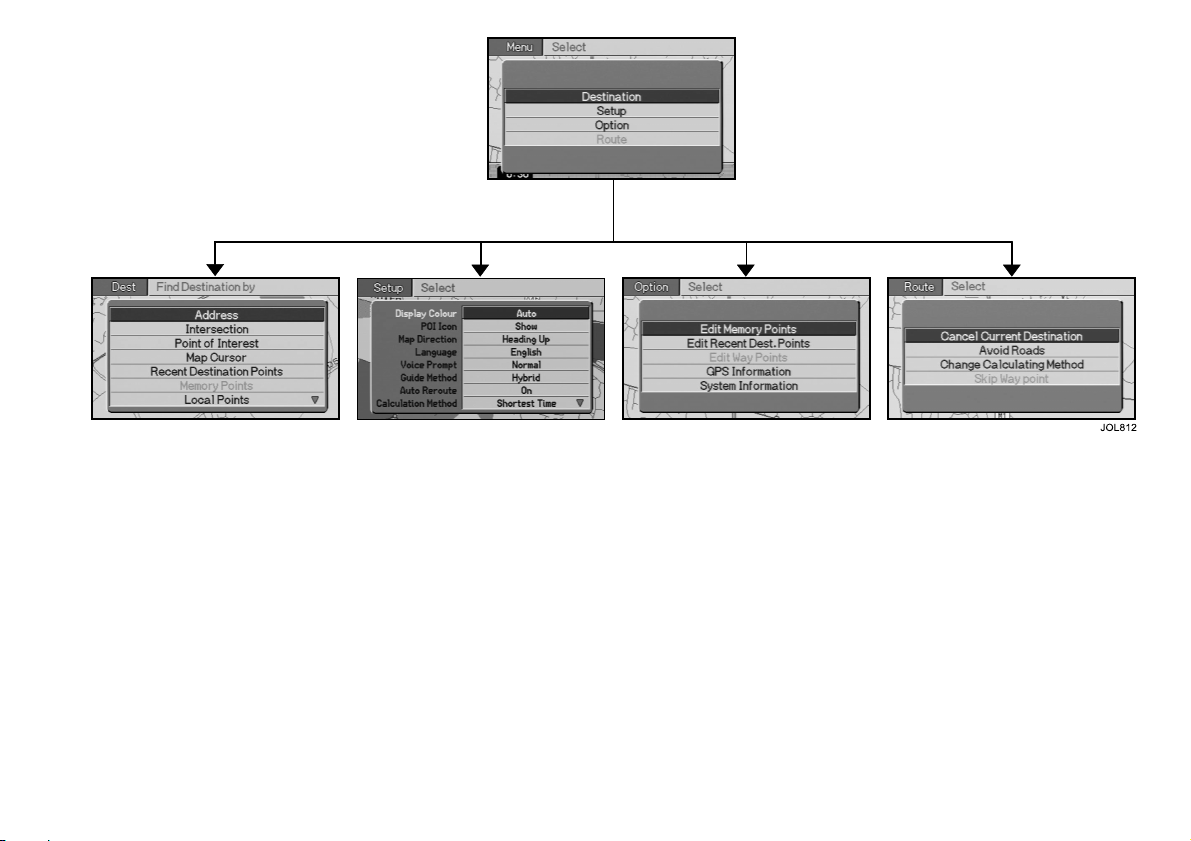

M
enu structure
Main menu
Destination menu
•Address
•Intersection
• Point of Interest
•Map Cursor
• Recent Destination Points
•Memory Points
•Local Points
•Way Points
Setup menu
•Display Colour
•POI Icon
•Map Direction
• Language
•Voice Prompt
•Guide Method
• Auto Reroute
• Calculation Method
•Time Zone
• Summer Time
Option menu
• Edit Memory Points
•Edit Recent Dest.Points
• Edit Way Points
•GPS Information
•System Information
Route menu
• Cancel Current Destination
•Avoid Roads
• Change Calculating Method
• Skip Way point
Note:
1. To select the main menu,
push MENU.
2. If the desired menu item is no
displayed, scroll the screen
using the joystick (up/down).
Getting started
To make a selection, highlight the item required using the
joystick and push ENTER.
Initialisation
Analogue Clock → Caution screen → Map display.
Entering a destination by address
MENU → Destination → Address → Street/City Name Input →
Enter the address details → Confirm Destination →
ENTER to Proceed.
Entering a destination to a city centre
MENU → Destination → Map Cursor → City Name Input →
Enter the city name.
(The system defaults to the centre of the city entered.)
Storing a frequently used location as a destination
Enter the address details → Confirm Destination →
Set Memory Point.
Selecting a frequently used location as a destination
MENU → Destination → Memory Points → Select a Memory
Point → Confirm Destination → Set Memory Point.
Selecting a point of interest
MENU → Destination → Point of Interest → Place Name Input/
Category List → Select a point → Confirm Destination →
ENTER to Proceed.

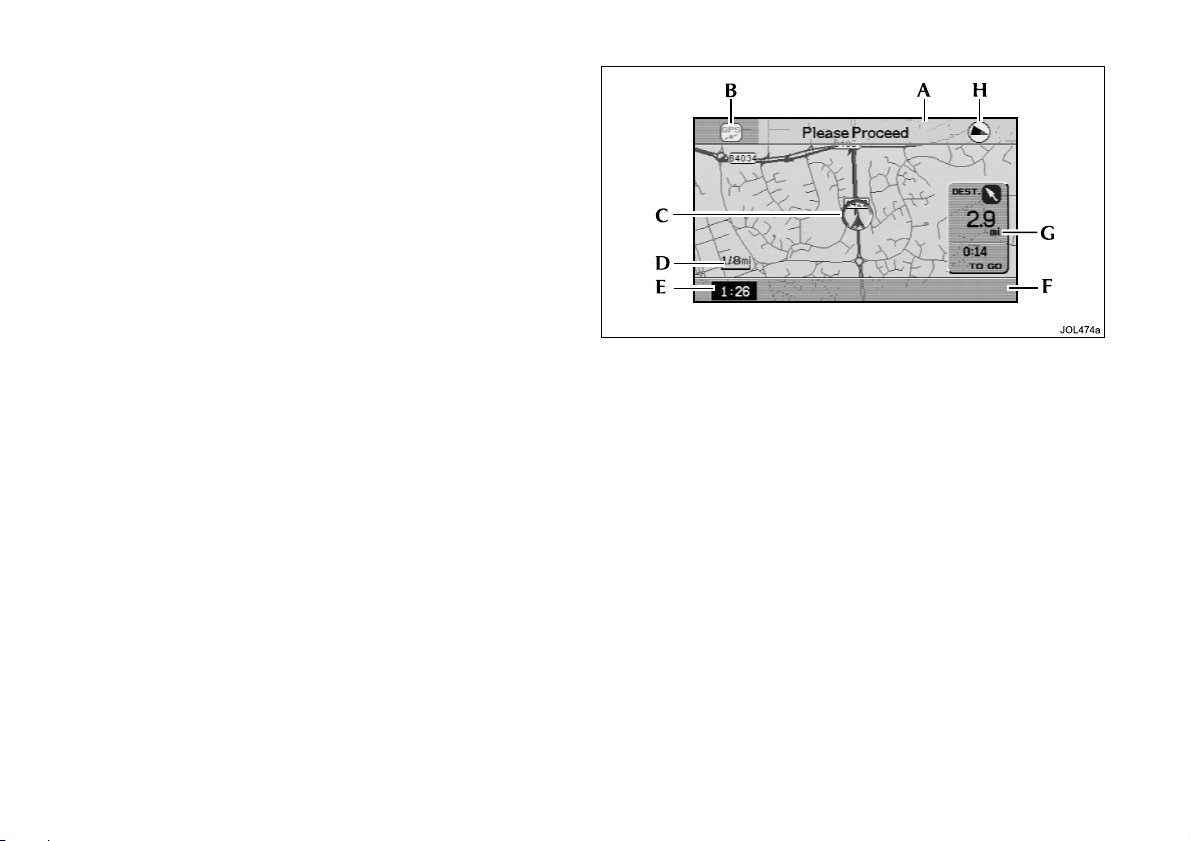

Typical guidance screen
A. Upper message area
B. GPS symbol
C. Navigation symbol
D. Map scale
E. Clock
F. Lower message area
G. Destination information
H. Map orientation symbol
JJM 18 05 14/30
