Antenna Control Module: Service and Repair

Removal

1. Remove the luggage compartment interior trim.

2. Disconnect the antenna module electrical connector.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Antenna Control Module > Component Information > Service and Repair > Page 7

S-Type (X200) V8-4.0L (AJ28) (2001)

3. Detach the antenna module.

4. Disconnect the antenna cables.

5. Remove the antenna module.

- Disconnect the electrical connector.

Installation

1. To install, reverse the removal procedure.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > General Module > Component Information > Description and Operation > Multifunction Electronic Module

General Module: Description and OperationMultifunction Electronic Module

The complexity of the electronics involved with the speedometer and instrument cluster, of which the message center is a part, and the multiplexedcommunication network which are connected to it preclude the use of workshop general electrical test equipment. Therefore, reference should be madeto the PDU User Guide for detailed instructions on testing the message center. The PDU systematically tests and analyses all functions and the various systems affected by it.

Where a fault is indicated, some basic diagnostic methods may be necessary to confirm that connections are good and that wiring is not damaged beforeinstalling a new component.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > General Module > Component Information > Description and Operation > Multifunction Electronic Module > Page 12

General Module: Description and OperationModule Controlled Functions

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > General Module > Component Information > Description and Operation >

Multifunction Electronic Module > Page 13

S-Type (X200) V8-4.0L (AJ28) (2001)

Location

Location Voice Activated Control Component Location Driver Seat Module (DSM)

The DSM is located under the driver seat and controls the seat memory recall positions.

Driver Door Module (DDM)

The DDM is located in the driver door behind the trim panel. The DDM controls the keyless entry operations and global closing.

General Electronic Module (GEM)

The GEM module is located behind the driver side cowl side trim panel. The GEM module controls the wiper and security systems.

Rear Electronic Module (REM)

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > General Module > Component Information > Description and Operation >

Multifunction Electronic Module > Page 14

S-Type (X200) V8-4.0L (AJ28) (2001)

The REM module is located in the passenger side luggage compartment behind the trim panel. The REM module controls the locking/unlocking of therear doors. The GEM and DDM modules interact with the REM.

Voice Activated Control Module (VACM)

The VACM is located in the driver side luggage compartment behind the trim panel. The VACM module controls and processes all the voice commandsgiven by the driver, then delivers this information to the audio unit, GSM or AMPS cellular phones and the climate control modules which then carry outthese commands.

Steering Column Lock Module (SCLM)

The SCLM is located under the steering column and is connected to the clock spring. The SCLM controls the locking and unlocking of the steeringcolumn.

Microphone

The microphone is used for the cellular phone and to receive voice commands for the audio unit and climate control functions. The microphone suppliesthe information to the VACM which processes the commands and supplies the necessary information to the correct modules.

Visual Feedback Message Center Display

This display keeps the driver informed of the function which is being selected or processed.

Audible Feedback Instrument Cluster

This audible tone informs the driver when the system is able to receive commands for processing.

Verbal Feedback Speakers

These speakers are utilized to confirm to the driver that his verbal command has been accepted and is being proceeded.

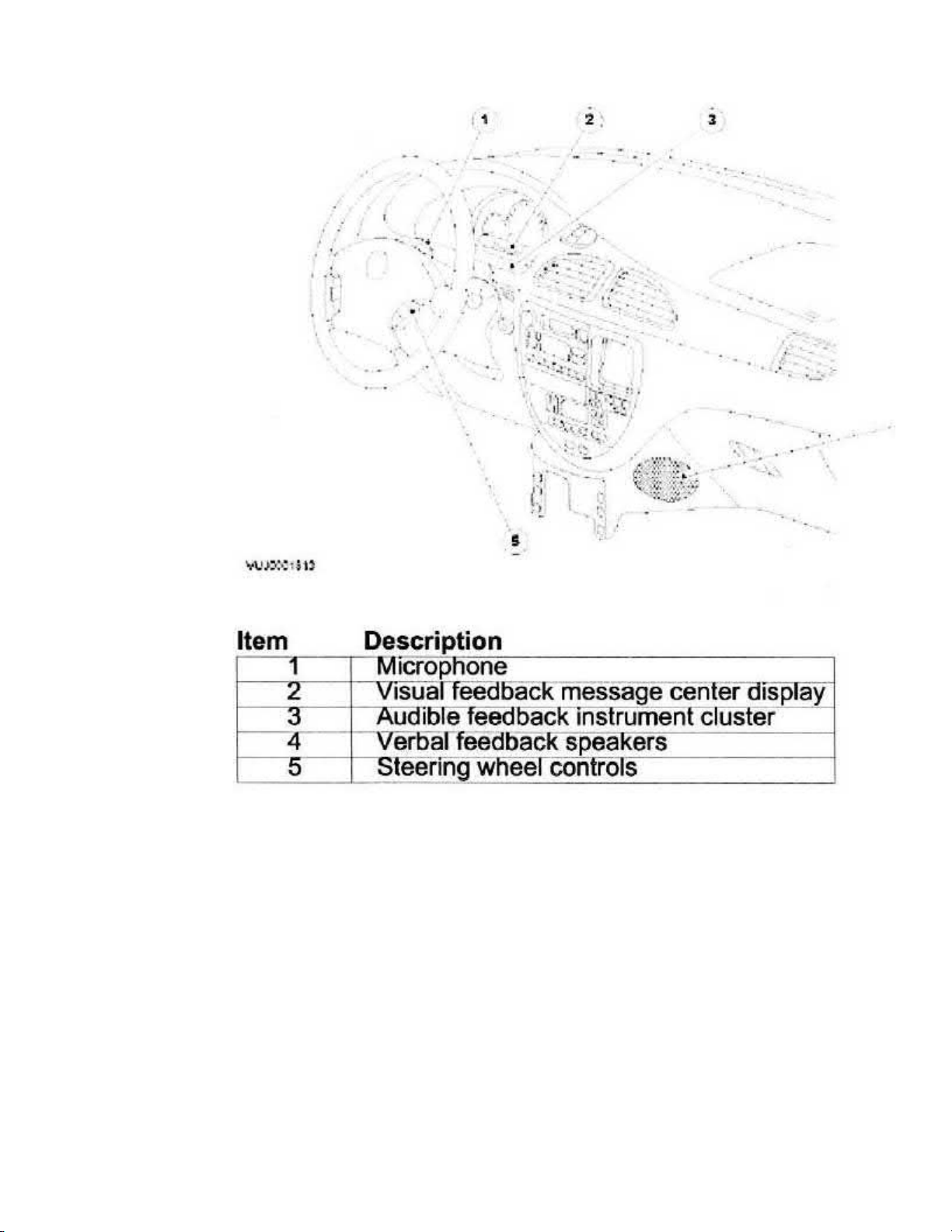

Steering Wheel Controls VOICE/PHONE Buttons

This button is automatically configured by the audio unit depending on which systems are equipped on the vehicle. For additional information, refer tothe Owner Guide.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > General Module > Component Information > Service and Repair > Module - Steering Column Lock (SCLM)

General Module: Service and RepairModule - Steering Column Lock (SCLM)

Removal

1. Prior to removal of the module, it is necessary to upload module configuration information to the PDU. This information needs to beCAUTION:

downloaded into the new module once installed. CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result. Disconnect the battery ground cable.

2. Remove the driver side airbag.

3. Detach the driver side instrument panel lower.

1. Remove the retaining screws.2. Unclip the lower shroud.3. Detach the lower shroud.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > General Module > Component Information > Service and Repair > Module - Steering

Column Lock (SCLM) > Page 17

S-Type (X200) V8-4.0L (AJ28) (2001)

4. Detach the steering column lower shroud.

5. Disconnect the steering column adjustment switch electrical connector.

6. Detach the air bag sliding contact.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > General Module > Component Information > Service and Repair > Module - Steering

Column Lock (SCLM) > Page 18

S-Type (X200) V8-4.0L (AJ28) (2001)

7. Remove the steering column lock module (SCLM).

Installation

Make sure that the SCLM locating dowels are correctly aligned with the steering column.NOTE:

1. To install, reverse the removal procedure.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > General Module > Component Information > Service and Repair > Module - Steering Column Lock (SCLM) > Page 19

General Module: Service and RepairModule - Driver Door (DDM)

Removal

1. Prior to removal of the module, it is necessary to upload module configuration information to the PDU. This information needs to beCAUTION:

downloaded into the new module once installed. CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result. Disconnect the battery ground cable.

2. Remove the driver side door trim panel.

3. Detach the driver door module (DDM).

4. Remove the DDM.

Installation

1. To install, reverse the removal procedure.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > General Module > Component Information > Service and Repair > Module - Steering Column Lock (SCLM) > Page 20

General Module: Service and RepairModule - Rear Electronic (REM)

Removal

needs to be downloaded into the new module once installed. CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Disconnect the battery ground cable.

2. Remove the luggage compartment interior trim.

3. Remove the rear electronics module (REM) retaining bracket.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > General Module > Component Information > Service and Repair > Module - Steering

Column Lock (SCLM) > Page 21

S-Type (X200) V8-4.0L (AJ28) (2001)

4. Disconnect the REM electrical connectors.

5. Remove the REM.

Installation

1. To install, reverse the removal procedure.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > General Module > Component Information > Service and Repair > Module - Steering Column Lock (SCLM) > Page 22

General Module: Service and RepairModule - Voice Activated Control (VACM)

Removal

1. Prior to removal of the module, it is necessary to upload module configuration information to the PDU. This information needs to beCAUTION:

downloaded into the new module once installed. CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result. Disconnect the battery ground cable.

2. Remove the luggage compartment interior trim.

3. Remove the satellite navigation system support bracket.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > General Module > Component Information > Service and Repair > Module - Steering

Column Lock (SCLM) > Page 23

S-Type (X200) V8-4.0L (AJ28) (2001)

4. Disconnect the voice activated control module (VACM) electrical connector.

5. Remove the VACM.

Installation

1. To install, reverse the removal procedure.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > General Module > Component Information > Service and Repair > Module - Steering Column Lock (SCLM) > Page 24

General Module: Service and RepairModule - General Electronic (GEM)

Removal

needs to be downloaded into the new module once installed. CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Disconnect the battery ground cable.

2. Remove the cowl side trim panel.

3. Disconnect the general electronic module (GEM) electrical connectors.

4. Detach the secondary junction box (SJB).

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > General Module > Component Information > Service and Repair > Module - Steering

Column Lock (SCLM) > Page 25

S-Type (X200) V8-4.0L (AJ28) (2001)

5. Detach the GEM.

6. Remove the GEM.

- Disconnect the electrical connectors.

Installation

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > General Module > Component Information > Service and Repair > Module - Steering

Column Lock (SCLM) > Page 26

S-Type (X200) V8-4.0L (AJ28) (2001)

1. To install, reverse the removal procedure.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Navigation Module > Component Information > Technical Service Bulletins > All Technical Service Bulletins for Navigation Module: >

S419-S140 > Feb > 02 > Campaign - Assist Module Replacement

Navigation Module: All Technical Service BulletinsCampaign - Assist Module Replacement

S419-S140

DATE12/01Amended 02/02 S-Type

MODEL2001 MY S-Type

VINL86902-M21959 Jaguar Assist Module - USA Vehicles Only - Install Later Revision Level - Service Action S140 Issue: This service action has been raised to address two issues on USA market S-TYPE vehicles within the above VIN range. VIN RANGE: L86902 - L95498

A number of vehicles equipped with AA revision level modules have potential hidden faults causing spurious error messages to be displayed. If the AAmodule has already been replaced by an AB revision level module, refer to the information below for VIN Range: L95499 - M21959 vehicles.

These modules must be replaced with AC revision level modules and will require an input from the WDS, (software JTP759 Issue 11 or later), toprogram the VIN into the module. An activation request with the vehicles assist system will be required to confirm the system operation and that the VINhas been correctly programmed into the new module. Contact the ATX response center via the vehicle assist system by pressing the "i" button twice.Once contact with the ATX response center has been established, they will confirm that the vehicle's details have been received. VIN RANGE: L95499 - M21959

A number of AB modules have been installed that are out of specification. Approximately 5% of the modules do not have a complete range and areunable to make a call. This is due to the telephone number having 10 digits instead of 11. Contact the ATX response center via the vehicle assist systemby pressing the "i" button twice. Once contact with the ATX response center has been established, advise the response specialist that you need the assistmodule reprogrammed. The reprogramming of the Assist Module will take place over the airwave, once completed this will remedy the concern.

Jaguar North America will be contacting owners to advise them of this issue. Owners will be requested to contact ATX direct or to take their vehicle intotheir local Jaguar Dealer for the reprogramming to be undertaken.

A number of vehicles have received attention at the Port of Entry facility. These vehicles are listed and require no further work under the terms of thisService Action. Action:

Modify the vehicles as follows: MODIFICATION PROCEDURE

1. Open luggage compartment.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Navigation Module > Component Information > Technical Service Bulletins > All

Technical Service Bulletins for Navigation Module: > S419-S140 > Feb > 02 > Campaign - Assist Module Replacement > Page 35

S-Type (X200) V8-4.0L (AJ28) (2001)

2. Fit fender protector covers.

3. Displace luggage compartment carpet.

4. Disconnect vehicle battery.

The following system settings should be recorded prior to disconnecting the battery so that they may be reset to the customers preferred setting: ^ Clock time setting should be reset to display the correct time ^ Clock 12/24 hour setting

^ CD compress mode (if equipped) ^ Navigation volume defaults to 14 (if equipped) ^ Voice feedback volume defaults to 14 (if equipped) ^ Gear box mode ^ Radio presets AM/FM ^ Compass calibration and zone setting ^

Navigation memory will be retained if the battery has not been disconnected longer than 24 hrs. Trip computers (both A & B) will reset tozero, these however cannot be returned to prior readings.

5. Remove satellite navigation system support bracket bolts.

6.

Displace satellite navigation system support bracket. Locate the VEMS module and inspect the label (Illustration 1). If the label indicates an AAsuffix, continue with the procedure.

VEHICLES WITH AB MODULE

If the label in Illustration 1, indicating an AB suffix to the part number, is present on the module you will need to make the activation call using theJaguar Assist System. The upgrade will be completed automatically. The word "UPGRADED" must be marked on the label to indicate that theupgrade has been completed.

7. Reinstall satellite navigation support bracket.

8. Reinstall satellite navigation control module.

9. Reconnect battery and reset all customer preferred settings noted in step 4.

10. Refit luggage compartment carpet.

11. Remove fender protector covers.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Navigation Module > Component Information > Technical Service Bulletins > All

Technical Service Bulletins for Navigation Module: > S419-S140 > Feb > 02 > Campaign - Assist Module Replacement > Page 36

S-Type (X200) V8-4.0L (AJ28) (2001)

12. Close luggage compartment. VEHICLES WITH AA MODULE

If the label in Illustration 1, indicates an AA suffix to the part number, continue as follows:

7. Disconnect Jaguar Assist control module (VEMS module) electrical connector.

8. Remove Jaguar Assist control module.

9. Install new Jaguar Assist control module.

10. Reconnect control module electrical connectors.

11. Reinstall satellite navigation support bracket.

12. Reinstall satellite navigation control module.

13. Reconnect battery and reset all customer preferred settings noted in step 4.

14. Refit luggage compartment carpet.

15. Remove fender protector covers and close luggage compartment.

16. Verify that JTP759 issue 11 or later is installed, and connect the WDS to the vehicle.

17. Complete module configuration program using the WDS.

18. Once reprogramming is complete, disconnect the WDS from vehicle.

19. Place a call to the ATX center to verify system operation. VEHICLES NOT AFFECTED BY THIS SERVICE ACTION

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Navigation Module > Component Information > Technical Service Bulletins > All

Technical Service Bulletins for Navigation Module: > S419-S140 > Feb > 02 > Campaign - Assist Module Replacement > Page 37

S-Type (X200) V8-4.0L (AJ28) (2001)

The vehicles shown have received attention at the Port of Entry facility and require no further work under the terms of this Service Action.

Parts Information

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Navigation Module > Component Information > Technical Service Bulletins > All

Technical Service Bulletins for Navigation Module: > S419-S140 > Feb > 02 > Campaign - Assist Module Replacement > Page 38

S-Type (X200) V8-4.0L (AJ28) (2001)

Warranty Information

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Navigation Module > Component Information > Technical Service Bulletins > All

Technical Service Bulletins for Navigation Module: > S419-S140 > Feb > 02 > Campaign - Assist Module Replacement > Page 39

S-Type (X200) V8-4.0L (AJ28) (2001)

NOTE:

Always perform a DCS claim search first to determine whether this service action has been performed on this vehicle. The warranty selection underthe vehicle inquiry will give a listing of all claims against the vehicle. If S140 appears in the fault code field, do not perform this service action.

CLAIM SUBMISSION PROCEDURE:

Warranty summary codes have been assigned to this service action in order to simplify claim submission. The dealership will be reimbursed the parts andlabor time allowance as indicated. DCS DEALERS Submit claims using the appropriate summary code for the vehicle model and work performed. Follow standard campaign submission procedures.

NON-DCS DEALERS

Submit claims on the Recall Campaign Summary form W-25. Enter the appropriate summary code for the vehicle model and work performed in theRepair Code column. Do not use the W-1 warranty claim form.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Navigation Module > Component Information > Technical Service Bulletins > Recalls for Navigation Module: > S419-S140 > Feb > 02 >

Campaign - Assist Module Replacement

Navigation Module: RecallsCampaign - Assist Module Replacement

S419-S140

DATE12/01Amended 02/02 S-Type

MODEL2001 MY S-Type

VINL86902-M21959 Jaguar Assist Module - USA Vehicles Only - Install Later Revision Level - Service Action S140 Issue: This service action has been raised to address two issues on USA market S-TYPE vehicles within the above VIN range. VIN RANGE: L86902 - L95498

A number of vehicles equipped with AA revision level modules have potential hidden faults causing spurious error messages to be displayed. If the AAmodule has already been replaced by an AB revision level module, refer to the information below for VIN Range: L95499 - M21959 vehicles.

These modules must be replaced with AC revision level modules and will require an input from the WDS, (software JTP759 Issue 11 or later), toprogram the VIN into the module. An activation request with the vehicles assist system will be required to confirm the system operation and that the VINhas been correctly programmed into the new module. Contact the ATX response center via the vehicle assist system by pressing the "i" button twice.Once contact with the ATX response center has been established, they will confirm that the vehicle's details have been received. VIN RANGE: L95499 - M21959

A number of AB modules have been installed that are out of specification. Approximately 5% of the modules do not have a complete range and areunable to make a call. This is due to the telephone number having 10 digits instead of 11. Contact the ATX response center via the vehicle assist systemby pressing the "i" button twice. Once contact with the ATX response center has been established, advise the response specialist that you need the assistmodule reprogrammed. The reprogramming of the Assist Module will take place over the airwave, once completed this will remedy the concern.

Jaguar North America will be contacting owners to advise them of this issue. Owners will be requested to contact ATX direct or to take their vehicle intotheir local Jaguar Dealer for the reprogramming to be undertaken.

A number of vehicles have received attention at the Port of Entry facility. These vehicles are listed and require no further work under the terms of thisService Action. Action:

Modify the vehicles as follows: MODIFICATION PROCEDURE

1. Open luggage compartment.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Navigation Module > Component Information > Technical Service Bulletins > Recalls

for Navigation Module: > S419-S140 > Feb > 02 > Campaign - Assist Module Replacement > Page 45

S-Type (X200) V8-4.0L (AJ28) (2001)

2. Fit fender protector covers.

3. Displace luggage compartment carpet.

4. Disconnect vehicle battery.

The following system settings should be recorded prior to disconnecting the battery so that they may be reset to the customers preferred setting: ^ Clock time setting should be reset to display the correct time ^ Clock 12/24 hour setting

^ CD compress mode (if equipped) ^ Navigation volume defaults to 14 (if equipped) ^ Voice feedback volume defaults to 14 (if equipped) ^ Gear box mode ^ Radio presets AM/FM ^ Compass calibration and zone setting ^

Navigation memory will be retained if the battery has not been disconnected longer than 24 hrs. Trip computers (both A & B) will reset tozero, these however cannot be returned to prior readings.

5. Remove satellite navigation system support bracket bolts.

6.

Displace satellite navigation system support bracket. Locate the VEMS module and inspect the label (Illustration 1). If the label indicates an AAsuffix, continue with the procedure.

VEHICLES WITH AB MODULE

If the label in Illustration 1, indicating an AB suffix to the part number, is present on the module you will need to make the activation call using theJaguar Assist System. The upgrade will be completed automatically. The word "UPGRADED" must be marked on the label to indicate that theupgrade has been completed.

7. Reinstall satellite navigation support bracket.

8. Reinstall satellite navigation control module.

9. Reconnect battery and reset all customer preferred settings noted in step 4.

10. Refit luggage compartment carpet.

11. Remove fender protector covers.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Navigation Module > Component Information > Technical Service Bulletins > Recalls

for Navigation Module: > S419-S140 > Feb > 02 > Campaign - Assist Module Replacement > Page 46

S-Type (X200) V8-4.0L (AJ28) (2001)

12. Close luggage compartment. VEHICLES WITH AA MODULE

If the label in Illustration 1, indicates an AA suffix to the part number, continue as follows:

7. Disconnect Jaguar Assist control module (VEMS module) electrical connector.

8. Remove Jaguar Assist control module.

9. Install new Jaguar Assist control module.

10. Reconnect control module electrical connectors.

11. Reinstall satellite navigation support bracket.

12. Reinstall satellite navigation control module.

13. Reconnect battery and reset all customer preferred settings noted in step 4.

14. Refit luggage compartment carpet.

15. Remove fender protector covers and close luggage compartment.

16. Verify that JTP759 issue 11 or later is installed, and connect the WDS to the vehicle.

17. Complete module configuration program using the WDS.

18. Once reprogramming is complete, disconnect the WDS from vehicle.

19. Place a call to the ATX center to verify system operation. VEHICLES NOT AFFECTED BY THIS SERVICE ACTION

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Navigation Module > Component Information > Technical Service Bulletins > Recalls

for Navigation Module: > S419-S140 > Feb > 02 > Campaign - Assist Module Replacement > Page 47

S-Type (X200) V8-4.0L (AJ28) (2001)

The vehicles shown have received attention at the Port of Entry facility and require no further work under the terms of this Service Action.

Parts Information

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Navigation Module > Component Information > Technical Service Bulletins > Recalls

for Navigation Module: > S419-S140 > Feb > 02 > Campaign - Assist Module Replacement > Page 48

S-Type (X200) V8-4.0L (AJ28) (2001)

Warranty Information

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Navigation Module > Component Information > Technical Service Bulletins > Recalls

for Navigation Module: > S419-S140 > Feb > 02 > Campaign - Assist Module Replacement > Page 49

S-Type (X200) V8-4.0L (AJ28) (2001)

NOTE:

Always perform a DCS claim search first to determine whether this service action has been performed on this vehicle. The warranty selection underthe vehicle inquiry will give a listing of all claims against the vehicle. If S140 appears in the fault code field, do not perform this service action.

CLAIM SUBMISSION PROCEDURE:

Warranty summary codes have been assigned to this service action in order to simplify claim submission. The dealership will be reimbursed the parts andlabor time allowance as indicated. DCS DEALERS Submit claims using the appropriate summary code for the vehicle model and work performed. Follow standard campaign submission procedures.

NON-DCS DEALERS

Submit claims on the Recall Campaign Summary form W-25. Enter the appropriate summary code for the vehicle model and work performed in theRepair Code column. Do not use the W-1 warranty claim form.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Navigation Module > Component Information > Service and Repair > Module - Navigation

Navigation Module: Service and RepairModule - Navigation

Removal

1. Make sure the navigation CD has been removed before disconnecting the battery ground cable. NOTE:

Disconnect the battery ground cable.

2. Remove the navigation module protective trim panel.

3. Detach the navigation module.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Navigation Module > Component Information > Service and Repair > Module -

Navigation > Page 52

S-Type (X200) V8-4.0L (AJ28) (2001)

4. Remove the navigation module.

Installation

1. To install, reverse the removal Procedure.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Navigation Module > Component Information > Service and Repair > Module - Navigation > Page 53

Navigation Module: Service and RepairModule - Trafficmaster

Removal

1. Remove the satellite navigation module. See: Module - Navigation

2. Detach the satellite navigation module support bracket.

3. Detach the Trafficmaster module.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Navigation Module > Component Information > Service and Repair > Module -

Navigation > Page 54

S-Type (X200) V8-4.0L (AJ28) (2001)

4. Remove the Trafficmaster module.

- Disconnect the Trafficmaster electrical connectors.

Installation

1. To install, reverse the removal procedure.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Parking Aid Module <--> [Parking Assist Control Module] > Component Information > Service and Repair

Parking Aid Module: Service and Repair

Removal

1. Disconnect the battery ground cable.2. Remove the spare wheel.

3. Disconnect the parking aid control module electrical connector.

4. Remove the parking aid control module.

Installation

1. To install, reverse the removal procedure.

> Relays and Modules > Relays and Modules - Body and Frame > Door Module > Component Information > Service and Repair

Door Module: Service and Repair

Module - Driver Door (DDM) Removal

1. Disconnect the battery ground cable.

CAUTION: Prior to removal of the module, it is necessary to upload module configuration information to the PDU. This informationneeds to be downloaded into the new module once installed. CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

2. Remove the driver side door trim panel.

3. Detach the driver door module (DDM).

4. Remove the DDM.

Installation

1. To install, reverse the removal procedure.

> Relays and Modules > Relays and Modules - Body and Frame > Power Seat Control Module > Component Information > Service and Repair

Power Seat Control Module: Service and Repair

Removal All Vehicles

1. Remove the front driver seat.2. Remove the front seat adjustment switches.

Vehicles With Heated Seats

3. Disconnect the heated seat electrical connector.

All Vehicles

> Relays and Modules > Relays and Modules - Body and Frame > Power Seat Control Module > Component Information > Service and Repair > Page 65

S-Type (X200) V8-4.0L (AJ28) (2001)

4. Remove the seat base.

5. Disconnect the driver seat module (DSM) electrical connectors.

6. Remove the DSM.

1. Remove the screws.2. Remove the DSM.

Installation

1. To install, reverse the removal procedure.

> Relays and Modules > Relays and Modules - Body and Frame > Roof Opening Panel Module <--> [Sunroof / Moonroof Module] > Component Information > Specifications

Roof Opening Panel Module: Specifications

Torque Specifications

Roof opening panel control module..................................................................................................................................................................3 Nm (2 Lb-Ft)

> Relays and Modules > Relays and Modules - Body and Frame > Roof Opening Panel Module <--> [Sunroof / Moonroof Module] > Component Information > Specifications > Page 69

Roof Opening Panel Module: Testing and Inspection

1. It may be necessary to slightly separate the rail assembly to visually see the two holes line up.NOTE:

Align the holes in the mechanism on each side.

2. The alignment pins must remain in place until the roof opening panel control module is installed.NOTE:

Install an alignment pin in the alignment hole in each side of the mechanism.-

The alignment pin should be approximately .2.83 mm (0.11 in)

> Relays and Modules > Relays and Modules - Body and Frame > Roof Opening Panel Module <--> [Sunroof / Moonroof Module] > Component Information > Specifications > Page 70

Roof Opening Panel Module: Service and Repair

Roof Opening Panel Module (86.76.07) Removal

1. Remove the headliner.

2. CAUTION: Do not operate the roof opening panel when the roof opening glass is removed.

Remove the roof opening panel glass.

3. Disconnect the roof opening panel harness electrical connector.

4. Detach the roof opening panel drain hoses

5. Remove the roof opening panel frame bolts.

6. Remove the roof opening panel frame bracket.

> Relays and Modules > Relays and Modules - Body and Frame > Roof Opening Panel Module <--> [Sunroof / Moonroof Module] > Component Information > Specifications

> Page 71

S-Type (X200) V8-4.0L (AJ28) (2001)

7. CAUTION: Take care to support roof opening panel frame as final bolts are removed.

Remove the roof opening panel frame bolts. Left-hand side shown, right-hand side similar.

8. Remove the roof opening panel frame.

9. Disconnect the roof opening panel control module electrical connectors.

12. Remove the roof opening panel control module locating screw.

> Relays and Modules > Relays and Modules - Body and Frame > Roof Opening Panel Module <--> [Sunroof / Moonroof Module] > Component Information > Specifications

> Page 72

S-Type (X200) V8-4.0L (AJ28) (2001)

10. Remove the electrical harness cable tie.11. Remove the roof opening panel motor assembly.

13. Remove the roof opening panel control module.

Installation

1. The control module wax timing pin is still in place.NOTE:

Make sure the shoulder of each cable sleeve is correctly seated in the roof opening panel control module.

2. Fully tighten the control module screw.

Install the roof opening panel motor screws.

4. Remove the control module wax timing pin.

> Relays and Modules > Relays and Modules - Body and Frame > Roof Opening Panel Module <--> [Sunroof / Moonroof Module] > Component Information > Specifications

> Page 73

S-Type (X200) V8-4.0L (AJ28) (2001)

5. Install the electrical harness cable tie.6. Reconnect the roof opening panel control module electrical connectors.

7. CAUTION: Make sure the guide obscuration shields are in the correct position.

Install the roof opening panel frame.

8. Loosely install roof opening panel frame bolts.NOTE:

Align the roof opening panel frame using a 12 mm drill bit.

9. The roof opening panel frame bolts must be tightened in the following sequence.NOTE:

Install the roof opening panel frame bolt.

10. Install the roof opening panel frame bolt.

> Relays and Modules > Relays and Modules - Body and Frame > Roof Opening Panel Module <--> [Sunroof / Moonroof Module] > Component Information > Specifications

> Page 74

S-Type (X200) V8-4.0L (AJ28) (2001)

11. Install the roof opening panel frame bolt.

12. Install the roof opening panel frame bolt.

13. Install the roof opening panel frame bolts.

14. CAUTION: Make sure the anti-flutter bracket is lightly pressed to both mating surfaces before tightening.

Install the roof opening panel frame bracket bolt.

15. Install the roof opening panel frame bracket bolt.

> Relays and Modules > Relays and Modules - Body and Frame > Roof Opening Panel Module <--> [Sunroof / Moonroof Module] > Component Information > Specifications

> Page 75

S-Type (X200) V8-4.0L (AJ28) (2001)

16. CAUTION: Make sure the anti-flutter bracket is lightly pressed to both mating surfaces before tightening.

Install the roof opening panel frame bracket bolt.

17. Install the roof opening panel frame bracket bolt.

18. Reconnect the roof opening panel harness electrical connector.

19. Make sure the obscuration shields are correctly seated.

20. Install the roof opening panel glass.21. Adjust the roof opening glass height.22. Operate the roof opening panel.

Check for correct synchronization. Check the rear profile position is the same when closing the roof opening panel from the "tilt" and "open"position.

23. Install the headliner.

> Relays and Modules > Relays and Modules - Brakes and Traction Control > ABS / Traction Control Module <--> [Electronic Brake Control Module] > Component Information > Technical Service Bulletins > Brakes - ABS

Module Fault Diagnostics

ABS / Traction Control Module: Technical Service BulletinsBrakes - ABS Module Fault Diagnostics

NUMBERST100-022

MODELS-TYPE

DATE07 Dec 2006 SECTION: 100-00 - GENERAL INFORMATION Internal Control Module Faults Relating to the ABS Module Diagnosis

AFFECTED VEHICLE RANGE:S-TYPE

VIN: L00001 onwards

Model Year: 2000 onwards CONDITION SUMMARY: DIAGNOSTIC GUIDANCE FOR INTERNAL CONTROL MODULE FAULTS RELATING TO ABS MODULE DIAGNOSIS

Situation:This bulletin has been issued to provide diagnostic guidance for internal control module faults relating to an Anti-lock Braking System (ABS) modulediagnosis.

Action:Should a DTC for an ABS/DSC module indicate any form of "internal control module error", refer to the Repair Procedure detailed in this bulletin toresolve the concern.

PARTS:No parts required for this bulletin. Diagnostic information only.

WARRANTY:No warranty provided for this bulletin. Diagnostic information only. Normal warranty policy and procedures apply. REPAIR PROCEDURE INTERNAL CONTROL MODULE ERRORS RELATING TO THE ABS MODULE

:NOTE

> Relays and Modules > Relays and Modules - Brakes and Traction Control > ABS / Traction Control Module <--> [Electronic Brake Control Module] > Component

Information > Technical Service Bulletins > Brakes - ABS Module Fault Diagnostics > Page 81

S-Type (X200) V8-4.0L (AJ28) (2001)

"Internal control module errors" may be the result of components within the ABS/Dynamic Stability Control (DSC) module. These may includeproblems with the microprocessor, power supply or driver circuit (e.g. valve driver circuits). Internal control module errors are usually a goodindication of a genuine control module fault, but can sometimes be logged as a result of other faults that are external to the control module.

:NOTE

After following the guidance in this bulletin, if no definite cause was found for an internal control module DTC, and the vehicle does not have ahistory of repeat failures, and all DTCs have been cleared and have not returned after a test drive of at least 10 miles (16km), the vehicle can bereturned to the customer.

IDENTIFY AND RESOLVE FAULTS

:NOTE

A Midtronics battery charger PSC550 must be connected to the vehicle battery during diagnostic sessions.

1. Connect the diagnostic equipment to the vehicle and begin a WDS or IDS session.

:NOTE

DTCs and snap shot data should be noted at all stages during the diagnosis. This information will be needed in the event further assistance isrequested from Jaguar Technical Helpline.

2.

DTCs and collect snap shot data.Note

:NOTE

Faults may be either "permanent" or "intermittent". Intermittent faults can be difficult to find but are usually caused by wiring or connectorissues. A "permanent" fault may indicate that a control module has internal damage. If internal damage is discovered, the module should bereplaced.

A fault may be determined to be either "permanent" or "intermittent" by using the diagnostic tool to clear the Diagnostic Trouble Code (DTC)and carrying out an ignition reset or completing a short drive cycle. A short drive cycle involves driving the vehicle in a straight line up to aspeed of 15 mph (24 kph).

3. Determine if a fault is "permanent" or "intermittent" as follows: ^ Clear the DTC. ^ Carry out an ignition reset. ^

If the fault immediately returns on the next ignition reset or short drive cycle, and if it is the only fault that returns, the fault is "permanent" andthe control module should be replaced.

:NOTE

Internal control module errors can be caused by corrupted sensor or Controller Area Network (CAN) information being fed into the controlmodule. A faulting sensor may be the cause of these errors but will typically log other DTCs in addition. It is necessary to investigate the causeof any other DTCs and fix the issues causing them before going any further. Resolving a problem causing other DTCs may also resolve the"internal control module error".

4. Resolve DTCs that are not flagged as an "internal control module error".

5. Verify if the DTC resolutions have cleared the "internal control module error" DTC.

:NOTE

Internal control module errors can be caused by poor or intermittent contact to power or ground. The integrity of the control module power andground connections should therefore be checked. Check for continuity and short circuits. Where possible, flex wires while checking to searchfor intermittent faults. "internal control module errors" are more likely to be caused by electrical "spikes" than by prolonged power/groundbreaks.

6. Check the integrity of the control module power and ground connections.

7. Check for continuity and short circuits while flexing wires, where possible, to search for intermittent faults.

Disclaimer

> Relays and Modules > Relays and Modules - Brakes and Traction Control > ABS / Traction Control Module <--> [Electronic Brake Control Module] > Component Information > Diagrams > DSC Control Module Harness

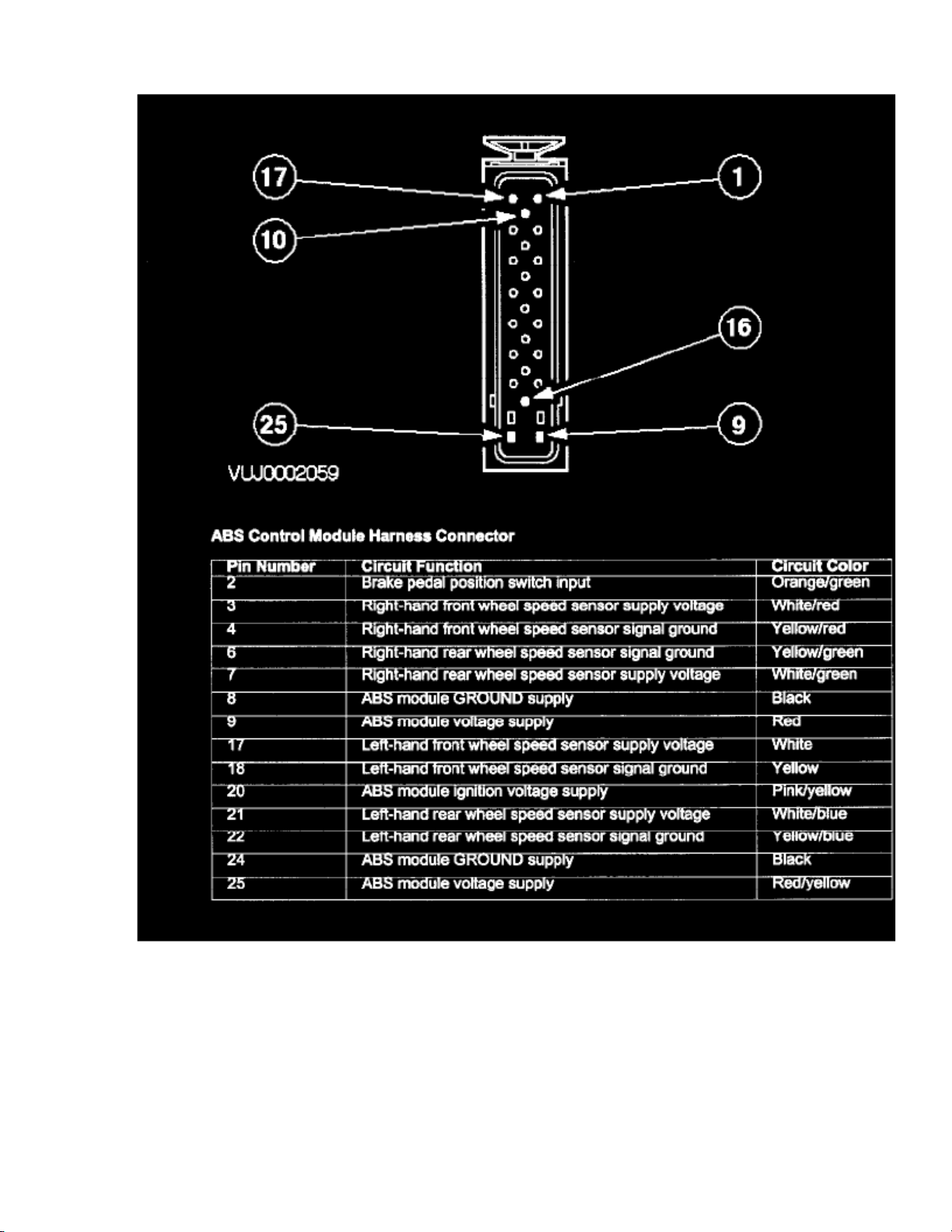

Control

> Relays and Modules > Relays and Modules - Brakes and Traction Control > ABS / Traction Control Module <--> [Electronic Brake Control Module] > Component Information > Diagrams > DSC Control Module Harness

Control > Page 84

> Relays and Modules > Relays and Modules - Brakes and Traction Control > Parking Brake Control Module > Component Information > Technical Service Bulletins > All Technical Service Bulletins for Parking Brake Control

Module: > JTB00044 > Jul > 07 > Brakes - Parking Brake Won't Release

Parking Brake Control Module: All Technical Service BulletinsBrakes - Parking Brake Won't Release

NUMBER:JTB00044

MODEL:S-TYPE, XJ

DATE:JULY 12, 2007 SECTION 206-00 Parking Brake Does not Release

AFFECTED VEHICLE RANGE CONDITION SUMMARY: LOW VOLTAGE BLOCKS PARKING BRAKE RELEASE Cause:

The parking brake module is sensitive to battery voltage below 8 volts for more than 20 milliseconds. When a vehicle has been left parked for someperiod it is possible that this threshold may be reached. Action:

Should a customer express concern, re-configure the parking brake module to the new software level to resolve this issue using Integrated DiagnosticSystem (IDS). Follow the Repair Procedure outlined in this bulletin. PARTS:

No parts required TOOLS: IDS DVD107 with Patch File 4

WARRANTY:

Jaguar S-Type (2001) Workshop Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
