Jaguar Jaguar XF (2007) Owner’s Manual

OWNER’S HANDBOOK

Publication Part No. JJM 10 02 40 101

IMPORTANT

This handbook forms part of the Owner literature supplied with your new vehicle. Left-hand drive and right-hand drive conditions may be shown in the graphics and where information is specific to a particular country, it is indicated as such.

Please take the time to study the operating instructions with your vehicle as soon as you can.

The information contained in this handbook covers all vehicle derivatives and optional equipment. Some of the options may not be fitted to your vehicle, unless they formed part of the original vehicle specification. Therefore, some parts of this handbook may not apply to your vehicle. Furthermore, due to printing cycles, it may include descriptions of options before they become generally available.

The options, hardware and software in your vehicle are from the available specifications for the market in which the vehicle was intended for sale. If your vehicle is to be used in another geographical area, you may have to modify the vehicle specification to suit local conditions. Jaguar Cars Limited is not responsible for the cost of any modifications.

The information contained in this publication was correct when it went to print. Vehicle design changes may have been made after this handbook was printed. When this occurs a handbook supplement is added to the literature pack. Subsequent updates can be viewed on the Jaguar Internet site at: www.ownerinfo.jaguar.com.

In the interest of development, the right is reserved to change specifications, design or equipment at any time without notice and without incurring any obligations. This publication, or part thereof, may not be reproduced nor translated without our approval. Errors and omissions excepted.

Published by Jaguar Technical Communications.

Contents

Introduction

SYMBOLS GLOSSARY ...................................... 9

LABEL LOCATIONS ........................................... 9

HEALTH AND SAFETY ..................................... 10

DATA RECORDING.......................................... 11

DISABILITY MODIFICATIONS ......................... 11

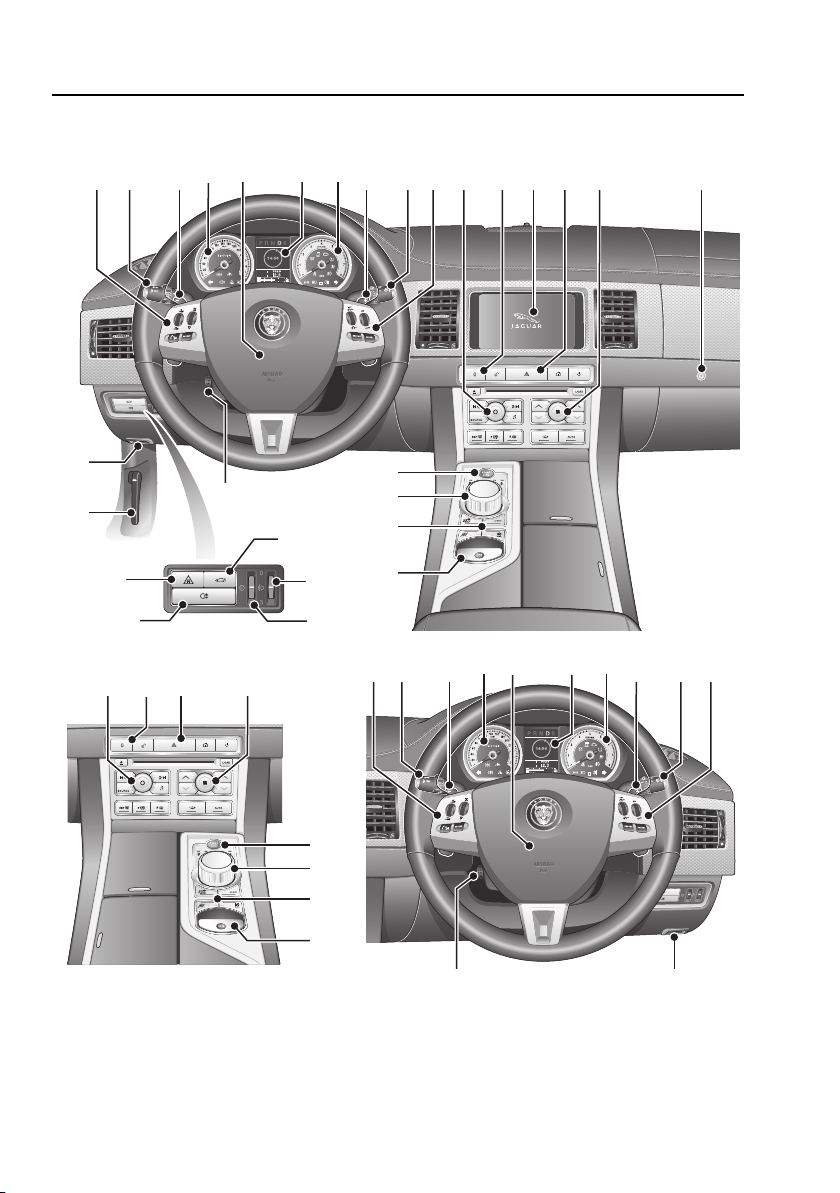

FASCIA AND CONTROLS ................................ 12

PARTS AND ACCESSORIES............................ 14

Keys and remote controls

PRINCIPLE OF OPERATION ............................ 16

GENERAL INFORMATION ON RADIO

FREQUENCIES ................................................ 16

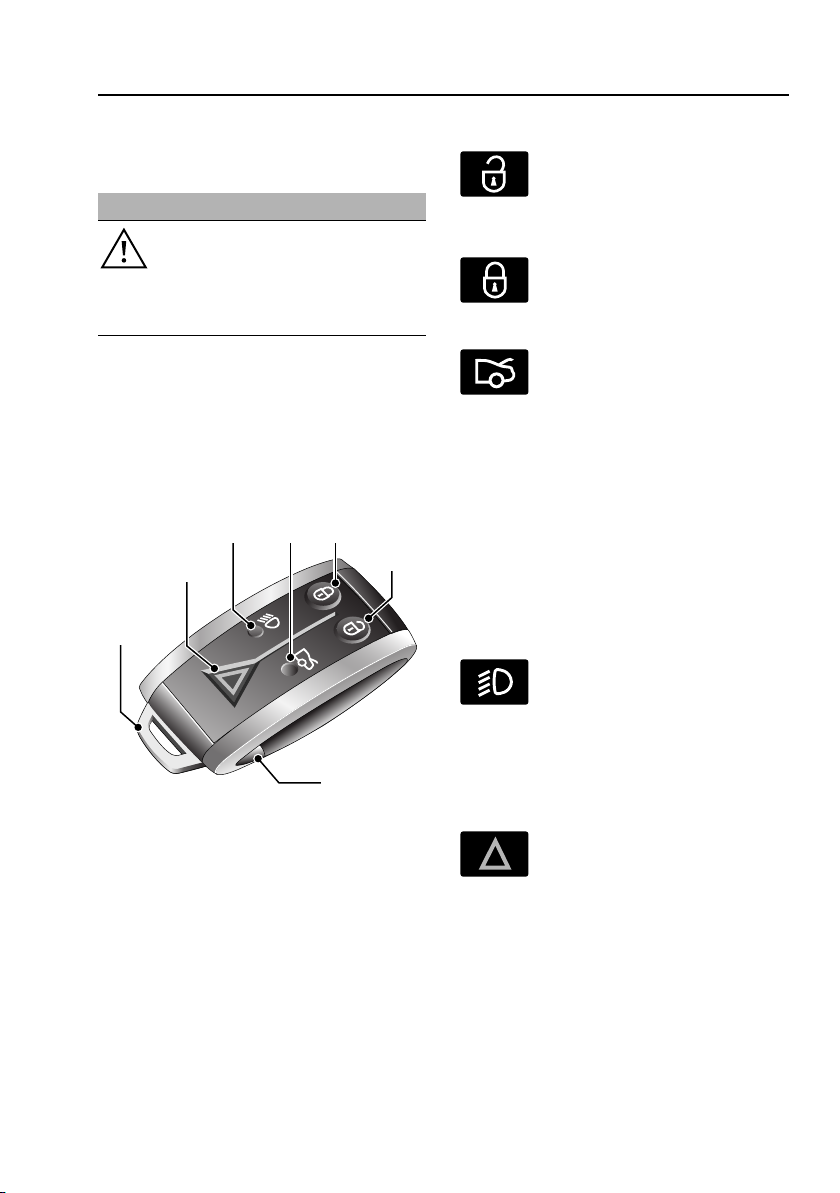

USING THE REMOTE CONTROL ..................... 17

UNLOCKING AND DISARMING THE VEHICLE. 18

LOCKING AND ARMING THE VEHICLE ........... 19

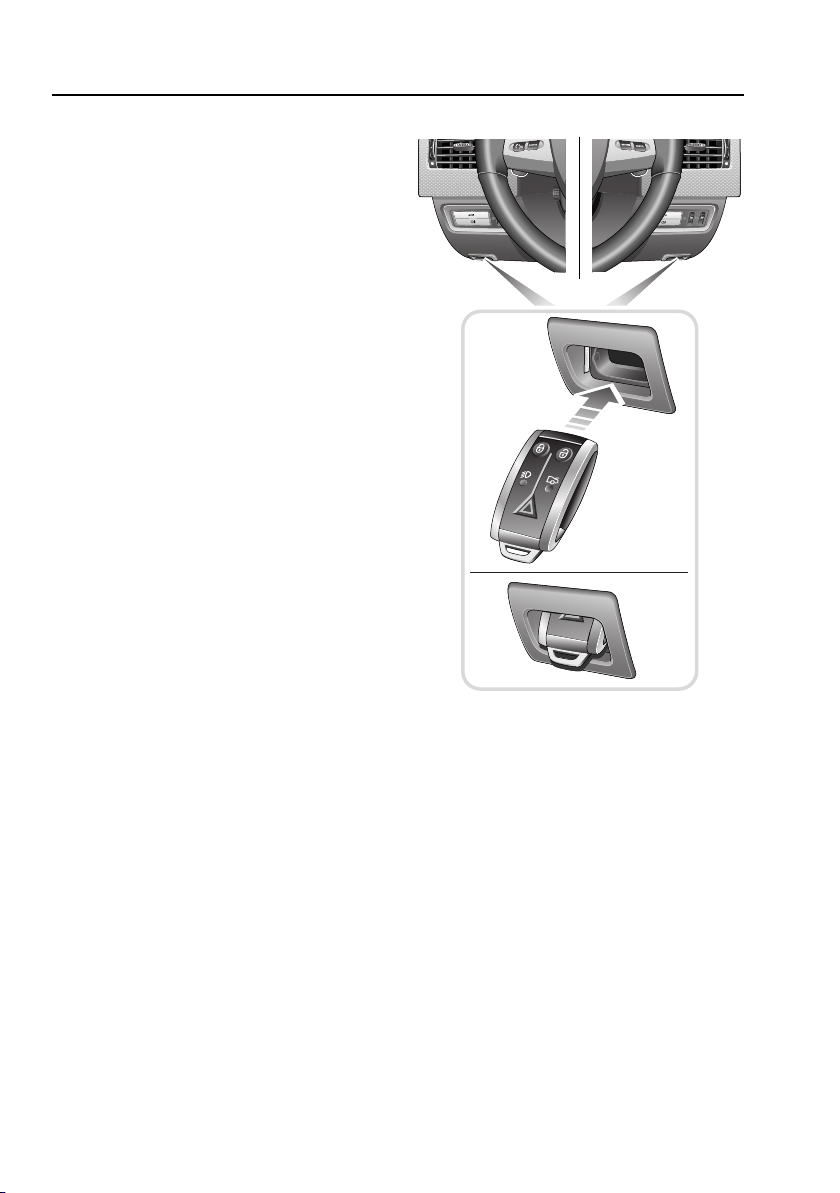

DOCKING/UNDOCKING THE JAGUAR SMART

KEY ................................................................. 20

PROGRAMMING THE REMOTE CONTROL...... 21

CHANGING THE REMOTE CONTROL BATTERY ... 24

EMERGENCY KEY BLADE ............................... 25

Locks

LOCKING AND UNLOCKING............................ 26

USING THE EMERGENCY KEY BLADE ............ 28

VALET MODE.................................................. 30

JAGUAR SMART KEY SYSTEM TRANSMITTERS 32

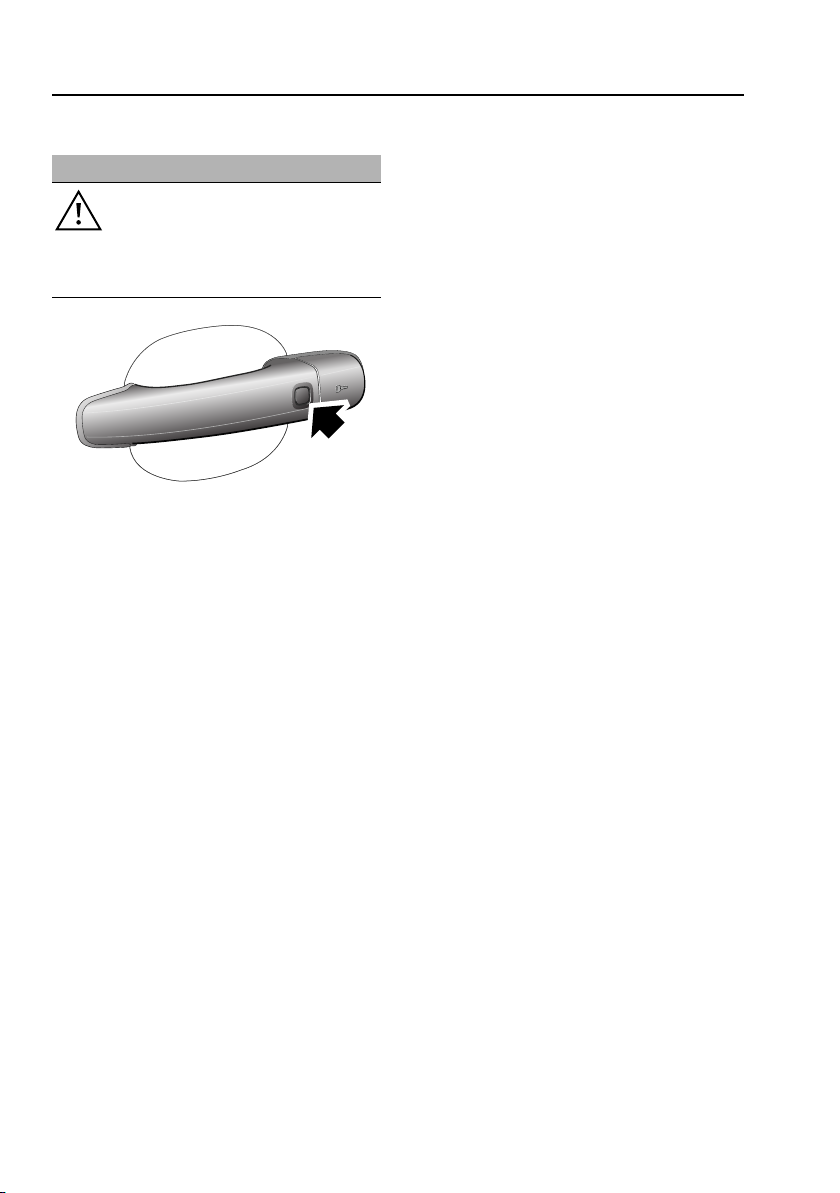

KEYLESS ENTRY ............................................ 33

GLOBAL OPENING AND CLOSING .................. 35

SEAT BELT REMINDER .................................. 50

USING SEAT BELTS DURING PREGNANCY.... 51

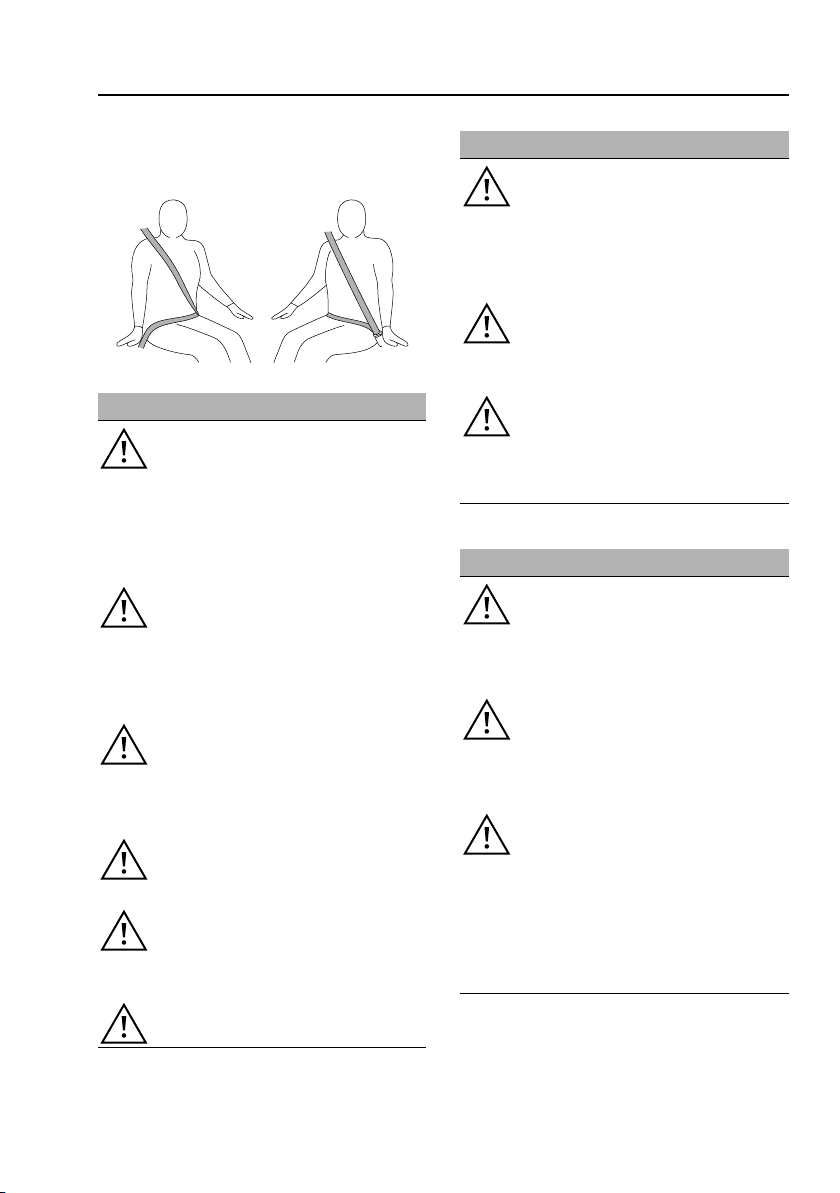

FASTENING THE SEAT BELTS ........................ 51

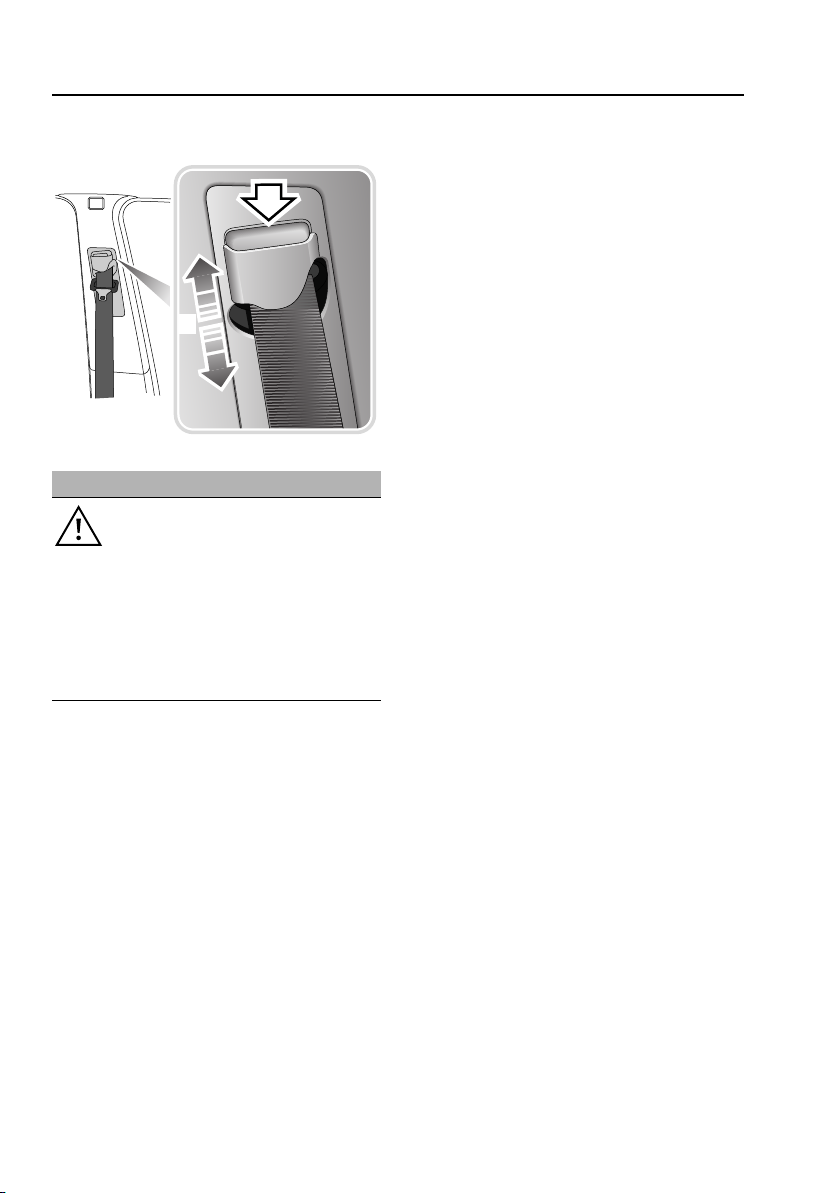

SEAT BELT HEIGHT ADJUSTMENT ................ 52

Supplementary restraints system

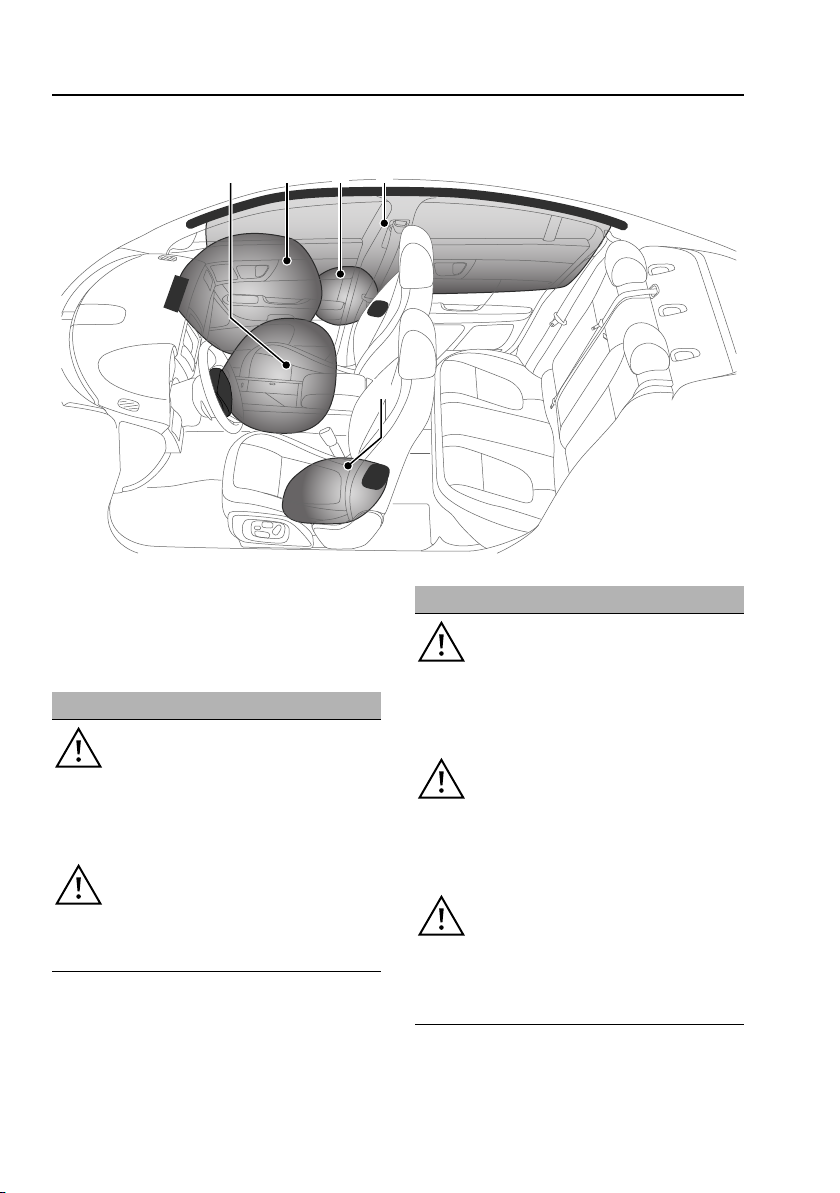

PRINCIPLE OF OPERATION ............................ 53

AIRBAG WARNING LAMP .............................. 57

WHIPLASH PROTECTION ............................... 57

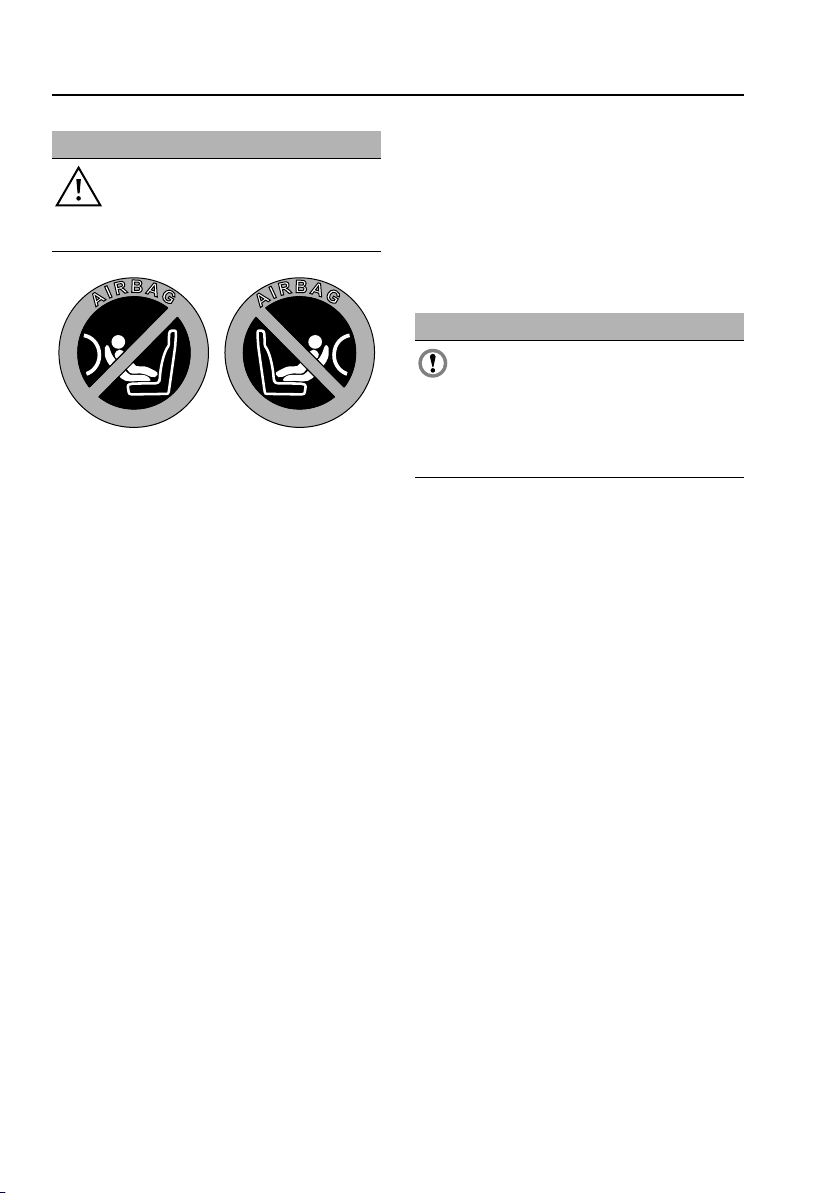

AIRBAG LABELS............................................. 58

AIRBAG SERVICE INFORMATION................... 58

Child safety

CHILD SEATS ................................................. 59

CHILD SEAT POSITIONING ............................ 60

BOOSTER CUSHIONS ..................................... 61

CHILD SEAT ANCHOR POINTS ....................... 62

CHILD SAFETY LOCKS ................................... 65

Pedestrian protection

PRINCIPLE OF OPERATION ............................ 66

AFTER DEPLOYMENT OF THE PEDESTRIAN

PROTECTION SYSTEM ................................... 66

Steering wheel

ADJUSTING THE STEERING WHEEL .............. 67

HORN ............................................................. 68

HEATED STEERING WHEEL............................ 68

AUDIO CONTROL ........................................... 69

VOICE CONTROL ............................................ 69

CRUISE CONTROL.......................................... 74

Alarm

ARMING THE ALARM ..................................... 37

DISARMING THE ALARM ............................... 38

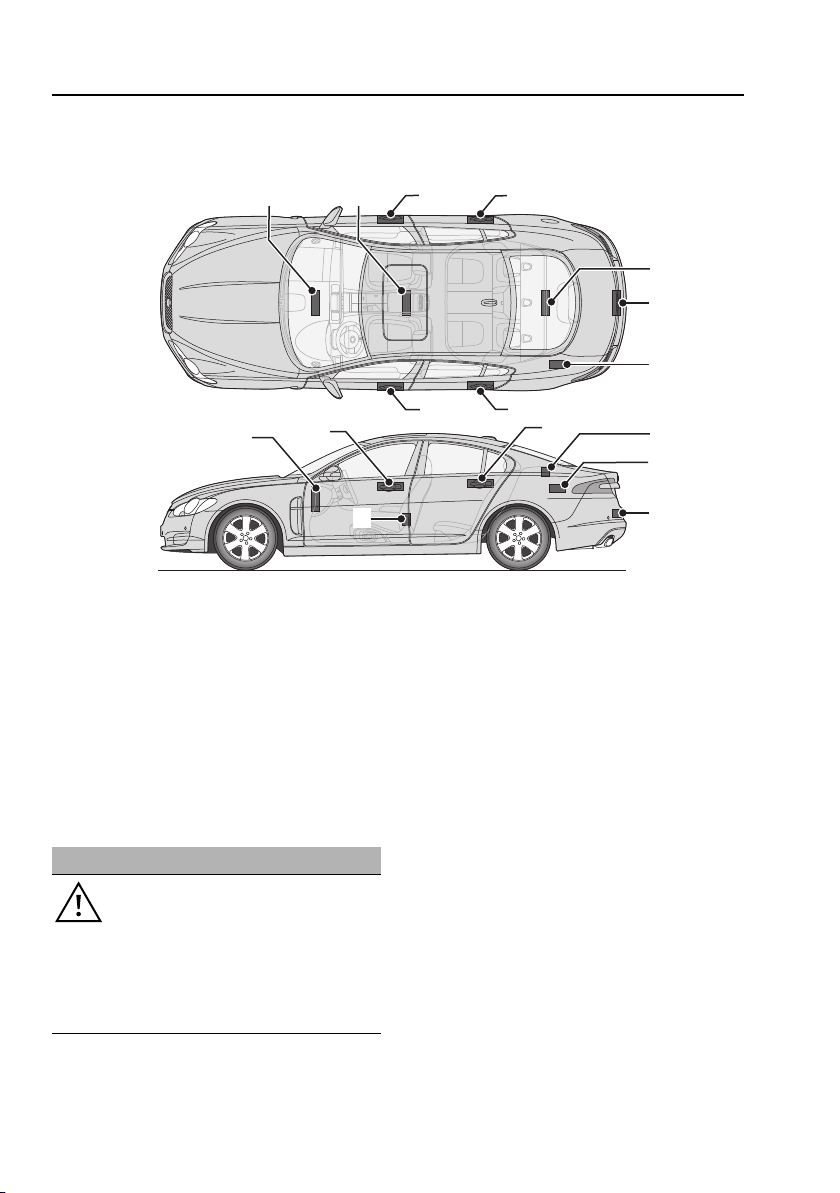

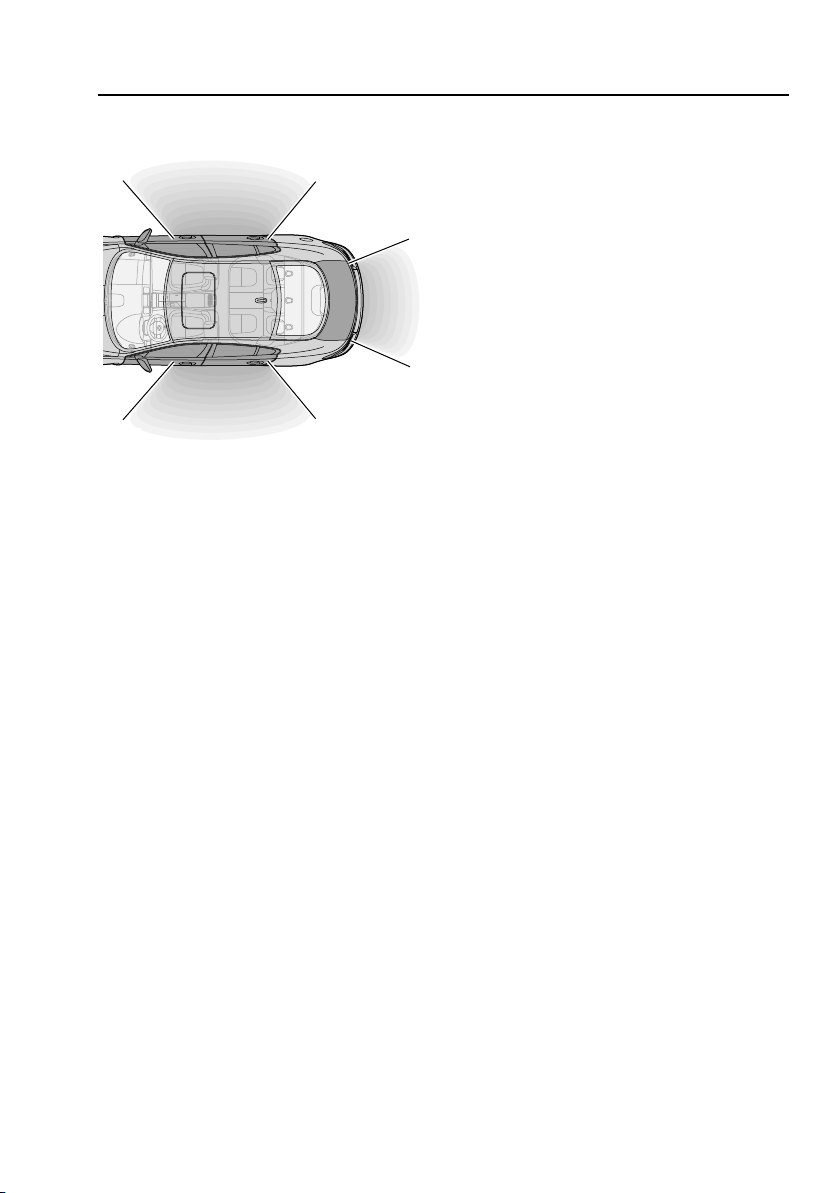

SECURITY SENSORS ...................................... 39

Seats

SITTING IN THE CORRECT POSITION ............ 41

ELECTRIC SEATS ............................................ 42

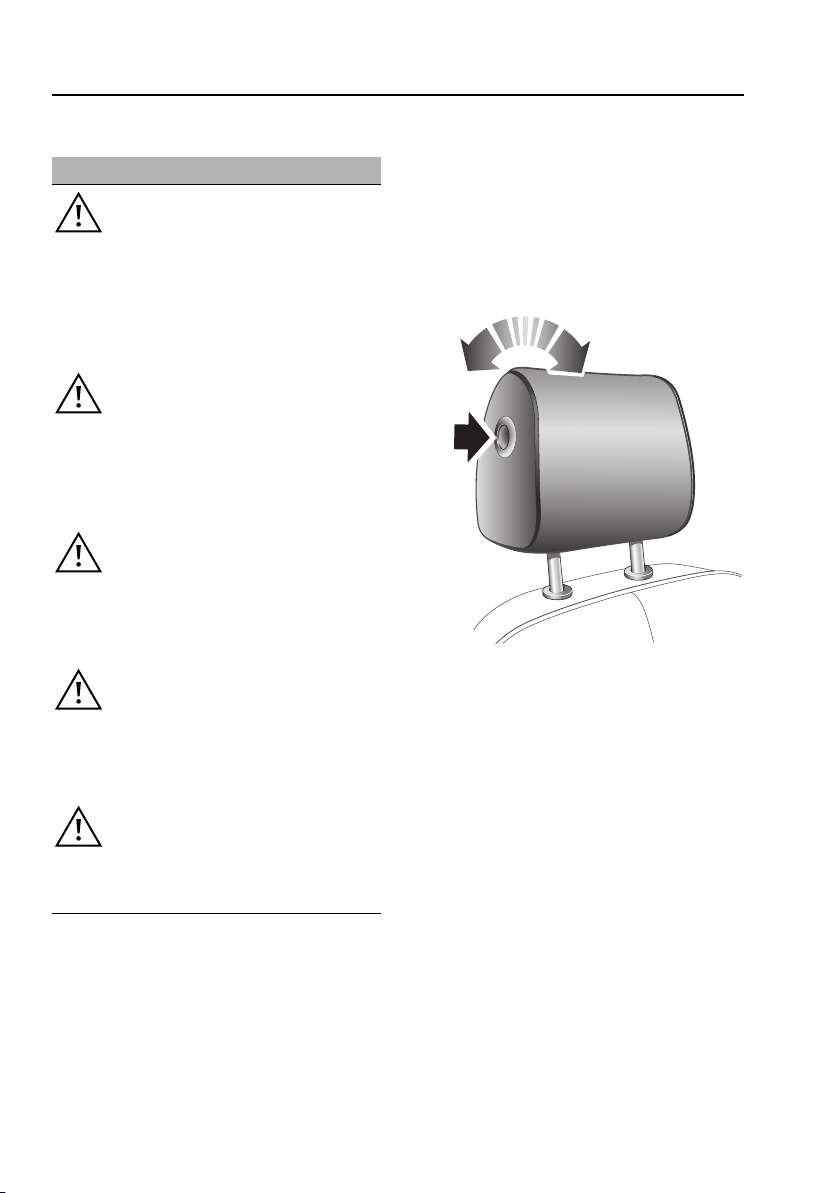

HEAD RESTRAINTS ........................................ 44

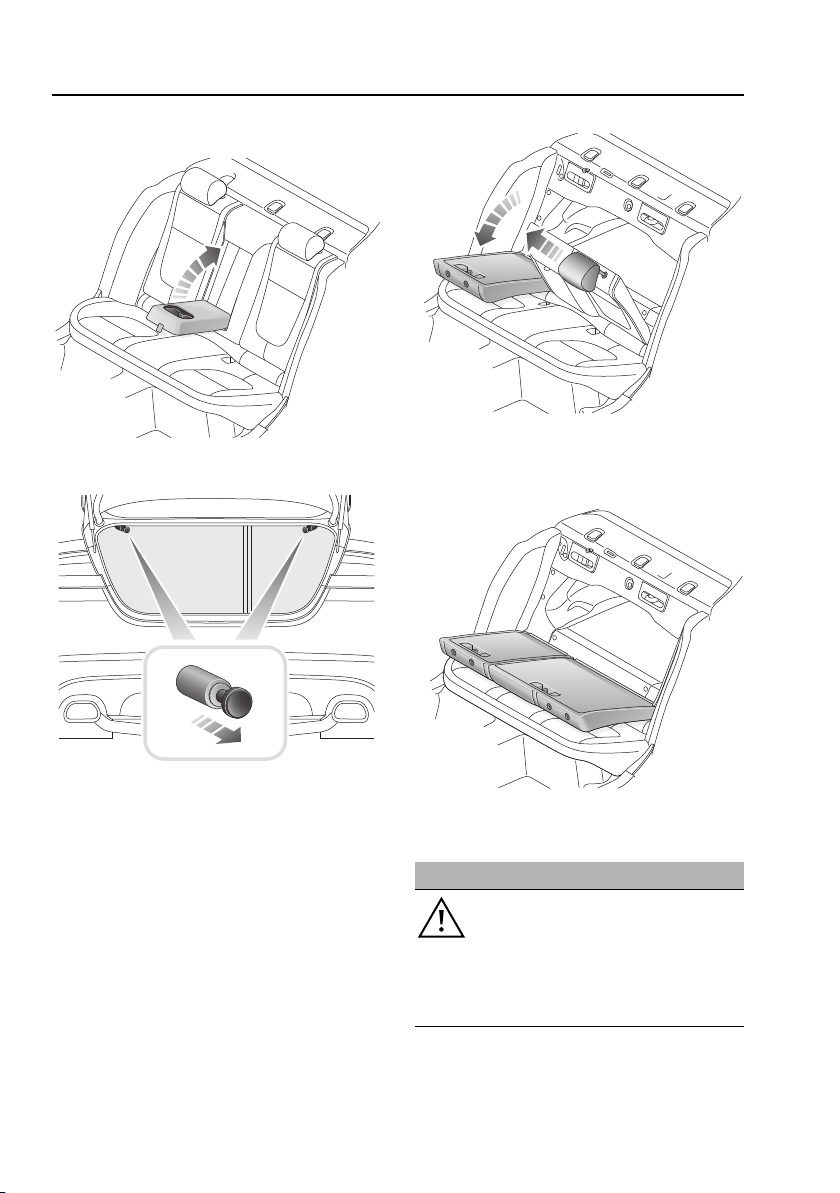

REAR SEATS................................................... 45

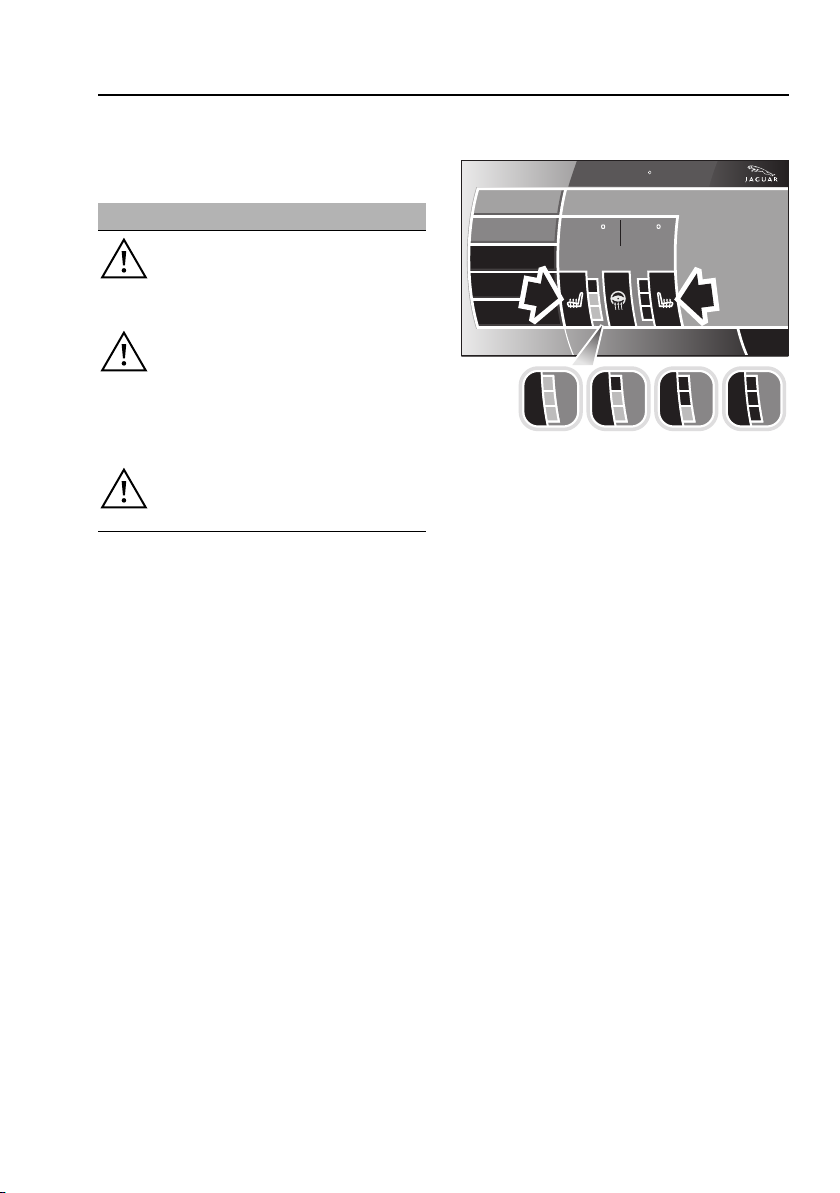

HEATED SEATS............................................... 47

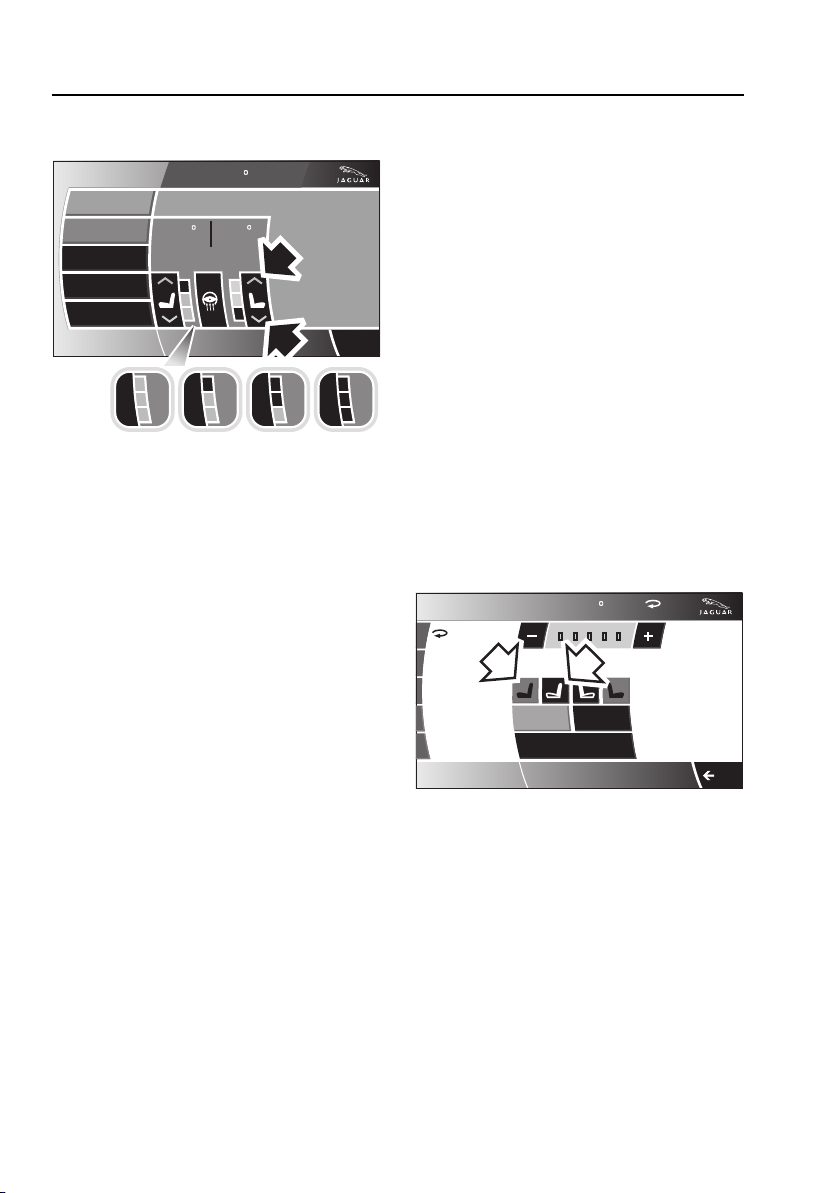

CLIMATE SEATS ............................................. 48

Seat belts

PRINCIPLE OF OPERATION ............................ 49

Lighting

LIGHTING CONTROL ...................................... 75

AUTOLAMPS .................................................. 76

REAR FOG LAMPS.......................................... 77

HAZARD WARNING FLASHERS...................... 77

DIRECTION INDICATORS ............................... 78

HEADLAMPS - DRIVING ABROAD.................. 78

HEADLAMP LEVELLING ................................. 79

CORNERING OR STATIC BENDING LAMPS.... 79

INTERIOR LAMPS .......................................... 80

APPROACH LAMPS ........................................ 81

REMOVING A HEADLAMP .............................. 81

REMOVING A REAR LAMP ............................. 82

CHANGING A BULB ........................................ 83

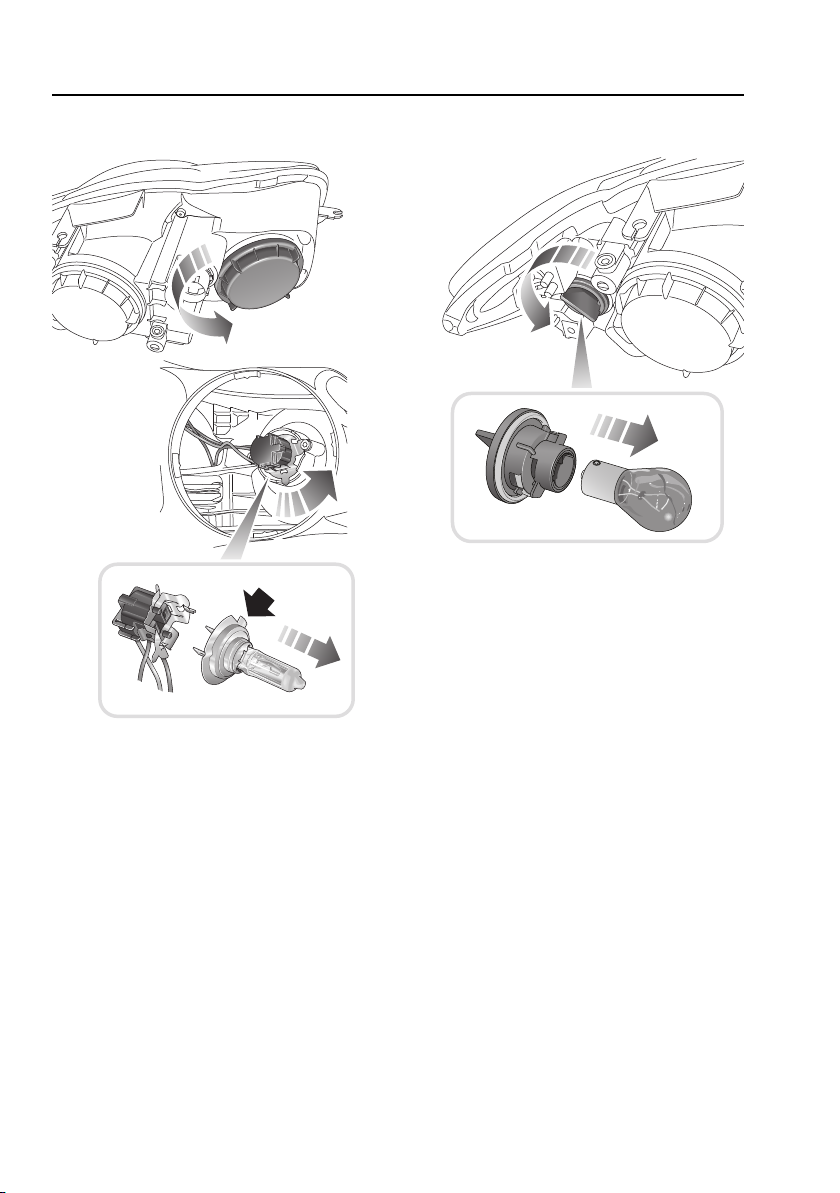

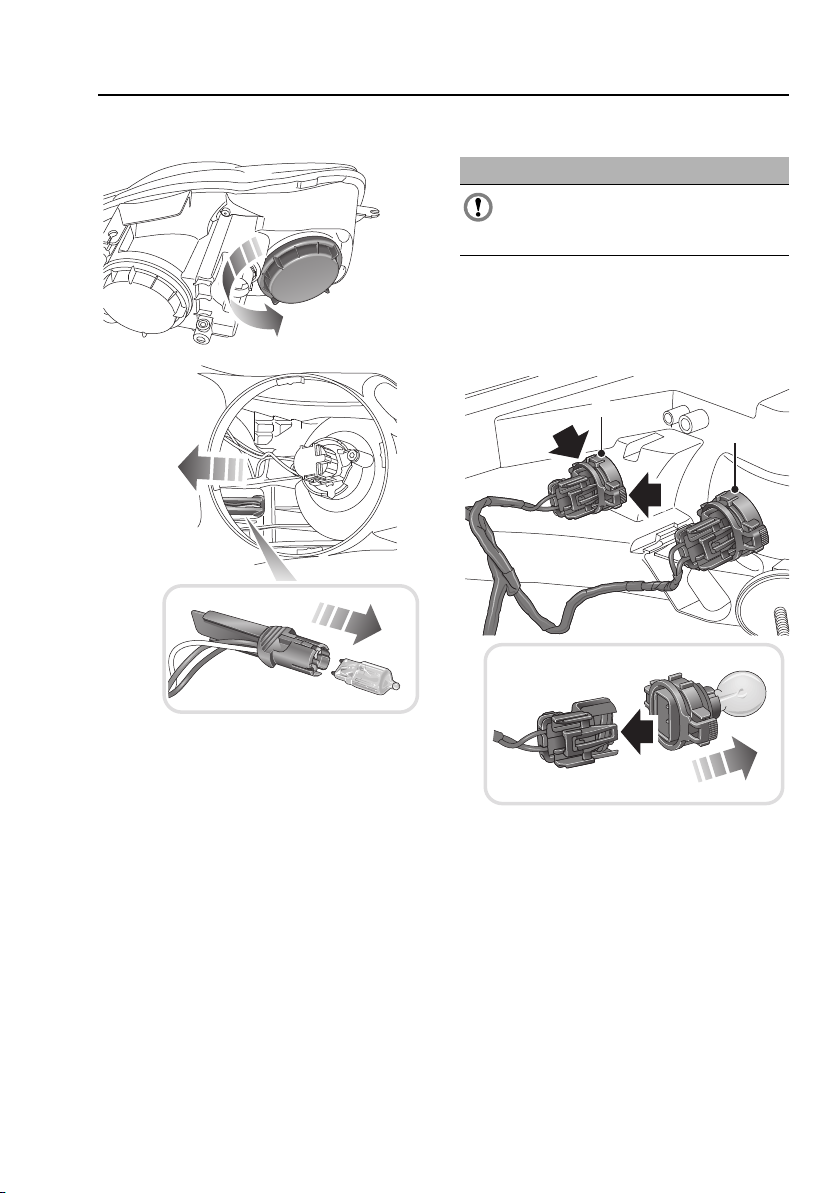

HEADLAMP UNIT BULBS ............................... 83

Contents

SIDE REPEATER LAMP .................................. 85

REAR LAMP BULBS ....................................... 85

BULB SPECIFICATION CHART........................ 87

Wipers and washers

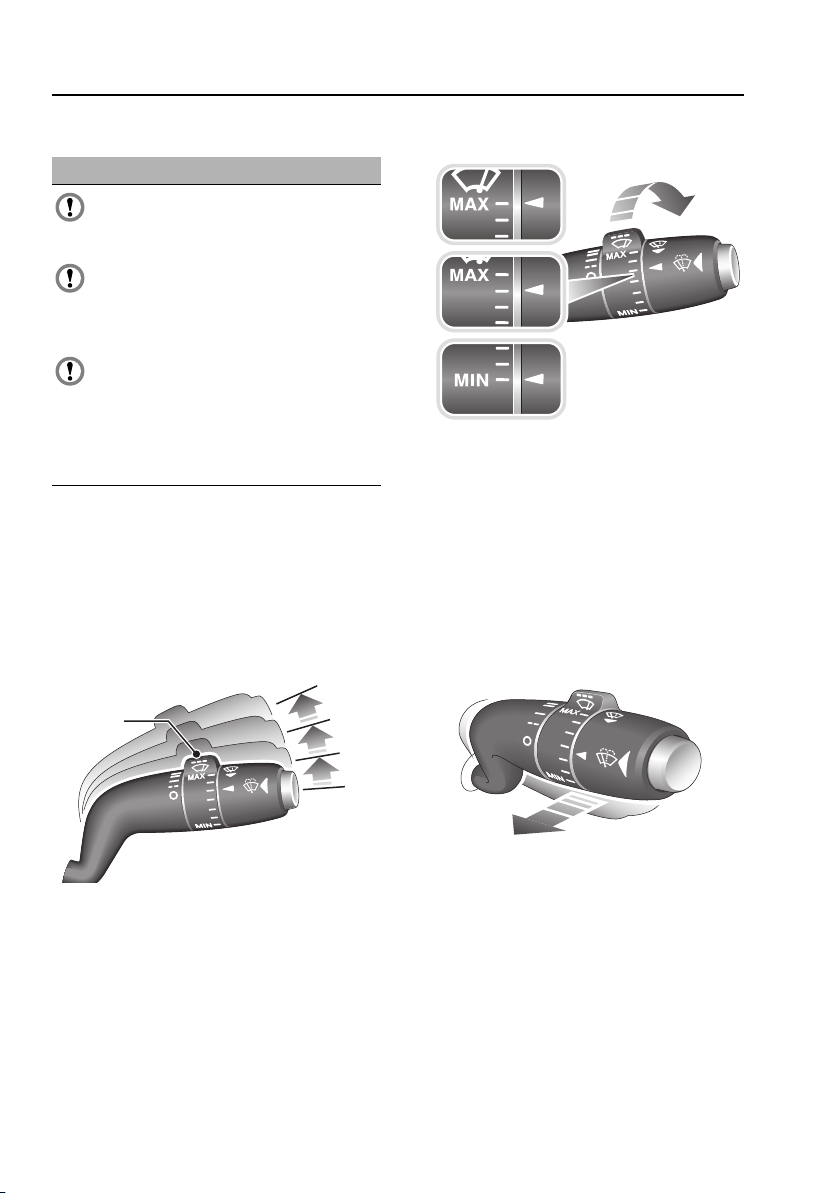

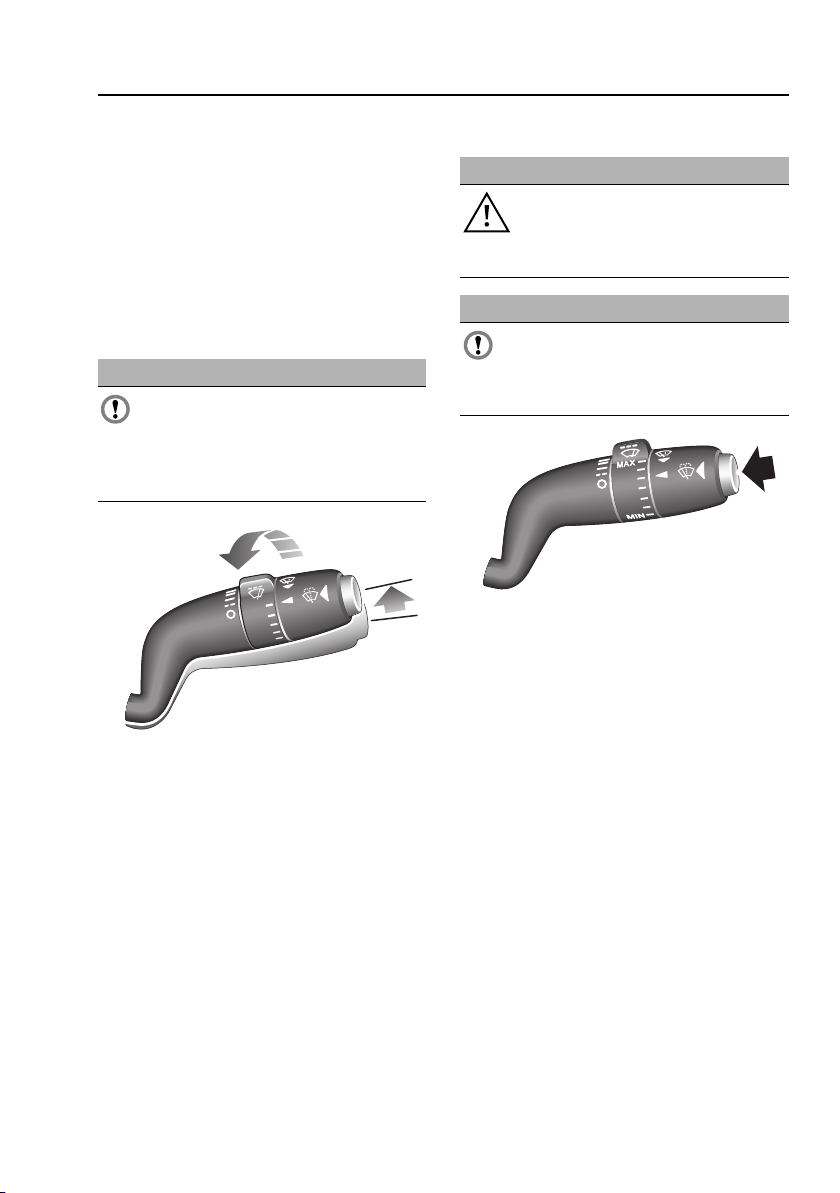

WINDSCREEN WIPERS .................................. 88

RAIN SENSOR ................................................ 89

WINDSCREEN WASHERS............................... 89

HEADLAMP WASHERS................................... 90

CHECKING THE WIPER BLADES .................... 90

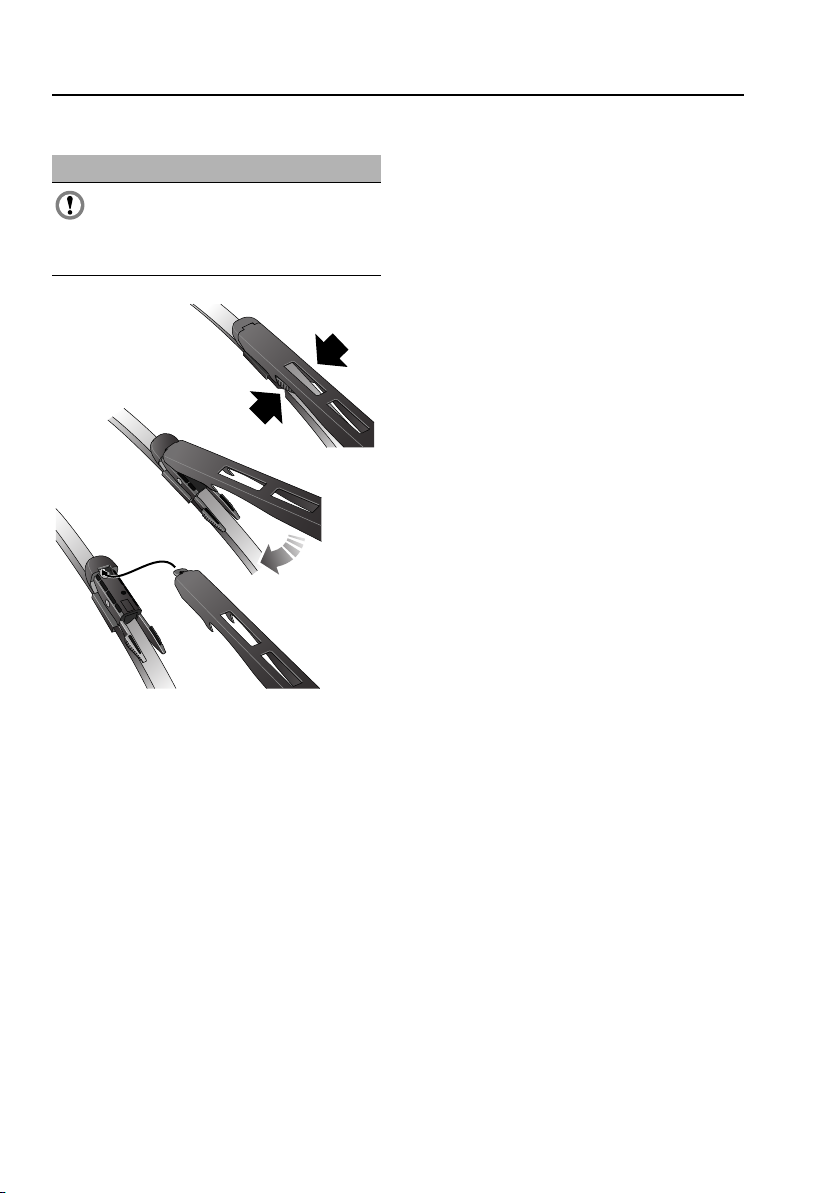

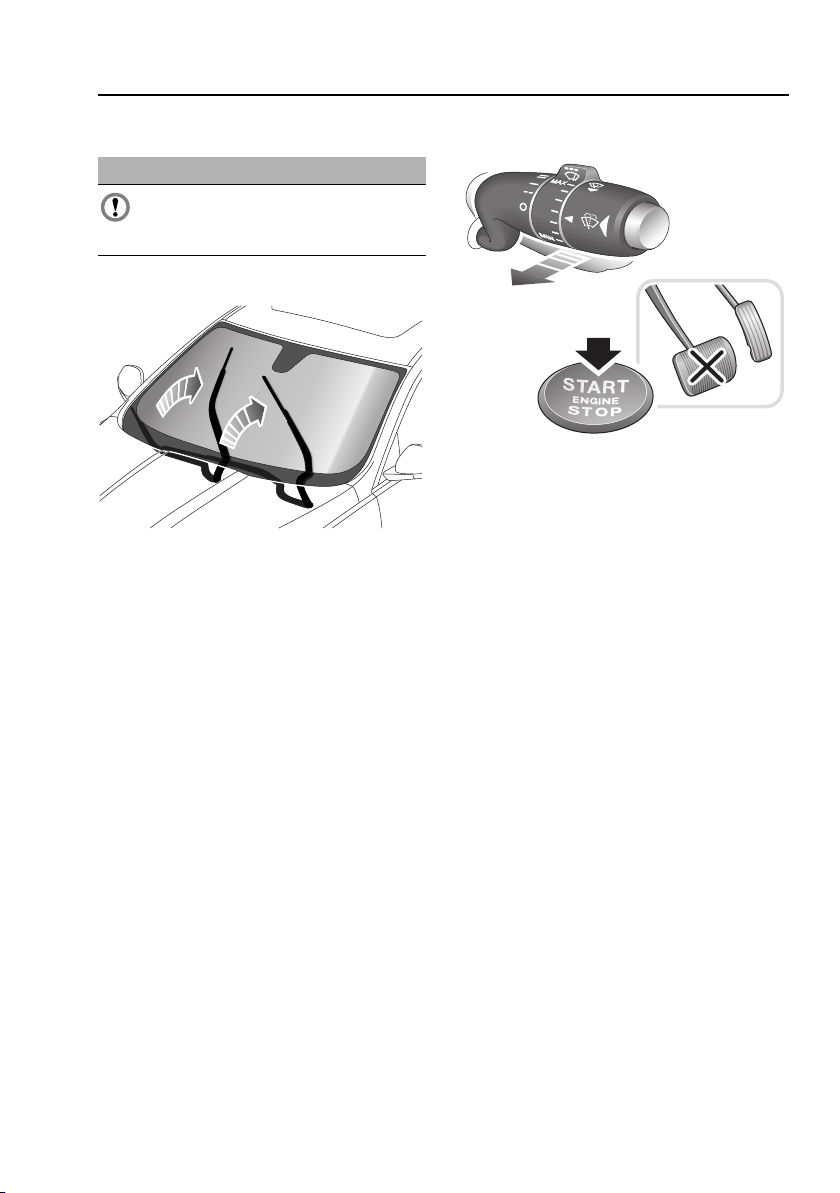

CHANGING THE WIPER BLADES.................... 91

Windows and mirrors

ELECTRIC WINDOWS ..................................... 93

INTERIOR MIRROR ........................................ 94

EXTERIOR MIRRORS ..................................... 95

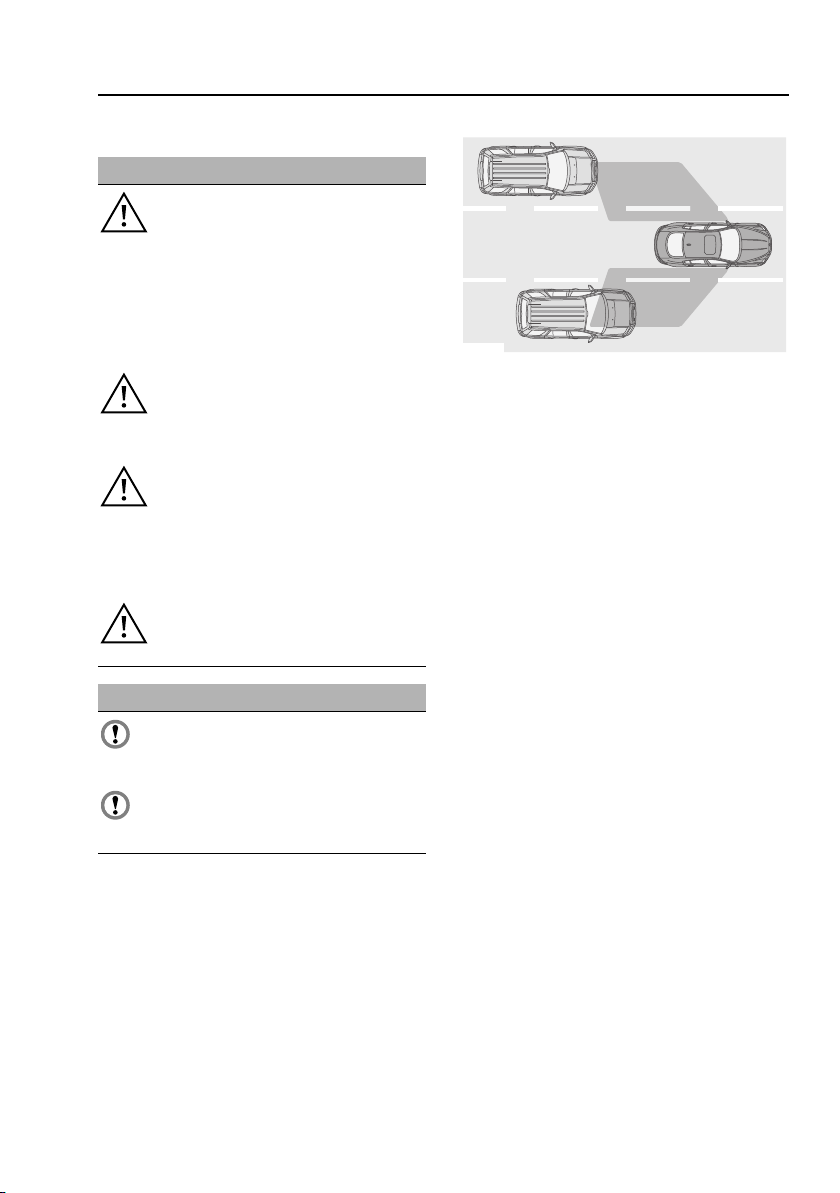

BLIND SPOT MONITOR .................................. 97

Instruments

INSTRUMENT PANEL OVERVIEW .................. 99

WARNING LAMPS AND INDICATORS .......... 100

AUDIBLE WARNINGS AND INDICATORS ..... 104

Information displays

GENERAL INFORMATION ............................. 105

WARNING AND INFORMATION MESSAGES. 106

TRIP COMPUTER ......................................... 107

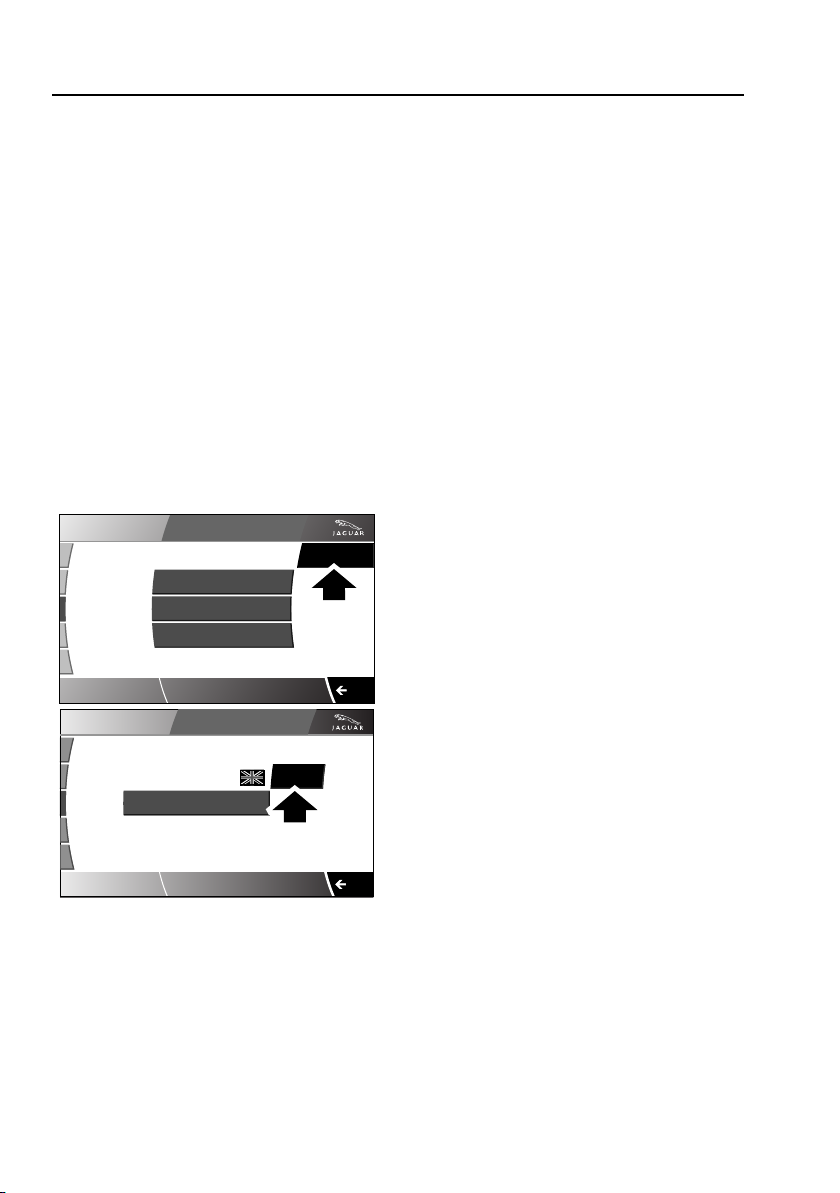

TOUCH-SCREEN ........................................... 109

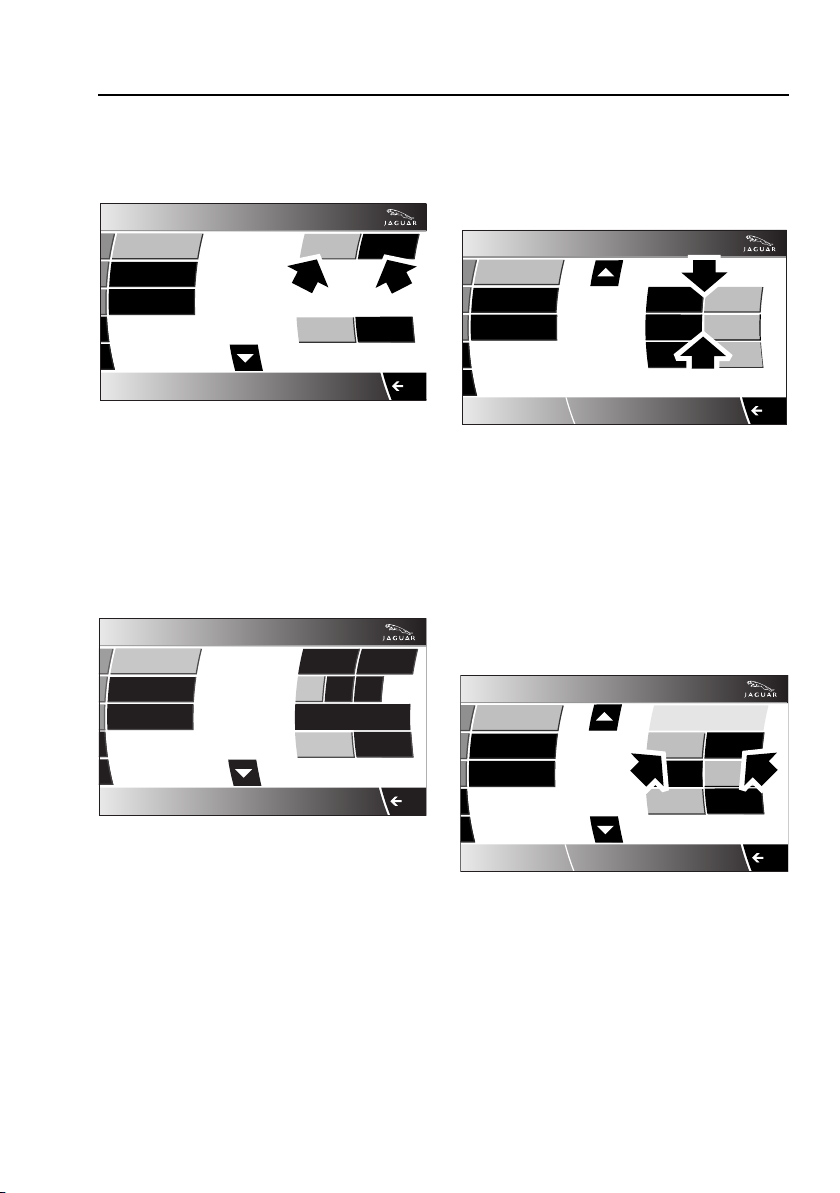

PERSONALISED SETTINGS.......................... 111

Climate control

AIR VENTS ................................................... 115

AUTOMATIC CLIMATE CONTROL................. 116

ELECTRIC SUNROOF .................................... 121

Starting the engine

GENERAL INFORMATION.............................. 132

KEYLESS STARTING ..................................... 133

SWITCHING OFF THE ENGINE....................... 134

DIESEL PARTICULATE FILTER (DPF)............ 135

Transmission

AUTOMATIC TRANSMISSION....................... 137

Brakes

PRINCIPLE OF OPERATION .......................... 144

HINTS ON DRIVING WITH ABS..................... 144

ELECTRIC PARKING BRAKE (EPB) ............... 146

Parking aid

PRINCIPLE OF OPERATION .......................... 148

USING THE PARKING AID ............................. 148

Rear view camera

PRINCIPLE OF OPERATION .......................... 152

Driving hints

RUNNING-IN ................................................. 154

ECONOMICAL DRIVING ................................ 155

Cruise control

PRINCIPLE OF OPERATION .......................... 156

USING CRUISE CONTROL............................. 156

Adaptive cruise control (ACC)

PRINCIPLE OF OPERATION .......................... 159

USING ACC ................................................... 159

FORWARD ALERT FUNCTION ....................... 164

ADVANCED EMERGENCY BRAKE ASSIST..... 165

Convenience features

SUN VISORS ................................................ 123

SUN BLINDS................................................. 123

INSTRUMENT LIGHTING DIMMER............... 123

CLOCK .......................................................... 124

AUXILIARY POWER SOCKETS ..................... 125

GLOVE BOX .................................................. 125

CUP HOLDERS ............................................. 126

STORAGE COMPARTMENTS ........................ 127

GARAGE DOOR TRANSCEIVER .................... 128

PORTABLE AUDIO INTERFACE..................... 131

Automatic speed limiter (ASL)

PRINCIPLE OF OPERATION .......................... 167

USING THE ASL ............................................ 167

Driving dynamics

GENERAL INFORMATION.............................. 169

WINTER MODE ............................................. 169

DYNAMIC MODE ........................................... 170

STABILITY CONTROL.................................... 170

Fuel and refuelling

SAFETY PRECAUTIONS................................. 174

Contents

FUEL QUALITY.............................................. 174

ALTERNATIVE FUELS FOR PETROL ENGINES.....

175

DIESEL ENGINED VEHICLES......................... 176

RUNNING OUT OF FUEL ............................... 177

FUEL CUT-OFF .............................................. 177

FUEL FILLER FLAP........................................ 178

REFUELLING................................................. 179

DIESEL MISFUELLING PROTECTION DEVICE......

180

FUEL CONSUMPTION ................................... 181

Load carrying

GENERAL INFORMATION ............................. 182

LUGGAGE ANCHOR POINTS ......................... 182

REAR UNDER FLOOR STORAGE................... 182

Towing

TOWING A TRAILER (V6 petrol and diesel

vehicles only)................................................ 183

LEVELLING ................................................... 184

RECOMMENDED TOWING WEIGHTS ........... 185

ESSENTIAL TOWING CHECKS ...................... 185

TOW BAR...................................................... 186

Vehicle care

CLEANING THE ALLOY WHEELS .................. 187

CLEANING THE EXTERIOR ........................... 187

CLEANING THE INTERIOR ............................ 189

REPAIRING MINOR PAINT DAMAGE ............ 191

Maintenance

GENERAL INFORMATION ............................. 192

OPENING AND CLOSING THE BONNET ........ 195

ENGINE COMPARTMENT OVERVIEW ........... 196

ENGINE OIL CHECK - V6 Petrol engines ....... 197

ENGINE OIL CHECK - V8 Petrol engines ....... 199

ENGINE OIL CHECK - V6 Diesel engines ....... 201

ENGINE OIL SPECIFICATION ........................ 203

ENGINE COOLANT CHECK ............................ 204

BRAKE FLUID CHECK ................................... 206

POWER STEERING FLUID CHECK ................ 208

WASHER FLUID CHECK ................................ 209

TECHNICAL SPECIFICATIONS ...................... 210

Vehicle battery

BATTERY WARNING SYMBOLS ................... 212

BATTERY CARE ............................................ 212

USING BOOSTER CABLES ............................ 214

CHARGING THE VEHICLE BATTERY............. 215

CHANGING THE VEHICLE BATTERY............. 215

Wheels and tyres

GENERAL INFORMATION ............................. 216

TYRE CARE................................................... 217

USING WINTER TYRES ................................ 223

USING SNOW CHAINS ................................. 223

RUN FLAT TYRES ......................................... 224

TOOL KIT...................................................... 224

CHANGING A ROAD WHEEL ......................... 225

TYRE REPAIR KIT......................................... 229

TYRE PRESSURE MONITORING SYSTEM.... 234

TYRE GLOSSARY ......................................... 238

TYRE SPECIFICATIONS - ARDUOUS TERRAIN ... 239

Fuses

CHANGING A FUSE....................................... 241

FUSE BOX LOCATIONS................................. 242

FUSE SPECIFICATION CHART ...................... 245

Emergency equipment

HAZARD WARNING FLASHERS.................... 250

WARNING TRIANGLE ................................... 250

FIRST AID KIT .............................................. 250

FIRE EXTINGUISHER .................................... 250

Status after a collision

DRIVING AFTER A COLLISION ..................... 251

INSPECTING SAFETY SYSTEM COMPONENTS... 252

Vehicle recovery

TOWING POINTS .......................................... 253

TRANSPORTING THE VEHICLE .................... 254

TOWING THE VEHICLE ON FOUR WHEELS.. 256

Vehicle identification

VEHICLE IDENTIFICATION PLATE ................ 257

ENGINE NUMBER ......................................... 257

TRANSMISSION NUMBER ........................... 257

VEHICLE IDENTIFICATION NUMBER (VIN)... 257

VEHICLE BUILD DATE PLATE....................... 257

Contents

Technical specifications

ENGINE SPECIFICATIONS ............................ 258

WEIGHTS...................................................... 259

DIMENSIONS................................................ 260

Type approvals

DECLARATIONS OF CONFORMITY............... 262

Audio introduction

RADIO RECEPTION....................................... 268

Audio unit overview

AUDIO UNIT OVERVIEW............................... 269

Audio unit operation

ON/OFF CONTROL ........................................ 271

VOLUME CONTROL ...................................... 271

AUDIO CONTROL ......................................... 272

WAVEBAND BUTTON ................................... 274

AUTOSTORE CONTROL ................................ 274

STATION PRESET BUTTONS ........................ 275

TRAFFIC INFORMATION CONTROL .............. 276

Audio unit menus

RADIO DATA SYSTEM (RDS) ....................... 277

PRIORITY PROGRAMME TYPE (PTY) .......... 278

Digital audio broadcasting

GENERAL INFORMATION ............................. 280

AUDIO CONTROLS ....................................... 282

DISPLAY OPTIONS ....................................... 283

CHANNEL AUTOMATIC TUNING................... 284

CHANNEL OPTIONS ..................................... 284

PRESET BUTTONS ....................................... 287

SETTINGS..................................................... 288

Compact disc player

COMPACT DISC COMPATABILITY................ 292

LOADING COMPACT DISCS ......................... 292

EJECTING COMPACT DISCS ........................ 294

COMPACT DISC SELECTION ........................ 294

TRACK SELECTION....................................... 295

COMPACT DISC PAUSE................................ 295

SHUFFLE/RANDOM ...................................... 295

REPEAT COMPACT DISC TRACKS ............... 296

COMPACT DISC DISPLAY OPTIONS ............ 296

MP3 FILE PLAYBACK ................................... 297

Portable audio

PORTABLE AUDIO......................................... 299

AUXILIARY INPUT DEVICES ......................... 302

Telephone

GENERAL INFORMATION.............................. 307

TELEPHONE PAIRING AND DOCKING........... 309

VOICE MAIL .................................................. 313

ANSWER OPTIONS ....................................... 314

PHONE OPTIONS .......................................... 314

PHONEBOOK ................................................. 315

MAKING A CALL............................................ 317

NAMES.......................................................... 318

LAST 10 OPTION........................................... 320

HANDS-FREE CONTROLS ............................. 321

OTHER FEATURES ........................................ 322

TELEPHONE VOICE CONTROL ...................... 323

Television

GENERAL INFORMATION.............................. 328

TELEVISION CONTROLS............................... 329

USING THE TELEVISION ............................... 330

FINDING TV CHANNELS ................................ 331

TELEVISION SETUP ...................................... 332

Navigation system

THE NAVIGATION SYSTEM........................... 334

SATELLITE SIGNALS..................................... 334

GETTING STARTED ....................................... 336

MENU STRUCTURE....................................... 337

MAIN MENU.................................................. 338

USER SETTINGS ........................................... 338

TURN-BY-TURN NAVIGATION ...................... 339

LANGUAGE SELECTION ................................ 339

MEASUREMENT UNITS................................. 340

KEYBOARD LAYOUT ..................................... 340

MAP SPLIT SCREEN ..................................... 341

MAP DISPLAY ICONS ................................... 342

SETTING A DESTINATION............................. 344

ROUTE PREFERENCES.................................. 347

START GUIDANCE......................................... 347

VOICE GUIDANCE ......................................... 349

CANCEL GUIDANCE ...................................... 350

QUICK POI SELECTION ................................. 350

CALIBRATION ............................................... 351

RESTORE SYSTEM DEFAULTS ..................... 352

LANGUAGE SELECTION ................................ 353

Contents

MEMORY ...................................................... 353

AVOID POINTS.............................................. 355

HOME ........................................................... 355

DESTINATION ENTRY ................................... 356

POSTCODE ................................................... 357

MAP.............................................................. 357

COORDINATES ............................................. 357

MEMORY ...................................................... 358

PREVIOUS .................................................... 358

MOTORWAY ................................................. 359

COMPASS..................................................... 360

POINTS OF INTEREST................................... 362

POI ICON DISPLAY ....................................... 363

CANCELLING POI ICON DISPLAY ................. 365

JAGUAR DEALERSHIP LOCATIONS.............. 365

ENTRY BY TOWN.......................................... 365

ENTRY BY CATEGORY .................................. 365

OTHER SELECTION METHODS..................... 366

CATEGORIES AND SUB-CATEGORIES .......... 366

POI ENTRY MESSAGES ................................ 366

QUICK POI SELECTION................................. 366

SELECTING A QUICK POI CATEGORY........... 367

MEMORY POINTS......................................... 367

RDS-TMC OVERVIEW ................................... 368

USING TMC .................................................. 370

SURVEILLANCE SETTING............................. 372

USING VOICE CONTROL ............................... 373

NAVIGATION SYSTEM VOICE COMMANDS.. 374

ORDNANCE SURVEY DATA .......................... 378

NAVTEQ CORPORATION............................... 379

EUROPEAN DECLARATION OF CONFORMITY .....

380

Introduction

SYMBOLS GLOSSARY

Warnings

WARNING

Safety warnings are included in this handbook. These indicate either a

procedure which must be followed precisely, or information that should be considered with great care in order to avoid the possibility of personal injury.

Cautions

CAUTION

Cautions are included in this handbook.

These indicate either a procedure which must be followed precisely, or information that should be considered with great care in order to avoid the possibility of damage to your vehicle.

Symbols

This recycling symbol identifies those items that must be disposed of safely in order to prevent unnecessary damage to the environment.

This symbol identifies those features that can be adjusted, disabled or enabled by your Dealer/Authorised Repairer.

LABEL LOCATIONS

Warning labels attached to your vehicle bearing this symbol mean: Do not touch or adjust components until you have read the relevant instructions in the handbook.

Labels showing this symbol indicate that the ignition system utilises very high voltages. Do not touch any ignition components while the starter switch is turned on.

Introduction

E95340

Warning labels

Labels are attached to your vehicle at several positions. These are applied to draw your attention to important subjects, e.g. tyre pressures, tow bar use, airbags, roll-over risk, engine compartment hazards, etc.

Additional information labels may also be found at these locations.

It is important that you are familiar with these subjects to ensure that your vehicle and its features are used safely. Using the index at the back of this handbook, refer to the relevant topic for more information.

HEALTH AND SAFETY

WARNINGS

The vehicle should not be parked over long dry grass or other combustible

material, particularly during dry weather. As the heat generated by the exhaust and emission control systems may be sufficient to start a fire.

Before exiting the vehicle, ensure that

P park is selected and the park brake

applied. When exiting the vehicle, ensure that the Jaguar Smart Key is removed from the vehicle.

1. Left-hand front suspension tower - Air

conditioning label

2. Top face of battery - Battery warning

symbols

3. End of fascia (passenger side) -

Passenger airbag label

4. Sun visor - Airbag label

5. Base of left-hand C pillar - Tyre pressure

label, Airbag warning label, Vehicle Identification Number label

6. Right-hand B pillar - Vehicle

Identification Number label (China)

7. Inner face of fuel filler flap - Fuel

specification label

Introduction

DATA RECORDING

Service data recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle such as engine, throttle, steering or brakes.

In order to properly diagnose and service your vehicle, Jaguar service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle.

Event data recording

This vehicle is equipped with an Event Data Recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating.

• Whether or not the driver and passenger safety belts were buckled/fastened.

• How far (if at all) the driver was depressing the accelerator and/or the brake pedal.

• How fast the vehicle was travelling.

• The rotational position of the steering

wheel.

These data can help provide a better understanding of the circumstances in which crashes and injuries occur.

Note: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g. name, gender, age and crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.

To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.

DISABILITY MODIFICATIONS

Occupants with disabilities which may require modification of the vehicle, must contact a Dealer/Authorised Repairer before any modifications are made.

FASCIA AND CONTROLS

JAG1634

A t

n t F e

10 m

n t Fu

10km

2 3

8 9

10 11 12 13 14

1615

17 18

19 20

2 3

8 9

21 22

17 18

19 20

Introduction

1. Steering wheel audio controls. See AUDIO CONTROL (page 69).

2. External lamp controls. See LIGHTING CONTROL (page 75).

3. Sequential gear change down paddle.

See AUTOMATIC TRANSMISSION (page 137).

4. Speedometer. See INSTRUMENT PANEL OVERVIEW (page 99).

5. Driver’s horn and airbag. See HORN (page 68). See Supplementary restraints system (page 53).

6. Message centre. See WARNING AND INFORMATION MESSAGES (page 106).

7. Tachometer. See INSTRUMENT PANEL OVERVIEW (page 99).

8. Sequential gear change up paddle.

See AUTOMATIC TRANSMISSION (page 137).

9. Wiper and washer control. See Wipers and washers (page 88).

10. Cruise control and Adaptive cruise

control steering wheel controls. See Cruise control (page 156). See Adaptive cruise control (ACC) (page 159).

11. Audio control panel. See Audio unit overview (page 269).

12. Fascia lock/unlock buttons.

See LOCKING AND UNLOCKING (page 26).

13. Touch-screen. See TOUCH-SCREEN (page 109).

14. Hazard warning lamp switch. See HAZARD WARNING FLASHERS (page 77).

15. Climate control panel. See Climate control (page 115).

16. Glove box proximity sensor. See GLOVE BOX (page 125).

17. Engine START/STOP switch. See Starting the engine (page 132).

18. JaguarDrive gear selector.

See AUTOMATIC TRANSMISSION (page 137).

19. JaguarDrive mode selectors. See Driving dynamics (page 169).

20. Electric Parking Brake (EPB).

See ELECTRIC PARKING BRAKE (EPB) (page 146).

21. Steering wheel adjustment control. See ADJUSTING THE STEERING WHEEL (page 67).

22. Starter control docking unit for the Jaguar Smart Key. See DOCKING/UNDOCKING THE

JAGUAR SMART KEY (page 20).

23. Bonnet release lever. See OPENING AND CLOSING THE BONNET (page 195).

24. Luggage compartment release switch.

See LOCKING AND UNLOCKING (page 26).

25. Headlamp levelling control. See HEADLAMP LEVELLING (page 79).

26. Instrument lighting dimmer control. See INSTRUMENT LIGHTING DIMMER (page 123).

27. Rear fog lamps switch. See REAR FOG LAMPS (page 77).

28. Adaptive Cruise Control (ACC) Forward Alert switch. See FORWARD ALERT FUNCTION (page 164).

Introduction

PARTS AND ACCESSORIES

WARNINGS

Do not fit non-approved parts and accessories or carry out

non-approved alterations or conversions. It may be dangerous and could affect the safety of the vehicle and occupants. Also, the terms and conditions of the vehicle warranty may be invalidated.

Jaguar will not accept any liability for

death, personal injury or damage to

property which may occur as a direct result of fitment of non-approved accessories or the carrying out of non-approved conversions to Jaguar vehicles.

Jaguar strongly advise against

making any modifications to the

suspension or steering system. This could seriously affect the handling and stability of the vehicle leading to loss of control or roll-over.

The vehicle has been designed, built and tested, to cope with a variety of driving conditions, some of which can place the severest possible demands on control systems and components. As such, fitting replacement parts and accessories that have been developed and tested to the same stringent standards as the original components, will safeguard the continued reliability, safety and performance of your vehicle.

To augment the vehicle's already impressive performance, a comprehensive range of Jaguar approved spare parts and accessories is available.

Jaguar parts are the only parts built to original equipment specifications and approved by Jaguar designers; this means that every single part and accessory has been rigorously tested by the same engineering team that designed and built the vehicle.

A full list and description of all accessories is available from your Dealer/Authorised Repairer.

Electrical equipment

WARNING

It is extremely hazardous to fit or replace parts or accessories, the

installation of which requires the dismantling of, or addition to, either the electrical or fuel systems.

Always consult your Dealer/Authorised Repairer before fitting any accessory.

Fitting inferior quality parts or accessories, may be dangerous and could invalidate the vehicle warranty.

It is recommended that you always consult your Dealer/Authorised Repairer for advice regarding the approval, suitability, installation and use of any parts or accessories before fitting.

Introduction

E95341

Airbag system

WARNING

The components that make up the airbag system are sensitive to

electrical or physical interference, either of which could easily damage the system and cause inadvertent operation or a malfunction of the airbag module.

To prevent malfunction of the airbag system always consult your Dealer/Authorised Repairer before fitting any of the following:

• Electronic equipment such as a mobile phone, two-way radio or in-car entertainment system.

• Accessories attached to the front of the vehicle.

• Any modification to the front of the vehicle.

• Any modification involving the removal or

repair of any wiring or component in the vicinity of any of the airbag system components, including the steering wheel, steering column, instrument or fascia panels.

• Any modification to the fascia panels or steering wheel.

After-sales service

The After Sales Parts service is of paramount importance, with franchised representation in over 100 countries worldwide, Jaguar are able to support your vehicle wherever you go.

Travelling abroad

In certain countries, it is a legal requirement to fit parts made to the vehicle manufacturers' specification.

Owners should ensure that any parts or accessories fitted to the vehicle while travelling abroad, will also conform to the legal requirements of their own country when they return home.

Keys and remote controls

E93136

PRINCIPLE OF OPERATION

CAUTION

Remove all Jaguar Smart Keys from the

vehicle when it is left unattended. This will ensure the vehicle is left in a secure condition.

If a Jaguar Smart Key is lost, a

replacement can be obtained and programmed to the vehicle by your Dealer. Notify your Dealer as soon as a Jaguar Smart Key is lost or stolen and have the remaining Jaguar Smart Key(s) reprogrammed.

The security system and entry to the vehicle are controlled by the Jaguar Smart Key remote control. All doors and the luggage compartment can be locked and unlocked using the remote control buttons.

Keyless Entry is an enhancement of the Jaguar Smart Key and allows entry to the vehicle, without the need to press a button. Full security integrity of the vehicle is still maintained. See KEYLESS ENTRY (page 33).

The Jaguar Smart Key also allows the vehicle to be started without the use of a starter key. See KEYLESS STARTING (page 133).

Two handsets, incorporating a detachable emergency key blade, are supplied. Separate emergency key blades are available from Dealers.

The emergency key blade number is recorded on an attached label. Peel off the label and attach it to the designated area on the Security Card, supplied in the literature pack. Keep the Security Card safe, but not in the vehicle.

GENERAL INFORMATION ON RADIO FREQUENCIES

Note: The radio frequency used by your remote control may be used by other devices. For example: amateur radios, medical equipment, wireless headphones, or other remote control devices. This may cause the frequency to be jammed, and prevent your remote control from operating correctly.

Environmental conditions can affect the operation of remote controls and the operating range may vary considerably depending on the vehicle's location.

Keys and remote controls

4 3 2

E90683

USING THE REMOTE CONTROL

Jaguar Smart Key

WARNING

Never leave the Jaguar Smart Key in the vehicle if children or animals are

also left in the vehicle. The vehicle's systems and remote control functions could be operated, which may result in injury.

Note: The operational range of the Jaguar Smart Key will vary considerably depending on atmospheric conditions and interference from other transmitting devices.

Note: Some features of the security system are market dependent or are options, so may not be present on your vehicle.

Unlocking

Press to unlock. See UNLOCKING AND DISARMING THE VEHICLE

(page 18).

Locking

Press to lock. See LOCKING AND ARMING THE VEHICLE (page 19).

Luggage compartment

Press to unlock, disarm and open the luggage compartment. The

vehicle security system will remain active, but for the period the luggage compartment is open, the intrusion and inclination sensing systems will be inhibited. Door and bonnet security will remain active.

When the luggage compartment is subsequently closed, the hazard warning lamps will flash after a few seconds, to confirm that the vehicle has rearmed the full alarm system (if previously armed).

Approach lamps

When approaching the vehicle in

the dark, press to switch on the

approach illumination. The headlamps will illuminate for up to 25 seconds. Pressing the button again or operating the starter button, will turn the approach lamps off.

1. Unlock.

2. Lock.

3. Luggage compartment release.

4. Convenience headlamp feature.

5. Panic alarm.

6. Emergency key blade.

7. Emergency key blade release button.

Panic button

Press and hold for three seconds,

or press three times within three

seconds, to activate the emergency alarm. The horn, siren and the hazard lamps will operate.

Once active for more than five seconds, the alarm can be cancelled by pressing the button and holding for three seconds, or pressing three times within three seconds.

Keys and remote controls

The emergency alarm will also be cancelled if the Jaguar Smart Key is inserted into the starter control unit and the START/STOP button is pressed or if the vehicle detects a valid Jaguar Smart Key when the START/STOP button is pressed.

Care of the Jaguar Smart Key

Do not expose to extremes of heat, dust, humidity or allow contact with fluids. Do not leave the transmitter exposed to direct sunlight.

Irregular operation

If difficulty is experienced with remote keyless entry, keyless entry, keyless starting or Jaguar Smart Key operation, it may be caused by:

• Internal battery low voltage. Replace the

battery. See CHANGING THE REMOTE CONTROL BATTERY (page 24).

• High levels of localised external electrical interference, e.g. a radio transmitter.

• Until the battery can be replaced, or until the vehicle is outside the area of electrical interference, the Jaguar Smart Key must be inserted into the starter control unit.

UNLOCKING AND DISARMING THE VEHICLE

Your vehicle can be unlocked using either Single or Multi-point entry.

Single-point entry is a security feature that only unlocks the driver's door when the unlock button is pressed.

To change from Single to Multi-point entry (or vice versa), press both the lock and unlock buttons simultaneously for three seconds. The hazard warning lamps will flash twice to confirm the change.

The change can also be achieved using the vehicle touch-screen. See PROGRAMMING

THE REMOTE CONTROL (page 21).

Single-point entry

First press: Unlocks the driver's door and

enables the other doors to be opened from the inside (unless the child safety locks have been activated on the rear doors). The hazard warning lamps will flash twice, to indicate that the vehicle is unlocked and the alarm has been disarmed. The interior lamps will illuminate to assist entry to the vehicle.

Note: In some markets, an audible warning will sound.

Second press: Unlocks the passenger doors and the luggage compartment.

Multi-point entry

Press briefly to unlock all the doors and luggage compartment and to disarm the alarm. The hazard warning lamps will flash twice to indicate that the vehicle is unlocked and the alarm has been disarmed. The interior lamps will illuminate to assist entry to the vehicle.

Note: In some markets, an audible warning will sound.

Power-fold mirrors

If automatic power-fold is enabled, the door mirrors will unfold when the vehicle is unlocked. The power-fold feature can be enabled/disabled using the touch-screen. See EXTERIOR MIRRORS (page 95).

Global opening

Press and hold the unlock button for three seconds. The vehicle will unlock (either single or multi-point) and the alarm will be disarmed immediately. After the three seconds, all of the windows and sunroof will open. This feature can be enabled/disabled using the vehicle touch-screen. See PROGRAMMING THE REMOTE CONTROL (page 21).

Keys and remote controls

LOCKING AND ARMING THE VEHICLE

WARNING

The vehicle will only lock, if all door, luggage compartment and bonnet

apertures are closed. If a lock attempt is made when an aperture is open, the vehicle will not lock and two audible error warnings will sound.

Press the lock button to secure the vehicle. The vehicle can be Single or Double locked, as follows:

Single locking

Press the lock button briefly. Single locking secures the vehicle and prevents the doors being opened from outside of the vehicle. The doors can be unlocked and opened from inside the vehicle. The hazard warning lamps will flash once as confirmation.

Note: In some markets, an audible warning will sound.

Double locking

WARNING

Never double lock the vehicle with

people, children, or pets inside. In the

event of an emergency they would be unable to escape, and the emergency services would be unable to release them quickly.

Press the lock button twice within three seconds. Double locking secures the vehicle and prevents the doors being unlocked or opened from inside or outside of the vehicle, except with the correct Jaguar Smart Key. The hazard warning lamps will flash twice (with a long second flash) and an audible warning will sound, as confirmation.

Double locking provides additional security if the vehicle is left unattended. The vehicle cannot be opened by breaking a window and operating the door locks from inside the vehicle.

Power-fold mirrors

If automatic power-fold is enabled, the door mirrors will fold in towards the vehicle body when the vehicle is locked. The power-fold feature can be enabled/disabled using the touch-screen. See PROGRAMMING THE

REMOTE CONTROL (page 21).

Lock confirmation

If you are uncertain whether the vehicle is locked and armed (either by single or double locking), press the lock button again. The hazard warning lights will flash to indicate and confirm the current lock status.

Note: If the vehicle is not already locked and armed, pressing the lock button will single lock the vehicle. Press again to double lock, if required.

Global closing

WARNING

Ensure that no children, pets, or obstructions are in any open aperture

before operating global closing. Safety mechanisms are in place to prevent serious injury, however, injuries can still occur.

Press and hold the lock button for three seconds. The vehicle will single lock and the alarm will be fully armed immediately. After the three seconds, all the windows and the sunroof will close.

Keys and remote controls

E92455

Automatic relocking

If a door, or the tailgate, are not opened within one minute of unlocking the vehicle using the Jaguar Smart Key, doors will lock again automatically. This feature can be enabled/disabled using the touch-screen. See PROGRAMMING THE REMOTE CONTROL (page 21).

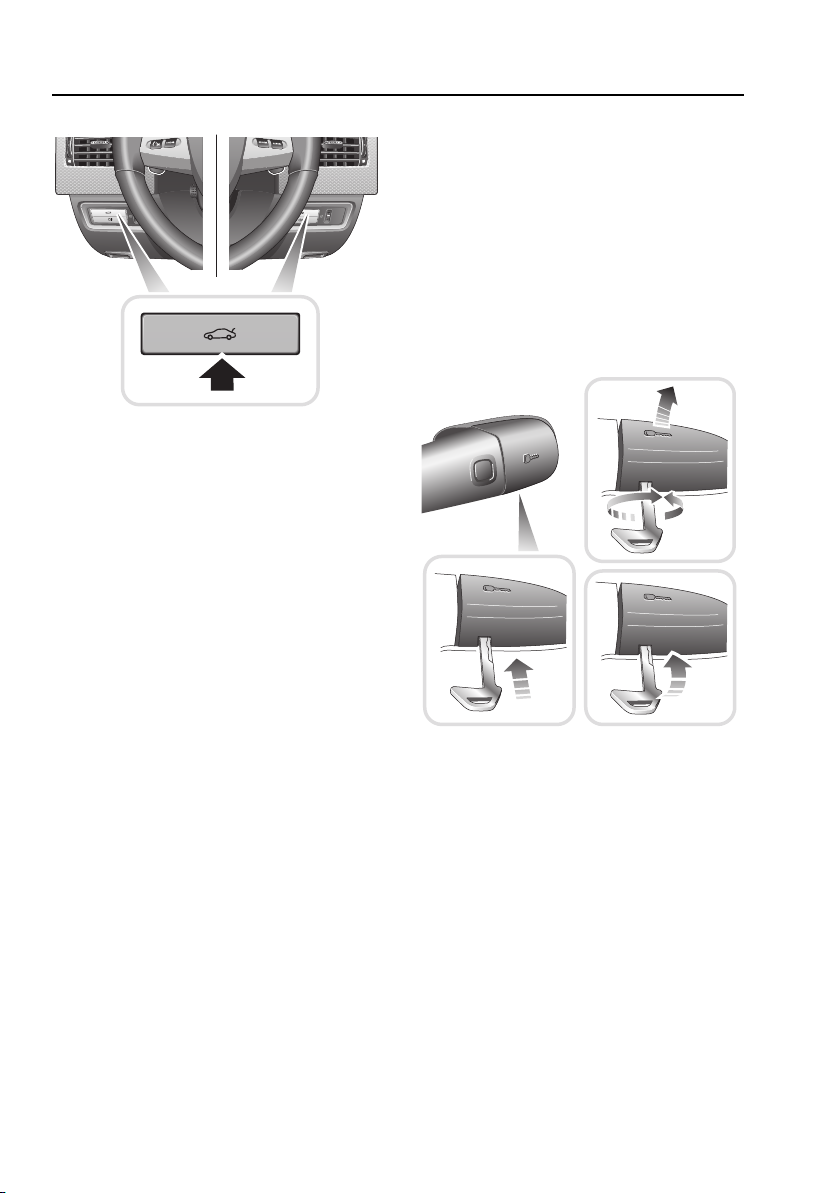

DOCKING/UNDOCKING THE JAGUAR SMART KEY

Docking the Jaguar Smart Key

During normal operation, it is not necessary to dock the Jaguar Smart Key. However, if the unlock button on the Smart Key fails to operate and the vehicle has been unlocked using the emergency key blade, it will be necessary to dock the Jaguar Smart Key to deactivate and disarm the alarm system.

The Smart Key should also be docked when the vehicle is being towed, in order to prevent the steering column from locking.

Insert the Jaguar Smart Key into the starter control unit, located on the driver's side of the vehicle, as shown.

Note: When docking the Jaguar Smart Key, it is recommended that the emergency key blade is left in place. The end of the key blade can then be used as a handle, to pull the Smart Key from the control unit when undocking.

Keys and remote controls

E92456

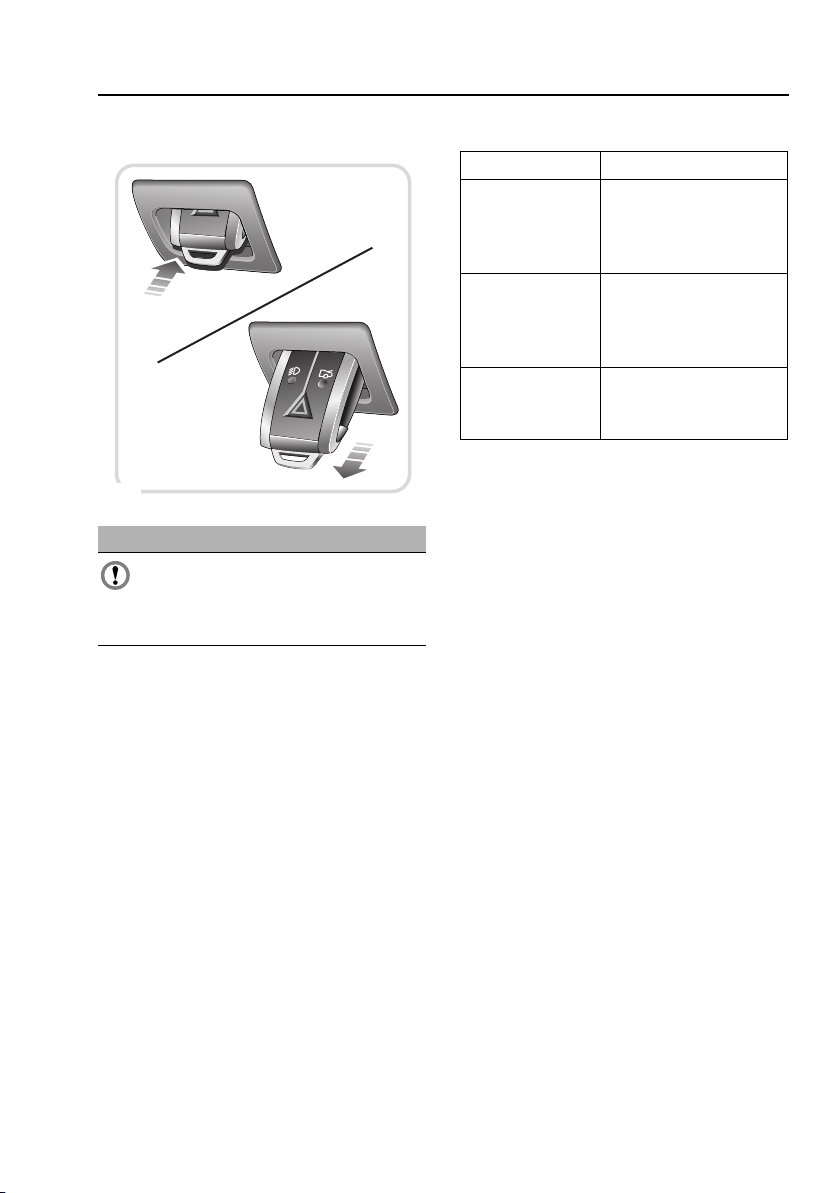

Undocking the Jaguar Smart Key

CAUTION

Ensure the engine is switched off before

attempting to undock the Jaguar Smart Key, otherwise damage to the Smart Key may occur.

To remove the Jaguar Smart Key from the starter control unit:

1. Ensure that the vehicle is at rest with the gear selector in the P position and the ignition switched off.

2. Press the Jaguar Smart Key and release. The key will eject into its rest position.

3. Remove the Jaguar Smart Key from the starter control unit.

Message centre information displays

Message Meaning

SMART KEY NOT FOUND, PLEASE INSERT IN SLOT

CHECK SMART KEY

REMOVE SMART KEY

The Jaguar Smart Key has not been detected, insert into the starter control unit.

The Jaguar Smart Key detected by the in-vehicle systems is not the one belonging to the vehicle.

Remove the Jaguar Smart Key from the starter control unit.

PROGRAMMING THE REMOTE CONTROL

The Jaguar Smart Key and various features of the vehicle security system, can be programmed to your individual requirements by use of the touch-screen.

The programmable features are as follows:

• Drive-away locking (including variable speed)

• Single or multi-point entry (2 stage unlocking)

• Alarm trigger information (market dependent)

• Window global open or close (passive entry vehicles only)

• Valet key mode

• Passive arming

• Automatic relock and arm.

Keys and remote controls

Vehicle

Security

Parking

Drive away

locking

2 stage unlocking Off On

12:26 pm

Off On

Valet mode

LAN1510

Home

Audio/TV

Climate

Phone

Navigation

Vehicle

DAB radio DAB1

BBC 5Live Xtra

BBC National DAB

TA FM DAB i Subch.

Vale t

12:26 pm

External

Left Right

CC.5

Vehicle

Security

Parking

Passive arming

Off On

Alarm sensors Off On

12 : 26 pm

Off On

Auto-relock and arm

Valet mode

E93148

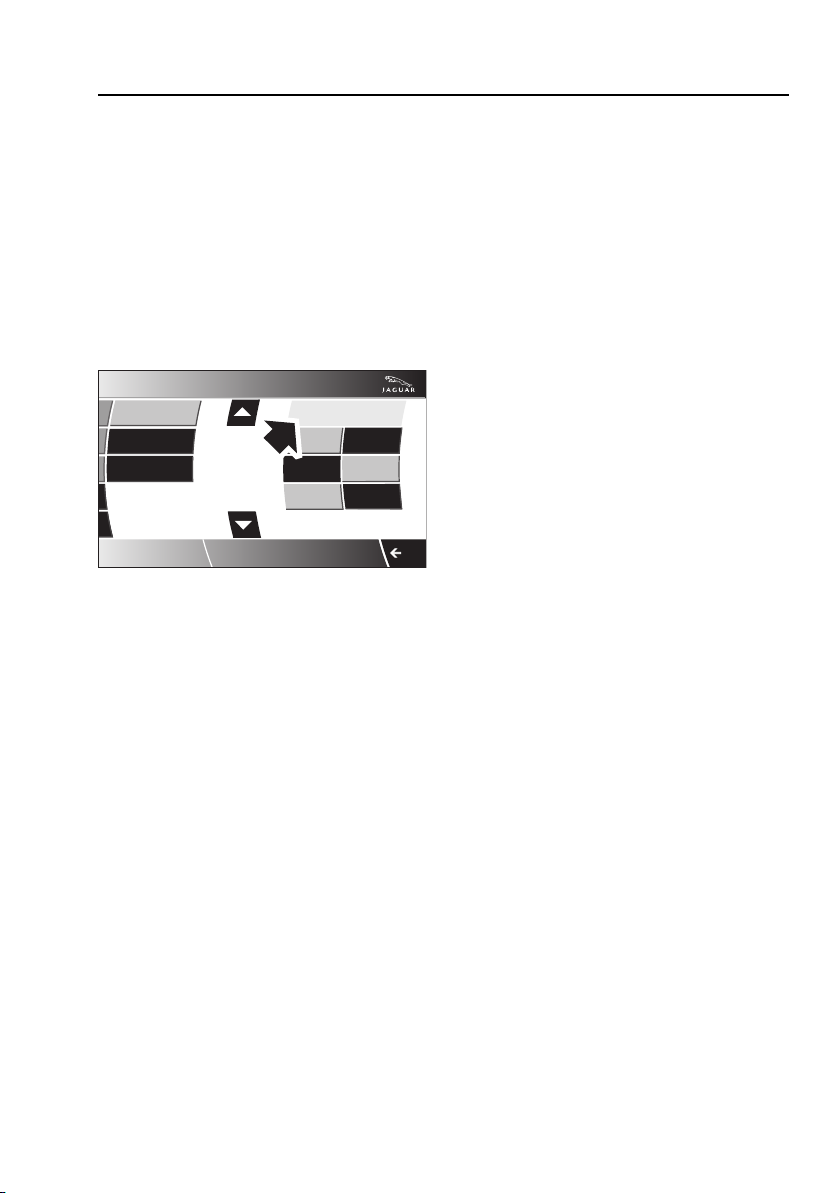

Selecting single (2 stage unlock) or multi-point entry

From the main Home touch-screen menu, select Vehicle:

• Select Veh. settings.

• The Security menu is selected

automatically as the default.

• Select: 2-stage unlocking On (for single- point entry) or Off (for multi-point entry).

Note: This selection changes the setting for both keyless entry and for when unlocking using the Jaguar Smart Key.

Selecting alarm sensor override

From the main Home touch-screen menu, select Vehicle:

• Select Veh. settings.

• The Security menu is selected

automatically as the default.

• Touch the arrow button to scroll down to

Alarm sensors and select either On or Off.

Selecting Off will override the interior and tilt sensors until the vehicle is locked and unlocked again. This facility is normally used for recovery of the vehicle or travelling on a ferry.

Keys and remote controls

Vehicle

Security

Parking

Drive away

locking

2 stage unlocking Off On

12 : 26 pm

Off On

Valet mode

E93149

Vehicle

Security

Parking

Drive away

locking

2 stage unlocking

Speed (MPH)

Off

12 : 26 pm

Off

Valet mode

10 20

Units

JAG1306

Vehicle

Security

Parking

Off On

Off

Off On

global open

Mirror fold back

12 : 26 pm

Windows

global close

Windows

Valet mode

E93150

Vehicle

Security

Parking

Passive arming

Off On

Alarm sensors Off On

12 : 26 pm

Auto-relock a

Valet mode

E93151

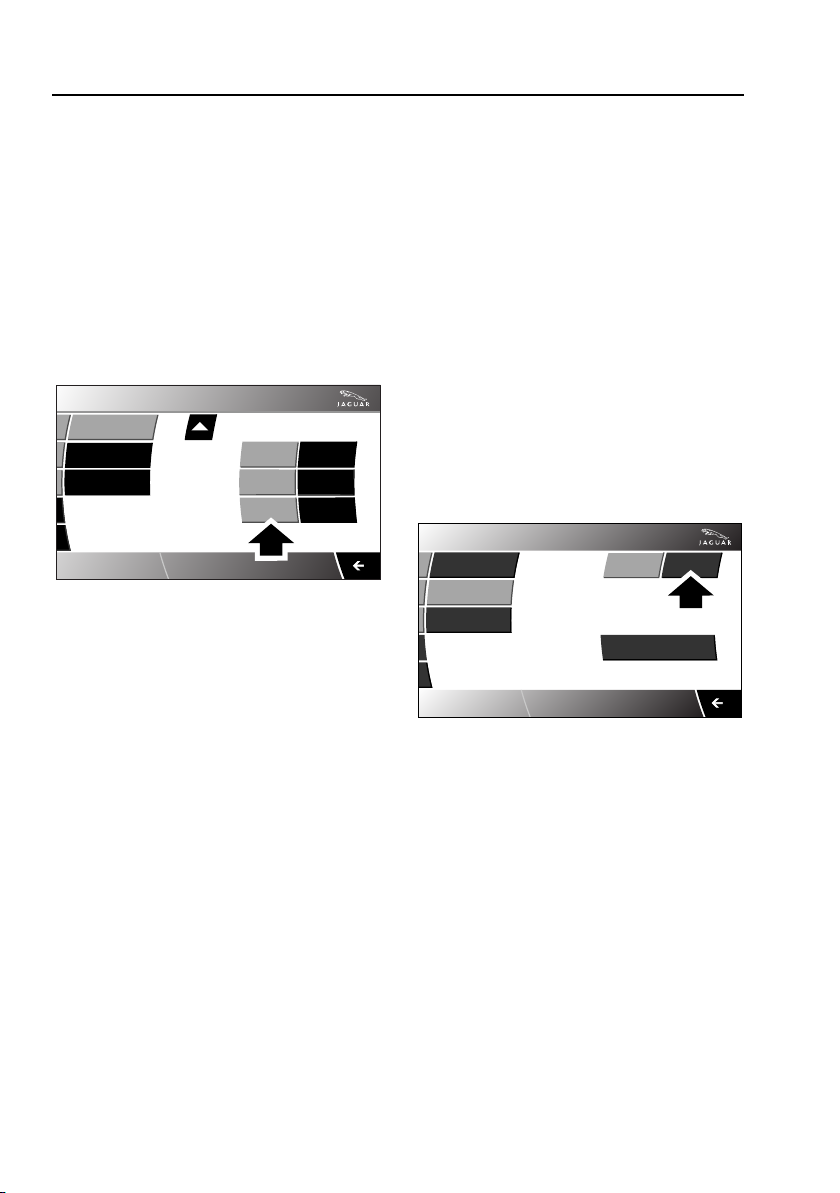

Selecting drive-away locking

From the main Home touch-screen menu, select Vehicle:

• Select Veh. settings.

• The Security button is selected

automatically as the default.

• Select the arrow button to scroll down to

Drive away locking and select either On or Off.

Setting the drive-away locking speed

Selecting window global opening or closing

From the main Home touch-screen menu, select Vehicle:

• Select Veh. settings.

• The Security button is selected

automatically as the default.

• Scroll down to Global open or Global close and select either On or Off.

Selecting passive arming

From the main Home touch-screen menu, select Vehicle:

• Once Drive away locking On is selected,

select the speed from the list at which you want the locks to activate (8, 16 or 32 km/h or 5, 10 or 20 mph). To change between Imperial and Metric measurement units, select Units.

• Select Veh. settings.

• The Security button is selected

automatically as the default.

• Scroll down to Passive arming and select either On or Off.

Keys and remote controls

Vehicle

Security

Parking

Passive arming

Off On

Alarm sen On

12 : 26 pm

Off On

Auto-relock and

arm

Valet mode

E93152

E90710

Selecting automatic relock and arm

From the main Home touch-screen menu, select Vehicle:

• Select Veh. settings.

• The Security button is selected

automatically as the default.

• Scroll down to Auto-relock and arm and select either On or Off.

CHANGING THE REMOTE CONTROL BATTERY

When the battery needs renewing, there will be a significant decrease in the effective range of the Jaguar Smart Key transmitter and the message SMART KEY BATTERY LOW is displayed in the message centre.

Keys and remote controls

E92438

To renew the battery, follow the procedure below:

1. Remove the key blade from the Jaguar Smart Key. See USING THE REMOTE

CONTROL (page 17).

2. Remove the two side covers, one at a time,

by inserting a small, flat bladed screwdriver between the cover and body and lightly twist the screwdriver.

3. Insert the screwdriver between the two body halves of the Jaguar Smart Key. Apply light pressure to the screwdriver and separate the two halves.

4. Remove the printed circuit board, taking care not to touch the battery terminals. Remove the old battery and dispose of it safely.

5. Fit a new battery, type CR2032 (available from your Dealer/Authorised Repairer), with the positive (+) downwards, in the battery receptacle. Avoid touching the new battery, as moisture/oil from the fingers can reduce battery life and corrode the contacts.

Refit the parts in the reverse order, ensuring that they click securely into place.

EMERGENCY KEY BLADE

To extract: Press and hold the release button

(7), while pulling the key blade (6) from the Jaguar Smart Key body.

To insert: Press and hold the release button while pushing the key blade into appropriate slot in the Jaguar Smart Key.

The key blade operates the left-hand front door lock and the luggage compartment lock. See USING THE EMERGENCY KEY BLADE (page 28).

Battery disposal

Used batteries must be disposed of correctly, as they contain a number of harmful substances. Seek advise

on disposal from your Dealer/ Authorised Repairer and/or your local authority.

Locks

LOCKING AND UNLOCKING

WARNING

Never double lock the vehicle with people, children or pets inside. In the

event of an emergency they would be unable to escape, and the emergency services would be unable to release them quickly.

When the vehicle is double-locked the doors cannot be opened, either from inside or outside the vehicle.

Breaking a window will not allow a door to be opened.

Locking and unlocking from outside the vehicle

Locking and unlocking the vehicle using the Jaguar Smart Key, is explained earlier in this handbook. See USING THE REMOTE CONTROL (page 17). Locking and unlocking the vehicle using the Keyless Entry system is explained later in this handbook. See KEYLESS ENTRY (page 33).

Note: To help prevent locking the Jaguar Smart Key inside the vehicle, it has been made difficult to slam lock a door using the interior door locking lever. The door will not lock.

Luggage compartment

CAUTION

If the luggage compartment is opened

after the driver and passenger doors are locked, ensure that the Jaguar Smart Key remains outside the vehicle when it is closed again. If the Jaguar Smart Key is inadvertently left inside the luggage compartment, an audible warning will sound and the luggage compartment will re-open after three seconds.

Note: If the Jaguar Smart Key is placed within a metal box, it will not be detected by the vehicle security system.

The luggage compartment can be opened at any time, using the appropriate button on the Jaguar Smart Key or via keyless entry. It can also be opened using the exterior release, provided the doors are unlocked.

Provided the vehicle is not locked or alarmed, the luggage compartment can also be opened using the interior release button.

The luggage compartment can also be unlocked and opened using the emergency key blade, as described later in this section.

Drive-away locking

This feature locks all unsecured locks when the vehicle reaches a designated forward speed. This designated speed and whether or not drive-away locking is enabled, can be set using the vehicle touch-screen. See PROGRAMMING THE REMOTE CONTROL (page 21).

Locks

E93160

Locking and unlocking from inside the vehicle

Door lock and release levers

1. Press the locking lever to lock the door,

pull the lever to unlock the door. Operating the locking lever on either front door will lock all closed doors. If the doors are locked, operating the locking lever on either front door will unlock all four doors (provided the doors were locked from inside the vehicle and the alarm is disarmed).

2. Pull the release lever to open a door. If the

doors are locked, operating the lever will have no effect.

Note: If the car was locked using the Jaguar Smart Key, then operating the locking lever will only unlock that door and the alarm will sound.

Note: If the vehicle has been double-locked, then the interior door lock and release levers will not operate. The vehicle must be unlocked using the Jaguar Smart Key.

Fascia buttons

E93161

Locking: With all the doors closed, press the

button to lock all doors and the luggage

compartment. Press and hold to lock all doors

and the luggage compartment and close all

windows and the sunroof. The windows and

sunroof will stop closing if the button is

released.

Note: The fascia locking button will not

function unless all the doors are closed.

E93162

Unlocking: Press to unlock all doors and the

luggage compartment. Press and hold to

unlock all doors and the luggage compartment

and open all windows and the sunroof. The

windows and sunroof will stop opening if the

button is released.

Locks

JAG1333

JAG1310

Press to open the luggage compartment.

Mislock

If one of the doors, the bonnet, or the luggage compartment are not shut fully when the vehicle is locked using the Jaguar Smart Key or by Keyless locking, the vehicle will not lock and two warning tones will sound. Check that all doors, the bonnet and the luggage compartment are closed properly and lock the vehicle again.

If one or more of the doors fails to lock properly when a lock attempt is made using the Jaguar Smart Key, two warning tones will sound and one or more of the doors may not be locked.

USING THE EMERGENCY KEY BLADE

The emergency key blade will be needed to unlock the vehicle, if the Jaguar Smart Key has a discharged battery or is damaged. The emergency key blade is also used for accessing the luggage compartment if the vehicle has been left in Valet mode. Withdraw the key from the Jaguar Smart Key for use. See USING THE

REMOTE CONTROL (page 17).

Locking and unlocking the doors

Remove the front left-hand door lock cover as follows:

1. Insert the emergency key blade into the

slot on the underside of the cover.

2. Gently lever the key blade upwards.

3. Carefully twist the key blade, to lever the

cover off the retaining clips.

Insert the key blade into the exposed lock to operate.

Note: To refit the door lock cover, push it firmly back into place until all three securing tabs click into position.

Locks

E93157

To lock: Ensure all the doors are closed, then turn the key blade towards the front of the vehicle and release. This will lock all doors but will not arm the alarm.

To unlock: Turn the key blade towards the rear of the vehicle and release. If the security system is disarmed, all doors and the luggage compartment will be unlocked. If the security system is armed, only the front left-hand door will unlock. The interior lighting will be turned on at reduced level for two minutes.

If the vehicle is unlocked using the emergency key blade with the security system armed, the alarm will sound when a door is opened. To deactivate the alarm, press the unlock button on the Jaguar Smart Key or press the engine START/STOP button with the Smart Key inside the vehicle. If the Jaguar Smart Key is inoperable, the alarm can be deactivated by docking the Smart Key into the starter control unit. See DOCKING/UNDOCKING THE JAGUAR

SMART KEY (page 20).

Unlocking the luggage compartment

If Valet mode is selected, or if the vehicle battery is discharged, it will be necessary to use the emergency key blade to unlock and open the luggage compartment.

Note: If the security system is in Valet mode, the touch-screen can be used to cancel Valet mode, in which case the luggage compartment can then be opened in the normal manner.

Note: If the alarm is armed when the emergency key blade is used to unlock the luggage compartment, the alarm will sound when the luggage compartment is opened. Press the unlock button on the Jaguar Smart Key to disarm/deactivate the alarm.

• Use the emergency key blade to prise away the black lock cover.

• Insert the emergency key blade, then turn the key clockwise to unlock and open the luggage compartment.

Note: Unlocking the luggage compartment using the emergency key blade will cancel Valet mode.

Locks

Valet off - enter pin

Vehicle

Security

Parking

12 3

4 6

78 9

12:26 pm

Valet mode

JAG1511

Home

Audio/TV

Climate

Phone

Navigation

Vehicle

DAB radio DAB1

BBC 5Live Xtra

BBC National DAB

TA FM DAB i Subch.

Valet

12:26 pm

External

Left Right

CC.5

Vehicle

Security

Parking

12:26 pm

Valet mode

Please ensure Jaguar mechanical keyblade

is removed from Smart key stowage and

kept safe, before handing smart key to

Valet personnel

Valet mode

JAG0948

VALET MODE

Valet mode allows the vehicle to be locked by a parking attendant, without giving access to the luggage compartment and glove compartment. Valet mode also prevents operation of the touch-screen, to prevent access to telephone numbers or navigation addresses.

Selecting valet mode

Once the PIN has been entered, a pop-up screen is displayed, advising you to remove the emergency key blade from the Jaguar Smart Key and to keep it safe. Select OK.

The screen will indicate that the PIN has been accepted by displaying Valet on.

The luggage compartment and glove compartment are now securely locked in Valet mode.

On exiting and securing the vehicle, hand the Jaguar Smart Key, with the emergency key blade removed, to the attendant.

Note: Ensure that the emergency key blade is kept safely at all times.

From the main Home touch-screen menu, select Valet:

Enter a four digit Personal identification Number (PIN) (personally chosen) by touching the digit screen pad. On completion, touch the OK button.

If you wish to cancel the PIN, touch the C button at any time during entering the number.

Deselecting valet mode

Valet on - enter pin

Vehicle

Security

Parking

12 3

4 6

78 9

12 : 26 pm

Valet mode

JAG0946

Vehicle

Security

Parking

12:26 pm

Valet mode

Please ensure Jaguar mechanical keyblade

is returned to Smart key stowage for safe

keeping

Valet mode

JAG0949

When you enter the vehicle, the Valet mode screen will be displayed automatically.

Enter your four digit PIN and touch the OK button.

Locks

A pop-up screen is displayed, advising you to return the emergency key blade to the Jaguar Smart Key. Select OK.

The screen will indicate that your PIN has been accepted by displaying Valet off.

• The luggage compartment will return to the previously set security requirement.

• The glove compartment will now open as normal.

Note: If the PIN number has been forgotten, the luggage compartment can be unlocked by using the emergency key blade. This will cancel the Valet mode.

JAGUAR SMART KEY SYSTEM

JAG1305

5 6

1 2

TRANSMITTERS

1. Cabin front transmitter.

2. Cabin rear transmitter.

3. Front exterior door handle transmitters.

4. Rear exterior door handle transmitters.

5. Luggage compartment interior

transmitter.

6. Luggage compartment exterior

transmitter.

7. Keyless vehicle module.

Locks

WARNING

Any person fitted with an implanted medical device should ensure that the

device is kept at a distance of at least 22 cm (8.7 inches) away from any transmitter mounted in the vehicle. This is to avoid any possibility of interference between the system and device.

Locks

E93153

KEYLESS ENTRY

Keyless entry allows the driver to unlock and disarm the vehicle by simply operating the door handle. The Keyless Entry function operates in the following manner:

• As a door handle is operated, the vehicle emits a search signal.

• If the Jaguar Smart Key is within approximately 1.0 m (3 feet) of the operated door handle, the signal will be acknowledged.

• The vehicle recognises the Jaguar Smart Key and disarms the alarm and unlocks the vehicle according to the current security setting (either Single-point or Multi-point entry). See USING THE REMOTE CONTROL (page 17). The hazard warning lamps flash twice as confirmation (in some markets an audible warning will sound twice).

Note: The Jaguar Smart Key needs only to be on the driver's person or in a non-metallic bag or briefcase. It does not need to be exposed or handled.

Note: If Single-point entry is the current security setting and a door other than the driver's door is opened first, then all doors will be unlocked. If the driver's door is opened, only the driver's door will be unlocked. All other doors and the luggage compartment will remain locked.

Jaguar Smart Key check

When the last open door is closed, the vehicle will perform a search of the vehicle interior for the Jaguar Smart Key. If one is not found,

SMART KEY NOT FOUND, PLEASE INSERT IN SLOT will be displayed for four seconds in the

message centre. This is to alert the driver that the Jaguar Smart Key may have been inadvertently removed from the vehicle.

Locks

E93154

Keyless locking

WARNING

Never double-lock the vehicle with people, children or pets inside. In the

event of an emergency they would be unable to escape and the emergency services would be unable to release them quickly.

The vehicle will not lock automatically.

The vehicle will only lock if all doors, luggage compartment and bonnet are closed. If a lock attempt is made with an open aperture, the vehicle will not lock and two audible error warnings will sound.

• To single-lock the vehicle, press the button on the door handle once. The hazard warning lamps will flash once as confirmation (in some markets, an audible warning will sound).

• To double-lock the vehicle, press the button twice within three seconds. The hazard warning lamps will flash twice (with a long second flash). In some markets, a double audible warning will sound.

Note: Keyless locking will only activate if the Jaguar Smart Key is outside the vehicle. If no Smart Key is present, two audible error warnings will sound.

Window global closing

Press and hold the button on the door handle for three seconds, to lock the vehicle, arm the alarm and also close all open windows and the sunroof. The windows and sunroof will stop closing when the button is released.

Convenience mode

When the door is opened using either the Jaguar Smart Key or keyless entry, the vehicle's electrical system initiates the convenience mode. The following systems become functional:

• Memory.

• Seat and steering column adjustment.

• Interior and exterior lighting.

• Message centre.

• Auxiliary power socket.

Locks

Steering column lock

CAUTION

During vehicle recovery, the Jaguar

Smart Key must remain inside the vehicle (or be stowed in the starter control unit in the centre console), so that the steering column remains unlocked.

Your vehicle is fitted with an electronic steering column lock. The column unlocks when it detects a Jaguar Smart Key inside the vehicle.

The steering column automatically locks when the starter switch is turned off and the driver's door is opened.

Any malfunction of the steering column lock will be indicated by the message STEERING COLUMN LOCKED displaying in the message centre. If this occurs:

1. Press the starter button to return to the

convenience mode.

2. Try again to unlock the steering column

lock, by turning the steering wheel gently to the left and right.

3. If the malfunction still persists, seek

qualified assistance as soon as possible.

GLOBAL OPENING AND CLOSING

WARNING

Accidental closing of an electrically operated window or sunroof on

fingers, hands or any vulnerable part of the body, can result in serious injury. Always observe the following precautions: Ensure that you have a clear view of all open apertures on the vehicle and that all apertures are unobstructed before activating global closing.

Global opening and closing is enabled/disabled via the touch-screen.See PROGRAMMING THE

REMOTE CONTROL (page 21).

Window global opening

Press and hold the unlock button on the Jaguar Smart Key for at least

three seconds. The alarm will disarm, all doors and the luggage compartment will unlock and all the windows and sunroof will open.

Note: The windows and sunroof will continue to open when the unlock button is released.

Press and hold the interior unlock button on the fascia. After three seconds, all the windows and the sunroof will open.

Note: The windows and sunroof will stop opening when the unlock button is released.

Locks

E93154

Window global closing (not Japan)

Press and hold the lock button on the Jaguar Smart Key. The alarm

will arm, all doors and the luggage compartment will lock and, after three seconds, all open windows and sunroof will close.

Note: The windows and sunroof will continue to close when the lock button is released.

Press and hold the exterior locking button on the driver's door handle for at least three seconds, with a valid Jaguar Smart Key in the vicinity of the door.

Note: The windows and sunroof will stop closing when the lock button is released.

Press and hold the interior lock button on the fascia. After three seconds, all open windows and the sunroof will close.

Note: The windows and sunroof will stop closing when the lock button is released.

Cancelling global opening/closing

To stop the windows and sunroof from opening/closing, during global opening/ closing operation, press any of the buttons on the Jaguar Smart Key or operate the driver's window switch. To stop a particular window from opening, operate the relevant window switch.

Alarm

ARMING THE ALARM

The engine is automatically immobilised when the Jaguar

Smart Key is removed from the vehicle. The alarm system is armed when the lock button on the Jaguar Smart Key is pressed or the button on the exterior door handle is pressed with a valid Jaguar Smart Key in close proximity. The hazard lamps will flash to indicate that the alarm is armed (in certain markets, an audible tone will sound). The alarm can also arm automatically (known as passive arming), 30 seconds after all doors, luggage compartment and bonnet apertures are closed, and the Jaguar Smart Key is removed from the vehicle. Passive arming does not lock the vehicle.

This feature can be enabled/disabled using the vehicle touch-screen. See PROGRAMMING

THE REMOTE CONTROL (page 21).

Full alarm

To set full alarm protection, ensure that all the windows and the sunroof are closed. Then, on vehicles fitted with double-locking, press the lock button twice within three seconds. The hazard warning lights will flash twice to confirm the alarm state and, in some markets, an audible tone will sound.

Once fully armed the alarm will sound if:-

• The bonnet, luggage compartment, or a

door are opened.

• If a front door is unlocked using the

emergency key blade or the interior door lock release levers and then opened.

• Movement is detected within the vehicle

interior.

• A window, front or rear windscreen, or

sunroof glass are broken.

• The vehicle is raised or tilted.

• The vehicle battery is disconnected.

• An attempt is made to disconnect the

alarm siren.

• An attempt is made to start the vehicle, without a valid Jaguar Smart Key present.

Note: If the alarm is armed and a window or the sunroof are left open, the alarm may sound due to movement of air currents.

Note: Some of the above conditions are market or option dependent and therefore may not apply to your vehicle.

Perimeter alarm

To set perimeter alarm protection, briefly press the lock button once. The hazard warning lights will flash once to confirm the alarm state.

Once armed the perimeter alarm will sound if:-

• The bonnet, luggage compartment, or a door are opened.

• If a front door is unlocked using the emergency key blade or the interior door lock release levers and then opened.

• The vehicle battery is disconnected.

• An attempt is made to disconnect the

alarm siren.

• An attempt is made to start the vehicle, without a valid Jaguar Smart Key present.

Note: This setting should be used in circumstances such as travelling on a ferry, when pets are to be left in the vehicle, when a window must be left open etc.

Note: Some of the above conditions are market or option dependent and therefore may not apply to your vehicle.

Alarm

/0 km

E93168

Alarm indicator

The alarm status is displayed by the indicator.

• Indicator off - alarm disarmed.

• Indicator flashes once per second - alarm

is armed and engine immobilised.

Battery-backed sounder

In certain markets, a separate battery backed sounder is fitted. This device will sound the alarm if the vehicle battery or the alarm sounder is disconnected when the security system is armed.

DISARMING THE ALARM

When the vehicle is unlocked using the Jaguar Smart Key or by valid

keyless entry, the alarm is automatically disabled. The hazard lamps will flash twice to indicate that the alarm is disabled. In certain markets, a double audible tone will sound.

Disarming when the unlock button fails to work

If, when pressed, the unlock button fails to operate the vehicle can still be unlocked and the alarm disabled. To unlock the vehicle:-

1. Unlock the left-hand front door using the

emergency key blade. See USING THE

EMERGENCY KEY BLADE (page 28).

2. Dock the Jaguar Smart Key into the starter

control unit. See DOCKING/UNDOCKING THE JAGUAR SMART KEY (page 20).

Note: When the left-hand front door is unlocked using the key, the alarm will sound until the Jaguar Smart Key is docked.

Deactivating the alarm when triggered

If the alarm has been triggered, it can be deactivated by any one of the following methods:-

• Pressing the unlock button on the Jaguar

Smart Key.

• Docking the Smart Key into the starter

control unit.

• Opening a door using keyless entry.

• Pressing the START/STOP button with a

valid Jaguar Smart Key present.

Alarm

Vehicle

Security

Parking

Passive arm

f On

Alarm sensors Off On

12:26 pm

Off On

Auto-relock and arm

Valet mode

Passenger door

Alarm triggered by:

JAG1309

Alarm trigger information

If you have reason to believe that the alarm was triggered when you were away from the vehicle, it is possible to check on your return using the touch-screen.

From the touch-screen Home menu, select Vehicle and then Veh. settings. The Security menu is displayed automatically as the default.

Use the arrow icons to scroll to the second screen.

A text display (arrowed) will indicate if the alarm has been triggered, and also indicate what the cause of the trigger was (e.g. Driver door, Passenger door, Inclination sensor, Trunk, etc.).

SECURITY SENSORS

Note: If the vehicle is to be transported by road, rail or sea, the vehicle should not be double-locked or the tilt and intrusion sensors should be deactivated using the touch-screen. See PROGRAMMING THE REMOTE CONTROL (page 21). This prevents the alarm from sounding as the vehicle pitches and rolls.

Tilt sensor

The tilt sensor detects any change in the vehicle's inclination to the ground. When the alarm is armed and the vehicle double-locked, any change in the vehicle's inclination will activate the tilt alarm. This feature protects against unauthorised towing away or jacking-up of the vehicle.

The tilt alarm is disarmed when the vehicle security system is disarmed using the Jaguar Smart Key.

Intrusion sensor

The intrusion sensor is mounted in the roof console and detects any movement within the vehicle cabin via the use of ultrasonic sound waves. When the alarm is armed and the vehicle double-locked, any movement detected inside the cabin will activate the alarm.

Note: It takes approximately 30 seconds for the sensor to create an ultrasonic profile of the cabin and be fully armed.

The intrusion alarm is disarmed when the vehicle security system is disarmed using the Jaguar Smart Key.

Note: Ensure all windows and sunroof are closed prior to arming the alarm and double-locking the vehicle. Failure to do so may result in false alarms being sounded due to movements detected outside the vehicle.

Alarm

Passive arming

This vehicle is fitted with a passive arming feature which can, if enabled, automatically arm the anti-theft system. Passive arming will automatically arm the perimeter alarm system 30 seconds after the driver's door is closed, provided all doors, bonnet and luggage compartment are closed, the ignition is switched off and there are no valid Jaguar Smart Keys inside the vehicle.

It will also automatically arm the perimeter alarm system 30 seconds after the vehicle is unlocked, if none of the doors or the luggage compartment are opened.

Passive arming will not lock the vehicle, although access to the luggage compartment via the interior or exterior release buttons will be inhibited and the fuel filler flap will be locked.

Passive arming can be disabled/enabled using the touch-screen. See PROGRAMMING THE

REMOTE CONTROL (page 21).

Automatic relocking and re-arming of the alarm

Automatic relock and re-arm is a feature which, if enabled, automatically relocks the vehicle and arms the anti-theft system.

If the vehicle is in a locked and armed state and the remote unlock button is pressed, but none of the doors or the luggage compartment are opened within 45 seconds, the vehicle will automatically relock all the doors and the luggage compartment and will re-arm the alarm system.

Note: Automatic relocking and arming will only relock to a centrally locked state and will only arm to a perimeter alarm condition.

Automatic relocking and re-arming can be disabled/enabled using the touch-screen. See PROGRAMMING THE REMOTE CONTROL (page 21).

Sensor faults

If the security systems detect a fault with one of the security sensors, two error tones will sound from the alarm siren after the vehicle is unlocked and disarmed. If this condition occurs, please visit your Dealer/Authorised Repairer for rectification.

Seats

E93242

SITTING IN THE CORRECT POSITION

WARNING

Do not adjust the seat while the vehicle is moving. Doing so could cause loss of vehicle control and personal injury.

The seat, head restraint, seat belt and airbags, all contribute to the protection of the user. Correct use of these components will give you greater protection, therefore you should observe the following points:

1. Sit in an upright position with the base of

your spine as far back as possible and the seatback reclined no more than 30 degrees.

2. Do not move the driver's seat too close to

the steering wheel. Ideally, a minimum distance of 254 mm (10 inches) is recommended between the breastbone and the steering wheel airbag cover. Hold the steering wheel in the correct position with your arms slightly bent.

• Adjust the head restraint so that its highest point is level with the top of your head.

• Position the seat belt so that it is mid-way between your neck and your shoulder. Fit the strap tightly across your hips, not across your stomach.

• Ensure that your driving position is comfortable and enables you to maintain full control of the vehicle.

ELECTRIC SEATS

JAG1650

A B

Seats

E93239

2 1

1. Cushion length adjustment.

2. Bolster adjustment: A. Bolster inflate. B. Bolster deflate.

3. Lumbar support adjustment.

4. Seat back angle adjustment.

5. Head restraint height adjustment.

6. Height adjustment.

7. Fore and aft adjustment.

8. Cushion front tilt adjustment.

WARNINGS

Do not adjust a seat while the vehicle is moving. Failure to follow this instruction could potentially cause

personal injury or loss of vehicle control.

Before making rearward, height or reclining seat adjustments, check that the rear passenger has adequate leg room.

The driver and front passenger must not ride with the seat fully reclined.

To adjust the seats, the Jaguar Smart Key must be in the vehicle and the ignition turned on.

Driving position memory

1. Memory preset 1.

2. Memory preset 2.

3. Memory Set button.

4. Indicator light.

Once you have adjusted the driver's seat, steering column and exterior mirrors for your ideal driving position, the vehicle can memorise these settings for future use.

1. Press the memory set button to activate

the memory function.

2. Press one of the preset buttons within five

seconds to memorise the current settings. An audible chime will sound and MEMORY 1 (or 2) SETTINGS SAVED is displayed in the message centre, to confirm the settings have been memorised.

A seat position can only be memorised during the five second active period.

Any existing settings for a memory preset will be over-written when programming a memory position.

Press the appropriate memory preset button (1 or 2), MEMORY 1 (or 2) SETTINGS RECALLED will be displayed in the message centre.

Recalling a memorised position

Seats

JAG1655

HEAD RESTRAINTS

WARNINGS

Head restraints are designed to support the head, not the back of the

neck. The restraint must be positioned correctly to restrain rearward movement of the head in a collision. An incorrectly adjusted head restraint increases the risk of death or serious injury in the event of a collision.

Adjust the head restraint so that the

top of the head restraint is above the

centre line of the head. An incorrectly adjusted head restraint increases the risk of death or serious injury in the event of a collision. See SITTING IN THE CORRECT POSITION (page 41).

On front head restraints, it is possible

to adjust the tilt of the head restraint

forwards or backwards. For greater protection in the event of a collision, the head restraint should be adjusted so that it is as close to the back of the head as is practical.

Do not drive, or carry passengers,

with the head restraints removed

from occupied seats. The absence of a correctly adjusted head restraint increases the risk of death or serious injury in the event of a collision.

Never adjust the head restraints while

the vehicle is in motion. An

incorrectly adjusted head restraint increases the risk of death or serious injury in the event of a collision.

For information on adjusting power-operated head restraints, refer to the Electric seats section. See ELECTRIC SEATS (page 42).

Whiplash protection

Both front seats are equipped with Active Head Restraints (AHR), which reduce the risk of neck and spinal injury (whiplash) in the event of a rear impact. See WHIPLASH PROTECTION (page 57).

Head restraint tilt adjustment

To adjust the angle of the head restraint, press the locking button on the side of the restraint (solid arrow) and move the restraint to the desired position. Release the button to lock in place.

The head restraint should be tilted so that it is in close proximity to the back of the head, when seated in the normal driving position.

Seats

E93185

Manual head restraints

1. Press the locking collar to release the head

restraint.

2. Whilst pressing the locking collar, move

the head restraint up or down to the required position.

Note: It is not necessary to press the locking collar to adjust the head restraint upwards.

Head restraint removal

Note: Refer to the Child Safety section for details on correct child restraint fitment. See CHILD SEATS (page 59).

REAR SEATS

WARNINGS

Always ensure that objects carried within the vehicle are secured

properly. Unsecured items can cause death or serious injury in the event of an impact or sudden manoeuvre.

Never allow passengers to travel in

the luggage compartment under any

circumstances. All vehicle occupants should be seated correctly, and wear a seat belt at all times when the vehicle is in motion. Failure to do so will greatly increase the risk of death and serious injury in the event of an accident or heavy braking.

Always take note of safety warnings

and labels attached to the rear seats.

The labels give advice on safely folding and erecting the seats.

The split fold rear seat can be folded completely to accommodate large loads, or partially to accommodate long loads, and still retain seating for passengers.

CAUTION

Do not attempt to remove a front head restraint fitted with a display screen.

This may damage electrical connections.

Manual head restraints may be removed, if required, to fit larger child seats. Press the locking collar and lift the restraint out of the seat back. Ensure the restraint is refitted once the child seat is removed.

Note: It is not possible to remove poweroperated head restraints.

Folding the rear seats

JAG0925

JAG0926

JAG0927

JAG0928

Stow the rear seat armrest.

Seats

Fold the seat back part-way forward and remove the head restraint(s) from the folded seat back. See HEAD RESTRAINTS (page 44).

With the luggage compartment open, pull the relevant seat release handle, located as shown (illustration shows view from the rear of the vehicle, with the luggage compartment open).

Fully fold the seat back forward and, if required, repeat the process for the second seat section.

WARNING

Ensure that the removed rear head restraints are stored securely. Never

leave them loose in the vehicle, as they can cause serious injury or death in the event of an accident, heavy braking, or sudden manoeuvres.

Seats

Raising the rear seats

The process for raising the rear seat is the reverse of folding.

WARNINGS

Ensure that when the seat back is raised, the seat belts are routed correctly and are not trapped by the seat back.

Ensure that when the seat back is raised, the locking mechanism is fully

engaged. Failure to do so can increase the risk of death or serious injury in the event of an accident or sudden manoeuvre or heavy braking.

Before driving, ensure that the head

restraints are correctly fitted to the

rear seats.

HEATED SEATS

Home

Audio/TV

Climate

Phone

Navigatio

Vehicle

12:26 pm

JAG1512

External

Left Right

Note: To prevent the battery from becoming discharged the seat heaters will only operate when the engine is running.

Seat heating is adjusted through the vehicle touch-screen (from either the Climate or the Home menu). The seat heaters have three temperature levels, indicated by the three bars adjacent to each seat icon.

• Touch the left or right-hand seat icon (as appropriate) to activate the seat heater, which initially selects the maximum temperature level (three bars).

• Touch the icon a second time to select the medium temperature setting (two bars).

• Touch the icon a third time to select the lowest temperature setting (one bar).

• Touch the icon again to switch off the seat heaters.

DAB radio DAB1

CC.5

BBC 5Live Xtra

BBC National DAB

B i Subch.

Valet

Seats

Home

Audio/TV

Climate

Phone

Navigation

Vehicle

Valet

12:26 pm

External

Left Right

CC.5

DAB radio DAB1

BC 5Live Xtra

National DAB

TA FM DAB i Subch.

JAG1513

Auto

12 : 26 pm

Auto

Climate

Ventilation

External

Left

Sensitivity

Climate seat

settings

Change units

Always

open

Auto

JAG0914

CLIMATE SEATS

Note: To prevent the battery from becoming discharged the climate seats will only operate when the engine is running.

Seat ventilation is adjusted through the vehicle touch-screen (from either the Climate or the Home menu). The climate seats have three heated and three cooled settings, indicated by the three bars adjacent to each seat icon. These bars will appear red when heated ventilation is selected, or blue when cooled ventilation is selected.

Cooled ventilation

Touch the down arrow to activate cooled ventilation for the chosen seating position. The system automatically selects the maximum cooled ventilation setting (3 blue bars illuminated).

To adjust the level of cooled ventilation, touch the up arrow the appropriate number of times:

• 1 touch = intermediate cooled ventilation (2 blue bars).

• 2 touches = minimum cooled ventilation (1 blue bar).

• 3 touches = cooled ventilation off (no bars illuminated).

Backrest ventilation only

It is possible to set the seat ventilation so that only the seat backrest is ventilated. Backrest only ventilation is selected using the touch-screen.

Heated ventilation

Touch the up arrow to activate heated ventilation for the chosen seating position. The system automatically selects the maximum heated ventilation setting (3 red bars illuminated).

To adjust the level of heated ventilation, touch the down arrow the appropriate number of times:

• 1 touch = intermediate heated ventilation

• 2 touches = minimum heated ventilation (1

• 3 touches = heated ventilation off (no bars

(2 red bars).

red bar).

illuminated).

• From the Climate menu, select Settings.

• For the left or right front seat select the

appropriate icon; either full seat ventilation (1) or seat backrest ventilation only (2).

Seat belts

E82942

PRINCIPLE OF OPERATION

Seat belts

WARNINGS

Seat belts are designed to bear upon the bony structure of the body, and

should be worn low across the front of the pelvis or the pelvis chest and shoulders, as applicable; wearing the lap section of the belt across the abdominal area must be avoided.

Seat belts should be adjusted as

firmly as possible, consistent with

comfort, to provide the protection for which they have been designed. A slack belt will greatly reduce the protection afforded to the wearer.

Care should be taken to avoid

contamination of the webbing with

polishes, oils and chemicals, and particularly battery acid. Cleaning may safely be carried out using mild soap and water.

The belt should be replaced if

webbing becomes frayed,

contaminated or damaged.

It is essential to replace the entire

assembly after it has been worn in a

severe impact even if damage to the

assembly is not obvious.

Belts should not be worn with the

straps twisted.

WARNINGS

Do not carry hard, fragile or sharp items between your person and the

seat belt. In an impact, the pressure from the seat belt on such items can cause them to break, which in turn may cause death or serious injuries.

Each belt assembly must only be used

by one occupant; it is dangerous to

put a belt around a child being carried

on the occupant's lap.

The occupants of the front seats

should not travel with the seat back at

more than 30 degrees from upright. Doing so will reduce the protection afforded by the seat belt.

Seat belt safety

WARNINGS

Seat belts should be worn by all

vehicle occupants, for every journey,

no matter how short. Failure to do so, will greatly increase the risk of death or serious injury in the event of an accident.

Never wear just the lap belt or just the

shoulder belt of a lap/shoulder

diagonal seat belt. Both of these actions are extremely dangerous and may increase your risk of injury.

No modifications or additions should

be made by the user which will either

prevent the seat belt adjusting devices from operating to remove slack, or prevent the seat belt assembly from being adjusted to remove slack.

A slack seat belt offers a greatly reduced level of occupant protection in an impact.

Seat belts

WARNINGS

If any damage, wear, cuts, defects or impaired operation are noted with the

seat belts, the vehicle should be taken to a Dealer/Authorised Repairer for immediate attention. Do not use the vehicle if the seat belts cannot be operated correctly.

When using seat belts to restrain

items other than occupants, take care

to ensure that the belts are not damaged, or exposed to sharp edges.

Care must be taken to avoid

contaminating the seat belt webbing

and seat belt mechanisms with any chemicals, liquids, grit, dirt or cleaning products. If the seat belts do become contaminated, they should be replaced immediately. Contaminated seat belts my not operate correctly in an impact and cannot be relied upon.

The use of comfort clips, or devices

that would create slackness in the

seat belt system, is not advised.

Seat belt checks

Note: If the vehicle is parked on an incline, the seat belt mechanism may lock. This is not a fault and the belt should be gently eased out from the upper anchorage.

The seat belts should be inspected regularly to check for fraying, cuts or wear to the webbing, and the condition and security of the mechanism, buckles, adjusters, and mounting points.

• With the seat belt fastened, give the webbing near the buckle a quick upward pull. The buckle must remain securely locked.

• With the seat belt unfastened, unreel the seat belt to the limit of its travel. Check that it unreels smoothly with no snatches or snags. Allow the belt to fully retract, again checking for smooth operation.

• Partially unreel the seat belt, then hold the tongue plate and give a quick forward pull. The mechanism must lock and prevent any further unreeling.

If any of the seat belts fail to meet those criteria, immediately contact your Dealer/ Authorised Repairer.

SEAT BELT REMINDER

If the driver's seat belt is not fastened when the vehicle is in

motion, a chime will be heard and the seat belt warning indicator will illuminate. The warning chime and indicator will also be activated if the front passenger seat is occupied without the seat belt being fastened.

Note: Objects placed on the front passenger seat may activate the seat belt reminder warning chime and indicator. It is recommended that any objects placed on the front passenger seat are secured using the seat belt.

Seat belts

E82643

USING SEAT BELTS DURING PREGNANCY

WARNINGS

Position the seat belt correctly for the safety of the mother and unborn

child. Never wear just the lap strap, and never sit on the lap strap whilst using just the shoulder strap. Both of these actions are extremely dangerous and may increase your risk of serious injury in the event of an accident or during emergency braking.

Never place anything between you

and the seat belt in an attempt to

cushion the impact in the event of an accident. It can be dangerous and will reduce the effectiveness of the seat belt in preventing injury.

Position the lap strap comfortably across the hips beneath the abdomen. Place the diagonal part of the seat belt between the breasts and to the side of the abdomen. Ensure that the seat belt is not slack or twisted.

FASTENING THE SEAT BELTS

E93298

1. Draw the belt out smoothly, ensure that the

belt height, the seat, and your position on the seat are correct. The belt should lay flat across the pelvis, chest, and mid-point of the collar bone between the neck and shoulder.

2. With the seat belt correctly positioned,

place the metal tongue into the buckle nearest to you. Press it in until a click is heard.

Releasing the seat belts

Note: When releasing the seat belt it is advisable to hold the belt before pressing the release button. This will prevent the belt from retracting too quickly.

To release the seat belt, press the red button.

Seat belts

E82904

SEAT BELT HEIGHT ADJUSTMENT

WARNING

Correct seat belt adjustment is essential for safety and comfort.

Ensure that the height is correctly adjusted and the mechanism is locked in place before driving the vehicle. Do not attempt to adjust the seat belt height once the vehicle is in motion. Doing so may cause you to loose control of the vehicle, or incorrectly adjust the seat belt.

1. Press to release the catch.

2. With the catch depressed move the

mechanism slide up or down to the required height. Ensure that the locking mechanism has engaged.

When correctly positioned the seat belt should cross the collar bone at the mid-point between the neck and end of your shoulder.

Where possible, rear seat passengers should adjust their seating position to achieve the same seat belt position.

Supplementary restraints system

PRINCIPLE OF OPERATION

Introduction

In the event of a collision, the airbag control unit monitors the rate of deceleration caused by the collision. This information is then used to determine whether airbags should be deployed.

Airbag deployment is dependent on the rate at which the passenger compartment changes velocity following the collision. The circumstances affecting different collisions (vehicle speed, angle of impact, type and size of object hit, etc.), vary considerably and will affect the rate of deceleration accordingly.

The Supplementary Restraint System (SRS) components include:-

• SRS warning indicator.

• Rotary coupler.

• Airbag modules.

• Seat belt pre-tensioners (front seat belts).

• Restraints control module.

• Crash sensors.

• Airbag wiring harnesses.

The SRS is not designed to operate as a result of:

• Rear impacts.

• Minor front impacts.

• Minor side impacts.

• Heavy braking.

• Driving over bumps and pot holes.

Therefore, it follows that considerable superficial damage to the vehicle can occur, without causing the airbags to deploy.

Airbags

E94099

3 4

Supplementary restraints system

1. Driver's airbag.

2. Front passenger airbag.

3. Seat mounted side airbags.

4. Curtain airbags.

WARNINGS

High speed impacts may cause

serious injury or death irrespective of

safety features fitted to a vehicle. Always drive with caution and consideration for the vehicle's characteristics, road and weather conditions.

The airbag cannot provide protection

in some types of impact, therefore

seat belts should be worn at all times by the driver and passengers in all seating positions.

WARNINGS

Airbags inflate at high speeds, and can cause injuries. To minimise the

risk of injury, ensure that all vehicle occupants wear correctly positioned seat belts, sit correctly in the seats, and position the seats as far back as practical.

Sitting centrally and correctly in each

seating position helps ensure that a

gap is maintained between the side of the vehicle and the head and torso. This will aid inflation of the curtain and seat-mounted airbags.

Airbag inflation takes place

instantaneously. Not all airbags are

designed to protect against the effects of secondary impacts. During secondary impact, a level of protection may be provided by a correctly worn seat belt.

Supplementary restraints system

WARNINGS

Phone systems should only be installed by qualified persons familiar

with the operation of, and requirements for, vehicles fitted with SRS. If you are in any doubt, seek advice from your Jaguar Dealer/Authorised repairer.

Note: The general location of airbags fitted to the vehicle are marked by the word AIRBAG.

Always contact your Dealer/Authorised repairer if:-

• An airbag inflates.

• The front or sides of the vehicle are

damaged.

• Any part of the SRS shows signs of cracking or damage, including trim covering airbags.

Airbag operation

WARNINGS

For the airbags to operate correctly the roof lining and door post trims

must be in good condition, correctly fitted, and free from obstruction. Any damage, wear, or incorrect fitment should be referred to your Dealer/Authorised repairer as soon as possible for examination and repair.

Do not allow passengers to obstruct

the operation of the airbags by

placing any part of their person, or any objects, in contact with, or close to, an airbag module. Airbags deploy at very high speeds and can cause serious injury or death if objects or occupants are within the area of deployment.

Airbags cannot deploy correctly if they are obstructed. Examples of obstructions are:-

• Any part of an occupants body in contact with, or close to, an airbag covering.

• Objects placed on, or close to, an airbag cover.

• Clothing, sun screens, or other material hanging from grab handles.

• Clothing, cushions, or other material, covering seat mounted airbags.

• Seat covers which are not approved by Jaguar, or specifically designed for use with seat mounted airbags.

• Luggage that intrudes into the area that will be occupied by a deploying airbag system.

This list is not exhaustive and it remains the responsibility of the driver and passengers to ensure that the airbags are not obstructed in any way.

Deployment and deflation

In the event of a collision, the restraints control system monitors the rate and direction of deceleration. If required to supplement the seat belts, airbags will be deployed as appropriate. After operation, frontal airbags do not retain pressure.

Front airbags

The front passenger’s and driver’s airbags are able to deploy in two stages, depending on the severity of the frontal impact. In a severe impact, the airbags inflate fully to offer maximum protection. In a lower severity impact, less inflation may be required, so the airbags inflate in a different manner.

Supplementary restraints system

Side and curtain airbags

To ensure that the side and curtain airbags are fully effective:

WARNINGS

Do not allow passengers to obstruct the operation of the airbags by

Do not sit too close to, lean or

sleep against the door trim. The

side and curtain airbags could

injure you as they deploy.

Do not lean out of the window.

Only use approved accessories (e.g.

seat covers).

Due to the function of the curtain

airbag deployment, consult your

Jaguar Dealer/Authorised Repairer, prior to installing any accessories in the upper environment/pillar trim area (e.g. hands-free telephone kits).

Side and curtain airbags are designed to offer increased protection for the torso and head in a side impact. The curtain airbags may deflate at a slower rate than the front or side airbags, to afford prolonged protection.

Airbag deployment effects

WARNINGS

When an airbag inflates, a by-product of the gas generation may be released

as small particles. It is possible that this may cause irritation and should be thoroughly flushed from the eyes and any cuts or abrasions.

After inflation, some airbag

components are at high

temperatures. To prevent injury, do no touch the airbag components until they have cooled.

In order to react with sufficient speed,

airbags are deployed by a pyrotechnic

device. Consequently, airbag deployment is accompanied by a very loud noise which may cause discomfort and temporary loss of hearing.

Supplementary restraints system

E93243

AIRBAG WARNING LAMP

The airbag warning indicator is mounted in the instrument pack, and will illuminate as a bulb check

when the starter switch is turned on.

WARNING

If the warning indicator signals that a fault is present in the system, do not

use a child restraint on the front passenger seat. Doing so will increase the risk of death or serious injury to the child.

If any of the following warning indicator conditions occur, the vehicle should be checked by your Dealer/Authorised repairer immediately.

• The warning indicator fails to illuminate when the starter switch is initially turned on.

• The warning indicator fails to extinguish within six seconds of the starter switch being turned on.

• The warning indicator illuminates at any time other than the bulb check, when the starter switch is on.

WHIPLASH PROTECTION

Both front seats are equipped with Active Head Restraints (AHR), which reduce the risk of neck and spinal injury (whiplash) in the event of a rear impact.

When activated, the head restraint moves upwards and forwards, supporting the occupant's head.

After activation, the whiplash protection mechanism automatically resets and does not need to be replaced.

Supplementary restraints system

AIRBAG LABELS

E94101

Airbag warning information is printed on the driver and passenger sun visors.

AIRBAG SERVICE INFORMATION

WARNINGS

Do not attempt to service, repair, replace, modify, or tamper with, any

part of the SRS. This includes wiring or components in the vicinity of SRS components. Doing so may cause the system to trigger, or render the system inoperative, either of which may result in death or serious injuries.

Do not use any electrical test

equipment or devices in the vicinity of

SRS components or wiring. Doing so may cause the system to trigger, or render the system inoperative, either of which may result in death or serious injuries.

All of the following operations should only be carried out by a Dealer/Authorised Repairer, or suitably qualified person:-

• Removal or repair of any wiring or component in the vicinity of any SRS components.

• Installation of electrical, or electronic, equipment and accessories.

• Modification to the front or sides of the vehicle exterior.

• Attachment of accessories to the front or sides of the vehicle.

In the event of the vehicle being dismantled, airbag module removal and disposal must be carried out by a qualified person.

Child safety

CHILD SEATS

WARNINGS

Do not use a child restraint on a seat protected by an airbag in front of it. There is a risk of death or serious injury when the airbag deploys.

Crash statistics show that children are safest when properly restrained in a child or infant restraint system that is secured in a rear seating position.

For optimum safety, children should travel in the rear of the vehicle at all times; front passenger seat travel is

not recommended. However, if it is essential that a child travels in the front, set the vehicle seat fully rearward and seat the child in an approved forward-facing child seat. Do not use a rear-facing child seat - an inflating airbag could impact with the seat and cause serious injury.

Do not use a forward facing child seat

until the child using it is above the

minimum weight of 9 kg (20 lb.) and able to sit up unaided. Up to the age of two, a child's spine and neck are not sufficiently developed to avoid injury in a frontal impact.

Do not allow a baby or infant to be

held or carried on the lap. The force of

a crash can increase effective body weight by as much as thirty times, making it impossible to hold onto the child.

Children typically require the use of a

booster seat appropriate to their age

and size, thereby enabling the seat belts to be properly fitted, reducing the risk of injury in a crash. Children could be endangered in a crash if their child restraints are not properly secured in the vehicle.

WARNINGS

Do not use a child seat that hooks over the seat back. This type of seat cannot be satisfactorily secured and is unlikely to be safe for your child.

The seat belts fitted to your vehicle are designed for adults and larger children. For their safety, it is very important for all infants and children under 12 years of age to be restrained in a suitable child safety seat appropriate to their age and size.

Children are always safest when seated in a rear seating position.

If it is essential that a child travels in the front passenger seat, Jaguar recommends that the following preparations are made before fitting the child restraint.

• Adjust the front passenger seat fully rearwards.

• Adjust the lumbar support to its minimum support position.

• Adjust the seat cushion to its highest position. If cushion front tilt adjustment is possible, adjust it to its lowest position.

• Adjust the seat back to the fully upright position.

• Adjust the seat belt adjustable upper anchorage to its lowest position.

In some countries, legislation prohibits children travelling in the front of a vehicle. Ensure that you are familiar with the legislation in force where the vehicle is being used and are in full compliance.

Child safety

E79258

WARNING

Original text according to ECE R94.

01. Extreme hazard! Do not use a rearward facing child restraint on a

seat protected by an airbag in front of it!

This symbol is affixed to the end of the fascia on the passenger side. Its purpose is to warn against the use of a rear facing child seat in the front passenger seat, when the front passenger airbag is fitted.

Child restraint check list

Every time a child travels in the vehicle observe the following:-

• Use appropriate child restraints.

• Carefully follow the restraint system

manufacturers instructions.

• Adjust the harnesses for every child on every trip.

• Ensure that all slack is removed from the adult seat belt.

• Always attach the top tether when installing an ISOFIX seat. See CHILD SEAT ANCHOR POINTS (page 62).

• Always check the security of the child restraint.

• Do not dress a child in bulky clothing, or place any objects/padding between the child and the restraint.

• Regularly check the fit and condition of child restraints. If the fit is poor, or wear/damage is visible replace the restraint immediately.

• Set a good example - always wear your seat belt.

CHILD SEAT POSITIONING

CAUTION

Information given within the table is

correct at the time of going to press. However, availability of child restraints may change. Please consult your Dealer/ Authorised Repairer for the latest recommendation.

For optimum safety, children should travel in the rear of the vehicle at all times; front passenger seat travel is not recommended. However, if it is essential that a child travels in the front, set the vehicle seat fully rearward and seat the child in an approved forward-facing child seat. Do not use a rear-facing child seat an inflating airbag could impact with the seat and cause serious injury.

Note: The information contained in the following table may not be applicable to all countries. If you are in any doubt regarding the type and fitment of child seats seek advice from your Dealer/Authorised Repairer.

Note: The legislation which governs how and where children should be carried when travelling in a vehicle, is subject to change. It is the responsibility of the driver to comply with all regulations in force.

Child safety

Child safety seating and positions

Seating positions Front passenger* Rear outboard Rear centre

Mass group

0 = Up to 10 kg (22 lb.)

0 to 9 months

0+ = Up to 13 kg (29 lb.)

0 to 18 months

I = 9 to 18 kg (20 to 40 lb.)

9 months to 4 years

II = 15 to 25 kg (33 to 55 lb.)

4 to 9 years

III = 22 to 36 kg (49 to 79 lb.)

8 to 12 years

XU U

UF U U

UU U

• U = Suitable for universal category

restraints approved for this mass group.

• UF = Suitable for forward facing Universal

category restraints approved for this mass group.

• X = Not suitable for child restraint fitment

in this mass group.

* Jaguar recommend that the front passenger seat be positioned fully rearward, with the cushion adjusted to the highest position when installing child restraints.

Note: Ages given are approximate. In case of doubt, the child’s weight, not age, should be used when considering an appropriate child seat.

BOOSTER CUSHIONS

In a situation where a child is too large to fit

into a child safety seat, but is still too small to

safely fit the three point belt properly, a booster

seat is recommended for maximum safety.

Follow the manufacturer's instructions for

fitting and use, then adjust the seat belt to suit.

Child safety

E94103

CHILD SEAT ANCHOR POINTS

ISOFIX anchor points (not Australia)

WARNINGS

Do not attempt to fit ISOFIX restraints to the centre rear seating position. The anchor bars are not designed to

hold an ISOFIX restraint in this position.

If the restraint is not correctly anchored, there is a significant risk of injury to the child in the event of a collision or emergency braking.

Child restraint anchorages are designed to withstand only loads

imposed by correctly fitted child restraints. Under no circumstances are they to be used for adult seat belts, harnesses or for attaching other items or equipment to the vehicle.

If removing a head restraint in order

to fit a child restraint, always secure

the head restraint when storing it. If left loose in the vehicle, it may cause death or serious injury during sudden braking or an impact.

Both of the outer rear seat positions are equipped to accept ISOFIX restraints.

This symbol is shown on a label sewn into the seats to indicate the position of the ISOFIX lower anchorages.

Child safety

E94104

ISOFIX child seats

Mass group Size classes Fixtures Rear outboard seats

Carrycot F/G ISO L1/L2 X

0 = Up to 10 kg (22 lb.)

0 to 9 months

0+ = Up to 13 kg (29 lb.)

0 to 18 months

I = 9 to 18 kg (20 to 40 lb.)

9 months to 4 years

II = 15 to 25 kg (33 to 55 lb.)

4 to 9 years

III = 22 to 36 kg (49 to 79 lb.)

8 to 12 years

• IUF = Suitable for ISOFIX forward child restraint systems of universal category approved for use in the mass group.

• IL = These ISOFIX child restraint systems are of the specific vehicle, restricted or semi-universal categories.

• * = Child seats suitable for use in these locations are Britax Cosy-Tot Premium Infant carrier and Britax Duo Plus child seat.

Note: Ages given are approximate. In case of doubt, the child’s weight, not age, should be used when considering an appropriate child seat.

Installing an ISOFIX child seat

To install an ISOFIX child seat:-

1. Raise or remove the head restraint from the relevant seat.

2. Lift the velcro flap to expose the ISOFIX locking mechanism.

3. Slide the child seat into the locking mechanism.

EISO R1 IL*

C/D/E ISO R1/R2/R3 IL*

C/D

A/B1/B

-N/AN/A

ISO R2/R3

ISO F2/F2X/F3

4. Test the security of the child restraint. To

do this attempt to pull the restraint away from the vehicle seat and twist the restraint from side to side. Even if the restraint appears secure you should still check the anchor points visually to ensure correct attachment.

Note: Always ensure that if an upper tether is provided, it is fitted and tightened correctly.

IUF

Child safety

E94105

Tether anchorage points (Australia only)

WARNING

Child restraint anchorages are designed to withstand only those

loads imposed by correctly fitted child restraints. Under no circumstances are they to be used for adult seat belts, harnesses or for attaching other items or equipment to the vehicle.

If a child seat or restraint system is to

be fitted to the centre seating

position, the centre armrest must be in the stowed position (folded into the seat).

Note: A tether anchorage is provided for the centre seat position. Do not use this anchor position with an ISOFIX child seat.

Attaching tether straps

1. Install the child restraint securely in one of

the rear seating positions.

2. Pass the tether strap over the seat back

and beneath the head restraint.

3. Attach the tether strap hook to the tether

anchor point on the back of the seat. Ensure that the tether strap hook is facing the correct way. See illustration.

4. Tighten the tether strap according to the

manufacturer's instructions.

Child safety

E94106

CHILD SAFETY LOCKS

Child safety locks are fitted to the rear doors to allow you to prevent accidental opening of the doors when the vehicle is in motion.

If children are to be carried in the rear seat positions, it is recommended that the rear door interior handles are disabled.

Note: For convenience, the rear door interior handles should be re-enabled when carrying adult passengers in the rear seat positions.

To change the child lock settings:-

1. Open the door to access the child safety

lock.

2. Insert the emergency key into the slot and

rotate a quarter of a turn, to enable or disable the interior door handle, as required.

Pedestrian protection

E94698

PRINCIPLE OF OPERATION

The pedestrian protection system has been designed to reduce lower leg and head injuries in the event of a frontal collision with a pedestrian.

The bumper includes energy absorbing foam and plastics in its construction to reduce leg injuries and sensors that detect the collision with a pedestrian.

Deployment

During a pedestrian collision, the sensors initiate a bonnet deployment system that releases the bonnet hinge system and raises the rear edge of the bonnet by approximately 130 mm (5.1 inches).

This increases the gap between the bonnet and the components within the engine compartment e.g. engine, suspension etc. This increased gap creates a cushion to mitigate injury caused to the pedestrian.

The bonnet deployment system is active only when the ignition is on and the vehicle is driven between the speeds of approximately 20 km/h (12 mph) and 45 km/h (28 mph).

AFTER DEPLOYMENT OF THE PEDESTRIAN PROTECTION SYSTEM

CAUTION

Do not attempt to open the bonnet if the pedestrian protection system has been deployed.

The vehicle must be stopped as soon as it is safe to do so.

The hazard warning lamps will be activated and can only be switched off by pressing the engine START/STOP button to turn the engine off and on again.

A warning message CHECK PEDESTRIAN SYSTEM will appear on the message centre and the vehicle should be transported to the nearest Dealer/Authorised Repairer. The vehicle must not be driven when the bonnet has been deployed. See Vehicle recovery (page 253).

Note: If the warning message CHECK PEDESTRIAN SYSTEM appears in the message

centre when the bonnet has not been deployed, the vehicle should be taken to the nearest Dealer/Authorised Repairer immediately. It can be driven.

If any significant damage occurs to the front bumper it should be inspected by a Dealer/Authorised Repairer as soon as possible.

Steering wheel

E91122

ADJUSTING THE STEERING WHEEL

WARNING

Never adjust the steering wheel position whilst the vehicle is in

motion. Doing so will reduce control of the vehicle and may cause unpredictable steering movements.

CAUTION

Do not use steering wheel mounted

security devices, as movement of the steering wheel in entry and exit mode, could result in damage to the vehicle or possible injury to the occupant.

The steering wheel can be adjusted for tilt and reach, as follows:

1. Turn the switch to the COLUMN or AUTO

position.

2. Move the switch forwards or rearwards to

adjust reach.

3. Move the switch up or down to adjust tilt.

Two steering wheel positions can be stored and recalled by the driver position memory system.

The message centre will indicate which switch position has been selected by displaying the message COLUMN ADJUST or COLUMN

ADJUST AUTO.

Entry and exit mode

Entry and exit mode provides automatic movement of the steering column, to allow easier entry to, or exit from, the vehicle.

Entry and exit mode is selected by setting the steering column adjustment switch to the

AUTO position.

Exit: If the driver's door is opened, the steering

column will move to the uppermost tilt position, unless already in that position.

Entry: When the door is closed and the ignition is switched on, the steering column will return to its previous position.

Note: If the steering column switch is moved away from AUTO when the steering column is in the Exit position, the steering column will move back to its previous (driving) position, when the driver's door is closed and the ignition is switched on.

If the steering column position is manually adjusted during Entry or Exit operation, steering column movement will stop.

HORN

E91123

Home

Audio/TV

Climate

Phone

Navigation

Vehicle

Valet

12:26 pm

External

Left

CC.5

DAB radio DAB1

BBC 5Live Xtra

BBC National DAB

TA FM DAB i Subch.

JAG1514

Settings

Te m p . sync.

External

Auto

C 5 C

Auto

A/C

OFF

Climate

12 : 26 pm

Auto

E94700

Steering wheel

The dual tone horn is operated by pressing the centre pad on the steering wheel.

The horn also operates as the alarm sounder, if the vehicle alarm system is activated.

HEATED STEERING WHEEL

The heated steering wheel is activated via the touch-screen main Home menu.

With the engine running, touch the steering wheel icon to turn the heating on. The icon will glow red when the steering wheel heater is on.

The heated steering wheel can also be activated via the Climate menu on the touch-screen. With the engine running, touch the steering wheel icon to turn the heating on or off.

Steering wheel

1 2

4 3

E91129

E95902

AUDIO CONTROL

1. Rotate (up or down) to increase or

decrease volume.

2. Rotate (up or down) and release, to scroll

up or down through preset radio stations or CD tracks.

Rotate and hold (for two seconds) to select the next or previous radio station on the waveband, or to select the next or previous loaded CD (on multi-disc CD players).

3. Press repeatedly to scroll through the

audio source options, comprising: FM1, FM2, AM, CD, DAB radio, Auxiliary input, Portable Audio Interface and TV options.

Press and hold (for two seconds) to select Phonebook view (when a phone is connected to the system).

4. Press to mute the audio unit.

Press to dial, answer or end a phone call.

VOICE CONTROL

JaguarVoice control provides a safe and convenient way of operating certain vehicle systems, without the need to operate the controls manually.

Voice commands are available for the phone, navigation and touch-screen display systems, and a notepad facility is provided, to allow voice notes to be recorded. Help and tutorial functions provide advice on operating the system. Information on JaguarVoice operation of the telephone and navigation systems is detailed later in this handbook. See TELEPHONE VOICE CONTROL (page 323). See USING VOICE CONTROL (page 373).

The system is controlled using the voice button on the steering wheel (arrowed). Voice commands are picked up by a dedicated microphone and audible feedback will be heard through the audio system speakers.

Steering wheel

Voice

12 : 26 pm

Add phone nametags

Command list

Operating guide

Settings

E96024

Voice

12 : 26 pm

Feedback Volume

Voice language

English UK

Change

Activating the system

To activate voice control, press the voice button on the steering wheel. A tone will be heard and LISTENING will be displayed in the message centre, to indicate that the system is now waiting for a voice command.

Note: It is only necessary to press the voice button at the beginning of each voice session.

Language and accent

Voice feedback is given in the same language as is set for Voice recognition. For example, if the Voice recognition language is set to UK English, the system will not recognise other languages (e.g. US English). The language for the system can be changed using the touch-screen as follows:

1. From the Home menu, select Comms.

2. From the Comms menu, select Voice and then select Settings.

3. Select Change, then select the desired

language from the options available.

Note: Changing the Voice recognition language will not affect the language settings for the touch-screen.

Giving a command

Note: If background noise is excessive (e.g. driving with windows open), the voice system may not recognise a given voice command.

Press and release the Voice button on the steering wheel and, after the tone, say one of the commands listed later in this section, or one of the commands given in either the Telephone voice section or the Navigation voice section, as appropriate. See TELEPHONE

VOICE CONTROL (page 323). See USING VOICE CONTROL (page 373).

Note: Always wait until the tone finishes sounding before giving a voice command.

Give commands while facing forwards, in a natural speaking voice as if talking to a passenger or on the phone. Most accents are understood without difficulty, but if the system does not recognise the command, the system will respond with SORRY and allow two more attempts to say the command.

The system will repeat the command (as understood by the system) back to you as confirmation. The command will then be acted on or the system will ask for further information - always wait until after the tone has sounded before speaking.

Once you are familiar with system requests, it is possible to skip to the end of the request (to when the tone sounds) to give your response. To achieve this, briefly press and release the voice button on the steering wheel during the system request.

Note: If the Voice button on the steering wheel is pressed before the system is ready to receive a command, VOICE NOT READY will be displayed in the message centre.

Steering wheel

Voice

12 : 26 pm

Add phone nametags

Comm

Operating guide

Settings

E96025

Voice

12 : 26 pm

To give a voice command briefly press the voice button and speak normally after the tone

Tutorial will help you start to use your voice control system

Tutorial

Cancelling voice control

To cancel a voice command, press and hold the Voice button on the steering wheel until a double tone is heard.

Note: If a phone call is received during a voice session, voice control is cancelled.

Voice system tutorial

To listen to a tutorial on how to use JaguarVoice, press and release the voice button and, after the tone, say VOICE TUTORIAL.

The tutorial is divided into four lessons and has a total duration of approximately four minutes. The tutorial can only be undertaken with the vehicle stationary and parked.

To cancel the tutorial, press and release the Voice button and say CANCEL. To skip to the previous or next lesson of the tutorial, press and release the Voice button and say

PREVIOUS or NEXT.

Command help

For a list of the most commonly used voice commands, press and release the Voice button and, after the tone, say the appropriate command from the following list:

• VOICE HELP

• NAVIGATION HELP

• PHONE HELP

• DISPLAY HELP

• NOTEPAD HELP

The tutorial can also be accessed via the touch-screen.

1. Select Comms from the Home menu.

2. From the Comms menu, select Voice.

3. From the Voice menu, select Operating guide and then select Tutorial.

Full command list

Voice

12 : 26 pm

Add ph tags

Command list

Operating guide

Settings

E96026

Voice

12 : 26 pm

Select a system for the list of voice commands

Comms

Navigation

Display

Voice

Phone help

Phone reject calls

Phone accept calls

Phone redial

Phone dial number

JAG0899

Voice

12 : 26 pm

Select a system for the list of voice commands

Voice

Notepad

Phone

A full list of voice commands available can be accessed on the touch-screen.

1. Select Comms from the Home menu.

2. From the Comms menu, select Voice.

3. From the Voice menu select Command list.

4. Select Navigation or Display to view the

relevant command list or select Comms to view the options available.

If Comms was selected, you can now choose which system’s command list you wish to view (Voice, Notepad or Phone)

Steering wheel

1. Select the appropriate system (Phone in

this example).

2. Scroll down to view the entire command

list for the chosen system.

Nametags

Nametags allow the voice system to be personalised with the addition of names for phone numbers and navigation locations, destinations and waypoints. A nametag can be any unique name chosen by the user.

Details for storing and using nametags in conjunction with the telephone and Navigation systems, are given later in this handbook. See TELEPHONE VOICE CONTROL (page 323). See USING VOICE CONTROL (page 373).

A spoken list of currently stored nametags can be heard by pressing and releasing the Voice button and saying PHONE PLAY DIRECTORY or NAVIGATION PLAY DIRECTORY, as appropriate.

Steering wheel

Notepad

The notepad facility enables the user to record a note, up to a maximum of 30 seconds duration, which can be subsequently recalled.

Note: To hear information on notepad commands, press the Voice button, wait for the tone to sound and then say NOTEPAD HELP.

Recording a note

1. Press and release the Voice button, wait for the tone to sound, then say RECORD NOTE.

2. Say the words of the note to be recorded,

then press and hold the Voice button to end and save the note.

Note: The maximum length of a note is 30 seconds, after which time the recording of the note will be ended automatically.

Playing a note

Press and release the Voice button, wait for the tone to sound, then say PLAY NOTEPAD. If multiple notes are stored on the system, press and release the Voice button during playback and say NEXT, to skip to the next note.

Deleting notes

To delete an individual note, press and release the Voice button during playback of the note to be deleted and say DELETE.

To delete all notes stored on the system, press and release the Voice button and say CLEAR

NOTEPAD.

Voice volume adjustment

The volume level for voice recognition can be adjusted independently, either by using the steering wheel controls or using the touch-screen:

• Press the voice button on the steering wheel, to initiate a voice session. Use the volume control thumbwheel on the steering wheel to adjust the volume, as required.

• Select Vehicle from the touch-screen Home menu, then select Veh. settings. Find the correct entry from the menu of infotainment volume settings and adjust as required.

Voice commands

This is a list and a description of the basic Voice commands used to operate the system. A list and description of telephone and Navigation system commands, is detailed later in this handbook. See TELEPHONE VOICE

CONTROL (page 323). See NAVIGATION SYSTEM VOICE COMMANDS (page 374).

Command Description

VOICE HELP Plays information on

operating the Voice system.

VOICE TUTORIAL Initiates a four-part

tutorial on use of the Voice system.

DISPLAY HELP Plays information on

touch-screen display voice commands.

DISPLAY SHOW PHONE

The Phone menu is displayed on the touch-screen.

Steering wheel

E97079

Command Description

DISPLAY SHOW NAVIGATION

DISPLAY ON Turns the touch-screen

DISPLAY OFF Turns the touch-screen

NOTEPAD HELP Plays information on

RECORD NOTE Allows recording of a

PLAY NOTEPAD Plays all currently stored

CLEAR NOTEPAD Deletes all notes currently

The Navigation main menu is displayed on the touch-screen (the navigation caution must be accepted before the menu is displayed).

on.

off.

notepad commands.

note, up to 30 seconds long.

notes.

stored in notepad.

CRUISE CONTROL

1. SET - Rotate and release to engage cruise

control (at the vehicle's current speed).

With cruise control operating, rotate up or down to increase or decrease the speed in 2 km/h (1 mph) steps.

2. CANCEL - Press to cancel cruise control.

The previously programmed set speed will be retained and can be reselected by pressing RESUME.

3. RESUME - Press to resume the previously

programmed set speed (e.g. after cruise control has been cancelled).

4. GAP (ACC only) - Rotate up or down to

increase or decrease the time gap to the vehicle ahead. The gap can be set to one of four pre-defined intervals. The current setting will be displayed in the message centre.

For more information about cruise control: See USING CRUISE CONTROL (page 156).

For more information about adaptive cruise control (ACC): See USING ACC (page 159).

Lighting

E91137

E91138

E91139

E91140

E91141

LIGHTING CONTROL

Note: If the ignition system is switched off and the lamps are left on, the message centre will display LIGHTS ON.

The exterior lamps are controlled by the left-hand column stalk switch.

The rotary collar on the stalk has three positions for turning the exterior lamps on or off and positions for autolamps and exit delay.

Off

All exterior lamps off (except vehicles provided with daylight running lamps).

Side lamps

Switches on the side lamps, tail, number plate and any other marker lamps required by local legislation. The instrument panel will also be lit.

Headlamps

Headlamp flash: Pull the switch towards the

steering wheel and release to flash the high beam on and off. The high beam will remain on for as long as the switch is held.

High beam: With the headlamps on, push the switch away from the steering wheel to switch to high beam.

The blue warning indicator on the instrument panel will illuminate.

To turn high beam off and return to low beam, pull the column switch towards the steering wheel.

Note: If the rotary control switch is moved to the OFF position, with high beam still activated, both low and high beam will be extinguished. Both low and high beam will illuminate when the headlamps are turned on again.

Select this position to switch on the headlamps.

Lighting

E91142

Daylight running lamps

In certain countries it is a legal requirement for the lamps to be on during the hours of daylight.

With the rotary collar in the OFF position, low beam headlamps, side lamps, tail, number plate lamps and, where fitted, side marker lamps will switch on automatically with the following conditions:

• The ignition is on (market dependent).

• The vehicle gear selector out of park.

• The park brake is not applied (is released).

Condensation

In certain circumstances, misting may occur on the inside of a lamp lens. This is caused by natural changes in environmental conditions. This misting is not detrimental to lamp performance and will clear during normal usage.

AUTOLAMPS

A light sensor, mounted on the front of the fascia, monitors exterior light levels and automatically switches the side lamps and low beam headlamps on or off.

The ignition system must be on for full automatic light operation.

When light fades towards dusk, the side lamps and headlamps will switch on automatically.

At dawn, as light increases, the side lamps and headlamps switch off automatically.

Do not cover the sensor and keep the windscreen clean. Obstructing the light in this area of the sensor may lead to unwanted operation of the side lamps and headlamps.

Note: Low exterior light levels, caused by adverse weather conditions, may also cause the autolamp system to switch on the side and headlamps.

Windscreen wiper detection

This function only operates when autolamps is selected. The side lamps and headlamps will switch on automatically if the windscreen wipers are switched on for 20 seconds or more. Once the windscreen wipers are switched off, the side lamps and headlamps will automatically switch off two minutes later.

Lighting

JAG0924

E94710

Exit delay

Three settings on the rotary collar set the time that the headlamps will remain on after the driver’s door has closed:

1. 30 seconds.

2. 60 seconds.

3. 120 seconds.

The message centre displays the selected delay time (e.g. AUTOLAMP DELAY 0:60) or displays AUTOLAMP DELAY OFF when the autolamp delay function has been turned off.

Note: If the lamp switch rotary collar is in the AUTO position there will be no exit delay and

the headlamps will extinguish when the ignition system is turned off.

REAR FOG LAMPS

JAG1332

Rear fog lamps will only operate when headlamp dipped beam or Auto lamps are selected. Press the rear fog lamp button to switch on, press again to switch off.

HAZARD WARNING FLASHERS

Press the switch to turn the hazard warning lamps on. When the hazard warning lamps are operating, the indicator warning lamps will flash in time with the hazard warning lamps. Press again to turn the lamps off.

Use only in an emergency, to warn traffic of a vehicle breakdown or approaching danger.

Note: Hazard warning lamps can be used when the ignition is on or off.

Lighting

E91163

E94707

DIRECTION INDICATORS

The direction indicators are operated using the indicator stalk. Move the stalk up or down, to indicate a right or left turn. A green warning indicator will flash in the instrument panel.

The indicators will operate three times (e.g. to indicate a lane change) if the stalk is briefly pushed up or down. Lane change flash can be disabled or enabled by a Dealer/Authorised Repairer.

Note: Should a direction indicator bulb fail, the corresponding green warning indicator will flash at twice the normal rate and the audible ticking will sound at twice the normal rate.

HEADLAMPS - DRIVING ABROAD

Note: The headlamps must be removed in order to change the beam pattern. See REMOVING A HEADLAMP (page 81).

The tourist lever allows you to adjust the headlamps to the correct beam pattern for driving in countries where vehicles drive on the left, or the right.

When new, the lever will be set to the correct position for the country in which the vehicle is sold. To change the pattern for driving on the other side of the road, move the lever to the opposite position.

Note: When changing the beam pattern using the lever, ensure that you change the lever position on both headlamps.

Lighting

JAG1334

HEADLAMP LEVELLING

Halogen headlamps

Use the headlamp levelling control to account for vehicle loading changes.

Vehicle load Switch position

Driver only 0

Driver and front seat passenger

Driver and passengers in all seats

Maximum gross vehicle weight

Maximum rear axle load 2 or 3

Xenon headlamps

Headlamp levelling is adjusted automatically if Xenon headlamps are fitted, to account for vehicle load conditions, to avoid dazzling oncoming drivers.

CORNERING OR STATIC BENDING LAMPS

Cornering or static bending lamps are angled outwards from the centre line of the vehicle. These lamps broaden the beam of the headlamps when cornering during normal night driving.

JAG0923

1. Light spread of a vehicle not fitted with static bending lamps.

2. Light spread of a vehicle fitted with static bending lamps

The system switches on the lamp if it has received an input from the vehicle's direction indicator. Only the lamp on the same side as the operating direction indicator illuminates.

The system only operates with the ignition switched on.

INTERIOR LAMPS

E94712

Lighting

1. Sun visor lamps. Switch on automatically

when the vanity mirror is opened.

2. Front map reading lamps. Move your

finger close to (or touch) the relevant proximity switch to switch on/off.

3. Front interior courtesy lamp. Illuminates

when the doors are unlocked and extinguish 20 seconds after all doors are closed or when the vehicle is locked. The lamps are operated by proximity sensors. Move your finger close to (or touch) the appropriate lens to switch on or off manually. Touch the lens for 2 seconds to deactivate/activate automatic illumination.

4. Glove box lamp. Automatically illuminates

when the glove box is opened.

5. Footwell lamps. Automatically illuminate

when the front doors are opened.

6. Rear map reading/interior lamps. Switch

on automatically when the doors are opened. Press the appropriate switch to activate an interior lamp manually (e.g. as a map reading lamp). Press the appropriate switch again to extinguish the lamp. Touch the front courtesy lamp lens for approximately 2 seconds to deactivate/activate automatic illumination of the rear interior lamps.

Lighting

E94719

Note: For lamps controlled by proximity sensors, the wearing of gloves may interfere with operation. If you are wearing gloves, it may be necessary to touch the proximity switch to operate the lamps.

Ambience lighting

Ambience lighting. Automatically illuminates when the headlamps are on. Ambience lighting creates a blue glow around the centre console and front door armrests.

Luggage compartment lamp

Automatically illuminates when the luggage compartment is opened.

APPROACH LAMPS

This feature is activated by pressing the headlamp icon button on the Jaguar Smart Key. See USING THE

REMOTE CONTROL (page 17). The headlamps will remain on for 25 seconds or until the button is pressed again, or until the engine START/STOP button is pressed.

REMOVING A HEADLAMP

CAUTION

It is recommended that the following

procedure should only be attempted by a qualified technician. If in doubt, consult your Dealer/Authorised Repairer.

Do not place the removed lamp unit face

down on hard or abrasive surfaces. Doing so may scratch the surface of the lens.

1. Open the bonnet. See OPENING AND CLOSING THE BONNET (page 195).

2. Remove the two bolts from the top of the

headlamp unit.

3. Remove the retaining bolt located in the wheel arch.

Note: To improve access to the wheel arch, turn the steering wheel to full lock, in the direction of the affected headlamp.

4. Pull the headlamp away slightly from the body of the vehicle.

Lighting

E94720

E94721

5. Press the tab and pull to disconnect the

electrical connector.

6. Press the clip and pull to disconnect the

headlamp washer hose (if headlamp washers are fitted).

7. Remove the headlamp unit.

REMOVING A REAR LAMP

CAUTION

It is recommended that the following

procedure should only be attempted by a qualified technician. If in doubt, consult your Dealer/Authorised Repairer.

Do not place the removed lamp unit face

down on hard or abrasive surfaces. Doing so may scratch the surface of the lens.

Only the rear direction indicator and reverse lamp bulbs can be replaced. Failure of any other rear lamp unit should be investigated by a qualified technician. Consult your Dealer/ Authorised Repairer.

Note: Access to the rear lamp units is achieved through access hatches, located behind the rear boot trim.

1. Remove the two retaining nuts.

2. Pull and slide the lamp unit rearwards to

remove.

Lighting

E94732

CHANGING A BULB

General information

CAUTION

Always replace bulbs with the correct

type and specification. If you are in any doubt contact your Dealer/Authorised Repairer for advice.

Note: In certain markets its a legal requirement to carry spare bulbs. A replacement bulb kit is available as an approved accessory from your Dealer/Authorised Repairer.

Halogen bulbs

Halogen bulbs are used for main beam and dipped beam headlamps. Take care not to touch the glass part of the bulb with your fingers; always use a cloth to handle the bulb. If necessary use methylated spirits to remove finger prints.

Xenon lamps

WARNINGS

Replacement or maintenance of Xenon lamps should only be carried out by suitably qualified personnel.

High voltage is required to ignite the

this voltage can cause serious injuries.

gas and metal vapour which are used to power Xenon lamps. Contact with

Xenon lamp units operate at a very high temperature. Ensure that the lamp units have cooled before attempting to touch them.

Xenon lamp units contain Mercury which is highly toxic and can be extremely harmful.

Seek advice about the correct disposal of Xenon lamp units from your Dealer/Authorised Repairer, or your local authority.

HEADLAMP UNIT BULBS

Halogen dipped beam

With the headlamp unit removed:-

1. Rotate the cover counter-clockwise to

remove.

2. Twist the bulb holder counter-clockwise

and withdraw it from the headlamp unit.

3. Pull the bulb from the holder to remove.

Note: When fitting the replacement bulb, ensure the orientation of the tab (arrowed) is as shown.

Lighting

E94733

E94734

Halogen dipped and main beam

Direction indicator bulbs

With the headlamp unit removed:-

1. Twist the indicator bulb holder

counter-clockwise, and remove it from the lamp unit.

2. Press the bulb into the holder, then twist it

to remove.

With the headlamp unit removed:-

1. Rotate the relevant cover

counter-clockwise to remove.

2. Twist the bulb holder counter-clockwise

and withdraw it from the headlamp unit.

3. Pull the bulb from the holder to remove.

Note: When fitting the replacement bulb, ensure the orientation of the tab (arrowed) is as shown.

Lighting

E94735

E94736

Side lamp bulbs

SIDE REPEATER LAMP

CAUTION

These lamps are LED units and should only be replaced by a Dealer/Authorised Repairer.

REAR LAMP BULBS

Rear direction indicator and reverse lamp bulbs

1. Rotate the cover counter-clockwise and

remove.

2. Pull the bulb holder tab to remove from the

lamp unit.

3. Pull the bulb to remove.

When replacing, push the bulb holder into its socket in the lamp unit until it clicks in place.

With the rear lamp unit removed:-

1. Squeeze the two tabs together, then pull to

remove the relevant bulb holder.

2. Press and release the tab on the electrical

connector and pull to remove the bulb unit.

Lighting

E94737

Number plate lamp bulb

Other rear lamp bulbs

CAUTION

LED lamp units should only be replaced by a Dealer/Authorised Repairer.

The following rear lamps are LED units and should not be replaced by the owner:

• Tail lamps.

• Brake lamps.

• Rear fog lamps.

• High level brake lamp.

• Rear side marker lamps.

1. Using a small flat-bladed screwdriver as

shown, lever out the side of the lamp unit and remove.

2. Twist the bulb holder 90° counter-

clockwise to access the bulb.

3. Pull to remove the bulb from the holder.

Lighting

BULB SPECIFICATION CHART

CAUTION

Before attempting to replace a bulb,

ensure that both the affected lamp and the vehicle's ignition are turned off. If the circuit is live a short circuit can occur which may damage the vehicle's electrical system.

Lamp Specification Power (Watts)

Halogen headlamp (Low and High beam) H7/H7 55/55

Xenon headlamp (Low and High beam) D1S/H7 35/55

Front side lamps W5W HCB 5

Front direction indicators PY21W 21

Rear direction indicators PY19W 19

Reverse lamps PS19W 19

Number plate lamps W5W 5

Interior overhead lamps W6WX 6

Footwell lamps W5W 5

Luggage lamp S10W 10

Tailgate lamps W5W 5

Glove box lamp W5W 5

Vanity mirror lamp 2 x TS1.3W 1.3

Note: The tail lamp, stop lamp, rear fog lamps, rear side lamps, side repeater lamps and high mounted stop lamp, are LED units and are non-serviceable. If any of these lamps should fail, they should be investigated by qualified personnel. Consult your Dealer/Authorised Repairer.

Wipers and washers

JAG1620

JAG1622

JAG1621

WINDSCREEN WIPERS

CAUTIONS

Do not operate the windscreen wipers on a dry screen. The drag on the wiper mechanism may cause damage.

In freezing or very hot conditions,

ensure that the wipers have not stuck to the windscreen before operating. The drag on the wiper mechanism may cause damage.

Remove any snow, ice or frost from the

windscreen, around the wiper arms and blades, and the screen scuttle, before operating the wipers. Snow and ice can cause damage to the wiper mechanism, if left uncleared.

Note: If the wiper blades become stuck or jammed, an electronic cut-out may temporarily halt wiper operation. If this happens, switch off the wipers and the ignition. Clear any obstructions and free the wiper blades, before attempting to switch on the ignition.

Wiper operation

Rain sensor variable delay

1. Maximum sensitivity.

2. Rotate control to adjust sensitivity.

3. Minimum sensitivity.

With the rain sensor activated, the sensitivity of the rain sensor can be adjusted. Rotate the control upwards to reduce the sensitivity of the rain sensor.

Single wipe

1. Windscreen wipers off and parked.

2. Rain sensor activated wipe.

3. Low speed wipe.

4. High speed wipe.

5. Rain sensor sensitivity control.

Pull the stalk towards the steering wheel for a single wipe. Holding the switch in this position, operates the wipers at normal speed until the switch is released.

Wipers and washers

MAX

JAG1623

Speed-dependent mode

If vehicle speed drops below 2 km/h (1.2 mph)

with the wipers operating, the wiper frequency

automatically reduces. The wipers will switch

to the next lowest speed. When the vehicle’s

speed increases to over 8 km/h (5 mph), the

original wiper speed settings are restored

automatically.

RAIN SENSOR

CAUTION

Ensure that the wipers are switched off

before entering a car wash. If the rain sensitive wipers operate during the car washing process damage may occur to the wiper mechanism.

The rain sensor is able to detect the presence and amount of rain, dirt or snow on the windscreen and automatically activates the windscreen wipers accordingly.

To activate the rain sensitive wipers, move the wiper stalk to the rain sensor/intermittent delay position and adjust the rain sensor sensitivity control as required. See WINDSCREEN

WIPERS (page 88).

WINDSCREEN WASHERS

WARNING

Some screenwash products are flammable, do not allow screenwash to come into contact with sources of ignition.

CAUTION

Only screenwash products which are

approved for automotive use should be used, and then only in accordance with the manufacturer's instructions.

JAG1624

To operate the windscreen washers press and release the button on the end of the wiper stalk. The wipers will perform 5 normal speed wipes, followed by a drip wipe (if configured). The washers will operate during the first two wipes.

If the washers are operated with the wipers operating at normal or fast speed, the washer jets will operate for two wipes and operation of the wipers will not be affected.

Note: If the button is pressed and held, the wipers and washers will operate at normal speed until the button is released (or for a maximum of 10 seconds). After the button is released, the wipers will operate for a further three wipes, followed by a drip wipe (if configured). If the wipers are already operating at normal or fast speed, operating the washers will not affect wiper operation.

Wipers and washers

E80573

Low screen wash

If the low washer fluid warning is on, the windscreen wipers will not operate when the wash/wipe is activated, even though there may be washer fluid remaining in the reservoir which is sprayed onto the screen. This is to prevent damage to the wiper blades, scratching of the glass or smearing dirt across the screen. Normal, fast or single wipe can be selected manually, to clear any spray from the windscreen.

Timed jet function

If the timed jet function is configured, the washer jets will only operate on the up stroke of the wipers.

This function can be enabled/disabled by your Dealer/Authorised Repairer.

Drip wipe

If the drip wipe function is configured, the wipers will operate four seconds after a wash wipe cycle has finished, to

clear any remaining drips from the windscreen.

This function can be enabled/disabled by your Dealer/Authorised Repairer.

HEADLAMP WASHERS

Headlamp power wash operates automatically with the windscreen wash, and will only operate if the headlamps are switched on and there is sufficient washer fluid in the reservoir.

Headlamp wash operates with every fourth operation of the screen washers, provided that ten minutes have elapsed since the last operation of the headlamp washers.

Note: The power wash sequence is reset when the headlamps or the ignition are turned off.

Note: Headlamp power wash is inhibited when the low washer fluid warning is on.

CHECKING THE WIPER BLADES

WARNING

Only use cleaning products which have been approved for use on

automotive glass and rubber. Inappropriate products can cause smearing, and increase glare.

Blocked jets

WARNING

Do not operate the washer jets during adjustment. Windscreen washer fluid

may cause irritation to the eyes and skin. Always read and observe the washer fluid manufacturers instructions.

If a washer jet becomes blocked, use a thin strand of wire to unblock the jet by inserting the wire into the jet. Ensure that the wire is completely removed after unblocking.

The wiping edge of the blades should be checked and cleaned periodically. Check the blade rubber and replace the blade immediately if cracks, splits or roughness are detected, to prevent damage to the glass.

Clean the blade edge by wiping with a soft cloth or sponge, using warm soapy water.

If the wipers fail to clear the windscreen when operated, check the condition of the blade and replace if necessary.

Wipers and washers

E94746

CHANGING THE WIPER BLADES

CAUTIONS

When checking or changing the wiper blades, they can be set to the service position or parked normally.

Service position

The windscreen wiper service position allows the wipers to be parked in a more accessible position. This makes it easier to change wiper blades.

Setting the service position

JAG1625

1. With the ignition switched off, pull the

wiper stalk towards the steering wheel to the single wipe position. Hold the stalk in this position.

2. Make sure the brake pedal is not applied

and, while still holding the wiper stalk in the single wipe position, press the ignition START/STOP button to switch on the ignition.

The wipers will move to the vertical (service) position. Release the wiper stalk.

To return the wiper blades to the operating position, turn the ignition off.

Wipers and washers

E94748

Changing the wiper blades

CAUTION

Only fit the correct length and type of

wiper blade. Failure to do so may cause damage to the wiper system, it may also affect the operation of the rain sensor.

Having set the wipers to the service position, lift the wiper blade clear of the windscreen. The removal procedure for the wiper blade is as follows:-

1. Push the clips together on the underside of

the wiper mounting.

2. Rotate the clips and blade away from the

wiper mounting.

3. Slide the wiper blade off the wiper arm.

To fit the new blade, follow the removal procedure in reverse.

Windows and mirrors

E94755

ELECTRIC WINDOWS

WARNING

All of the windows have an anti-trap protection system. However, before

closing a window care must be taken to ensure that none of the occupants have any part of their body in a position where it could be trapped. Even with an anti-trap system serious injury or death can occur.

With the ignition on or engine running, press a switch down to lower the window, pull it up to raise the window. Release the switch at any point to stop window movement.

The windows will operate for five minutes after the engine is switched off, as long as none of the doors are opened.

One-shot operation

All four windows have one-shot operation. Briefly pull the switch up and release, the window will continue to raise until fully closed. Briefly press the switch down and release, the window will continue to lower until fully open. Pressing or pulling the switch again will stop the window.

Overriding anti-trap protection

Anti-trap protection will stop window movement if an obstruction or resistance is detected. Check the window and its aperture and remove any obstructions, ice, etc. If it is still necessary to raise the window, the override procedure is as follows:-

1. Attempt to close the window. Anti-trap will

prevent closure and lower the window.

2. Within ten seconds, attempt to raise the

window again. Anti-trap will prevent closure and lower the window.

3. Attempt to close the window for a third

time, this time holding the switch in the close position. The window will raise whilst the switch is held. Hold until closed.

Note: If this procedure fails to remove the blockage, the window operation may need to be reset.

Window reset

The windows will need to be reset if the battery is disconnected, becomes discharged or power supply is interrupted.

Reset as follows:-

1. Close the window fully.

2. Release the switch, then lift it to the close

position and hold for two seconds.

3. Open the window fully.

4. Release the switch, then push it to the

open position and hold for two seconds.

5. Lift and release the switch to operate the

one-shot function.

6. Repeat the procedure on each window.

Windows and mirrors

E94756

E94836

E94837

Window isolator

WARNING

If children are carried in the rear seats, the isolator switch should be

used to prevent operation of the windows. If the windows are operated by young children there is a risk of serious injury or death.

To prevent operation of the rear windows, press the inhibitor switch. To allow passengers control of the windows, press the switch again.

INTERIOR MIRROR

Auto dimming

Note: If the mirror becomes detached from the windscreen it should be re-attached by a Dealer/Authorised Repairer.

Note: If the rear screen is obscured, or the light falling on the mirror is reduced by an obstruction, the automatic dimming feature may not operate correctly.

Manual dimming

To dim the light levels reflected by the mirror, push the lever forward. To return it to normal light levels, pull the lever back.

The interior mirror dimming is adjusted automatically according to the amount of ambient light when the ignition is on. If reverse gear is selected, the automatic dimming feature is turned off to allow maximum visibility for reversing.

EXTERIOR MIRRORS

E94820

1 2

Adjusting and folding

Windows and mirrors

1. Left mirror adjustment.

2. Right mirror adjustment.

3. Powerfold.

Note: Depending on the type of lens used, distances may be difficult to judge accurately when only using the mirrors.

Adjusting

Mirror adjustment is available with the ignition switched on:

1. Press the left or right mirror button as

required. The tell-tale light in the switch will illuminate to indicate that it has been selected.

2. Move the joystick control to adjust the

mirror as required.

Folding

To fold the mirrors back, press both left and right buttons at the same time. To unfold the mirrors, press both of the buttons again.

The mirrors can be folded when the ignition is on, and for up to five minutes after the ignition is switched off, provided the driver’s door is not opened. If the door is opened, it will be necessary to turn the ignition on again, before folding the mirrors.

Note: If the mirrors are folded manually, or knocked into the folded position accidentally, the mirror head will be loose. To re-engage the mechanism, fold, then unfold the mirrors using the switches.

Windows and mirrors

Vehicle

Valet mode

Security

Parking

Off On

12:26 pm

Off On

Mirror fold back

E94821

global open

Windows

global close

Windows

mirror dip

Vol. presets

Off

Vehicle

Security

Parking

Valet mode

Reverse

12:26 pm

E94822

Automatic folding

The mirrors can be configured to automatically fold when the vehicle is locked and unfold when unlocked.

Note: If the mirrors were folded using the switches, they will not unfold when the vehicle is unlocked.

To select or deselect automatic folding:

1. From the touch-screen Home menu, select Vehicle.

2. Security is displayed as the default menu.

Select Parking. Touch the arrow icon at the bottom of the menu to scroll down the list, until the screen above is displayed.

3. Select Mirror fold back - On or Off.

Mirror dip when reversing

The mirrors can be configured so that when reverse gear is selected, the passenger door mirror is automatically adjusted to provide an improved viewing angle for reversing.

The exact dipped position can be adjusted using the joystick control, when the mirror is dipped. The next time reverse is selected, the newly adjusted position will be selected.

When the gear selector is moved out of reverse, or if vehicle speed exceeds 12 km/h (7.5 mph) while reversing, the mirror will return to its previous position.

To select or deselect mirror dip:

1. From the touch-screen Home menu, select Vehicle.

2. Security is displayed as the default menu. Select Parking.

3. Select Reverse mirror dip - On or Off.

Heating elements

The external mirrors are equipped with heating elements which disperse ice or mist from the glass. The heating elements will operate automatically, depending on the external ambient temperature and conditions.

Windows and mirrors

E96410

BLIND SPOT MONITOR

WARNINGS

The Blind Spot Monitor (BSM) system is a supplement to, not a

replacement for, a safe driving style and use of the exterior and rear-view mirrors. It remains the driver's responsibility to detect other vehicles, and their relative distance and speed, when deciding whether or not it is safe to change lanes.

Please note that BSM may not be able

to give adequate warning of vehicles

approaching very quickly from behind or vehicles that are being overtaken rapidly.

The radar sensors may be impaired

by rain, snow or road spray. This may

affect the system's ability to reliably detect a vehicle/object within the blind spot. In such conditions, take extra care when changing lanes.

BSM may not be able to detect all

vehicles and may also detect objects,

such as roadside barriers, etc.

CAUTIONS

Ensure that the warning indicators in the exterior mirrors are not obscured by stickers or other objects.

Do not attach stickers or objects to the rear bumpers, that may interfere with the radar sensors.

The Blind Spot Monitor (BSM) system monitors a zone that covers the area adjacent to the vehicle, that is not easily visible by the driver and is designed to identify any object overtaking the vehicle. The system uses a radar on each side of the vehicle to identify any overtaking vehicle/object within the blind spot area of the vehicle, while disregarding other objects which may be stationary or travelling in the opposite direction, etc.

The radar monitors the area extending from the exterior mirror rearwards, to approximately 7 metres (23 feet) behind the rear wheels, and up to 2.5 metres (8.2 feet) from the side of the vehicle (the width of a typical carriageway lane).

Note: This radar sensor is approved in all RTTE countries.

Note: The system covers an area of a fixed lane width. If the lanes are narrower than a typical carriageway lane, objects travelling in non-adjacent lanes may be detected.

BSM automatically switches on and becomes active when the vehicle is travelling at greater than 16 km/h (10 mph) in a forward drive gear. When the system initiates, it performs a self-check, during which the warning icons in the mirrors illuminate alternately for a short period of time.

Windows and mirrors

E96411

BSM is designed to work most effectively when driving on multi-lane highways.

If an object is identified by the system as being an overtaking vehicle/object, an amber warning icon (1) illuminates in the relevant exterior mirror, to alert the driver that there is a potential hazard in the vehicle's blind spot and therefore, that a lane change might be dangerous.

Note: If an overtaking vehicle is detected on both sides of the vehicle simultaneously, the warning icons in both mirrors will illuminate.

Note: BSM is automatically turned off when reverse (R) gear is selected, when the vehicle is in park (P), the vehicle is travelling below 16 km/h (10 mph) and also when the electrical connector for the trailer socket is plugged in on vehicles with a factory-fitted towing bracket. When in these conditions, an amber warning indicator within the exterior mirror is displayed.

Sensor blockage

The BSM system will automatically disable if either of the sensors become completely obscured, an amber warning indicator dot (2) is displayed in the exterior mirror and the message BSM sensor blocked appears in the message centre.

Note: Blockage testing is only initiated when vehicle speed is above 32 km/h (20 mph) and will take at least two minutes of accumulated time travelling above this speed, to determine that the sensor is blocked.

If the sensors become blocked, then please check that there is nothing obscuring the rear bumper and that it is clear from ice, frost and dirt.

System fault

If a fault with one of the radar sensors is detected, an amber warning indicator dot is displayed in the exterior mirror and the message BSM not available is displayed in the message centre.

Note: Even if the detected fault only affects the radar sensor on one side of the vehicle, the whole system is disabled. If the fault is temporary, the system will operate correctly once the engine has been switched off and then on again.

If a fault in the system occurs, consult your Dealer/Authorised Repairer.

Instruments

INSTRUMENT PANEL OVERVIEW

Instrument panel

1 2 3

l/100km

JAG1630

1. Speedometer.

2. Message centre.

3. Tachometer.

4. Fuel gauge.

The instruments will not show correct information until the ignition system is on.

Speedometer

Indicates road speed.

Message centre

Displays warning and information messages and gear selector mode and position information. See WARNING AND INFORMATION MESSAGES (page 106). See AUTOMATIC TRANSMISSION (page 137).

Tachometer

Indicates engine speed in revolutions per minute (RPM) x 1000.

Fuel gauge

CAUTION

Never allow the vehicle to run out of fuel. The resulting misfire may cause serious damage to the catalytic convertor.

The message centre will display FUEL LEVEL LOW, when the fuel level is approximately 1/16 of tank capacity. This gives an approximate range of 50 to 65 km (30 to 40 miles).

As a reminder for the location of the fuel filler, there is an arrow above the fuel pump symbol, which points to the relevant side of the vehicle.

Instruments

l/100km

JAG1631

3 4 5 6

8910

18 17 16

14 13 12 11

WARNING LAMPS AND INDICATORS

1. Anti-lock Braking System (ABS)/

Electronic Parking Brake (EPB).

2. Adaptive Cruise Control (ACC).

3. Glow plugs (diesel only).

4. Adaptive front lighting system (AFL).

5. Engine malfunction.

6. Tyre Pressure Monitoring System

(TPMS).

7. Airbag.

8. Right-hand direction indicator.

9. Rear fog lamp.

10. Dynamic Stability Control (DSC).

11. High beam.

12. Side lamps.

13. Seat belt.

14. Message centre.

15. Automatic Speed Limiter (ASL).

16. Forward alert.

17. Brakes - Electric Parking Brake (EPB)

On/Brake fluid low/Electronic Brakeforce Distribution (EBD)

18. Left-hand direction indicator.

RED warning indicators are for primary

warnings. A primary warning must be investigated immediately by the driver or seek qualified assistance as soon as possible.

AMBER warning indicators are for secondary warnings, to indicate that a vehicle system is in operation or that the driver must take action and then seek qualified assistance.

Other indicators within the instrument panel indicate system status (e.g. blue for main beam or green for direction indicators, when in use).

Indicator check

An indicator bulb check is initiated when the ignition system is switched on and lasts for three seconds (excepting the airbag warning indicator which will remain on for six seconds). If any warning indicator remains on after this period, investigate the cause before driving.

Some warning indicators have associated messages displayed on the message centre.

Note: Not all warning indicators are included in the check (e.g. main beam headlamps and direction indicators).
