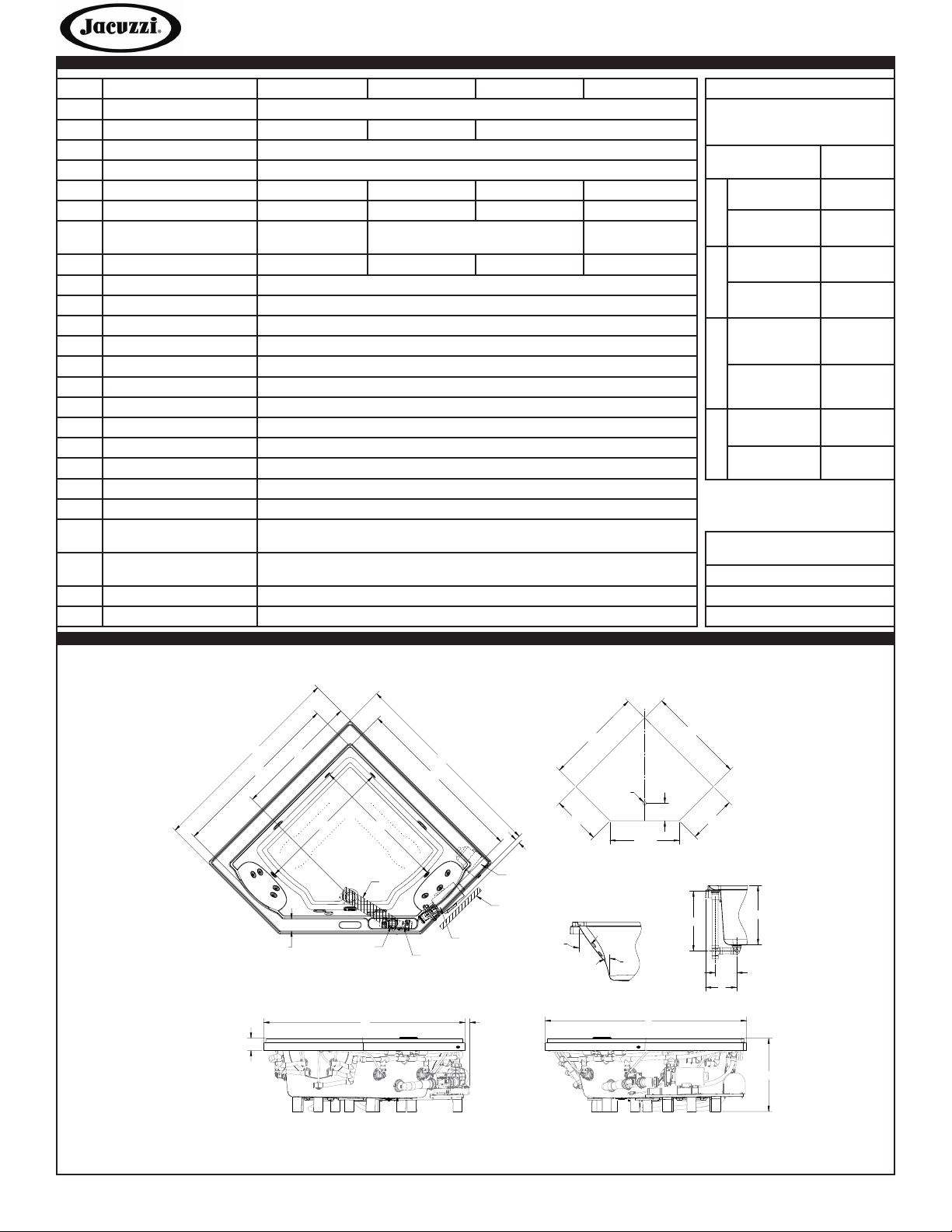

JACUZZI JS10403 Specifications

Fuzion® 6666 Drop-In/Undermount Bathtub

Technical Specications

Letter Description Soaking Whirlpool Salon® Spa Pure Air®

- Drain Location Center Drain

- Equipment Location -- Left/Right End Right End

- Undermount Cutout Template DD43000

- Drop-In Cutout Dimensions See Drawing Below

- Total Weight 1,733 lbs (788 kg) 1,777 lbs (806 kg) 1,808 lbs (822 kg) 1,763 lbs (800 kg)

- Floor Loading 58 lb/ft² (282 kg/m²) 59 lb/ft² (288 kg/m²) 60 lb/ft² (294 kg/m²) 59 lb/ft² (287 kg/m²)

- Operating Gallons 148 Gal (561 L)

119 Gal (451 L) min

148 Gal (561 L) max

74 Gal (280 L) min

148 Gal (561 L) max

- Product Weight 150 lbs (68 kg) 190 lbs (86 kg) 225 lbs (102 kg) 180 lbs (82 kg)

- Soaking Depth 18.44" (468 mm)

L Outer Length 65.75" (1670 mm)

W Outer Width 65.75" (1670 mm)

H Overall Height** 24" (610 mm)

A Overow Height 16.81" (427 mm)

B Long Edge to Drain Center 12.13" (308 mm)

C Short Edge to Drain Center 40.94" (1039 mm)

D Drain Shoe Length 9.25" (234 mm)

E Deck Height** 4" (102 mm)

F Deck Width* 3.5" (89 mm)

G Service Access Dimensions 12" H x 18" L (305 mm x 457 mm)

I Floor Cutout for Drain 20" x 4" (508 mm x 102 mm)

Interior Dimensions

J

Bottom of Bath (L x W)

Interior Dimensions

K

Top of Bath (L x W)

42" x 42" (1067 mm x 1067 mm)

57" x 57" (1448 mm x 1448 mm)

L2 Interior Depth - Drain End 19.75" (502 mm)

M1/M2 Backrest Angle 36° / 16°

KEY DIMENSIONS [Note: The overall dimensions are nominal with a tolerance of +0 and -.25” (6 mm).]

*Deck width reects only area indicated on detail.

**Height of tub only. Optional wood frame adds 1.25”.

Chrome twist & turn drain included. For other nishes, replace with standard parts & 1.5” drain elbow.

M1

31 9/16"

63 3/4"

Drain

45 1/2"

M2

L

K (L)

C

J (L)

F

J (W)

I

Overflow

W

K (W)

1.5"

Blower

(G) Service Access

Motor/Pump

Heater

Electrical Specications

Each component requires

a separate, dedicated GCFI

protected circuit.

Model with

Components

GFCI Outlet

(60Hz)

Soaker Only None

Soaker with

Soaking

Chromatherapy

120V / 15A

Motor/Pump 120V / 20A

Heater 120V / 15A

Whirlpool

Motor/Pump

and Heater

Blower 120V / 15A

Salon® Spa

240V / 20A

Blower Only 120V / 15A

Blower with

Pure Air®

Chromatherapy

120V / 15A

Available Upgrades

(Select Models)

Whisper Quiet Technology

Illumatherapy

J5 Luxury LCD Control Panel

**Salon® Spa model shown**

C

L

11 1/2"

Drop-In Cutout

63 3/4"

A

31 9/16"

L2

D

B

QA83000A

W

E

1.5"

L

H

Refer to installation instructions included with xture before beginning installation. Please conrm product availability and specications before

commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE

www.jacuzzi.com Page 1

©2018 Jacuzzi Luxury Bath • For additional information call Customer Service 800-288-4002 • www.jacuzzi.com/baths/support/specs-and-manuals/
