Page 1
Automatic Weigh/Wrap Labeling Machine
Omni-4000ST
User’s Manual
IMPORTANT
• Read this manual thoroughly, and do not perform
installation, operation, maintenance, or inspection
unless you fully understand all of the contents.
• Keep this manual in a safe place where you can
refer to it easily while installing, operating, and
carrying out maintenance or inspections.
Omni-4000ST User’s Manual
Page 2
ISHIDA Co., Ltd., 2006
All rights are reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted, in any form, or by any means, mechanical, electronic, photocopying, recording, or otherwise,
without prior written permission of ISHIDA. No patent liability is assumed with respect to the use of the
information contained herein. Moreover, because ISHIDA is constantly striving to improve its high-quality
products, the information contained in this manual is subject to change without notice. Every precaution has
been taken in the preparation of this manual. Nevertheless, ISHIDA assumes no responsibility for errors or
omissions. Neither is any liability assumed for damages resulting from the use of the information contained in
this publication.
Omni-4000ST User’s Manual
Page 3
Important Notice
Thank you for purchasing the ISHIDA Omni-4000ST.
This manual explains the procedures to install, operate, and maintain the machine.
Those who handle the machine must be aware of the hazards involved. These dangers may not be
obvious, so it is imperative to follow the instructions detailed in this manual when installing, operating,
and maintaining the machine. Therefore, we recommend that you thoroughly read and understand this
manual before installing, operating, or maintaining the machine, and keep this manual in a safe place
where you can refer to it whenever necessary.
Safety countermeasures should be carefully considered and implemented before performing any
installation, operation, or maintenance procedure not specifically described in this manual or indicated
on the machine itself.
ISHIDA is not liable for any damage, loss or injury that results from incorrect operation, insufficient
caution, unauthorized modifications to the machine, or failure to follow the instructions contained in this
manual.
Change in Specifications
Machine specifications and accessories may be changed at any time due to improvements or other
reasons. Consult with your ISHIDA representative at any time to confirm the actual specifications of the
purchased machine.
Errors and Omissions
The information in this manual has been carefully checked and is believed to be accurate. However,
please understand that the descriptions in this manual may not agree with the actual machine due to
machine improvements. The information is subject to change without prior notice in the future. ISHIDA
assumes no responsibility for clerical, typographical or proofreading errors, or omissions.
Limitations of Liability
ISHIDA assumes no responsibility for special, indirect, or consequential damages, loss of profits or
commercial loss in any way connected with the machine, whether such claim is based on contract,
warranty, negligence, or strict liability.
SHIDA shall assume responsibility for problems with the machine or the system based on an individual
maintenance contract. However, ISHIDA shall not be responsible for secondary problems.
ISHIDA assumes no responsibility for the user's programming of this machine, or any consequence
thereof.
In no event shall ISHIDA be responsible for warranty, repair, or other claims regarding the machine
unless ISHIDA’s analysis confirms that the machines were properly handled, stored, installed, and
maintained and not subject to contamination, abuse, misuse, or inappropriate modification or repair.
Omni-4000ST User’s Manual page i
Page 4
Precaution Symbols
This machine is manufactured for use according to proper procedures by a qualified operator and only
for the purposes described in this manual.
Warning symbols in this manual are divided into three categories, depending on the level of danger, or
seriousness of potential injury. The definition of each of these warnings and precautions is shown below.
Failure to heed these warnings or precautions may result in bodily injury or damage to the machine.
Indicates information that, if not heeded, is likely to result in loss of life or serious
injury.
Indicates information that, if not heeded, could possibly result in loss of life or
serious injury.
Indicates information that, if not heeded, could result in relatively serious or minor
injury, damage to the machine, or faulty operation.
Precaution Stickers
Warning stickers are affixed to the machine to warn operators of possible dangers.
Keep these stickers clean at all times.
Take precautions to ensure that they do not become unreadable or peel off.
This sticker indicates that the main power should
be disconnected when performing any type of
internal maintenance or service on the machine.
This sticker indicates that hands should be kept
away from hot surfaces.
This sticker indicates that there is a danger
hands may get caught when the lift comes down,
even after the emergency switch has been
pressed.
This sticker is placed on parts where there is a
danger of the operator being cut by a cutting
mechanism such as the cutter. Always press the
emergency stop button before starting work near
any cutting mechanism.
This sticker indicates that the maximum load at
full extension should not exceed 10 lbs. on the
in-feed conveyer cover.
This sticker indicates that there is a danger of
electric shock on the power supply unit cover.
page ii Omni-4000ST User’s Manual
Page 5
Handling Precautions
DO NOT PUT HANDS IN THE WEIGHING, INFEEDING,
OR WRAPPING AREAS.
When you need to put your hand inside to take something
out of the wrapping area, always press the Emergency
Stop Button first. Otherwise, your hand may be caught in
the machine.
KEEP HANDS AWAY FROM THE FILM CUTTER.
When you need to change the film or do anything near the
film cutter, ensure to press the Emergency Stop Button
first. Otherwise, the film cutter may come out and cut your
hand.
KEEP HANDS AWAY FROM THE FILM ROLLERS.
When you need to change the film or do anything near the
film rollers, ensure to press the Emergency Stop Button
first. Otherwise, your hand may get caught in the film
roller.
DO NOT TOUCH, OR ALLOW CLOTHING TO TOUCH
THE HEATER CONVEYER.
The heater conveyer will remain hot for some time even
after the power is switched OFF, and can cause burns if
touched.
Omni-4000ST User’s Manual page iii
Page 6
Installation Precautions
Avoid the following places when installing the machine:
•
•
•
•
•
•
•
•
Places subject to high
temperatures or high
humidity
Places exposed to direct
sunlight
Places where water or other
liquids are easily spilled on
the machine
Places subject to excessive
vibration or unstable
foundations
Places exposed to direct cold
air from air conditioners or
refrigerators
Places where the floor or
foundation is unstable
Places subject to a lot of dust
or dirt
Places with large voltage
fluctuations
Power Supply Precautions
Heed the following precautions about power supply:
•
•
•
Use a power supply with rated voltage ground.
Prepare a dedicated power source.
A power supply that generates voltage variation may cause a
malfunction.
Do not stand on the power cord, and do not place anything
heavy on the cord.
Doing so may damage the cord, resulting in accident or trouble.
page iv Omni-4000ST User’s Manual
Page 7
Level Adjustment Precautions
• Always ensure that the machine is level.
If the level is not centered, weighing will not be accurate and wrapping will not be performed well.
Adjust the level adjusting feet until the bubble inside the level indicator is centered.
Omni-4000ST User’s Manual page v
Page 8
Installation Space Precautions
Allow ample space on either side of the machine and behind the machine to ensure easy access for
maintenance.
page vi Omni-4000ST User’s Manual
Page 9
CONTENTS
CHAPTER 1 BEFORE USING THIS MACHINE
1.1 NAME OF EACH PART........................................................ 1-2
1.2 STROKE KEYS.................................................................... 1-3
1.3 LABELS, TRAYS, AND FILM ............................................... 1-4
1.4 OPERATION START / END ................................................. 1-6
1.5 EMERGENCY STOP ON/OFF............................................. 1-7
1.6 FILM ROLL LOADING.......................................................... 1-8
1.7 FILM THEADING.................................................................. 1-9
1.8 LABEL SETTING................................................................ 1-12
1.9 DAILY MAINTENANCE ...................................................... 1-16
CHAPTER 2 NORMAL MODE

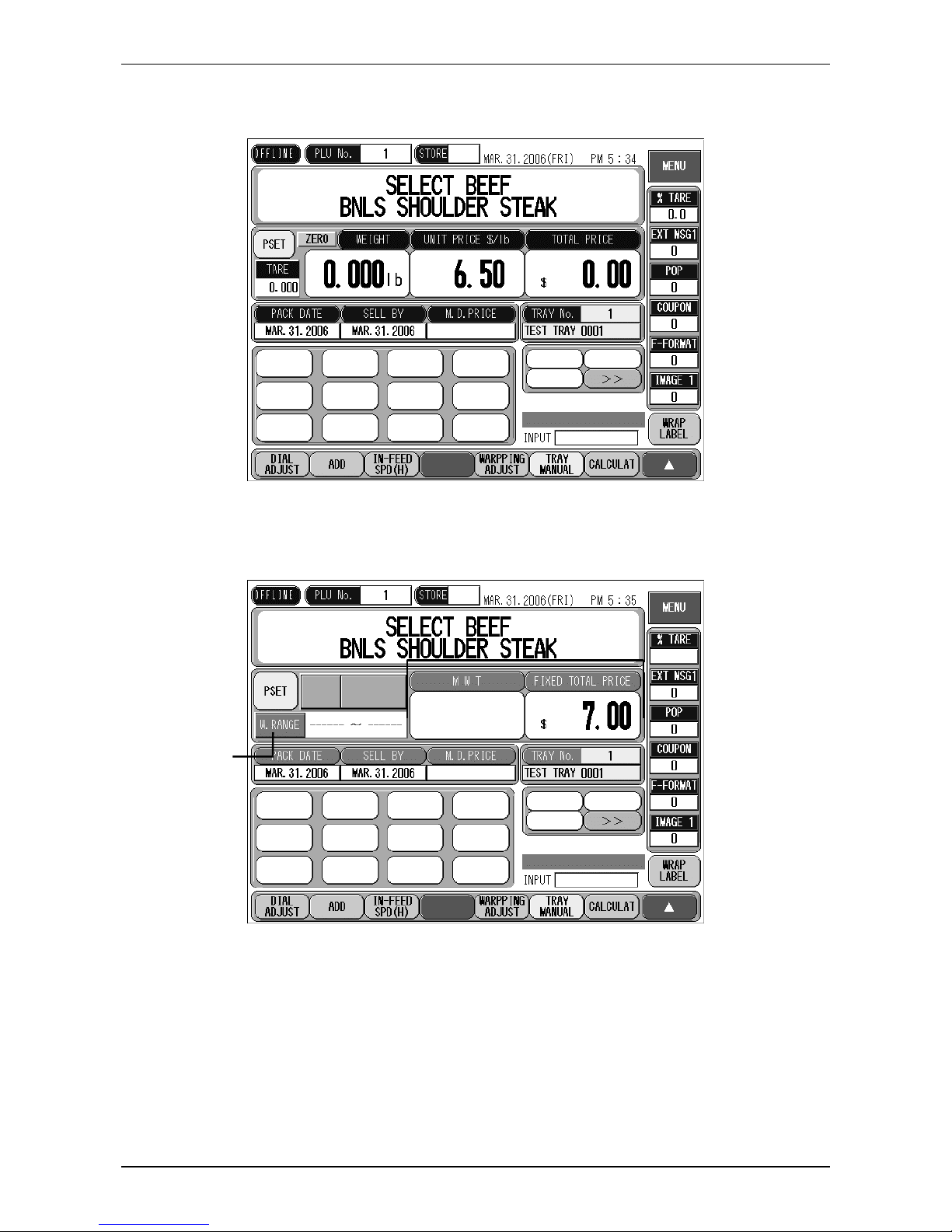

2.1 SCREENS IN NORMAL MODE ........................................... 2-2
2.2 PLU CALL UP ...................................................................... 2-4
2.3 WEIGHING / WRAPPING / LABELING................................ 2-8
2.4 WRAPPING ONLY ............................................................... 2-9
2.5 LABELING ONLY ............................................................... 2-10
2.6 TENTAIVE UNIT PRICE CHANGE .................................... 2-11
2.7 TENTATIVE CHANGE TO FIXED PRICE .......................... 2-12
2.8 TRAY CHANGE.................................................................. 2-13
2.9 MARKDOWN PRICE ......................................................... 2-14
2.10 MANUAL LABELING.......................................................... 2-16
2.11 DATE AND TIME CHANGE................................................ 2-18
2.12 CHECKING PRINT ITEMS FOR LABELING ..................... 2-21
2.13 MEMO PRESET BUTTON................................................. 2-22

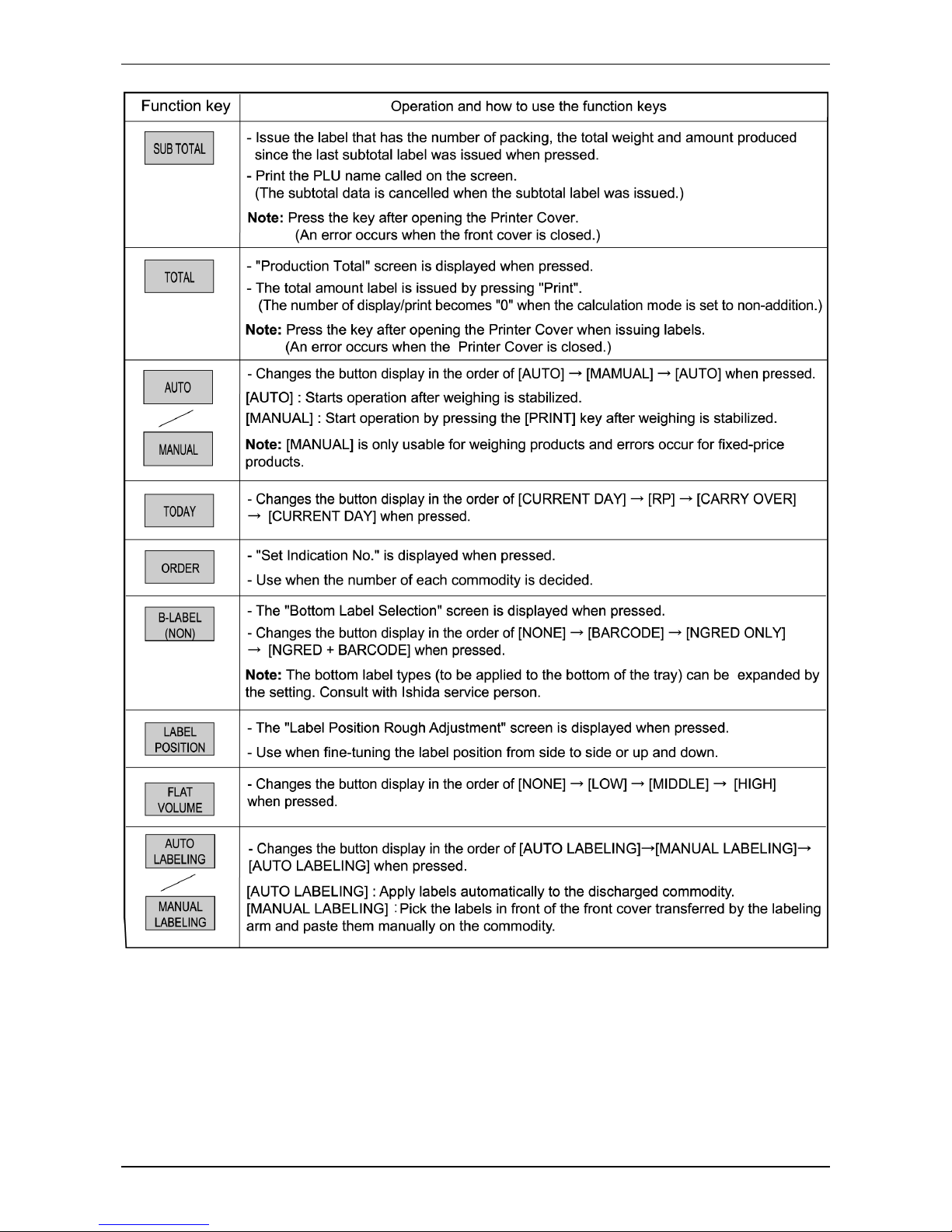

2.14 FUNCTION KEYS .............................................................. 2-26
CHAPTER 3 TOTAL MODE
3.1 TOTAL MENU....................................................................... 3-2

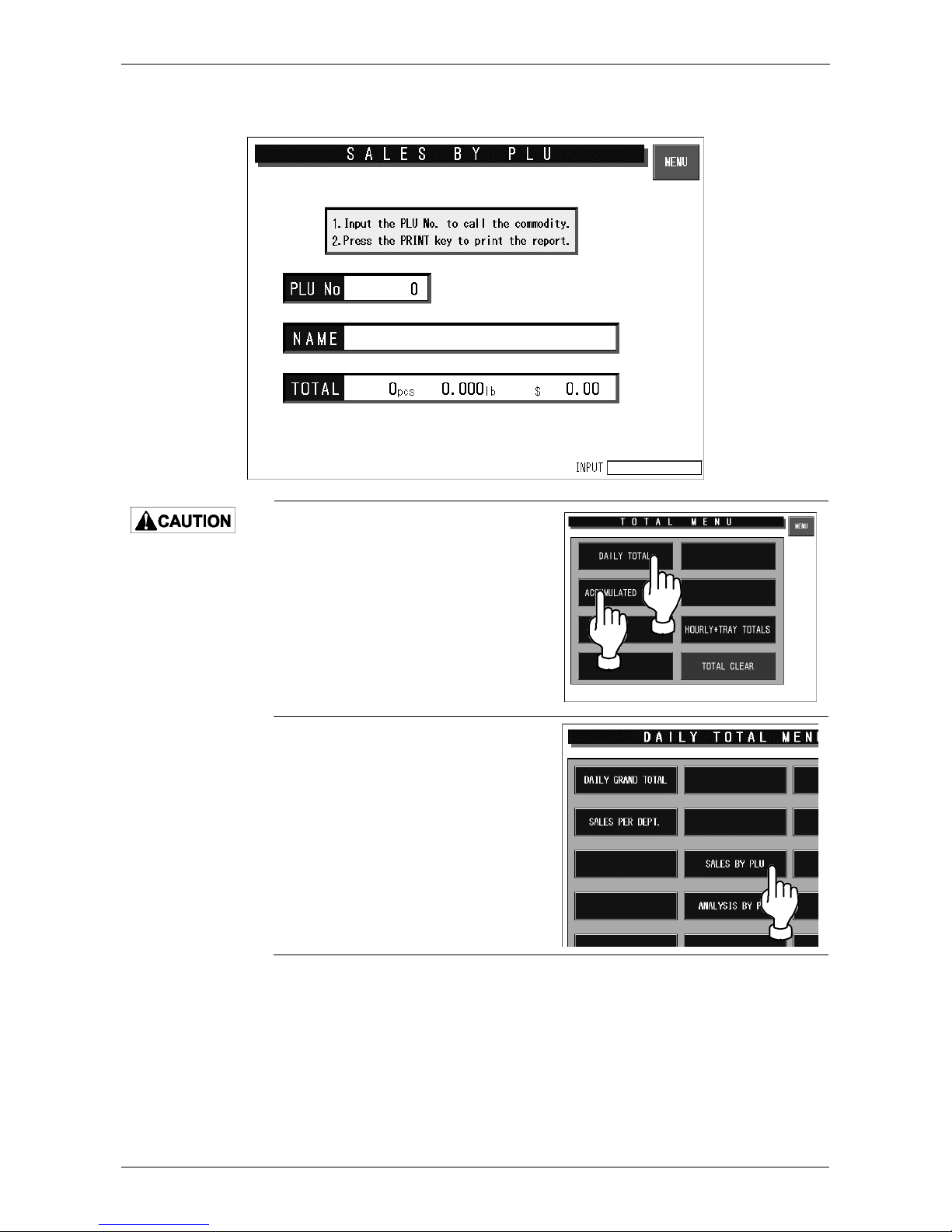

3.2 DAILY / ACCUMULATED TOTAL......................................... 3-3

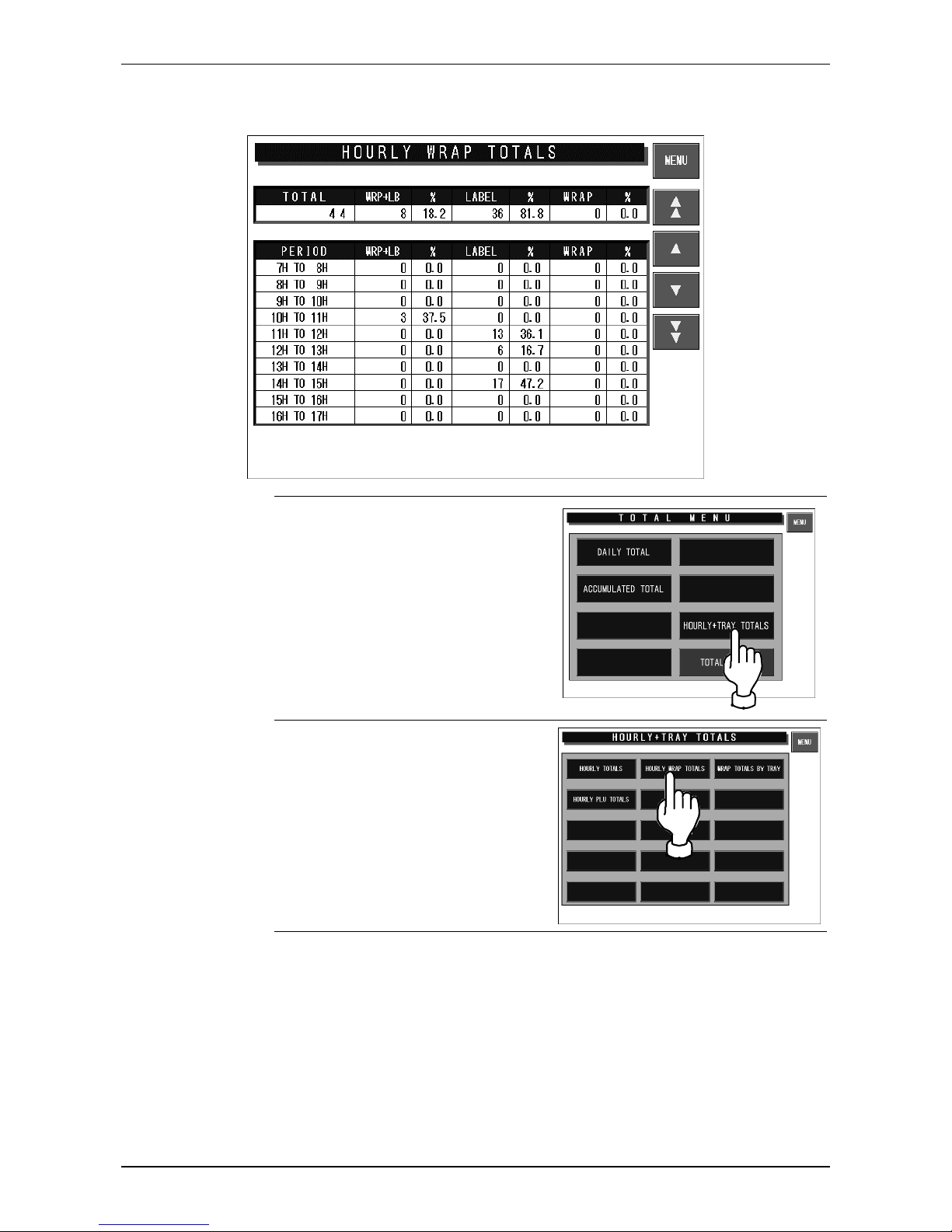

3.3 HOURLY + TRAY TOTALS................................................... 3-9
3.4 TOTAL CLEAR ................................................................... 3-15
Omni-4000ST User’s Manual page vii
Page 10
CHAPTER 4 PROGRAMMING MODE
4.1 PROGRAMMING MODE...................................................... 4-2

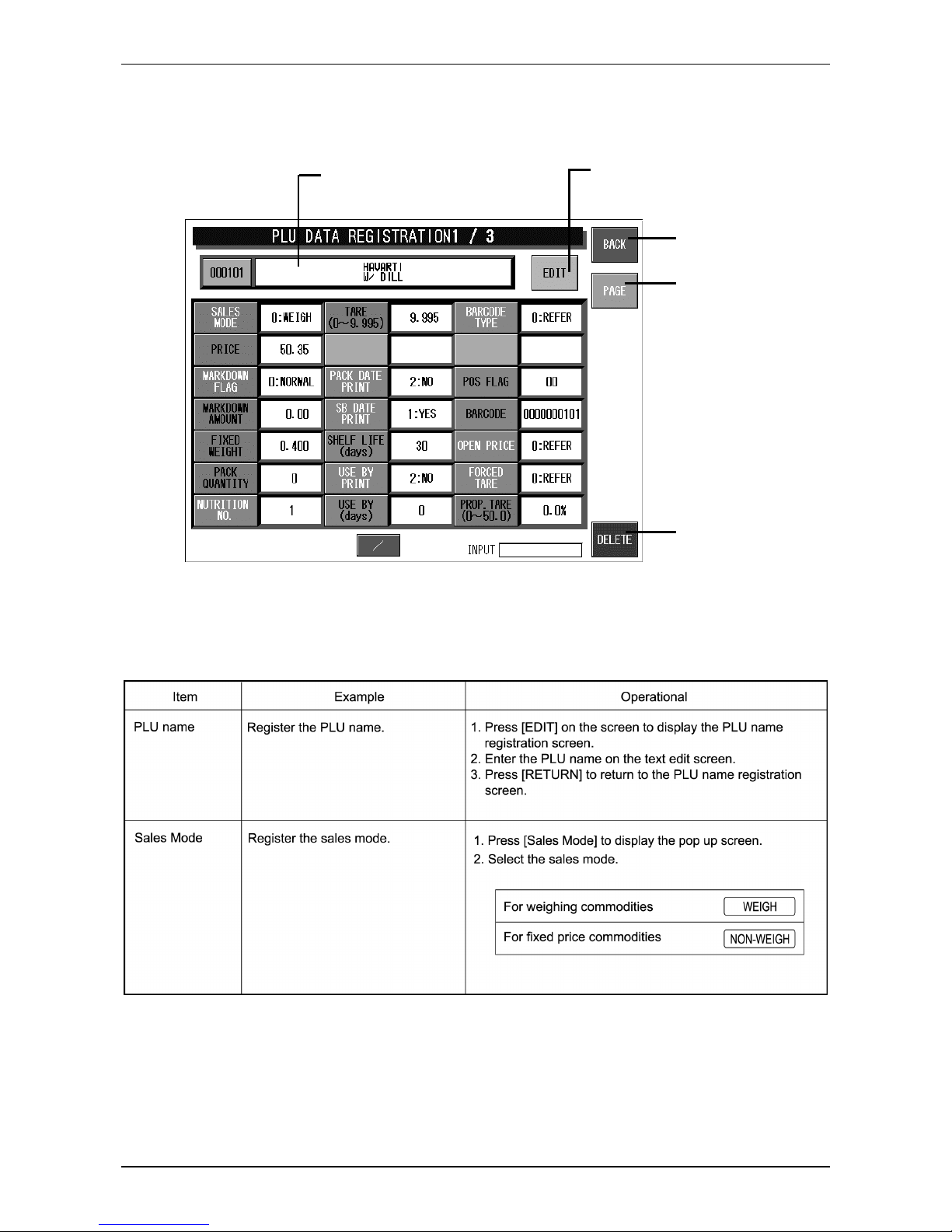

4.2 PLU FILE REGISTRATION .................................................. 4-3
4.3 PLU NAME REGISTRATION ............................................. 4-15
4.4 EXTRA MESSAGE REGISTRATION................................. 4-17
4.5 POP MESSAGE REGISTRATION ..................................... 4-19

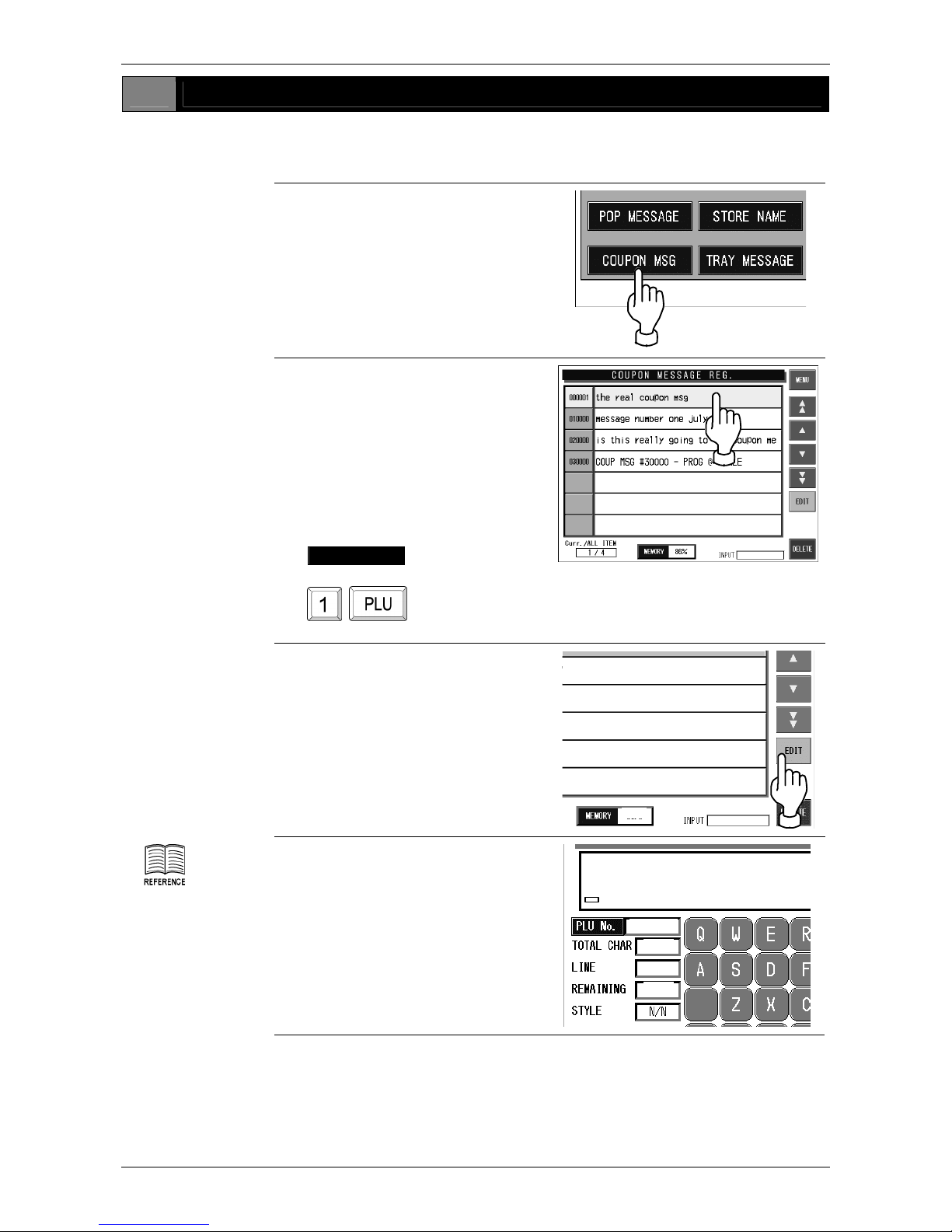

4.6 COUPON MESSAGE REGISTRATION ............................. 4-21
4.7 STORE NAME/ADDRESS REGISTRATION ..................... 4-23
4.8 TRAY MESSAGE REGISTRATION.................................... 4-26
4.9 DEPARTMENT NAME REGISTRATION............................ 4-32
4.10 CATEGORY PRESET REGISTRATION ............................ 4-34
4.11 PLU PRESET REGISTRATION ......................................... 4-36
4.12 TEXT EDITING................................................................... 4-37
CHAPTER 5 SETUP MODE
5.1 STARTING PROCEDURE ................................................... 5-2
5.2 SETUP MENU...................................................................... 5-3
5.3 EXPIRY DATE SETTING ..................................................... 5-4
5.4 PASSWORD SETTING ........................................................ 5-6
5.5 WORD-WRAP WIDTH SETTING......................................... 5-7
5.6 REFERENCE DATA SETUP ................................................ 5-8
5.7 TOTAL ADD SETTING ....................................................... 5-11
page viii Omni-4000ST User’s Manual
Page 11
Chapter 1 BEFORE USING THIS MACHINE
BEFORE USING
THIS MACHINE
CONTENTS
1.1 NAME OF EACH PART ................................................ 1-2
1.2 STROKE KEYS ............................................................. 1-3
1.3 LABELS, TRAYS, AND FILM ....................................... 1-4
1.4 OPERATION START / END .......................................... 1-6
1.5 EMERGENCY STOP ON/OFF ...................................... 1-7
1.6 FILM ROLL LOADING .................................................. 1-8
1.7 FILM THEADING........................................................... 1-9
1.8 LABEL SETTING ........................................................ 1-12
1.9 DAILY MAINTENANCE............................................... 1-16
Omni-4000ST User’s Manual page 1-1
1
Page 12
Chapter 1 BEFORE USING THIS MACHINE
1.1
NAME OF EACH PART
page 1-2 Omni-4000ST User’s Manual
Page 13
Chapter 1 BEFORE USING THIS MACHINE
1.2
STROKE KEYS
Omni-4000ST User’s Manual page 1-3
Page 14
Chapter 1 BEFORE USING THIS MACHINE
1.3 LABELS, TRAYS, AND FILM
1.3.1 LABELS
Use the designated labels for this machine.
• Label roll diameter:
φ
230mm or less
• Label width: 35-80mm
• Label length: 27-60mm
When wrong-sized labels or those other than the designated labels are used, the labels may
not be printed, not be fed correctly, or not be sucked by the applicator.
1.3.2 TRAYS
Use the designated trays for this machine.
Usable tray size
• Width: 95-360mm • Length: 80-250mm • Height: 10-50mm
Some trays might not be packed depending on the shape, material and weight even though
the tray sizes are within the acceptable ranges.
Unusable trays
Following trays cannot be used.
z Fragile trays
z Deformed trays
z Round or hollow-bottomed trays
z Trays made of transparent
materials
z Dark blue trays z Trays other than square and
rectangular trays
page 1-4 Omni-4000ST User’s Manual
Page 15
Chapter 1 BEFORE USING THIS MACHINE
Filling the trays
Appearance of a packed tray changes greatly depending on the filling.
Avoid filling the trays as shown below to maintain a consistent wrapping appearance.
z Contents not fit in the tray z Lopsided contents z Overfilled tray
1.3.3 FILM TYPE
Use the film designated by ISHIDA, as packing may not be performed if other films are used.
Contact your ISHIDA service representative for further details regarding usable films.
Omni-4000ST User’s Manual page 1-5
Page 16
Chapter 1 BEFORE USING THIS MACHINE
1.4 OPERATION START / END
1.4.1 OPERATION START
1. Confirm that nothing remains on
the Weigh Platter or in the
wrapping area and turn ON the
Main Power Switch.
2. After a while, the return operation
confirmation screen is displayed.
Press the [Return] button on the
screen.
Movable units such as the
Applicator, Conveyers, Lifts start
moving to return to their original
positions.
The Fan and the
Applicator Arm will start
moving as soon as the
Main Power Switch is
turned ON.
Do not put your hand
inside the machine
while the Main Power
Switch is turned ON.
.
The Heater Conveyer
gets very hot and may
cause burns. Ensure to
keep your hand away
from the conveyer.
Do not put your hand
inside the machine
while performing the
return operation.
3. The initial screen is displayed.
1.4.2 OPERATION END
Do not touch the
Heater Conveyer, as it
remains very hot even
after the Main Power
Switch is turned OFF.
1. Confirm that nothing remains on
the Weigh Platter or in the
wrapping area and turn OFF the
Main Power Switch
.
page 1-6 Omni-4000ST User’s Manual
Page 17
Chapter 1 BEFORE USING THIS MACHINE
1.5 EMERGENCY STOP ON/OFF
1.5.1 EMERGENCY STOP ON
1. Press the Emergency Stop
button.
1.5.2 EMERGENCY STOP OFF
1. Turn the Emergency Stop button
clockwise to release.
Omni-4000ST User’s Manual page 1-7
Page 18
Chapter 1 BEFORE USING THIS MACHINE
1.6 FILM ROLL LOADING
1. Before starting the film roll
setting, press the Emergency
Stop button.
2. Open the Film Replacement Door.
.
3. Make sure that the lever is parallel
with the film core and insert the
film roll around the holder until the
roll clicks.
With pushing the end of the film
core, align the near end with the
film on the film position decal.
Lever
Film core
4. Turn the lever vertical to the film
core to secure the film roll position.
Lever
Film core
5. Close the Film Replacement Door.
page 1-8 Omni-4000ST User’s Manual
Page 19
Chapter 1 BEFORE USING THIS MACHINE
1.7 FILM THEADING
1. Before starting to set the film,
press the Emergency Stop
button.
2. Open the Side Cover, and use
the handle to lift up the Film Set
Roller until it locks into position.
3. Open the Side Door.
4. Evenly cut the top edge of the
film, and pull it up.
Omni-4000ST User’s Manual page 1-9
Page 20
Chapter 1 BEFORE USING THIS MACHINE
5. Confirm that the film edge is
exactly aligned with the line
appearing on the roll set position
decal.
6. Stick the film on both Film Feed
Belts.
7. Use the handle to slightly lift up to
release the lock condition and
lower the Film Set Roller.
Lower the Side Cover.
8. Close the side door.
page 1-10 Omni-4000ST User’s Manual
Page 21
Chapter 1 BEFORE USING THIS MACHINE
9. Release the Emergency Stop
button
10. Press the [U] button on the
screen.
11. Press the [FILM FEED] button.
12. The film is fed normally, and
press the Emergency Stop
button.
Make sure that the
Emergency Stop button
has been pressed
before removing the
film.
Unless the Emergency
Stop button is pressed,
the film cannot be
removed because it is
pinched by clamps.
13.
Remove the film.
14. Release the Emergency Stop
button
Omni-4000ST User’s Manual page 1-11
Page 22
Chapter 1 BEFORE USING THIS MACHINE
1.8 LABEL SETTING
1. Before starting to set a label roll,
press the Emergency Stop
button.
Make sure that the
Emergency Stop button
has been pressed
before opening the
Printer Cover.
2. Open the Printer Cover.
3. If the Applicator is positioned in
front of the printer, move the
Applicator to the side.
4. Use the lever to open the print
head.
page 1-12 Omni-4000ST User’s Manual
Page 23
Chapter 1 BEFORE USING THIS MACHINE
5. Make sure that the print head is
pulled up, and pull to slide the
printer unit.
6. Release the Label Roll Stopper.
7. Set a label roll around the holder
and thread the label paper as
shown in the figure.
8. Set the end of backing paper with
the stopper and turn the Label
Take-up Bobbin counterclockwise
until the label slack is taken up.
Omni-4000ST User’s Manual page 1-13
Page 24
Chapter 1 BEFORE USING THIS MACHINE
9. Lock the Label Roll Stopper.
.
10. Slide the printer back to its
original position.
11. Close the Print Head.
12. Release the Emergency Stop
button
page 1-14 Omni-4000ST User’s Manual
Page 25
Chapter 1 BEFORE USING THIS MACHINE
13. Press the [FEED] key several
times to make sure that labels are
normally issued.
Ð
14. Close the Printer Cover.
Omni-4000ST User’s Manual page 1-15
Page 26
Chapter 1 BEFORE USING THIS MACHINE
1.9
DAILY MAINTENANCE
Daily maintenance is vital to prolong machine use and to avoid trouble or failure. Keep the machine
clean every day after work.
The following precautions should be observed before cleaning this machine.
• Make sure to turn OFF the Main Power Switch while cleaning the machine.
• Some parts of the machine still remain hot although the Main Power Switch has been
turned OFF.
• A person cleaning this machine should keep all long hair up, wear a hat, appropriate
clothing and shoes.
• Make sure to wash hands and wear clean gloves before cleaning the machine.
• Wet the cleaning cloth with a mild detergent and wring it thoroughly before use.
• Spray alcohol (80% vol.) on the areas in direct contact with food or trays for sterilization.
• A numeric key cover may be a good solution if the numeric keys get heavily soiled.
• Do not apply water directly as it can damage the machine.
• Lubricating each drive unit is not necessary.
1.9.1 MACHINE CLEANING
1. Press the [U] button on the
screen.
2. Press the [PREPARE CLEAN]
button on the screen.
page 1-16 Omni-4000ST User’s Manual
Page 27
Chapter 1 BEFORE USING THIS MACHINE
The display returns to
the initial screen when
the [Return] button is
pressed.
3. Cleaning Mode screen is
displayed.
Press the [Start] button on the
screen.
Note: When Cleaning Mode is executed,
the Side Wrapping Plates and Rear
Wrapping Plate are released and can
be moved manually, and the Lift Unit
elevates.
The Heater Conveyer
remains hot even after
the Main Power Switch
has been turned OFF.
Avoid touching the
conveyer as you may
burn yourself.
4. Turn OFF the Main Power Switch.
5. Open the Printer Cover.
Omni-4000ST User’s Manual page 1-17
Page 28
Chapter 1 BEFORE USING THIS MACHINE
1.9.2 PLACES TO BE CLEANED
page 1-18 Omni-4000ST User’s Manual
Page 29
Chapter 2 NORMAL MODE
NORMAL MODE
CONTENTS
2.1 SCREENS IN NORMAL MODE..................................... 2-2
2.2 PLU CALL UP ............................................................... 2-4
2.3 WEIGHING / WRAPPING / LABELING ........................ 2-8
2.4 WRAPPING ONLY ........................................................ 2-9
2.5 LABELING ONLY........................................................ 2-10
2.6 TENTAIVE UNIT PRICE CHANGE...............................2-11
2.7 TENTATIVE CHANGE TO FIXED PRICE.................... 2-12
2.8 TRAY CHANGE........................................................... 2-13
2.9 MARKDOWN PRICE................................................... 2-14
2.10 MANUAL LABELING .................................................. 2-16
2.11 DATE AND TIME CHANGE ........................................ 2-18
2.12 CHECKING PRINT ITEMS FOR LABELING .............. 2-21
2.13 MEMO PRESET BUTTON .......................................... 2-22
2.14 FUNCTION KEYS ....................................................... 2-26
Omni-4000ST User’s Manual page 2-1
2
Page 30
Chapter 2 NORMAL MODE
2.1 SCREENS IN NORMAL MODE
2.1.1 INITIAL SCREEN
Displays the PLU list when pressed after a PLU number entry.
Displays the store number when multiple stores are
used for production.
Changes between
In-line and Off-line
Displays the PLU detail
information when pressed.
Displays Main Menu
screen when
pressed.
Displays the
Memo Preset PLU
screen when
pressed.
Category Preset Keys
Main function keys
Changes the data when pressed after numeric entry.
A
lso displays the print selection screen when
touched without numeric entry.
Performs the scale
zero calibration.
Numeric function
keys
Changes the wrapping
mode (Wrap &
Label/Label/Wrap).
Changes the data when pressed after
numeric entry.
A
lso displays the tray list screen when
touched without numeric entry.
Changes the data when pressed after numeric entry.
A
lso displays the pack date setting screen when
touched without numeric entry.
Displays the markdown
price print selection
screen.
page 2-2 Omni-4000ST User’s Manual
Page 31
Chapter 2 NORMAL MODE
2.1.2 EXAMPLE OF WEIGHING PLU SCREEN
2.1.3 EXAMPLE OF FIXED PRICE PLU SCREEN
Displays the
upper/lower weight
limit setting screen
when
p
ressed.
Omni-4000ST User’s Manual page 2-3
Page 32
Chapter 2 NORMAL MODE
2.2 PLU CALL UP
2.2.1 PLU CALL USING KEYPAD
1. Make sure that the initial screen is
displayed.
Lightly press the touch
panel with your finger.
Pressing the panel
using pointed objects
such as fingernails or
mechanical pencils
may damage the touch
panel.
2. Enter a PLU number and press the
[PLU] stroke key or [PLU No.] field
on the screen.
EXAMPLE
Call up PLU No.131.
3. The designated PLU screen is
displayed.
page 2-4 Omni-4000ST User’s Manual
Page 33
Chapter 2 NORMAL MODE
2.2.2 PLU CALL USING CATEGORY PRESET BUTTONS
1. Make sure that the initial screen is
displayed.
Lightly press the touch
panel with your finger.
Pressing the panel
using pointed objects
such as fingernails or
mechanical pencils
may damage the touch
panel.
2. Press the desired category button
to make a selection.
EXAMPLE
Call the PLU No.131 “Select Beef
BNLS Shoulder Steak” under the
category “BEEF”.
3. The Category Preset List screen is
displayed.
Press the [Select Beef BNLS
Shoulder Steak] field to make a
selection.
4. The designated PLU screen is
displayed.
Omni-4000ST User’s Manual page 2-5
Page 34
Chapter 2 NORMAL MODE
2.2.3 PLU CALL USING THE CATEGORY PRESET LIST
1. Make sure that the initial screen is
displayed.
Lightly press the touch
panel with your finger.
Pressing the panel
using pointed objects
such as fingernails or
mechanical pencils
may damage the touch
panel.
2. Press the [PLU No.] field on the
screen.
3. The Category Preset List screen is
displayed.
Use the [V] and [U] buttons to
turn over the screen until you find
the desired PLU and press the
desired field to make a selection..
EXAMPLE
Call the “Select Beef BNLS
Shoulder Steak”.
page 2-6 Omni-4000ST User’s Manual
Page 35
Chapter 2 NORMAL MODE
2.2.4 PLU CALL USING MEMO PRESET BUTTONS
1. Make sure that the initial screen is
displayed.
Lightly press the touch
panel with your finger.
Pressing the panel
using pointed objects
such as fingernails or
mechanical pencils
may damage the touch
panel.
2. Press the [PRESET] button.
3. The Memo Preset screen is
displayed.
000001
GROUND
BEEF
000002
GROUND
BEEF
SPECIAL
000003
TEXAS
GROUND
BEEF
000004
OREGON
GROUND
BEEF
000005
CALIFORNI
A
GROUND
BEEF
000006
UTAH
GROUND
BEEF
000007
SLICED
BEEF
000008
SLICED
BEEF
SPECIAL
000009
SLICED
TEXAS
BEEF
000010
SLICED
OREGON
BEEF
4. Press the desired Memo Preset
button to make a selection.
EXAMPLE
Call the “SLICED BEEF” using
Memo Preset button.
000004
OREGON
GROUND
BEEF
000005
CALIFORNIA
GROUND
BEEF
000006
UTAH
GROUND
BEEF
000007
SLICED
BEEF
Omni-4000ST User’s Manual page 2-7
Page 36
Chapter 2 NORMAL MODE
2.3 WEIGHING / WRAPPING / LABELING
This machine performs weighing, wrapping, and labeling for the selected PLU.
EXAMPLE
Perform weighing, wrapping and labeling for PLU No.131.
1. Make sure that the desired PLU
screen is displayed.
Do not touch the tray
after placing it on the
Weigh Platter.
Otherwise your hand
may get caught in the
In-feed Pusher that
moves automatically
immediately after the
tray is placed.
2. Place a tray filled with a
commodity in the middle of the
Weigh Platter.
The tray is weighed, wrapped,
labeled, and discharged.
page 2-8 Omni-4000ST User’s Manual
Page 37
Chapter 2 NORMAL MODE
2.4 WRAPPING ONLY
This machine can also perform wrapping only if necessary.
EXAMPLE
Perform wrapping only for PLU No.131.
1. Make sure that the desired PLU
screen is displayed.
[WRAP/LABEL] is
usually displayed.
2. Press the [WRAP/LABEL] button
until the button display changes to
[WRAP].
The button display will change in
the order [WRAP/LABEL] →
[LABEL] → [WRAP] each time the
button is pressed.
Do not touch the tray
after placing it on the
Weigh Platter.
Otherwise your hand
may get caught in the
In-feed Pusher that
moves automatically
immediately after the
tray is placed.
3. Place a tray filled with a
commodity in the middle of the
Weigh Platter.
The tray is wrapped and
discharged.
Omni-4000ST User’s Manual page 2-9
Page 38
Chapter 2 NORMAL MODE
2.5 LABELING ONLY
This machine can also perform labeling only if necessary.
EXAMPLE
Perform labeling only for PLU No.131.
1. Make sure that the desired PLU
screen is displayed.
2. Open the Printer Cover.
Wrap mode automatically changes
to [LABEL] when the Printer Cover
is opened.
Do not touch the tray
after placing it on the
Weigh Platter.
Otherwise your hand
may get caught in the
In-feed Pusher that
moves automatically
immediately after the
tray is placed.
3. Place a tray filled with a
commodity in the middle of the
Weigh Platter.
The label is issued.
page 2-10 Omni-4000ST User’s Manual
Page 39
Chapter 2 NORMAL MODE
2.6 TENTAIVE UNIT PRICE CHANGE
This section explains about how to change the unit price for the selected PLU tentatively.
EXAMPLE
Change the unit price from $6.50 to $4.80 tentatively.
1. Make sure that the desired PLU
screen is displayed.
2. Enter a new unit price using
numeric keys and press the [U/P]
stroke key.
Î
The unit price has been changed
to the new unit price tentatively.
Omni-4000ST User’s Manual page 2-11
Page 40
Chapter 2 NORMAL MODE
2.7 TENTATIVE CHANGE TO FIXED PRICE
This section explains about how to change the selected weighing PLU to the fixed price PLU tentatively.
EXAMPLE
Change the unit price $6.29 to the fixed price $7.00 tentatively.
1. Make sure that the desired PLU
screen is displayed.
2. Enter the fixed price using
numeric keys and press the [FIX]
stroke key.
Î
The unit price has been changed
to the new fixed price tentatively.
page 2-12 Omni-4000ST User’s Manual
Page 41
Chapter 2 NORMAL MODE
2.8 TRAY CHANGE
This section explains about how to change the tray type to be used for the selected PLU tentatively.
EXAMPLE
Change the tray type to Tray No.5 tentatively.
1. Make sure that the desired PLU
screen is displayed.
Lightly press the touch
panel with your finger.
Pressing the panel
using pointed objects
such as fingernails or
mechanical pencils
may damage the touch
panel.
2. Press the [TRAY No.] field on
the screen.
3. The Tray Name List screen is
displayed.
4. Press the desired field to select
the tray number to be used.
The display automatically returns
to the PLU screen, and the tray to
be used has been tentatively
changed.
Omni-4000ST User’s Manual page 2-13
Page 42
Chapter 2 NORMAL MODE
2.9 MARKDOWN PRICE
This section explains about how to apply a markdown price for the selected PLU tentatively.
EXAMPLE
Change the tray type to Tray No.5 tentatively.
1. Make sure that the desired PLU
screen is displayed.
Lightly press the touch
panel with your finger.
Pressing the panel
using pointed objects
such as fingernails or
mechanical pencils
may damage the touch
panel.
2. Press the [M.D. PRICE] field on
the screen.
3. The Markdown Price Mode
Setting screen is displayed.
page 2-14 Omni-4000ST User’s Manual
Page 43
Chapter 2 NORMAL MODE
MARKDOWN BUTTONS
Buttons Function
Special Price
Pressing this button after numeric entry will register the special price in the total price
field.
Amount Discount
Pressing this button after numeric entry will register the discount amount in the
markdown price field.
Rate Discount
Pressing this button after numeric entry will register the discount rate in the markdown
price field.
Special Unit Price
Pressing this button after numeric entry will register the special unit price in the unit
price field.
Unit Price Amount Discount
Pressing this button after numeric entry will register the discount unit price in the unit
price field.
Unit Price Percent Discount
Pressing this button after numeric entry will register the discount unit price rate in the
unit price field.
Omni-4000ST User’s Manual page 2-15
Page 44
Chapter 2 NORMAL MODE
2.10 MANUAL LABELING
This section explains about how to change auto labeling to manual labeling for the selected PLU data.
1. Make sure that the desired PLU
screen is displayed.
Lightly press the touch
panel with your finger.
Pressing the panel
using pointed objects
such as fingernails or
mechanical pencils
may damage the touch
panel.
2. Press the [U] button to display the
function key screen.
[AUTO LABELING] is
usually displayed.
3. Press the [AUTO LABELING]
button to change the button
display to [MANUAL LABELING].
The button display will change
between [AUTO LABELING] and
[MANUAL LABELING] each time
the button is pressed.
page 2-16 Omni-4000ST User’s Manual
Page 45
Chapter 2 NORMAL MODE
4. Make sure that [WRAP/LABEL] is
displayed on the screen..
If not, press the [WRAP] or
[LABEL] button until the button
display changes to
[WRAP/LABEL].
The button display will change in
the order [WRAP/LABEL] →
[LABEL] → [WRAP] each time the
button is pressed.
Do not touch the tray
after placing it on the
Weigh Platter.
Otherwise your hand
may get caught in the
In-feed Pusher that
moves automatically
immediately after the
tray is placed.
5. Place a tray filled with a
commodity in the middle of the
Weigh Platter.
The tray is weighed, wrapped,
and discharged.
6. Press the [FEED] stroke key to
issue the label.
Omni-4000ST User’s Manual page 2-17
Page 46
Chapter 2 NORMAL MODE
2.11 DATE AND TIME CHANGE
This section explains about how to change the Pack Date for the selected PLU data tentatively.
EXAMPLE
Change the Pack Date to Tray No.5 tentatively.
1. Make sure that the desired PLU
screen is displayed.
Lightly press the touch
panel with your finger.
Pressing the panel
using pointed objects
such as fingernails or
mechanical pencils
may damage the touch
panel.
2. Press the [PACK DATE] or
[SHELF LIFE] field on the
screen.
3. The Pack Date Setting screen is
displayed.
page 2-18 Omni-4000ST User’s Manual
Page 47
Chapter 2 NORMAL MODE
(1) Pack Date
Enter the Pack Date (MMDD or
MMDDYYYY) to be changed.
X
Press one of the following buttons.
Print the Pack Date.
Do not print the Pack Date.
(2) Pack Time
Enter the Pack Time (HHMM)
when you want to print a certain
Pack Time.
X
Press one of the following buttons.
Print the Pack Time.
Do not print the Pack Time.
(3) Pack Time Select
Press one of the following buttons.
Select for printing the current time.
Select for printing a certain time.
(4) Sell-By Date
Press one of the following buttons.
Do not print the Sell-By Date.
Print the Sell-By Date.
Omni-4000ST User’s Manual page 2-19
Page 48
Chapter 2 NORMAL MODE
(5) Sell-By Time
Enter the number of hours (1 -
9999 hours) for Sell-By Date.
X
Press one of the following buttons.
Do not print the Sell-By Time.
Print the Sell-By Time.
(6) Shelf Life
Enter the number of days (1 9999 days) for Sell-By Date..
X
(7) Use By
Enter the number of days (1 - 9999 hours) for Sell-By Date.
Press one of the following buttons.
Print the Pack Date.
Do not print the Pack Date.
page 2-20 Omni-4000ST User’s Manual
Page 49
Chapter 2 NORMAL MODE
2.12 CHECKING PRINT ITEMS FOR LABELING
This section explains about how to set print items necessary for labeling.
1. Make sure that the desired PLU
screen is displayed.
Lightly press the touch
panel with your finger.
Pressing the panel
using pointed objects
such as fingernails or
mechanical pencils
may damage the touch
panel.
2. Press the PLU name display field.
.
3. The PLU Information screen is
displayed.
Check whether there are any
missing items or mistakes for the
selected PLU and make the
necessary additions and
corrections if any.
Item fields below the comment
field can be registered by
pressing the field after numeric
entry.
When the field is pressed without
numeric entry, displays the list for
each item.
4. Press the [BACK] button when
additions and corrections are
completed.
The display returns to the initial
screen.
Omni-4000ST User’s Manual page 2-21
Page 50
Chapter 2 NORMAL MODE
2.13 MEMO PRESET BUTTON
This section explains about how to register and delete Memo Preset buttons on the screen. Operation
will become more efficient by registering the frequently called PLUs in these buttons.
000001
GROUND
BEEF
000002
GROUND
BEEF
SPECIAL
000003
TEXAS
GROUND
BEEF
000004
OREGON
GROUND
BEEF
000005
CALIFORNI
A
GROUND
BEEF
000006
UTAH
GROUND
BEEF
000007
SLICED
BEEF
000008
SLICED
BEEF
SPECIAL
000009
SLICED
TEXAS
BEEF
000010
SLICED
OREGON
BEEF
Turns over the screen.
Truncates the PLU name.
Changes the mode.
A
borts respective
operation mode and
returns to the normal
display.
Executes each mode
operation and returns to
the normal display.
page 2-22 Omni-4000ST User’s Manual
Page 51
Chapter 2 NORMAL MODE
2.13.1 MEMO PRESET DATA REGISTRATION
EXAMPLE
Register the PLU No.8 “SLICED BEEF SPECIAL” on the screen in Memo Preset button.
Lightly press the touch
panel with your finger.
Pressing the panel
using pointed objects
such as fingernails or
mechanical pencils
may damage the touch
panel.
1. Make sure that the desired PLU
screen is displayed and p
ress
the [PRESET] button.
2. The Memo Preset screen is
displayed.
000001
GROUND
BEEF
000002
GROUND
BEEF
SPECIAL
000003
TEXAS
GROUND
BEEF
000004
OREGON
GROUND
BEEF
000005
CALIFORNI
A
GROUND
BEEF
000006
UTAH
GROUND
BEEF
000007
SLICED
BEEF
000008
SLICED
BEEF
SPECIAL
000009
SLICED
TEXAS
BEEF
000010
SLICED
OREGON
BEEF
3. Press the [REGISTER] button.
UND
EF
GROUND
BEEF
GROUND
BEEF
GROUND
BEEF
BE
EF 0
10
ED
G
ON
EF
The data will be
overwritten when the
registered Memo
Preset button is
pressed.
Registration can also
be performed by
pressing the [Memo
Preset] button after
entering the PLU
number.
4. The display changes to the Memo
Preset Programming mode.
Press the Memo Preset button at
the desired position.
The PLU data has been
registered in the button.
The display returns to the PLU
screen.
UND
EF
GROUND
BEEF
GROUND
BEEF
GROUND
BEEF
BE
EF
0
10
ED
G
ON
EF
Omni-4000ST User’s Manual page 2-23
Page 52
Chapter 2 NORMAL MODE
2.13.2 MEMO PRESET DATA DELETION
Lightly press the touch
panel with your finger.
Pressing the panel
using pointed objects
such as fingernails or
mechanical pencils
may damage the touch
panel.
1. Press the [PRESET] button on
the initial screen.
2. The Memo Preset screen is
displayed.
000001
GROUND
BEEF
000002
GROUND
BEEF
SPECIAL
000003
TEXAS
GROUND
BEEF
000004
OREGON
GROUND
BEEF
000005
CALIFORNI
A
GROUND
BEEF
000006
UTAH
GROUND
BEEF
000007
SLICED
BEEF
000008
SLICED
BEEF
SPECIAL
000009
SLICED
TEXAS
BEEF
000010
SLICED
OREGON
BEEF
3. Press the [DELETE] button.
BEEF BEEF BEEF
4. The display changes to the Memo
Preset Delete mode.
Press the desired memo preset to
be deleted.
EXAMPLE
Delete the ““UTAH GROUND
BEEF” Memo Preset button.
000004
OREGON
GROUND
BEEF
000005
CALIFORNIA
GROUND
BEEF
000006
UTAH
GROUND
BEEF
000007
SLICED
BEEF
page 2-24 Omni-4000ST User’s Manual
Page 53
Chapter 2 NORMAL MODE
5. Press the [CONFIRM] button.
The deletion has been executed
and the display returns to the
normal screen.
Omni-4000ST User’s Manual page 2-25
Page 54
Chapter 2 NORMAL MODE
2.14 FUNCTION KEYS
This machine has many convenient function keys. Main function keys are located at the bottom of the
screen, and sub function keys on the Function Key screen.
Æ
Numeric
function keys
Displays the
Function Key
screen
Function keys
Function keys
page 2-26 Omni-4000ST User’s Manual
Page 55
Chapter 2 NORMAL MODE
FUNCTION KEYS
Omni-4000ST User’s Manual page 2-27
Page 56
Chapter 2 NORMAL MODE
page 2-28 Omni-4000ST User’s Manual
Page 57
Chapter 2 NORMAL MODE
Omni-4000ST User’s Manual page 2-29
Page 58
Chapter 2 NORMAL MODE
NUMERIC FUNCTION KEYS
Function key
Operation and how to use the function keys
-Tare rate can be set when pressed after numeric entry.
-To delete the setting, press the button after entering “0”.
-Extra message number can be set when pressed after numeric entry.
-To delete the setting, press the button after entering “0”.
-POP number can be set when pressed after numeric entry.
-To delete the setting, press the button after entering “0”.
-Coupon message number can be set when pressed after numeric entry.
-To delete the setting, press the button after entering “0”.
-Front format number can be set when pressed after numeric entry.
-To delete the setting, press the button after entering “0”.
-Image number can be set when pressed after numeric entry.
-To delete the setting, press the button after entering “0”.
page 2-30 Omni-4000ST User’s Manual
Page 59
Chapter 3 TOTAL MODE
TOTAL MODE
CONTENTS
3.1 TOTAL MENU................................................................ 3-2
3.2 DAILY / ACCUMULATED TOTAL ................................ 3-3
3.3 HOURLY + TRAY TOTALS .......................................... 3-9
3.4 TOTAL CLEAR ........................................................... 3-15
Omni-4000ST User’s Manual page 3-1
3
Page 60
Chapter 3 TOTAL MODE
3.1 TOTAL MENU
Lightly press the touch
panel with your finger.
Pressing the panel
using pointed objects
such as fingernails or
mechanical pencils
may damage the touch
panel.
1. Make sure that the initial screen is
displayed.
Press the [MENU] button.
If a password has been
set for entering Total
Mode, press the
[TOTALS] button after
password entry (6
digits).
2. Main Menu screen is displayed.
Press the [TOTALS] button.
3. Total Menu screen is displayed.
Returns to Main
Menu screen.
page 3-2 Omni-4000ST User’s Manual
Page 61
Chapter 3 TOTAL MODE
3.2 DAILY / ACCUMULATED TOTAL
This section explains about how to obtain various daily and accumulated totals in this machine.
3.2.1 GRAND TOTAL
1. Press the [DAILY TOTAL] or
[ACCUMULATED TOTAL] button
on the Total Menu screen.
Lightly press the
touch panel with your
finger. Pressing the
panel using pointed
objects such as
fingernails or
mechanical pencils
may damage the
touch panel.
2. Daily Total Menu screen is
displayed.
Press the [Daily Grand Total]
button to select the desired report
type.
The Daily Grand Total screen is
displayed.
Omni-4000ST User’s Manual page 3-3
Page 62
Chapter 3 TOTAL MODE
3.2.2 SALES TOTAL PER DEPARTMENT
1. Press the [DAILY TOTAL] or
[ACCUMULATED TOTAL] button
on the Total Menu screen.
Lightly press the touch
panel with your finger.
Pressing the panel
using pointed objects
such as fingernails or
mechanical pencils
may damage the touch
panel.
2. Daily Total Menu screen is
displayed.
Press the [Sales per Department]
button to select the desired report
type.
The Sales per Department Total
screen is displayed.
page 3-4 Omni-4000ST User’s Manual
Page 63
Chapter 3 TOTAL MODE
3.2.3 SALES BY PLUS
1. Press the [DAILY TOTAL] or
[ACCUMULATED TOTAL] button
on the Total Menu screen.
Lightly press the touch
panel with your finger.
Pressing the panel
using pointed objects
such as fingernails or
mechanical pencils
may damage the touch
panel.
2. Daily Total Menu screen is
displayed.
Press the [Sales by PLU] button
to select the desired report type.
The Sales by PLU Total screen is
displayed.
Omni-4000ST User’s Manual page 3-5
Page 64
Chapter 3 TOTAL MODE
3.2.4 ANALYSIS BY PLUS
Lightly press the touch
panel with your finger.
Pressing the panel
using pointed objects
such as fingernails or
mechanical pencils
may damage the touch
panel.
1. Press the [DAILY TOTAL] or
[ACCUMULATED TOTAL] button
on the Total Menu screen.
2. Daily Total Menu screen is
displayed.
Press the [Analysis by PLU]
button to select the desired report
type.
3. Analysis By PLU screen is
displayed.
Set the number of items to be
displayed by pressing [SET] in
the Enter Report Size field after
numeric entry.
Note: Enter “0” to display all items and
totalize them.
page 3-6 Omni-4000ST User’s Manual
Page 65
Chapter 3 TOTAL MODE
4. Press one of the following buttons
in the “Classified” field to make a
selection.
Displays and totalizes data for all PLUs.
Displays and totalizes PLU data for each department.
Displays and totalizes PLU data for each group.
5. Press one of the following buttons
in the “Analysis Type” field to
make a selection.
Displays and totalizes data in PLU number order.
Displays and totalizes data in price descending order.
Displays and totalizes data in weight descending order.
Displays and totalizes data in quantity descending order.
Displays and totalizes data in price ascending order.
Displays and totalizes data in weight ascending order.
Displays and totalizes data in quantity ascending order.
6. Press the [DETAIL] button on the
screen.
The display changes to the
Analysis By PLU screen.
Omni-4000ST User’s Manual page 3-7
Page 66
Chapter 3 TOTAL MODE
Æ
Returns to Daily
Total Menu screen.
Æ
Returns to the
previous screen
GROUND BEEF
11 3.410 120.47
805 185.497 3561.52
1
GROUND BEEF S PECIAL
6 1.950 87.752
TEXAS GROUND BEEF
14 3.000 84.003
OREGON GROUND BEEF
2 0.503 24.144
CALIFORNIA GROUND BEEF
8 0.900 35.105
UTAH GROUND BEEF
4 0.600 25.206
SLICE BEEF
28 5.740 200.907
SLICE BEEF SPEC IAL
7 2.800 67.208
SLICE TEXAS BEEF
20 6.110 183.309
SLICE OREGON BEEF
12 3.604 108.1210
Moves the cursor up
and down.
Turns over the screen.
Changes the screen for each classification type set on the Analysis BY PLU screen.
This is not usable when the classification type is set as “No Analysis”.
page 3-8 Omni-4000ST User’s Manual
Page 67
Chapter 3 TOTAL MODE
3.3 HOURLY + TRAY TOTALS
This section explains about how to obtain hourly and tray totals in this machine.
Omni-4000ST User’s Manual page 3-9
Page 68
Chapter 3 TOTAL MODE
3.3.1 HOURLY TOTALS
748 955.120 2397.29
28 3.8
39 5.2
55 7.3
50 6.7
64 8.6
78 10.4
123 16.5
131 17.5
92 12.3
88 11 .7
HOURLY TOTALS
Returns to Operation
A
nalysis Menu screen.
Displays the hourly totals in relation to the PLU quantities or prices.
Moves the cursor up and
down.
Turns over the screen.
Lightly press the touch
panel with your finger.
Pressing the panel
using pointed objects
such as fingernails or
mechanical pencils
may damage the touch
panel.
1. Press the [HOURLY + TRAY
TOTALS] button on the Total
Menu screen.
2. The Hourly + Tray Totals screen
is displayed.
Press the [HOURLY TOTALS]
button on the screen.
3. Totals for each time zone screen
are displayed.
Select the type of data to be
analyzed.
64
8.6
78 10.4
123 16.5
131 17.5
92 12.3
88 11. 7
page 3-10 Omni-4000ST User’s Manual
Page 69
Chapter 3 TOTAL MODE
3.3.2 HOURLY PLU TOTALS
GROUND BEEF
0 0.0
0 0.0
8 4.8
12 7.3
6 3.6
11 6.6
23 13.9
31 18.7
48 29.0
26 15.7
165 55.120 397.29
HOURLY PLU TOTALS
Lightly press the touch
panel with your finger.
Pressing the panel
using pointed objects
such as fingernails or
mechanical pencils
may damage the touch
panel.
1. Press the [HOURLY + TRAY
TOTALS] button on the Total
Menu screen.
2. Press the [HOURLY PLU
TOTALS] on the screen.
3. The Hourly PLU Totals screen is
displayed.
Call the desired PLU by pressing
the [PLU] stroke key after
numeric entry.
0 0.0
0 0.0
0
0.0
0
0.0
0
0.0
0
0.0
0
0.0
0
0.0
0
0.0
0
0.0
0 0.000 0.00
0
HOURLY PLU TOTALS
Moves the cursor up and
down.
Turns over screen.
Displays the hourly totals in relation to the PLU quantities or prices.
Omni-4000ST User’s Manual page 3-11
Page 70
Chapter 3 TOTAL MODE
4. Totals for each time zone screen
are displayed.
Select the type of data to be
analyzed.
GROUND BEEF
0 0.0
0 0.0
8 4.8
12 7.3
6 3.6
11 6.6
23 13.9
31 18.7
48 29.0
26 15.7
165 55.120 397.29
HOURLY PLU TOTALS
page 3-12 Omni-4000ST User’s Manual
Page 71
Chapter 3 TOTAL MODE
3.3.3 HOURLY WRAP TOTALS
1. Press the [HOURLY + TRAY
TOTALS] button on the Total
Menu screen.
2. The Hourly + Tray Totals screen
is displayed.
Press the [HOURLY WRAP
TOTALS] button to make a
selection.
Totals for each time zone screen
are displayed.
Omni-4000ST User’s Manual page 3-13
Page 72
Chapter 3 TOTAL MODE
3.3.4 WRAP TOTALS BY TRAY
1. Press the [HOURLY + TRAY
TOTALS] button on the Total
Menu screen.
2. The Hourly + Tray Totals screen is
displayed.
Press the [WRAP TOTALS BY
TRAY] button to make a selection.
Wrap Totals by Tray are
displayed.
page 3-14 Omni-4000ST User’s Manual
Page 73
Chapter 3 TOTAL MODE
3.4 TOTAL CLEAR
Returns to Total Menu
screen.
Displays Total Clear
screen.
Executes total clear.
1. Press the [TOTAL CLEAR] button
on the Total Menu screen.
2. The Total Clear screen is
displayed.
Select the item from the
accumulated totals.
Press the desired button to make
a selection of the items to be
deleted among [DAILY] [TOTAL]
[TIME ZONE] [TRAY TOTAL] and
[PERIOD].
3. Press the [EXECUTE] button to
clear the selected total.
Delete confirmation screen is
displayed.
Press [EXECUTE] to clear the
selected items.
Omni-4000ST User’s Manual page 3-15
Page 74
Chapter 3 TOTAL MODE
page 3-16 Omni-4000ST User’s Manual
Page 75
Chapter 4 PROGRAMMING MODE
PROGRAMMING
MODE
CONTENTS
4.1 PROGRAMMING MODE............................................. 4-2
4.2 PLU FILE REGISTRATION ........................................ 4-3
4.3 PLU NAME REGISTRATION.................................... 4-15
4.4 EXTRA MESSAGE REGISTRATION ....................... 4-17
4.5 POP MESSAGE REGISTRATION ............................ 4-19
4.6 COUPON MESSAGE REGISTRATION.................... 4-21
4.7 STORE NAME/ADDRESS REGISTRATION ............ 4-23
4.8 TRAY MESSAGE REGISTRATION.......................... 4-26
4.9 DEPARTMENT NAME REGISTRATION .................. 4-32
4.10 CATEGORY PRESET REGISTRATION................... 4-34
4.11 PLU PRESET REGISTRATION ................................ 4-36
4.12 TEXT EDITING.......................................................... 4-37
Omni-4000ST User’s Manual page 4-1
4
Page 76
Chapter 4 PROGRAMMING MODE
4.1 PROGRAMMING MODE
Displays
Registration
Menu 1/2 screen.
Returns to Main
Menu screen.
Turns over the
screen.
REGISTRATION ITEMS
Registration Items Contents
PLU FILE/
PRICE CHANGE
The PLU name and its relative data (unit price, fixed price, tare weight,
register code, POP number, etc.) can be registered.
PLU NAME The PLU name can be registered.
EXTRA MESSAGE 1 The extra message 1 can be registered.
POP MESSAGE The POP message can be registered.
COUPON MSG The coupon message can be registered.
EXTRA MESSAGE 2 The extra message 2 can be registered.
EXTRA MESSAGE 3 The extra message 3 can be registered.
STORE NAME The store name and address can be registered.
TRAY MESSAGE The tray data such as name, size, and weight can be registered.
DEPARTMENT The department name can be registered.
GROUP The group name can be registered.
PRESET KEYS The PLU data can be allocated to the memory preset key
CATEGORY PRESET The PLU data indexed and linked to the category preset can be registered.
page 4-2 Omni-4000ST User’s Manual
Page 77
Chapter 4 PROGRAMMING MODE
4.2 PLU FILE REGISTRATION
PLU name and its relative data (unit price, fixed price, tare weight, register code, POP number, etc.) can
be registered. Register the PLU data after selecting the PLU field listed on the screen.
Returns to Registration
Menu screen.
Turns back the screen.
Moves the cursor up
and down.
Turns over the screen.
Displays PLU Data
Registration screen.
Deletes the selected
data.
Omni-4000ST User’s Manual page 4-3
Page 78
Chapter 4 PROGRAMMING MODE
1. Press the [PLU FILE/PRICE
CHANGE] button.
2. The PLU File Registration screen
is displayed.
Press the desired PLU filed to
make a selection.
Or, enter the desired PLU number
(1 - 999999) using the numeric
keys, and press the [PLU] stroke
key.
3. Press the [DETAIL] button on the
screen.
4. PLU Data Registration 1/3 screen
is displayed.
page 4-4 Omni-4000ST User’s Manual
Page 79
Chapter 4 PROGRAMMING MODE
4.2.1 PLU DATA REGISTRATION 1/3 SCREEN
Saves the PLU data and
returns to the previous
screen.
Turns over the screen.
Deletes the called PLU data.
The text edit screen is
displayed.
Displays the called PLU name.
A
lso, changes to the next registered
PLU name when directly pressed.
REGISTRATION METHOD
The table below is the summarized registration examples. Select necessary items and make necessary
registrations.
Omni-4000ST User’s Manual page 4-5
Page 80
Chapter 4 PROGRAMMING MODE
page 4-6 Omni-4000ST User’s Manual
Page 81
Chapter 4 PROGRAMMING MODE
Omni-4000ST User’s Manual page 4-7
Page 82
Chapter 4 PROGRAMMING MODE
page 4-8 Omni-4000ST User’s Manual
Page 83
Chapter 4 PROGRAMMING MODE
4.2.2 PLU DATA REGISTRATION 2/ 3 SCREEN
Saves the PLU data and
returns to the previous screen.
Turns over the screen.
REGISTRATION METHOD
The table below is the summarized registration examples. Select necessary items and make necessary
registrations.
Omni-4000ST User’s Manual page 4-9
Page 84
Chapter 4 PROGRAMMING MODE
page 4-10 Omni-4000ST User’s Manual
Page 85
Chapter 4 PROGRAMMING MODE
Omni-4000ST User’s Manual page 4-11
Page 86
Chapter 4 PROGRAMMING MODE
4.2.3 PLU DATA REGISTRATION 3/3 SCREEN
Saves the PLU data and
returns to the previous screen.
Turns over the screen.
REGISTRATION METHOD
The table below is the summarized registration examples. Select necessary items and make necessary
registrations.
page 4-12 Omni-4000ST User’s Manual
Page 87
Chapter 4 PROGRAMMING MODE
Omni-4000ST User’s Manual page 4-13
Page 88
Chapter 4 PROGRAMMING MODE
page 4-14 Omni-4000ST User’s Manual
Page 89
Chapter 4 PROGRAMMING MODE
4.3 PLU NAME REGISTRATION
A PLU name can be easily registered simply by pressing the [PLU NAME] button on the Registration
Menu screen. Register the PLU name after calling the desired PLU.
1. Press [PLU NAME] on the
Registration Menu screen.
2. Text edit screen is displayed.
Specify the desired PLU.
EXAMPLE
PLU No. "1"
Omni-4000ST User’s Manual page 4-15
Page 90
Chapter 4 PROGRAMMING MODE
For character entry,
refer to section 4.12
“Text Editing”.
3. The called PLU name is
displayed.
Enter the desired text using the
keyboard on the screen.
GROUND BEEF
000
001
2046
4. Press the [FIX] button to confirm
the text image.
5. Press the [RETURN] button on
the screen.
Save confirmation screen is
displayed.
Press the [EXECUTE] button to
save the data.
BEEF
page 4-16 Omni-4000ST User’s Manual
Page 91
Chapter 4 PROGRAMMING MODE
4.4 EXTRA MESSAGE REGISTRATION
Various messages can be registered in each extra message file. Register the desired message after
selecting the desired message number (1 – 999999).
1. Press the [EXTRA MESSAGE]
button on the Registration Menu
screen.
2. Extra Message Registration
screen is displayed.
Press the desired message field
on the screen to make a selection.
Or, enter the message number
(1 - 999999) and press the [PLU]
stroke key.
EXAMPLE
Message No. "1"
3. Press the [EDIT] button..
94%
For character entry,
refer to section 4.12
“Text Editing”.
4. Text edit screen is displayed.
Enter the desired text using the
keyboard on the screen.
000
001
2046
Omni-4000ST User’s Manual page 4-17
Page 92
Chapter 4 PROGRAMMING MODE
5. Press the [FIX] button to confirm
the text image.
6. Press the [RETURN] button on
the screen.
Save confirmation screen is
displayed.
Press the [EXECUTE] button to
save the data.
page 4-18 Omni-4000ST User’s Manual
Page 93
Chapter 4 PROGRAMMING MODE
4.5 POP MESSAGE REGISTRATION
Various messages can be registered in the POP message file. Register the desired message after
selecting the desired message number (1 – 999).
1. Press the [POP MESSAGE]
button on the Registration Menu
screen.
2. POP Registration screen is
displayed.
Press the desired message field
on the screen to make a selection.
Or, enter the message number
(1 - 999) and press the [PLU]
stroke key.
EXAMPLE
Message No. "1"
3. Press the [EDIT] button.
94%
For character entry,
refer to section 4.12
“Text Editing”.
4. Text edit screen is displayed.
Enter the desired text using the
keyboard on the screen.
000
001
078
001
Omni-4000ST User’s Manual page 4-19
Page 94
Chapter 4 PROGRAMMING MODE
5. Press the [FIX] button to confirm
the text image.
6. Press the [RETURN] button on
the screen.
Save confirmation screen is
displayed.
Press the [EXECUTE] button to
save the data.
page 4-20 Omni-4000ST User’s Manual
Page 95
Chapter 4 PROGRAMMING MODE
4.6 COUPON MESSAGE REGISTRATION
Various messages can be registered in the coupon message file. Register the desired message after
selecting the desired message number (1 – 999999).
1. Press the [COUPON MESSAGE]
button on the Registration Menu
screen.
2. Coupon Message Registration
screen is displayed.
Press the desired message field
on the screen to make a selection.
Or, enter the message number
(1 - 999999) and press the [PLU]
stroke key.
EXAMPLE
Message No. "1"
3. Press the [EDIT] button.
94%
For character entry,
refer to section 4.12
“Text Editing”.
4. Text edit screen is displayed.
Enter the desired text using the
keyboard on the screen.
000
001
1022
000001
Omni-4000ST User’s Manual page 4-21
Page 96
Chapter 4 PROGRAMMING MODE
5. Press the [FIX] button to confirm
the text image.
6. Press the [RETURN] button on
the screen.
Save confirmation screen is
displayed.
Press the [EXECUTE] button to
save the data.
page 4-22 Omni-4000ST User’s Manual
Page 97
Chapter 4 PROGRAMMING MODE
4.7 STORE NAME/ADDRESS REGISTRATION
Various store names and addresses can be registered in the store name/address file. Register the
esired name and address after selecting the desired store number (1 – 9999). d
NAME ISHIDA 1
ADDRESS
SHIGA
1/1
94%
9999
Returns to Registration Menu
screen.
Selects the store data
back and forth.
Displays the text edit
screen.
Select “9999” for your
own store.
1. Press the [STORE NAME]
button on the Registration Menu
screen.
For character entry,
refer to section 4.12
“Text Editing”.
2. Store Name/Address Registration
screen for Store No.9999 is
displayed.
The [NAME] field is automatically
selected first.
When selecting a store number
other than “9999”, press [] []
to find the desired number, or
enter the store number (1 - 9999)
and press the [PLU] stroke key.
EXAMPLE
Store No. "1"
NAME SUPE RI SHIDA
A
DDRESS
KYOTO
1/1
94%
9999
Omni-4000ST User’s Manual page 4-23
Page 98
Chapter 4 PROGRAMMING MODE
3. Text edit screen is displayed for
name registration.
Enter the desired text using the
keyboard on the screen.
000
001
096
0001
4. Press the [FIX] button to confirm
the text image.
5. Press the [RETURN] button on
the screen.
Save confirmation screen is
displayed.
Press the [EXECUTE] button to
save the data.
6. Press the [ADDRESS] field to
make a selection, and press the
[EDIT] button on the screen.
NAME HYPER ISHI DA
A
DDRESS
1/2
94%
9999
1
2
page 4-24 Omni-4000ST User’s Manual
Page 99
Chapter 4 PROGRAMMING MODE
7. Text edit screen is displayed for
address registration.
Enter the desired text using the
keyboard on the screen.
000
001
096
0001
8. Press the [FIX] button to confirm
the text image.
9. Press the [RETURN] button on
the screen.
Save confirmation screen is
displayed.
Press the [EXECUTE] button to
save the data.
10. Registered name and address
appear on the screen.
NAME HYPER ISH ID
A
A
DDRESS
SHIG
A
1/2
94%
9999
Omni-4000ST User’s Manual page 4-25
Page 100
Chapter 4 PROGRAMMING MODE
4.8 TRAY MESSAGE REGISTRATION
Tray names can be registered. Moreover, the size, name and other conditions of a tray can be registered.
Tray Program screen includes 1/2 screen on which wrapping conditions can be registered and 2/2
screen on which labeling position can be registered.
4.8.1 TRAY PROGRAM 1/2 SCREEN
Returns to Registration
Menu screen.
Turns over the next
screen.
Returns the wrapper and
applicator to their original
position.
Performs the film setting
operation.
Performs the film feeding.
Displays the tray list.
Deletes the called tray
data.
1. Press the [TRAY MESSAGE]
button on the Registration Menu
screen.
2. Tray Program 1/2 screen is
displayed.
Enter the desired tray number
(1- 9999) using the numeric keys,
and press the [PLU] stroke key.
EXAMPLE
Tray No. "4"
page 4-26 Omni-4000ST User’s Manual
