Invacare MyOn, MyOn Jr User Manual

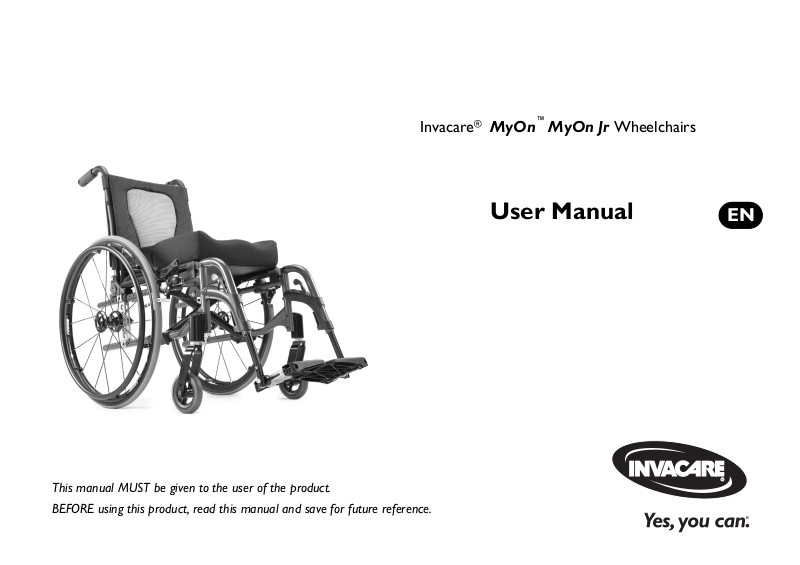

Invacare® MyOn™MyOn Jr Wheelchairs
This manual MUST be given to the user of the product.
BEFORE using this product, read this manual and save for future reference.
User Manual
EN
© 2016 Invacare Corporation. All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted. WD-40 is a registered trademark of the WD-40 Company. Teflon is a registered trademark of E.I. Du Pont De Nemours and Company. 3-in-1 oil is a registered trademark of American Home Products Corporation.
CONTENTS

1 GENERAL 7

Symbols .................................................................................................................................................................................................................................................... 7
Limited Warranty .................................................................................................................................................................................................................................. 8

2SAFETY 9

Intended Use........................................................................................................................................................................................................................................... 9
Wear and Tear Items............................................................................................................................................................................................................................ 9
General Guidelines .............................................................................................................................................................................................................................. 10

3OVERVIEW 17

Label Locations.....................................................................................................................................................................................................................................17
Component Identification.................................................................................................................................................................................................................. 19
Specifications......................................................................................................................................................................................................................................... 20

4 SAFETY/HANDLING OF WHEELCHAIRS 26

Safety/Handling of Wheelchairs........................................................................................................................................................................................................26
Stability and Balance ............................................................................................................................................................................................................................26
Coping with Everyday Obstacles...................................................................................................................................................................................................... 27
A Note to Wheelchair Assistants.................................................................................................................................................................................................... 27
Tipping....................................................................................................................................................................................................................................................27
Stairways ................................................................................................................................................................................................................................................ 29
Escalators...............................................................................................................................................................................................................................................30
Transferring To and From Other Seats..........................................................................................................................................................................................31
Percentage of Weight Distribution..................................................................................................................................................................................................32
Reaching, Leaning and Bending - Forward...................................................................................................................................................................................... 33
Reaching, Bending - Backward ..........................................................................................................................................................................................................33

5 SAFETY INSPECTION 34

Part No 1167418
3 Invacare® MyOn™MyOn Jr Wheelchairs
CONTENTS
Safety Inspection Checklists ..............................................................................................................................................................................................................34

6 WHEELCHAIR OPERATION 39

Unfolding and Folding Wheelchair...................................................................................................................................................................................................39
Securing the Optional Push Handle................................................................................................................................................................................................. 41
Placing the Optional Push Handle in the Storage Position.........................................................................................................................................................44
Using Wheel Locks.............................................................................................................................................................................................................................. 45
Folding Wheel Lock Handles ............................................................................................................................................................................................................46
Using Hill Holder Wheel Locks........................................................................................................................................................................................................ 47
Installing/Removing Front Riggings...................................................................................................................................................................................................49
Installing/Removing Elevating Legrests............................................................................................................................................................................................52
Raising/Lowering the Elevating Legrest...........................................................................................................................................................................................55
Using Flipback Armrest. .....................................................................................................................................................................................................................56

7 TRANSPORT READY OPTION 58

About Transport Ready Packages.................................................................................................................................................................................................... 59
Compliance Information..................................................................................................................................................................................................................... 60
Specifications......................................................................................................................................................................................................................................... 60
Securing the Wheelchair to the Vehicle.........................................................................................................................................................................................61
Securing the Occupant .......................................................................................................................................................................................................................63
MAINTENANCE AND ADJUSTMENT SECTIONS ..............................................................................................................................68

9 TROUBLESHOOTING AND MAINTENANCE 69

Troubleshooting ..................................................................................................................................................................................................................................69
Maintenance .......................................................................................................................................................................................................................................... 70
Transporting the Wheelchair............................................................................................................................................................................................................72

10 FRONT RIGGINGS 73

Invacare® MyOn™MyOn Jr Wheelchairs
4 Part No 1167418
CONTENTS
Adjusting Footrest Height.................................................................................................................................................................................................................. 73
Replacing Heel Loop Strap.................................................................................................................................................................................................................74
Installing Impact Guards/Calf Strap..................................................................................................................................................................................................75
Adjusting Elevating Legrest Calfpad Height and Depth...............................................................................................................................................................75
Replacing Mounting Pin on 70°, 80° and 90° Front Rigging.......................................................................................................................................................76
Installing Adjustable Angle Flip-Up Footplate Hinge.................................................................................................................................................................... 77
Adjusting Adjustable Angle Flip-Up Footplates.............................................................................................................................................................................78

11 ARMS 80

Removing/Installing and Adjusting Non-Locking T-Arms...........................................................................................................................................................80
Removing/Installing and Adjusting Locking T-Arms (MyOn Jr.)................................................................................................................................................ 82
Removing/Installing Flipback Armrests ...........................................................................................................................................................................................84
Adjusting the Height and Depth of the Flip Back Arms.............................................................................................................................................................. 85
Replacing Armrest Arm Pad..............................................................................................................................................................................................................86
Installing the Optional Swingaway Padded Armrest Socket Assembly....................................................................................................................................87
Adjusting Swingaway Padded Armrest Height..............................................................................................................................................................................89

12 SEAT/BACK 90

Removing/Installing the Back............................................................................................................................................................................................................. 90
Removing/Installing Seat Upholstery ............................................................................................................................................................................................... 92
Removing/Installing Standard Back Upholstery.............................................................................................................................................................................93
Adjustable Back Upholstery ..............................................................................................................................................................................................................93
Installing/Replacing Adjustable Back Upholstery........................................................................................................................................................................... 94
Adjusting the Height Adjustable Back............................................................................................................................................................................................. 96
Adjusting the Back Angle ...................................................................................................................................................................................................................97
Removing/Installing the Seat Positioning Strap..............................................................................................................................................................................98
Installing/Removing the Spreader Bar ............................................................................................................................................................................................. 99
Installing/Removing the Stroller Handles........................................................................................................................................................................................99
Part No 1167418
5 Invacare® MyOn™MyOn Jr Wheelchairs
CONTENTS
Adjusting the Stroller Handle..........................................................................................................................................................................................................100
Using the Headrest/Back Bracket ..................................................................................................................................................................................................101

13 REAR WHEELS/FRONT CASTERS 102

Removing/Installing Rear Wheels...................................................................................................................................................................................................102
Adjusting Quick-Release Axles.......................................................................................................................................................................................................104
Replacing Handrims...........................................................................................................................................................................................................................105
Adjusting Forks...................................................................................................................................................................................................................................106
Removing/Installing the Caster Assemblies .................................................................................................................................................................................107
Replacing the Sector Block..............................................................................................................................................................................................................108

14 WHEEL LOCKS 109

Adjusting Wheel Locks.....................................................................................................................................................................................................................109
Replacing Wheel Lock Handle........................................................................................................................................................................................................111

15 ANTI-TIPPERS 112

Installing Anti-Tippers.......................................................................................................................................................................................................................112
Adjusting Anti-Tippers......................................................................................................................................................................................................................113
Invacare® MyOn™MyOn Jr Wheelchairs
6 Part No 1167418

1 GENERAL

1 General

1.1 Symbols

Warnings

Signal words are used in this manual and apply to hazards or unsafe practices which could result in personal injury or property damage. See the information below for definitions of the signal words.

DANGER

Danger indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Warning indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Caution indicates a potentially hazardous situation which, if not avoided, may result in property damage or minor injury or both.
!
Part No 1167418 7 Invacare® MyOn™MyOn Jr Wheelchairs

IMPORTANT

Indicates a hazardous situation that could result in damage to property if it is not avoided.

Gives useful tips, recommendations and information for efficient, trouble-free use.

1 GENERAL

1.2 Limited Warranty

PLEASE NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH FEDERAL LAW APPLICABLE TO PRODUCTS MANUFACTURED AFTER JULY 4, 1975.

This warranty is extended only to the original purchaser/user of our products. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state. Invacare warrants its product to be free from defects in materials and workmanship for a period of one year from the date of purchase when purchased
new and unused from Invacare or an authorized provider. The side frames and crossmembers are under a limited lifetime warranty from the date of purchase when purchased new and unused from Invacare or an authorized provider for the original purchaser/user. If within such warranty period any such product shall be proven to be defective, such product shall be repaired or replaced, at Invacare's option, with refurbished or new parts. This warranty does not include any labor or shipping charges incurred in replacement part installation or repair of any such product. Product repairs shall not extend this warranty - coverage for repaired product shall end when this limited warranty terminates. Invacare's sole obligation and your exclusive remedy under this warranty shall be limited to such repair and/or replacement.
For warranty service, please contact the dealer from whom you purchased your Invacare product. In the event you do not receive satisfactory warranty service, please write directly to Invacare at the address on the back cover. Provide dealer’s name, address, the product model number, date of purchase, indicate nature of the defect and, if the product is serialized, indicate the serial number. DO NOT return products to our factory without our prior consent.
LIMITATIONS AND EXCLUSIONS: THE FOREGOING WARRANTY SHALL NOT APPLY TO SERIAL NUMBERED PRODUCTS IF THE SERIAL NUMBER HAS BEEN REMOVED OR DEFACED, PRODUCTS SUBJECTED TO NEGLIGENCE, ACCIDENT, IMPROPER OPERATION, MAINTENANCE OR STORAGE, PRODUCTS MODIFIED WITHOUT INVACARE’S EXPRESS WRITTEN CONSENT INCLUDING, BUT NOT LIMITED TO, MODIFICATION THROUGH THE USE OF UNAUTHORIZED PARTS OR ATTACHMENTS; PRODUCTS DAMAGED BY REASON OF REPAIRS MADE TO ANY COMPONENT WITHOUT THE SPECIFIC CONSENT OF INVACARE, OR TO A PRODUCT DAMAGED BY CIRCUMSTANCES BEYOND INVACARE’S CONTROL, AND SUCH EVALUATION WILL BE SOLELY DETERMINED BY INVACARE. THE WARRANTY SHALL NOT APPLY TO PROBLEMS ARISING FROM NORMAL WEAR OR FAILURE TO ADHERE TO THESE INSTRUCTIONS.
THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES WHATSOEVER, WHETHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABLITY AND FITNESS FOR A PARTICULAR PURPOSE, AND THE SOLE REMEDY FOR VIOLATIONS OF ANY WARRANTY WHATSOEVER, SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT PURSUANT TO THE TERMS CONTAINED HEREIN. THE APPLICATION OF ANY IMPLIED WARRANTY WHATSOEVER SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN. INVACARE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER.

THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS AND REQUIREMENTS.

vM

2 Safety

The safety section contains important information for the safe operation and use of this product.

2.1 Intended Use

The intended use for the manual (mechanical) wheelchair is to provide mobility to persons who may be restricted to a sitting position. The manual wheelchair is intended for ongoing daily use. The models offer a wide range of customization which allows for a better fit for the end user resulting in comfort, lightweight, easier propelling, transferring, and smooth ride. The manual wheelchair is intended for indoor and outdoor use on firm surfaces free of climbing obstacles. All other uses are prohibited.

2.2 Wear and Tear Items

2 SAFETY
PRODUCT TYPE PRODUCT WEAR AND TEAR PART

WHEELCHAIRS: Wheels • Brake Assembly/Wheel Locks • Hand grips

UPHOLSTERY AND SEATING:

Normal wear and tear items and components include but are not limited to: all upholstery items including seat and back upholstery, arm and calf pads, cushions, wheels, tires and casters.

Invacare reserves the right to ask for any item back that has an alleged defect in
workmanship. See Warranty policy shipped with
the product for specific warranty information.

Refer to User Manual for proper preventative maintenance schedule and use of the product.

This is just a general guideline and does not include items damaged due to abuse and misuse.

Arm Pads • Seat Cushion Foam • Seat Cushion Covers • Back Cushion Foam • Back Cushion Covers • Headrest
Foam • Headrest Covers • Footplate Covers • Calf Pad (if applicable) Foam and Cover
Part No 1167418 9 Invacare® MyOn™MyOn Jr Wheelchairs
2 SAFETY

2.1 General Guidelines

WARNING

Risk of Serious Injury or Damage
DO NOT use this product or any available optional equipment without first completely reading and understanding these instructions and any additional instructional material such as owner’s manuals, service manuals or instruction sheets supplied with this product or optional equipment. If you are unable to understand the warnings, cautions or instructions, contact a healthcare professional, dealer or technical personnel before attempting to use this equipment - otherwise, injury or damage may occur.
Use of non-Invacare accessories may result in serious injury or damage. Invacare products are specifically designed and manufactured for use in conjunction with Invacare accessories. Accessories designed by
other manufacturers have not been tested by Invacare and are not recommended for use with Invacare products. DO NOT use non-Invacare accessories.
To obtain Invacare accessories, contact Invacare by phone or at www.invacare.com.

DANGER

Risk of Death, Serious Injury or Damage
Use of incorrect or improper replacement (service) parts may cause death, serious injury, or damage. Replacement parts MUST match original Invacare parts.
ALWAYS provide the wheelchair serial number to assist in ordering the correct replacement parts.
DANGER
Lighted cigarettes dropped onto an upholstered seating system can cause a fire resulting in death, serious injury, or damage. Wheelchair occupants are at particular risk of death or serious injury from these fires and resulting fumes because they may not have the
ability to move away from the wheelchair.
DO NOT smoke while using this wheelchair.
2 SAFETY
!

NOTICE

THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. Check all parts for shipping damage and test before using. In case of damage, DO NOT use. Contact Invacare/Carrier for
further instruction.

WARNING

Wheelchair User
As a manufacturer of wheelchairs, Invacare endeavors to supply a wide variety of wheelchairs to meet many needs of the end user. However, final selection of the type of wheelchair to be used by an individual rests solely with the user and his/her healthcare professional capable of making such a selection,

WARNING

Wheelchairs with TRRO or TRBKTS Only
Only use the transport brackets included with TRRO and TRBKTS for the purposes described in this manual.
WHEELCHAIRS WITH TRRO ONLY - The caster headtube and center of gravity are factory set. DO NOT adjust or replace the caster headtube or center of gravity - otherwise injury or damage may occur. Contact Invacare for service.
Part No 1167418 11 Invacare® MyOn™MyOn Jr Wheelchairs
2 SAFETY

WARNING

Wheelchair Tie Down Restraints (TRRO or TRBKTS)
TRRO includes four factory-installed transport brackets and a wheelchair anchored pelvic belt. TRRO has been crash-tested in accordance with ANSI/RESNA WC Vol 1 Section 19 Frontal Impact Test requirements for wheelchairs with a 168 lb crash dummy, which corresponds to a person with a weight of 114 to 209 lbs.
TRBKTS includes four factory-installed wheelchair transport brackets. TRBKTS has not been crash-tested in accordance with WC 19. Use these transport brackets only to secure an unoccupied wheelchair during transport.
Only use the transport brackets included with TRRO and TRBKTS for the purposes described in this manual.
As of this date, the Department of Transportation has not approved any tie-down systems for transportation of a user while in a wheelchair, in a moving vehicle of any type. It is Invacare’s position that users of wheelchairs should be transferred into appropriate seating in vehicles for transportation and use be made of the restraints made available by the auto industry. Invacare cannot and does not recommend any wheelchair transportation systems.
Refer to Transport Ready Option
on page 58 for more information about transporting the wheelchair.

When changes to the left hand column occur, follow across the chart and refer to the • procedure to maintain the proper stability, safety and handling of the wheelchair.

2 SAFETY

WARNING

Stability Warning
The seat height, seat depth, back angle, seating system/upholstery, size/position of the rear wheels, size/position of the front casters, as well as the user condition directly relate to the stability of the wheelchair. Any change to one or any combination of the nine may cause the wheelchair to decrease in stability. These adjustments MUST be performed by a qualified technician.
Seat-to-floor heights have specific positions depending on rear wheel size, rear wheel position, front caster size/position and seat-to-floor angle. These adjustments MUST be performed by a qualified technician.
SYSTEM

SEAT DEPTH

SEAT HEIGHT

SEAT HEIGHT
SEAT DEPTH

BACK ANGLE

SEATING SYSTEM/UPHOLSTERY

CASTER SIZE

CASTER POSITION

REAR WHEEL SIZE

REAR WHEEL POSITION

USER CONDITION

Part No 1167418 13 Invacare® MyOn™MyOn Jr Wheelchairs
• X X X X X X X N/A N/A N/A
X • X X X X X X N/A N/A N/A
X X • X X X X X N/A N/A N/A
X X X • X X X X X N/A N/A
X N/A X N/A • X X X N/A X X
X N/A X N/A X • X X N/A X X
X N/A X N/A X X • X N/A X X
X N/A X N/A X X X • N/A X X
X X X X X X X X • N/A N/A
SEATING
BACK ANGLE
UPHOLSTERY
CASTER
CASTER SIZE
POSITION
REAR WHEEL
REAR WHEEL
SIZE
USER
POSITION
CONDITION
WHEEL LOCKS
ANTI-TIPPERS
2 SAFETY

WARNING

Repair and Service Information

Unless otherwise noted, all service and adjustments should be performed while the wheelchair is unoccupied.

Operating Information

To determine and establish your particular safety limits, practice bending, reaching and transferring activities in several combinations in the presence of a qualified healthcare professional before attempting active use of the wheelchair.

DO NOT attempt to reach objects if you have to move forward in the seat.

DO NOT attempt to reach objects if you have to pick them up from the floor by reaching down between your knees.

DO NOT lean over the top of the back upholstery to reach objects from behind as this may cause the wheelchair to tip over.

DO NOT shift your weight or sitting position toward the direction you are reaching as the wheelchair may tip over.

DO NOT tip the wheelchair without assistance.

DO NOT use an escalator to move a wheelchair between floors. Serious bodily injury may occur.

DO NOT operate on roads, streets or highways.

DO NOT climb, go up or down ramps or traverse slopes greater than 9°.

NEVER leave an unoccupied wheelchair on an incline.

DO NOT attempt to move up or down an incline with a water, ice or oil film.

DO NOT attempt to ride over curbs or obstacles. Doing so may cause your wheelchair to turn over and cause bodily harm or damage to the wheelchair.

Wheel locks are not brakes. DO NOT attempt to stop a moving wheelchair with the wheel locks

DO NOT attempt to lift the wheelchair by any removable (detachable) parts. Lifting by means of any removable (detachable) parts of a wheelchair may result in injury to the user or damage to the wheelchair.

2 SAFETY

WARNING

NEVER try to lift or tip the wheelchair by cantilever arms or T- arms, serious injury can occur.

DO NOT overtighten hardware attaching to the frame. This could cause damage to the frame tubing.

DO NOT stand on the frame of the wheelchair.

DO NOT sit or transfer into the wheelchair unless it is fully open and the seat frame rails are fully seated into the side frame H-blocks.

Anti-tippers MUST BE attached at all times. Inasmuch as the anti-tippers are an option on this wheelchair (you may order with or without the anti-tippers), Invacare strongly recommends ordering the anti-tippers as an additional safeguard for the wheelchair user.
Anti-tippers MUST be fully engaged and release buttons fully protruding out of the adjustment holes. Ensure both anti-tippers are adjusted to the same mounting hole.
The manual wheelchair is intended for indoor and outdoor use on firm surfaces. When outdoors on wet, soft ground or on gravel surfaces, anti-tippers may not provide the same level of protection against tip over. DO NOT operate on soft surfaces such as sand, grass or gravel.

Unless otherwise noted, all service and adjustments should be performed while the wheelchair is unoccupied.

If wheelchair is exposed to extreme temperature (above 100°F or below 32°F), high humidity and/or becomes wet, prior to use, ensure handgrips DO NOT twist on wheelchair handle - otherwise damage or injury may occur.

ALWAYS use the handrims for self-propulsion. Inasmuch as the handrims are an option on this wheelchair (you may order with or without the handrims), Invacare strongly recommends ordering the handrims as an additional safeguard for the wheelchair user.

DO NOT use the footplate as a platform when getting in or out of the wheelchair.

ALWAYS keep hands and fingers clear of moving parts to avoid injury.

DO NOT place hand or fingers on the underside of the seat rail when opening or closing the wheelchair.

Part No 1167418 15 Invacare® MyOn™MyOn Jr Wheelchairs
2 SAFETY

WARNING

Seat Positioning Straps

ALWAYS wear your seat positioning strap. Inasmuch as the seat positioning strap is an option on this wheelchair (you may order with or without the seat positioning strap), Invacare strongly recommends ordering the seat positioning strap as an additional safeguard for the wheelchair user. The seat positioning strap is a positioning strap only. It is not designed for use as a safety device withstanding high stress loads such as auto or aircraft safety belts. If signs of wear appear, strap MUST be replaced IMMEDIATELY.
With regards to seat/chest positioning straps - it is the obligation of the DME dealer, therapists and other healthcare professionals to determine if a seat/chest positioning strap is required to ensure the safe operation of this equipment by the user. Serious injury can occur in the event of a fall from a wheelchair.

Tire Pressure

DO NOT use your wheelchair unless it has the proper tire pressure (p.s.i.). DO NOT overinflate the tires. Failure to follow these suggestions may cause the tire to explode and cause bodily harm. The recommended tire pressure is listed on the side wall of the tire.

Replacement of a pneumatic tire or tube MUST be performed by a qualified technician.

Weight Training

Invacare does not recommend the use of its wheelchairs as a weight training apparatus. Invacare wheelchairs have not been designed or tested as a seat for any kind of weight training. If occupant uses said wheelchair as a weight training apparatus, Invacare shall not be liable for bodily injury or physical disability and the warranty will be void.

Weight Limitation

The wheelchair has a weight limitation of:

MyOn - 275 lbs (125 kgs)

Myon Jr - 165 lbs (75 kgs) with TRRO option; 175 lbs (85 kgs) without TRRO option

MyOn (Heavy Duty) - 350 lbs (159 kgs)

3 Overview

MyOn HD (Heavy Duty)

Weight Capacity
p/n 1183421 Rev A
Before using this product, read and understand the User Manual. The user manual provides proper operation and safe practices. Documentation can be obtained at:
• www.invacare.com • ph (440) 329-6000
• One Invacare Way, Elyria OH 44035-2125
Serial Number Label Location
Patent Label
All Wheelchairs
Weight Capacity
NE PAS utiliser sans d’abord avoir installé les antibascules.
AVERTISSEMENT
!
WARNING
!
No. 1091552
Do not operate without the anti­tip tubes installed.
Les billes de dégagement devraient dépasser du diamètre de la bague de l’essieu pour assurer un blocage adéquat. Garder les billes de dégagement propres.
AVERTISSEMENT
!
WARNING
Detent balls should extend beyond the diameter of the axle bushing for a positive lock. Keep detent balls clean.
!
No. 1091553
Refer to the Owner’s Manual for proper anti-tipper setting.
Se référer au manuel de l’utilisateur pour le réglage adéquat de l’antibascule.
WARNING
!
No. 1091554
AVERTISSEMENT
!

3.1 Label Locations

3 OVERVIEW
Part No 1167418 17 Invacare® MyOn™MyOn Jr Wheelchairs
3 OVERVIEW

Wheelchairs with Transport Ready Option

Auto style seat
positioning strap
shown. This label is
also on the airline style
seat positioning strap.
Wheelchairs without TRRO

3.2 Component Identification

Seat Upholstery

Swing Away Legrest
Adjustable
Footrest Tube
Footplate
Front Caster
Wheelchair Frame
Wheel Lock
Handrim
Rear Wheel Axle
Backrest
Rear Wheel
3 OVERVIEW
Part No 1167418 19 Invacare® MyOn™MyOn Jr Wheelchairs
3 OVERVIEW

3.3 Specifications

DESCRIPTION GRAPHIC MyOn MyOn Jr MyOn HD
MODEL NUMBERS: MYONADLT
MYONTO
MYONTS
SEAT WIDTH: 15 - 20 inches in 1 inch
increments, 22 and 24 inches
FXMYONJR
FXMYONJRTS
GRMYONJR
GRMYONJRTS
Adjustable Seat Width 8 ­11 and 12 - 15 inches in 1 inch increments
MYONADLT W/HDPG
20, 22 or 24 inches (Heavy Duty)
OVERALL WIDTH:
WIDTH OF FOLDED WHEELCHAIR:
SEAT DEPTH: 16, 17, 18, 19, and 20 inches 8 - 15 inches in 1 inch
OVERALL DEPTH (WITH RIGGINGS):
7
/16 - 277/16 inches in 1 inch
22 increments.
1
11
/4 inches 12 3/8 inches
3
/8 inches 36 5/8 inches 415/16 inches min.
39
159/16 - 22 9/16 in 1 inch increments.
increments
231/4 -32 1/4 in one inches increments.
12 inches
16-20 inches in 1 inch increments
11
43
/16 inches max
3 OVERVIEW
DESCRIPTION GRAPHIC MyOn MyOn Jr MyOn HD
OVERALL DEPTH (WITHOUT RIGGINGS):
1
/4 inches min.
28
3
33
/4 inches max
9
/16 inches min.
27
1
29
/2 inches max
11
/16 inches min.
32
5
35
/16 inches max
OVERALL HEIGHT: 32 inches min
40 inches max
HEIGHT OF CHAIR WITH BACKREST FOLDED:
SEAT TO FLOOR
5
/8 inches min.
24
1
29
/2 inches max
14, 15, 16, 17, 18,19, 20 14, 15, 16, 17, 18 18, 19, 20
13
/16 inches min.
35
5
36
/8 max
3
/16 inches min.
27 28 inches max
5
/16 inches min.
35
9
40
/16 inches max
24 5/8 inches min.
1
29
/2 inches inch
HEIGHT FROM FRONT OF SEAT TO FLOOR:
SEAT TO FLOOR
13, 14, 15, 16, 17, 18, 19, 20 13, 14, 15, 16, 17 13, 14, 15, 16, 17, 18, 19, 20
HEIGHT FROM BACK OF SEAT TO FLOOR:
BACK STYLE: Fixed Height with push handles
Folding Back, Fixed Height with push handles
Adjustable Height with push handles Adjustable Height without push handles Adjustable angle back with push handles
Part No 1167418 21 Invacare® MyOn™MyOn Jr Wheelchairs
3 OVERVIEW

* 0° Back cane angle.

**8° Back cane angle.

DESCRIPTION GRAPHIC MyOn MyOn Jr MyOn HD
BACK HEIGHT: Fixed Height w/ push handles:
• 14 inch*
• 16 inch*
• 20 inch* Folding Back, Fixed Height w/ push handles
• 16 inch**
• 17 inch**
• 20 inch** Adjustable Height with Push Handles
• 12-16 inch range*
• 15-19 inch range* Adjustable Height without Push Handles
• 12-16 inch range*
• 15-19 inch range* Adjustable angle back w/ push handles
• 15-19 inch range*
Fixed Height w/ push handles:
• 14 inch*
• 16 inch* Folding Back, Fixed Height w/ push handles
• 16 inch**
• 17 inch** Adjustable Height with Push Handles
• 12-16 inch range*
• 15-19 inch range* Adjustable Height without Push Handles
• 12-16 inch range*
• 15-19 inch range* Adjustable angle back w/ push handles
• 12-16 inch range*
• 15-19 inch range*
Fixed Height w/ push handles:
• 14 inch*
• 16 inch*
• 20 inch* Folding Back, Fixed Height w/ push handles
• 16 inch**
• 17 inch**
• 20 inch**

ADJUSTABLE BACK ANGLE (OPTIONAL):

-6° to 15°
3 OVERVIEW
DESCRIPTION GRAPHIC MyOn MyOn Jr MyOn HD

BACK UPHOLSTERY STYLE:

ARM STYLES: N/A Removable

FRONT RIGGINGS: N/A 70° Swing-in/Swing-out

FOOTPLATE: N/A Flip up footplates

REAR AXLE: N/A Permanent

REAR WHEELS: N/A 20, and 22 inch Composite

N/A Slip on Back Upholstery
Adjustable Tension
Conventional Adj. Height Desk/Full Conventional Non Adj Height Desk/Full T-Arm Desk/Full
80° Swing-in/Swing-out 90° Swing-in/Swing-out Elevating Legrest Swing-in/ Swing-out
Flip up, adjustable angle One Piece Footplate
Quick-Release
24 inch Composite (7 Spoke wheels) 22, 24, 25, 26 inch spoke wheels 24, 25, 26 Sun Fusion 16 Spoke Wheels 24, 25, 26 Spinergy Spoke Wheels
Adjustable width and height Nylon Type
Adj Height “T” arm (Desk Length)
90° Straight Lift Off ELR Lift 80 Swing in/out
Permanent Quick-Release
18, 20, and 22 inch Composite 24 inch Composite (7 Spoke wheels) 24 inch spoke wheels
Slip on Back Upholstery Adjustable Tension
Conventional Adj. Height Desk/Full Conventional Non Adj Height Desk/Full T-Arm Desk/Full
70° Swing-in/Swing-out 80° Swing-in/Swing-out 90° Straight Lift Off Hanger Elevating Legrest Swing-in/ Swing-out
Quick-Release
20, and 22 inch Composite
Part No 1167418 23 Invacare® MyOn™MyOn Jr Wheelchairs
3 OVERVIEW
DESCRIPTION GRAPHIC MyOn MyOn Jr MyOn HD

HANDRIMS: N/A Aluminum Anodized Handrims

Black Anodized Handrims Plastic Coated Handrims Natural Fit LT Handrims Standard Grip Natural Fit LT Handrims Super Grip Natural Fit Handrims Standard Grip Natural Fit Handrims Super Grip Plastic Coated w/8 Oblique Projections Plastic Coated w/8 vertical projections Plastic coated w/12 vertical projections

WHEEL LOCKS: N/A Pull to Lock (clamp on)

Push-to-lock (clamp on) Pull to Lock with wheel lock extension (clamp on) Push-to-lock with wheel lock extension (clamp on) Hill Holder (clamp on) Hideaway/Undermount Hill Holder
3 OVERVIEW
DESCRIPTION GRAPHIC MyOn MyOn Jr MyOn HD

CASTER OPTIONS: N/A 5 inch aluminum urethane

casters 5 inch composite urethane casters
5 inch x 1
1
/2 wide soft roll
casters
5 inch aluminum urethane casters 5 inch composite urethane casters
1
5 inch x 1
/2 wide soft roll
casters 6 inch composite urethane 3 spoke casters
1
6 inch x 1
/4 inch composite
pneumatic casters
8 inch x 1 1/4 inch composite urethane casters
8 inch x 1
1
/4 inch pneumatic
casters Flat free inserts for 8 inch x 1
1
/4 casters

WEIGHT: N/A 32 lbs (14.5 Kg) 32 lbs (14,5 kg) 33 lbs (15 Kg)

WEIGHT CAPACITY: N/A 275 lbs (125 Kg) 165 lbs (75 Kg) with TRRO

175 lbs (85 Kg) w/o TRRO
SHIPPING WEIGHT
N/A 34 lbs 34 lbs 34 lbs
(APPROXIMATE):
5 inch aluminum urethane casters 5 inch composite urethane casters
5 inch x 1 1/2 wide soft roll casters
6 inch composite urethane 3 spoke casters
1
6 inch x 1
/4 inch composite
pneumatic casters
8 inch x 1 1/4 inch composite urethane casters
8 inch x 1
1
/4 inch pneumatic
casters Flat free inserts for 8 inch x 1
1
/4 casters
350 lbs (159 Kg)
Part No 1167418 25 Invacare® MyOn™MyOn Jr Wheelchairs

4 SAFETY/HANDLING OF WHEELCHAIRS

4 Safety/Handling of Wheelchairs

4.1 Safety/Handling of Wheelchairs

“Safety and Handling” of the wheelchair requires the close attention of the wheelchair user as well as the assistant. This manual points out the most common procedures and techniques involved in the safe operation and maintenance of the wheelchair. It is important to practice and master these safe techniques until you are comfortable in maneuvering around the frequently encountered architectural barriers.
Use this information only as a “basic” guide. The techniques that are discussed on the following pages have been used successfully by many. Individual wheelchair users often develop skills to deal with daily living activities that may differ from those described in this manual. Invacare recognizes
and encourages each individual to try what works best for him/her in overcoming architectural obstacles that they may encounter, however all warnings and cautions given in this manual MUST be followed. Techniques in this manual are a starting point for the new wheelchair user and assistant with “safety” as the most important consideration for all.

4.2 Stability and Balance

WARNING
ALWAYS wear your seat positioning strap. Inasmuch as the seat positioning strap is an option on this wheelchair (you may order with or without the seat positioning strap), Invacare strongly recommends ordering the seat positioning strap as an additional safeguard for the wheelchair user. The seat positioning strap is a positioning strap only. It is not designed for use as a safety device withstanding high stress loads such as auto or aircraft safety belts. If signs of wear appear, strap MUST be replaced IMMEDIATELY.
DO NOT attempt to lift a wheelchair by lifting on any removable (detachable) parts. Lifting by means of any removable (detachable) parts of the wheelchair may result in injury to the user or damage to the wheelchair.
ALWAYS check hand grips for looseness before using the wheelchair. If loose and/or worn, replace IMMEDIATELY.
DO NOT climb, go up, or down ramps or traverse slopes greater than 9°.
Invacare strongly recommends proceeding down ramps or slopes slowly to avoid hard braking or sudden stops.
DO NOT leave elevating legrests in the fully extended position when proceeding down ramps or slopes.
Be aware that carrying heavy objects on your lap while occupying the wheelchair may adversely affect the stability of the wheelchair, resulting in serious bodily injury to the user, damage to the wheelchair and surrounding property.
4 SAFETY/HANDLING OF WHEELCHAIRS
WARNING
To assure stability and proper operation of your wheelchair, you must at all times wear your seat positioning strap and maintain proper balance. Your wheelchair has been designed to remain upright and stable during normal daily activities as long as you do not move beyond the center of gravity.
Virtually all activities which involve movement in the wheelchair have an effect on the center of gravity. Invacare recommends using seat positioning straps for additional safety while involved in activities that shift your weight.
DO NOT lean forward out of the wheelchair any further than the length of the armrests. Make sure the casters are pointing in the forward position whenever you lean forward. This can be achieved by advancing the wheelchair and then reversing it in a straight line.

4.3 Coping with Everyday Obstacles

Coping with the irritation of everyday obstacles can be alleviated somewhat by learning how to manage your wheelchair. Keep in mind your center of gravity to maintain stability and balance.

4.4 A Note to Wheelchair Assistants

When assistance to the wheelchair user is required, remember to use good body mechanics. Keep your back straight and bend your knees whenever tilting the wheelchair or traversing curbs, or other impediments.
Also, be aware of detachable parts such as arms or legrests. These must NEVER be used to move the wheelchair or as lifting supports, as they may be inadvertently released, resulting in possible injury to the user and/or assistant(s).
When learning a new assistance technique, have an experienced assistant help you before attempting it alone.

4.5 Tipping

This wheelchair has been designed to accommodate one individual. If more than one individual occupies the wheelchair this may adversely affect the stability of the wheelchair, resulting in serious bodily injury to the user and passenger and damage
the wheelchair and surrounding property.
WARNING
DO NOT tip the wheelchair without assistance.
When tipping the wheelchair, an assistant should grasp the back of the wheelchair on a non-removable (non-detachable) part. Inform the wheelchair occupant before tipping the wheelchair and remind him/her to lean back. Be sure the occupant’s feet and hands are clear of all wheels.
Part No 1167418 27 Invacare® MyOn™MyOn Jr Wheelchairs
4 SAFETY/HANDLING OF WHEELCHAIRS
Tipping - Curbs
After mastering the techniques of tipping the wheelchair, use this procedure to tackle curbs, short stairs, etc.
Method 1 - Wheelchair with Step Tubes
Apply a continuous downward motion until the balance point is achieved and the front casters clear the curb. At this point, the assistant will feel a difference in the weight distribution.
Roll the wheelchair forward and slowly lower the wheelchair in one continuous movement onto the sidewalk.
WARNING
Push the wheelchair forward until the rear wheels roll up and over the curb.
Method 2 - Wheelchair without Step Tubes
1. Unless the first assistant has exceptional upper body strength, it is recommended that METHOD 2 use two assistants.
The second assistant should be positioned at the front of the wheelchair lifting upward on the non removable (non-detachable) part of the wheelchair frame when lifting the wheelchair and stabilizing the wheelchair when the wheelchair is being lowered to the ground.
The first assistant should stand on the sidewalk and turn the wheelchair so that the rear wheels are against the curb. The wheelchair should be tilted back to the balance point and, in one continuous downward movement, the rear wheels should be pulled up and over the curb. DO NOT return the front casters to the ground until the wheelchair has been pulled backward far enough for the front casters to clear the edge of the curb.
DO NOT let the wheelchair drop the last few inches to the ground. This could result in injury to the occupant.
FIGURE1 Method 1 - Wheelchair with Step Tubes
FIGURE2 Method 2 - Wheelchair without Step Tubes
4 SAFETY/HANDLING OF WHEELCHAIRS

4.6 Stairways

WARNING
Follow this procedure for moving the wheelchair between floors when an elevator is not available:
Moving Up Stairs
1. If necessary, rotate the anti-tippers so the wheels are facing up.
2. One assistant (positioned behind the wheelchair), securely grasps a non-removable (non-detachable) part of the wheelchair for leverage and tilts the wheelchair back to the balance point.
3. After the wheelchair has been tilted back to the balance point, the assistant behind the wheelchair backs the wheelchair up against the first step.
4. The second assistant (positioned in the front of the wheelchair), with a firm hold on a non-detachable part of the framework, lifts the wheelchair up and on to the next stair above and steadies the wheelchair as the assistant behind the wheelchair places one foot on the next stair above and repeats process.
5. The wheelchair should not be lowered until the last stair has been negotiated and the wheelchair has been rolled away from the stairway.
6. If necessary, rotate the anti-tippers so the wheels are facing down.
Moving Down Stairs
1. If necessary, rotate the anti-tippers so the wheels are facing up.
2. One assistant (positioned behind the wheelchair), securely grasps a non-removable (non-detachable) part of the wheelchair for leverage and tilts the wheelchair back to the balance point.
3. After the wheelchair has been tilted back to the balance point, the assistant behind the wheelchair rolls the wheelchair up to the edge of the first step.
Extreme caution is advised when it is necessary to move an occupied or unoccupied wheelchair up or down the stairs. Invacare recommends that, if possible, the user be removed from the wheelchair prior to moving. Invacare recommends using two assistants and making thorough preparations. Make sure to use only secure, non-detachable parts for hand-held supports.
Part No 1167418 29 Invacare® MyOn™MyOn Jr Wheelchairs
4 SAFETY/HANDLING OF WHEELCHAIRS
4. The second assistant (positioned in the front of the wheelchair), with a firm hold on a non-detachable part of the framework, lowers the wheelchair down and on to the next stair below and steadies the wheelchair as the assistant in the rear places one foot on the next stair below and repeats process.
5. The wheelchair should not be lowered until the last stair has been negotiated and the wheelchair has been rolled away from the stairway.
6. If necessary, rotate the anti-tippers so the wheels are facing down.

4.7 Escalators

WARNING
DO NOT use an escalator to move a wheelchair between floors. Serious bodily injury may occur.
FIGURE3 Stairways
Loading...
+ 86 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
