Welcome

Welcome

A personal welcome to you from the management and employees of Inter-M

All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value,
a

nd we are delighted you have purchased one of our products.

W

e sincerely trust this product will provide years of satisfactory service, but if anything is not to your complete

s

atisfaction, we will endeavor to make things right.

W

elcome to Inter-M, and thank you for becoming part of our worldwide extended family!

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

D

O NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

R

EFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ATTENTION : RISQUE DE CHOC ELECTRIQUE

NE PAS QUVRIR

WARNING

To prevent fire or shock hazard, do not
expose the unit to rain or moisture.

*WARNING FOR YOUR PROTECTION PLEASE READ THE FOLLOWING-WATER AND MOISTURE: Unit should not be used near

water(e.g. near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken so

than objects do not fall and liquids are not spilled into the enclosure through openings.
*Do not install this equipment in a confined space such as a book case or similar unit.
*Warning : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture and objects filled with liquids, such as

vases, should not be placed on this apparatus.
*This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
*

To completely disconnect this apparatus from the AC mains, disconnect the power supply cord plug from the AC receptacle.
*

The mains plug of the power supply cord shall remain readily accessible.

CAUTION

*These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing

other than that contained in the operating instructions unless you are qualified to do so.

NOTE
*This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may

cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in

which case the user will be required to correct the interference at his own expense.

This symbol is intended to alert the user to the pres­ence of uninsulated “dangerous voltage” within the
p

roduct’s enclosure that may be of sufficient magni-

tude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the pres­ence of important operation and maintenance (ser­vicing) instructions in the literature accompanying
the appliance.

Caution: To prevent electric shock do not use this (polarized) plug

with an extension cord, receptacle or other outlet unless the
blades can be fully inserted to prevent blade exposure.

Attentions: Pour prévenir les chocs électriques ne pas utiliser cette

fiche polarisée avec un prolongateur, une prise de courant
on une autre sortie de courant, sauf si les lames peuvent
étre insérées à fond sans en laisser aucune partie à dé­couvert.
Pour deconnecter completement l’appareil du reseau d’al­imentation. deconnecter le cordon d’alimentation de la
prise murale.
La prise du reseau d’alimentation doit demeurer aisement
accessible.

AUDIO STREAMING PLAYER

1

ASP-100

Contents

Contents

Unpacking....................................................................................................................................... 2

Installation

E

nvironment....................................................................................................................................2

I

mportant Safety Instructions.............................................................................................................2

Features.

.......................................................................................................................................... 3

Front Panel...................................................................................................................................... 4

Rear Panel....................................................................................................................................... 6

Operation........................................................................................................................................ 8

System Configuration Example ................................................................................................ 13

Block Diagram.............................................................................................................................. 16

Specifications................................................................................................................................ 17

Service

Procedures....................................................................................................................................19

Schematic.....................................................................................................................................19

Parts List....................................................................................................................................... 19

Variations and Options............................................................................................................... 19

Warranty....................................................................................................................................... 19

AUDIO STREAMING PLAYER

2

ASP-100

Installation

Unpacking

Unpacking

A

lthough your APS-100 is neither complicated nor difficult to operate, we recommend you take a few minutes
to read this brief manual and familiarize yourself with the important information regarding product features,
s

etup and operation.

A

s with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely
e

vent the product must be returned for servicing, the original packaging (or reasonable equivalent) is

required.

Installation

Environment

Never place this product in an environment which could alter its performance or reduce its service life. Such
environments usually include high levels of heat, dust, moisture, and vibration.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the appa-

ratus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from
tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the appa-

ratus has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.

S3125A

AUDIO STREAMING PLAYER

3

ASP-100

Quick Set Up

Quick Set Up

- ITEMS REQUIRED TO INSTALL THE INTER-M ASP-100

1. Wi-Fi Enabled Smartphone or Tablet (Apple IPhone/IPad or Android Phone/Tablet).
2

. Mobile Application Fing IO (available in the IPhone App store or Google play).

-

DOWNLOAD FING IO ON YOUR WI-FI ENABLED MOBILE PHONE OR TABLET

Make sure your mobile phone or tablet is on the same Wi-Fi network as your Inter-M ASP -100

• Apple IOS users download Fing here:

https://itunes.apple.com/gb/app/fing-network-scanner/id430921107?mt=8

• Android Users download Fing here:

https://play.google.com/store/apps/details?id=com.overlook.android.fing&hl=en_GB

- SETTING UP YOUR INTER-M ASP-100

1. Unbox your Inter-M ASP-100.

2. While unpowered, plug the male end of the RCA cable into the Inter-M ASP-100.

3. Turn down volume on your power amp or receiver.

4. Plug male ends of RCA cables into your power amp or receiver.

5. Plug a Cat5 cable into the ASP-100 internet port and your local Internet switch or router. Ensure it is

Internet ready (connected) with DHCP enabled in order to obtain an IP address and get the ASP-100
online.

6. Plug the power supply into the ASP-100 and electrical wall outlet.

7. Wait a couple of minutes for the ASP-100 to boot.

- LAUNCHING THE INTER-M ASP-100 USER INTERFACE

1. Using the mobile device you downloaded Fing IO, launch the Fing app.

Make sure your mobile device is on the same network as your Inter-M ASP-100

2. Hit the refresh (circle arrow) icon on the top right of the app.

3. A list of network devices will appear

4. Look for Inter-M and the IP associated with the device “IP example: 192.168.1.99“

5. To launch the ASP-100 web interface type the IP from Fing into any PC, Mobile phone or tablet device

browser that is on the same Wi-Fi network that the Inter-M ASP-100.

6. ASP-100 “User Interface” will pop up.

7. In Google Chrome save desktop Icon to gain quick access

8. Manage the Inter-M ASP-100 device from UI.

AUDIO STREAMING PLAYER

4

ASP-100

Support & Recommendations

Support & Recommendations

- RECOMMENDATIONS

1. Have some basic knowledge of computer LAN networking.
2

. Use a PC to configure the ASP-100 for ease of use.

3. Use the ASP-100 Cabled on LAN (plugged in with Cat5 cable).

4. Confirm you are installing the ASP-100 on a DHCP enabled network.

D

ynamic Host Configuration Protocol (DHCP) is a client/server protocol that automatically provides an In-

t

ernet Protocol (IP) host with its IP address and other related configuration information such as the subnet

m

ask and default gateway.

5. If the network you are installing the ASP-100 on does not have WIFI, please see page 5 for default IP ad-

dress to access by PC.

6. Google Chrome is the recommended web browser to access the ASP-100 Web Interface.

7. Save a desktop icon for future reference.

- TECHNICAL SUPPORT

Inter-M
5666 Corporate Ave.
Cypress, CA 90630, USA
TEL: [phone]
FAX: [phone]
EMAIL : [e-mail]

AUDIO STREAMING PLAYER

5

ASP-100

Top Panel

Top Panel

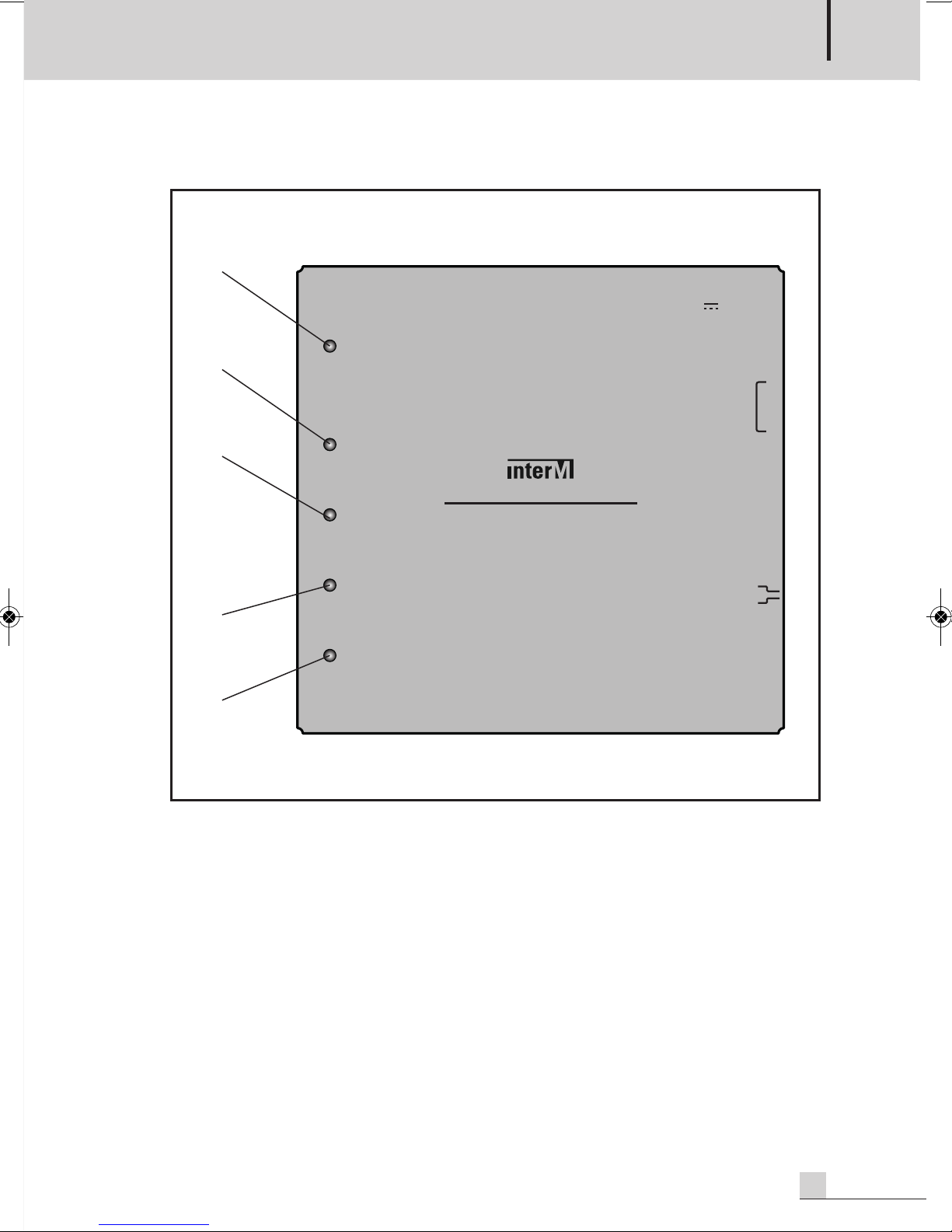

1. POWER LED (RED)

2. NETWORK LED (GREEN)

3. ON AIR LED (ORANGE)

4. OPERATION LED (GREEN)

5. DHCP LED (ORANGE)

POWER

NETWORK ▶

DC 12V , 500mA ▶

AUDIO OUT ▶

L

R

NETWORK

ON AIR

OPERATION

AUDIO STREAMING PLAYER

ASP-100

DHCP

FACTORY RESET ▶

DHCP

STATIC

1

2

3

4

5

AUDIO STREAMING PLAYER

6

ASP-100

Rear Panel

Rear Panel

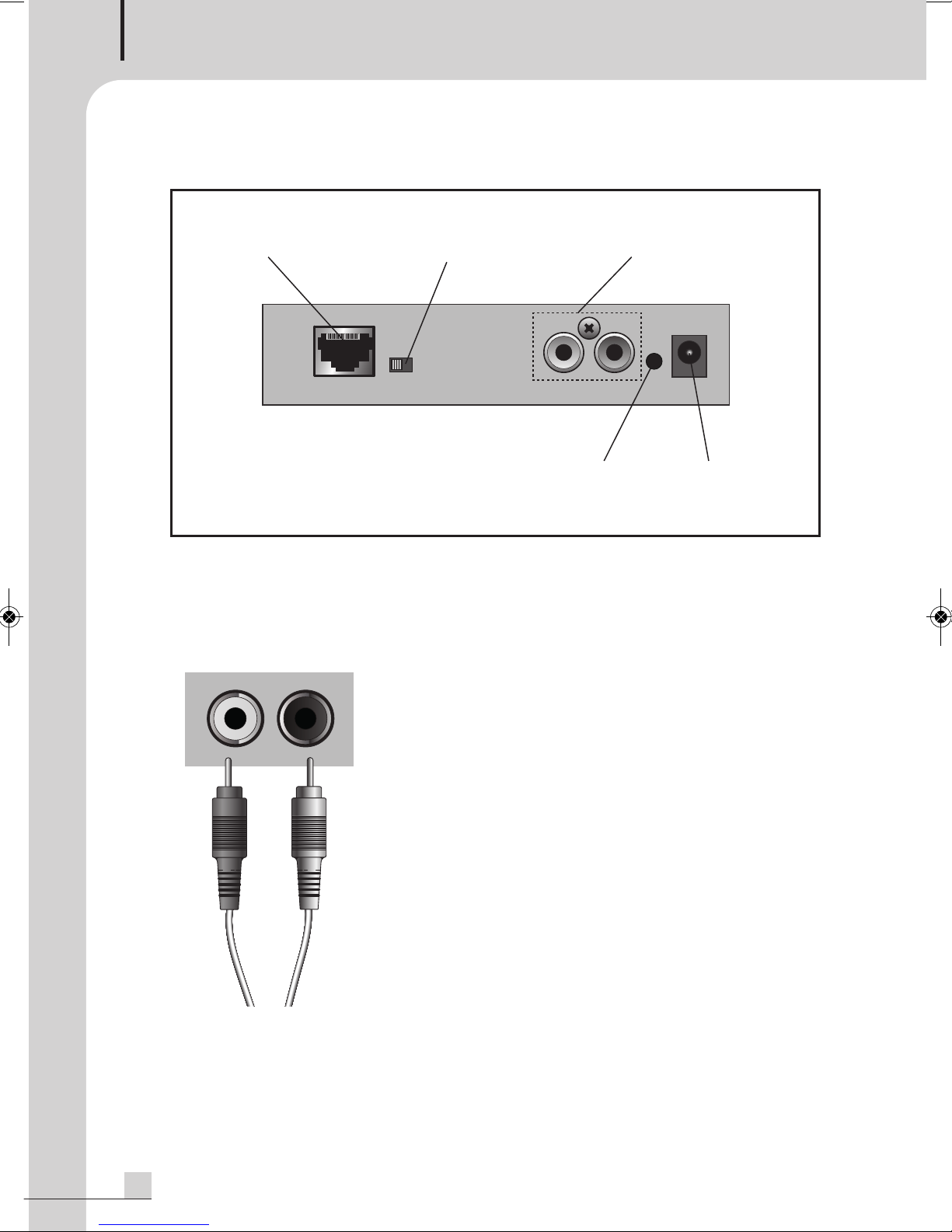

1. NETWORK PORT

2. IP SETTING SELECTOR (DHCP/STATIC)

(Default: 192.168.1.99)

3. AUDIO OUT (L/R)

4. FACTORY RESET SWITCH

5. DC INPUT

12V DC

1

2

3

4 5

AUDIO STREAMING PLAYER

7

ASP-100

Web Settings

Web Settings

• Accessing ASP-100 User Interface Web page

- If IP address has not been set, type the default IP address (192.168.1.99) – pushing the factory set switch
m

ore than 5 seconds will result in the unit being reset to default mode.

When connected normally, user verification window will pop-up.

Type the Default ID and PASSWORD to log in. (Default ID : admin, Password : 1)

※ Changing password: please refer to the section of ‘12. password setting’
※ Caution: It is better to set and use the assigned password for the security purposes.

Please make a note to keep the assigned password.

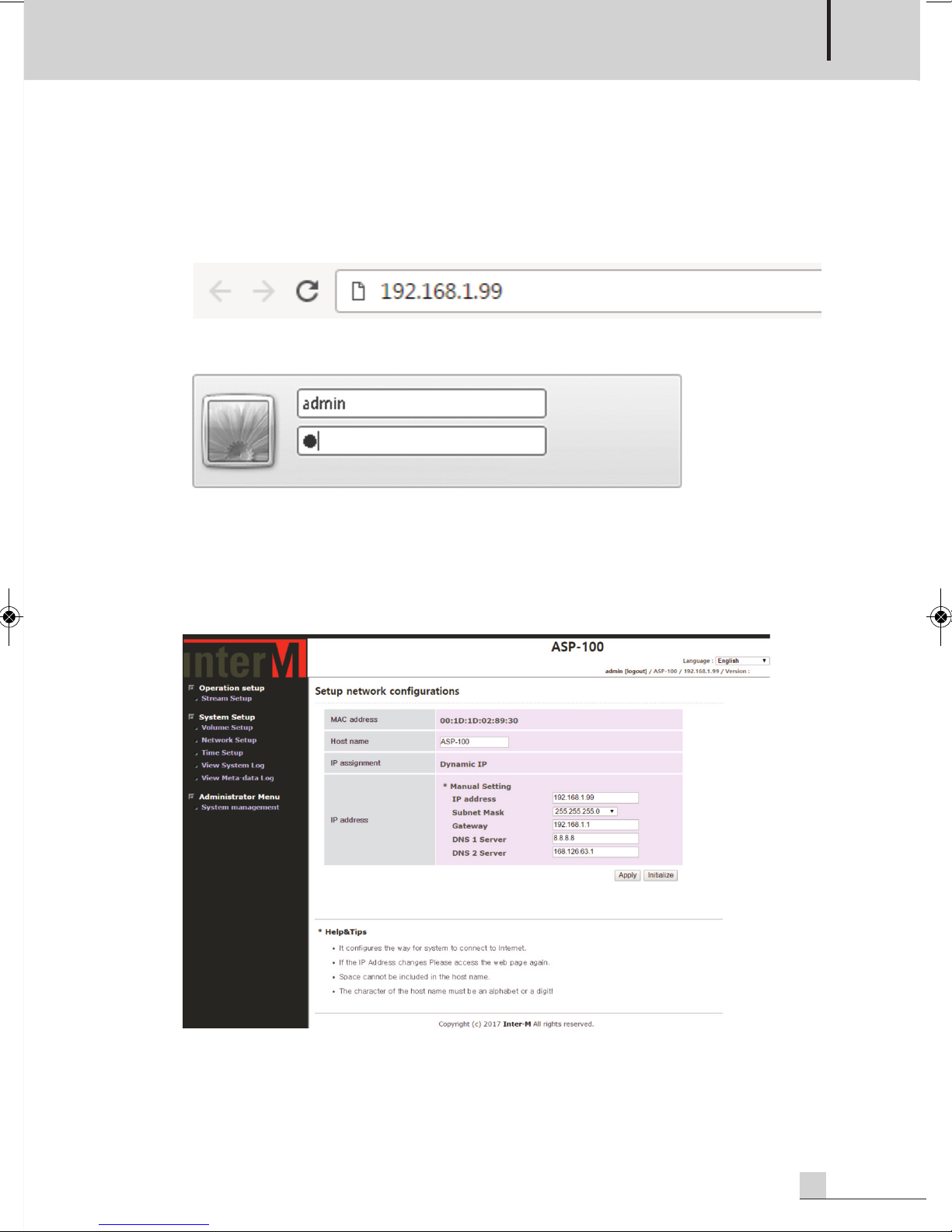

• Network Settings

Shown above is the network settings page.
The host name is used to identify your unit on LAN - multiple unit is in auto searching mode.

※ IP address : You can set the ASP100 to obtain all network information automatically by setting DHCP

(Dynamic IP address) or can be set as Static IP address.

AUDIO STREAMING PLAYER

8

ASP-100

•

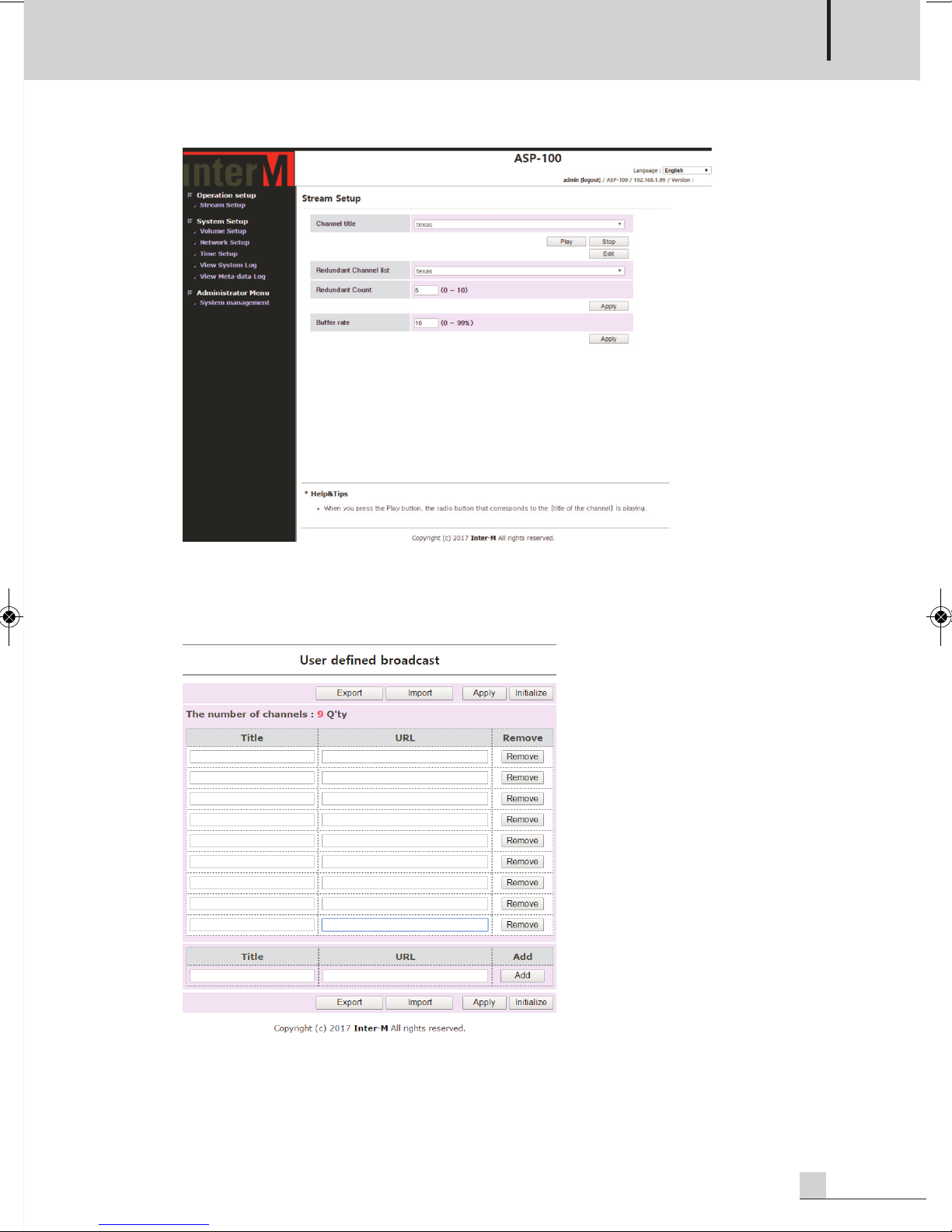

Internet Radio Settings

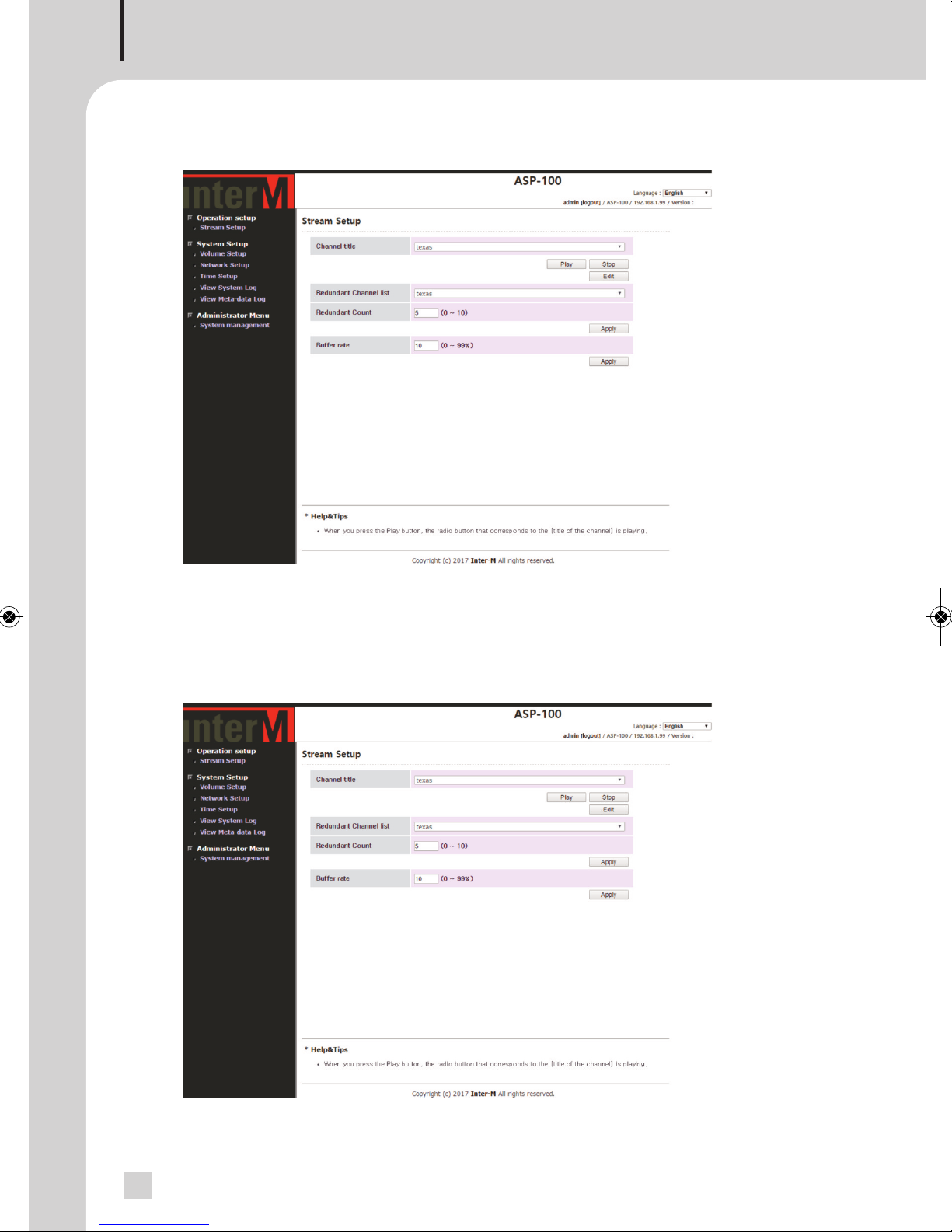

Select the broadcasting station from the Channel list. Then, select broadcasting title from the Channel title.
Finally, click the play button.

The channel list consists of two different categories which are “Fixed Channel” and “User Defined channel”.
Fixed Channel consists of 36 preset channels and User Defined Channel can store up to 20 user determined
channels.

The station that user creates as a preset can be selected in User Defined Channel.

AUDIO STREAMING PLAYER

9

ASP-100

Utilize the play and stop buttons to launch your audio stream.

• Adding a streaming radio URL

The following window is shown by clicking the user defined button.

Type the title and URL of desired station then click the set button to save. Up to 20 channels can be added
or deleted by the administrator.

AUDIO STREAMING PLAYER

10

ASP-100

•

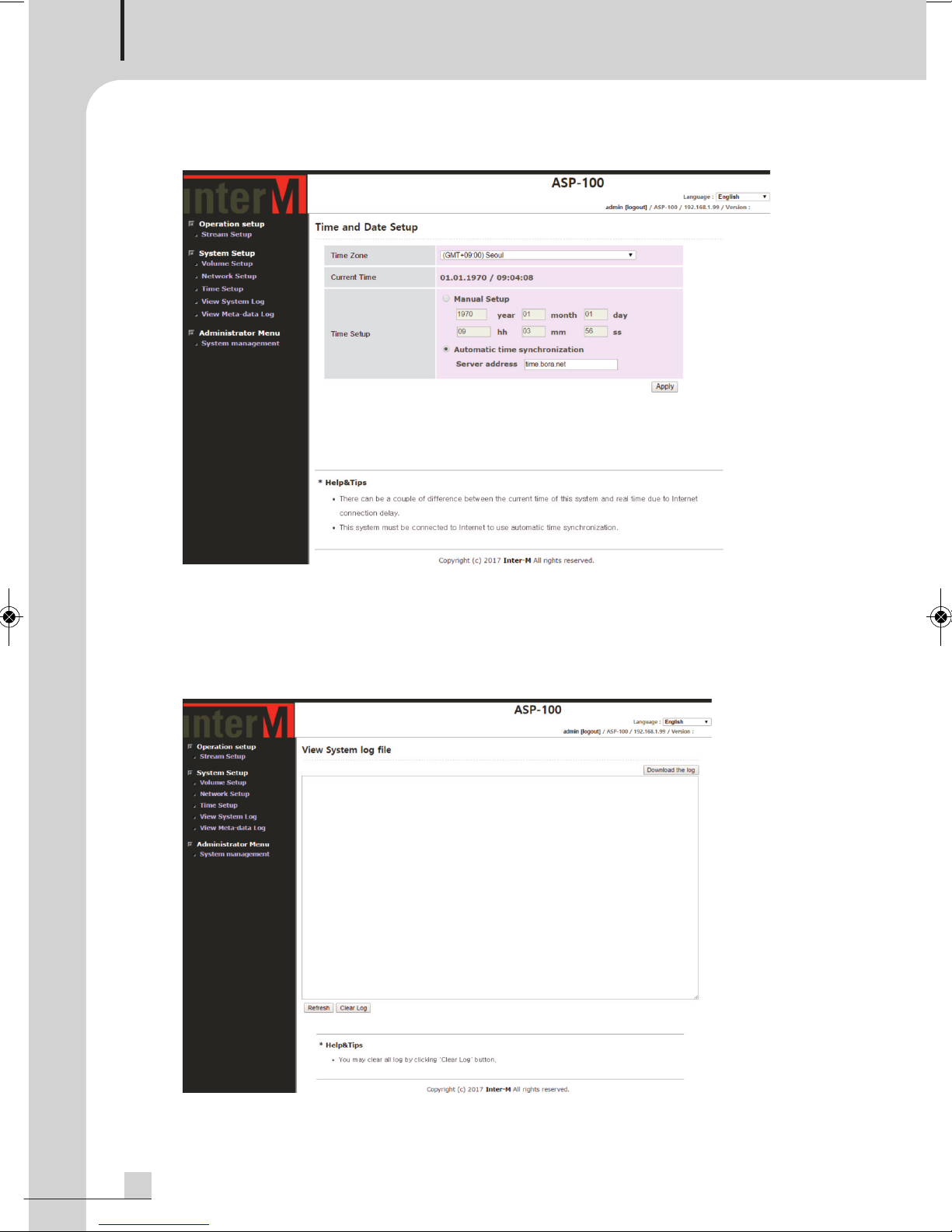

Time Setting

Shown above is the menu for setting the time and date on the ASP-100.
It can be set to time zone as well as current time. The current time can be set manually or automatically.
When the current time is set as automatic time synchronization, the server address must be typed
(default:time.bora.net) and unit must be connected with internet.

• Log Viewer

The log viewer displays captured data information stored within the ASP-100’s unit settings. This includes
history of any modifications with a time stamp. If the time has not been set, the log information will be

AUDIO STREAMING PLAYER

11

ASP-100

s

hown as Jan/ 1/ 1970 as default.

R

efresh: identify the recently changed log information

Clear Log: clear the history of log information

•

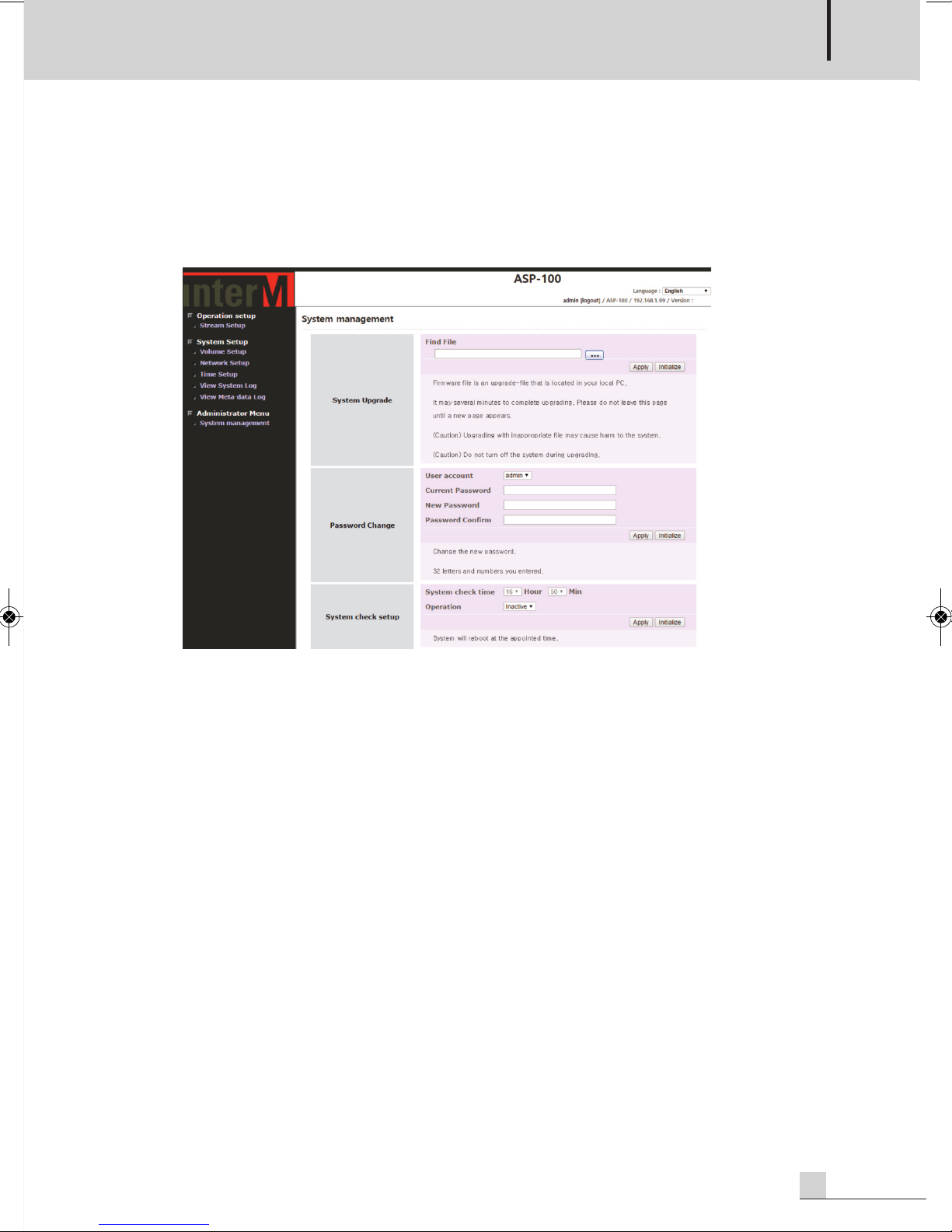

System Upgrade

After downloading an upgrade file from your PC, find and select the upgrade file by clicking the […] button.
Next, click the set button to start the upgrade.

The screen will be off when upgrade is fully processed. Next, manually turn on the power of unit to finish
the upgrade.

AUDIO STREAMING PLAYER

12

ASP-100

•

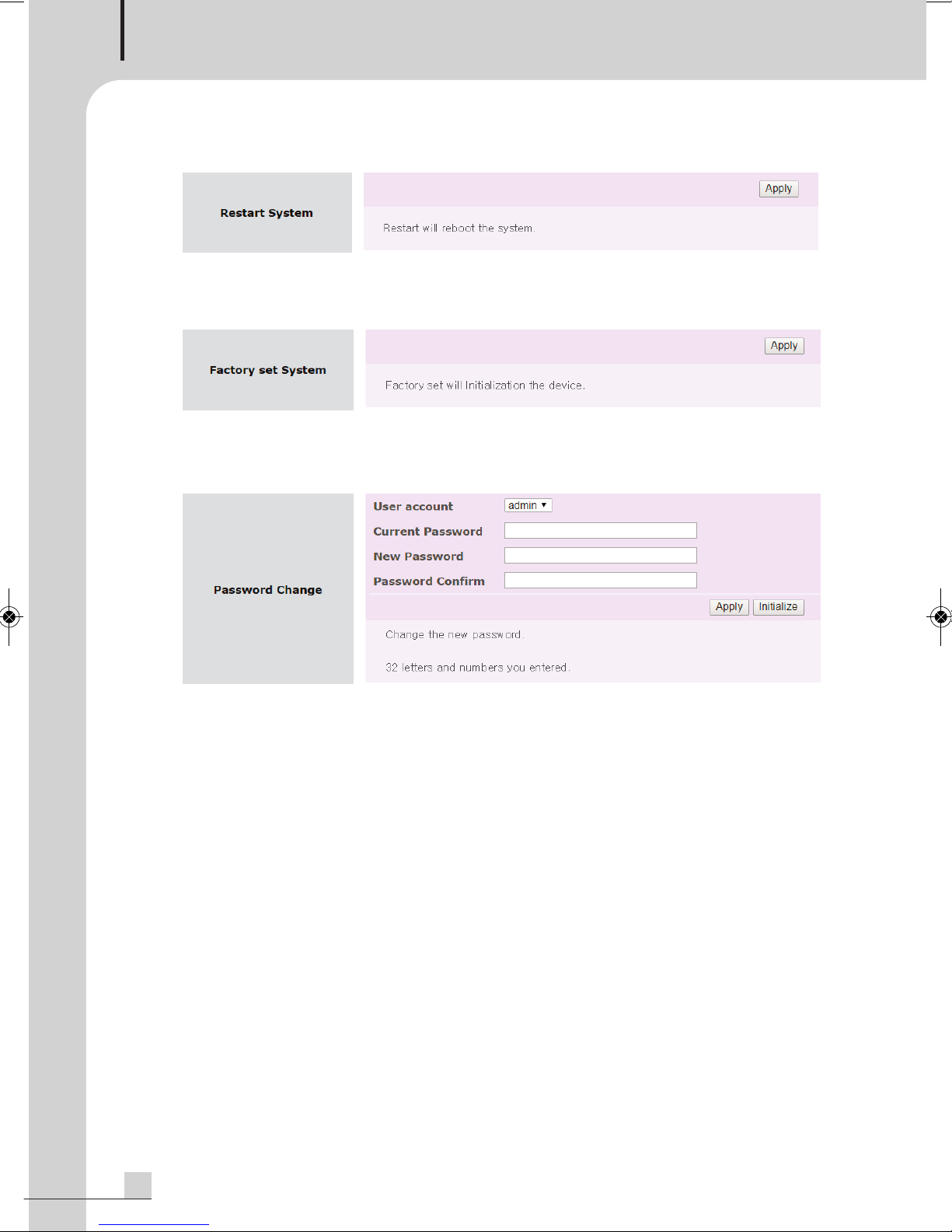

Rebooting

Reboot the unit. The reboot process takes about 30 seconds.

•

Factory Settings

The network and time settings will be reset to the default setting for each.

• Password Settings

Password set up page:
When the unit is reset to the factory setting, the password will be reset to the default password.
The default Password is “1”

※ONLY PASSWORD can be changed.
※Caution: Please make a note to keep the changed password.

AUDIO STREAMING PLAYER

13

ASP-100

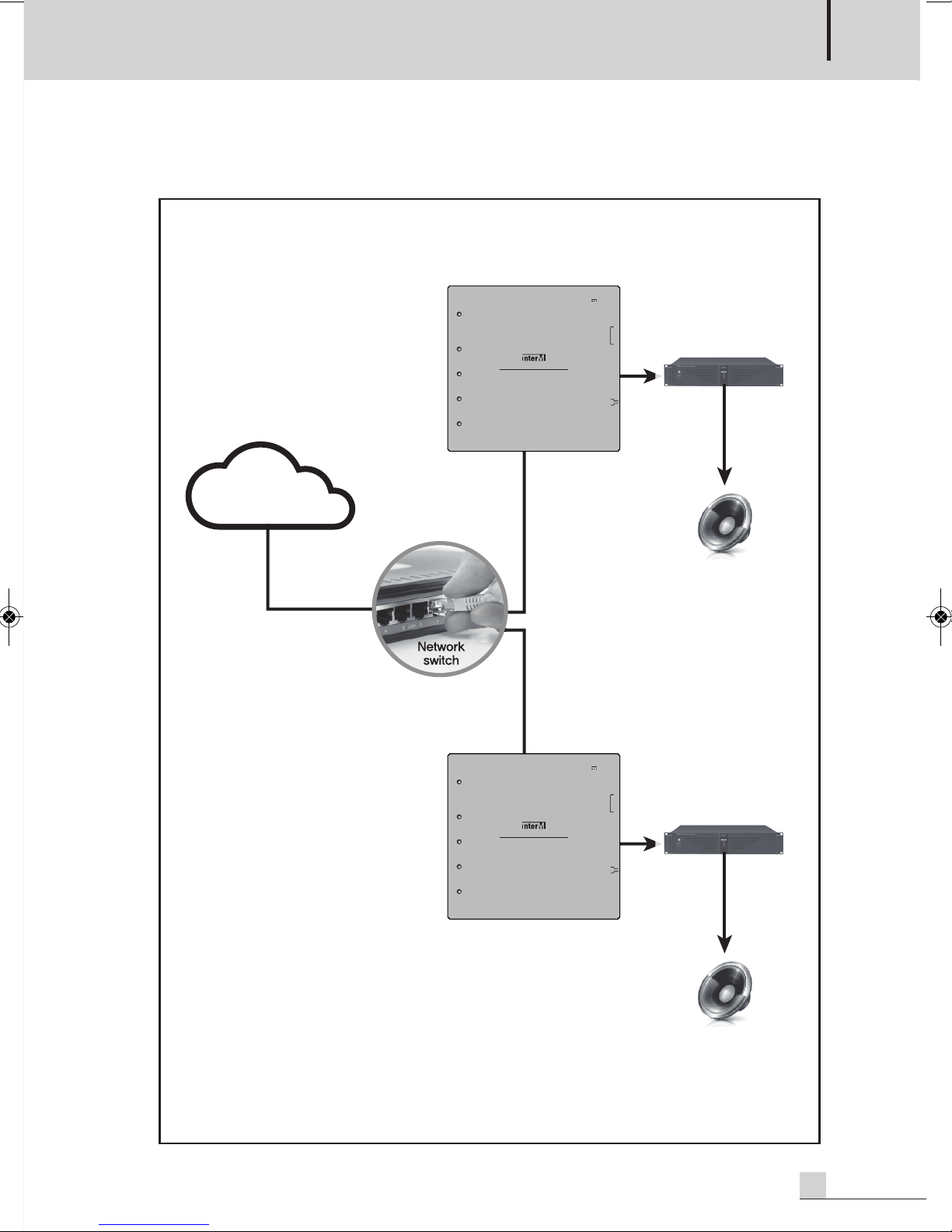

Application

Application

STREAMING

SERVER

P

OWER

N

ETWORK

▶

D

C 12V , 500mA

▶

A

UDIO OUT

▶

L

R

NETWORK

ON AIR

O

PERATION

AUDIO STREAMING PLAYER

ASP-100

DHCP

F

ACTORY RESET

▶

D

HCP

S

TATIC

WAN

AMP

SPEAKER

POWER

N

ETWORK

▶

DC 12V , 500mA ▶

AUDIO OUT ▶

L

R

NETWORK

ON AIR

OPERATION

AUDIO STREAMING PLAYER

ASP-100

DHCP

FACTORY RESET ▶

D

HCP

S

TATIC

AMP

SPEAKER

AUDIO STREAMING PLAYER

14

ASP-100

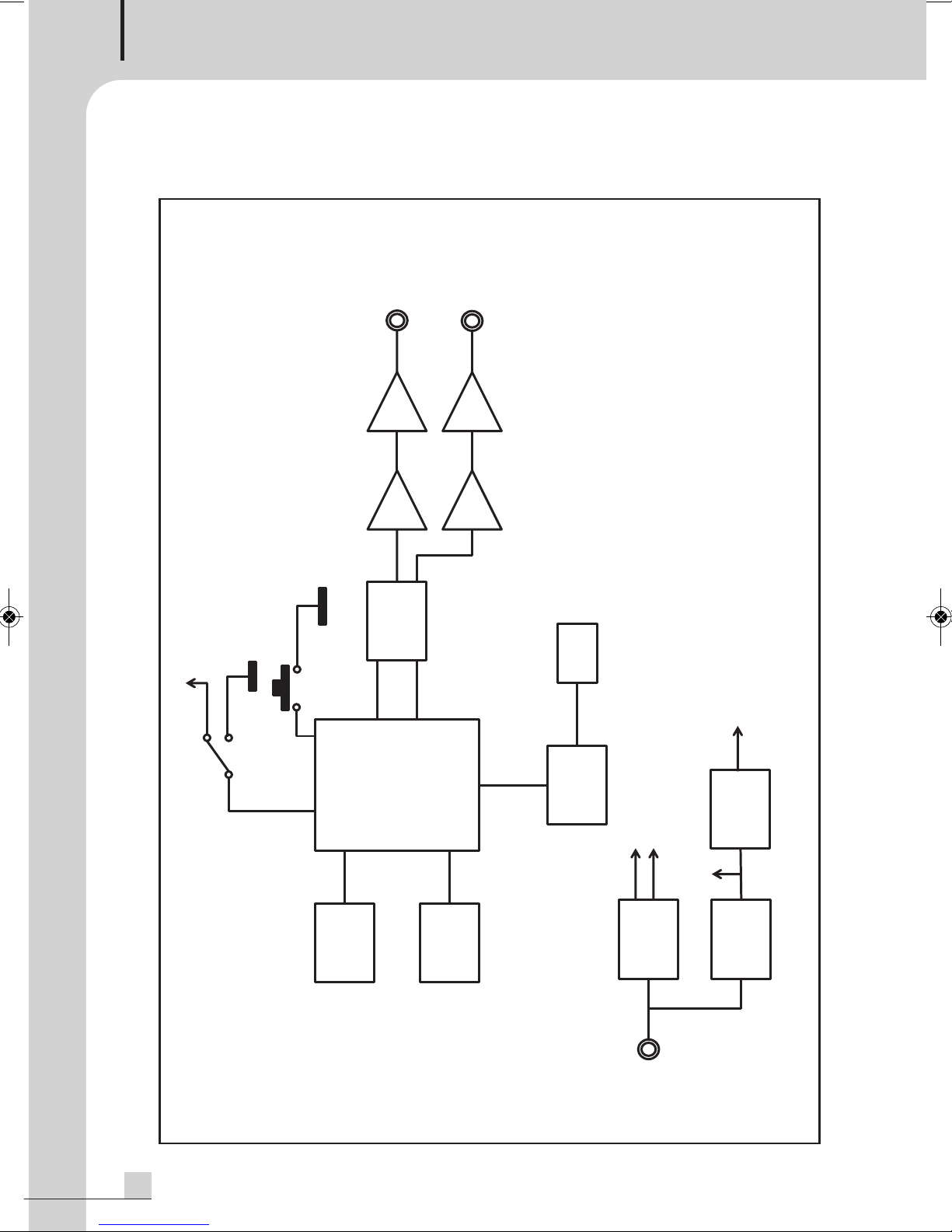

Block Diagram

Block Diagram

RJ45

DDR

MEMORY

eMMC

Audio

Codec

LDO

DCDC

CPU

PHY

12VDC

Adapter

Audio Out

L

R

Network port

Factory Reset

DHCP/STATIC

switch

+10V

-10V

+5V

REG.

+5V

AUDIO STREAMING PLAYER

15

ASP-100

Specification

Specification

ASP-100

Communication Type NETWORK

Network Port 10/100Mbps

Output Level @-10dBFs Play 14dBu

S/R More than 65dB

T.H.D Less than 0.1%

Operating Temperature

0~40℃

Power Source DC 12V

Power Consumption 3W

Weight (set) 0.457kg/1.0lb

Dimension (set)

138.3(W) x 132.7(H) x 28.6(D)mm/

5.4(W) x 5.2(H) x 1.1(D)in

※Design and specification are subject to be changed for the improvement of product

quality without pre notice.

AUDIO STREAMING PLAYER

16

ASP-100

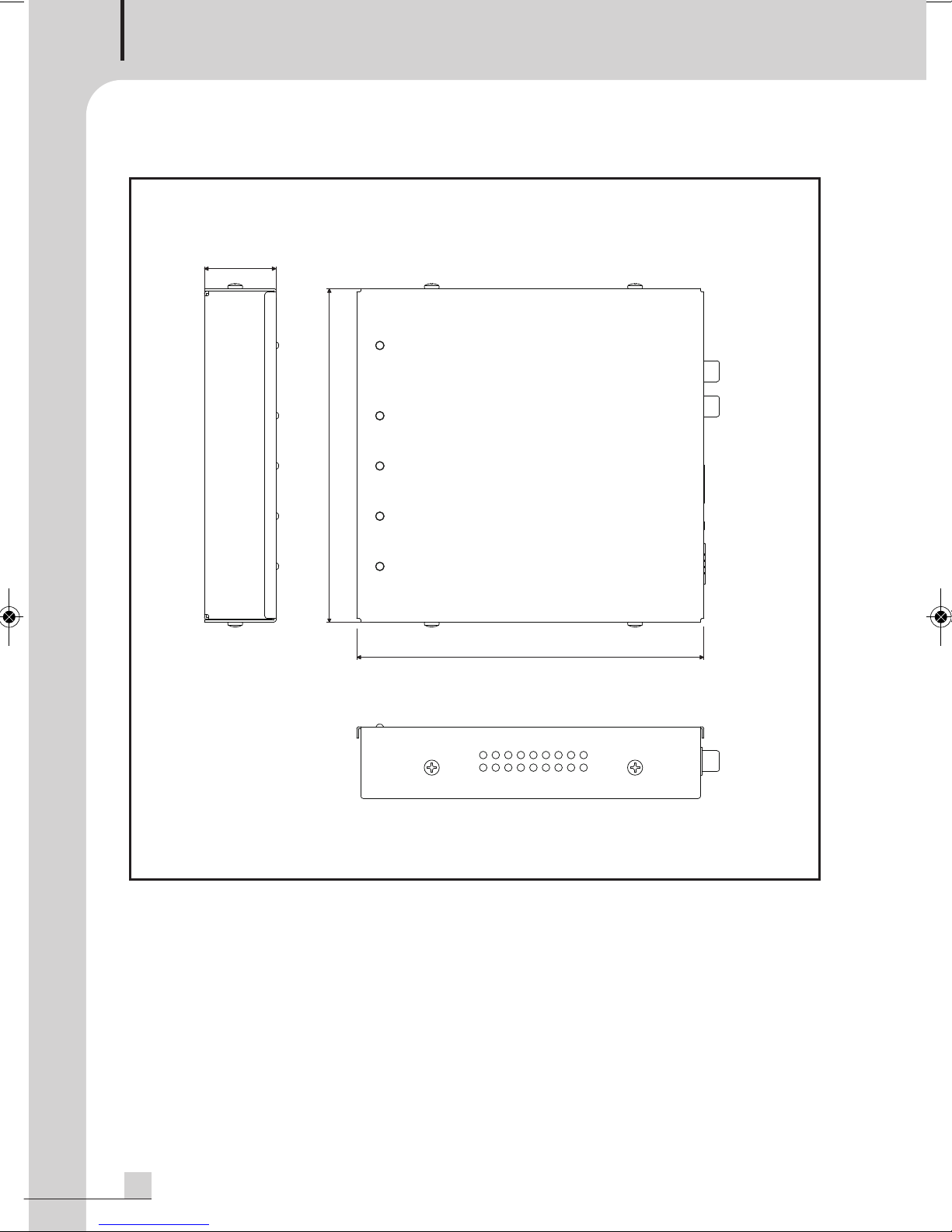

※DIMENSIONS

138.3

28.6

132.7

AUDIO STREAMING PLAYER

17

ASP-100

Service

Service

Procedures

T

ake steps to insure the problem is not related to operator error or other products within the system. Information
provided in the troubleshooting portion of this manual may help with this process. Once it is certain that the
problem is related to the product contact your warranty provider as described in the warranty section of this
m

anual.

Schematic

A Schematic is available by contacting your warranty provider.

Parts List

A Parts List is available by contacting your warranty provider.

Variations and Options

Variations and Options

Variations

Products supplied through legitimate sources are compatible with local AC power requirements.

Options

No optional items are available for this product.

Warranty

Warranty

Warranty terms and conditions vary by country and may not be the same for all products. Terms and conditions
of warranty for a given product may be determined first by locating the appropriate country which the product
was purchased in, then by locating the product type.

To obtain specific warranty information and available service locations contact Inter-M directly or the
authorized Inter-M Distributor for your specific country or region.

MADE IN KOREA

February 2017 141660

Inter-M, Ltd. (Korea) began operations in 1983.

Since then, Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.

Inter-M has gained worldwide recognition for its own branded products,
as well as private label manufacturing of electronics sold under other names (OEM).

The company is no longer just a Korean company, but rather a global company
that is truly international in scope, with factories and offices in Korea and China,
and sales and marketing operations located in Japan, Europe, and the U.S.A.

With more than 850 employees around the globe,
Inter-M is well-poised for further growth and expansion.

Inter-M Americas, INC.

5666 CORPORATE AVE. CYPRESS, CA 90630
TEL : [phone], FAX : [phone]
Home Page : http://www.inter-m.net, E-mail : [e-mail]

Inter-M Corporation

SEOUL OFFICE : 719, DOBONG-RO, DOBONG-GU, SEOUL, KOREA
TEL : [phone]~8, FAX : [phone]
Home Page : http://www.inter-m.com, E-mail : [e-mail]
