16
15
10
9b
18
14
8
Da ta
Po we r
12
9a
5
13
19
Side 2
Install Tool-less CD-ROM or DVD-ROM Drive
Remove EMI shield from 5.25-inch device drive bay.
1
Make sure latch is in "unlock" position.
2
Insert CD-ROM or DVD-ROM drive into device drive bay.
3
Line up holes in CD-ROM or DVD-ROM drive with
2
1
4
holes in chassis.
Move latch to "lock" position.
5
Connect power (P5 or P6) cables and data cables
6
to rear of the CD-ROM or DVD-ROM
Install Tool-less Fixed Hard Drives (If installing a hot-swap drive cage, go to Step 10) (Continued...)
4
6
1
1
2
3
4
5
6
3
4
Install Tool-less Fixed Hard Drives
(If installing a hot-swap drive cage,
go to Step 10)
7
8
Install power and data cables to each
7
of the installed drives. The cables
route through the oval opening at
the bottom of the drive cage.
Re-attach drive cage EMI shield
8
to chassis.
Tighten thumb screw.
9
An additional 4-pin IDE male-to-SATA 15 pin power cable
adapter may be needed if the CD-ROM or DVD-ROM does
not have a 4-pin power connector.
Data cables are included with the Intel®
Server Board.
Install Hot-Swap
Drive Cage Kit
11
Complete Server
Board Connections
5
3
Route power and data cables
2
Insert fixed drive cage into chassis.
1
through cable routing area at the
bottom of the fixed drive cage.
Install PCI Card Guide
Pull the drive latch forward for the drive
3
bay you want to install a hard drive in.
Drive slots 1, 3, and 5 MUST be
populated first. Failure to do so
could result in thermal issues
within chassis.
Install PCI Add-in Boards
Insert fixed hard drive into drive bay
4
until it stops. Ensure that the power
and data connector end of the hard drive
is facing forward.
Push drive latch in to lock hard drive
5
into drive bay.
Install additional drives as necessary.
6
(Optional)
Fan Connection
If you intend to configure your
server with SATA/SAS hot swap
hard drives, go to the instructions
9
that came with your drive cage
upgrade kit to install the
drive cage and hot-swap drives.
Fan Header Used Notes
System Fan 1 PCI Zone Chassis Fan
System Fan 2 HDD Cage Fan
System Fan 3 Rear Chassis Fan
See your Intel
User's Guide or the User Guide for server
board cable connections.
®

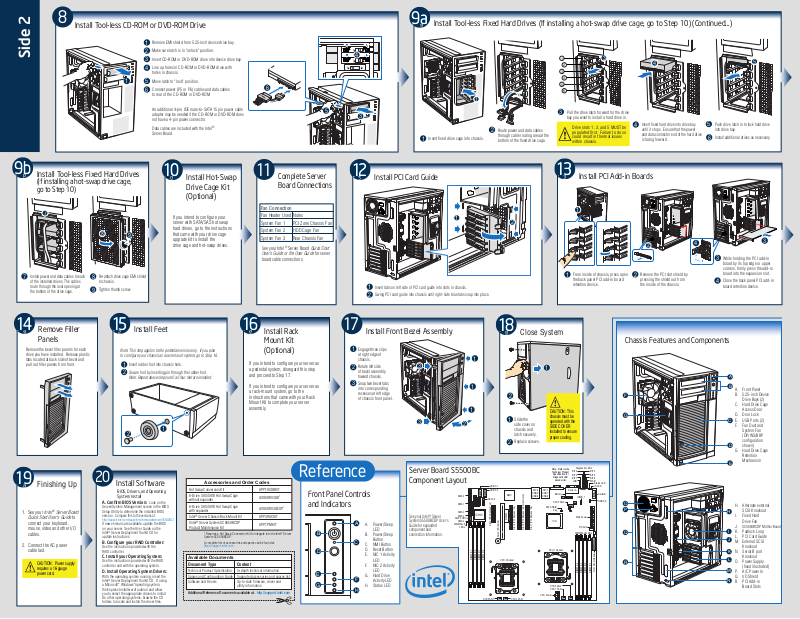

Server Board Quick Start
1
Insert tabs on left side of PCI card guide into slots in chassis.
1
Swing PCI card guide into chassis until right-side blue tabs snap into place.
2
2
1
From inside of chassis, press open
1
the back panel PCI add-in board
retention device.
2
Remove the PCI slot shield by
2
pressing the shield out from
the inside of the chassis.
4
While holding the PCI add-in
3
board by its top edge or upper
corners, firmly press the add-in
board into the expansion slot.
Close the back panel PCI add-in
4
board retention device.
3
Remove Filler
Panels
Remove the bezel filler panels for each
drive you have installed. Release plastic
tabs located at back side of bezel and
pull out filler panels from front.
Finishing Up
1. See your Intel® Server Board
Quick Start User's Guide to
connect your keyboard,
mouse, video and other I/O
cables.
2. Connect the AC power
cable last.
CAUTION: Power supply
requires a 16-gauge
power cord.
Install Feet
Note: This step applies to the pedestal version only. If you plan
to configure your chassis as a rack mount system, go to Step 16.
Insert rubber foot into chassis hole.
1
Secure foot by inserting pin through the rubber foot.
2
Note: Repeat above steps until all four feet are installed.
2
20
Install Software
BIOS, Drivers, and Operating
System Install
A. Confirm BIOS Version:
Server/System Management screen in the BIOS
Setup Utility to determine the installed BIOS
version.
Compare this to the versions at:
http://support.intel.com/support/motherboards/server/S5500BC/
If new versions are available, update the BIOS
on your server. See the User Guide on the
®
Intel
Server Deployment Toolkit CD for
update instructions.
B. Configure your RAID Controller:
Use the instructions provided with the
RAID controller.
C. Install your Operating System:
Use the instructions provided with the RAID
controller and with the operating system.
D. Install Operating System Drivers:
With the operating system running, insert the
®
Intel
Server Deployment Toolkit CD. If using
a Microsoft* Windows*operating system,
the Express Installer will autorun and allow
you to select the appropriate drivers to install.
On other operating systems, browse the CD
folders to locate and install the driver files.
Look on the
Install Rack
Mount Kit
(Optional)
If you intend to configure your server as
a pedestal system, disregard this step
and proceed to Step 17.
If you intend to configure your server as
a rack-mount system, go to the
instructions that came with your Rack
Mount Kit to complete your server
assembly.
1
Reference
Accessories and Order Codes
Hot Swap Conversion Kit
6-Drive SAS/SATA Hot Swap Cage
without expander
6-Drive SAS/SATA Hot Swap Cage
with expander
®
Intel
Server Chassis Rack Mount Kit
I
Intel® Server System SC5650BCDP
Product Maintenance Kit
1
Requires a Hot Swap Conversion Kit to integrate into the Intel® Server
System SC5650BCDP.
A complete list of accessories and spares can be found at:
http://support.intel.com
Available Documents
Document Type
Technical Product Specification
Spares and Configuration Guide
Software and Drivers
Additional Reference Documents available at: http://support.intel.com
Content
In-depth technical information
Supported accessories and spares list
Up-to-date firmware, driver and
utility information
APPTHSDBKIT
AXX6DRV3GR
AXX6DRV3GEXP
APP3RACKIT
APPTPMKIT
1
1
Front Panel Controls
and Indicators
B
D
E
G
17
Engage three clips
1
at right edge of
chassis.
Rotate left side
2
of bezel assembly
toward chassis.
Snap two bezel tabs
3
into corresponding
recesses at left edge
of chassis front panel.
A
C
F
H
Install Front Bezel Assembly
3
3
Server Board S5500BC
Component Layout
See your Intel® Server
A. Power/Sleep
LED
B. Power/Sleep
Button
C. NMI Button
D. Reset Button
E. NIC 1 Activity
LED
F. NIC 2 Activity
LED
G. Hard Drive
Activity LED
H. Status LED
System S5500BCDP User's
Guide for expanded
component and
connection information.
SATA 2
SATA 1
SATA 0
SATA 3
SATA SGPIO
SATA 4
DIMM Fault
LEDs
Close System
Chassis Features and Components
1
1
A
1
2
1
Slide the
2
USB 0-1
USB 2-3
SATA 5
ICH10
Slot 3 (PCI Express* x4)
DIMM_E1
DIMM_E2
DIMM_D1
DIMM_D2
SYS FAN 1 CPU 2 FAN
1
2
BMC
RMM3
Slot 4 (PCI 32/33)
CPU 2 Socket
side cover on
chassis and
latch securely.
Replace screws.
NIC 2
USB 9
USB 8
Slot 5 (PCI Express* x4)
Slot 7 (PCI Express* x8)
Slot 6 (PCI Express* x8, Riser Card)
CAUTION: This
chassis must be
operated with the
SIDE COVER
installed to ensure
proper cooling.
Note: Refer to the
Technical Product
Specification for
Diagnostic LED
decoder list.
VGA
NIC 1
USB 7
Battery
USB 6
SYS FAN 3
SATA RAID
Key
IOH
CPU 1 Socket
SYS FAN 2
CPU 1 FAN
CPU Power
BIT3
BIT2
BIT1
LSB
Serial A
DIMM Fault LEDs
Diagnostic LEDs
IPMB_1
Main Power
P/S AUX
DIMM_A2
DIMM_A1
DIMM_B2
BIT4
BIT5
BIT6
MSB
Status LED
ID LED
Front Panel Header
DIMM_B1
Serial B
HSBP_A
F
G
O
P
Q
R
B
A. Front Panel
B. 5.25-inch Device
Drive Bays (2)
C. Hard Drive Cage
Access Door
D. Door Lock
E. USB Ports (2)
C
F. Fan Duct and
System Fan
(DP/WS/BRP
configuration
shown)
D
G. Hard Drive Cage
Retention
Mechanism
E
H. Alternate external
SCSI Knockout
H
I. Fixed Hard
Drive Fan
J.
SC5650BCDP Mother Board
K. Padlock Loop
I
L. PCI Card Guide
J
M. External SCSI
Knockout
N. Serial B port
K
Knockout
L
O. Power Supply
(fixed illustrated)
M
P. A/C Power In
Q. I/O Shield
N
R. PCI Add-in
Board Slots
