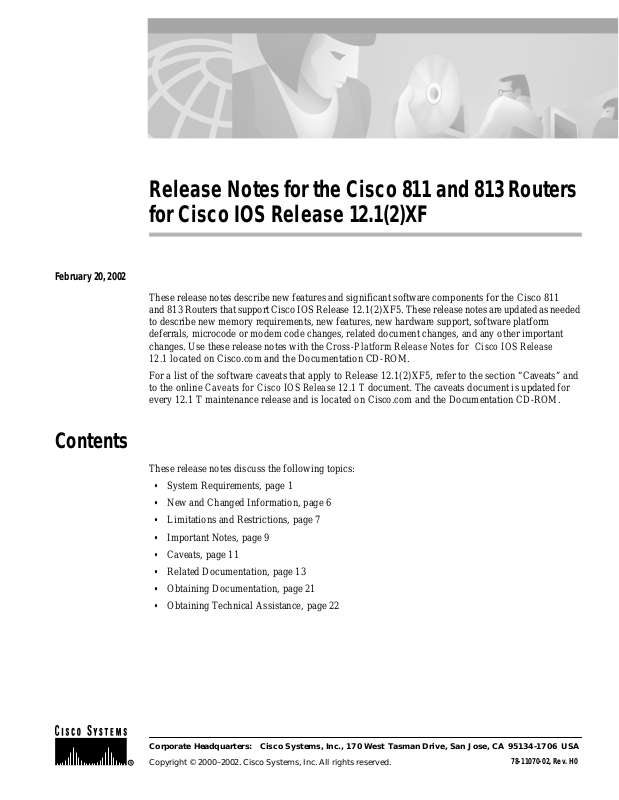

Release Notes for the Cisco 811 and 813 Routers for Cisco IOS Release 12.1(2)XF

February 20, 2002

These release notes describe new features and significant software components for the Cisco 811

and 813 Routers that support Cisco IOS Release 12.1(2)XF5. These release notes are updated as needed to describe new memory requirements, new features, new hardware support, software platform deferrals, microcode or modem code changes, related document changes, and any other important changes. Use these release notes with the Cross-Platform Release Notes for Cisco IOS Release

12.1 located on Cisco.com and the Documentation CD-ROM.

For a list of the software caveats that apply to Release 12.1(2)XF5, refer to the section “Caveats” and to the online Caveats for Cisco IOS Release 12.1 T document. The caveats document is updated for every 12.1 T maintenance release and is located on Cisco.com and the Documentation CD-ROM.

Contents

These release notes discuss the following topics:

System Requirements, page 1

New and Changed Information, page 6

Limitations and Restrictions, page 7

Important Notes, page 9

Caveats, page 11

Related Documentation, page 13

Obtaining Documentation, page 21

Obtaining Technical Assistance, page 22

Corporate Headquarters: Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA

Copyright © 2000–2002. Cisco Systems, Inc. All rights reserved.

78-11070-02, Rev. H0

System Requirements

System Requirements

This section describes the system requirements for Release 12.1(2)XF5 and includes the following sections:

Memory Requirements

Hardware Supported, page 2

Determining Your Software Release, page 3

Upgrading to a New Software Release, page 3

Feature Set Tables, page 4

Memory Requirements

This section describes the memory requirements for the Cisco IOS feature sets supported by Cisco IOS Release 12.1(2)XF5 on the Cisco 811 and 813 Routers.

Table 1 Memory Requirements for the Cisco 811 and 813 Routers







Required

Required









Flash

DRAM

Runs

Platforms

Image Name


Memory

Memory

From













Cisco 811

IP

c800-y6-mw

4 MB

8 MB

RAM

and 813











IP Plus

c800-sy6-mw

4 MB

8 MB

RAM

















IP/IPX Plus

c800-nsy6-mw

4 MB

8 MB

RAM















IP/FW

c800-oy6-mw

4 MB

8 MB

RAM















IP/FW Plus IPSec 56

c800-osy656i-mw

8 MB

8 MB

RAM















IP/IPX/FW Plus IPSec 56

c800-nosy656i-mw

8 MB

8 MB

RAM













Hardware Supported

Cisco IOS Release 12.1(2)XF5 supports the following Cisco 800 series routers:

Cisco 811

Cisco 813

For detailed descriptions of new hardware features, see New and Changed Information, page 6.









Table 2

Supported Interfaces for the Cisco 800 Series











































Analog Phone

Console









Router



Ethernet LAN Ports

Ethernet WAN Ports

Ports

Ports





























Cisco 811



One 10BaseT (RJ-45)

One ISDN BRI U,

RJ-45















integrated DSU (RJ-11),





















One ISDN BRI S/T (R-J45)



































Cisco 813



One 10BaseT (RJ-45)

One ISDN BRI U,

Two (RJ-11)

RJ-45













4-port hub

integrated DSU (RJ-11),





















One ISDN BRI S/T (R-J45)

































Release Notes for the Cisco 811 and 813 Routers for Cisco IOS Release 12.1(2)XF





















2













78-11070-02, Rev. H0



















System Requirements

Cisco 811 and 813 Routers

The Cisco 811 and 813 Routers provide the following key hardware features:

Flash memory: Default is 4 MB and is expandable to 12 MB. Additional Flash memory is installed using Intel “Mini-Card” technology.

Dynamic RAM: Default is 8 MB and is expandable to 16 MB, which must be obtained from Cisco Systems.

The central processing unit is a 33 MHz MPC 850 processor.

Routers mounted on a wall.

Determining Your Software Release

To determine the version of Cisco IOS software currently running on your Cisco 800 series router, log in to the router and enter the show version EXEC command. The following sample output from the show version command indicates the version number on the second output line:

router> show version

Cisco Internetwork Operating System Software

IOS (tm) 800 Software (c800-y6-mw), Version 12.1(2)XF5, RELEASE SOFTWARE

Additional command output lines include more information, such as processor revision numbers, memory amounts, hardware IDs, and partition information.

Upgrading to a New Software Release

For information about upgrading to a new software release, refer to the Cisco IOS Upgrade Ordering Instructions product bulletin located at the following URL: http://www.cisco.com/warp/public/cc/cisco/mkt/ios/prodlit/957_pp.htm.

Alternatively, the Cisco IOS Software page on Cisco.com has a variety of information, including upgrade information, organized by release. If you have a Cisco.com account and log in, you can go directly to: http://www.cisco.com/kobayashi/sw-center/sw-ios.shtml.

If you have a Cisco.com account and log in, you can reach the new software release upgrade page by going to www.cisco.com and following this path: Service & Support: Software Center: Cisco IOS Software: Product Bulletins: Software: General System Software Bulletins: Cisco IOS Upgrade

Ordering Instructions, No. 957

You can also reach the IOS Upgrade Planner, which allows you more flexibility to browse for your preferred software, by going to www.cisco.com and following this path: Service & Support: Software Center: IOS Upgrade Planner.





Release Notes for the Cisco 811 and 813 Routers for Cisco IOS Release 12.1(2)XF















78-11070-02, Rev. H0





3











System Requirements

Feature Set Tables

The Cisco IOS software is packaged in feature sets consisting of software images—depending on the platform. Each feature set contains a specific set of Cisco IOS features. Release 12.1(2)XF5 supports the same feature sets as Releases 12.1 and 12.1 T, but Release 12.1(2)XF5 can include new features supported by the Cisco 811 and 813 Routers. Table 3 lists the feature sets supported by the Cisco 811 and 813 Routers.

Table 3 Feature Sets Supported by the Cisco 811 and 813 Routers

Image Name

Feature Set Matrix Terms

Software Image

Platform









Cisco 800 Series IOS IP

IP

c800-y6-mw

Cisco 811 and 813









Cisco 800 Series IOS IP Plus

IP Plus

c800-sy6-mw

Cisco 811 and 813











Cisco 800

Series IOS IP/IPX Plus

IP/IPX Plus

c800-nsy6-mw

Cisco 811 and 813











Cisco 800

Series IOS IP/FW

IP/FW

c800-oy6-mw

Cisco 811 and 813











Cisco 800

Series IOS IP/FW Plus IPSec 56

IP/FW Plus IPSec 56

c800-osy656i-mw

Cisco 811 and 813











Cisco 800

Series IOS IP/IPX/FW Plus IPSec 56

IP/IPX/FW Plus IPSec 56

c800-nosy656i-mw

Cisco 811 and 813











Table 4 lists the features and feature sets supported by the Cisco 811 and 813 Routers in Cisco IOS Release 12.1(2)XF5. The table uses the following conventions:

Yes—The feature is supported in the software image.

No—The feature is not supported in the software image.

Note These feature set tables only contain a selected list of features. These tables are not cumulative—nor do they list all the features in each image.

Table 4 Feature List by Feature Set for the Cisco 811 and 813 Routers









Feature Sets

















































IP/FW

IP/IPX/FW















IP/IPX



Plus

Plus





Features

IP

IP Plus

Plus

IP/FW

IPSec 56

IPSec 56























Address Conservation



































NAT

Yes

Yes

Yes

Yes

Yes

Yes























Ease of Use and Deployment



































Auto SPID/SWITCH Connection

Yes

Yes

Yes

Yes

Yes

Yes























Cisco Fast Step Software, Version 2.5

Yes

Yes

Yes

Yes

Yes

Yes























Configuration Express

Yes

Yes

Yes

Yes

Yes

Yes























Easy IP Phase I and II

Yes

Yes

Yes

Yes

Yes

Yes























TFTP Client Server

Yes

Yes

Yes

Yes

Yes

Yes























INS 64 Telephone Features (813 model only)



































Call Blocking on Caller ID

Yes

Yes

Yes

Yes

Yes

Yes























Caller ID

Yes

Yes

Yes

Yes

Yes

Yes































Release Notes for the Cisco 811 and 813 Routers for Cisco IOS Release 12.1(2)XF





























4













78-11070-02, Rev. H0



















System Requirements

Table 4

Feature List by Feature Set for the Cisco 811 and 813 Routers





























Feature Sets





































IP/FW

IP/IPX/FW









IP/IPX



Plus

Plus

Features



IP

IP Plus

Plus

IP/FW

IPSec 56

IPSec 56















Call Waiting

Yes

Yes

Yes

Yes

Yes

Yes















Distinctive Ringing

Yes

Yes

Yes

Yes

Yes

Yes















E Ya Yo

Yes

Yes

Yes

Yes

Yes

Yes















I Number

Yes

Yes

Yes

Yes

Yes

Yes















ISDN Voice Priority

Yes

Yes

Yes

Yes

Yes

Yes















Nariwake

Yes

Yes

Yes

Yes

Yes

Yes















Troublesome Call Refusing

Yes

Yes

Yes

Yes

Yes

Yes















Voice Warp

Yes

Yes

Yes

Yes

Yes

Yes















Voice Warp Select

Yes

Yes

Yes

Yes

Yes

Yes

















LAN































IP



Yes

Yes

Yes

Yes

Yes

Yes

















IPX



No

No

Yes

No

No

Yes















NetBIOS Access Lists, Name Caching

Yes

Yes

Yes

Yes

Yes

Yes















Transparent Bridging

Yes

Yes

Yes

Yes

Yes

Yes















Management



























CiscoView

Yes

Yes

Yes

Yes

Yes

Yes















SNMP, Telnet, Console Port

Yes

Yes

Yes

Yes

Yes

Yes

















SNTP



Yes

Yes

Yes

Yes

Yes

Yes

















Syslog



Yes

Yes

Yes

Yes

Yes

Yes















TACACS+

No

Yes

Yes

No

Yes

Yes

















Routing





























IP Enhanced IGRP

No

Yes

Yes

No

Yes

Yes















IP Multicast (Relay Only)

No

Yes

Yes

No

Yes

Yes















IP-Policy Routing

Yes

Yes

Yes

Yes

Yes

Yes















IPX WAN

No

No

Yes

No

No

Yes















RIP, RIPv2, Triggered RIP

Yes

Yes

Yes

Yes

Yes

Yes















Security (Basic)



























GRE Tunneling

No

Yes

Yes

No

Yes

Yes

















NAT



Yes

Yes

Yes

Yes

Yes

Yes















PAP, CHAP, Local Password, MSCHAP

Yes

Yes

Yes

Yes

Yes

Yes















Route and Router Authentication

Yes

Yes

Yes

Yes

Yes

Yes















Token Card Authentication

Yes

Yes

Yes

Yes

Yes

Yes





















Release Notes for the Cisco 811 and 813 Routers for Cisco IOS Release 12.1(2)XF















78-11070-02, Rev. H0





5











System Requirements

Table 4 Feature List by Feature Set for the Cisco 811 and 813 Routers



Feature Sets

































IP/FW

IP/IPX/FW







IP/IPX



Plus

Plus

Features

IP

IP Plus

Plus

IP/FW

IPSec 56

IPSec 56















Security (Enhanced)



























Cisco IOS Firewall

No

No

No

Yes

Yes

Yes















Context Based Access Control Lists

No

No

No

Yes

Yes

Yes















Denial of Service Detection

No

No

No

Yes

Yes

Yes















IPSec Encryption w/ 56-bit DES

No

No

No

No

Yes

Yes















Java Blocking

No

No

No

Yes

Yes

Yes















Real-time Alerts

No

No

No

Yes

Yes

Yes















Voice Features (Supplementary)



























Call Conference

Yes

Yes

Yes

Yes

Yes

Yes















Call Hold / Retrieve

Yes

Yes

Yes

Yes

Yes

Yes















Call Transfer

Yes

Yes

Yes

Yes

Yes

Yes















Voice Priority

Yes

Yes

Yes

Yes

Yes

Yes















WAN



























Frame Relay (Leased Line Only)

Yes

Yes

Yes

Yes

Yes

Yes















ISDN

Yes

Yes

Yes

Yes

Yes

Yes















ISDN Lease Line

Yes

Yes

Yes

Yes

Yes

Yes















ML-PPP, PPP Compression

Yes

Yes

Yes

Yes

Yes

Yes















WAN Optimization



























BOD

Yes

Yes

Yes

Yes

Yes

Yes















DDR

Yes

Yes

Yes

Yes

Yes

Yes















IPX and SPX Spoofing

No

Yes

No

No

No

Yes















ISDN Caller ID Callback

Yes

Yes

Yes

Yes

Yes

Yes















Snapshot Routing

Yes

Yes

Yes

Yes

Yes

Yes















STAC Compression

Yes

Yes

Yes

Yes

Yes

Yes















Weighted Fair Queuing Quality of Service

Yes

Yes

Yes

Yes

Yes

Yes















X.25 ID

No

Yes

Yes

No

Yes

Yes

















Release Notes for the Cisco 811 and 813 Routers for Cisco IOS Release 12.1(2)XF

6

78-11070-02, Rev. H0
