Preparation date: 19-07-2018
Version No.: 1.0

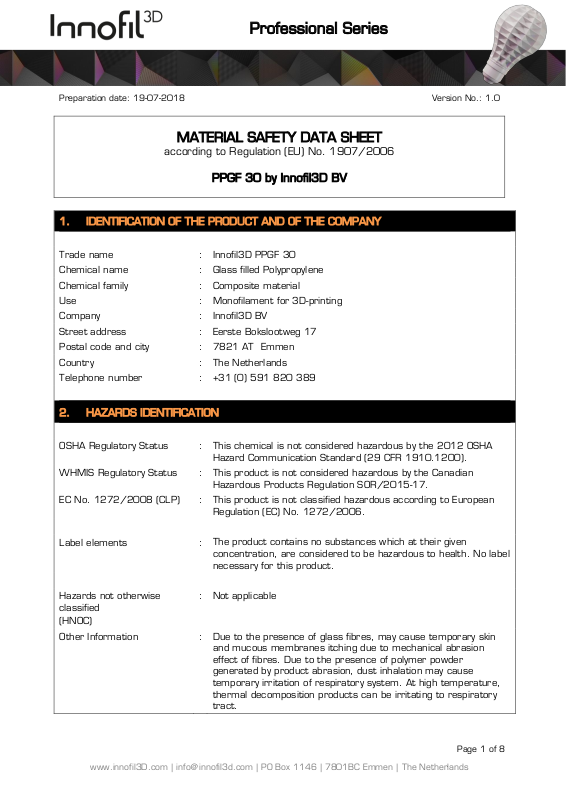

MATERIAL SAFETY DATA SHEET
according to Regulation (EU) No. 1907/2006
PPGF 30 by Innofil3D BV
1. IDENTIFICATION OF THE PRODUCT AND OF THE COMPANY
Trade name
:
Innofil3D PPGF 30
Chemical name
:
Glass filled Polypropylene
Chemical family
:
Composite material
Use
:
Monofilament for 3D-printing
Company
:
Innofil3D BV
Street address
:
Eerste Bokslootweg 17
Postal code and city
:
7821 AT Emmen
Country
:
The Netherlands
Telephone number
:
+31 (0) 591 820 389
2. HAZARDS IDENTIFICATION
OSHA Regulatory Status
:
This chemical is not considered hazardous by the 2012 OSHA
Hazard Communication Standard (29 CFR 1910.1200).
WHMIS Regulatory Status
:
This product is not considered hazardous by the Canadian
Hazardous Products Regulation SOR/2015-17.
EC No. 1272/2008 (CLP)
:
This product is not classified hazardous according to European
Regulation (EC) No. 1272/2006.
Label elements
:
The product contains no substances which at their given
concentration, are considered to be hazardous to health. No label
necessary for this product.
Hazards not otherwise
classified
(HNOC)
:
Not applicable
Other Information
:
Due to the presence of glass fibres, may cause temporary skin
and mucous membranes itching due to mechanical abrasion
effect of fibres. Due to the presence of polymer powder
generated by product abrasion, dust inhalation may cause
temporary irritation of respiratory system. At high temperature,
thermal decomposition products can be irritating to respiratory
tract.
Professional Series
Page 2 of 8
www.innofil3D.com | info@innofil3d.com | PO Box 1146 | 7801BC Emmen | The Netherlands
Physical and chemical
hazards
:
In the presence of an ignition source: dust may form explosive
mixture in air. Thermal decomposition giving toxic and corrosive
products/decomposition product see chapter 10.
PBT and vPvB assessment
:
Based on the available information, it is not possible to conclude
on PBT and vPvB criteria according to REACH Regulation, annex
VII.
3. COMPOSITION/INFORMATION ON INGREDIENTS
Components
Polypropylene
:
65 – 75 % *
CAS no.
:
9003-07-0
Continuous filament glass
fiber
:
25 – 35 % *
CAS No.
:
65997-17-3
Additives
:
0 – 2 %
* The exact percentage (concentration) of composition has been withheld as a trade secret or for covering a
group of substantially similar products.
Comments
:
The remaining components of this product are non-hazardous or
are in a small enough quantity as to not meet regulatory
thresholds for disclosure. These components contain no
substances or impurities which would influence the classification
of this product.
4. FIRST-AID MEASURES
General Advice
:
No hazard which requires special first aid measures.
Eye contact
:
Immediately flush with plenty of water also under the use lids.
After initial flushing, remove any contact lenses and continue
flushing for at least 15 minutes. DO NOT rub or scratch eye.
Consult an ophthalmologist.
Skin contact
:
In case of contact with molten product: Immediately drench or
immerse area in water to assist in cooling. In case of burns,
immediately cool affected skin for as long as possible with cold
water. Do not remove the solidified product. Removal of solidified
molten material from skin requires medical assistance. Do not
rub or scratch affected areas.
Inhalation
:
Move to fresh air in case of accidental inhalation of vapours or
decomposition products. If symptoms persist, call a physician.
Ingestion
:
Clean mouth with water. Do not induce vomiting without medical
advice. Call a physician.
Symptoms
:
No data available.
Note to physician
:
No data available.
Acute toxicity
:
No data available.
Professional Series
Page 3 of 8
www.innofil3D.com | info@innofil3d.com | PO Box 1146 | 7801BC Emmen | The Netherlands
5. FIRE-FIGHTING MEASURES
Flammable properties
:
Combustible material. Powdered material may form explosive
dust-air mixture.
Suitable extinguishing media
:
Water spray, dry chemical, foam, carbon dioxide.
Unsuitable media
:
None known.
Specific hazards arising
from the chemical
:
Thermal decomposition can lead to release of toxic/corrosive
products: Carbon monoxide, Ammonia, Amino derivatives.
Release of toxic products through combustion: Carbon oxides,
Hydrocarbons, Hydrogen cyanide (hydrocyanic acid) (traces),
nitrogen oxides.
Explosion; Mechanical
Impact
:
None.
Explosion; Static Discharge
:
Fine dust dispersed in air, in sufficient concentrations, and in the
presence of an ignition source is a potential dust explosion
hazard.
Protective equipment and
precautions for firefighters
:
As in any fire, wear self-contained breathing apparatus pressuredemand, MSHA/NIO.SH (approved or equivalent) and full
protective gear
6. ACCIDENTAL RELEASE MEASURES
Personal precautions
:
Avoid contact with eyes and skin.
Environmental precautions
:
Avoid release to the environment. See Section 12 for
ecotoxicology additional information.
Methods for cleaning up
:
Pick up and transfer to properly labelled containers.
Methods for containment
:
Break up and remove solidified material. Material may be
remelted and reclaimed. Recycling recoverable material is
recommended.
7. HANDLING AND STORAGE
Safe handling advice
:
Handle in accordance with good industrial hygiene and safety
practice. Do not breathe dust/fume/gas/mist/vapours/spray.
During use and thermal treatment of the product, avoid inhalation
of extrusion fume. No smoking.
Technical measures
:
Keep away from heat, sparks, flame and other sources of ignition
(i.e., pilot lights, electric motors and static electricity). Provide
electrical earthing of equipment.
Storage conditions
:
Store in a well-ventilated place. Keep cool. Keep away from heat,
hot surfaces, sparks, open flames and other ignition sources.
Incompatible materials
:
None known
Packaging material
:
No specific recommendation
Professional Series
Page 4 of 8
www.innofil3D.com | info@innofil3d.com | PO Box 1146 | 7801BC Emmen | The Netherlands
8. EXPOSURE CONTROLS/PERSONAL PROTECTION
Exposure guidelines
:
As manufactured continuous filament glass fibres are not
respirable. Under normal conditions of use, these products may
release dust and non-respirable fibres (Particles Not Otherwise
Regulated). Under severe process conditions (e.g. shredding,
crushing), they may release very small amount of respirable
particulate, some of which may be glass shards (see section 11).
Continuous filament glass fiber, non-respirable, 65997-17-3
ACGIH TLV
:
TWA: 1 fibre/cm3 respirable fibres: length >5 μm, aspect ratio
>=3:1, as determined by the membrane filter method at 400450X magnification [4-mm objective], using phase-contrast
illumination. TWA: 5 mg/m3 inhalable particulate matter
OSHA PEL
: - NIOSH REL
: -
Engineering controls
:
Ensure adequate ventilation, especially in confined areas. Provide
local exhaust and/or general ventilation to maintain exposure
below regulatory and recommended limits especially in
transferring , cutting or machining operations or other
fumes/dust generating processes
Personal protective equipment
Eye/face protection
:
Wear safety glasses with side shields (or goggles).
Skin and body protection
:
Wear protective gloves. Wear long-sleeved shirt and long pants.
Respiratory protection
:
No protective equipment is needed under normal use conditions.
If exposure limits are exceeded or irritation is experienced,
ventilation and evacuation may be required. In case of insufficient
ventilation, wear suitable respiratory equipment
Hygiene measures
:
Wash hands before breaks and immediately after handling
products. Remove and wash contaminated clothing before re-use
9. PHYSICAL AND CHEMICAL PROPERTIES
Appearance
:
Filament
Colour
:
Black
Physical state
:
Solid
Odour
:
Odourless
Melting point/range
:
130 – 170 °C
Boiling point/range
:
Not applicable
Autoignition temperature
:
> 320 °C
Density
:
1.4 – 1.5 kg/m3
pH : Not applicable
Professional Series
Page 5 of 8
www.innofil3D.com | info@innofil3d.com | PO Box 1146 | 7801BC Emmen | The Netherlands
Vapor pressure
:
No information available
Water solubility
:
Insoluble in water
Softening point
:
> 800 °C (glass)
10. STABILITY AND REACTIVITY
Reactivity
:
No known reactivity.
Chemical stability
:
Keep away from heat, hot surfaces, sparks, open flames and
other ignition sources. No smoking.
Conditions to avoid
:
Heat, prevent from freezing.
Possibility of hazardous
reactions
:
No hazardous decomposition under normal conditions of storage
and use.
Incompatible materials
:
None known.
Hazardous decomposition
products
:
Thermal decomposition can lead to release of toxic/corrosive
products: Carbon monoxide, Ammonia, Amino derivatives.
Release of toxic products through combustion: Carbon oxides,
Hydrocarbons, Hydrogen cyanide (hydrocyanic acid) (traces),
nitrogen oxides.
11. TOXICOLOGICAL INFORMATION
According to its composition, this product should not be harmful in normal conditions of use.
Toxicological effects
:
No data available on the mixture.
For the polymer contained in
the mixture
:
The polymer is not considered as an harmful preparation
according to directive 1999/45/CE.
Acute toxicity
Inhalation
:
Dust inhalation may generate irritation of the respiratory tract.
Prolonged inhalation at high doses of decomposition product may
cause headache and irritation of the respiratory tract.
Ingestion
:
Not probable.
Dermal
:
According to its composition, this product should not be harmful
in normal conditions of use.
Local effects
Skin contact
:
Dust and fibers that may be generated by mechanical treatment
may cause temporary skin and mucous membranes itching due to
the abrasion effect of the fibers. The symptoms disappear when
the exposure ceases. Mechanical abrasion is not considered as a
health hazard in the meaning of Regulation EC 1272/2008.
Continuous filament glass fibers are not classified as irritants
under the regulation EC 1272/2008.
Eye contact
:
May be considered as comparable to a similar product for which
experimental data are: Slightly or not irritating to eyes.
Respiratory or skin sensitization
Inhalation
:
Continuous filament glass fibers are not respirable according to
the World Health Organization (WHO) definition. Respirable fibers
Professional Series
Page 6 of 8
www.innofil3D.com | info@innofil3d.com | PO Box 1146 | 7801BC Emmen | The Netherlands
have a diameter (d) smaller than 3μm, a length (l) larger than
5μm and a l/d-ratio larger than or equal to 3. Fibers with
diameters greater than 3 microns, which is the case for
continuous filament glass fibers, do not reach the lower
respiratory tract and, therefore have no possibility of causing
serious pulmonary disease.
Continuous filament glass fibers do not possess cleavage plans
which would allow them to split length-wise into fibers with smaller
diameters, rather they break across the fiber, resulting in fibers
which are of the same diameter as the original fiber with a
shorter length and a small amount of dust.
Microscopic examination of dust from highly chopped and
pulverised glass demonstrated the presence of small amount of
respirable dust particles. Among these respirable particles, some
were fiber-like in terms of l/d ratio (so-called “shards”). It can be
clearly observed however that they are not regular shaped fibers
but irregular shaped fibers with fiber-like dimensions. To the best
of our knowledge, the exposure levels of these fiber-like dust
particles measured at our manufacturing plants are at the order
of magnitude between 50 to 1000 below existing applicable
limits.
Continuous filament glass fibers are not carcinogenic (see section
15)
Skin contact
:
May be considered as comparable to a similar product for which
experimental data are: not a skin sensitizer.
CMR effects
Mutagenicity
:
Contains no ingredient considered as genotoxic.
Carcinogenicity
:
According to its composition, this product should not be harmful
in normal conditions of use.
Reproductive toxicity
:
According to its composition, this product should not be harmful
in normal conditions of use.
Specific target organ toxicity
Single exposure – inhalation
:
According to its composition, this product should not be harmful
in normal conditions of use.
Repeated exposure
:
According to its composition, this product should not be harmful
in normal conditions of use.
Aspiration hazard
:
Not relevant due to composition.
12. ECOTOXICOLOGICAL INFORMATION
Information on the product
:
No data available on the product.
Information on components
:
The polymer and the glass fibres are not considered as
hazardous for the environment.
Acute toxicity
:
No data available.
Persistence and
degradability (in water)
:
Inert polymer, not biodegradable on the basis of its structure.
Bio accumulative potential
:
Na data available.
Mobility in soil
:
No data available.
Professional Series
Page 7 of 8
www.innofil3D.com | info@innofil3d.com | PO Box 1146 | 7801BC Emmen | The Netherlands
PBT and vPvB assessment
:
Based on the available information, it is not possible to conclude
on PBT and vPvB criteria according to REACH regulation, annex
XIII.
Other adverse effects
:
None known.
13. DISPOSAL CONSIDERATIONS
Disposal of product
:
Do not dispose of waste into sewer. Destroy the product by
incineration (in accordance with local and national regulations).
Disposal of packaging
:
Do not release into the environment. Destroy packaging by
incineration at an approved waste disposal site (in accordance
with the local and national regulations).
14. TRANSPORT INFORMATION
IMDG
:
Not regulated, not classified as dangerous in the meaning of
transport regulations.
ICAO/IATA
:
Not regulated, not classified as dangerous in the meaning of
transport regulations.
RID
:
Not regulated, not classified as dangerous in the meaning of
transport regulations.
ADR
:
Not regulated, not classified as dangerous in the meaning of
transport regulations.
DOT
:
Not regulated, not classified as dangerous in the meaning of
transport regulations.
TDG
:
Not regulated, not classified as dangerous in the meaning of
transport regulations.
15. REGULATORY INFORMATION
NOTICE: The information herein is presented in good faith and believed to be accurate as of the
print date shown above. However, no warranty, express or implied is given. Regulatory
requirements are subject to change and may differ from one location to another; it is the buyer’s
responsibility to ensure that its activities comply with federal, state or provincial, and local laws. See
other sections for health and safety information.
Safety data sheet: in accordance with annex II of Regulation (EC) N° 1907/2006 and its
amendments
Safety, health and environmental regulations/legislation specific for the substance or mixture
Information on noncarcinogenicity (glass fibres)
:
Continuous Filaments glass fibres are not classified as
carcinogenic by regulation (EC) 1272/2008 since they are not
“fibres with random orientation”.
The International Agency for Research on Cancer (IARC) in June
1987 and in October 2001, categorized continuous filament
Professional Series
Page 8 of 8
www.innofil3D.com | info@innofil3d.com | PO Box 1146 | 7801BC Emmen | The Netherlands
glass fibres as not classifiable with respect to human
carcinogenicity (Group 3). The evidence from human, as well as,
animal studies was evaluated by IARC as insufficient to classify
continuous filament glass fibres as a confirmed, probable or even
possible cancer causing material.
Chemical safety assessment
:
This information is not required.
INVENTORIES
Continuous Filament Glass
fibres
:
Continuous filament glass fibre products are articles under the
following chemical inventories listed hereafter and consequently
are exempt from listing under these inventories: EINECS /
EILINCS, TSCA, NDSL / DSL, CSCL, AICS, PICCS, (K)ECL,
IESCSC.
However, based on the rules enforced with regards to the
marketing and use of chemicals in countries where our CFGF
products are manufactured, each chemical ingredient of these
finished products has to be listed on the National Chemicals
Inventory of the specific country where produced.
16. OTHER INFORMATION
- The information in this Material Safety Data Sheet (MSDS) is mainly based on information
used from the supplier of the raw materials which are used for production of the filaments.
- The information in this Material Safety Data Sheet (MSDS) is based on current knowledge and
experience. No liability can be assumed for the accuracy and completeness of this
information.
- Users should consider this information only as additional to other data gathered. Independent
determination of suitability and completeness of information from all available sources is
essential to ensure proper and safe use and disposal of these materials.
- The information in this MSDS applies for this specific material only. It therefor does not apply
for its usage in combination with other materials or ways of processing.
Loading...
