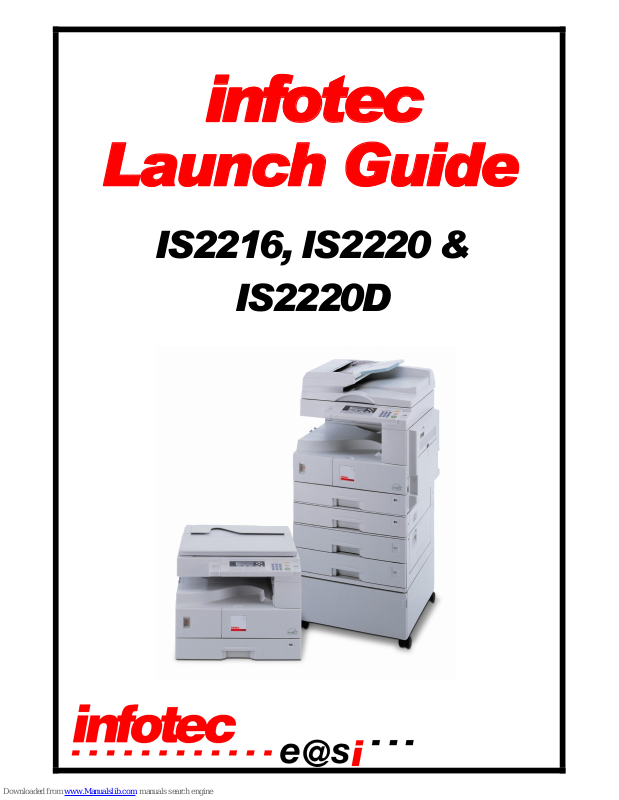

Launch Guide

infotec

IS2216, IS2220 &

IS2220D

This Launch Document was produced by Infotec Dealer Sales UK, November 2005,

N.B. Technical Details cannot be guaranteed and are subject to change without notice.

CONTENTS

Page

OVERVIEW ........................................................................................................................ 7

¾ Product Positioning ....................................................................................... 7

¾ Product Appearance....................................................................................... 7

¾ Operation Panel ............................................................................................ 8

KEY FEATURE SUMMARY ................................................................................................. 9

TARGET MARKETS ............................................................................................................ 10

¾ Who would benefit from the ISC4560/5560.................................................... 10

PRODUCT STRENGTHS & FEATURES ............................................................................. 11

¾ Productivity..................................................................................................... 12

¾ Scanning Solutions......................................................................................... 13

o Network TWAIN Scan......................................................................... 13

o Scan to E-mail .................................................................................. 13

o ScanRouter V2 Lite & DeskTopBinder ............................................. 14

¾ Printing ......................................................................................................... 15

¾ Fax Functions ................................................................................................ 16

o Internet Fax ........................................................................................ 16

o LAN Fax ............................................................................................. 17

¾ Device Management Utilities.......................................................................... 17

o Web Image Monitor ........................................................................... 17

o Smart Device Monitor ......................................................................... 18

SERVICE FACTORS............................................................................................................. 19

¾ Target Reliability............................................................................................. 19

¾ OEM Equivalents............................................................................................ 19

CONFIGURATION & PART NO.S ....................................................................................... 20

¾ Option Correlations ....................................................................................... 24

PRODUCT SPECIFICATIONS ............................................................................................. 25

¾ Mainframe Specification………………….. ...................................................... 25

¾ Copier Specification ....................................................................................... 27

PERIPHERAL SPECIFICATIONS......................................................................................... 28

¾ ADF – DF78 ................................................................................................... 28

¾ ARDF – DF79................................................................................................. 28

¾ 1 Bin Tray – PT340 ....................................................................................... 28

¾ Paper Bank – PS460...................................................................................... 29

¾ Paper Bank – PS450 ..................................................................................... 29

¾ Scanner Specification..................................................................................... 30

o Network TWAIN Driver ..................................................................... 30

o Scan to E-mail .................................................................................... 31

o ScanRouter V2 Lite & DeskTopBinder .............................................. 32

¾ Printer Specification ....................................................................................... 33

o Printer Driver Features ....................................................................... 34

o Supported Environments ................................................................... 35

¾ Connectivity Specifications ............................................................................ 39

¾ Fax Specification ........................................................................................... 43

o Transmission Specification ................................................................ 45

o Reception Specification ..................................................................... 45

o Internet Fax Basic Specification ........................................................ 46

o LAN Fax Basic Specification .............................................................. 47

ENVIRONMENTAL SPECIFICATIONS ................................................................................ 48

PART NO.S & MACHINE COMPATIBILITY ........................................................................ 49

IS 2216 / 2220 / 2220D

All Purpose Multifunction Device

¾ 16ppm and 20ppm ¾ Scan to Folder ¾ Scan to Email ¾ Internet Fax ¾ LAN Fax ¾ Paperless Fax ¾ Web Image Monitor

Launch Guide IS2216 / IS2220 / IS2220D

OVERVIEW

The IS 2216, IS 2220 and IS 2220D are direct replacements for the IS 2015, IS2018 and IS 2018D. The IS 2216/2220/2220D feature exactly the same specifications as the IS 2015/2018/2018D, except for speed.

With the increased speeds as well as lower costs, this new family offers attractive solutions in Segment 1 for a range of customers. Users moving from analogue to digital will find these products non threatening and easy to use, while more sophisticated users will be well satisfied with the multi-functionality, especially when configured with a printer/scanner and fax option.

Product Positioning

Old Range New Range

Model Speed Model Speed

IS 2015 15 ppm

IS 2216 16 ppm

IS 2018 / 2018D 18 ppm

IS 2220 / 2220D 20 ppm

Product Appearance

BByyppaassss TTrraayy –– 110000 sshheeeettss

SSttaannddaarrdd PPaappeerr IInnppuutt TTrraayy:: 11xx225500 ttrraayy ffoorr IISS 22221166 22xx225500 ttrraayy ffoorr IISS 22222200//22222200DD

IInntteerrnnaall TTrraayy CCa

paacciitt

:: 225500 SShheeeettss

AADDFF -- ((ffoorr IISS22221166//22222200)) oorr AARRDDFF -- ((ffoorr IISS22222200DD))

DDuupplleexx UUnniitt

(

IISS22222200DD oonnl

yy)

)

Launch Guide IS2216 / IS2220 / IS2220D

Operation Panel

The operation panel of the IS 2216/2220/2220D has the same simple design of the it’s predecessors, the IS 2015/2018/2018D. The 4-line 27-digit display makes it extremely user friendly, and the 4 cursor keys are easy to operate.

Copier only

Copier + Fax + Printer/Scanner

Scanner

Printer

Fax

Cursor

Launch Guide IS2216 / IS2220 / IS2220D

KEY FEATURE SUMMARY

Printing & Versatile Connectivity Options

The Printer/Scanner option comes standard with the Ethernet Interface, 128 MB Memory, USB2.0 interface and software utilities for SmartDevice Monitor, ScanRouter Lite and DeskTopBinder. Connectivity options are Wireless, FireWire, Bluetooth and Parallel. Connecting the IS 2216 / 2220 / 2220D is extremely easy, and provides the very latest in scanning technology.

Scanning

Scan to email

Scan to email is as easy sending a fax, but has several advantages over traditional faxing. The scanned documents are sent directly to the recipient’s PC, thus saving cost (by not printing) and improving security (as documents are not left lying around). Furthermore, multiple recipients each receive their own copy quickly rather than having to wait for copies to be made (and with loss of quality). Transmission is cost effective via the internet or intranet and no special software is required, nor a delivery server.

Network TWAIN scanning

With the Printer/Scanner option, users can very easily scan files to the PC

Network Scanning with ScanRouter/DeskTopBinder

In addition to Scan to Email and Network TWAIN Scanning, the IS 2216, IS 2220 and IS 2220D also come with the ScanRouter Lite and DeskTopBinder Lite software utilities. These utilities enhance workflow by allowing users to distribute and share scanned documents over the network.

Faxing

LAN fax

Users can send faxes directly from the PC (as if sending them to a printer), without ever having to go to the fax machine or to make a print out. The advantages are paper saving and productivity (no need to walk to the fax machine).

Internet fax

Internet fax is a fairly specialised application, and provides great benefits to international organisations as well for communicating with countries where email is not yet easily available. The advantages of internet faxing are that it is cheap compared to traditional faxing, error-free and cheap. It is also productive, as incoming emails can be forwarded to PCs or groups of PCs.

Web Based Control

WebImage Monitor uses a standard web browser to allow users to monitor and manage the machine and its output directly from the PC. Checking toner and paper levels at a glance, changing network and communications settings or monitoring the progress of jobs are just some of the time saving functions available through WebImage Monitor. There is no need to install software on the PC, so no objections from the IT Department.

Environmentally Friendly

The use of lead, mercury, chromium, cadmium, PVC and PVD substances will be abolished, in compliance with the EU RoHS (Restriction of Hazardous Substances) Directive which comes into effect in July 2006. This is of major importance to Major Accounts and Government Agencies.

Launch Guide IS2216 / IS2220 / IS2220D

TARGET MARKETS

Who would benefit from the IS 2216, IS 2220 and IS 2220D?

1. Small office users (1-20 users)

The primary target for the IS 2216/2220/2220D is small office groups, replacing analogue copiers and 1

generation digital copiers. These users look for ease of use, simple operations such as

scan once-copy many and immediate access with quick recovery time.

2. Small to Large offices (20-300 workers)

The secondary target for the IS 2216/2220/2220D is in the networked office where these models can be offered as printer/scanner or a workgroup fax. Typical needs would be:

¾ Scan to Email, Network TWAIN and ScanRouter Lite ¾ Easy device management with WebImageMonitor ¾ Valuable fax functions such as Internet Fax and LAN-Fax

Large (300 +）

Centralised

Small Work Group

Business Personal

Main Target is small office

Small (1 ～29 )

Target

Middle (30～299)

Launch Guide IS2216 / IS2220 / IS2220D

PRODUCT STRENGTHS & FEATURES

@xx.com

Scanner Features

 Scan to E-mail  Network TWAIN  Scan Router Lite

Device Management

 Web Image Monitor  Smart Device Monitor

FAX Features

 Internet Fax  LAN Fax

Printer Feature

 16/20PPM

 NIB standard  GW Printer Feature  USB 2.0 Standard

Environmental Friendly

 Short Recovery Time  Paper Saving

 RoHS Directive Compliance

LAN

Copier Features

 16/20CPM

Launch Guide IS2216 / IS2220 / IS2220D

Productivity

With a first copy speed of under 6.5 seconds, the IS 2216 / 2220 / 2220D boasts impressive productivity in A4 as well as A3.

IS 2216 IS 2220 IS 2220D

Simplex Continuous Speed

A4 16ppm 20ppm 20ppm

B4 11ppm 13ppm 13ppm

A3 10ppm 11ppm 11ppm

Simplex DF 1:1

A4 16ppm 18ppm 18ppm

B4 10ppm 10ppm 10ppm

A3 8ppm 9ppm 9ppm

Duplex Continuous

A4 N/A N/A 20ppm

B4 N/A N/A 7ppm

A3 N/A N/A 5ppm

Duplex DF 1:1

A4 N/A N/A 7ppm

B4 N/A N/A 5ppm

A3 N/A N/A 4ppm

Duplex with Printer Controller installed

A4 – 1 to 2 sided N/A N/A 18ppm

A4 – 2 to 2 sided N/A N/A 11ppm

1:1 1:2 2:2 2:1

Sets

1 3 5 10 1 3 5 10 1 3 5 10 1 3 5 10

13 15 15 16 - - - - - - - - - - - -

IS 2216

81% 93% 93% 100% - - - - - - - - - - - -

14 18 19 19 - - - - - - - - - - - -

IS 2220

70% 90% 95% 95% - - - - - - - - - - - -

14 18 19 19 11 15 16 18 7 13 15 17 9 14 16 18

IS 2220D

70% 90% 95% 95% 55% 75% 80% 90% 35% 65% 75% 85% 45% 70% 80% 90%

Launch Guide IS2216 / IS2220 / IS2220D

Scanning Solutions

Distribution of documents via scanner applications is an important part of workflow in networked environments. The IS 2216, IS 2220 and IS 2220D offer the following scanning solutions:

¾ Network TWAIN Scan ¾ Scan to E-mail ¾ Scan Router Lite

Network TWAIN Scan

The Network TWAIN driver is provided with the Printer/Scanner option. With this function, users can easily scan documents to their PCs.

Scan to E-mail

Scan to E-mail is now a common scanner function in the market, mainly because of cost savings. The Scan to E-mail function of the IS 2216/2220/D does not require a dedicated server or utility software, therefore sales can confidently promote the scanning solution without adding expense to the customer’s environment.

Benefits for Customers

Cost Saving: Reduce transmission cost by sending data over Internet or Intranet Easy Operation: Operation of scan to E-mail is almost same as that of fax function Easy Maintenance: E-mail addresses are easily registered & maintained via the web Minimum Investment: No additional software or hardware purchase is necessary.

Scan to E-mail: Scanned documents are delivered direct to PCs over internet or intranet.

SMTP

/Mail

Server

internet or

intranet

IS 2216/20/D

Launch Guide IS2216 / IS2220 / IS2220D

ScanRouter V2 Lite & DeskTopBinder

ScanRouter V2 Lite and DeskTopBinder are supplied as standard with the Printer/Scanner option. The software allows documents scanned on the IS 2216/2220/D to be distributed and shared, ScanRouter V2 Lite delivers these scanned documents to the “in-tray” on a Delivery Server. From the Delivery Server these scanned documents can be:

¾ Sent automatically to users’ PCs ¾ Retrieved by users (using DeskTopBinder) ¾ Viewed and copied by users (using DeskTopBinder) ¾ Saved as Windows files in the File Server

Documents

Send to Delivery Server

Delivery Serve

File Server

Client PC

Scanning

LAN

Access

Distribute/Access

Distribute

(Registration of destination addresses: Max 100)

Launch Guide IS2216 / IS2220 / IS2220D

Printing

As printers, the IS 2216, IS 2220 and IS 2220D are very productive. Even in duplex mode, the IS 2220D runs at 95% of its simplex speed.

The Printer/Scanner option of the IS 2216/20/D comes standard with 100Base-TX / 10BASE-T and USB2.0. Connectivity across networks is quick and easy. In addition, customers can select from the following connectivity options:

▪ Wireless LAN Interface (IEEE802.11b) ▪ IEEE1394 FireWire ▪ Bluetooth ▪ IEEE 1284 (parallel port)

The GW board must also be fitted with the Printer/Scanner option

Main Print Controller Specifications

CPU TMPR4955B-300 240MHz

RAM Standard

192MB (Resident 64MB + 128MB additional memory) Note: Additional 128MB Memory is pre-installed in the

Printer/Scanner Unit

Hard Disk Drive Not available

Standard RPCS, PCL6, PCL5e

PDL

Option Adobe PostScript 3

Continuous Print Speed Max. 16ppm / 20ppm (IS 2216 / 2220) A4/LT:LEF 600dpi

Print Resolution Max. 600 x 600 (dpi)

Standard PCL: 46 fonts : 10 TrueType, 35 Intellifont, 1 bitmap

Fonts

Option PS3: 136 Adobe Type 1 fonts

Standard Ethernet (RJ-45: 100BASE-TX/10BASE-T), USB 2.0

Connectivity

Host Interface

Option

Wireless LAN Interface (IEEE802.11b) IEEE1394 x 2 port (6 pin)

Parallel Port IEEE1284 Bluetooth

Note: Only one of above option can be installed.

Launch Guide IS2216 / IS2220 / IS2220D

Fax Functions

The IS 2216, IS 2220 and IS 2220D can be upgraded with a fax option to provide a powerful fax solution. The high speed G3 fax option offers the following:

¾ 33.6 bps modem speed ¾ 3 sec. transmission speed ¾ 1 sec. scanning speed ¾ 36 pages scanned per minute ¾ 150 speed dial numbers in the Address Book

Both fax numbers and E-mail addresses are registered in the Address Book and are easily managed from the PC with Web Image Monitor or SmartDevice Monitor. This is much easier than standing at the keyboard, inputting addresses one at a time.

Internet Fax

Internet Fax reduces the cost of long distance faxing and is automatically available if the fax and printer/scanner options are installed. The IS 2216/20/D converts scanned document images to email format and transmits the data over the internet. The E-mail sent by IS 2216/20/D can be received by another Internet Fax or a PC. Instead of entering the telephone number of the destination you wish to send to, input the applicable E-mail address.

Server

Internet

IS 2216/2220/2220D

E-mail: fax1@danka.com

E-mail: fax2@danka.com E-mail: pc@danka.com

Launch Guide IS2216 / IS2220 / IS2220D

LAN-Fax Feature (LAN-Fax M4)

LAN-Fax also comes standard when the fax and printer/scanner options are fitted. This means that the user can send faxes directly from the PC (as if sending them to a printer), without having to go to the fax machine or to make a print out.

Benefits of LAN-Fax

Paper Saving: Eliminates the need for printing faxes, saving on paper and printing costs

Reduction of work time and workload: Eliminate the need to walk to the fax machine to enter

the fax number

Improved Document Quality: The image sent from a LAN-fax to G3 Fax is better than from hard copy sent by fax, screened letters; images will be faxed clearly

Transmission Result Report: When sending a fax from LAN-Fax with a user code, the transmission result report is delivered to the E-mail address associated with the user code. There is no need to walk to the machine to check on the transmission result.

Address Book Import/Export: This feature allows users to convert from other LAN fax systems to the IS 2216/20/D’s LAN-Fax without having to re-input addresses.

Device Management Utilities

Web Image Monitor

When the IS 2216/20/D is fitted with the Printer/Scanner option, users can simply open a web browser, type in the IP address of the IS 2216/20/D and gain access to the machine. This feature allows users to monitor the machine status, change network settings and much more – all from the PC.

Web Image Monitor is easy to use and is available to everyone across the network. There is no need to install additional software on PCs, so no objections from the IT manager.

Telephone

Network

(PSTN)

Server

LAN

IS 2216/20/D

G3 Fax

Fax No. 123-456-789

Launch Guide IS2216 / IS2220 / IS2220D

Functions that you can monitor/change:

Administrator

Mode

User Mode

Input Tray YES YES

Output Tray YES YES

Toner YES YES

Function YES YES

System YES YES

Status

Printer Language YES YES

Job History YES YES

Printer

Error Log YES YES

Transmission YES YES

Reception YES YES

Job

Fax History

LAN-Fax YES YES

Address Book

YES NO

Paper YES NO

System YES NO

General YES YES

Key Operator Tools YES NO

Fax

Parameter Settings YES NO

Printer YES YES

E-mail YES YES

Interface YES YES

Protocol YES YES

TCP/IP YES YES

NetWare YES YES

AppleTalk YES YES

SMB YES YES

Protocol

SNMP YES NO

Network

System Log YES YES

Webpage YES YES

Password YES NO

Access Control YES NO

Configuration

Security

IPP Authentication YES NO

SmartDeviceMonitor

When the IS 2216/20/D is fitted with the Printer/Scanner option, users can monitor copier and fax status directly from the PC. Functions such as job end notification and recovery printing can be checked by the user. Administrators can:

¾ monitor network device status ¾ check trays, toner, options, printer language etc. ¾ import/export the address book ¾ export user code data for simple account management

Launch Guide IS2216 / IS2220 / IS2220D

SERVICE FACTORS

Target Reliability

Target Monthly Print / Copy

Volume

IS2216 IS2220 / IS2220D

ACV 3.5K 4K

Max CV Print 10K 10K

Duty (/month) 30K 30K

PM Interval 60K 60K

EM Interval (MCBF) 50K 50K

MCBC 27.3K 27.3K

Unit Life

5 yrs or 600K prints,

whichever comes 1st

5 yrs or 600K prints,

whichever comes 1st

OEM Equivalents

Infotec Ricoh Nashuatec Rex Rotary Gestetner Lanier

IS2216

Aficio 2016 DSm616 DSm616 DSm616 LD116

IS2220

Aficio 2020 DSm620 DSm620 DSm620 LD120

IS2220D

Aficio 2020D DSm620d DSm620d DSm620d LD120d

Launch Guide IS2216 / IS2220 / IS2220D

CONFIGURATIONS & PART NUMBERS

GW Board FAX PRINTER

GW Board – Essential for fax and /or Printer / Scanner

Fax Option

Printer / Scanner option Postscript 3 Wireless LAN Parallel I/I IEEE 1284 Firewire IEEE 1394 Bluetooth

INTERNAL OPTIONS

Platen Cover

ADF

ARDF

For IS2220D only

High

Cabinet

250

IS2015 – 15 cpm

250

IS2018 - 18cpm

250

IS2018D - 18cpm

Medium Cabinet

1 Paper Tray

500

Low Cabinet

1 Bin Tray Only for IS2220 / D

500

2 Paper Trays

Launch Guide IS2216 / IS2220 / IS2220D

ITEM PART No. COMMENTS

IS2216

890 101 21

Basic BW 15 ppm copier

Comes with 1 x 250 sheet paper supply and 16MB RAM.

Requires:

¾ Either a platen cover or an ADF

¾ Additional Paper supplies and/or cabinet are optional

as this can be used as a desktop model

¾ A drum comes as standard with every machine, but

toner and developer should be ordered separately

¾ Operator Instructions, which must be ordered

separately

Comes with electronic sort as standard, but, for rotate sort, an additional paper supply is needed

IS2220

890 101 22

Basic BW 20 ppm copier

Comes with 2 x 250 sheet paper supply and 16MB RAM

Electronic and rotate sort available as standard

For all other details – see IS2216

IS2220D

890 101 23

Basic BW 20 ppm copier, with duplex as standard

Requires:

ARDF 79 for copying double-sided documents

For all other details – see IS2220

Operator Instructions – English

890 516 09 Must be ordered separately with every machine

Operator Instructions – Dutch

890 516 14 “

Operator Instructions – Swedish

890 516 15 “

Operator Instructions – Norwegian

890 516 16 “

Operator Instructions – Danish

890 516 17 “

Operator Instructions – Finnish

890 516 18 “

Printer Language Kit - English

890 516 23 Must be ordered separately with every printer /scanner

Printer Language Kit - Dutch

890 516 28 “

Printer Language Kit - Swedish

890 516 29 “

Printer Language Kit - Norwegian

890 516 30 “

Printer Language Kit - Danish

890 516 31 “

Printer Language Kit - Finnish

890 516 32 “

Fax Language Kit - English

890 516 37 Must be ordered separately with every fax option

Fax Language Kit - Dutch

890 516 42 “

Fax Language Kit - Swedish

890 516 43 “

Fax Language Kit - Norwegian

890 516 44 “

Fax Language Kit - Danish

890 516 45 “

Fax Language Kit - Finnish

890 516 46 “

Launch Guide IS2216 / IS2220 / IS2220D

ITEM PART No. COMMENTS

Platen Cover (Type 1018)

890 300 50 Every machine needs an ADF or a platen cover

ADF - DF78

890 202 13

Every machine needs an ADF or a platen cover

The IS2220D requires a DF79

(The DF78 also fits the 4151/4181MF)

ARDF - DF79

890 202 14

For the IS2220D only

(The DF79 also fits the 4182MF)

1-Bin Tray - PT340

890 202 15

Extra output tray, to be fitted with internal output tray for separating fax output from copy/print output

100 sheet capacity

ONLY FOR IS2220 AND IS2220D, WHEN CONFIGURED AS A MULTI-FUNCTIONAL

Paper Bank (500 sheets x 1) PS460

890 200 46

Either a 1x500 or a 2x500 sheet paper bank can be added – not both.

With the PS460, a medium cabinet is required

NB: Although this paper bank is common with the previous models, only those manufactured from May 2003 will fit these new models

Paper Bank (500 sheets x 2) PS450

890 200 47

Either a 1x500 or a 2x500 sheet paper bank can be added – not both

With the PS450, a low cabinet is required

NB: Although this paper bank is common with the previous models, only those manufactured from May 2003 will fit these new models

Cabinet low

890 302 99

DIMENSIONS (WxDxH) – 550x515x271 mm

(Recommended for use with 2x500 sheet paper bank PS450)

Cabinet medium

890 300 60

DIMENSIONS (WxDxH) – 550x515x356 mm

(Recommended for use with 1x500 sheet paper bank PS460)

Cabinet high

890 300 61

DIMENSIONS (WxDxH) – 550x515x490 mm

(Recommended for use if no additional paper supply is fitted)

Launch Guide IS2216 / IS2220 / IS2220D

ITEM PART No. COMMENTS

Fax Option Type 2018

890 302 75

Group 3 33,600 bps fax option

Requires GW Board/Feature Expansion Board 2018

Printer/Scanner Option 2018

890 303 68

Printer/Scanner option – includes: Ethernet Network Interface Board, 128 MB RAM memory, USB2.0 interface

Postscript 3 Unit type 2018

890 302 79

Required for printing from a MAC

Recommended for printing PDF files more quickly

GW Board

890 303 74 Required if Printer/Scanner and/or fax option is fitted

GW BOARD IS ESSENTIAL FOR FITTING THE PRINTER / SCANNER UNIT

Wireless LAN Interface IEEE

802.11b Type D

890 302 78

For connectivity in Wireless LAN environment

Wireless LAN Features cannot be used at the same time as Ethernet

Firewire IEEE 1394

890 301 96

Firewire connectivity

Firewire features cannot be used at the same time as Ethernet

Bluetooth unit type 2045

890 302 71

For Bluetooth connectivity

Cannot be used with another connectivity option

Parallel IEEE1284 Interface

890 302 77 Parallel connectivity

ONLY ONE OF THE ABOVE CONNECTIVITY OPTIONS CAN BE INSTALLED AT THE SAME TIME

CONSUMABLES

Toner Black 2018/1

890 401 02

Minimum order quantity 6 bottles

9,000 pages per Cartridge @ A4, 6% chart

Developer Black 2018/1

890 401 03

Minimum order quantity 4 bags

60,000 pages per Bag @ A4, 6% chart

OPC Drum

890 400 07 60,000 pages

Launch Guide IS2216 / IS2220 / IS2220D

Option Correlations

{ - must be installed together ● - cannot be installed together

IS2216

ADF

Platen Cover

Paper Bank: 1x500 Sht

Paper Bank: 2x500 Sht

ADF

●

Platen Cover

●

Paper Bank: 1x500 Sht

●

Paper Bank: 2x500 Sht

●

IS2220 / D

ADF / ARDF

Platen Cover

Paper Bank: 1x500 Sht

Paper Bank: 2x500 Sht

1 Bin Tray

ADF / ARDF

●

Platen Cover

●

Paper Bank: 1x500 Sht

●

Paper Bank: 2x500 Sht

●

1 Bin Tray

Launch Guide IS2216 / IS2220 / IS2220D

PRODUCT SPECIFICATIONS

Mainframe Specification

Feature Specification

Scanning Element

Flatbed with moving CCD array image-sensor

Print Process

Twin Laser beam scanning/marking & Electro-photographic printing. Dry, dual component toner development

Resolution 600dpi

Gray Scale (per dot) Scanning: 256 levels, Marking: Binary

Warm-up time

Basic: Less than 15 seconds MFP: Less than 30 seconds

Multiple copy Up to 99

1st copy speed

Less than 6.5seconds (A4 / 8 1/2” x 11” LEF from the standard tray, no R/E)

Multi copy speed

IS 2216: 16cpm (16cpm one to one copying) IS 2220 / 2220D: 20cpm (18cpm one to one copying) (A4 / 8 1/2” x 11” LEF, no R/E)

Standard

IS 2216: 250 sheets tray x 1 IS 2220 and IS 2220D 250 sheets tray x 2 100 sheets multi bypass tray for IS 2216, IS 2220 and IS 2220D

Input Capacity

Options

Paper Bank: 500 sheet tray x 1 Paper Bank: 500 sheet tray x 2

Standard

Internal Tray: 250 sheets

Output Capacity

Options

1 Bin Tray: 100 sheets

Size:

Std Tray: A5 (LEF)- A3(SEF), 51/2” x 81/2”(LEF)-11” x 17”(SEF) Bypass :A6 (SEF) - A3 (SEF), 5 1/2”x 8 1/2”(SEF) - 11”x 17”(SEF) Duplex Unit: A5 – A3 (SEF), 8 1/2” x 11 – 11” x 17”(SEF)

Paper size / weight

Weight:

Standard Tray: 60 to 90 g/m

(16 to 24 lbs)

Bypass Tray: 52 to 162 g/m

(14 to 42 lbs)

Duplex Tray: 64-90g/ m

(20-24 lbs)-IS 2220D only

Memory Standard 16MB

Recovery time Less than 10 seconds

Enlargement 122, 141, 200 %

Reduction 93, 82, 71, 50%

Zoom 50% to 200% in 1% step increments

Image density adjustment Manual or automatic

Interrupt copy Not available

Electronic counter Standard

Launch Guide IS2216 / IS2220 / IS2220D

Feature Specification

User code Standard (50 codes, eight digits)

Language

English, German, French, Italian, Spanish, Dutch, Swedish, Norwegian, Danish, Portuguese, Polish, Czech, Finnish, Hungarian, Russian

Standard

IS 2216: W550 x D568 x H420 mm (21.65” x 22.36”x 16.54”) IS 2220: W550 x D568 x H558mm (21.65” x 22.36” x 21.97”) IS 2220D: W587 x D568 x H558mm (23.11” x 22.36” x 21.97”)

With ADF

Height: Approx. IS 2216: 510mm (20.08”) IS 2220: 648mm (25.51”)

Dimensions

With ARDF IS 2220D: 688mm (27.09”)

Weight

IS 2216: 35 kg (78 lb) or less IS 2220: 44 kg (96 lb) or less IS 2220D: 47 kg (103 lb) or less

Rating power spec: 220-240V, 50/60 Hz

Power consumption: Full system: Less than 1.28KW

Launch Guide IS2216 / IS2220 / IS2220D

Copier Specification – Enhanced Features

Feature Specification

Auto Paper Selection

Standard

Auto Magnification Selection

Standard

Auto tray switch

IS 2216: Option - available with optional paper bank IS 2220 / 2220D: Standard

Directional magnification (%)

Directional size magnification (inch/mm)

Photo mode

Standard (photo mode)

Auto start

Standard

Auto start Standard

User program No

Duplex

IS 2216 / 2220: No IS 2220D: Standard

Electronic sort

IS 2216: Standard (for Rotate sorting, optional Paper Bank required)

IS 2220 / 2220D: Standard

Scan once copy many Standard

Image rotation Standard

Series copy

Standard

*Book Æ2 one sided sheets

Combine copy Standard (2 in 1, 4 in 1)

Double copy No

Erase center / boarder No

Image overlay No

Positive/Negative No

Stapling No

Stamp features No

Cover/Sheet insertion No

Output detection

No *1 bin tray: Yes (LED indicates if paper is in the tray)

Launch Guide IS2216 / IS2220 / IS2220D

PERIPHERALS SPECIFICATIONS

ADF – DF78

Feature Specification

Original Size

A5 - A3 (SEF), 5 1/2” x 8 1/2” - 11” x 17” (SEF)

Original Weight:

52 – 105gsm, 14 - 28 lbs.

Stack Capacity:

30 sheets (80 gsm, 20 lbs.)

Power Consumption:

W or less

Dimensions (WxDxH):

550 x 470 x 90mm, 21.6” x 18.5” x 3.55”

Weight:

7kg (15.4lbs)

ARDF – DF79 (IS2220D Only)

Feature Specification

Original Size

A5 - A3 (SEF), 5 1/2” x 8 1/2” - 11” x 17” (SEF)

Simplex

40 - 128 gsm, 10 - 34 lbs.

Original Weight:

Duplex

52 – 105gsm, 14 - 28 lbs.

Stack Capacity:

50 sheets (80 gsm, 20 lbs.)

Power Consumption:

W or less

Dimensions (WxDxH):

550 x 470 x 130mm, 21.6” x 18.5” x 5.1”

Weight:

10kg (22.05lbs)

One Bin Tray – PT340

Feature Specification

Bin Capacity:

100 sheets (80gsm)

Paper Size:

A5 - A3(SEF), 5 1/2” x 8 1/2” - 11” x 17”(SEF)

Paper Weight:

60-105gsm, 16-28lb

Power Consumption:

20W or less

Dimension (WxDxH):

Unit: 222 x 478 x 104 mm (8.5” x 18.9” x 4.1”) Tray: 335 x 390 x 26 mm (13.2” x 15.4” x 1.1”)

Weight:

1.550kg (3.5lb) or less

Launch Guide IS2216 / IS2220 / IS2220D

Paper Bank – PS460

Feature Specification

Paper Size:

A5-A3 (SEF) 5 ½” x 8 1/2 “ to 11” x 17” (SEF)

Paper Weight:

60-105 gsm (16-28 lbs)

Paper Capacity

500 x 1 (80 gsm/20 lbs)

Power Consumption:

30w or less

Dimensions (WxDxH):

550 x 520 x 134 mm, 21.6” x 20.5” x 5.3”

Weight:

12 kg (26.5 lbs) or less

Paper Bank – PS450

Feature Specification

Paper Size:

A5-A3 (SEF) 5 ½” x 8 1/2 “ to 11” x 17” (SEF)

Paper Weight:

60-105 gsm (16-28 lbs)

Paper Capacity

500 x 1 (80 gsm/20 lbs)

Power Consumption:

30w or less

Dimensions (WxDxH):

550 x 520 x 271 mm, 21.6” x 20.5” x 10.6”

Weight:

25 kg (55.1lbs) or less

Launch Guide IS2216 / IS2220 / IS2220D

Scanner

Feature Specification

Optical Resolution:

600 dpi

Scan Speed:

Scan to E-mail and ScanRouter: approx. 43ipm/min (A4 LEF, 200dpi binary, MH, ITU-T No.1 chart via ADF) TWAIN: approx. 25ipm/min (A4 LEF, 200dpi binary, MMR ITU-T No.1 chart via ADF) *Scanning speed varies according to machine operating conditions, computer (specification, network traffic, software, etc.) and original types.

Scanning time

Less than 1 second (A4/LT LEF, 200dpi, binary)

Contact Glass

A3 SEF, B4 SEF, A4 SEF/LEF, B5 LEF, A5 LEF, Foolscap SEF

Auto scan size detection:

ARDF

A3 SEF, B4 SEF, A4 SEF/LEF, B5 SEF/LEF, A5 SEF/LEF

Foolscap SEF

Scan Area:

Main scan: 297mm, Sub scan: 432mm

Compression Method:

TIFF (MH - Default, MR, MMR) – Can be changed in SP Mode

Network Topology:

Ethernet 10/100BaseTX IP over IEEE 1394

Wireless LAN (802.11b)

Protocol:

TCP/IP

Image density

Lighter to Darker: 5 degrees

2 sided scan

IS 2216 / 2220: No IS 2220D: Yes (optional ARDF required)

Image Rotation

Yes

Max number of original stored

100 sheets (A4/ 200dpi/ MH/ 6% chart)

Web Status Monitor

Standard

There is a limit to the number of pages you can scan and send because IS 2216/2220/D does not have a HDD

Network TWAIN Driver

Feature Specification

Document Size:

Max A3 / 11”x17”

Resolution:

Scanner: 600dpi Driver: 100-600dpi in 1dpi step

OS:

Windows 95 (OSR 2 or later), Windows98/ME/XP/2000, Windows NT (SP 5 or later)

Memory:

Minimum required memory for OS + 8MB

CPU:

Pentium 150MHz or more, or minimum required CPU for OS

HDD:

More than 100MB of disk space is required

Network:

Protocol: TCP/IP, UDP/IP, ICMP/IP

Launch Guide IS2216 / IS2220 / IS2220D

Scan to E-mail

Feature Specification

Requirement:

SMTP (Mail Server) Gateway and TCP/IP

Authorization function:

SMTP authentication POP 3 authentication POP before SMTP authentication

Max. 150

Destination

Max. 100 from address book Manual input: 50 destinations per job

Group Address

Max 10 Group (max 100 users in one group)

Maintain E-mail Address

Operation panel, Web Image Monitor, Smart Device Monitor

Attention

By name, by destination list (all), by registration No., by e-mail address

Input Subject

Max 64 Characters via hard key

Body Message

Fixed message is attached to the E-mail (language is selectable by the user)

The following message is attached:

- Greeting: “This E-mail was sent from xxxx (host name, machine model name)”

- Scan Date

- Queries to: Key operator’s E-mail address.

Max E-mail data size

Adjustable for transmission (from 64KB to 8580KB) *Default: 2048KB

Scan Mode (original type)

Text (print) (*default), Text (OCR), Photo (*default), Text/Photo,

File Format

Single Page: TIFF Multi Page: TIFF, PDF (*default: Multi page TIFF)

Resolution

100dpi, 200dpi (default), 300dpi, 400dpi, 600dpi

Divide and send E-mail

Yes (By page or size)

Batch Transmission

Local Storage

LDAP access

Resend

Launch Guide IS2216 / IS2220 / IS2220D

ScanRouter V2 Lite & DeskTopBinder

Feature Specification

Resolution

100, 200, 300, 400, 600 dpi binary

Scan Mode (original type)

Text (print) (*default), Text (OCR), Photo (*default), Text/Photo,

File Format

Single Page: TIFF Multi Page: TIFF, PDF (*default: Multi page TIFF)

Operating System

Delivery Server for ScanRouter V2 Lite

Windows 95(OSR2 or later), 98/98SE Windows ME Windows NT Server4.0 (SP5 or later) Windows2000Server Windows XP

Client PC for DeskTopBinder

Windows 95(after OSR2), 98/98SE Windows ME Windows NT Workstation 4.0(SP5 or later) Windows NT Server4.0 (SP5 or later) Windows2000 Professional, Windows2000Server Windows XP

Memory

Delivery Server for ScanRouter V2 Lite

Min 64MB (128MB or more recommended)

Client PC for DeskTopBinder

Min 48MB (64MB or more recommended)

CPU

Delivery Server for ScanRouter V2 Lite

Pentium 200MHz minimum (Pentium350MHz minimum recommended)

Client PC for DeskTopBinder

Pentium 133MHz or faster (Pentium 266MHz or faster recommended)

HDD

Delivery Server for ScanRouter V2 Lite

At least 200MB of disk space are required for installation. In addition, 500MB or more are required.

Client PC for DeskTopBinder

50MB or more (200MB recommended)

Launch Guide IS2216 / IS2220 / IS2220D

Printer

Feature Specification

CPU

TMPR4955B-300 240MHz

RAM Std.

192MB (Resident 64MB + 128MB additional memory)

Note: Additional 128MB Memory is pre-installed in the Printer/Scanner Unit

Hard Disk

Not available

Std.

PCL5e, PCL6, RPCS

PDL

Option

Adobe PostScript3

Continuous Print Speed

Max

16ppm / 20ppm (IS 2216 / 2220) A4/LT:LEF 600dpi

Engine 600x600 (dpi)

PCL5e 300x300 (dpi)/ 600x600 (dpi)

PCL6 600x600 (dpi)

RPCS 600x600 (dpi)

Controller

PS3 (Option) 300x300 (dpi)/ 600x600 (dpi)

PCL5e 300x300 (dpi)/ 600x600 (dpi)

PCL6 600x600 (dpi)

RPCS 300x300 (dpi)/ 600x600 (dpi)

Print Resolution

Drivers

PS3 (Option) 600x600 (dpi)

Std.

PCL: 46 fonts (TrueType: 10 fonts, Intellifont: 35 fonts, 1 bitmap font)

Fonts

Option

PS3: 136 Adobe Type 1 fonts

Std.

RJ-45 network port (100BASE-TX/10BASE-T), USB2.0

Host Interface

Option

Wireless LAN Interface (IEEE802.11b) IEEE1394 x 2 port (6 pin)

Parallel Port IEEE1284 Bluetooth

Note: Only one of above option can be installed.

Network Protocol

TCP/IP, IPX/SPX, NetBEUI (*1), AppleTalk (Auto Switching)

Standard MIB

MIB-II (RFC1213), Host Resource (RFC1514), Printer Mib (RFC1759)

MIB support

Private MIB

Ricoh Original

Connectivity

Network/Operating Systems

Unix: Sun Solaris 2.6 / 7 / 8 / 9 HP-UX 10.X / 11x SCO Open Server 5.0.6 Red Hat Linux6.x / 7.x / 8.x IBM AIX V4.3/5L V5.1

Mac OS 8.6 - 9.2.X (OS X Classic) Mac OS 10.1 or Later

Note *1: Smart Device Monitor for client is required for Net BEUI.

Launch Guide IS2216 / IS2220 / IS2220D

Printer Driver Features

PostScript3

PCL 5e / 6 RPCS

Windows

9x / Me

Windows

NT4

Windows 2000 / XP

Mac OS

8.6-9.2

Mac OSX

Job Binding

N Y N N N N N

Send to Document Server

N N N N N N N

Sample Print

N N N N N N N

Locked Print

N N N N N N N

Reduce/Enlarge (Scaling)

Y Y Y Y Y Y Y

Reduce/Enlarge Centering

N Y N N N N N

Collate

Y Y Y Y Y Y Y

Layout (N-up)

Y Y Y Y Y Y Y

Poster

N Y N N N Y N

Duplex (Note 1)

Y Y Y Y Y Y Y

Booklet1

N Y N N N N N

Booklet2 (Magazine)

Y Y

N N N N N

Non-Reduction Booklet

Y Y

N N N N N

Punch

N N N N N N N

Staple

N N N N N N N

Front Cover Sheet

N N N N N Y Y

Front and Back Cover Sheets

N N N N N N N

Slip Sheet

N N N N N N N

Chaptering (Page Layouting)

N N N N N N N

Chaptering (Single Page Inserting)

N N N N N N N

Chaptering (Page Block Inserting)

N N N N N N N

User Defined Pages

N N N N N N

Tab Stock Printing

N N N N N N N

Mirror Image Print

N N Y Y Y Y N

Negative Image Print

N N Y Y Y Y N

Dithering

N Y N N N N N

Edge Smoothing

Y Y Y Y Y Y Y

Toner Saving

Y Y Y Y Y Y Y

Watermark (only IS 2220D)

Y Y Y Y*1 Y *1 Y Y *1

Form Overlay

N Y N N N N N

Header/Footer

N Y N N N N N

Adjust image position

N Y N N N N N

Binding Margins

N Y N N N N N

User ID

Y Y Y Y Y Y

User Code

Y Y Y Y Y Y

Rotate Print

Y Y Y Y Y

N N

Reverse Order Print

N Y N N Y Y Y

Do not print Blank pages

N Y N N N N N

Edge to Edge Print

Y Y

N N N N N

Y: supported N: not supported Y*1: Custom “Watermark Name” is not available Note 1: Feature available only in Duplex standard model.

Launch Guide IS2216 / IS2220 / IS2220D

Supported Environments

Windows OS

OS Type PCL5e/6 RPCS PostScript3

Windows 9x/Me -

Y Y Y

WorkStation 4.0

Y *1 Y *1 Y *2

Server 4.0

Y *1 Y *1 Y *2

Server 4.0 TSE (*6)

Y *2 Y *2 Y *2

Windows NT

Server 4.0 Enterprise Edition

N N N

Professional

Y Y Y *3

Server (*6)

Y Y Y *3

Advanced Server (*6)

Y *4 Y *4 Y *3*4

Windows 2000

Datacenter Server

N N N

Professional

Y Y *5 Y *3

Windows XP

Home Edition

Y Y*5 Y*3

Standard

Y Y*7 Y

Enterprise

Y *4 Y*4*7 Y *3*4

Datacenter Edition

N N N

Windows Server

2003

Web Edition

N N N

*1…Service Pack 4 or later is required. *2…Service Pack 6 or later is required. *3…Adobe has not released a PS driver for Windows 2000 and XP. Only MS-PostScript driver is available and PPD file for MS-PS is included in the Driver CD. *4…Cluster Server configuration is not supported. *5…RPCS driver does not support the “Fast User Switching” functions of Windows XP. *6…See “Point & Print” and “Terminal Service & Citrix MetaFrame” *7…In system environments with Windows Server 2003, the following printer driver functions have limitations.

RPCS Driver Function Administrator User

Custom Settings Icon

A B

Add/Change Custom Settings

A B

Manage Icons

A B

Printer Configuration

A B

Job Type

N/A N/A

Overlay

N/A N/A

Watermarks

A B

Save/Restore Settings

N/A N/A

User Settings

A B

Custom Paper Size

A B

Chaptering

N/A N/A

A: Authorized for changing and registering B: Access to use only

Launch Guide IS2216 / IS2220 / IS2220D

Point & Print

Window OS Drivers

Server Client (Push to) PCL5e PCL6 RPCS PS

Windows Server 2003 Standard, Enterprise Edition

Yes Yes Yes Yes

XP Yes Yes Yes Yes

W2K Pro Yes Yes Yes Yes

NT4.0 WS Yes Yes Yes Yes

Windows XP Professional

98 / Me Yes Yes Yes Yes

XP Yes Yes Yes Yes

W2K Pro Yes Yes Yes Yes

NT4.0 WS Yes Yes Yes Yes

Windows 2000 Professional, Server & Advanced Server

98 / Me Yes Yes Yes Yes

XP No No No No

W2K Pro Yes Yes No No

NT4.0 WS Yes Yes Yes Yes

NT4.0 Workstation Server (Intel)

98 / Me Yes Yes Yes Yes

Terminal Service & Citrix Meta Frame

Driver

Server

PCL5e PCL6 RPCS PS3

Windows Server 2003

Yes Yes No Yes

Windows2000 Server

Yes Yes No Yes

Windows NT4.0 TSE

Yes Yes No Yes

Win 2000 Servers + Meta Frame

Yes Yes No Yes

Win NT4.0 TSE +Meta Frame

Yes Yes No Yes

Operating Environment

The following combinations of operation systems and Citrix Meta Frame are supported:

Windows NT Server 4.0 Terminal Server Edition …SP6 or later recommended

Windows Terminal Service (RDP protocol) Meta Frame 1.8 SP3/FR1 + SP3 (ICA protocol) Meta Frame XP 1.0 SP1/FR1 (ICA protocol)

Windows 2000 Server / Advanced Server…SP3 and later recommended

Windows Terminal Service (RDP protocol) Meta Frame 1.8 SP3/FR1 + SP3 (ICA protocol) *1 Meta Frame XP 1.0 SP1/SP2/FR1/FR2 (ICA protocol)

*1…Only PS driver fully support this environment.

Launch Guide IS2216 / IS2220 / IS2220D

Mac OS

PostScript3 Printer Utility for MAC

Mac OS 8.6 or later (OS X Classic)

Yes Yes

Mac OS X Native (v. 10.1 or Later) *1

Yes Yes*2

*1: Mac OS X v.10.0.X is not supported. *2: Mac OS X v.10.2.0 is not supported.

UNIX Filter

Unix Platforms Version

Sun Solaris

2.6 / 7 / 8 / 9

HP-UX

10.x / 11x

Red Hat Linux

6.X / 7.x / 8.x

(Device option feature is not supported in 6.x.)

SCO OpenServer

5.0.6

IBM AIX

V4.3 / 5L V5.1

Data Stream

PostScript, PCL (Device option feature not supported),ASCII Text

Localization

English only

Note: Device option feature enables use of optional equipment such as finisher and paper trays.

Novell Netware

Supported Version

Netware 3.12, 3.2, 4.1, 4.11, 5.0, 5.1, 6

Netware Server

Client OS

Windows 95 /98 /Me, NT4.0 / 2000, XP (Professional)

Supported Version

Netware 5.0(SP5 or Later), 5.1, 6

NDPS Gateway

Localization

English only

Launch Guide IS2216 / IS2220 / IS2220D

Language Support

Print Driver

Language

LCD

Touch

Panel

RPCS PCL6c PS3

LAN-FAX

Editor

English Y Y Y Y Y German Y Y Y Y Y French Y Y Y Y Y Italian Y Y Y Y Y Spanish Y Y Y Y Y Dutch Y Y Y Y Y Swedish Y Y Y Y Y Norwegian Y Y Y Y Y Danish Y Y Y Y Y Czech Y Y Y N Y Hungarian Y Y Y N Y Finnish Y Y Y N Y Polish Y Y Y N Y Portuguese Y Y Y N Y Russian Y Y Y N Y Korean N N N N Y Simplified Chinese Y Y Y Y Y Traditional Chinese N N N N Y

Contents of CD-ROM

CD #1 Printer Drivers and Utilities

RPCS printer driver PCL printer driver PostScript printer driver LAN-Fax driver SmartDeviceMonitor for Admin SmartDeviceMonitor for Client FontManager 2000 Printer Utility for Mac 1394 Utility

CD #2 Scanner Driver and Document Management Utilities

TWAIN driver ScanRouter V2 Lite (includes Setup Guide & Management Guide) DeskTopBinder (includes “Setup Guide”, “Introduction Guide” and ScanRouter V2 Link Guide”) Acrobat Reader

CD #3 Operating Instructions for Printer/Scanner

Network Guide Printer Reference 2 Scanner Reference (includes “Network TWAIN Scanner Reference) PostScript 3 Supplement

Launch Guide IS2216 / IS2220 / IS2220D

Connectivity Specifications

USB2.0 Interface

This interface provides easy printing connectivity in the customer’s environment. Note

: USB2.0 can be used only for the printing function.

Hardware Specification

Interface USB2.0/1.1

Data transfer speed

480Mbps (high speed) 12Mbps (full speed) High speed is supported only by USB 2.0.

System requirement

Supported OS

USB1.1 => Windows 98SE/ 2000/ Me/ XP,

MAC OS 9.x, X classic mode USB2.0*=> Windows XP, 2000 *Depends on driver support schedule of Microsoft.

PnP (Plug and Play) : When the USB cable is connected, OS will automatically recognize the printer and proceed to one of following:

1. USB driver is installed: OS automatically set up the printer

2. USB driver is not installed: Pop-up menu recommends installing the driver

Typical connections

USB Hub

Scanner

Launch Guide IS2216 / IS2220 / IS2220D

Wireless LAN Interface (Option) …IEEE802.11b

The Wireless LAN interface enables the IS 2216/20/D to communicate with PCs with wireless interface cards.

Note: 100Base-TX/10Base-T and Wireless LAN cannot be used at the same time.

Data transmission speed

Auto (11Mbps, 5.5Mbps, 2M bps, 1Mbps) Manually selectable to 11Mbps/ 5.5Mbps/ 2Mbps/ 1Mbps fixed

Protocol

TCP/IP

Frequency

From 2,400 MHz to 2,497MHz

Channel

1-13 ch

Types of connection

Ad hoc mode, Infrastructure mode

Distance between devices

11 Mbps: 140 m, 5.5 Mbps: 200 m, 2 Mbps: 270 m, 1 Mbps: 400 m

The above is the max distance when using in the open air, and these depend on office environment.

WEP (Encryption) Setting*

64 bit (10 digits) /128 bit (26 digits)

Antenna

2 antennas are included in this option.

*WEP: Wired Equivalent Privacy. WEP is an encryption method that protects wireless data communication. Both the devices sending and receiving data through wireless communication need to have the same WEP Key when communicating with each other.

Types of connection

(1) Ad hoc mode … communicates between each wireless client

Note:

¾ Ad hoc mode connection does not support communication with Novell Netware Servers

because Netware does not support the Wireless LAN interface

¾ 2 types of Ad hoc mode are selectable, “ad hoc mode” (uses only channel setting) or

“802.11b ad hoc mode” (uses channel setting and Service Set ID when communicating with other SSID devices)

(2) Infrastructure mode…communicates through Access Point device

Note:

¾ The Wireless LAN interface can be used for printing and scanning

Access Point

Launch Guide IS2216 / IS2220 / IS2220D

IEEE 1394 Interface (Option)

Two types of connection are available, “SCSI print” and “IP over 1394”.

SCSI print IP over 1394

Available function

Print Print, Scan

PC OS

Windows 2000 SP1, XP Windows Me (*), XP

Protocol

SBP-2 TCP/IP

Bi-directional communication

Yes Yes

When printing with IP over 1394 from a PC (OS: Windows Me), Smart Device Monitor for Client version 5.0 or later is required

SCSI print

This function enables customers to connect to and use the IS 2216/20/D as a printing device (only from PCs installed with Windows 2000 and XP).

Hardware Specification

Interface

IEEE 1394

Number of ports

2 ports (6 pin)

Data Transmission speed

400Mbps / 200Mbps / 100Mbps

Bundled cables

1 x 6pin-4pin cable 1 x 6pin-6pin cable Length of cable; 2.0m (78.74inch).

System requirement for SCSI print

Supported OS

MS-Windiows2000, XP *Supported OS

- MS-Windows 2000 Professional with Service Pack 1

- MS-Windows 2000 Server with Service Pack 1

Number of Hops

16 hops (Max.)

Length of cable

4.5m between devices (Max.)

When printing with IP over 1394 from a PC (OS: Windows Me), Smart Device Monitor for Client version 5.0 or later is required

IP over 1394

This provides printing and scanning through the IEEE 1394 interface. Note: the IP over 1394 feature cannot be used with standard Ethernet at the same time.

Hardware Specification

Interface

IEEE 1394

Number of ports

2 ports (6 pin)

Data Transmission speed

400Mbps / 200Mbps / 100Mbps

Bundled cables

1 x 6pin-4pin cable 1 x 6pin-6pin cable Length of cable; 2.0m (78.74inch).

System requirement for IP over 1394

Supported OS

Windows Me, XP

Protocol

TCP/IP

Number of Hops

16 hops (Max.)

Length of cable

4.5m between devices (Max.)

When printing with IP over 1394 from a PC (OS: Windows Me), Smart Device Monitor for Client version 5.0 or later is required

Launch Guide IS2216 / IS2220 / IS2220D

Bluetooth Interface (Option)

Bluetooth is a short distance radio communication technology

-Aimed at substituting cabling

-Range of approximately 10m

-Low consumption electricity

-Low price

-Uses 2.4GHz ISM band (same electric wave as a microwave oven and 802.11b Wireless LAN)

-Frequency Hopping Spread Spectrum (FHSS) system

-Many of protocols used with infrared communication (IrDA) can also be used with Bluetooth

Hardware Specifications

Transmission spec

Based on Bluetooth V1.1

Data Transfer Speed

1Mbps

Profile

Hardcopy Cable Replacement Profile (HCRP), Serial Port Profile (SPP)

Distance between devices

10 m The above is the max distance when in the open, and the

distance depends on the office environment

System requirement

Supported OS

Win XP, 2000, 98 SE, Me It will also depend on the support OS of the Bluetooth Card

Connectable PCs

- Host PC with PCMCIA card slots “3COM Wireless Bluetooth PC Card 3CRWB6096” or “3COM

Wireless Bluetooth USB Adaptor 3CREB96” is required

- Toshiba PC with Bluetooth Software Ver1.02.18 or later

Launch Guide IS2216 / IS2220 / IS2220D

FAX

General Specification

Feature Specification

Circuit:

PSTN, PBX

Compatibility:

ITU-T (CCITT) G3

Resolution:

200x100dpi, 200x200 dpi, 200x400dpi (not A3) 8 x 3.85 l/mm, 8x7.7 l/mm, 8x15.4 l/mm (not A3)

Compression method:

MH, MR, MMR, JBIG

Scanning speed:

1.0 second (200x200/200x100, A4/ 8 1/2”x11” SEF)

2.0 second (200x400dpi, A4 / 8 1/2”x11” SEF)

Number of Pages Scanned:

Short Edge Feed: 30 pages/ minute (200x100dpi, 200x200dpi) 16 pages/ minute (200x400dpi) Long Edge Feed: 36 pages/ minute (200x100dpi, 200x200dpi) 33 pages/ minute (200x400dpi)

Modem speed:

Standard with Automatic Shift Down: 336000, 31200, 28800, 26400, 24000, 21600, 19200, 16800, 14400,

12000, 9600, 7200, 4800, 2400 bps

Transmission speed:

G3: Approx.3 seconds (200x100dpi, ITUT #1 chart, A4SEF, MMR, TTI off, memory transmission)

G3: Approx.2 seconds (200/100dpi, ITUT#1 chart, A4SEF, with JBIG, TTI off, memory transmission)

SAF memory:

Standard: 2 MB (no SAF memory option available)

Page memory

3 MB (no page memory option available)

SAF memory storage

160 sheets (ITU-T No. 1 chart)

Memory backup:

One hour

Super smoothing:

Standard (Binary)

Stamp:

Option (Available with document feeder)

TTI/RTI:

Standard

CSI:

Standard

Quick dial:

Standard (32 numbers) – 32 out of 150 speed dials can be assigned

Speed dial:

Standard (150 numbers)

Group dial:

Standard (10 groups, Max. 100 numbers per group)

Keystroke program:

Redial:

Standard (Last 10 destinations)

AI short protocol:

Standard

Direct fax number entry:

Standard

Dual access:

Standard

Launch Guide IS2216 / IS2220 / IS2220D

General Specification (Cont’d)

Feature Specification

User Code:

Standard (8 digits, 50 Personal Codes)

Label insertion:

Standard

Auto document

Telephone directory

Standard

Page count

Standard

Auto reduction

Standard (A3ÆB4, A3ÆA4, B4ÆA4)

Wild cards

Standard

Summer time

Standard

SUB/SID code

ID code programming

Standard (4 digits, only for Memory Lock)

Programming by OMR

User function key

Standard (3 keys)

Night timer

Energy saver

Standard

LCD prompt

Standard

Remaining memory indication

Standard

Time indicator/clock adjustment

No /Standard

User parameter setting

Standard

User data transfer

Standard

Memory file transfer

Standard

Internet FAX

Option (T.37, Full mode) – Printer/Scanner required

LAN Fax

Option (Printer/Scanner required)

Local Storage

Launch Guide IS2216 / IS2220 / IS2220D

Transmission Specification

Feature Specification

Immediate transmission

Standard

Memory transmission

Standard (Max files: 200, Max attention: 300)

Serial broadcasting (later)

Standard (Max. 300 numbers)

Send later

Standard (memory transmission only)

Automatic Redial

Standard (memory transmission only)

Error correction mode

Standard

Page retransmission

Standard

Economy transmission

Forwarding

Standard

Batch transmission

Standard

Parallel memory transmission

Standard (Automatically selected.)

Image rotation

Standard

Book fax

No (Book fax = split 2 facing pages of book original into 2 separate pages and send each page separately)

Transmission deadline

Closed network (transmission)

Confidential transmission/with ID

Transfer request

Transfer transmission

Multi-step Transfer

Polling transmission

Double sided memory transmission

IS 2216 / 2220: No IS 2220D: Yes, with ARDF (up to A3 SEF)

Transmission reserve

Well log transmission

Standard (Max. 600mm)

Blank Sheet Detection

Standard

Reception Specification

Feature Specification

Automatic reception

Standard

Manual reception

Standard

Substitute reception

Yes

Authorized reception

Standard

Multi copy

Reverse order printing

Memory lock

Yes

Confidential reception

Special reception numbers

Launch Guide IS2216 / IS2220 / IS2220D

Reception Specification (cont’d)

Feature Specification

Closed network

Polling reception

Poll later

Polling from memory

Multi-polling reception

Continuous polling

Reception time printing

Standard

Center mark

Standard

Checkered mark

Standard

2 in 1 (two in one)

Standard

Image rotation

Standard

Image reduction

Standard

Economy printing mode

Duplex reception

Internet Fax (T.37 Full mode) Basic Specification

Feature Specification

Requirement

Fax option and Printer/Scanner option

Interface

Ethernet (100BASE-TX/ 10BASE-T) Wireless LAN Interface (IEEE802.11b) IEEE1394 (IP over)

Paper Size

A3, DLT, B4, A4, Letter, Legal, B5, A5

Resolution

200x100dpi, 200x200dpi (default), 200x400dpi

Compression method

MH, MR, MMR

File Format

TIFF-F

Scan Mode

Text: for text original Photo: for photo mode original

Address storage capacity

Standard: 150 (Share address book capacity with E-mail address)

Maintain E-mail Address

Operation panel, Web Image Monitor, Smart Device Monitor

Attention

To (max attention 300 address)

Attached Subjects

5 programmess Default: “Urgent”/ “High” Enter up to 64 characters per subject

Destination combination

Internet fax and G3 fax

Launch Guide IS2216 / IS2220 / IS2220D

LAN-Fax M4 Specifications

Feature Specification

Requirement

Fax option and Printer/Scanner option

Paper Size

A3, DLT, B4, A4, Letter, Legal, B5, A5

Resolution

Detail (200 x 200 dpi) *default Standard (200 x 100 dpi)

Gray Scale

Off On normal *default On lighter

Number of Addresses

300 (per one transmission)

Windows 95/98/Me/XP, Windows NT4.0, Windows2000/2003

Memory

Minimum required for each OS

CPU

Minimum required for each OS

Interface

Ethernet (100Base-TX/ 10BASE-T) Wireless LAN Interface (IEEE802.11b) IEEE 1394 (IP over)

Protocol

TTI

Yes

Compression Method

MMR

Send Later

Yes

Page Rotation

Yes

Internet Fax

Yes (you can only send to I-fax through LAN-fax to destinations registered in the address book)

Local Storage

MIB

Yes

Transfer Request

Cover Sheet Editor

Yes

Address Book Import/Export

Yes

Launch Guide IS2216 / IS2220 / IS2220D

ENVIRONMENTAL SPECIFICATIONS

Mechanical Noise Level (power level)

Sound Power Level:

Copier Only Full System

Copying

62dB or less 66dB or less

Stand-by

40dB or less 40dB or less

Ozone/Dust/Styrene Emission Level

Target ( m g / m3)

Ozone Emission 0.02mg/m3 or below

Dust 0.075mg/m3 or below

Styrene Emission 0.07mg/m3 or below

Identification of Plastic Components

All plastic components for IS 2225/2230 which weight more than 25g are identified in accordance with DIN54840 and ISO11469.

Environmental Regulation

BAM Energy Star Swan ASTIM

Targe t Yes Ye s Yes Ye s

Power Consumption

Copier Only Fax, or Printer/Scanner installed

Power Consumption 40W 45W

Default Interval 1minute 1 minute

New Power Mode

Recovery Time Less than 10 seconds Less than 10 seconds

Power Consumption Less than 10W

Sleep Mode

Default Interval 1 minute

Power Consumption Less than 1W

Auto Off Mode

Default Interval 1 minute

Transport & Storage Conditions

Storage Transportation

-30 ~ 40°C Less than 80% RH Storage period: Max 12 months Stack Max: IS 2216: 6 cartons IS 2220/2220D: 5 cartons

-30 ~ 50°C 15% ~ 90% RH Stack Max: 3 cartons

Launch Guide IS2216 / IS2220 / IS2220D

PART NO.S & COMPATIBILITY

ITEM NAME STATUS COMMON WITH PART NO.

IS 2216 New

890 101 21

IS 2220 New

890 101 22

IS 2220D New

890 101 23

OPTIONS

Platen Cover Type 1018

Current

IS 2015-18-D 890 300 50

ADF - DF78 (30 sheets)

Current

IS 2015-18-D 890 202 13

ARDF - DF79 (50 sheets)

Current

IS 2015-18-D 890 202 14

Printer/Scanner Controller Type 2018

New

IS 2015-18-D Compatible 890 303 68

GW Board

New

IS 2015-18-D Compatible 890 303 74

Fax Option Type 2018

Current

IS 2015-18-D 890 302 75

PS460 - 1 tray Paper Bank

Current

IS 2015-18-D 890 200 46

PS450 - 2 tray Paper Bank

Current

IS 2015-18-D 890 200 47

PT340 - 1 Bin Tray (100 sheets)

Current

IS 2015-18-D 890 202 15

Firewire IEEE 1394 I/F Board Type B

Current

IS 2015-18-D 890 301 96

IEEE 1284 Interface Unit Type A

Current

IS 2015-18-D 890 302 77

Wireless LAN IEEE802.11b Type D

Current

IS 2015-18-D 890 302 78

Bluetooth Interface Unit Type 2238

Current

ISC2432-2838 890 302 71

PostScript 3 Option Type 2018

Current

IS 2015-18-D 890 302 79

High Cabinet

Current

IS 2015-18-D 890 300 61

Medium Cabinet

Current

IS 2015-18-D 890 300 60

Low Cabinet

Current

IS 2015-18-D 890 302 99

OPERATIONAL INSTRUCTIONS

English

New

890 516 09

Dutch

New

890 516 14

Swedish

New

890 516 15

Norwegian

New

890 516 16

Danish

New

890 516 17

Finnish

New

890 516 18

Printer Language Kit - English

New

890 516 23

Printer Language Kit - Dutch

New

890 516 28

Printer Language Kit - Swedish

New

890 516 29

Printer Language Kit - Norwegian

New

890 516 30

Printer Language Kit - Danish

New

890 516 31

Printer Language Kit - Finnish

New

890 516 32

Fax Language Kit - English

New

890 516 37

Fax Language Kit -Dutch

New

890 516 42

Fax Language Kit -Swedish

New

890 516 43

Fax Language Kit -Norwegian

New

890 516 44

Fax Language Kit -Danish

New

890 516 45

Fax Language Kit -Finnish

New

890 516 46

CONSUMABLES

Toner Black 2018/1 (Yield 9K)

Current IS 2122-27-32

890 401 02

Developer Black 2018/1 (Yield 60K)

Current IS 2015-18-D

890 401 03

OPC Drum (Yield 60K)

Current IS 2015-18-D

890 400 07

Danka Office Products BV

Suite 108, Kinetic Centre, Theobald Street, Borehamwood, Hertfordshire, WD6 4PJ

Tel: 0208 387 5410 Fax: 0208 387 5411

Email: hwellington@infotecdealer.co.uk

www.infotec-dealer.com

Infotec IS2216, IS2220, IS2220D Launch Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
