ikan ELE-LBP User Manual

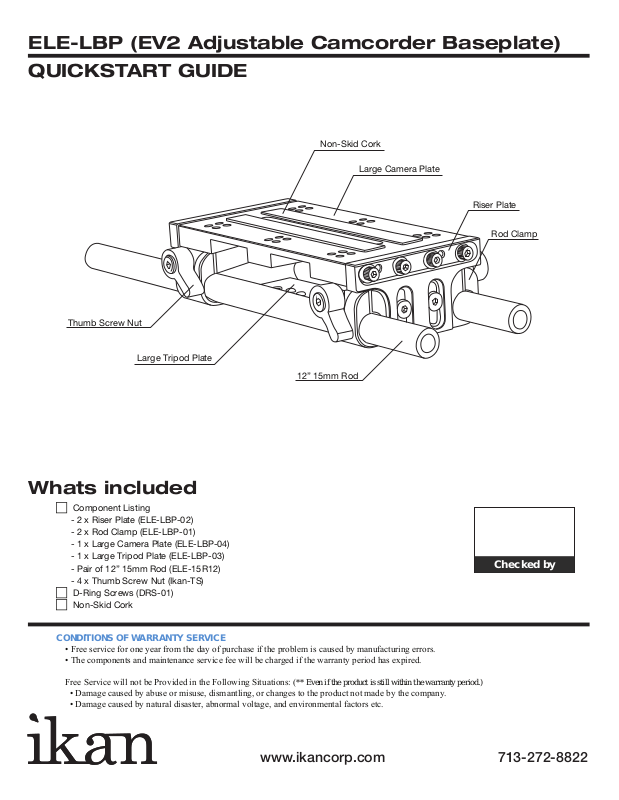

ELE-LBP (EV2 Adjustable Camcorder Baseplate)

QUICKSTART GUIDE

Non-Skid Cork

Large Camera Plate

Riser Plate

Rod Clamp

Thumb Screw Nut

Large Tripod Plate

12” 15mm Rod

Whats included

 Component Listing

- 2 x Riser Plate (ELE-LBP-02)

- 2 x Rod Clamp (ELE-LBP-01)

- 1 x Large Camera Plate (ELE-LBP-04)

- 1 x Large Tripod Plate (ELE-LBP-03)

- Pair of 12” 15mm Rod (ELE-15R12)

- 4 x Thumb Screw Nut (Ikan-TS)

 D-Ring Screws (DRS-01)
 Non-Skid Cork

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.

• The components and maintenance service fee will be charged if the warranty period has expired.

Checked by

Free Service will not be Provided in the Following Situations: (

• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.

• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.

** Even if the product is still within the warranty period.)

www.ikancorp.com 713-272-8822

ELE-LBP (EV2 Adjustable Camcorder Baseplate)

QUICKSTART GUIDE

ADJUSTMENT POINTS

1. Numerous Adjustment Points allow for precise positioning modifications.
Loosen Thumb Screws to move forward/backwards along 12” Rods.
Loosen Hex Screws to make vertical and horizontal adjustments.

Adjustable Left and Right Adjustable Up and Down
