Integrated Circuit Systems, Inc.

Document Type: Data Sheet

ICS1531

Document Stage: Preliminary Product Preview

Triple 8-bit MSPS A/D Converters with Line-Locked Clock Generator

General Description

The ICS1531 is a high-performance, cost-effective, 3-channel, 8-bit analog-to-digital converter with an integrated line-locked clock generator. It is part of a family of chips intended for high-resolution video applications that use analog inputs, such as LCD monitors, LCD projectors, plasma displays, and projection TVs. Using ICS's low-voltage CMOS mixed-signal technology, the ICS1531 is an effective data-capture solution for resolutions from VGA to UXGA.

The ICS1531 offers analog-to-digital data conversion and synchronized pixel clock generation at speeds of 100, 140, or 165 MHz (or mega samples per second, MSPS). The Dynamic Phase Adjust (DPA) circuitry allows end-user control over the pixel clock phase, relative to the recovered sync signal and analog pixel data. Either the internal pixel clock can be used as a capture clock input to the analog-to-digital converters or an external clock input can be used. The ICS1531 provides either one or two 24-bit pixels per clock. An ADCSYNC output pin provides recovered HSYNC from the pixel clock phase-locked-loop (PLL) divider chain output, which can be used to synchronize display enable output.

A clamp signal can be generated internally or provided through the CLAMP pin. A high-bandwidth video amplifier with adjustable gain allows fine tuning of the analog signal. The advanced PLL uses an internal programmable feedback divider. Two additional, independent programmable PLLs, each with spread-spectrum functionality, support memory and panel clock requirements.

Features

3-channel 8-bit analog-to-digital conversion up to 165 MHz

Direct connection to analog input data (no external pre-amplifier circuit needed)

Video amplifier: 500-MHz analog bandwidth, software-adjustable gain

Dynamic Phase Adjust (DPA) for software-adjustable analog sample points

Software selectable: One pixel per clock (for 24-bit pixels) or two pixels per clock (for a total of 48 bits)

Internal clamp circuit. Very low jitter.

Low-voltage TTL clock outputs, synchronized with digital pixel data outputs

Independent software reset for PLLs and DPA

Double-buffered PLL and DPA control registers

Two additional PLLs with spread spectrum for memory and panel clock

External/internal loop-filter selection with software

Automatic Power-On Reset (POR) detection

Uses 3.3 VDC. Digital inputs are 5-V tolerant.

Industry-standard 2-wire serial bus interface speeds: low (100 kHz), high (400 kHz), or ultra (800 kHz)

Lock detection available in hardware and software

144-pin low-profile quad flat pack (LQFP) package

Applications

LCD displays, LCD projectors, plasma displays, and projection TVs

ICS1531

Functional

Block Diagram



















































RA0-RA7

Red









CLAMP



















ADC











RB0-RB7



















































GA0-GA7

G reen









CLAMP















ADC











GB0-GB7





















































































































































BA0-BA7

Blue









CLAMP















ADC











BB0-BB7

VSYNC



































































































































ADCR CLK

HSY NC









PLL







DPA















ADCSYNC































































































REF













































SDA

















































































































































SCL







Serial IF



POR









PLL



Spread Spectrum









MCLK



















































XTAL In























































Crystal













PLL



Spread Spectrum









PNLCLK





























XTAL O ut







Oscillator



















































































































ICS1531 Rev N 12/1/99

PRODUCT PREVIEW documents contain information on new products in

December, 1999



the sampling or preproduction phase of development. Characteristic data





and other specifications are subject to change without notice.













ICS1531 Data Sheet - Preliminary

Table of Contents









Table of Contents

Section

Title

Page

Chapter 1

Abbreviations and Acronyms...............................................................................................................

3

Chapter 2

Summary ...........................................................................................................................................

4

Chapter 3 Pin Diagram and Listings .....................................................................................................................

9

Chapter 4

Functional Blocks................................................................................................................................

19

Chapter 5

Application Overview ..........................................................................................................................

22

Chapter 6

Register Set .........................................................................................................................................

23

Chapter 7

Programming .......................................................................................................................................

54

Chapter 8 Layout and Power Considerations ....................................................................................................

58

Chapter 9

AC/DC Operating Conditions .............................................................................................................

61

Chapter 10

Timing Diagrams................................................................................................................................

63

Chapter 11 VCO Transfer Characteristic.............................................................................................................

70

Chapter 12

Package Dimensions.........................................................................................................................

71

Chapter 13

Ordering Information.........................................................................................................................

73

ICS1531 Rev N 12/1/99

Copyright © 1999, Integrated Circuit Systems, Inc.

December, 1999



All rights reserved.









2





ICS1531 Data Sheet - Preliminary

Chapter 1 Abbreviations and Acronyms









Chapter 1 Abbreviations and Acronyms

Table 1-1 lists and interprets the abbreviations and acronyms used throughout this data sheet.

Table 1-1. Abbreviations and Acronyms

Abbreviation /

Interpretation

Acronym







ADC

analog-to-digital converter





ASIC

application-specific integrated circuit





BNC

Type of connector, named for (“Bayonet”) Paul Neill and Carl Concelman





CMOS

complimentary metal-oxide semiconductor





DAC

digital-to-analog converter





DPA

Dynamic Phase Adjust





EMI

electro-magnetic interference





FCC

(United States) Federal Communications Commission





IF

interface





LCD

liquid crystal display





LQFP

low-profile quad flat pack





LSB

least-significant bit





LVTTL

low-voltage digital transistor-transistor logic





Max.

maximum





Min.

minimum





MSB

most-significant bit





MSPS

mega samples per second





MUX

multiplexer





N/A

Not Applicable





PC

personal computer





PFD

phase/frequency detector





PLL

phase-locked loop





POR

power-on reset





Reg

register





RGB

red, green, blue





R/W

read/write





SXGA

super XGA





TTL

transistor-transistor logic





Typ.

typical





UXGA

ultra XGA





VCO

voltage-controlled oscillator





VESA

Video Electronics Standards Association





VGA

video graphics array





XGA

eXtended graphics array





ICS1531 Rev N 12/1/99

Copyright © 1999, Integrated Circuit Systems, Inc.

December, 1999



All rights reserved.









3





ICS1531 Data Sheet - Preliminary

Chapter 2 Summary









Chapter 2 Summary

2.1Overview

The ICS1531 addresses stringent display system line-locked applications by providing clock signals and digitized pixel data through internal high-performance analog-to-digital converters (ADCs). The ICS1531 is a complete solution for capturing analog red, green, and blue (RGB) signals from personal computers and workstations. It supports data capture for resolutions from VGA (640 × 480) to UXGA (1600 × 1200). The ICS1531 features are described in the following sections.

2.2Clamp, Video Amplifier, and Analog-to-Digital Circuits (Condition RGB Inputs)

For the following circuits, see Figure 4-3.

2.2.1Clamp Circuits (Adjust RGB Inputs to ADC Range)

To properly digitize incoming RGB analog signals, the ICS1531 must adjust the signals to the range of the ADC. This adjustment is done by clamping the signal, which both (1) establishes a bottom voltage limit and

(2) offsets the signal to align the black level of the incoming signal with the bottom voltage limit. Then the signal is amplified to adjust the top limit to the upper range of the ADC.

The ICS1531 incorporates an internal clamping circuit to generate a clamping signal. Optionally, the CLAMP pin can be used to input an externally generated clamp signal (Reg 30:2). In either case, the polarity of the signal to a clamp can be programmed (Reg 30:3). Typically, the clamp signal is generated by ADCSYNC (the recovered HSYNC timing pulse). The clamp signal is generated during a non-display region of time, when most PC display controllers output a black signal.

2.2.2Video Amplifier Circuits (Amplify RGB Inputs)

The ICS1531’s video amplifier circuit can directly accept analog RGB input signals from a PC display controller (that is, no external pre-amplifier is required). The video amplifier circuit has three independent 500-MHz video amplifiers for the RGB inputs. To adjust the top level of the signal, this video amplifier circuit can be programmed for a gain of 1.0, 1.2, 1.4, or 1.6 (Regs 31:1-0, 32:1-0, and 33:1-0). As a result, the video amplifier circuit can improve low-amplitude signals and adjust analog input signals for the optimum sampling range of the ADC circuit.

2.2.3Analog-to-Digital Circuits (Digitize RGB Inputs)

The ICS1531 has high-performance analog-to-digital converters (ADCs) to capture and digitize analog RGB data (Reg 30:7). Low-power CMOS technology is used to create 8-bit ADCs, which are calibrated to align the capture event between (1) the 3 analog input channels and (2) either 3 or 6 digital output channels. The ADC can provide (through Reg 30:6) one of the following:

Two 24-bit pixels aligned to a half-rate pixel clock (two-pixels-per-clock mode), which can be used for 48-bit interface panels and image-scaling chips

One 24-bit pixel aligned to a full-rate pixel clock (one-pixel-per-clock mode), which can be used for 24-bit-per-pixel applications

In addition, programmable digital-to-analog converters for the R, G, and B inputs fine-tune VRTR, VRTG, and VRTB, the individual R, G, and B maximum reference ‘top’ voltages (Regs 34-36).

ICS1531 Rev N 12/1/99

Copyright © 1999, Integrated Circuit Systems, Inc.

December, 1999



All rights reserved.









4





ICS1531 Data Sheet - Preliminary

Chapter 2 Summary









2.3Phase-Locked Loop (Generates Pixel Clock from Input HSYNC)

The ICS1531 uses a phase-locked loop (PLL) to generate its pixel clock output frequency. A PLL is a closed-loop feedback system that locks an output signal’s phase and frequency to that of a reference input signal’s phase and frequency. In the case of the ICS1531, when its PLL is locked it locks a pixel clock output to that of an HSYNC signal from input video.For a block diagram of the ICS1531 PLL, see Figure 4-1 and Figure 4-2.

2.3.1Phase/Frequency Detector (Compares Two Input Signals)

The first section of the PLL is the Phase/Frequency Detector (PFD). To use the PLL, first the PFD must be enabled either through hardware control (with a signal from the PDEN pin) or software control (Reg 00:1-0). Once the PFD is enabled, the PFD compares both the phase and frequency of the following two input signals.

PFD Input Signal 1: External HSYNC Signal or Internal Oscillator Signal

The first input to the PFD can be selected from either the external HSYNC signal or the ICS1531 internal crystal oscillator signal (Reg 00:5).

External HSYNC signal

Typically, one of the input signals to the PFD comes from the HSYNC of a PC display controller. This input HSYNC signal can have a transition time of tens of nanoseconds. Furthermore, if the input HSYNC signal is from a remote source, its pulses can degrade.

A high-performance Schmitt trigger (Reg 00:7-6) conditions the HSYNC pulse before it is input to the PFD. The polarity of this input pulse can be programmed (Reg 00:2). The result of this conditioning is REF, a clean reference clock signal that in comparison to the input HSYNC signal has a short transition time. [For more information on adjusting the HSYNC signal, see Section 2.6, “Dynamic Phase Adjust (Positions Pixel Clock on Sub-Pixel Basis)”.]

Internal crystal oscillator

Alternatively, one of the input signals to the PFD can be from the ICS1531 internal crystal oscillator (Regs 07:7-0 and 2C:6-4).

PFD Input Signal 2: Signal from Feedback Loop

The second input to the PFD comes from the output of the PLL feedback loop, which results from the processing that takes place with the charge pump, filter, voltage-controlled oscillator, post-scaler divider, and feedback divider. That is, the PLL output (the signal from the feedback loop) also appears as one of the two inputs to the PFD.

As a result of the comparison of the two input signals, the PFD processes the inputs so there is the proper ratio between them. Then the PFD uses the output to drive a charge pump.

2.3.2Charge Pump (Boosts Voltage Gain of Signal from PFD)

The charge pump, which is a current-source and current-sink pair, boosts the voltage gain of the signal from the PFD. This PFD signal gain is programmable over a 7-bit range up to 128 A (Reg 01:2-0).

2.3.3Loop Filter (Filters Output from Charge Pump)

The loop filter, which is a capacitance and resistance in series, acts as a low-bandpass filter for the frequency output from the charge pump. The ICS1531 can select between either an external loop filter, or more typically, an internal loop filter (Reg 08:0). The advantage of the internal filter is that it can be used for all Video Electronics Standards Association (VESA) timing modes, for ease in manufacturing.

Note: VESA establishes standard timing specifications for the personal-computer industry. Although many computer manufacturers require that display controllers adhere to the VESA timing specifications, there is no enforcement. As a result, not all display controllers conform precisely to the VESA timing specifications.

ICS1531 Rev N 12/1/99

Copyright © 1999, Integrated Circuit Systems, Inc.

December, 1999



All rights reserved.









5





ICS1531 Data Sheet - Preliminary

Chapter 2 Summary









2.3.4Voltage-Controlled Oscillator (Matches Input Signals to PFD)

The voltage level resulting from the output signals from the combined processing by the PFD, charge pump, and loop filter drives the voltage-controlled oscillator (VCO). The VCO uses the level of this input voltage to proportionally adjust its frequency output. This signal is compared to the input to the PFD so that both inputs to the PFD match in both phase and frequency. The VCO can operate up to nearly 600 MHz with a fixed gain. Consequently, the ICS1531 can be optimized for the best performance at all operating frequencies. (For more information on the VCO, see Chapter 11, “VCO Transfer Characteristics”.)

2.3.5Post-Scaler Divider (Sets Ratio of VCO and Pixel Clock Frequencies)

Using the frequency output from the VCO, the programmable Post-Scaler Divider (PSD) can set the ratio of VCO frequency-to-pixel clock frequency at 2:1, 4:1, 8:1, or 16:1 (Reg 01:5-4). The maximum pixel clock output frequency is therefore 300 MHz. However, for practical applications, the analog-to-digital converter limits this output frequency to either 100, 140, or 165 MHz.

2.3.6Feedback Divider (Controls Number of Pixel Clocks per HSYNC)

The ICS1531’s internal 12-bit pixel Feedback Divider (Regs 02 and 03) controls the total number of pixel clocks per line (that is, between successive HSYNCs). The total number of pixels per line includes both displayed and non-displayed pixels.

Reg 06:2 can delay the recovered HYSNC signal (that is, ADCSYNC) by one input clock period. This delay has the effect of moving channel ‘A’ data to the ‘B’ channel output pins and the channel ‘B’ data to the ‘A’ channel output pins.

Note:

1.As a starting point to capture analog RGB input from VESA-compliant sources, ICS recommends certain register settings for the software “*.ics files” that come with the ICS1531 Register Tool. However, the Register Tool register settings are only a guide. (For more information on the ICS1531 Register Tool and its *.ics.files, see the ICS1531 Demo Board Guide.)

2.The display manufacturer must provide a way to optimize the display for the particular display controller in use.

3.If the ICS1531 internal pixel PLL Feedback Divider is not set correctly, it can create visible errors on the display.

4.To adjust the ICS1531 on a sub-pixel basis, see Section 2.6, “Dynamic Phase Adjust (Positions Pixel Clock on Sub-Pixel Basis)”.

2.4Analog-to-Digital Converter (Synchronizes Data Capture)

By using the internal 3-channel analog-to-digital converter (ADC), the ICS1531 internally provides the pixel clock needed to synchronize data capture. The pixel clock can be further processed by the Dynamic Phase Adjust. [For more information on the ADC, see Section 2.2.3, “Analog-to-Digital Circuits (Digitize RGB Inputs)” and Figure 4-3.] For the pixel clock to appear on the CLK pin, the pixel clock output must be enabled (Reg 06:6).

ICS1531 Rev N 12/1/99

Copyright © 1999, Integrated Circuit Systems, Inc.

December, 1999



All rights reserved.









6





ICS1531 Data Sheet - Preliminary

Chapter 2 Summary









2.5Additional PLLs, with Spread Spectrum (Drive Memory and Panel Data Clocks)

Besides the pixel clock PLL, the ICS1531 has two other independent PLLs for use as needed. Typically, one of the PLLs is used to drive memory clocks (Regs 26–2B and 2D) and the other PLL is used to drive panel data clocks (Regs 20–25 and 2D). Both of these additional PLLs are tailored for the required frequency ranges. Each supports software-controlled spread-spectrum clock dithering to reduce measured electro-magnetic interference (EMI).

2.6Dynamic Phase Adjust (Positions Pixel Clock on Sub-Pixel Basis)

Most display controllers provide an HSYNC signal that can be used as a reference signal for the pixel clock. However, when this HSYNC signal is used as an input, frequently it has significant jitter that impacts data capture. Furthermore, the analog data stream from the display controller to the ICS1531 has no pixel-rate reference clock.

So that analog pixel data inputs can be properly sampled and digitized, the ICS1531’s pixel PLL tracks the input HSYNC signal and the line-to-line jitter. To provide a properly aligned sampling clock (ADCSYNC) to the ADC blocks, the ICS1531’s Dynamic Phase Adjust (DPA) circuitry can add delays to the pixel clock position. The delay, which occurs in relation to the edge of ADCSYNC (the recovered HSYNC signal), is added in sub-pixel time increments.

Regs 04:5-0, 05:1-0 and 06 are used to program the ICS1531 DPA for a value representing incremental sub-pixel delay units. By choosing the proper value, pixel data to the ICS1531 can be sampled at the optimum time for proper digitization and the best-looking display. Typically, a system’s microcontroller presets this value, based on either a table or proprietary algorithms. The end user can change the value through the system’s on-screen display controls.

Table 2-1 lists the number of possible delay element units that can be used to program to add a delay of up to one pixel clock period, in increments of either 16, 32, or 64 (Reg 04:5-0 and Reg 5:1-0).

Table 2-1. Increments for Delay Element Units

Number of



Pixel Clock Range, MHz

Delay Element Units































16



55





260





























32



27







130







































64

14



64































Note: To adjust the ICS1531 on a pixel-by-pixel basis, see Section 2.3.6, “Feedback Divider (Controls Number of Pixel Clocks per HSYNC)”.

2.7Automatic Power-On Reset Detection (Automatically Resets ICS1531)

The ICS1531 automatically detects power-on resets. As a result, the ICS1531 resets itself if the supply voltage drops below threshold values. No external connection to a reset signal is required.

2.8Logic Inputs and Outputs

Inputs. The ICS1531 uses both of the following inputs:

Analog inputs

Digital inputs. The digital inputs are low-voltage TTL (LVTTL) inputs that operate at 3.3 V. These LVTTL inputs are also 5-V tolerant. (For inputs that are 5-V tolerant, see Section 3.2.3.10, “List of 5-V Tolerant Pins”.)

Outputs. The ICS1531 has high-speed LVTTL clock outputs.

ICS1531 Rev N 12/1/99

Copyright © 1999, Integrated Circuit Systems, Inc.

December, 1999



All rights reserved.









7





ICS1531 Data Sheet - Preliminary

Chapter 2 Summary

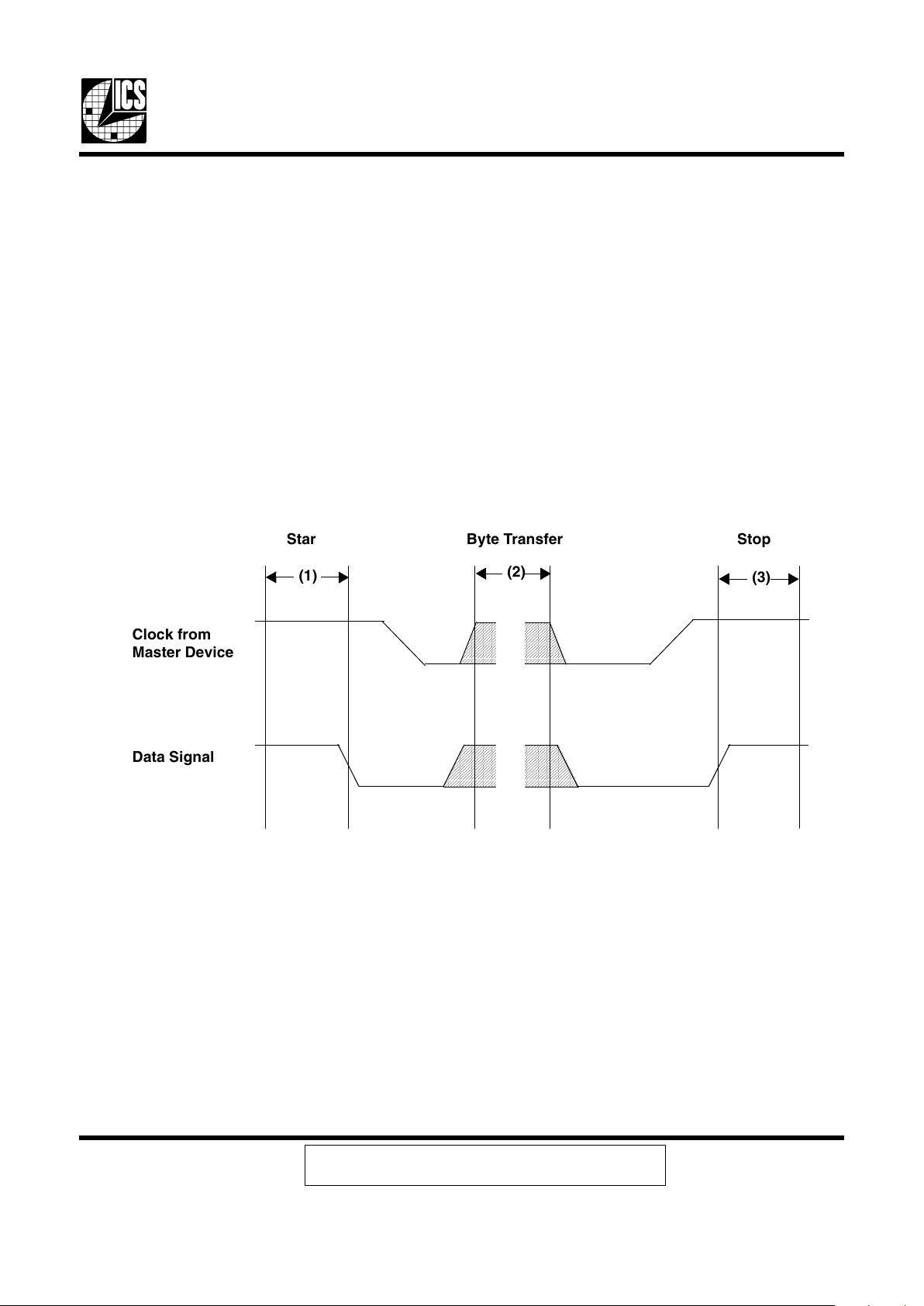

2.9Industry-Standard 2-Wire Serial Interface

To access all its registers, the ICS1531 uses an industry-standard 2-wire serial interface that operates at one of the following speeds:

A low speed of 100 kHz

A high speed of 400 kHz

An ultra speed of 800 kHz

For use with the 2-wire serial interface, the ICS1531 has 5 V-tolerant inputs. The ICS1531 can use either of two unique, alternative sets of addresses. Table 2-2 lists the addresses that can be used, depending on the state of the SBADR pin.

Table 2-2. ICS1531 Address Sets

Addresses in

Address Set 1.

Address Set 2.

Address Set

(SBADR Pin Is Low)

(SBADR Pin Is High)







7-bit device address

24h

25h







8-bit read address

49h

4Bh







8-bit write address

48h

4Ah







2.10 Programmable Outputs

For general-purpose outputs, the ICS1531 provides three programmable pins, PSEL3, PSEL2, PSEL1 (Reg 37:2-0).

ICS1531 Rev N 12/1/99

Copyright © 1999, Integrated Circuit Systems, Inc.

December, 1999



All rights reserved.









8





ICS1531 Data Sheet - Preliminary

Chapter 3 Pin Diagram and Listings









Chapter 3 Pin Diagram and Listings

3.1Pin Diagram for ICS1531

Figure 3-1 shows the pin diagram for the ICS1531, which is packaged in a 144-pin low-profile quad flat pack (LQFP).

Figure 3-1. Pin Diagram

1VSS

2TRESE T

3VSS

4N C

5VSS

6H SYNC

7VSSSU B

8PSEL1

9PSEL2

10PS EL3

11N C

12VS S(TEST)

13VS SSUB

14R eserved

15AR ED

16VRTR

17VR B

18N C

19AG R N

20VRTG

21R eserved

22AB LUE

23VRTB

24VD DA ADC

25VS SAADC

26VS SAADC

27VD DA ADC

28C LAM P

29VD DQ AD C

30BB 7

31BB 6

32BB 5

33BB 4

34BB 3

35BB 2

36VS SQ ADC

0111111111111111111111212121212121212 12 12 13 13 13 13 13 13 1313131314141414141 901234567890123456789012345678901234

DVSVTSERS OL Ce RSVC NC NC NC NC NC NC NC NC NC NC NC NC NC NCNCNCNDVSVCNCSDSSVDVDPBSFXXE DSAFCKsSDSLASDEAIT QQTeSADNDLF UOrADRI SUvUREL TeBT d

ICS1531

27 C DA QSSV 17 2A G 07 3A G 96 4A G 86 5A G 76 6A G 66 7A G 56 CDA Q DD V 46 C DA QSSV 36 0B G 26 1B G 16 2B G 06 3B G 95 4B G 85 5B G 75 CDA Q DDV 65 C DA QSSV 55 C NYSC DA 45 KL CR CD A 35 CDA DD DV 25 C DADSSV 15 6B G 05 7B G 94 0AB 84 1AB 74 2AB 64 3AB 54 CDA Q DDV 44 CD A QSSV 34 4AB 24 5AB 14 6 AB 04 7AB 93 0BB 83 1BB 73 CDA Q DDV

VD DXTL

108

XO U T

107

XIN

106

VSSXTL





105

PN LCLK



104

VD DPC LK



103

VSSPC LK



102

MC LK



101

VD DMC LK



100

VSSM CLK



99

N C



98

N C



97

VSSAAD C



96

R A0



95

R A1



94

R A2



93

R A3

92

R A4



91

R A5



90

VD DQ AD C



89

VSSQ AD C

88

R A6



87

R A7



86

R B0



85

R B1



84

R B2



83

R B3



82

VD DQ AD C



81

VSSQ AD C

80

R B4



79

R B5



78

R B6



77

R B7

76

G A0

75

G A1

74

VD DQ AD C

73

ICS1531 Rev N 12/1/99

Copyright © 1999, Integrated Circuit Systems, Inc.

December, 1999



All rights reserved.









9





ICS1531 Data Sheet - Preliminary

Chapter 3 Pin Diagram and Listings









3.2Pin Listings

Note:

1.The TRESET pin (pin 2) was formerly a Reserved pin.

2.The following pins, formerly ‘Reserved’, are now NC (No Connect): 4, 11, 18, 97–98, 117–133, 136

3.The (active-low) STATUS pin (pin 111) was formerly called ‘LOCK’

3.2.1Pin Listing by Pin Number

Table 3-1. ICS1531 Pins, by Pin Number

Pin No.

Pin Name



Pin No.

Pin Name



Pin No.

Pin Name



Pin No.

Pin Name























1

VSS



37

VDDQADC



73

VDDQADC



109

VDDQ























2

TRESET



38

BB1



74

GA1



110

VSSQ























3

VSS



39

BB0



75

GA0



111

STATUS























4

NC



40

BA7



76

RB7



112

REF























5

VSS



41

BA6



77

RB6



113

OSCOUT























6

HSYNC



42

BA5



78

RB5



114

CLK























7

VSSSUB



43

BA4



79

RB4



115

Reserved























8

PSEL1



44

VSSQADC



80

VSSQADC



116

VSSSUB























9

PSEL2



45

VDDQADC



81

VDDQADC



117

NC























10

PSEL3



46

BA3



82

RB3



118

NC























11

NC



47

BA2



83

RB2



119

NC























12

VSS(TEST)



48

BA1



84

RB1



120

NC























13

VSSSUB



49

BA0



85

RB0



121

NC























14

Reserved



50

GB7



86

RA7



122

NC























15

ARED



51

GB6



87

RA6



123

NC























16

VRTR



52

VSSDADC



88

VSSQADC



124

NC























17

VRB



53

VDDDADC



89

VDDQADC



125

NC























18

NC



54

ADCRCLK



90

RA5



126

NC























19

AGRN



55

ADCSYNC



91

RA4



127

NC























20

VRTG



56

VSSQADC



92

RA3



128

NC























21

Reserved



57

VDDQADC



93

RA2



129

NC























22

ABLUE



58

GB5



94

RA1



130

NC























23

VRTB



59

GB4



95

RA0



131

NC























24

VDDAADC



60

GB3



96

VSSAADC



132

NC























25

VSSAADC



61

GB2



97

NC



133

NC























26

VSSAADC



62

GB1



98

NC



134

VDDA























27

VDDAADC



63

GB0



99

VSSMCLK



135

VSSA























28

CLAMP



64

VSSQADC



100

VDDMCLK



136

NC























29

VDDQADC



65

VDDQADC



101

MCLK



137

SCL























30

BB7



66

GA7



102

VSSPCLK



138

SDA























31

BB6



67

GA6



103

VDDPCLK



139

VSSD























32

BB5



68

GA5



104

PNLCLK



140

VDDD























33

BB4



69

GA4



105

VSSXTL



141

PDEN























34

BB3



70

GA3



106

XIN



142

SBADR























35

BB2



71

GA2



107

XOUT



143

XFILRET























36

VSSQADC



72

VSSQADC



108

VDDXTL



144

EXTFIL























ICS1531 Rev N 12/1/99

Copyright © 1999, Integrated Circuit Systems, Inc.

December, 1999



All rights reserved.









10





ICS1531 Data Sheet - Preliminary

Chapter 3 Pin Diagram and Listings









3.2.2Pin Listing by Alphabetical Pin Name

Note:

1.The TRESET pin was formerly a Reserved pin.

2.The following pins, formerly ‘Reserved’, are now NC (No Connect): 4, 11, 18, 97–98, 117–133, 136

3.The (active-low) STATUS pin was formerly called ‘LOCK’.

Table 3-2. ICS1531 Pins, by Alphabetical Pin Name



Pin Name



Pin No.





Pin Name

Pin No.



Pin Name

Pin No.

























ABLUE



22





GB3

60



SDA

138

























ADCRCLK



54





GB4

59



STATUS

111

























ADCSYNC



55





GB5

58



TRESET

2

























AGRN



19





GB6

51



VDDA

134

























ARED



15





GB7

50



VDDAADC

24, 27

























BA0



49





HSYNC

6



VDDD

140

























BA1



48





MCLK

101



VDDDADC

53

























BA2



47





NC

4, 11, 18, 97–98,



VDDMCLK

100















117–133, 136











BA3



46









VDDPCLK

103







































BA4



43





OSCOUT

113



VDDQ

109

























BA5



42





PDEN

141



VDDQADC

29, 37, 45, 57,























65, 73, 81, 89



BA6



41





PNLCLK

104















































BA7



40





PSEL1

8



VDDXTL

108

























BB0



39





PSEL2

9



VRB

17

























BB1



38





PSEL3

10



VRTB

23

























BB2



35





RA0

95



VRTG

20

























BB3



34





RA1

94



VRTR

16

























BB4



33





RA2

93



VSS

1, 3, 5

























BB5



32





RA3

92



VSSA

135

























BB6



31





RA4

91



VSSAADC

25, 26, 96

























BB7



30





RA5

90



VSSD

139

























CLAMP



28





RA6

87



VSSDADC

52

























CLK



114





RA7

86



VSSMCLK

99

























EXTFIL



144





RB0

85



VSSPCLK

102

























GA0



75





RB1

84



VSSQ

110

























GA1



74





RB2

83



VSSQADC

36, 44, 56, 64,























72, 80, 88



GA2



71





RB3

82















































GA3



70





RB4

79



VSSSUB

7, 13, 116

























GA4



69





RB5

78



VSS(TEST)

12

























GA5



68





RB6

77



VSSXTL

105

























GA6



67





RB7

76



XFILRET

143

























GA7



66





REF

112



XIN

106

























GB0



63





Reserved

14, 21, 115



XOUT

107



























GB1



62





SBADR

142



































GB2



61





SCL

137

























































ICS1531 Rev N 12/1/99

















December, 1999





Copyright © 1999, Integrated Circuit Systems, Inc.

















All rights reserved.

































11





ICS1531 Data Sheet - Preliminary

Chapter 3 Pin Diagram and Listings









3.2.3Pin Listing by Functional Grouping

3.2.3.1Clock Pins

For more information on the clock pins, see Figure 4-2 and Figure 4-3.)

Table 3-3. Clock Pins

Pin

Pin



Pin Description

Name

Type











ADCRCLK

Input or

Analog-to-Digital Converter Reference Clock.



Output

This pin outputs a half-rate pixel clock for latching digital output pixel data.





Typically, this pin connects to an LCD panel controller/scaler.





In this table, see also CLK.

ADCSYNC

Input or

Analog-to-Digital Converter Sync.



Output

This pin provides a recovered HSYNC signal (that is, an HSYNC signal conditioned by a





Schmitt trigger) that aligns to ADCRCLK.





For some previous ICS chips, the ADCSYNC pin is called FUNC.







CLK

Output

Clock.





This pin outputs the full-rate pixel clock for latching digital output pixel data.





In this table, see also ADCRCLK.

HSYNC

Input

Horizontal Sync. (See Table 3-6.)







MCLK

Output

Memory Clock.





This pin provides an independent user-programmable clock source.





Typically, this pin is used by LCD panel controller/scaler chips or microcontrollers.

OSCOUT

Output

Oscillator Output.





This output from this pin is from a crystal oscillator.





The output frequency is one of the following:







– The same frequency as the input frequency to the crystal oscillator







– The frequency that results when the input frequency is divided by a programmable







value







PNLCLK

Output

Panel Clock.





This pin provides an independent user-programmable clock source.





Typically, this pin is used by LCD panel controller/scaler chips or microcontrollers.

REF

Output

Reference.





This pin provides various reference line clock sync signals.







SCL

Input

Serial Clock. (See Table 3-7.)







XIN

Input

Crystal Input.





This pin accepts input from one of the following:





A 14.31818-MHz crystal





An external clock source

XOUT

Output

Crystal Output.





Do one of the following with this pin:





Connect it to a 14.31818-MHz crystal.





Leave it open for an external clock source.

ICS1531 Rev N 12/1/99

Copyright © 1999, Integrated Circuit Systems, Inc.

December, 1999



All rights reserved.









12





ICS1531 Data Sheet - Preliminary

Chapter 3 Pin Diagram and Listings









3.2.3.2Control Pins

Table 3-4. Control Pins

Pin

Pin











Pin Description



Name

Type











































CLAMP

Input

Clamp.















This pin accepts an external signal that is provided as an alternative to the ICS1531’s





internally generated clamp signal.

























PSEL1,

Output

Programmable Select 1, 2, 3.











PSEL2,



These pins are used as general-purpose programmable output pins.

PSEL3













































TRESET

Input

Test Reset.















When the ICS1531:

















Is not in Test mode, this pin has no effect.









Is placed into Test mode:



















This pin acts as a reset that sets the ICS1531 to an initial known state.









For information about the Test mode, in this table see VSS(TEST).





















VSS(TEST)

Input

Ground (Normal Mode) or Test Mode.









Normal Mode.

















For the VSS(TEST) pin’s Normal-mode function, see Table 3-4.







Test Mode.



















– When this pin is connected to either VDDA or VDDAADC, the ICS1531 is in Test











mode. As a result, the ICS1531 is set to an initial known state.









The Test mode overrides whatever the bit setting of Reg 37:3 is, so that the











Calibration Regs 38h to 3Ch are automatically enabled.









– The Test mode bits are intended for use only by ICS.























In Test mode, Test-mode bits are

































ICS1531



VDDA or VDDAADC













enabled and Calibration Regs















































VSS(TEST)











38h to 3Ch are automatically













Test Mode

enabled.























































































ICS1531 Rev N 12/1/99

Copyright © 1999, Integrated Circuit Systems, Inc.

December, 1999



All rights reserved.









13





ICS1531 Data Sheet - Preliminary

Chapter 3 Pin Diagram and Listings









3.2.3.3Pixel Data Pins

Table 3-5. Pixel Data Pins

Pin

Pin



Pin Description

Name

Type











ABLUE,

Input

Analog Blue, Analog Green, Analog Red.

AGRN,



These pins accept analog data for the ADC blue, green, and red channels.

ARED



Typically, the data for these pins comes from a PC display controller.

BA7 – BA0,

Output

Blue (‘A channel’) A7 – A0, Green (‘A channel’) A7 – A0, Red (‘A channel’) A7 – A0.

GA7 – GA0,



These pins output first blue, green, and red pixel data, respectively.

RA7 – RA0



A7 pins reflect most-significant data bits. A0 pins reflect least-significant data bits.

BB7 – BB0,

Output

Blue (‘B channel’) B7 – B0, Green (‘B channel’) B7 – B0, Red (‘B channel’) B7 – B0.

GB7 – GB0,



These pins output second blue, green, and red pixel data, respectively.

RB7 – RB0



B7 pins reflect most-significant data bits. B0 pins reflect least-significant data bits.

Figure 3-2 shows the following:

The relationship of:

Outputs from the ICS1531 ADC

To inputs of a 1024 × 768 LCD panel that samples 2 pixels of data with either a 36or 48-bit data signal.

DA indicates ‘A channel’ pixels, and DB indicates ‘B channel’ pixels.)

For timing information, see Chapter 10, “Timing Diagrams”.

Figure 3-2. Relationship of Outputs from an ICS1531’s ADC to Inputs of 1024 × 768 LCD Panel

DA (1,1) DB (1,1)

RA7-0 GA7-0 BA7-0 RB7-0 GB7-0 BB7-0

DA (1,1)

DB (1,1)

DA (2,1)

DB (512,1)

DA (1,2)

DB (1,2)





DA (1,3)







DA (1,768)



DB (512,768)







ICS1531 Rev N 12/1/99

Copyright © 1999, Integrated Circuit Systems, Inc.

December, 1999



All rights reserved.









14





ICS1531 Data Sheet - Preliminary

Chapter 3 Pin Diagram and Listings









3.2.3.4Phase-Locked Loop Pins

Table 3-6 lists the pins for the phase-locked loop circuitry. For a block diagram that shows the function of these pins, see Figure 4-1.

Table 3-6. Phase-Locked Loop Pins

Pin

Pin



Pin Description

Name

Type











EXTFIL

Input

External Filter.





This pin works with XFILRET (in this table, see XFILRET) and other components as part of an





optional external filter for the pixel phase-locked loop.







HSYNC

Input

Horizontal Sync.





This 5-V tolerant pin is the clock input for the pixel PLL.





Typically this pin is connected to the HSYNC from a PC display controller.





In this data sheet, this HSYNC signal is also called ‘input HSYNC’.

LOCK

Output

In this table, see the ‘STATUS’ pin name.







PDEN

Input

Phase-Detector Enable.





This pin is the input for the Phase/Frequency Detector enable that can suspend the charge





pump activity. It is 5-V tolerant. (For more information, see Reg 00:1-0 in Section 6.5.1,





“Register 00h: Input Control Register”.)







STATUS

Output

Status (Formerly called ‘Lock’).





This active-low pin works with Reg 2C:1-0 and Reg 12:3-2. The signal on this pin is:





Low when a lock condition occurs for one of the PLLs selected by Reg 2C:1-0 or 12:3-2.





High when no lock condition occurs for one of the PLLs selected by Reg 2C:1-0 or 12:3-2.

XFILRET

Input

External Filter Return.





This pin works with EXTFIL (in this table, see EXTFIL) and other components as part of an





optional external filter for the pixel phase-locked loop.









3.2.3.5Industry-Standard 2-Wire Serial Bus Pins

Table 3-7. Industry-Standard 2-Wire Serial Bus Pins

Pin

Pin





Pin Description

Name

Type













SBADR

Input

Serial Bus Address.





This pin determines the address for the ICS1531 industry-standard 2-wire serial bus.





When the signal on this pin is:







Low, the pixel bit address is 49h for read operations and 48h for write operations.





High, the pixel bit address is 4Bh for read operations and 4Ah for write operations.





For more information on this pin, see Section 2.9, “Industry-Standard 2-Wire Serial







Interface”.







SCL

Input

Serial Clock.





This 5-V tolerant pin is the clock for the interface to an industry-standard 2-wire serial bus.







SDA

Input/

Serial Data.



Output

This 5-V tolerant pin connects to the data pin for an industry-standard 2-wire serial bus.











ICS1531 Rev N 12/1/99

Copyright © 1999, Integrated Circuit Systems, Inc.

December, 1999



All rights reserved.









15





ICS1531 Data Sheet - Preliminary

Chapter 3 Pin Diagram and Listings









3.2.3.6Ground Pins

Table 3-8. Ground Pins

Pin Name

Pin Description

VSS

Ground for (Analog Inputs for Digital Pixel PLL Circuitry).

These pins are used to ground digital portions of the pixel PLL circuitry that receive analog inputs.

The VSSD pin must also be connected to these pins.

VSSA

Ground for Analog (Pixel PLL Circuitry).



This pin is used to ground the analog portions of the pixel PLL circuitry.





VSSAADC

Ground for Analog ADC (Circuitry).



These pins are used to ground the analog portions of the ADC.





VSSD

Ground for Digital (Pixel PLL and Circuitry for Industry-Standard 2-Wire Serial Interface).



This pin is used to ground the digital portions of the pixel PLL circuitry and the circuitry for an



industry-standard 2-wire serial interface.





VSSDADC

Ground for Digital ADC (Circuitry).



This pin is used to ground the digital portions of the ADC.





VSSMCLK

Ground for Memory Clock (Circuitry).



This pin is used to ground the circuitry for the memory clock PPL (that is, MCLK).





VSSPCLK

Ground for Panel Clock (Circuitry).



This pin is used to ground the circuitry for the panel clock PLL (that is, PNLCLK).





VSSQ

Ground for Output Drivers.



This pin is used to ground output drivers for the pixel PLL circuitry.





VSSQADC

Ground for Output Drivers for ADC.



These pins are used to ground the pixel data output drivers for the analog-to-digital converter.





VSSSUB

Ground for Substrate.



These pins are used to provide ground for the chip substrate.

VSS(TEST) Ground (Normal Mode) or Test Mode.

Normal Mode.

Typically, this pin must be connected to ground (the Normal mode).

When the ICS1531 is in Normal mode, the Calibration registers 38h to 3Ch can be enabled by using Reg 37:3. (See Section 6.5.39, “Register 37h: PSEL”.)

ICS1531

















VSS(TEST)

Normal Mode







In Normal mode, use Reg 37:3 to















enable Calibration Regs 38h to 3Ch.







































































































Test Mode.

For the VSS(TEST) pin’s Test-mode function, see Table 3-4.

VSSXTL Ground for Crystal Oscillator.

This pin is used to ground the internal crystal oscillator circuitry.

ICS1531 Rev N 12/1/99

Copyright © 1999, Integrated Circuit Systems, Inc.

December, 1999



All rights reserved.









16





ICS1531 Data Sheet - Preliminary

Chapter 3 Pin Diagram and Listings









3.2.3.7Power Pins

Table 3-9. Power Pins

Pin Name





Pin Description







VDDA

(3.3

V) Supply for Analog (Pixel PLL Circuitry).



This pin supplies 3.3 V to the analog portions of the pixel PLL circuitry.







VDDAADC

(3.3

V) Supply for Analog ADC (Circuitry).



These pins supply 3.3 V to the analog portions of the ADC.







VDDD

(3.3

V) Supply for Digital (Pixel PLL and Industry-Standard 2-Wire Serial Bus) Circuitry.



This pin supplies 3.3 V to the digital pixel PLL and circuitry for an industry-standard 2-wire serial bus



interface.







VDDDADC

(3.3

V) Supply for Digital ADC (Circuitry).



This pin supplies 3.3 V to digital portions of the ADC.







VDDMCLK

(3.3

V) Supply for Memory Clock.



This pin supplies 3.3 V to the memory clock PLL circuitry.







VDDPCLK

(3.3

V) Supply for Panel Clock.



This pin supplies 3.3 V to the panel clock PLL circuitry.







VDDQ

(3.3

V) Supply for Output Drivers.



This pin supplies 3.3 V to the output driver circuitry for the pixel PLL.







VDDQADC

(3.3

V) Supply for Output Drivers for Analog-to-Digital Converter.



These pins supply 3.3 V to the pixel data output drivers of the ADC.





VDDXTL

(3.3V) Supply for Crystal Oscillator.



This pin supplies 3.3 V to the internal crystal oscillator circuitry.





VRB

Voltage Reference Bottom.



The ADC uses this pin as a bottom reference voltage. Typically, this pin is grounded.





VRTB,

Voltage Reference Top Blue, Green, Red

VRTG,

The ADC uses these pins as an alternative to the blue, green, and red top reference voltages

VRTR

from the internal DACs.



Each of these pins must connect to its own separate bypass capacitor.









ICS1531 Rev N 12/1/99

Copyright © 1999, Integrated Circuit Systems, Inc.

December, 1999



All rights reserved.









17





ICS1531 Data Sheet - Preliminary

Chapter 3 Pin Diagram and Listings









3.2.3.8No-Connect Pins

Table 3-10. No-Connect Pins

Pin

Pin Description

Name







NC

No Connect.



Do not connect these pins.



Caution: Do not connect or use No-Connect pins. Connecting them can affect the performance



and operation of the ICS1531 and future members of the ICS153X family.





3.2.3.9Reserved Pins

Table 3-11. Reserved Pins

Pin

Pin

Pin Description

Name

Type









Reserved

Reserved.





These pins are always reserved for use by ICS.





Caution: Do not connect or use Reserved pins. Connecting them can affect the performance





and operation of the ICS1531 and future members of the ICS153X family.







3.2.3.10List of 5-V Tolerant Pins

The following pins are 5-V tolerant:

HSYNC (Table 3-6)

PDEN (Table 3-6)

SCL (Table 3-7)

SDA (Table 3-7)

TRESET (Table 3-4)

ICS1531 Rev N 12/1/99

Copyright © 1999, Integrated Circuit Systems, Inc.

December, 1999



All rights reserved.









18





ICS1531 Data Sheet - Preliminary

Chapter 4 Functional Blocks









Chapter 4 Functional Blocks

4.1Pixel PLL Functional Block

Figure 4-1. Pixel PLL Block Diagram

OSCOUT

(113)



OE OSC Reg2C:6

REF (112)

STATUS

(111)

















1:5-4









































SD eg









































P R

























XFILRET

(143)

:12CgeR-0

CLNPLK Lock 12geR:2

KLCMLock 1egR2:3



VCO



PostScaler Divider











:2











EXTFIL

LESKCL



earghC Filter

pmuP Select

Fil Sel Reg8:0

CapSelReg8:3-1 IntFilterResSelReg8:6-4

RSS8:7egelnthu

























(144)





























Reg2C



1DCFUNC

MUX

FER









Lock Logic



seahP reqF eDctoter

ixPelPLL Lock 0P-2FDReg12:1 0-:21geR



PAD Lock Reg12:0















0







































A













n :0











































DE eg0



















OSC SEL Reg2C:5-4 0























P R



















1

MUX

2

3





PDEN

(141)







PD Pol Reg0:1

In Sel Reg0:5

1

MUX

0



Fdbk Pol Reg0:3

























OSC DIV



OSC Div Reg7:7-0

Ref Pol Reg0:2









































el -6

































DIV2







HSYNCS

0:7







2-Wire



Interface



























Reg







Serial





















OSC













HSYNC

(6)

SDA (138)



SCL

(137)

ADC CLK









CLK

(114)

OE Tck Reg6:6



Delay g6:2















ADC FUNC



























































































































































































































































































































































































































UX



















































































NC Re

1

M

0































FU













































































































































































amic

ase just

















































































































































Dyn

Ph Ad













































egR03-:3 07KBDF- 02geR-:7















-1seRPAD0



0-5:1geR

















































kcabdeeF ivDreid





8-11KBDF



daoivL

:40









































05-

0-























































DPA OS Reg4:5













































































































BkD

Reg

























































































































































































































Fd





































































6:3































































X



















































0

MU

1















































































































Static Regs









ChipMajor/ MinorRev Reg11:7-0









Ver

10:7-0













Chip















Reg

PixelPLLReset RegA:7-4























POR

















DPAReset

RegA:3-0

SBADR (142)





ICS1531 Rev N 12/1/99

Copyright © 1999, Integrated Circuit Systems, Inc.

December, 1999



All rights reserved.









19

12/1/99 N Rev ICS1531

20

Circuit Integrated 1999, © Copyright .reserved rights All



.Inc Systems,





1999 December,

ADC _CLK

XIN (106)

14.318 MHz Crystal

O sc

XOUT (107)

Divide

By 16















PNLCLK-M











PN LC LK_PFD







PN LC LK_Lock



















































































Reg 20:7-0











Reg 24:4-2



































1

















































R eg 12:2

































M U X





R eference











































































P hase











































0













































































D ivider













Freq































































































































CLK_SEL































De tector























































































































Reg 25:2













































Feedback





















































































































































PNLCLK-N





D ivider





































































Reg 21:7-0









Spread









































































































































































































































































































Spectrum









































































































































































































































































PNLCLK-S S0

P NLC LK-SS1

PNLCLK_SS



PNLCLK_SSENB



































Reg 22:7-0

R eg 23:3-0

Reg 24:7-6









R eg 25:1















MC LK-M











M CLK_PFD











MCLK_Lock











































Reg 26:7-0











Reg 2A:4-2









































































Reg 12:3

























































































































Reference

















































































Phase



























































Divider































































































Freq



































































































































































Detector











Feedback

































































































































































































































MCLK-N











Divider





































































Reg 27:7-0

















































































































































































































Divide





























Spread



































By 144



























Spectrum































































































































































M CLK-SS0

MCLK-SS1

MCLK_SS



M CLK_SSENB



































R eg 28:7-0

Reg 29:3-0

Reg 2A:7-6









Reg 2B:1





















































































VC O

Divide By 2







PNLCLK_O SD







Reg 24:1-0

Output





















PNLCLK

Scaler

































Divider







(104)

















PNLCLK_O E





























Reg 25:0

VCO

Divide By 2







M CLK_O SD







Reg 2A:1-0

Output

















Scaler

















MCLK































Divider





(101)

















MCLK_OE















Reg 2B:0

OSC



2.4



Diagram Block CLK .2-4 Figure

Block Functional CLK



Preliminary - Sheet Data ICS1531

Blocks Functional 4 Chapter

ICST ICS1531Y-100, ICS1531Y-140, ICS1531Y-165 Datasheet

12/1/99 N Rev ICS1531

21

Circuit Integrated 1999, © Copyright .reserved rights All



.Inc Systems,





1999 December,

Reference













RA0 - RA7

Voltage















VRTR (16)





0



(95, 94, 93, 92,







8









1



91, 90, 87, 86)





















ADC_Inv

ADC_OE









Clamp

RED

M U X





ARED (15)



Reg 30:5

Reg 30:7





and Amp













ADC BLOCK







































RB0 - RB7









8





(85, 84,

83, 82,













79, 78, 77, 76)



























ADC_Inv

ADC_OE















Reg 30:5

Reg 30:7



Reference













GA0 - GA7

Voltage















VRTG (20)





0



(75, 74, 71, 70,







8









1



69, 68, 67, 66)



AGRN (19)

Clamp

GREEN

M U X

ADC_Inv

ADC_OE







Reg 30:5

Reg 30:7

























and Amp

ADC BLOCK







































GB0 - GB7









8





(63, 62, 61, 60,













59, 58, 51, 50)



























ADC_Inv

ADC_OE



Reference











Reg 30:5

Reg 30:7















BA0 - BA7

Voltage

















VRTB (23)



8

0



(49, 48, 47, 46,







1



43, 42, 41, 40)















VRB (17)

Clamp

BLUE

M U X

ADC_Inv

ADC_OE



CLAM P_Sel

ABLUE (22)



Reg 30:5

Reg 30:7



and Amp

ADC BLOCK









Reg 30:2



























CLAMP

1









BB0 - BB7



(28)











0



8





(39, 38, 35, 34,















M U X







33, 32, 31, 30)





















Half-rate clock (even in 1X mode)

SET_ADC

ADC_Inv

ADC_OE











Reg 30:5

Reg 30:7



















CLA MP _Pol





Reg 30:4



























Reg 30:3





































































































A DCRC LK_Del

































































Output-rate clock (1X or 1/2X)







Reg 37:6-5





























D

Q











0







































































ADCRC LK



















































































































































ADC_Sel





































(54)



































































































ADC_CLK













1





















1















R eg 30:6









O E_AD CRC LK



































Q













M U X







































0

























































ADCRCLK_Inv











Reg 6:5





















M U X





















































Reg 37:7











































O E _ADC RCLK





































































































R eg 6:5































































































































































































































































































Input Full-rate clock



















































































































ADCSYNC





































































































































































































































ADC_FUNC

1

































































































(55)











0







































































OE _AD CSYNC



































M U X





















































































































































R eg 6:4













































































































O E _ADCSYN C































































































































































































R eg 6:4









































































































































































































































































































Input Func

























































































































3.4



Diagram Block ADC .3-4 Figure

Block Functional ADC



Preliminary - Sheet Data ICS1531

Blocks Functional 4 Chapter





ICS1531 Data Sheet - Preliminary

Chapter 5 Application Overview









Chapter 5 Application Overview

Figure 5-1 shows a basic application for the ICS1531.

Figure 5-1. ICS1531 Application

15-Pin VGA

Connector VSYNC

(Monitor End)

HSYNC



Recovered HSYNC



Pixel Data Clock

LCD

Pixel Data

ASIC







Red











Green





ICS1531































Blue



























Panel Clock

Memory Clock

ICS1531 Rev N 12/1/99

Copyright © 1999, Integrated Circuit Systems, Inc.

December, 1999



All rights reserved.









22





ICS1531 Data Sheet - Preliminary

Chapter 6 Register Set









Chapter 6 Register Set

The tables in this chapter detail the functionality of the bits in the ICS1531 Register Set. The tables include the register locations, the bit positions, names, and definitions, along with their read/write access, reset values, and any special functions or capabilities.

6.1Reserved Bits

The ICS1531 has a number of reserved bits throughout the Register Set. These bits provide enhanced test functions (intended for use only by ICS manufacturing) and calibration functions (intended for use in production environments).

Important: The customer must not change the value of reserved bits. If the customer changes the default values of these reserved bits, normal operation of the ICS1531 can be affected.

6.2Register Set Conventions

Register Set conventions include the following:

Bits are listed in the order of most-significant bit (MSB) to least-significant bit (LSB).

Unless otherwise indicated, bit settings are listed in terms of digital (and not hexadecimal) values.

When a bit definition includes word(s) in parentheses, the word in parenthesis is not part of the bit name, but is given to explain the origin of the bit’s name.

6.3Register Set Abbreviations and Acronyms

Table 6-1 lists and defines abbreviations and acronyms used specifically in this chapter. (Table 1-1 lists other abbreviations and acronyms used throughout this data sheet.)

Table 6-1. Register Set Abbreviations and Acronyms

Abbreviation

Definition

or Acronym







D-DPA

Double-Buffered / Dynamic Phase Adjust. Indicates double-buffered registers for which



working registers load during a software Dynamic Phase Adjust reset.





D-MK

Double-Buffered / Memory Clock. Indicates double-buffered registers for which working



registers load during a software MCLK reset.





D-PK

Double-Buffered / Panel Clock. Indicates double-buffered registers for which working registers



load during a software PNLCLK reset.





D-PLL

Double-Buffered / Phase-Locked Loop. Indicates double-buffered registers for which working



registers load during a software pixel PLL reset.





IN-A

Increment All. Indicates a value that increments with each all-layer revision of the ICS1531.





Reg

Register





R/W

Read/Write





Spec. Func.

Special Function. Indicates a special function, such as the following (listed in this table):



D-DPA, D-MK, D-PK, D-PLL





ICS1531 Rev N 12/1/99

Copyright © 1999, Integrated Circuit Systems, Inc.

December, 1999



All rights reserved.









23

+ 53 hidden pages
