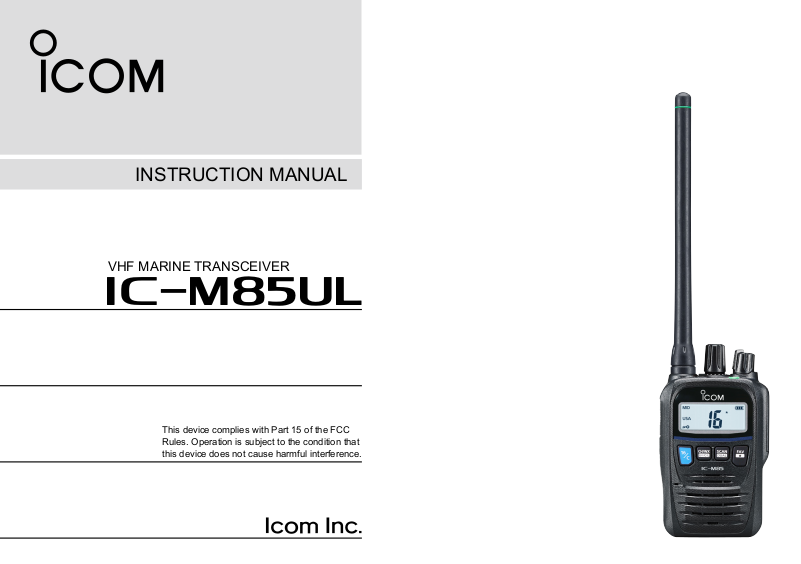

ICOM IC-M85UL INSTRUCTIONS

INSTRUCTION MANUAL

VHF MARINE TRANSCEIVER

iM85UL

This device complies with Part 15 of the FCC
Rules. Operation is subject to the condition that
this device does not cause harmful interference.

Thank you for choosing this Icom product.
This product is designed and built with Icom’s state of
the art technology and craftsmanship. With proper care,
this product should provide you with years of trouble-free
operation.

IMPORTANT

READ ALL INSTRUCTIONS carefully and completely
before using the transceiver.
SAVE THIS INSTRUCTION MANUAL — This instruction
manual contains important operating instructions for the
IC-M85UL.

EXPLICIT DEFINITIONS

WORD DEFINITION

RDANGER!

RWARNING!

CAUTION

NOTE

Personal death, serious injury or an explo­sion may occur.

Personal injury, re hazard or electric

shock may occur.
Equipment damage may occur.

If disregarded, inconvenience only. No risk

of personal injury, re or electric shock.

IN CASE OF EMERGENCY

If your vessel requires assistance, contact other vessels and
the Coast Guard by sending a Distress call on Channel 16.

USING CHANNEL 16

DISTRESS CALL PROCEDURE

1. “MAYDAY MAYDAY MAYDAY.”

2. “THIS IS ...............” (name of vessel).

3. Say your call sign or other description of the vessel
(AND 9 digit DSC ID if you have one).

4. “LOCATED AT ...............” (your position).

5. State the nature of the distress and assistance required.

6. Give any other information which might facilitate the
rescue.

i

PRECAUTIONSRECOMMENDATION

CLEAN THE TRANSCEIVER THOROUGHLY IN A BOWL
OF FRESH WATER after exposure to saltwater, and dry

it before operating. Otherwise, the transceiver’s keys,
switches, and controllers may become unusable, due to salt

crystallization, and/or the charging terminals of the battery

pack may corrode.

NOTE: If the transceiver’s waterproof protection appears
defective, carefully clean the transceiver with a soft,
damp (fresh water) cloth, then dry it before operating.
The transceiver may lose its waterproof protection if the
case, jack cap, or connector cover is cracked or broken,
or the transceiver has been dropped. Contact your Icom
distributor or your dealer for advice.

R DANGER! NEVER short the terminals of the battery
pack. Shorting may occur if the terminals touch metal
objects such as a key, so be careful when placing the
battery packs (or the transceiver) in bags, and so on. Carry
them so that shorting cannot occur with metal objects.
Shorting may damage not only the battery pack, but also the
transceiver.
R DANGER! NEVER use or charge Icom battery packs
with non-Icom transceivers or non-Icom chargers. Only Icom
battery packs are tested and approved for use with Icom
transceivers or charged with Icom chargers. Using third­party or counterfeit battery packs or chargers may cause

smoke, re, or cause the battery to burst.

R DANGER! NEVER operate the transceiver near
unshielded electrical blasting caps or in an explosive
atmosphere.
R WARNING! NEVER hold the transceiver so that the
antenna is very close to, or touching exposed parts of the
body, especially the face or eyes, while transmitting. The
transceiver will perform best if the microphone is 5 to 10
cm (2 to 4 inches) away from the lips and the transceiver is
vertical.
R WARNING! NEVER operate the transceiver with a
headset or other audio accessories at high volume levels.
The continuous high volume operation may cause a ringing
in your ears. If you experience the ringing, reduce the
volume level or discontinue use.

ii

PRECAUTIONS (Continued)

CAUTION: DO NOT use harsh solvents such as Benzine or

alcohol when cleaning. This could damage the equipment
surfaces. If the surface becomes dusty or dirty, wipe it clean
with a soft, dry cloth.
CAUTION: DO NOT place or leave the transceiver in
excessively dusty environments. This could damage the
transceiver.
CAUTION: DO NOT expose the transceiver to rain, snow
or any liquids. The transceiver meets IP67 requirements
for dust-protection and splash resistance. However, once
the transceiver has been dropped, dust protection and
splash resistance cannot be guaranteed due to the fact
that the transceiver may be cracked, or the waterproof seal
damaged, and so on.
DO NOT place or leave the transceiver in direct sunlight or

in areas outside of the specied temperature range:
Operating temperature range: –30°C (–22˚F) ~ +60°C (+140˚F)

Keep the transceiver in a secure place to prevent use by

unauthorized persons.

BE CAREFUL! Even if the volume level is set low, the
beeps of the Man Down, Lone Worker and MOB functions
are very loud.

Icom is not responsible for the destruction, damage to, or
performance of any Icom or non-Icom equipment, if the

malfunction is because of:

• Force majeure, including, but not limited to, res,
earthquakes, storms, oods, lightning, other natural

disasters, disturbances, riots, war, or radioactive
contamination.

• The use of Icom transceivers with any equipment that is
not manufactured or approved by Icom.

Icom and the Icom logo are registered trademarks of Icom Incorporated
(Japan) in Japan, the United States, the United Kingdom, Germany, France,

Spain, Russia, Australia, New Zealand, and/or other countries.

AQUAQUAKE is a trademark of Icom Incorporated.
All other products or brands are registered trademarks or trademarks of their
respective holders.

iii

TABLE OF CONTENTS

IMPORTANT ....................................................................................i

EXPLICIT DEFINITIONS .................................................................i

IN CASE OF EMERGENCY ............................................................i

RECOMMENDATION ......................................................................ii

PRECAUTIONS ...............................................................................ii

1 OPERATING RULES ...............................................................1

2 ACCESSORIES .......................................................................2

Supplied accessories ...........................................................2

■

Attaching accessories ..........................................................2

■

3 PANEL DESCRIPTION ............................................................5

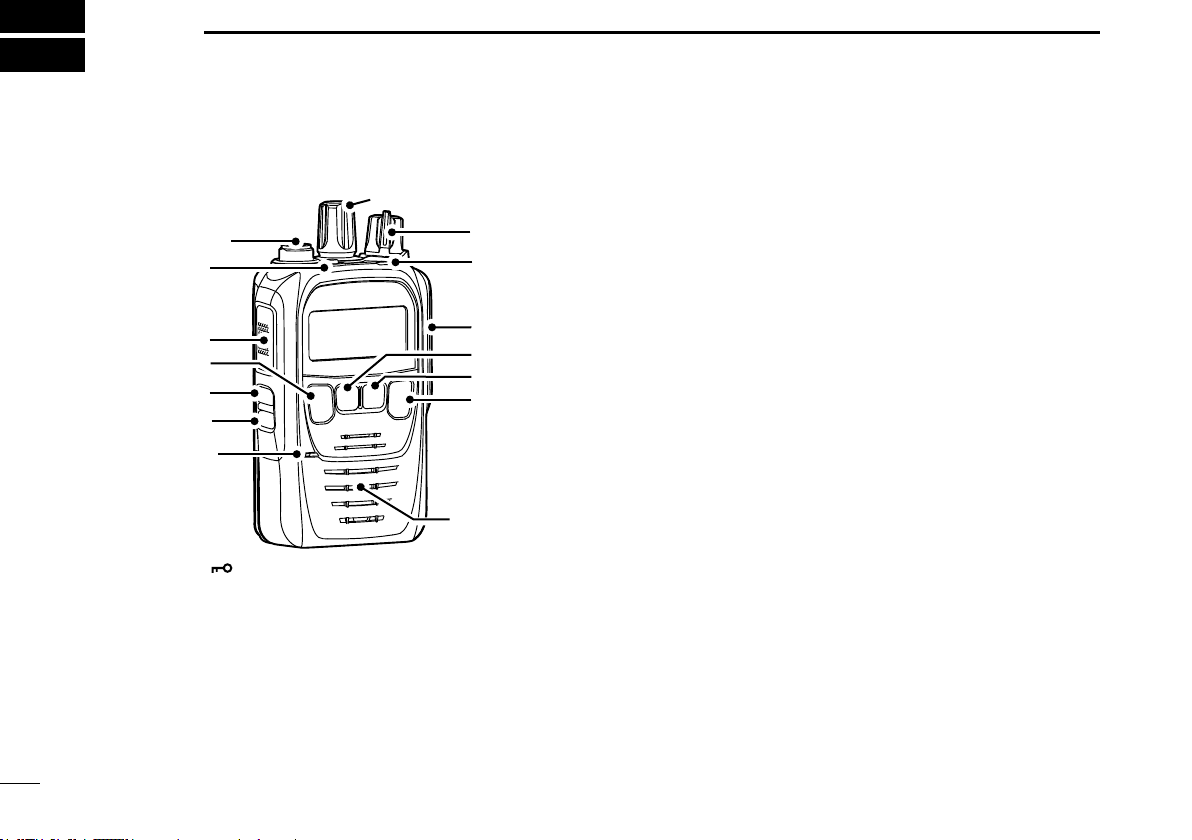

Front, top and side panels ...................................................5

■

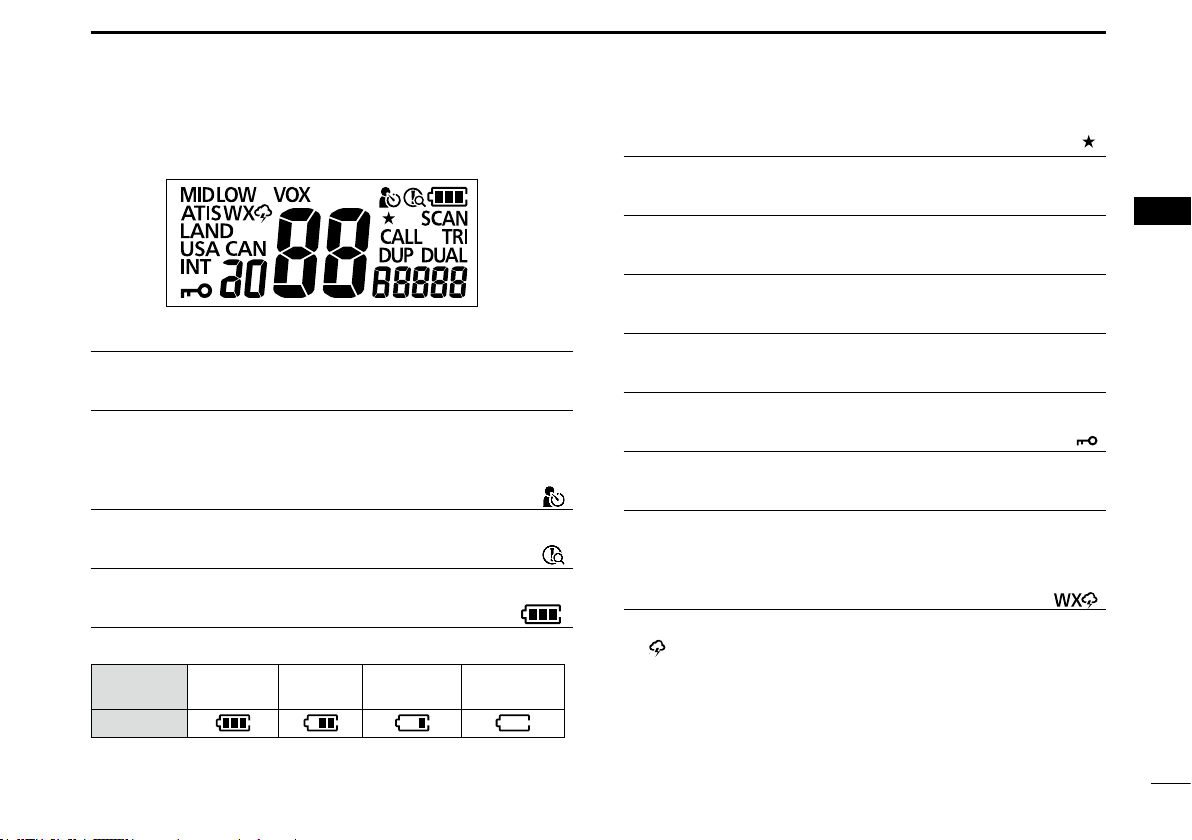

Function display ...................................................................6

■

4 BATTERY CHARGING ............................................................7

Battery caution .....................................................................7

■

Charging caution ..................................................................8

■

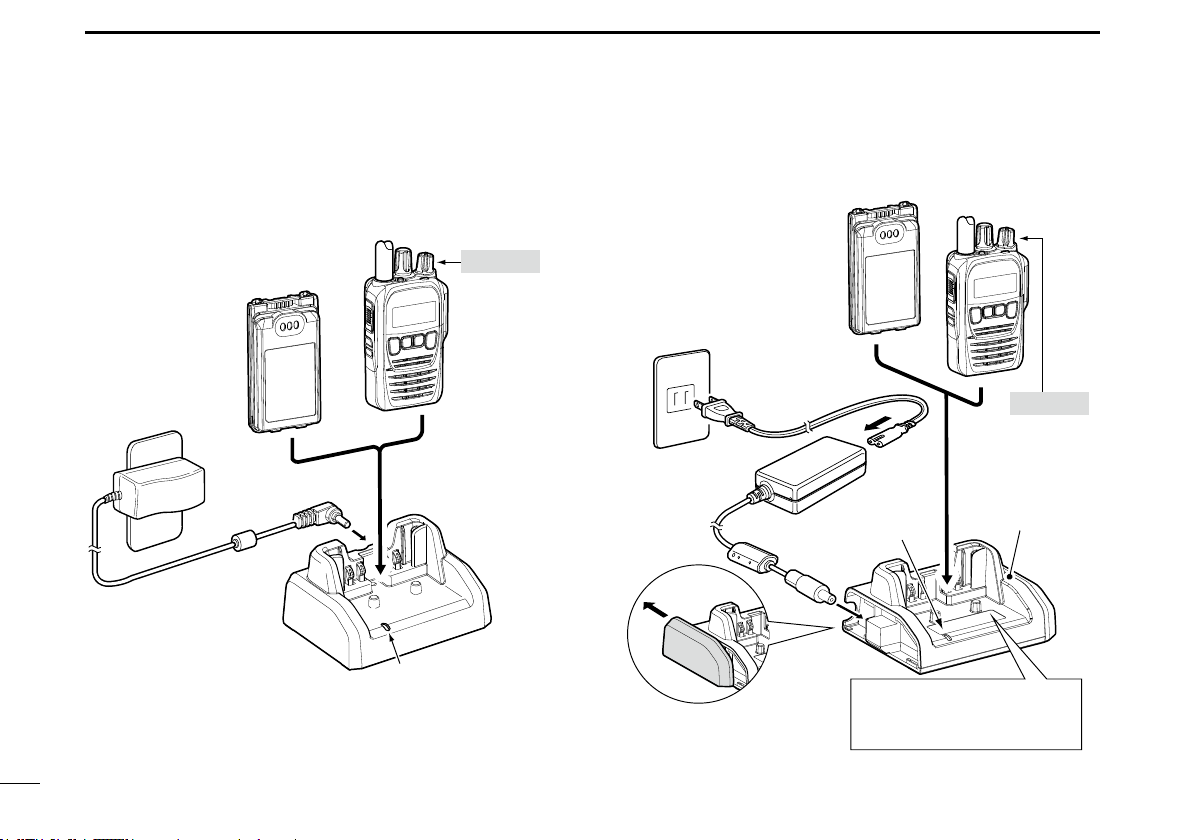

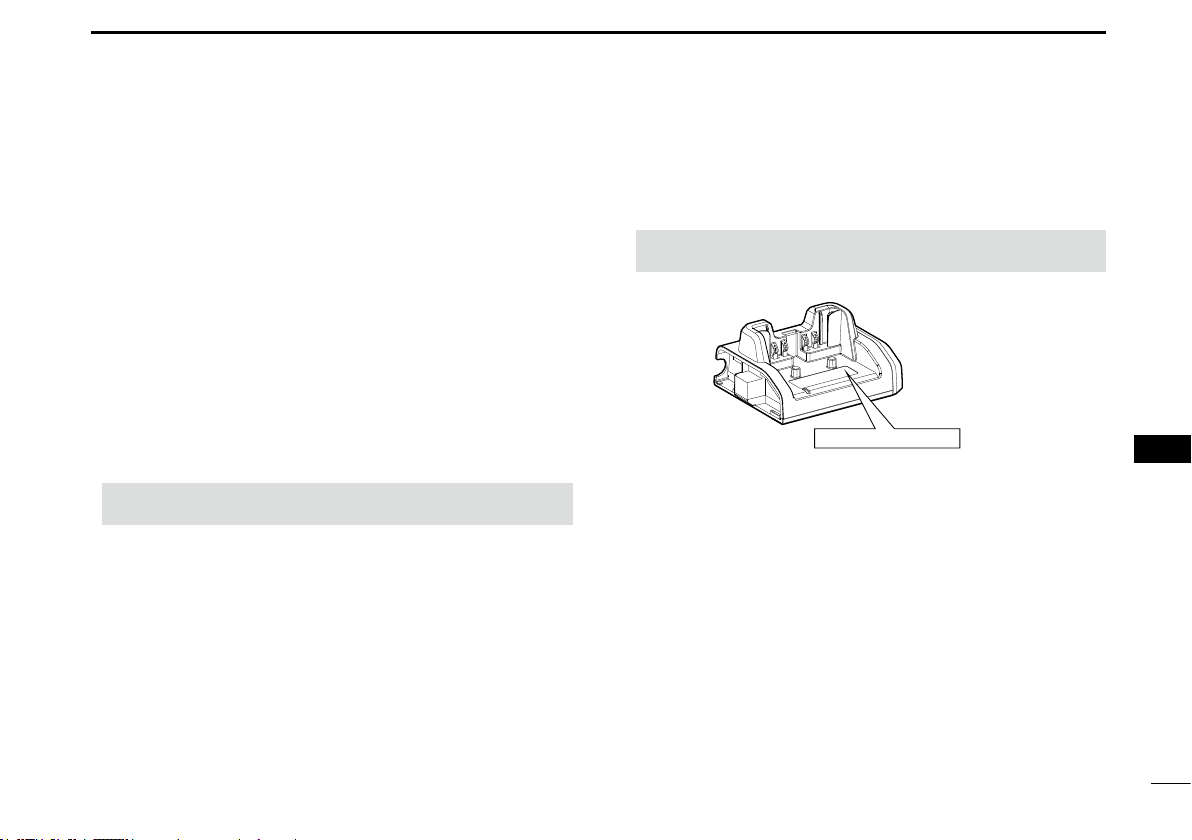

Battery charger ...................................................................9

■

5 BASIC OPERATION ................................................................11

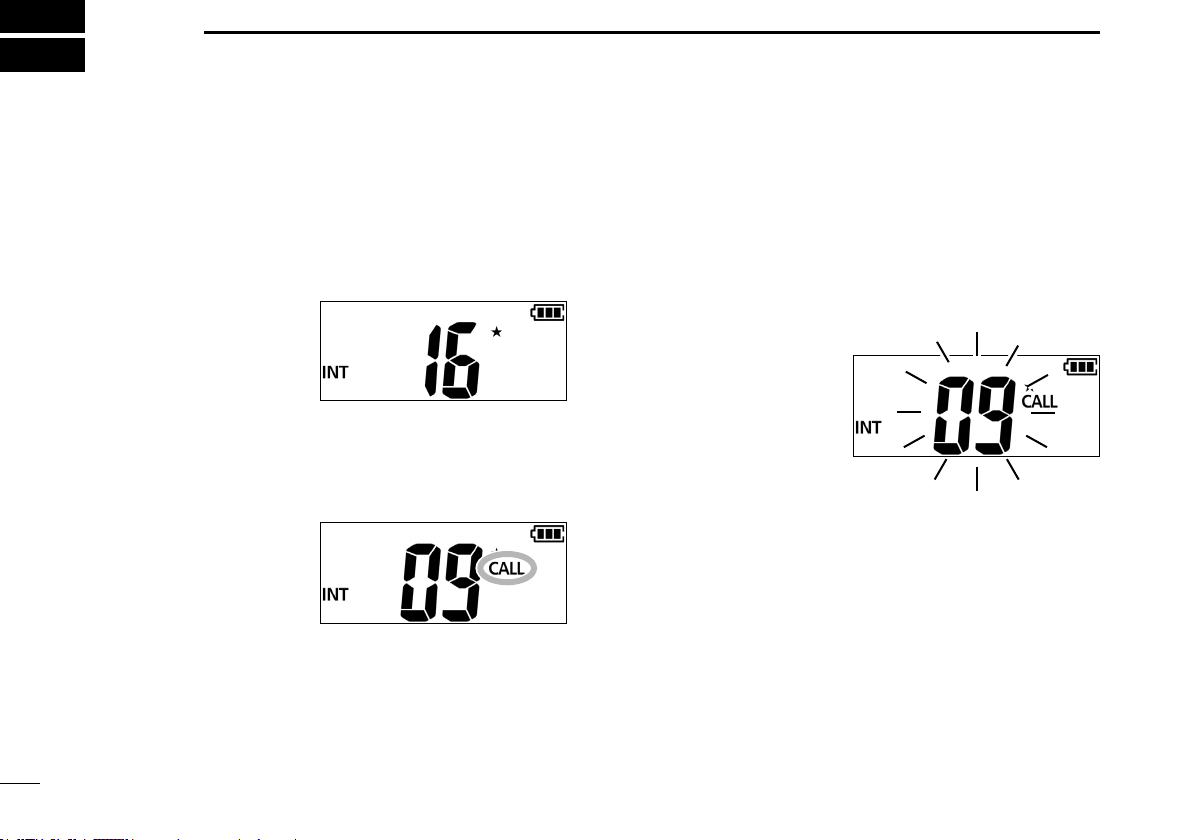

Selecting a channel ..............................................................11

■

Receiving and transmitting ...................................................13

■

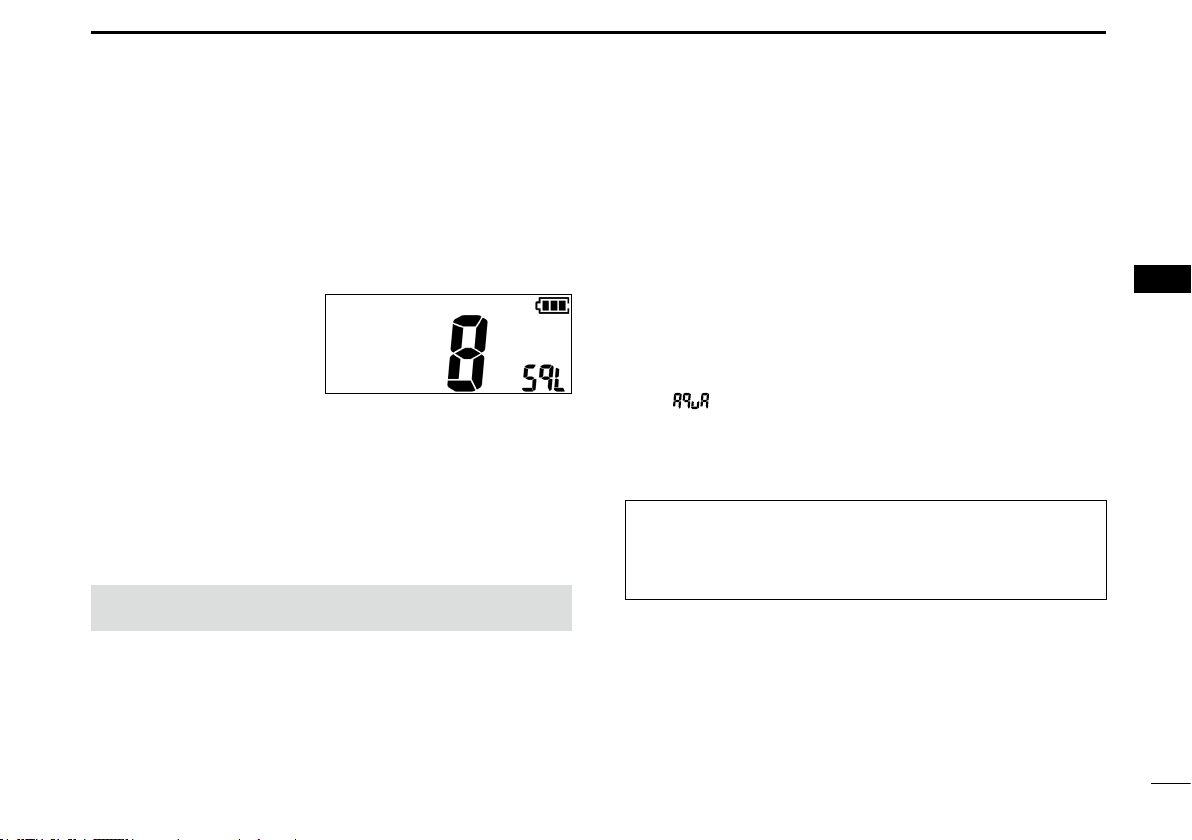

Adjusting the squelch level ..................................................14

■

Using the VOX function ........................................................14

■

Using the AquaQuake water draining function .....................14

■

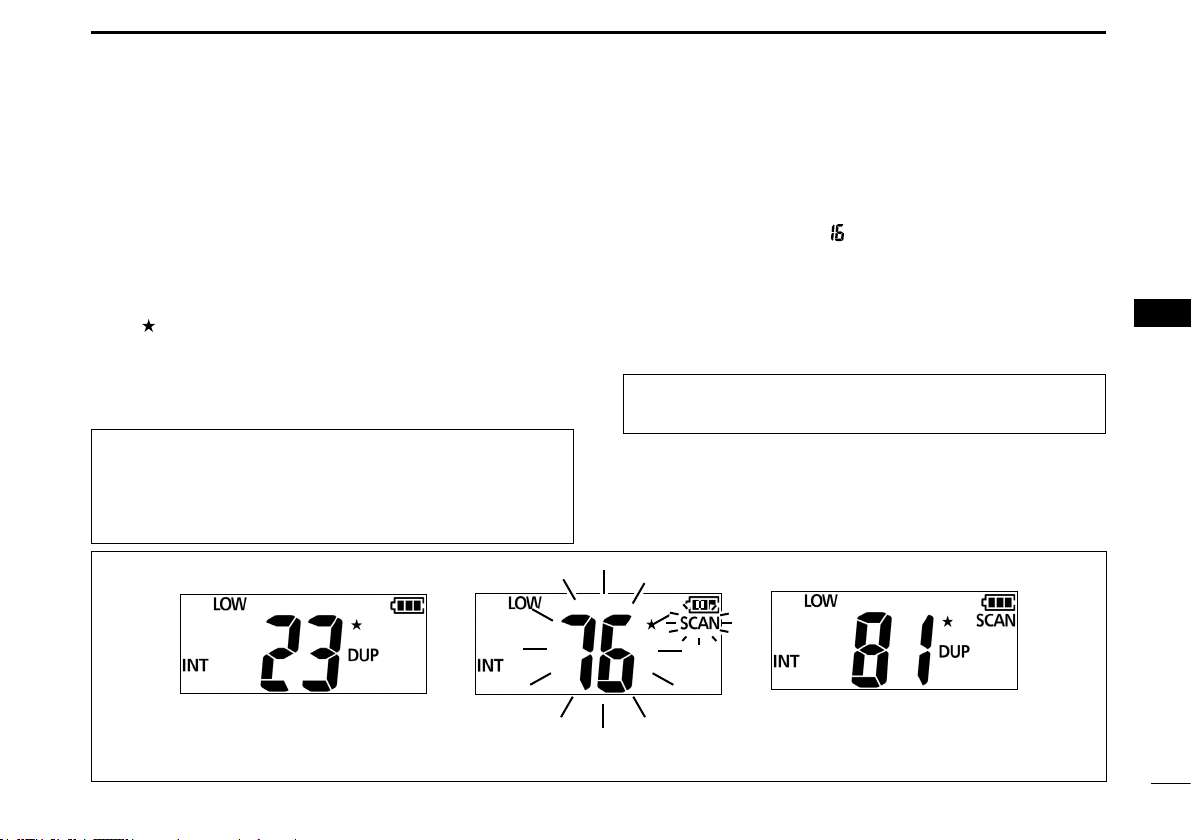

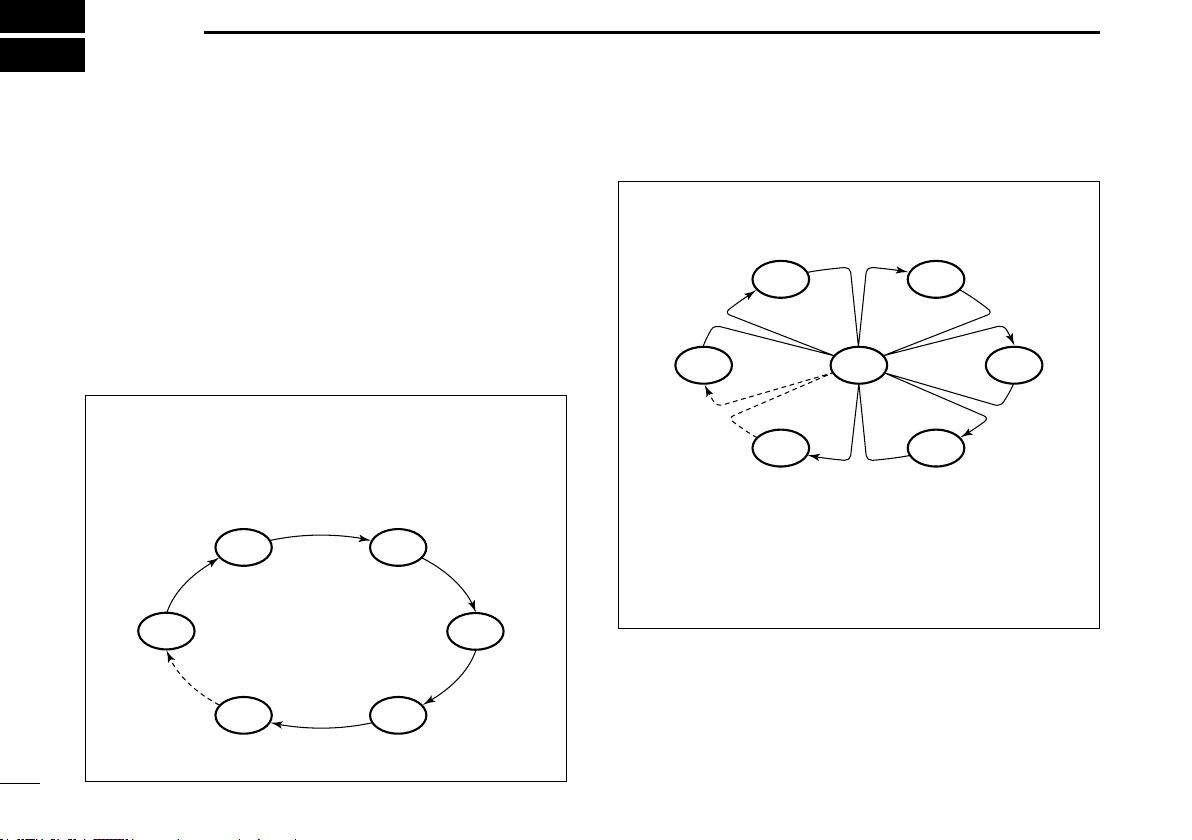

6 SCAN .......................................................................................15

Scan types ...........................................................................15

■

Favorite channels .................................................................16

■

Starting a scan .....................................................................16

■

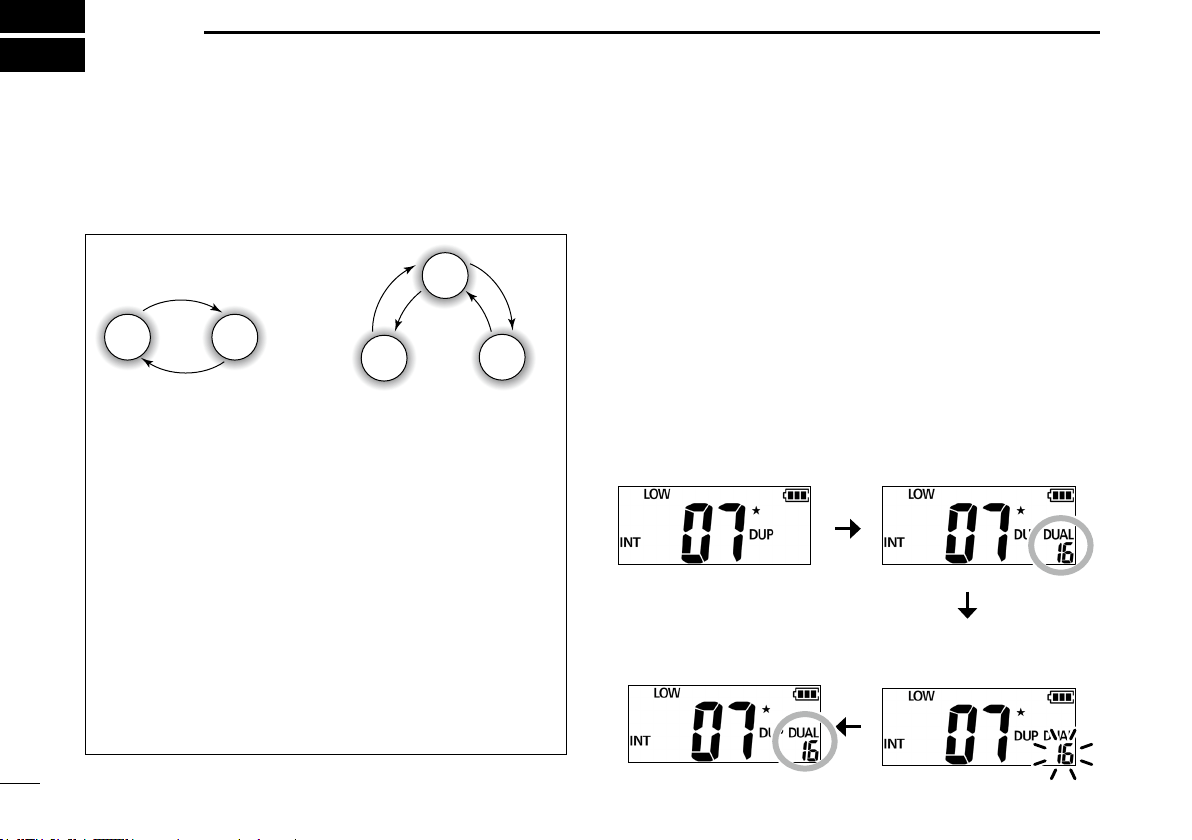

7 DUALWATCH/TRI-WATCH ......................................................17

Description ...........................................................................17

■

Operation .............................................................................17

■

8 OTHER FUNCTIONS ...............................................................18

Using the LAND channel group ...........................................18

■

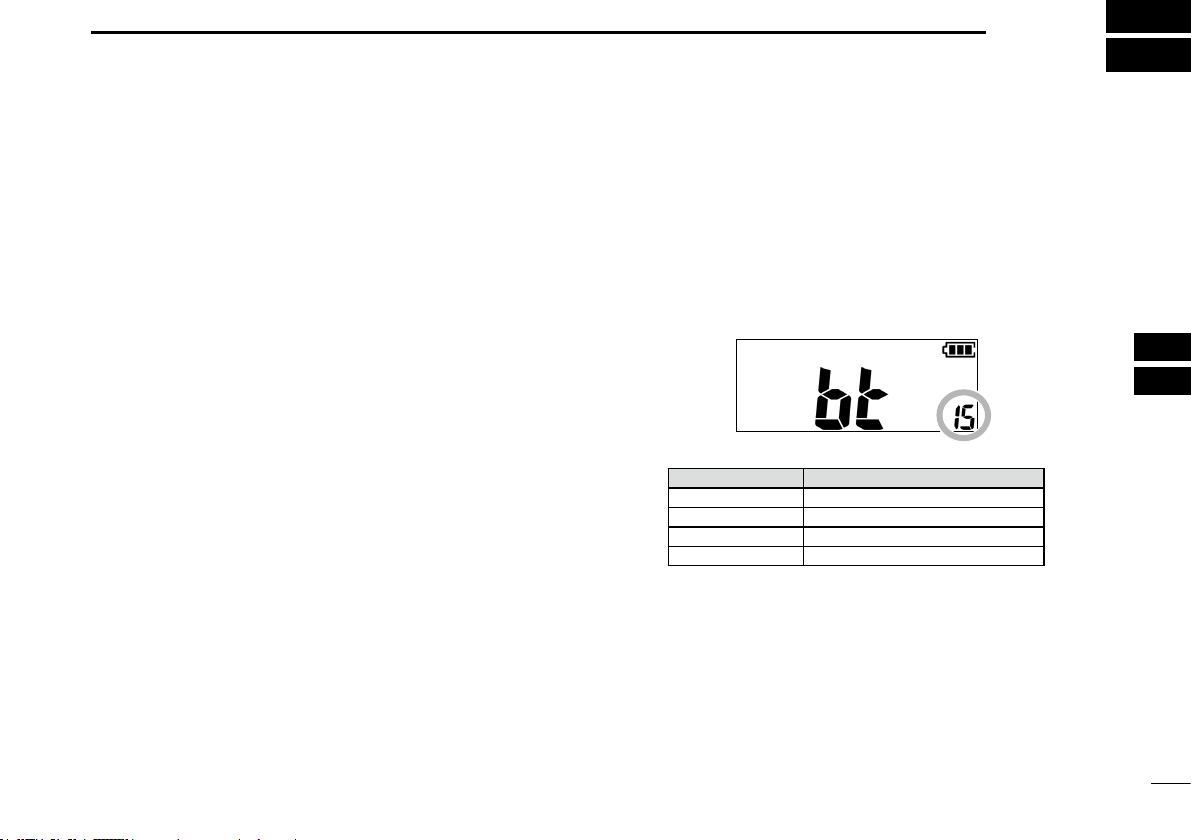

Checking the battery health and battery cycle ..................... 18

■

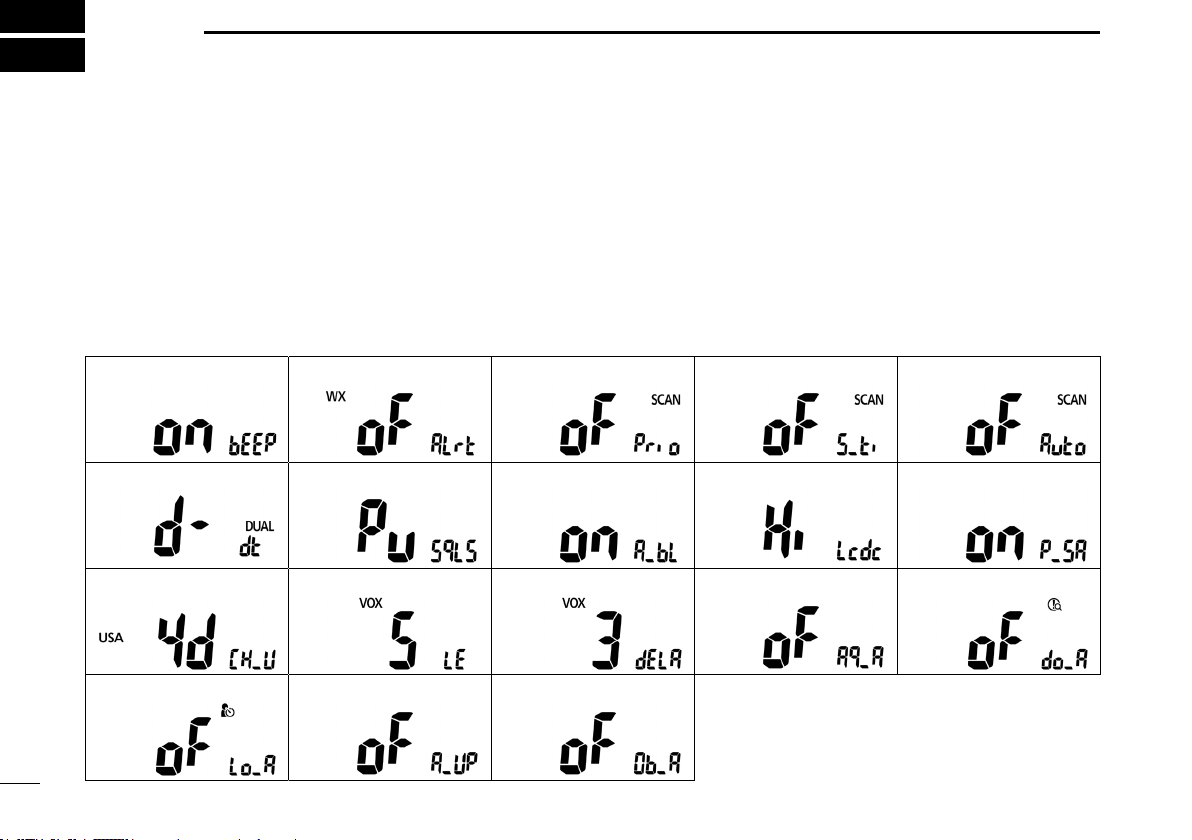

9 SET MODE ...............................................................................19

Using the Set mode .............................................................19

■

Set mode items ....................................................................20

■

10 SPECIFICATIONS AND OPTIONS ..........................................23

Specications .......................................................................23

■

Options .................................................................................24

■

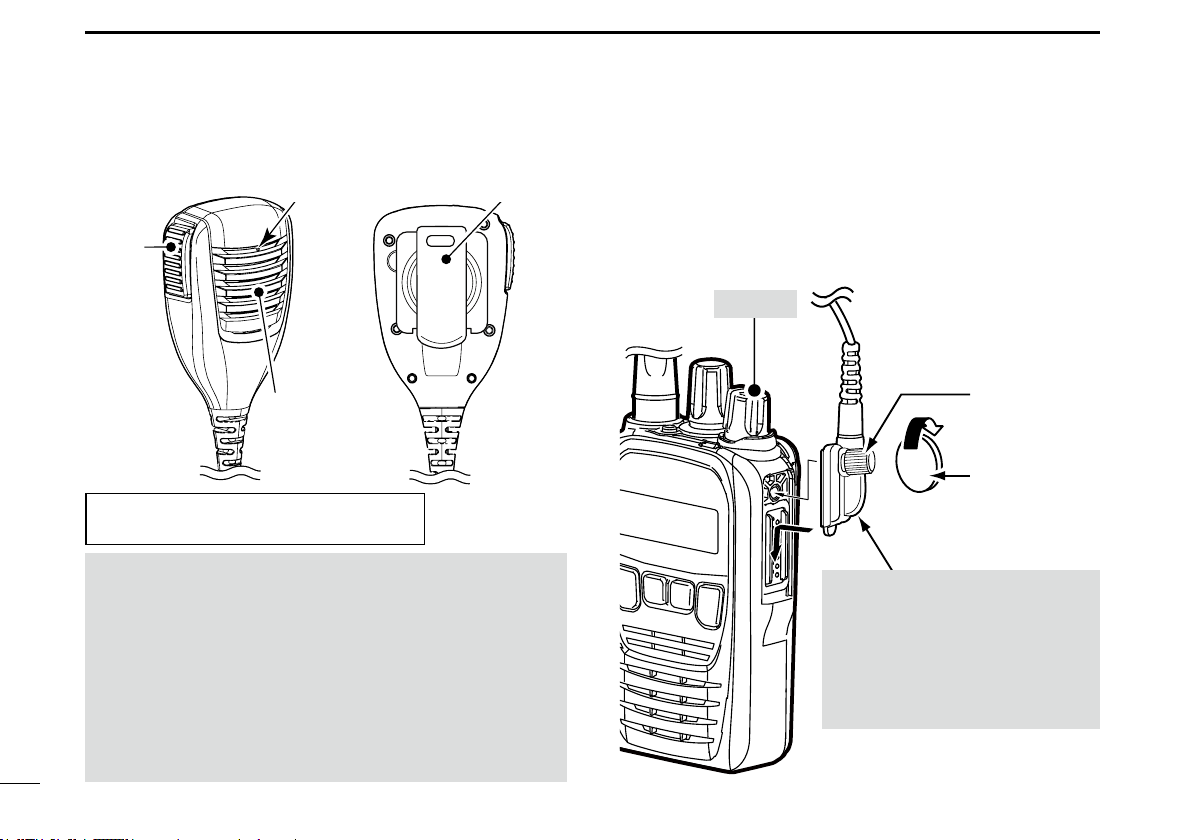

Using the HM-184UL............................................................25

■

11 VHF MARINE CHANNEL LIST ................................................26

12 TROUBLESHOOTING .............................................................27

13 INFORMATION ........................................................................28

Firmware version identication ............................................28

■

FCC information ...................................................................28

■

Safety training information ...................................................29

■

INDEX............................................................................................31

vi

1

OPERATING RULES

D Priorities

• Read all rules and regulations pertaining to call priorities,
and keep an up-to-date copy handy. Safety and distress
calls take priority over all others.

• You must monitor Channel 16 when you are not operating
on another channel.

• False or fraudulent distress calls are prohibited under law.

D Privacy

• Information overheard, but not intended for you, cannot
lawfully be used in any way.

• Indecent or profane language is prohibited.

D Radio licenses

(1) SHIP STATION LICENSE

You may require a current radio station license before using
the transceiver. It is unlawful to operate a ship station which
is not licensed, but required to be.

If required, contact your dealer or the appropriate
government agency for a Ship-Radiotelephone license
application. This government-issued license states the call

sign which is your craft’s identication for radio purposes.

(2) OPERATOR’S LICENSE

A Restricted Radiotelephone Operator Permit is the license
most often held by small vessel radio operators when a
radio is not required for safety purposes.

If required, the Restricted Radiotelephone Operator Permit
must be posted or kept with the operator. If required, only a
licensed radio operator may operate a transceiver.

However, non-licensed individuals may talk over a
transceiver if a licensed operator starts, supervises, ends
the call and makes the necessary log entries.

A current copy of the applicable government rules and
regulations is only required to be on hand for vessels in
which a radio telephone is compulsory. However, even
if you are not required to have these on hand it is your
responsibility to be thoroughly acquainted with all pertinent
rules and regulations.

NOTE: Even though the transceiver is capable of operation
on VHF marine channels 1021, 1023, 1081, 1082, and 1083,
according to FCC regulations these simplex channels cannot be
lawfully used by the general population in USA waters.

1

ACCESSORIES

2

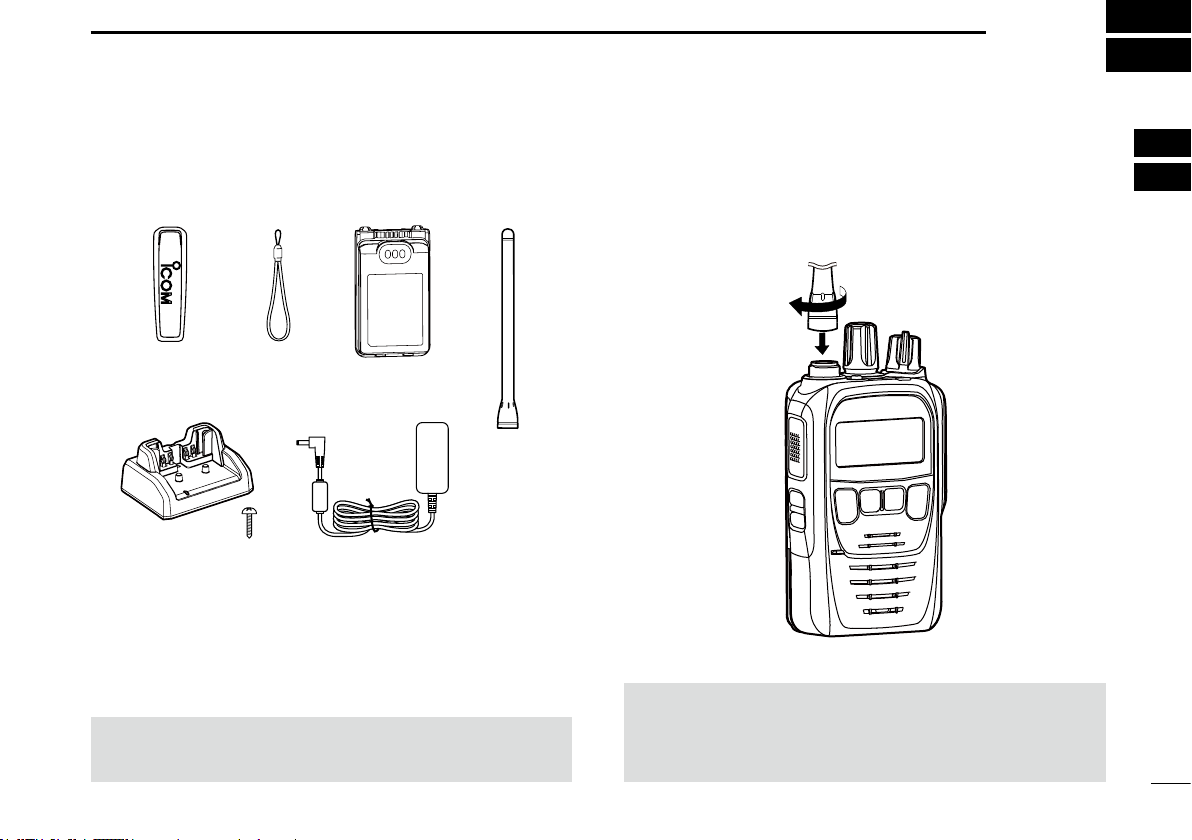

■ Supplied accessories

Belt clip

Battery charger
(With a screw)

NOTE: Some accessories are not supplied, or the shape is
different, depending on the transceiver version.

Handstrap

Power adapter
(For Battery charger)

Battery pack

Antenna

■ Attaching accessories

D Flexible antenna

Connect the supplied exible antenna to the antenna

connector.

CAUTION:

• DO NOT carry the transceiver by holding only the antenna.

• DO NOT connect an antenna other than those listed in
this instruction manual.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

2

2

ACCESSORIES

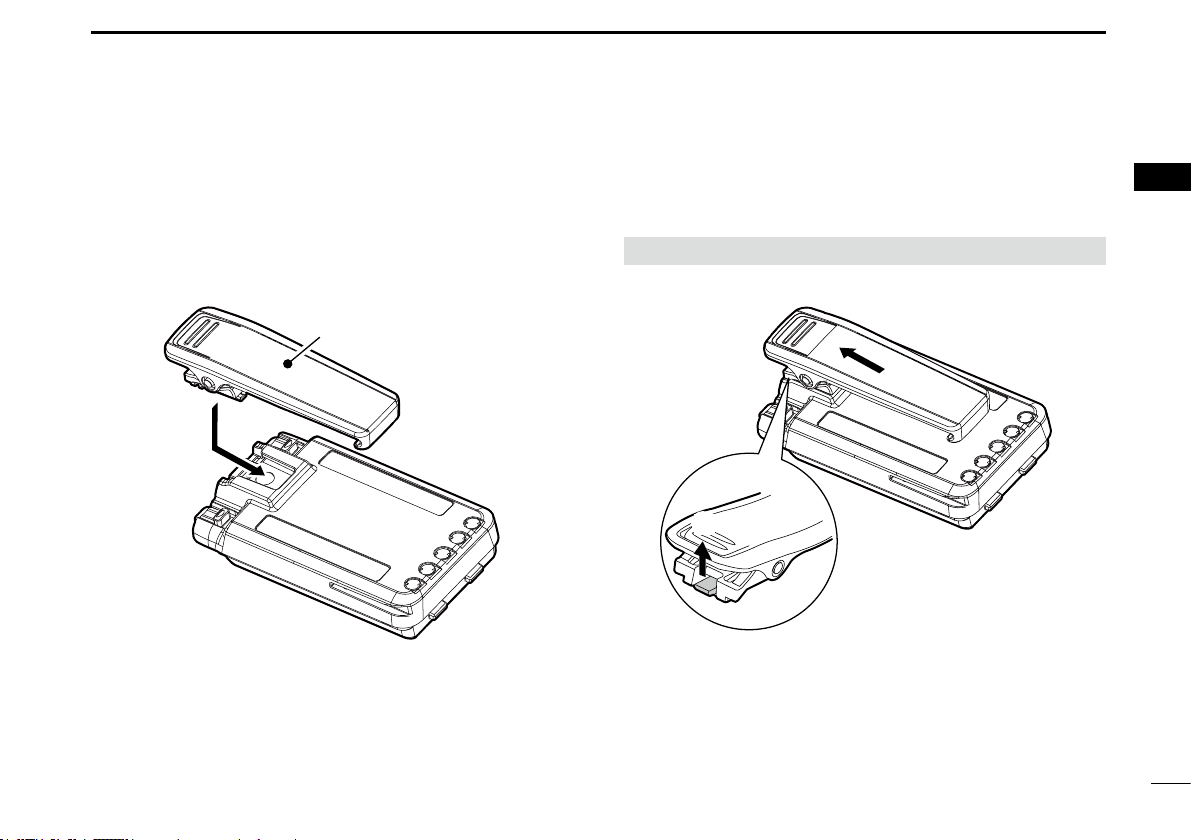

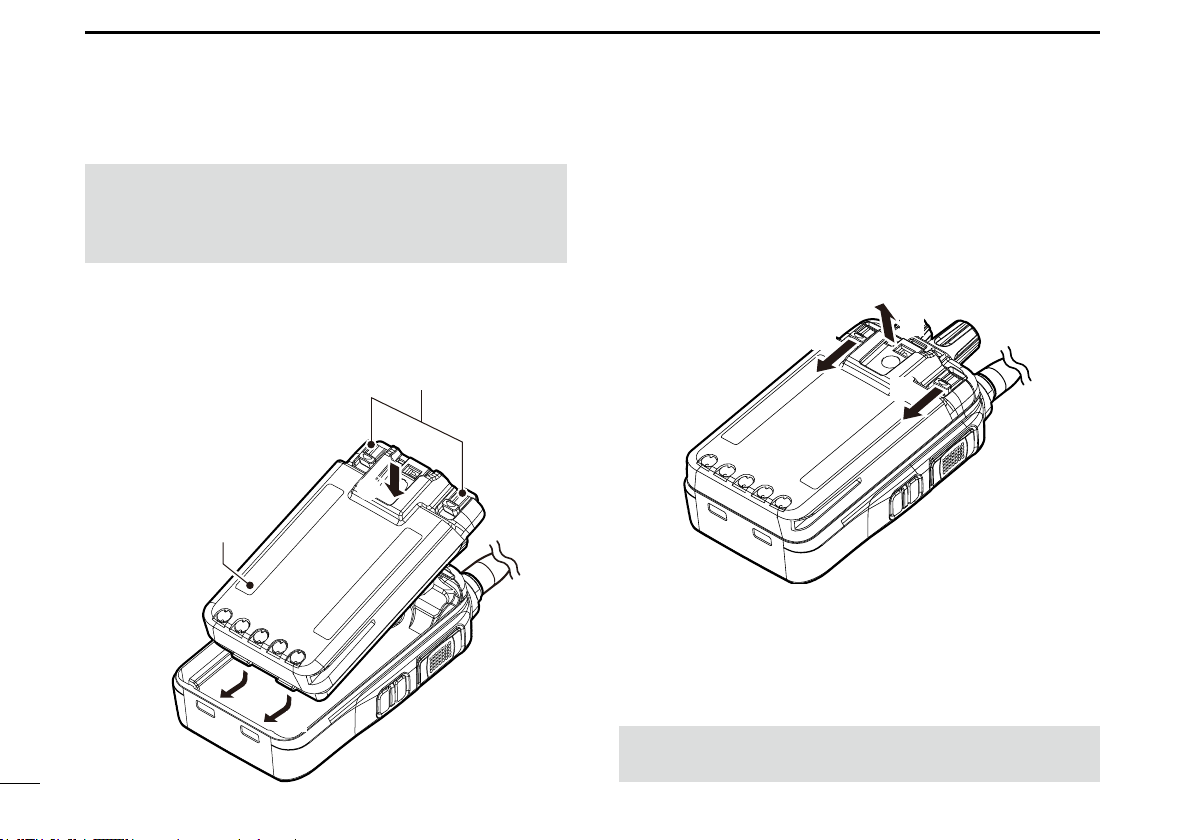

D Battery pack

CAUTION: DO NOT attach or detach the battery pack

when the transceiver is wet or soiled. This may result in
water or dust getting into the transceiver/ battery pack and
may damage the transceiver.

To attach:

1. Slide the battery pack in the direction of the arrow. (q)

2. Push the battery pack until the battery sliding locks

make a ‘click’ sound. (w)

Battery sliding locks

w

Battery pack

q

q

3

To detach:

1. Pull both battery sliding locks in the direction of the

arrow. (z)

2. Lift up to detach the battery pack. (x)

z

NOTE: Keep the battery pack terminals clean. It’s a good
idea to occasionally clean them.

x

z

ACCESSORIES

2

D Belt clip

To attach:

1. Remove the battery pack from the transceiver, if it is
attached.

2. Slide the belt clip in the direction of the arrow until the
belt clip is locked and makes a ‘click’ sound.

Belt clip

To detach:

Lift the tab up (q), and slide the belt clip in the direction of
the arrow (w).

BE CAREFUL! DO NOT break your ngernail.

w

q

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

4

3

PANEL DESCRIPTION

■ Front, top and side panels

!2

Antenna
Connector

q

w
e

r
t

Microphone

q LOCK KEY [ ]

Hold down for 1 second to lock or unlock the keypad.

L Push to use the pre-assigned function. Ask dealer for details.

w PTT SWITCH [PTT]

Hold down to transmit, release to receive.

e CHANNEL 16/CALL CHANNEL KEY [16/C] (p. 11)

z Push to select Channel 16.
z Hold down for 1 second to select the Call channel.

r SQUELCH ADJUSTMENT KEY [SQL] (p. 14)

z Push to enter or exit the Squelch Adjustment mode.

5

z Hold down to open the squelch, to monitor the channel.

!1
!0

o
i

u
y

Speaker

t TRANSMIT POWER KEY [H/L]

z Push to set the power level to high, mid, or low.

L Some channels are set to only low power.

z Hold down for 1 second to display the battery health

and battery cycle. (p. 18)

y FAVORITE CHANNEL KEY [FAV] (p. 16)

z Push to select a Favorite channel.
z Hold down for 1 second to set or clear the selected

channel as a Favorite channel.

u SCAN/DUALWATCH KEY [SCAN]/[DUAL]

z Push to start or stop a scan. (p. 15)
z Hold down for 1 second to start the Dualwatch.* (p. 17)

L While Dualwatch, push to cancel Dualwatch.

*Tri-watch may start, depending on the Set mode settings.

i WEATHER CHANNEL/CHANNEL GROUP KEY

[CH/WX]/[U/I/C/L]

z Push to enter or exit the Weather Channel Selection

mode. (p. 12)

z Hold down for 1 second to change the channel group. (p. 12)

o MULTI-CONNECTOR

Connects to an optional speaker microphone or headset.

!0 STATUS INDICATOR

z Lights red while transmitting.
z Lights green while receiving a signal, or when the

squelch is open.

!1 VOLUME/POWER SWITCH [VOL]

z Rotate to turn the transceiver ON or OFF.
z Rotate to adjust the audio output level.

!2 TUNING DIAL [DIAL]

z Rotate to select a channel.

PANEL DESCRIPTION

3

■ Function display

TRANSMIT POWER INDICATOR “MID”/“LOW”

Displayed when low power or mid power is selected.

VOX INDICATOR “VOX”

Displayed when the VOX function* is ON.

* Usable only when the optional PTT switch cable and headset are

connected.

MAN DOWN ICON

Displayed when the Man Down Alarm function is ON. (p. 22)

LONE WORKER ICON

Displayed when the Lone Worker Alarm function is ON. (p. 22)

BATTERY INDICATOR

Displays the battery status.

Battery

status

Indication

Full Mid

Charging

required

exhausted

“

“ ”

“ ”

Battery

FAVORITE CHANNEL ICON

Displayed when a Favorite channel is selected. (p. 16)

SCAN INDICATOR “SCAN”

Blinks while scanning. (p. 15)

CALL CHANNEL INDICATOR “CALL”

Displayed when the Call channel is selected. (p. 11)

DUALWATCH/TRI-WATCH INDICATOR “DUAL”/“TRI”

Displayed during Dualwatch or Tri-watch operation. (p. 17)

DUPLEX INDICATOR “DUP”

Displayed when a Duplex channel is selected.

LOCK ICON “ ”

Displayed when the Lock function is ON.

”

CHANNEL GROUP INDICATOR “INT”/“USA”/“CAN”/“LAND”

Displays the selected channel group.*1 (p. 12)

*1 The selectable channel groups may differ, depending on the

version.

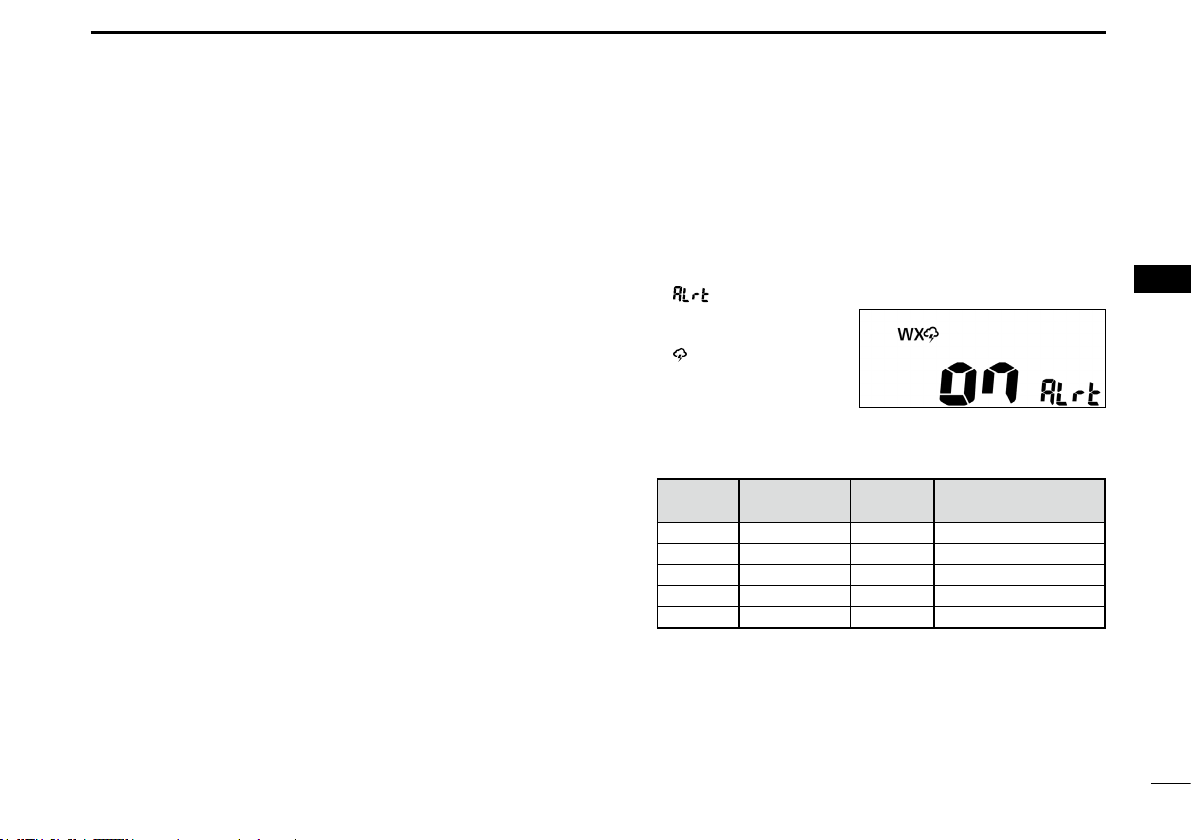

WEATHER CHANNEL ICON “

Displayed when the Weather channel is selected. (p. 12)

L “ ” is displayed when the Weather Alert function is ON.

“ ”

1
2
3
4
5
6
7
8
9
10
11
12
13
14

”

15
16

6

4

BATTERY CHARGING

■ Battery caution

Misuse of Li-ion batteries may result in the following

hazards: smoke, re, or the battery may rupture. Misuse

can also cause damage to the battery or degradation of
battery performance.

R DANGER! NEVER solder the battery terminals, or NEVER
modify the battery pack. This may cause heat generation, and

the battery may burst, emit smoke or catch re.

R DANGER! NEVER place or leave battery packs in areas
with temperatures above 60°C (140°F). High temperature

buildup in the battery cells, such as could occur near res or

stoves, inside a sun-heated vehicle, or in direct sunlight for
long periods of time may cause the battery cells to rupture

or catch re. Excessive temperatures may also degrade the

battery pack’s performance or shorten the battery cell’s life.
R DANGER! NEVER strike or otherwise impact the battery

pack. Do not use the battery pack if it has been severely
impacted or dropped, or if the pack has been subjected to
heavy pressure. Battery pack damage may not be visible
on the outside of the case. Even if the surface of the battery
does not show cracks or any other damage, the cells inside

the battery may rupture or catch re.

R DANGER! NEVER expose the battery pack to rain, snow,
seawater, or any other liquids. Do not charge or use a wet
pack. If the pack gets wet, be sure to wipe it dry before using.

R DANGER! NEVER place or leave battery packs near re.
Fire or heat may cause them to rupture or explode. Dispose
of used battery packs in accordance with local regulations.

R DANGER! NEVER let uid from inside the battery get in
your eyes. This can cause blindness. Rinse your eyes with
clean water, without rubbing them, and immediately go to a
doctor.

R WARNING! NEVER put the battery pack in a microwave
oven, high-pressure container, or in an induction heating

cooker. This could cause a re, overheating, or cause the

battery cells to rupture.
R WARNING! NEVER use the battery pack if it emits an

abnormal odor, heats up, or is discolored or deformed. If
any of these conditions occur, contact your Icom dealer or
distributor.

R WARNING! NEVER Iet uid from inside the battery cells
come in contact with your body. If it does, immediately wash
with clean water.

CAUTION: DO NOT use the battery pack out of the

specied temperature range for the transceiver (–30°C
~ +60°C (–22°F ~ +140°F)) and the battery itself (–20°C
~ +60°C (–4°F ~ +140°F)). Using the battery out of its
specied temperature range will reduce its performance and

battery cell’s life. Please note that the specied temperature
range of the battery may exceed that of the transceiver. In
such cases, the transceiver may not work properly because
it is out of its operating temperature range.

7

BATTERY CHARGING

4

CAUTION: DO NOT leave the pack fully charged,
completely discharged, or in an excessive temperature
environment (above 50°C, 122°F) for an extended period of
time. If the battery pack must be left unused for a long time,
it must be detached from the transceiver after discharging.
You may use the battery pack until the remaining capacity is
about half, then keep it safely in a cool and dry place at the
following temperature range:

–20°C ~ +50°C (–4°F ~ +122°F) (within a month)
–20°C ~ +40°C (–4°F ~ +104°F) (within three months)
–20°C ~ +20°C (–4°F ~ +68°F) (within a year)

BE SURE to replace the battery pack with a new one

approximately ve years after manufacturing, even if it still

holds a charge. The material inside the battery cells will
become weak after a period of time, even with little use.
The estimated number of times you can charge the pack
is between 300 and 500. Even when the pack appears to
be fully charged, the operating time of the transceiver may
become short when:

• Approximately 5 years have passed since the pack was

manufactured.

• The pack has been repeatedly charged.

The battery cells may deteriorate and swell due to their
characteristics if used in an environment and conditions such as:
frequently charged, echarged immediately after full charge, used
or saved in a hot place, or charged by methods other than the
instructions. If the battery pack swells, it has reached the end of
its life due to deterioration. Replace it with a brand new one.

■ Charging caution

R DANGER! NEVER charge the battery pack in areas with

extremely high temperatures, such as near res or stoves,

inside a sun-heated vehicle, or in direct sunlight. In such
environments, the safety/protection circuit in the battery will
activate, causing the battery to stop charging.

R WARNING! NEVER charge the transceiver during a
lightning storm. It may result in an electric shock, cause a

re or damage the transceiver. Always disconnect the power

adapter before a storm.
R WARNING! NEVER charge or leave the battery in the

battery charger beyond the specied time for charging. If the
battery is not completely charged by the specied time, stop

charging and remove the battery from the battery charger.

Continuing to charge the battery beyond the specied time
limit may cause a re, overheating, or the battery may

rupture.
R WARNING! NEVER insert the transceiver (battery

attached to the transceiver) into the charger if it is wet or
soiled. This could corrode the battery charger terminals or
damage the charger. The charger is not waterproof.

CAUTION: DO NOT charge the battery outside of the

specied temperature range: BC-227 (15˚C ~ 40˚C
(59˚F ~ 104˚F)). Otherwise, the charging time will be longer,

but the battery will not reach a full charge. While charging,

at a point after the temperature goes out of the specied

range, the charging will automatically stop.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

8

4

BATTERY CHARGING

■ Battery charger

D Supplied battery charger

Charging time: approximately 2.7 hours

Battery pack

Power adapter*

Status indicator

* May not be supplied, or the shape may be different, depending on

the transceiver version.

9

Turn OFF

Battery
charger

D Optional BC-226 desktop charger

Charging time: approximately 2.7 hours

Battery pack

Power
adapter*

Status
indicator

L Use the BC-226 version 1.1

L To connect the power adapter

to the charger, remove the
charger’s left cover.

or later. The charger version
is written on the sticker.

Turn OFF

BC-226

BATTERY CHARGING

4

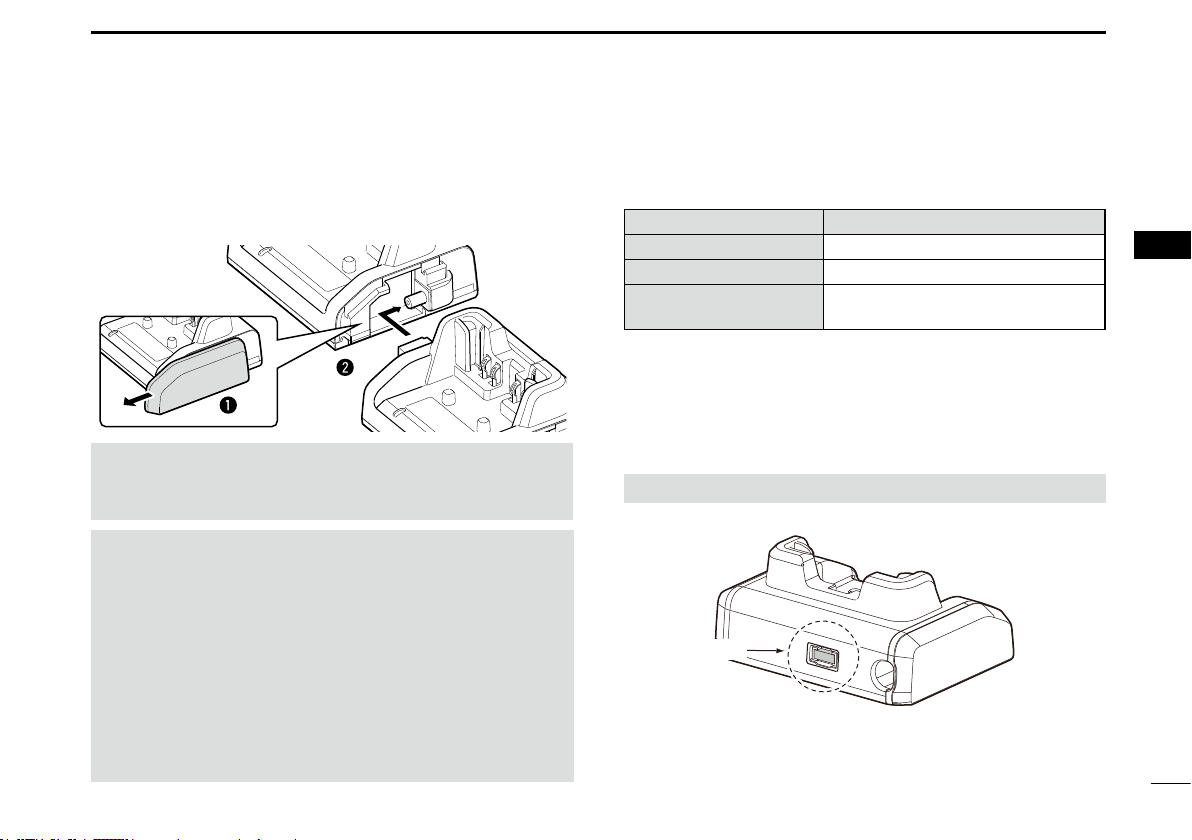

 Connecting BC-226 together

You can connect up to 6 BC-226 together.

1. Remove the charger’s right cover. (q)

2. Snap the DC power plug to the other charger’s DC
power jack. (w)

WARNING: DO NOT connect more than 6 chargers

together. It may result in an electric shock, cause a re,

overheating, or damage chargers.

NOTE:

• The transceiver MUST be turned OFF while charging.
Otherwise:

- The battery will not be charged correctly.

- The battery life may be shortened.

• Do not transmit while charging. When you need to
transmit, remove the transceiver from the charger, and
then turn ON the power.

• If the battery pack does not properly charge when it is
attached to the transceiver, remove it from the transceiver
and insert only the battery pack into the charger.

D Information

 Status indicator

Light color Status

Orange Charging

Green Charging is completed.

Blinks orange and green Charging failed. It may have some

problems.

 BC-226 Fuse replacement

If a fuse blows, nd and repair the cause of the problem.

Then replace the damaged fuse with a new, adequately
rated fuse.

Fuse type: 5 A/58 V (low prole mini blade fuse)

NOTE: Remove the fuse using the needle-nose pliers.

Fuse

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

10

5

BASIC OPERATION

■ Selecting a channel

D Channel 16

Channel 16 is the distress and safety channel. It is used for
establishing initial contact with a station, and for emergency
communications.
While standing by, you must monitor Channel 16.

z Push [16/C] to select

Channel 16.

D Call channel

Each Channel Group has separate Call channels. The Call
channel is monitored during Tri-watch. The Call channels
can be selected and used to store your most often used
channel in each Channel Group, for quick recall.

z Hold down [16/C] for 1

second to select the Call
channel.

• The Call channel number and
“CALL” are displayed.

L To return to the previously

selected channel, push [CH/WX].

 Setting the Call channel
By default, a Call channel is set in each Channel Group.
You can set your most often-used channel as your Call
channel in each Channel Group for a quick recall.

1. Hold down [16/C] for 1 second to select the Call
channel.

• “CALL” and Call channel number is displayed.

2. Hold down [16/C] again
for 3 seconds (until a
long beep changes to
2 short beeps) .

• The Call channel number
blinks.

3. Rotate [DIAL] to select
the channel.

4. Push [16/C] to set the selected channel as the Call
channel.

• The Call channel number stops blinking.

11

BASIC OPERATION

5

1

D Changing channel group

Channel Groups are preset into your transceiver. You can
select the Channel Group between USA, International, and
Canadian.

z Hold down [U/I/C/L] for 1 second to change the channel

group.

D Weather channels

The transceiver has 10 preset Weather channels. You can
use these channels to monitor broadcasts from the National
Oceanographic and Atmospheric Administration (NOAA).
The transceiver automatically detects a Weather Alert tone
on the selected Weather channel, or while scanning.

1. Push [CH/WX] or to enter the Weather channel
selection mode.

2. Rotate [DIAL] to select a Weather channel.

 Setting the Weather Alert

1. Turn OFF the transceiver.

2. While holding down [SQL], Turn ON the transceiver to
enter the Set mode.

3. Push [SQL] to select the Weather Alert item.

• “ ” is displayed.

4. Rotate [DIAL] to turn
ON the Weather Alert.

• “ ” is displayed.

5. Push [16/C] to exit the
Set mode.

 Weather channel list

Channel Frequency

(MHz)

1 162.550 6 162.500
2 162.400 7 162.525
3 162.475 8 161.650
4 162.425 9 161.775
5 162.450 10 163.275

Channel Frequency (MHz)

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

12

5

BASIC OPERATION

■ Receiving and transmitting

CAUTION: Transmitting without an antenna will damage

the transceiver.

NOTE: Before using the transceiver for the rst time, the

battery pack must be fully charged for optimum life and
operation. See Section 4 for battery charging.

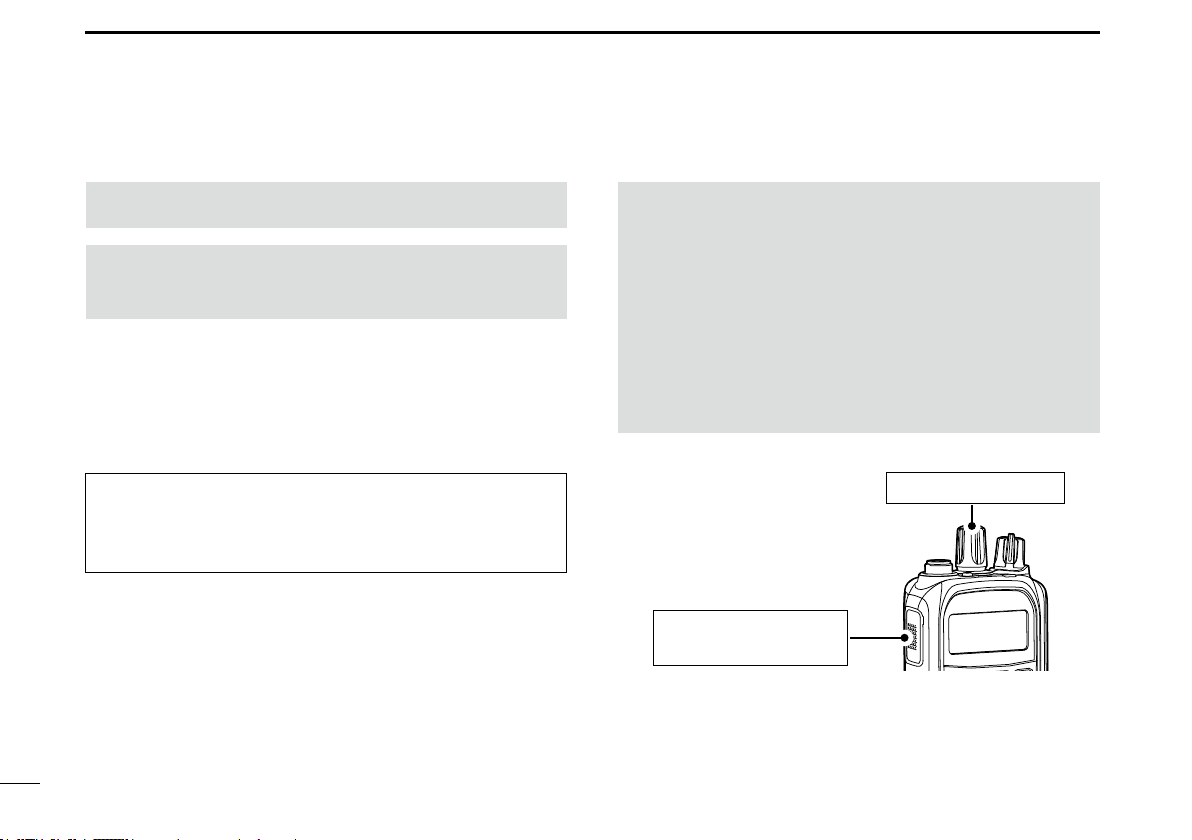

1. Rotate [DIAL] to select a channel.

• When a signal is received, the status indicator lights green.

2. Hold down [PTT], and speak into the microphone to
transmit.

• The status indicator lights red while transmitting.

3. Release [PTT] to receive.

TIP: To maximize the readability of your transmitted signal,
pause for a second after pushing [PTT] and hold the
microphone 5 to 10 cm (2 to 4 inches) from your mouth,
and then speak at your normal voice level.

NOTE:

• To conserve battery power, the Power Save function
automatically turns ON when no signal is received for 5
seconds.

• The Time-out Timer function cuts OFF transmission
after 5 minutes* of continuously transmitting, to prevent
prolonged transmission.

10 seconds before transmission is cut off, a beep sounds

to indicate the transmission will be cut off, and “TOT”
blinks. After it is cut OFF, “TOT” is displayed for 10
seconds, and you cannot transmit until it disappears.

1. Select a channel.

2. Push to transmit.

3. Release to receive.

13

BASIC OPERATION

5

■ Adjusting the squelch level

The squelch enables the audio to be heard only while
receiving a signal that is stronger than the set level. A higher
level blocks weak signals, so that you can receive only
stronger signals. A lower level enables you to hear weak
signals.

1. Push [SQL] to enter the
Squelch Adjustment
mode.

2. Rotate [DIAL] to adjust the squelch level, until the noise
just disappears.

3. Push [16/C] to exit the Squelch Adjustment mode.

■ Using the VOX function

NOTE: The optional PTT switch cable and headset are

required to use the function.

The VOX function automatically switches between receive
and transmit by detecting your voice.

z While holding down [SQL], push [CH/WX] to turn ON or

OFF the function.

• “VOX” is displayed.

■ Using the AquaQuake water
draining function

Water in the speaker grill may mufe the sound coming

from the speaker. The AquaQuake Water Draining function
removes water from the speaker grill by vibrating the
speaker cone.

L The AquaQuake Water Draining function is not usable when

using an optional speaker microphone.

1. While holding down [H/L], push [FAV] to turn ON the
function.

• “ ” is displayed.

• A low frequency vibration beep sounds for 10 seconds to
drain the water, regardless of the volume level setting.

2. Push any key to turn OFF the function.

TIP: When the AquaQuake Action setting is ON in the
Set mode, you can use the function by just shaking the
transceiver within 30 seconds, after the water is detected
(p. 22)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

14

6

SCAN

■ Scan types

You can nd ongoing calls by scanning the Favorite channels.

Before starting a scan, you need to:

• Set the channels that you want to scan as Favorite
channels.

L Only the Favorite channels are scanned.

• Turn ON the Priority Scan in the Set mode to use the
Priority Scan (p. 20).

NORMAL SCAN

The Normal Scan sequentially searches through all
Favorite channels. However, Channel 16 is not checked
unless it is set as a Favorite channel.

CH 01 CH 02

WX*

CH 05 CH 04

CH 03

PRIORITY SCAN

A Priority scan sequentially scans all Favorite channels
while monitoring Channel 16.

CH 01

WX*

CH 05 CH 04

When a signal is received:

• On Channel 16

The scan pauses until the signal on Channel 16 disappears.

• On a channel other than Channel 16:

The scan switches to Dualwatch, until the signal disappears.

* When the Weather Alert function is ON, the previously selected

Weather channel is also scanned.

CH 16

CH 02

CH 03

15

SCAN OPERATION

6

■ Favorite channels

You can quickly recall often-used channels by setting them
as Favorite channels.

D Setting/Clearing

1. Rotate [DIAL] to select a channel.

2. Push [FAV] to set or clear the channel as a Favorite

channel.

• “ ” is displayed, when the channel is set as a Favorite
channel.

D Selecting

z Push [FAV].

L Non-Favorite channels are skipped and not displayed.

TIP: You can clear all Favorite channels.

L If there are no favorite channel, all channels will be set as

favorite channels.

1. Turn OFF the transceiver.

2. While holding down [FAV], turn ON the transceiver.

Example: Starting a Normal Scan

■ Starting a scan

1. Push [SCAN] to start a scan.

• During a Normal scan, “SCAN” blinks.

• During a Priority scan, “ ” is also displayed.
L When a signal is received, the scan pauses until the signal

disappears, or resumes after pausing for 5 seconds,
depending on the Set mode setting (p. 20).

L Rotate [DIAL] to change the scanning direction.

2. Push [SCAN] again to cancel the scan.

TIP: In order to properly receive signals, be sure to adjust
the squelch to a suitable level.

1
2
3

4

5
6
7
8
9
10
11
12
13
14
15
16

Push [SCAN]. “ SCAN” is displayed while

scanning.

Status indicator lights green
when a signal is received.

16

7

Dualwatch Tri-watch

DUALWATCH/TRI-WATCH

■ Description

Dualwatch and Tri-watch are convenient to monitor Channel
16 while you are operating on another channel.

CH 88

CH 16

Monitors Channel 16

while listening on

another channel

(example: CH 88).

When a signal is received:

• On Channel 16

Dualwatch or Tri-watch pauses on Channel 16 until the
signal disappears.

• On the Call channel

Tri-watch switches to Dualwatch until the signal on the
Call channel disappears.

CH 88

Call

channel

CH 9

Monitors Channel 16 and

the Call channel while

listening on another

channel (example: CH 88).

CH 16

■ Operation

1.

Select Dualwatch or Tri-watch in the Set mode (p. 20).

2. Select a channel.

3. Hold down [DUAL] for 1 second to start Dualwatch or
Tri-watch.

• During Dualwatch, “DUAL 16” blinks.

• During Tri-watch, “TRI 16” blinks.
L A beep tone sounds when a signal is received on Channel 16.
L Tri-watch becomes Dualwatch while receiving a signal on the

call channel.

4. Push [DUAL] again to cancel Dualwatch or Tri-watch.

Example: Operating Dualwatch on Channel 07.

Push [DUAL].

Dualwatch resumes after
the signal disappears.

Dualwatch starts.

When a signal is received on
the Channel 16.

17

OTHER FUNCTIONS

8

■ Using the LAND channel group

A maximum of 100 programmable channels (allocated

136.000 to 174.000 MHz) are preset into the LAND channel
group for simple communication with LMR/PMR transceivers
in the VHF band.
The default setting of the LAND channel group is the same
as that of the INT channel group. Ask your local Icom
dealer for the LAND channel group setting and LMR/PMR
frequency setting details.

D Selecting the LAND channel group

z Hold down [U/I/C/L] for 1 second to change the channel

group.

• “ LAND” is displayed when the LAND channel group is
selected.

■ Checking the battery health
and battery cycle

When you using the transceiver with the supplied battery
pack, you can check the battery health and battery cycle.

z Hold down [H/L] for 1 second to display the battery cycle.

• Displayed for 5 seconds.

L The battery health is indicated by the status indicator.

Light color Battery health

Blue 80 ~ 100%

Purple 60 ~ 80%

Red 40 ~ 60%

Blinks red 0 ~ 40%

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

18

9

SET MODE

■ Using the Set mode

You can set seldom changed settings in the Set mode.
You can customize the transceiver settings to suit your
preference and operating style.

*

The “CH Display” item is displayed for each selectable channel

group.

• Beep • WX Alert • Scan Type • Scan Timer • Auto Scan

• Dual/Tri-watch • SQL Key Action • Backlight • Contrast • Power save

• CH Display* • VOX Level • VOX Delay • AquaQuake Action • Man Down Alarm

1. Turn OFF the transceiver.

2. While holding down [SQL], turn ON the transceiver to
enter the Set mode.

• The “Beep” item is displayed.

3. Push [SQL] or [H/L] to select an item.

4. Rotate [DIAL] to select an option.

5. Push [16/C] to exit the Set mode.

19

• Lone Worker Alarm • Auto Volume Up • MOB Alarm

SET MODE

9

■ Set mode items

NOTE: The Set mode items contained in the transceiver

may be different, depending on the transceiver’s version or
presettings. Ask your dealer for details.

D Beep “ ”

Turns the Key Beep function ON or OFF.

• OFF: Turns OFF the function for silent operation.

• ON: When a key is pushed, a beep sounds.

D WX Alert “ ”

Turns the Weather Alert function ON or OFF.
This function detects the Weather Alert tone on Weather
channels.

• OFF:

The transceiver does not detect a Weather Alert tone.

• ON: The transceiver detects the 1050 Hz Weather Alert
tone on a Weather channel.

D Scan Type “ ”

Turns the Priority Scan function ON or OFF.

• OFF: The scan type is set to “Normal,” which sequentially

searches all Favorite channels in the channel group.

• ON: The scan type is set to “Priority,” which sequentially
searches all Favorite channels in the channel group,
while also periodically checking Channel 16 (Priority
channel).

D Scan Timer “ ”

Turns the Scan Resume Timer ON or OFF.

• OFF: When a signal is detected on a channel, the scan
pauses until the signal disappears, and then
resumes.

• ON: When a signal is detected on a channel, the
scan pauses for 5 seconds, and then resumes. If
the signal disappears in less than 5 seconds, the
scan immediately resumes.

D Auto Scan “ ”

Turns the Automatic Scan function ON or OFF.

• OFF: The function is OFF.

• ON: Scan automatically starts when no signal is
received, or no operations are carried out for 30
seconds.

D Dual/Tri-watch “ ”

Selects the watch type.

• d- (Dual): The watch type is set to Dualwatch, which

monitors Channel 16, even while receiving a
signal on another channel.

• t- (Tri): The watch type is set to Tri-watch, which

monitors Channel 16 and the Call channel, even
while receiving a signal on another channel.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

20

9

SET MODE

21

■ Set mode items (Continued)

D SQL Key Action “ ”

The function temporarily opens the squelch.

• Pu (Push): The Monitor function is activated by holding
down [SQL] for more than 1 second.

• Ho (Hold): The Monitor function is activated by holding

The squelch stays open until the user pushes

The squelch opens while holding down the key.

down [SQL] for more than 1 second.

any key.

D Backlight “ ”

Turns the Automatic Backlight function ON or OFF.

• OFF: The function is OFF.

• ON: The backlight turns ON for 5 seconds when the user
pushes any key except [PTT].

D Contrast “ ”

Selects the transceiver's display contrast.

• Hi: The transceiver's display contrast is set to High.

• Lo: The transceiver's display contrast is set to Low.

D Power Save “ ”

Turns the Power Save function ON or OFF.

• OFF: The function is OFF.

• ON: The Power Save function reduces current drain by
deactivating the receiver circuit of the transceiver at

specic intervals.

D CH Display “ ”/“ ”/“ ”/“ ”

Selects the number of digits to display the channel number.
You can select settings for each channel group.

• 3d: The channel number is displayed in 3 digits.

(Example: 78A)

• 4d: The channel number is displayed in 4 digits.

(Example: 1078)

D VOX Level “ ”

Sets the VOX gain level to between 1 (The lowest
sensitivity) to 10 (The highest sensitivity).
Higher values make the VOX function more sensitive to your
voice.

D VOX Delay “ ”

Sets the VOX Delay to between 1 (The shortest) to 6 (The
longest) in 0.5 second steps.*

*Example: If the VOX delay is set to 2, transmitter stays ON for 1

second.

The VOX Delay is the amount of time the transmitter stays
ON after you stop speaking before the VOX switches to
receive.

SET MODE

9

D AquaQuake Action “ ”

Selects whether or not to activate the AquaQuake water
draining function by shaking the transceiver.

• OFF: While holding down [H/L], push [FAV] to turn ON
the function.

• ON: You can use the function by just shaking the
transceiver within 30 seconds, after the water is
detected.

D Man Down Alarm “ ”

Sets the emergency mode detection angle to between 45,
60, or 75 degrees for the Man Down Alarm function.
If the transceiver leans past the set angle for the preset
period of time, an alarm sounds.*

L Push [PTT] to stop the alarm.

* An alarm sounds from the transceiver’s speaker, even if an

optional speaker microphone is connected.

D Lone Worker Alarm “ ”

Turns the Lone Worker Alarm ON or OFF.
If no operation occurs for the preset period of time, an alarm
sounds.*

L Push [PTT] to stop the alarm.

* An alarm sounds from the transceiver’s speaker, even if an

optional speaker microphone is connected.

• OFF: The function is OFF.

• ON: If no operation occurs during a specied period

of time, the transceiver automatically enter the
Emergency mode.

D Auto Volume Up “ ”

Turns the Auto Volume Up function ON or OFF.

• OFF: The function is OFF.

• ON: The volume level is automatically increased when
a signal is received in a noisy environment while
the ship is pitching or rolling.

D MOB Alarm “ ”

Turns the MOB Alarm function ON or OFF.
This function is used when you fallen into the water and
needs to be rescued.

* An alarm sounds from the transceiver’s speaker, even if an

optional speaker microphone is connected.

• OFF: The function is OFF.

• ON:

An alarm sounds while the transceiver is in the water.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

22

10

SPECIFICATIONS AND OPTIONS

■ Specications

All stated specications are subject to change without notice

or obligation.

D General

• Frequency coverage:
Marine TX 156.025 ~ 157.425 MHz
RX 156.050 ~ 163.275 MHz
LMR 136.000 ~ 174.000 MHz

• Mode:
Marine 16K0G3E
LMR 16K0F3E (Wide)/11K0F3E (Narrow)

• Channel spacing:
Marine ±25 kHz
LMR

• Current drain (at 7.2 V DC): TX High (5 W) 1.5 A typical
Maximum audio 450 mA typical

• Frequency stability: ±5.0 ppm

• Operating temperature range:

Marine –20˚C ~ +60˚C, –4˚F ~ +140˚F
LMR –30˚C ~ +60˚C, –22˚F ~ +140˚F

• Dimensions (projections not included):

2.2 (W) × 3.6 (H) × 1.3 (D) inches

• Weight (approximately): 255 g, 9 oz with BP-292UL

• Antenna impedance: 50 ˘ nominal

±25 kHz (Wide), ±12.5 kHz (Narrow)

56 (W) × 92 (H) × 34.1 (D) mm,

D Transmitter

• Output power:
Marine 5 W (Hi), 3 W (Mid), and 1 W (Low)
LMR (USA) 2 W (Hi), 1 W (Low)

LMR (Export)

• Modulation system :

• Maximum frequency deviation:
Marine ±5 kHz
LMR ±5 kHz (Wide), ±2.5 kHz (Narrow)

• Audio harmonic distortion: Less than 10% (at 60% deviation)

• Spurious emissions: Less than –70 dBc typical

5 W (Hi), 3 W (Mid), and 1 W (Low)

Variable reactance frequency modulation

D Receiver

• Receive system: Double conversion superheterodyne

• Sensitivity (at 12 dB SINAD): 0.25 μV (typical)

• Squelch sensitivity (Threshold):

• Intermodulation rejection ratio:

• Sprious response rejection ratio:

• Adjacent channel selectivity: 70 dB (typical)
55 dB (typical) (Narrow, LMR only)

• Ham and Noise ratio: 40 dB
34 dB (Narrow, LMR only)

• Audio output power: 0.7 W typical at 10% distortion into a

0.35 μV (typical)

70 dB (typical)

70 dB (typical)

12 ˘ load

23

SPECIFICATIONS AND OPTIONS

10

■ Options

D Battery pack

• BP-292UL li-ion battery pack

Voltage: 7.2 V
Rated capacity: 1910 mAh
Battery life: Approximately 11 hours*
* When the Power Save function is ON and the operating periods

are calculated under the following conditions:

TX : RX : standby = 5 : 5 : 90

D Chargers

• BC-227 rapid charger

+ Bc-123s ac adapter, opc-515L dc power cable

To rapidly charge the battery pack.
Charging time: Approximately 2.7 hours

L OPC-515L dc power cable must be purchased separately.

NOTE: Use the BC-227 version 1.1 or later. The charger version
is written on the bottom panel. Ask dealer for details.

• BC-226
You can connect up to 6 BC-226 together.
Charging time: Approximately 2.7 hours

desktop charger + BC-228 ac adapter

L A power adapter may be supplied, depending on the charger’s

version.

NOTE: Use the BC-226 version 1.1 or later. The charger version
is written on the sticker. Ask dealer for details.

Version 1.1 or later

D Others

• FA-SC58V antenna

• MB-136, MBB-3 belt clip

• MB-96F, MB-96FL, MB-96N belt hangers

• CP-23L, CP-25H cigarette lighter cable

Used when charging a battery pack through a 12 V cigarette

lighter socket.

• HM-184UL speaker microphone
Rugged type speaker microphone.
The HM-184UL meets IP67 requirements for waterproof protection.

• LC-191 carrying case

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

Some options may not be available in some countries.
Ask your dealer for details.

24

10

SPECIFICATIONS AND OPTIONS

■ Using the HM-184UL

25

Microphone Belt clip

[PTT]

Speaker

Turn OFF the transceiver before
attaching or detaching the microphone

NOTE:

• NEVER immerse the connector in water. If the connector

becomes wet, BE SURE to dry it before attaching to the
transceiver.

• The microphone element is located at the top left of the
speaker microphone, as shown in the illustration above.
To maximize the readability of your transmitted audio,
hold the microphone approximately 5 to 10 cm (2 to 4
inches) from your mouth, and then speak at your normal
voice level.

To attach:
Attach the connector of the speaker microphone to
the multi connector on the transceiver and tighten the
screw.

Turn OFF

Screw

Coin

CAUTION: Firmly attach to
the multi connector, but do not
overtighten. A loose connection
will allow water intrusion into
the connector. Over-tightening
the connection can damage the
transceiver.

VHF MARINE CHANNEL LIST

Channel number Frequency (MHz)

Channel number Frequency (MHz)

Channel number Frequency (MHz)

Channel number Frequency (MHz)

11

USA

1001

1005 1005

06 06

1007 1007

08 08
09 09
10 10
11 11
12 12

13*

14 14

15*

16 16

17*

1018 1018

1019 1019

20 20*

CAN

01

02
03

1004

1

13*

1

1

15*

1

17*

1

Transmit Receive

156.050 160.65001

156.050 156.050

156.100 160.700

156.150 160.750

156.200 160.800

156.200 156.200

156.250 160.85005

156.250 156.250

156.300 156.300

156.350 160.950

156.350 156.350

156.400 156.400

156.450 156.450

156.500 156.500

156.550 156.550

156.600 156.600

156.650 156.650

156.700 156.700

156.750

156.800 156.800

156.850 156.850

156.900 161.500

156.900 156.900

156.950 161.550

156.950 156.950

Rx only 161.550

157.000 161.60020

INT

1001

02
03
04

1005

06
07

1007

08
09
10
11
12

1

13
14

2

15*

16

1

17
18

1018

19
1019
2019

USA

1020

1021 1021

1022 1022

1023

24 24
25 25

26 26
27 27

28 28

156.750

1063 1063 156.175 156.1751063

INT

1020
2020

21

1021

22

1022

23

1023

27

1027

28

1028

60
61

62

CAN

Transmit Receive

157.000 157.000
Rx only 161.600

157.050 161.650

157.050 157.050
Rx only 161.650

2021

157.100 161.700

157.100 157.100

157.150 161.750

23

157.150 157.150
Rx only 161.750

2023

157.200 161.800

157.250 161.850
Rx only 161.850

2025

157.300 161.900

157.350 161.950

157.350 157.350

157.400 162.000

157.400 157.400
Rx only 162.000

2028

156.025 160.625

60

156.075 160.675

156.075 156.075

1061

156.125 160.725

156.125 156.125

1062

156.175 160.77563

156.225 160.82564

64

USA

1065

1066

67*

68
69
71
72
73
74

77*

1078

1079

1080

1081 1081 157.075 157.0751081

1082 1082

CAN

INT

1

1

1

1

1064

1065*

1066*

67
68
69
71
72
73

74
75*
76*
77*

1078

1079

1080

Transmit

156.225 156.225

156.275 160.87565

1

156.275 156.2751065

156.325 160.92566

1

156.325 156.3251066

156.375 156.37567

156.425 156.42568

156.475 156.47569

156.575 156.57571

156.625 156.62572

156.675 156.67573

156.725 156.72574

1

156.775 156.77575*

1

156.825 156.82576*

1

156.875 156.87577

156.925 161.52578

156.925 156.9251078
Rx only 161.5252078

156.975 161.57579

156.975 156.9751079
Rx only 161.5752079

157.025 161.62580

157.025 157.0251080

157.075 161.67581

157.125

157.125

Receive

USA

1083 1083

84 84
85 85
86 86
87 87

88 88

*1 Low power only.

2

Rx only.

*

INT

CAN

Transmit Receive

157.175

157.175
Rx only

2083

157.225

157.275

157.325

157.375

157.425

NOTE: When the “CH Display”
is set to “3d” in the set mode,
the channel number is displayed
in 3 digits. See page 21 for
details.
(For example: Channel 1078
is displayed as “78A,” channel
2078” is displayed as “78b.” )

NOTE: Simplex channels,
1021, 1023, 1081, 1082, and
1083 CANNOT be lawfully used

161.72582

157.1251082

by the general public in USA
waters.

161.77583

157.1751083

161.775

161.825

161.875

161.925

157.37587

157.42588

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

26

12

PROBLEM POSSIBLE CAUSE SOLUTION REF.

The transceiver does
not turn ON.

Little or no sound
comes from the
speaker.

You cannot transmit,
or cannot select high
power

.

Scan does not start. • More than 2 favorite channels are not set. • Set the Favorite channels. p. 16

No beep sounds. • The Key Beep function is OFF.

The keypad and [DIAL]
does not work.

TROUBLESHOOTING

• The battery is exhausted.

• The battery pack is not correctly attached.

• Squelch level is set too high.

• Volume level is set too low.

• The speaker has been exposed to water.

• Some channels are set for low power or
receive only by regulations.

• The output power is set to low.

• The keypad and [DIAL] is locked. • Hold down [ ] for 1 second to lock or

• Recharge the battery pack.

• Correctly reattach the battery pack.

• Adjust the squelch level.

• Adjust the volume level.

• Use the AquaQuake Water Draining
function to remove water from the
speaker grill.

• Change channels.

• Push [H/L] to select high power.

• Turn ON the Key Beep function.

unlock the keypad.

p. 9
p. 3

p. 14
p. 5
p. 14

p. 11

p. 5

p. 20

p. 5

27

INFORMATION

13

■ Firmware version identication

You can identify your transceiver’s rmware version.

1. Turn OFF the transceiver.

2. While holding down [

• The rmware version is displayed.

L Example: “ ” is displayed, when the firmware is

Version 1.001.

], turn ON the transceiver.

■ FCC information

This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.

CAUTION: Changes or modications to this transceiver,

not expressly approved by Icom Inc., could void
your authority to operate this transceiver under FCC
regulations.

1

2

3

4

5

6

7

8

9

12

13

14

15

16

28

INFORMATION

13

■ Safety training information

Your Icom radio generates RF electromagnetic
energy while transmitting. This radio

is designed for and classied as for

“Occupational Use Only.” This means it must

WARNING

ways to minimize such hazards. This radio is NOT intended
for use by the “General Population” in an uncontrolled
environment. This radio has been tested and complies with
the FCC RF exposure limits for “Occupational Use Only.”
In addition, your Icom radio complies with the following
Standards and Guidelines with regard to RF energy and
electromagnetic energy levels and evaluation of such levels
for exposure to humans:

be used only during the course of employment
by individuals aware of the hazards, and the

• FCC KDB Publication 447498 D03, Evaluating Compliance
with FCC Guidelines for Human Exposure to Radio
Frequency Electromagnetic Fields.

• American National Standards Institute (C95.1-2019),
IEEE Standard for Safety Levels with Respect to Human
Exposure to Electric, Magnetic, and Electromagnetic
Fields, 0 Hz to 300 GHz

• American National Standards Institute (C95.3-2021),
IEEE Recommended Practice for Measurements and
Computations of Electric, Magnetic, and Electromagnetic
Fields with Respect to Human Exposure to Such Fields,
0 Hz to 300 GHz.

• The accessories listed on page 24 are authorized for
use with this product. Use of accessories other than those

specied may result in RF exposure levels exceeding the

FCC requirements for wireless RF exposure.

• Health Canada Safety Code 6 - Limits of Human Exposure
to Electromagnetic Energy in the Frequency Range from
3 kHz to 300 GHz.

29

INFORMATION

CAUTION

13

To ensure that your expose to RF
electromagnetic energy is within the FCC
allowable limits for occupational use, always
adhere to the following guidelines:

• DO NOT operate the radio without a proper antenna
attached, as this may damage the radio and may also
cause you to exceed FCC RF exposure limits. A proper
antenna is the antenna supplied with this radio by the

manufacturer or an antenna specically authorized by the

manufacturer for use with this radio.

• DO NOT transmit for more than 50% of the total radio
use time (“50% duty cycle”). Transmitting more than 50%
of the time can cause FCC RF exposure compliance
requirements to be exceeded. The radio is transmitting
when “TX” is displayed on the function display. You can
cause the radio to transmit by pushing the “PTT” switch.

• ALWAYS keep the antenna at least 2.5 cm (1 inch) away
from the body when transmitting, and only use the Icom
belt-clips listed on page 24 when attaching the radio
to your belt, or other place, to ensure FCC RF exposure
compliance requirements are not exceeded.

The information listed above provides the user with the
information needed to make him or her aware of RF
exposure, and what to do to assure that this radio operates
within the FCC RF exposure limits of this radio.

Electromagnetic Interference/Compatibility

During transmissions, your Icom radio generates RF energy
that can possibly cause interference with other devices or
systems. To avoid such interference, turn off the radio in
areas where signs are posted to do so. DO NOT operate
the transmitter in areas that are sensitive to electromagnetic
radiation such as hospitals, aircraft, and blasting sites.

Occupational/Controlled Use

The radio transmitter is used in situations in which persons
are exposed as a consequence of their employment,
provided those persons are fully aware of the potential for
exposure and can exercise control over their exposure.

10

11

12

13

30

INDEX

A
Accessories

Attaching ..............................2

Supplied ...............................2

AquaQuake ...................................14

B

Backlight .......................................21

Basic operation .............................11

Battery ..........................................7

Battery cycle .........................18

Battery health .......................18

Caution .................................7

Charger ................................9

Charging caution ..................8

C
Chaanel

Selecting...............................11

Call channel..........................11

Channel group ......................12

Channel list...........................26

Favorite channels .................16

Land channel ........................18

Weather channels ................12

D

Dualwatch .....................................17

F

Function display ............................6

L

Lock key........................................5

O

Operating rules .............................1

Options .........................................24

P

Panel description ..........................5

R

Receiving ......................................13

S
Scan

Normal scan .........................15

Priority scan ..........................15

Set mode ......................................19

AquaQuake action ................22

Auto scan .............................20

Auto volume up ....................22

Beep .....................................20

Channel display ....................21

Contrast ................................21

Dual/tri-watch .......................20

Lone worker alarm................22

Man down alarm ...................22

MOB alarm ...........................22

Power save...........................21

Scan timer ............................20

Scan Type ............................20

Squelch key action ...............21

VOX Delay............................21

VOX Level ............................21

WX Alert ...............................20

Specications................................23

Squelch .........................................14

T

Transmitting ..................................13

Troubleshooting ............................27

V

VOX function.................................14

31

MEMO

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

32

MEMO

33

MEMO

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

34

How the World Communicates

A7530D-1EX-2
Printed in Japan

© 2019–2023 Icom Inc. Mar. 2023

1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
