Icom IC-410PRO Basic Manual

BASIC MANUAL

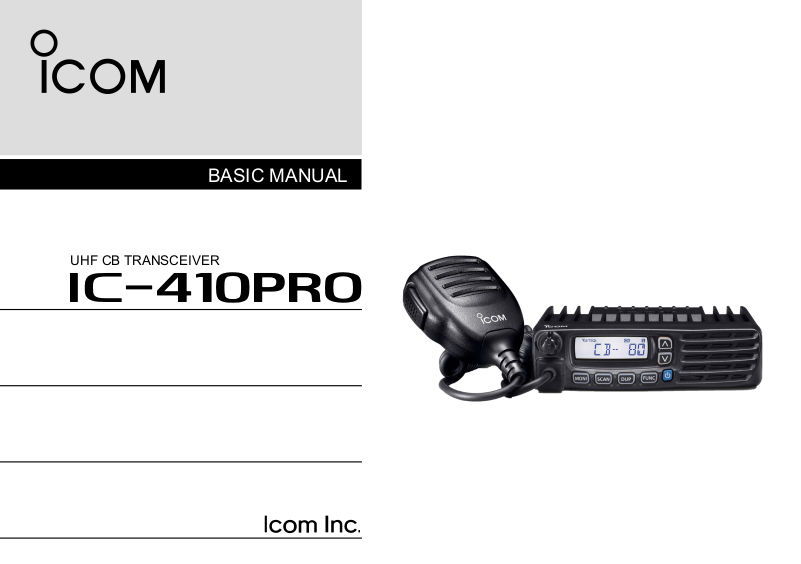

UHF CB TRANSCEIVER

i410PRO

IMPORTANT

READ ALL INSTRUCTIONS carefully before using the

IC-410PRO

uhf cb transceiver.

KEEP THIS BASIC MANUAL, as it contains important

operating information that may be useful in the future.

You can download the ADVANCED MANUAL for more
information from the Icom website.

(http://www.icom.co.jp/world/support/download/manual/index.php)

GENERAL INFORMATION

i. The use of the citizen band radio service is licenced in

Australia by the ACMA Radiocommunications (Citizens
Band Radio Stations) Class Licence and in New Zealand
by the Ministry of Economic Development (MED) General
User Radio Licence for Citizen Band Radio and operation
is subject to conditions contained within these licences.

ii. Always listen on a channel (or observe the channel busy

indicator) to ensure it is not already being used before
transmitting.

iii. In Australia, channel 11 is the customary calling channel

for establishing communication. Channel 40 is the
customary road vehicle channel.

iv. In Australia, except in an emergency, a CB transmitter shall

not be operated on UHF emergency channels 5 and 35.

v. No voice transmissions are permitted on data channels 22

and 23 (voice operation is inhibited on these channels).

i

vi. The user of this UHF CB communications device shall

not transmit Selcall tones for longer than 3 seconds
during any 60 second period.

vii. UHF CB repeaters extend the operational range of your

radio. Repeaters operate utilising two channels (repeater
input/repeater output). It is important to avoid operation
on locally used repeater input channels (in the channel
range of 31 to 38 and 71 to 78) or locally used repeater
output channels (in the channel range of 1 to 8 and 41 to

48), unless long distance communication via the repeater

is specically required. See the section on repeater

operation (ADVANCED MANUAL) for more information.

viii Please be aware that the UHF CB network may

experience possible operational issues during the
changeover to narrowband. This transceiver operates on

12.5 kHz channel spacing. During the changeover period
from 25 kHz to 12.5 kHz spacing, there may be some

loss of quality when 12.5 kHz (narrowband, 2.5 kHz

deviation) transmissions are received on 25 kHz (wide

band, 5.0 kHz deviation) equipment, and vice-versa.
There may also be interference due to older equipment

being operated on channels adjacent to new narrowband
channels, as the channel setting on these may cause
some ‘overlap’. A list of currently authorised channels
can be found on the ACMA website (Australia) and on
the MED website in New Zealand.

Icom, Icom Inc. and the Icom logo are registered trademarks of Icom
Incorporated (Japan) in Japan, the United States, the United Kingdom,
Germany, France, Spain, Russia, Australia, New Zealand and/or other
countries.

EXPLICIT DEFINITIONS

WORD DEFINITION

RDANGER!

WARNING!

R

CAUTION Equipment damage may occur.

NOTE

Personal death, serious injury or an
explosion may occur.

Personal injury, re hazard or electric

shock may occur.

If disregarded, inconvenience only. No

risk of personal injury, re or electric

shock.

PRECAUTIONS

WARNING! NEVER connect the transceiver to an AC

R

outlet. This may pose a re hazard or result in an electric

shock.

WARNING! NEVER operate or touch the transceiver

R

and microphone with wet hands. This may result in an
electric shock or damage the transceiver and microphone.

WARNING! NEVER connect the transceiver to a

R

power source of more than 16 V DC. This could cause a re

or damage the transceiver.

WARNING! NEVER connect the transceiver to a

R

power source using reverse polarity. This will damage the
transceiver.

WARNING! NEVER cut the DC power cable between

R

the DC plug and fuse holder. If an incorrect connection is
made after cutting, the transceiver may be damaged.

WARNING! NEVER place the transceiver where

R

normal operation of the vehicle may be hindered or where it
could cause bodily injury.

CAUTION: NEVER expose the transceiver and

microphone to rain, snow or any liquids. The transceiver and

microphone may be damaged.

DO NOT push the PTT when not actually intending to

transmit.

DO NOT allow children to play with any transceiver

equipment containing a transmitter.

DO NOT operate the transceiver near unshielded electrical

blasting caps or in an explosive atmosphere.

DO NOT operate the transceiver for extended periods

without running the vehicle’s engine. The transceiver’s
power consumption may soon exhaust the vehicles battery.

DO NOT set the transceiver in a place without adequate

ventilation. Heat dissipation may be affected, and the
transceiver may be damaged.

DO NOT use harsh solvents such as benzine or alcohol to

clean the transceiver, as they will damage the transceiver’s
surfaces. If the transceiver becomes dusty or dirty, wipe it
clean with a soft, dry cloth.

ii

PRECAUTIONS (Continued)

Microphone

Microphone hanger

Microphone

DC power cable

Self-tapping screws

USE only Icom microphones (supplied or optional). Other

manufacturer’s microphones have different pin assignments
and may damage the transceiver if attached.

DO NOT modify the transceiver. The transceiver warranty

does not cover any problems caused by unauthorized

modication.

DO NOT use or place the transceiver in direct sunlight or in

areas with temperatures below –30°C or above +60°C.

DO NOT place the transceiver in excessively dusty

environment.

DO NOT place the transceiver against walls or putting

anything on top of the transceiver. This will obstruct heat
dissipation.

BE CAREFUL! The transceiver will become hot when

operating it continuously for long periods of time.

MAKE SURE to turn OFF the transceiver power before

connecting any supplied/optional equipment.

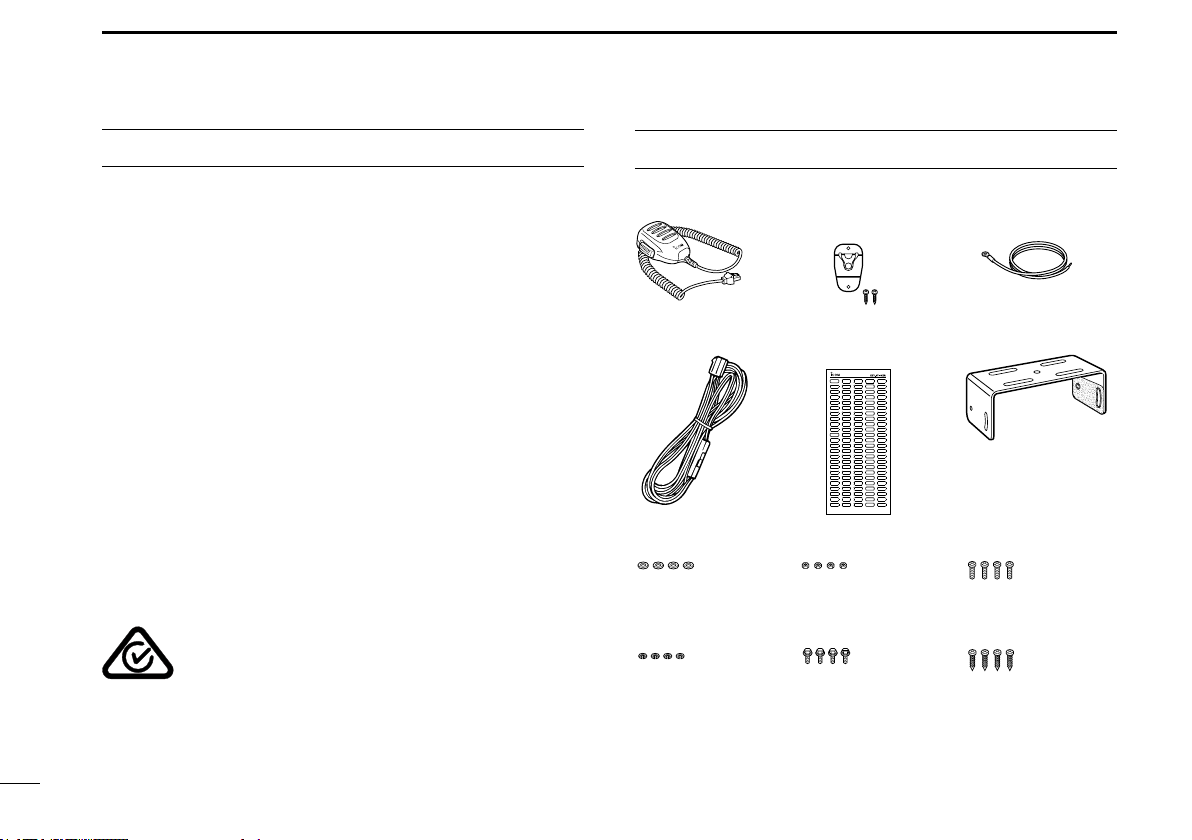

SUPPLIED ACCESSORIES

Flat washers

and screw set

Function name
stickers*

Nuts

hanger cable

Mounting bracket

Mounting screws

This device complies with Standard Australia

Specication No. AS/NZS 4365-2011.

iii

Spring washers

* Used for labelling the programmable function keys according to

their assigned functions.

Bracket bolts

TABLE OF CONTENTS

IMPORTANT .......................................................................... i

GENERAL INFORMATION .................................................... i

EXPLICIT DEFINITIONS ...................................................... ii

PRECAUTIONS .................................................................... ii

SUPPLIED ACCESSORIES .................................................iii

1. PANEL DESCRIPTION ................................................ 1–3

■ Front panel ................................................................... 1

■ Function display ........................................................... 3

2. BASIC OPERATION ........................................................4

■ Receiving and Transmitting ..........................................4

3. SET MODE ....................................................................... 5

■ Using the Set mode ..................................................... 5

■ Set mode item list ........................................................ 5

4. OPTIONS .........................................................................6

5. WARRANTY AND REGISTRATION ............................7–9

6. TROUBLESHOOTING ................................................... 10

INDEX................................................................................. 11

iv

1

q w

SpeakerFunction display (p. 3)

e

tyuir

PANEL DESCRIPTION

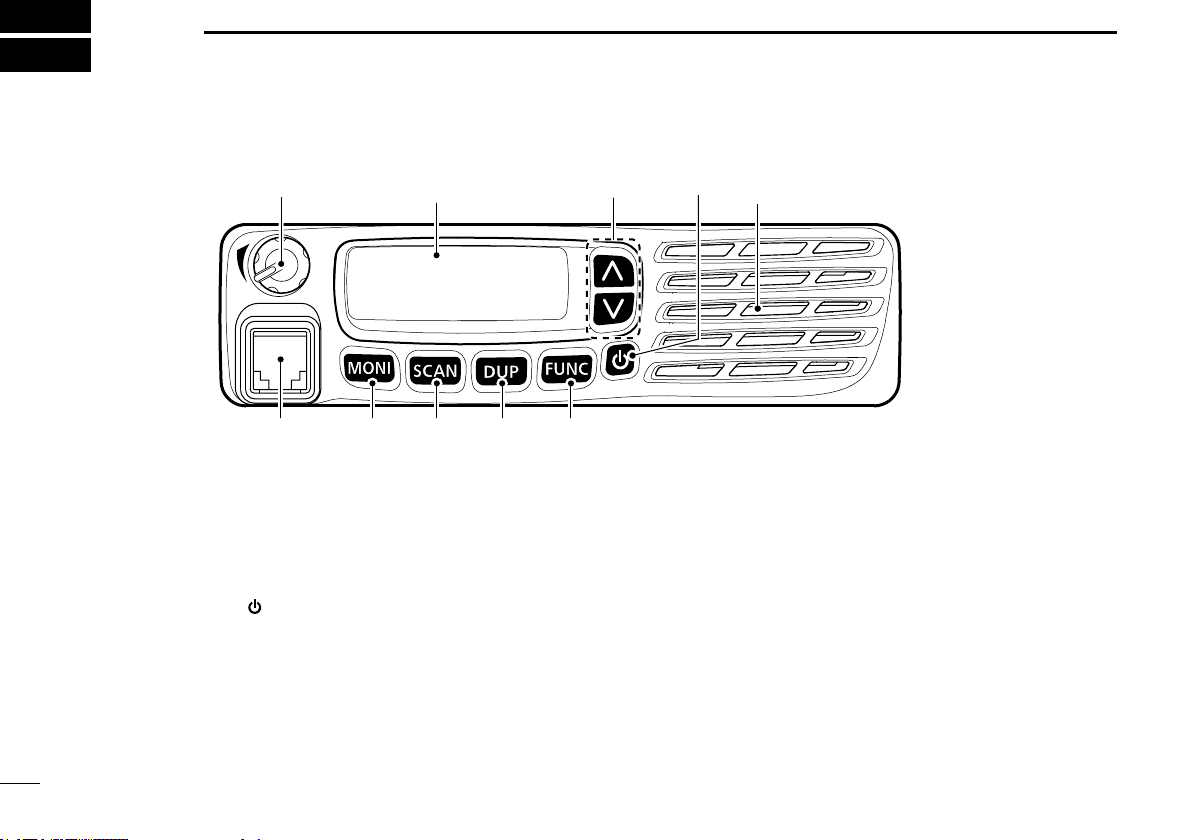

■ Front panel

q VOLUME CONTROL KNOB

Adjusts the audio output level.

w UP/DOWN KEYS [UP]/[DOWN]*

* Different functions may be assigned by your dealer.

Push to select an operating channel, select an option in

the Set mode items, and so on.

e POWER KEY [

Push to turn the transceiver ON or OFF.

1

]

r [FUNC] KEY*

* Different functions may be assigned by your dealer.

Push to change between Normal mode and Function

mode.

Normal mode

➥ Hold down for 2 seconds to enter the Set mode (p. 5).

Function mode

➥ Hold down for 2 seconds to enter the Zone Selection

mode.

PANEL DESCRIPTION

1

1

t [DUP] KEY*

* Different functions may be assigned by your dealer.

Normal mode

➥ Push to select the Duplex (repeater access) and

Simplex (no repeater access) mode.

➥ Hold down for 2 seconds to electronically lock all keys

except [DUP], [FUNC], and [MONI].

➥ Hold down for 2 seconds again to unlock all keys.

Function mode

➥ Push to select the Priority channel, if set.
➥ Hold down for 2 seconds to set the selected channel

as the Priority channel.

➥ Hold down for 2 seconds again to return the Priority

channel to a Normal channel.

y [SCAN] KEY*

* Different functions may be assigned by your dealer.

Normal mode

➥ Push to start or stop a scan.
➥ Hold down for 2 seconds to tag or untag the displayed

channel.

The tagged channels will be scanned.

Function mode

➥ Push to enter the Selcall Code Channel Selection

mode.

➥ Hold down for 2 seconds to transmit the selected

Selcall code, when a CB channel is selected.

u [MONI] KEY*

* Different functions may be assigned by your dealer.

Normal mode

➥ Push to turn the Monitor (open squelch) function ON

or OFF.

➥ Hold down for 2 seconds to activate the following

functions in sequential order.

TSQL

(Tone squelch)

TSQL

(Pocket beep)

(No tone operation)

Function mode

➥ Push to turn the ATS (Automatic Transponder System)

➥ Hold down for 2 seconds to transmit a Smart ring

i MICROPHONE CONNECTOR

Connects the supplied or an optional microphone.

ë

function ON or OFF.

signal.

Only receives calls with the same tone

squelch code.

Pocket beep function is ON.

ë

“TSQL

” disappears.

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

2

PANEL DESCRIPTION

qw e r t yui

!5

o

!0

!1

!2

!3

!4

1

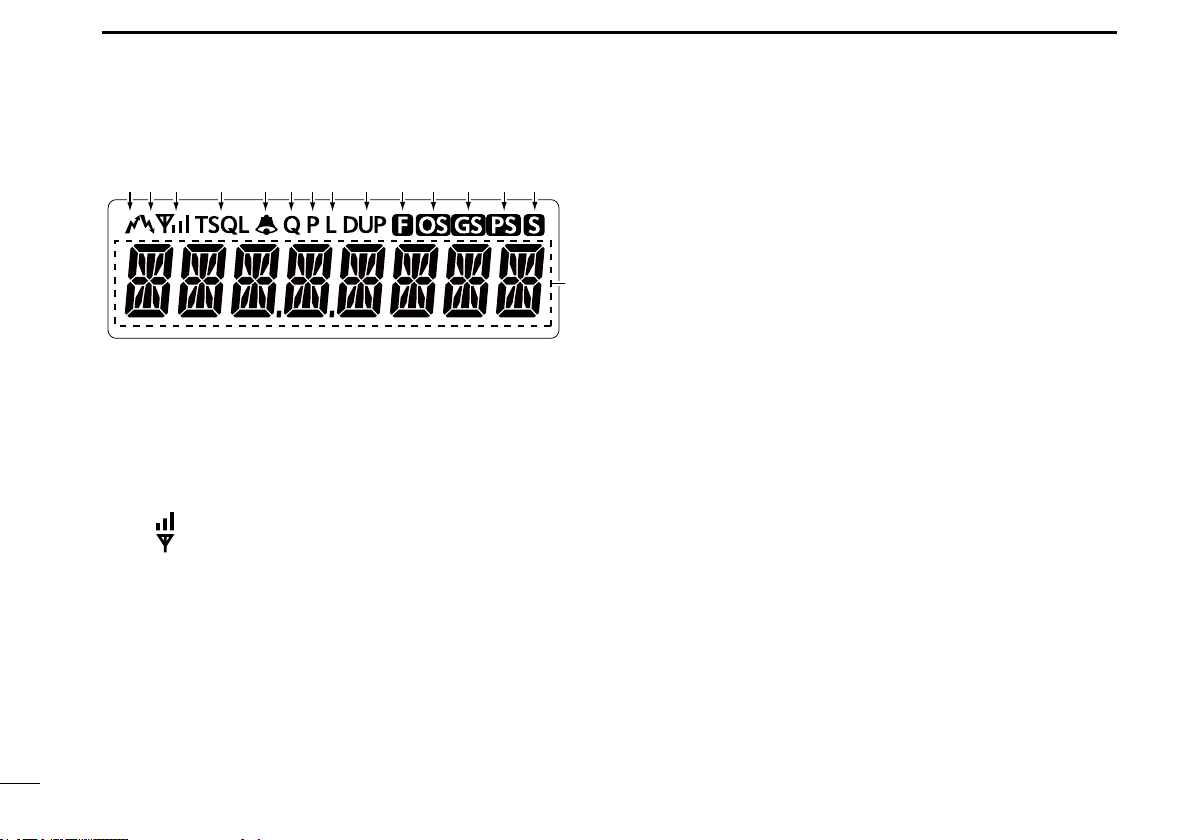

■ Function Display

q TX ICON

Displayed while transmitting.

w BUSY ICON

Displayed while receiving.

e SIGNAL STRENGTH INDICATOR

➥ “
➥ “

r TONE

➥
➥ “TSQL” is displayed while in the Tone squelch mode.

t BELL ICON

3

➥
➥

y QUIET MODE ICON

Displayed when the Selcall Quiet mode is ON.

” displays the relative signal strength level.
” blinks when ATS is used.

“T” is displayed while using the subaudible tone encoder.

Displayed when using the Pocket Beep function.
Blinks when the transceiver has received a specified
Selcall or Smart ring call.

u PRIORITY CHANNEL ICON

Displayed when the Priority channel is set.

i LOW POWER ICON

Displayed when low output power is selected.

o DUPLEX ICON

Displayed when a Duplex channel is selected.

!0 FUNCTION ICON

Displayed when the Function mode is ON.

!1 OPEN SCAN ICON

Displayed when Open scan is selected.

!2 GROUP SCAN ICON

Displayed when Group scan is selected.

!3 PRIORITY SCAN ICON

Displayed when Priority scan is selected.

!4 SCAN CHANNEL ICON

➥ Displayed when the displayed channel is a tagged

channel.

➥ Blinks while scanning.

!5 CHANNEL READOUT

Displays the operating channel number, channel name,

Set mode items, and so on.

BASIC OPERATION

2

■ Receiving and transmitting

NOTE: Transmitting without an antenna may damage the

transceiver.

1. Receiving

If “TSQL” or “TSQL ë” is displayed, you can only receive

calls from others with the same tone squelch code.

Select the desired operating channel.
➥ Push [UP]/[DOWN].

• Push [MONI] to turn the Monitor function ON or OFF.

2. Transmitting

1) Check for a clear channel, or wait until a conversation is
completed before transmitting.

2) While holding down [PTT], speak into the microphone at
your normal voice level.

Information

To maximise the clarity of the signal:

• Pause briey after pushing [PTT]. This ensures that the rst part of

your message is transmitted.

• Hold the microphone about 5 to 10 cm from your mouth.

Transmit inhibit function

The transceiver will not transmit under the following
conditions.

• The channel is busy.

• The displayed channel is a receive only channel.
(Example: CB22, CB23)

Output power level

Depending on the operating environment, it is useful to
reduce or increase the transceiver output power level of the
transceiver.

1) Enter the Set mode.
➥ Hold down [FUNC] for 2 seconds.

2) Select the “RFPOW” menu.
➥ Push [FUNC] until the “RFPOW” menu is displayed.

3) Select “HI” or “Lo.”
➥ Push [UP]/[DOWN].

4) Exit the Set mode.
➥ Hold down [FUNC] for 2 seconds.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

4

3

SET MODE

■ Using the Set mode

You can set seldom changed settings in the Set mode.
You can customize the transceiver settings to suit your
preference and operating style.

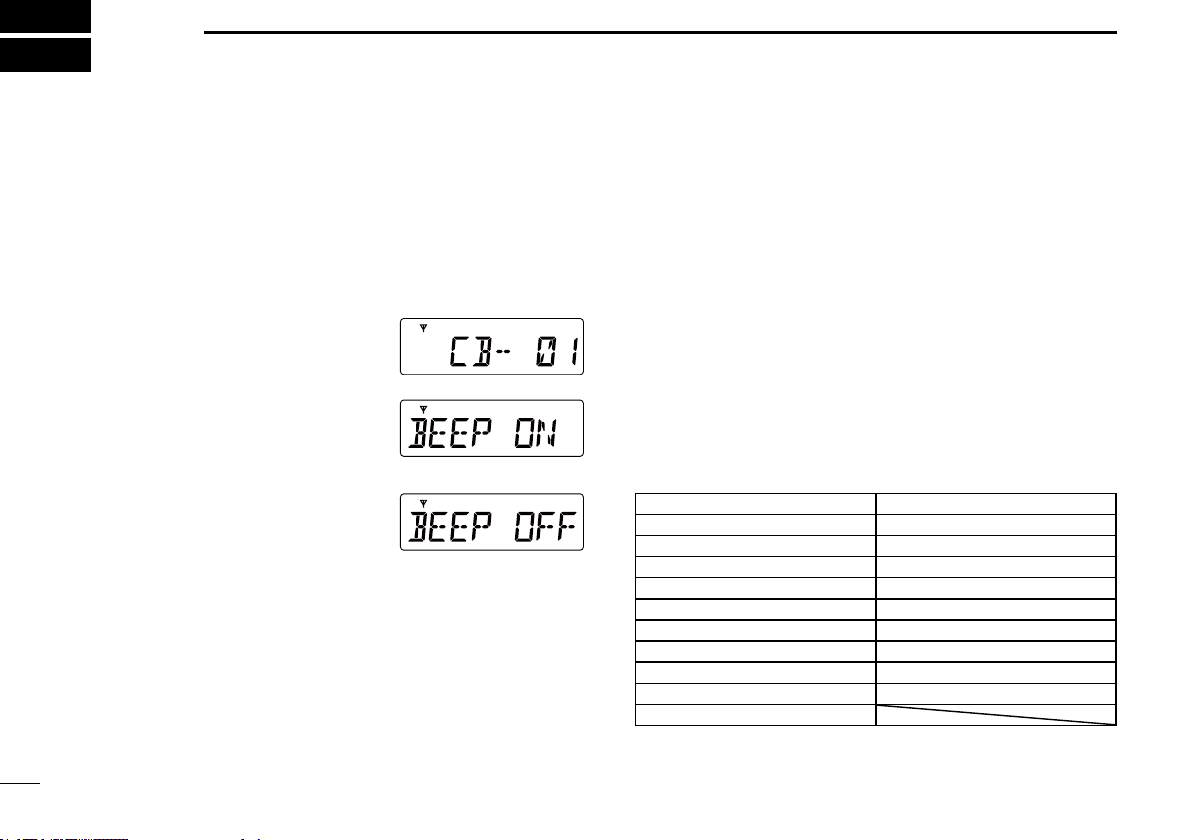

Example: Turning OFF the key beep

1) Enter the Set mode.
➥ Hold down [FUNC] for 2

seconds.

2) Select the “BEEP” menu.
➥ Push [FUNC] until the

“BEEP” menu as shown to
the right is displayed.

3) Turn OFF the key beep.
➥ Push [DOWN].

4) Exit the Set mode.
➥ Hold down [FUNC] for 2

seconds.

5

■ Set mode item list

The list on this basic manual shows the transceiver’s Set
mode items.
See the ADVANCED MANUAL for each item’s details. You
can download the ADVANCED MANUAL from the Icom
website, shown below.

http://www.icom.co.jp/world/support/download/manual/index.php

The transceiver’s Set mode items may differ, depending on
the transceiver’s setting. Ask your authorized Icom dealer or
transceiver administrator for details.

• Set mode items

Squelch Level “SQL” Auto Power OFF “AP-OFF”
Scan Mode “SCAN-M” Signal Moni “SMON”
CTCSS/DTCS*
Backlight “LIGT” RX VFO “RX VFO”
Beep “BEEP” Scan Stop Timer “S-TIME”
Beep Level “BEPV” Scan Restart “SCAN-R”
RF Power “RFPOW” Mic Gain “MIC”
Quiet Mode “QUIET” Lone Worker “LONE”
Lockout “LOCK-O” AF Minimum Level “AFMIN”
Roger Beep “RGR-B” Own ID*
Battery Voltage “BATT”

1

*

Selected CTCSS or DTCS code is displayed.

2

*

5 digit Own ID is displayed.

1

Horn “HORN”

2

OPTIONS

4

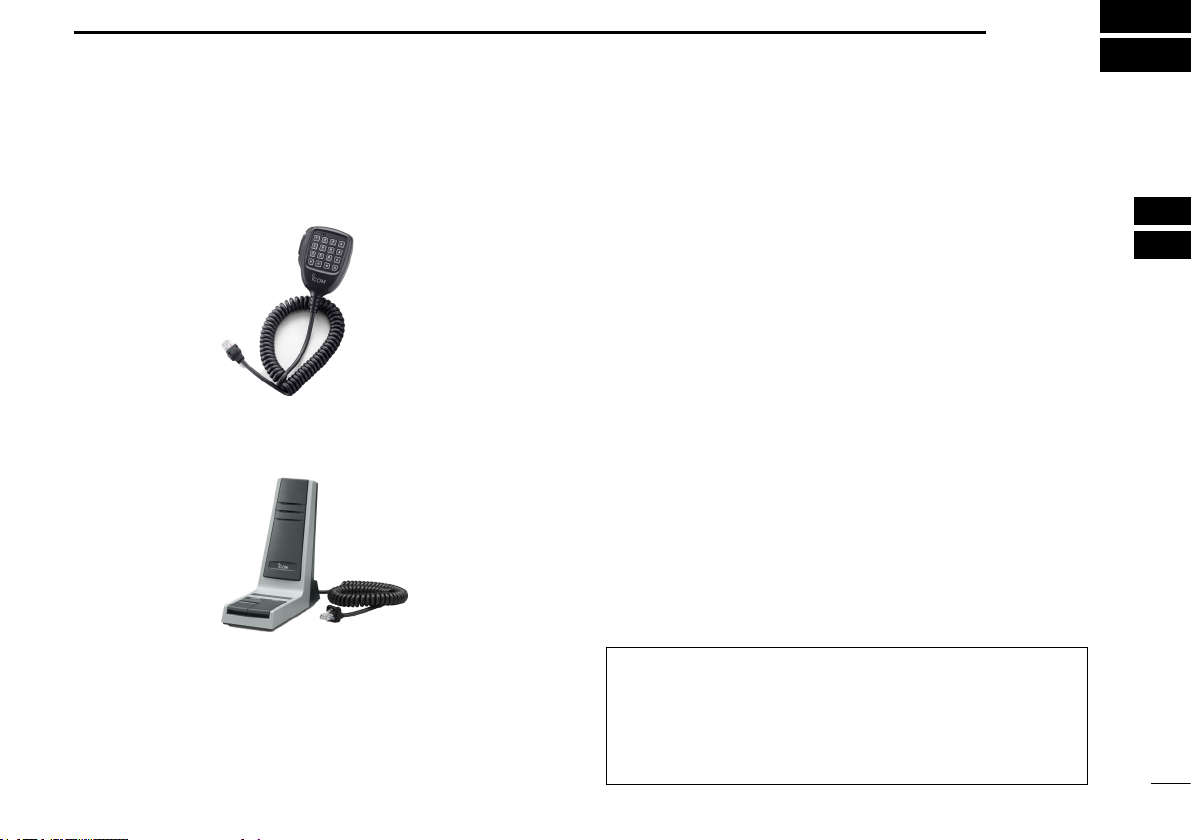

D MICROPHONES

• HM-211 noise canceling microphone

• HM-152T dtmf microphone

Hand microphone with a DTMF keypad.

• SM-26

Desktop microphone with a monitor switch.

desktop microphone

D SPEAKERS

• SP-35 external speaker
External speaker with a 2 meter cable.

• SP-35L
External speaker with a 6 meter cable.

external speaker

DOTHERS

• OPC-1939 acc cable

• CS-410PRO cloning software +
OPC-1122U

Enables quick and easy entry of settings such as RX

frequencies and Set mode contents.

Approved Icom optional equipment is designed for optimal

performance when used with an Icom transceiver.
Icom is not responsible for the destruction or damage to an
Icom transceiver in the event the Icom transceiver is used

with equipment that is not manufactured or approved by

Icom.

cloning cable

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

6

5

WARRANTY AND REGISTRATION

ICOM LIMITED WARRANTY

Icom Incorporated is proud of its advanced technology and the high quality

of workmanship and components included in the production of every product.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to

be of acceptable quality and the failure does not amount to a major failure.

Icom (Australia) Pty. Ltd., the authorised Icom Distributor, warrants this Icom
product within Australia to be free from defects in material or workmanship for
the applicable period indicated below:

• Radios:

Five (5) years from the date of purchase, (excluding accessories), when

purchased from an Australian authorised Icom Dealer.

• Accessories:

One (1) year from the date of purchase, when purchased from an

Australian authorised Icom Dealer.

(i.e. battery, antenna, battery chargers etc)
Icom (Australia) Pty. Ltd. will, at its discretion, and subject to the terms and
conditions stated below, repair or replace any goods or component parts
which after examination are found to be defective.
Unless otherwise expressly provided, any fault arising from defective

workmanship or material shall be rectied by Icom where the equipment is

returned freight prepaid to Icom (Australia) Attn: Service Dept. Unit 1/103
Garden Rd, Clayton, VIC, 3168.Telephone [phone], Fax: (03) 9549

7505. Email [e-mail].

This warranty shall not apply:

(a) To an Icom Product which has failed due to improper installation,

misuse, accident, alteration or unauthorised repair or modication.

(b) If any serial number or identication plate attached to the goods has

been altered, rendered illegible, or removed

(c) If the goods have been damaged by corrosion, deterioration or the

like contributed to abnormal temperatures; the inuence of foreign

matter or energy or physical or chemical properties of water, steam or
chemical compounds.

(d) To any Icom product not originally supplied by Icom (Australia) Pty Ltd

to an authorised Dealer of Icom (Australia) Pty. Ltd.

Please check with us if you feel an Icom product is being offered

for sale that has been sourced from other than Icom (Australia)
Pty Ltd.

WARRANTY SERVICE INSTRUCTIONS

If you are experiencing difculty with your Icom equipment:

1. For warranty claims, complete a repair order form located at: http://

www.icom-australia.com/les/Repair_Order_Form.pdf and send with

goods to Icom (Australia) with a brief explanation of the issue.

2. If the fault is related to the use of a particular accessory or
accessories, please include these for inspection with the radio, and
list these on the repair order form. Icom (Australia) Pty. Ltd. shall
assume no liability for the loss or safe return of an accessory item
that is not listed.

3. Please contact Icom (Australia) regarding any compensation that may
be payable for reasonable expenses incurred in making a warranty
claim.

4. If the requested repairs or services are within the terms of warranty,

your equipment will be returned after repair (prepaid) to any

designated point within Australia.

5. If the requested repairs of service are not within the terms of warranty,
or if you fail to provide acceptable evidence of the date of purchase,
return freight will be charged.

This warranty is in addition to and does not limit, exclude or restrict
your right under the Competition and Consumer Act 2010 or any other
protection laws that may apply.

PRODUCT REGISTRATION

Please log on to www.icom.net.au to register your Icom product, or complete
& return the registration reply page.

7

PLACE

POSTAGE

HERE

Icom (Australia) Pty. Ltd.

Unit 1/103 Garden Road

Clayton VIC 3168

REGISTRATION CARD

Please fold and tape closed

Cut here

Model No:

Purchaser Details:

Please provide the following optional information to help us meet your future needs:

Serial No:

Purchaser Name:

Purchaser Address:

Phone No:Email:

Magazines you regularly purchase from the Newsagent:

In what media have you seen Icom products advertised?

Date of Purchase:

Receipt No.:

P/Code :

Dealer Name:

Occupation:

Comments:

I would like more information on the following:

Other Radio Communications Equipment you use:

Thank you for completing this Registration card. We feel confident you will enjoy the many years of superior performance
your Icom equipment provides.

Other:

Newspaper

Magazine TV Radio Website

Air Band Commercial Radios UHF CBReceiverMarineAmateur

Cut here

TROUBLESHOOTING

6

PROBLEM POSSIBLE CAUSE SOLUTION

Cannot receive, but others can hear
my transmissions.

Can receive, but others cannot hear
my transmissions.

The transceiver transmits regularly,
the signal strength indicator blinks,
and beeps.

Continuous noise is heard from the
speaker.

Buttons have no effect or do not work
as expected

: Stands for Normal mode.
: Stands for Function mode.

Squelch is set too high.

Tone squelch (quiet reception

mode) is ON. (“TSQL” is displayed)

Selcall Quiet Mode is ON.
(“Q” is displayed)

Output power level is set to “Lo.”
(“L” is displayed)

Other stations are operating in the

Tone squelch or Selcall modes.

The ATS (Automatic Transponder
System) function is ON.

The Monitor (Open squelch)

function is ON.

Squelch level set too low.

Activity on the channel

The Keylock function is ON.

The keys may have been
reassigned.

Reduce the squelch level in the Set mode. (p. 5)

Hold down [MONI] for 2 seconds several times until “TSQL”
disappears. (p. 2)

Turn OFF the Quiet mode in the Set mode. (p. 5)

Change the output power level to “HI” in the Set mode. (p. 5)

Set the correct Tone squelch setting for the user group.

Push [MONI] to turn the ATS function OFF. (p. 2)

Push [MONI] to turn the Monitor function OFF. (p. 2)

Increase the squelch level in the Set mode. (p. 5)

Check if the noise is also heard on other channels. If not,
another station may be transmitting on that channel, or you may
be receiving interference from other devices.

Hold down [DUP] for 2 seconds to unlock the keys. (p. 2)

Contact your authorized Icom dealer or transceiver administrator
for details.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

10

INDEX

11

A

ATS ..................................................................................2

B

Basic operation .....................................................................4

D

Duplex channel .....................................................................3

Duplex mode ........................................................................2

E

EXPLICIT DEFINITIONS ...................................................... ii

F

Front panel ...........................................................................1

Function display....................................................................3

Function mode ......................................................................1

G

GENERAL INFORMATION ................................................... i

Group scan ...........................................................................3

I

IMPORTANT ......................................................................... i

K

Keylock function ...................................................................2

M

Monitor function ....................................................................2

N

Normal channel ....................................................................2

Normal mode ........................................................................1

No tone operation .................................................................2

O

Open scan ............................................................................3

Options .................................................................................6

Output power level................................................................4

P

Panel description ..................................................................1

PRECAUTIONS ....................................................................ii

Priority channel .....................................................................2

Priority scan ..........................................................................3

R

Receiving ..............................................................................4

RX VFO ................................................................................5

S

Selcall ..................................................................................3

Selcall code ..........................................................................2

Selcall Quiet mode ...............................................................3

Set mode ..............................................................................5

Simplex mode .......................................................................2

Smart ring .............................................................................2

Smart ring call.......................................................................3

Squelch level ........................................................................5

SUPPLIED ACCESSORIES ................................................ iii

T

Tone squelch ........................................................................2

Tone squelch mode ..............................................................3

Transmitting ..........................................................................4

Troubleshooting ..................................................................10

W

Warranty and registration .....................................................7

Z

Zone selection mode ............................................................1

MEMO

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

12

MEMO

13

MEMO

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

14

A-7256D-1AU
Printed in Japan
© 2015 Icom Inc.

Printed on recycled paper with soy ink.

1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
