MB-D5330 USER MANUAL
MB-D5330
USER MANUAL
1
Page 2
MB-D5330 USER MANUAL
Welcome Guide
PLEASE READ THIS INFORMATION BEFORE USING THE PHONE TO MAKE A
BETTER USE OF YOUR PHONE. WE ARE NOT RESPONSIBLE FOR ANY
DAMAGE DUE TO YOUR MISUNDERSTANDING OF THIS INFORMATION AND
MISACTTING.
We are endeavoring to improve our products and services. We reserve all the
rights to revise and change the description of this product and its software as well
as this user’s manual without obligation to notify any person of such revisions and
changes.
This user manual is for your better use of this phone not an approval of any
accessories. All the pictures in this manual are for reference only. There may be
slight difference between the appearance of phone/ keys/ contents of display used
in this manual and those of your phone. Please refer to your phone for actuality.
Some features introduced in this manual are network or subscription-supported
features. Please contact your service provider for further information.
2
Page 3
MB-D5330 USER MANUAL
MB-D5330 Introduction
3
Page 4
MB-D5330 USER MANUAL

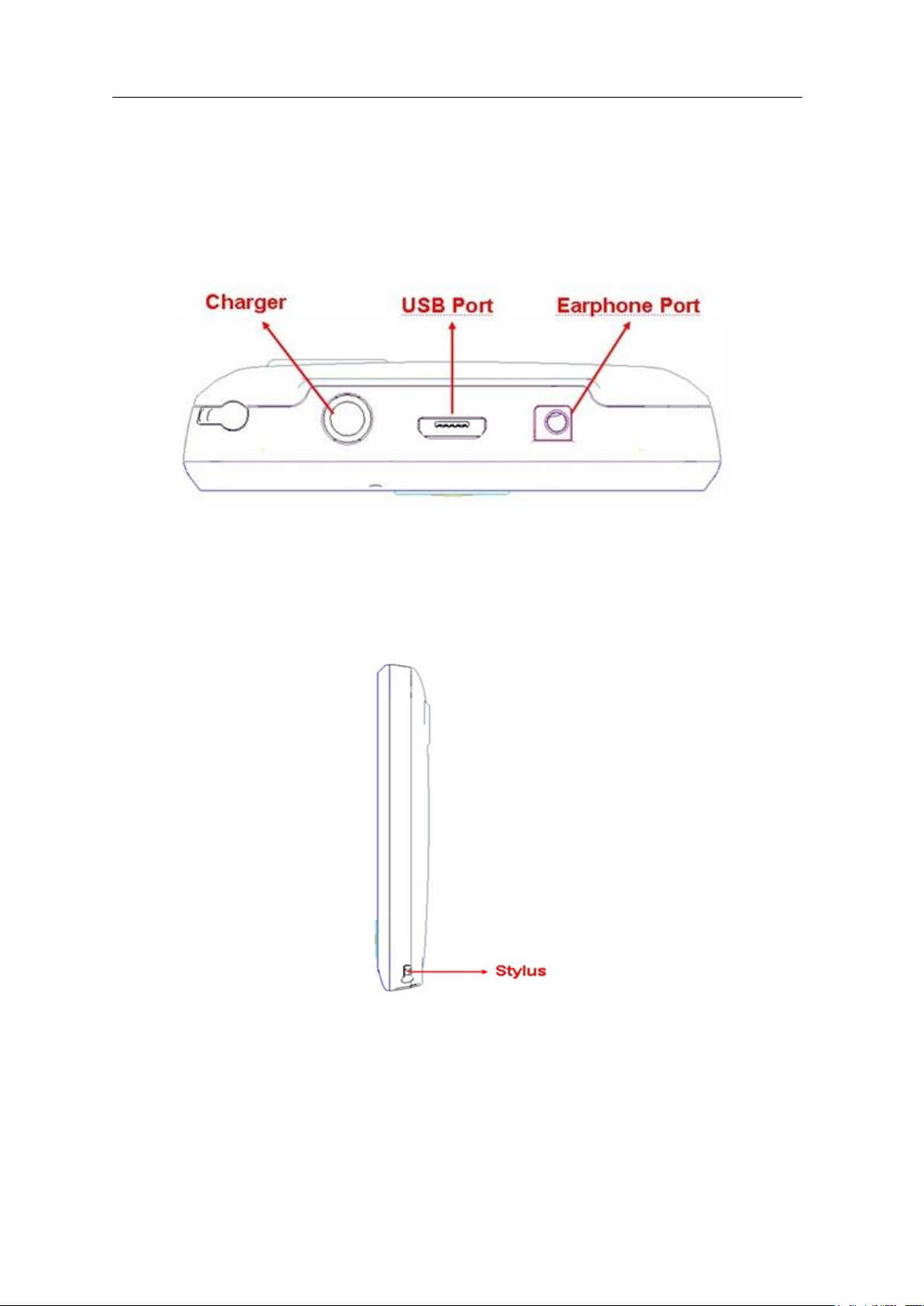

MB-D5330 Bottom Profile
MB-D5330 Side Profile
Note: All the illustrations, simulated screen and related images used in this manual are for
reference only. Please refer to your handset for actuality.
4
Page 5
MB-D5330 USER MANUAL
Content List
1. Safety Information ........................................................................................................................... 7
2. Use and Care.................................................................................................................................... 9
3. Essential ........................................................................................................................................... 10
3.1 Install SIM Card ................................................................................................................... 10
3.2 Battery Use and Installation ............................................................................................ 11
3.3 Memory Card ........................................................................................................................ 12
3.4 Turn it on/off .......................................................................................................................... 13
3.5 Make a call ............................................................................................................................ 13
3.6 Answer or Reject a call ..................................................................................................... 13
3.7 Operations in a Call ........................................................................................................... 14
3.8 Insert International Access Code .................................................................................. 14
3.9 Dial a Extension or Voicemail Number ....................................................................... 15
3.10 Emergency Calls .............................................................................................................. 15
4. Basic .................................................................................................................................................. 15
4.1 Display .................................................................................................................................... 15
4.4 Keypad Lock ......................................................................................................................... 18
4.5 Password ............................................................................................................................... 18
5. Functions .......................................................................................................................................... 18
6. File Manager ................................................................................................................................... 20
7. Phonebook ....................................................................................................................................... 21
8. Fun & Games.................................................................................................................................. 22
9. Call Center ....................................................................................................................................... 23
9.1 Call History ............................................................................................................................ 23
9.2 Call Settings .......................................................................................................................... 25
10. Messaging ..................................................................................................................................... 26
10.1 Write Message .................................................................................................................. 26
10.2 Inbox ..................................................................................................................................... 26
10.3 Drafts ..................................................................................................................................... 27
10.4 Outbox .................................................................................................................................. 27
10.5 MMS ...................................................................................................................................... 28
10.6 Email ..................................................................................................................................... 30
10.7 Broadcast Message ........................................................................................................ 31
10.8 Templates ............................................................................................................................ 31
10.9 SMS Settings ..................................................................................................................... 31
11. Multimedia ..................................................................................................................................... 32
11.1 Camera ................................................................................................................................. 32
11.2 Image Viewer ..................................................................................................................... 33
11.3 Video Recorder ................................................................................................................. 33
11.4 Media Player ...................................................................................................................... 34
5
Page 6
MB-D5330 USER MANUAL
11.5 Sound Recorder ................................................................................................................ 35
11.6 FM Radio ............................................................................................................................. 36
12. Organizer ....................................................................................................................................... 37
12.1 Calendar .............................................................................................................................. 37
12.2 Tasks ..................................................................................................................................... 37
12.3 Alarm ..................................................................................................................................... 38
12.4 World Clock ........................................................................................................................ 38
13 Settings ............................................................................................................................................ 38
13.1 Dual SIM Settings ............................................................................................................ 39
13.2 Pen Calibration ................................................................................................................. 39
13.3 Phone Settings .................................................................................................................. 39
13.4 Network Settings .............................................................................................................. 40
13.5 Security Settings .............................................................................................................. 40
13.6 Connectivity ........................................................................................................................ 41
13.7 Restore Factory Settings............................................................................................... 41
13.8 Sound Effects .................................................................................................................... 42
14. User profiles.................................................................................................................................. 42
15. Extra ................................................................................................................................................ 42
15.1 Calculator ............................................................................................................................ 42
15.2 Stop Watch ......................................................................................................................... 43
15.2 Ebook Reader ................................................................................................................... 43
16. Services .......................................................................................................................................... 43
Malfunctions & Measures ................................................................................................................ 45
Specific Absorption Rate Data....................................................................................................... 47
Battery Tips ........................................................................................................................................... 48
Product Maintenance ........................................................................................................................ 49
6
Page 7
1. Safety Information
Read this information before using your mobile device otherwise may
result in personal injury or your device not complying with local laws.
MB-D5330 USER MANUAL
Battery:
If a conductive material such touches the exposed terminal, short circuit may occur resulting in
property damage, bodily injury or burn. To avoid risk of leaking electricity, take care when
handling a charged battery particularly when placing it inside your pocket, purse or other
container with metal objects.
Keep your mobile device from water:
Keep your mobile device dry.
Use while driving
Always obey the laws and regulations on the use of mobile devices in the area where you drive.
Pay full attention to driving on the road. Use hand-free operation or earpiece if a call is needed.
Aircraft
Mobile device may cause harmful interference so turn off your mobile device before boarding
an airplane.
Blasting areas
Always obey the related limits and regulations and do not use your mobile device in blasting
areas. Turn off your mobile device in areas posted “turn off electronic devices”.
Potentially explosive atmospheres
Turn off your mobile device in the gas station and areas near fuel and chemical containers.
Turn off your mobile device in areas posted “turn off electronic devices”.
Medical devices
Turn off your mobile device whenever instructed to do so by posted signs near some medical
equipment. Mobile device may interfere with pacemakers, hearing aids and some other
medical transplanting equipment. Do not put your mobile device near pacemakers nor carry in
the breast pocket.
7
Page 8
MB-D5330 USER MANUAL
Accessories and battery
Use the accessories, batteries and chargers approved by manufacturer. Use of batteries
not approved by manufacturer may cause injury.
Emergency calls
Turn on your phone and keep it in service areas, dial emergency phone numbers and then
press send key to make a call.
When losing your phone
To avoid any economy damage, please inform the Tele-communication Company or agencies
to lock your SIM card when you lost your phone.
When you inform the telecom company or agencies to lock your SIM card they need to know
the IMEI No. of your phone, which you can find printed on the label on the back of your phone
when taking off the battery. Please backup this number for future need
For safety consideration, you can make preventative measures such as set PIN Code for your
SIM card to prevent other persons using your SIM card without your permission.
Keep away from children
Keep the phone, battery and charger away from children to avoid any personal injury.
8
Page 9
MB-D5330 USER MANUAL
2. Use and Care
To take care for this mobile device, please keep it away from:
Any kind of fluid
Keep the device away from water, rain, humidity, sweat or other moisture.
Extreme heat or cold
Avoid the temperature below -10℃/14℉ or above 45℃/113℉.
Microwave
Don’t try to dry your phone in a microwave oven.
Dust and dirt
Don’t expose your phone to dust, dirt, sand, food or other inappropriate
materials.
Cleaning solutions
Use only a dry soft cloth to clean your phone. Don’t use alcohol or other
cleaning solutions.
Ground
Don’t drop your phone.
9
Page 10
MB-D5330 USER MANUAL
3. Essential
3.1 Install SIM Card
Keep your SIM cards away from the children.
Please consult your SIM card franchiser about the services and usage. SIM franchiser can be
the service provider, network provider or other franchisers.
Please turn off your mobile device and disconnect it with charger before removing the battery.
Note: Turn off your mobile device and disconnect it with charger or any other device before
removing battery door. Place the door on the phone before store and use your mobile phone.
1. Remove the battery door:
Press and jog the battery door let it glide to the bottom of the phone, then get the battery
door off.
2. Insert the SIM card into the card slot:
You can see two card slots side by side. Arrowed position shows SIM card slot. Please
insert SIM card with the right direction as the picture shows below.
SIM Card 1
10
Page 11
MB-D5330 USER MANUAL
SIM Card 2
3.2 Battery Use and Installation
Battery Tips
Battery life depends on the network, signal strength, temperature, and accessories you use.
Always use Original batteries and chargers. The warranty does not cover damage caused by
non-original batteries, charger and/or accessories.
New batteries or batteries stored for a long time may take more time to charge
When charging your battery, keep it near room temperature.
When storing your battery, keep it uncharged in a cool, dark, dry place.
Never expose batteries to temperatures below -10°C (14°F) or above 45°C (113°F).
Always take your phone with you when you leave your vehicle.
It is normal for batteries to gradually wear down and require longer charging times. If you
notice a change in your battery life, it is probably time to purchase a new battery.
Never dispose of batteries in a fire because they may explode.

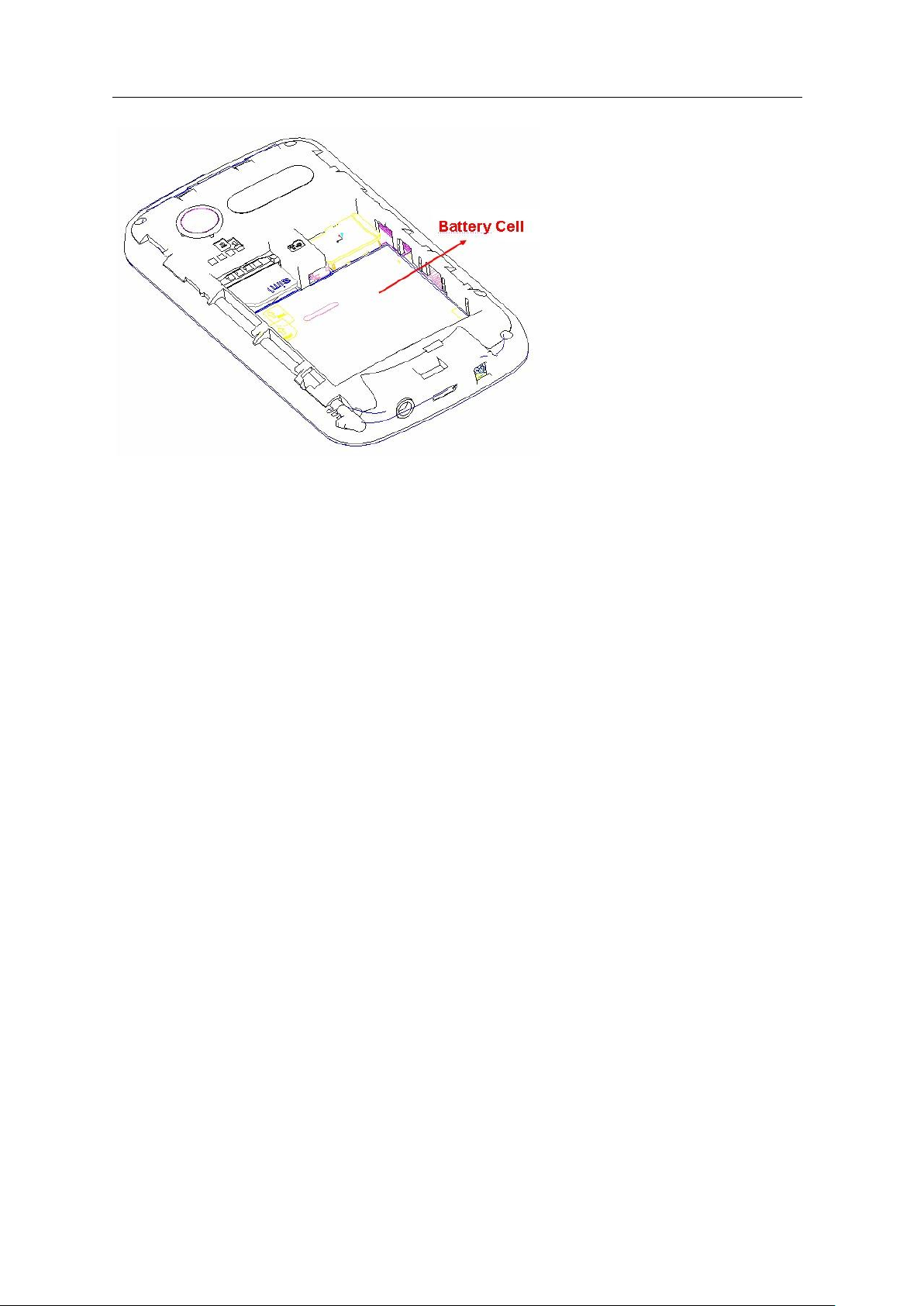

Battery Installation
1. Slide the battery door up and then remove the door.
2. Aim the metal terminals of the battery at those in the battery compartment and then push
down and into it.
11
Page 12
Battery Charging:
MB-D5330 USER MANUAL
New batteries are not fully charged. Open the protective cover on your phone’s accessory
connector port, then insert the battery charger plug into the accessory connector port on the
side of your phone as shown, and plug the other end into an electrical outlet. Your phone might
require several hours to charge fully. When your phone is power off, it might take a few
seconds to show charging display and it shows charge complete when finished. When your
phone is power on, the battery icon flickers when it starting charging and become still with full
bars in battery icon when finished.
3.3 Memory Card
You can use removable memory card with your phone to store information.
Caution: Don’t bend or scratch your memory card. Keep it away from static electricity, water,
and dirt.
Insert the memory card into the tray as shown below:
12
Page 13
3.4 Turn it on/off
MB-D5330 USER MANUAL
Caution: On power up, this phone may prompt you to enter your SIM card PIN code to unlock
the SIM card. If your phone shows Input PUK code then means your SIM card is locked,
please contact your web service provider.
To turn on your phone, press and hold the power on/off key for two seconds. If prompted, enter
your four-to-eight-digit SIM card PIN code and/or four-digit unlock code.
If you do not insert a SIM card, your phone shows Insert SIM. None of the functions related to
SIM card can be used and you can make an emergency call only.
To turn off your phone, press and hold the power on/off key for two seconds.
3.5 Make a call
Click the icon of dialing in idle, and press the number you want to dial. Whether call through
SIM card 1 or card 2 depends on your need. After making a call, select Options→ End Single
Call or press the end call key/power off key for ending the call.
3.6 Answer or Reject a call
When there is an incoming call, the phone rings and vibrates showing the number or the
corresponding name.
The phone provides three modes as followings:
Set-key Answering: Press dial key or enter Options for answering a call. If you don’t want to
answer the call, please press the power on/off key.
13
Page 14
MB-D5330 USER MANUAL
Any-key Answering: Enter User Profiles →Profile Options→ Answer Mode, tick Any Key
for answering a call in the mode of any key.
Earphone/Bluetooth mode: when plugging the earphone (including blue-tooth earphone), you
can answer a call by pressing the key on the earphone. If you are not convenient to press the
key, please turn on the auto-answer mode (only in earphone mode) and make sure your
earphone is plugged. Then your phone auto answers the call 5 seconds after ringing or
vibrating.
3.7 Operations in a Call
Press Options to perform following operation during a call:
Hold Single Line: Hold this call
End Single Line: Hang up and end current call
New Call*: Enter a new dialing display to make a new call
Phonebook: Enter the phone book
Messaging: Enter messages
Sound Recorder: Recording the calling contents
Mute: Set mute on or off. When setting mute on, your voice can not be heard
through the line.
Swap*: Switch between the current call and the holding call.
Conference* : You can add additional parties to a call.
DTMF: Set dual-tone multi-frequency (DTMF) on or off.
Note: the menus marked with * must be supported by your SIM card. Please contact your
service provider for details. Only when two or more calls are on can Swap and Conference
show.
3.8 Insert International Access Code
When you are dialing an international call, keep press star key * till the international call prefix
“+” shows and then enter the number in the following order:
+ Country code→ complete number→ dial key
14
Page 15
MB-D5330 USER MANUAL
Signal Strength
The vertical bars show the network connection strength:
SIM 1 has signal; SIM 2 is unused or no signal;
SIM 1 is unused or no signal; SIM 2 has signal.
If you do not insert one SIM card, then you will have the unused SIM card
shown as disable icon.
SIM 1 has been inserted while SIM 2 not;
SIM 2 has been inserted while SIM 1 not.
Enter Settings and set the mode of single SIM, you will have the unused SIM
card shown as disabled icon.
SIM 1 and SIM 2 are both open.
SIM 1 is unused; SIM 2 is unused.
3.9 Dial an Extension or Voicemail Number
Please enter P (pause) or W (wait) when dialing an extension number, press star key * to
switch between “P” and “W”. Enter numbers according to the following order:
District code→ exchange phone number→ P or W→ extension number→ dial key
3.10 Emergency Calls
You can make emergency calls as long as your current location is network-covered. You can
know by checking the signal strength bar showing on the top left corner of the screen.
Note: Emergency numbers varies by country. The emergency number(s) in your phone may
not work in all locations, and sometimes an emergency call cannot be made due to network,
environmental, or interference influences.
4. Basic
4.1 Display
The idle shows when you turn your phone on:
Icon area
15
Page 16
MB-D5330 USER MANUAL
New SMS
This icon shows when you receive a new message.
SIM Card 1 has an unread message;
SIM Card 2 has an unread message.
Full Inbox
This icon flickers when the inbox is full and you need to delete old messages
for receiving new messages.
New MMS
This icon shows when you receive a new message.
SIM Card 1 has an unread MMS;
SIM Card 2 has an unread MMS.
Turn on Alarm Clock
This icon shows when the alarm is on.
Earphone
This icon shows after plugging the earphone in. Voice will be heard from the
earphone.
Ring Mode
Your current ring mode:
Ring
Vibration only
Vibrate and ring
Vibrate then ring
Silent
Missed calls
This icon shows when you are viewing the missed call.
SIM Card 1 has a missed call;
SIM Card 2 has a missed call.
Call Transfer
This icon shows when you transfer all calls.
SIM Card 1 has set up all call transfer;
SIM Card 2 has set up all call transfer.
Keypad Lock
Different icons show different status of your keypad.
Keypad unlocked ----currently the keypad is at unlocked status.
16
Page 17
MB-D5330 USER MANUAL
Keypad locked --- currently the keypad is at locked status, thus no operation
can be made.
GPRS
The icon shows when your SIM card has been connected to GPRS.
SIM Card 1 has been connected to GPRS;
SIM Card 2 has been connected to GPRS.
Roaming
This icon shows when your phone is at roaming status.
SIM Card 1 is roaming;
SIM Card 2 is roaming.
Bluetooth
This icon shows when the Bluetooth is active.
Stopwatch
This icon shows when stopwatch is being used.
Battery Capacity
This icon’s color shows the status of battery capacity.
Name
of
Service
Provider
Statuses of two SIM cards are shown on the screen, including the name
of service provider for the card currently-used. If there is one SIM card not
being used, then its symbol will be shown crossed on the top of screen. If
there are two SIM cards not being used, you will have Emergency Call
shown he screen for getting access to emergency call only.
Owner Number
Shows SIM 1 owner number
Text Area
Shortcut Icons
There are icons of shortcuts shown in the bottom and left side of the screen. Enter the first
shortcut icon at the bottom, you will have File Manager, Phonebook, Funs & Games, Call
Center, Messaging, Multimedia, Organizer, Settings, User Profiles, Extra, Services,
Shortcuts, etc. You can also enter Options of Shortcuts to Add or Delete All for hiding or
showing shortcut icons.
17
Page 18
MB-D5330 USER MANUAL
4.4 Keypad Lock
Press Power-off key → Confirmation Key for locking the phone. There will be a icon of keypad
shown on the top of the screen. The same procedure can be used for unlocking phone.
4.5 Password
The password of your phone is originally set to be 0000. You can change it whenever you like.
Your SIM card password or barred dial password can be also changed. Please contact your
service provider for the details.
Note: Please contact your service provider for details.
5. Functions
MB-D5330 offers you a series of functions shown below:
1 File Manager
2 Phonebook
2-1 Add New Contact
2-2 View Contact
2-3 Options
2-3-1 Call
2-2-2 IP Dial
2-2-3 View
2-3-4 Send Text Message
2-3-5 Send Multimedia Message
2-3-6 Edit
2-3-7 Delete
2-3-8 Copy
2-3-9 Move
2-3-10 Send Contact
2-3-11 Add to Blacklist
2-3-12 Mark Several
2-3-13 Caller Groups
2-3-14 Phonebook Settings
3 Funs & Games
3-1 Java
3-2 Java Settings
3-3 Java Default Security
3-4 Games
4 Call Center
18
Page 19
4-1 Call History
4-1-1 SIM 1 History
4-1-2 SIM 2 History
4-2 Call Settings
4-2-1 SIM 1 Call Settings
4-2-2 SIM 2 Call Settings
4-2-3 Advanced Settings
5 Messaging
5-1 Write Message
5-2 Inbox
5-3 Drafts
5-4 Outbox
5-5 MMS
5-6 Email
5-7 Broadcast Message
5-8 Templates
5-9 SMS Settings
6 Multimedia
6-1Camera
6-2 Image Viewer
6-3 Video Recorder
6-4 Media Player
6-5 Sound Recorder
6-6 FM Radio
7 Organizer
7-1 Calendar
7-2 Tasks
7-3 Alarm
7-4 World Clock
8 Settings
8-1 Dual SIM Settings
8-2 Pen Calibration
8-3 Phone Settings
8-4 Network Settings
8-5 Security Settings
8-6 Connectivity
8-7 Restore Factory Settings
8-8 Sound Effect
9 User Profiles
9-1 General
9-2 Meeting
9-3 Outdoor
9-4 Indoor
9-5 Headset
9-6 Bluetooth
10 Extra
10-1 Calculator
10-2 Stopwatch
10-3 Ebook Reader
MB-D5330 USER MANUAL
19
Page 20
MB-D5330 USER MANUAL
Open
List all the folders and files
Format
Format the storage devices, the operation will delete all the data
stored in the storage devices
Rename
Rename current storage.
Details
Shows the date and size of the file.
Open
List all files in this folder
New Folder
Create a new folder and edit its name
Rename
Change the folder’s name
Delete
Delete the folder
Sort by
Arrange the orders of files by Name, Type, Time, Size or None.
11 Service
11-1 STK
11-2 Internet Service
11-2-1 Homepage
11-2-2 Bookmarks
11-2-3 Recent Pages
11-2-4 Input Address
11-2-5 Service Inbox
11-2-6 Settings
12 Shortcuts
12-1 Add New Contact
12-2 Search Contact
12-3 SIM1 Owner Number
12-4 Tone Settings
12-5 Volume
12-6 Alarm
12-7 Pen Calibration
Note: Contents of STK are subject to different service providers. When two SIM cards are used
at the same time, two STK menus may both be shown according to the type of SIM card.
6. File Manager
Choose File manager and enter different storages such as Phone and Memory Card.
Storage devices: press Options to perform following operations
Folders：press Options to perform following operations
As for Files: press Options to perform following operations
20
Page 21
MB-D5330 USER MANUAL
Play
Play multimedia file in this menu.
Send
Send the file as multimedia message, as Email, and you can also send
via blue tooth.
Use as
Use as user profiles.
New Folder
Create new folder
Rename
Edit the file’s name
Delete
Delete this file
Sort by
Arrange the orders of files by Name, Type, Time, Size or None.
Mark Several
You can Unmark, Unmark All, Delete Marked, Copy Marked, Move
Marked and Send Marked Via Bluetooth.
Copy
Copy this file to any other folder in the same storage.
Move
Move this file to any other folder in the same storage.
Delete All Files
Delete all file in the same storage.
Details
Shows the date and size of the file.
Note: The options may differ depending on the object types.
7. Phonebook
Select Phonebook from the main menu for entering the phone book.
The phone book consists of phone storage and SIM card storage for you to use.
Select Add New Contact, and enter Options for the following operations:
Select:
To SIM 1/To SIM 2: You can add a Name and one Number in SIM card storage. The capacity
depends on your SIM card type. For details, please contact your service provider.
To Phone: You can edit Name, Number, Home Number, Company Name, Email Address,
Office Number, Fax Number, Caller Picture, Caller Ring Tone, Caller Group.
Mark Several:
You can select several numbers stored in your phonebook for the operations such as Unmark,
Send Text Message, Delete Marked, Mark All, Unmark All.
Caller Groups:
This phone provides you Friends, Family, VIP, Business and Others.
21
Page 22
MB-D5330 USER MANUAL
Phonebook Settings:
This phone provides you Speed Dial, My Number, VCard Version, Extra Numbers, Memory
Status, Copy Contacts, Move Contacts, Delete All Contacts.
Select any contact number, enter Options for the following operations:
Call Call Current number
IP Dial IP dial current contact person
View View current contact information
Send Text Message Send text message to current contact number
Send Multimedia Information Send Multimedia Information to current contact number
Edit Edit current contact information
Delete Delete current contact information
Copy Copy current contact information To Phone, To SIM 1,
To SIM 2 or To File.
Move Move current contact information From SIM 1 to Phone
or From SIM 1 to SIM 2; Move current contact
information From SIM 2 to Phone or From SIM 2 to
SIM 1.
Send Contact You can send Contact As Text Message, As Multimedia
Message, As Email, Via Bluetooth.
Add to Blacklist You can add the current number to blacklist according to
your need.
Mark Several You can select several numbers stored in your phonebook for
the operations such as Unmark, Send Text Message,
Delete Marked, Mark All, Unmark All.
Caller Groups This phone provides you Friends, Family, VIP, Business
and Others.
Phonebook Settings This phone provides you Speed Dial, My Number, VCard
Version, Extra Numbers, Memory Status, Copy Contacts,
Move Contacts, Delete All Contacts.
8. Fun & Games
8.1 Java
You can download Java program and save here. Click Options, then you have Launch,
22
Page 23
MB-D5330 USER MANUAL
Settings, Details, Delete, Network Profile and Restore Default in Java.
8.2 Java Settings
You can make settings in Java Audio, Java Backlight, Java Vibration, Select SIM, Java
SIM1 Profile, Java SIM2 Profile, Heap Size.
8.3 Java Default Security
You can make settings in Third Party, Un-trusted Domain, Restore Default and Domain
Options.
8.4 Games
You can play games here. And there is a Game Settings for you to set up BGM, Sound Effect,
Vibration and Volume.
9. Call Center
Enter the main menu Call Center, You can get access to Call History and Call Settings.
9.1 Call History
After entering the menu, select SIM 1 Call History or SIM 2 Call History, relevant details will
be listed. Your phone keeps lists of missed calls, dialed calls and received calls. Calls are
listed in the order from new to old.
Note: The phone keeps the only latest call of the same number.
1. Find the lists of Dialed Calls, Received Calls, Missed Calls
2. Press Confirmation key to view the details such as date and time.
3. press Options to perform following operation:
View View the details of missed calls/ received calls and
missed calls.
Call Call the current number
Send Text Message Send text message to current number
Send Multimedia Message Send multimedia message to current number
Save to Phonebook Save current number to phonebook
Add to Blacklist Add current number to blacklist
Edit Before Call Edit current number before call
23
Page 24
MB-D5330 USER MANUAL
Delete Delete current call record
Delete Call Log
You can delete the all the records of the missed calls, dialed calls and answered calls, you can
also choose Delete All to delete all the three records.
Call Timer
You can check the call time record of the phone up to now through this menu.
Last Call Show the last call time
Dialed Calls Show the dialed calls time
Received Calls Show the answered calls time
Reset All Reset the last call time, total inbound time and outbound time
Call Cost
You can check the call charge of the phone up to now through the menu.
Last Call Cost Check the last time call cost.
Total Cost Check all the calls’ cost.
Reset Cost Input the PIN2 code, and then can cleanup all the cost.
Max Cost Show the limitation of the currently cost, “0” means no limit.
Price per Unit Press setting to setup the unit time rates.
Note: The call cost function must be supported by the network service provider. You need to
input the PIN2 code to reset the cost, setup the maximun cost and rates. Please contact your
network provider for the password.
Text Message Counter
You can check the number of the sent and received SMS currently. Press Reset to clear the
selected records.
GPRS Counter
You can check the transmission flow when use the GPRS Counter, including checking the
data flow of Last Sent, Last Received, All Sent and All Received. You can also reset the
records through Reset Counter.
24
Page 25
MB-D5330 USER MANUAL
9.2 Call Settings
You can perform following operations through this menu. You should select call settings for SIM
1 or SIM 2 before entering the corresponding menu.
Caller ID You can set caller ID by network, and you can hide or send ID
here.
Call Waiting Set the call waiting function.
Call Divert Set the call divert function.
Call Barring Set the call barring function.
Line Switching There are 2 lines available. You can witch to your current line.
Advanced Settings
Blacklist
There are 20 blacklist numbers can be set in the menu. When this function is active, the
incoming calls in the blacklist will be shielded automatically.
You can enter Mode to switch on/off blacklist function.
And enter Blacklist Numbers for setting the number in the black list.
Auto Redial
When you make this function on, then the number you called will be redialed automatically if
not being answered.
IP Dial
This phone enables you to set 3 groups of IP numbers. After activating one group of IP
numbers, you may select IP dialing. Then the phone will compose IP dialing automatically in
front of the number you want to dial.
You can enter Activate SIM1 Call for activating and the current number will become IP
number of SIM Card 1. You can also enter Activate SIM2 Call to activate SIM 2 number and
make it become IP number. Edit function is for editing current IP number.
Call Time Display Turn on/off the display function for call
Call Time Reminder Remind user for the call time. This function can be turned off
and be set as once reminder or circular reminder.
Auto Quick End After activating this function, calls will be hung up automatically
25
Page 26
MB-D5330 USER MANUAL
10. Messaging
You can receive and send messages, MMS, Multimedia Information, include pictures, music
and text. You can also use broadcast messages and voice mail box based on web service.
Please contact the provider for the web service.
Instant message make it possible for you to exchange messages with other wireless phone
users. Enter main menu from the idle interface and select Messaging for your operation.
10.1 Write Message
You can write a new text message and insert template in your message. Press Options and
you will have the following information:
Send to Send the message to the phone number you need. You can enter
number or add from phonebook.
Input Method There are 12 kinds of input method for you to select.
Insert Template There are 10 templates for you to select.
Advanced You can insert number, name and bookmark in your message.
Save to Drafts You can save the current message to drafts.
After entering a number or adding from phonebook, you will have the following options:
Send You can send messages after writing.
Edit Recipient You can edit the recipient here.
Remove Recipient You can remove the recipient here.
Remove All Recipients You can remove all recipients here.
Save to Drafts You can save the current message to Drafts.
10.2 Inbox
Inbox is for storing received messages. When you receive a new message, your screen will
show the icon of new message. Your phone vibrates or rings according to your selected mode.
The icon of new message shows on the top of the status bar till you read the new message.
Select SIM 1 Inbox or SIM 2 Inbox for performing the following operations:
Reply Reply a message to the current sender
26
Page 27
MB-D5330 USER MANUAL
Call Sender Call senders of current message
Forward Forward this message to others
Delete Delete this message
Delete All Delete all messages in the inbox
Mark Several You can delete messages, copy to phone, move to phone,
unmark, Mark all or unmark all messages.
Advanced You can use number, URL, Email, copy to phone, move to
phone, copy all and move all.
Note: Message icons keep flickering when you inbox is full in idle interface. Please delete
some messages for ensuring you to receive new messages.
10.3 Drafts
Select SIM 1 Drafts or SIM 2 Drafts to view the draft messages you stored. And you can
perform the following operations:
Send Send a message to the sender
Edit Edit current message
Delete Delete current message
Delete All Delete all the messages in the Drafts
Mark Several You can delete messages, copy to phone, move to phone,
unmark, Mark all or unmark all messages.
Advanced You can use number, URL, Email, copy to phone, move to
phone, copy all and move all.
10.4 Outbox
Select SIM 1 Outbox or SIM 2 Outbox to view the outbox messages you stored. And you can
perform the following operations:
Resend Resend current message to others.
Edit Edit Current message.
Delete Delete this message
Delete All Delete all messages in the inbox
Mark Several You can delete messages, copy to phone, move to phone,
unmark, Mark all or unmark all messages.
Advanced You can use number, URL, Email, copy to phone, move to
phone, copy all and move all.
27
Page 28
MB-D5330 USER MANUAL
10.5 MMS
Write Message
Edit the information for TO, CC, and BCC,
Add Number Add telephone number of MMS recipient
Add Email Add Email address of MMS recipient
Edit Edit current selected recipient
Delete Delete current telephone number from recipient list
Edit subject and click Options:
Done Confirm the current finished contents
Cancel Exit from the current unsaved contents
Input Method Select the input method you want
Edit Content and click Options:
Done Confirm the current finished contents
Input Method Select the input method you want
Add Picture Add picture in current MMS
Add Audio Add audio file in current MMS
Add Attachment Add attachment in current MMS
Add Slide Before Add slide before current page of MMS
Add Slide After Add slide after current page of MMS
Add bookmark Text Add URL link in you MMS
Preview Preview the contents of current MMS
Slide Time Adjusting the slide time between current and next page of MMS
Click Done and perform the following operations:
Send only Send current MMS
Save and Send Save and sent current MMS
Save to Draft Save current MMS to Draft
Send Options You can adjust the contents of Validity Period, Delivery Report,
Read Report and Priority.
Exit Withdraw the editing interface and do not save the message.
Inbox
Inbox is for storing received MMS. When you receive a new message, your screen will show
28
Page 29
MB-D5330 USER MANUAL
the icon of new message. Your phone vibrates or rings according to your selected mode. The
icon of new message shows on the top of the status bar till you read the new message.
As the MMS inside inbox, you can operate the following operations:
View View the current MMS
Reply Reply the sender
Reply by SMS Edit SMS and reply the sender
Reply All Edit MMS and reply all the senders
Forward Forward current MMS to the others
Delete Delete the MMS
Delete All Delete all MMS in the inbox
Properties Check the details of the template
Use Details Extract the number or hyperlink from the message, and you can
Send Multimedia Message, call or Save to Phonebook.
Outbox
Enter outbox to view MMS and you can perform following operations:
View View current MMS
Forward Forward current MMS to the others
Edit Modify the current MMS
Delete Delete the MMS
Delete All Delete all the MMS in the outbox
Properties Check the details of template
Use Details Extract the number or hyperlink from the message, and you can
Send Multimedia Message, call or Save to Phonebook.
Drafts
You can perform following operations to the MMS stored:
View View current MMS
Send Send the MMS.
Edit Edit current MMS.
Delete Delete the MMS.
Delete All Delete all the MMS in the drafts.
Properties Check the details of the template.
Use Details Extract the number or hyperlink from the message, and you can
Send Multimedia Message, call or Save to Phonebook.
Templates
29
Page 30
MB-D5330 USER MANUAL
There are 5 MMS templates provided for you. You can enter: View, Write Message and
Properties for your different needs.
MMS Settings
Enter MMS Settings, you will have:
Profiles Select the name of service provider, or Add new.
Common Settings You can Compose, Send, Retrieve, Filter, Memory Status.
Following are the details for Common Settings:
Compose Include Creation Mode, Picture Resizing, Best Page Time,
Auto Signature, Signature, etc.
Send Include Validity Period, Delivery Report, Read Report,
Priority, Slide Time, etc.
Retrieve Include Home Network, Roaming, Read Report, Delivery
Report, etc.
Filter Include Anonymous and Advertisement.
Memory Status View the storage of the MMS.
Note: If your MMS can not be sent successfully, please reset the corresponding settings of
MMS. The route is: MMS Settings→ Profiles→ Please select the name of your SIM service
provider→ Options→ Activate.
10.6 Email
After inserting a storage card, you can get the following information from Email:
Send and Receive Send and receive email
Write Email Write new email
Inbox You can store received emails in your Inbox
Outbox You can store sent emails in your Outbox
Sent Send emails
Drafts Store drafts
Clear Mailbox You can store
Delete Marked Emails Mark emails and you can delete them.
Email Accounts Create new email accounts here
Templates There are 10 templates provided for your email
30
Page 31
MB-D5330 USER MANUAL
Note: Before using functions in Email, you need to create new account first though Email
Accounts.
10.7 Broadcast Message
Broadcast messages are sent from network operator to GSM phone users, such as weather
forecast, traffic reports, stock market updates, etc. Every kind of mobile broadcast has a fixed
model number. Mobile phone can automatically store broadcast message when you receive
from a new channel. New broadcast message covers the old one if they are from the same
channel.
After entering Broadcast Message, you need to select SIM 1 Broadcast Message/ SIM 2
Broadcast Message and perform the following operations:
Receive Mode: Select the status of the broadcast message (on or off)
Read Message: Read the broadcast messages
Languages: Set the language of the broadcast messages
Channel Settings: Set the broadcast messages channels
Note: This function must be supported by network. Please contact your network provider for
more information.
10.8 Templates
There are 10 templates provided for you. You can enter: Use, Edit and Remove for your
different needs.
10.9 SMS Settings
After entering SMS Settings, you need to select SIM 1 Message Settings/ SIM 2 Message
Settings and perform the following operations:
Profile Settings: There are four profiles for editing.
Voicemail Server Create voicemail information, including Name and Number.
Common Settings Tick Delivery Report, Reply Path, Save Sent Message for
activate the functions.
Memory Status: Check the capacity of messages storage
Preferred Storage: Set the default message storage location, including storage in
31
Page 32
MB-D5330 USER MANUAL
Photos
View Pictures stored in the file.
Camera Settings
Select LED Highlight, Shutter Sound, EV, Contrast, Anti-Flicker,
Delay Timer or Cont. Shot.
Image Settings
Adjust Image Size and Image Quality.
White Balance
Select Auto, Daylight, Tungsten, Fluorescent, Cloudy or
Incandescent, etc.
Scene Mode
Select night or auto mode
Effect Settings
Select Normal, Grayscale, Sepia, Sepia Green, Sepia Blue or Color
Invert.
Flash
Make flash on or off.
Storage
Select your preferred storage in Phone or Memory Card.
Restore Default
Use the default settings
phone and SIM card.
Note: you need support from the service provider to receiver delivery reports.
11. Multimedia
Your phone offers multimedia applications and you can use Multimedia from main menu to
open it.
11.1 Camera
Your phone has a high-Mega pixel camera for taking photos whenever and wherever you like.
After taking photos, store them in the phone memory or memory card (if being inserted).
Camera Settings
Press Options in viewfinder display and make detailed settings:
Take a Photo
At camera viewfinder status, please take the scene which is shown in the picture frame, press
Confirmation key for taking a photo.
32
Page 33
MB-D5330 USER MANUAL
View
View the image files supported by the phone. If the file is not
supported by the phone, then you will be prompted format error.
Browse Style
Select from List Style or Matrix Style.
Send
Send the file As Multimedia Message, As Email or Via Blue tooth.
Use as
Use as Wallpaper, Screen Saver, Power on Display, Power off
Display or Caller Picture.
Rename
Edit the name of the file
Delete
Delete current file
Sort by
Arrange the orders of files by Name, Type, Time, Size or None.
Delete All Files
Delete all files in the image viewer.
Storage
Set the storage of reading file: Memory Card or Phone.
Camcorder
Settings
Select EV, Anti-Flicker or Night Mode.
Video Settings
Select Video Quality, Size Limit Reached, Time Limit Reached or
Record Audio on & off.
White Balance
Select Auto, Daylight, Tungsten, Fluorescent, Cloudy or Incandescent,
etc.
Effect Settings
Select Normal, Grayscale, Sepia, Sepia Green, Sepia Blue or Color
Invert.
Storage
Select your preferred storage in Phone or Memory Card.
Restore Default
Use the default settings
After photo being taken, the phone saves automatically. You can select Send or Delete and
then back to the viewfinder.
Note: All the photos are stored in the photos file.
11.2 Image Viewer
You can view the photos in this menu. All the photos related will be shown once you perform
this function.
11.3 Video Recorder
Choose Video Player, the phone will be at video taking status. Press Options in viewfinder
display and make detailed settings:
Taking Video
33
Page 34
MB-D5330 USER MANUAL
Please press the Confirmation key for starting taking video. Press the key again, then video
player pauses, please press Stop icon for stopping recording. You can save the file recorded
by click Yes or No.
Note: Files recorded are stored in press the file-case named video.
11.4 Media Player
Select Media Player for checking movies stored in media player. Click Options for playing,
sending, renaming, deleting, all deleting and sorting.
Now Playing
Enter Now Playing,
Click Play current songs or movie,
Click and pause current playing,
Click and pause playing,
Click for previous songs,
Click for next songs.
Click for full screen play.
Adjust voice volume via or .
Click for shifts from all repeat, single repeat or non-repeat.
Click for selecting sequence playing or random playing.
Enter Audio, please click Options and enter the following settings:
Current Play List Shows all files in the current play list.
Settings Make settings for media player in Player Settings, Audio
Settings or Bluetooth Settings.
Details Select File Name, Title, Artist, Album, Genre, Description, Year,
Track Number, Duration, Size, Quality, Channel or Location for
viewing the corresponding details.
Video Recorder Start using video recorder.
My Play List
You can add and play your movie or songs in My Play List.
34
Page 35
MB-D5330 USER MANUAL
Enter Video, select Open→ Options
Play Play current move or song.
Details Select File Name, Title, Duration, Size, Quality, Channel or
Location for viewing the corresponding details.
Add Add file from Phone or Memory Card.
Remove Remove current file from the list.
Send Send current file as multimedia message, email. And you can
send via Bluetooth.
Use as Use the current file in your user profiles.
Move up /move down Adjust the order of video files in My Playlist
11.5 Sound Recorder
Enter Sound Recorder, click for recording. Click for pause the recording. Click
Continue for continue recording. After the recording, click Stop for stopping the recording and
enter the interface for saving. Press Yes to save the sound file. Press No to go back.
Click for playing records in the list. Click for entering previous record. Click for
entering next record.
Click Options and you can make the following operations:
New Record
Begin to make a new record of sound.
Play
Play the selected sound file.
Append
For files in AMR format, you can add a new sound recording onto the original one and then
save them.
Tip: Append is not available for files in other format.
Rename
Change the name of the current sound file.
Delete
Delete the current sound file.
35
Page 36
List
Enter the list of sound recorder.
Settings
Set up Storage and File Format.
Delete All Files
Delete all the sound files.
Use as
Send the current sound file to user profiles.
Send
Send the current sound file to user profile, MMS or Bluetooth.
MB-D5330 USER MANUAL
11.6 FM Radio
Choose FM Radio and plug in earphone for turning on FM Radio.
Enter Options and you can make the following operations:
Channel List There are 20 channels for you to store.
Manual Input Inputs the FM frequency you prefer.
Auto Search Makes auto search for channels available and add them into
the channel list for you to select.
Settings You can make settings for Loud Speaker, Record Format,
Audio Quality and Record Storage.
Record You can make record for current radio contents
Append You can add radio record to your sound file and then save
them.
File List File list stores the radio records saved.
Note: Auto search needs some time, so please be patient.
Basic Usage
The phone offers you the FM Radio background play function. Enter Settings and turn on
background play. If you want to turn on the radio, please plug in earphone first before entering
the interface of FM Radio. If you want to turn off the radio, unplug the earphone first and then
36
Page 37
MB-D5330 USER MANUAL
press Back in FM interface for exit.
Tips: When listen to the FM Radio, you can make or answer a call normally. While talking, the
volume of the broadcast will into mute automatically.
12. Organizer
This phone has more organizers, such as calculator.
12.1 Calendar
The screen shows current date framed by special color box when entering Calendar. Press the
4-ways navigation key up, down, left or right to move to different date. Press Confirmation key
or stylus to enter the corresponding menu. You can use the functions of View, View All, Add T
Event, Delete Event, Jump to Date and Go to Weekly View.
12.2 Tasks
Enter Tasks and select Add for selecting Date, Call and Anniversary according to your
different needs. Then edit time, subject, alarm time, repeat, location, priority, details, status,
etc.
View
View the content of selected task
Add
Select Add to create a new task. You can edit its date, time, note, alarm mode and reminding
mode etc.
Edit
Edit the content of selected task
Delete
Delete current Tasks contents
Delete Overdue
37
Page 38
Delete overdue Tasks.
Delete All
Delete all the tasks
Jump to Date
Jump to specific date to view tasks.
View Uncompleted
Send vCalendar
Send vCalendar by SMS, Bluetooth or save as file.
Save as File
Save current tasks as file in phone or memory card.
MB-D5330 USER MANUAL
Note: There is fixed space for storing tasks. If no Add shows in Options, please delete some
tasks for saving spaces for more tasks.
12.3 Alarm
The phone has an alarm clock with 5 separate alarms that you can set to alert you at the time(s)
you specify. To set an alarm clock, select one alarm and edit its on/off, Repeat, Alarm Tone,
Snooze (mins) and Alert Type.
12.4 World Clock
Enter World Clock, check the information of time zone by the moving pole. Press left right key
for entering Option. You can make on/off for Daylight Saving Time for Foreign City.
13 Settings
You can set your favorite wallpaper, ring tone or some other functions via Settings.
38
Page 39
MB-D5330 USER MANUAL
Time and Date
Set your current time zone, time, date and their display format.
Schedule
Power On/Off
You can set up to 4 time points to automatically turn the phone on
and off.
Language
Set the display language.
Preferred
Input Methods
Select the preferred input method as you like.
Display
You can find submenus such as wallpaper, screen saver, power on
display, and power off display, back light timer, show date and time,
show owner number, show operator name in display characteristic.
13.1 Dual SIM Settings
This menu offer several usages of dual SIM cards for you to choose the mode you want.
Dual SIM open Both dual SIM are standby
Only SIM 1 open Only use SIM 1 standby
Only SIM 2 open Only use SIM 2 standby
Flight Mode The whole function related to calls are all closed at the status
of flight mode.
13.2 Pen Calibration
Use the pen to tap the icon which is shown on the screen.
You will have prompts as followings:
Click anywhere on the screen with your stylus to start calibration
Click on the top-left point
Click on the bottom-right point
Click on the center point
Done
When you have Done shown on the screen, you have finished pen calibration.
13.3 Phone Settings
Enter Settings from main menu, select Phone Settings and then you can set the following
items:
39
Page 40
MB-D5330 USER MANUAL
Dedicated Key
You can set list of dedicated key according to your need.
Auto Update of
Date & Time
Switch on/off this function for auto update of date and time. After
activation, the mobile will compare the phone time and network time
when network for SIM is connected. If time and network are not
synchronous, user will be prompted for time update.
LCD Backlight
Set the light time you need for the screen.
Network Selection
New search, Select Network, Selection Mode
Preferences
Set the preferred network during searching.
SIM 1 security Settings
You can set SIM lock (PIN code), fixed dial, barred dial and
change password for SIM 1.
SIM 2 security Settings
You can set SIM lock (PIN code), fixed dial, barred dial and
change password for SIM 2.
Phone Lock
Set a password for phone lock and the default password is 0000.
Auto Keypad Lock
Set auto keypad locked on or off and the interval time for keypad
lock.
Change Password
Change the phone lock password.
Note: Your choice of time zone does not influence the time and date. The setting of Schedule
Power On/Off will not be activated if you set the same time for them.
13.4 Network Settings
Enter Settings from main menu, select Network Settings, you need to choose the SIM card
network setup for SIM 1/SIM 2 and then you can perform following operations:
13.5 Security Settings
Enter Settings from main menu, select Security Settings and then you can perform following
operation:
Note: As for the Password, please contact your service provider for details. Fixed Dial and
Barred Dial must be supported by your SIM card. Please contact your service provider for
detail.
40
Page 41
MB-D5330 USER MANUAL
13.6 Connectivity
Bluetooth
The phone provides Bluetooth function. Enter Bluetooth and make operations as followings:
Power
Select to turn on/off the blue tooth device, you must turn on the Bluetooth Device of the phone
before using it.
Visibility
You can turn on or off for Visibility for inquire the blue tooth device.
My Device
You can Search New Device via blue tooth. The menu will list all blue tooth devices that you
inquired. You can select the device you need via the operations of Transfer Files, Service List,
Rename, Delete, Delete All, etc.
Search Audio Device
Blue tooth device will be searched with your phone. And you can Pair them.
My Name
You can check the name, address, supported service of blue tooth device in the menu.
Advanced
Please make sure the blue tooth device is power on before inquiry. You can make operations in
Audio Path, Storage, Sharing Permission, Remote Control and My Address.
Data Account
There are names of GPRS service providers listed in Data Account. You can Add, Edit or
Delete according to your needs.
13.7 Restore Factory Settings
Enter Settings from main menu, select Restore Factory Settings and restore initialized
settings for wallpaper, screen saver, ring tone, etc. The code is “0000”.
41
Page 42
MB-D5330 USER MANUAL
13.8 Sound Effects
You can have different sound effects though this menu, such as Off and Equalizer.
14. User profiles
Enter Settings-- User profiles from main menu and there are several profiles that you can edit
the following contents as you like: General, Meeting, Outdoor, Indoor, Headset and
Bluetooth. Once you connect your phone with an earphone or a blue tooth device, the
Headset and Bluetooth are automatically activated and meanwhile the other profile is
deactivated.
You can choose any profile as you like and customize the selected one:
Tone Settings: Set the incoming call tone, incoming message tone and keypad tone
Volume: Set the volume of ring tone and key tone
Alert Type: Set Ring Only, Vib. Only, Vib. and Ring, Vib. then Ring, Silent
Ring Type: Set Single, Repeat or Ascending
Extra Tone: Set warning ring and error ring on or off
Answer Mode: Set pressing any key to answer except power on/off key, right soft key and #
pound key. Set auto answer on or off (only in Headset Mode).
15. Extra
15.1 Calculator
Enter Calculator menu, then you can make simple calculating.
42
Page 43
MB-D5330 USER MANUAL
15.2 Stop Watch
Choose stopwatch, there are Typical Stopwatch and nWay Stopwatch for different
occasions and following are ways to use them.
Typical Stopwatch—there are two ways for your timing, that is Split Timing and Lap Timing.
Enter View Record to check previous timing records.
nWay Stopwatch—press start you can time 4 courses by pressing the 4-way navigation key
up, down, left and right.
15.2 Ebook Reader
This function is for you to enjoy reading though mobile phone. Please first enter Global
Settings for making settings in Font Size, Scroll by, Auto Scroll, Scroll Speed, Full Screen,
Encoding, Alignment and Select Storage.
16. Services
Enter from the menu of Services→ Internet Service, you can connect to the Internet or run
web-based applications by using web browser. Please consult your service provider for linking
to the network.
Note: Your phone is applicable to the GPRS (General Packet FM Radio Service) network link.
Type of the network link depends on your network service provider. This function must be
supported by network. For more information about this please contact your network provider.
Home
Selecting the main menu, you can log on the homepage set up to browse. If you do not set up,
you can use the website pre-set by the manufacturer.
Bookmarks
Enter Bookmark, select the Options button, you can do the following operations to the
bookmark selected:
Go to Link the website appointed by the bookmark.
Edit Edit the name and address of the current bookmark.
Send Send the address of the bookmark as text message, multimedia
43
Page 44
MB-D5330 USER MANUAL
Select SIM
Select use SIM card in the internet.
Profile
Select and start the network configuration file you need, can set up
homepage, account and login password etc.
Browser Options
Waiting time of viewing the website and figures shown.
Service Message
Settings
Turn on/off the recipition of the service news.
Clear Cache
Use to clear the records in the cache.
Clear Cookies
Use to clear personal writing data.
message or Email.
Delete Delete bookmarks.
Delete All Delete all the information of bookmarks.
Add Bookmark Add new name and address of the bookmark.
Recent Pages
The menu lists the website records recently visited and facilitate your visit to the site.
Input Address
Enter the menu, after inputting the URL address of the WAP service that you want to visit,
select the option button and select complete. The phone automatically logs on the website you
input.
Service Inbox
You can check the web service message in this mailbox, and can also process delete etc.
Settings
You can select settings menu, then set up the content relates to the WAP service as following:
44
Page 45
MB-D5330 USER MANUAL
Malfunctions & Measures
Here list some malfunctions that may occur and measures. If the measures can’t solve the
problem please contact authorized after service center. Thank you!
Can’t turn the phone on
check battery installation, please install battery correctly
check if battery level is low, change a battery or charge the battery
Check if enter incorrect PIN code 3times in a row. If yes, the phone is locked, then
you should enter PUK code( please contact your network provider for PUK code)
SIM Card Void
When the phone shows “SIM Card Void”, you can try the following:
Powers the phone off then restart to sure if can solve.
If your SIM card is a prepaid card, to sure whether the card is insufficient.
Please turn to your network provider, and to sure whether to be refused registration
network by other reasons.
Weak signal or no signal
You may be in a location where the reception is bad, such as tunnel or cellar, please
relocate and try again.
You can try turning around slightly or get near the window if you are in the room.
Bad talking quality
weak signal, you can try solutions above
low battery, change a new battery or charge the battery
use up volume key to adjust microphone volume
Can’t make a call
check if you enter the correct number and press send key
check if you set call barring, if yes cancel it
Can’t receive calls
check if your phone is turned on
check if screens shows no signal, if yes, try solutions above
check if you set call barring, if yes, cancel it
45
Page 46
MB-D5330 USER MANUAL
Screen is dark
check if battery is low, change a battery or charge the battery
adjust the brightness in settings
your phone may be affected with damp, keep it dry
When click on the screen and deviate
Need to adjust, please adjust in time.
Tips: if all suggests and solutions can’t solve your problem, please contact authorized after
service center. Please do not disassembly or repair your phone without professional guide.
Thank you!
46
Page 47
MB-D5330 USER MANUAL
Specific Absorption Rate Data
This model meets international guidelines for exposure to FM Radio waves.
Your mobile device is a FM Radio transmitter and receiver. It is designed not to exceed the
limits for exposure to FM Radio waves recommended by international guidelines. These
guidelines were developed by the independent scientific organization ICNIRP and include
safety margins designed to assure the protection of all persons, regardless of age and health.
The guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The
ICNIRP SAR limit for mobiles devices used by the general public is 2 W/kg.
As SAR is measured utilizing the device’s highest transmitting power, the actual SAR of this
device while operating is typically below that indicated above. This is due to automatic changes
to the power level of the device to ensure it only uses the minimum level required to reach the
network.
New phones must meet the international guidelines before coming into the market. The highest
SAR value for this device when tested at the ear was 0.85 W/kg and the highest tested SAR
value is 0.44 W/kg.
Information from the World Health Organization
The World Health Organization has stated that present scientific information does not indicate
the need for any special precautions for the use of SAR Data mobile devices. They note that if
you want to reduce your exposure then you can do so by limiting the length of calls or using a
“hands-free” device to keep the mobile phone away from the head and body. Improvement of
this device may cause a little change of the SAR data. However, the device is designed in
accordance with the guidelines in any case.
47
Page 48
MB-D5330 USER MANUAL
Battery Tips
The machine is provided by the reusable rechargeable battery.
The new battery only can by two or three times full charge and discharge cycle to achieve
optimum performance.
Battery can be recharged many times for repeated use, but it will eventually be exhausted.
When the talk and standby time is significantly shorter than usual, then need to replace a
new battery.
Use the battery the handset manufacturers approved only, and use the authorized charger
for the battery charge only.
Cut off the power supply when do not use the charger.
Do not connect a battery to a charger more than one week, the long time charge will affect
battery life.
The battery storage for too long would affect the results. And the battery will automatically
discharge as long time unused.
Do not use a damaged battery or charger.
Never expose batteries to temperatures below -10°C (14°F) or above 45°C (113°F).
Always take your phone with you when you leave your vehicle.
It is normal for batteries to gradually wear down and require longer charging times. If you
notice a change in your battery life, it is probably time to purchase a new battery.
Do not let the batteries short-circuit. When metal objects (such as: coins, etc.) directly
connected to the battery anode and the cathode (with the metal side), will occur
short-circuit accident. In the pocket or handbag carry a spare battery should be particularly
careful. Short-circuit will damage the battery.
Please deal with the waste batteries according to the relevant provisions.
Never dispose of batteries in a fire because they may explode.
48
Page 49
MB-D5330 USER MANUAL
Product Maintenance
Your phone is a product with outstanding design and superior quality, please take good care
using it. You are strongly suggested to take the following advice which should help you stick to
the warranty in order to extend the usage period of the product.
Keep your phone and its parts away from children.
Keep your phone dry. Keep it away from rain, damp or any kind of fluid.
Don’t touch your phone with wet hands when charging or there may be bodily injury or
damage to the phone.
Keep your phone away from extreme heat which can shorten your phone’s life, damage
the battery, twist or melt some plastic parts.
Keep your phone away from extreme cold because when the temperature grows up, water
vapor accumulated from inside the phone may damage the electronic circuit.
Keep your phone away from dust and dirt.
Keep your phone away from ignited cigarettes, fire or heat source.
Don’t disassemble your phone by yourself.
Don’t drop, beat or shake your phone. Any rude treatment can damage the inner electronic
circuit board.
Don’t daub your phone because paint would jam-up the earpiece, microphone or any other
removable part and disable your phone.
Clean the pc camera or screen with neat, soft and dry cloth. Don’t use alcohol or other
cleaning solutions.
If your phone, battery, charger or parts can’t work, please take them to the authorized
service center for help.
49
Loading...
