OPERATING AND MAINTENANCE MANUAL FOR MARINE ELECTRIC WATER HEATER

ELECTRIC HEATER COMPANY

BASE MODEL “ ME ”

HUBBELL

ELECTRIC HEATER COMPANY

P.O. BOX 288

STRATFORD, CT 06615

PHONE: (203) 378-2659

FAX: (203) 378-3593

INTERNET: http://www.hubbellheaters.com/

--IMPORTANT--

Always reference the full model number and serial number when calling the factory.

WARNING / CAUTION

1.Tank is to be completely filled with water and all air is to be vented before energizing.

2.Due to the rigors of transportation, all connections should be checked for tightness before heater is placed in operation.

3.Safety relief valve must be installed in tapping provided.

4.The refractory material used in heating elements may absorb some moisture during transit, periods of storage, or when subjected to a humid environment. This moisture absorption results in a cold insulation resistance of less than twenty (20) megohms. If this heater has been subjected to the above condition, each heating element must be checked for insulation resistance before energizing. A low megohm condition can be corrected by removing the terminal hardware and baking the element in an oven at 350°F -700°Ffor several hours or until the proper megohm reading is obtained.

5.KEEP AWAY FROM LIVE ELECTRICAL CIRCUITS.

Do not perform any maintenance, make any adjustments, or replace any components inside the control panel with the high voltage power supply turned on. Under certain circumstances, dangerous potentials may exist even when the power supply is off. To avoid casualties, always turn the power supply safety switch to off, turn the charge or ground the circuit before performing any maintenance or adjustment procedure.

6.The unit is designed to operate at pressure not more than 100 psi.

7.Generalized instructions and procedures cannot anticipate all situations. For this reason, only qualified installers should perform the installations. A qualified installer is a person who has licensed training and a working knowledge of the applicable codes regulation, tools, equipment, and methods necessary for safe installation of an electric resistance water heater. If questions regarding installation arise, check your local plumbing and electrical inspectors for proper procedures and codes. If you cannot obtain the required information, contact the company.

2



TABLE OF CONTENTS



SECTION

TITLE

PAGE #

I

GENERAL DESCRIPTION AND CONSTRUCTION

5

II

INSTALLATION

8

III

SCHEDULED MAINTENANCE AND OPERATION

12

IV

TROUBLESHOOTING

14

V

SERVICING AND REPLACEMENT OF PARTS

15

VI

MISCELLANEOUS CHARTS AND FORMULAS

23

VII

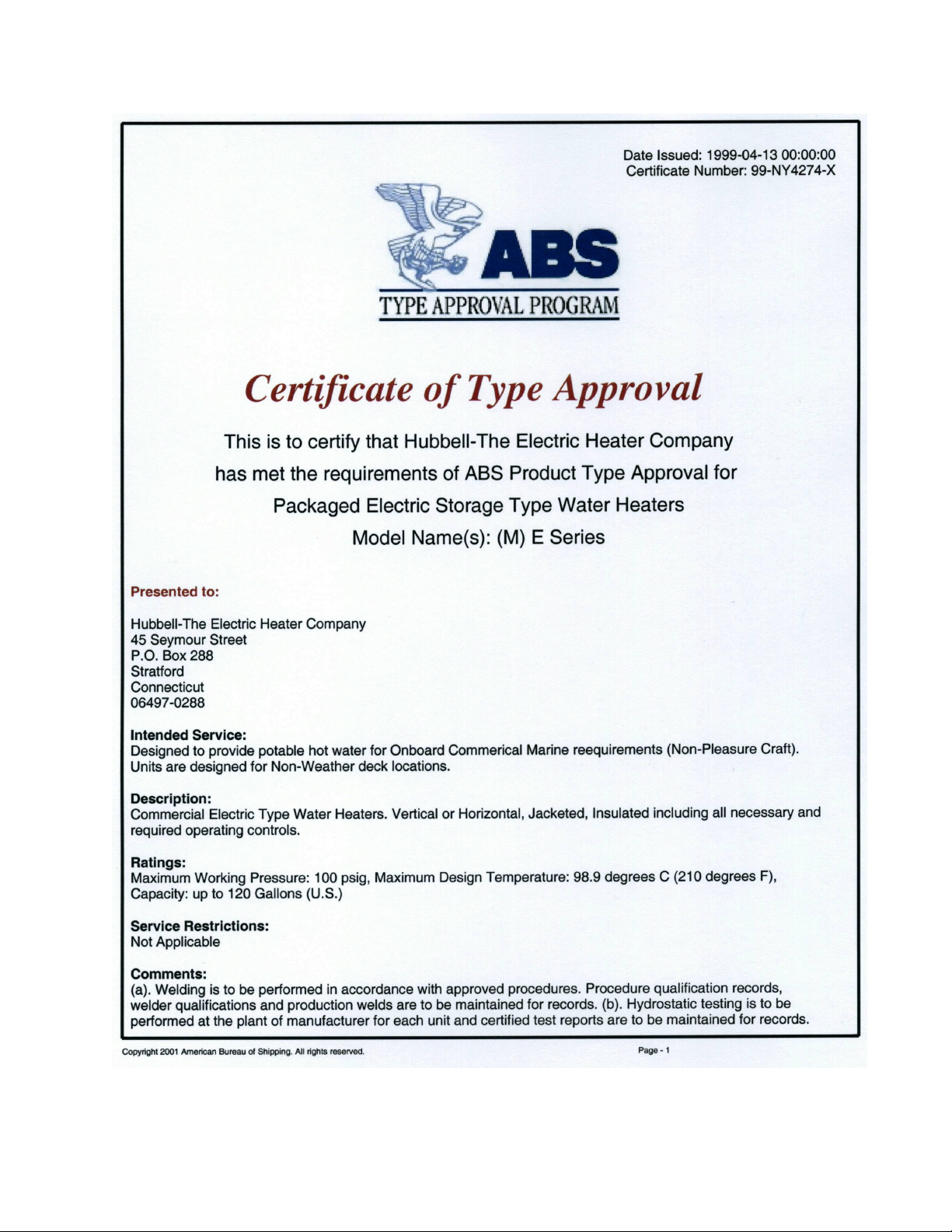

ABS TYPE APPROVAL PROGRAM

26

3

4

SECTION I - GENERAL DESCRIPTION AND CONSTRUCTION

GENERAL DESCRIPTION

This book describes a packaged electric water heater, approved by ABS Americas (A Division of the American Bureau of Shipping) and the USCG (United States Coast Guard), which is a stationary, self contained unit and is designed and constructed specifically for marine applications on board a surface vessel. The complete assembly consists of the storage tank, immersion electric heating element(s), thermostat, safety relief valve, safety high temperature cut out, and any other required electrical operating control. Optional equipment may be supplied with your unit. Please consult the product drawing for details specific to your assembly. The unit is factory assembled, insulated, jacketed, wired, tested, and ready for electrical and plumbing service connections.

CONSTRUCTION
TANK

Standard Tank Construction:

The standard storage tank is constructed of steel and internally lined with specially formulated Hydrastone cement to a ½-inchminimum thickness. The tank is designed for a maximum allowable working pressure of 100 psi (150 psi TP).

Optional Tank Construction:

Optionally, the storage tank may be constructed of all welded solid copper-siliconalloy (ASTMB-96)or type 316L stainless steel for maximum tank longevity. No internal lining is required due to the nonferrous materials used in the construction of the pressure vessel. The tank is designed for a maximum allowable working pressure of 100 psi (150psi TP).

TANK CONNECTIONS

The heater is supplied with separate cold water and hot water connections. Water entering the cold water inlet is deflected by means of a baffle within the tank. The hot water outlet includes a built in heat trap to prevent hot water from radiating out from the heater. A ¾-inchFNPT connection is located on the side of the heater for mounting a combination safety temperature and pressure relief valve. An overflow line should be utilized from the relief valve outlet to a floor drain. A¾-inchGHT connection is supplied for draining. See drawing for locations and sizes.

HEATING ELEMENT

The water heater is supplied with an electric immersion heating element assembly(s), composed of a copper sheathed element(s) that are brazed into a brass flange. Each assembly is fastened to a corresponding tank flange using a gasket and four (4) 3/8-16x1-inchlong hex head steel bolts and nuts. See drawing for voltage and power ratings.

5

CONTROL THERMOSTAT

The water heater is supplied with either a surface mounted or immersion thermostatic switch that is installed and wired at the factory. See drawing for specific details. The surface mounted thermostat can be adjusted through a range of 110° - 170° F. The immersion thermostat can be adjusted through a range of 100° - 190° F. Both thermostats are adjustable with a flat tip screwdriver.

Surface Mounted Thermostat

Immersion Thermostat

TEMPERATURE HIGH LIMIT SWITCH

As a safety device, either a surface mounted high temperature cut-offswitch with manual reset, factory set at 190° F, or an immersion high temperaturecut-offswitch with manual reset, factory set at 180° F, is provided. In the event of anover-temperaturecondition, the thermostat will disengage the power from the system. The high limit must be manually reset thereafter to restart the heater.



Manual Reset

Surface Mounted High



Temperature Cut-OffSwitch

Immersion High Temperature Cut-OffSwitch

OUTER SHELL AND INSULATION

The tank is encapsulated in 2-inchthick polyurethane foam insulation. The insulation is protected by a high impactnon-corrodingcolorized composite protective jacket.

6

OPTIONS

The following optional features may be included in your water heater. Reference included drawing specific to your heater for further details.

Low Water Cut-Off

Used as a safety device, the electronic low water cutoff is used to detect a low water situation and disengage the operating coils in the magnetic contactor(s). Once the condition is remedied, the low water cut-offswitch is automatically reset.

Dial Temperature and Pressure Gauge

A combination temperature (70° - 250° F) and pressure (0 – 200 psi) gauge with 2½-inchdial may be supplied forin-lineinstallation (shipped loose) or factory installed in the tank.

Vacuum Relief Valve
A vacuum relief valve may be provided with the unit to reduce the risk of back siphonage and back pressure of the system. The valve will be shipped loose for in-lineinstallation. Instructions for installation are provided with the valve.
Electro-MechanicalTimer

An electro-mechanical7-daytime clock with batteryback-upmay be supplied for specific timing operations. A set of instructions will be supplied with the timer.

7

SECTION II – INSTALLATION

WARNING / CAUTION

DO NOT TURN ON THE ELECTRIC POWER SUPPLY to this equipment until heater is completely filled with water and all air has been released. If the heater is NOT filled with water when the power is turned on, the heating elements will burn out.

For protection against excessive pressures and temperatures, local codes require the installation of a temperature-and-pressure(T&P) relief valve certified by a nationally recognized laboratory that maintains periodic inspection of production of listed equipment of materials, as meeting the requirements for Relief Valves and Automatic Gas Shutoff for Hot Water Supply Systems. ANSIZ21.22-1971.THE CUSTOMER IS RESPONSIBLE TO PROTECT PROPERTY AND PERSONNEL FROM HARM WHEN THE VALVE FUNCTIONS.

All water heaters have a risk of leakage at some unpredictable time. IT IS THE CUSTOMER'S RESPONSIBILITY TO PROVIDE A CATCH PAN OR OTHER ADEQUATE MEANS, SO THAT THE RESULTANT FLOW OF WATER WILL NOT DAMAGE PROPERTY.

WATER HEATER PLACEMENT

1.Place the heater on a solid foundation in a clean, dry location nearest to the point of most frequent hot water use.

2.The water heater should be protected from freezing and waterlines insulated to reduce energy and water waste.

3.Leave a minimum of 18” clearance for element withdrawal, if necessary.

4.Do not install in an area where flammable liquids or combustible vapors are present.

SECURING OF HEATER

1.The heater is supported by four 2-inchx2-inchx¼-inchthick angle iron legs each with a 3- inch x3-inchx¼-inchthick steel base pad. Each leg is provided with one9/16-inchdiameter bolt hole for one½-inchbolt which should be used to secure heater to the deck.

2.In addition to the leg supports, two 3-inchx3-inchx¼-inchthick brackets with7/8-inchdiameter mounting holes are attached to the upper portion of the heater. These brackets should be attached to bulkhead securedtie-rodsthus insuring further support of the heater for shipboard installation.

8

Mounting Dimensions

Tank

Overall

Bolt

Bulkhead Mounting

Gallon

Diameter

Diameter

Circle

Dimension

Capacity

“A”

“B”

“C”

“D”



16

20

12

None

10

16

20

12

None

20

16

20

12

None

30

16

20

12

12

40

18 3/4

22 3/4

16

12

50

22

26

16

12

65

22

26

16

12

80

24

28

18

12

100

24

28

18

12

120

9

PIPING INSTALLATION

NOTE: The most effective means for preventing deterioration from accelerated corrosion due to galvanic and stray current is the installation of dielectric fittings/unions. The installation of these fittings is the responsibility of the installing contractor.

1.Connect the cold water inlet and hot water outlet to the appropriate connections as shown; refer to the drawing for location and sizes.

2.Install in-linevacuum breaker, if supplied.

3.Install in-linepressure and temperature gauge, if supplied.

4.Install the combination temperature and pressure safety relief valve in the tapping provided. Note that this is required by law for safety considerations.

Outlet to floor drain

Install into provided tapping

Manual Release

Lever

Temperature Probe

Temperature and Pressure Relief Valve

5.Install a relief valve overflow pipe to a nearby floor drain. CAUTION: No valve of any type should be installed between the relief valve and tank or in the drain line.

FILLING THE HEATER

1.Completely close the drain valve.

2.Open the highest hot water faucet to allow all air to escape from piping.

3.Open the valve to the cold water inlet and allow the heater and piping system to completely fill, as indicated by a steady flow of water from the open faucet.

10

ELECTRICAL INSTALLATION

1.Enter junction box with properly sized feeder leads. Single-phaseinstallations require two (2) leads; three phase installations require three (3) leads.

2.Connect these power leads to wires enclosed in junction box with wire nuts.

3.All other electrical connections are made at the factory; therefore, no other electrical connections are necessary.

FINAL CHECKS

1.Check all connections for tightness.

2.Ensure that all the above steps are completed

3.After the water is heated for the first time, monitor the water temperature as described in Section III, Quarterly Inspection.

11

SECTION III - SCHEDULED MAINTENANCE AND OPERATION

WARNING / CAUTION

Before performing any maintenance procedure, make certain power supply is OFF and cannot accidentally be turned on.

MAINTENANCE AND OPERATION

The water heater is automatic in its operation. It will maintain a full tank of water at the temperature setting of the thermostat. The water heater should not be turned on without first making sure that the tank is full of water and that all air has been released.

FREEZING

The tank should be fully drained in the event the electricity has been turned off and if there is danger of freezing.

QUARTERLY INSPECTION

1.Monitor thermostat

a.Let water heater completely heat to a designated thermostat setting.

b.After thermostat satisfies (that is, when the thermostat actually clicks off), draw water from heater.

c.Compare water temperature of drawn water to the temperature setting of the thermostat when it satisfies. Normal variation between the two points is approximately + 5°F.

d.If these two readings do not coincide within acceptable tolerances and verification has been made of the accuracy of the temperature-readinggauge, replace the thermostat.

2.Lift test lever on relief valve and let water run through valve for a period of approximately 10 seconds. This will help flush away any sediment that might build up in water passageways.

3.Inspect element flange for leakage as follows:

a.Shut off Power Supply.

b.Remove element housing cover.

c. Visually inspect heating element gasket for evidence of leaks.

d.Rub finger around gasket that is between the heating element and tank flange for any evidence of moisture. If moisture is present or a water drip is observed, follow procedure outlined in Section V.

4.Check for loose electrical connections. Tighten as necessary.

12

ANNUAL INSPECTION

1.Flush tank as follows

a.Shut off power supply.

b.Close valve on hot water outlet piping.

c.Open valve on drain piping.

d.Cold water inlet line pressure will be strong enough to flush sediment from the bottom of the tank out through the drain. Let water run for 3-4minutes.

e.Close drain valve.

f.Open hot water valve.

g.Turn power supply ON.

13

SECTION IV – TROUBLESHOOTING

Symptom

Probable Cause

Corrective Action / Remedy

No hot water

Circuit breaker tripped at source.

Reset circuit breaker.



High limit switch tripped.

Reset high limit switch.



Loose wires.

Tighten wires. Torque screws per torque





chart included in Section VI.



Heating element inoperable.

Check heating element operation by





clamping an Amprobe around each wire to





the element. The ampere reading should





agree with the nameplate ‘AMP’ figure.



Low line voltage.

Have source electrical system checked by





an electrician.



Faulty thermostat.

Move thermostat dial through full range. A





definite ‘click’ should be heard. If not,





replace thermostat.



Faulty low water cut-off,if

Check to see if tank is full of water. If not,



installed.

fill tank. If problem continues and tank is





full, check for continuity between the





common and normally open contact of the





relay board. If continuity is not observed,





replace low water cut-off.

Water temperature

Faulty thermostat.

Check thermostat adjustment. Monitor

below settings at all



thermostat as described in Section III,

times



Quarterly Inspection. Replace if necessary.



Heating element not working on

Check to see that heating element is



all phases

working on all phases, by checking the





resistance (ohms) value for each element





and comparing with the chart included in





Section VI.



Heater improperly sized

Verify heater is properly sized for the flow





rate and temperature rise of your system.





See formulas included in Section VI.





Replace elements with proper size as





necessary.

Relief valve

Excessive temperature or

Temperature and pressure relief valves are

discharges

pressure in tank

made to operate if the water temperature

continuously



exceeds 210°F or water pressure exceeds





the pressure rating of the safety relief valve.





If trouble is excessive temperature, then





thermostat is not shutting off at the right





setting and thermostat must be replaced.

14

SECTION V - SERVICING & REPLACEMENT OF PARTS

WARNING / CAUTION

Before servicing or replacing any part make sure to turn the power supply switch to the OFF position.

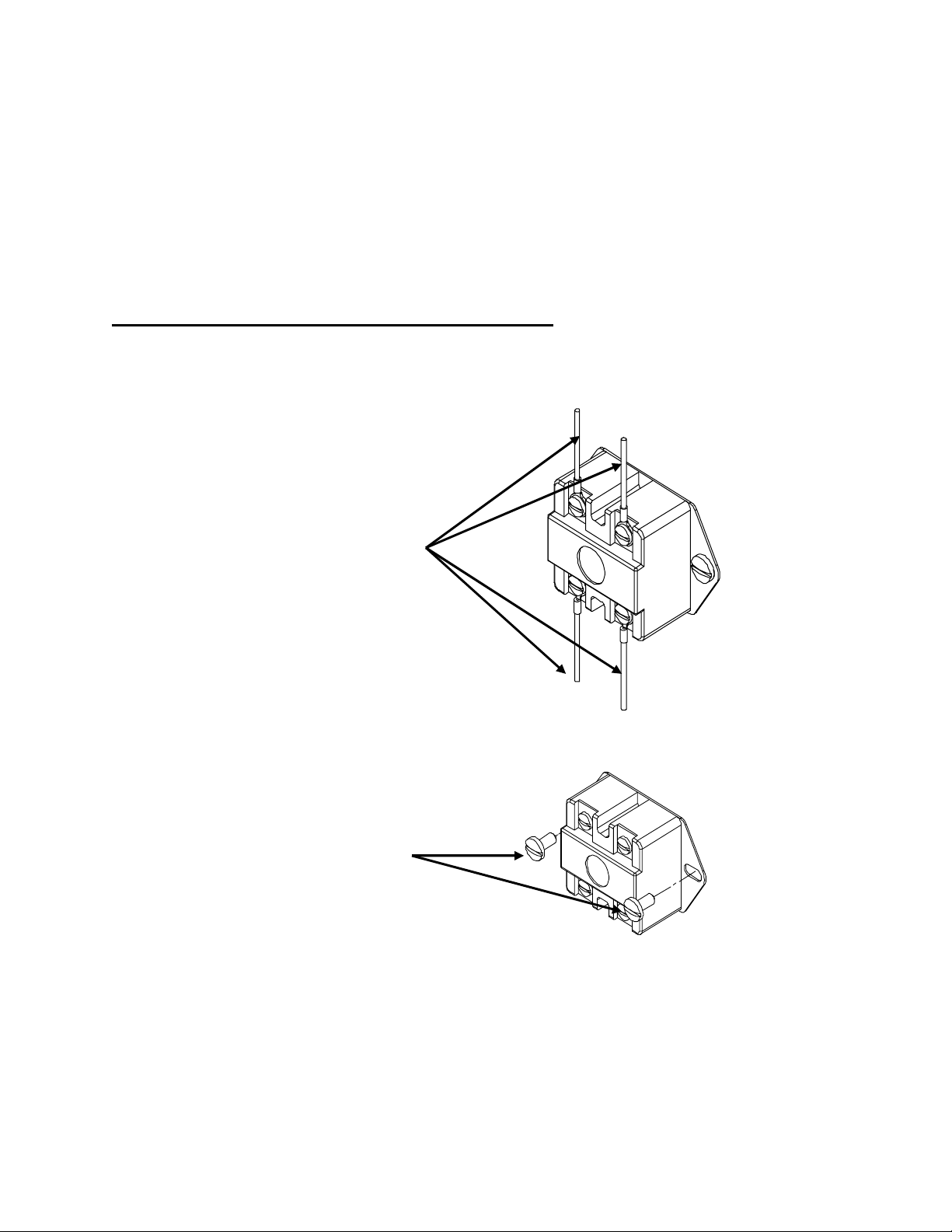

SURFACE TEMPERATURE HIGH LIMIT CUT-OFF

1.Disconnect power from unit.

2.Remove access cover.

3.Disconnect the four (4) 14 gauge wires or three (3) 14 gauge wires and a jumper, as required.

Control Wires

4. Remove the two (2) mounting screws or disconnect from thermostat, as required.

Mounting Screws

5. Replace control and install new high limit switch by performing above steps in reverse order.

15

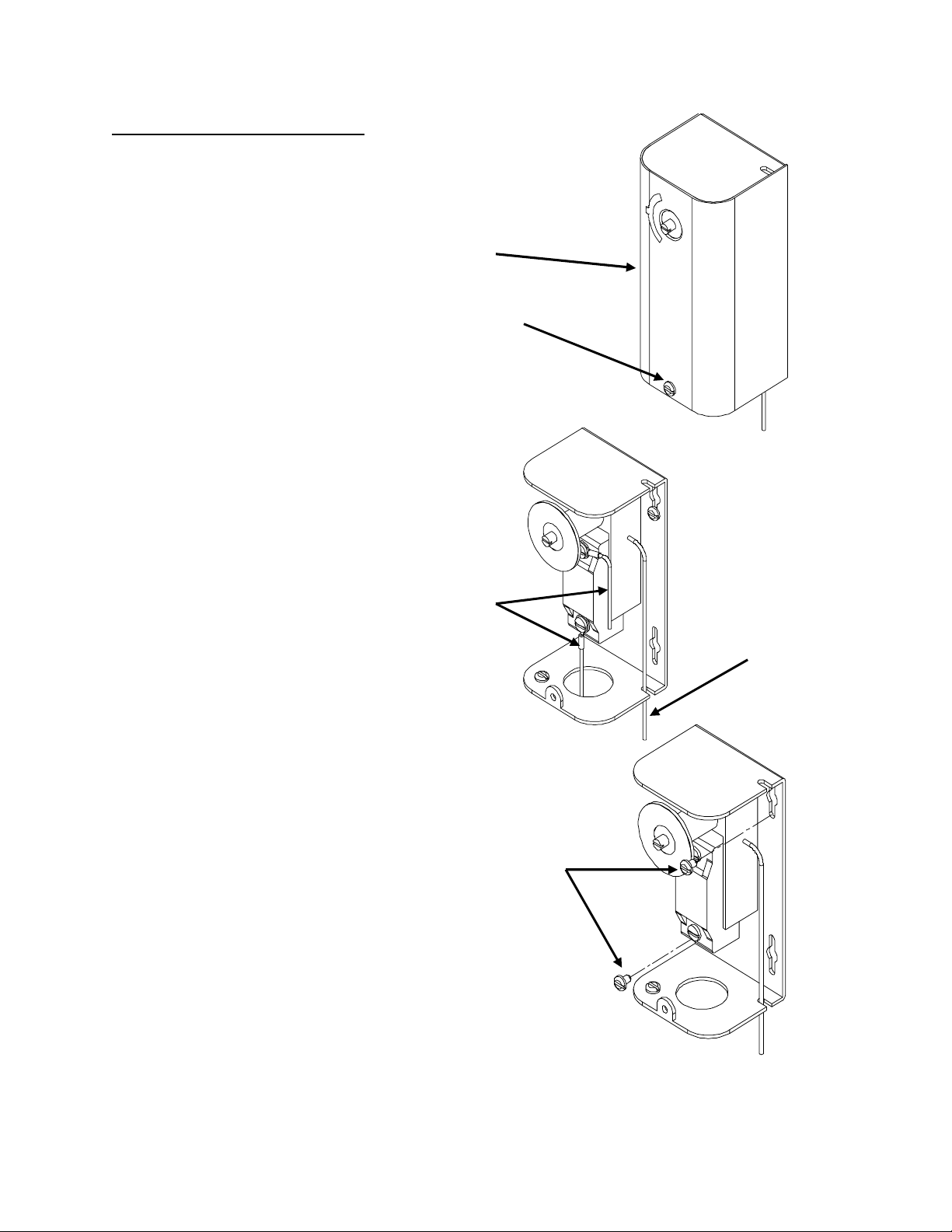

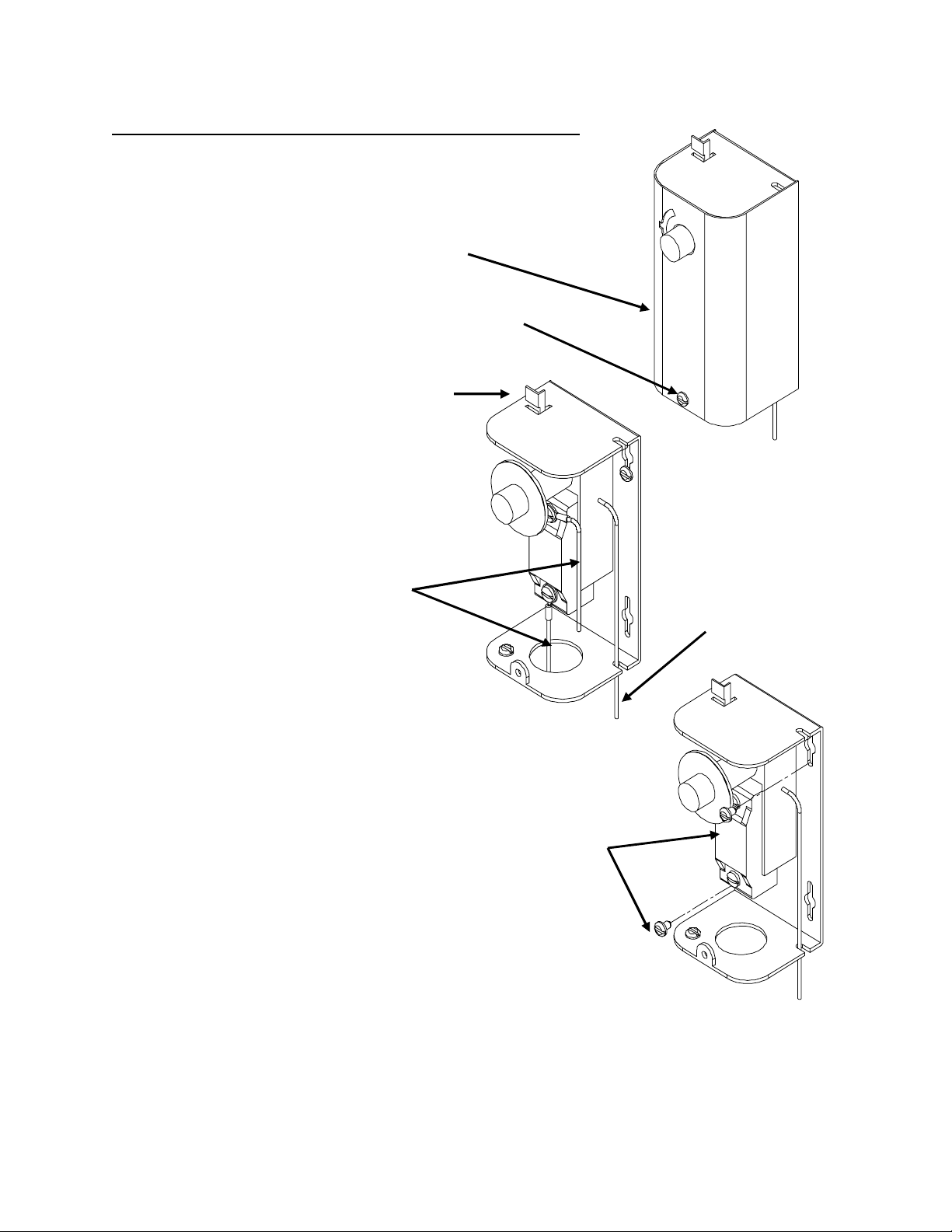

IMMERSION TEMPERATURE HIGH LIMIT CUT-OFF

1.Disconnect power from unit.

2.Remove access cover.

3.Remove high limit cover screw and cover.

Cover

Cover Screw

Reset Switch

4. Disconnect the two (2) 14 gauge wires.

Wires

Capillary Tube

5. Remove capillary tube and bulb from thermowell

6. Remove two (2) mounting screws.

Mounting Screws

7.Remove control and install new high limit switch by performing above

steps in reverse order. (Note: Be sure to place capillary tube into slot in base prior to installing cover.)

16

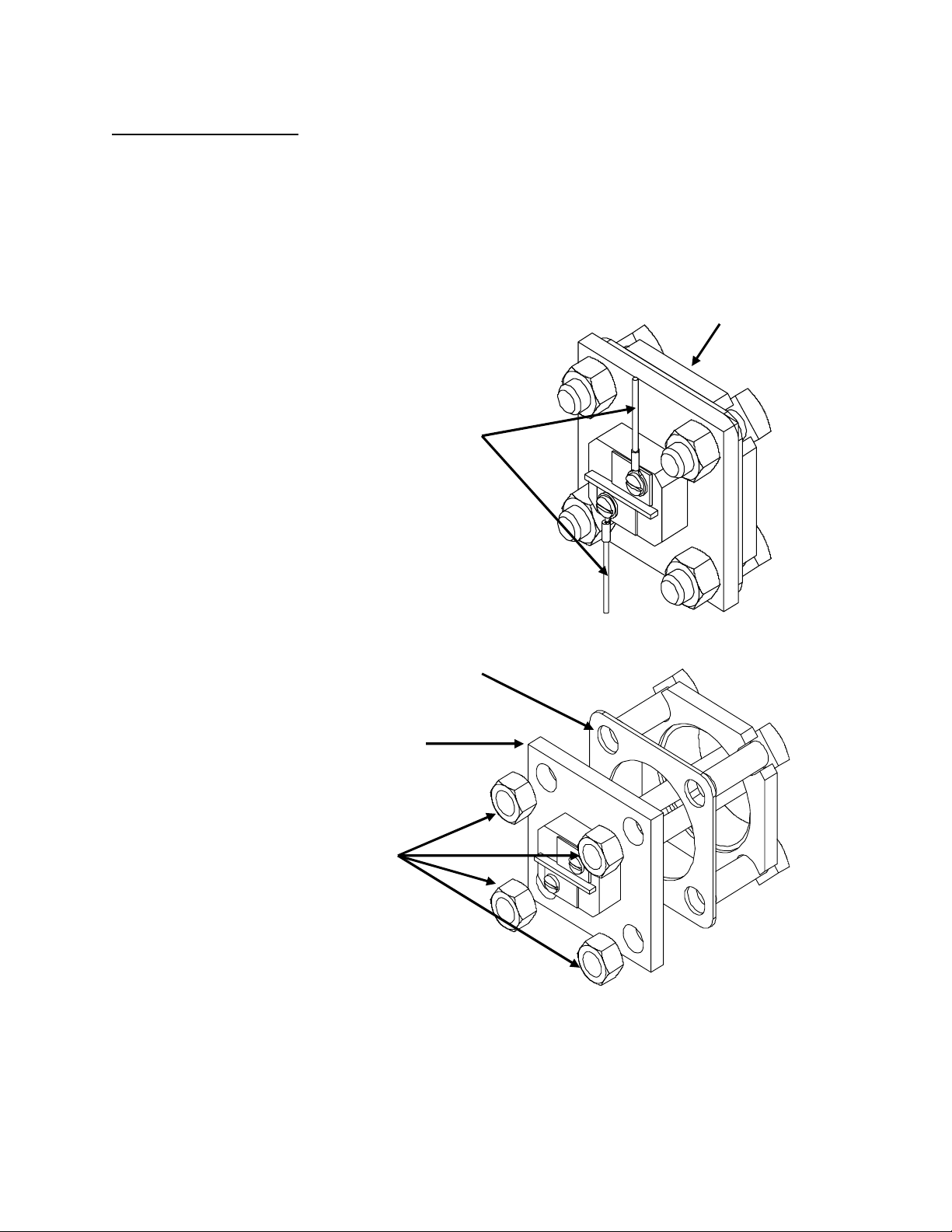

HEATING ELEMENT

1.Disconnect power from unit.

2.Shut off incoming water supply.

3.Attach hose to drain connection.

4.Lift manual release lever on relief valve to let air into system or break union on outgoing water line.

5.Drain water from tank.

6.Disconnect the wires from the heating element terminals.

Tank Flange

Wires

7. Remove the 3/8-16nuts.

8. Withdraw element assembly and remove gasket.

Gasket

Element Assembly

Nuts

9.Install new gasket and insert new heating element.

10.Rewire element according to type of unit as shown below.

11.Fill tank and check around gasket for any leaks.

17

L1 L2

1 3

2

4

1

2

Single Element Operation

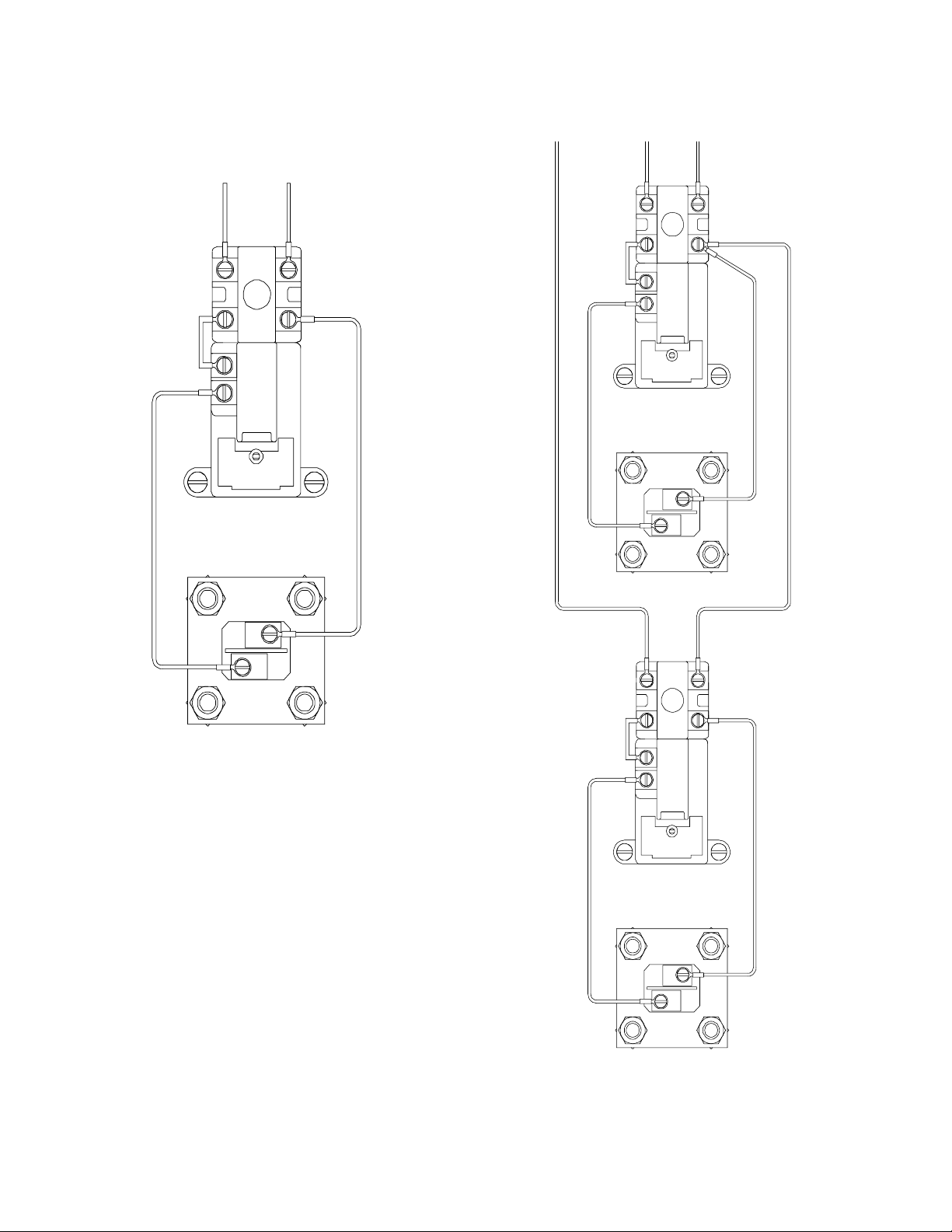

L1

L2

L3



1

3



2





1

4



2



1

3

2



1

4

2



3 Ø Open Delta Wiring for Simultaneous Operation

18

L1

L2

L1

L2

1

3

1

3

2

4

2

4





1



1





4



4

2



2



1

1

2

2

Interlocked for Non-SimultaneousOperation

Non-Interlockedfor Simultaneous Operation

19

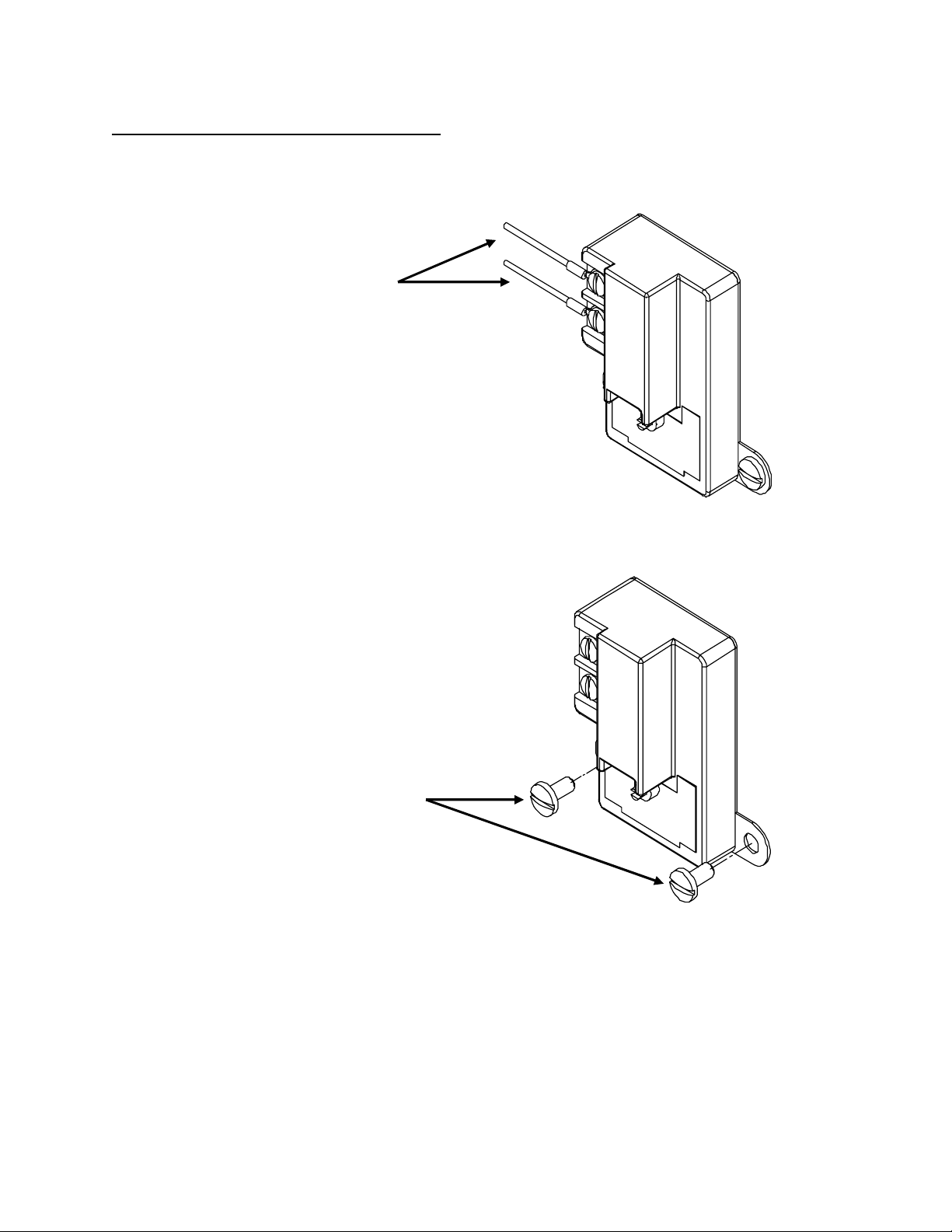

SURFACE MOUNTED THERMOSTAT

1.Disconnect power from unit.

2.Remove access cover and locate thermostat.

3.Disconnect the two (2) or three (3) 14 gauge wires and jumpers, as required.

Control Wires

4. Remove two (2) mounting screws and disconnect from high limit cut-off,if required.

Mounting Screws

5. Replace thermostat using the reverse procedure.

20
