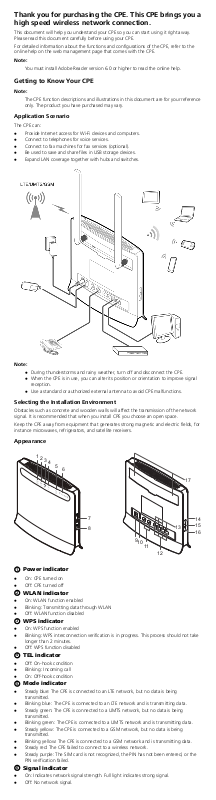

Thank you for purchasing the CPE. This CPE brings you a high speed wireless network connection.
This document will help you understand your CPE so you can start using it right away. Please read this document carefully before using your CPE.
For detailed information about the functions and configurations of the CPE, refer to the online help on the web management page that comes with the CPE.
Note:
You must install Adobe Reader version 6.0 or higher to read the online help.
Getting to Know Your CPE
Note:
The CPE function descriptions and illustrations in this document are for your reference only. The product you have purchased may vary.
Application Scenario
The CPE can:
Provide Internet access for Wi-Fi devices and computers.
Connect to telephones for voice services.
Connect to fax machines for fax services (optional).
Be used to save and share files in USB storage devices.
Expand LAN coverage together with hubs and switches.
Note:
During thunderstorms and rainy weather, turn off and disconnect the CPE.
When the CPE is in use, you can alter its position or orientation to improve signal reception.
Use a standard or authorized external antenna to avoid CPE malfunctions.
Selecting the Installation Environment
Obstacles such as concrete and wooden walls will affect the transmission of the network signal. It is recommended that when you install CPE you choose an open space.
Keep the CPE away from equipment that generates strong magnetic and electric fields, for instance microwaves, refrigerators, and satellite receivers.
Appearance
1 2 3 |
4 |
5 |
|
|
|
||
|
|
6 |
17
7 |
|
14 |
|
8 |
13 |
15 |
|
16 |
|||
|
|
||
|
910 11 |
|
|
|
12 |
|
○1 Power indicator
On: CPE turned on
Off: CPE turned off
○2 WLAN indicator
On: WLAN function enabled
Blinking: Transmitting data through WLAN
Off: WLAN function disabled
○3 WPS indicator
On: WPS function enabled
Blinking: WPS interconnection verification is in progress. This process should not take longer than 2 minutes.
Off: WPS function disabled
○4 TEL indicator
Off: On-hook condition
Blinking: Incoming call
On: Off-hook condition
○5 Mode indicator
Steady blue: The CPE is connected to an LTE network, but no data is being transmitted.
Blinking blue: The CPE is connected to an LTE network and is transmitting data.
Steady green: The CPE is connected to a UMTS network, but no data is being transmitted.
Blinking green: The CPE is connected to a UMTS network and is transmitting data.
Steady yellow: The CPE is connected to a GSM network, but no data is being transmitted.
Blinking yellow: The CPE is connected to a GSM network and is transmitting data.
Steady red: The CPE failed to connect to a wireless network.
Steady purple: The SIM card is not recognized, the PIN has not been entered, or the PIN verification failed.
○6 Signal indicator
On: Indicates network signal strength. Full light indicates strong signal.
Off: No network signal.
