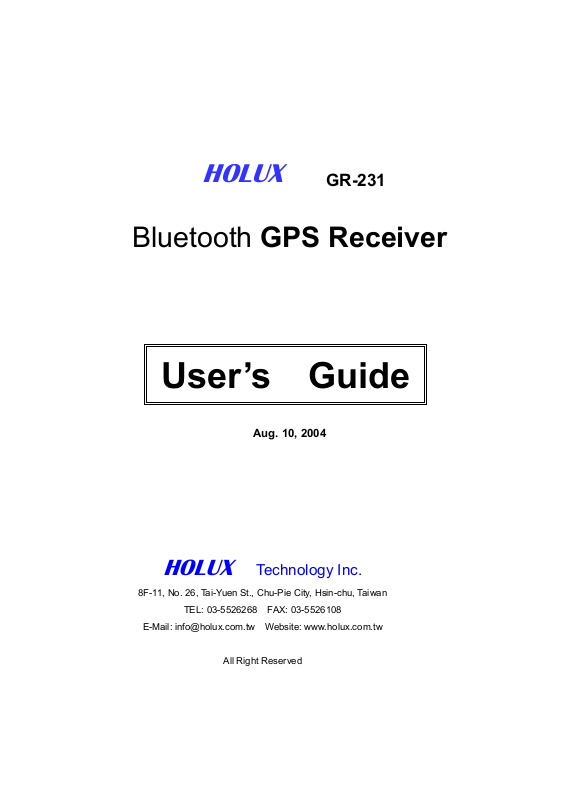

Holux GR-231 User Manual

HOLUX

GR-231

Bluetooth GPS Receiver

User’s Guide

Aug. 10, 2004

HOLUX

8F-11, No. 26, Tai-Yuen St., Chu-Pie City, Hsin-chu, Taiwan

TEL: [phone] FAX: [phone]

E-Mail: [e-mail] Website: www.holux.com.tw

Technology Inc.

All Right Reserved

HOLUX GR-231 Bluetooth GPS Receiver Manual

Table of Contents

TABLE OF CONTENTS ..............................................................................................................2

1. OVERVIEW .......................................................................................................................... 3

2. PACKING LIST ....................................................................................................................4

3. MAIN FUNCTIONS ............................................................................................................. 5

4. TECHNICAL SPECIFICATION ........................................................................................6

4.1. BASIC SPECIFICATION ....................................................................................................6

4.2. ACQUISITION TIME (AVERAGED).................................................................................... 6

4.3. RECEIVER ACCURACY ....................................................................................................6

4.4. USE LIMITATION .............................................................................................................6

4.5. POWER SUPPLY ...............................................................................................................6

4.6. OUTPUT AND INTERFACE ................................................................................................ 7

4.7. PHYSICAL ........................................................................................................................7

4.8. OTHER FUNCTIONS.........................................................................................................7

5. GETTING STARTED........................................................................................................... 8

5.1. HARDWARE DESCRIPTION ..............................................................................................9

5.2. SOFTWARE INSTALLATION............................................................................................ 12

6. 5. FINISH BLUETOOTH MANAGER SETUP.................................................................12

5.3. I

NSTALLATION OF TESTING PROGRAM ......................................................................... 13

6. OPTIONAL ACCESSORIES.............................................................................................15

7. DRIVER INSTALLATION................................................................................................ 16

7.1 S

YSTEM REQUIREMENT................................................................................................ 16

7.2 INSTALLATION...............................................................................................................16

7.3 IMPORTANT ...................................................................................................................16

8. WARRANTY .......................................................................................................................16

9. TROUBLE SHOOTING.....................................................................................................17

2

HOLUX GR-231 Bluetooth GPS Receiver Manual

1. Overview

(Fig.1)

The

HOLUX

GR-231 Smart wire-less Bluetooth GPS Receiver (Fig. 1) is a total

solution GPS receiver with Bluetooth, UART interface and built-in rechargeable battery

for high sensitivity to tracking signal. GR-231 design is based on SiRF Star IIe/LP low

power Architecture.

GR-231 is a dual-function GPS receiver. Not only transmit satellite information

through the PDA or Notebook with Bluetooth interfaces but also is a G-Mouse GPS

receiver through a data cable to deliver satellite signal to the device without Bluetooth

interface.

This positioning application meets strict needs such as car navigation, mapping,

surveying, security, agriculture and so on. Only clear view of sky and certain power

supply are necessary to the unit. GR-231 contacts to other device through Bluetooth

device, compatible interface of RS-232 or USB, and built-in recharge battery to save

satellite information such as the status of satellite signal, the last location, date and time

of last use.

3

HOLUX GR-231 Bluetooth GPS Receiver Manual

With low power consumption, the GR-231 tracks up to 12 satellites at a time,

re-acquires satellite signals in 100 ms and updates position data every second.

Trickle-Power allows the unit operates a fraction of the time and Push-to-Fix permits

user to have a quick position fix even though the receiver usually stays off.

2. Packing List

Congratulations on your purchase of the GR-231 GPS Receiver. We hope it will be

useful to you for a long time. Before you begin, make sure that your package includes

the following items. If any of these items are missing, please contact your local HOLUX

dealer or distributor.

 HOLUX GR-231 Bluetooth GPS receiver 1 Set

 Travel power supply / Cigarette adapter 1 Set

 AC Multi Power Plug Adapter 1 Set

 Manual and Driver CD 1 Piece

 GR-231 Quick guide 1 Piece

 Warranty card 1 Piece

4

HOLUX GR-231 Bluetooth GPS Receiver Manual

3. Main functions

GR-231 provides a series of functions. It is well suited to system integration and

users who use PDA, Notebook PC with Bluetooth device.

 Built in SiRF Star IIe/LP Low power consumption chipset.

 12 parallel satellite-tracking channels for fast acquisition and reacquisition.

 High speed signal acquisition using 1920 time/frequency search channels.

 Built-in WAAS/EGNOS Demodulator without additional any hardware. Or use

the high-sensitive software to get the fast acquisition and reacquisition in the

urban, canyon and foliage environments.

 Compatible with Bluetooth Serial Port Profile (SPP) completely.

 Low power consumption. Built-in rechargeable and changeable Lithium-ion

battery without external power supply, and the working time lasts at least 9

hours.

 Provide Continue mode and Power saving mode for user’s requirement.

 Provide expand terminal contact to other system without Bluetooth device.

 Built-in rechargeable battery for memory and RTC backup and for fast Time To

First Fix (TTFF).

 Support NMEA0183 v2.2 data protocol and SiRF binary code.

 4 colors LED to show the status of device.

 Active antenna connector for getting better satellites signal.

 FLASH based program memory. New software revisions upgradeable through

serial interface.

 Small, sleek, and lightweight design easily fits in your hand.

 Over-Temperature protection

 Enhanced algorithms -SnapLock and SnapStart provide superior navigation,

performance in urban, canyon and foliage environments.

 For Car navigation, Marine navigation, Fleet management, AVL, Personal

navigation, Tracking System, and Mapping device application.

5

HOLUX GR-231 Bluetooth GPS Receiver Manual

4. Technical Specification

4.1. Basic Specification

 Chipset：SiRF Star IIe/LP chipset.
 Channels： 12 parallel satellite-tracking channels.
 Frequency： 1575.42 MHZ.
 Receiver： L1, C/A code.

4.2. Acquisition Time (averaged)

 Reacquisition： 0.1sec.
 Snap start： < 3 seconds (at < 25 minutes off period)
 Cold start： < 45 seconds.
 Warm start：< 38 seconds .
 Hot start： < 8 seconds
 Update rate： 1 second continuously

4.3. Receiver Accuracy

 Normal： 5-25 meters CEP without SA.
 Enable EGNOS or WAAS：(Only for the standard software)

Position: < 2.2 meters, horizontal 95% of time

< 5 meters, Vertical 95% of time

 Velocity： within 0.1 meters / second
 Time： 1 microsecond synchronized GPS time

4.4. Use Limitation

 Altitude： < 18,000 meters (60,000 feet)
 Velocity: ：< 515 meters / second (700Knots)
 Acceleration： 4 G.
 Jerk： 20 meters / second, max

4.5. Power Supply

 External Voltage: 5VDC +/- 10%
 Batteries：

Main Power: Built-in rechargeable Lithium-ion for system power.

Backup Power: Rechargeable Lithium-ion battery for memory & RTC backup.

 Working voltage: 80-90mA (Normal mode).

30mA (Power Saving).

 Working period (In Battery full power status):

> 9 hours on Continue mode.

> 16 hours on Power Saving mode.

 Protection circuit on GR-231 should stop charging the cell when

6

HOLUX GR-231 Bluetooth GPS Receiver Manual

over-temperature condition --50 occurs.

4.6. Output and Interface

 Output

I. Output protocol

Baud Rate： 38400 bps

Data bit： 8

Parity： No

Stop bit： 1

II. Format. NMEA0183 V2.2： GPGGA (1time/1 sec), GPGSA (1 time/1 sec.),

GPGSV (1time /5 sec.), GPRMC (1time /1 sec.), (GLL, VTG or SiRF binary

format for optional).

III. Datum： WGS84.

 Input/ Output Interface:

I. Compatible Bluetooth Serial Port Profile (SPP), Version1.1 and class 2(up

to 10 meter range).

II. In/Out Port. GPS signal (Out)/Command(In) with CMOS/TTL Level。Mini

USB Type B Connector and Cable option：

(a) GR230-A1(RS232 data cable)

(b) GR230-A2 (USB data cable)

(c) GR230-A3 (Mini USB port to PS2 port ).

 External Antenna interface:

3.0V input MCX type active antenna connector

4.7. Physical

 Size： 76.5 × 52 × 22.3 mm

 Weight： < 80 g

 Operating Temperature

Charging Temperature 0 to + 45

 Storage Temperature： -20 to + 85

： -10 to + 60 (under the un-charging condition);

 Operating humidity： 5% to 95% No condensing

4.8. Other Functions

 Bluetooth frequency: 2.4 ~2.48GHZ

 Bluetooth Input Sensitivity: -80dbm

 Low sensitivity of receiving satellite signal ： -175dBW

 LED Functions： Indicate Bluetooth status, GPS status, Battery Status and

Battery charging status

7

HOLUX GR-231 Bluetooth GPS Receiver Manual

5. Getting Started

STEP 1. Charge Battery

Please charge battery till LED off for the first time.

Power cable plug in Power cable connect to power socket

↓

Charge Battery

Battery indicator light:

Power too low -------- red LED

Charging -------------- green LED

Full or Not in charging -- LED off

STEP 2. Turn on Power

Bluetooth Status –

Press & Hold 1 sec to
turn on GR-231power

Yes

GPS Status --­Put GR-231 in clear view of the sky without any obstruction for
better satellite acquiring.

Press & Hold 1 sec to
turn on GR-231power

Search GPS -- Power Off --

Position Fixed --

No

Searching

Bluetooth device

Yes

Data

is transferring?

Yes

Stop data

transferring?

Yes

Reconnect

Bluetooth device?

↓ ↓

Steady orange
LED on

↓

Orange

No

No

No

Press & Hold 2 sec to
turn off GR-231power

LED blinking

Blue LED blinking
(1time / 3sec
, After 5 mins)

Blue LED blinking
(1time / 3sec)

Transferring…
Blue LED blinking
(1time / 1sec)

Waiting for
reconnection…
Blue LED blinking
(1time / 3sec)

Orange
LED off

Mini USB power socket

Note:
Some PDAs have to re-open
Bluetooth manager for
Bluetooth device
re-connection.

8

HOLUX GR-231 Bluetooth GPS Receiver Manual

5.1. Hardware Description

1). GR-231 Body description see Fig. 2:

LED of GPS

(Orange)

LED of Battery

(Red / Green)

LED of Bluetooth

(Blue)

Power Jack & Data Port

2). LED status :

SYMBOL COLOR STATUS DESCRIPTION

Bluetooth

Battery

GPS

External Antenna Port

Power Switch

(Fig.2)

3 times / 1 sec Search Bluetooth Device

Blue Blinking

1 time / 3 sec Standby Mode

1 time / 1 sec Transferring Data

Red Light on Power too low

Green Light on In charging

N/A Light off Battery full or Not in charging

Light on Acquiring Satellites

Orange

Blinking Position Fixed

3). Power Switch :

Push one second to power on / two seconds to power off, with automatic shut

off system power after ten minutes no connecting to any Bluetooth device.

9

HOLUX GR-231 Bluetooth GPS Receiver Manual

4). Optional accessories, and connector description, see Fig. 3 and Fig. 4。

PC/Notebook

USB port

PC/Notebook

RS232 port

USB Cable
(GR231-A2)

RS232 Cable
(GR231-A1)

USB Cable
(GR230-A2)

Mini USB

(Fig.3)

1. Connect to Cigarette iPAQ 38xx Cable

(CA-IPAQ38xx) PDA

2. Connect to Cassio Cable PDA

(CA-CASSIOPEIA)

3. Other PDA cable contact to factory.

Convert cable

GR231-A3

(Fig.4)

10

HOLUX GR-231 Bluetooth GPS Receiver Manual

3) External active antenna connector,

see Fig. 5。

Connector type: MCX.

Active power voltage: 3.0V

4) Power Jack & Data Port, see Fig. 6。

(Fig.5)

Jack type: Mating face of 5 pin Mini USB Type B female。

Pin definition see table 1。

1 5

(Fig.6)

Table 1

Pin Pin Name Signal and description

1 GND Signal ground, Battery charging ground.

2 VOUT Unregulated voltage out: 3.6 V max 100mA.

Transmit Data. From organizer to peripheral.(Voltage Level is 3.3V ~

3 TXD

5.0V).

4 RXD

5 VCHARG

Receive Data. Form peripheral to organizer.(Voltage level is 3.3V ~

5.0V).

Positive terminal of DC adaptor that powers the internal charging

circuit of Li-Ion battery. The approved power supply is 5.0V +/-

5%@1A.

11

HOLUX GR-231 Bluetooth GPS Receiver Manual

5.2. Software Installation

The following is the steps of software installation to setup on PDA, DELL AXIM with

Bluetooth Manager. For other PDA, the steps may be a little different.

( Bluetooth Manger is one of popular program used for Bluetooth device)

1. Open “Bluetooth Manager” on pocket

pc.

New

↓

Connect

2. Search Bluetooth device “HOLUX

GR-231”

Select Explore a Bluetooth device

↓

Next

3. Find the Bluetooth device

Next

↓

Tap HOLUX GR-231

4. Connect to SPP Slave

→

→

Select SPP slave

↓

Next

↓

Finish

6. 5. Finish Bluetooth Manager Setup

Tap and Hold HOLUX GR-231: SPP slave

↓

Connect

↓

Finish Bluetooth setup (opposite arrow is displayed)

→

→

12

HOLUX GR-231 Bluetooth GPS Receiver Manual

5.3. Installation of testing program

(GPSViewer.exe is compatible with Microsoft Pocket PC or other operation system

alike.)

1). Install Microsoft ActiveSync to your PC, refer to your Pocket PC manual for

installation procedure, as Fig. 5.

2). Setup your Pocket PC cradle to Desktop PC UART port. The Microsoft

ActiveSync will detect your Pocket PC automatically.

Setup your Pocket PC cradle to Desktop PC UART port. The Microsoft ActiveSync

will detect your Pocket PC automatically, as Fig. 7.

(Fig. 7)

3). Double click the GPSViewer.exe on your PC, then Holux GPSViewer.exe

program will install automatically, as Fig. 8.

(Fig. 8)

4) Push “Start”→ “Programs”→ “GPSViewer” on PDA, as Fig. 9.

13

HOLUX GR-231 Bluetooth GPS Receiver Manual

(Fig. 9)

5) The following window is show after executing GPSViewer, as Fig. 10.

(Fig. 10)

6) Setup Baud rate: 38400, then push “Scan” bottom to scan your COM Port

(Example theIPAQ 3970 is the output port COM8). Select your COM Port (COM1 ~

COM10), then push “Open GPN” bottom, as Fig. 11, Fig. 12, and Fig. 13.

(Fig. 11) (Fig. 12) (Fig. 13)

14

HOLUX GR-231 Bluetooth GPS Receiver Manual

7) Select “GPS Status” to show the satellite diagram like below, as Fig. 14.

(Fig. 14)

6. Optional accessories

GR-231 has many accessories to satisfy customers’ requirement see table 2. After

using GR-231 with the following accessories, it can transmit message with PDA, Note

Book easily.

Table 2

Item Description Note

GR230-A1 1.5M RS232 data cable

GR230-A2 1.5M USB data cable

GR230-A3 Output convert to GM-210’s PDA Car charger adaptor

GR230-B1 2M 28db MCX connector active antenna

15

HOLUX GR-231 Bluetooth GPS Receiver Manual

7. Driver Installation

You can use any GR231 accessories data cable without installing driver except

GR230-A2 USB cable. The following is the steps of installation GR230-A2 USB

cable.

7.1 System Requirement

CPU: IBM, Pentium, or other compatible PC.
Memory: above 16 MB

System: Windows 98/Me/2000/XP

7.2 Installation

I. Copy entire GM231 USB folder from CD to hard disk.

II. Connect GR-230-A2 USB connector to computer without GR-231 GPS receiver.

While the computer automatically starts the installation program, please direct

the driver to the GR231 USB folder.

7.3 Important

Verify the COM port to start using your own navigation software.

I. Click <Start> menu, select → <Setting>, then enter→ <Controller>

II. After entering <Controller>, and select <System>.

III. Select <Device Manager>.

IV. Find the < Connector(COM & LPT)> and check the Virtual COM Port, which

was created by the USB driver.

Please note that the virtual COM port number might be different from every

computer. Before using navigation software, please confirm the COM Port numbers

created by your computer and provided by your navigation software. Otherwise, the

navigating software won’t receive the satellite signal, because of the un-match

COM Port setting.

8. Warranty

The GR-231 is warranted to be free from defects in material and functions for a

period of one year from the date of purchase. Any failure of this product within this period

under normal conditions will be replaced at no charge to the customers.

16

HOLUX GR-231 Bluetooth GPS Receiver Manual

˙GR-231 has built Li-battery inside, please avoid closing high temperature

environment or sun shine directly for a long time.

˙User has to return GR-231 to HOLUX if the inner Li battery has to be

replaced.

9. Trouble Shooting

Problems Reasons Methods

Connect an external antenna, which

Weak or no GPS signal can be

No position

output but

timer is

counting

Execute fail Bluetooth function unstable

Can not turn

on the COM

port

Can not find

out GR-231

received at the place of GR-231

At outdoor space but GPS signal

is blocked by building or car roof.

Install GR-231 incompletely or

operate the device is being used

with same COM port

Poor connection

No action for few minutes may

locate as a open space to your GR-231

and then run GPSViewer Cold start

function.

Go outdoor and run GPSViewer Cold start

function to try again, or connect an

external antenna to improve the poor

GPS signal.

Power On/Off GR-231.

Re-Start PDA or PC and reference sec 5.2

re-install s

Install GR-231 completely or stop other

device that is being used.

Re-Start PDA or PC and reference sec.

5.2 re-install s

oftware

oftware.

No Signal

cause Pocket PC entry power

save mode. It will close the COM

port at the same time.

Weak or no GPS signal when

using GR-231 indoor

17

Close the application and execute it again

to reopen the COM port.

Connect an external antenna to your

GR-231.

HOLUX GR-231 Bluetooth GPS Receiver Manual

Federal Communications Commission (FCC) Statement

15.21

You are cautioned that changes or modifications not expressly approved by the part responsible

for compliance could void the user’s authority to operate the equipment.

15.105(b)

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that changes or modifications not expressly approved by the party responsible

for compliance could void your authority to operate the equipment.

FCC RF Radiation Exposure Statement:

This Transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

18
