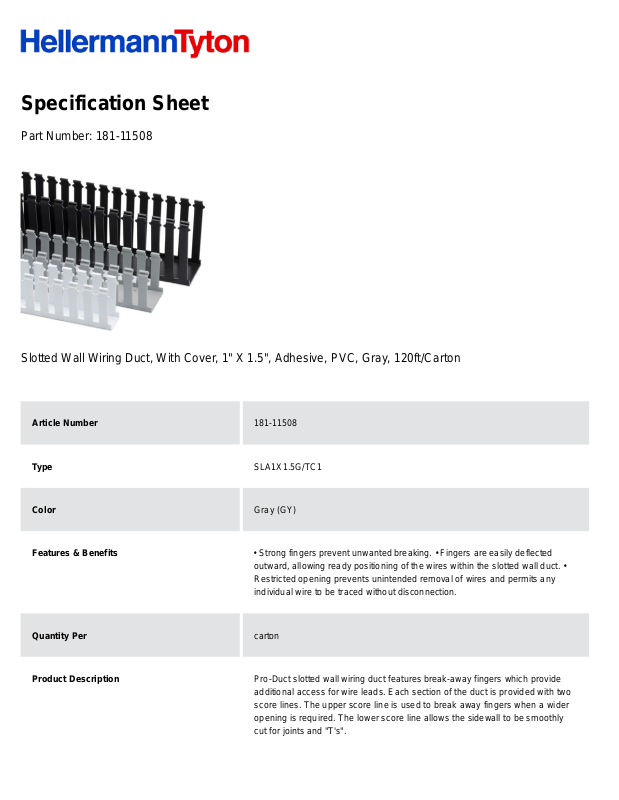

Specification Sheet
Part Number:
181-11508
Slotted Wall Wiring Duct, With Cover, 1" X 1.5", Adhesive, PVC, Gray, 120ft/Carton
Article Number
181-11508
Type
SLA1X1.5G/TC1
Color
Gray (GY)
Features & Benefits
• Strong fingers prevent unwanted breaking. • Fingers are easily deflected
outward, allowing ready positioning of the wires within the slotted wall duct. •
Restricted opening prevents unintended removal of wires and permits any
individual wire to be traced without disconnection.
Quantity Per
carton
Product Description
Pro-Duct slotted wall wiring duct features break-away fingers which provide
additional access for wire leads. Each section of the duct is provided with two
score lines. The upper score line is used to break away fingers when a wider
opening is required. The lower score line allows the sidewall to be smoothly
cut for joints and "T's".
Short Description
Slotted Wall Wiring Duct, With Cover, 1" X 1.5", Adhesive, PVC, Gray,
120ft/Carton
Global Part Name
SLA1X1.5G/TC1-PVC-GY
Length L (Imperial)
6.0
Length L (Metric)
1.83
Width W (Imperial)
1.0
Width W (Metric)
25.4
Height H (Imperial)
1.57
Height H (Metric)
39.9
Mounting Hole Centers (Imperial)
4.0
Material
Polyvinylchloride (PVC)
Material Shortcut
PVC
Flammability
Self-Extinguishing
Halogen free
No
Operating Temperature (Metric)
+122°F (+50°C)
Reach Complaint(Article 33)
No
