Owner’s Manual

Installation and Operation

Models:

DV3732SBI

DV3732SBIL

NOTICE

DO NOT DISCARD THIS MANUAL

• Important operating

• Read, understand and follow

• Leave this manual with

and maintenance

these instructions for safe

party responsible for use

instructions included.

installation and operation.

and operation.

DO DISCARDNOT

WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury, or death.

DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

What to do if you smell gas

-DO NOT try to light any appliance.

-DO NOT touch any electrical switch. DO NOT use any phone in your building.

-Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

-If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

This appliance may be installed as an OEM installation in manufactured home (USA only) or mobile home and must be installed in accordance with the manufacturer’s instructions and the manufactured home construction and safety standard,

Title 24 CFR, Part 3280 or Standard for Installation in Mobile Homes, CAN/CSA Z240MH, in Canada.

This appliance is only for use with the type(s) of gas indicated on the rating plate.

WARNING

HOT SURFACES!

Glass and other surfaces are hot during operation AND cool down.

Hot glass will cause burns.

DO NOT touch glass until it is cooled

NEVER allow children to touch glass

Keep children away

CAREFULLY SUPERVISE children in same room as fireplace.

Alert children and adults to hazards of high temperatures.

High temperatures may ignite clothing or other flammable materials.

Keep clothing, furniture, draperies and other flammable materials away.

This appliance has been supplied with an integral barrier to prevent direct contact with the fixed glass panel. DO NOT operate the appliance with the barrier removed.

Contact your dealer or Hearth & Home Technologies if the barrier is not present or help is needed to properly install one.

In the Commonwealth of Massachusetts installation must be performed by a licensed plumber or gas fitter.

See Table of Contents for location of additional Commonwealth of Massachusetts requirements.

Installation and service of this appliance should be performed by qualified personnel. Hearth & Home Technologies suggests NFI certified or factory trained professionals, or technicians supervised by an NFI certified professional.

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

1

Read this manual before installing or operating this appliance. Please retain this owner’s manual for future reference.

A. Congratulations

CongratulationsonselectingaHearth&HomeTechnologies gas fireplace, an elegant and clean alternative to wood burning fireplaces. The Hearth & Home Technologies gas fireplace you have selected is designed to provide the utmost in safety, reliability, and efficiency.

As the owner of a new fireplace, you’ll want to read and carefully follow all of the instructions contained in this owner’s manual. Pay special attention to all cautions and warnings.

This owner’s manual should be retained for future reference. We suggest that you keep it with your other important documents and product manuals.

The information contained in this owner’s manual, unless noted otherwise, applies to all models and gas control systems.

Your new Hearth & Home Technologies gas fireplace will give you years of durable use and trouble-free enjoyment. Welcome to the Hearth & Home Technologies family of fireplace products!

Homeowner Reference Information

We recommend that you record the following pertinent information about your fireplace.

Model Name:____________________________________________ Date purchased/installed:__________________

Serial Number:__________________________________________ Location on fireplace:______________________

Dealership purchased from:_ _______________________________ Dealer Phone:_ __________________________

Notes:_ _______________________________________________________________________________________

_____________________________________________________________________________________________

Listing Label Information/Location The model information regarding your specific fireplace can be found on the rating plate usually located in the control area of the fireplace.

Heatilator, a brand of Hearth & Home Technologies, Inc. 7571 215th Street West, Lakeville, MN 55044

Type of Gas























Not for use with solid fuel.



















(Ne doit pas entre utilise avec un combustible solide).















Type of Gas (Sorte De Gaz): This appliance must be installed in accordance with local codes, if any; if not, follow ANSI Z223.1





in the USA or CAN/CGA B149 installation codes. (Installer l’appareil selon les codes ou reglements



NATURAL GAS locaux ou, en l’absence de tels reglements, selon les codes d’installation CAN/CGA-B149.)

Gas and Electric





ANSI Z21XX-XXXX · CSA 2.XX-MXX · UL307B









































Information

Minimum Permissible Gas Supply for Purposes of Input Adjustment.









Approved Minimum (De Gaz) Acceptable

0.0 in w.c.

(Po. Col. d’eau)









Maximum Pressure (Pression)



0.0 in w.c.

(Po. Col. d’eau)









Maximum Manifold Pressure (Pression)

0.0 in w.c.

(Po. Col. d’eau)









Minimum Manifold Pressure (Pression)

0.0 in w.c.

(Po. Col. d’eau)









Total Electrical Requirements: 000Vac, 00Hz., less than 00 Amperes

MADE IN USA































IN CANADA



Model:

XXXXXXXX



ALTITUDE:

0-0000 FT.

0000-0000FT.



(Modele):



MAX. INPUT BTUH:

00,000

00,000

















MIN. INPUT BTUH:

00,000

00,000



Serial

XXXXXXXX



ORIFICE SIZE:

#XXXXX

#XXXXX







(Serie):

Model Number

Serial Number

2

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

Safety Alert Key:

DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.

WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.

CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE: Used to address practices not related to personal injury.

Table of Contents

A. Congratulations. . . . . . . . . . . . . . . . . 2 B. Limited Lifetime Warranty. . . . . . . . . . . . . . 5

1 Listing and Code Approvals

A.

Appliance Certification. . . . . . . . . . . . . .

. 7

B.

Tempered Glass Specifications. . . . . . . . . . .

7

C.

BTU Specifications. . . . . . . . . . . . . . . .

7

D.

High Altitude Installations. . . . . . . . . . . . .

. 7

E.Non-Combustible Materials Specification. . . . . . . . . . . . . . 7

F.Combustible Materials Specification . . . . . . . . . 7

G. Electrical Codes. . . . . . . . . . . . . . . . . 7 H. Requirements for the Commonwealth of Massachusetts. . 8

User Guide

2 Operating Instructions

A.

Gas Fireplace Safety. . . . . . . . . . . . . .

. 9

B.

Your Fireplace . . . . . . . . . . . . . . . . .

. 9

C.

Fan Kit (optional). . . . . . . . . . . . . . . .

10

D.

Decorative Doors and Fronts. . . . . . . . . . .

. 10

E.

Clear Space. . . . . . . . . . . . . . . . . .

10

F.

Fixed Glass Assembly. . . . . . . . . . . . . .

10

G. Remote Controls, Wall Controls and Wall Switches. . . 10

H. Before Lighting Fireplace. . . . . . . . . . . . .

10

I.

Lighting Instructions (IPI). . . . . . . . . . . . .

11

J.

After Fireplace is Lit. . . . . . . . . . . . . . .

12

K.

Frequently Asked Questions . . . . . . . . . . .

. 12

3 Maintenance and Service

A. Maintenance Tasks-Homeowner. . . . . . . . . . 13 B. Maintenance Tasks-Qualified Service Technician . . . . 14

4 Getting Started

Installer Guide

A.Typical Appliance System. . . . . . . . . . . . . . . . . . . . . . . . . 15

B.Design and Installation Considerations. . . . . . . . 16

C.

Tools and Supplies Needed. . . . . . . . . . . .

16

D.

Inspect Appliance and Components. . . . . . . . .

16

5 Framing and Clearances

A. Selecting Appliance Location. . . . . . . . . . .

. 17

B. Constructing the Appliance Chase. . . . . . . . .

. 18

C. Clearances. . . . . . . . . . . . . . . . . . . 18

D. Mantel and Wall Projections. . . . . . . . . . . .

19

6 Termination Locations

A. Vent Termination Minimum Clearances. . . . . . . . 20

7 Vent Information and Diagrams

A.

Approved Pipe. . . . . . . . . . . . . . . . .

22

B.

Vent Table Key. . . . . . . . . . . . . . . . .

22

C.

Use of Elbows . . . . . . . . . . . . . . . . .

22

D.

Measuring Standards. . . . . . . . . . . . . .

. 22

E.

Use of Flex Vent. . . . . . . . . . . . . . . .

. 23

F.

Vent Diagrams. . . . . . . . . . . . . . . . .

24

8 Vent Clearances and Framing

A.

Pipe Clearances to Combustibles. . . . . . . . .

. 36

B.

Wall Penetration Framing. . . . . . . . . . . . .

36

C.

Install the Ceiling Firestop. . . . . . . . . . . .

. 37

D.

Install Attic Insulation Shield. . . . . . . . . . . .

38

9 Appliance Preparation

A.

Top Vent. . . . . . . . . . . . . . . . . . .

. 39

B.

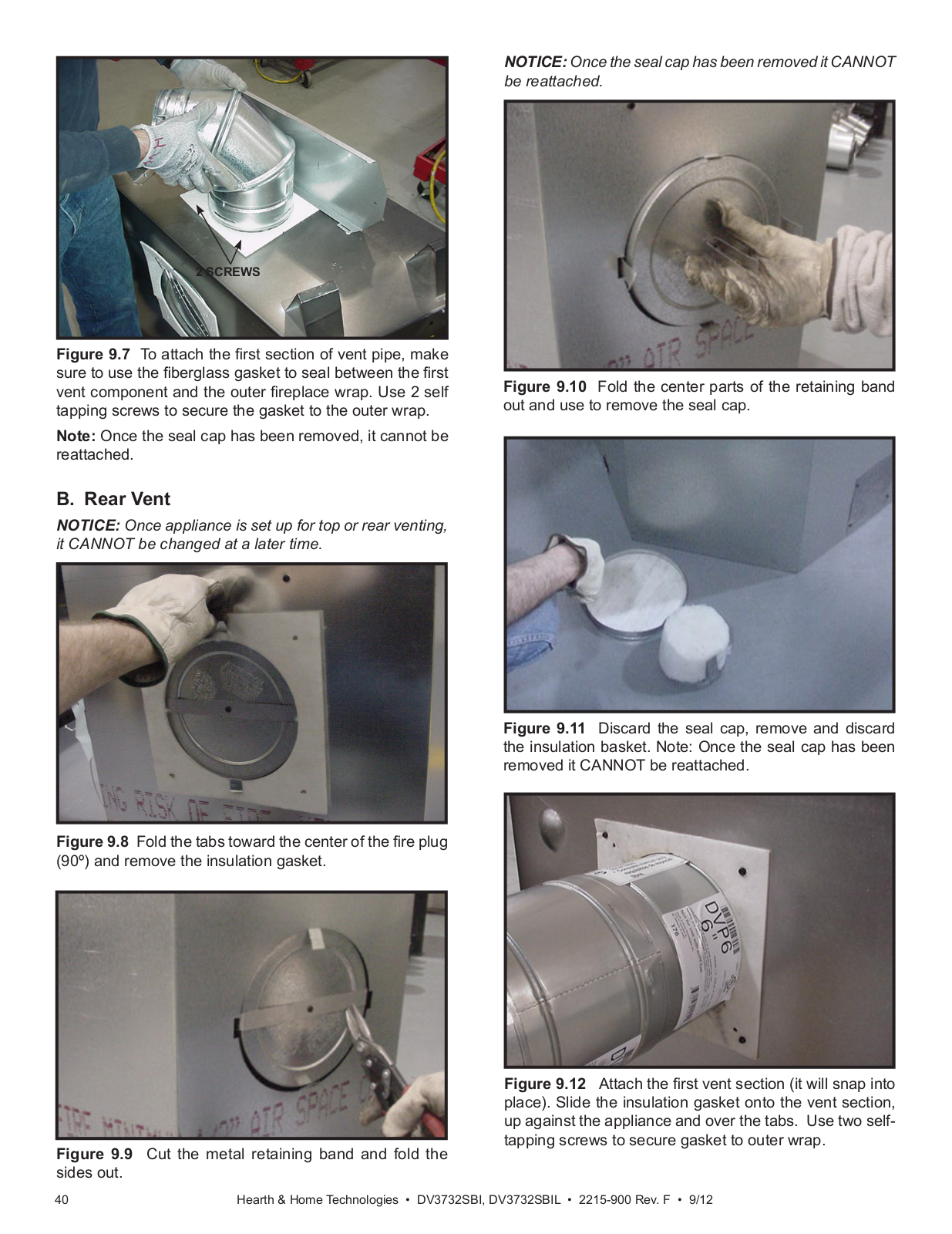

Rear Vent. . . . . . . . . . . . . . . . . . .

40

C.

Securing and Leveling the Appliance. . . . . . . .

. 41

10 Installing Vent Pipe (DVP and SLP Pipe)

A.Assemble Vent Sections (DVP Pipe Only). . . . . . . 42

B.Assemble Vent Sections (SLP Pipe Only). . . . . . . 43

C. Assemble Slip Sections. . . . . . . . . . .

.

.

. 43

D. Secure the Vent Sections. . . . . . . . . . .

.

.

44

E. Disassemble Vent Sections. . . . . . . . . .

.

.

44

F. Install Decorative Ceiling Components (SLP only).

. .

. . . 45

G. Install Metal Roof Flashing. . . . . . . . . .

.

.

. 46

H. Assemble and Install Storm Collar. . . . . . .

.

.

. 46

I. Install Vertical Termination Cap. . . . . . . .

.

.

. 47

J.Install Decorative Wall Components (SLP only). . . . . 47

K.Heat Shield Requirements for Horizontal Termination. . 47

L.Install Horizontal Termination Cap (DVP and SLP Pipe). 48

11 Gas Information

A.

Fuel Conversion. . . . . . . . . . . . . . . .

. 49

B.

Gas Pressure. . . . . . . . . . . . . . . . .

. 49

C.

Gas Connection. . . . . . . . . . . . . . . .

. 49

D.

High Altitude Installations. . . . . . . . . . . . .

49

12 Electrical Information

A. Wiring Requirements. . . . . . . . . . . . . . . 50

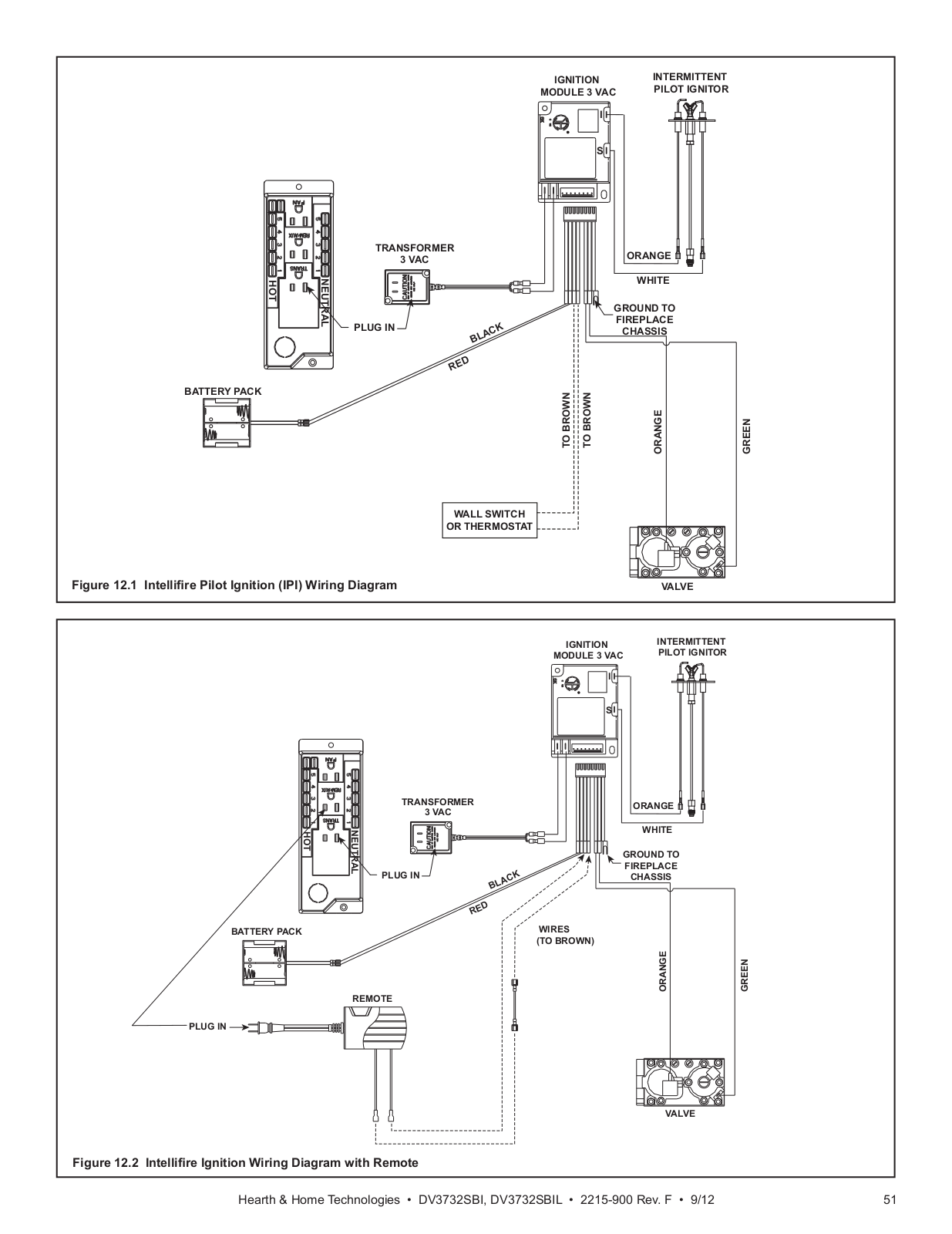

B.Intellifire Ignition System Wiring. . . . . . . . . . . 50

C.Optional Accessories Requirements . . . . . . . . . 50

D. Electrical Service and Repair. . . . . . . . . . . . 50

E.Junction Box Installation. . . . . . . . . . . . . . . . . . . . . . . . . . 52

F.Wall Switch Installation for Fan (Optional). . . . . . . 52

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

3

13 Finishing

A.

Splatter Guard. . . . . . . . . . . . . . . . .

53

B.

Mantel and Wall Projections. . . . . . . . . . . .

55

C.

Facing Material. . . . . . . . . . . . . . . . .

56

D.

Doors. . . . . . . . . . . . . . . . . . . .

. 57

E.

Elevated Hearth Systems. . . . . . . . . . . . .

58

14 Appliance Setup

A. Remove Fixed Glass Assembly. . . . . . . . . .

. 59

B. Remove the Shipping Materials. . . . . . . . . .

. 59

C. Clean the Appliance. . . . . . . . . . . . . . .

59

D.Accessories. . . . . . . . . . . . . . . . . . 59

E.Lava Rock, Rockwool/Ember Placement. . . . . . . 59

F.Install the Log Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . 60

G.

Fixed Glass Assembly. . . . . . . . . . . . . .

62

H.

Install Louvers and Trim. . . . . . . . . . . . .

. 62

I.

Install Hood . . . . . . . . . . . . . . . . . .

62

J.

Air Shutter Setting. . . . . . . . . . . . . . .

. 62

15 Troubleshooting



A. Intellifire Ignition System . . . . . . . . . . . . .

63

16 Reference Materials

A. Appliance Dimension Diagram. . . . . . . . . . . 65

B. Vent Components Diagrams . . . . . . . . . . . . 66

C.

Service Parts List . . . . . . . . . . . . . . .

. 75

D.

Contact Information. . . . . . . . . . . . . . .

77

= Contains updated information.

4

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

B. Limited Lifetime Warranty

Hearth & Home Technologies Inc.

LIMITED LIFETIME WARRANTY

Hearth & Home Technologies Inc., on behalf of its hearth brands (”HHT”), extends the following warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer.

WARRANTY COVERAGE:

HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance will be free from defects in materials and workmanship at the time of manufacture. After installation, if covered components manufactured by HHT are found to be defective in materials or workmanship during the applicable warranty period, HHT will, at its option, repair or replace the covered components. HHT, at its own discretion, may fully discharge all of its obligations under such warranties by replacing the product itself or refunding the verified purchase price of the product itself. The maximum amount recoverable under this warranty is limited to the purchase price of the product. This warranty is subject to conditions, exclusions and limitations as described below.

WARRANTY PERIOD:

Warranty coverage begins on the date of original purchase. In the case of new home construction, warranty coverage begins on the date of first occupancy of the dwelling or six months after the sale of the product by an independent, authorized HHT dealer/ distributor, whichever occurs earlier. The warranty shall commence no later than 24 months following the date of product shipment from HHT, regardless of the installation or occupancy date. The warranty period for parts and labor for covered components is produced in the following table.

The term “Limited Lifetime” in the table below is defined as: 20 years from the beginning date of warranty coverage for gas appliances, and 10 years from the beginning date of warranty coverage for wood, pellet, and coal appliances. These time periods reflect the minimum expected useful lives of the designated components under normal operating conditions.



Warranty Period



HHT Manufactured Appliances and Venting











Parts

Labor

Gas

Wood

Pellet

EPA

Coal

Electric

Venting

Components Covered







Wood













































































All parts and material except as







1 Year

X

X

X

X

X

X

X

covered by Conditions,







Exclusions, and Limitations

















































listed









































X

X

X





Igniters, electronic components,







2 years









and glass



























X

X

X

X

X





Factory-installed blowers



























X











Molded refractory panels

































3 years





X









Firepots and burnpots

































5 years

1 year





X

X







Castings and baffles

































7 years

3 years



X

X

X







Manifold tubes,















HHT chimney and termination

























































10

1 year

X













Burners, logs and refractory







years





































































Limited

3 years

X

X

X

X

X





Firebox and heat exchanger







Lifetime



















































90 Days

X

X

X

X

X

X

X

All replacement parts







beyond warranty period































































See conditions, exclusions, and limitations on next page.



4021-645C 12-29-10















Page 1 of 2









Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

5

B. Limited Lifetime Warranty (continued)

WARRANTY CONDITIONS:

This warranty only covers HHT appliances that are purchased through an HHT authorized dealer or distributor. A list of HHT authorized dealers is available on the HHT branded websites.

This warranty is only valid while the HHT appliance remains at the site of original installation.

Contact your installing dealer for warranty service. If the installing dealer is unable to provide necessary parts, contact the nearest HHT authorized dealer or supplier. Additional service fees may apply if you are seeking warranty service from a dealer other than the dealer from whom you originally purchased the product.

Check with your dealer in advance for any costs to you when arranging a warranty call. Travel and shipping charges for parts are not covered by this warranty.

WARRANTY EXCLUSIONS:

This warranty does not cover the following:

Changes in surface finishes as a result of normal use. As a heating appliance, some changes in color of interior and exterior surface finishes may occur. This is not a flaw and is not covered under warranty.

Damage to printed, plated, or enameled surfaces caused by fingerprints, accidents, misuse, scratches, melted items, or other external sources and residues left on the plated surfaces from the use of abrasive cleaners or polishes.

Repair or replacement of parts that are subject to normal wear and tear during the warranty period. These parts include: paint, wood, pellet and coal gaskets, firebricks, grates, flame guides, light bulbs, batteries and the discoloration of glass.

Minor expansion, contraction, or movement of certain parts causing noise. These conditions are normal and complaints related to this noise are not covered by this warranty.

Damages resulting from: (1) failure to install, operate, or maintain the appliance in accordance with the installation instructions, operating instructions, and listing agent identification label furnished with the appliance; (2) failure to install the appliance in accordance with local building codes; (3) shipping or improper handling; (4) improper operation, abuse, misuse, continued operation with damaged, corroded or failed components, accident, or improperly/ incorrectly performed repairs; (5) environmental conditions, inadequate ventilation, negative pressure, or drafting caused by tightly sealed constructions, insufficient make-up air supply, or handling devices such as exhaust fans or forced air furnaces or other such causes; (6) use of fuels other than those specified in the operating instructions; (7) installation or use of components not supplied with the appliance or any other components not expressly authorized and approved by HHT; (8) modification of the appliance not expressly authorized and approved by HHT in writing; and/or (9) interruptions or fluctuations of electrical power supply to the appliance.

Non-HHT venting components, hearth components or other accessories used in conjunction with the appliance.

Any part of a pre-existing fireplace system in which an insert or a decorative gas appliance is installed.

HHT’s obligation under this warranty does not extend to the appliance’s capability to heat the desired space. Information is provided to assist the consumer and the dealer in selecting the proper appliance for the application. Consideration must be given to appliance location and configuration, environmental conditions, insulation and air tightness of the structure.

This warranty is void if:

The appliance has been over-fired or operated in atmospheres contaminated by chlorine, fluorine, or other damaging chemicals. Over-firing can be identified by, but not limited to, warped plates or tubes, rust colored cast iron, bubbling, cracking and discoloration of steel or enamel finishes.

The appliance is subjected to prolonged periods of dampness or condensation.

There is any damage to the appliance or other components due to water or weather damage which is the result of, but not limited to, improper chimney or venting installation.

LIMITATIONS OF LIABILITY:

The owner’s exclusive remedy and HHT’s sole obligation under this warranty, under any other warranty, express or implied, or in contract, tort or otherwise, shall be limited to replacement, repair, or refund, as specified above. In no event will HHT be liable for any incidental or consequential damages caused by defects in the appliance. Some states do not allow exclusions or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific rights; you may also have other rights, which vary from state to state. EXCEPT TO THE EXTENT PROVIDED BY LAW, HHT MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY SPECIFIED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION OF THE EXPRESSED WARRANTY SPECIFIED ABOVE.

4021-645C 12-29-10

Page 2 of 2

6

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

1 Listing and Code Approvals

A. Appliance Certification

MODELS: DV3732SBI, DV3732SBIL

LABORATORY: Underwriters Laboratories, Inc. (UL)

TYPE: Direct Vent Gas Appliance Heater

STANDARD: ANSI Z21.88a-2007 • CSA 2.33a-2007

This product is listed to ANSI standards for “Vented Gas Appliance Heaters” and applicable sections of “Gas Burning Heating Appliances for Manufactured Homes and Recreational Vehicles”, and “Gas Fired Appliances for Use at High Altitudes”.

NOTICE: This installation must conform with local codes. In the absence of local codes you must comply with the National Fuel Gas Code, ANSI Z223.1-latest edition in the U.S.A. and the CAN/CGA B149 Installation Codes in Canada.

NOT INTENDED FOR USE AS A PRIMARY HEAT SOURCE.

This appliance is tested and approved as either supplemental room heat or as a decorative appliance. It should not be factored as primary heat in residential heating calculations.

B. Tempered Glass Specifications

Hearth & Home Technologies appliances manufactured with tempered glass may be installed in hazardous locations such as bathtub enclosures as defined by the ConsumerProductSafetyCommission(CPSC).Thetempered glass has been tested and certified to the requirements of ANSI Z97.1 and CPSC 16 CFR 1202 (Safety Glazing Certification Council SGCC# 1595 and 1597. Architectural Testing, Inc. Reports 02-31919.01 and 02-31917.01).

This statement is in compliance with CPSC 16 CFR Section 1201.5 “Certification and labeling requirements” which refers to 15 U.S. Code (USC) 2063 stating “…Such certificate shall accompany the product or shall otherwise be furnished to any distributor or retailer to whom the product is delivered.”

Some local building codes require the use of tempered glass with permanent marking in such locations. Glass meeting this requirement is available from the factory. Please contact your dealer or distributor to order.

C. BTU Specifications

Models



Maximum

Minimum

Orifice



Input

Input

Size

(U.S. or Canada)

BTU/h

BTU/h

(DMS)





US

19,100

13,500

#45





(0-2000 FT)

DV3732SBI (NG)











CANADA

17,190

12,150

#46









(2000-4500 FT)





US

19,300

14,500

#55





(0-2000 FT)

DV3732SBI (LP)











CANADA

17,370

13,050

#56









(2000-4500 FT)













D. High Altitude Installations

NOTICE: If the heating value of the gas has been reduced, these rules do not apply. Check with your local gas utility or authorities having jurisdiction.

When installing above 2000 feet elevation:

In the USA: Reduce input rate 4% for each 1000 feet above 2000 feet.

In CANADA: Reduce input rate 10% for elevations between 2000 feet and 4500 feet. Above 4500 feet, consult local gas utility.

Check with your local gas utility to determine proper orifice size.

E. Non-Combustible Materials Specification

Material which will not ignite and burn. Such materials are those consisting entirely of steel, iron, brick, tile, concrete, slate, glass or plasters, or any combination thereof.

Materials that are reported as passing ASTM E 136,

Standard Test Method for Behavior of Materials in a Vertical Tube Furnace at 750 ºC and UL763 shall be considered non-combustible materials.

F. Combustible Materials Specification

Materials made of or surfaced with wood, compressed paper, plant fibers, plastics, or other material that can ignite and burn, whether flame proofed or not, or plastered or unplastered shall be considered combustible materials.

G. Electrical Codes

NOTICE: This appliance must be electrically wired and grounded in accordance with local codes or, in the absence of local codes, with National Electric Code ANSI/NFPA 70-latest edition or the Canadian Electric Code CSA

C22.1.

A 110-120 VAC circuit for this product must be protected withground-faultcircuit-interrupterprotection,incompliance with the applicable electrical codes, when it is installed in locations such as in bathrooms or near sinks.

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

7

Note: The following requirements reference various Massachusetts and national codes not contained in this document.

H.Requirements for the Commonwealth of Massachusetts

For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:

Installation of Carbon Monoxide Detectors

At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gas fitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gas fitter shall observe that a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors.

In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.

Approved Carbon Monoxide Detectors

Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

Signage

A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one-half (1/2) in. in size, “GAS

VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.

Inspection

The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.08(2)(a)1 through 4.

Exemptions

The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the Board; and

Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or structure used in whole or in part for residential purposes.

MANUFACTURER REQUIREMENTS

Gas Equipment Venting System Provided

When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

Detailed instructions for the installation of the venting system design or the venting system components; and

A complete parts list for the venting system design or venting system.

Gas Equipment Venting System NOT Provided

When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies “special venting systems”, the following requirements shall be satisfied by the manufacturer:

The referenced “special venting system” instructions shall be included with the appliance or equipment installation instructions; and

The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed installation instructions.

A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.

See Gas Connection section for additional Commonwealth of Massachusetts requirements.

8

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

2 Operating Instructions User Guide

A. Gas Fireplace Safety

WARNING

HOT SURFACES!

Glass and other surfaces are hot during operation AND cool down.

Hot glass will cause burns.

DO NOT touch glass until it is cooled

NEVER allow children to touch glass

Keep children away

CAREFULLY SUPERVISE children in same room as fireplace.

Alert children and adults to hazards of high temperatures.

High temperatures may ignite clothing or other flammable materials.

Keep clothing, furniture, draperies and other flammable materials away.

This appliance has been supplied with an integral barrier to prevent direct contact with the fixed glass panel. DO NOT operate the appliance with the barrier removed.

Contact your dealer or Hearth & Home Technologies if the barrier is not present or help is needed to properly install one.

If you expect that small children or vulnerable adults may come into contact with this fireplace, the following precautions are recommended:

Install a physical barrier such as:

-A decorative firescreen.

-Adjustable safety gate.

Keep remote controls out of reach of children.

Never leave children alone near a hot fireplace, whether operating or cooling down.

Teach children to NEVER touch the fireplace.

Consider not using the fireplace when children will be present.

Contact your dealer for more information, or visit: www. hpba.org/staysafe.

To prevent unintended operation when not using your fireplace for an extended period of time (summer months, vacations, trips, etc):

Remove batteries from remote controls.

Turn off wall controls.

Unplug 3 volt adapter plug and remove batteries on IPI models.

B. Your Fireplace

WARNING! DO NOT operate fireplace before reading and understanding operating instructions. Failure to operate fireplace according to operating instructions could cause fire or injury.

Install a switch lock or a wall/remote control with child protection lockout feature.

DECORATIVE DOORS

(NOT SHOWN)

SECTION 2.D.

FIXED GLASS ASSEMBLY

(NOT SHOWN)

SECTION 14G.

MANTEL

FAN KIT

SECTION 2.C

HEARTH

Figure 2.1 General Operating Parts

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

9

C. Fan Kit (optional)

If desired, a fan kit may be added. Contact your dealer to order the correct fan kit.

D. Decorative Doors and Fronts

WARNING! Risk of Fire! Install ONLY doors or fronts approved by Hearth & Home Technologies. Unapproved doors or fronts may cause fireplace to overheat.

This fireplace has been supplied with an integral barrier to prevent direct contact with the fixed glass panel. DO NOT operate the fireplace with the barrier removed.

Contact your dealer or Hearth & Home Technologies if the barrier is not present or help is needed to properly install one.

For more information refer to the instructions supplied with your decorative door or front.

E. Clear Space

WARNING! DO NOT place combustible objects in front of the fireplace or block louvers. High temperatures may start a fire. See Figure 2.2.

Avoid placing candles and other heat-sensitive objects on mantel or hearth. Heat may damage these objects.



IN

CLEAR





FRONT

OFSPACE







3FT.







FIREPLACE

Figure 2.2

Clear Space



F. Fixed Glass Assembly

See Section 14.G.

G.Remote Controls, Wall Controls and Wall Switches

Follow the instructions supplied with the control installed to operate your fireplace:

For safety:

Install a switch lock or a wall/remote control with child protection lockout feature.

Keep remote controls out of reach of children.

See your dealer if you have questions.

H. Before Lighting Fireplace

Before operating this fireplace for the first time, have a qualified service technician:

Verify all shipping materials have been removed from inside and/or underneath the firebox.

Review proper placement of logs, ember material and/or other decorative materials.

Check the wiring.

Check the air shutter adjustment.

Ensure that there are no gas leaks.

Ensure that the glass is sealed and in the proper position and that the integral barrier is in place.

WARNING! Risk of Fire or Asphyxiation! DO NOT operate fireplace with fixed glass assembly removed.

10

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

I. Lighting Instructions (IPI)

The IPI system may be operated with two D-cell batteries. When using batteries, unplug the transformer. To prolong battery life, remove them when using the transformer.

FOR YOUR SAFETY

READ BEFORE LIGHTING

WARNING: Ifyoudonotfollow theseinstructions exactly,afireorexplosion may result causing property damage, personal injury or loss of life.

A.This appliance is equipped with an intermittent pilot ignition (IPI) device which automatically lights the burner. DO NOT try to light the burner by hand.

B.BEFORELIGHTING,smellallaround the appliance area for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

DO NOT try to light any appliance.

DO NOT touch any electric switch; do not use any phone in your building.

Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

If you cannot reach your gas supplier, call the fire department.

C.DO NOT use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

WARNING:

DO NOT CONNECT LINE VOLT-

AGE (110/120 VAC OR 220/240 VAC) TO THE CONTROL VALVE.

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance.

This appliance needs fresh air for safe operation and must be installed so there are provisions for adequate combustion and ventilation air.

If not installed, operated, and maintained in accordance with the manufacturer’s instructions, this product could expose you to substances in fuel or fuel combustion which are known to the State of California to cause cancer, birth defects, or other reproductive harm.

Keep burner and control compartment clean. See installation and operating instructions accompanying appliance.

CAUTION:

Hot while in operation. DO NOT touch. Keep children, clothing, furniture, gasoline and other liquids having flammable vapors away.

DO NOT operate the appliance with fixedglassassemblyremoved,cracked or broken. Replacement of the fixed glass assembly should be done by a licensed or qualified service person.

NOT FOR USE

WITH SOLID FUEL

For use with natural gas and propane. A conversion kit, as supplied by the manufacturer, shall be used to convert this appliance to the alternate fuel.

Also Certified for Installation in a Bedroom or a Bedsitting Room.

For assistance or additional information, consult a qualified installer, service agency or the gas supplier.

For additional information on operating your

Hearth & Home Technologies fireplace, please refer to www.fireplaces.com.

LIGHTING

INSTRUCTIONS (IPI)

1.This appliance is equipped with an ignition device which automatically lights the burner. DO NOT try to light the burner by hand.

GAS

VALVE

2.Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the Safety Information located on the left side of this label. If you do not smell gas, go to next step.

3.To light the burner:

Equipped with wall switch: Turn ON/OFF switch to ON.

Equipped with remote or wall control: Press ON or FLAME button.

Equipped with thermostat: Set temperature to desired setting.

4.If the appliance does not light after three tries, call your service technician or gas supplier.

TO TURN OFF GAS TO APPLIANCE

1.Equipped with wall switch: Turn ON/OFF switch to OFF.

Equipped with remote or wall control: Press OFF button.

Equipped with thermostat: Set temperature to lowest setting.

2.Service technician should turn off electric power to the control when performing service.

593-913G

Final inspection by

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

11

J. After Fireplace is Lit

Initial Break-in Procedure

The fireplace should be run three to four hours continuously on high.

Turn the fireplace off and allow it to completely cool.

Remove fixed glass assembly. See Section 14.G.

Clean fixed glass assembly. See Section 3.

Replace the fixed glass assembly and run continuously on high an additional 12 hours.

This cures the materials used to manufacture the fireplace.

NOTICE! Open windows for air circulation during fireplace break-in.

Some people may be sensitive to smoke and odors.

Smoke detectors may activate.

K.Frequently Asked Questions

ISSUE

SOLUTIONS





Condensation on the glass

This is a result of gas combustion and temperature variations. As the fireplace warms, this

condensation will disappear.



Blue flames

This is a result of normal operation and the flames will begin to yellow as the fireplace is al-

lowed to burn for 20 to 40 minutes.





When first operated, this fireplace may release an odor for the first several hours. This is caused

Odor from fireplace

by the curing of the paint and the burning off of any oils remaining from manufacturing. Odor may



also be released from finishing materials and adhesives used around the fireplace.



This is a normal result of the curing process of the paint and logs. Glass should be cleaned

Film on the glass

within 3 to 4 hours of initial burning to remove deposits left by oils from the manufacturing



process. A non-abrasive cleaner such as gas fireplace glass cleaner may be necessary. See



your dealer.



Noise is caused by metal expanding and contracting as it heats up and cools down, similar to

Metallic noise

the sound produced by a furnace or heating duct. This noise does not affect the operation or



longevity of the fireplace.

Is it normal to see the pilot flame burn

In an Intellifire ignition system it is normal to see the pilot flame, but it should turn off when ON/

continually?

OFF is turned off.

12

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

3 Maintenance and Service

Any safety screen or guard removed for servicing must be replaced prior to operating the fireplace.

When properly maintained, your fireplace will give you many years of trouble-free service. We recommend annual service by a qualified service technician.

A. Maintenance Tasks-Homeowner

Installation and repair should be done by a qualified service technician only. The fireplace should be inspected before use and at least annually by a professional service person.

The following tasks may be performed annually by the homeowner. If you are uncomfortable performing any of the listed tasks, please call your dealer for a service appointment.

More frequent cleaning may be required due to lint from carpeting or other factors. Control compartment, burner and circulating air passageway of the fireplace must be kept clean.

CAUTION! Risk of Burns! The fireplace should be turned off and cooled before servicing.

Glass Cleaning

Frequency: Seasonally

By: Homeowner

Tools Needed: Protective gloves, glass cleaner, drop cloth and a stable work surface.

CAUTION! Handle fixed glass assembly with care.

Glass is breakable.

Avoid striking, scratching or slamming glass

Avoid abrasive cleaners

DO NOT clean glass while it is hot

Prepare a work area large enough to accommodate fixed glass assembly and door frame by placing a drop cloth on a flat, stable surface.

Note: Fixed glass assembly and gasketing may have residue that can stain carpeting or floor surfaces.

Remove door or decorative front from fireplace and set aside on work surface.

See Section 14.G for instructions to remove fixed glass assembly.

Clean glass with a non-abrasive commercially available cleaner.

-Light deposits: Use a soft cloth with soap and water

-Heavy deposits: Use commercial fireplace glass cleaner (consult with your dealer)

Carefully set fixed glass assembly in place on fireplace. Hold glass in place with one hand and secure glass latches with the other hand.

Reinstall door or decorative front.

Doors, Surrounds, Fronts

Frequency: Annually

By: Homeowner

Tools needed: Protective gloves, stable work surface

Assess condition of screen and replace as necessary.

Inspect for scratches, dents or other damage and repair as necessary.

Check that louvers are not blocked.

Vacuum and dust surfaces.

Remote Control

Frequency: Seasonally

By: Homeowner

Tools needed: Replacement batteries and remote control instructions.

Locate remote control transmitter and receiver.

Verify operation of remote. Refer to remote control operation instructions for proper calibration and setup procedure.

Place batteries as needed in remote transmitters and battery-powered receivers.

Place remote control out of reach of children.

If not using your fireplace for an extended period of time (summer months, vacations/trips, etc), to prevent unintended operation:

Remove batteries from remote controls.

Unplug 3 volt adapter plug on IPI models.

Venting

Frequency: Seasonally

By: Homeowner

Tools needed: Protective gloves and safety glasses.

Inspect venting and termination cap for blockage or obstruction such plants, bird nests, leaves, snow, debris, etc.

Verify termination cap clearance to subsequent construction (building additions, decks, fences, or sheds). See Section 6.

Inspect for corrosion or separation.

Verify weather stripping, sealing and flashing remains intact.

Inspect draft shield to verify it is not damaged or missing.

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

13

B.Maintenance Tasks-Qualified Service Technician

The following tasks must be performed by a qualified service technician.

Gasket Seal and Glass Assembly Inspection

Frequency: Annually

By: Qualified Service Technician

Tools needed: Protective gloves, drop cloth and a stable work surface.

Inspect gasket seal and its condition.

Inspect fixed glass assembly for scratches and nicks that can lead to breakage when exposed to heat.

Confirm there is no damage to glass or glass frame. Replace as necessary.

Verify that fixed glass assembly is properly retained and attachment components are intact and not damaged. Replace as necessary.

Logs

Frequency: Annually

By: Qualified Service Technician

Tools needed: Protective gloves.

Inspectfordamagedormissinglogs. Replaceasnecessary. Refer to Section 14 for log placement instructions.

Verify correct log placement and no flame impingement causing sooting. Correct as necessary.

Firebox

Frequency: Annually

By: Qualified Service Technician

Tools needed: Protective gloves, sandpaper, steel wool, cloths, mineral spirits, primer and touch-up paint.

Inspect for paint condition, warped surfaces, corrosion or perforation. Sand and repaint as necessary.

Replace fireplace if firebox has been perforated.

Control Compartment and Firebox Top

Frequency: Annually

By: Qualified Service Technician

Tools needed: Protective gloves, vacuum cleaner, dust cloths

Vacuum and wipe out dust, cobwebs, debris or pet hair. Use caution when cleaning these areas. Screw tips that have penetrated the sheet metal are sharp and should be avoided.

Remove all foreign objects.

Verify unobstructed air circulation.

Burner Ignition and Operation

Frequency: Annually

By: Qualified Service Technician

Tools needed: Protective gloves, vacuum cleaner, whisk broom, flashlight, voltmeter, indexed drill bit set, and a manometer.

Verify burner is properly secured and aligned with pilot or igniter.

Clean off burner top, inspect for plugged ports, corrosion or deterioration. Replace burner if necessary.

Replace ember materials with new dime-size pieces. DO NOT block ports or obstruct lighting paths. Refer to Section 14 for proper ember placement.

Verify batteries have been removed from battery backup IPI systems to prevent premature battery failure or leaking.

Check for smooth lighting and ignition carryover to all ports. Verify that there is no ignition delay.

Inspect for lifting or other flame problems.

Verify air shutter setting is correct. See Section 14 for required air shutter setting. Verify air shutter is clear of dust and debris.

Inspect orifice for soot, dirt and corrosion. Verify orifice size is correct. See Service Parts List for proper orifice sizing.

Verify manifold and inlet pressures. Adjust regulator as required.

Inspect pilot flame pattern and strength. See Figure 3.1 and 3.2 for proper pilot flame pattern. Clean or replace orifice spud as necessary.

Inspect thermocouple/thermopile or IPI flame sensing rod for soot, corrosion and deterioration. Polish with fine steel wool or replace as required.

Verify that there is not a short in flame sense circuit by checking continuity between pilot hood and flame sensing rod. Replace pilot as necessary. (IPI only)

Figure 3.1 IPI Pilot Flame Patterns

14

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

Hearth and Home Technologies DV3732SBIL, DV3732SBI User Manual

4 Getting Started

Installer Guide



A. Typical Appliance System

NOTICE: Illustrations and photos reflect typical installations and are for design purposes only. Illustrations/diagrams are not drawn to scale. Actual product may vary from pictures in manual

HORIZONTAL

TERMINATION CAP

Note: Dual venting configurations (SECTION 10.L ) ARE NOT allowed. Appliance MUST

be vented EITHER vertically OR horizontally.

VERTICAL TERMINATION CAP (SECTION 10.I)

NON-COMBUSTIBLE ROOF FLASHING



MAINTAINS MINIMUM CLEARANCE



AROUND PIPE (SECTION 10.G)





STORM COLLAR



(SECTION 10.H)



VENT PIPE PENETRATES ROOF



PREFERABLY WITHOUT AFFECTING



ROOF RAFTERS (SECTION 8.C)

VENT PIPE (SECTIONS 7 and 8)

ATTIC INSULATION SHIELD (NOT

SHOWN) MUST BE USED HERE TO KEEP





INSULATION AWAY FROM VENT PIPE IF



ATTIC IS INSULATED (SECTION 8.D)

CEILING FIRESTOP



ON FLOOR OF ATTIC



(SECTION 8.C)





FRAMING HEADED OFF

FRAMING/HEADER

IN CEILING JOISTS

(SECTION 8.C)

(SECTION 5.B)



OPTIONAL

WALL SWITCH

MANTEL AND

MANTEL LEG (SECTION 5.E, 13.A)

SURROUND

HEARTH EXTENSION

GAS LINE (SECTION 11)

Figure 4.1 Typical System

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

15

B. Design and Installation Considerations

Hearth & Home Technologies direct vent gas appliances are designed to operate with all combustion air siphoned from outside of the building and all exhaust gases expelled to the outside. No additional outside air source is required.

Installation MUST comply with local, regional, state and national codes and regulations. Consult insurance carrier, local building inspector, fire officials or authorities having jurisdiction over restrictions, installation inspection and permits.

Before installing, determine the following:

Where the appliance is to be installed.

The vent system configuration to be used.

Gas supply piping.

Electrical wiring requirements.

Framing and finishing details.

Whether optional accessories—devices such as a fan, wall switch, or remote control—are desired.

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. For assistance or additional information, consult a qualified service technician, service agency or your dealer.

C. Tools and Supplies Needed

Before beginning the installation be sure that the following tools and building supplies are available.

Tape measure

Framing material

Pliers

Non-corrosive leak check solution

Hammer

Phillips screwdriver

Gloves

Framing square

Voltmeter

Electric drill and bits (1/4 in.)

Plumb line

Safety glasses

Level

Reciprocating saw

Manometer

Flat blade screwdriver

1/2 - 3/4 in. length, #6 or #8 Self-drilling screws

Caulking material (300ºF minimum continuous exposure rating)

One 1/4 in. female connection (for optional fan).

D. Inspect Appliance and Components

Carefully remove the appliance and components from the packaging.

The vent system components and decorative doors and fronts may be shipped in separate packages.

If packaged separately, the log set and appliance grate must be installed.

Report to your dealer any parts damaged in shipment, particularly the condition of the glass.

Read all of the instructions before starting the installation. Follow these instructions carefully during the installation to ensure maximum safety and benefit.

WARNING! Risk of Fire or Explosion! Damaged parts could impair safe operation. DO NOT install damaged, incomplete or substitute components. Keep appliance dry.

Hearth & HomeTechnologies disclaims any responsibility for, and the warranty will be voided by, the following actions:

Installation and use of any damaged appliance or vent system component.

Modification of the appliance or vent system.

Installation other than as instructed by Hearth & Home Technologies.

Improper positioning of the gas logs or the glass door.

Installation and/or use of any component part not approved by Hearth & Home Technologies.

Any such action may cause a fire hazard.

WARNING! Risk of Fire, Explosion or Electric Shock! DO NOT use this appliance if any part has been under water. Call a qualified service technician to inspect the appliance and to replace any part of the control system and/or gas control which has been under water.

16

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

5 Framing and Clearances

A. Selecting Appliance Location

When selecting a location for the appliance it is important to consider the required clearances to walls (see Figure 5.1).

WARNING! Risk of Fire or Burns! Provide adequate clearance around air openings and for service access.

Duetohightemperatures,theapplianceshouldbelocated out of traffic and away from furniture and draperies.

NOTICE: Illustrations reflect typical installations and are

FOR DESIGN PURPOSES ONLY. Illustrations/diagrams are not drawn to scale. Actual installation may vary due to individual design preference.



A



L

F

D



A

C



K

J

B



I

C

H

N

E

F

A

G















































































































J













































G



















































































































































































































































































































































M



















































































































































































































































































Models











A

B



C

D



E Min.

F Min.

G

H

I



J

K



L



M

N





















































DV3732SBI





in.



42

37





59-1/2

See Section 5.D for

1





1/2

44

62-1/4

16-1/4



48-1/2

68-3/4



15-1/16

7-1/2

7-1/8

DV3732SBIL





mm



1067

940



1511

Alcove Installation

25



13

1117

1581

413





1232

1746



383

191

181































































































































Figure 5.1 Appliance Locations

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

17

B. Constructing the Appliance Chase

A chase is a vertical box-like structure built to enclose the gas appliance and/or its vent system. In cooler climates the vent should enclosed inside the chase.

NOTICE: Treatment of ceiling firestops and wall shield firestops and construction of the chase may vary with the type of building. These instructions are not substitutes for the requirements of local building codes. Therefore, you MUST check local building codes to determine the requirements to these steps.

Chases should be constructed in the manner of all outside walls of the home to prevent cold air drafting problems. The chase should not break the outside building envelope in any manner.

Walls, ceiling, base plate and cantilever floor of the chase should be insulated. Vapor and air infiltration barriers should be installed in the chase as per regional codes for the rest of the home. Additionally, in regions where cold air infiltration may be an issue, the inside surfaces may be sheetrocked and taped for maximum air tightness.

To further prevent drafts, the wall shield and ceiling firestops should be caulked with caulk with a minimum

of 300ºF continuous exposure rating to seal gaps. Gas line holes and other openings should be caulked with caulk with a minimum of 300ºF continuous exposure rating or stuffed with unfaced insulation. If the appliance is being installed on a cement surface, a layer of plywood may be placed underneath to prevent conducting cold up into the room.

C. Clearances

NOTICE: Install appliance on hard metal or wood surfaces extending full width and depth. DO NOT install directly on carpeting, vinyl, tile or any combustible material other than wood.

WARNING! Risk of Fire! Maintain specified air space clearances to appliance and vent pipe:

Insulationandothermaterialsmustbesecuredtoprevent accidental contact.

The chase must be properly blocked to prevent blown insulation or other combustibles from entering and making contact with fireplace or chimney.

Failure to maintain airspace may cause overheating and a fire.

A

FROM TOP

OF HOOD





TO CEILING

E

F

B

J G

H

C

D

I

MINIMUM FRAMING DIMENSIONS*







A

B

C



D

E

F

G

H

I

J





DVP



SLP



**DVP



SLP















Models



Pipe



Pipe

Rough

Pipe



Pipe

Rough

Clearance

Combustible

Combustible

Behind

Sides of

Front of



















Rough



Rough

Opening

Rough



Rough

Opening





Opening



Opening

(Height)

Opening



Opening

(Width)

to Ceiling

Floor

Flooring

Appliance

Appliance

Appliance





(Width)



(Width)



(Depth)



(Depth)















































DV3732SBI

in.

10



8-5/8

34-3/4

16-1/4



16-1/4

37

32

0

0

1/2

1/2

36

DV3732SBIL

mm

254



219

876

413



413

940

813

0

0

13

13

915







































* Adjust framing dimensions for interior sheathing (such as sheetrock) C** Add 12 inches for rear venting with one 90º elbow.

Figure 5.2 Clearances to Combustibles

18

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

D. Mantel and Wall Projections

WARNING! Risk of Fire! Comply with all minimum clearances to combustibles as specified. Framing or finishing material closer than the minimums listed must be constructed entirely of noncombustible materials (i.e., steel studs, concrete board, etc).

All measurements



















































are in inches.





































CEILING

















































































































































































12

































































11

































































10





































































9







































































































































8













































































































32







7



















































6































































5













































12 13

















4































































3











































10 11































































9



























































8























































































































7































































































































6





























































5









































4





























































































































































































































































































































































































TOP OF HOOD OR FIREPLACE OPENING































































































































































































































Figure 5.3 Clearances to mantels or other combustibles above appliance

3-1/2 in.

1/2 in. SHEETROCK

OR COMBUSTIBLE





MATERIAL

1/2 in.



NON-COMBUSTIBLE ZONE

Figure 5.4 Non-Combustible Zone

























1/2 IN.





















TOP VIEW

























MINIMUM



















































































































2-7/8 IN.

















MINIMUM





3 FT. MAXIMUM







Note: Clearance from opening to perpendicular wall.

Figure 5.5 Clearances to Mantel Legs or Wall Projections (Acceptable on both sides of opening)

3 IN.

MINIMUM

5-3/8 IN.

MINIMUM UNLIMITED

Note: Clearance from opening to perpendicular wall.

Figure 5.6 Wall Projection (Acceptable on one side of opening)

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

19

6 Termination Locations

A. Vent Termination Minimum Clearances

WARNING

Fire Risk.

Maintain vent clearance to combustibles as specified.

DO NOT pack air space with insulation or other materials.

Failure to keep insulation or other materials away from vent pipe may cause overheating and fire.





HORIZONTAL





OVERHANG

2 FT.

20 INCHES MIN.

VERTICAL

MIN.





WALL



LOWEST







DISCHARGE





OPENING



GAS DIRECT VENT





TERMINATION CAP









X





12





ROOF PITCH





IS X/ 12



H (MIN.) - MINIMUM HEIGHT FROM ROOF



TO LOWEST DISCHARGE OPENING

Roof Pitch



H (Min.) Ft.

Flat to 6/12...........................................................1.0*

Over 6/12 to 7/12.................................................1.25*

Over 7/12 to 8/12.................................................1.5*

Over 8/12 to 9/12.................................................2.0*

Over 9/12 to 10/12...............................................2.5

Over 10/12 to 11/12..............................................3.25

Over 11/12 to 12/12..............................................4.0

Over 12/12 to 14/12.............................................5.0

Over 14/12 to 16/12.............................................6.0

Over 16/12 to 18/12.............................................7.0

Over 18/12 to 20/12.............................................7.5

Over 20/12 to 21/12.............................................8.0

* 3 foot minimum in snow regions

Figure 6.1 Minimum Height From Roof To Lowest Discharge

Opening





A

B

6 in. (minimum) up to 20 in.

18 in. minimum

152 mm/508 mm

457 mm

20 in. and over

0 in. minimum

Gas, Wood or Fuel Oil

Termination Cap

B

A *

Gas

Termination

Cap **

*If using decorative cap cover(s), this distance may need to be increased. Refer to the installation instructions supplied with the decorative cap cover.

**In a staggered installation with both gas and wood or fuel oil terminations, the wood or fuel oil termination cap must be higher than the gas termination cap.

Figure 6.2 Staggered Termination Caps

20

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12























O



N

















































P





C







F











R

































V























Q



J

B





























B





H or i















V



B



















V























D

X

V



E





V









G















V



H



















V

M





V

















V

V

H V





L













A

A























K























V

Electrical

K

V



V

















= VENT TERMINAL















Service































X = AIR SUPPLY INLET







C





















= AREA WHERE TERMINAL IS NOT PERMITTED







V



A

=

12 inches

clearances above grade, veranda,





Covered Alcove Applications







porch, deck or balcony

(Spaces open only on one side and with an overhang)

B

=

12 inches.

clearancetowindowordoorthatmay

N

=

6 inches

non-vinyl sidewalls







be opened, or to permanently closed





12 inches

vinyl sidewalls







window











O

=

18 inches

non-vinyl soffit and overhang

C

=

18 inches

clearance below unventilated soffit





42 inches

vinyl soffit and overhang





18 inches

clearance below ventilated soffit









P

=

8 ft.







30 inches

clearance below vinyl soffits and























electrical service







QMIN

RMAX

D

=

6 inches

clearance to outside corner



1 cap

3 feet

2 x Q ACTUAL

E

=

6 inches

clearance to inside corner



2 caps

6 feet

1 x Q ACTUAL

F

=

3 ft. (Canada)

not to be installed above a gas me-





3 caps

9 feet

2/3 x Q ACTUAL







ter/regulator assembly within 3 feet









horizontally from the center-line of the



4 caps

12 feet

1/2 x Q ACTUAL







regulator

QMIN = # termination caps x 3 RMAX = (2 / # termination caps) x QACTUAL

G

=

3 ft

clearance to gas service regulator

















vent outlet





Measure vertical clearances from this surface.

H

= 12 inches.

clearancetonon-mechanical(unpow-





















ered) air supply inlet, combustion air











i

=

3 ft. (U.S.A.)

inlet or direct-vent termination



























6 ft. (Canada)

clearance to a mechanical (powered)

















air supply inlet











All mechanical air intakes within 10 feet of a termination cap











must be a minimum of 3 feet below termination.











J

=

7 ft.

Onpublicproperty: clearanceabove

















paved sidewalk or a paved driveway.











A vent shall not terminate directly above a sidewalk or paved











driveway which is located between two single family dwellings











and serves both dwellings.





Measure horizontal clearances from this surface.









CAUTION! Risk of Burns! Termination caps are HOT,

K

=

6 inches

clearance from sides of electrical

consider proximity to doors, traffic areas or where people







service

may pass or gather (sidewalk, deck, patio, etc.). Listed cap

L

=

12 inches

clearance above electrical service

shields available. Contact your dealer.



Location of the vent termination must not interfere with access to the

• Local codes or regulations may require different

electrical service.



clearances.





• Vent system termination is NOT permitted in screened porches.

M = 18 inches

clearanceunderveranda,porch,deck,



balcony or overhang

42 inches vinyl or composite overhang Permitted when veranda, porch, deck or balcony is fully open on a minimum of 2 sides beneath the floor.

Figure 6.3 Minimum Clearances for Termination

Vent system termination is permitted in porch areas with two or more sides open.

Hearth & Home Technologies assumes no responsibility for the improper performance of the appliance when the venting system does not meet these requirements.

Vinyl protection kits are suggested for use with vinyl siding.

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

21

7 Vent Information and Diagrams

A. Approved Pipe

This appliance is approved for use with Hearth & Home Technologies DVP and/or SLP venting systems. Refer to Section 16B for vent component information.

DO NOT mix pipe, fittings or joining methods from different manufacturers.

The pipe is tested to be run inside an enclosed wall. There is no requirement for inspection openings at each joint within the wall.

WARNING! Risk of Fire or Asphyxiation. This appliance requires a separate vent. DO NOT vent to a pipe serving a separate solid fuel burning appliance.

B. Vent Table Key

The abbreviations listed in this vent table key are used in the vent diagrams.

Symbol

Description





V1

First section (closest to appliance) of vertical length





V2

Second section of vertical length





H1

First section (closest to appliance) of horizontal length





H2

Subsequent sections of horizontal length





C. Use of Elbows

Diagonal runs have both vertical and horizontal vent aspects when calculating the effects. Use the rise for the vertical aspect and the run for the horizontal aspect (see Figure 7.1).

Two 45º elbows may be used in place of one 90º elbow. On 45º runs, one foot of diagonal is equal to 8-1/2 in. (216 mm) horizontal run and 8-1/2 in. (216 mm) vertical run. A length of straight pipe is allowed between two 45º elbows (see Figure 7.1).

Vertical





in.











.

8-1/2



12

in













8-1/2 in.





Horizontal



Figure 7.1







D. Measuring Standards

Vertical and horizontal measurements listed in the vent diagrams were made using the following standards.

Pipe measurements are shown using the effective length of pipe (see Figure 7.2).

Horizontal terminations are measured to the outside mounting surface (flange of termination cap) (see Figure 6.3).

Vertical terminations are measured to bottom of termination cap.

Horizontal pipe installed level with no rise.



Pipe

Effective Length



Inches

Millimeters







DVP4

4

102

Effective

DVP6

6

152

Height/Length

DVP12

12

305



DVP24

24

610



DVP36

36

914



DVP48

48

1219



DVP6A

3 to 6

76 to 152



DVP12A

3 to 12

76 to 305

Figure 7.2 DVP Pipe Effective Length





22

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

E. Use of Flex Vent

The flex vent must be supported with the spacing between support intervals not exceeding 4 feet, with no more than ½ inch sag between supports.

A support is required at each change in venting direction, and in any location where it is necessary to maintain the necessary clearance to combustibles. A simple “up and out” installation (Figure 7.3) requires only enough support to maintain the necessary clearance to combustibles. However, the vent attachment point and the firestop location are considered to be supports.















TERMINATION

3 in. CLEARANCE





CAP













































































































FLEX-VENT

1 in. CLEARANCE

Figure 7.3

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

23

F. Vent Diagrams

1. Top Vent - Horizontal Termination

One Elbow

Note: Use SLP Series components only.

WARNING**

Fire Risk.

When using SLP-HRC-SS and SLP-HRC-ZC-SS termination caps on top vented fireplaces, a one foot minimum vertical vent section is required

before installing first elbow.

When using DVP-TB1 termination cap on top vented fireplaces, a three foot minimum vertical vent section is required before installing first elbow.

V1 Minimum**

H1 Maximum

90 Elbow Only**

2 ft.

610 mm









1/2 ft.**

152 mm

2 ft.

610 mm









1-1/2 ft.**

457 mm

3 ft.

914 mm

2-1/2 ft.**

762 mm

5 ft.

1.5 m

3-1/2 ft.

1.1 m

7 ft.

2.1 m









4-1/2 ft.

1.4 m

15 ft.

4.6 m

H1 MAX. =15 ft. (4.6 m) V1 + H1 MAX. = 40 ft. (12.2 m)

** See Warning.

V1

H1

Note: There MUST be a 25% reduction in total H when using flex vent except when using the simple up and out installation (see Figure 7.3).

Figure 7.4

24

Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. F • 9/12

Loading...
+ 53 hidden pages
