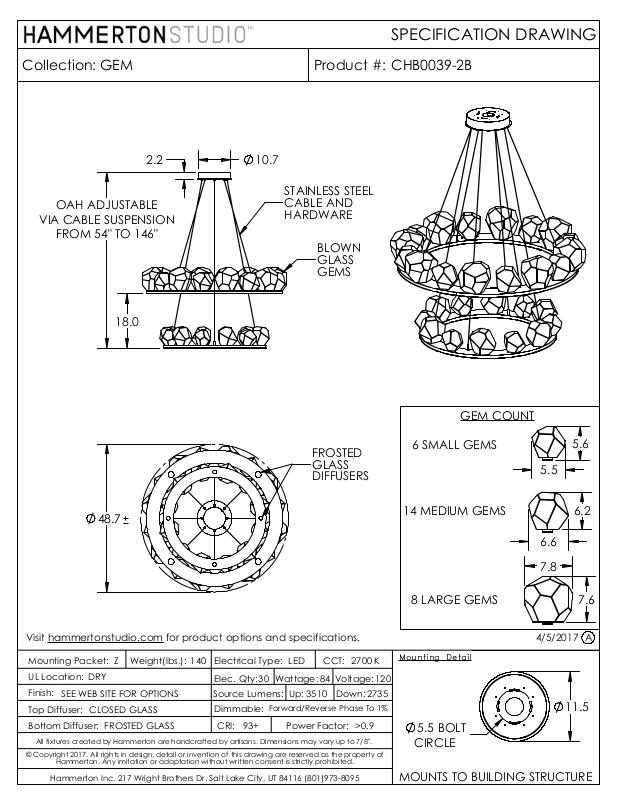

SPECIFICATION DRAWING
Collection:
GEM
OAH ADJUSTABLE
VIA CABLE SUSPENSION
FROM 54" TO 146"
18.0
2.2
10.7
STAINLESS STEEL
CABLE AND
HARDWARE
Product #:
BLOWN
GLASS
GEMS
CHB0039-2B
FROSTED
GLASS
DIFFUSERS
48.7
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2017. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
SEE WEB SITE FOR OPTIONS
CLOSED GLASS
for product options and specifications.
Weight(lbs.):
Z
FROSTED GLASS
140
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable:
CRI:
LED
Wattage:
Up:
Forward/Reverse Phase To 1%
93+
Power Factor:
CCT:
8430
3510 2735
2700 K
Voltage:
Down:
>0.9
GEM COUNT
6 SMALL GEMS
5.5
14 MEDIUM GEMS
6.6
7.8
8 LARGE GEMS
4/5/2017
Mounting Detail
120
5.5 BOLT
CIRCLE
MOUNTS TO BUILDING STRUCTURE
5.6
6.2
7.6
A
11.5
