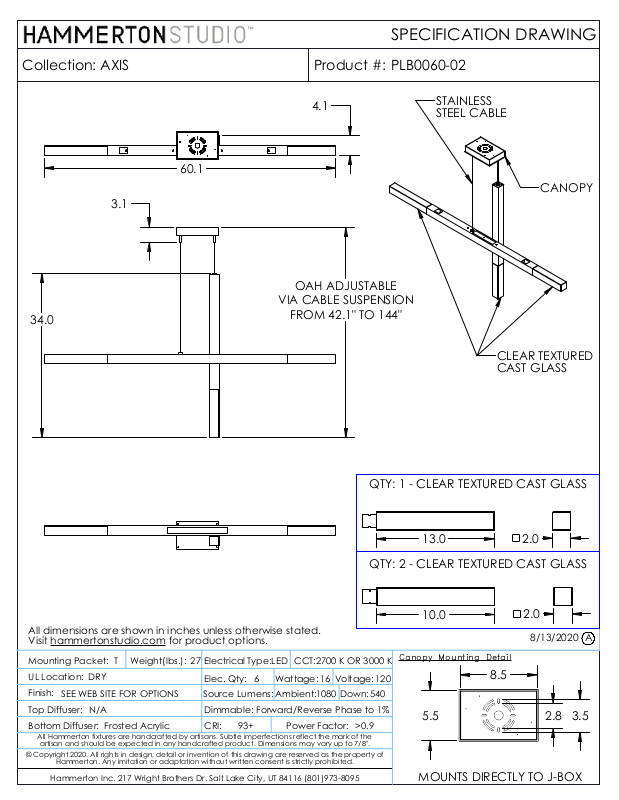

SPECIFICATION DRAWING
Collection:
34.0
AXIS
3.1
60.1
Product #:
PLB0060-02
4.1
OAH ADJUSTABLE
VIA CABLE SUSPENSION
FROM 42.1" TO 144"
STAINLESS
STEEL CABLE
CANOPY
CLEAR TEXTURED
CAST GLASS
All dimensions are shown in inches unless otherwise stated.
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
Top Diffuser:
Bottom Diffuser:
All Hammerton fixtures are handcrafted by artisans. Subtle imperfections reflect the mark of the
artisan and should be expected in any handcrafted product. Dimensions may vary up to 7/8".
© Copyright 2020. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
SEE WEB SITE FOR OPTIONS
N/A
Weight(lbs.):
T
Frosted Acrylic
for product options.
27
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable: Forward/Reverse Phase to 1%
CRI:
6
93+
CCT:
LED
Wattage:
Ambient:
Power Factor:
2700 K OR 3000 K
16
Voltage:
1080
Down:
>0.9
QTY: 1 - CLEAR TEXTURED CAST GLASS
13.0
2.0
QTY: 2 - CLEAR TEXTURED CAST GLASS
10.0
Canopy Mounting Detail
120
540
5.5
8.5
2.0
8/13/2020
3.5 2.8
MOUNTS DIRECTLY TO J-BOX
A
