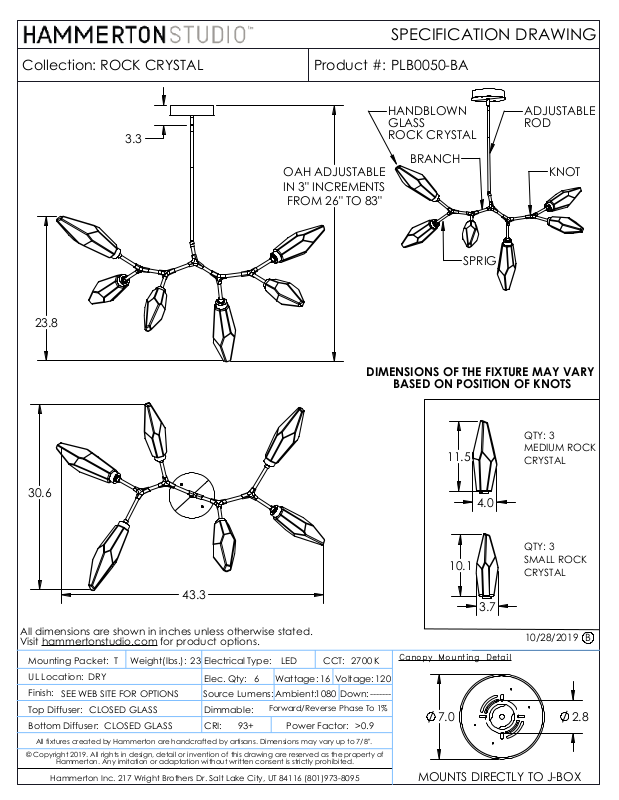

SPECIFICATION DRAWING
Collection:
23.8
ROCK CRYSTAL
3.3
Product #:
OAH ADJUSTABLE
IN 3" INCREMENTS
FROM 26" TO 83"
PLB0050-BA
HANDBLOWN
GLASS
ROCK CRYSTAL
BRANCH
SPRIG
ADJUSTABLE
ROD
KNOT
30.6
43.3
All dimensions are shown in inches unless otherwise stated.
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
SEE WEB SITE FOR OPTIONS
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2019. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
T
DRY
CLOSED GLASS
CLOSED GLASS
for product options.
Weight(lbs.):
23
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable:
CRI:
6
93+
LED
Wattage:
Ambient:
Forward/Reverse Phase To 1%
Power Factor:
CCT:
16
1080
2700 K
Voltage:
Down:
>0.9
DIMENSIONS OF THE FIXTURE MAY VARY
BASED ON POSITION OF KNOTS
QTY: 3
11.5
MEDIUM ROCK
CRYSTAL
4.0
QTY: 3
10.1
SMALL ROCK
CRYSTAL
3.7
Canopy Mounting Detail
120
-------
7.0
10/28/2019
B
2.8
MOUNTS DIRECTLY TO J-BOX
