Blender Safety

IMPORTANT: This operation manual should be reviewed with all equipment operators as part of your
operator training program.

2

For assistance or replacement parts, call our

Technical Service number:

866-285-1087 or 910-693-4277

8 a.m. – 5:00 p.m. EST Monday – Friday

www.commercial.hamiltonbeach.com

Technical Service

1. Read the Operation Manual before using blender.

Keep Operation Manual handy.

2. Plug into a grounded 3-prong outlet.

3. Do not remove ground prong.

4. Do not use an adapter.

5. Do not use an extension cord.

6. Disconnect power before cleaning or servicing.

7. To reduce risk of personal injury, unplug cord from

outlet when not in use, and before putting on or
taking off parts.

8. To protect against electrical shock, do not immerse

cord, plug, or blender base in water or any other liquid.

9. Do not spray the base with a high-pressure spray gun.

10. Extreme caution must be used when moving an

appliance containing hot oil or other hot liquids.

11. Do not use appliance for other than intended use.

12. Not intended for use by or near children.

13. The use of accessory attachments not recommended

by Hamilton Beach may cause injuries.

14. To reduce risk of personal injury and to prevent

damage to blender or container and cutter assembly,
DO NOT insert utensils into blender container while
operating blender.

15. Do not store any kitchen utensils in the container

because the blender would be damaged if
inadvertently turned on.

16. To prevent possibility of serious personal injury, keep

hands out of blender jar while operating blender.
Always operate blender with jar cover in place.

17. Avoid contacting moving parts.

18. Blades are sharp. Handle carefully.

19. If cutter assembly blades are loose, discontinue use

immediately and replace cutter assembly. Do not
attempt to repair or tighten cutter assembly.

– SAVE THESE INSTRUCTIONS –

20. Inspect container and cutter assembly daily. Do not use

broken, chipped or cracked container. Check cutter for
wear, nicks, or broken blades. Do not use broken or
cracked cutting blades. Replace cutter assembly at
least every 90 days.

21. Do not use outdoors.

22. This appliance is intended for short periods of

operation, with a rated operating time of 3 minutes.

23. Do not leave blender unattended while it is operating.

24. To prevent damage to blender, container, or cutter

assembly, DO NOT move or shake blender while in
operation. If blending action stops during operation,
turn blender OFF (O), remove container from base,
remove container cover, and use a thin rubber spatula
to push mixture towards cutters.

25. To prevent burns from hot liquids splashing out of the

container, always remove the filler cap of the container
cover before blending hot liquids. Keep hands and
other exposed skin away from the cover opening to
reduce risk of possible injury.

26. Always operate blender with container cover in place.

27. Do not operate any appliance with a damaged cord or

plug or after the appliance malfunctions, or is dropped
or damaged in any manner. Call the Technical Service
number, 866-285-1087 or 910-693-4277, for
instructions on examination, repair, or electrical
or mechanical adjustment.

IMPORTANT SAFETY INSTRUCTIONS

WARNING – When using electrical appliances, basic safety precautions should be followed, including

the following:

3

Parts and Features

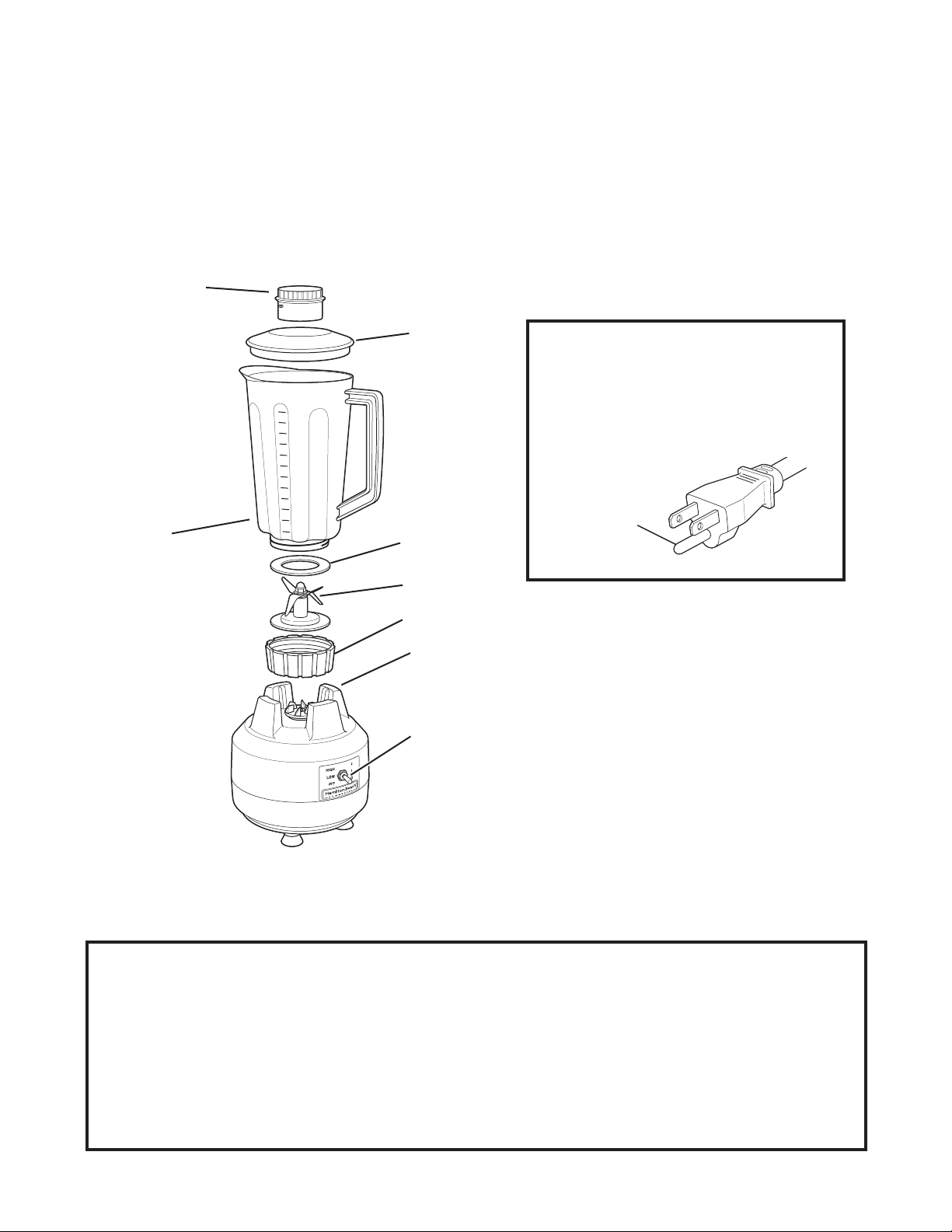

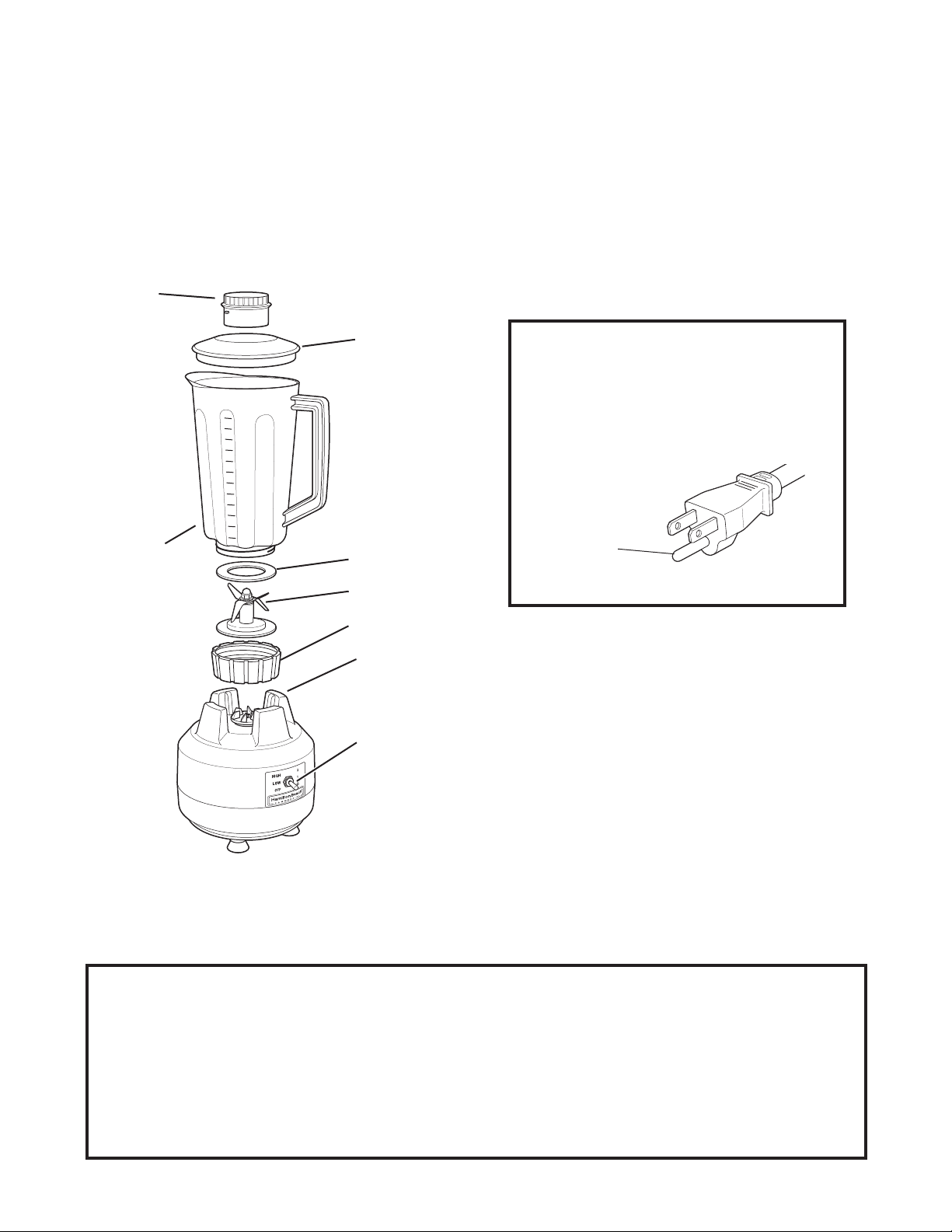

The parts and features for the HBB800 blender are shown on this page. Become familiar with all parts and
features before using your blender.

Your HBB800 blender is designed for blending and mixing beverages.
NOTE: The blender is not designed to crush large ice cubes. Small ice cubes made in most icemakers or

crushed ice may be added to liquid ingredients in the blender to make daiquiris or similar drinks.

Cover

44 oz.
Polycarbonate
Container

Removable
Filler Cap

Off (O) / LOW (1) /
HIGH (2) Switch

Blender
Base

HBB800

Power Requirements

Use a fused electric outlet for the blender.
Depending on the model of your blender,
the plug will look like the following to
meet power requirements:

120 VAC, 60Hz

Gasket

Cutter Unit

Collar

Blender Operation – Quick Start Guide

1. Read Important Safety Instructions and Warnings

before use.

2. Place the blender on a dry, level surface.

3. Make sure the power switch is in the “OFF” or O

position. Plug the blender into a grounded
3-prong electrical outlet.

4. Place the container on the base with ingredients

and container lid in place.

5. Move the power switch to the “LOW” (1) or

“HIGH” (2) position.

Ground

prong

Operation

4

Controls

The switch on the front panel allows you to control
the blender for precise blending requirements:

• The OFF (O)/LOW (1)/HIGH (2) switch will turn

the blender on for continuous operation at LOW
or HIGH speed or off.

• The High/Low settings allow you to select the

following speeds:
HIGH – 17,500 RPM LOW – 14,600 RPM

Using the blender

Before you use the blender for the first time, wash
the container, cover, and cutter assembly. Refer to
“Cleaning Instructions.” Do not put the cutter
assembly in the dishwasher.

To operate the blender, proceed as follows:

1. Place the blender on a clean, dry, level surface.

Make sure that the OFF/LOW/HIGH switch on
the control panel is set to OFF (O).

2. Plug the blender into an electric outlet.

3. Place the ingredients to be blended into the

container.

4. Place the container onto the base.

Make sure it rests securely on the base.

5. Place the cover and filler cap on the container.

6. Move the OFF/LOW/HIGH switch to the desired

speed. See “Professional Blending Techniques”
for blending tips.

7. When blending is complete, set the
OFF/LOW/HIGH switch to OFF (O).

Do not remove the container from the base
until the unit has stopped completely.

Operating the Blender–

HBB800

OFF (O) / LOW (1) /

HIGH (2) Switch

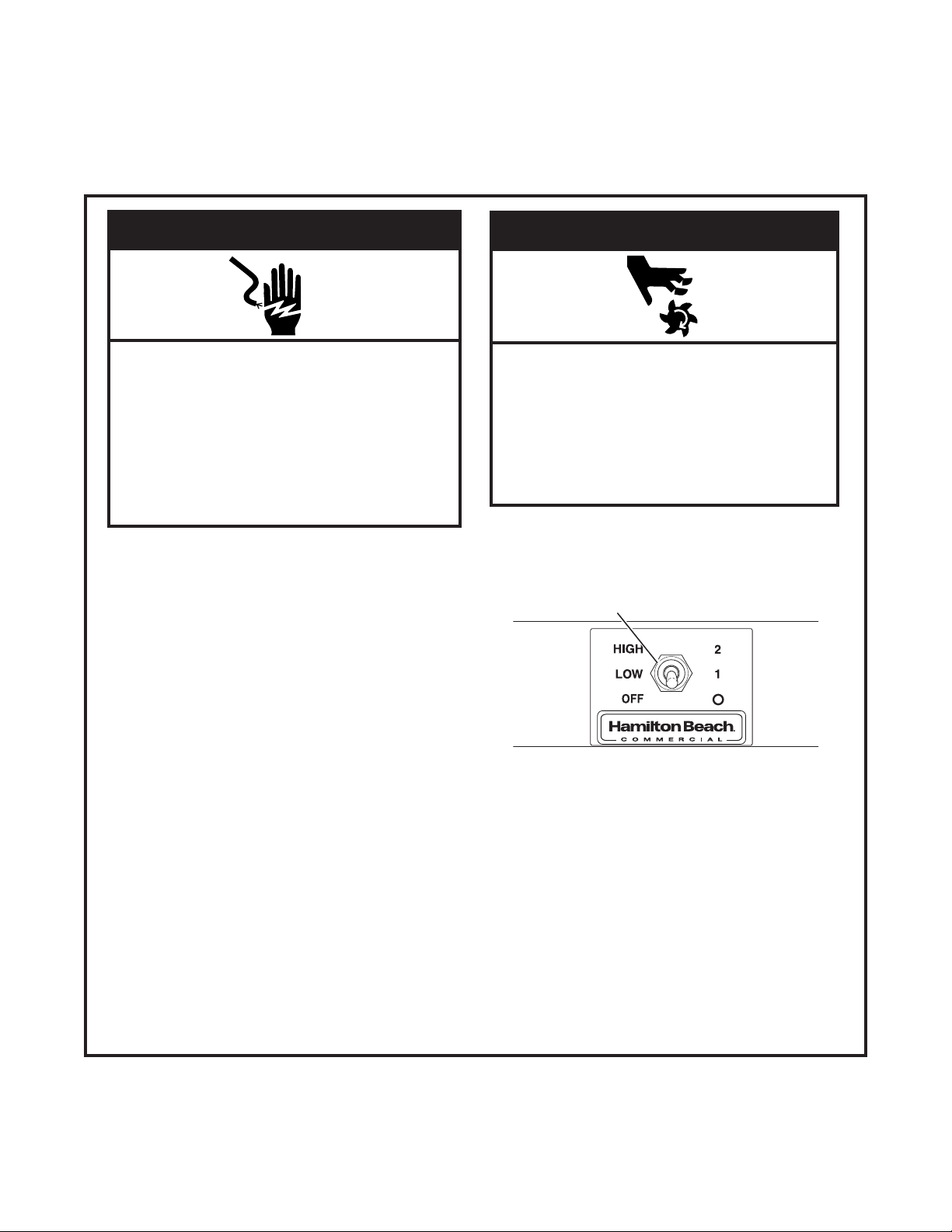

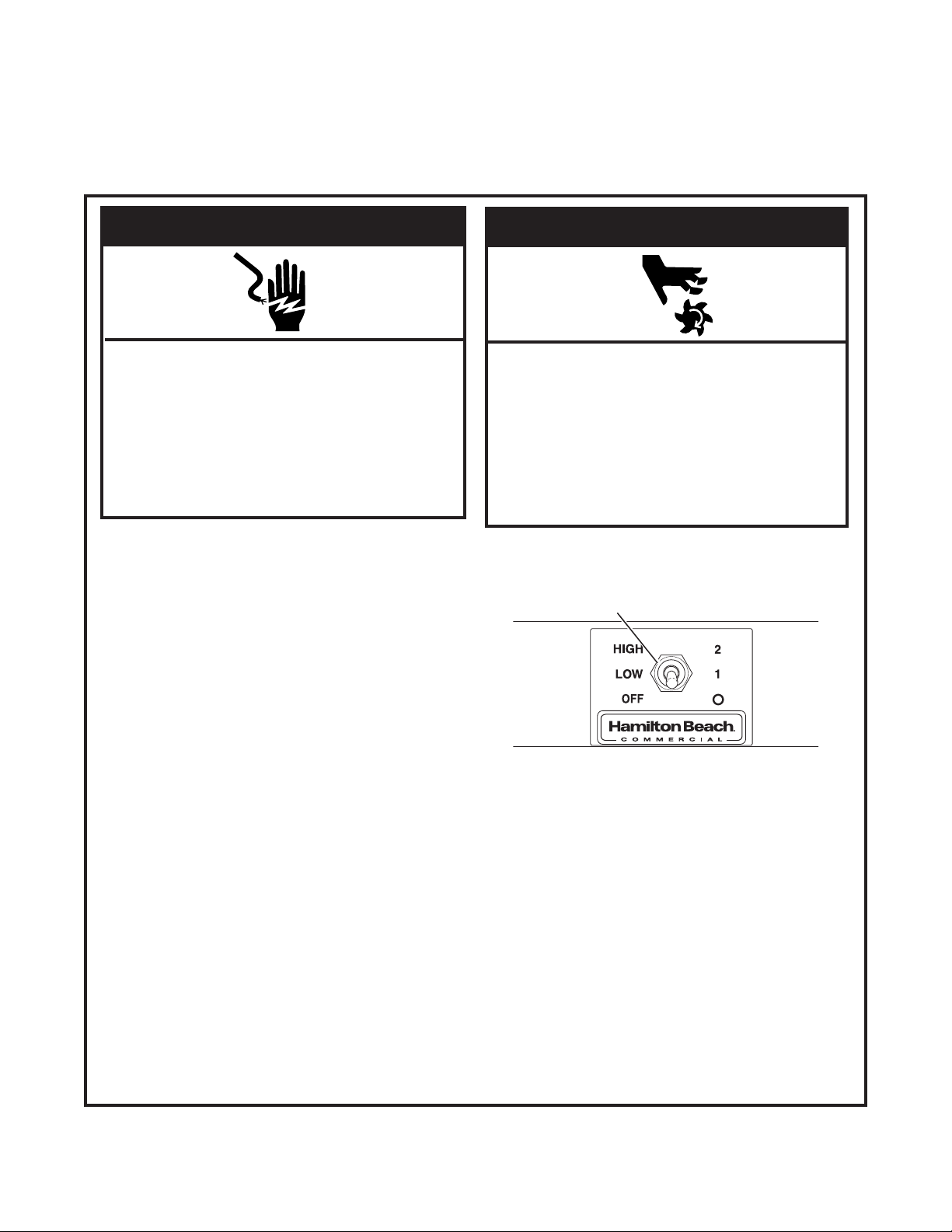

wWARNING

Electrical Shock Hazard
Plug into a grounded 3-prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result

in death, fire, or electrical shock.

wWARNING

Cut Hazard

Always place cover on container when
blending.

Do not put hands, spoons, or other utensils
in container when blending.

Failure to follow these instructions can result
in broken bones, cuts, or other injuries.

5

Operation

Professional Blending Techniques

Filling the container

When filling the container with ingredients, follow
these recommendations:

• Use sufficient amount of liquid to ensure that the
mixture is fluid and free-running at all times. Pour
the liquid into the container FIRST.

• Cut solid ingredients into pieces that are no
bigger than a 1″ (25 mm) cube.

• Add the ingredients to container in batches. Do
not blend maximum volume all at once.

• Do NOT overfill the container with product. This
may prevent the blender from processing the
product properly. Process dense foods or thick
mixtures in small batches, and remember that the
volume of the product normally increases during
processing.

• Do not exceed one quart (one liter) of content
when blending hot product.

• Always place the cover and filler cap on the
container when blending. For blending hot
liquids, remove filler cap from container cover
before blending.

Blending techniques

Icy drinks – Do not use blender to crush large ice

cubes. The blender is not designed for this. Small
ice cubes or crushed ice is recommended. Pour in
liquid, then add ice. Cover. Set speed at HIGH and
process until desired consistency is reached.
Chunks of frozen fruit can be added to milk or
fruit juice to produce a sherbet or slush.

Blending hot mixtures

IMPORTANT: To minimize the possibility of

scalding, the following precautions MUST be
observed:

• Do not exceed one quart (one liter) of content
when blending hot product. Remember that the
volume of the product normally increases during
processing.

• Always place the cover on the container and
remove the filler cap from container cover when
blending hot liquids to prevent the build up of
pressure.

• Never stand with your face directly over the
container when operating the blender where
steam may be released.

• Begin on LOW speed (1) and then select a
speed that produces a column of air in the
center of the container.

Filler Cap

Use the filler cap to add liquids to the container
while the unit is running.

wWARNING

Burn Hazard

Always use caution when blending
hot contents.

Failure to follow these instructions
can result in burns.

6

Caring for the Blender

Cleaning Instructions

General cleaning

Do not allow food residue to dry on any part of the
blender. Wash and rinse container, cutter unit
assembly and base after each use, or whenever it
will not be used again within one hour, as follows:

1. Remove the container from the base, and then

remove the cover. Add cleaning solution to the
container. Use a washing solution of hot water
(less than 115° F/46° C) and a non-sudsing
detergent. Use the recommended amount of
detergent.

2. Scrub and flush out the container interior,

cover and filler cap to remove food residue.
Empty container.

3. Fill container 1⁄4 full with fresh washing solution

and place it on the base.

4. Replace the cover on the container and run the

blender on HIGH speed (2) for 2 minutes.

5. Repeat step 3 using clean rinse water

(95° F/35° C).

6. Wipe down the container, filler cap, and cover

with a soft cloth or sponge, dampened with fresh
washing solution.

7. Wipe the exterior of the base with a damp

cloth or sponge. The base contains electrical
components: do not immerse, use a

Sanitizing

1. Wash container as instructed in “General

Cleaning.”

2. Fill container with sanitizing solution (See

“Recommended Sanitizing Solution” below)
and place on base.

3. Replace cover and filler cap and run on LOW

speed (1) for 2 minutes. Empty container.

4. Wipe the container exterior with a soft cloth or

sponge dampened with sanitizing solution.

5. Immerse the cover and filler cap in sanitizing

solution for two minutes.

6. Remove any remaining moisture from cutter

assembly by placing empty container on base
and running on HIGH speed (2) for two seconds.

7. When ready to use, rinse with clean water.
NOTE: Do not rinse container, cover or filler cap

after sanitizing.

Recommended Sanitizing Solution:

The sanitizing solution should consist of 1
tablespoon of household bleach per 1 gallon of
clean, cool water (60° F, 16° C) mixed according
to the instructions on the bleach. When using a
sanitizing solution other than that recommended,
the sanitizing solution concentration should be
tested using commercially available test strips
and should indicate a concentration between
100 and 200 parts per million of bleach to water.

wWARNING

Electrical Shock Hazard
Plug into a grounded outlet.
Do not remove ground.
Do not use an adapter.
Do not use an extension cord.
Do not immerse, use a high-pressure washer

or use a dishwasher to clean the base.
Failure to follow these instructions can result

in death, fire, or electrical shock.

wWARNING

Cut Hazard

Always place cover on container when
blending.

Do not put hands, spoons, or other utensils
in container when blending.

Failure to follow these instructions can result
in broken bones, cuts, or other injuries.

7

Replacing the Cutter Unit Assembly

Replacing the cutter unit assembly

The cutter unit assembly should be checked daily
for worn, loose, or damaged blades. Replace cutter
assembly every 90 days. If the cutter unit assembly
becomes worn or damaged, replace it immediately.

1. Loosen the collar on the bottom of the container.

2. Remove the cutter unit assembly and gasket

from the bottom of the container.

3. Place the gasket on the cutter unit assembly,

then install the new cutter unit assembly in the
bottom of the container.

4. Securely tighten the collar onto the bottom of

the container.

5. The rubber clutch disc on the blender base has

reverse threads. To replace , remove the rubber
clutch disc by threading it clockwise. To install
the new clutch disc, thread it onto the motor
shaft counterclockwise.

wWARNING

Cut Hazard
Always place cover on container when
blending.

Do not put hands, spoons, or other utensils
in container when blending.

Failure to follow these instructions can result
in broken bones, cuts, or other injuries.

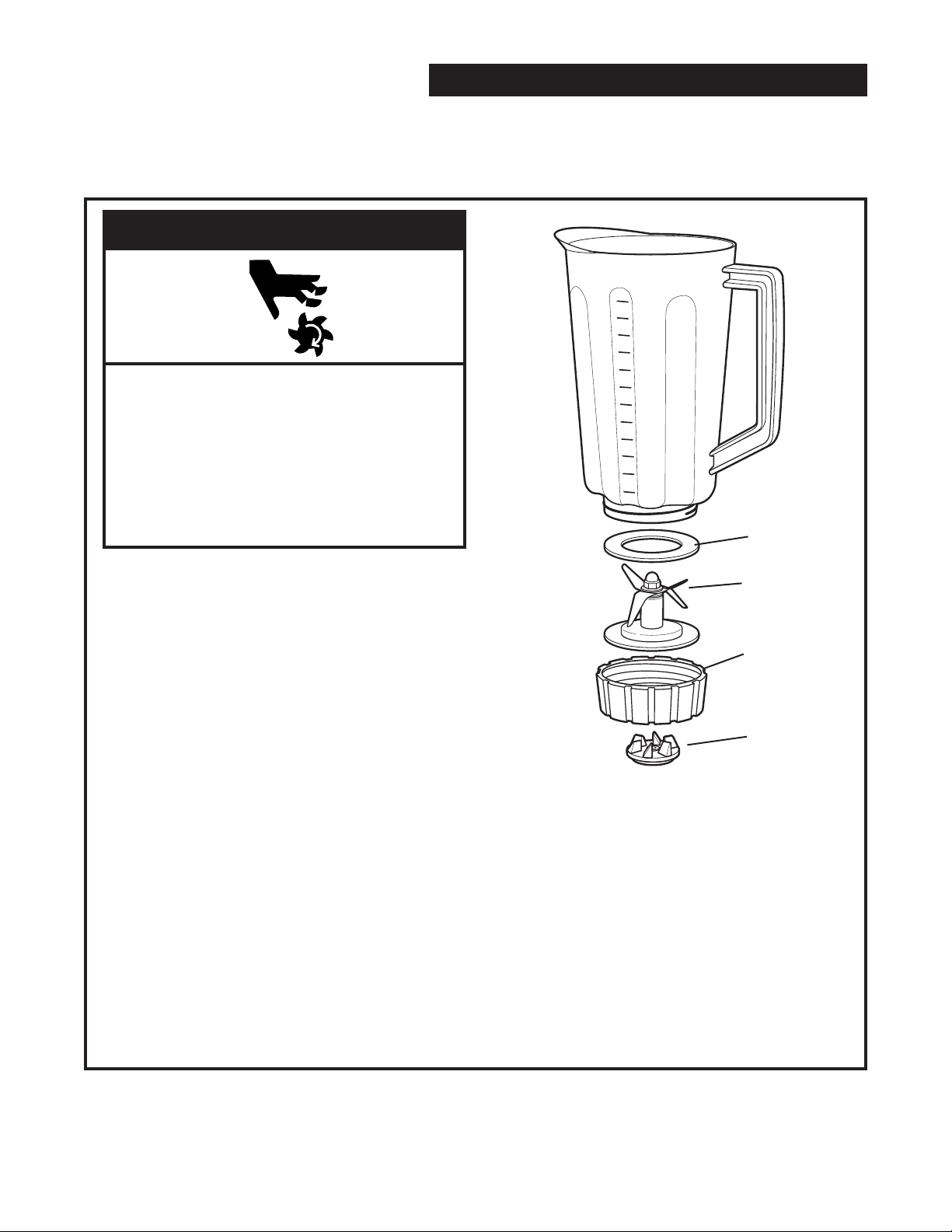

Cutter Unit
Assembly

Gasket

Collar

Rubber
Clutch Disc

Caring for the Blender

Troubleshooting Guide

Replacement Parts for Model HBB800

Problem . . . Solution . . .

Blender fails to start
or stops while it is
running and cannot
be restarted

• Check to see if unit is securely plugged into an electric outlet.

• Check to see if the fuse for the electric outlet has blown or if a circuit breaker
has tripped.

Maintenance

Unplug the blender and remove the container from the base, and then inspect the
container and cutter unit assembly for wear, nicks, and broken or loose blades. Replace if
necessary. If the blades are loose, discontinue use immediately and replace the blades.
Do not attempt to repair or tighten the cutter assembly. See “Replacement Parts” below.

Unplug the blender, and then inspect the power cord insulation and power plug for cracks.
Refer to “Technical Service” for repair or replacement.

Replace the container and cutter assembly at least every 90 days. See “Replacement
Parts” below.

44 oz. polycarbonate container 6126-HBB908
Cutter assembly HBB99100

Part Description

Part Number

Inspect the blender and its various parts and replace as follows:

Daily

Weekly

Quarterly

Ingredients will not mix
properly

• Check to see if enough liquid has been added to the ingredients. Mixture should
be fluid and free-running at all times.

• Solid pieces are too large. Pieces should not exceed 1″ (25 mm) cubes.

• Container is too full. Do not fill past highest graduation marking.

• Cutter unit blades are not sharp or are damaged. Inspect container and cutter
assembly daily. Replace cutter assembly at least every 90 days or sooner if cutter
assembly appears worn or damaged.

• Check to see if cutter assembly is installed properly.

• Select speed to create a fluid blend.

For replacement parts, call toll free: 866-285-1087.

8

Caring for the Blender

9

Product Warranty

Hamilton Beach/Proctor-Silex, Inc.
Commercial Technical Service
261 Yadkin Road
Southern Pines, NC 28387

This Warranty supercedes all other Product Warranties

LIMITED WARRANTY

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date
of original purchase, except as noted below. During this period, we will repair or replace this product, at our option.

THE FOREGOING WARRANTY IS IN LIEU OF ANY OTHER WARRANTY OR CONDITION, WHETHER EXPRESS OR
IMPLIED, WRITTEN OR ORAL INCLUDING WITHOUT LIMITATION ANY STATUTORY WARRANTY OR CONDITION
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ANY LIABILITY IS EXPRESSLY LIMITED TO
AN AMOUNT EQUAL TO THE PURCHASE PRICE PAID, AND ALL CLAIMS FOR SPECIAL, INCIDENTAL AND
CONSEQUENTIAL DAMAGES ARE HEREBY EXCLUDED.

There is no warranty with respect to parts subject to wear, including without limitation: motor brushes, container and
cutter assembly, clutches, bristle brushes, funnel, stainless steel cup, agitators, carafes, etc. This warranty extends only
to the original purchaser and does not cover any condition resulting from abuse, misuse, neglect, unauthorized repair,
or use not in conformity with the printed directions. Always use this product in accordance with the printed directions.
This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state, or
province to province. Some states do not allow limitations on implied warranties or special, incidental or consequential
damages, so the foregoing limitations may not apply to you.

If you have a claim under this warranty please contact our TECHNICAL SERVICE DEPARTMENT at 1-866-285-1087
or 910-693-4277. (For faster service please have model, series, and type numbers ready for operator to assist you.)
Reasonable proof of date of purchase must be presented; otherwise the effective date of the warranty will be based
upon the date of manufacture plus ninety (90) days. You are responsible for paying shipping and handling charges to
return the product to us.
