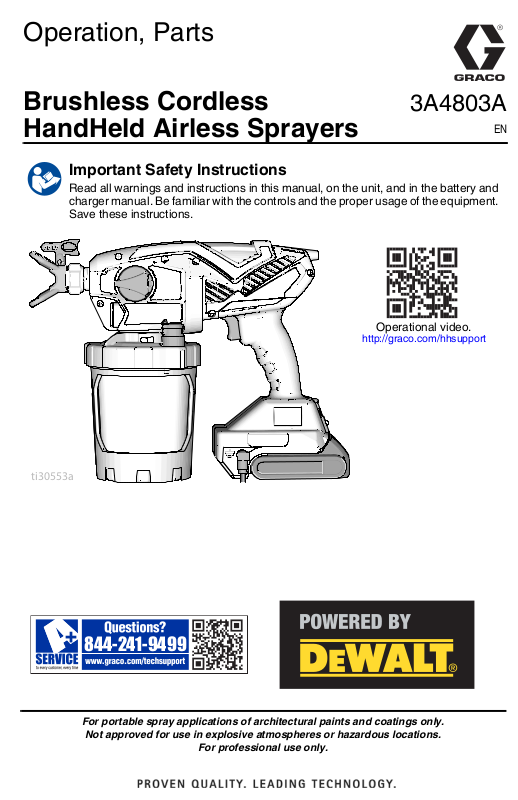

Page 1
Operation, Parts
ti30553a
Operational video.
http://graco.com/hhsupport
844-241-9499
Brushless Cordless
HandHeld Airless Sprayers
Important Safety Instructions
Read all warnings and instructions in this manual, on the unit, and in the battery and
charger manual. Be familiar with the controls and the proper usage of the equipment.
Save these instructions.
3A4803A
EN
For portable spray applications of architectural paints and coatings only.
Not approved for use in explosive atmospheres or hazardous locations.
For professional use only.
Page 2
Contents
Contents
Models – Cordless Airless HandHelds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
General Power Tool Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Know Your Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Starting a New Job . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Refilling FlexLiner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
How to Spray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Speed Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Tip and Pressure Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Spray Techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Triggering Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Aiming Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Spray Pattern Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Clear Tip Clog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cleanup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Cleaning Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Cleaning Sprayer Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Cleaning VacuValve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Common Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Spray Tip Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Flush a New Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Spray Tip Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cleaning Fluid Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Static Grounding Instructions (Oil-Based or flammable materials) . . . . . . . . . . . . . 28
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Cleaning Outlet Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Grounding Wire Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Graco Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
2 3A4803A
Page 3
Models – Cordless Airless HandHelds
110474
Certified to
CAN/CSA
C22.2
No. 68
Conforms
to
UL 1450
Models – Cordless Airless HandHelds
Model Sprayer Name Charger Voltage Tip Family Tip Size
17M367
17P928 *
17N222
17P929 *
17N223 TC PRO PLUS 120V TCPxxx
Ultra MAX
Ultimate MX
120V
120V
FFLPxxx
17P258
17M368
17P930
17P931 *
17N224 100V
17M370
17P257 Ultimate MX
17N225 Ultra MAX 230V
* – Tool only, without battery and charger.
Ultra MAX 230V
*
Ultra MAX
230V
FFLPxxx
Operating pressure range: 500 – 2000 psi (35 – 138 bar, 3.5 MPa – 14 MPa)
0.008 – 0.016 in.
(0.20 – 0.41 mm)
3A4803A 3
Page 4
Important User Information
Important User Information
Thank You for Your Purchase!
Before using your sprayer read this Owners Manual for complete instructions on proper use and
safety warnings.
Congratulations! You have purchased a high-quality paint sprayer made by Graco Inc.
This sprayer is designed to provide superior spray performance with all architectural paints
and coatings. This user information is intended to help you understand the types of
materials that can be used with your sprayer.
Before using this equipment, be sure to read and follow the information on your container
label and ask for a Safety Data Sheet (SDS) from your supplier. The container label and
SDS will explain the contents of the material and the specific precautions related to it.
Paints, coatings and clean-up materials generally fit into one of the following
categories:
WATER-BASED: The container label should indicate that the material can be
cleaned up with soap and water. Your sprayer is compatible with this type of
material. Your sprayer is NOT compatible with harsh cleaners such as chlorine
bleach.
OIL-BASED: The container label should indicate that the material is
COMBUSTIBILE and can be cleaned up with mineral spirits or non-flammable
paint thinner. The SDS must indicate that the flash point of the material is above
100°F (38°C). Your sprayer is compatible with this type of material. Use oil-based
material outdoors or in a well-ventilated indoor area with a flow of fresh air. See
the safety warnings in this manual.
FLAMMABLE: This type of material contains flammable solvents such as xylene,
toluene, naphtha, MEK, lacquer thinner, acetone, denatured alcohol, and
turpentine. The container label should indicate that this material is FLAMMABLE.
Your sprayer is compatible with this type of material. Use flammable materials
outdoors or in a well-ventilated indoor area with a flow of fresh air. See the safety
warnings in this manual.
3 basic
4 3A4803A
Page 5
General Power Tool Safety Information
General Power Tool Safety Information
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated power tool.
Work Area Safety
• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you
to lose control.
Electrical Safety
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
Personal Safety
•
Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in serious personal
injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting
to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch or energizing power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control
of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
3A4803A 5
Page 6
General Power Tool Safety Information
Power Tool Use and Care
•
Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures reduce the risk of star ting
the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in
the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool's operation. If damaged, have the
power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Use the power tool, accessories etc. in accordance with these instructions, taking into
account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
Service
• Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
6 3A4803A
Page 7
Warnings
Warnings
The following warnings are for the setup, use, maintenance, and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbols refer to
procedure-specific risks. When these symbols appear in the body of this manual or on warning
labels, refer back to these Warnings. Product-specific hazard symbols and warnings not
covered in this section may appear throughout the body of this manual where applicable.
FIRE AND EXPLOSION HAZARD (GROUNDING)
Some oil-based and flammable materials generate static electricity when sprayed. Static
electricity creates an explosion and fire risk. Your sprayer has a grounding cord that will
conduct the static electricity to a grounded electrical outlet. The sprayer and all objects in spray
area shall be properly grounded to protect against static discharge, sparks or shocks.
• Connect the grounding cord when spraying flammable or static producing oil-based
materials.
• If there is static sparking or if you feel a shock, stop spraying immediately and connect the
sprayer to a properly grounded electrical outlet with the ground wire provided.
GROUNDING INSTRUCTIONS
Move the sprayer away from the spray area to a non-hazardous location. Plug the ground wire
into the sprayer.
Unwind the ground wire from the spool and plug it into a properly grounded electrical outlet.
If the ground wire is not long enough to reach a grounded electrical outlet, a 3-wire grounded
extension cord may be used to reach a grounded outlet.
ti30554a
3A4803A 7
Page 8
Warnings
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help
prevent fire and explosion:
• Do not spray flammable or combustible liquids in a confined area.
• Keep spray area well-ventilated. Keep a good supply of fresh air moving through the area.
• Paint or solvent flowing through the sprayer is able to result in static electricity. Static
electricity creates a risk of fire or explosion in the presence of paint or solvent fumes.
Reverse spray tip when flushing. The sprayer and all objects in spray area shall be properly
grounded to protect against static discharge, sparks, or shocks.
• Always connect the grounding cord provided when spraying flammable materials or static
producing oil-based materials. See GROUNDING INSTRUCTIONS, page 7.
• If there is static sparking or you feel a shock, stop operation immediately and connect
sprayer to a properly grounded electrical outlet with the ground wire provided.
• Do not spray flammable or combustible materials near open flame or sources of ignition
such as cigarettes, external motors, and electrical equipment.
• Do not operate light switches, engines, or similar spark producing products in the spray
area.
• Do not smoke in the spray area.
• Keep area clean and free of paint or solvent containers, rags, and other flammable
materials.
• Know the contents of the paints and solvents being sprayed. Read all Safety Data Sheet
(SDS) and container labels provided with the paints and solvents. Follow the paint and
solvents manufacturer’s safety instructions.
• Fire extinguisher equipment shall be present and working.
SKIN INJECTION HAZARD
High-pressure spray is able to inject toxins into the body and cause serious bodily injury. In the
event that injection occurs, get immediate surgical treatment.
• Do not aim the gun at, or spray any person or animal.
• Keep hands and other body parts away from the discharge. For example, do not try to stop
leaks with any part of the body.
• Always use the spray tip guard. Do not spray without spray tip guard in place.
• Use Graco spray tips.
• Use caution when cleaning and changing spray tips. In the case where the spray tip clogs
while spraying, follow the Pressure Relief Procedure for turning off the unit and relieving
the pressure before removing the spray tip to clean.
• Do not leave the equipment energized or under pressure while unattended. Remove
battery and follow the Pressure Relief Procedure when the equipment is unattended or
not in use, and before servicing, cleaning, or removing parts.
• Check parts for signs of damage. Replace any damaged parts.
• This system is capable of producing 2000 psi (138 bar, 14 MPa). Use Graco replacement
parts or accessories that are rated a minimum of 2000 psi
• Verify that all connections are secure before operating the unit.
• Know how to stop the unit and bleed pressure quickly. Be thoroughly familiar with the
controls.
(138 bar, 14 MPa).
8 3A4803A
Page 9
Warnings
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Always wear appropriate gloves, eye protection, and a respirator or mask when painting.
• Do not operate or spray near children. Keep children away from equipment at all times.
• Do not overreach or stand on an unstable support. Keep effective footing and balance at
all times.
• Stay alert and watch what you are doing.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Always replace cracked, broken or missing parts immediately with genuine Graco parts.
See Replacement Parts, page 32.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals
and create safety hazards.
• Use only in dry locations. Do not expose to water or rain.
• Use in well-lit areas.
•
Make sure all equipment is rated and approved for the environment in which you are using it.
BATTERY AND CHARGER COMPATIBILITY HAZARD
• Only use DEWALT brand 18V Max or 20V Max batteries and battery chargers with this tool.
• READ ALL INSTRUCTIONS included with this tool regarding the safety and usage of
DEWALT batteries and battery chargers.
PRESSURIZED ALUMINUM PARTS HAZARD
Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious
chemical reaction and equipment rupture. Failure to follow this warning can result in death,
serious injury, or property damage.
• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon
solvents or fluids containing such solvents.
• Do not use chlorine bleach.
• Many other fluids may contain chemicals that can react with aluminum. Contact your
material supplier for compatibility.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin,
inhaled, or swallowed.
• Read Safety Data Sheets (SDSs) to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable
guidelines.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury,
including eye injury, hearing loss, inhalation of toxic fumes, and burns. This protective
equipment includes but is not limited to:
• Protective eye-wear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent
manufacturer.
CALIFORNIA PROPOSITION 65
This product contains a chemical known to the State of California to cause cancer, birth defects
or other reproductive harm. Wash hands after handling.
3A4803A 9
Page 10
Know Your Sprayer
SPRAY
PRIME
PUMP
D
E
L
K
T
F
M
T
A
B
C
Know Your Sprayer
N
PJ
ti30555a
GH
A Cup Cover
B FlexLiner
C Cup Support
D VacuValve Cap
E VacuValve Air Hole
F VacuValve Reservoir
G Pump Filter
H Ground Plug and Spool
10 3A4803A
J Prime Pump/Spray Knob
KBattery
L Sprayer Trigger
M Speed Control, ProControl II
N Spray Tip. Reverse-A-Clean (RAC)
P Spray Tip Guard
T
Diagnostic Light
Page 11
Start Up
Start Up
Flammable fumes (such as solvent and
paint fumes) in work area can ignite or
explode.
See GROUNDING INSTRUCTIONS,
page 7.
Do not spray flammable or combustible
liquids in a confined area.
Keep spray area well-ventilated. Keep a
good supply of fresh air moving through the
area.
NOTICE
Your sprayer is
cleaners such as chlorine bleach. Using
these cleaners will cause damage to the
sprayer.
Always start with a fully charged battery.
See battery and charger information
shipped with the sprayer.
Replace and charge battery only in a
well-ventilated area and away from
flammable or combustible materials,
including paints and solvents.
NOT
compatible with harsh
NOTICE
Do NOT shake materials to be used with
this sprayer. Some fine finish lacquers
and enamels trap air when shaken, which
can affect sprayer performance. Stir the
material or check the manufacturer’s
recommendation for the material being
sprayed.
Pressure Relief Procedure
Follow the Pressure Relief
Procedure whenever you see this
symbol.
This sprayer builds up an internal pressure
of 2000 psi (14 MPa, 138 bar) during use.
Follow this Pressure Relief Procedure
whenever you stop spraying and before
cleaning, checking, servicing, or
transporting equipment to prevent serious
injury.
1. Remove battery from the sprayer.
2. Turn Prime Pump/Spray Knob down to
PRIME PUMP position to relieve
pressure.
ti29755a
3A4803A 11
Page 12
Start Up
ti26894a
ti23361a
ti29719a
Starting a New Job
When spraying flammable or combustible
materials:
• Move entire sprayer to a well-ventilated
area and away from flammable or
combustible materials, including paints
and solvents when refilling.
• Keep material containers covered
between cup refills.
If you are using the sprayer for the very first
time, see Flush a New Sprayer, page 25.
Strain the Paint
Previously opened paint may contain dried
paint or other debris. To avoid priming
problems and tip clogs it is advisable to strain
the paint before using. Paint strainers are
available where paint is sold. Stretch a paint
strainer over a clean pail and pour the paint
through the strainer to capture any dried paint
and debris before spraying.

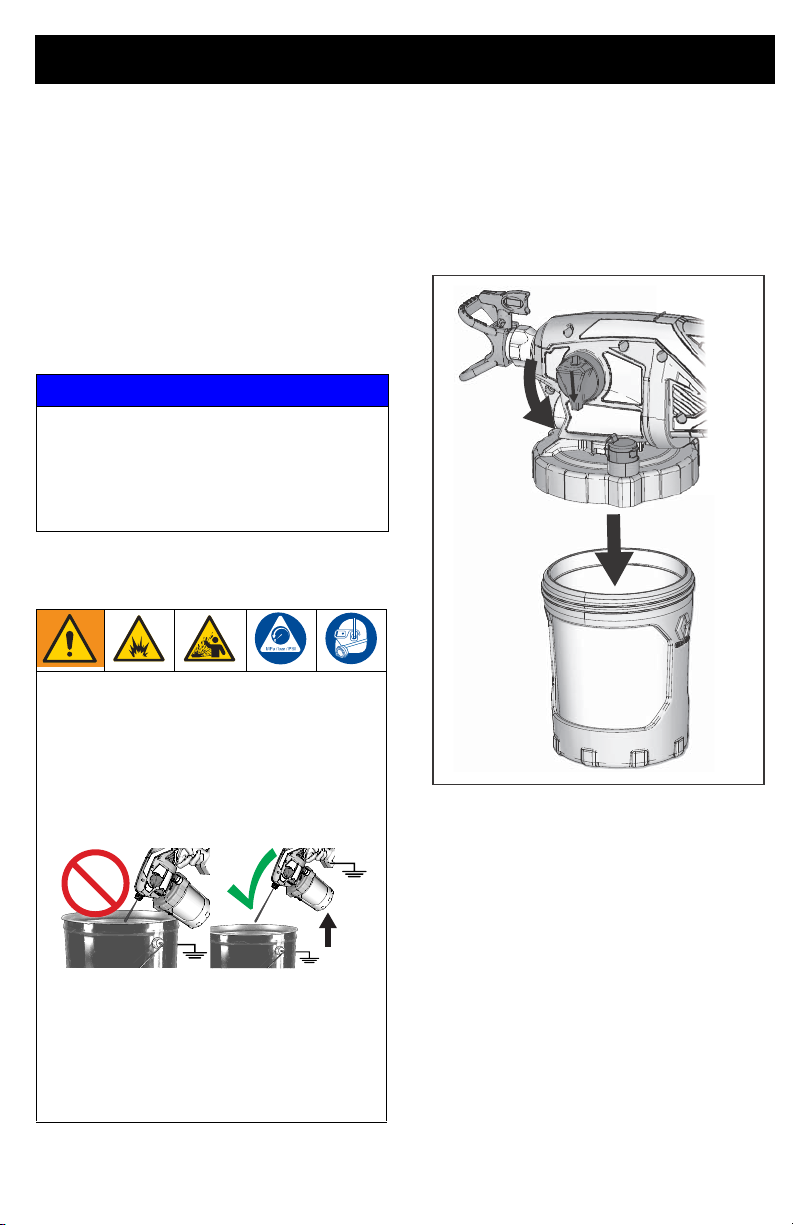

1. Install FlexLiner in the cup support.
2. Fill FlexLiner with material. Securely
tighten cup cover onto cup support.
proper sprayer operation lid must seal
tightly with the cup.
For
3. Align VacuValve on cup cover with Prime
Pump/Spray knob. Push cup assembly
onto sprayer and twist to lock.
ti30556a
12 3A4803A
Page 13
4. The VacuValve is an important part of
ti29739a
your new sprayer. It is used to evacuate
the air out of the FlexLiner. Open
VacuValve cap.
Start Up
7. Install battery onto sprayer.
8. Turn Prime Pump/Spray knob down to
Prime Pump position. To fill sprayer with
fluid, point sprayer into a waste area and
hold the trigger in for 3 – 10 seconds.
ti29721a
5.
Tilt the sprayer so the VacuValve is the
highest point, causing any air in the
FlexLiner to rise to the VacuValve.
Gently squeeze the FlexLiner to
evacuate all air through the VacuValve
air hole. Once you see material enter the
VacuValve reservoir, all air should be
evacuated from the FlexLiner.
ti29722a
6. Stop squeezing the FlexLiner and snap
the VacuValve cap closed. You will hear
the cap click when it is closed properly.
ti29723a
ti30557a
9. Air from pump may have entered the
FlexLiner during priming. Repeat Steps
4 – 6 to ensure all air is evacuated.
10. Turn Prime Pump/Spray knob forward to
spray position.
11. Make certain spray tip is in the spray
position.
SPRAY UNCLOG
12. You are now ready to spray.
NOTE: For best results; to evacuate all
material from the FlexLiner when the material
is nearly gone, gently squeeze the bottom of
the FlexLiner to push the last of the material
up to the cup lid.
ti29740a
3A4803A 13
Page 14
Start Up
ti29741a
ti29739a
If sprayer does not spray, try one of
the steps below:
•
Make certain there is only one FlexLiner
in cup support. It is possible for two liners
to nest tightly together and appear as
only one.
• Make certain the cup cover is properly
threaded to the cup support. If threads
are visible below the cup cover when
tight, then the cover is cross-threaded.
Fully remove the cup cover and reinstall
to the cup support so no threads are
visible when tight.
•
Repeat steps 2 – 6 on page 12 to ensure
all the air is evacuated from the FlexLiner.
• Make certain the Prime Pump/Spray
knob is in the Spray position.
•
Replace VacuValve cap. Two new
VacuValve caps came with your sprayer.
Refilling FlexLiner
When spraying flammable or combustible
materials:
• Move entire sprayer to a well-ventilated
area and away from flammable or
combustible materials, including paints
and solvents when refilling.
• Keep material containers covered
between cup refills.
If sprayer runs out of paint simply separate
the cup support from the cup cover/sprayer
and refill the FlexLiner.
1. Remove battery from the sprayer.
2. Separate the cup support from the
cover/sprayer.
down on a flat surface. This will keep the
wet paint in the cup cover.
Set the sprayer upside
cup
ti29742a
3. Follow steps 2 – 12 in Starting a New
• If sprayer still does not spray, see
Sprayer Diagnostics, page 35. If
material sprays while upside down there
is air in the cup. Repeat steps above.
14 3A4803A
Job, page 12.
Page 15
How to Spray
How to Spray
Speed Control

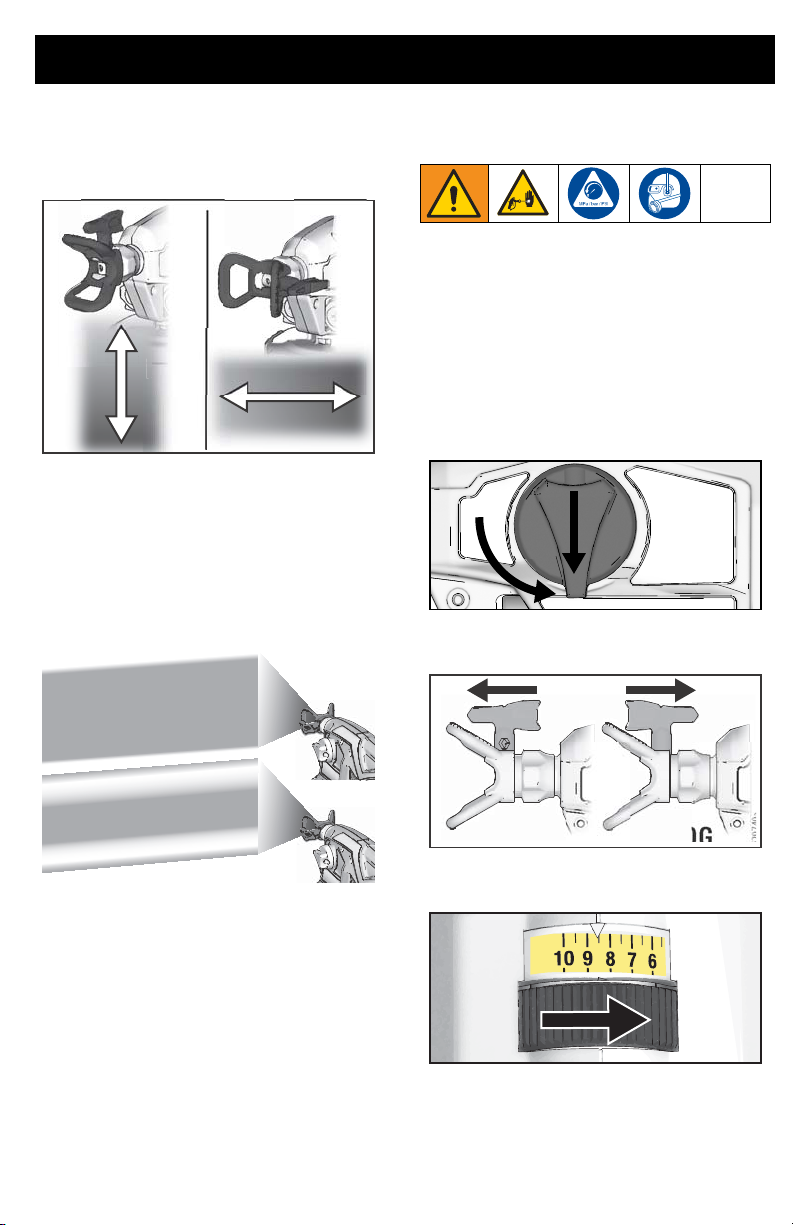

Take a few moments prior to spraying and
review these simple tips to ensure your
spraying project is a success.
NOTE: For proper sprayer operation use only
a tip from the same tip family that came with
your sprayer.
Sprayer Name Tip Family Tip Part No.
Ultra FFLP FFLPxxx
Ultimate FFLP FFLPxxx
TC Pro TCP TCPxxx

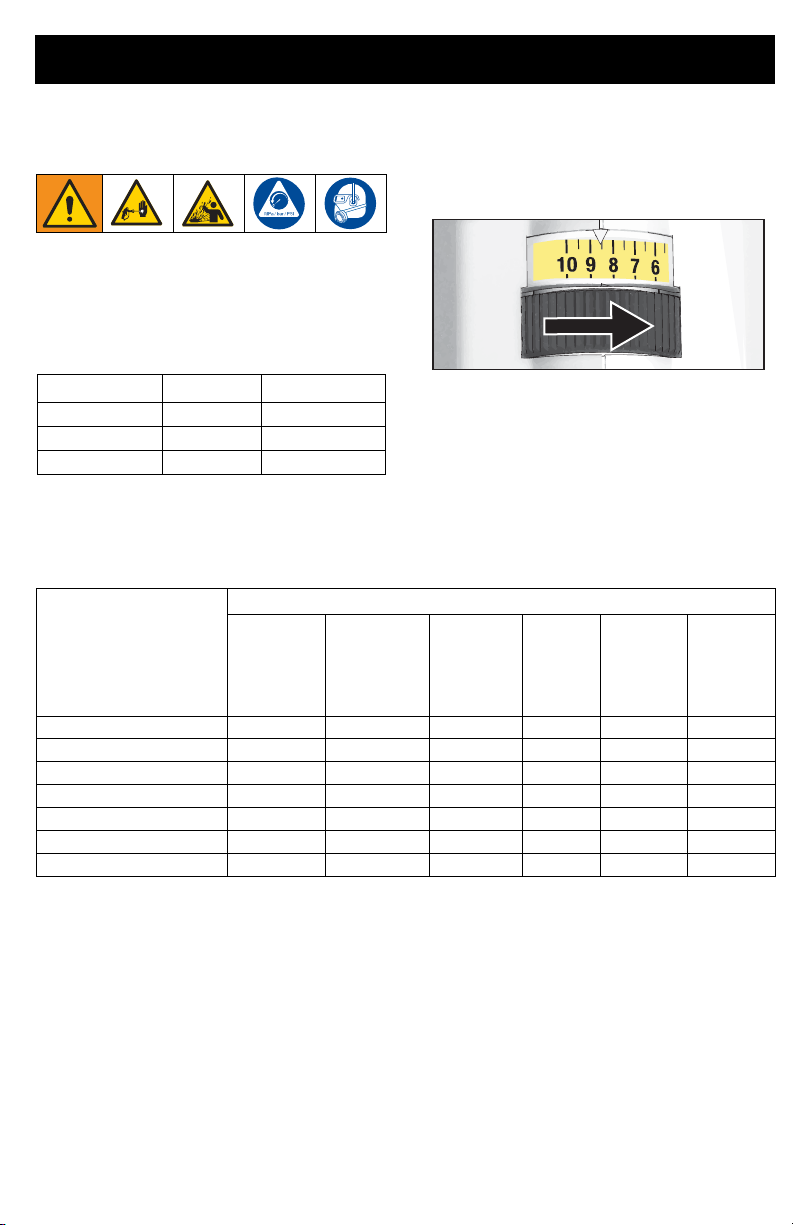

The speed control allows for infinite pressure
adjustment. To reduce overspray, always
start at lowest speed setting and increase
speed to the minimum setting that results in
an acceptable spray pattern.
Tip and Pressure Selection
See table for recommended spray pressure for your material. Refer to paint (material) can for
manufacturer’s recommendations.
Coatings
Interior
Stains/
Interior &
Exterior
Clears
Speed Control 1 – 5 6 – 10 6 – 10 6 – 10 6 – 10 6 – 10
Tip hole Size
0.008 in. (0.20 mm)
0.010 in. (0.25 mm)
0.012 in. (0.30 mm)
0.014 in. (0.36 mm)
0.016 in. (0.41 mm)
Exterior
Solid Stains Enamels Primers
Interior
Latex
Paints
ti29773a
Exterior
Latex
Paints
Spray Techniques
Use a piece of scrap cardboard to practice
these basic spraying techniques before you
begin spraying the surface.

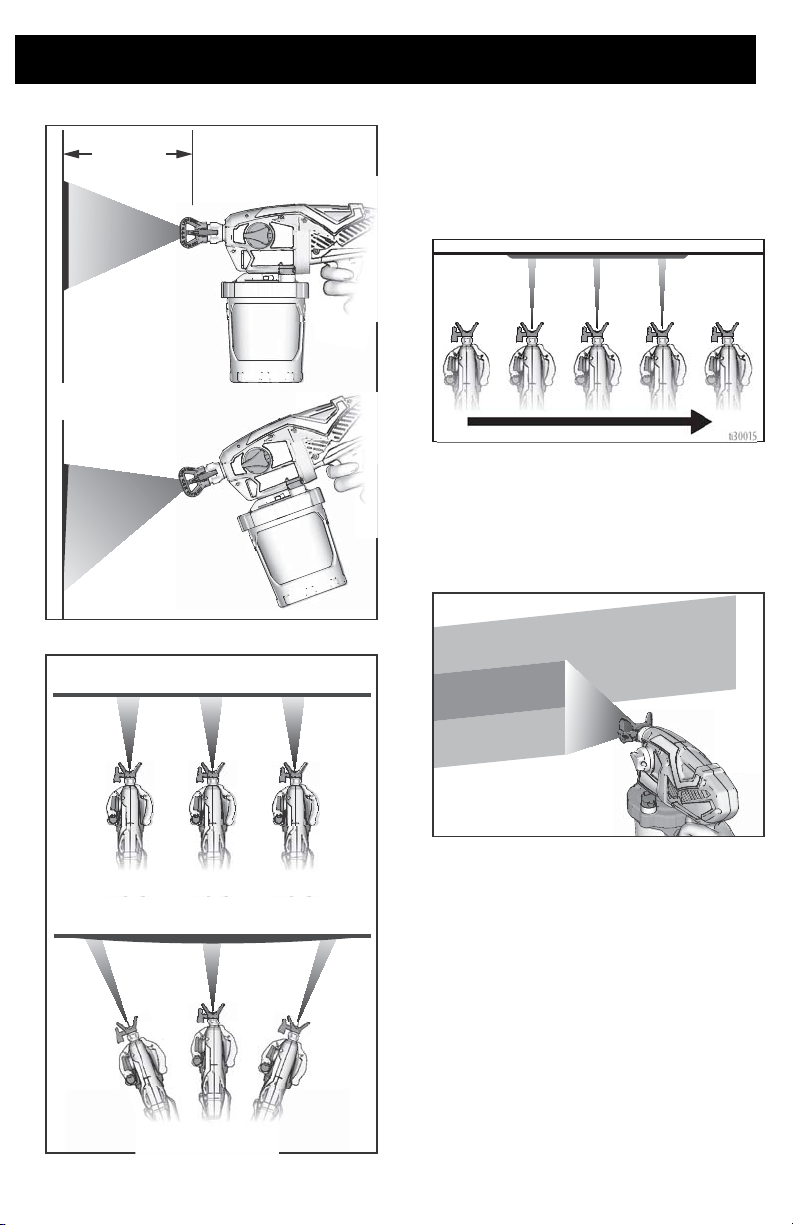

• Hold sprayer 12 in. (30 cm) from surface
and aim straight at surface. Tilting the
sprayer to direct the spray angle causes
an uneven finish.
3A4803A 15
• Flex wrist to keep sprayer pointed
straight. Fanning sprayer to direct spray
at angle causes uneven finish.
NOTE: How fast you move the sprayer will
affect spray application. If material is uneven,
you are moving too fast. If material drips, you
are moving too slow. See Troubleshooting,
page 35.
Page 16
How to Spray
ti29743a
EVEN
FINISH
UNEVEN
FINISH
THICK
THIN
12 in.
(30 cm)
ti29744a
EVEN FINISH
THICK THINTHIN
ti29745a
Triggering Sprayer
Pull trigger after starting stroke. Release
trigger before end of stroke. Sprayer must be
moving when trigger is pulled and released.
ti30015a
Aiming Sprayer
Aim sprayer at bottom edge of previous
stroke, overlapping each stroke by half.
16 3A4803A
Rotating the spray tip guard changes the
pattern to either the vertical or horizontal
orientations.
Page 17
How to Spray
ti29746a
GOOD PATTERN
BAD PATTERN
TAILS
TAILS
When spraying vertical corners turn spray tip
guard to the horizontal orientation and move
sprayer up and down.
Spray Pattern Quality
A good spray pattern is evenly distributed as
it hits the surface.
• Spray should be atomized (evenly
distributed, no gaps at edges).
Clear Tip Clog
In the event that particles or debris clog the
spray tip, this sprayer is designed with a
reversible spray tip that quickly and easily
clears the particles without disassembling the
sprayer. See for Strain the Paint, page 12 for
additional information.
1. To unclog spray tip, turn Prime
Pump/Spray knob down to Prime Pump
position.
ti29755a

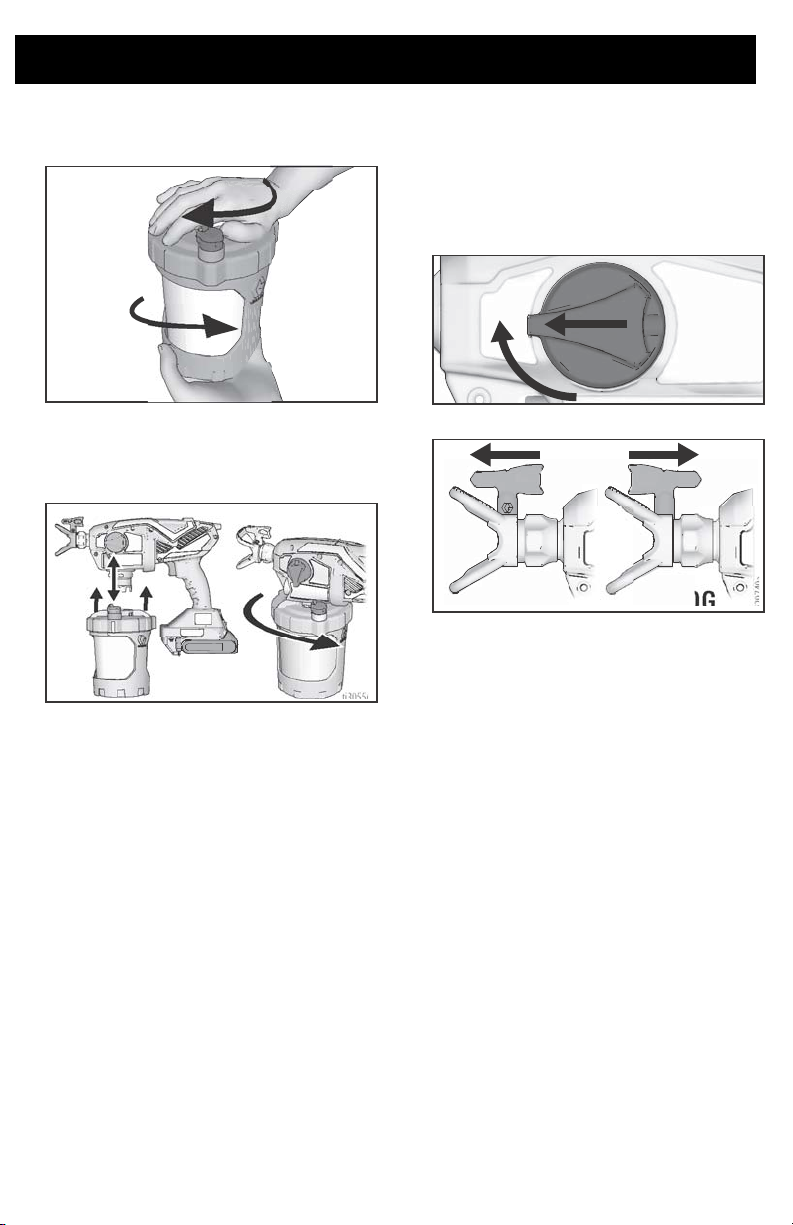

2. Reverse spray tip to UNCLOG position.
SPRAY UNCLOG
ti29754a
If tails persist when spraying at the highest
spray pressure:
• Spray tip may be worn. See Tip and
Pressure Selection, page 15.
• A smaller spray tip may be needed.
• Material may need to be thinned. Follow
manufacturers recommendations.
3A4803A 17
3. Set speed control to 10.
ti29773a
ti29740a
Page 18
How to Spray

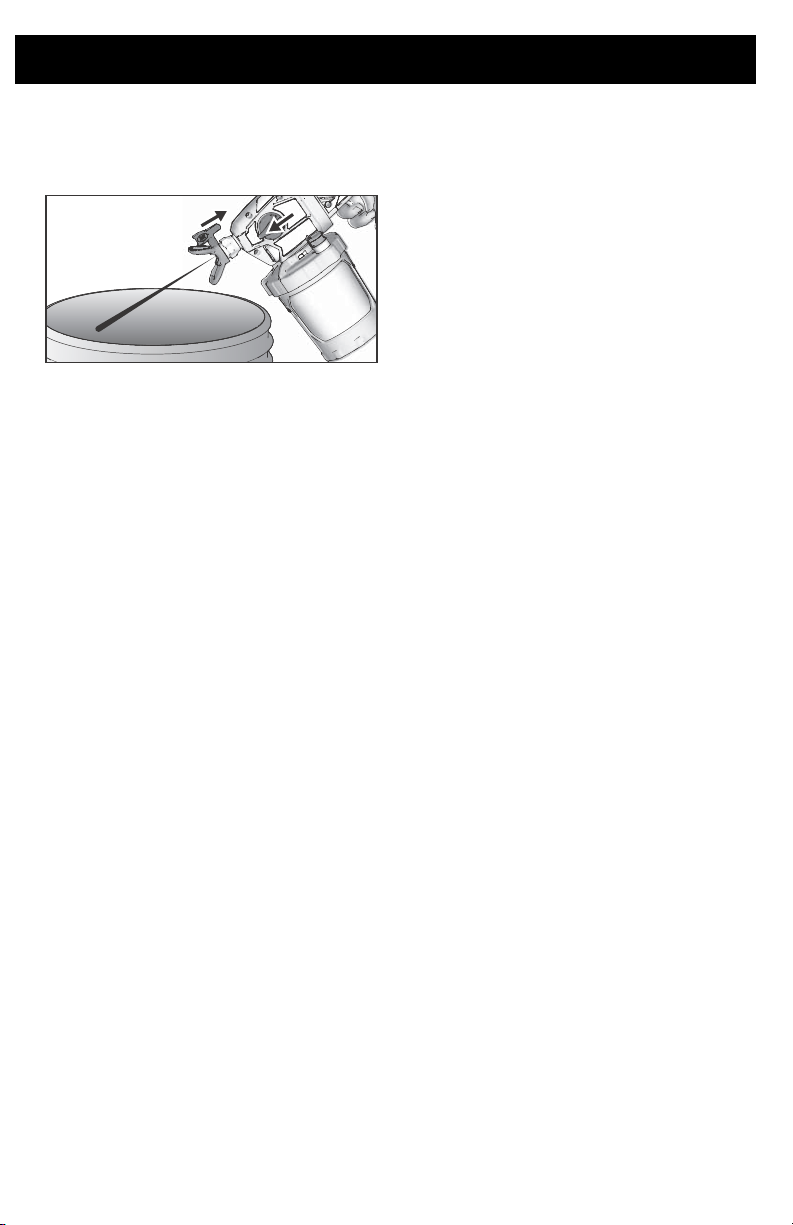

4. Aim sprayer at waste area, turn Prime
Pump/Spray knob forward to spray
position. Pull trigger to clear clog.
ti29774a
5.
Turn Prime Pump/Spray knob down to
Prime position.
SPRAY position. Turn Prime
Pump/Spray knob forward to SPRAY
position, and resume spraying.
6. If spray tip is still clogged, you may have
to repeat steps 1 – 5, or replace with new
spray tip assembly. See Spray Tip
Installation, page 24.
Rotate spray tip back to
18 3A4803A
Page 19
Cleanup
ti29756a
Cleanup
Cleaning your sprayer properly and after every
spray job is of the utmost importance! Proper
care and maintenance will make your paint
sprayer last and work for you trouble free. See
Cleaning Fluid Compatibility
Static Grounding Instructions (Oil-Based
or flammable materials)
additional information when using oil-based or
flammable materials.
, page 28 and
, page 28 for
NOTICE
Failure to properly clean sprayer after each
use will result in hardened materials, damage
to the sprayer, and the warranty will no longer
be valid. Do not store solvents other than
mineral spirits in sprayer. Always flush with
Graco Pump Armor prior to storage.
Cleaning Sprayer

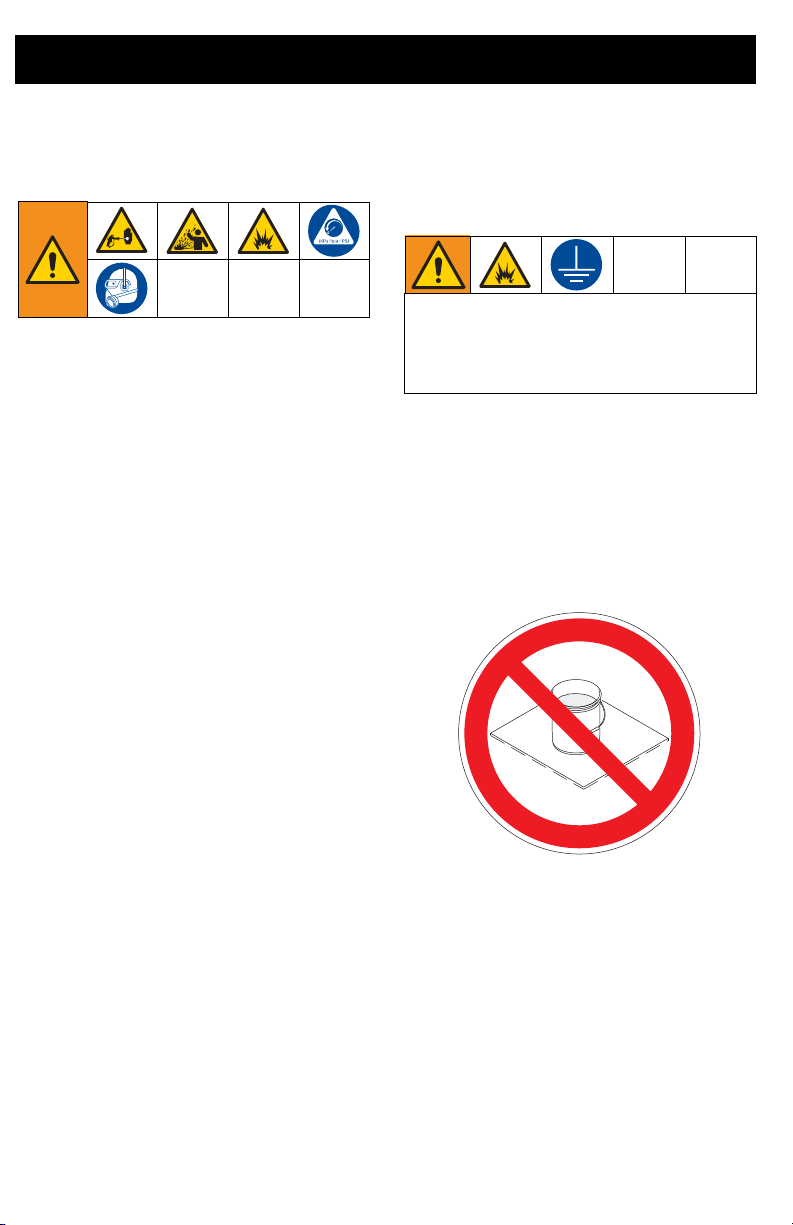

To avoid serious injury or damage to
equipment:
• Do not spray solvents through the
spray tip. Clean the tip in a bucket of
compatible solvent.
• Clean in a well-ventilated area. Keep a
good supply of fresh air moving through
the area.
1. Turn Prime Pump/Spray knob to Prime
Pump to relieve pressure.
2. Separate the cup support with FlexLiner
from the cup cover/sprayer.
ti31167a
• When flushing with solvents, always
ground the sprayer and waste
container.
• Do not expose the sprayer electronics
to flushing solvents. Keep sprayer at
least 10 in. (25cm) above the rim of the
container when flushing.
3A4803A 19
Page 20
Cleanup
ti29759a
ti29756b
ti30558a
3. Set the sprayer upside down on a flat
surface. This will keep the wet paint in
the cup cover. Return excess material to
original container. Hold the FlexLiner in
place when pouring.
4. You can either dispose of the used
FlexLiner and install a new FlexLiner or
clean a used FlexLiner.

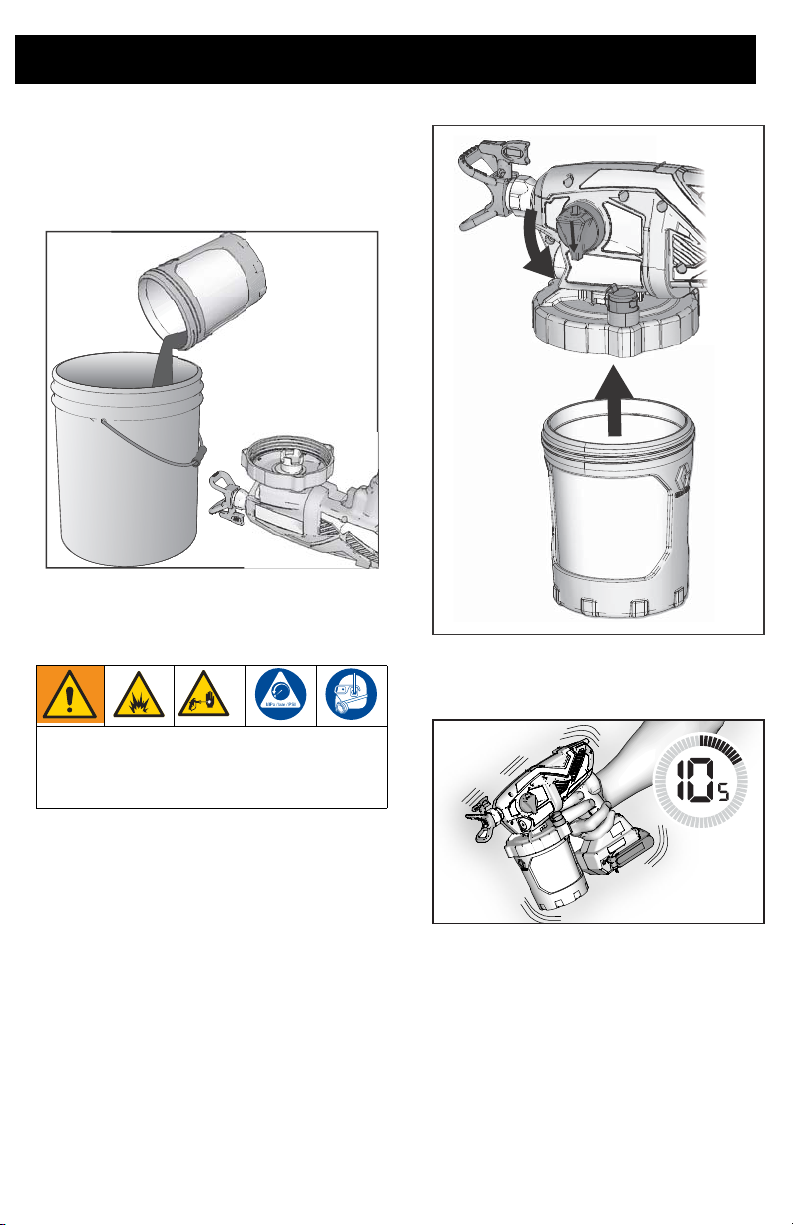

7. To clean the cup cover and pump filter
shake the entire sprayer for ten seconds.
To avoid fire and explosion do not spray
solvents through the spray tip. Remove
spray tip, spray tip guard and clean in a
bucket of compatible solvent.
5. To clean the sprayer, fill FlexLiner
approximately half-full with appropriate
cleaning fluid (warm water or mineral
spirits).
6. Securely tighten cup support with
FlexLiner to cup cover/sprayer.
20 3A4803A
Page 21
Cleanup
ti29767a
ti30231a

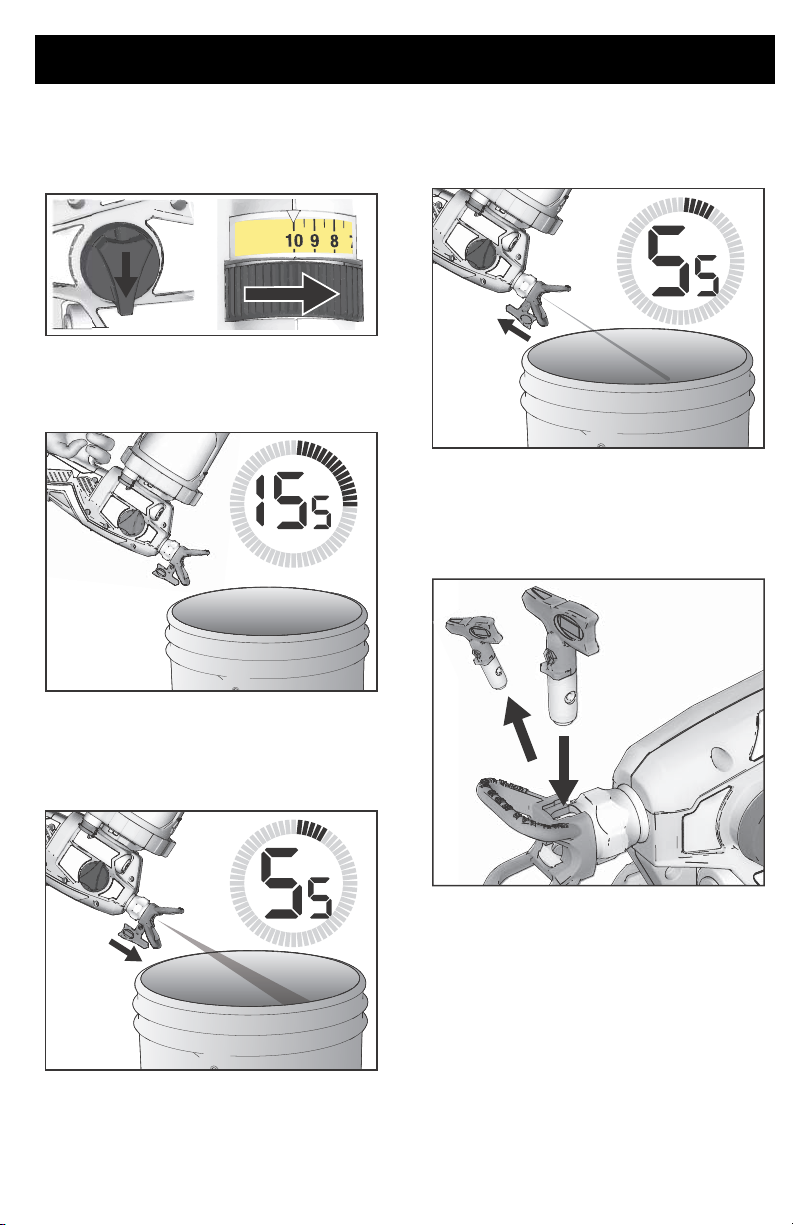

8. Make certain the Prime Pump/Spray
knob is in the Prime Pump position
(pointed down). Set speed control to 10.
ti29766a
9. Turn the sprayer upside down and point
the sprayer into a waste pail. Pull the
trigger for 15 seconds.
b. Reverse the spray tip to UNCLOG
position, pull the trigger for five
seconds. Release the trigger.
ti30232a
12. If second spray tip was used, remove
cleaned spray tip from spray tip guard
and install second spray tip. See
Tip Installation
, page 24. Repeat steps
Spray
10 and 11 to clean second spray tip.
10. Turn Prime Pump/Spray knob forward to
SPRAY position.
11. While holding the sprayer upside down
point the sprayer into a waste pail.
ti29768a
13. Remove cup assembly and discard used
fluid. Dispose of used cleaning fluid
properly.
14. Replace cleaning fluid and repeat steps
5 – 13 until spray output is clean.
IMPORTANT! For best results, do not spray
more than one cup of water through the tip
while cleaning. If more flushing is needed,
a. With the spray tip in the SPRAY
position, pull the trigger for five
remove the tip from the sprayer to avoid
excessive wear.
seconds. Release the trigger.
3A4803A 21
Page 22
Cleanup
ti29769a
ti23372a
ti30635a
ti23406a
15. Remove spray tip, spray tip guard, and
pump filter. Clean with appropriate
cleaning fluid (water or mineral spirits). A
soft brush can be used to loosen and
remove dried material if needed.
16. Use a soft cloth to clean the cup support
and cup cover.
This sprayer is
equipped with a
static wick that
reduces the
build-up of static
charge to
reduce the risk
of fire and
explosion.
KEEP THIS
SURFACE

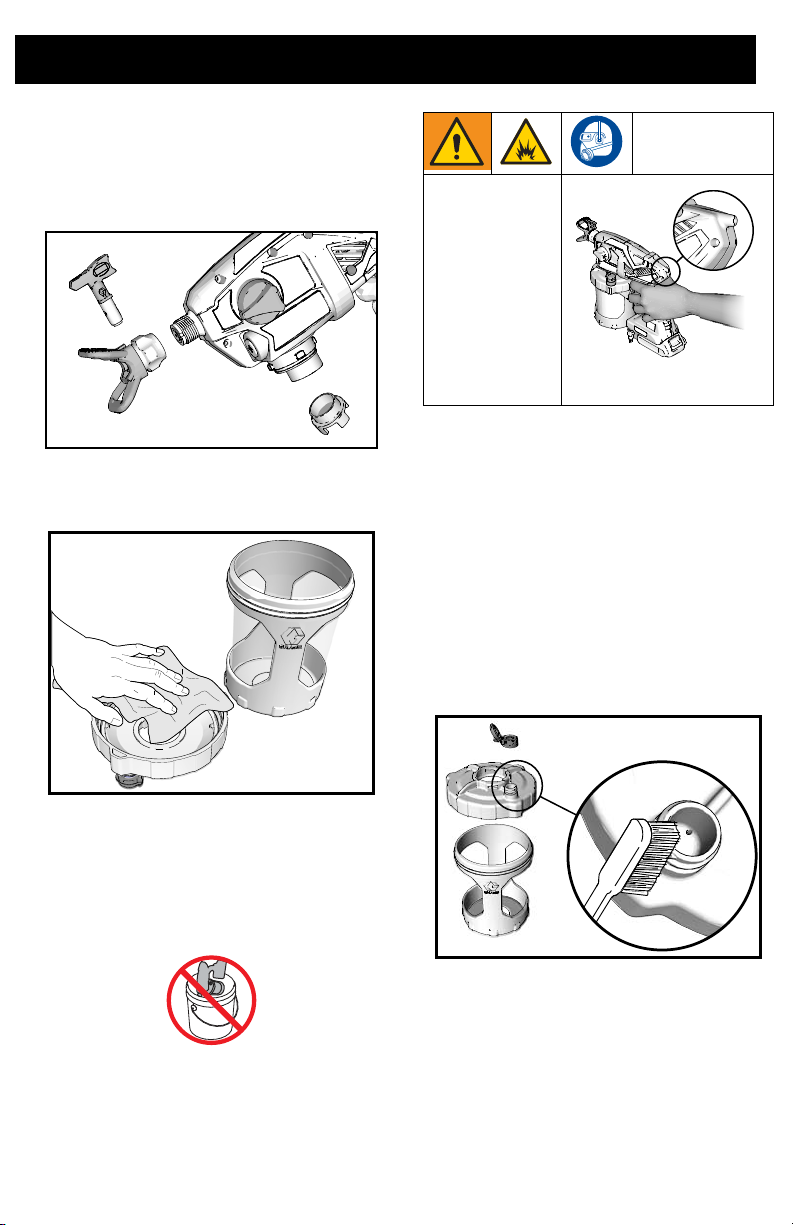

CLEAN OF
OVERSPRAY.
Cleaning VacuValve
The VacuValve is an important part of your
sprayer and it should be cleaned after every
use.
1. Remove VacuValve cap from cup cover
and clean it.
2. Clean VacuValve reservoir in lid.
3. Clean VacuValve air hole. If VacuValve
air hole becomes clogged, use a paper
clip to clean the hole.
Cleaning Sprayer Exterior
Wipe paint off the outside of the sprayer using
a soft cloth moistened with water or flushing
fluid. Do NOT submerge the sprayer.
22 3A4803A
Page 23
Storage
ti29770a
ti29771a
With proper storage, the sprayer will be ready
to use the next time it is needed.
NOTICE
Failure to store sprayer with Pump Armor
can result in operational problems the next
time you spray. Always circulate Pump
Armor through the sprayer after cleaning.
Water or solvents other than mineral
spirits left in the sprayer will corrode
and damage the pump.
Pump Armor fluid protects the sprayer while
in storage. It helps protect sprayer against
freezing and corrosion when not in use.
1. Clean the sprayer and cup assembly.
See Cleanup, page 19.
2. Turn Prime Pump/Spray knob down to
the Prime Pump position. Remove cup
support and FlexLiner. Make certain that
VacuValve cap is closed.
Storage
6. Install a clean pump filter into pump
opening.

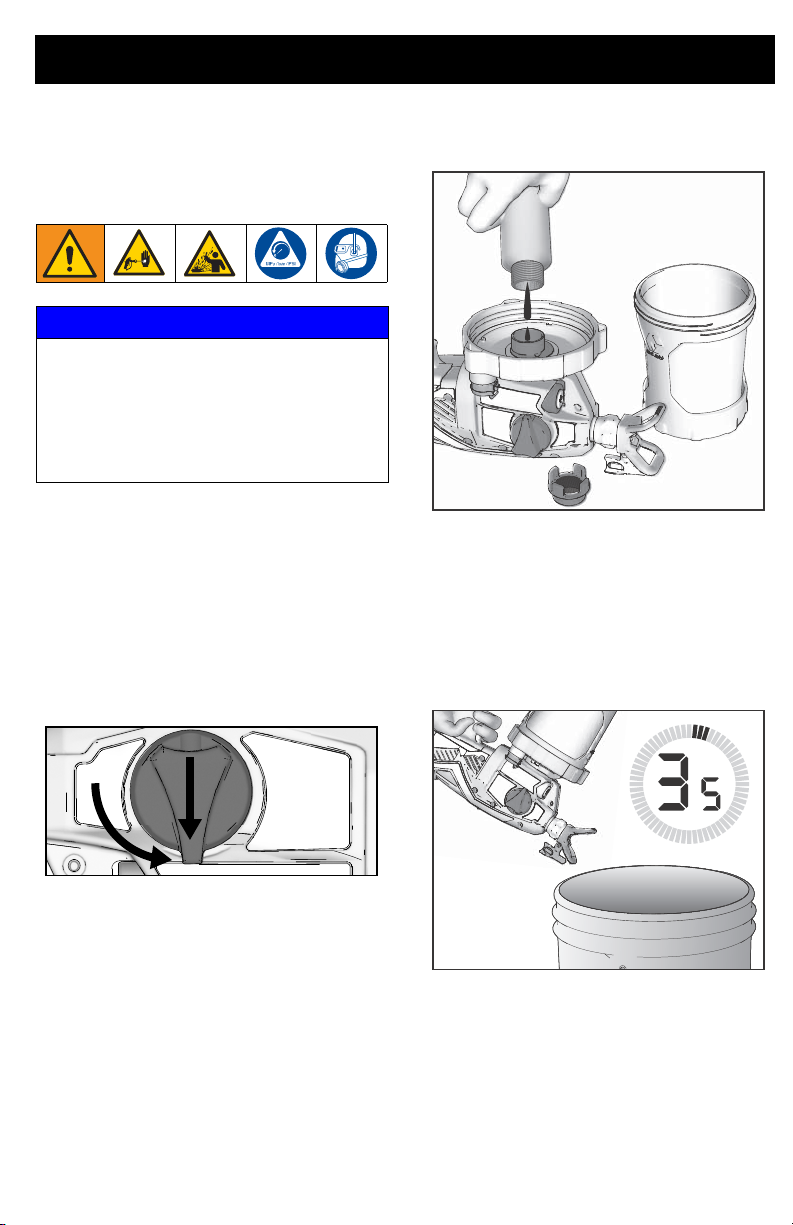

7. With sprayer upside-down attach cup
support with FlexLiner to sprayer.
8. Holding sprayer upside-down over a
waste container, pull sprayer trigger for
three seconds.
ti29755a
3. Separate the cup support with FlexLiner
from the cup cover/sprayer. Set the
sprayer upside down on a flat surface.
4. Remove pump filter from pump opening.
Turn Prime Pump/Spray knob forward to
5. With the sprayer upside-down pour
approximately 2 oz. (60 ml) PUMP
ARMOR into pump opening.
3A4803A 23
9.
spray position. Remove cup assembly
and pour any remaining Pump Armour
back into Pump Armor bottle. Replace
child-resistant cap and tighten securely
for storage.
10. Store sprayer indoors in a cool, dry place.
Store in an
upright position only
.
Page 24
Common Procedures
ti24653a
C
B
A
ti24664a
Common Procedures

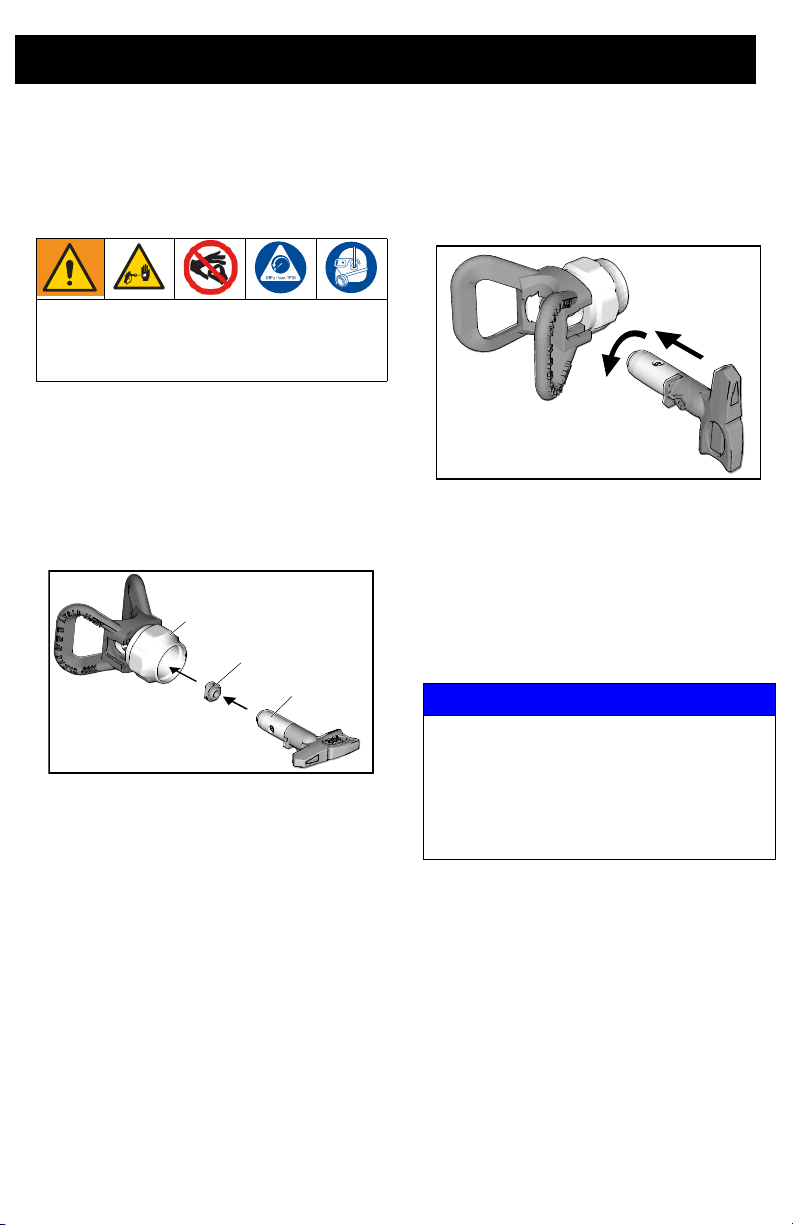

Spray Tip Installation
To avoid serious injury from skin injection
do not put your hand in front of the spray tip
when installing or removing the spray tip
and tip guard.
To prevent spray tip leaks make certain spray
tip and tip guard are installed properly.
1. Perform Pressure Relief Procedure,
page 11.
Use spray tip (A) to insert seal (B)
2.
into tip guard (C).
3. Insert Spray Tip. Spray tip must be
pushed all the way into the tip guard.
4. Screw spray tip and tip guard assembly
onto the gun and hand tighten.
•
Spray tips wear with use and abrasive
paint and need periodic replacement.
• If the spray pattern is poor, you may have
a worn spray tip. Replace spray tip. See
Spray Pattern Diagnostics, page 38.
NOTICE
Spray tips must be cleaned or stored in
appropriate cleaning fluid (water, mineral
spirits, or compatible oil-based solvent)
immediately after use to ensure material is
not allowed to dry in spray tip. Failure to do
so will result in damage to the spray tip.
See Cleanup, page 19.
24 3A4803A
Page 25
Common Procedures
ti29775a
ti23676a
ti23361a
ti23383a
Flush a New Sprayer
Always start with a fully charged battery.
Refer to battery and charger information
provided.
This sprayer arrives from the factory with a
small amount of test material in the system.
is important that you flush this material
from the sprayer before using it for the first
time.
See
Cleaning Fluid Compatibility
page 28 and
(Oil-Based or flammable materials)
28 for additional information when using
oil-based or flammable materials.

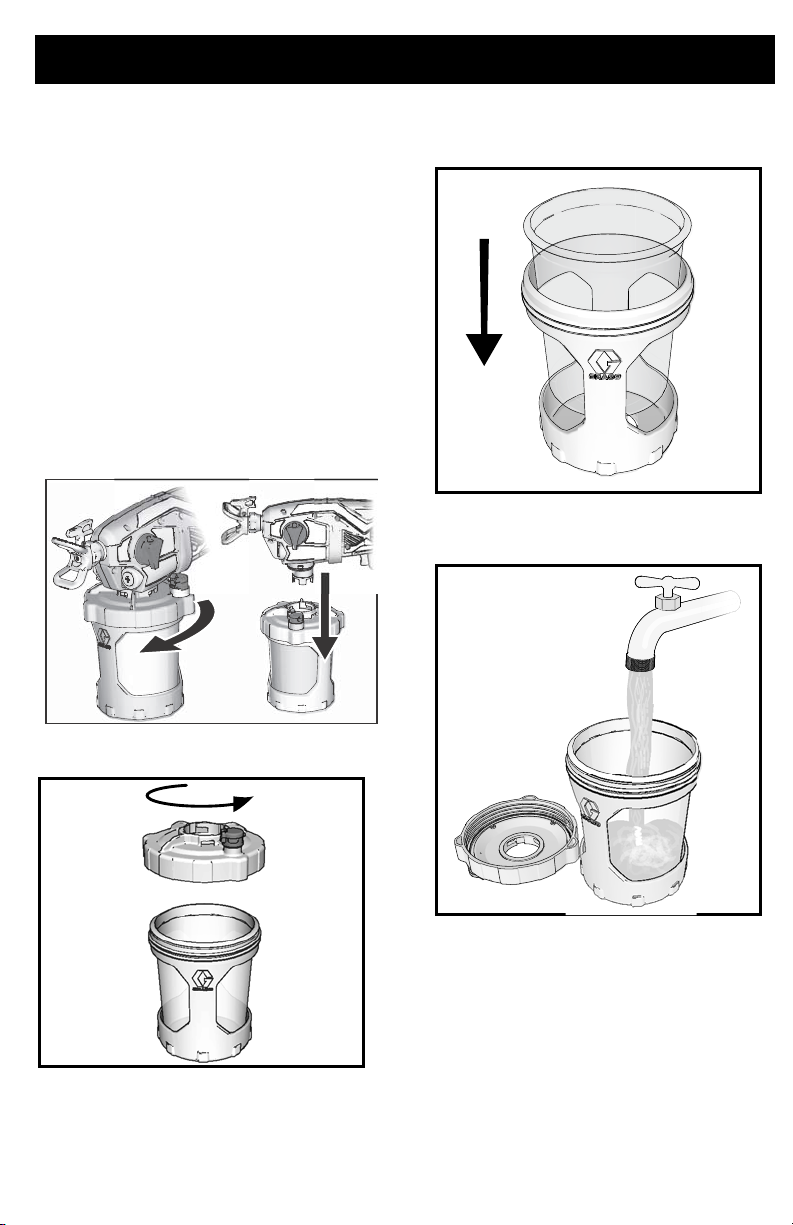

1. Remove cup assembly from the sprayer
by turning and pulling down.
Static Grounding Instructions
, page
3. Make certain FlexLiner is in the cup
support.
It
,
4. Fill FlexLiner with cleaning fluid.
Cleaning Fluid Compatibility, page 28
See
.
2. Unscrew cup cover from the cup support.
3A4803A 25
Page 26
Common Procedures
ti29719a
ti29739a
5. Securely tighten cup cover onto cup
support.
6. Align VacuValve on cup cover with
Prime Pump/Spray knob. Push cup
assembly onto sprayer and twist to lock.
ti30556a
7. Install battery onto sprayer.
8. Make certain the Prime Pump/Spray
knob is in the Prime Pump position
(pointed down). Set speed control to 10.
9. Turn the sprayer upside down and point
the sprayer into a waste pail. Pull the
trigger for three seconds.
10. Turn Prime Pump/Spray knob forward to
SPRAY position. Rotate spray tip 180
degrees to UNCLOG position.
SPRAY UNCLOG
11. While holding the sprayer upside down
point the sprayer into a waste pail. Pull
the trigger for three seconds.
IMPORTANT! For best results, do not spray
more than one cup of water through the tip
while cleaning. If more flushing is needed,
remove the tip from the sprayer to avoid
excessive wear.
12.
Sprayer is now flushed and ready for
use. See Start Up, page 11.
ti29740a
26 3A4803A
Page 27
Reference
ti29772a

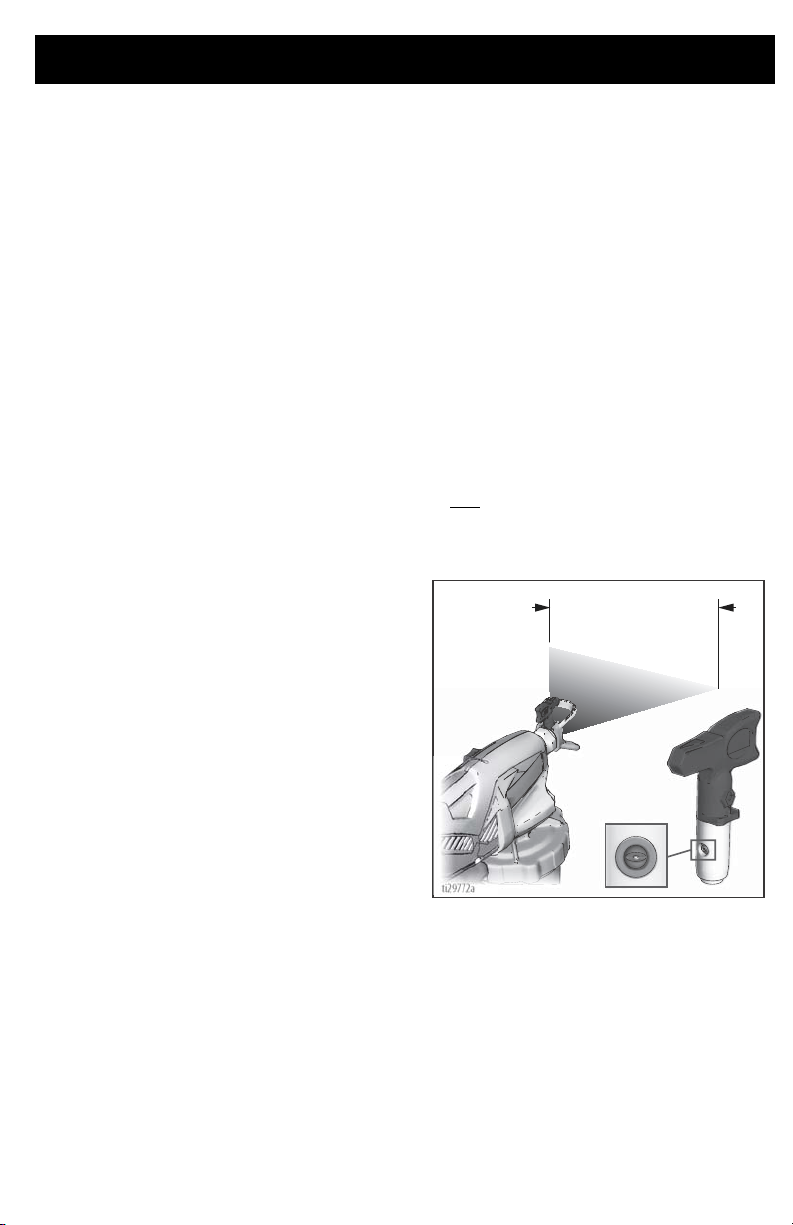

412 tip has 8-10 in.
(20-25 cm) fan width.
412 tip has a
0.012 in.
hole size.
Reference
Spray Tip Selection
Selecting Tip Size
Spray tips come in a variety of hole sizes for
spraying a range of fluids. Your sprayer
includes a tip for use in most paint spraying
applications. Use the coatings table on page
15 to determine the range of recommended
tip hole sizes for each fluid type. If you need
a tip other than the one supplied, see the How
to Spray, page 15.
NOTE: For proper sprayer operation use only
a tip from the same tip family that came with
your sprayer. See Tip Family, page 15.
Hints:
•
As you spray, the tip wears and
enlarges. Starting with a tip hole size
smaller than the maximum will allow you
to spray within the rated flow capacity of
the sprayer.
• Use larger tip hole sizes with thicker
coatings and smaller tip hole sizes with
thinner coatings.
• Tips wear with use and need periodic
replacement.
• Tip hole size controls flow rate - the
amount of paint that comes out of the
gun.
Fan Width
Fan width is the size of the spray pattern,
which determines the area covered with each
stroke.
Hints:
•
Select a fan width best suited to the
surface being sprayed.
• Wider fans allow provide better
coverage on broad, open surfaces.
• Narrower fans provide better control on
small, confined surfaces.
Understanding Tip Number
The last three digits of tip part number (i.e.:
xxx412
) contains information about hole size
and fan width on surface when gun is held 12
in. (30.5 cm) from surface being sprayed.
3A4803A 27
First digit when doubled = approximate fan
width.
Last two digits = tip hole size in thousands of
an inch.
For an 8 to 10 in. (203 to 254 mm) fan width and
0.010 (0.25 mm) hole size, order Part No. …410.
Page 28
Reference
Cleaning Fluid Compatibility
Oil-Based or Flammable or
Water-Based Materials
•
When spraying water-based materials,
flush the system thoroughly with water.
• When spraying oil-based or flammable
materials, flush the system thoroughly
with mineral spirits or compatible,
flushing solvent.
•
To spray
spraying oil-based
materials, flush the system thoroughly
with water first. The water flowing out of
drain tube should be clear and solvent-free
water-based material.
• To spray oil-based or flammable
materials after spraying water-based
materials, flush the system thoroughly
with mineral spirits or a compatible
flushing solvent first. The solvent flowing out of the drain tube should not contain any water. When flushing with
solvents always follow Static Ground-
ing Instructions (Oil-Based or flammable materials), page 28.
• To avoid fluid splashing back on your
skin or into your eyes, always aim gun at
inside wall of pail.
water-based
before
materials
or flammable
you begin spraying the
after
Static Grounding Instructions (Oil-Based or flammable materials)
The equipment must be grounded to
reduce the risk of static sparking. A static
spark can cause fumes to ignite or explode.
A good ground provides an escape wire for
the electric current.
Always use a metal pail for oil-based or
flammable materials when sprayer is flushed
or pressure is relieved.
Follow local code. Use only conductive metal
pails, placed on a grounded surface such as
concrete.
Do not place pail on a non-conductive surface
such as paper or cardboard which interrupts
grounding continuity.
28 3A4803A
Page 29
Maintenance
(5mm)
0"
(0mm)
ti30369a
Maintenance
Routine maintenance is important to ensure proper operation of your sprayer.
Move sprayer to a well-ventilated area and
away from flammable or combustible
materials, including paints and solvents.
Activity Interval
Inspect pump filter. Daily or each time you spray
Inspect enclosure vents for blockage.
Inspect pump inlet holes located under pump filter for blockage.
Daily or each time you spray
Each time the sprayer is cleaned
Cleaning Outlet Valves
Dirt and debris in the outlet valve assemblies
may affect sprayer performance and require
cleaning.

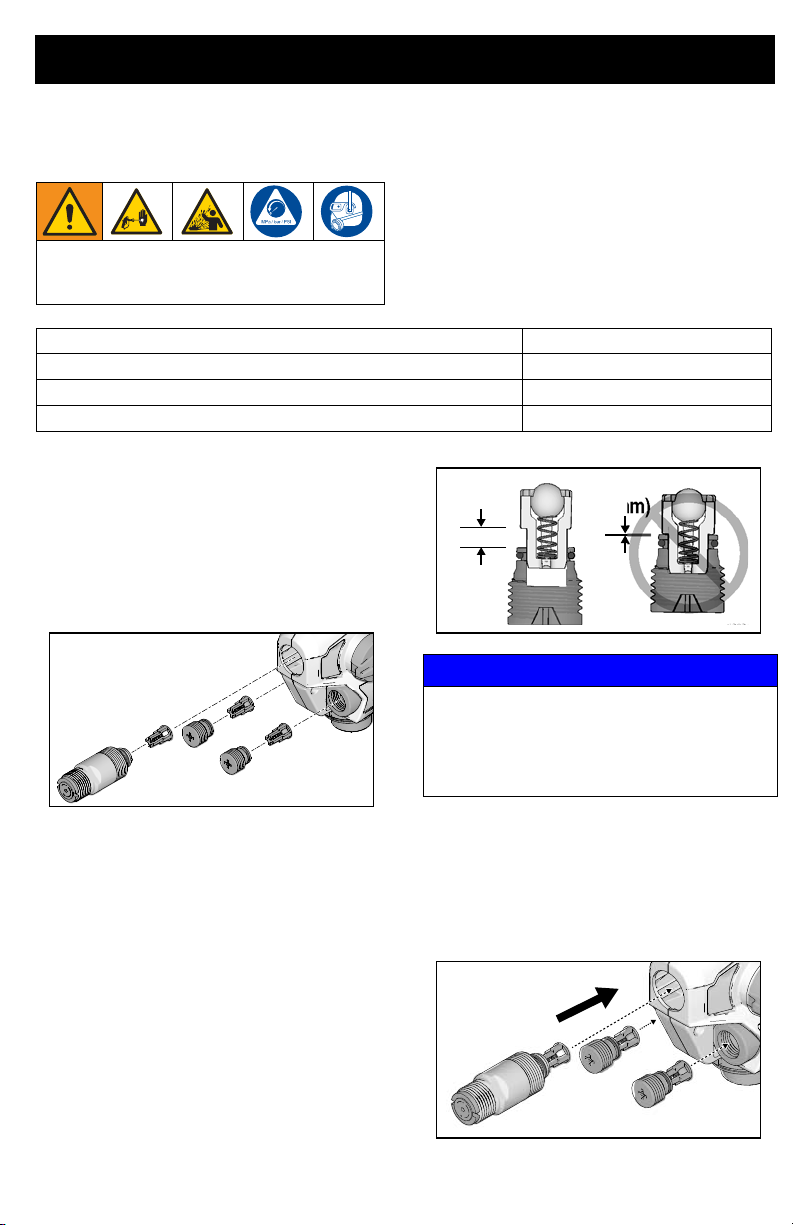

1. To clean the three outlet valves, remove
two pump plugs and front valve.
ti30366a
2. Clean outlet valve assemblies with warm
water or mineral spirits.
3. Check ball should move freely against
the spring in the retainer.
4. If outlet valve assembly was removed
from the valve plug, assemble as shown.
Leave a space between the end of the
plug or front valve and shoulder on the
outlet valve assembly.
3/16"
ti30367a
NOTICE
Do not push outlet valves all the way into
the valve plugs or front valve. If outlet
valves are pushed all the way into the valve
plugs or front valve the sprayer will spray
with reduced performance.
a. Make certain o-rings are on the
valve plugs and front valve.
b. Install two pump plugs and front
valve. Torque outlet valve and
pump plugs, see page 32 for
torques.
3A4803A 29
Page 30
Maintenance
ti30561a
Grounding Wire Repair
If the grounding wire breaks at the spool end,
perform the following steps:

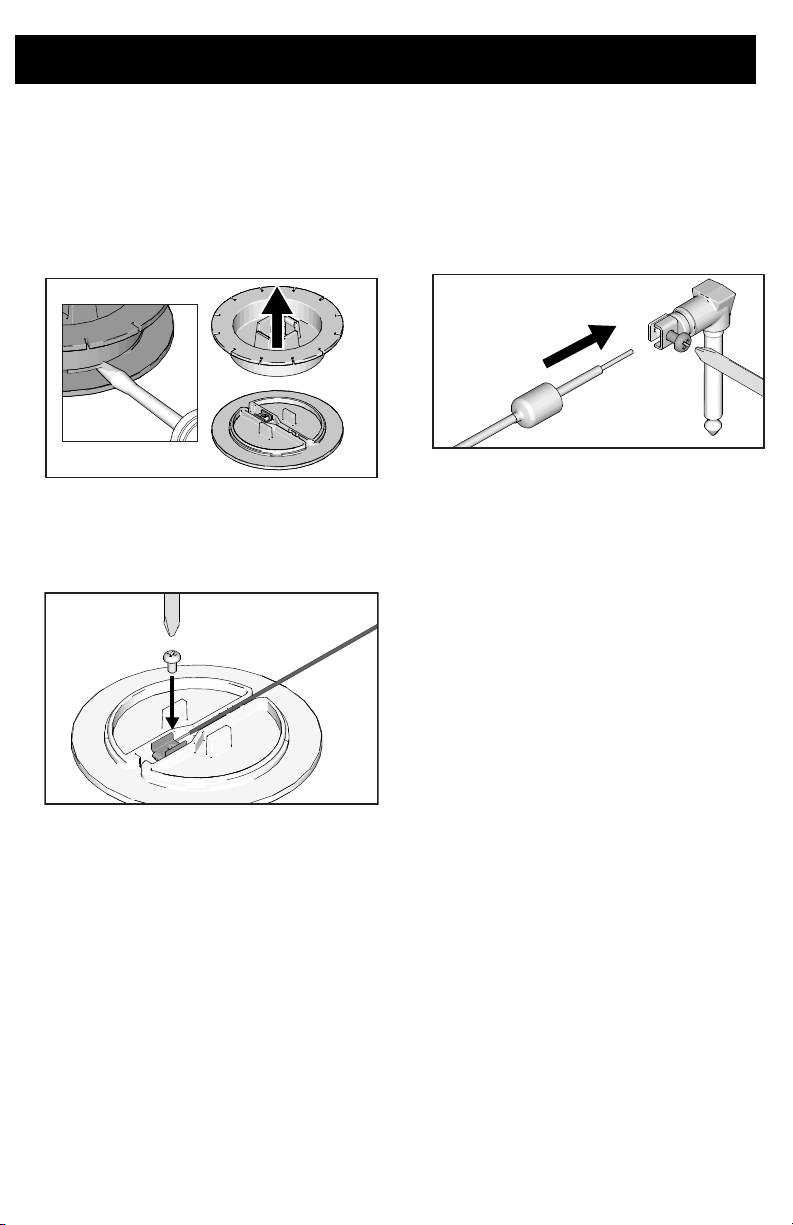

1. Unwind wire from grounding spool and
use a flat screwdriver to pry apart the
grounding spool.
ti30560a
2. Loosen screw on terminal and remove
broken wire. Strip insulation from
grounding wire, insert into terminal and
tighten screw.
3. Snap the grounding spool back together.
If the grounding wire breaks at the
grounding plug, perform the following
steps:
1. Pull rubber boot off of wire at grounding
plug and slide boot over grounding wire.
ti30563a
2. Loosen screw and remove broken wire.
Insert stripped grounding wire and
tighten screw.
3. Replace rubber boot onto grounding
plug.
30 3A4803A
Page 31
Notes
Notes
3A4803A 31
Page 32

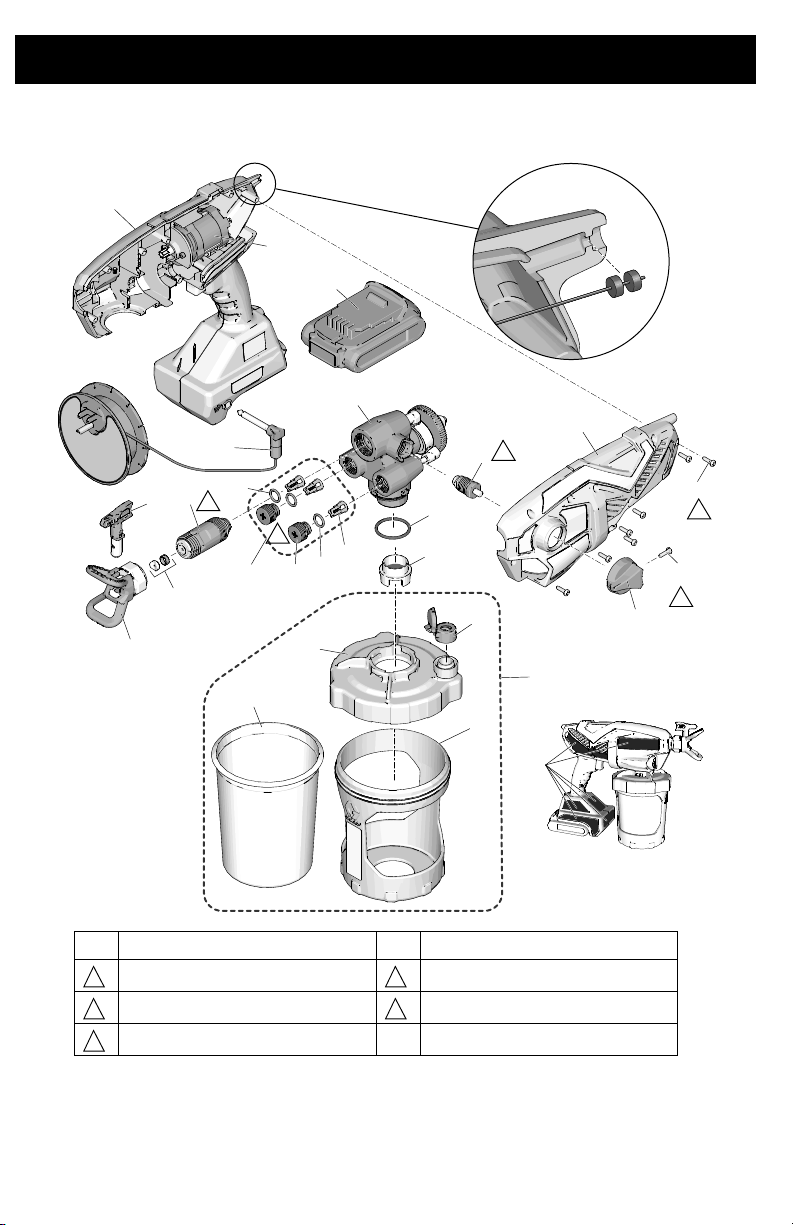

Replacement Parts
1
12
38
34
31
37
37a
18
9
54
4a
50
4b
51
4
25
30
36
29
14
15
13
19
16
52
11
3
ti30563a
7
2
1
3
4
Ref. Torque Ref. Torque
10 in-lb (1.1 N•m) 55-65 in-lb (6.2 - 7.3 N•m)
8-10 in-lb (0.9 - 1.1 N•m) 5-7 in-lb (0.6 - 0.8 N•m)
10-15 in-lb (1.1 - 1.7 N•m)
14273
Replacement Parts
32 3A4803A
Page 33
Replacement Parts
Parts List
Ref. Sprayer Name Part # Description
1All17P187 Kit, pump assembly includes 4, 9, 11, 25
3 All 17P554 Filter. pump, 60 mesh, 3 pack
All 17P555 Filter. pump, 100 mesh, 3 pack
4All17P183 Kit, outlet valve repair includes 3 of 4a, 2 of 4b, 2 of 50,1 of 51
4a All Outlet valve assembly
4b All Outlet valve plug
9All17R420 Prime Pump/Spray valve includes 18, 1 of 37a
11 All 125249 O-ring
12 All 17P181 Kit, Smartcontrol with enclosure includes 31, 34, 7 of 37, 34, 52
13 All 17N517 Lid, cup includes 1 of 19
All 17A226 FlexLiner, 32 oz. (3-pack)
14
15
16
17 All 17M879 Plug, cup lid, not shipped with sprayer (not shown)
18 All 17M882 Prime Pump/Spray knob
19 All 17P712 VacuValve cap (3-pack)
20
25 All 17P175 Kit, front valve includes 51
29
30
31 17P236 Kit, enclosure, cover includes 7 of 37
34 Motor, part of Smartcontrol and enclosure (Ref. No. 12)
36 Kit, tip seat and seal (5-pack)
37 All 17R614 Screw, cross-head
37a All 128726 Screw, cross-head
All 17P212 FlexLiner, 32 oz. (25-pack)
All 17F005 FlexLiner, 42 oz. (3-pack)
All 17P549 FlexLiner, 42 oz. (25-pack)
Ultra MAX,
Ultimate MX
TC PRO PLUS 16W846 Support, cup, 32 oz.
Ultra MAX
Ultimate MX
TC PRO PLUS 17P674 Kit, label, brand (US)
Ultra MAX,
Ultimate MX
TC PRO PLUS 17P574 Guard, spray tip, TCP
Ultra MAX,
Ultimate MX
TC PRO PLUS
17N392 Support, cup, 32 oz.
17P551 Kit, cup support, lid and plug 32 oz. includes 13, 1 of 14, 15,
17P553 Kit, cup support, lid and plug 42 oz. includes 13, 1 of 14, 15,
17P671 Kit, label, brand (US)
17P672 Kit, label, brand (International)
17P673 Kit, label, brand (US)
17R596 Kit, label, brand (International)
246215 Guard, spray tip, FFLP
FFLP514 Spray tip, All Models
FFLP210 Spray tip, Models; 17M367, 17N222, 17N224, 17N225, 17P257,
FFLP410 Spray tip, Models; 17M368, 17M369, 17P258, 17P930
TCP514 Spray tip, Model; 17N223
TCP210 Spray tip, Model; 17N223
17P501 Standard
17P502 Solvent
17, 1 of 19
17, 1 of 19
17P928, 17P929
Continued on next page.
3A4803A 33
Page 34
Replacement Parts
Ref. Sprayer Name Part # Description
Li-ion Compact Battery Pack DEWALT
17P474 Models; 17M367, 17N222, 17N223. Models; 17P928 and 17P929
38 *
39 *
Ultra MAX,
40
50 All 118594 O-ring
51 All 117724 O-ring
- - - 17N222, 17N223,
52 All 17P688 Kit, warning labels includes medical alert card (not shown)
53
54 All 16H256 Reel, grounding Replacement available at no cost.
* Battery and charger are dependent upon in country requirements.
Replacement Danger and Warning labels, tags, and cards are available at no cost.
Ultimate MX
TC PRO PLUS 17N194 Case, storage (not shown)
17M367, 17P928,
17P929
17P557 Models; 17P257, 17P258, 17M368, 17M370 requires this battery.
17P556 Model; 17N224 requires this battery.
17P558 Model; 17N225 requires this battery.
17P475 Models; 17M367, 17N222, 17N223. Models; 17P928 and 17P929
17P560 Models; 17P257, 17P258, 17M368, 17M370 requires this charger.
17P559 Model; 17N224 requires this charger.
17P561 Model; 17N225 requires this charger.
17M883 Case, storage (not shown)
24D386 Pump Armor, 4 oz (not shown)
17R476 English, Spanish, Portuguese (Brazil)
17A134 English, Chinese, Korean
179960 English, Spanish, French
17F690 Dutch, German, Italian
requires this battery.
Models; 17N930 and 17P931 ships without the battery.
Li-ion Battery Charger DEWALT (not shown)
requires this charger.
Models; 17N930 and 17P931 ships without the charger.
Medical alert card
34 3A4803A
Page 35
Troubleshooting
844-241-9499
Check everything in this Troubleshooting
Table before you bring the sprayer to an
authorized service center.
Sprayer Diagnostics
Problem Cause Solution
Sprayer makes no sound
when trigger is pulled
Diagnostic light blinks two times
when trigger is pulled. Indicates
incorrect voltage.
Diagnostic light blinks three times
when trigger is pulled. Indicates
battery temperature is too hot or cold.
Diagnostic light blinks four times
when trigger is pulled. Indicates
locked rotor condition.
Diagnostic light does not blink when
trigger is pulled. Indicates battery is
not installed or is damaged.
Troubleshooting
Replace battery with a charged
battery.
Battery has reached end of life.
Replace the battery.
Allow battery to cool down or
warm up to room temperature.
Replace pump and/or motor
assembly.
Install battery or replace battery.
Replace Smartcontrol.
3A4803A 35
Page 36
Troubleshooting
Problem Cause Solution
Sprayer makes sound but
no material is sprayed
when trigger is pulled
Sprayer is not primed. Prime the pump. See Starting a
Prime Pump/Spray knob is in PRIME
PUMP position.
Spray tip is not in SPRAY position. Turn spray tip to SPRAY
Spray tip is clogged. See Clear Tip Clog, page 17.
Debris in paint. See Strain the Paint, page 12.
Pump filter plugged. See step 15 on page 22.
Speed control is set too low. Increase speed until unit sprays.
No or low material in material cup. Refill FlexLiner with material and
Pump has reached the end of its life. Replace pump assembly.
Diagnostic light blinks four times
when the trigger is pulled. Indicates a
locked rotor condition.
New Job, page 12.
Make certain there is only one
FlexLiner in the cup support.
Make certain the cup cover is
properly threaded to the cup
support. If threads are visible
below the cup cover when tight,
fully remove and reinstall to the
cup support so no threads are
visible when tight.
Make certain the cup cover is
tightened to cup support so the
arrow on cup cover is within
range of indicator on cup
support.
Make certain the cup assembly is
properly locked on the sprayer.
Make certain all the air is out of
the FlexLiner and the VacuValve
is properly closed.
Clean VacuValve reservoir and
air hole. See Cleaning
VacuValve, page 22.
Clean Sprayer. See Cleanup,
page 19.
Outlet valves are not installed
properly. See Cleaning Outlet
Valves, page 29.
Turn Prime Pump/Spray knob
forward to SPRAY position.
position.
prime the pump. See Refilling
FlexLiner, page 14.
Replace pump and/or motor
assembly.
36 3A4803A
Page 37
Troubleshooting
Problem Cause Solution
Sprayer sprays with poor
results
Pump will spray paint but
will not spray water
Paint leaks out of the cup
threads.
Spray tip is partially clogged. See Clear Tip Clog, page 17
Spray tip is not in correct position Rotate spray tip to SPRAY
Incorrect spray tip for application of
material.
Spray tip is worn or damaged Replace spray tip. See Spray
Material being sprayed is aerated
because it was shaken.
Material being sprayed is too cold to
spray.
Outlet valves are dirty or worn. Remove two pump plugs and
Pump has reached the end of its life. Replace pump assembly.
Pump has reached the end of its life. Replace pump assembly.
Cup not properly seated.
position.
Install different size spray tip.
See Tip and Pressure
Selection, page 15.
Tip Installation, page 24.
Do NOT shake material. Stir the
material or check the
manufacturer’s recommendation
for the material being sprayed.
Warm material.
front valve to gain access to the
three outlet valves. Clean outlet
valves, see Cleaning Outlet
Valves, page 29. Replace if
necessary.
Make certain that there is only
one FlexLiner in cup support.
Make certain the cup cover is
properly threaded to the cup
support. If threads are visible
below the cup support when
tight, fully remove the cup cover
and reinstall to the cup support
so no threads are visible when
tight.
Make certain the cup cover is
tightened to the cup support so
the arrow on the cup cover is
within range of the indicator on
the cup support.
Avoid flexing or pushing on the
cup support when you evacuate
the air out of the FlexLiner.
Avoid pulling down on the
FlexLiner when you evacuate the
air out of the FlexLiner.
Make certain there is no damage
to the FlexLiner lip or the cup
cover gasket.
Make certain that the FlexLiner
lip and cup cover gasket is free of
debris and dried paint.
Replace FlexLiner.
.
3A4803A 37
Page 38
Troubleshooting

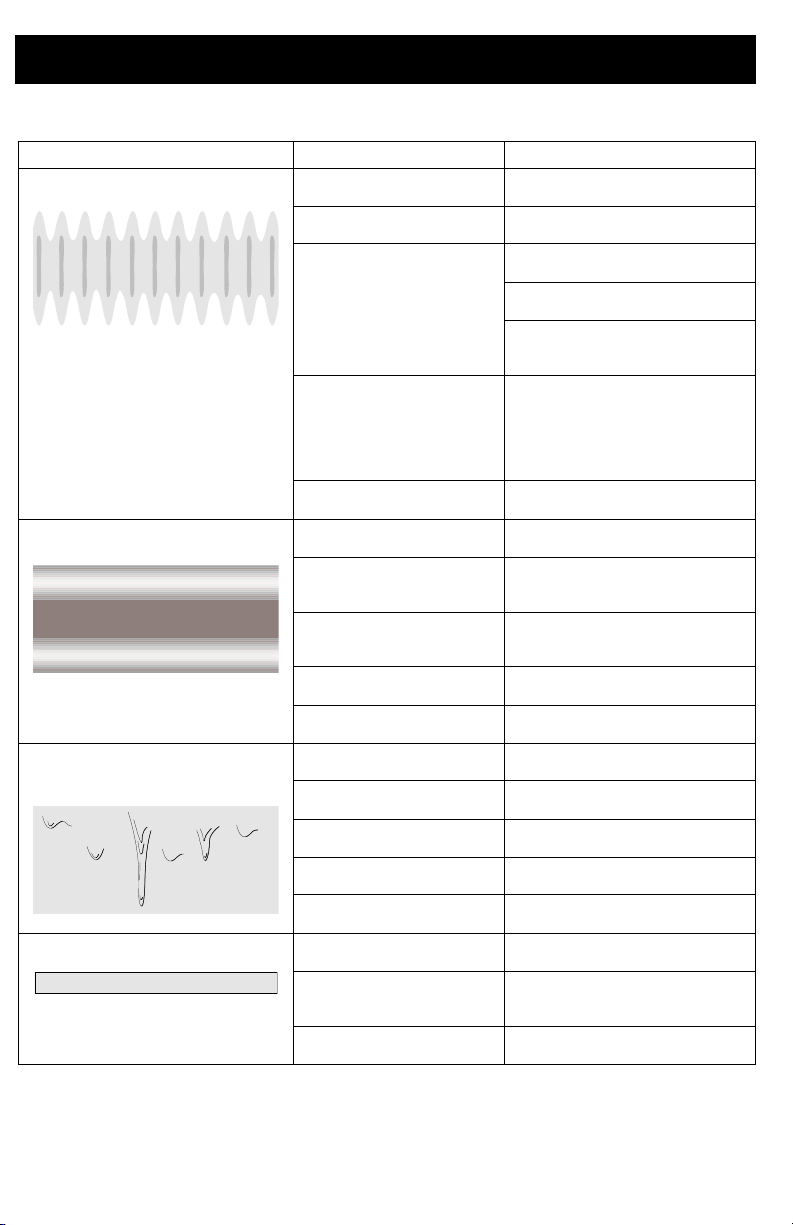

Spray Pattern Diagnostics
Problem Cause Solution
Spray pattern is uneven: Operator is moving too
Spray pattern has tails: Speed control is set too
Spray pattern has
dripping/sagging:
Spray pattern is too narrow: Sprayer is too close to
fast while spraying.
Spray tip is clogged. Unclog spray tip or clean spray
Material difficult to
atomize.
Outlet valves are dirty or
worn.
Pump has reached the
end of its life.
low.
Material may need to be
thinned.
Incorrect spray tip for
application of material.
Material not compatible
with sprayer.
Spray tip is worn or
damaged.
Operator is moving too
slowly while spraying.
Sprayer is too close to
target surface.
Holding trigger while
changing spray direction.
Speed control switch is set
too high.
Spray tip is worn or
damaged.
target surface.
Incorrect spray tip for
application of material.
Spray tip is worn or
damaged.
Slow speed of movement.
tip see Clear Tip Clog, page 17.
Increase speed until desired
pattern is achieved.
Hold sprayer farther away from
surface.
Switch to different spray tip. See
Tip and Pressure Selection,
page 15.
Remove two pump plugs and
front valve to gain access to the
three outlet valves, see
Cleaning Outlet Valves, page
29. Clean outlet valves.
Replace if necessary.
Replace pump assembly.
Increase speed until desired
pattern is achieved.
Thin material follow paint
manufacturer’s
recommendations.
Install different size spray tip.
See Tip and Pressure
Selection, page 15.
Switch material.
Replace spray tip. See Spray
Tip Installation, page 24.
Move sprayer faster while
spraying.
Move sprayer away from
surface 10 in. (25 cm)
Release trigger when changing
directions.
Decrease speed until desired
pattern is achieved.
Replace spray tip. See Spray
Tip Installation, page 24.
Move sprayer away from
surface 10 in. (25 cm)
Install different size spray tip.
See Spray Tip Installation,
page 24.
Replace spray tip. See Spray
Tip Installation, page 24.
38 3A4803A
Page 39

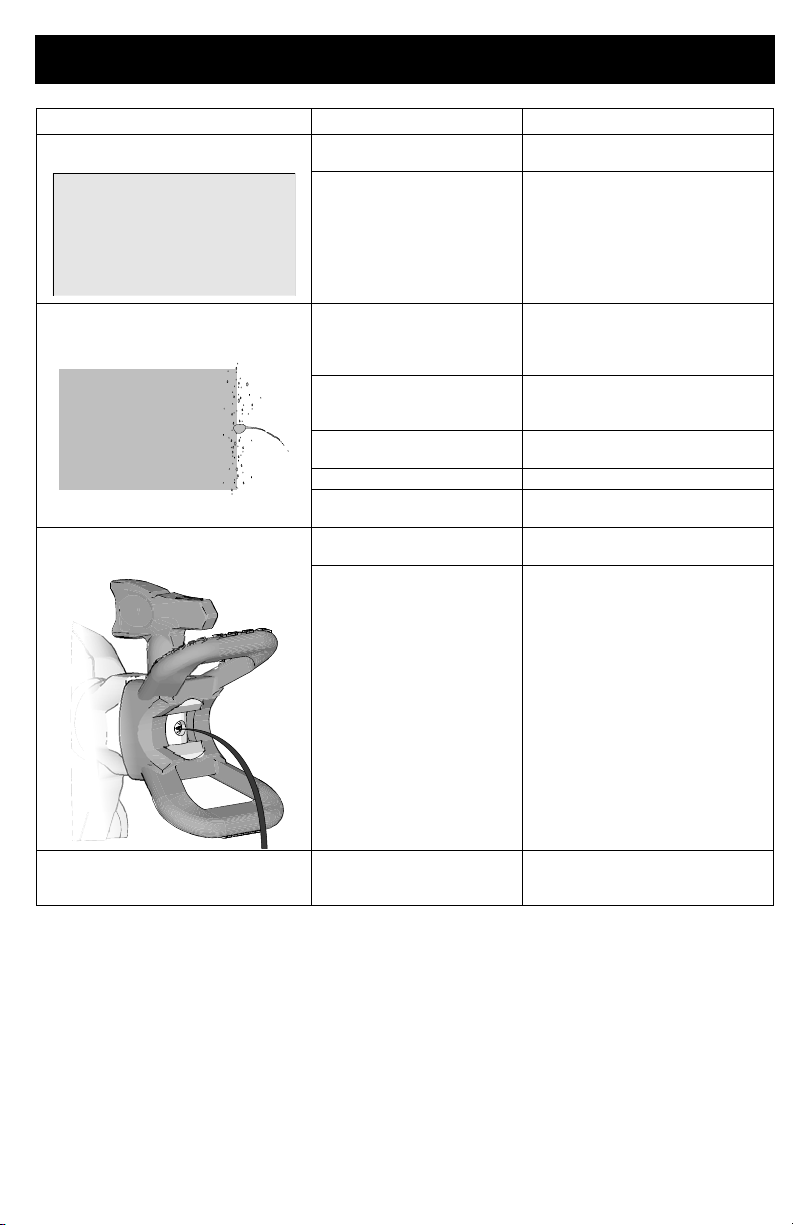

Problem Cause Solution
ti30016a
Spray pattern is too wide: Sprayer is too far away
from target surface.
Incorrect spray tip for
application of material.
Troubleshooting
Move sprayer closer to surface.
Install different size spray tip.
See Spray Tip Installation,
page 24.
Spray pattern “spits” at the
beginning or end of pattern:
Spray tip continues to drip or ooze
material after trigger is released:
Material leaks around spray tip
guard or spray tip handle
Excess material has
accumulated on spray tip
guard assembly or spray
tip is partially clogged.
Spray tip not inserted
completely into spray tip
guard.
Spray tip is worn. Replace spray tip. See Spray
Sprayer is dirty Flush sprayer.
Front valve has reached
the end of its life.
Spray tip is worn. Replace spray tip. See Spray
Spray tip not inserted
completely into spray tip
guard.
Spray tip seal and seat are
damaged or not properly
installed.
Clean spray tip guard. See
Clear Tip Clog, page 17.
See Spray Tip Installation,
page 24.
Tip Installation, page 24.
Replace front valve assembly.
Tip Installation, page 24.
See Spray Tip Installation,
page 24.
See Spray Tip Installation,
page 24.
3A4803A 39
Page 40
Technical Specifications
Technical Specifications
Brushless Cordless HandHeld Sprayer
U.S. Metric
Max Working Pressure 2000 psi 14 MPa, 138bar
Weight 5.25 lb 2.4 kg
Dimensions:
Length
Width 5 in. 12.7 cm
Height
Storage Temperature Range 32° to 113° F 0° to 45° C
Operating Temperature Range 40° to 90° F 4° to 32° C
Storage Humidity Range 0% to 95% relative humidity, non-condensing
Sound Power Level
Vibration level (Measured in
accordance with EN 50580:2012)
Uncertainty K = 6.6 ft/s
Charger Power Source
17N222, 17N224, 17N223,
17M367, 17P928, 17P929
17M368, 17M370, 17N225,
17P257, 17P258, 17P930,
17P931
Battery
Voltage (DC)
Maximum tip orifice 0.016 in. 0.41mm
Pump damage will occur if fluid freezes in pump.
Damage to plastic parts may result if impact occurs in low temperature conditions.
Changes in paint viscosity at very low or very high temperatures can affect sprayer
performance.
† per EN60745-1/EN50580 measured at 3.3 feet (1m)
* Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage
is 18.
14.0 in. 36.1 cm
10.5 in. 26.7 cm
88 dBa†
Vibration total value
a
= 33.5 ft/s
h
2
2
Uncertainty K = 2 m/s
100 – 120 Vac, 50 Hz, 15A, 1 Ø
230 Vac, 50 Hz, 16 A, 1 Ø
20 V MAX* 2.0 Ah Li-ion
Compact Battery Pack DEWALT
Vibration total value
a
= 10.2 m/s
h
2
2
40 3A4803A
Page 41
Graco Limited Warranty
Graco Limited Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing
its name to be free from defects in material and workmanship on the date of sale to the original purchaser
for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will,
for a period of twelve months from the date of sale, repair or replace any part of the equipment
determined by Graco to be defective. This warranty applies only when the equipment is installed,
operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction,
damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or
improper maintenance, negligence, accident, tampering, or substitution of non-Graco component parts.
Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco
equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper
design, manufacture, installation, operation or maintenance of structures, accessories, equipment or
materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an
authorized Graco distributor for verification of the claimed defect. If the claimed defect is verified, Graco
will repair or replace free of charge any defective parts. The equipment will be returned to the original
purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material
or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of
parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY
OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above.
The buyer agrees that no other remedy (including, but not limited to, incidental or consequential
damages for lost profits, lost sales, injury to person or property, or any other incidental or consequential
loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IN CONNECTION WITH
ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT MANUFACTURED
BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose,
etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with
reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from
Graco supplying equipment hereunder, or the furnishing, performance, or use of any products or other
goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of Graco, or
otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents,
notices and legal proceedings entered into, given or instituted pursuant hereto or relating directly or
indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du
présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés,
donnés ou intentés, à la suite de ou en rapport, directement ou indirectement, avec les procédures
concernées.
3A4803A 41
Page 42
Graco Limited Warranty
Graco Information
For the latest information about Graco products, visit www.graco.com.
For patent information, see www.graco.com/patents.
TO PLACE AN ORDER, contact your Graco distributor or call 1-888-541-9788 to identify the nearest
distributor.
42 3A4803A
Page 43
Notes
Notes
3A4803A 43
Page 44
DEWALT®and the DEWALT Logo are trademarks of DEWALT Industrial Tool Co.
All written and visual data contained in this document reflects the latest
product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 3A4803
and are used under license
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2017, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revision A, March 2017
Loading...
