GOLDSTAR CE29Q20ET Service manual & schematics

- 1 -

V Safety Precautions

1. It is safe to adjust after using insulating transformer between
the power supply line and chassis input to prevent the risk of
electric shock and protect the instrument.

2. Never disconnect leads while the TV receiver is on.

3. Don't short any portion of circuits while power is on.

4. The adjustment must be done by the correct appliances.

5. Unless otherwise noted, set the line voltage to 230Vac

!

10%,

50Hz.

V

Test Equipment required

1. RF signal generator (with pattern generator)

2. DC Power Supply

3. Multimeter (volt meter)

4. Oscilloscope

5. Color analyzer

O

PIF (Picture Intermediate Frequency) Adjustment

1) Connect the measuring equipment to the Main Board as
shown in Fig.1.

2) Set RF frequency and output level of RF SIGNAL
GENERATOR as shown Table 1.

3) Turn off S1 and S3 and on S2.

4) Adjust L107 so that the DC voltage may be 2.5

!

0.1Vdc.

(Table 1)

O

SECAM-L' Adjustment

NOTE : This adjustment should be performed after PIF

adjustment.

1) Turn on S1 and S3 and off S2.

2) Adjust VR102 so that the DC voltage may be indicated

2.5

!

0.1Vdc.

O

RF AGC (Automatic Gain Control) Adjustment

The RF AGC control (VR101) was aligned at the time of
manufacture for optimum performance over a wide range
conditions. Readjustment of VR101 should not be necessary
unless unusual local conditions exist, such as ;

1) Channel interference in a CATV system.

2) Picture bending and/or color beats, which are unusually due
to excessive RF signal input when the receiver is too close
to a transmitting tower or when the receiver is connected to
an antenna distribution system where the RF signal has
been amplified. In this case, the input signal should be
attenuated (with pad or filter) to a satisfactory level.

3) Picture noise caused by "broadcast noise" or weak signal.

If the broadcast is "clean" and the RF signal is at least 1mV

(60dBu), the picture will be noise free in any area.

Adjusting the VR101(RF AGC) control to one end of rotation

will usually cause a relatively poor signal to noise ratio;
Adjusting to the other end of rotation will usually cause a
degradation of over load capabilities resulting in color beats or
adjacent channel interference. For best results, adjust the
VR101 control while performing on all over local channels, or
the voltage at TP2 will be 2.3

!

0.1Vdc in RF level 65!1dBuV.

IC101

TDA4474

TP1

JP7 IC05

IC102

5V

JP3

S1

S3

S2

JP5

Q106

4.7kΩ

100Ω

100Ω

24

7

11

15

VR102

1

0.01pF

Signal­Generator

(B/G,D/K,I,L)
(SECAM-L')

JP1

L107

16

VR102

38.9MHz

34.25MHz

5V

Power­Supply

V Multimeter or Oscilloscope

JP2

JP4

Test Point : TP1

Adjust : L107

Test Point : TP1

Adjust : VR102

Frequency

38.9MHz

34.25MHz

System

B/G,D/K/I,SECAM-L

SECAM-L'

Modulation

OFF
OFF

Output level

10mVp-p
10mVp-p

Adjust

L107

VR102

Main Board(Component side view)

Fig. 1 : Connection Diagram of Equipment for PIF Adjustment

ADJUSTMENT INSTRUCTIONS

Test Point : J209 or Observing Display

Adjust : VR101

- 2 -

O Screen Voltage Adjustment

NOTE: To enter SVC mode, press "OK" buttons on both TV

set and the Remote control at the same time.

1) Tune the TV set to receive a digital pattern.

2) Press MIX button on remote controller for Service to get
into the Screen Adjust Mode.

3) Adhere the Color Analyzer on the White window of CPT
face.

4) Adjust Screen Volume of FBT so that the luminance of
White window is 6.5

!

0.5ft/L.

O

Focus Adjustment

NOTE: This adjustment should be performed after warming

up for 10 minutes.

1) Tune the TV set to receive a digital pattern.

2) Adjust the lower Focus control of FBT for the best focus of
vertical line B.

3) Adjust the upper Focus control of FBT for the best focus of
area A.

4) Repeat above step 2) and 3) for the best overall focus.

O

Deflection Data Adjustment (Line SVC-1)

1. Preparation for Deflection Adjustment

1) At SVC mode, press the Yellow colored button.
If the Remote Controller doesn't have the Yellow button,
use the button under the Channel Down(PR

U) button.
And then, deflection data adjustment OSD (SVC1 mode)
will be displayed.

2) Press Channel UP/DOWN button for desirous function
Adjustment.

3) Press Volume UP/DOWN button to adjust the data.

VL--(Vertical Linearity)

Adjust so that the boundary line between upper and lower half is
in accord with geometric horizontal center of the CPT.

VA--(Vertical Height)

Adjust so that the circle of a digital circle pattern may be located
within the effective screen of the CPT.

SC--(Vertical "S" correction)

Adjust so that all distance between each horizontal lines are to
be the same.

VS--(Vertical Shift)

Adjust so that the horizontal center line of a digital circle pattern
is in accord with geometric horizontal center of the CPT.

HS--(Horizontal Shift)

Adjust so that the vertical center line of a digital circle pattern is
in accord with geometric vertical center of the CPT.

EW--(Horizontal Width)

Adjust to that a digital circle pattern looks like exact circle.

EC--(East-west Parabola)

Adjust so that middle portion of the outermost left and right
vertical line looks like parallel with vertical lines of the CPT.

CRNU & CRNL

Adjust so that the vertical line at every 4 corners of the screen
looks like parallel with the vertical lines of the CPT.

ET--(East-west Trapezium)

Adjust to make the length of top horizontal line same with it of the
bottom horizontal line.

Test Point : RK (Red Cathode of CPT Board)

Adjust : Screen Control of FBT

Test Point : Observing Display

Adjust : Focus control of FBT

Fig. 3

White window OSD

SCREEN ADJUST MODE

Fig. 2 SVC MODE for SCREEN Adjust

A

b

B

- 3 -

(Table 2)

O

White Balance Adjustment.(LINE SVC 0)

NOTE : This adjustment should be performed after screen

voltage adjustment.

1) Tune the TV set to receive an 100% white pattern.

2) Press the Yellow button on remote controller in the SVC
Mode (press OK buttons on both TV set and remote
controller at the same time) then you can find On Screen
Display.

3) Press PSM (RED) button on remote controller. (Standard
picture)

4) Press PR+ or PR- button for desirous function adjustment.

5) Adjust VOL+ or VOL- button for CG:00E9.

6)

Adjust VOL+ or VOL-button in each status of "Rg--"/"Bg--" for
X=267

!

8, Y=273!8 with color analyzer (color temperature

13,000

o

K).

(Table 3)

Menu

VL
VA
SC
VS
HS

EW

ET
EC

CRNU

CRNL

0 ~ FFFF
0 ~ FFFF
0 ~ FFFF
0 ~ FFFF
0 ~ FFFF
0 ~ FFFF
0 ~ FFFF
0 ~ FFFF
0 ~ FFFF
0 ~ FFFF

0079

00C1

0091
0082

0092
011D
007F

0061

0083

0083

Range LG 29” Flat

Menu

CR

CG

CB
WR
WG

WB

0 ~ 511
0 ~ 511
0 ~ 511
0 ~ 511
0 ~ 511
0 ~ 511

00E9
00E9
00E9

0187
0187
0187

Range LG 29” Flat

O OPTION Adjustment (SVC MODE:OPTION-1,

OPTION-2, OPTION-3)

NOTE: When the EEPROM has been replaced, the Option data

should be restored as the function of individual system
and specification.

1) Press OK buttons on both TV set and Remote Controller at
the same time to get into SVC mode.

2) Press the Yellow button several times to find OPTION-1,
OPTION-2 and OPTION-3.

3) Input the correspond OPTION data referring to Table below
with the numeric buttons 0~9.

Table 1. OPTION 1 Function

Table 2. OPTION 1 CODE Data

- 4 -

EU
NON-EU

LOW STEP$RUSH

HIGH STEP$SLOW

Vol-

Curve

M-SYS

L-SYS

Woofer

H-Phone

EYE

I/II SAVE

Option Code

0
1
0
1
0
1
0
1
0
1
0
1
0
1

Function Remark

No SAVE DUAL Sound Condition
SAVE DUAL Sound Condition
Without EYE
With EYE
Without Headphone Jack
With Headphone Jack
Squiter Amp.
Woofer Amp.
Standard Curve
Rushed Curve
Without NTSC-M
With NTSC-M system
Without SECAM L/L’
With SECAM L/L’

OPTION

Data

I/II

SAVE

EYE

H-

PHONE

Woofer

M

SYSL SYS

0
1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0

0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0

0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1

0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0

0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0

0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0

L

SYS

1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0

Volume

0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0

OPTION

Data

I/II

SAVE

EYE

H-

PHONE

Woofer

M

SYS

17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62

0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0

0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1

0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1

Volume

0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1

- 5 -

L

SYS

1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0

OPTION

Data

I/II

SAVE

EYE

H-

PHONE

Woofer

M

SYS

63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99

100
101
102
103
104
105
106
107
108

0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1

1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0

1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1

1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0

Volume

1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1

OPTION

Data

I/II

SAVE

EYE

H-

PHONE

Woofer

M

SYSL SYS

109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127

1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1

0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1

1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1

Volume

1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1

Table 3. OPTION 2 Function

Table 4. OPTION 2 CODE Data

- 6 -

OPTION

Data

TOP

TURBO D/K

B/B

DVD

0
1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0

0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1

0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1

0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0

0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1

VGA

0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1

OPTION

Data

TOP

TURBO D/K

B/B

DVD

28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63

0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1

1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1

0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1

VGA

0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1

Without

To compensate the
Inclination of picuture

VGA

BB SYS

DK

CHINA

TURBO

TOP

TEXT(TOP=0)

Option Code

0
1
0
1
0
1
0
1
0
1
0
1

Function Remark

FLOP TEXT
TOP TEXT
W/O TURBO Picture & Sound
With TURBO Picture & Sound
Without D/K CHINA
With D/K CHINA
Without BB System
With BB System
Without VGA Mode
With VGA Mode
Without DVD(Y, Cr, Cb) Input
With DVD Input

DVD

Table 5. OPTION 3 Function

Table 6. OPTION 3 CODE Data

- 7 -

OPTION

Data

Soft

Wide TV Scart

LNA

0
1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17
18
19
20
21
22
23

0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0

0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0

0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1

0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0

OSD

0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7

According to
Tool Outlook.

AV1

OSD

LNA

Scart

Wide

TV

Soft

Touch

Option Code

0
1
0
1
0
1
0
1
0
1
2
3

4
5
6
7

Function Remark

Use Normal Key Board
Use Soft Touch Key Board
4:3 TV
16:9 TV
Scart Input
Phone Input
Without LNA
With LNA

English Only
Eng+Chinese
Eng+French+Arabic+Urdu+Parsi
Eng+German+French+Italian+Spainish+Netherlandish
+Portuguese
Eng+Swedenish+Norwegian+Danish+Finish
Eng+Romanian+Polish+Hungarian+Czech+Russian
Reserved
Full

OPTION

Data

Soft

Wide TV Scart

LNA

24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69

0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1

0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0

1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0

1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0

OSD

0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5

- 8 -

OPTION

Data

Soft

Wide TV Scart

LNA

70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98

99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115

1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1

0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0

OSD

6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3

OPTION

Data

Soft

Wide TV Scart

LNA

116
117
118
119
120
121
122
123
124
125
126
127

1
1
1
1
1
1
1
1
1
1
1
1

1
1
1
1
1
1
1
1
1
1
1
1

1
1
1
1
1
1
1
1
1
1
1
1

0
0
0
0
1
1
1
1
1
1
1
1

OSD

4
5
6
7
0
1
2
3
4
5
6
7

RGB

Amplifier

IC681

TDA2615

IC601

MSP3410

IC101

TDA4474

(VIF/SIF)

IC501

VPC3215

IC503

CIP3250

IC504

MSM541222

IC507

DDP3310

IC203

TDA8601

IC202

TEA5114

IC3001

LB1645

(Tilt control)

FBT

DY

IC701

TPU305XX

(Teletext)

IC01

MI-COM

SMPS

H-Drive

IC831

5V regulator

IC651

TDA2615

IC605

TDA2822

AV1

AV2/SAV

TU101

TUNER

IC201

CXA2040Q

(AV S/W)

ICP3

TDA9160

ICP6
SDA

ICP5

SDA9187

Head phone

PC input

Component

RGB

AV3/SAV

Main speaker

Squiter

V-Deflection

amplfier

Dynamic

Focus

CPT

B+ (135V)

30V

IC833

12V regulator

IC833

8V regulator

30V

PIP PROCESS

100HZ PROCESS

RGB/YUV S/W

Audio Process

BLOCK DIAGRAM

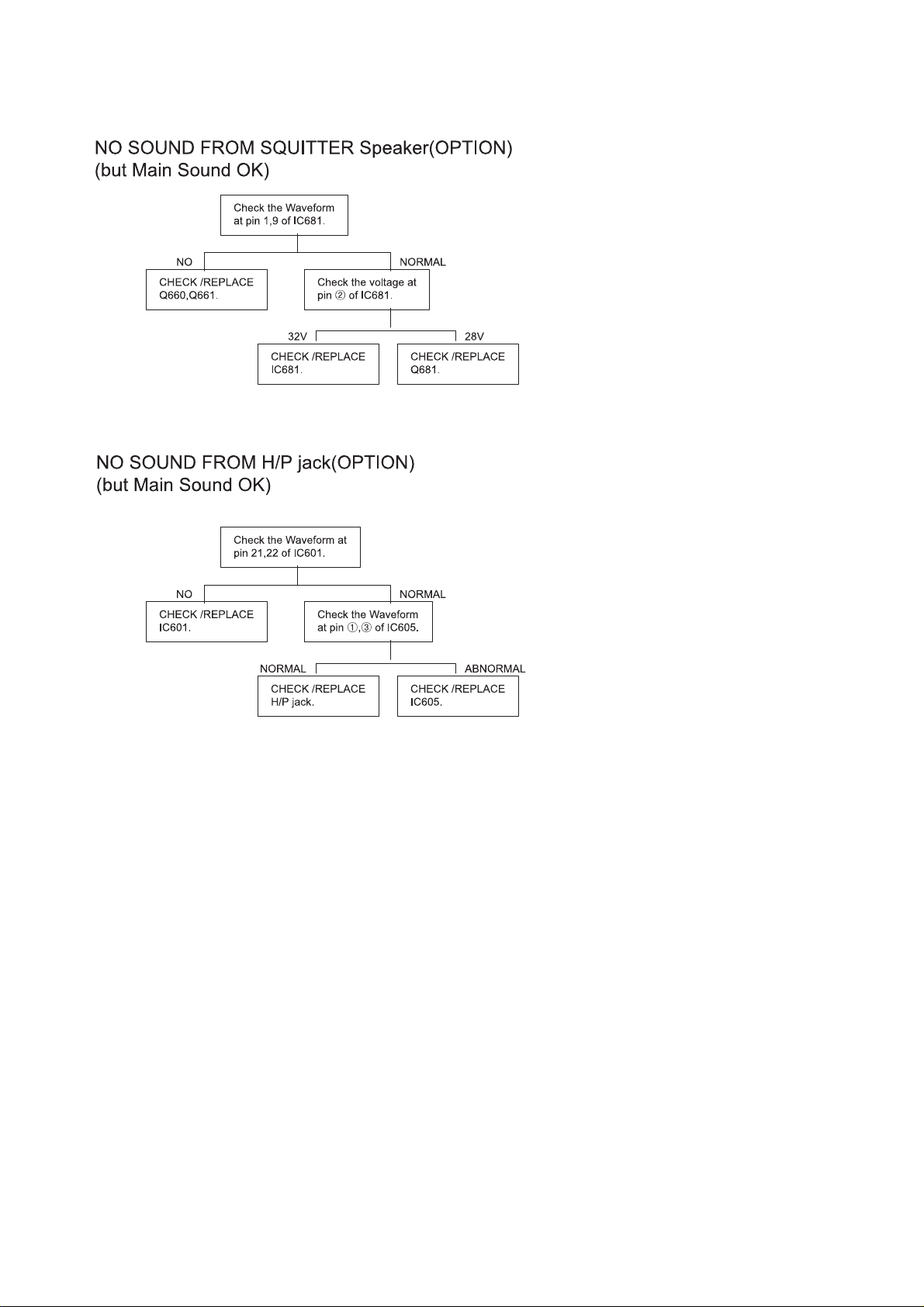

TROUBLESHOOTING GUIDE

C834

R857

D805, D803, ZD804, Q801

3

Q04,Q851,Q852,Q853,IC802,IC804

8

41

IC01,IC301,FR440,FR441,
D407,D408.

D406,FR436,Q804,Q805.

IC507

IC507.

8.0V

R405, D811, FR848.

Q401, Q402, T401.

D813,R811,R812,T403,Q402,L801.

75V

135V

FR459, FR901.

61

20~25, 28~29

IC503.10~17

IC503.

Q205, IC201.

29~30, 32~37 IC504.

IC504.

Check the waveform
at pin 54~61 of IC507.

Check/Replace IC507,

Q502~Q510.

Check/Replace IC507.

Check the waveform
at pin 52, 60 of IC501.

Check/Replace

VGA01.

Check the waveform

at pin 31, 32, 33 of IC507.

NO NORMAL

Check/Replace

VGA01.

Check/Replace

IC507.

NO NORMAL

NO VGA

Check the voltage

at pin 44 of IC01.

Check/Replace

IC01.

Check the waveform

at pin 10~13 of IC203.

0V 5V

Check the waveform

at pin 6~8 of IC203.

Check/Replace

IC503.

NO NORMAL

Check/Replace

Q202, Q208, Q209.

Check/Replace

IC203.

NO NORMAL

NO COMPONENT

31V

FR852, D814.

FR848,D811,FR829,ZD103.

IC102, R110 .

61

19

IC201,Q203,Q204,IC204.

IC03

1, 6

19, 20 IC507.

FR440,FR441,D407,D408.

IC507, Q501, Q514. IC301, D301.

IC301.

PIN CUSHION

21

IC507.

IC507. IC401

IC401

R424.

Q404, Q405.

D402.

Check the waveform

at pin 9 of P504B.

Check/Replace Q2001~Q2003,

IC2001,D2008~D2009.

NORMAL

IC507,Q511~Q513.

12 IC701.

2.4V

Q701.

6

IC701, X701.

35,36,37 IC507.

IC507.

Service Sheet of MC-993A

P/N : 3854VA0061A-S1(1/2)
Date : 1999.7.23

Video
Y
C
Audio

Waveform

Service Sheet of MC-993A

P/N : 3854VA0061A-S2(1/2)
Date : 1999.7.23

CPT

CONTROL POWER

DIGITAL(TOP)

DIGITAL(BOTTOM)

PRINTED CIRCUIT BOARD

MAIN

MAIN 2

SIDE BOARD SOFT TOUCH

- 22 -

REPLACEMENT PARTS LIST

LOCA. NO PART NO DESCRIPTION

D102
D104
D301
D306
D401
D402
D405
D406
D406
D407
D408
D409
D410
D412
D460
D461
D462
D501
D502
D503
D570
D571
D602
D603
D604
D651
D652
D681
D682
D683
D801
D802
D803
D805
D806
D807
D808
D809
D811
D814
D850
D851
D901
D902
D903
D905
D906
D907
D908
D909
D910
D911
D912

0DD226239AA
0DD414809ED
0DD150009CA
0DD414809ED
0DD414809ED
0DD300000AD
0DD400509AA
0DD100009AU
0DD200009AF
0DD200009AF
0DD200009AF
0DD100009AU
0DD150009CA
0DD200009AF
0DD414809ED
0DD414809ED
0DD100009AQ
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD181009AB
0DD560000AA
0DD060009AC
0DD100009AM
0DD060009AC
0DD100009AM
0DD100009AM
0DD100009AL
0DD414809ED
0DD060009AC
0DD420000BB
0DD060009AC
0DD060009AC
0DD400509AA
0DD400509AA
0DD400509AA
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED

DIODE,SWITCHING KDS226
DIODE,1N4148 TA
DIODE,RECTIFIER RGP15J,TP(52MM)
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,FMS-3FU
DIODE,RECTIFIER 1N4005
DIODE,RECTIFIER EU1AV(1) TP
DIODE,RECTIFIER RU2M V(1) TP
DIODE,RECTIFIER RU2M V(1) TP
DIODE,RECTIFIER RU2M V(1) TP
DIODE,RECTIFIER EU1AV(1) TP
DIODE,RECTIFIER RGP15J,TP(52MM)
DIODE,RECTIFIER RU2M V(1) TP
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,RP1HV(1) TP
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,SWITCHING KDS181 85V 300MA
DIODE,RECTIFIER D5SB60 BRIDGE(5A/600V)
DIODE,TVR06J 0.6A/600V 250NS TP
DIODE,RECTIFIER EU1ZV(1) TP
DIODE,TVR06J 0.6A/600V 250NS TP
DIODE,RECTIFIER EU1ZV(1) TP
DIODE,RECTIFIER EU1ZV(1) TP
DIODE,EH-1ZV(1) TP
DIODE,1N4148 TA
DIODE,TVR06J 0.6A/600V 250NS
DIODE,D4L20U SHINDENGEN
DIODE,TVR06J 0.6A/600V 250NS
DIODE,TVR06J 0.6A/600V 250NS
DIODE,RECTIFIER 1N4005
DIODE,RECTIFIER 1N4005
DIODE,RECTIFIER 1N4005
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA

LOCA. NO PART NO DESCRIPTION

D813
IC01
ICP2
IC02
ICP3
IC03
ICP4
ICP5
ICP6
ICP7
ICP8
IC101
IC102
IC201
IC203
IC204
IC301
IC401
IC501
IC503
IC504
IC505
IC507
IC510
IC601
IC605
IC606
IC651
IC701
IC681
IC702
IC703
IC801
IC802
IC803
IC804
IC831
IC832
IC833
IC901
IC902
IC903
IC1001
IC3001

D02
D10
D11
D12
D101

0ISK100300A
0ISO899332A
0IKE780800B
0ISS753300A
0IPH916030A
0ISG241600A
0ISM918900A
0ISM918730A
0IET221000B
0IKE780500K
0IKE780500K
0ITF447400A
0IKE780500K
0ISO204000A
0IPH860100B
0IKE780900H
0ISA784500A
0IKE455800E
0IIT321560A
0IIT325010A
0IOK541222A
0ISS754200A
0IIT331020A
0IKE780800B
0IIT341000H
0ISG282200A
0ISS753300A
0IPH261600A
0IIT305200A
0IPH261600A
0ISS753300A
0ISS622567D
0ISK670900A
0ISH123200B
0IKE780500K
0ISK130000A
0ISH052100A
0ISH122100A
0IKE780800A
0IPH611190A
0IPH611190A
0IPH611190A
0ISG747410A
0ISA164500B

0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD226239AA

IC,SLA1003 SIP12 BK DIODE MODULE(
IC,LG8993-32A(CXP750097-110S)
IC,KIA78L08BP(TA) TO-92 8V,150MA
IC,KA7533Z RESET T0-92 TP 3.3V
IC,TDA9160A/N3 32SD P/N/S DECODER
IC,ST24C16 8D EEPROM(16K)
IC,SDA9189X 32SOP PIP(QUARTER)
IC,SDA9187/3X 28P SOP BK PIP A/D
IC,EL2210CS 8P SOP ST VIDEO AMP
IC,KIA7805PI 3P(TO-220IS) 5V,1A
IC,KIA7805PI 3P(TO-220IS) 5V,1A
IC,TDA4474(VIF)
IC,KIA7805PI 3P(TO-220IS) 5V,1A
IC,CXA2040AQ 32P,QFP BK IIC BUS V
IC,TDA8601T 16P-SOP BK FAST BLANK
IC,KIA78L09BP(AT) 3P 9V,150MA
IC,LA7845 7SIP V/OUT(1.5A)
IC,KIA4558 8DIP
IC,VPC3215C-PT-B6 68P,PLCC BK COM
IC,CIP3250A-PS-B1 68P,PLCC BK INT
IC,MSM5412222-30TS-K 44P,TSOP TP
IC,KA7542Z RESET TO92 TP 4.2V
IC,DDP3310B-PT-C2 68P,PLCC BK DIS
IC,KIA78L08BP(TA) TO-92 8V,150MA
IC,MSP3410D 52P,SDIP BK B4-VERSIO
IC,TDA2822M 8D DUAL AUDIO AMP(1W)
IC,KA7533Z RESET T0-92 TP 3.3V
IC,TDA2616 STEREO AMP(20+20W)
IC,TPU3052 52P SDIP BK TELETEXT P
IC,TDA2616 STEREO AMP(20+20W)
IC,KA7533Z RESET T0-92 TP 3.3V
IC,KM62256DLG-7L 28P,SOP TP 256K
IC,STR/S6709 9S SMPS-CNTR
IC,PC123 FY2PHOTO COUPLER
IC,KIA7805PI 3P(TO-220IS) 5V,1A
IC,SE130N 3P 130V ERROR AMP
IC,PQ05RF21 4P(TO-220) 5V S/W REG
IC,PQ12RF21 4P(TO-220) 12V S/W RE
IC,KIA7808PI 3P(TO-220IS) 1A,8V
IC,TDA6111Q 9SIP RGB AMP
IC,TDA6111Q 9SIP RGB AMP
IC,TDA6111Q 9SIP RGB AMP
IC,M74HC74M1R 14P,SOP TP DUAL DTY
IC,LB1645N 10SIP BK MOTOR DRIVE

DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,SWITCHING KDS226

IC

DIODE

The components identified by mark are
critical for safety.
Replace only with part number specified.

- 23 -

LOCA. NO PART NO DESCRIPTION

D913
D1001
D1002
D1003
D2001
D2002
D2004
D2005
D2006
D2007
D2008
D2009
D3001
LD1001
LD1003
LD1004
LD1005
LD1006
LD1007
LD1008
LD1009
LD1010
LD1011
LD1012
LD1013
LD1014
ZD01
ZD02
ZD103
ZD302
ZD303
ZD410
ZD460
ZD501
ZD502
ZD801
ZD804
ZD850
ZD1201
ZD1202
ZD1203
ZD1204

IC2001
IC2002
Q01
Q02
Q04
Q10
Q11
Q102

0DD414809ED
0DD247109AA
0DD247109AA
0DD247109AA
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD150009CA
0DD150009CA
0DD414809ED
0DL200000CA
0DL112100AB
0DL112100AB
0DL112100AB
0DL112100AB
0DL112100AB
0DL112100AB
0DL112100AB
0DL112100AB
0DL112100AB
0DL112100AB
0DL112100AB
0DL112100AB
0DZ910009BA
0DZ510009AB
0DZ330009BA
0DZ180009AA
0DZ180009AA
0DZ510009AB
0DZ120009AA
0DZ750009AA
0DZ750009AA
0DZ510009AB
0DZ750009AA
0DZ910009BA
0DZ620009AA
0DZ620009AA
0DZ620009AA
0DZ620009AA

0TR437000BA
0TR165900AC
0TR319809AA
0TR102009AB
0TR319809AA
0TR150400BA
0TR150400BA
0TR388109AA

DIODE,1N4148 TA
DIODE,DETECTOR 1S2471
DIODE,DETECTOR 1S2471
DIODE,DETECTOR 1S2471
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,1N4148 TA
DIODE,RECTIFIER RGP15J,TP(52MM)
DIODE,RECTIFIER RGP15J,TP(52MM)
DIODE,1N4148 TA
LED,DL-2LRG RED GREEN
LED,DL-11S2GN1
LED,DL-11S2GN1
LED,DL-11S2GN1
LED,DL-11S2GN1
LED,DL-11S2GN1
LED,DL-11S2GN1
LED,DL-11S2GN1
LED,DL-11S2GN1
LED,DL-11S2GN1
LED,DL-11S2GN1
LED,DL-11S2GN1
LED,KDL-11S2GN1
DIODE,ZENER MTZ9.1B,TP(52MM),ROHM
DIODE,ZENER MTZ5.1B,TP(52MM),ROHM
DIODE,ZENER HZT33(TP) HITACHI
DIODE,ZENER MTZ18B,TP(52MM),ROHM
DIODE,ZENER MTZ18B,TP(52MM),ROHM
DIODE,ZENER MTZ5.1B,TP(52MM),ROHM
DIODE,ZENER MTZ12B 12V 10MA 0.5W TP ROHM
DIODE,ZENER MTZ7.5B,TP(52MM),ROHM
DIODE,ZENER MTZ7.5B,TP(52MM),ROHM
DIODE,ZENER MTZ5.1B,TP(52MM),ROHM
DIODE,ZENER MTZ7.5B,TP(52MM),ROHM
DIODE,ZENER MTZ9.1B,TP(52MM),ROHM
DIODE,ZENER MTZ6.2B,TP(52MM),ROHM
DIODE,ZENER MTZ6.2B,TP(52MM),ROHM
DIODE,ZENER MTZ6.2B,TP(52MM),ROHM
DIODE,ZENER MTZ6.2B,TP(52MM),ROHM

TR,KTC4370A-Y
TR,KTA1659A-Y TO-220IS KEC
TR,KTC3198-TP-Y (KTC1815)KEC
TR,KRC102M,TP(KRC1202),KEC
TR,KTC3198-TP-Y (KTC1815)KEC
TR,CHIP 2SA1504S(ASY) KEC
TR,CHIP 2SA1504S(ASY) KEC
TR,KTC3881 CHIP KEC

LOCA. NO PART NO DESCRIPTION

Q103
Q106
Q108
Q151
Q201
Q202
Q203
Q204
Q205
Q207
Q208
Q209
Q231
Q301
Q353
Q401
Q402
Q404
Q405
Q460
Q461
Q462
Q463
Q464
Q501
Q502
Q503
Q504
Q505
Q506
Q507
Q508
Q509
Q510
Q511
Q512
Q513
Q514
Q530
Q570
Q603
Q641
Q642
Q651
Q660
Q661
Q681
Q701
Q801
Q802
Q803
Q804

0TR387500AA
0TR387500AA
0TR102009AG
0TR102009AG
0TR387500AA
0TR150400BA
0TR126609AA
0TR150400BA
0TR387500AA
0TR102009AG
0TR150400BA
0TR150400BA
0TR150400BA
0TR319809AA
0TR471000AA
0TF200000AA
0TR544600AA
0TR127509AC
0TR205900AA
0TR319809AA
0TR126609AA
0TR319809AA
0TR471000AA
0TR319809AA
0TR150400BA
0TR387500AA
0TR387500AA
0TR150400BA
0TR387500AA
0TR387500AA
0TR150400BA
0TR387500AA
0TR387500AA
0TR150400BA
0TR387500AA
0TR387500AA
0TR150400BA
0TR150400BA
0TR387500AA
0TR387500AA
0TR126609AA
0TR150400BA
0TR150400BA
0TR387500AA
0TR150400BA
0TR150400BA
0TR387500AA
0TR126609AA
0TR385200AA
0TR322709AA
0TR319809AA
0TR968000AA

TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP KRC102S SOT-23 TP KEC
TR,CHIP KRC102S SOT-23 TP KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP 2SA1504S(ASY) KEC
TR,KTA1266-Y (KTA1015) TP KEC
TR,CHIP 2SA1504S(ASY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP KRC102S SOT-23 TP KEC
TR,CHIP 2SA1504S(ASY) KEC
TR,CHIP 2SA1504S(ASY) KEC
TR,CHIP 2SA1504S(ASY) KEC
TR,KTC3198-TP-Y (KTC1815)KEC
TR,2SC4710 SANYO OTOROLA IBA
TR,IRFIBC20G BK
TR,2SC5446(AS) BK TOSHIBA TO3P 17
TR,KTA1275-Y TP(KTA1013),KEC
TR,KTD2059-O,TO-220IS,100V,5A,KEC
TR,KTC3198-TP-Y (KTC1815)KEC
TR,KTA1266-Y (KTA1015) TP KEC
TR,KTC3198-TP-Y (KTC1815)KEC
TR,2SC4710
TR,KTC3198-TP-Y (KTC1815)KEC
TR,CHIP 2SA1504S(ASY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP 2SA1504S(ASY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP 2SA1504S(ASY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP 2SA1504S(ASY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP 2SA1504S(ASY) KEC
TR,CHIP 2SA1504S(ASY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,KTA1266-Y (KTA1015) TP KEC
TR,CHIP 2SA1504S(ASY) KEC
TR,CHIP 2SA1504S(ASY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP 2SA1504S(ASY) KEC
TR,CHIP 2SA1504S(ASY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,KTA1266-Y (KTA1015) TP KEC
TR,2SC3852A SANKEN
TR,KTC3227-Y,TP(KTC1627A),KEC
TR,KTC3198-TP-Y (KTC1815)KEC
TR,KTA968A-Y KEC

TRANSISTOR

The components identified by mark are
critical for safety.
Replace only with part number specified.

- 24 -

LOCA. NO PART NO DESCRIPTION

Q805
Q851
Q852
Q853
Q904
Q910
Q1001
Q1002
Q1003
Q1004
Q1005
Q1006
Q1007
Q1008
Q1009
Q1010
Q1011
Q1012
Q1013
Q1014
Q1015
Q1016
Q1017
Q1018
Q1019
Q1020
Q1021
Q1022
Q1023
Q1024
Q1025
Q1026
Q1027
Q1028
Q1029
Q2001
Q2002
Q2003
Q3001
Q3002
QP6
QP7
QP8
QP9

C02
C06
C08
C10
C17
C19

0TR319809AA
0TR968000AA
0TR322800AB
0TR319809AA
0TR126609AA
0TR437000BA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR102009AG
0TR102009AG
0TR102009AG
0TR102009AG
0TR102009AG
0TR102009AG
0TR102009AG
0TR102009AG
0TR102009AG
0TR102009AG
0TR102009AG
0TR102009AG
0TR102009AG
0TR387500AA
0TR388009BB
0TR388009BB
0TR388009BB
0TR388009BB
0TR388009BB
0TR388009BB
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR126609AA
0TR319809AA
0TR319809AA
0TR319809AA
0TR319809AA
0TR102009AB
0TR319809AA
0TR319809AA
0TR150400BA

0CE335DK618
0CE476DD618
0CN1030F679
0CE227DD618
0CE476DF618
0CN1030F679

TR,KTC3198-TP-Y (KTC1815)KEC
TR,KTA968A-Y KEC
TR,KTC3228-Y(KTC2383),KEC
TR,KTC3198-TP-Y (KTC1815)KEC
TR,KTA1266-Y (KTA1015) TP KEC
TR,KTC4370A-Y TO-220IS KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP KRC102S SOT-23 TP KEC
TR,CHIP KRC102S SOT-23 TP KEC
TR,CHIP KRC102S SOT-23 TP KEC
TR,CHIP KRC102S SOT-23 TP KEC
TR,CHIP KRC102S SOT-23 TP KEC
TR,CHIP KRC102S SOT-23 TP KEC
TR,CHIP KRC102S SOT-23 TP KEC
TR,CHIP KRC102S SOT-23 TP KEC
TR,CHIP KRC102S SOT-23 TP KEC
TR,CHIP KRC102S SOT-23 TP KEC
TR,CHIP KRC102S SOT-23 TP KEC
TR,CHIP KRC102S SOT-23 TP KEC
TR,CHIP KRC102S SOT-23 TP KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,KTC3880-Y TP KEC SOT23 CHIP
TR,KTC3880-Y TP KEC SOT23 CHIP
TR,KTC3880-Y TP KEC SOT23 CHIP
TR,KTC3880-Y TP KEC SOT23 CHIP
TR,KTC3880-Y TP KEC SOT23 CHIP
TR,KTC3880-Y TP KEC SOT23 CHIP
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,CHIP 2SC3875S(ALY) KEC
TR,KTA1266-Y (KTA1015) TP KEC
TR,KTC3198-TP-Y (KTC1815)KEC
TR,KTC3198-TP-Y (KTC1815)KEC
TR,KTC3198-TP-Y (KTC1815)KEC
TR,KTC3198-TP-Y (KTC1815)KEC
TR,KRC102M,TP(KRC1202),KEC
TR,KTC3198-TP-Y (KTC1815)KEC
TR,KTC3198-TP-Y (KTC1815)KEC
TR,CHIP 2SA1504S(ASY) KEC

3.3000UF STD 50V M
47UF STD 10V M
10000P 16V M
220UF STD 10V M
47UF STD 16V M
10000P 16V M

LOCA. NO PART NO DESCRIPTION

C20
C24
C102
C103
C105
C110
C113
C118
C119
C122
C123
C126
C130
C132
C137
C139
C140
C203
C204
C205
C207
C208
C211
C212
C225
C230
C232
C234
C235
C246
C248
C252
C263
C264
C274
C275
C276
C277
C278
C279
C284
C301
C302
C303
C304
C305
C306
C307
C309
C310
C403
C404

0CN1010K519
0CN8200K519
0CE106DK618
0CE476DD618
0CE225DK618
0CE476DF618
0CE106DF618
0CE225DK618
0CQ4742K439
0CE226DF618
0CE474DK618
0CX4700K409
0CE225DK618
0CX4700K409
0CN1030F679
0CE227DF618
0CE477DF618
0CE106DF618
0CE225DK618
0CE225DK618
0CE227DF618
0CE336DF618
0CE336DF618
0CE225DK618
0CE227DF618
0CE106DF618
0CE225DK618
0CE226DK618
0CE226DK618
0CE104DK618
0CE225DK618
0CE106DF618
0CE226DF618
0CE226DF618
0CN4730K949
0CN4730K949
0CN4730K949
0CN4730K949
0CN4730K949
0CN4730K949
0CE476DF618
0CQ4741N501
0CE107DJ618
0CE477DH618
0CE477DH618
0CQ1041N509
0CN1020K519
0CQ3331N509
0CN2710K519
0CN5610K519
0CK2210W515
181-009V

100P 50V K
82P 50V K
10UF STD 50V M
47UF STD 10V M

2.2000UF STD 50V M
47UF STD 16V M
10UF STD 16V M

2.2000UF STD 50V M

0.4700UF S 50V J
22UF STD 16V M

0.4700UF STD 50V M
47P 50V J

2.2UF STD 50V M
47P 50V J
10000P 16V M
220UF STD 16V M
470UF STD 16V M
10UF STD 16V M

2.2000UF STD 50V M

2.2000UF STD 50V M
220UF STD 16V M
33UF STD 16V M
33UF STD 16V M

2.2000UF STD 50V M
220UF STD 16V M
10UF STD 16V M

2.2000UF STD 50V M
22UF STD 50V M
22UF STD 50V M

0.1000UF STD 50V M

2.2000UF STD 50V M
10UF STD 16V M
22UF STD 16V M
22UF STD 16V M

0.047M 50V Z

0.047M 50V Z

0.047M 50V Z

0.047M 50V Z

0.047M 50V Z

0.047M 50V Z
47UF STD 16V M

0.47U 100V K
100UF STD 35V M
470UF STD 25V M
470UF STD 25V M

0.1U 100V K
1000P 50V K

0.033U 100V K
270P 50V K
560P 50V K
220P 500V K
PP 200V 0.047UF K

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

CAPACITOR

- 25 -

LOCA. NO PART NO DESCRIPTION

C405
C406
C407
C408
C409
C410
C414
C418
C421
C422
C423
C424
C428
C429
C430
C431
C432
C433
C435
C436
C438
C440
C461
C462
C463
C464
C465
C466
C467
C468
C469
C470
C488
C491
C501
C504
C505
C506
C508
C510
C514
C517
C518
C520
C524
C526
C542
C543
C556
C574
C575
C607

181-014C
0CK10201515
181-014B
181-010K
0CE107DK618
0CE6851K652
0CN4710K519
0CE6851K652
0CE225DR618
0CE2276Q650
0CE2266R630
0CK56101515
0CK56101515
0CK56101515
0CE477DH618
0CE108DJ618
0CE477DH618
0CQ1021N509
0CK56101515
0CE107DK618
0CB10212474
181-013P
0CQ6831N509
0CN1040K949
0CE476DF618
181-015K
0CQ3342K439
0CQ1052K439
181-007J
181-014N
181-064P
0CE476DK618
0CE106DR618
181-010K
0CQ1052K439
0CE476DF618
0CE684DK618
0CE106DF618
0CE476DF618
0CE336DF618
0CE335DK618
0CE476DF618
0CE476DF618
0CE476DF618
0CE106DF618
0CE106DF618
0CE106DF618
0CE335DK618
0CE106DF618
0CE477DF618
0CE108DD618
0CE476DF618

MPP 1600V 0.0056UF J
1000P 1KV K B TS
MPP 1600V 0.0047UF J
PP 630V 0.01UF J
100UF STD 50V M

6.8UF SM 50V
470P 50V K

6.8UF SM 50V

2.2000UF STD 250V M
220UF SMS 200V M
22U SMS 250V M FM5
560P 1KV K
560P 1KV K
560P 1KV K
470UF STD 25V M
1000UF STD 35V M
470UF STD 25V M

0.001U 100V K
560P 1KV K B TS
100UF STD 50V M
1000PF D 2KV J
400V 0.33UF J

0.068U 100V K

0.1M 50V Z
47UF STD 16V M
1600V 0.0091UF H

0.3300UF S 50V J
1UF S 50V J
ECQ-V1H564JZ3(TR),50V 0.5
1600V 0.01UF J
CE BP 16V 10 MFTR
47UF STD 50V M
10UF STD 250V M
PP 630V 0.01UF J
1UF S 50V J
47UF STD 16V M

0.6800UF STD 50V M
10UF STD 16V M
47UF STD 16V M
33UF STD 16V M

3.3000UF STD 50V M
47UF STD 16V M
47UF STD 16V M
47UF STD 16V M
10UF STD 16V M
10UF STD 16V M
10UF STD 16V M

3.3000UF STD 50V M
10UF STD 16V M
470UF STD 16V M
1000UF STD 10V M
47UF STD 16V M

LOCA. NO PART NO DESCRIPTION

C611
C614
C616
C617
C619
C621
C623
C627
C630
C632
C637
C642
C643
C644
C645
C646
C647
C649
C650
C655
C656
C658
C662
C663
C664
C665
C667
C669
C677
C678
C679
C680
C681
C683
C684
C686
C691
C694
C695
C697
C705
C710
C711
C712
C713
C801
C802
C803
C804
C806
C807
C808

0CE106DF618
0CE227DF618
0CE106DF618
0CE106DF618
0CE107DH618
0CE106DF618
0CE476DF618
0CQ4742K439
0CQ4742K439
0CE335DK618
0CQ6831N509
0CE107DF618
0CQ3342K439
0CQ3342K439
0CQ3342K439
0CQ3342K439
0CQ3342K439
0CE108DJ618
0CE477DK618
0CE474DK618
0CE106DF618
0CQ3342K439
0CE108DJ618
0CQ1042K439
0CE108DK650
0CE107DH618
0CE225DK618
0CE225DK618
0CE107DF618
0CE107DF618
0CE227DJ618
0CE227DJ618
0CQ6831N509
0CE105DK618
0CE474DK618
0CE476DK618
0CE107DF618
0CQ1042K439
0CE107DF618
0CE107DF618
0CE335DK618
0CE106DF618
0CN1040K949
0CE476DF618
0CE106DF618
0CQZVBK002B
181-091K
0CQZVBK002B
0CE227DJ618
181-091D
181-091D
0CE227DJ618

10UF STD 16V M
220UF STD 16V M
10UF STD 16V M
10UF STD 16V M
100UF STD 25V M
10UF STD 16V M
47UF STD 16V M

0.4700UF S 50V J

0.4700UF S 50V J

3.3000UF STD 50V M

0.068U 100V K
100UF STD 16V M

0.3300UF S 50V J

0.3300UF S 50V J

0.3300UF S 50V J

0.3300UF S 50V J

0.3300UF S 50V J
1000UF STD 35V M
470UF STD 50V M

0.4700UF STD 50V M
10UF STD 16V M

0.3300UF S 50V J
1000UF STD 35V M

0.1000UF S 50V J
1000UF STD 50V M
100UF STD 25V M

2.2000UF STD 50V M

2.2000UF STD 50V M
100UF STD 16V M
100UF STD 16V M
220UF STD 35V M
220UF STD 35V M

0.068U 100V K
1UF STD 50V M

0.4700UF STD 50V M
47UF STD 50V M
100UF STD 16V M

0.1000UF S 50V J
100UF STD 16V M
100UF STD 16V M

3.3000UF STD 50V M
10UF STD 16V M

0.1M 50V Z
47UF STD 16V M
10UF STD 16V M
A.C 275V 0.15UF K
R 561K 2KV TP7.5
A.C 275V 0.15UF K
220UF STD 35V M
R 102K 1KV
R 102K 1KV
220UF STD 35V M

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

The components identified by mark are
critical for safety.
Replace only with part number specified.

- 26 -

LOCA. NO PART NO DESCRIPTION

C809
C810
C811
C812
C813
C814
C815
C817
C818
C827
C828
C829
C833
C834
C841
C844
C845
C850
C852
C853
C881
C882
C884
C888
C889
C901
C902
C903
C904
C905
C906
C907
C908
C909
C910
C911
C912
C913
C914
C915
C916
C917
C918
C919
C1001
C1019
C1201
C1202
C1203
C1204
C1205
C1206

0CE106DN618
0CE477BH618
0CK1020K515
181-014Z
181-091C
181-091C
181-091C
181-001A
181-091C
0CQ1041N509
0CE476DN618
181-091C
181-120K
181-001U
0CE228DK650
0CE477DD618
0CE337DH618
0CN1040K949
0CE108DF618
0CE108DF618
0CE477DF618
0CE477DF618
0CE477DH618
0CQZVBK002B
0CQZVBK002A
0CE107DF618
0CE477DF618
0CE225DR618
0CQ1041N509
0CQ1041N509
181-005J
181-091C
0CQ1041N509
0CQ1041N509
181-005J
181-091C
0CQ1041N509
0CQ1041N509
181-005J
181-091C
0CK22202515
0CX3R90K509
0CX3R90K509
0CX3R90K509
0CE476DF618
0CE476DF618
0CN2210K519
0CN2210K519
0CN2210K519
0CN1040K949
0CN2210K519
0CN4710K519

10UF STD 100V M
470UF KME 25V M
1000PF 50V K

1.6KV 0.0033UF J
R 471K 1KV TP5
R 471K 1KV TP5
R 471K 1KV TP5
CE 200V 470UF M
R 471K 1KV TP5

0.1U 100V K
47UF STD 100V M
R 471K 1KV TP5
ACT 4KV E 222M TP10
CE 450V 470UF M
2200UF STD 50V M
470UF STD 10V M
330UF STD 25V M

0.1M 50V Z
1000UF STD 16V M
1000UF STD 16V M
470UF STD 16V M
470UF STD 16V M
470UF STD 25V M
A.C 275V 0.15UF K
A.C 275V 0.1UF M
100UF STD 16V M
470UF STD 16V M

2.2000UF STD 250V M

0.1U 100V K

0.1U 100V K
PE 400V 0.033UF K
R 471K 1KV TP5

0.1U 100V K

0.1U 100V K
400V 0.033UF K
R 471K 1KV TP5

0.1U 100V K

0.1U 100V K
400V 0.033UF K
R 471K 1KV TP5
2200PF 2KV K

3.9P 50V K

3.9P 50V K

3.9P 50V K
47UF STD 16V M
47UF STD 16V M
220P 50V K
220P 50V K
220P 50V K

0.1M 50V Z
220P 50V K
470P 50V K

LOCA. NO PART NO DESCRIPTION

C1207
C1208
C1209
C1210
C1211
C2002
C2003
C2004
C2005
C2006
C2007
C2008
C2009
C2010
C2011
C2012
C2013
C2014
C3001
C3002
CP21
CP25
CP26
CP28
CP38
CP39
CP41
CP42
CP43
CP44
CP45
CP46
CP48
CP59
CP60
CP61
CP63
CP65
CP70
CP71
CP72
CP73
CP75
CP81
CP84
CP85
CP86
CP88
CP89
CP90

FB205

0CN4710K519
0CN2210K519
0CE475DK618
0CE475DK618
0CN2210K519
0CE106DP618
0CE106DP618
0CE107DK618
0CE106DH618
0CE106DH618
0CE106DH618
0CK1010K515
0CK1010K515
0CE107DF618
0CE107DF618
0CK4720W510
0CK4720W510
0CK1010W515
0CE475DK618
0CQ1032K439
0CE107DF618
0CE1051K636
0CE476DF618
0CE684DK618
0CE476DF618
0CQ1042K439
0CE106DF618
0CE476DF618
0CE1051K636
0CQ1042K439
0CE1051K636
0CQ1042K439
0CE476DF618
0CE105DK618
0CE105DK618
0CE105DK618
0CE476DF618
0CE476DF618
0CE476DF618
0CQ1042K439
0CQ1042K439
0CQ1042K439
0CE105DK618
0CE105DK618
0CX4700K409
0CX4700K409
0CE477DF618
0CE476DF618
0CE476DF618
0CE476DF618

125-123A

470P 50V K
220P 50V K

4.7000UF STD 50V M

4.7000UF STD 50V M
220P 50V K
10UF STD 160V M
10UF STD 160V M
100UF STD 50V M
10UF STD 25V M
10UF STD 25V M
10UF STD 25V M
100PF 50V K
100PF 50V K
100UF STD 16V M
100UF STD 16V M
4700P 500V K
4700P 500V K
100P 500V K

4.7000UF STD 50V M

0.0100UF S 50V J
100UF STD 16V M
1UF SM 50V M
47UF STD 16V M

0.6800UF STD 50V M
47UF STD 16V M

0.1000UF S 50V J
10UF STD 16V M
47UF STD 16V M
1UF SM 50V M

0.1000UF S 50V J
1UF SM 50V M

0.1000UF S 50V J
47UF STD 16V M
1UF STD 50V M
1UF STD 50V M
1UF STD 50V M
47UF STD 16V M
47UF STD 16V M
47UF STD 16V M

0.1000UF S 50V J

0.1000UF S 50V J

0.1000UF S 50V J
1UF STD 50V M
1UF STD 50V M
47P 50V J
47P 50V J
470UF STD 16V M
47UF STD 16V M
47UF STD 16V M
47UF STD 16V M

CORE (CIRC),FERRITE BFD3565R2F

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

CORE

The components identified by mark are
critical for safety.
Replace only with part number specified.

FB801
FB802
FB803
FB804
FB805
FB806
FB903
FB1002
L406
L690
L1205
L2001

F801
FR849
FR851
FR852

L01
L02
L101
L104
L105
L106
L107
L109
L110
L204
L205
L206
L207
L209
L210
L211
L212
L213
L214
L401
L404
L405
L461
L501
L502
L503
L504
L601
L606
L608
L610
L681

L682
L701
L702
L801
L901
L902
L1001
L1002
L1201
L1202
L1203
L1204
LP10
LP11
LP12
LP13
LP14
LP15
LP16
LP18
RL801
T401
T403
T460
T803

P01
P201A
P601A
P801A
P804A
P902A
P2001A
VGA01

JA1
PJ201
PJ202
PJ203

D2003
F816
FR436
FR440
FR441
FR445
FR459
FR601
FR602

- 27 -

LOCA. NO PART NO DESCRIPTION

125-022K
125-123A
125-022K
125-022K
125-022K
125-022K
125-123A
125-022K
125-022K
125-022K
125-022K
125-022K

131-098B
131-096N
131-096N
131-096N

0LA0102K119
0LA0181K119
0LA0102K119
150-C01G
0LA0470K119
0LA0102K119
150-E11G
0LA0152K119
0LA0681K119
0LA0102K119
0LA0102K119
0LA0102K119
0LA0102K119
0LA0102K119
0LA0102K119
0LA0102K119
0LA0102K119
0LA0102K119
0LA0102K119
150-L02Q
150-C13B
150-C13B
150-717K
0LA0102K139
0LA0102K139
0LA0102K119
0LA0102K139
0LA0102K119
0LA0102K119
0LA0102K119
0LA0102K119
0LA1000K119

CORE (CIRC),BEAD FERRITE 1UH
CORE (CIRC),FERRITE BFD3565R2F
CORE (CIRC),BEAD FERRITE 1UH
CORE (CIRC),BEAD FERRITE 1UH
CORE (CIRC),BEAD FERRITE 1UH
CORE (CIRC),BEAD FERRITE 1UH
CORE (CIRC),FERRITE BFD3565R2F
CORE (CIRC),BEAD FERRITE 1UH
CORE (CIRC),BEAD FERRITE 1UH
CORE (CIRC),BEAD FERRITE 1UH
CORE (CIRC),BEAD FERRITE 1UH
CORE (CIRC),BEAD FERRITE 1UH

FUSE,TIME LAG 400MA 250V
FUSE,NON TIME DELAY 4000MA 125V
FUSE,NON TIME DELAY 4000MA 125V
FUSE,NON TIME DELAY 4000MA 125V

INDUCTOR,10UH K
INDUCTOR,1.8UH K
INDUCTOR,10UH K
COIL,CHOKE 1.0UH A
INDUCTOR,0.47UH K
INDUCTOR,10UH K
COIL,IFT VAR,38.9MHZ(VCO)
INDUCTOR,15UH K
INDUCTOR,6.8UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
COIL,H-LINEARITY 10UH
COIL,CHOKE 52UH R 1824
COIL,CHOKE 52UH R 1824
COIL,CHOKE 1.1MH
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,100UH K

LOCA. NO PART NO DESCRIPTION

0LA1000K119
0LA0102K119
0LA0102K119
150-C02F
0LA0102K139
0LA0102K119
0LA0222K119
0LA0222K119
0LA0472K119
0LA0472K119
0LA0472K119
0LA0472K119
0LA0102K119
0LA0102K119
0LA0102K119
0LA0102K119
0LA0102K119
0LA0102K119
0LA0102K119
0LA0102K119
141-018E
6170VC0002A
6174Z-6005S
151-E06A
6170VMCA01V

387-A05F
387-B06K
387-B08H
387-812L
387-812L
387-A06F
387-A07F
6630VGA001B

6613V00004A
6612VJH011D
6612VJH011C
380-363D

0RD0102F609
0RS0102K607
180-D02E
180-D02E
180-D02E
180-D02E
0RS0680K607
0RF0470K607
0RF0470K607

INDUCTOR,100UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
COIL,CHOKE 82UH R1217
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,22UH K
INDUCTOR,22UH K
INDUCTOR,47UH K
INDUCTOR,47UH K
INDUCTOR,47UH K
INDUCTOR,47UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
INDUCTOR,10UH K
RELAY,DG12D1-0(M)-2 12V44MA
TRANSFORMER,HORIZONTAL EER-2619
FBT,FTMPC31 -T6005S
TRANSFORMER,DBF,EER-2834,BULK
TRANSFORMER,SMPS EER5345 450UH

CONNECTOR ASSY,5P (L=350)
CONNECTOR ASSY,6P SHIELD WIRE (L=600)
CONNECTOR ASSY,8P SHIELD(450)
CONNECTOR ASSY,YJN250 12P
CONNECTOR ASSY,YJN250 12P
CONNECTOR ASSY,6P (L=350)
CONNECTOR ASSY,7P (L=350)
CONNECTOR (CIRC),D-SUB 68114-1522

JACK ASSY,PJ6054A EARPHONE+S-VHS+3P
JACK,RCA PPJ109D A/V IN/OUT 6
JACK,RCA PPJ109C A/V IN/OUT 6
JACK,DIN S-VHS(PJ 6046B-01)H=8.0,W/SW

10 1/6W 5
10 2W 5%
CR 2W 1.0 J
CR 2W 1.0 J
CR 2W 1.0 J
CR 2W 1.0 J

0.68 2W 5%

0.47 2W 5% TA62

0.47 2W 5% TA62

RESISTOR

JACK

The components identified by mark are
critical for safety.
Replace only with part number specified.

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

FUSE

COIL & TRANSFORMER

CONNECTOR

- 28 -

LOCA. NO PART NO DESCRIPTION

FR829
FR848
FR901
J03
J04
J05
J06
J07
J08
J09
J10
J517
J518
R02
R03
R05
R06
R07
R08
R10
R11
R13
R14
R16
R17
R18
R19
R20
R25
R27
R28
R29
R30
R31
R32
R33
R34
R35
R36
R39
R48
R50
R62
R80
R82
R84
R86
R89
R104
R110
R111
R113

0RS6801K607
0RF0470H609
0RF0331K607
0RD0101F609
0RD0101F609
0RD0101F609
0RD0101F609
0RD0101F609
0RD0101F609
0RD0101F609
0RD0101F609
0RD0101F609
0RD0101F609
0RD2200F609
0RD1000F609
0RD1000F609
0RD1000F609
0RD1000F609
0RD1000F609
0RD1002F609
0RD1602F609
0RD1000F609
0RD6802F609
0RD1000F609
0RD1000F609
0RD1000F609
0RD1000F609
0RD1000F609
0RD2401F609
0RD1000F609
0RD1001F609
0RD1000F609
0RD1000F609
0RD1000F609
0RD1000F609
0RD1000F609
0RD1000F609
0RD1000F609
0RD1000F609
0RD1000F609
0RD3901F609
0RD6200F609
0RD4701F609
0RD0752F609
0RD0752F609
0RD0752F609
0RD0752F609
0RD1000F609
0RD8201F609
0RS0681K607
0RD3601F609
0RD1002F609

6.8K 2W 5% TA62

0.47 1/2W 5 TA52

3.30 2W 5% TA62

1.0 1/6W 5 TA52

1.0 1/6W 5 TA52

1.0 1/6W 5 TA52

1.0 1/6W 5 TA52

1.0 1/6W 5 TA52

1.0 1/6W 5 TA52

1.0 1/6W 5 TA52

1.0 1/6W 5 TA52

1.0 1/6W 5 TA52

1.0 1/6W 5 TA52
220 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52
10K 1/6W 5 TA52
16K 1/6W 5 TA52
100 1/6W 5 TA52
68K 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52

2.4K 1/6W 5 TA52
100 1/6W 5 TA52

1.0K 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52

3.9K 1/6W 5 TA52
620 1/6W 5 TA52

4.70K 1/6W 5% TA52
75 1/6W 5% TA
75 1/6W 5% TA
75 1/6W 5% TA
75 1/6W 5% TA
100 1/6W 5 TA52

8.2K 1/6W 5 TA52

6.80 2W 5% TA62

3.6K 1/6W 5 TA52
10K 1/6W 5 TA52

LOCA. NO PART NO DESCRIPTION

R115
R125
R127
R128
R132
R135
R136
R207
R208
R209
R210
R216
R219
R221
R239
R255
R259
R261
R262
R263
R265
R267
R269
R277
R305
R306
R307
R308
R309
R310
R311
R312
R314
R315
R316
R318
R401
R403
R404
R405
R406
R407
R413
R414
R415
R416
R417
R418
R419
R421
R422
R423

0RD1002F609
0RD1001F609
0RD1001F609
0RD0102F609
0RD1001F609
0RD1000F609
0RD1000F609
0RD2200F609
0RD2200F609
0RD2200F609
0RD2200F609
0RD1800F609
0RD1000F609
0RD2200F609
0RD3000F609
0RD2200F609
0RD0752F609
0RD0752F609
0RD3600F609
0RD3000F609
0RD3000F609
0RD3000F609
0RD1000F609
0RD1000F609
0RD1001F609
0RF0181K607
0RS2200J607
0RD1801F609
0RF0181K607
0RD0331F609
0RD1002F609
0RD1002F609
0RD2202F609
0RD2200F609
0RD3001F609
0RD1801F609
0RD1002F609
0RS4701K607
0RS0561K607
0RS1501K607
180-A01B
0RD2400H609
0RD7501F609
0RD3602F609
0RD1000F609
0RN5602F409
0RD4700F609
0RD3301F609
0RN1501F409
0RD2001H609
0RD1801H609
0RD2701H609

10K 1/6W 5 TA52

1.0K 1/6W 5 TA52

1.0K 1/6W 5 TA52
10 1/6W 5 TA52

1.0K 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52
220 1/6W 5 TA52
220 1/6W 5 TA52
220 1/6W 5 TA52
220 1/6W 5 TA52
180 1/6W 5 TA52
100 1/6W 5 TA52
220 1/6W 5 TA52
300 1/6W 5 TA52
220 1/6W 5 TA52
75 1/6W 5% TA
75 1/6W 5% TA
360 1/6W 5 TA52
300 1/6W 5 TA52
300 1/6W 5 TA52
300 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52

1.0K 1/6W 5 TA52

1.80 2W 5% TA62
220 1W 5% TA62

1.8K 1/6W 5 TA52

1.80 2W 5% TA62

3.3 1/6W 5 TA52
10K 1/6W 5 TA52
10K 1/6W 5 TA52
22K 1/6W 5 TA52
220 1/6W 5 TA52

3.0K 1/6W 5 TA52

1.8K 1/6W 5 TA52
10K 1/6W 5 TA52

4.70K 2W 5% TA62

5.60 2W 5% TA62

1.50K 2W 5% TA62
RW ROUND G 2W 0.11 K
240 1/2W 5 TA52

7.5K 1/6W 5 TA52
36K 1/6W 5 TA52
100 1/6W 5 TA52
56K 1/6W 1% TA52
470 1/6W 5 TA52

3.3K 1/6W 5 TA52

1.5K 1/6W 1 TA52

2.0K 1/2W 5 TA52

1.8K 1/2W 5 TA52

2.7K 1/2W 5 TA52

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

The components identified by mark are
critical for safety.
Replace only with part number specified.

- 29 -

LOCA. NO PART NO DESCRIPTION

R424
R442
R443
R454
R461
R462
R463
R464
R465
R467
R468
R469
R470
R471
R472
R473
R474
R475
R476
R477
R478
R479
R484
R485
R490
R499
R602
R605
R606
R607
R608
R613
R622
R623
R624
R638
R659
R675
R693
R694
R702
R705
R706
R707
R708
R710
R711
R713
R714
R715
R801
R802

0RF0561K607
0RD1000H609
0RD3301H609
180-C02F
0RS0221H609
180-C02M
0RS1001K607
0RD1003F609
0RD1002F609
0RD3000F609
0RD1303F609
0RS1801H609
0RD5601F609
0RS1002H609
0RD4701F609
0RD6200F609
0RD1802F609
0RD8201F609
0RD1500F609
0RD1001F609
0RD3600F609
0RS0472J607
0RS2202K607
0RS2202K607
180-B01E
0RN1001F409
0RD0102F609
0RD1001F609
0RD1001F609
0RD1001F609
0RD1001F609
0RD1001F609
0RD1500F609
0RD1001F609
0RD6802F609
0RD4701F609
0RD1002F609
0RD0102F609
0RD0272F609
0RD0272F609
0RD1000F609
0RD0752F609
0RD0752F609
0RD0752F609
0RD0752F609
0RD4700F609
0RD0752F609
0RD1800F609
0RD1001F609
0RD1001F609
0RS2702K607
180-822M

5.60 2W 5% TA62
100 OHM 1/2 W 5% TA52

3.3K 1/2W 5 TA52
RC 1/2W 2.2M K

2.2 1/2W 5 TA52

5.6KOHM 1/2 W 10% TA52
1K 2W 5% TA62
100K 1/6W 5 TA52
10K 1/6W 5 TA52
300 1/6W 5 TA52
130K 1/6W 5 TA52

1.8K 1/2W 5 TA52

5.6K 1/6W 5 TA52
10K 1/2W 5 TA52

4.70K 1/6W 5% TA52
620 1/6W 5 TA52
18K 1/6W 5 TA52

8.2K 1/6W 5 TA52
150 1/6W 5 TA52

1.0K 1/6W 5 TA52
360 1/6W 5 TA52
47 1W 5% TA62
22K 2W 5% TA62
22K 2W 5% TA62
RS RECT S 5W 15K J
1K 1/6W 1% TA52
10 1/6W 5 TA52

1.0K 1/6W 5 TA52

1.0K 1/6W 5 TA52

1.0K 1/6W 5 TA52

1.0K 1/6W 5 TA52

1.0K 1/6W 5 TA52
150 1/6W 5 TA52

1.0K 1/6W 5 TA52
68K 1/6W 5 TA52

4.70K 1/6W 5% TA52
10K 1/6W 5 TA52
10 1/6W 5 TA52
27 1/6W 5 TA52
27 1/6W 5 TA52
100 1/6W 5 TA52
75 1/6W 5% TA
75 1/6W 5% TA
75 1/6W 5% TA
75 1/6W 5% TA
470 1/6W 5 TA52
75 1/6W 5% TA
180 1/6W 5 TA52

1.0K 1/6W 5 TA52

1.0K 1/6W 5 TA52
27K 2W 5% TA62
RWR 15W 1.0 OHM J

LOCA. NO PART NO DESCRIPTION

R803
R804
R805
R806
R807
R808
R809
R810
R811
R812
R813
R814
R815
R816
R818
R824
R825
R831
R835
R838
R840
R841
R842
R843
R844
R851
R852
R853
R854
R855
R856
R857
R862
R863
R903
R904
R906
R908
R909
R910
R911
R913
R915
R916
R918
R919
R920
R921
R926
R927
R928
R1001

0RD1202H609
0RS0102K607
0RD5100F609
0RD2001F609
0RD1001F609
180-A01C
180-C02B
0RD2001F609
0RS0330K607
0RS0151K607
0RS0392J607
0RD3002H609
0RD1202F609
0RS0102K607
0RS2702K607
180-C02H
0RD4701F609
0RD7501F609
0RD5100F609
0RD2001F609
0RD0680H609
0RD0680H609
0RD4701H609
0RD1000H609
0RD1001F609
0RS0332K607
0RS1002J607
0RD1001H609
0RD1002F609
0RD4701F609
0RD1502F609
0RS2702K607
0RD2201F609
0RD1502H609
0RD1301F609
0RD7500F609
0RD2003H609
0RD1001F609
0RD2401F609
0RS6202J607
0RS4700H609
0RD1001F609
0RS6202J607
0RS4700H609
0RD1001F609
0RD2401F609
0RS6202J607
0RS4700H609
0RD6800F609
0RD9101F609
0RD3001F609
0RD4701F609

12K 1/2W 5 TA52
10 2W 5% TA62
510 1/6W 5 TA52

2.0K 1/6W 5 TA52

1.0K 1/6W 5 TA52
RW ROUND G 2W 0.12 J
ERC12UGK475V(UL)RC1/2W 4.7M

2.0K 1/6W 5 TA52

0.33 2W 5% TA62

1.50 2W 5% TA62
39 1W 5% TA62
30K 1/2W 5 TA52
12K 1/6W 5 TA52
10 2W 5% TA62
27K 2W 5% TA62
RC 1/2W 8.2M K

4.70K 1/6W 5% TA52

7.5K 1/6W 5 TA52
510 1/6W 5 TA52

2.0K 1/6W 5 TA52

0.68 1/2W 5 TA52

0.68 1/2W 5 TA52

4.7K 1/2W 5 TA52
100 OHM 1/2 W 5% TA52

1.0K 1/6W 5 TA52
33 2W 5% TA62
10K 1W 5% TA62
1K OHM 1/2 W 5% TA52
10K 1/6W 5 TA52

4.70K 1/6W 5% TA52
15K 1/6W 5 TA52
27K 2W 5% TA62

2.2K 1/6W 5 TA52
15K 1/2W 5 TA52

1.3K 1/6W 5 TA52
750 1/6W 5 TA52
200K 1/2W 5 TA52

1.2K 1/6W 5 TA52

2.4K 1/6W 5 TA52
62K 1W 5% TA62
470 1/2W 5 TA52
1K 1/6W 5 TA52
62K 1W 5% TA62
470 1/2W 5 TA52
1K 1/6W 5 TA52

2.4K 1/6W 5 TA52
62K 1W 5% TA62
470 1/2W 5 TA52
680 1/6W 5 TA52

9.1K 1/6W 5 TA52

3.0K 1/6W 5 TA52

4.70K 1/6W 5% TA52

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

The components identified by mark are
critical for safety.
Replace only with part number specified.

- 30 -

LOCA. NO PART NO DESCRIPTION

R1002
R1003
R1004
R1006
R1025
R1026
R1027
R1030
R1032
R1038
R1040
R1047
R1048
R1052
R1053
R1054
R1055
R1056
R1057
R1204
R1206
R1208
R1212
R1292
R2001
R2002
R2003
R2004
R2005
R2006
R2007
R2008
R2009
R2010
R2011
R2012
R2013
R2014
R2015
R2016
R2017
R2018
R2019
R2020
R2021
R2022
R2023
R2024
R2025
R2026
R2027
R2028

0RD1501F609
0RD1001F609
0RD0472H609
0RD1000F609
0RD2200F609
0RD2200F609
0RD2200F609
0RD8201F609
0RD8201F609
0RD1602F609
0RD1002F609
0RD1202F609
0RD6801F609
0RD0561F609
0RD0561F609
0RD0561F609
0RD0561F609
0RD0561F609
0RD0561F609
0RD2403F609
0RD0752F609
0RD2403F609
0RD0752F609
0RD0752F609
0RF0102J607
0RF1000H609
0RD0332H609
0RD0391H609
0RD0332H609
0RD1201H609
0RD1501H609
0RD2001H609
0RD1501H609
0RD0391H609
0RS8200J607
0RS8200J607
0RD2202F609
0RD3001F609
0RD0222F609
0RD3001F609
0RD5101F609
0RD5601F609
0RD3001F609
0RD1600F609
0RD0822F609
0RD0102F609
0RD0822F609
0RD1500F609
0RD1500F609
0RD1000F609
0RD1202F609
0RD5602F609

1.5K 1/6W 5 TA52

1.0K 1/6W 5 TA52
47 1/2W 5 TA52
100 1/6W 5 TA52
220 1/6W 5 TA52
220 1/6W 5 TA52
220 1/6W 5 TA52

8.2K 1/6W 5 TA52

8.2K 1/6W 5 TA52
16K 1/6W 5 TA52
10K 1/6W 5 TA52
12K 1/6W 5 TA52

6.8K 1/6W 5 TA52

5.6 1/6W 5 TA52

5.6 1/6W 5 TA52

5.6 1/6W 5 TA52

5.6 1/6W 5 TA52

5.6 1/6W 5 TA52

5.6 1/6W 5 TA52
240K 1/6W 5 TA52
75 1/6W 5% TA
240K 1/6W 5 TA52
75 1/6W 5% TA
75 1/6W 5% TA
10 1W 5% TA62
100 1/2W 5 TA52
33 1/2W 5 TA52

3.9 1/2W 5 TA52
33 1/2W 5 TA52

1.2K 1/2W 5 TA52

1.5K 1/2W 5 TA52

2.0K 1/2W 5 TA52

1.5K 1/2W 5 TA52

3.9 1/2W 5 TA52
820 1W 5% TA62
820 1W 5% TA62
22K 1/6W 5 TA52

3.0K 1/6W 5 TA52
22 1/6W 5 TA52

3.0K 1/6W 5 TA52

5.1K 1/6W 5 TA52

5.6K 1/6W 5 TA52

3.0K 1/6W 5 TA52
160 1/6W 5 TA52
82 1/6W 5% TA
10 1/6W 5 TA52
82 1/6W 5% TA
150 1/6W 5 TA52
150 1/6W 5 TA52
100 1/6W 5 TA52
12K 1/6W 5 TA52
56K 1/6W 5 TA52

LOCA. NO PART NO DESCRIPTION

R2029
R2030
R2031
R2032
R3001
R3002
R3003
R3004
R3006
R3008
RP28
RP29
RP30
RP45
RP60
RP63
RP65
RP73
RP75
RP77
RP78
RP80
RP82
RP83
RP86
RP87
RP90
VR101

SG901
SG902
SG903
SG904

T801
T802
X501
X502
X601
X701
XP1
XP2
XP3
Z101
Z102
Z103
Z104
Z109
Z110
Z211

0RD5602H609
0RD1000F609
0RD3000F609
0RD3000F609
0RD1202F609
0RD2202F609
0RD1001F609
0RD0472H609
0RD1000F609
0RD1002F609
0RD1000F609
0RD1000F609
0RD1201F609
0RD0271H609
0RD4702F609
0RD1000F609
0RD3901F609
0RD2200F609
0RD2200F609
0RD2200F609
0RD2200F609
0RD1000F609
0RD1000F609
0RD1000F609
0RS0102K607
0RS0152K607
0RD1000F609
180-F03H

165-004A
165-004A
165-004A
165-004A

150-F06U
150-F06U
6202VDB007B
6202VDB007A
156-A02M
6202VDB007B
156-A01V
156-A01C
156-A02H
166-A01B
6200VQS001F
6200VQS001G
6200VQS001H
166-F01G
166-F01G
166-C04B

56K 1/2W 5 M15
100 1/6W 5 TA52
300 1/6W 5 TA52
300 1/6W 5 TA52
12K 1/6W 5 TA52
22K 1/6W 5 TA52

1.0K 1/6W 5 TA52
47 1/2W 5 TA52
100 1/6W 5 TA52
10K 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52

1.2K 1/6W 5 TA52

2.7 1/2W 5 TA52
47K 1/6W 5 TA52
100 1/6W 5 TA52

3.9K 1/6W 5 TA52
220 1/6W 5 TA52
220 1/6W 5 TA52
220 1/6W 5 TA52
220 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52
100 1/6W 5 TA52
10 2W 5% TA62
15 2W 5% TA62
100 1/6W 5 TA52
EVN-DJAY03 B103

SPARK GAP,AG20PT 152F-L3N/S-23
SPARK GAP,AG20PT 152F-L3N/S-23
SPARK GAP,AG20PT 152F-L3N/S-23
SPARK GAP,AG20PT 152F-L3N/S-23

FILTER(CIRC),LINE SQE3535 27.5MH
FILTER(CIRC),LINE SQE3535 27.5MH
CRYSTAL,STANDARD HC49U 20.250MHZ
CRYSTAL,STANDARD HC49U 5.000MHZ 30
CRYSTAL,STANDARD HC49U 18.432MHZ 30P
CRYSTAL,STANDARD HC49U 20.250MHZ
CRYSTAL,STANDARD HC49U 4.433619MHZ
CRYSTAL,STANDARD HC49U 3.579545MHZ
CRYSTAL,STANDARD HC49U 20.480MHZ
FILTER,OFWK3953M 37.4MHZ (PIF
FILTER(CIRC),SAW OFWM3960M 38.9MHZ(INT
FILTER(CIRC),SAW OFWK9350M 38.9MHZ(INT
FILTER(CIRC),SAW OFWK9461M 33.9MHZ(SIF
FILTER,DSS306-93FZ103N 100VOLT
FILTER,DSS306-93FZ103N 100VOLT
FILTER(CIRC),TRAP TPWA03B-TF21 5.5/6.0MHZ

SPARK GAP

FILTER & CRYSTAL

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

The components identified by mark are
critical for safety.
Replace only with part number specified.

- 31 -

LOCA. NO PART NO DESCRIPTION

Z501

A1
A2
A4

SK901
SP1001
SW801
TH801
TU101
X01
ZN1101

166-F01D

3828VA0196F
6710V00026C
450-018C

6620VBD001A
6908VB0001A
6600VM2001A
163-054F
6700VPF005C
166-E09C
164-003K

FILTER,DSS306-93Y5S271M 50VOLT

MANUAL,OWNERS,LG AR/EN 026C TX
REMOTE CONTROLLER
ADAPTER,ANT.(300 TO 75) PAL

SOCKET (CIRC),CPT PCS701A 9P 14/360
BUZZER,PIEZO ELECTRIC PKM13EPY-4002 4000HZ
SWITCH,PUSH POWER SDDFC3
THERMISTOR,PTC J502P84D140M290Q
TUNER,TAEC-G022D
RESONATOR,CSA16.0MXZ040 MURATA 16.0MHZ
VARISTOR,SVC621D-14A ILJIN 620V 0%

LOCA. NO PART NO DESCRIPTION

MISCELLANEOUS

ACCESSORIES

The components identified by mark are
critical for safety.
Replace only with part number specified.

112

913

150

153

510

170

400

943

800

124

600

121

123

125

120

700

126

300

320

330

530

520

550

P802

503

501

540

560

EXPLODED VIEW

- 1 -

- 2 -

EXPLODED VIEW PARTS LIST

LOCA. NO PART NO DESCRIPTIONS

112 6341V29005A BARE CPT ASSY,2426GF239AT 100HZ DY
120 6400VA0015A SPEAKER,C151PX-373K14 8 OHM 15W
121 120-C76G SPEAKER,TWEETER C050TX-357K14 8 OHM
123 6400VA0016A SPEAKER,C050TX-346K14 8 OHM 15W
124 3550V00039C COVER,DOME
125 4810V00129A BRACKET,MAIN SPEAKER(RIGHT)
126 4810V00129B BRACKET,MAIN DOME(LEFT)
150 150-201S COIL,DEGAUSSING CU 29” 440TURN 102 OHM
153 6150Z-1340A DY,DC29SLFL2
170 170-844K CPT EARTH,29” 98T
300 3091V00173G CABINET ASSY
320 320-070G SPRING,COIL
330 5020V00337A BUTTON,POWER
400 3809V00127K BACK COVER ASSY
501 4810V00139D BRACKET,MAIN
503 3500V00017B BOARD,MAIN(2PHONE)
510 6871VSM371A PWB ASSY,CPT
520 6871VMM311C PWB ASSY MAIN (118,19,66.128) UAE
530 6871VDM073A PWB ASSY MAIN2 MC993A E/S INITIAL
540 6871VSM313A PWB ASSY,DIGIT MC993A 100HZ
550 6871VSM372A PWB ASSY,CONT MC993A POWER
560 6871VSM437A PWB ASSY,SIDE
600 6871VSM373A PWB ASSY,A/V MC993A SIDE-AV
700 0IGL120104D IC,G-LINK CDS SENSOR MODULE
800 6871VSM404A PWB ASSY,BUTON MC993A TOUCH
913 332-229H SCREW ASSY HEXAGON HEAD
943 1PTF0403116 SCREW,TAP TITE D4.0 L16.0
P802 174-009V CORD,POWER(W/HOLD,HOUSING)L=400

The components identified by mark is
critical for safety.
Replace only with part number specified.
