H310M DS2 2.0

User's Manual

Rev. 1001

For more product details, please visit GIGABYTE's website.

To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.

Gigabyte H310M DS2 2.0 Service Manual

Motherboard

H310M DS2 2.0

Jul. 2, 2018

Motherboard

H310M DS2 2.0

Jul. 2, 2018

Copyright

© 2018 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

ChangestothespecificationsandfeaturesinthismanualmaybemadebyGIGABYTEwithoutpriornotice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: https://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard BIOS, drivers, or when looking for technical information.

Example:

Table of Contents

H310M DS2 2.0 Motherboard Layout..............................................................................

4

Chapter 1 Hardware Installation......................................................................................

5

1-1

Installation Precautions.....................................................................................

5

1-2

Product Specifications......................................................................................

6

1-3

Installing the CPU.............................................................................................

9

1-4

Installing the Memory........................................................................................

9

1-5 Installing an Expansion Card..........................................................................

10

1-6

Back Panel Connectors..................................................................................

10

1-7

Internal Connectors........................................................................................

12

Chapter 2 BIOS Setup...................................................................................................

18

2-1

Startup Screen................................................................................................

18

2-2

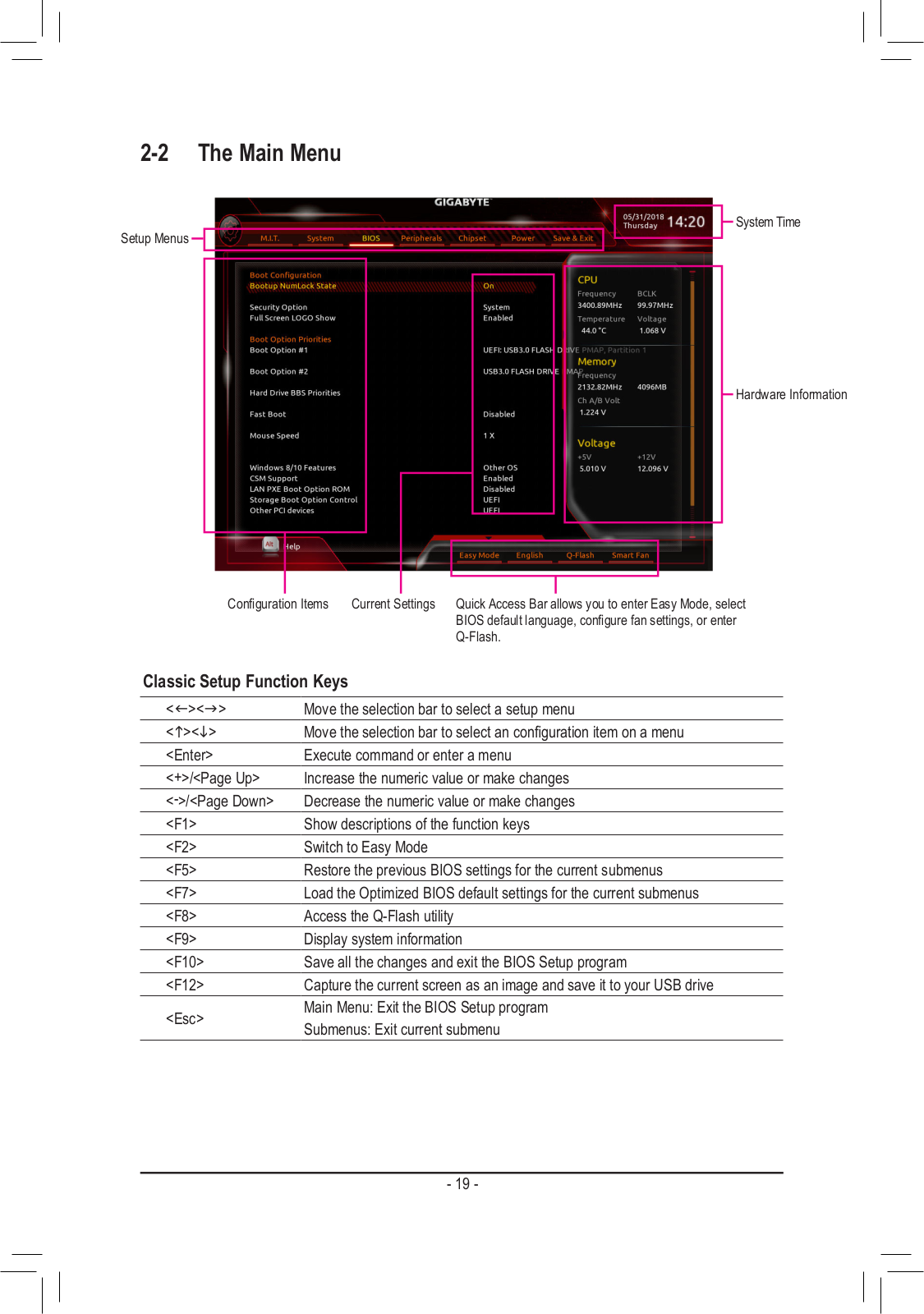

The Main Menu...............................................................................................

19

2-3

M.I.T................................................................................................................

20

2-4

System............................................................................................................

26

2-5

BIOS...............................................................................................................

27

2-6

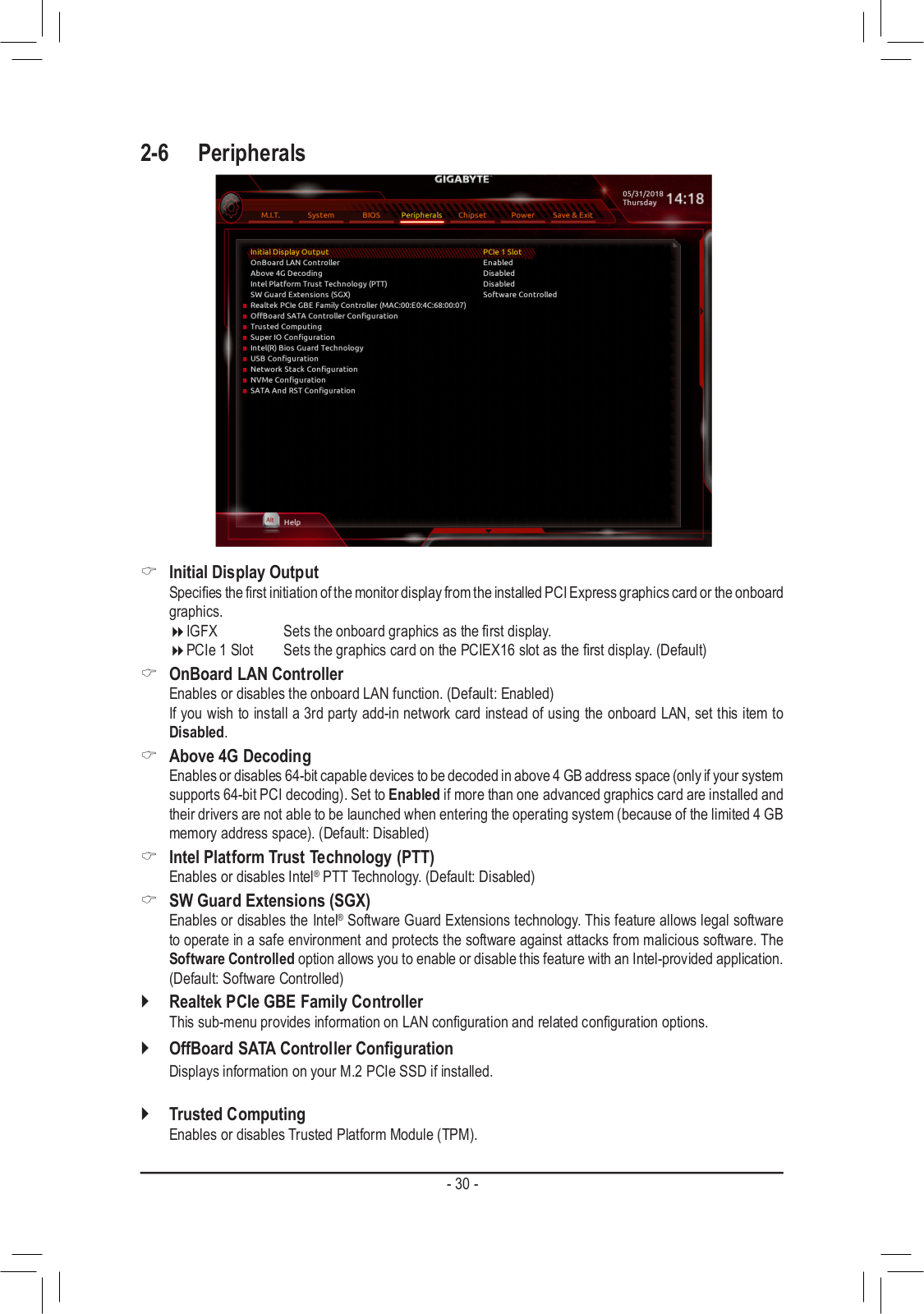

Peripherals......................................................................................................

30

2-7

Chipset............................................................................................................

33

2-8

Power..............................................................................................................

34

2-9

Save & Exit.....................................................................................................

36

Chapter 3 Appendix.......................................................................................................

37

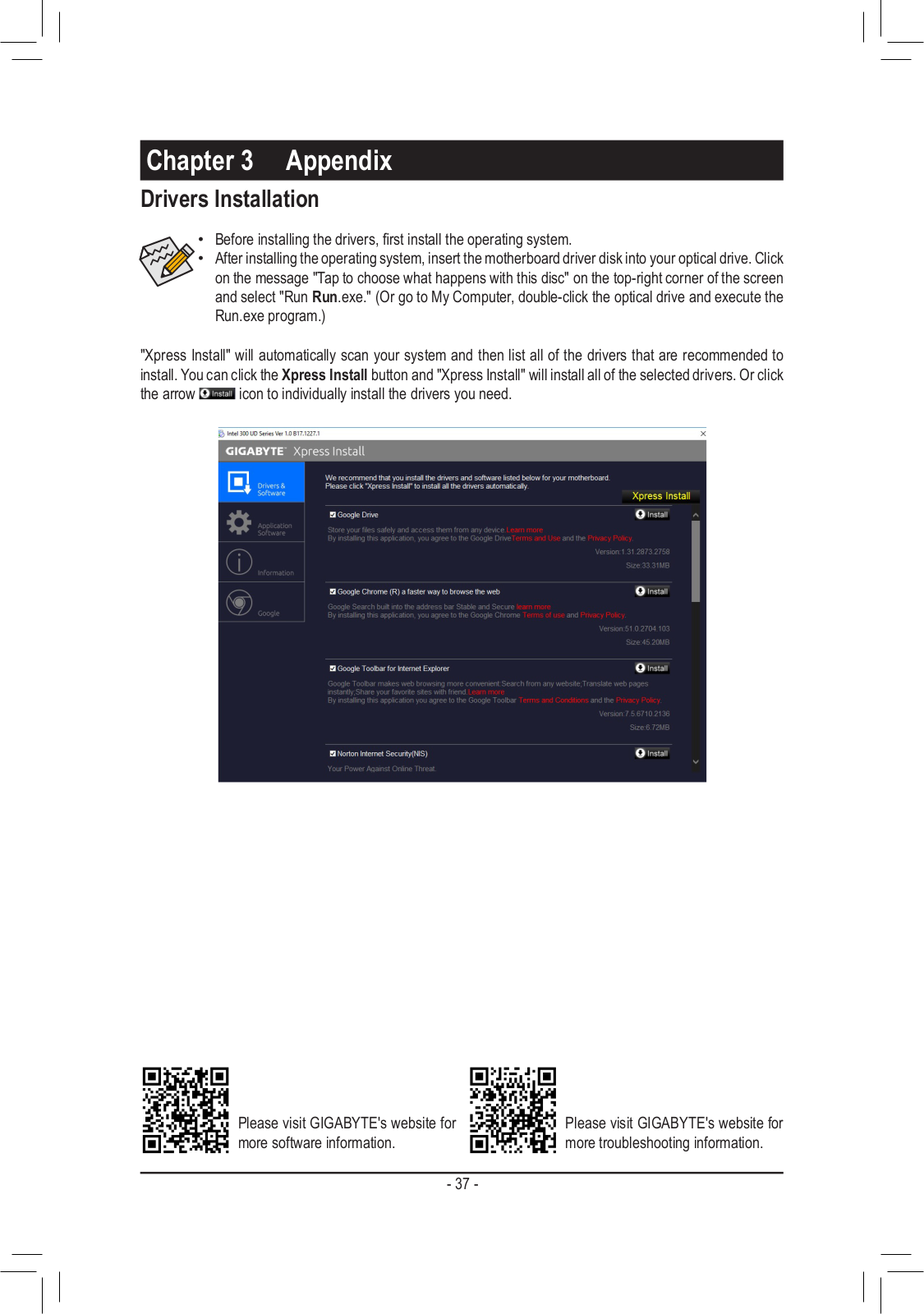

Drivers Installation.....................................................................................................

37

Regulatory Statements..............................................................................................

38

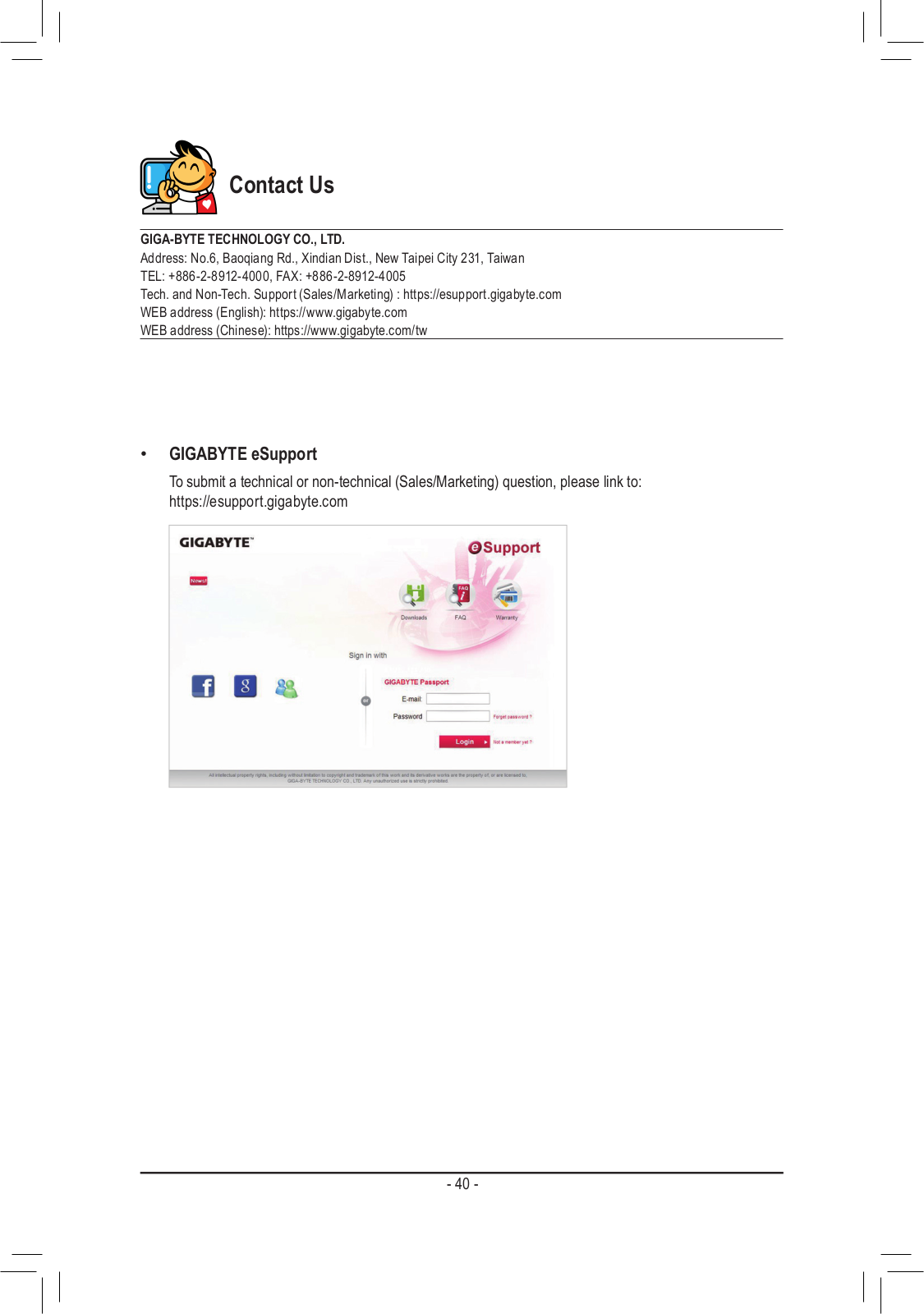

Contact Us.................................................................................................................

40

- 3 -

H310M DS2 2.0 Motherboard Layout

KB_MS_USB







ATX_12V

COMA

SYS_FAN





LPT





VGA





R_USB30





USB_LAN





AUDIO

Realtek®



GbE LAN

PCIEX16









iTE®

PCIEX1_1



Super I/O

CODEC

PCIEX1_2



F_AUDIO

TPM

CPU_FAN



ATX

DDR4 1

DDR4 2

LGA1151

H310M DS2 2.0

BAT

Intel® H310

1 3 SATA3 0 2

F_USB30

M_BIOS



F_USB

F_PANEL



CLR_CMOS

Box Contents

55

H310M DS2 2.0 motherboard





55

Motherboard driver disk

55

Two SATA cables

55

User's Manual

55

I/O Shield

*The box contents above are for reference only and the actual items shall depend on the product package you obtain. The box contents are subject to change without notice.

-4 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures:

•• Prior to installation, make sure the chassis is suitable for the motherboard.

•• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer. These stickers are required for warranty validation.

•• Always remove the AC power by unplugging the power cord from the power outlet before installing or removing the motherboard or other hardware components.

•• When connecting hardware components to the internal connectors on the motherboard, make sure they are connected tightly and securely.

•• When handling the motherboard, avoid touching any metal leads or connectors.

•• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap, keep your hands dry and first touch a metal object to eliminate static electricity.

•• Prior to installing the motherboard, please have it on top of an antistatic pad or within an electrostatic shielding container.

•• Before connecting or unplugging the power supply cable from the motherboard, make sure the power supply has been turned off.

•• Before turning on the power, make sure the power supply voltage has been set according to the local voltage standard.

•• Before using the product, please verify that all cables and power connectors of your hardware components are connected.

•• To prevent damage to the motherboard, do not allow screws to come in contact with the motherboard circuit or its components.

•• Make sure there are no leftover screws or metal components placed on the motherboard or within the computer casing.

•• Do not place the computer system on an uneven surface.

•• Do not place the computer system in a high-temperature or wet environment.

•• Turning on the computer power during the installation process can lead to damage to system components as well as physical harm to the user.

•• If you are uncertain about any installation steps or have a problem related to the use of the product, please consult a certified computer technician.

•• If you use an adapter, extension power cable, or power strip, ensure to consult with its installation and/or grounding instructions.

- 5 -

1-2 Product Specifications

CPU Support for 8th Generation Intel® Corei7 processors/Intel® Corei5 processors/Intel® Corei3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset

Intel® H310 Express Chipset

Memory

2 x DDR4 DIMM sockets supporting up to 32 GB of system memory



Dual channel memory architecture



Support for DDR4 2666/2400/2133 MHz memory modules



Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in



non-ECC mode)



Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules



Support for Extreme Memory Profile (XMP) memory modules





* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel®





Corei7/i5 processor.



(Go to GIGABYTE's website for the latest supported memory speeds and memory



modules.)

Onboard

Integrated Graphics Processor-Intel® HD Graphics support:

Graphics

-

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

Maximum shared memory of 1 GB

Audio



Realtek® ALC887 codec



High Definition Audio





2/4/5.1/7.1-channel





* To configure 7.1-channel audio, you have to use an HD front panel audio module





and enable the multi-channel audio feature through the audio driver.

LAN



Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots



1 x PCI Express x16 slot, running at x16





(The PCIEX16 slot conforms to PCI Express 3.0 standard.)

2 x PCI Express x1 slots

(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Interface



Chipset:





- 4 x SATA 6Gb/s connectors

USB



Chipset:





- 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through





the internal USB header)





- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through





the internal USB header)

- 6 -

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.1 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

Back Panel

1 x PS/2 keyboard/mouse port

Connectors

1 x D-Sub port



1 x serial port



1 x parallel port



2 x USB 3.1 Gen 1 ports



4 x USB 2.0/1.1 ports



1 x RJ-45 port



3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

*Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 128 Mbit flash



Use of licensed AMI UEFI BIOS





PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features



Support for APP Center



* Available applications in APP Center may vary by motherboard model. Supported



functions of each application may also vary depending on motherboard specifications.

-

3D OSD

-

@BIOS

-

AutoGreen

-

Cloud Station

-

EasyTune

-

Fast Boot

-

Game Boost

-

ON/OFF Charge

-

Platform Power Management

- 7 -

Unique Features



-

Smart Backup





-

Smart Keyboard





-

Smart Survey





-

Smart TimeLock





-

Smart HUD





-

System Information Viewer





-

USB Blocker





-

V-Tuner



Support for Q-Flash



Support for Xpress Install

Bundled



Norton® Internet Security (OEM version)

Software



Realtek® 8118 Gaming LAN Bandwidth Control Utility

Operating



Support for Windows 10 64-bit

System







Form Factor



Micro ATX Form Factor; 22.6cm x 17.4cm

*GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice.

Please visit GIGABYTE's website for support lists of CPU, memory modules, and SSDs.

Please visit the Support\Utility List page on GIGABYTE's website to download the latest version of apps.

- 8 -

1-3

Installing the CPU



Read the following guidelines before you begin to install the CPU:



••

Make sure that the motherboard supports the CPU.





(Go to GIGABYTE's website for the latest CPU support list.)



••

Always turn off the computer and unplug the power cord from the power outlet before installing the





CPU to prevent hardware damage.



••

Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may





locate the notches on both sides of the CPU and alignment keys on the CPU socket.)



••

Apply an even and thin layer of thermal grease on the surface of the CPU.



••

Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage





of the CPU may occur.



••

Set the CPU host frequency in accordance with the CPU specifications. It is not recommended





that the system bus frequency be set beyond hardware specifications since it does not meet the





standard requirements for the peripherals. If you wish to set the frequency beyond the standard





specifications, please do so according to your hardware specifications including the CPU, graphics





card, memory, hard drive, etc.

Installing the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.



LGA1151 CPU Socket

LGA1151 CPU

Alignment Key

Notch

Notch

Alignment Key



Pin One Corner of the CPU Socket

Triangle Pin One Marking on the CPU

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load plate automatically during the process of re-engaging the lever after you insert the CPU.

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•• Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•• Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.

•• Memory modules have a foolproof design. A memory module can be installed in only one direction. If you are unable to insert the memory, switch the direction.

Dual Channel Memory Configuration

This motherboard provides two memory sockets and supports Dual Channel Technology. After the memory is installed, the BIOS will automatically detect the specifications and capacity of the memory. Enabling Dual

Channel memory mode will double the original memory bandwidth.

Please visit GIGABYTE's website for details on hardware installation.

- 9 -

The two DDR4 memory sockets are divided into two channels and each channel has one memory socket as following:

Channel A: DDR4_1Channel B: DDR4_2

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1.Dual Channel mode cannot be enabled if only one memory module is installed.

2.When enabling Dual Channel mode with two memory modules, it is recommended that memory of the same capacity, brand, speed, and chips be used.

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•• Make sure the motherboard supports the expansion card. Carefully read the manual that came with your expansion card.

•• Always turn off the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage.

1-6 Back Panel Connectors

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices.

PS/2 Keyboard/Mouse Port

Use this port to connect a PS/2 mouse or keyboard.

Parallel Port

Use the parallel port to connect devices such as a printer, scanner and etc. The parallel port is also called a printer port.

Serial Port

Use the serial port to connect devices such as a mouse, modem or other peripherals.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200@60 Hz (the actual resolutions supported depend on the monitor being used). Connect a monitor that supports D-Sub connection to this port.

USB 3.1 Gen 1 Port

The USB 3.1 Gen 1 port supports the USB 3.1 Gen 1 specification and is compatible to the USB 2.0 specification. Use this port for USB devices.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following describes the states of the LAN port LEDs.

Connection/







Activity LED

Connection/Speed LED:



Activity LED:

Speed LED























































State

Description



State

Description































Orange

1 Gbps data rate



Blinking

Data transmission or receiving is occurring































Green

100 Mbps data rate



Off

No data transmission or receiving is occurring





























































Off

10 Mbps data rate



















































LAN Port

























- 10 -

Line In/Rear Speaker Out (Blue)

The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

Line Out/Front Speaker Out (Green)

The line out jack.

Mic In/Center/Subwoofer Speaker Out (Pink)

The Mic in jack.

Audio Jack Configurations:

Jack

Headphone/

4-channel

5.1-channel

7.1-channel

2-channel









Line In/Rear Speaker Out



a

a

a











Line Out/Front Speaker Out

a

a

a

a

Mic In/Center/Subwoofer





a

a

Speaker Out













Front Panel Line Out/







a

Side Speaker Out















To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

•• When removing the cable connected to a back panel connector, first remove the cable from your device and then remove it from the motherboard.

•• When removing the cable, pull it straight out from the connector. Do not rock it side to side to prevent an electrical short inside the cable connector.

Please visit GIGABYTE's website for details on configuring the audio software.

- 11 -

1-7 Internal Connectors

4



1

3

2

































































































5

8

12

6



7 10 9 11

1)

ATX_12V

7)

F_AUDIO

2)

ATX

8)

F_USB30

3)

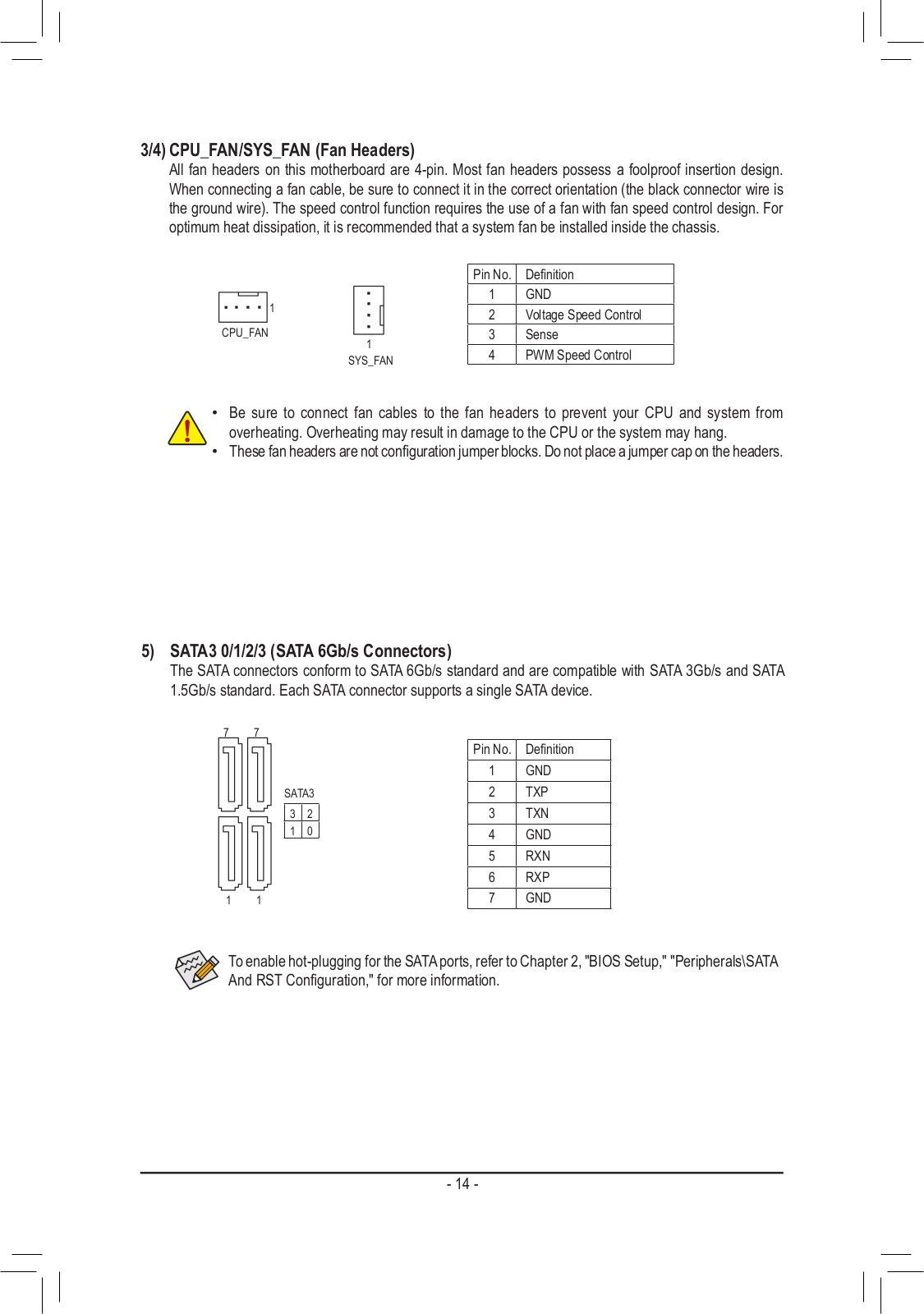

CPU_FAN

9)

F_USB

4)

SYS_FAN

10)

TPM

5)

SATA3 0/1/2/3

11)

CLR_CMOS

6)

F_PANEL

12)

BAT

Read the following guidelines before connecting external devices:

•• First make sure your devices are compliant with the connectors you wish to connect.

•• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.

•• After installing the device and before turning on the computer, make sure the device cable has been securely attached to the connector on the motherboard.

- 12 -

Loading...
+ 28 hidden pages
