Gigabyte A520M H Service Manual

4.5 (2)

A520M H

User's Manual

Rev. 1001

For more product details, please visit GIGABYTE's website.

To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.

Copyright

© 2020 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

ChangestothespecificationsandfeaturesinthismanualmaybemadebyGIGABYTEwithout prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: https://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard BIOS, drivers, or when looking for technical information.

Example:

Table of Contents

A520M H Motherboard Layout.........................................................................................

4

Chapter 1 Hardware Installation......................................................................................

5

1-1

Installation Precautions.....................................................................................

5

1-2

Product Specifications......................................................................................

6

1-3

Installing the CPU.............................................................................................

9

1-4

Installing the Memory........................................................................................

9

1-5 Installing an Expansion Card..........................................................................

10

1-6

Back Panel Connectors..................................................................................

10

1-7

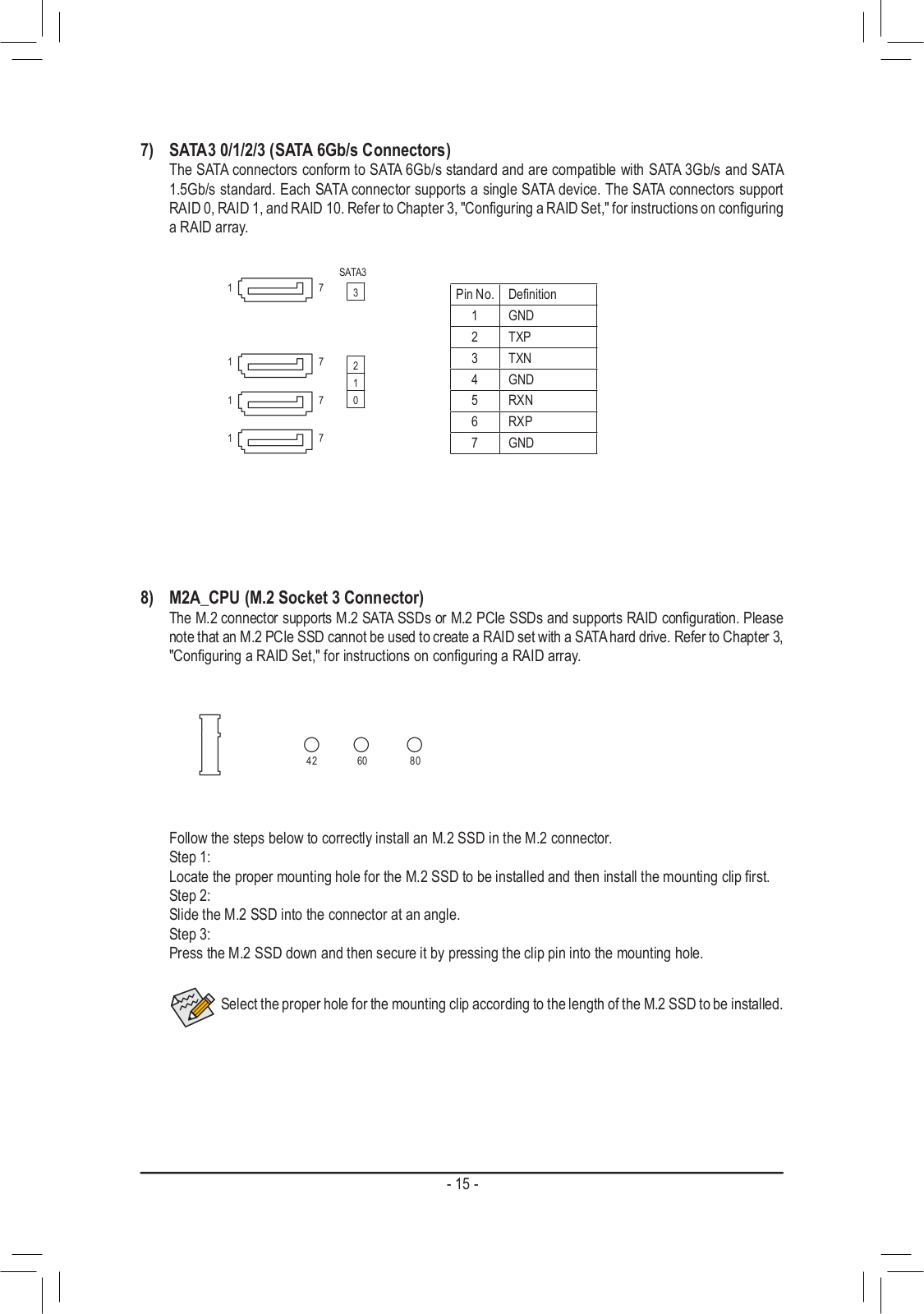

Internal Connectors........................................................................................

12

Chapter 2 BIOS Setup...................................................................................................

20

2-1

Startup Screen................................................................................................

20

2-2

The Main Menu...............................................................................................

21

2-3

Favorites (F11)................................................................................................

22

2-4

Tweaker..........................................................................................................

23

2-5

Settings...........................................................................................................

26

2-6

System Info.....................................................................................................

32

2-7

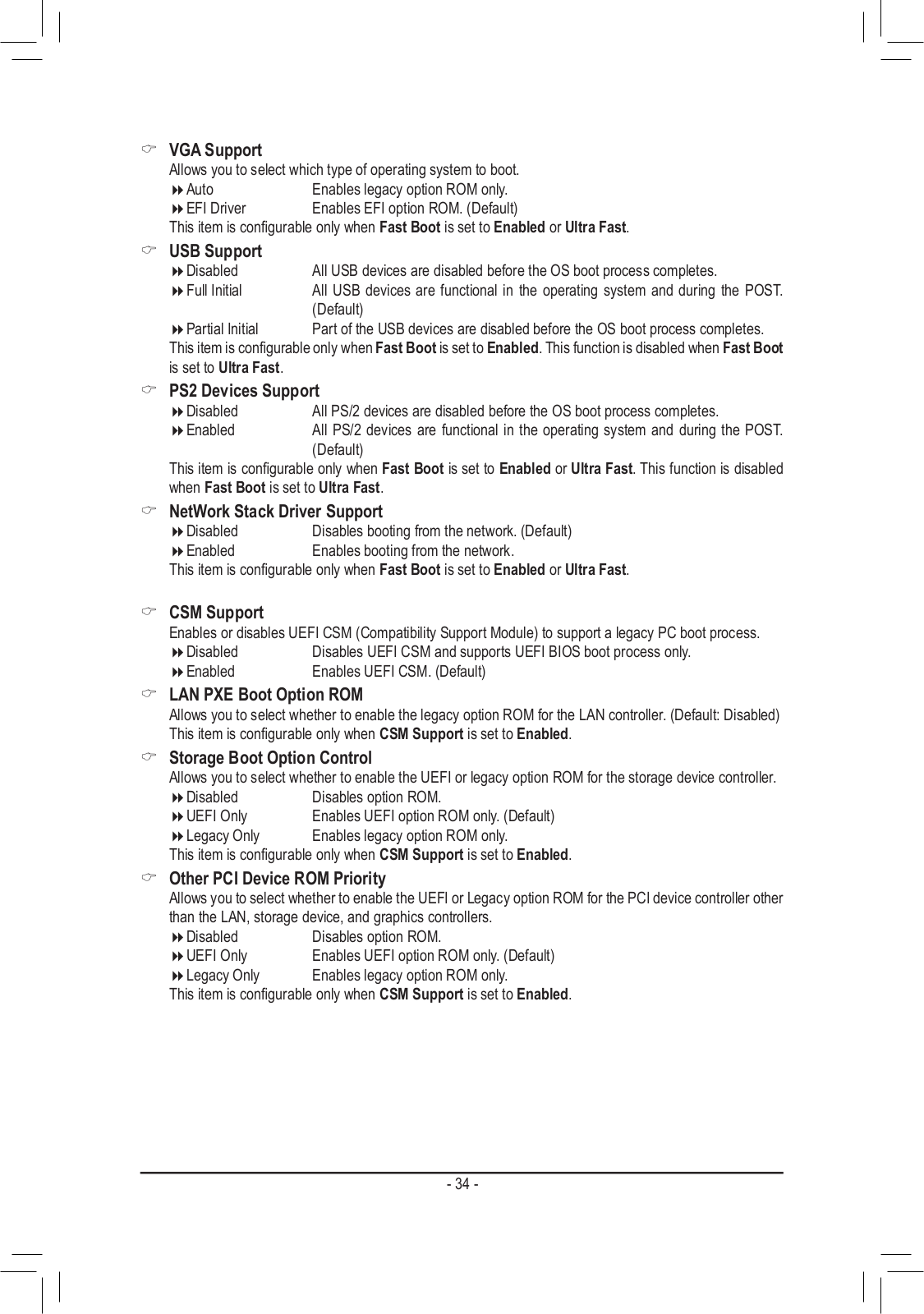

Boot................................................................................................................

33

2-8

Save & Exit.....................................................................................................

36

Chapter 3 Appendix.......................................................................................................

37

3-1 Configuring a RAID Set..................................................................................

37

3-2

Drivers Installation..........................................................................................

39

Regulatory Notices....................................................................................................

40

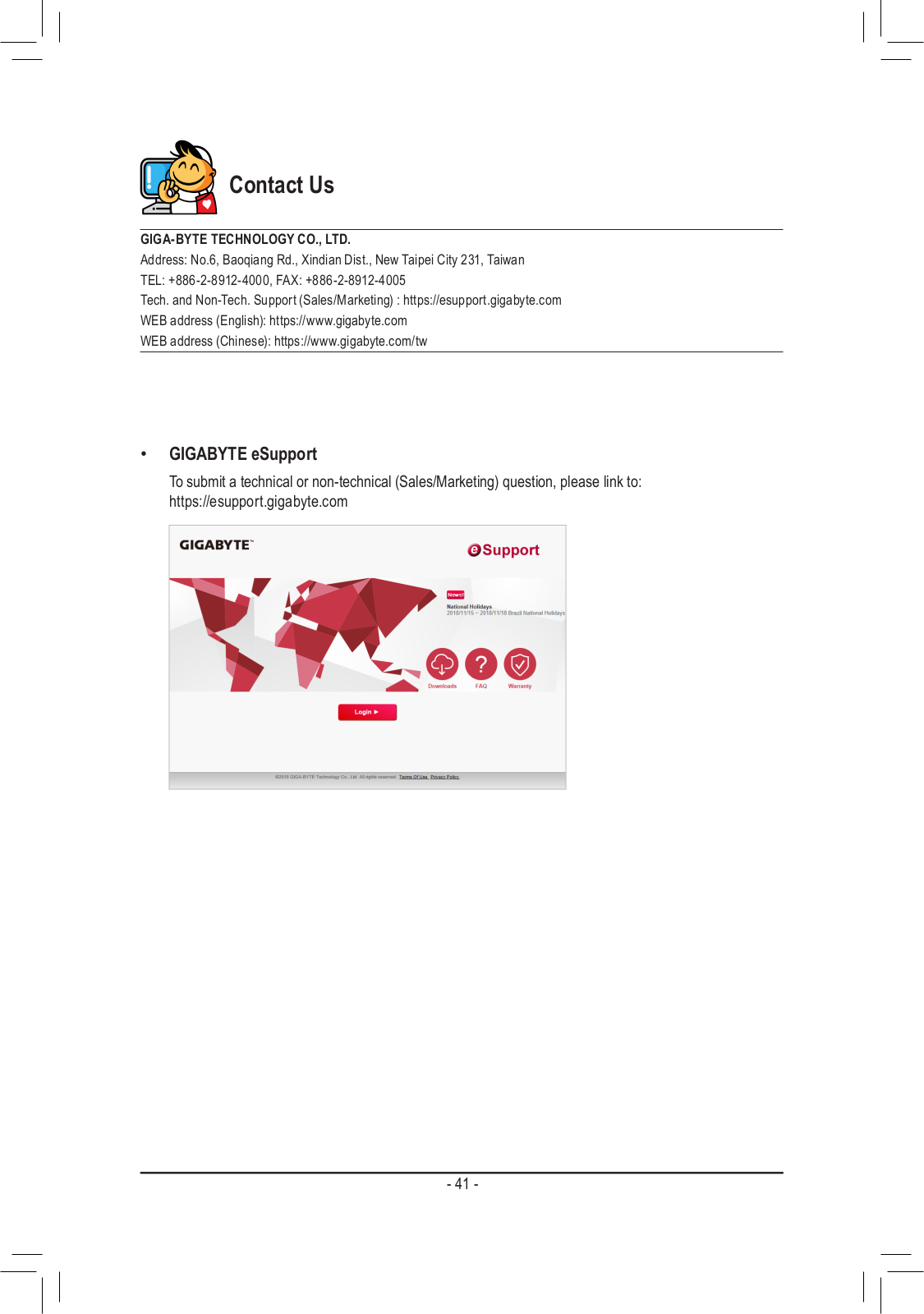

Contact Us.................................................................................................................

41

- 3 -

Gigabyte A520M H Service Manual

A520M H Motherboard Layout

KB_MS_USB ATX_12V

DVI

HDMI

U32

QFLED

QFLASH_PLUS

U32_LAN SYS_FAN1

AUDIO



PCIEX1_1

Realtek®

PCIEX16

GbE LAN



PCIEX1_2 BAT

CODEC

D_LED1



F_AUDIO

TPM

LED_C



CPU_FAN

Socket AM4

ATX

M2ACPU

M_BIOS





DDR4A1

DDR4B1

A520M H

42

60







80















3



iTE®













Super I/O



AMD A520

SATA3

































2



F_USB2

SPEAKER



F_U32

1









0















F_USB1

F_PANEL



SYS_FAN2

COM



CI













CLR_CMOS







Box Contents

55

A520M H motherboard

55

Two SATA cables

55

Motherboard driver disc

55

I/O Shield

55

User's Manual





*The box contents above are for reference only and the actual items shall depend on the product package you obtain. The box contents are subject to change without notice.

-4 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures:

• Prior to installation, make sure the chassis is suitable for the motherboard.

• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer. These stickers are required for warranty validation.

• Always remove the AC power by unplugging the power cord from the power outlet before installing or removing the motherboard or other hardware components.

• When connecting hardware components to the internal connectors on the motherboard, make sure they are connected tightly and securely.

• When handling the motherboard, avoid touching any metal leads or connectors.

• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap, keep your hands dry and first touch a metal object to eliminate static electricity.

• Prior to installing the motherboard, please have it on top of an antistatic pad or within an electrostatic shielding container.

• Before connecting or unplugging the power supply cable from the motherboard, make sure the power supply has been turned off.

• Before turning on the power, make sure the power supply voltage has been set according to the local voltage standard.

• Before using the product, please verify that all cables and power connectors of your hardware components are connected.

• To prevent damage to the motherboard, do not allow screws to come in contact with the motherboard circuit or its components.

• Make sure there are no leftover screws or metal components placed on the motherboard or within the computer casing.

• Do not place the computer system on an uneven surface.

• Do not place the computer system in a high-temperature or wet environment.

• Turning on the computer power during the installation process can lead to damage to system components as well as physical harm to the user.

• If you are uncertain about any installation steps or have a problem related to the use of the product, please consult a certified computer technician.

• If you use an adapter, extension power cable, or power strip, ensure to consult with its installation and/or grounding instructions.

- 5 -

1-2 Product Specifications

CPU

AMD Socket AM4, support for:



3rd Generation AMD Ryzenprocessors/

3rd Generation AMD Ryzenwith RadeonGraphics processors (Go to GIGABYTE's website for the latest CPU support list.)

Chipset

AMD A520





Memory

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)



of system memory



Support for DDR4 3200/2933/2667/2400/2133 MHz memory modules



Dual channel memory architecture



Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules



Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules



Support for Extreme Memory Profile (XMP) memory modules



(Go to GIGABYTE's website for the latest supported memory speeds and memory



modules.)

Onboard

Integrated in the 3rd Generation AMD Ryzenwith RadeonGraphics processors:

Graphics

- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

*The DVI-D port does not support D-Sub connection by adapter.

-1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

*Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB

Audio



Realtek® ALC887 codec



High Definition Audio





2/4/5.1/7.1-channel

*Toconfigure7.1-channelaudio,youneedtoopentheaudiosoftwareandselectDevice advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

LAN



Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Expansion Slots



CPU:





-

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset:

-2 x PCI Express x1 slots, supporting PCIe 3.0

Storage Interface CPU:

- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

Chipset:

-4 x SATA 6Gb/s connectors

-Support for RAID 0, RAID 1, and RAID 10

USB

CPU:



- 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

-2 x USB 3.2 Gen 1 ports available through the internal USB header

-6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

- 6 -

Internal



1 x 24-pin ATX main power connector

Connectors



1 x 8-pin ATX 12V power connector



1 x CPU fan header



2 x system fan headers



1 x addressable LED strip header



1 x RGB LED strip header



1 x M.2 Socket 3 connector



4 x SATA 6Gb/s connectors



1 x front panel header



1 x front panel audio header



1 x speaker header



1 x USB 3.2 Gen 1 header



2 x USB 2.0/1.1 headers



1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S





module only)



1 x serial port header



1 x chassis intrusion header



1 x Clear CMOS jumper

Back Panel



1 x PS/2 keyboard/mouse port

Connectors



1 x DVI-D port



1 x HDMI port



4 x USB 3.2 Gen 1 ports



2 x USB 2.0/1.1 ports



1 x Q-Flash Plus button



1 x RJ-45 port



3 x audio jacks

I/O Controller



iTE® I/O Controller Chip

Hardware



Voltage detection

Monitor



Temperature detection



Fan speed detection





Overheating warning



Fan fail warning



Fan speed control

*Whether the fan speed control function is supported will depend on the cooler you install.

BIOS



1 x 128 Mbit flash



Use of licensed AMI UEFI BIOS





PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

- 7 -

Unique Features



Support for APP Center







* Available applications in APP Center may vary by motherboard model. Supported







functionsofeachapplicationmayalsovarydependingonmotherboardspecifications.





-

@BIOS





-

EasyTune





-

Fast Boot





-

Game Boost





-

ON/OFF Charge





-

RGB Fusion





-

Smart Backup





-

System Information Viewer



Support for Q-Flash Plus





Support for Q-Flash



Support for Xpress Install

Bundled



Norton® Internet Security (OEM version)

Software



Realtek® 8118 Gaming LAN Bandwidth Control Utility

Operating

Support for Windows 10 64-bit

System







Form Factor



Micro ATX Form Factor; 24.4cm x 20.5cm

*GIGABYTEreservestherighttomakeanychangestotheproductspecificationsandproduct-relatedinformationwithout prior notice.

Please visit GIGABYTE's website for support lists of CPU, memory modules, SSDs, and M.2 devices.

- 8 -

Please visit the Support\Utility List page on GIGABYTE's website to download the latest version of apps.

1-3

Installing the CPU



Read the following guidelines before you begin to install the CPU:



••

Make sure that the motherboard supports the CPU.





(Go to GIGABYTE's website for the latest CPU support list.)



••

Always turn off the computer and unplug the power cord from the power outlet before installing the





CPU to prevent hardware damage.



••

Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly.



••

Apply an even and thin layer of thermal grease on the surface of the CPU.



••

Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage





of the CPU may occur.



••

Set the CPU host frequency in accordance with the CPU specifications. It is not recommended





that the system bus frequency be set beyond hardware specifications since it does not meet the





standard requirements for the peripherals. If you wish to set the frequency beyond the standard





specifications, please do so according to your hardware specifications including the CPU, graphics





card, memory, hard drive, etc.

Installing the CPU

Completely lift up the CPU socket locking lever. Locate the pin one (denoted by a small triangle) of the CPU socket and the CPU. Once the CPU is positioned into its socket, place one finger down on the middle of the

CPU, lowering the locking lever and latching it into the fully locked position.

A Small Triangle



A Small Triangle



Marking Denotes Pin

AM4 Socket

AM4 CPU

Marking Denotes CPU

One of the Socket







Pin One



1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•• Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•• Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.

•• Memory modules have a foolproof design. A memory module can be installed in only one direction. If you are unable to insert the memory, switch the direction.

Dual Channel Memory Configuration

This motherboard provides two memory sockets and supports Dual Channel Technology. After the memory is installed, the BIOS will automatically detect the specifications and capacity of the memory. Enabling Dual

Channel memory mode will double the original memory bandwidth.

Please visit GIGABYTE's website for details on hardware installation.

- 9 -

The two memory sockets are divided into two channels and each channel has one memory socket as following:

Channel A: DDR4_A1Channel B: DDR4_B1

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1.Dual Channel mode cannot be enabled if only one memory module is installed.

2.When enabling Dual Channel mode with two memory modules, it is recommended that memory of the same capacity, brand, speed, and chips be used.

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•• Make sure the motherboard supports the expansion card. Carefully read the manual that came with your expansion card.

•• Always turn off the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage.

1-6 Back Panel Connectors

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices.

PS/2 Keyboard/Mouse Port

Use this port to connect a PS/2 mouse or keyboard.

DVI-D Port (Note 1) (Note 2)

The DVI-D port conforms to the DVI-D specification and supports a maximum resolution of 1920x1200@60 Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports DVI-D connection to this port.

HDMI Port (Note 1)

The HDMI port is HDCP 2.3 compliant and supports Dolby TrueHD and DTS HD

Master Audio formats. It also supports up to 192KHz/24bit 7.1-channel LPCM audio output. You can use this port to connect your HDMI-supported monitor. The maximum supported resolution is 4096x2160@60 Hz, but the actual resolutions supported are dependent on the monitor being used.

After installing the HDMI device, make sure to set the default sound playback device to HDMI. (The item name may differ depending on your operating system.)

•• When removing the cable connected to a back panel connector, first remove the cable from your device and then remove it from the motherboard.

•• When removing the cable, pull it straight out from the connector. Do not rock it side to side to prevent an electrical short inside the cable connector.

- 10 -

USB 3.2 Gen 1 Port

The USB 3.2 Gen 1 port supports the USB 3.2 Gen 1 specification and is compatible to the USB 2.0 specification. Use this port for USB devices.

USB 3.2 Gen 1 Port (Q-Flash Plus Port)

The USB port supports the USB 3.2 Gen 1 specification. Use this port for USB devices. Before using Q-Flash Plus (Note 3), make sure to insert the USB flash drive into this port first.

Q-Flash Plus Button (Note 3)

Q-Flash Plus allows you to update the BIOS when your system is off (S5 shutdown state). Save the latest

BIOS on a USB thumb drive and plug it into the Q-Flash Plus port, and then you can now flash the BIOS automatically by simply pressing the Q-Flash Plus button. The QFLED will flash when the BIOS matching and flashing activities start and will stop flashing when the main BIOS flashing is complete.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following describes the states of the LAN port LEDs.

Connection/















Connection/Speed LED:



Activity LED:



Speed LED







Activity LED













































State

Description



State

Description



























Orange

1 Gbps data rate



Blinking

Data transmission or receiving is occurring



























Green

100 Mbps data rate



Off

No data transmission or receiving is occurring



























Off

10 Mbps data rate









































LAN Port























Line In/Rear Speaker Out (Blue)

The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

Line Out/Front Speaker Out (Green)

The line out jack. Use this audio jack for a headphone or 2-channel speaker.

Mic In/Center/Subwoofer Speaker Out (Pink)

The Mic in jack.

Audio Jack Configurations:

Jack

Headphone/

4-channel

5.1-channel

7.1-channel

2-channel









Line In/Rear Speaker Out



a

a

a

Line Out/Front Speaker Out

a

a

a

a

Mic In/Center/Subwoofer





a

a

Speaker Out













Front Panel Line Out/Side







a

Speaker Out















•• The integrated HD (High Definition) audio provides jack retasking capability that allows the user to change the function for each jack through the audio driver.

•• To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.

Please visit GIGABYTE's website for details on configuring the audio software.

(Note 1) For 3rd Generation AMD Ryzenwith RadeonGraphics processors only. (Note 2) The DVI-D port does not support D-Sub connection by adapter.

(Note 3) To enable the Q-Flash Plus function please visit the "Unique Features" webpage of GIGABYTE's website.

- 11 -

1-7 Internal Connectors

1

































3

























































































































































































































2



4

















8































7



18

















5

















10

6

16

15

14

11 17 9 12

13

4

1)

ATX_12V









10)

F_AUDIO

2)

ATX









11)

CI



3)

CPU_FAN









12)

SPEAKER

4)

SYS_FAN1/2









13)

F_U32



5)

D_LED1









14)

F_USB1/F_USB2

6)

LED_C









15)

COM



7)

SATA3 0/1/2/3









16)

TPM



8)

M2A_CPU









17)

CLR_CMOS

9)

F_PANEL









18)

BAT



Read the following guidelines before connecting external devices:

•• First make sure your devices are compliant with the connectors you wish to connect.

•• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.

•• After installing the device and before turning on the computer, make sure the device cable has been securely attached to the connector on the motherboard.

- 12 -

1/2) ATX_12V/ATX (2x4 12V Power Connector and 2x12 Main Power Connector)

With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed. The power connector possesses a foolproof design. Connect the power supply cable to the power connector in the correct orientation.

The 12V power connector mainly supplies power to the CPU. If the 12V power connector is not connected, the computer will not start.

To meet expansion requirements, it is recommended that a power supply that can withstand high power consumption be used (500W or greater). If a power supply is used that does not provide the required power, the result can lead to an unstable or unbootable system.





ATX_12V:











Pin No.

Definition

Pin No.

Definition

5

8

1

GND (Only for 2x4-pin 12V)

5

+12V (Only for 2x4-pin 12V)

1

4

2

GND (Only for 2x4-pin 12V)

6

+12V (Only for 2x4-pin 12V)



ATX_12V

3

GND

7

+12V



4

GND

8

+12V









ATX:







12

24

Pin No.

Definition

Pin No.

Definition





1

3.3V

13

3.3V





2

3.3V

14

-12V





3

GND

15

GND





4

+5V

16

PS_ON (soft On/Off)





5

GND

17

GND





6

+5V

18

GND





7

GND

19

GND





8

Power Good

20

NC





9

5VSB (stand by +5V)

21

+5V





10

+12V

22

+5V





11

+12V (Only for 2x12-pin

23

+5V (Only for 2x12-pin ATX)

1

13



ATX)









12

3.3V (Only for 2x12-pin ATX)

24

GND (Only for 2x12-pin ATX)

ATX

3/4) CPU_FAN/SYS_FAN1/2 (Fan Headers)

All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire). The speed control function requires the use of a fan with fan speed control design. For optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.











1











Pin No.

Definition











































1





1









1

GND









































2

Voltage Speed Control













































CPU_FAN

SYS_FAN1



SYS_FAN2



3

Sense













































4

PWM Speed Control

•• Be sure to connect fan cables to the fan headers to prevent your CPU and system from overheating. Overheating may result in damage to the CPU or the system may hang.

•• Thesefanheadersarenotconfigurationjumperblocks.Donotplaceajumpercapontheheaders.

- 13 -

Loading...
+ 28 hidden pages
