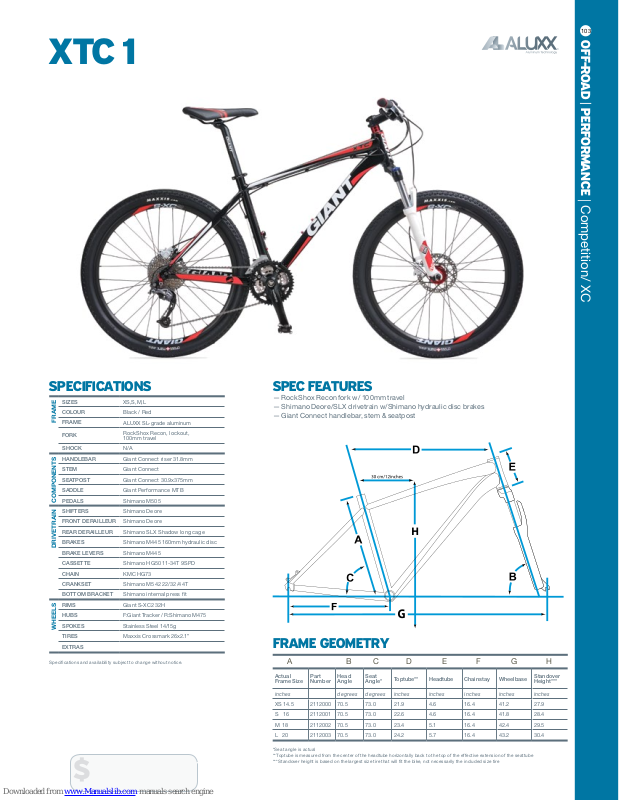

XTC 1
103
OFF-road | PERFORMANCE | Competition/ XC
Specifications
SIZES
COLOUR
frame
FRAME
FORK
SHOCK
HANDLEBAR
STEM
SEATPOST
SADDLE
componentS
PEDALS
SHIFTERS
FRONT DERAILLEUR
REAR DERAILLEUR
BRAKES
DriVetrain
BRAKE LEVERS
CASSETTE
CHAIN
CRANKSET
BOTTOM BRACKET
RIMS
HUBS
SPOKES
WHeeLS
TIRES
EXTRAS
Specific ations and availab ility subject to c hange without noti ce.
XS,S,M,L
Black / Red
ALUXX SL-grade aluminum
RockShox Recon, lockout,
100mm travel
N/A
Giant Connect riser 31.8mm
Giant Connect
Giant Connect 30.9x375mm
Giant Performance MTB
Shimano M505
Shimano Deore
Shimano Deore
Shimano SLX Shadow long cage
Shimano M445 160mm hydraulic disc
Shimano M445
Shimano HG50 11-34T 9SPD
KMC HG73
Shimano M542 22/32/44T
Shimano internal press fit
Giant S-XC2 32H
F:Giant Tracker / R:Shimano M475
Stainless Steel 14/15g
Maxxis Crossmark 26x2.1”
$
Spec Features
— RockShox Recon fork w/ 100mm travel
— Shimano Deore/SLX drivetrain w/Shimano hydraulic disc brakes
— Giant Connect handlebar, stem & seatpost
frame geometry
A B C D E F G H
Actual
Frame Size
inche s degre es degrees inch es inche s i nches inche s inche s
XS 14.5 2112000 70.5 73.0 21.9 4.6 16.4 41.2 27.9
S 16 2112001 70.5 73.0 22.6 4.6 16.4 41.8 28.4
M 18 2112002 70.5 73.0 23.4 5.1 16.4 42.4 29.5
L 20 2112003 70.5 73.0 24.2 5.7 16.4 43.2 30.4
*Seat ang le is actual
**Toptube is m easured from the c enter of the headtu be horizontally ba ck to the top of the effec tive extension of th e seattube
***Sta ndover height is ba sed on the largest s ize tire that will fit the b ike, not necessar ily the included si ze tire
Part
Number
Head
Angle
Seat
Toptube** Headtube Chainstay Wheelbase
Angle*
Standover
Height***
