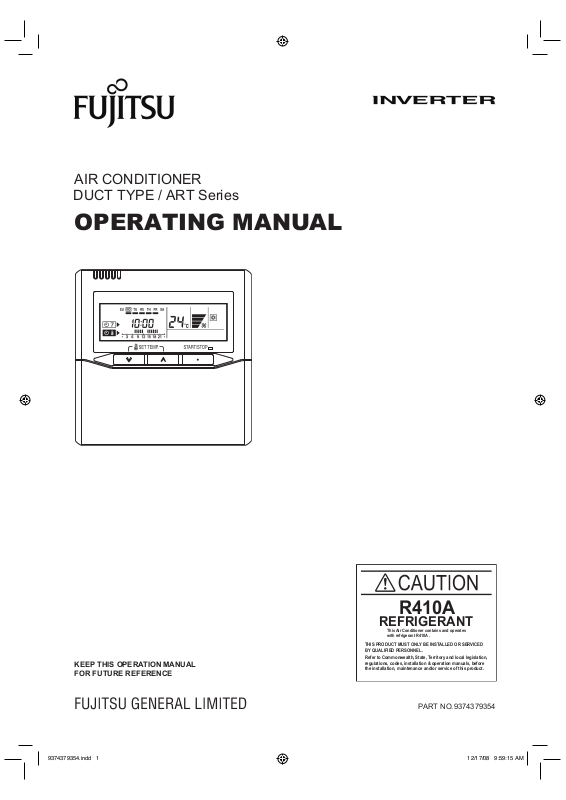

AIR CONDITIONER DUCT TYPE / ART Series
OPERATING MANUAL
KEEP THIS OPERATION MANUAL
FOR FUTURE REFERENCE
R410A
REFRIGERANT
This Air Conditioner contains and operates with refrigerant R410A .
THIS PRODUCT MUST ONLY BE INSTALLED OR SERVICED BY QUALIFIED PERSONNEL.
Refer to Commonwealth, State, Territory and local legislation, regulations, codes, installation & operation manuals, before the installation, maintenance and/or service of this product.
PART NO.9374379354
CONTENTS
........................................SAFETY PRECAUTIONS |
1 |
.......................TEMPERATURE SET BACK TIMER |
9 |
NAME OF PARTS .................................................. |
2 |
CLEANING AND CARE ........................................ |
10 |
PREPARATORY OPERATION ................................. |
3 |
TROUBLESHOOTING .......................................... |
10 |
OPERATION ........................................................... |
4 |
OPERATING TIPS ................................................. |
12 |
TIMER FUNCTIONS ............................................... |
6 |
SELF-DIAGNOSIS ................................................ |
14 |
ON/OFF TIMER....................................................... |
6 |
TEMPERATURE AND HUMIDITY RANGE .......... |
14 |
WEEKLY TIMER...................................................... |
7 |
|
|
|
|
|
|
SAFETY PRECAUTIONS
•Before using the appliance, read these “SAFETY PRECAUTIONS” thoroughly and operate in the correct way.
•The instructions in this section all relate to safety; be sure to maintain safe operating conditions.
•“DANGER”, “WARNING” and “CAUTION” have the following meanings in these instructions:
DANGER! |
This mark indicates procedures which, if improperly performed, are most likely to |
|
result in the death of or serious injury to the user or service personnel. |
||
|
||
|
|
|
WARNING! |
This mark indicates procedures which, if improperly performed, might lead to the |
|
death or serious injury of the user. |
||
|
||
|
|
|
CAUTION! |
This mark indicates procedures which, if improperly performed, might possibly result |
|
in personal harm to the user, or damage to property. |
||
|
||
|
|
DANGER!
CAUTION!
• Do not attempt to install this air conditioner by yourself.
•This unit contains no user-serviceable parts. Always consult authorized service personnel for repairs.
•When moving, consult authorized service personnel for disconnection and installation of the unit.
•Do not become over-exposed to cold air by staying in the direct path of the airflow of the air conditioner for extended periods of time.
•Do not insert fingers or objects into the outlet port or intake grilles.
•Do not start and stop air conditioner operation by turning off the electrical breaker and so on.
•In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the electrical breaker, and consult authorized service personnel.
•Provide occasional ventilation during use.
• Do not direct air flow at fireplaces or heating apparatus.
•Do not climb on, or place objects on, the air conditioner.
•Do not hang objects from the indoor unit.
•Do not set flower vases or water containers on top of air conditioners.
•Do not expose the air conditioner directly to water.
•Do not operate the air conditioner with wet hands.
•Do not touch the switches with sharp objects.
•Turn off power source when not using the unit for extended periods.
•Always turn off the electrical breaker whenever cleaning the air conditioner or changing the air filter.
•Connection valves become hot during Heating; handle with care.
•Check the condition of the installation stand for damage.
•Do not place animals or plants in the direct path of the air flow.
•When restarting after a long period of disuse in the winter, turn the power switch on at least 12 hours before starting the unit.
•Do not drink the water drained from the air conditioner.
•Do not use in applications involving the storage of foods, plants or animals, precision equipment, or art works.
•Do not apply any heavy pressure to radiator fins.
•Operate only with air filters installed.
•Do not block or cover the intake grille and outlet port.
•Ensure that any electronic equipment is at least one metre away from either the indoor or outdoor units.
•Avoid installing the air conditioner near a fireplace or other heating apparatus.
•When installing the indoor and outdoor units, take precautions to prevent access by infants.
1 |
• Do not use inflammable gases near the air conditioner. |
NAME OF PARTS
Remote controller
|
I |
|
H |
|
G |
F |
J |
|
K |
|
E |
2 |
1 |
6 |
3 |
|
|
7 |
4 |
8 |
C |
9 |
B |
0 |
5 |
|
|
A |
D |
1 Start/Stop Button |
$ Horizontal Airflow Direction and |
||||
2 Set Temperature Button |
Swing Button*2 |
||||
3 Master Control Button |
% Filter Button*3 |
||||
4 Fan Control Button |
& Operation Lamp |
||||
5 Economy Button |
( Timer and Clock Display |
||||
6 Timer Mode (CLOCK ADJUST) |
) Operation Mode Display |
||||
Button |
~ Fan Speed Display |
||||
7 DAY (DAY OFF) Button |
+ Operation Lock Display |
||||
8 SET BACK Button |
, Temperature Display |
||||
9 Set Time Button |
- Function Display |
||||
! DELETE Button |
|
|
|
|
Defrost Display |
" SET Button |
|
|
|
|
Thermo Sensor Display |
# Vertical Airflow Direction and |
|
|
|
|
Economy Display |
Swing Button*1 |
|
|
|
|
Vertical Swing Display*4 |
|
|
|
|
|
Horizontal Swing Display*5 |
|
|
|
|
|
Filter Display*6 |
|
|
|
|
|
|
*1~6 These functions cannot be used.
2
PREPARATORY OPERATION
Set the current day and time
1 |
|
|
2 |
|
|
Press the DAY button and select the current day. |
||||||||
|
|
|
|
|||||||||||
|
|
|
|
|||||||||||
|
|
|
|
A |
appears around the selected day. |
|
|
|
|
|||||
Press the timer mode (CLOCK |
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
SU |
MO |
TU |
WE |
TH |
FR |
SA |
|
|
|
|||
ADJUST) button for 2 seconds |
|
|
|
|
|
|
|
|
|
|
|
|
||
or more. The time display on the |
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|||
remote controller will flash. |
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|||
3 |
|
Press the set time buttons to set the current time. |
|
|
|
|
|
|
|
|||||
|
Press repeatedly to adjust the current time in 1- |
|
|
|
|
|
|
|
||||||
|
minute increments. Press and hold to adjust the |
|
|
|
|
|
|
|
||||||
current time in 10-minute increments.
|
|
ex. Monday PM11:00 |
|
|
|
4 |
SET BACK |
Press the SET BACK button to switch between the |
|
12and 24-hour time displays. |
|
SU MO TU WE TH FR SA |
|
SU MO TU WE TH FR SA |
|
|||||||||
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5
Press again to end.
3
OPERATION
Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle).
To start/stop operation
Press the start/stop button.
Operation lamp
Air conditioner ON: Lit brightly
Air conditioner OFF: Not lit
To set the operation mode
• Operation mode setting
Press the master control button to set the operation mode. If DRY is selected, the fan speed will be set to AUTO.
AUTO |
COOL DRY |
FAN *HEAT |
|
|
|
• Room temperature setting
Press the set temperature buttons to set the room temperature.
Temperature setting range |
|
AUTO ............................................... |
18 to 30 °C |
COOL/DRY ....................................... |
18 to 30 °C |
*HEAT ................................................ |
16 to 30 °C |
Lower Rise
• Fan speed setting
Press the fan control button to set the fan speed.
!54/ ()'( -%$ ,/7
ECONOMY OPERATION
Press the ECONOMY button to start or stop ECONOMY OPERA-
TION.
For details on the function, refer to page 12.
4
