Coffee Machines Service System
Sinfonia Beancontainer / shield / cup support
Sinfonia
Bohnenbehälter links & rechts Beanhopper left & right
Reservoir de grains à gauche & à droit
Bohnenbehälter mitte Beanhopper middle Reservoir de grains moyen
Bohnenbehälter abschliessbar Bean container lockable Conteneur à grains verrouillable
Sinfonia Gold / Sinfonia d'or
Für / for / pour Decaf
Pos. |
Name |
Art. No. |
1132 |
Lever cylinder |
1L 296 255 |
2215 |
Funnel for manual filling |
1T 311 164 |
2239 |
Cover for Funnel Handfilling |
1T 311 179 |
255 |
Torque screw M4x8 mm |
1T 310 040 |
2578 |
Bean container lockable |
BK 311 451 |
2634 |
Spare key for 1L296255 |
BK 312 891 |
42 |
Torx screw |
1T 310 401 |
452 |
Knurlingtop M4 |
1T 310 086 |
5126 |
Cup plate rear 1 grinder center |
1Y 321 033 |
5127 |
Cup plate rear 3M |
1Y 321 032 |
5221 |
Cover beancontainer silver |
1Y 320 189 |
5222 |
Bean container fixing |
1Y 320 200 |
5223 |
Bean container left/right |
1Y 320 012 |
5224 |
Threaded disc |
1Y 320 201 |
5225 |
Flap for manual filling funnel |
1Y 320 202 |
5226 |
Funnel for manual filling |
1Y 320 119 |
5227 |
Bean container centre |
1Y 320 013 |
5228 |
Slide to bean container |
1Y 320 378 |
5229 |
Bean container insert |
1Y 320 441 |
5231 |
left Cup plate rear 2nd grinder |
1Y 320 131 |
5232 |
right Cup plate rear 2nd grinder |
1Y 320 132 |
5233 |
Cup plate rear 3 grinders |
1Y 320 129 |
5234 |
Cup plate front |
1Y 320 128 |
5235 |
Cup frame |
1Y 320 046 |
5236 |
Cup frame adapter |
1Y 320 047 |
5352 |
Cup plate rear 2 grinder left/rigth |
1Y 320 648 |
5452 |
Bean container gold |
1Y 320 256 |
5453 |
Bean container holder center to bea |
1Y 320 255 |
5454 |
Cover plate |
1Y 320 257 |
5455 |
Hex. cap screw M4x10 |
02 299 233 |
5456 |
Bean container holder left/ right t |
1Y 320 254 |
5457 |
Manual filler funnel shortened |
BK 311 521 |
5497 |
Bean container silver |
1Y 320 637 |
5683 |
Bean container lid gold |
1Y 320 883 |
5725 |
Bean container09 w. slide lockable |
BK 312 147 |
5726 |
Cover bean container 09 lockable |
BK 312 148 |
5727 |
Locking lever 20.00.25 |
1L 300 377 |
5728 |
Bean container holder 09 |
1T 312 072 |
5729 |
Bean container 09 with slide |
1T 312 076 |
5730 |
Cover bean container 09 |
1T 312 074 |
5731 |
Cap to bean container holder09 |
1T 312 073 |
5751 |
Bean container lockable center |
BK 320 717 |
7146 |
Bean container 09 lockable comp. |
BK 312 901 |
895 |
Hex. setscrew with point M5x16 |
02 296 481 |
Coffee Machines Service System
Sinfonia Boiler hotwater Boiler Coffee
Sinfonia
::::::::::::::::::::::::::::::::::::::::::::::::::::::::
ab Seriennummer 00007197
starting from serial number 00007197 à partir d'un numéro de série 00007197
::::::::::::::::::::::::::::::::::::::::::::::::::::::::
Gefüllter Teeboiler / Filled Tea Boiler / Boiler eau chaude remplis
Pos. |
Name |
Art. No. |
1005 |
Connecting Piece UL |
1L 300 555 |
103 |
Pin guide 6,3mm |
10 301 275 |
106 |
Angle |
1T 310 829 |
108 |
Hexagon head pipe plug |
1L 300 560 |
110 |
Safety valve SVWCM 82.5 bar |
1T 313 004 |
115 |
Fitting |
1T 310 830 |
116 |
Locking ring |
1T 310 823 |
117 |
Nut |
1T 310 828 |
121 |
Adjusting nipple |
1L 299 475 |
137 |
Fast coupling |
1T 310 133 |
140 |
Hose teflon 6x4mm |
1T 310 138 |
141 |
Hose silicone 10x1,5 mm |
BK 300 450 |
142 |
Bush for pressure control valve |
1T 310 928 |
145 |
Hose connection |
1T 310 953 |
194 |
Locking screw |
1L 300 688 |
255 |
Torque screw M4x8 mm |
1T 310 040 |
260 |
Copper ring 400071/8, D= 13,4 4000 |
1L 296 946 |
305 |
Non return valve 3/8 B2B3 VALSTOP |
1L 297 002 |
330 |
Spiralstrip 6x4mm PE |
BK 298 432 |
336 |
Clip M4 |
1T 310 016 |
5081 |
Straight union T SO |
1Y 320 162 |
5086 |
Twin nipple 250MD3/8K |
1Y 320 159 |
5100 |
Boiler insulation |
1Y 320 167 |
5101 |
Boiler retainer front |
1Y 320 121 |
5102 |
Boiler retainer rear |
1Y 320 120 |
5103 |
Elbow screw connection 8 mm |
1Y 320 407 |
5111 |
Hot water pipe |
1Y 320 194 |
5112 |
Steam block pipe |
1Y 320 828 |
5113 |
Steam pipe 8/6mm |
1Y 320 574 |
5114 |
Straight screw connection |
1Y 320 827 |
5115 |
Cabel lomm Heating tea/steam |
1Y 320 100 |
5116 |
Cable loom Heating coffee |
1Y 320 101 |
5120 |
Pressure bloc |
1Y 320 054 |
5121 |
Pressure block retainer |
1Y 320 137 |
5122 |
Exess pressure disc valve |
1Y 320 053 |
5123 |
Rubber hood |
1Y 320 312 |
5125 |
Holder with Tube |
BK 321 029 |
5494 |
T connection |
1Y 320 596 |
5551 |
Protection cap |
1Y 321 075 |
5734 |
Vacuum valve cpl. |
1T 311 952 |
5754 |
Level probe 75mm |
BK 320 973 |
5768 |
Pressure switch |
1Y 320 987 |
611 |
Temperature probe NTC |
1T 310 409 |
615 |
Support bush SO 5000364 |
1L 301 210 |
6203 |
Orifice 1.65 |
1H 325 563 |
7072 |
Manometer 6bar |
1H 327 826 |
7199 |
ORing 9.19 x 2.62 Viton |
1H 328 345 |
916 |
Screwed connection to nipple |
1L 296 320 |
918 |
Boiler steam G V4A |
1L 301 427 |
919 |
Capillary tube delimiter UL |
10 300 321 |
921 |
Boiler Coffee G V4A |
1L 301 187 |
922 |
Heating 3kW 3x230V AC |
10 296 932 |
923 |
Heating tea water spec. 4500 W |
10 296 933 |
927 |
Elbow |
1H 325 299 |
958 |
Heating element UL/NSF 3kW/3x208V |
10 300 505 |
959 |
Seal disk |
1Y 320 632 |
960 |
Oring 50.39x3.53 |
1Y 320 633 |
Coffee Machines Service System
Sinfonia Brew unit
Sinfonia
Pos. |
Name |
Art. No. |
1 |
Yoke upside |
1T 310 276 |
104 |
Torque screw M4x6 |
1T 310 220 |
12 |
Ejector |
1T 310 291 |
122 |
Plugin coupling, rotating |
1T 310 134 |
13 |
Bolt for ejector |
1T 310 292 |
14 |
Guide mounting |
1T 310 315 |
140 |
Hose teflon 6x4mm |
1T 310 138 |
1403 |
ORing 4x1mm |
1T 310 645 |
15 |
Water sieve |
1T 310 295 |
16 |
Lower yoke bracket |
1T 310 298 |
195 |
Nut CClip M5 |
1T 310 031 |
2 |
Yoke downside |
1T 310 277 |
20 |
EFFBE Rubberspring |
1T 310 316 |
21 |
Compression spring big |
1T 310 287 |
22 |
Compression spring small |
1T 310 286 |
23 |
Washer |
1T 310 392 |
24 |
Sealing bush |
1T 310 627 |
25 |
ORing ID 37,77x2,62 |
BK 310 155 |
255 |
Torque screw M4x8 mm |
1T 310 040 |
26 |
ORing 9,19 x 2,62 silicone |
1T 310 422 |
27 |
Ball thrust bearing |
1T 310 303 |
28 |
Security washer d=6mm |
1T 310 393 |
29 |
Circlip ring |
1T 310 394 |
30 |
Countersunk screw A2 M 4x8 |
1L 300 671 |
31 |
Hexagon head screw M8x16 |
02 222 240 |
32 |
Hexagon head screw M6x12 |
02 222 223 |
33 |
Mushroom head screw PanHead |
1T 310 395 |
34 |
Washer |
1T 310 396 |
35 |
Knurled heas screw flat |
1T 310 397 |
36 |
Mushroom head screw PanHead M5x40 |
02 221 774 |
37 |
Locking nut M5 BN6783 |
1T 310 398 |
39 |
Brew head heater PTC |
1T 310 007 |
42 |
Torx screw |
1T 310 401 |
43 |
Cable guide plate for brewing unit |
1T 310 417 |
45 |
ORing 15,6 x 1,78 mm |
1T 310 648 |
48 |
sealing kit for guide shaft |
BK 310 685 |
5 |
Spring support large |
1T 310 280 |
50 |
Sieve upper piston |
1T 310 233 |
5000 |
Outlet piston |
1Y 320 007 |
5001 |
ORing D=34x1mm |
1T 310 684 |
5002 |
ORing 34.29x5.33 |
1Y 320 050 |
5003 |
int. hex. M5x25mm Countersunk head |
1Y 320 168 |
5004 |
Clamp ring for outlet piston |
1Y 320 009 |
5005 |
Piston insert |
1Y 320 000 |
5006 |
Connection nipple |
1Y 320 008 |
5007 |
Piston cpl .Sinfonia |
BK 320 450 |
5010 |
Brew unit Sinfonia |
BK 320 249 |
5016 |
internal hex. Pan head screw with |
1Y 320 083 |
5017 |
Housing |
1Y 320 015 |
5018 |
Ball bearing 6902 2RS |
1Y 320 021 |
5019 |
Shim washer 15x21x0.2mm |
1Y 320 085 |
5020 |
Trapezoid thread bushing |
1Y 320 018 |
5022 |
Threaded spindle for gear |
1Y 320 006 |
5023 |
Spacer sleeve D=6x1.4x17 |
1Y 320 082 |
5024 |
Cover |
1Y 320 019 |
5025 |
int. hex. M4x35mm Cheesehead screw |
1Y 320 169 |
5026 |
Toothed belt Powergrip |
1Y 320 020 |
5027 |
D.c. motor with gearwheel |
1Y 320 948 |
5028 |
Guard plate |
1Y 320 342 |
5029 |
Lubrication Felt for Brew unit |
1Y 320 521 |
5030 |
Corrugated spring washer |
1Y 320 481 |
5035 |
Ejector piston |
1Y 320 005 |
5036 |
Ejector spindle |
1Y 320 002 |
5040 |
Grounds ejector plate |
1Y 320 135 |
5041 |
Cover |
1Y 320 004 |
5042 |
Brewing housing complete |
BK 320 356 |
5043 |
MiniFit connector 3pin |
1Y 320 195 |
5044 |
contact female small MiniFit conne |
1Y 320 197 |
5047 |
Cable bush |
1Y 320 122 |
5048 |
Insulation mat |
1Y 320 155 |
5049 |
Adapter connector |
1Y 320 116 |
5050 |
Sliding sleeve |
1Y 320 154 |
5053 |
Outlet cover |
1Y 320 041 |
5056 |
Brewing unit insert, Sinfonia |
BK 320 385 |
5068 |
Slide element |
1Y 320 114 |
5099 |
Bumpon 3M SJ5023 black |
1Y 321 086 |
51 |
Distance washer to ejector |
1T 310 480 |
53 |
Compression spring |
1Y 320 644 |
5783 |
Small gear wheel 2MR 14S12 |
1Y 320 017 |
5784 |
Large gear wheel |
1Y 321 083 |
5792 |
Bushing D=45mm |
1Y 320 003 |
5816 |
Guide rod |
1T 312 971 |
6 |
Spring support small |
1T 310 281 |
Coffee Machines Service System

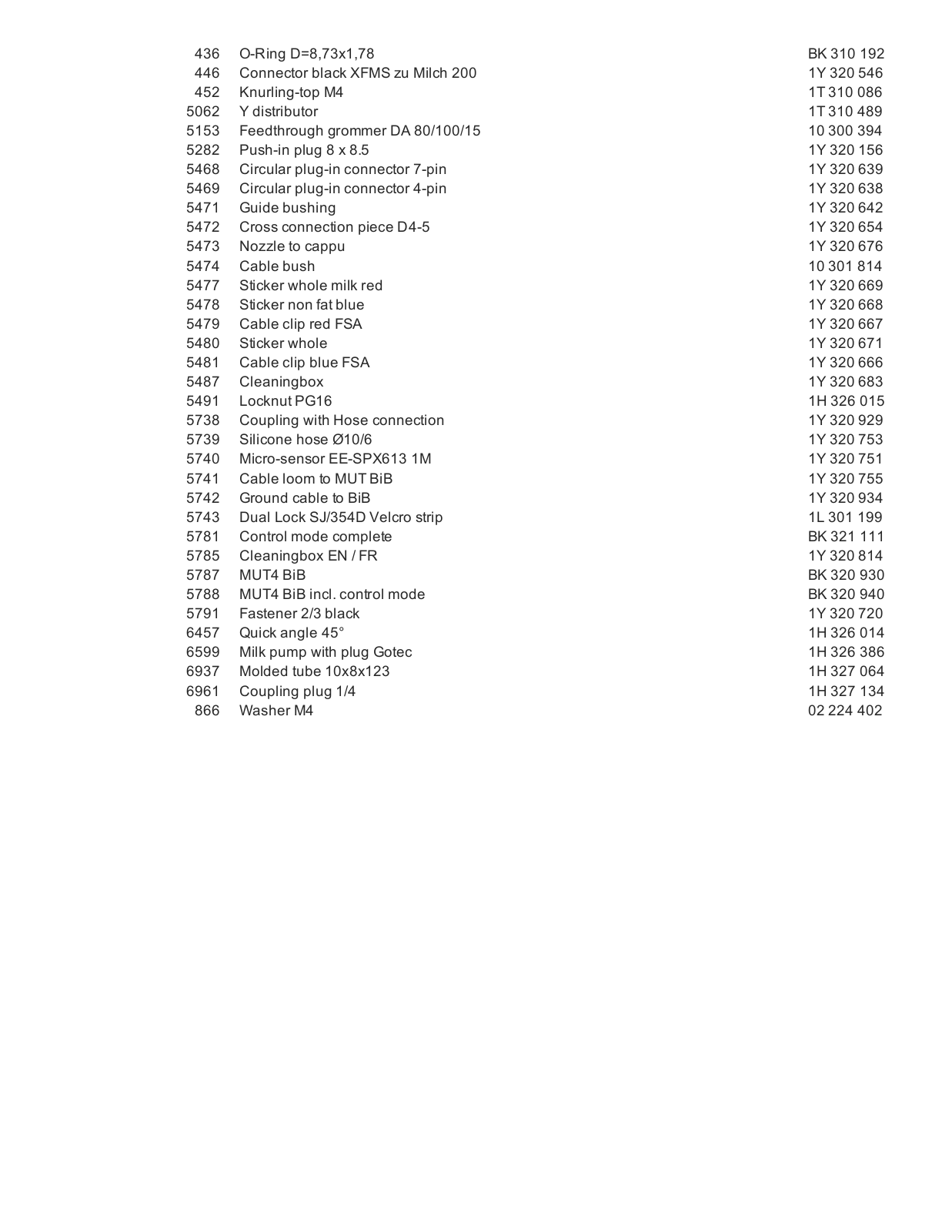

Sinfonia Cappusystems CJ1/CJ2; CT1/CT2; CF1/CF2
Sinfonia
CF1 / CF2 / CF
Doppelauslauf / Double Outlet / Ecoulement Double
CF1 / CF2 / CF
Pos. |
Name |
Art. No. |
1259 |
Clip for tube guiding |
1L 301 391 |
1260 |
Tube guiding short to Ecolino Lengt |
1L 301 387 |
140 |
Hose teflon 6x4mm |
1T 310 138 |
1438 |
Bottom for double outlet Cappuccina |
1T 311 036 |
1440 |
Short guide to double outlet |
1T 311 047 |
1441 |
CF foamer head to double outlet |
BK 311 049 |
1442 |
Cappuhousing |
1T 311 046 |
1443 |
CF foamer head with double outlet |
BK 311 048 |
1513 |
Double push in nippel |
1L 301 419 |
1514 |
Tconnection d=6mm |
1L 301 418 |
190 |
Plugin coupling |
1T 310 132 |
193 |
Bolt |
1T 310 107 |
204 |
Oring d=5.5x1.5 mm |
1L 296 308 |
223 |
Connection |
1T 310 190 |
2246 |
Orifice 0.4mm for hose 4mm blue |
1Y 320 536 |
241 |
Silicone hose ID= 3 mm |
1L 296 485 |
242 |
Connection piece to milk solution C |
1L 301 627 |
243 |
ORing to air nozzle |
1L 301 437 |
244 |
air nozzle for CT2 |
1L 301 409 |
245 |
Silicone hose ID 8 x 4 mm |
1L 300 136 |
255 |
Torque screw M4x8 mm |
1T 310 040 |
273 |
Teflon hose D4x2mm |
1L 296 337 |
277 |
Sledge to outlet |
1L 301 009 |
279 |
Circlip Ø8mm |
1L 301 008 |
280 |
ORing 6.07x1.78 to outlet |
1L 301 007 |
281 |
Coupling half to outlet |
1L 301 010 |
420 |
Clamp bushing to Milksystem |
1T 310 705 |
421 |
Flow control valve |
BK 310 958 |
422 |
Housing to valve |
1T 310 957 |
423 |
Spring to Milksystem |
1T 310 644 |
424 |
Valve body |
1T 310 956 |
425 |
Nozzle to valve |
1T 310 955 |
429 |
CF foamer head compl. |
BK 311 057 |
430 |

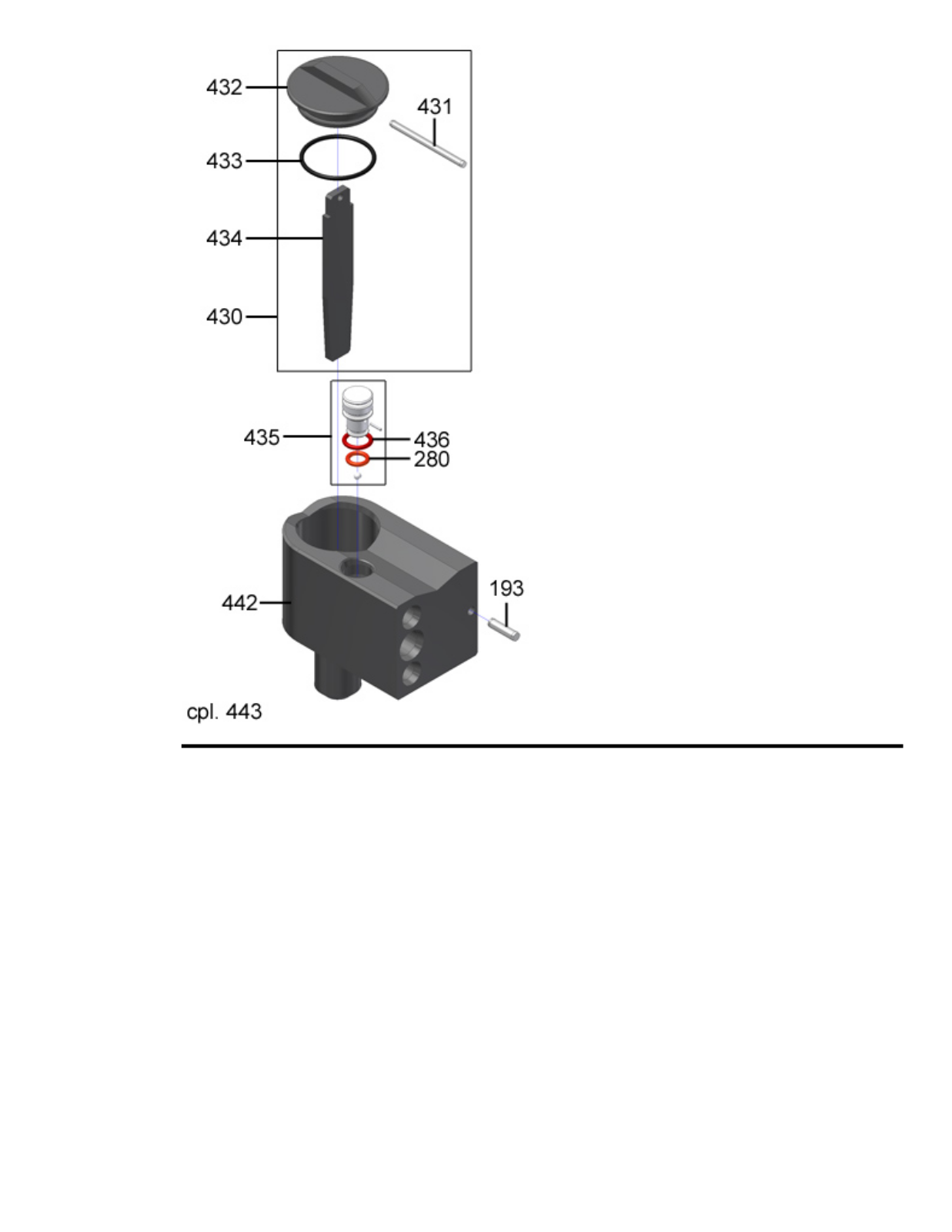

Cappu cover compl. Milch 2000 |
1T 310 625 |
431 |
Pin D=3x40mm |
1T 310 707 |
432 |
Cappu cover Milch 2000 |
1T 310 691 |
433 |
ORing 26.7x1.78mm |
1T 310 646 |
434 |
Guide to Cappu cover |
1T 310 690 |
435 |
Nozzle to Milksystem |
1T 310 624 |
436 |
ORing D=8,73x1,78 |
BK 310 192 |
437 |
Housing Cappuccinatore Milch 2000 |
1T 310 626 |
439 |
Coupling |
1T 310 621 |
440 |
Circlip Ø12mm |
1L 301 531 |
5062 |
Y distributor |
1T 310 489 |
5141 |
Pushin coupling |
1Y 320 087 |
5152 |
Squeezed tube valve 24V DC |
1Y 320 211 |
5153 |
Feedthrough grommer DA 80/100/15 |
10 300 394 |
5281 |
Tpiece 200M1/8 |
1Y 320 095 |
5285 |
Type 561 tension relief |
1Y 320 310 |
5286 |
Simple tubeclip 10 mm |
1L 296 526 |
897 |
ORing 37,82x1,78 |
1L 301 433 |
Coffee Machines Service System

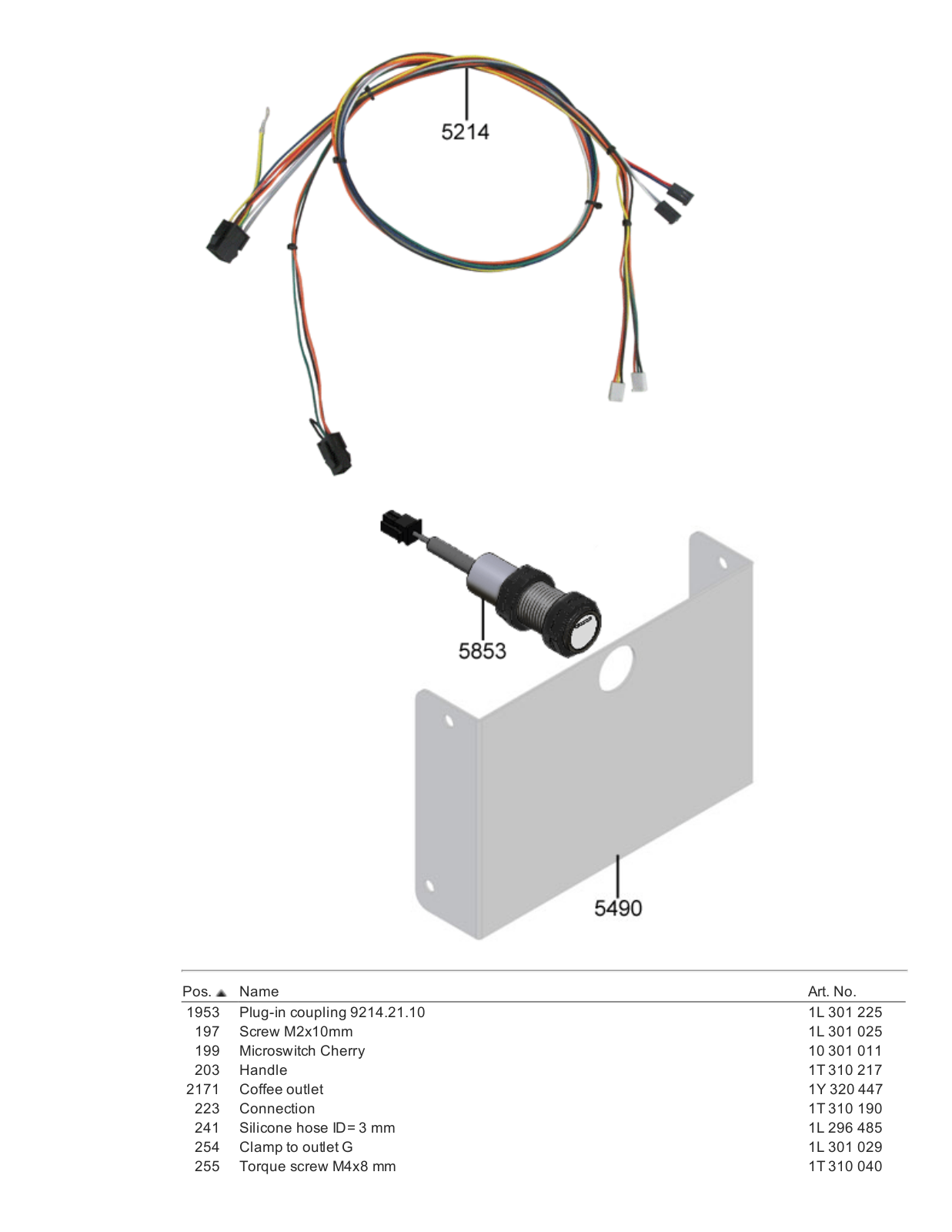

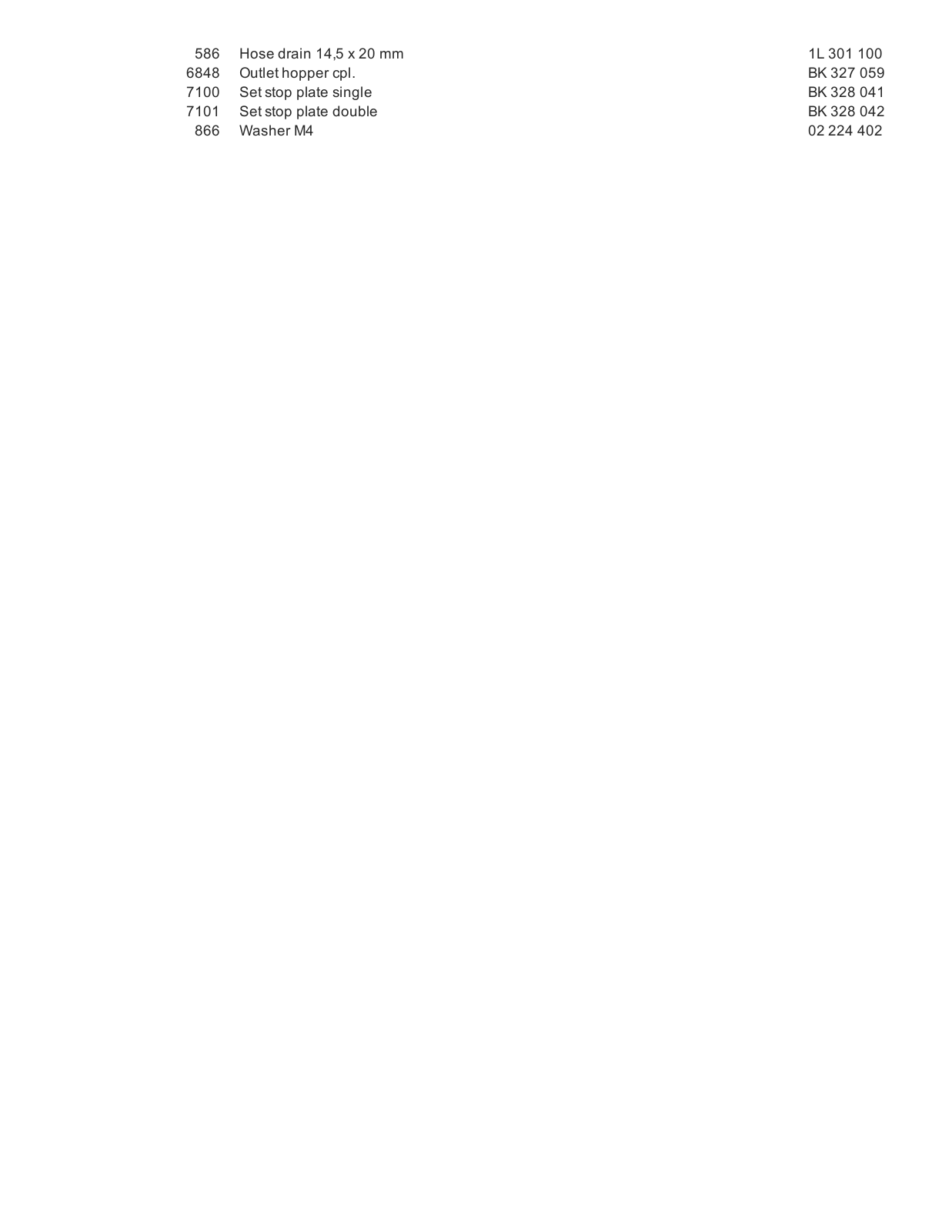

Sinfonia Coffee outlet
::::::::::::::::::::::::::::::::::::::::::::::::::::::::
ab Seriennummer 00007016
starting from serial number 00007016 à partir d'un numéro de série 00007016
::::::::::::::::::::::::::::::::::::::::::::::::::::::::
Sinfonia
::::::::::::::::::::::::::::::::::::::::::::::::::::::::
bis Seriennummer 00007015 up to serial number 00007015
jusqu'au numéro de série 00007015
::::::::::::::::::::::::::::::::::::::::::::::::::::::::
