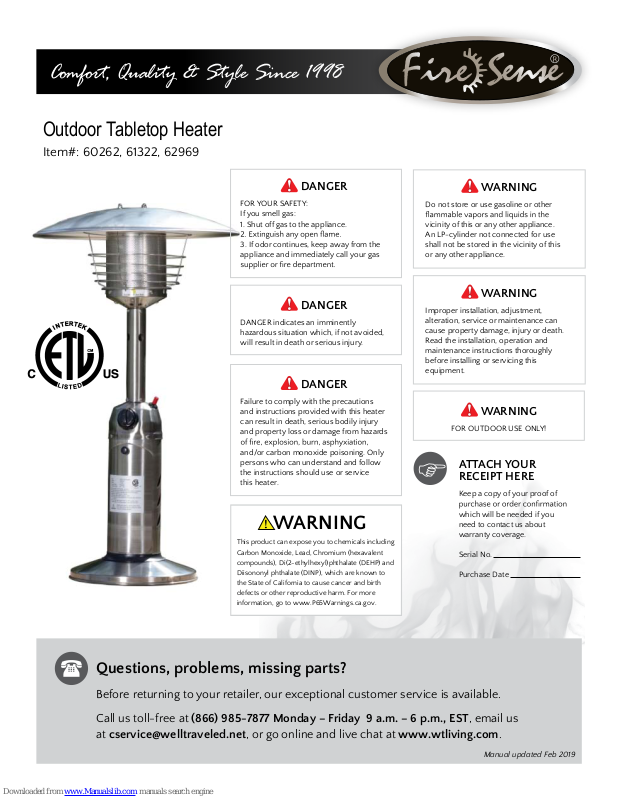

Firesense 60262, 61322, 62969 User Manual

Comfort, Quality & Style Since 1998

Outdoor Tabletop Heater

Item#: 60262, 61322, 62969

DANGER

FOR YOUR SAFETY:
If you smell gas:

1. Shut off gas to the appliance.

3. If odor continues, keep away from the
appliance and immediately call your gas

DANGER

DANGER indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.

DANGER

Failure to comply with the precautions
and instructions provided with this heater
can result in death, serious bodily injury
and property loss or damage from hazards

and/or carbon monoxide poisoning. Only
persons who can understand and follow
the instructions should use or service
this heater.

WARNING

Do not store or use gasoline or other

vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.

WARNING

Improper installation, adjustment,
alteration, service or maintenance can
cause property damage, injury or death.
Read the installation, operation and
maintenance instructions thoroughly
before installing or servicing this
equipment.

WARNING

FOR OUTDOOR USE ONLY!

ATTACH YOUR
RECEIPT HERE

Keep a copy of your proof of

Questions, problems, missing parts?

Before returning to your retailer, our exceptional customer service is available.

Call us toll-free at [phone] Monday – Friday 9 a.m. – 6 p.m., EST, email us
at [e-mail], or go online and live chat at www.wtliving.com.

WARNING

This product can expose you to chemicals including
Carbon Monoxide, Lead, Chromium (hexavalent
compounds), Di(2-ethylhexyl)phthalate (DEHP) and
Diisononyl phthalate (DINP), which are known to
the State of California to cause cancer and birth
defects or other reproductive harm. For more
information, go to www.P65Warnings.ca.gov.

which will be needed if you
need to contact us about
warranty coverage.

Serial No.

Purchase Date

Manual updated Feb 2019

BEFORE YOU BEGIN

TABLE OF CONTENTS

Before You Begin Page 2

Safety Information

Page 3

Package Contents Page 4

Hardware Contents Page 4

Assembly

Operating Instructions

Care and Maintenance

Troubleshooting

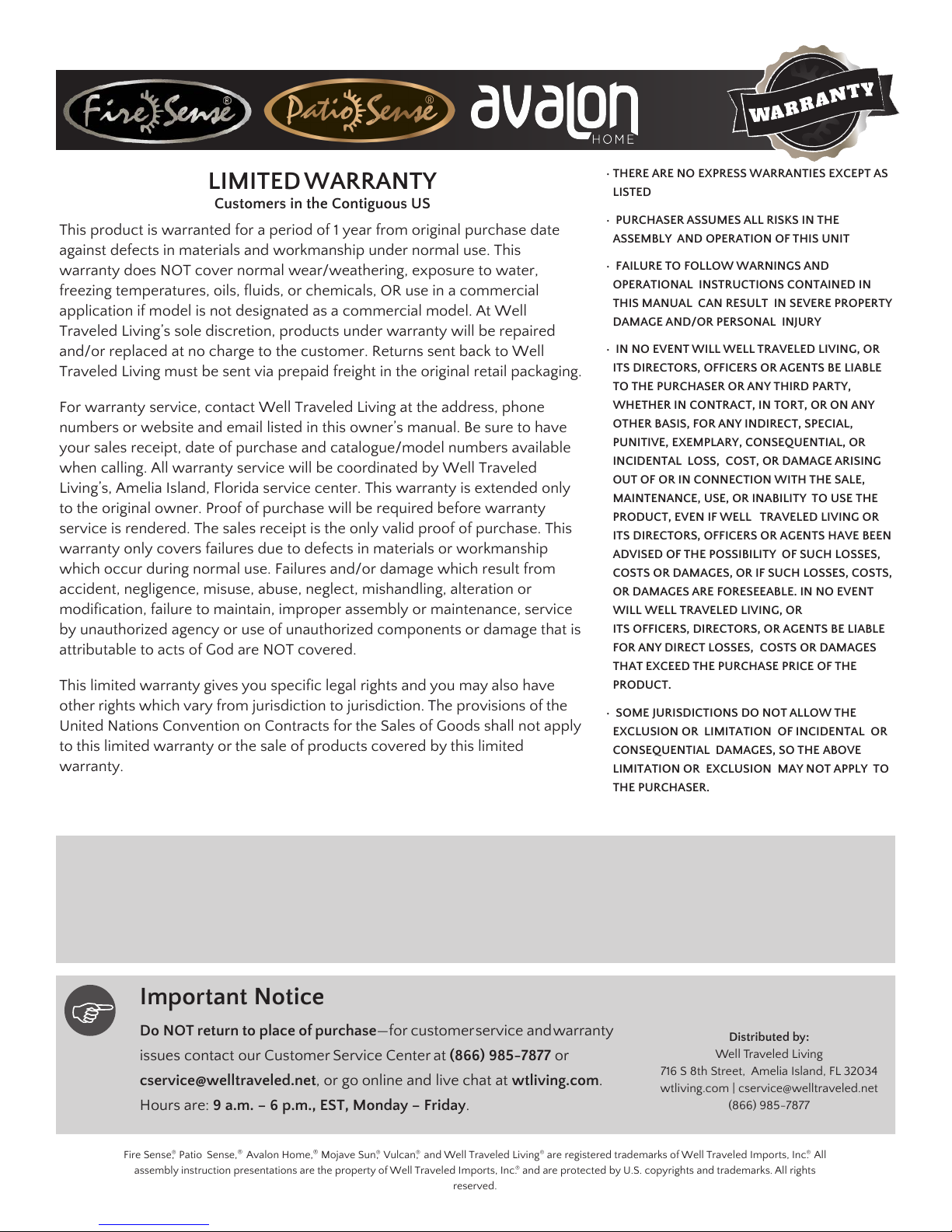

Warranty Information

Page 5-7

Page 8-11

Page 12

Page 13

Page 14

BEFORE YOU BEGIN

Please read and understand this entire manual before attempting to assemble, operate or install this

appliance. If you have any questions regarding the product, please call us toll-free at [phone]

Monday – Friday, 9 a.m. – 6 p.m., EST, email us at [e-mail], or go online and live chat at

www.wtliving.com.

This manual contains important information about the assembly, operation and maintenance of this patio

heater. General safety information is presented in the first few pages and is also located throughout this

manual. Keep this manual for future reference and to educate new users of this appliance. This manual

should be read in conjunction with the labeling on the appliance. Safety precautions are essential when any

mechanical or propane-fueled equipment is involved. These precautions are necessary when using, storing,

and servicing. Using this appliance with the respect and caution demanded will reduce the possibilities of

personal injury or property damage. The symbols shown on page 3 are used extensively throughout this

manual. Always heed these precautions, as they are essential when using any mechanical or propane fueled

equipment.

Contact us for assistance: [phone] | www.wtliving.com 2

SAFETY INFORMATION

DANGER

EXPLOSION—FIRE HAZARD

ep solid combustibles, such as building

• • Ke
materials, paper, or cardboard
a safe distance away from the heater as
recommended by the instructions.

• • Provide adequate clearances around air

openings into the combustion chamber.

• • Never use the heater in spaces which
do or may contain volatile or airborne
combustibles, or products such as
gasoline, solvents, paint thinner, dust
particles, or unknown chemicals.

• • During operation, this appliance can be a
source of ignition. Keep heater area clear
and free from combustible materials,
gasoline, paint thinner, cleaning solvents

and other flammable vapors and liquids.

Do not use heater in areas with high dust
content. Minimum heater clearances from
combustible materials: 18 inches (1.5 feet)
from top and 24 inches (2 feet) from sides.

• • Never store propane near high heat, open
flames, pilot lights, direct sunlight, other

ignition sources or where temperatures
exceed 120 degrees F (49 degrees C).

• • Propane vapours are heavier than air and
can accumulate in low places. If you smell
gas, leave the area immediately.

• • Never install or remove a propane
cylinder while the heater is lighted, near
flame, pilot lights, or other ignition sources
or while heater is hot to the touch.

• • This heater is red hot during use and can
ignite flammables too close to the burner.
Keep flammables at least 1.5 feet (18
inches) from top and 2 feet (24 inches)
from sides. Keep gasoline and other
flammable liquids and vapors well away

from heater.

• • Store the propane cylinder outdoors in a
well ventilated space out of the reach of
children. Never store the propane cylinder
in an enclosed area (house, garage, etc.). If
heater is to be stored indoors, disconnect
the propane cylinder for outdoor storage.

WARNING:

FOR OUTDOOR USE ONLY

CARBON MONOXIDE HAZARD

This appliance can produce carbon monoxide
which has no odor. Using it in an enclosed
space can kill you. Never use this appliance
in an enclosed space such as a camper, tent
or home.

DANGER

CARBON MONOXIDE HAZARD

• •This heater is a combust
All combustion appliances produce carbon
monoxide (CO) during the combustion
process. This product is designed to
produce extremely minute, non-hazardous
amounts of CO if used and maintained
in accordance with all warnings and
instructions. Do not block the air flow into or
out of the heater.

• • Carbon Monoxide (CO) poisoning
produces flu-like symptoms, water eyes,
headaches, dizziness, fatigue, and possibly
death. You can’t see or smell it. It is an
invisible killer. If these symptoms are
present during operation of this product, get
fresh air immediately!

• • For outdoor use only.

• Never use inside house or other unventilated

or enclosed areas.

• • This heater consumes air (oxygen). Do not
use in unventilated or enclosed areas to
avoid endangering your life.

ion appliance.

WARNING

BURN HAZARD

Never leave heater unattended

• •

in use.

hot or

• • Keep out of reach of children.

when

WARNING

WARNING indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.

WARNING

Certain materials or items, when stored
under the heater, will be subject to radiant
heat and could be seriously damaged.

CAUTION

SERVICE SAFETY

• • Keep all connections and fittings clean. Make

sure propane cylinder valve outlet is clean.

• •

During set up, check all connections and

fittings for leaks using soapy water, never
use a flame to check for leaks.

• • Use as a heating appliance only. Never alter

in any way to use with any device.

CAUTION

CAUTION indicates an imminently
hazardous situation which, if not avoided,
may result in minor or moderate personal
injury, or property damage.

WARNING

• • This product is fueled by propane gas.
Propane gas is invisible, odorless, and

flammable. An odorant is normally added

to help detect leaks and can be described
as having a “rotten egg” smell. The odorant
can fade over time so leaking gas is not
always detectable by smell alone.

• • Propane gas is heavier than air and
leaking propane will sink to the lowest
level possible. It can ignite by ignition
sources including matches, lighters, sparks
or open flames of any kind many feet away
from the original leak. Use only propane
gas set up for vapor withdrawal.

• • Store propane gas in compliance with local
ordinances and codes or with ANSI/NFPA 58.

• Turn off propane when not in use.

• • Alert children and adults to the hazards
of high surface temperatures. Stay away
from these surfaces to avoid burning
skin or igniting clothing.

• • Carefully supervise young children when
in the vicinity of the heater.

• • Do not hang clothing or any other
flammable materials from the heater,

or place near the heater.

• • Replace any guard or protective device
removed for servicing the appliance prior to
placing back in service.

• • Installation and repair should be done by a
qualified service person. The heater should

be inspected before each use and by a
qualified service person at least annually.

More frequent cleaning may be required as
necessary. It is imperative that the control

compartment, burners, and circulating air
passageway of the appliance be kept clean.

Contact us for assistance: [phone] | www.wtliving.com 3

PACKAGE CONTENTS

PART DESCRIPTION

1 3

2

3

4

5

6

7

8

9

10

11

12

1

3

14

Wing Nut

Reflector

6mm Washer

Emitter Screen

Guard

Door Plate

Base

Cast Iron Weight

M6x15mm Bolt

3/16" Bolt

Burner

3/16" Bolt

M5x10mm Bolt

Tank Housing

QTY

1

3

1

1

1

1

1

4

4

1

4

1

1

15

16

17

18

19

20

uÒÙ¿Á¿¨¿u¿ ÉÁ

Igniter Button

Control /knob

Handle

Regulator

60mm Stud

M6 Flange Nut

Hardware

Package List

7y¿ ÉÁ
½¿7>¸gµ
½Òu¿Á
þ½¿Á

½Ù¿Stud
½¿>yg¿ ÉÁ

1

1

1

1

3

3

QTY

3

½
w

l

1

Ã
Ã

Contact us for assistance: [phone] | www.wtliving.com

7µgU

1

4

ASSEMBLY

Before beginning assembly of this appliance, make sure all parts are present.
Compare all parts with package contents list and hardware contents as listed on the previous page. If any part is
missing or damaged, do not attempt to assemble this product. Contact customer service for replacement parts.

ESTIMATED ASSEMBLY TIME: 30 minutes

Tools Required for Assembly (NOT included):

• • Phillips screwdriver w/medium blade • • Slip joint/adjustable pliers

• • Adjustable wrench (2)

STEP 1

Remove all parts of the heater from the
packaging. (NOTE: Plastic ring on tank
housing should already be in place but if not,
slide the plastic ring over the bottom of tank
housing.)

STEP 3

STEP 2

Use 4 M6x15mm Bolts to fix the tank
housing to the base and cast iron weight
(NOTE: weight is pre-assembled to base).

Use Wrench to tighten the Bolts as
shown above.

STEP 4

Place the Burner on the Tank Housing,
then join them using 4 3/16” Bolts.

Contact us for assistance: [phone] | www.wtliving.com

Fix the Regulator to the Tank Housing
using a M5x10mm Bolt and M5 Nut.

5
