FingerTec AdapTec-X User Manual

Installer Guide

Enhanced Security with

l

AdapTec-X is a basic accessory suggested for FingerTec ac­cess control systems. It enhances access control functionali­ties as well as eases the installation process with its encrypt­ed communication and secure I/O expansion features and all
these features are compressed into a sleek casing to deliver a
cost effective solution.

HOW ADAPTECX ENHANCES SECURITY

To provide you enhanced security, AdapTec-X will only recognize
encrypted Wiegand signals from FingerTec terminals in order to un­lock its doors. The code of the encrypted signals is written into the
firmware of FingerTec terminals, which cannot be duplicated into
other devices. This prevents hackers from bypassing this by simply
providing the relay signal to AdapTec-X. Furthermore, separate pow­er outputs for the door lock system and FingerTec terminals will keep
the door locked even during any failures (i.e.: vandalism to terminals,
etc.). For added security, a siren output port is ready to be linked up
to alarms or sirens to produce alert sounds in case of forced door
openings.

2

UNDERSTANDING ADAPTECX FUNCTIONS

Enhanced Security with Encrypted Signals

It supports FingerTec encrypted 26-bit Wiegand communication
output; providing enhanced security level for extra protection.

Power Up Terminals & Door Lock Systems

A single AdapTec-X can support a maximum of 2 units of FingerTec
terminals and 2 sets of door lock accessories such as the EM lock and
drop bolt in one single system installation.

Prolonged Life Span of Hardware

With data encryption, the life span of the terminals can be prolonged
without the risk of short-circuiting when using AdapTec-X.

Control IN/OUT Terminals at an Entrance

AdapTec-X is a perfect choice for an IN/OUT installation, where a
door is controlled both at the entrance and the exit.

Supports Rechargeable Backup Battery

Connects well to any 12VDC rechargeable backup battery, providing
power to ensure protection of access during any events of power
failure.

Emergency Alerts with Siren

Compatible with an NC siren type with a maximum of 0.5A load for
an emergency event e.g. if the terminal is being dismantled without
authorization.

Seamless Integration with FingerTec Terminals

Mix and match the FingerTec terminals via AdapTec-X for a cost ef­fective access control system suitable for small and medium sized
offices.

3

UNDERSTANDING THE TECHNICAL SPECIFICATIONS

PHYSICAL APPEARANCE

Surface finishing Acrylonitrile Butadiene Styrene (ABS)

Dimension, mm 85 x 96 x 33

Weight, kg 0.1

CPU High Performance RISC CPU

POWER SUPPLY

Power input 12VDC 3A

Power output 12VDC 3A

Backup Power system UPS or 12VDC Rechargeable battery

INPUT – OUTPUT SIGNAL

nput signal 26-bit FingerTec encrypted Weigand signal

I

Output signal 12VDC 0.5A Siren
12VDC 3A EM output (NO/NC Type door locks)

ALERTS & NOTIFICATIONS

Over input voltage Yes, 3 long beeps

Door release Yes, 2 short beeps

Door forced open Yes, continuous beeps (May opt to output external siren system)

Illegal dismantling of Yes, continuous beeps (May opt to output external siren
FingerTec terminals system)

Door unlock timer VR type, LED blinks to indicate unlock time in Seconds

On-Board LED indicators EM LED lit up – Door lock output is working
Status LED lit up – CPU is working
Battery low LED lit up – Battery is low and cut-off

ON BOARD PROTECTION

Over voltage alarm >15 VDC

Fuses PTC type

Battery cut-off 8.5 ~ 9.5 VDC

NOTE: Specifications are subject to change. Check http://product.fingertec.com for latest product information.

4

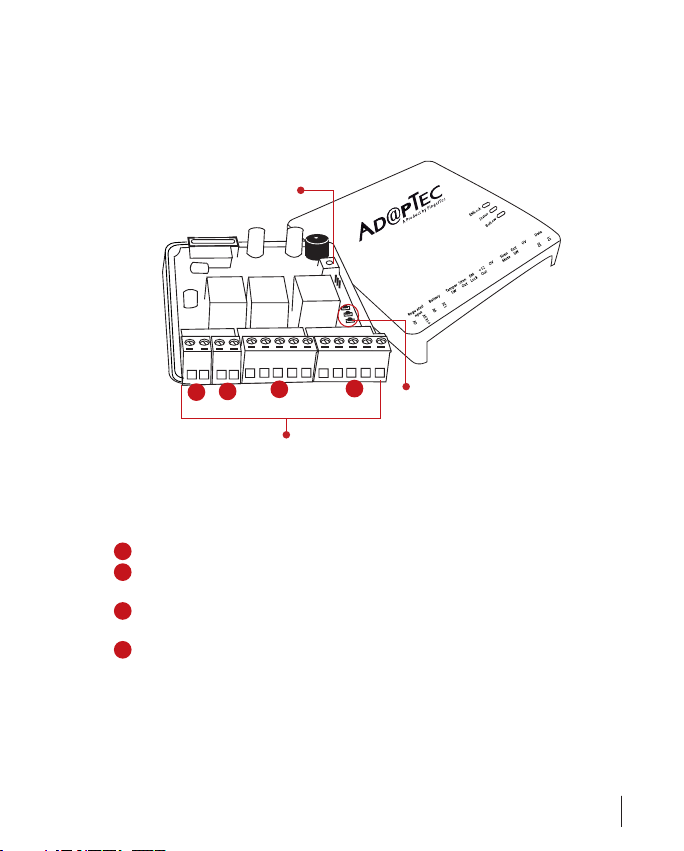

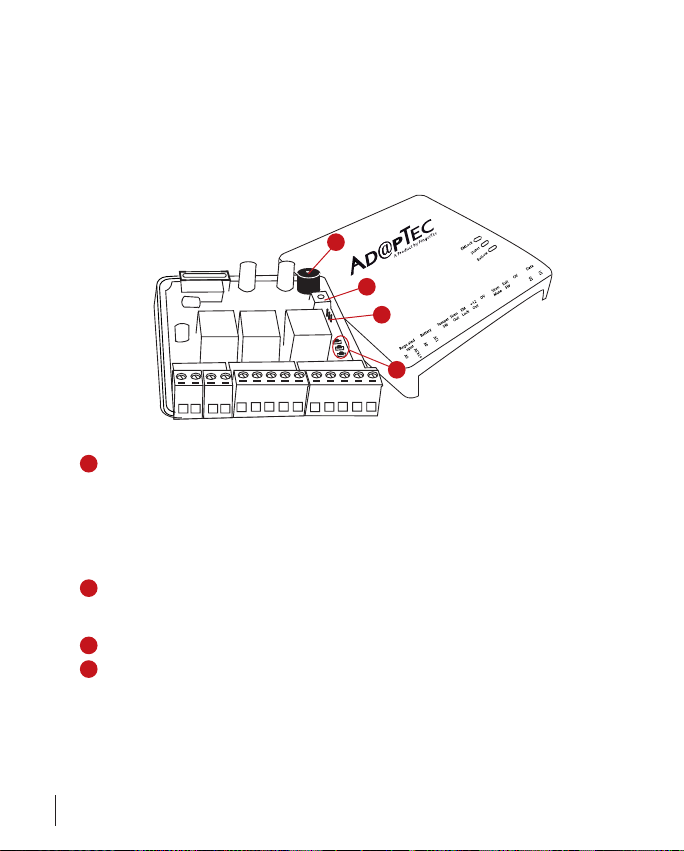

UNDERSTANDING THE DESIGN

Door lock timer

3

2

1

4

LED status indicator

Input/output connectors

Input/output connectors

1

These cables connect to the DC12V power from the power supply.

2

These cables connect to a DC12V rechargeable backup battery. During a power

failure, the backup battery will power up AdapTec-X.

3

These are the power output ports for AdapTec-X. Refer to the wiring diagram for

details.

4

These are the Wiegand data input ports for the FingerTec terminals. Refer to the

wiring diagram for details.

5

OTHER FEATURES

You will find a buzzer, 3 LED indicators, and a door lock timer on the board. Check
and set each of them accordingly after powering up the system.

1

2

3

4

1

You will hear the buzzer beep to indicate

• Unlocked Door
Door is unlocked and access is granted (during verification or pressing push
release button).

• Over Voltage (After startup)
Over voltage of power input (Stop the power supply to the system immedi­ately and check the input voltage, consult [e-mail])

2

Adjust the door lock timer for a longer or shorter unlocking time period by turn-

ing the screw clockwise. Count the LED blinks after turning it. Each blink repre­sents 1 second and the recommended time period is 5 seconds (5 blinks).

3

A switch to select the type of door lock to use, NO type or NC type.

4

The LED lights up to indicate the following:

• EM lock LED - The EM lock system is charged up and working properly.

• Status LED - The overall system is working properly.

(Note: Contact [e-mail] if either of the above LED lights are not lit up.)

• Bat Low LED - The battery is weak and needs to be charged or replaced.

6

DETAILS OF WIRING

AdapTec-X supports 2 types of installations, Convenient or Secure. You can select between
modes by applying different wiring arrangements during installation. Under Convenient
mode, AdapTec-X will unlock doors immediately after receiving responses from FingerTec
devices. This feature is supported by all FingerTec models.

For installations using Secure mode, there will be a 1s time delay when unlocking the door
after verification at FingerTec devices. This delay is due to the 26-bit Wiegand transmission of
encrypted password from device to AdapTec-X. This is an optional security feature provided
by AdapTec-X for users who favor more security (slight delay) over convenience (no delays).

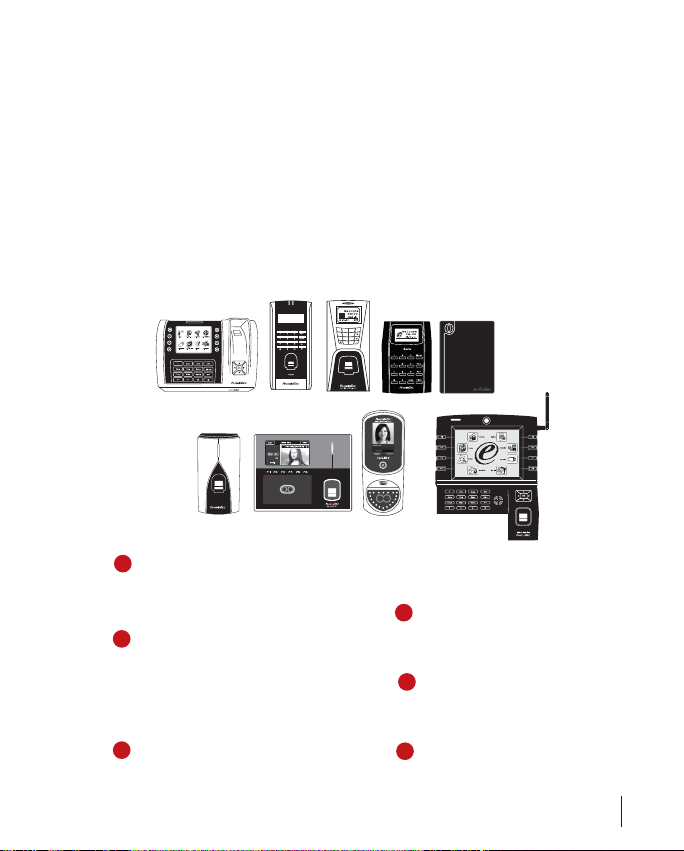

AdapTec-X works with FingerTec terminals via an encrypted Wiegand signal to control the
door open-close mechanism. Please make sure you are using the following FingerTec models
that support the encrypted 26-bit Wiegand signal to work with the AdapTec-X to setup a
door lock system:

w

WelcomeCheck-In
01-01 09:00

Sun

ESC

1

23

4

56

7

809

12-01-01 SUN

OK

MENU

Q2i

[e-mail]

[e-mail]

R2

Q2i AC900 R2 Kadex m-Kadex

H2i

[e-mail]

H2i Face ID 2 Face ID 3 i-Kiosk 100 Plus

1

Step

Look for the power input port on

the FingerTec terminal. Normally the con­nection ports on the terminals are marked as
PWR/+12V (red wire) and GND (black wire).

2

Step

Convenient Installation: Look for the door
lock output port NO and GND from the
terminal.Secure Installation: Look for the
Wiegand output port, WDO (green), WD1

(white) and GND (black) from the terminal.

3

Step

Connect the wires from the terminals to
AdapTec Plus.

[e-mail]

Convenient Installation: See diagram 1, page 8 for
details. Secure Installation: See diagram 2, page 8 for

details.

4

Step

Connect the wires from AdapTec-X

to the door lock system. (See diagram 1, page 8

for details). (Ignore this if you only want to use the sys­tem for time attendance purposes)

5

Step

Connect AdapTec-X to a 12VDC

rechargeable backup battery. (See diagram 1,

page 8 for details). (This is optional. Ignore this if you
do not need any backup power).

6

Step

Connect AdapTec-X to a power

source (12VDC 3A).

7

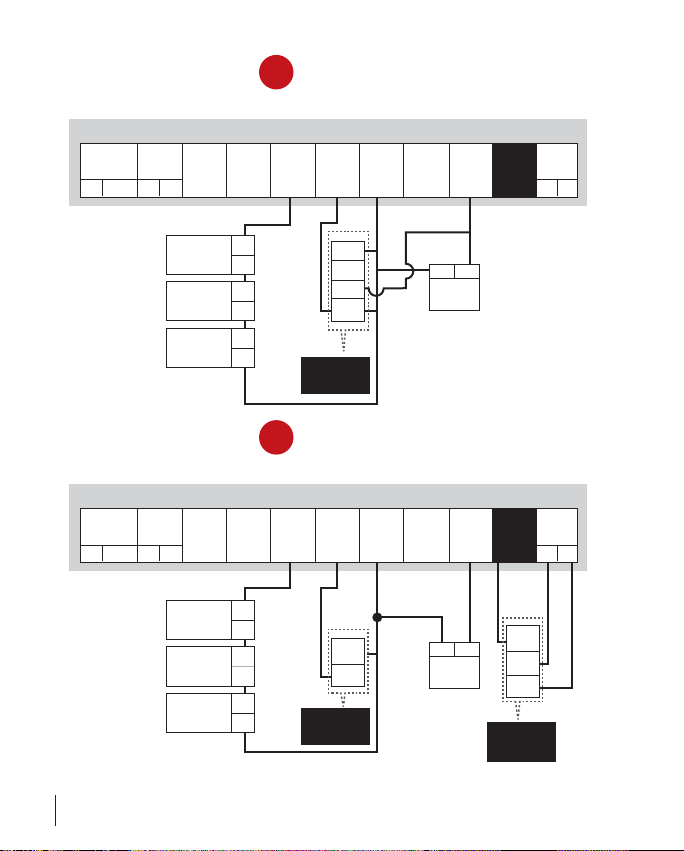

WIRING DIAGRAMS

1

CONVENIENT INSTALLATION

Regulated Battery
Input

0V +14.5V 0V 12V D1 D0

Tamper Siren EM +12 OV Siren Exit

SW Out Lock Out Mute SW

AdapTec-X

Data

OV

EM +
Lock __

Emergency
Break Glass

Emergency
Break Glass 3

WIRING DIAGRAMS

3

2

2

2

Connection

Points

GND

12V

NO

GND

Exit

Button

SECURE INSTALLATION

Regulated Battery
Input

0V +14.5V 0V 12V D1 D0

8

Tamper Siren EM +12 OV Siren Exit

SW Out Lock Out Mute SW

EM +
Lock __

Emergency
Break Glass

ON-OFF
Key Switch D

2

3

C

GND

12V

Connection

Points

Exit

Button

AdapTec-X

Data

OV

GND

WD1

WD0

Connection

Points

CONNECTING ADAPTECX TO AN ALARM SIREN

For all FingerTec door access control models, there is a security
button behind the terminal. During normal operation, the secu­rity button is compressed and once the terminal is dismantled,
the button will be released and a “System broken” message will
appear onscreen.

During the release of the button, the terminal will output an alarm signal. How­ever, no alarm sound will be emitted if the terminal is not equipped with an
external siren.To use the siren feature, we recommend that you install an ad­ditional alarm siren and connect it to the FingerTec terminals.

Benefi ts of Using AdapTec-X with Alarm Siren

We recommend that you install a terminal along with AdapTec-X if you plan
to use the alarm siren. In AdapTec-X, an additional port is readily built to re­ceive the alarm signal from the FingerTec terminals. AdapTec-X has an output
of DC12V and it is suitable for use with an alarm siren that has the same power
input. You do not need to source an additional DC12V power supply for this
purpose. Furthermore, AdapTec-X comes with a “Siren Mute” button where

you can press the button to deactivate the alarm siren when required.

WIRING DIAGRAMS 3

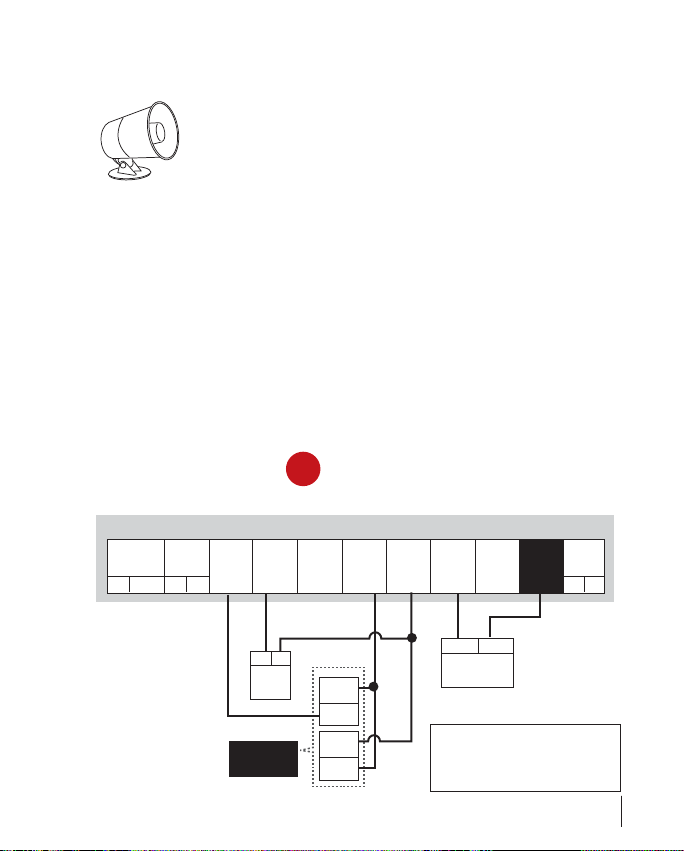

ALARM SIREN • AC900, R2, Kadex, m-Kadex, H2i and Face ID 3

AdapTec-X

Regulated Battery
Input

0V +14.5V 0V 12V D1 D0

Tamper Siren EM +12 OV Siren Exit

SW Out Lock Out Mute SW

OV

Data

+ ---

Alarm

Siren

Connection

Points

ALM+

ALM

GND

12V

_

Siren Mute

Button

Remark:

• Set Auto Alarm in terminal to N.

• Menu > Options > Sys Opt > Adv

Opt > Auto Alarm > N.

9

WIRING DIAGRAMS 4

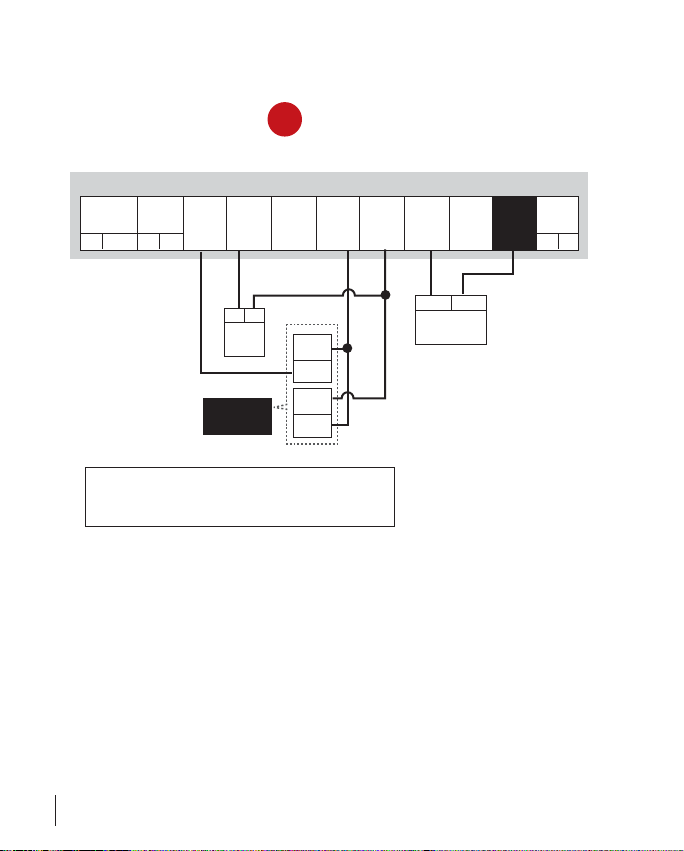

ALARM SIREN • Face ID 2, Q2i and i-Kiosk 100 Plus

AdapTec-X

Regulated Battery
Input

0V +14.5V 0V 12V D1 D0

Tamper Siren EM +12 OV Siren Exit

SW Out Lock Out Mute SW

OV

Data

+ ---

Alarm

Siren

Connection

Points

Remark:

• Set Auto Alarm in terminal to N.

• Menu > Options > Sys Opt > Adv Opt > Auto Alarm > N.

COM2

NO2

GND

12V

Siren Mute

Button

Deactivating the Alarm Siren:

1. At the terminal, press Menu and select Turn Off Alarm to turn off the alarm siren.

2. To deactivate the alarm siren of AdapTec-X, press the Siren Mute Button that is
connected to AdapTec-X.

This will turn off the alarm siren function in AdapTec-X.

10

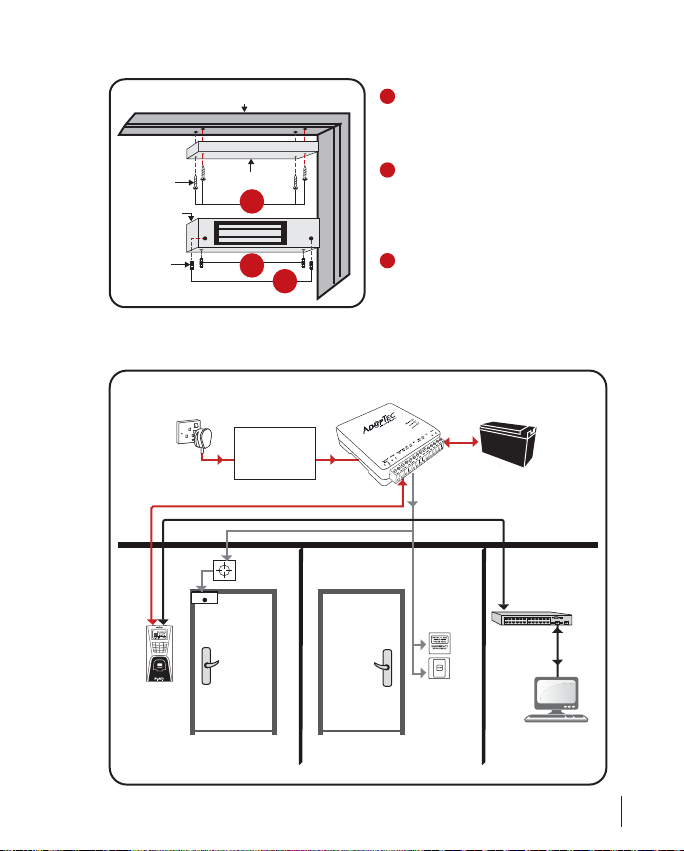

UNDERSTANDING ADAPTECX INSTALLATION FOR

• Wooden Door or Glass Door

The diagrams below only highlights the use of an EM lock during installation.
You may opt to use a dropbolt/deadbolt/door strike instead. Please consult a
qualifi ed technician/installer before proceeding with the installation.

1

2

Back Steel

Screws

Plate

WALL

3

4 feet / 1.2 meter

(recommended)

1

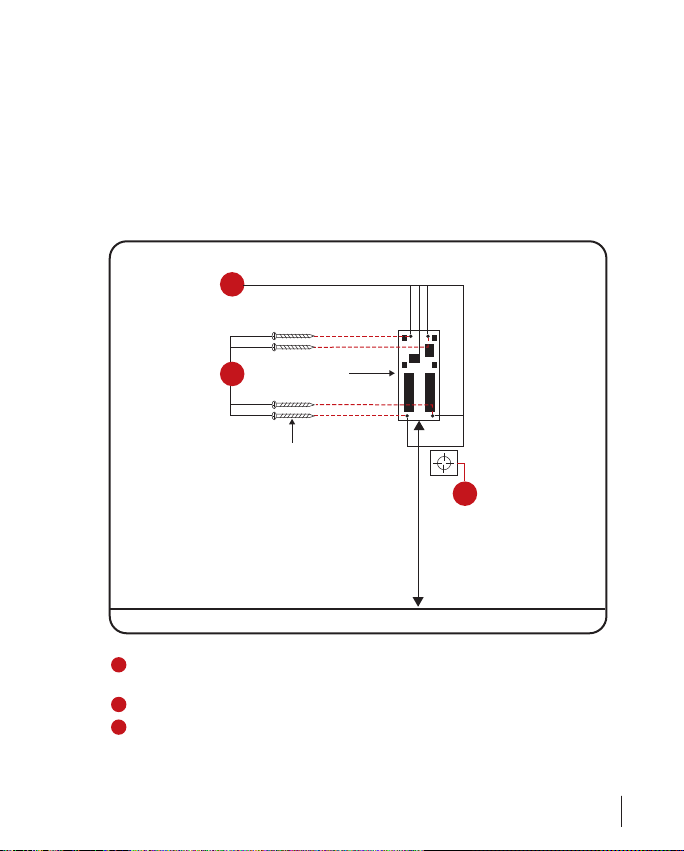

To install FingerTec AC900/R2 on a wall, drill 5 holes as shown. 4 small holes

are for the screws and the bigger hole is for the network cable.

2

Tighten the 4 screws to fix the Back Steel Plate on the wall.

3

Install the keyswitch as per instructions given in the box. The keyswitch is an

override key in case of a system failure or breakdown.

11

Wooden Doorframe

Glass Doorframe

Silver

Nut

1

2

Steel
Bar

2

Allen Key

Screw

U-Bracket

1

Allen Key

Screws

Allen Key
Screws

2

Philip Screw

Wooden Door

1

Drill 3 holes on the wooden door.

2

Place the Steel Bar on the door. Insert the Silver Nut on one side and the

Allen Key Screw on the other side. Tighten the screw to lock the Steel Bar

onto its position.

Glass Door

1

Lodge the U-Bracket into the upper edge of the glass doorframe. Tighten

the 4 Allen Key Screws to hold the U-Bracket into position.

2

Place the Steel Bar on the side of the U-Bracket. Tighten the Philip Screws

to lock the Steel Bar onto position.

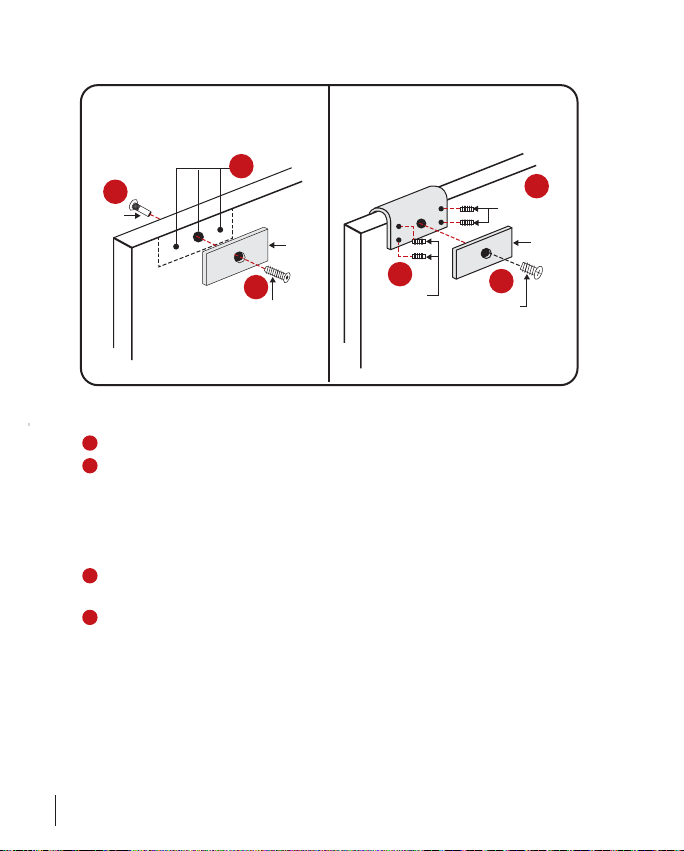

1

Steel

Bar

12

1

Doorframe

Drill 4 holes on the wooden

frame. Tighten the 4 screws to fix
the
the doorframe.

2

Screws

Magnet

Aluminum Plate

1

1

Use the Allen Key to tighten the

2 screws at the bottom of the

Magnet. The Magnet will stick

to the
the screws are tightened.

Allen Key

Screws

2

3

3

Use the Allen Key to tighten the

other 2 screws on the sides of
the

OVERVIEW OF THE WHOLE SYSTEM INSTALLATION

Switching

AC110/240V
Power Input

w

ESC

1

23

4

56

7

809

OK

MENU

R2

FingerTec

Terminal

power supply

ON-OFF
Keyswitch

EM Lock

12VDC

Emergency
Break Glass

Push Button

Aluminum Plate properly on

Aluminum Plate when

Magnet.

DC12V Rechargeable
battery

ABOVE CEILING

CEILING

Hub/Switch

PC

OUTDOOR INDOOR NETWORKING

13

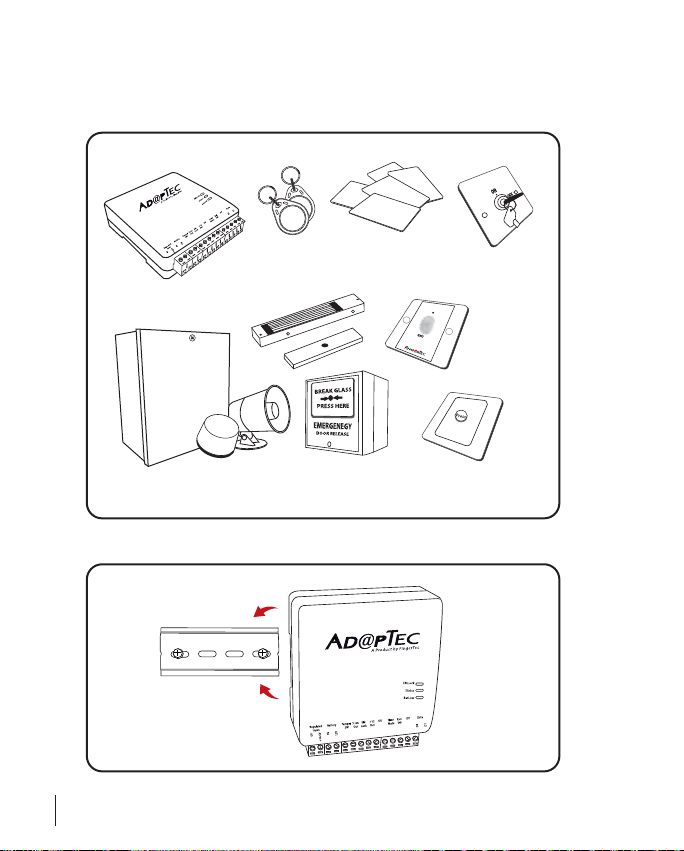

FINGERTEC ACCESSORIES

For more accessories, go to accessory.fingertec.com.

l

AdapTec-X

Alarm Siren with

Strobe Light

RFID Key

Chain

EM 600 / EM 1200

HID Card / MiFare
Card / RFID Card

Emergency
Break Glass

MOUNTING AN ADAPTECX ONTO A WALL

14

ON-OFF

Keyswitch

Contactless
Release
Button

Release Button

NOTE: Details in this manual are subject to change. Check

© 2000-2014 FingerTec Worldwide Limited. All rights reserved. • Printed in Malaysia. 062014

http://product.fingertec.com for latest product information.
