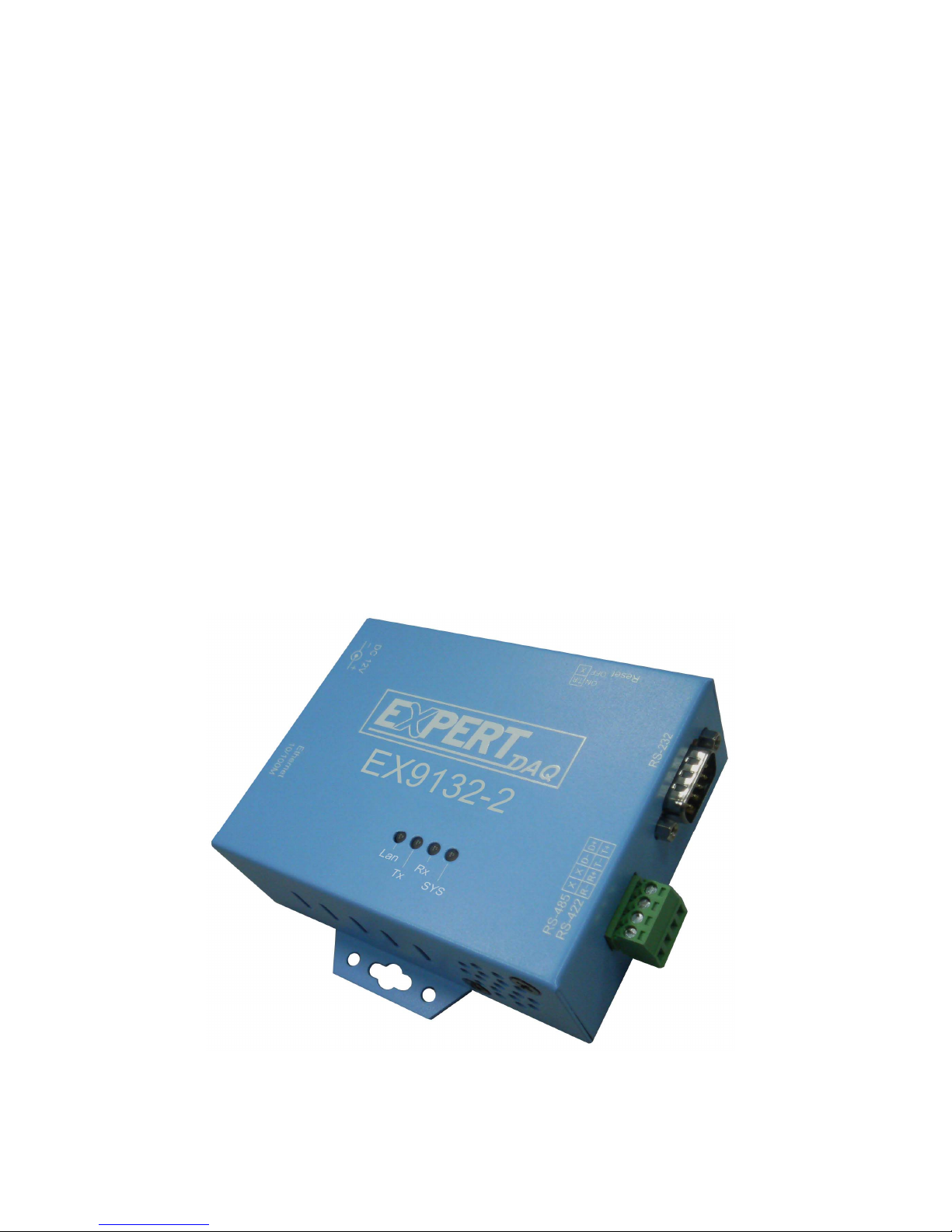

ExpertDAQ EX-9132-2 User Manual

1

SERIAL TO ETHERNET

CONVERTER

EX-9132-2

User Manual

2

Table of Contents

Introduction …………………...……………………………………………..4

Overview …………………………………………………………………………. 5
Package Checklist ……………………………………………………………….6
Block Diagram ………...………………………………………………………….7
Product Features ...…...………………………………………………………….8
Product Specifications ……………………………………………………………9

Converter Description & Installation ………………………….….11

Product Panel Views……………………………………………………………...11

Left Side ……………………………………………………………………….....12

Right Side ………………………………………………………………………..13
LED Indicators …………………………………………………………………..14
Terminator & Reset Button ……………………………………………………15
Wiring Architecture …………………………………………………………….16
RS-232 …………………………………………………………………….………16
RS-422/RS-485 …………………………………………………………………..17

Converter Configuration ………………………………….……………...18

Initial IP Configuration …………………………………………………………18

Device Management Utility of EXPERTDAQETM ……………...……….....19

3

Menu “View” …………………………………………………………………….20
Menu “Config” …………………………………………………………………..20

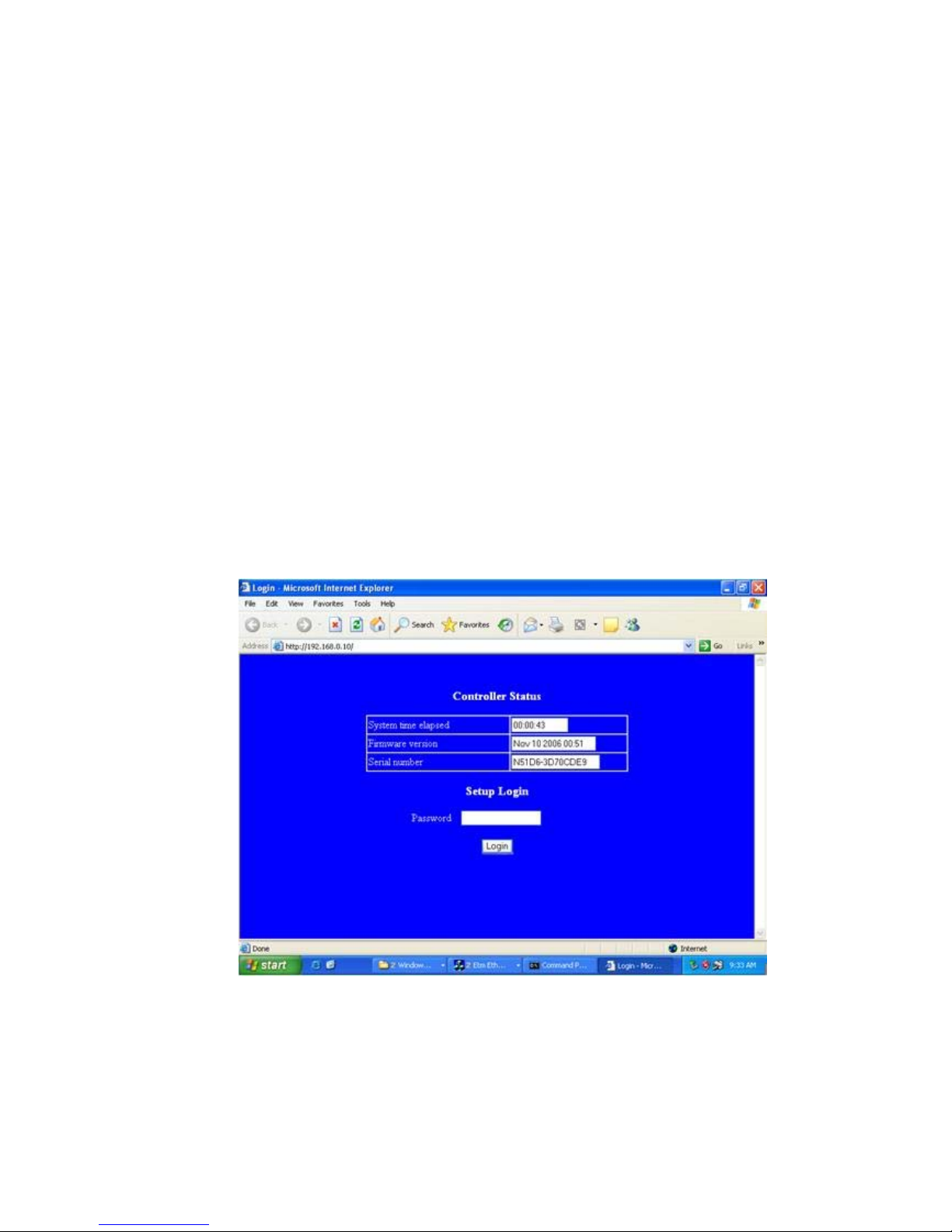

WebConsoleConfiguration ……………………………………………………22
Controller Status ………………………………………………………………..23

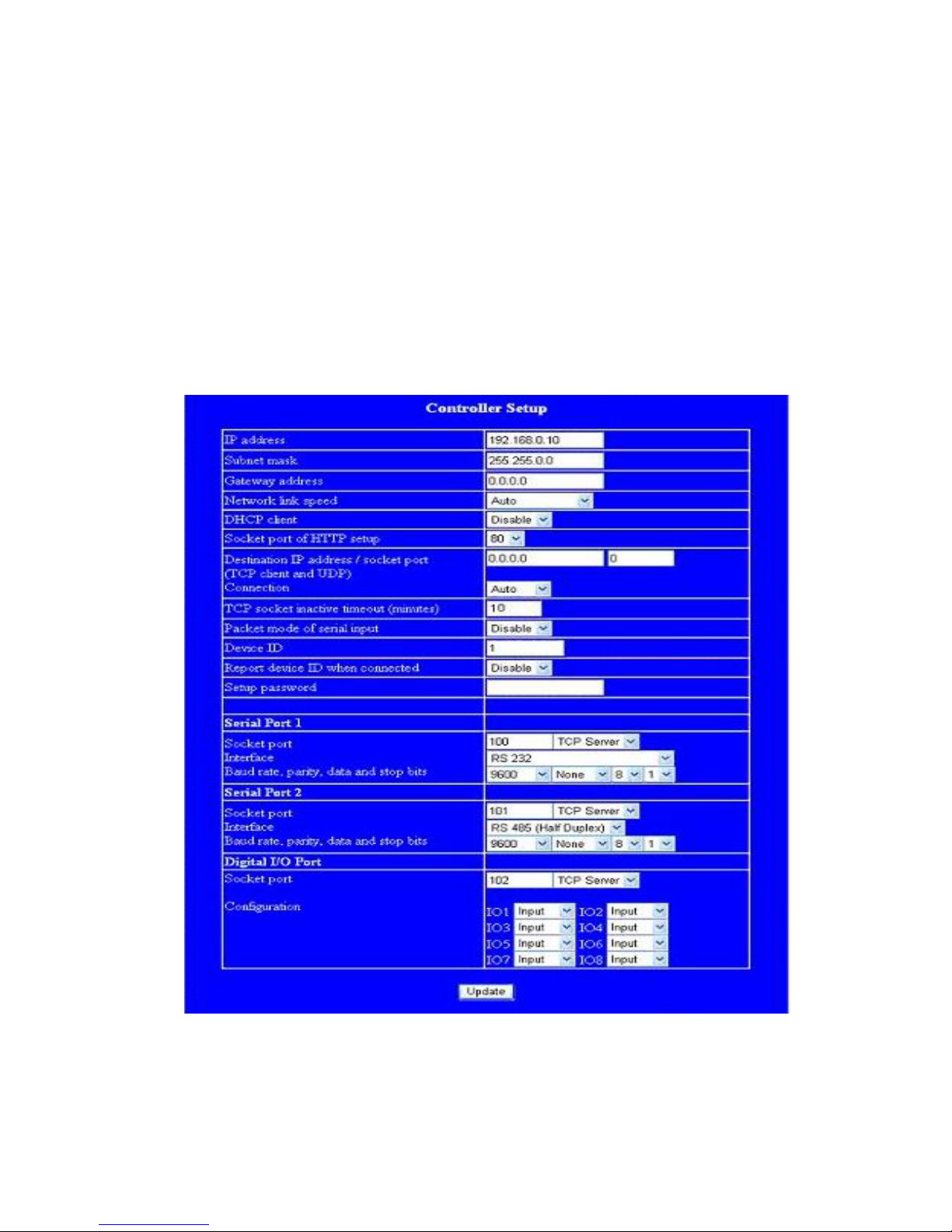

Controller Setup ……………………………………………………………......25

Controller Updated ……………………………………………………………..31
FactoryDefault Setting …………………………………………………………32

Self-Testing ………………………………………………………………….33

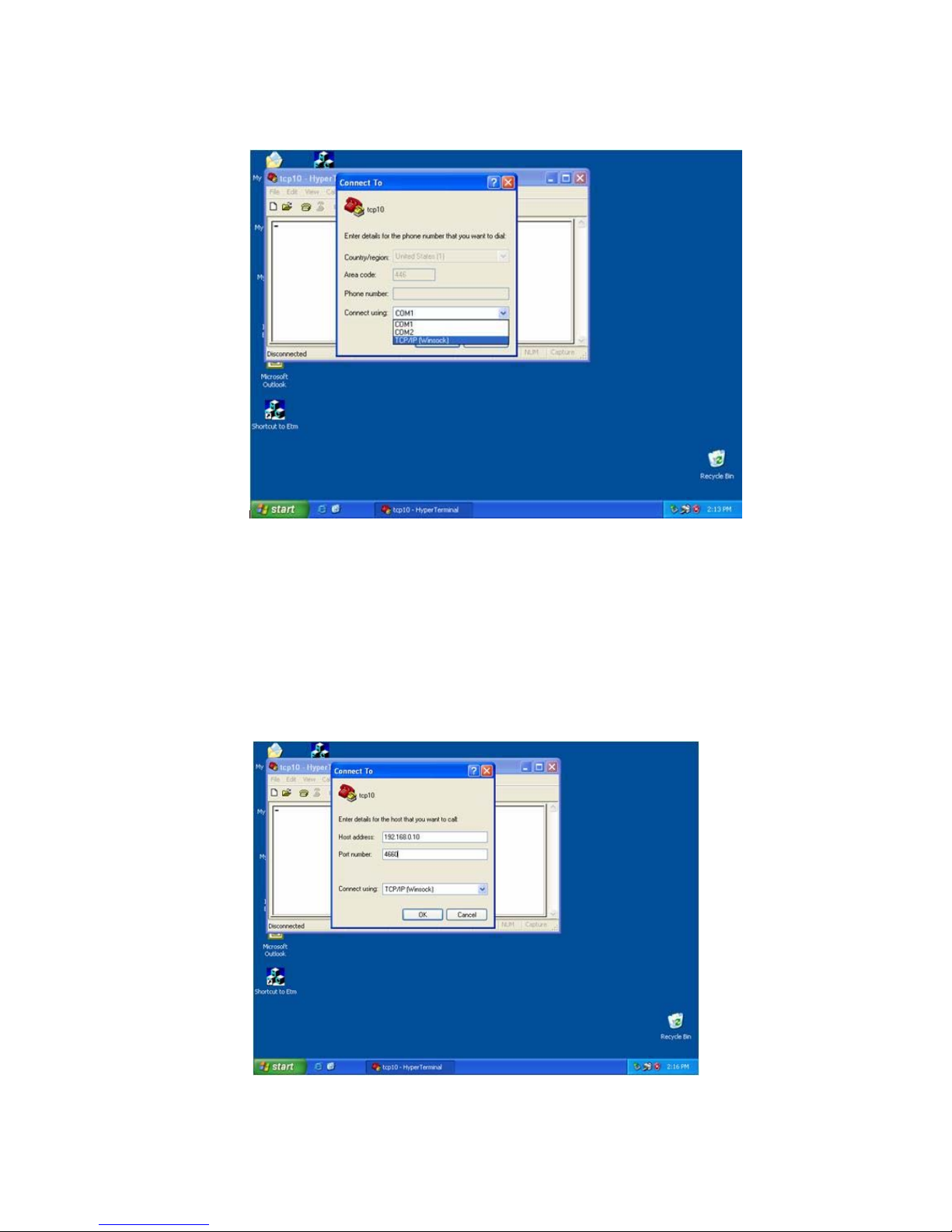

Hyper Terminal for TCP/IP WinSock ……………………………………......34

Hyper Terminal for COM Port …………………………………………………37

Data Transmission …………………………………………………………......37

Appendix A - FAQ ………………………………………………………..38
Appendix B - Pin Outs and Cable Wiring …………………….39

DC Power Outlet ………………………………………………………………...39
RJ-45 Pin Assignment …………………………………………………………39
RS-232 Pi Assignment …………………………………………………………39
RS-422 Pin Assignment ……………………………………………………….40
RS-485 Pin Assignment ……………………………………….……...……….40

4

Introduction

EX-9132-2 TCP/IP converter is designed to make your serial devices Internet

ready instantly. ARM-7 Series of EX-9132-2 TCP/IP converter makes them

the ideal choice for connecting your RS-232 or RS-422/485 serial

devices—such as PLCs, meters, and sensors to an IP-based Ethernet LAN,

making it possible for your software to access serial devices anywhere and

anytime over a local LAN or the Internet.

ARM-7 Series converter ensures the compatibility of network software that

uses a standard network API (Winsock or BSD Sockets) by providing TCP

Server Mode, TCP Client Mode, and UDP Mode. ARM-7 Series’ Virtual COM

driver, software that works with COM port can be set up to work over a TCP/IP

network in no time. This excellent feature preserves your software investment

and lets you enjoy the benefits of networking your serial devices instantly.

ARM-7 Series converter supports manual configuration via the handy web

browser console and many protocols including TCP, IP, UDP, HTTP, DHCP,

ICMP, and ARP. It is the best solution to network your serial devices.

5

Overview

EX-9132-2 TCP/IP converter is designed to make your serial devices Internet

ready instantly. ARM-7 Series of GDI2000 TCP/IP converter makes them the

ideal choice for connecting your RS-232 or RS-422/485 serial devices—such

as PLCs, meters, and sensors to an IP-based Ethernet LAN, making it possible

for your software to access serial devices anywhere and anytime over a local

LAN or the Internet.

ARM-7 Series converter ensures the compatibility of network software that

uses a standard network API (Winsock or BSD Sockets) by providing TCP

Server Mode, TCP Client Mode, and UDP Mode. ARM-7 Series’ Virtual COM

driver, software that works with COM port can be set up to work over a TCP/IP

network in no time. This excellent feature preserves your software investment

and lets you enjoy the benefits of networking your serial devices instantly.

ARM-7 Series converter supports manual configuration via the handy web

browser console and many protocols including TCP, IP, UDP, HTTP, DHCP,

ICMP, and ARP. It is the best solution to network your serial devices.

6

Package Checklist

ARM-7 product is shipped with the following items:

1 unit of EX-9132-2 TCP/IP converter

1 unit of Power Adaptor ( 9VDC 500mA )

Documentation & Software CD

NOTE: Notify your sales representative if any of the above items is missing or

damaged.

7

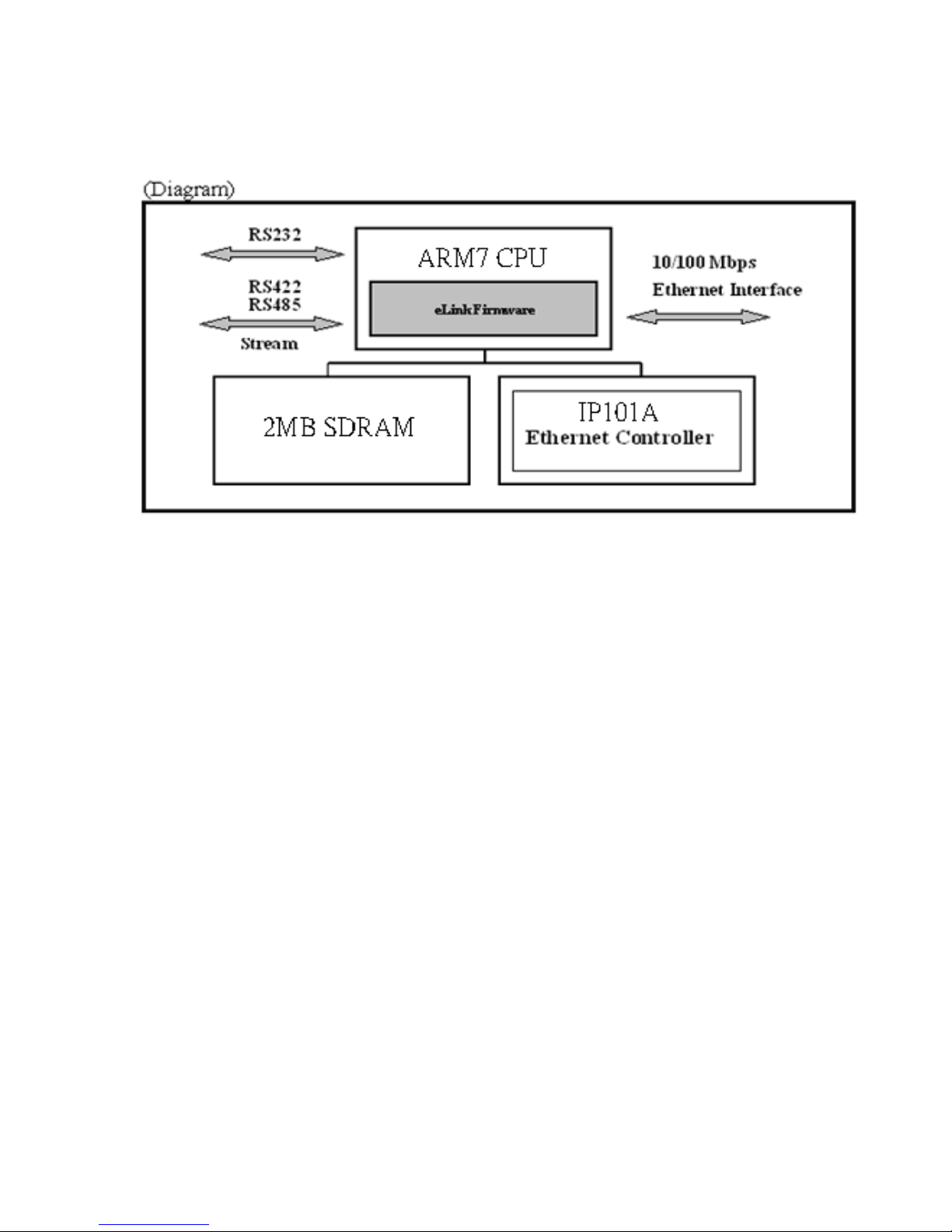

Block Diagram

Low-cost devices usually are equipped with low speed processors and limited

memories. In reality, they are neither having the capability nor practicality to

manage complicated network TCP/IP protocols. ARM-7 Series is a low cost

while providing high performance network solution by converting data stream

between network TCP/IP and popular serial port signals. In stead of processing

TCP/IP packets directly, devices need only deal with those interface signals,

which greatly simplifies the complexity of TCP/IP network in linkage.

8

Product Features

□

□

□

Data Conversion between RS-232/422/485 and Ethernet

Convert serial device (RS-232, RS-422, RS-485) data/signal into the TCP/IP
packet data/signal and send them out with the Ethernet data stream or convert
the TCP/IP packet data/signal into serial device data/signal.

□

□

□

Dynamic IP Configuration

Support DHCP client mode, simplifying network address configuration and
management.

□

□

□

Dual LAN Speed

Support 10/100 Mbps Ethernet, auto-detected.

□

□

□

Server / Client Dual Modes

ARM-7 Series can be configured as network server or network client. In the
client mode, it can be installed in network which is protected by NAT router or
firewall, without the need of a real IP address.

□

□

□

Web-based Setup

Parameters setup is based on HTTP protocol by using standard browsers (IE
and Netscape). No special software would be required.

□

□

□

Built-in Security Control

Protected by setup password to prevent intruders.

□

□

□

Firmware Remote Update

Firmware can be updated directly via Ethernet network to keep up with latest
network standards.

9

Product Specifications

 CPU : 32-bits ARM-7 CPU , 25 MHz

 RAM : 2 M Bytes SDRAM ( 1 M * 16Bits )

 ROM : 128 K Bytes Flash ROM

 Ethernet

 Port Type : RJ-45 Connector

 Speed : 10 /100 M bps ( Auto Detecting )

 Protocol : ARP , IP , ICMP , UDP , TCP , HTTP , DHCP

 Mode : TCP Server / TCP Client / UDP

 Setup : HTTP Browser Setup (IE & Netscape) , RS-232 Console

 Security : Setup Password

 Protection : Built-in 1.5KV Magnetic Isolation

 Serial Port

 Port : RS-232 * 1 Port ，RS-422/RS-485 * 1 Port

 Speed：300 bps~230.4 K bps

 Parity：None , Odd , Even , Mark , Space

 Data Bit：5 , 6 , 7 , 8

 Stop Bit : 1 , 2

 RS-232 Pins : Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD

 RS-422 : Rx+ , Rx- , Tx+ , Tx- (Surge Protect)

 RS-485 : Data+ , Data- (Surge Protect)

10

 Built –in RS-422/RS-485 Terminal Resistor

 15KV ESD for all signals

 Watch Dog Function

 Power : DC 9 – 12 V , 500mA

 Led Lamp : SYS (PWR) , LAN , Rx , Tx

 Environment : Operating Temperature: 0℃∼50℃

Storage Temperature : -10℃∼70℃

 Dimensions : 110 * 90 * 30 mm ( W * D * H )

Weight : 146 gm

11

Converter Description

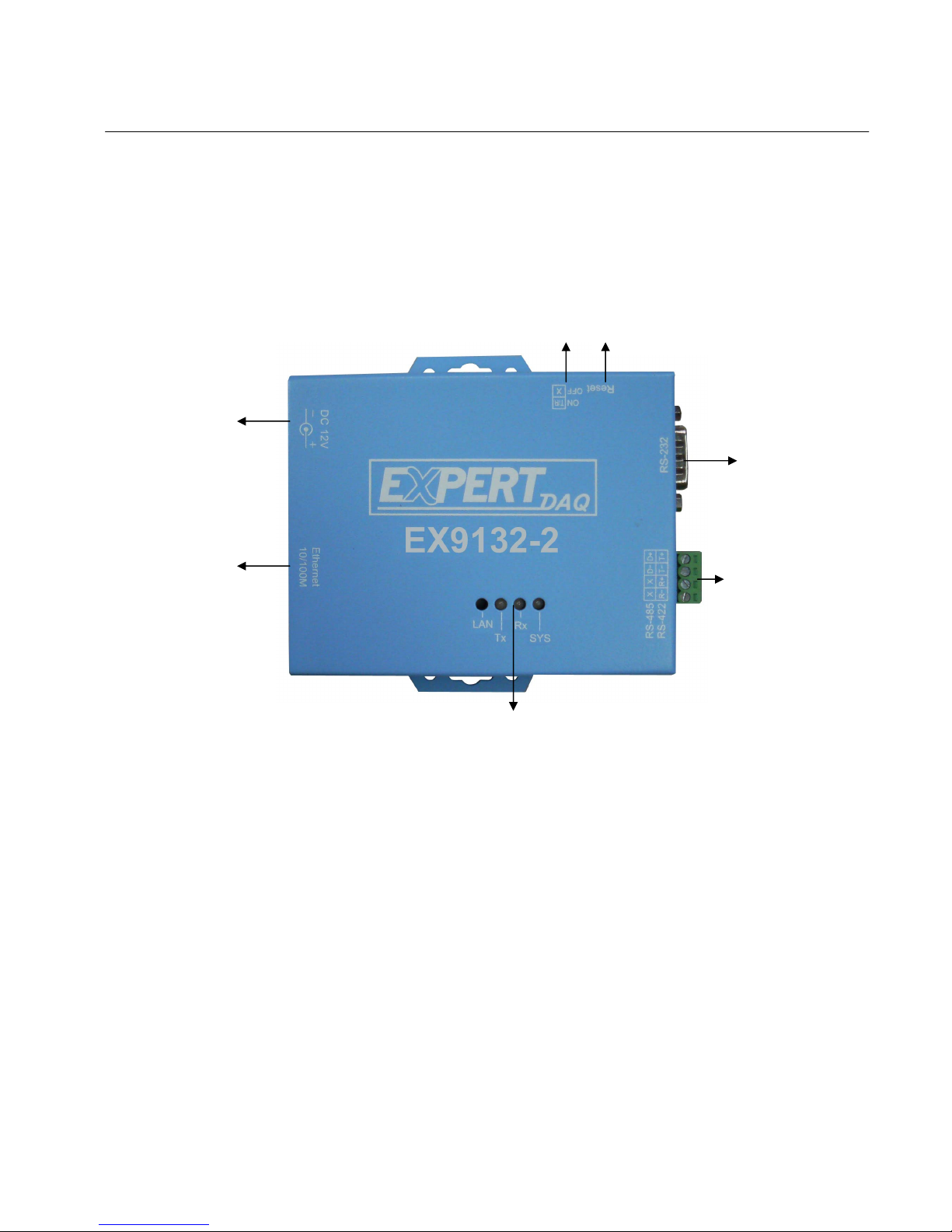

Product Panel View

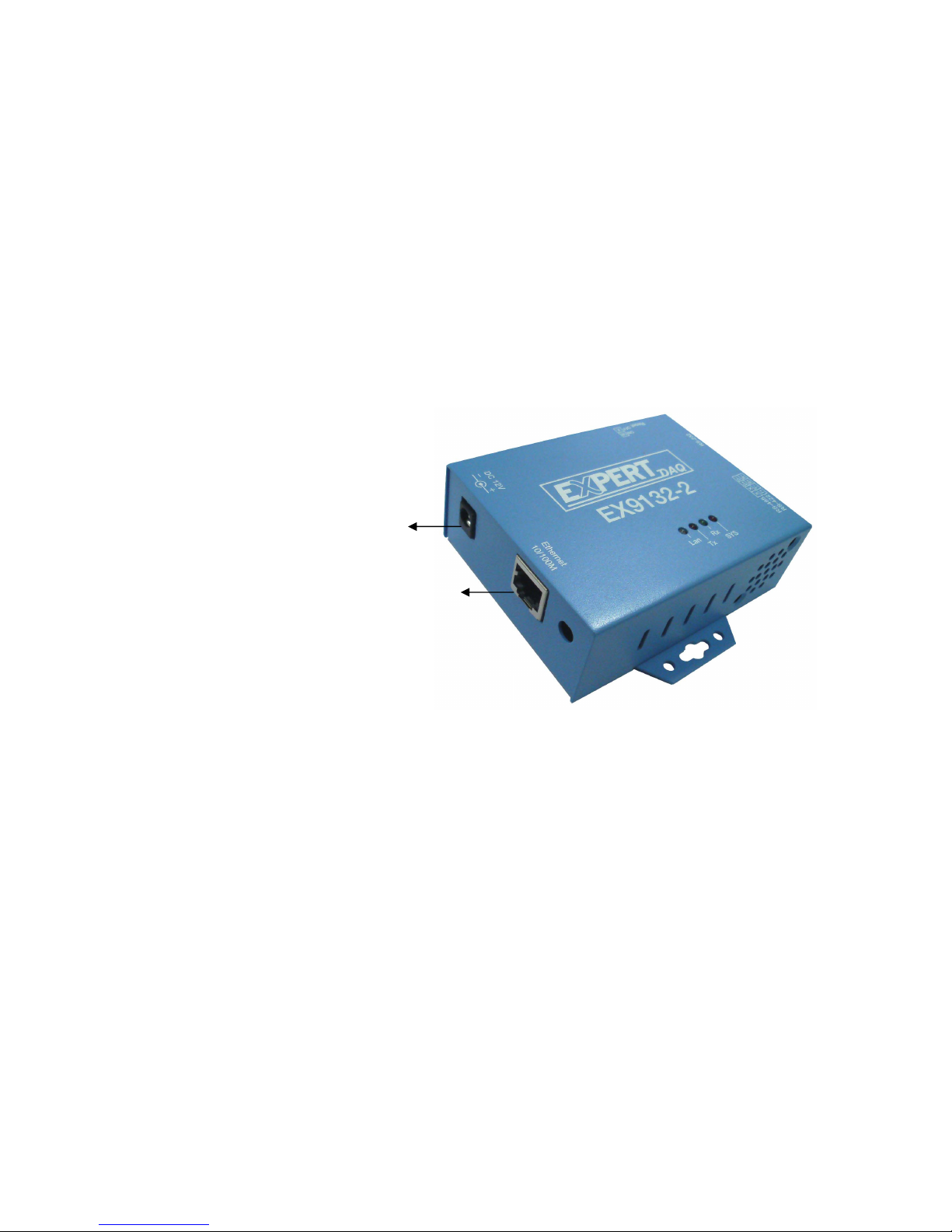

LAN

DC-In

Power Outlet

LED Indicators

Serial Port

RS-485/RS-422

Serial Port

RS-232

Reset Button

RS-422 / 485 Terminator

12

Left Side

Power Supply

The EX-9132-2 TCP/IP converter is powered by a single 9∼12V DC(Inner

positive/outer negative) power supply and 500mA of current. A suitable

power supply adapter is part of the packaging. Connect the power line to the

power outlet at the left side of EX-9132-2 TCP/IP converter and put the

adapter into the socket. If the power is properly supplied, the “SYS” red color

LED will be blink each time in one second.

LAN Port

The connector for network is the usual RJ45. Simply connect it to your

network switch or Hub. When the connection is made, the LAN LED

indicator will light. When data traffic occurs on the network, red Tx & Rx LED

indicator will blink during data transferring and receiving.

DC-In

Power Outlet

LAN

13

Right Side

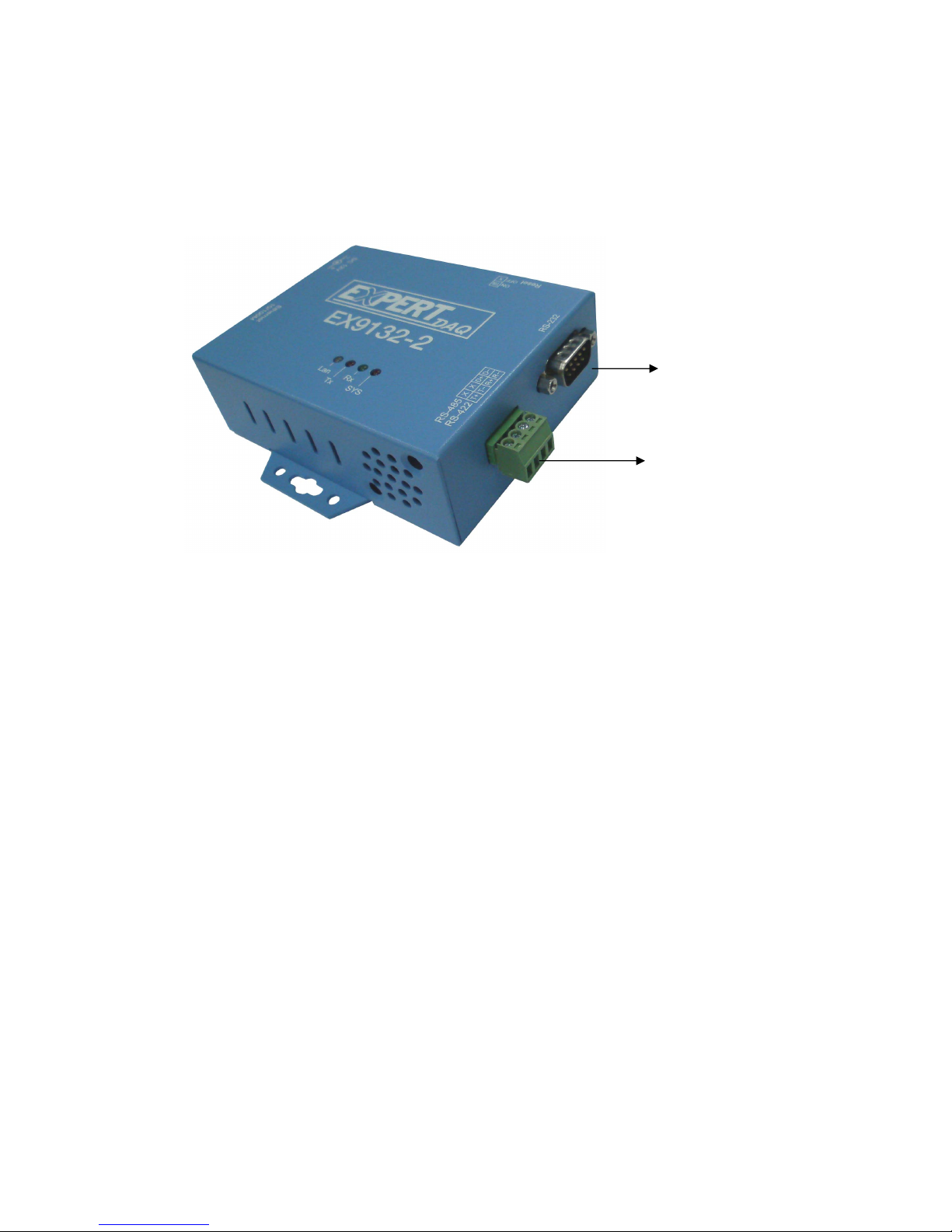

Serial Port of RS-232/RS-422/RS-485

Connect the serial data cable between the converter and the serial device.

Follow the setup procedure to configure the parameters of the converter.

(see the following chapters ).

RS-232

RS-422 / 485

14

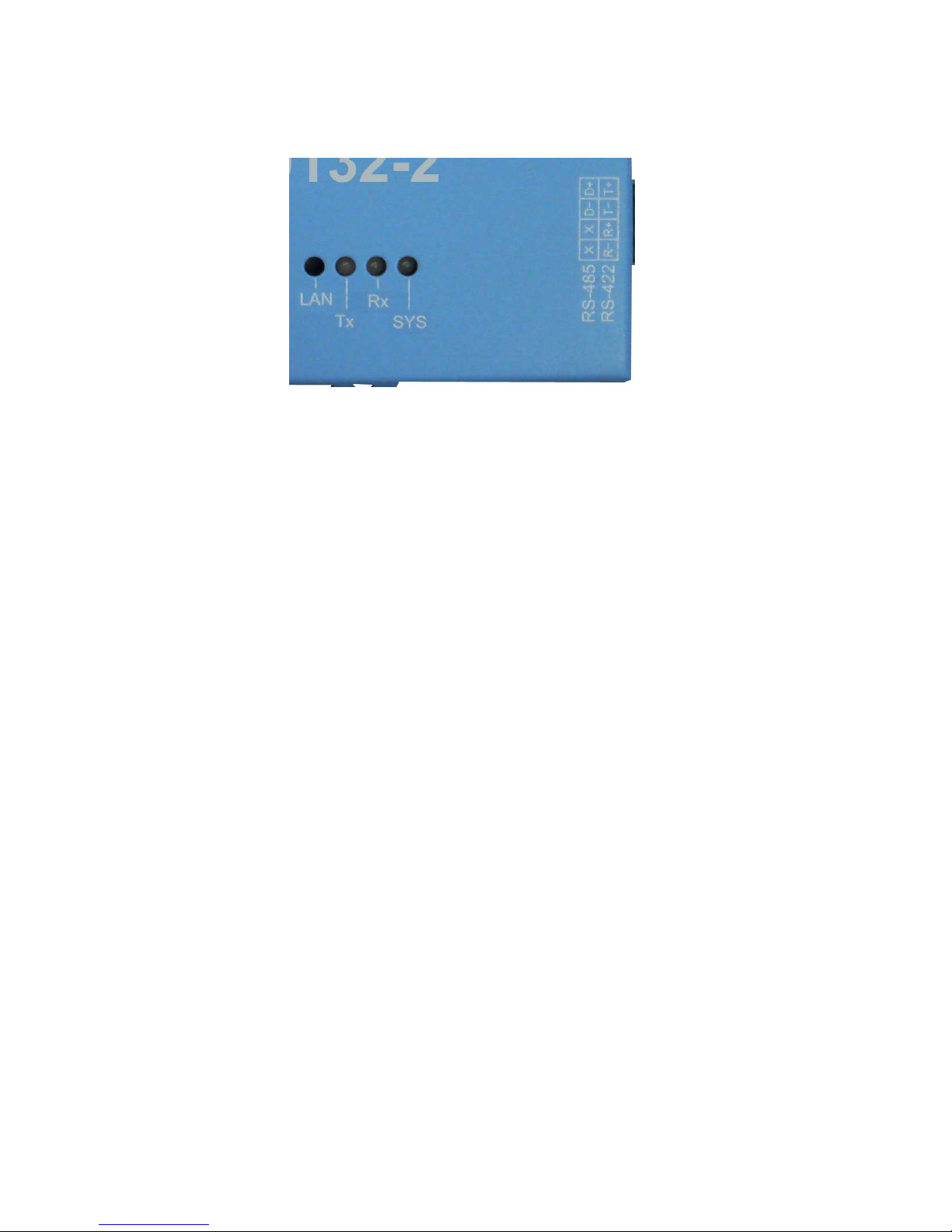

LED Indicators

SYS “Red LED”: Power indicated (when the power is on the LED will flash

each time in one second )

Rx “Green LED”: Network signal receiving indicated (when receive any

signal form network the LED will flash)

Tx “Red LED”: Network signal transforming indicated (when transmit any

signal to network the LED will flash)

LAN “LED”: On-line indicated (when converter link to LAN then the LED will

keep on)100M- Green LED、10M- Red LED

15

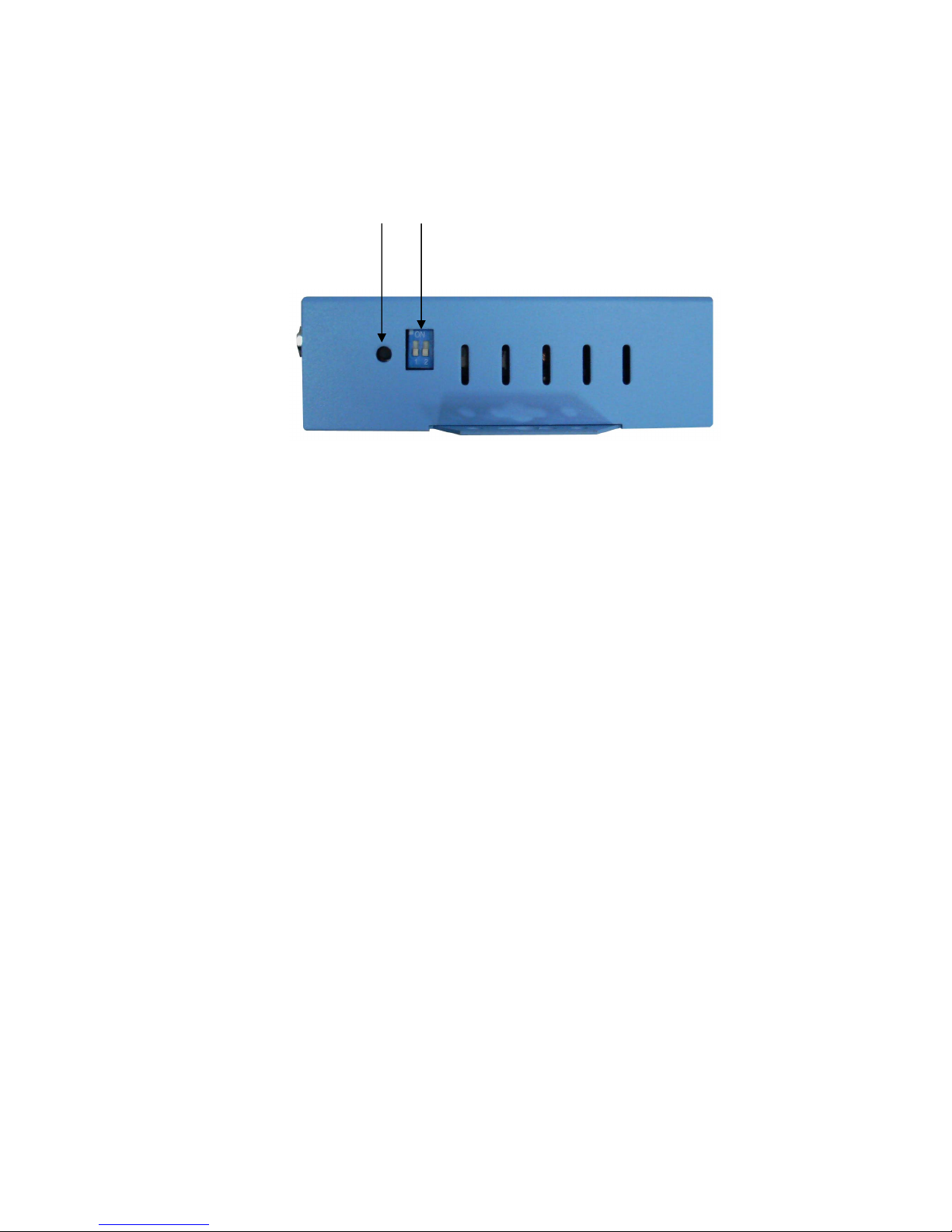

Terminator & Reset button

Resent Button

Press the button then turn on the power and waiting for 3 seconds.
Converter will reset to factory default.

Terminator

There is terminator resistor built in. If the switch 1 & 2 are set in “ON”
position , 120 Ohm resistor is connected between the signals.

Reset Button

Terminator

16

Wiring Architecture

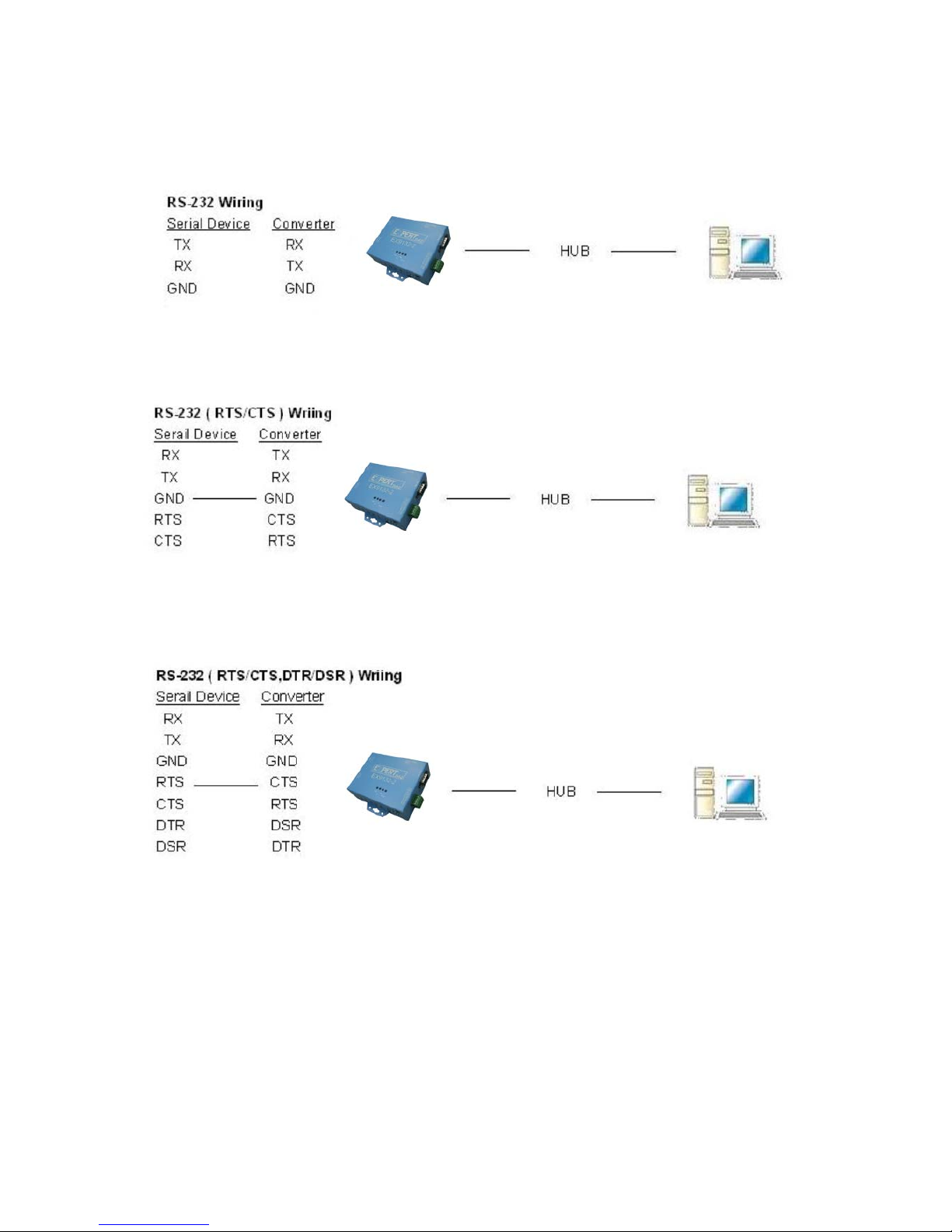

RS-232 Wiring Architecture

17

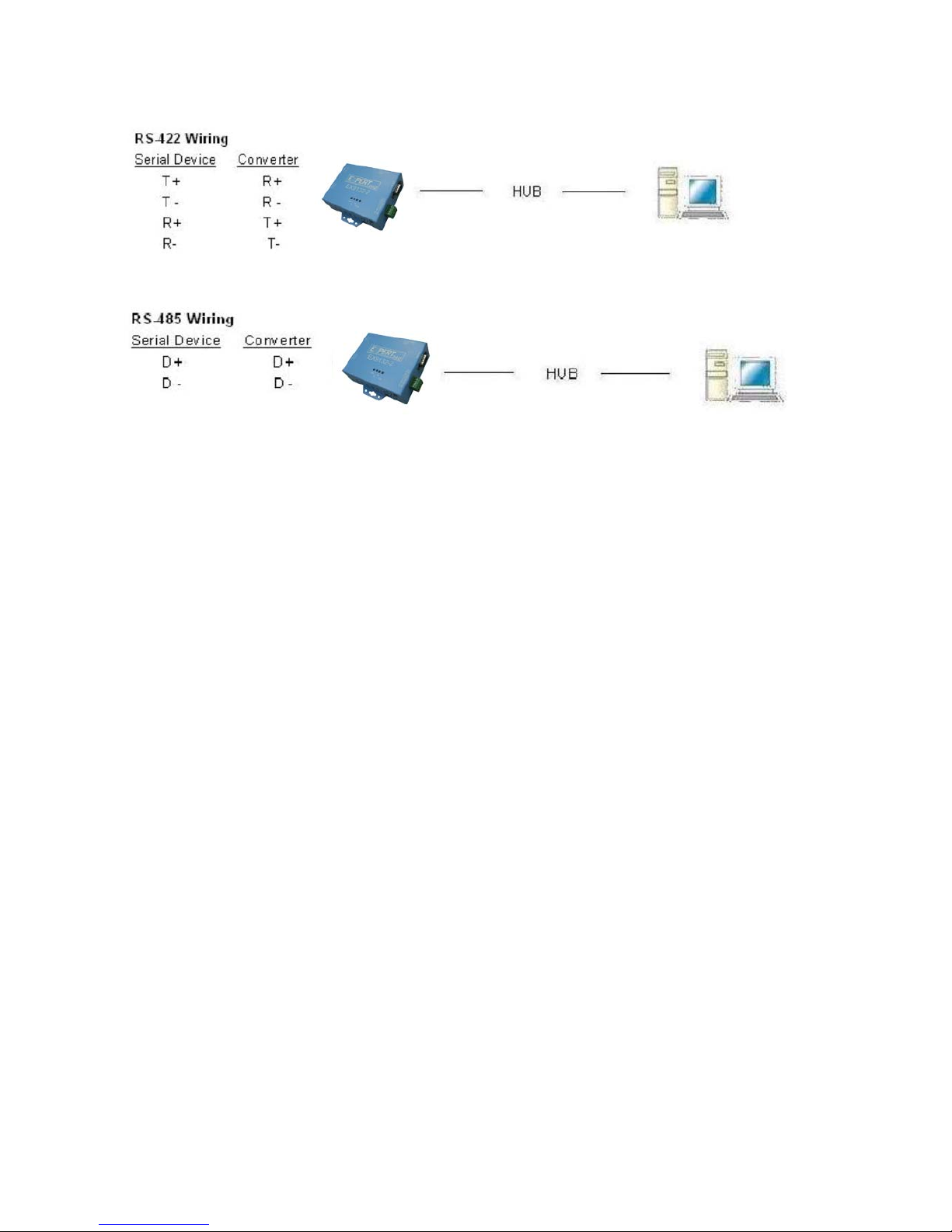

RS-422 / RS-485 Wiring Architecture

When you finish the steps mentioned above and the LED indicators are as

shown, the converter is installed correctly. You can use the Setup Tool

“EXPERTDAQETM.exe” to setup the IP Address.

To proceed the advanced parameters setup, please use a web browser (IE

or Netscape) to continue the detailed settings.

18

Converter Configuration

Initial IP Configuration

When setting up your converter for the first time, the first thing you should do

configure the IP address. This chapter introduces the method to configure

the device server’s IP address. For more details about network settings,

see “Web Console Configuration”. in next sub section.

For quick setup of converter , We suggest you to reference “Quick
Installation Guide” manual.

The following topics are covered in this chapter:

◎

◎

◎

Device Management Utility

◎

◎

◎

Menu “View”

◎

◎

◎

Menu “Config”

19

Device Management Utility

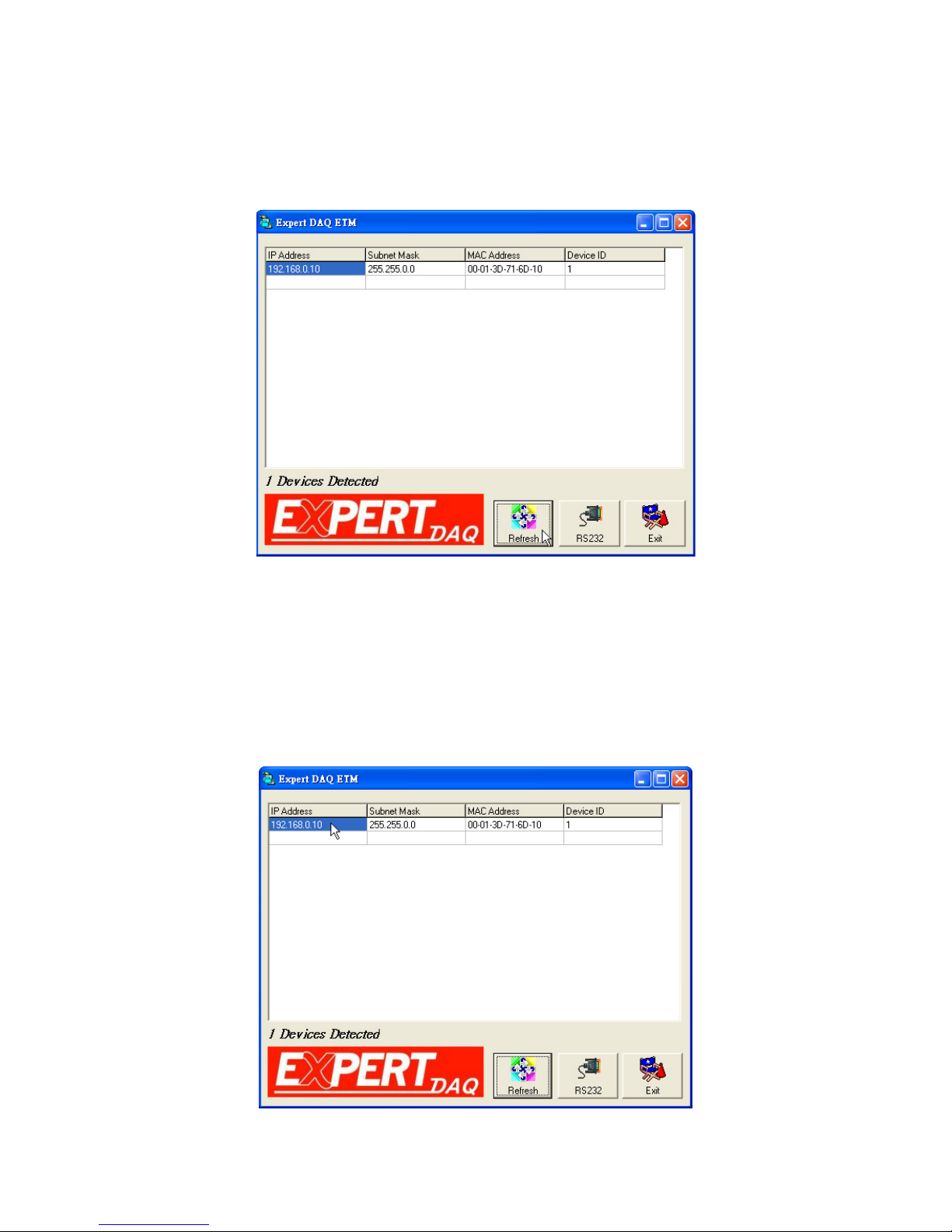

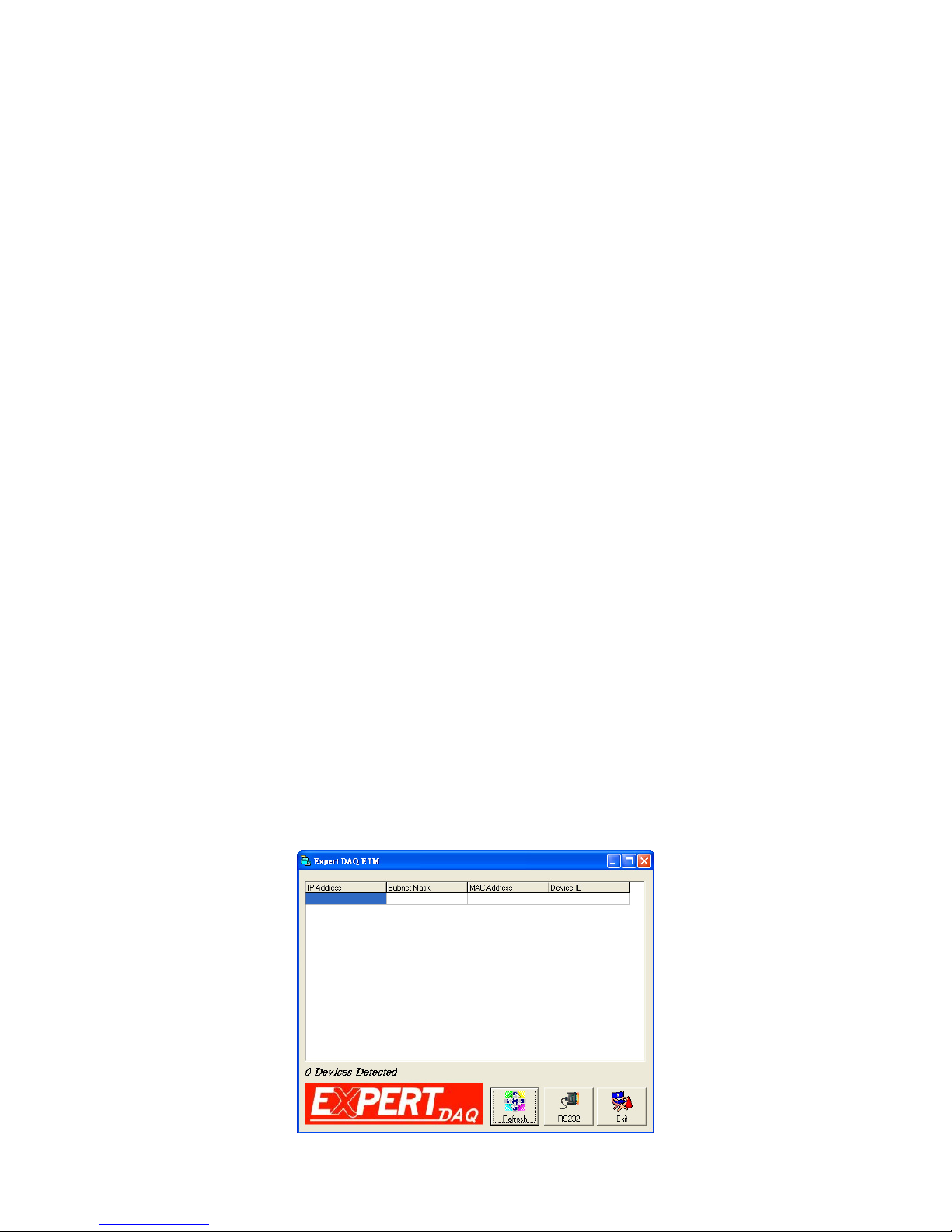

On PC we provide a Device Management Utility named ExpertDAQETM

which is an executable program in Windows 32 bit environments.

ExpertDAQETM Setup Tool is used to detect and setup the installed converters.

It uses UDP broadcast packets to query and configure converters on the

network.

When you activate the tool, it will detect the existence of the installed

converters and depict the converters’ status such as IP address, Subnet Mask,

MAC Address, and Device ID (see Figure 3.1). The Setup Tool only can

setup one converter at a time. Thus if there are more than one converter on the

network, please shut down or disconnect other converters. Otherwise the

ExpertDAQETM can not detect the converter. Other similar issues, you may

reference to Q&A in Appendix A.

Due to the nature of broadcast UDP packets, ExpertDAQETM has following

characteristics:

□

□□ Broadcast packets aren’t limited by subnet. Even if the IP address of the

converters and the computer running ExpertDAQETM do not belong to

the same subnet, it still works fine.

□

□□ Broadcast packets can not pass routers. ExpertDAQETM can only be used

to monitor devices with computer running ExpertDAQETM in the same

segment of local area network

20

Refresh

Refresh the status. ExpertDAQETM will send another query to get

updated information.

Note: Always run the “View-> Refresh” after any data change.

Exit

Exit from the program

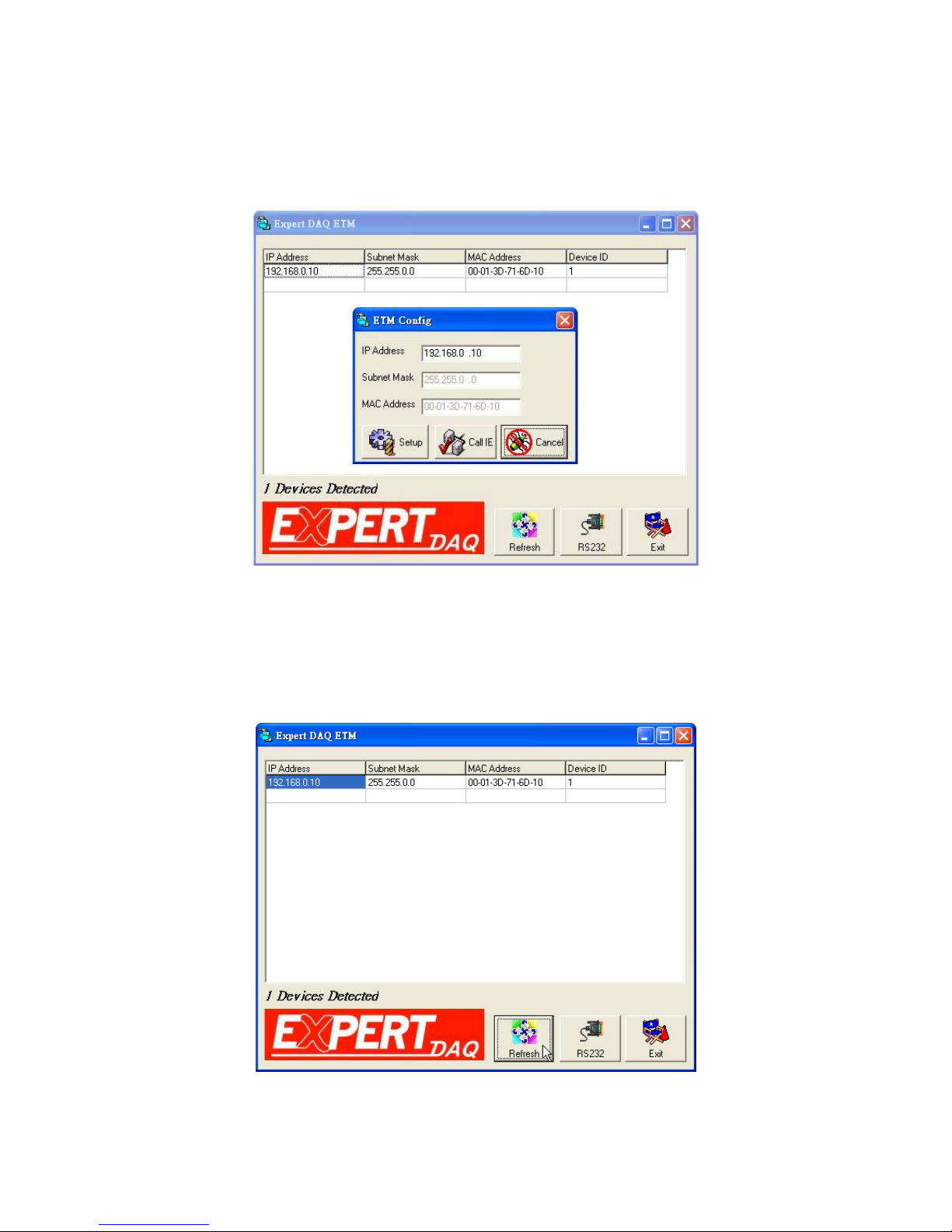

ExpertDAQETM Config

Moving the mouse cursor onto the desired device that displaying in information

window

Clicking the left button of mouse to invoke the ExpertDAQETM Config.

21

Note : Because ExpertDAQETM uses broadcast UDP packets, for the

sake of security, it allows configuration only when device's setup
password is empty.

Assign an IP Address with the same Subnet Mask of your computer,
avoiding any IP conflict with other network devices.

When you press [Setup] button, the IP address will be refreshed in 2~3

seconds.

22

Web Console Configuration

In addition to basic IP address and subnet mask, specific device settings

can be set through HTTP protocol with popular browsers, e.g. Internet

Explorer, Netscape, etc. Setup of the converter is as easy as surfing on

WWW, no special software will be required. Press [Alt]+[Enter] or

select [Device Settings] in the [Config] menu, will open a new window
in browser to login into the device. Alternatively, if the IP address of the

converter is already known, you can connect to the converter directly by

providing its IP address in the URL field of browser.

The following topics are covered in this chapter:

◎

◎◎Controller Status

● The Login Page

● Field Description

◎

◎◎Controller Setup

● The Setup Page

● Field Description

◎

◎◎Controller Updated

◎

◎◎Factory Default Setting

23

Controller Status

The Login Page

Setup of EX-9132-2 TCP/IP converter is as easy as surfing on WWW, no

special software will be required. Popular Browsers, such as IE or

Netscape, can easily do the setup process. In the browser URL field, set

the IP address of device directly, To enter the “Controller Status” page,

please follow the steps below.

□

□□ Open your browser. This chapter will use IE as an example.

□

□□ In the browser URL field, type the IP address of the converter directly

and press ENTER. (The IP address is what you set using the Device

Management Utility.)

□

□□ The “Controller Status” page will be shown (see Figure 3.6).

(Figure 3.6)

24

Field Description

□

□

□

System time elapsed

The time elapsed since start of this device in [Day Hour : Minute : Second]

format. This information can be useful in identifying the reliability of system.

□

□

□

Firmware version

Converter firmware is identified by date code. This information will be

required in looking for technical support.

□

□

□

Serial number

Converter is consisted “Type Number (5 digits) and an unique MAC (Media

Access Control) address used by Ethernet in hex format, 8 digits.

□

□

□

Password (Setup Login)

This field is the administration password for authentication. Factory default is

“empty”. However, it is not recommended to leave it empty in field operation.

If you could not login, it means you have to key in the password. If you do

not know the password you can turn off the power and then use any point tip

to press “Reset” button and hold it to turn on the power. The password will
be reset to the factory default as “empty”.

EX-9132-2 TCP/IP converter uses the same password protection

mechanism commonly used in Windows NT or UNIX. If there are more than
“3 consecutive failures” in password check during login, the login function
will be disabled for “15 minutes”. During this 15 minutes period, if you

supply correct password, login will not proceed. This prevents intruders from

finding the password by computer generated program.

25

Controller Setup

□

□□ The Setup Page

Type the correct password in the “Password” field and click the [Login]

button in the “Controller Status” page, then the “Controller Setup” page

will appear (see Figure 3.7).

Note: If you forget the password or can’t login successfully, please

contact the manufacturer directly.

(Figure 3.7)

26

□

□

□

Field Description

□

□

□

IP Address

The IP address of EX-9132-2 TCP/IP converter, 4 digits separated by

Don’t let it conflict with the other devices on the network.

If DHCP client mode is enabled and there's a DHCP server on the network,

this field will be assigned by DHCP server automatically.

□

□

□

Subnet mask

Subnet mask of the network EX-9132-2 TCP/IP converter has connected to.

“255.255.255.0” is usually used for small network, “255.255.0.0” for larger

network, 4 digits separated by '.'

If your IP address is provided by an ISP or the internal network administrator,

please inquire of them that information and type it correctly.

If DHCP client mode is enabled and there's a DHCP server on the network,

this field will be assigned by DHCP server automatically.

□

□

□

Gateway address

Gateway or Router IP address. 'Gateway' is a device which connects local

network to external network. If you need to communicate with other

networks or your device owns a real IP address on the internet, please

inquire of them that information and type it correctly. If there's no gateway

on the network, just leave it as “0.0.0.0”.

If DHCP client mode is enabled and there's a DHCP server on the network,

this field will be assigned by DHCP server automatically.

27

□

□

□

Network link speed

Ethernet physical link speed. “Auto” means the speed is automatically

selected by the converter. You can also specify “10Mbps” or “100Mbps” to

match the speed of the HUB.

□

□

□

DHCP client

DHCP client mode could be enabled/disabled statues. If DHCP is enabled,

there should be a DHCP server on the network. If DHCP is disabled, [IP

address], [Subnet mask], and Gateway address] should be manually

assigned.

□

□

□

Socket port of HTTP setup

The socket port used to conduct the browser setup. Normally, HTTP protocol

use TCP port “80” for communication. If the field is changed to “81”, the port

“80” will be reserved for user's own Web.

To enter the browser setup page, “http://x.x.x.x

:81” should be typed for

socket port “81” and “http://x.x.x.x

” for socket port “80”, where “x.x.x.x” is the

converter’s IP address..

□

□

□

Destination IP address

The server IP address and socket port would be connected in TCP Client

and UDP mode for a certain server IP address.

□

□

□

Destination socket port

The server socket port would be connected in TCP Client and UDP mode for

a certain socket port.

□

□

□

Connection

The connection can be selected in 2 modes.

“ Auto function for connect Automatic of converter”

“Manual function for program control of converter ”

28

□

□

□

TCP socket inactive timeout imput

we add a mechanism - "inactive timeout" to identify whether the socket is

active or dead. If there is no any data transferred (send / receive) within the

defined timeout period (1 to 99 minutes), then it is probably a dead

socket, and the socket will be closed automatically, thus a new connection

can be accepted again. The timeout period can be set by users to fit different

kinds of application.

□

□

□

Packet mode of serial input

Packet mode could be in enabled/disabled mode. If packet mode is enabled,

the data input from UART will be deferred until the input buffer is full, or the

converter detects a 10-character packet gap and no more character arrived.

The block waiting time is extended to avoid the splitting of the complete

packet.

□

□

□

Device ID

User assigned ID number for the converter. Available ID is “0 ~ 65535”.

□

□

□

Report device ID when connected

In TCP mode, if this parameter is enabled, every time when the socket is

connected, EX-9132-2 TCP/IP converter will immediately report its device ID

in the following formats:

Serial #1 nnnnnA[LF][CR]
Serial #2 nnnnnB[LF][CR]
Digital I/O nnnnnC[LF][CR]

The total length is 8 bytes, where “nnnnn” is a 5-digit device ID assigned by

the user; [LF] is decimal 10; [CR] is decimal 13.

□

□

□

Setup password

Administration password used to login the “Controller Setup” page. It may be

empty or up to 15 characters long.

29

□

□

□

Serial Port 1

The first serial port of EX-9132-2 series is RS-232.

□

□

□

Socket port

□

□

□

Port number

A socket port assigned for the serial port. It’s a 16-bit number , ranging

from 1 to 65535. Because the numbers below 1000 are used for specific

purposes (e.g. 80 is for HTTP protocol), we suggest you use the numbers

larger than 1000. Generally the port number 4660 is used for the serial

communication. However you should specify different port number for

each serial port.

□

□

□

Socket type

TCP Server: TCP protocol, passive open, to be connected from the TCP

clients.

TCP Client: TCP protocol, active open, connect to the TCP server.

UDP Client: UDP protocol, connectionless

□

□

□

Interface

RS232: TxD, RxD for data stream, no flow control

RS232 (RTS/CTS): TxD, RxD for data stream, RTS/CTS for flow control

RS232 (RTS/CTS, DTR/DSR): TxD, RxD for data stream, RTS/CTS

for flow control. DTR for socket status, DSR for socket open/close control

□

□

□

Baud rate, parity, data bits, stop bits

Baud Rate: 300 ~ 230400 bps

Parity: None, Even, Odd

Data Bits: 5, 6, 7, 8

Stop Bit: 1 or 2

30

□

□

□

Serial Port 2

The second serial port is RS-422/485.

□

□

□

Socket port

□

□

□

Port number

A socket port assigned for the serial port. It’s a 16-bit number , ranging

from 1 to 65535. Because the numbers below 1000 are used for specific

purposes (e.g. 80 is for HTTP protocol), we suggest you use the numbers

larger than 1000. Generally the port number 4660 is used for the serial

communication. However you should specify different port number for

each serial port.

□

□

□

Socket type

TCP Server: TCP protocol, passive open, to be connected from the TCP

clients.

TCP Client: TCP protocol, active open, connect to the TCP server.

UDP Client: UDP protocol, connectionless

□

□

□

Interface

RS485 (Half duplex): Half duplex RS-485 interface, RTS

for driver enable/disable

RS422 (Full duplex): Full duplex RS-422 interface

□

□

□

Baud rate, parity, data bits, stop bits

Baud Rate: 300 ~ 230400 bps

Parity: None, Even, Odd

Data Bits: 5, 6, 7, 8

Stop Bit: 1 or 2

31

Controller Updated

Press “Update” Button After you finish the detailed parameter setting.

The converter will save all parameters into internal non-volatile

memory and then reboot (see Figure 3.8). It takes about 5 seconds

to complete the whole process, and a new login page will be presented

(see Figure 3.1).

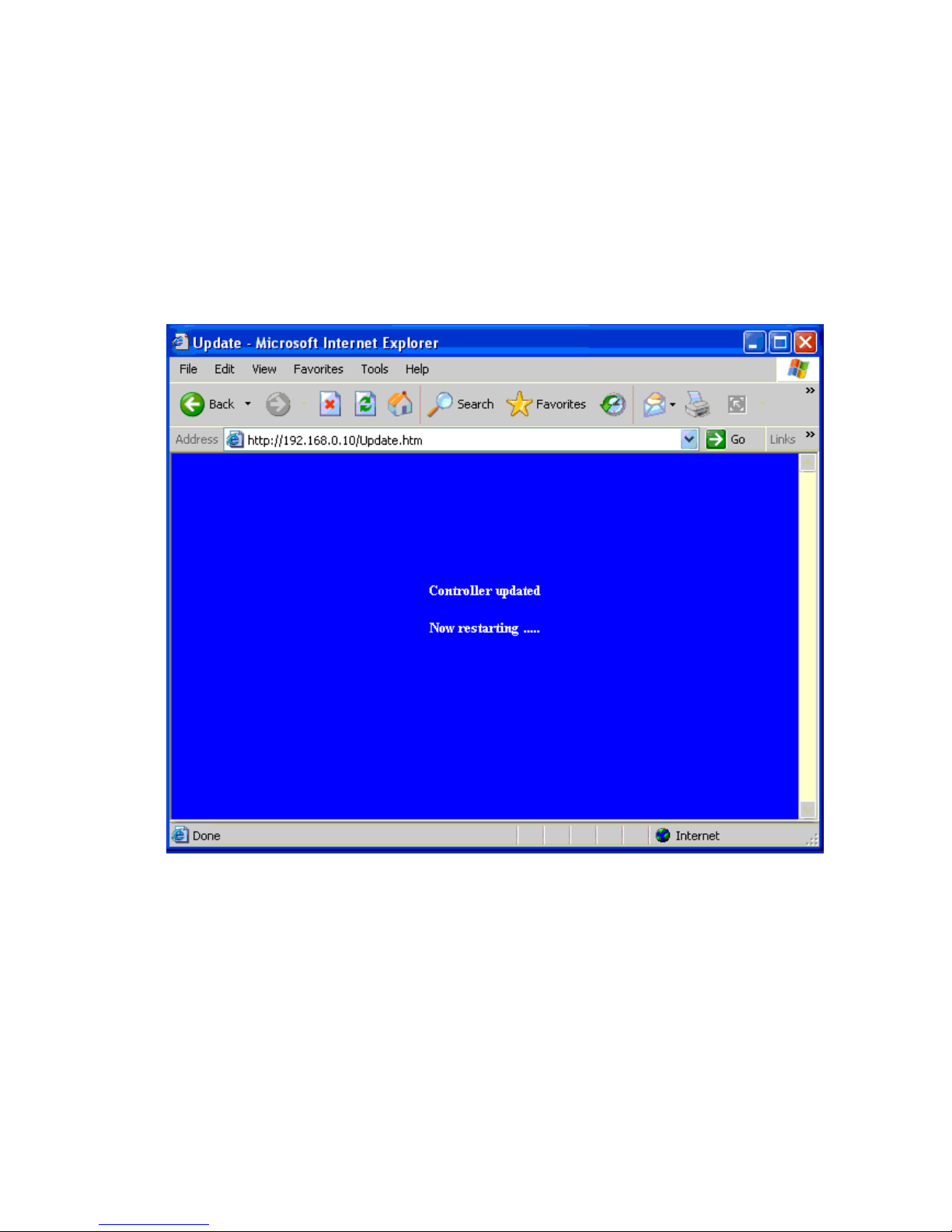

(Figure 3..8)

You can re-login and check if all parameters have been correctly

saved. If everything is ok, you can close the browser now.

Note : If the domain of the converter is different from that of the

computer running the browser, the login page won’t appear

unless the converter’s “Gateway Address” has been correctly

set.

32

Factory Default Setting

If by chance, you forget the setup password, or have incorrect

settings making the converter inoperable, there are two ways to reset

the setting and the following procedures can be used to reset all

settings to factory default:

A:

1. Turn off the power of the converter.

2. Press the reset button of the converter.

3. Turn on the power of the converter and wait for 3 seconds.

4. The password will reset to the factory default. ( empty ).

B:

1. Log in the web page.

2. Press the reset button of the converter.

3. Select the update button.

4. After Tx & Rx light flashing then unclasp the reset button.

5. The password will reset to the factory default. ( empty )

33

Self-Testing

After completing the wiring and parameter setting, we should verify if the
setting is correct or not. This chapter will introduce how to use a single
computer to test if the converter behaves well.

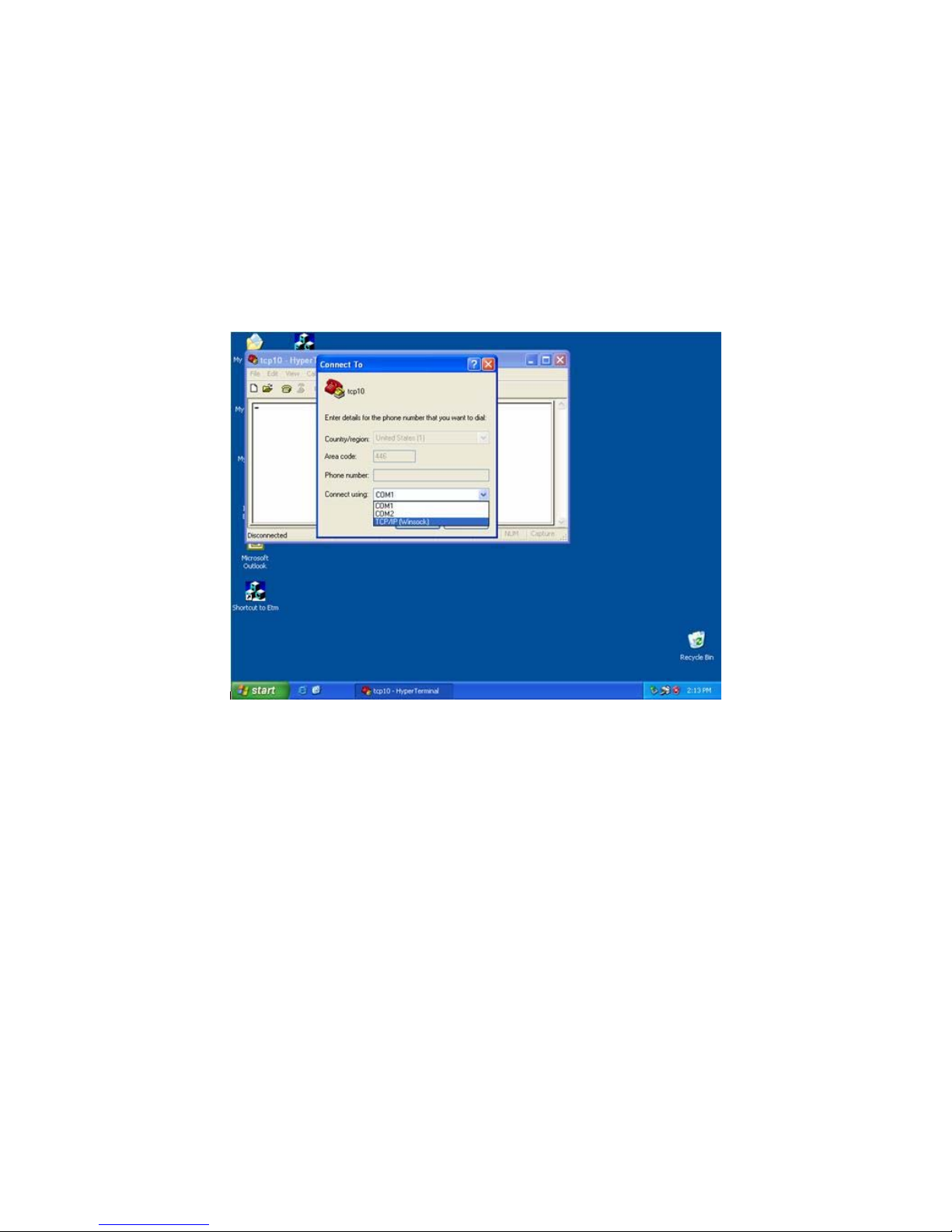

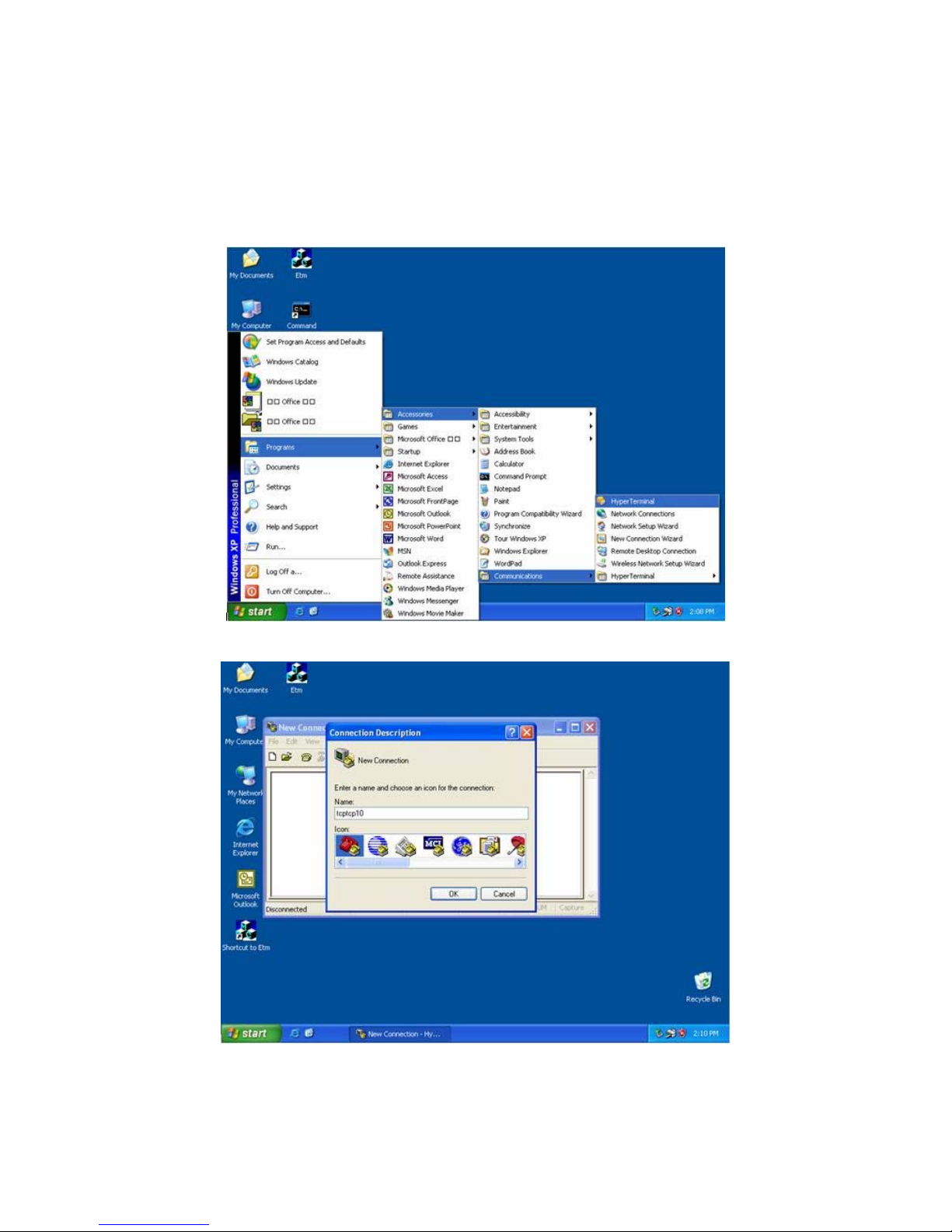

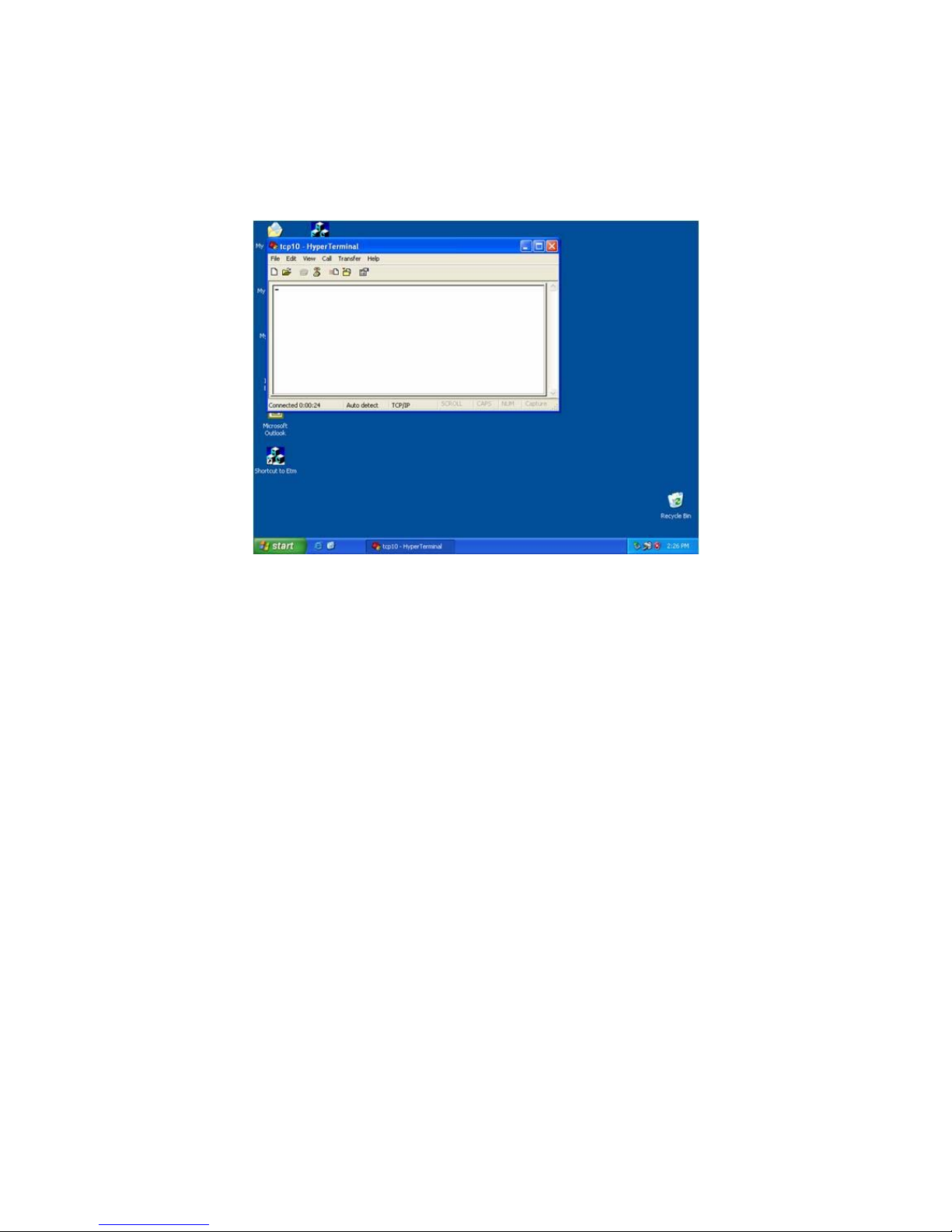

The operating system can be Windows 95, 98, ME, XP, 2000. The “Hyper
Terminal” utility should be installed on your PC (see Figure 4.1). It can be
found in your Windows installation CD.

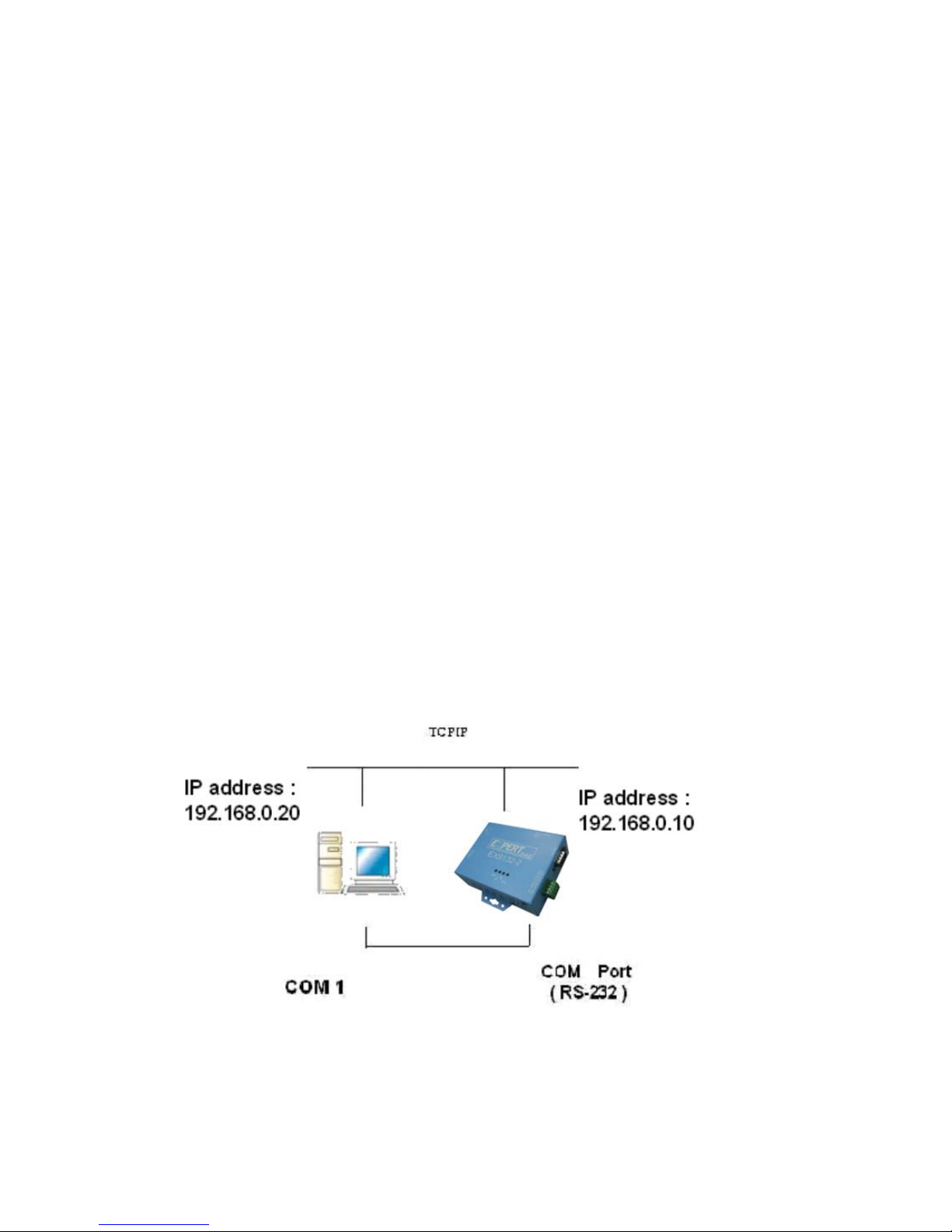

The wiring architecture is similar to “RS-232 Wiring” in chapter 2, and the
“Serial Device” is replaced by the PC’s COM 1. The same PC also plays
the roll of the Remote Host.

The following topics are covered in this chapter:

◎

◎

◎

Hyper Terminal for TCP/IP WinSock

◎

◎

◎

Hyper Terminal for COM Port

◎

◎

◎

Data Transmission

34

Hyper Terminal for TCP/IP WinSock

Initiate a Hyper Terminal from the Start Menu in Windows (see Figure 4.1),

give a terminal name, choose an icon, and press “OK” button (see Figure

4.2).

(Figure 4.1)

(Figure 4.2)

35

Select “TCP/IP(Winsock)” option at the “Connect using:” field (see Figure

4.3)

.

(Figure 4.3)

After “OK” button is pressed, Figure 4.4 appears. Enter the converter’s IP

address (e.g. 192.168.0.10) at the “Host address:” field, and the Socket port

number set for the Serial Port 1 at the “Port number:” field (e.g 4660). (The

Socket type of the Serial Port 1 should be “TCP Server”.)

(Figure 4.4)

36

After “OK” button is pressed, Figure 4.5 appears. If the Hyper Terminal

connects with the converter successfully, the time clock at the “left lower”

corner “Connected hh:mm:ss” will start counting.

(Figure 4.5)

37

Hyper Terminal for COM Port

Initiate another Hyper Terminal as a COM Port Terminal (in Figure 4.3,

select COM 1 or other COM port instead of “TCP/IP (Winsock)”). Set the

COM port Properties to be the same as those set for the Serial Port of the

converter ( 9600.N.8.1 ).

(Figure 4.3)

Data Transmission

When all steps described above are finished, type any characters on the

COM Port Terminal and check if the typed characters are also displayed on

the TCP/IP Winsock Terminal. Alternatively, check if the characters typed

on the TCP/IP Winsock Terminal are also displayed on the COM Port

Terminal. If yes, then all settings are correct and the converter can operate

properly.

38

A

Appppeenndd FAQ

Q. Why can’t the EXPERTDAQETM.exe detect the converter on the
network?

A. Please check

1

1

1

.

.. Power is properly plugged to the converter. ( Please refer “SYS’ LED )

2

2

2

.

.

.

Network cable is properly connected between the converter and the Hub.

( Please refer LAN LED )

3. Close Windows or antivirus program firewall.

( Please refer Device Management Utility of EXPERTDAQETM )

Q. Why can’t I use IE to setup the converter?

A. Please check if the network domain of your PC is the same as that of the

converter.

39

AAppppeennddiixx BB

Pin outs and Cable Wiring

□

□

□

DC Power outlet

□

□

□

RJ-45 Pin Assignment

□

□

□

RS-232 Pin Assignment

The pin assignment scheme for a 9-pin male connector on a DTE is given

below.

PIN 1 : DCD PIN 2 : RXD PIN 3 : TXD PIN 4 : DTR
PIN 5 : GND PIN 6 : DSR PIN 7 : RTS PIN 8 : CTS
PIN 9 : X

40

1 2 3 4

□

□

□

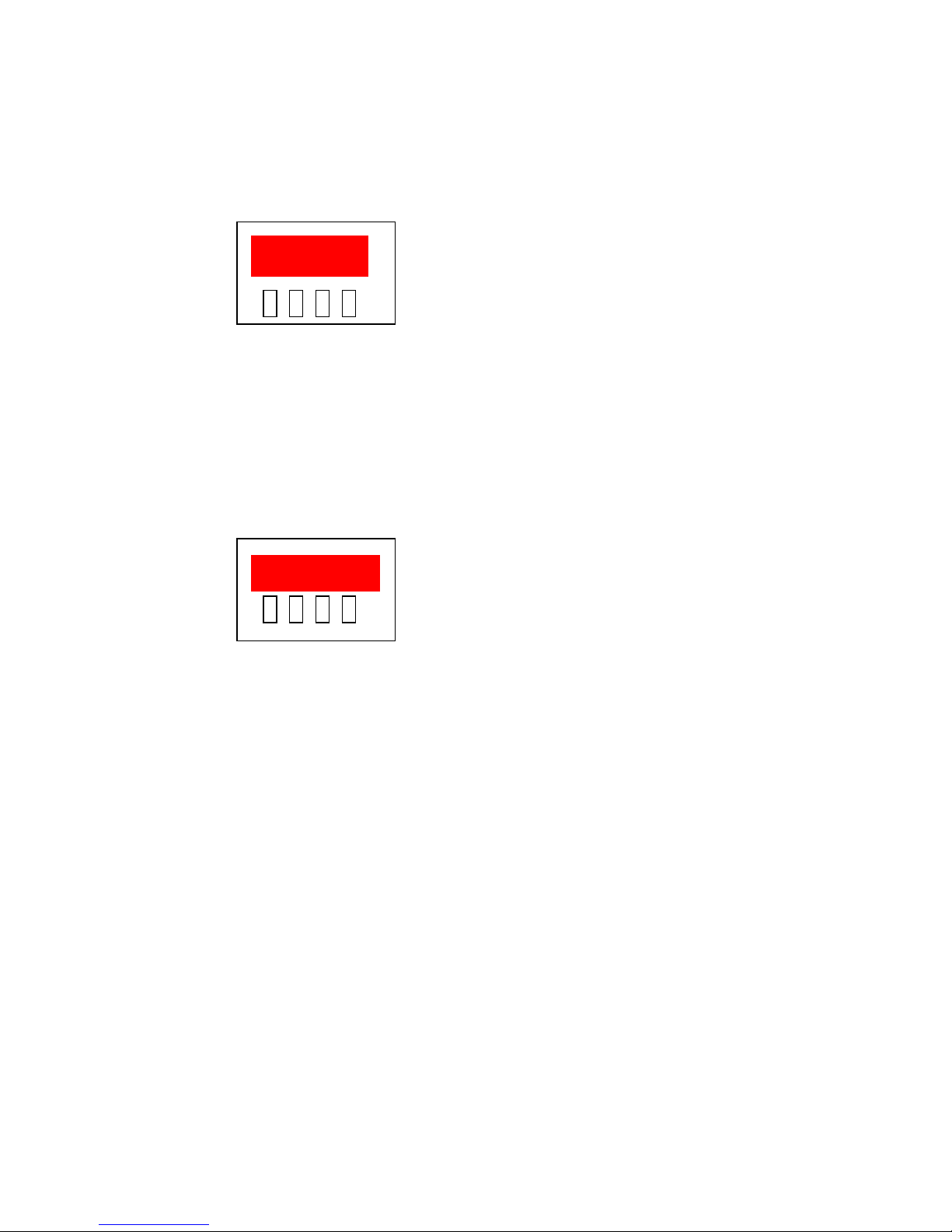

RS-422 Pin Assignment

The pin assignment scheme for a 4-pin RS-422 is given below.

PIN 1 : T+ PIN 2 : T- PIN 3 : R+ PIN 4 : R-

□

□

□

RS-485 Pin Assignment

The pin assignment scheme for a 4-pin RS-485 is given below.

PIN 1 : X PIN 2 : X PIN 3 : D+ PIN 4 : D-

1 2 3 4
