USER MANUAL
MIXPRO 100
Ref. 30730
EUROPE PROJECTION - Z .I. Rousset Parc Club - 343, avenue Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : 00 33 (0)4 42 29 08 96 – Fax : 00 33 (0)4 42 53 44 36
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z
Edition of 24/04/2015
User manual - MIXPRO 100 201504-095A-ENG
P2
201504-095A-ENG User manual - MIXPRO 100
P3
SUMMARY
1. INTRODUCTION...........................................................p. 4
2. USER MANUAL ...........................................................p. 5
2.1. Importance of the manual .................................................p. 5
2.2. Receivers of the manual ..................................................p. 5
3. WARNING.................................................................p. 6
3.1. Safety ...................................................................p. 6
3.2. Electric connection .......................................................p. 8
3.3. End-of-life of the product ..................................................p. 8
4. YOUR MACHINE ..........................................................p. 9
4.1. Description ..............................................................p. 9
4.2. Technical characteristics ..................................................p. 9
4.3. Identication of the components of the machine .............................p.10
5. USE OF THE MACHINE....................................................p.12
5.1. Prerequisites.............................................................p.12
5.2. Starting up ...............................................................p.13
5.3. Error codes ..............................................................p.14
6. MAINTENANCE ...........................................................p.15
6.1. Cleaning procedure.......................................................p.15
6.2. Servicing ................................................................p.15
7. DECLARATION OF CONFORMITY .........................................p.16
8. WARRANTY...............................................................p.17
8.1. Warranty conditions ......................................................p.17
8.2. Warranty certicate .......................................................p.19
User manual - MIXPRO 100 201504-095A-ENG
P4
1. INTRODUCTION
You just acquired a MIXPRO 100 mixer and all the team of Europe Projection thanks you for the
condence you have granted us.
Manufacturer of professional equipments for paint and llers, we have put our know-how for 20 years
at the service of the users of our machines.
Our technical and commercial team is at your disposal for any further information you may need about
the machine you just acquired.
EUROPE PROJECTION
Z .I. Rousset Parc Club - 343, avenue Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : 00 33 (0)4 42 29 08 96 – Fax : 00 33 (0)4 42 53 44 36
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z
201504-095A-ENG User manual - MIXPRO 100
P5
2. USER MANUAL
2.1. IMPORTANCE OF THE MANUAL
This manual is a key part for the use of your machine. It summarizes the procedures of starting-up,
cleaning and maintenance of the device and also the safety instructions you need to observe.
Read carefully all the working and safety instructions and the warnings included in this manual before
starting your machine.
Most of the accidents are caused by the non-compliance of the safety standards and rules.
This manual must be kept near the machine, within reach of the user and held in good condition until
the nal destruction of the machine.
In case of loss or deterioration of the manual, you can ask the machine manufacturer mentioned on
page 4 for a copy at any moment.
2.2. RECEIVERS OF THE MANUAL
This manual is intended to any staff which will manipulate the machine :
- people in charge of the transport of the machine
- people in charge of the use of the machine
- people in charge of the cleaning and maintenance of the machine
- people in charge of the nal destruction of the machine
User manual - MIXPRO 100 201504-095A-ENG
P6P6
3. WARNING
3.1. SAFETY
Using the machine in an incorrect way or in non-compliance of the safety instructions
indicated in this manual can cause death or serious injuries.
Read carefully all the working and safety instructions and the warnings contained in this
manual before starting your machine.
• Respect all the safety standards before running the equipment.
• Use the equipment only for the applications specied in the manual.
• Always remain alert when using the equipment.
• Transport the machine using the handles or the appropriate grips.
• During the breaks, disconnect electrically the machine.
• Run the equipment to its nominal voltage.
• Let at least 50 cm of free space between the equipment and any obstacle so that the air
ow is not blocked.
• Know how to quickly stop the equipment in case of necessity.
• Never use the equipment while it is running abnormally or it is defective.
• Do not direct a water jet or ammable liquid on the machine.
• Never direct an air jet or product jet on a person or an animal.
• Do not touch warm surfaces of the equipment.
• Always wear adequate body protections (glasses, gloves, overall and mask) and pay
attention to long hair.
• Never touch moving parts.
• Do not insert any object or the hands inside the protection grids to avoid any accident or
damage to the machine.
• For any outside job, only use appropriate extension cords.
• Maintain the equipment carefully and clean it properly after every use.
• Disconnect the equipment before any intervention.
• Avoid absolutely to unscrew any connection while the machine is under pressure.
• Check the damaged parts.
• Do not clean the plastic parts with solvant.
• In case of damage of the electric cable or the plug, do not run the machine and contact a
licensed After-Sale Service to put genuine parts instead of the defective ones.
• In case of needed After-Sale Service, always specify the machine model and its serial
number.
• For any replacement of parts, only use genuine parts.
201504-095A-ENG User manual - MIXPRO 100
P7P7
3. WARNING (continued)
3.1. SAFETY (continued)
• Do not modify the machine.
• Do not cut or dismantle the protection grids.
• Do not open the electric box.
WORKSPACE
• Maintain the workspace clean and clear.
• Ambient operating temperature must be from 5°C and 35°C.
• Do not use the equipment in a potentially explosive area.
• Do not place any potentially inammable objects in close proximity to the machine.
• Take away every not qualied person from the working area of the machine, as well as children
and animals.
• In case of installation of the machine on scaffolding or a plan above ground level, attach the machine
to avoid any fall while operating.
• Do not install the equipment on an inclined surface to avoid the risks of unexpected moves or falls.
HOSES
• Always use hoses and connections adapted to the used product (genuine parts), do not try to x it.
• Do not walk on the hoses, do not bend them.
• Do not use the hoses to pull the machine.
STORAGE
• Keep the equipment in a clean and clear area in which the temperature does not exceed +35°C.
• After every use, necessarily grease the pump with a mixture of water + storage liquid to avoid it
blocking up. The storage of a not greased pump can damage it seriously.
IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL
MODIFICATION WITHOUT ADVANCED NOTICE.
User manual - MIXPRO 100 201504-095A-ENG
P8
3. WARNING (continued)
3.2. ELECTRIC CONNECTION
The electric connection of the machine must be on a 16A - 230V plug with a differential circuit
breaker.
Before any intervention on the machine, make sure that every energy supply is cut (air and
electricity).
GROUND CONNECTOR
All the machines must be connected to the ground when they work to protect the operator from electric
shocks. Our machines are all equipped with standardized connection plugs.
Electric connection must be made by a qualied technician. It is fobidden to modify or dismantle the
machine, especially the electric box.
Repairs must be made by an authorized center or our After-sale Service.
During any intervention on the machine, make sure that the ground is well reconnected.
EXTENSION CORDS
During the use of an extension cord, make sure that it is not crushed or damaged and that it contains a
ground. Check that the section of the used extension cord is sufcient to support the machine when it
is working. A too thin extension cord can cause voltage drops or overheating of the machine.
In case of use of a cable reel, it is imperative to unwind it entirely, otherwise, the equipment can be
damaged. The section must be proportional to the length of the cord.
3.3. END OF LIFE OF THE PRODUCT
At its end-of-life, the machine must not be eliminated with the other household waste. The
uncontrolled elimination of waste can harm the environment or human health. Individuals are
invited to contact the distributor which sold them the product or to inquire with their city hall
to know where and how to get rid of the product so it can be recycled while respecting the
environment.
Under the regulation of Waste of Electrical and Electronic Equipments (WEEE), we undertake
to process the used EEEs according to the following provisions: applicable only to products on
the market since 08/13/05, under the brands EUROPE PROJECTION or VOLUMAIR, products
of other brands sold by our company (upon presentation of the corresponding invoices),
products that operate using electrical energy (for example, thermal washers or compressors
do not fall into this category).
Treatment modality
WEEE returns collected by our clients/distributors at their own expense to our collection points
in Antony (92) or Rousset sur Arc (13). Upon receipt, the products are sorted by our employees
and directed to the most appropriate processing channels.
For any further information, please contact our hotline to conseil@euromair.com or
04 42 29 08 96.
201504-095A-ENG User manual - MIXPRO 100
P9
4. YOUR MACHINE
4.1. DESCRIPTION
The mixer MIXPRO 100 is equipped with a double helical paddle on a horizontal arm ensuring a rapid
& homogeneous mixing of all types of powder products.
Mixer equipped with a speed control, reversing function and water doser.
Equipped with a digital control panel, allowing simplied adjustment of rotation speed, water dose and
display of the network voltage.
Its folding feet allow the MIXPRO 100 to take place above a spraying machine :
The mixer Mixpro 100 was designed for the utilization of powder products on the basis of cement, sand
or lime to be mixed with water. However, other products can be used (pastrous and liquids) subject to
verication by our services.
Do not use corrosive, acid or other types of products susceptible to damage the tank or the
blade.
The water distribution circuit is expected to be used only with water. The use of another product,
whatever it might be, can seriously damage the machine.
4.2. TECHNICAL CHARACTERISTICS
Tank capacity 100 L
Motor power 1,5 kW
Rotation speed forward / backward 36 to 84 RPM
Water doser integrated
Electrical supply 230 V / 50 and 60 Hz
Current 6,5 A
Low position dimensions (L x l x h) 129 x 74 x 84 cm
High position dimensions (L x l x h) 129 x 74 x 126 cm
Weight 107 kg

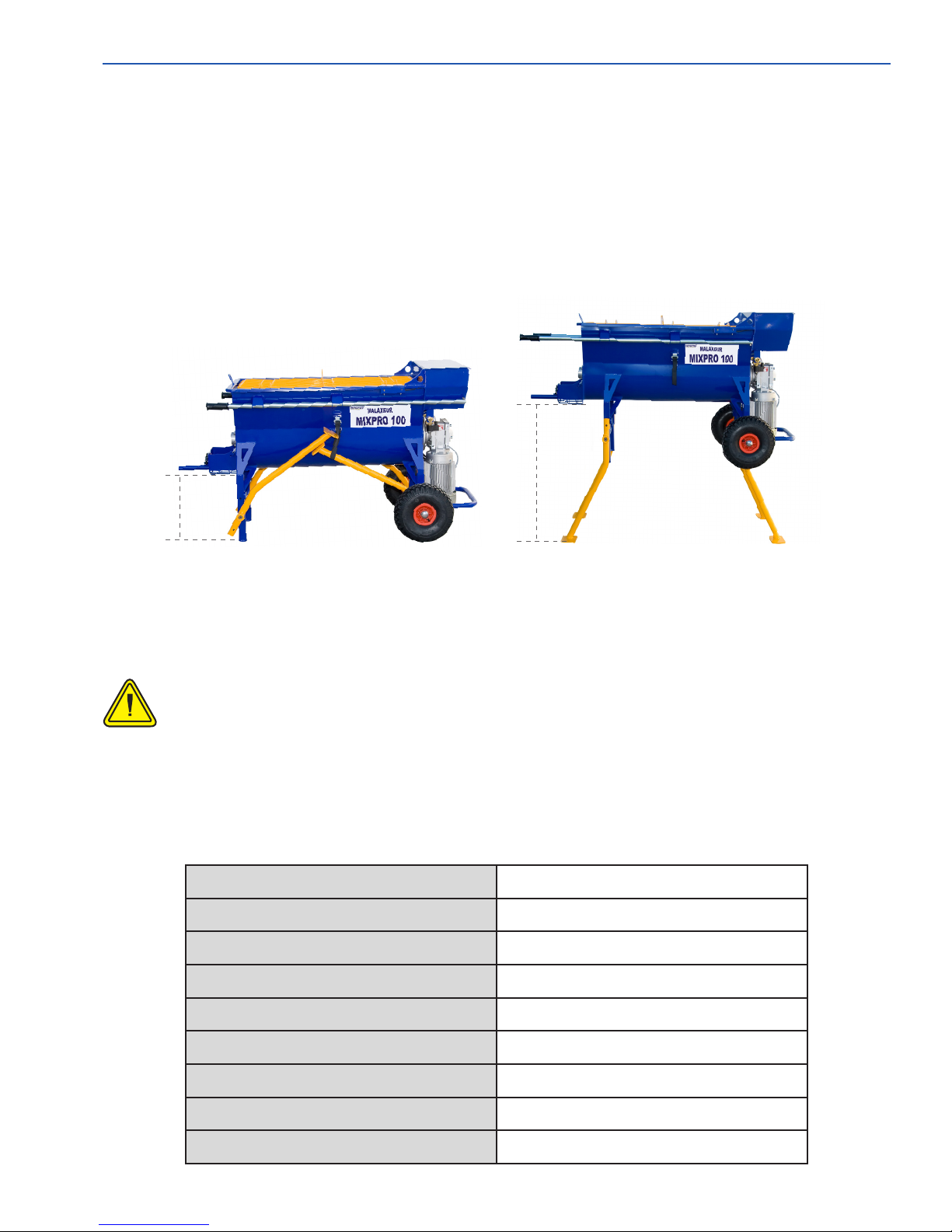

41 cm
72 cm
HIGH POSITION. EMPTYING HEIGHT : 72 CM
LOW POSITION. EMPTYING HEIGHT : 41 CM
User manual - MIXPRO 100 201504-095A-ENG
P10
4. YOUR MACHINE (continued)
4.3. IDENTIFICATION OF THE COMPONENTS OF THE MACHINE
A Safety grid
B Emptying trapdoor
C Folding feet
D Water inlet quick-connect
E Geared motor
F Command panel (see details on the next page)
G Shaft bearing
H Lubricator
The complete list of the components of the machine is available on our website :
www.euromair.com
A
D
F
H
EC
B
G
201504-095A-ENG User manual - MIXPRO 100
P11
4. YOUR MACHINE (continued)

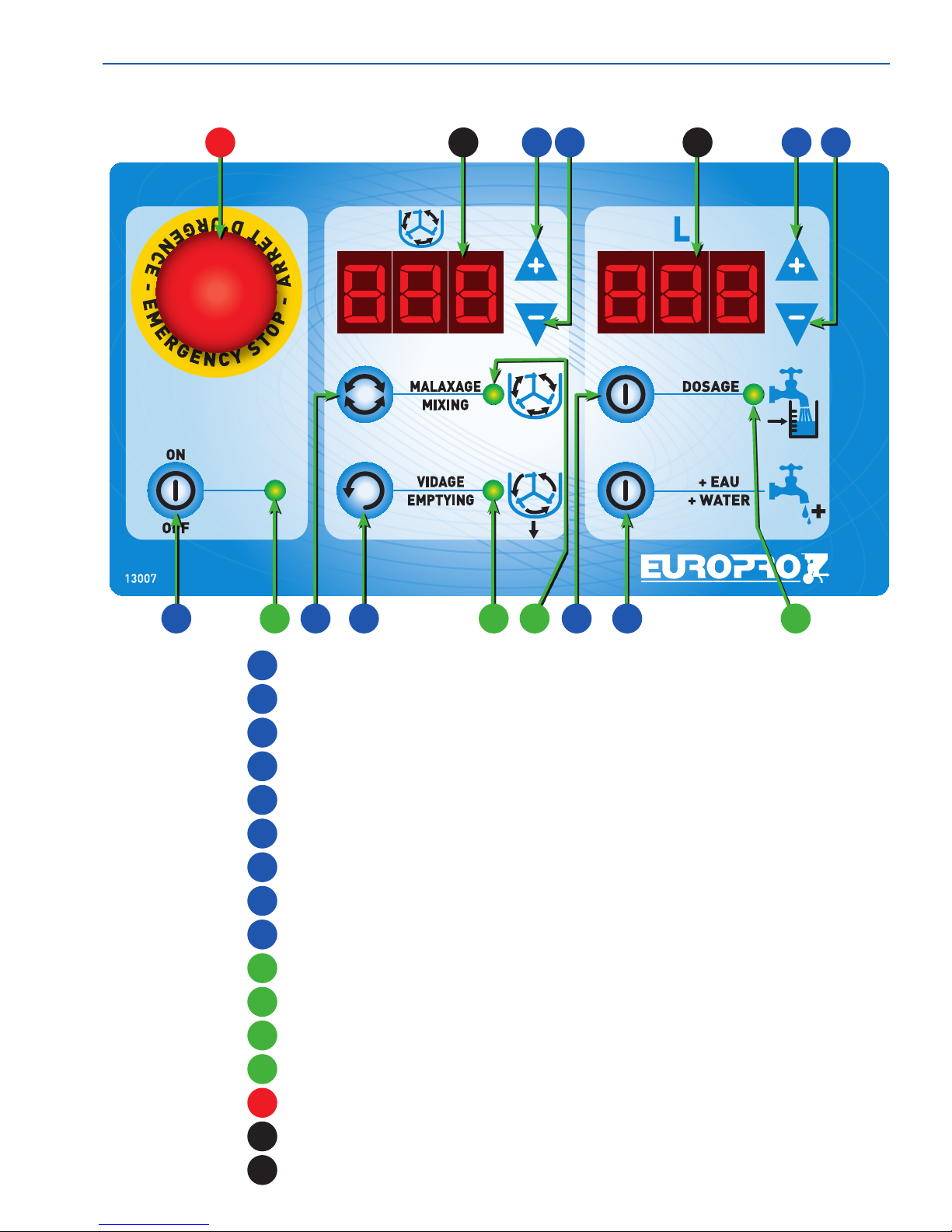

4.3. IDENTIFICATION OF THE COMPONENTS OF THE MACHINE (continued)
1
2
3
4
5
6
7
8
9
L1
L2
L4
L5
AU
J
K
1
AU
J K4 85 9
3 72 6L2 L5L1 L4
ON / OFF : Start / Stop
MIXING : Start / Stop of the mixing
EMPTYING : Start / Stop of the tank emptying
+ : increase of the motor speed
- : decrease of the motor speed
DOSAGE : Start / Stop of the water dosage
+WATER : addition of water by impulse
+ : increase of the preset water volume for the water dosage
- : decrease of the preset water volume for the water dosage
Light Power on
Light start of the mixing
Light start of the tank emptying
Light start of the water dosage
Emergency stop
Motor display
Water display
User manual - MIXPRO 100 201504-095A-ENG
P12
5. USE OF THE MACHINE
5.1. PREREQUISITES
• The electric connection has to be 230 V - 16 A - 50 or 60 Hz with a 3 x 2,5 mm cable reel of 40m
maximum, completely unreeled.
• The mixer is equipped with a security grid (A). If the grid is open, the display (J) shows "SEC" and
the mixer will not start. Close the grid to activate the mixer.
Start / Stop
• Once the machine has been connected, the machine is in the stop mode, the display (J) shows
"OFF"
• One push of the "ON/OFF" button (1), the display (J) shows the set value of the speed in %, the
warning light (L1) lights up, the machine is ready.
• When the machine is working (warning light (L1) is on), one push of the button "ON/OFF" (1) will
switch the machine off. The display (J) will show "OFF" and the warning light (L1) will switch off.
In case of a dysfunction of the machine, one 3 second push on the "ON/OFF" (1) will
allow you to verify that the power supply is over 210V.
Mixing
• One push of the button "MIXING" (2) will provoke the start-up of the mixing (alternate rotation) and
the warning light (L2) lights up.
• The buttons (4) and (5) allow you to increase or to reduce the speed of rotation.
• One push on the button "EMPTYING" (3) provoke the rotation of the mixer in emptying mode
(backward rotation) and the light (L4) lights up.
Water dosage
• Set the wanted water quantity with the buttons (8) and (9). The display (K) will show the set value
in liters. Once you have set the water quantity, the display (K) will once again show the last injected
water quantity
• One push of the button "DOSAGE" (6) starts the dosing of the water, the warning light (L5) lights up
during the duration of the dosing and the display (K) increments the injected water quantity. Once
the set amount has been reached, the water dosage stops automatically and the warning light (L5)
switches off.
• During the automatic cycle, one push of the button "DOSAGE" (6) will pause the dosing. Another
push will re-start the cycle.
• One push of the button "+WATER" (7) provokes a water ow as long as the button is kept pressed.
The display (K) will add the water quantity to the one previously shown. This function is only possible
outside of the automatic water dosing seen above.
201504-095A-ENG User manual - MIXPRO 100
P13
5. USE OF THE MACHINE (continued)
5.2. STARTING UP
1. Once the machine is plugged in, the display (J) shows "AU" (emergency stop). Turn the red button
(AU) to deactivate it.
2. The display (J) shows "OFF", push the button "ON/OFF’'(1) to switch on the machine.
3.
The display on the left side (J) corresponds to the mixing speed from 0 to 100%, the one on the right
(K) shows the water dosage in liters.
4. Verify on the bag of the product to be mixed the water quantity and the necessary mixing time.
5. With help of the arrows +/- (8) and (9), set the water quantity to the inferior value given by the
product manufacturer.
6. Push the button "DOSAGE" (6). The water starts to run into the tank.
7. With help of the arrows +/- (4) and (5), set the mixing speed to 80% and activate the mixing by
pushing on the button "MIXING" (2).
8. Once the desired water quantity is in the tank (after the automatic stoppage of the water dosing),
break the bag of powder and empty it.
9. Mix the product for the amount of time indicated by the product manufacturer.
10. If the product is too dry, use the "+WATER" button to add some water. The display (K) increments
the value of the injected water quantity (NB: For an application with a machine, the product will have to be a
little more uid than for a manual use).
11. If you had to add some water, correct the initially set quantity with help of the arrows +/- (8) and (9).
12. Push the button "EMPTYING" (3) and open the trapdoor.
13. Once the product is emptied, close the trapdoor.
14. Push the button "DOSAGE" (6) to once again pour water into the tank, then press the button
"MIXING" (2).
15. Once the automatic water dosing has stopped, break the bag of powder and empty it.
16. Mix the product for the amount of time indicated by the product manufacturer.
17. Repeat steps 12-17 as frequently as necessary.
User manual - MIXPRO 100 201504-095A-ENG
P14
5. USE OF THE MACHINE (continued)
5.3. ERROR CODES
The different error codes show up on the display (J).
CODES DEFINITION TO DO
No display. Connect the plug, verify the power supply (230V), verify the fuse on
the electric box.
Emergency stop
pressed.
Unhook the emergency stop button (AU).
Machine is in OFF
mode.
Switch on the machine by pressing on the button (1).
Default control
engine.
Turn the machine to "OFF" for one minute, then start it up again.
Default security
sensor.
Verify that the security grid is closed.
If the problem persists or if in doubt about the correct working of the machine, do not try to repair the
machine yourself or to dismantle it.
Contact an authorized After-Sale Service or our hotline on : +33(0)4 42 29 08 96.
201504-095A-ENG User manual - MIXPRO 100
P15
The direct projection of water under pressure onto the control panel has to be
stopped at the risk of water inltration into the electric box. Proceed by simply
cleaning with a humid sponge.
6. MAINTENANCE
6.1. CLEANING PROCEDURE
After every utilization of the machine :
Clean the tank with help of a water jet or high pressure washer.
Open the emptying trapdoor to let the product ow.
For an optimal cleaning of the mixing blades, think of turning them during the procedure.
Also clean the security grid (A).
Once the operation is nished, close the security grid.
Then, clean the emptying trapdoor.
6.2. SERVICING
Once a week, lubricate the lubricator of the shaft bearing (G) with help of a grease pump (ref. 12566)
as well as the engine lubricator (H).
User manual - MIXPRO 100 201504-095A-ENG
P16
7. DECLARATION OF CONFORMITY
THE MANUFACTURER : EUROPE PROJECTION
Z.I Rousset Parc Club
343 bd Francis Perrin
13106 ROUSSET CEDEX
DECLARES THAT THE EQUIPMENT DESIGNATED BELOW :
Trademark : EUROPE PROJECTION
Type : Mixer
Model : MIXPRO 100
COMPLIES WITH
• the R.233-73 article of the Labour Code
• the 2006/42/CE machine directive
• the 2006/95/CE low-voltage directive
• the CEM 2004/108/CE directive
• the ROHS 2011/65/EU directive
ROUSSET, APRIL 15th 2011
Patrick BOREL
President
Distributed by : EUROMAIR DISTRIBUTION
Z .I. Rousset Parc Club, 343 boulevard Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : 00 33 (0)4 42 29 08 96 – Fax : 00 33 (0)4 42 53 44 36
SAS au capital de 40 000€ - SIREN 444 797 310 000 – NAF 4673 B
201504-095A-ENG User manual - MIXPRO 100
P17
8. WARRANTY
8.1. WARRANTY CONDITIONS
• The manufacturer guarentees the products in case of a defect in design or manufacture for a period
of 12 months from the date of invoice.
• The wearing parts are excluded from the warranty.
• Any warranty intervention must be exclusively performed by the manufacturer or an authorized
After-Sale Services.
• The shipping of any product to the manufacturer, for whatever the type of warranty service, is
subject to its acceptance.
• The warranty covers the free of charge repair or the replacement of the defective components
identied by our technicians.
• The warranty is void in case of damages caused by an accident, resulting from negligence, an
incorrect use or installation, improper or not in accordance with the warnings contained in the user
manual.
• The warranty is also void in case of modication or repairs performed by unauthorized staff.
• The warranty excludes any type of compensation in case of damage to persons or problems caused
by incorrect or inappropriate use.
•
This warranty will be applied only to buyers who have complied with the contracual and administrative
standards and will be able to present a specic documentation mentioning the date of purchase.
• This is the only valid warranty recognized by the manufacturer. No one is allowed to deliver another
one, oral or written, or modify its terms.
All our terms of sales and shipping are available on our general catalogue of the ongoing
year and also on our website www.euromair.com.
User manual - MIXPRO 100 201504-095A-ENG
P18
201504-095A-ENG User manual - MIXPRO 100
P19
8. WARRANTY (continued)
8.2. CERTIFICATE OF WARRANTY
IT IS COMPULSARY TO RETURN THIS DOCUMENT DULY COMPLETED
BY E-MAIL : contact@euromair.com OR BY FAX : +33(0)4 42 53 44 36
IMPERATIVE
The manual must be provided to the user of the equipment.
It must be read before starting up the machine.
For any intervention under warranty, the purchase invoice must be presented.
WARRANTY
Each product is delivered inspected and tested.
Moreover, it is guaranteed for 12 months from the date of purchase.
This guarantee only applies if the buyer respects the safety regulations, contractual and administrative
standards and if the use was in conformity with the instructions present in the user manual.
Based on this warranty, the manufacturer will repair or replace free of charge any part that can deteriorate
itself or be defective during this period.
The "nal judgment" rests solely with our After-Sale Service technicians.
The guarantee does not cover parts which, because of their specic use, are subject to wear and tear.
If the identied defects could not be attributed to our liability, costs will be charged to the buyer.
MODEL : MIXPRO 100 MIXER
SERIAL NUMBER :
DELIVERY NUMBER :
Rousset, dated
Signature of the dealer Signature of the nal user Stamp of the nal user
Distributed by : EUROMAIR DISTRIBUTION
Z .I. Rousset Parc Club, 343 boulevard Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : 00 33 (0)4 42 29 08 96 – Fax : 00 33 (0)4 42 53 44 36
SAS au capital de 40 000€ - SIREN 444 797 310 000 – NAF 4673 B
User manual - MIXPRO 100 201504-095A-ENG
P20
EUROPE PROJECTION - Z .I. Rousset Parc Club - 343, avenue Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : 00 33 (0)4 42 29 08 96 – Fax : 00 33 (0)4 42 53 44 36
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z
Loading...
