Electrolux Professional TGV-G2 PARTS LIST

SPARE PARTS CATALOGUE

ELECTROLUX PROFESSIONAL

Modular Platform

Viale Treviso, 15
33170 Pordenone - Italy
Fax: [phone]

PNC Model Ref. Page Notes

178 690 TGV/G1 a 1 - 5 Gas grill 400 mm
178 691 TGV/G2 b 1 - 5 Gas grill 800 mm

CATALOGO PARTI DI RICAMBIO

GRIGLIA GAS N700

GAS GRILL N700

Index Indice

Pag. 1 - 2 - 3 Frame and components Struttura e componenti
Pag. 4 - 5 Spare parts list Lista ricambi

Brand / Marchio : Electrolux
Factory code: 9PDX

From ser. nr. / Da Ser. Nr.: 802....

Ed. 2008 02

Doc. Nr.:

2 - 05670a

26

28

2

19

1

3

6

21

7

24

14

5

GRIGLIA GAS N700
GAS GRILL N700

8

8

17

4

16

13

12

11

18

13

12

11

From ser. nr. / Da Ser. Nr.: 802....

Page: 1

Ed. 2008 02

Doc. Nr.:

2 - 05670a

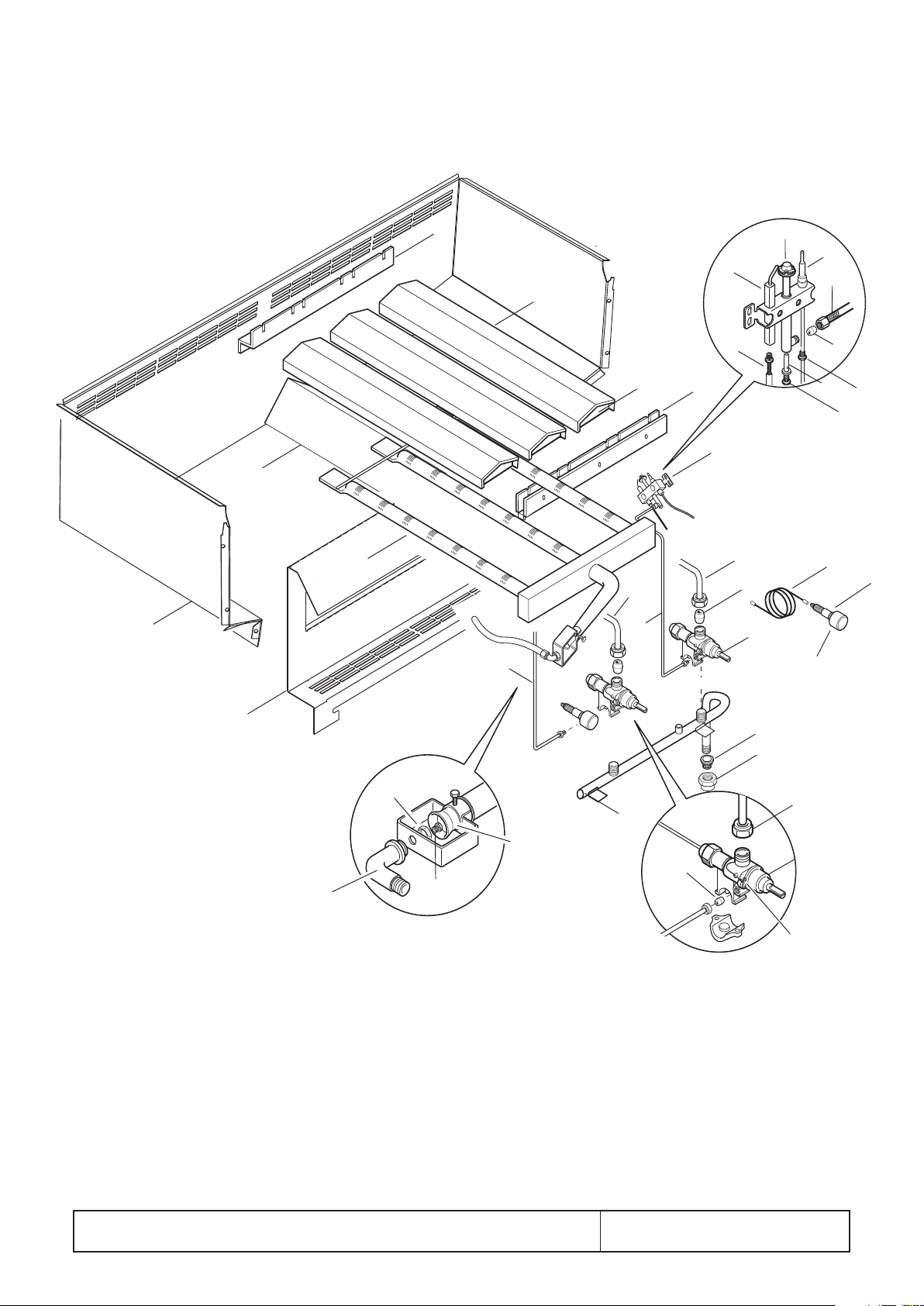

56

54

38

53

39

30/31

59

60

61

41

44

42

*A

30

43

32

35

30

59

47

55

53

33

35

46

40

57

58

34

49a

40

*B

47

50

45

33

49

From ser. nr. / Da Ser. Nr.: 802....

Page: 2

Ed. 2008 02

Doc. Nr.:

C*

GRIGLIA GAS N700

GAS GRILL N700

2 - 05670a

A - Ugello bruciatore / Burner nozzle

6DGT Code

0A2105 ø2.00 2H/2E+ G20 20mbar

0A2102 ø2.10 2H G20 25mbar

0A5356 ø2.35 2ELL G25 20mbar

0A2475 ø2.25 2L G25 25mbar

0A2475 ø2.25 2S G25.1 25mbar

0A2082 ø1.40 3+3B/P G30 30mbar

0A2533 ø1.35 3B/P G30 36mbar

0A2101 ø1.25 3B/P G30 50mbar

058980 ø2.45 No CE G20 10mbar

059040 ø4.80 1a G110

005045 ø4.30 1b G120

B - Ugello pilota / Pilot nozzle

6DGT Code

056656 n°35 2H/2E+ G20 20mbar

056656 n°35 2H G20 25mbar

056656 n°35 2ELL G25 20mbar

056656 n°35 2L G25 25mbar

056656 n°35 2S G25.1 25mbar

058330 n°25 3+3B/P G30 30mbar

058330 n°25 3B/P G30 36mbar

058330 n°25 3B/P G30 50mbar

058330 n°35 No CE G20 10mbar

056798 n°70 1a G110

056798 n°70 1b G120

Ref. / Notes

Ref./ Notes

C - Vite di minim o / Min screw

6DGT Code

006193 n°160 2H/2E+ G20 20mbar

006193 n°160 2H G20 25mbar

006193 n°160 2ELL G25 20mbar

006193 n°160 2L G25 25mbar

006193 n°160 2S G25.1 25mbar

002902 n°105 3+3B/P G30 30mbar

002902 n°105 3B/P G30 36mbar

002909 n°95 3B/P G30 50mbar

- adjust No CE G20 10mbar

- adjust 1a G110

- adjust 1b G120

Ref./ Notes

From ser. nr. / Da Ser. Nr.: 802....

Page: 3

Ed. 2008 02

Doc. Nr.:

2 - 05670a

GRIGLIA GAS N700
GAS GRILL N700

PNC Model Ref.
178 690 TRG/G1 a
178 691 TRG/G2 b

Pos

1 0510823201 0C2570 GRIGLIA GOLOSA GHISA 400mm CAST IRON GRID 400mm a c

2 0530872000 0C5032 PARASPRUZZI G RIGLIA 400mm SPLASHBACK 400mm a c

3 0870869900 0C5038 RIPIANO 400mm WORK TOP 400mm a c

4 0508898900 0C0122 PIASTRA RINFORZO PIEDE STIFFENING PLATE, FOOT

5 0530867800 * RIVESTIMENTO LATERALE 400MM EXTERNAL PANEL 400 mm a c

6 0853888802 0C2065 CRUSCOTTO G AS 400mm GAS CONTROL PANEL 400mm a c

7 085089AK00 0C6837 CASSET TO DRAWER

8 0830896500 0C2026 MANIGLIA CASSETT O HANDLE, DRAWER

11 0548859700 0C2009 MANOPOLA RUBINETTO GAS KNO B, GAS TAP

12 0548858000 0C2007 GHIERA PER RUBINETTO GAS KNOB RING, GAS TAP

13 0218912211 069567 MOLLETTA FISSAGGIO GHIERA SPRING, KNOB RING

14 0518801801 053342 MOLLA PER MARCHIO SPRING, LABEL

16 0853856900 0C0204 PIEDE FOOT

17 0541813800 0C6171 GUARNIZIONE IN SILICONE SILICONE GASKET

18 0530868600 0C4715 PANNELLO ANTERIORE GAS 400mm FRO NT PANEL GAS 400mm a c

19 0831802600 0C0474 RASCHIETTO PER GRIGLIA SCRAPER

21 0514885600 059299 MANIGLIA RECIPIENTE OLIO HANDLE, OIL TANK

24 0219293205 0C0477 CO PIGLIA COTTER PIN

26 0516860700 0C0137 PIASTRA UNIONE POSTERIORE JOINTING REAR PLATE

28 0527850500 0C0156 PIASTRA FISSAGGIO FIANCHI SIDE PANELS JOINTING PLATE

Factory

Code

0510823301 0C2571 GRIG LIA GOLOSA GHISA 800mm CAST IRON GRID 800mm b d

0530872100 0C5033 PARASPRUZ ZI GRIGLIA 800mm SPLASHBACK 800mm b d

0870869700 0C5036 RIPIANO 800mm WORK TOP 800mm b d

0530867900 * RIVESTIMENTO LATERALE 800MM EXTERNAL PANEL 800 mm b d

0853888902 0C2066 CRUSCOTTO GAS 800mm GAS CONTRO L PANEL 800mm b d

0530868700 0C4716 PANNELLO ANTERIORE GAS 800mm FRONT PANEL GAS 800mm b d

6DGT

Code

Descrizione Description

Pagina 1 Page 1

Ref./

Notes

From ser. nr. / Da Ser. Nr.: 802....

Page: 4

Ed. 2008 02

Doc. Nr.:

2 - 05670a

GRIGLIA GAS N700
GAS GRILL N700

PNC Model Ref.
178 690 TRG/G1 a
178 691 TRG/G2 b

Pos

Factory

Code

6DGT

Code

Descrizione Description

Notes

Pagina 2 Page 2

30 0517873802 0C0480 CONDUTTURA DESTRA PILOTA RIGHT PILOT PIPE

0516895300 0C5031 CONDUTTURA SINISTRA PILOTA LEFT PILOT PIPE b

32 0853894301 0C2935 RIBALTA 400mm MANIFOLD 400mm a

0853894400 0C2936 RIBALTA 800mm MANIFOLD 800mm b
33 0638883500 006514 CAVETTO ACCENSIONE PIEZO IGNITION CABLE, PIEZO
34 0514829301 0A2125 DADO RUBINETTO NUT, GAS TAP a

0W00501200 * DADO NUT
35 0856802500 0C2937 CONDUTTURA RUBIN.-BRUCIATORE GAS PIPE GAS TAP-BURNER
37 0215199700 052127 BICO NO PILOTA - RUBINETTO GAS DOUBLE CONE, PILOT - GAS TAP
38 0830897000 0C0488 ELETTRODO; ACCENSIONE ELECTRODE
39 0830853101 051119 TERMOCOPPIA THERMOCOUPLE
40 0835857201 0C0205 RUBINETTO G AS GAS TAP
41 0511805801 059375 PORTAUGELLO NOZZLE HOLDER
42 0214105101 020997 CONTRODADO LOCK NUT
43 0215088100 052062 BOCCOLA REGOLAZIONE ARIA BUSH, AIR REGULATION
44 0853894503 0C2657 BRUCIATORE DESTRO RIGHT SIDE BURNER

0851815800 0C5034 BRUCIATORE SINISTRO LEFT SIDE BURNER
45 0214164400 052125 RACCORDO PILOTA PIPE FITTING, PILOT
46 0215073101 060325 BICO NO RUBINETTO DOUBLE CONE, GAS TAP
47 0515827401 053665 BICO NO PILOTA DOUBLE CONE, PILOT
49 0835834900 002605 ACCENDITORE PIEZO PIEZOELECTRIC IGNITER

49a 0541809000 002816 COPERTURA PULSANTE PIEZO COVER, PIEZO

50 0214162000 0C0121 RACCO RDO TERMOCOPPIA PIPE FITTING, THERMOCOUPLE
53 0830894900 0C0494 PILOTA PILOT
54 0806860400 0C3993 TEGOLO RADIANTE 400mm RADIANT PLATES 400mm a

0806860500 0C3994 TEGOLO RADIANTE 800mm RADIANT PLATES 800mm b
55 0528866300 0C4056 SUPPORTO ANT. TEGOLI 400mm FRONT HOLDER, RAD. PLATE 400mm a

0528866500 0C4057 SUPPORTO ANT. TEGOLI 800mm FRONT HOLDER, RAD. PLATE 800mm b
56 0528866400 0C4058 SUPPORTO POST. TEGOLI 400mm REAR HOLDER, RAD. PLATE 400mm a

0528866600 0C4059 SUPPORTO POST. TEGOLI 800mm REAR HOLDER, RAD. PLATE 800mm b
57 0516863902 0C0140 FILTRO PER TUBO PIPE FILTER
58 0246519800 0C2356 TAPPO PER RIBALTA MANIFOLD STOPPER
59 0532874900 * CAMERA DI COMBUSTIONE COMBUSTION CHAMBER a

0532875000 * CAMERA DI COMBUSTIONE COMBUSTIO N CHAMBER b
60 0538824100 * PARETE ANT.CAMERA COMB FRONT COMBUSTIO N CHAMBER a

0538822900 * PARETE ANT.CAMERA COMB FRONT COMBUSTION CHAMBER b
61 0538810801 * ELEMENTO CENTRALE CAMERA CENTRAL CROSSPIECE b
62 0538810302 * TRAVERSA CENTRALE

Ref./

From ser. nr. / Da Ser. Nr.: 802....

Page: 5

Ed. 2008 02

Doc. Nr.:

2 - 05670a
