CATALOGO PARTI DI RICAMBIO
Drying Tunnel DT
SPARE PARTS CATALOGUE
Models Affected:
Electrolux Product
864384 HABRTAER 864396 HABRTAER6
864385 HABRTAEL 864397 HABRTAEL6
864386 CDTRTAER 864398 CDTRTAER6
864387 CDTRTAEL 864399 CDTRTAEL6
DT 90° EL HAB 600 EL
Description
Electrolux Product
Description
Marchio/Brand:
Paese/Country:
Da Ser.Nr./From Ser.nr.: 344
ELECTROLUX/TO BRAND
Tutti/All
Page: 1
Ed. 2015-09
Doc. Nr.: 59566G200
INDICE / INDEX
Disegno/
Drawing
ill. DT90EL
ill. HAB600EL
Descrizione / Description
Zona di asciugatura (DT 90° EL) / Drying zone (DT 90° EL)
Lista ricambi / Spare parts list
Zona di asciugatura (HAB600 EL) / Drying zone (HAB600 EL)
Lista ricambi / Spare parts list
Pagina/
Page
3
4
5
6
Da Ser.Nr./From Ser.nr.: 344
Page: 2
Ed. 2013-11
Doc. Nr.: 59566G200
141
142
143
140
139
123
124
176
103
101
102
133
129
115
118
128
114
113
116
117
130
119
131
112
107
108
109
ill. DT90EL
Zona di asciugatura (DT 90° EL) / Drying zone (DT 90° EL)
Da Ser.Nr./From Ser.nr.: 344
Page: 3
Ed. 2013-11
110
111
104
106
145
144
Doc. Nr.: 59566G200
Zona di asciugatura (DT 90° EL) ill. DT90EL Grassetto = variazioni
Drying zone (DT 90° EL) Bold Print = changes
Pos. Q.tà
101 1 0L1776 830653600
101 1 0L1777 830654000
102 1 0L1778 830653500
102 1 0L1779 830653900
103 1 0L3150 805666J00 Side for side locking
104 1 0L1781 800671500 Left inner case DT 90° sx/left
104 1 0L1782 800671600 Right inner case DT 90° dx/right
106 1 0L1344 830644400 Left vertical front panel DT 90° sx/left
106 1 0L1340 830649100 Right vertical front panel DT 90° dx/right
107 1 0L1783 5026A9400 Left frame DT 90° sx/left
107 1 0L1784 5026B0100 Right frame DT 90° dx/right
108 1 0L1331 830644500 Horizontal front panel
109 1 0E5826 RT0003700 Curtain rod
110 2 0L1171 503610500 Curtain support
111 1 0L0851 541612402 Short single curtain
111 1 0L1733 541617100 Short single curtain
112 1 0L1785 5026A9600 Left upper panel DT 90° sx/left
112 1 0L1786 5026B0300 Right upper panel DT 90° dx/right
113 1 0L1531 549646001 Fan
114 1 0L1541 515665801 Motor spacer
115 1 0L1542 5026A8501 Inner shield
116 1 0L1615 830650503 Inner case
117 1 0L0366 507683800 Temperature probe support
118 1 0L1536 835621501 Motor 50Hz For 50Hz models
118 1 0L3412 611638600 Motor 60Hz For 60Hz models
119 3 0L1535 617626202 Resistance
123 3 048987 506698900 Limit control support
124 3 0L1534 646619200 Limit control
128 1 0L3151 673612503 Electronic board
129 1 0E0174 694606100 Capacitor
130 1 046376 543605900 O-ring
131 1 049643 124294000 Temperature probe
133 1 0E3032 W00010100 DIN bar L=142mm
139 3 0L1532 652608300 Fuse
140 3 075737 652603200 Fuse holder
141 1 0L1533 639629400 Blue terminal block
142 1 0L1245 639628400 Blue terminal block
143 1 0L1298 639628900 Brown terminal block
144 1 0L1787 503617100 Air shield - DT 90° dx/right Up to Ser .Nr.: 5011
144 1 0L1787 503617101 Air shield - DT 90° dx/right From Ser. Nr.: 5021
144 1 0L1788 503616900 Air shield - DT 90° sx/left Up to Ser .Nr.: 5011
144 1 0L1788 503616901 Air shield - DT 90° sx/left From Ser. Nr.: 5021
145 1 0L1789 503616800 Air shield - DT 90° sx/left
145 1 0L1790 503617000 Air shield - DT 90° dx/right
176 1 0L3152 63868C200 Communication cable Up to Ser:4511
176 1 0L3458 63868CG00 Communication cable From Ser:4521
Q.ty
Cod.ric.
Part No.
Cod. Fab.
Fac. code
Description Note
Notes
Left upper lateral panel
Right upper lateral panel
Left lower lateral panel
Right lower lateral panel
DT 90° sx/left
DT 90° dx/right
DT 90° sx/left
DT 90° dx/right
Da Ser.Nr./From Ser.nr.: 344
Page: 4
Ed. 2015-09
Doc. Nr.: 59566G200
114
118
133
122
111
125
126
124
101
110
109
108
104
130
132
131
136
128
127
107
106
103
113
112
102
117
115
123
182
137
139
138
120
121
119
119
135
204
207
208
205
206
206
205

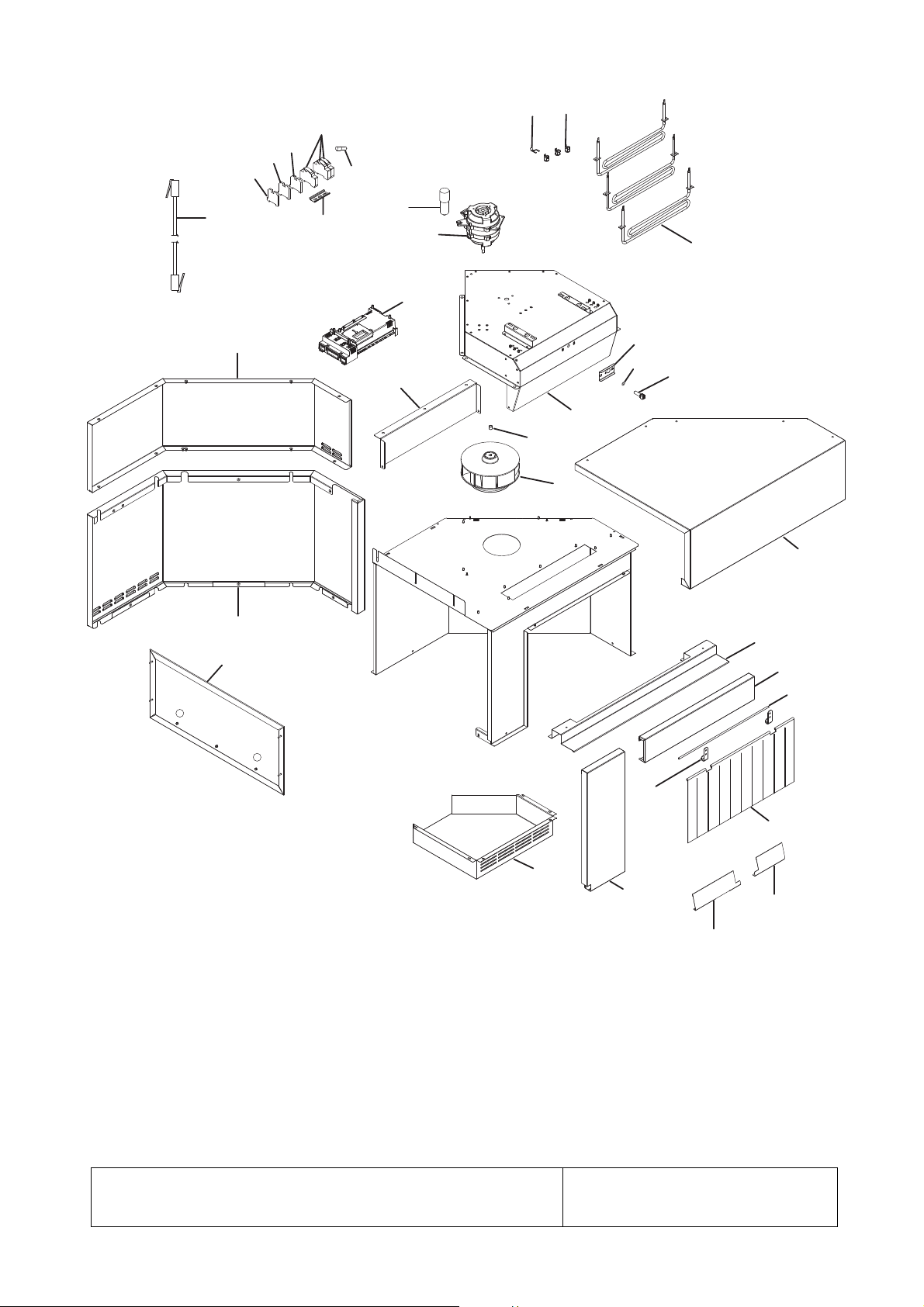

ill. HAB600EL
Zona di asciugatura (HAB600 EL) / Drying zone (HAB600 EL)
Da Ser.Nr./From Ser.nr.: 344
Page: 5
Ed. 2011-12
Doc. Nr.: 59566G200
Zona di asciugatura (HAB600 EL) ill. HAB600EL Grassetto = variazioni
Drying zone (HAB600 EL) Bold Print = changes
Pos. Q.tà
101 1 0L3153 83065CJ00
102 1 0L3154 83065CH00
103 3 0L1535 617626202
104 1 0L1536 835621501 Motor 50Hz For 50Hz models
104 1 0L3412 611638600 Motor 60Hz For 60Hz models
105 1 0L1615 830650503 Inner case
106 1 0L0366 507683800 Temperature probe support
107 1 049643 124294000 Temperature probe
108 1 0L1541 515665801 Motor spacer
109 1 0L1531 549646001 Fan
110 1 0L1542 5026A8501 Inner shield
111 1 0L1543 800671101 Right internal box
111 1 0L1616 800671201 Left internal box
112 2 0L1171 503610500 Curtain hook
113 1 0E5826 RT0003700 Curtain rod
114 1 0L0851 541612402 Short single curtain
114 1 0L1733 541617100 Short single curtain
115 1 0L1306 830632203 Slide
117 2 0L1315 5046A3900 Left rack tooth
118 2 0L1314 5046A3800 Right rack tooth
119 2 0L0841 514695200 Drawing connection shaft
120 20 0L0872 514698001 Bush
121 20 0L1617 514698100 Screw
122 1 0L1546 800670902 Front panel
123 1 046376 543605900 O-ring
124 1 0L0827 543630300 Gasket
125 2 0L0992 502697602 Gasket horizontal cover
126 2 0L0991 502697501 Gasket vertical cover
127 1 0L3151 673612502 Electronic board
128 3 075737 652603200 Fuse holder
130 1 0E0174 694606100 Capacitor
131 3 0L1534 646619200 Limit control
132 3 048987 506698900 Limit control support
133 1 0L1537 544685700 Drain
135 1 0L3152 63868C200 Communication cable Up to Ser:4511
135 1 0L3458 63868CG00 Communication cable From Ser:4521
136 1 0L1245 639628400 Blue terminal block
137 3 0L1532 652608300 Fuse
138 1 0L1533 639629400 Blue terminal block
139 1 0L1298 639628900 Brown terminal block
182 1 0L1618 800671702 Shield
204 2 0L2594 835621Y00 Rack rail kit
205 4 0L2520 547604800 Trail lock device
206 8 0L2174 549646100 Roller spacer
207 4 0L2522 219614400 Retainer ring
208 4 0L2521 5066A0R00 Flanged washer
Q.ty
Cod.ric.
Part No.
Cod. Fab.
Fac. code
Description Note
Notes
Mobile cover
Back panel
Heating element
Da Ser.Nr./From Ser.nr.: 344
Page: 6
Ed. 2015-05
Doc. Nr.: 59566G200
