CATALOGO PARTI DI RICAMBIO
GAS FRYERS 23Lt E900XP
391079
E9FRGD1JF0
a
2,3
ELX
1 WELL
2 1/2 BASKETS
391080
E9FRGH2JF0
b
2,3
ELX
2 WELLS
4 1/2 BASKETS
391300
E9FRGH2JFW
i
2,3
ELX
2 WELLS
4 1/2 BASKETS
392079
Z9FRGD1JF0
c
2,3
ZAN
1 WELL
2 1/2 BASKETS
392080
Z9FRGH2JF0
d
2,3
ZAN
2 WELLS
4 1/2 BASKETS
393079
A9FRGD1JF0
e
2,3
OEM
1 WELL
2 1/2 BASKETS
393080
A9FRGH2JF0
f
2,3
OEM
2 WELLS
4 1/2 BASKETS
393210
A9FRGD1JFK
g
2,3
KiPro
1 WELL
2 1/2 BASKETS
393211
A9FRGH1JFK
h
2,3
KiPro
2 WELLS
4 1/2 BASKETS
Pag
Index
Indice
Note
2
General componets
Componenti struttura
Brand/Marchio: All
Factory code: 9PDX
FRIGGITRICI GAS 23Lt E900XP
PNC Model Ref Pag. Brand Version Notes
SPARE PARTS CATALOGUE
3
4,5

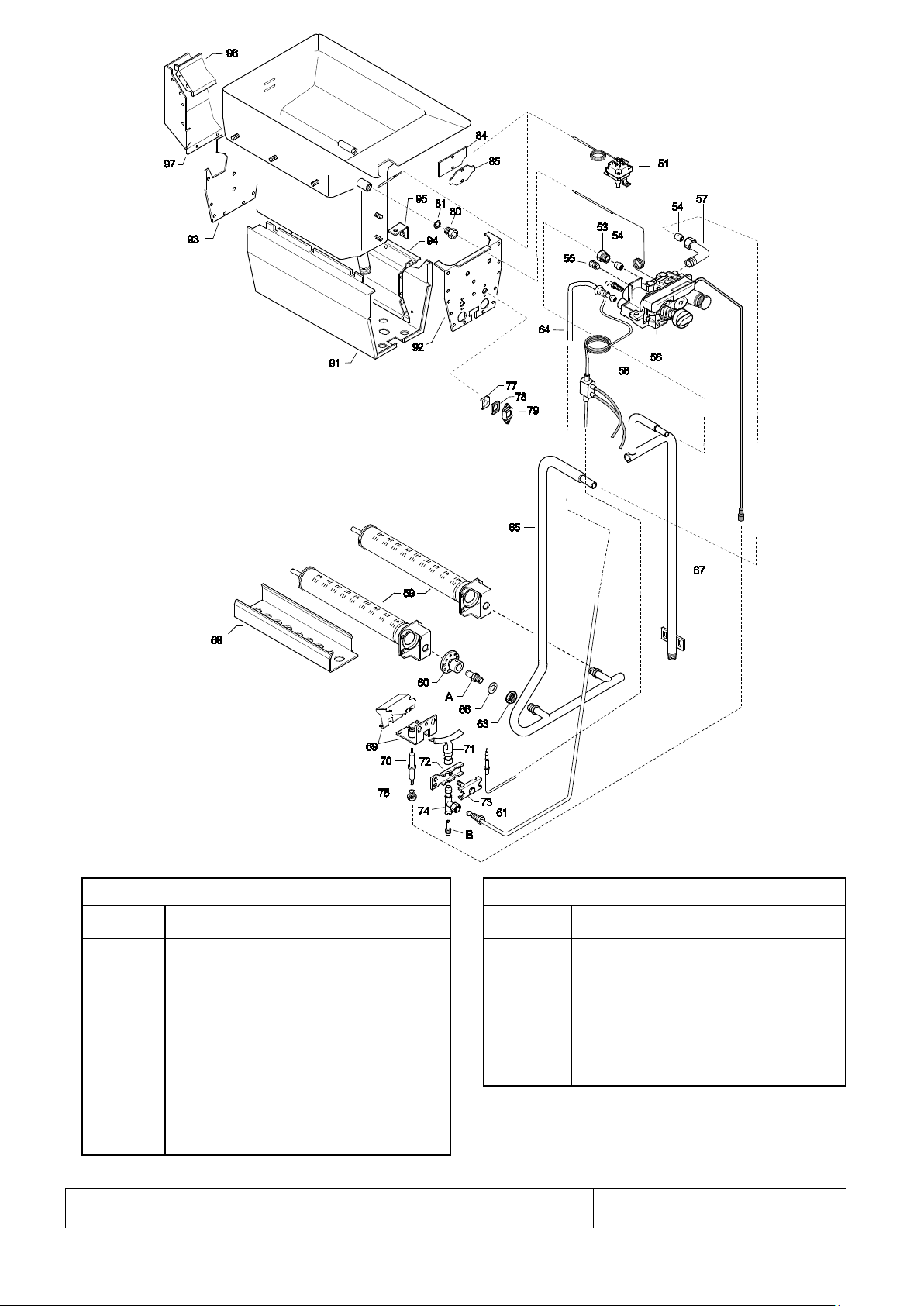

Gas components / Nozzels
Spare parts list
Componenti Gas / ugelli
Lista ricambi
Doc. Nr.: 59785G200
From sr. Nr/ Da Ser. Nr.: 116 Page: 2 Ed. 2015 09
Doc. Nr.:
59785G200
A - Ugello bruciatore / Burner nozzle
006419
ø2.90
2H/2E+
G20 20mbar
003327
n°40
2H/2E+
G20 20mbar
054084
ø3.20
2ELL
G25 20mbar
003327
n°40
2ELL
G25 20mbar
054084
ø3.20
2L
G25 25mbar
003327
n°40
2L
G25 25mbar
002905
ø1.60
3+3B/P
G30/31 28-30/37mbar
058525
n°30
3+3B/P
G30/31 2830/37mbar
055388
ø3.30
No CE
G20 10mbar
056798
n°24
No CE
G20 10mbar
0C3079
Ø6.25
No CE
G110 8mbar
REG / ADJ
n°25
No CE
G110 8mbar
B - Ugello pilota / Pilot nozzle
Spare Code Ref. / Notes
002905 ø1.60 3+3B/P
From sr. Nr/ Da Ser. Nr.: 116 Page: 3 Ed. 2015 09
Spare Code Ref./ Notes
G30/31 50mbar : regulate
pressure output from the
regulation screw on the valve
to obtain in exit 28-30/37mbar
Doc. Nr.:
59785G200
FRIGGITRICI GAS 23Lt E900XP
Spare Parts
Code
Factory
Code
1
0C0204
835856900
PIEDE
FOOT
2
4
6 * 147018088
ADESIVO STRUTTURALE
STRUCTURAL ADHESIVE
7 * 85089DY00
FASCIA 400mm
EXTERNAL PANEL 40 0m m
ELX
7 * 85089F300
FASCIA 400mm
EXTERNAL PANEL 40 0m m
ZAN, OEM
7 * 85089F400
FASCIA 800mm
EXTERNAL PANEL 80 0m m
ZAN, OEM
8
0C7493
87089AP00
RIPIANO / VASCA 800mm
WORKTOP / TANK 800mm
ELX
8
0C7510
87089CF00
RIPIANO / VASCA 400mm
WORKTOP / TANK 400mm
ZAN, OEM
9
0C0156
527850500
PIASTRA FISSAGGIO FIANCHI
SIDE PANEL JOINTING PLATE
10
006688
835855000
VALVOLA DI SCARICO
DRAIN VALVE
12
0C0608
516868800
LEVA SCARICO
DRAIN LEVER
13
006877
508897002
GUIDA LEVA SCARIVO
RUNNER, DRAIN LEVER
14
0C7739
85589AH00
CRUSCOTTO 800mm
CONTROL PANEL 800mm
ELX
14
0C7514
87089HX00
CRUSCOTTO 400mm
CONTROL PANEL 40 0mm
ZAN
14 * 50389N500
CRUSCOTTO 400mm
CONTROL PANEL 40 0mm
OEM
15
0L0113
543821900
GUARNIZIONE X CRUSCOTTO
GASKET, CONTROL PANEL
16
0C7164
51589A700
MANIGLIA
HANDLE
ELX
16
0A5021
854864203
MANIGLIA
HANDLE
OEM
17
0C0138
516860801
CERNIERA
HINGE
19
0C7157
50389G300
PORTA
DOOR
ELX, ZAN
19 * 50389MB01
PORTA
DOOR
OEM
*
0C7163
85589CT01
ASSIEME PORTA
COMPLETE DOOR
*
0C7165
85589CU02
ASSIEME PORTA
COMPLETE DOOR
21
0C0201
830898200
MAGNETE PER PORTA
MAGNET, DOOR
22
006130
830884701
GRIGLIA FONDO
BOTTOM GRILL
24
0C0612
528822801
SUPPORTO MANIGLIA
SUPPORT, HANDLE BASIN
25
006131
516849501
MANIGLIA BACINELLA
HANDLE, BASIN
27
0C0614
511819000
MANIGLIA COPERCHIO
HANDLE, LID
28
006583
516847800
SUPPORTO CESTELLI
SUPPORT, BASKET
30
0C7333
50389LP00
GRIGLIA CAMINO
CHIMNEY GRID
32
0C7802
548877500
GHIERA
RING, KNOB
ELX
32
0C7484
548879800
GHIERA
RING, KNOB
ZAN, OEM
34
0C7330
511850D01
MANOPOLA TERMOSTATO
THERMOSTAT KNOB
ELX
34
0C7179
548877Z01
MANOPOLA TERMOSTATO
THERMOSTAT KNOB
ZAN
THERMOSTAT KNOB
34
0C6745
548856602
MANOPOLA TERMOSTATO
THERMOSTAT KNOB
G,H
GAS FRYERS 23Lt E900XP
Pos
3
5
7 * 85089DZ00 FASCIA 800mm EXTERNAL PAN EL 80 0m m ELX
8 0C7800 87089AH00 RIPIANO / VASCA 400mm WORKTOP / TANK 400mm ELX
8 0C7512 87089CH00 RIPIANO / VASCA 800mm WORKTOP / TANK 80 0mm ZAN, OEM
11
14 0C7801 85589AG00 CRUSCOTTO 400mm CONTROL PANEL 40 0mm ELX
14 0C7515 87089HZ00 CRUSCOTTO 800mm CONTROL PA NEL 80 0m m ZAN
Descrizione Description Ref./Note
14 * 50389N600 CRUSCOTTO 800mm CONTROL PANEL 800mm OEM
16 0C8190 54887A800 MANIGLIA HANDLE ZAN
18 0C0139 516860901 CERNIERA HINGE
20 0C7158 50489CQ00 CONTROPORTA INNER DOOR
* 0C7627 85589CV00 ASSIEME PORTA COMPLETE DOOR
23 0C0611 522854700 BACINELLA PER OLIO OIL BASIN
26 0C0613 529890100 COPERCHIO FRI GGI T RI CE 23Lt LID, FRYER 23Lt
29 006133 850894500 CESTELLO BASKET
31 0C6171 541813800 RONDELLA SILICONE SILICONE WASHER
33 069567 218912211 ANELLO DI FISSAGGIO GHIERA SPRING, KNOB RING
34 0C5252 548872700 MANOPOLA TERMOSTATO
From sr. Nr/ Da Ser. Nr.: 116 Page: 4 Ed. 2015 09
OEM
Doc. Nr.:
59785G200
FRIGGITRICI GAS 23Lt E900XP
GAS FRYERS 23Lt E900XP
Spare Parts
Code
35
0C2021
548863303
MANOPOLA ACCENDITORE
LIGHTER KNOB
ELX
35
0C7181
548878303
MANOPOLA ACCENDITORE
LIGHTER KNOB
ZAN
LIGHTER KNOB
35
0C0190
548856601
MANOPOLA ACCENDITORE
LIGHTER KNOB
H
36
006539
878824600
CESTELLO INTERO FRIGG. 23Lt
FULL SIZE BASKET
F927226
38
006083
147098044
ADESIVO SILICONICO gr.100
ADHESIVE PIPE gr.100
53
051950
514862501
RACCORDO
PIPE FITTING
54
050682
215170716
OGIVA
RING
Tec bulletin
PDX2008-05
57
0C0631
515863200
RACCORDO A "L"
L PIPE FITTING
59
006127
830823100
BRUCIATORE
BURNER
60
054039
830828001
AERATORE
AERATOR
63
020997
214105101
CONTRODADO
LOCK NUT
64
0C0626
517870001
CONDUTTURA PILOTA
PIPE, PILOT
66
054029
506833401
GUARNIZIONE PER UGELLO
GASKET, INJECTOR
67 * 85589DD00
ENTRATA GAS FRIGG.23Lt
GAS INLET 23Lt
1 WELL
68 * 529801501
CONVOGLIATORE BRUC. DESTRO
CONVEJOR, RIGHT SIDE BURNER
68 * 529801401
CONVOGLIATORE BRUC. SINISTRO
CONVEJOR, LEFT SIDE BURNER
2 pcs with one
code
70
0C7141
569807J00
ELETTRODO
ELECTRODE
71
006128
830885600
CANNELLO PILOTA
TUBE, PILOT
73
052246
206649700
CONTROSTAFFA
INNER BRACKET
75
057960
214164101
RACCORDO ELETTRODO
PIPE FITTING, EL EC T RO D E
77
79
80
059295
514874500
RACCORDO
PIPE FITTING
82
83
SAFETY THERMOSTAT BULB
INSULATION
91 * 529826201
CAMERA DI COMBUSTIONE
COMBUSTION CHAMBER
92 * 530834501
PARETE ANT. CAM. COMB.
FRONT PANEL, COMB. CHAMB.
2 WELLS
93 * 529825800
PARETE POST. CAM. COMB.
REAR PANEL, COMB. CHAMB.
1 WELL
94 * 523878302
CONVOGLIATORE FUMI
CONVEJOR
95 * 527817400
SQUADRETTA PE R CO NV OGL.
STIFFENING
97 * 529825601
PARETE POST. CAMINO
REAR PANEL, CHIMNEY
98
052263
214680600
DISTANZIALE
SPACER
Pos
35 0C0190 548856603 MANOPOLA ACCENDITORE
37 0C0137 516860700 PIASTRA GIUNZI O NE A PPARECC. JOINTING REAR PLATE
51 005931 646810102 TERMOSTATO DI SICUREZZA SAFETY THERMOSTAT
55 0C0625 516865800 TAPPO PER VALVOLA STOPPER FOR VALVE
56 0C5248 835859702 VALVOLA GAS GAS VALVE
58 0C3162 831818901 TERMOCOPPIA INTERROTTA THERMOCOUPLE; INTERRUPTED
61 0C0121 214162000 RACCORDO TERMOCOPPIA PIPE FITTING, THERMOCOUPLE
65 0C0627 853855802 RIBALTA MANIFOLD
67 0C8191 85589DB00 ENTRATA GA S FR IG G .2 3+23Lt GAS INLET FRYER 23+23Lt 2 WELLS
Factory Code Descrizione Description Ref./Note
OEM
69 0C9197 80589C000 SUPPORTO PILOTA ASSIEME PILOT SUPPORT ASSEMBLY
72 052256 206993500 STAFFA PILOTA BRACKET, PILOT
74 006725 835854800 BRUCIATORE PILOTA PILOT BURNER
78
81 059293 543815000 GUARNIZIONE GASKET
84 0C4749 527871901 SUPPORTO BULBO LIMITATORE SAFETY TERM. BULB SUPPORT
85 0C4748 569806300 ISOLANTE BULBO
92 * 530834401 PARETE ANT. CAM. COMB. FRONT PANEL, COMB. CHAMB. 1 WELL
93 * 529863200 PARETE POST. CAM. COMB. REAR PANEL, COMB. CHAMB. 2 WELLS
96 * 529825701 PARETE ANT. CAMINO FRONT PANEL, CHIMNEY
