Page: 1 Ed. 03 Date. 01/2016
Doc. Nr.: 59785DL00
SPARE PARTS CATALOGUE
CATALOGO PARTI DI RICAMBIO
CUCINE GAS MONOBLOCCO E700XP
GAS RANGES E700XP
PNC
Model
Ref
Brand
Version
Notes
371002
E7GCGH4CG0
a ELX
GAS
4-BURNER +GAS OVEN 800 MM
371003
E7GCGH4CE0
c ELX
GAS
4-BURNER +ELECTRIC OVEN 800 MM
371005
E7GCGL6C10
b ELX
GAS
6-BURNER +GAS OVEN+CUPB.1200 MM
371006
E7GCGL6C20
d ELX
GAS
6-BURNER +EL.OVEN+CUPB.1200MM
371125
E7GCGH4CEN
e ELX
GAS
4-BURNER +ELEC.OVEN 800MM-230V
371168
E7GCGH4CGA
f ELX
GAS
4-BURNER +GAS OVEN 800 MM-AUS
371169
E7GCGH4CEA
i ELX
GAS
4-BURNER +ELECTR.OVEN 800MM-AUS
371171
E7GCGL6C1A
g ELX
GAS
6-BURN.+GAS OVEN+CUPB.1200-AUS
371172
E7GCGL6C2A
h ELX
GAS
6-BURN.+EL.OVEN+CUPB.1200MM-AUS
372002
Z7GCGH4CG0
j ZAN
GAS
4-BURNER +GAS OVEN 800 MM
372003
Z7GCGH4CE0
m ZAN
GAS
4-BURNER +ELECTRIC OVEN 800 MM
372005
Z7GCGL6C10
l ZAN
GAS
6-BURNER +GAS OVEN+CUPB.1200 MM
372006
Z7GCGL6C20
n ZAN
GAS
6-BURNER +EL.OVEN+CUPB.1200MM
372125
Z7GCGH4CEN
o ZAN
GAS
4-BURNER +ELEC.OVEN 800MM-230V
372148
Z7GCGH4CGA
p ZAN
GAS
4-BURNER +GAS OVEN 800 MM-AUS
372149
Z7GCGH4CEA
r ZAN
GAS
4-BURNER +ELECTR.OVEN 800MM-AUS
372151
Z7GCGL6C1A
q ZAN
GAS
6-BURN.+GAS OVEN+CUPB.1200-AUS
372152
Z7GCGL6C2A
s ZAN
GAS
6-BURN.+EL.OVEN+CUPB.1200MM-AUS
372155
Z7GCGH4CGH
t ZAN
GAS
4-BURNER +OVEN 800MM-HAKVOORT
372157
Z7GCGL6C1H
u ZAN
GAS
6-BURN.+OVEN+CUPB.1200MM-HAKV.
373002
A7GCGH4CG0
w OEM
GAS
4-BURNER +GAS OVEN 800 MM
373003
A7GCGH4CE0
v OEM
GAS
4-BURNER +ELECTRIC OVEN 800 MM
373005
A7GCGL6C10
z OEM
GAS
6-BURNER +GAS OVEN+CUPB.1200 MM
373125
A7GCGH4CEN
b1 OEM
GAS
4-BURNER +ELEC.OVEN 800MM-230V
373222
A7GCGH4CGK
a1 KIP
GAS
4-BURNER +GAS OVEN 800 MM
Pag
Index
Indice
Note
2
3
4
5
6-8
General components
Gas components
Burner nozzles
Electric components
Spare parts list
Componenti struttura
Componenti gas
Ugelli bruciatori
Componenti elettrici
Lista ricambi
Brand/Marchio: All
Page: 2 Ed. 03 Date. 01/2016
Doc. Nr.: 59785DL00
Factory code: 9PDX
Page: 3 Ed. 03 Date. 01/2016
Doc. Nr.: 59785DL00
Page: 4 Ed. 03 Date. 01/2016
Doc. Nr.: 59785DL00
A - Ugello bruciatore / Burner nozzle ø60
E - Ugello pilota / Pilot nozzle
Spare part
Code
Ref. / Notes
Spare part Code
Ref./ Notes
0C2809
ø1.85
2H/2E+
G20 20mbar
053670
n°41
2H/2E+
G20 20mbar
0C2808
ø1.75
2H
G20 25mbar
053670
n°41
2H
G20 25mbar
0C2806
ø1.85/2.10
2ELL
G25 20mbar
053670
n°41
2ELL
G25 20mbar
0C2805
ø1.75/2.10
2L
G25 25mbar
053670
n°41
2L
G25 25mbar
059314
ø1.15
3+3B/P
G30 30mbar
054593
n°25
3+3B/P
G30 30mbar
0A2650
ø1.20
3+3B/P
G30 30mbar - AUS
054593
n°25
3B/P
G30 36mbar
0A2076
ø1.10
3B/P
G30 36mbar
054593
n°25
3B/P
G30 50mbar
0C2807
ø1.10
3B/P
G30 50mbar
053670
n°41
2S
G25 25mbar
0C2805
ø1.75/2.10
2S
G25.1 25mbar
053670
n°41
No CE
G20 10mbar
0A2475
ø2.25
No CE
G20 10mbar
053669
n°75
1a
G110
0A2102
ø2.00
No CE
G20 10mbar - AUS
053669
n°75
1b
G120
0C5475
ø3.50
1a
G110
059627
ø3.30
1b
G120
D - Vite di minimo / Min screw ø60
B - Ugello bruciatore FORNO / Burner nozzle OVEN
Spare part
Code
Ref./ Notes
Spare part Code
Ref. / Notes
002899
n°80
2H/2E+
G20 20mbar
0C0509
ø1.85
2H/2E+
G20 20mbar
002899
n°80
2H
G20 25mbar
003723
ø1.75
2H
G20 25mbar
002899
n°80
2ELL
G25 20mbar
056147
ø2.10
2ELL
G25 20mbar
002899
n°80
2L
G25 25mbar
0C2811
ø2
2L
G25 25mbar
002911
n°55
3+3B/P
G30 30mbar
059804
ø1.25
3+3B/P
G30 30mbar
002911
n°55
3B/P
G30 36mbar
004732
ø1.35
3+3B/P
G30 30mbar - AUS
002925
n°50
3B/P
G30 50mbar
0C2810
ø1.20
3B/P
G30 36mbar
002899
n°80
2S
G25.1 25mbar
054082
ø1.10
3B/P
G30 50mbar
002899
n°80
No CE
G20 10mbar
0C2811
ø2
2S
G25.1 25mbar
-
adj
1a
G110 056147
ø2.10
No CE
G20 10mbar
-
adj
1b
G120 055133
ø3.80
1a
G110
054128
ø3.40
1b
G120
C - Ugello pilota FORNO / Pilot nozzle OVEN
Spare part
Code
Ref./ Notes
059215
n°27
2ELL
G25 20mbar
059215
n°27
2L
G25 25mbar
059216
n°14
3+3B/P
G30 30mbar
059216
n°14
3B/P
G30 36mbar
059216
n°14
3B/P
G30 50mbar
059215
n°27
2S
G25.1 25mbar
059215
n°27
No CE
G20 10mbar
059356
n°50
1a
G110
059356
n°50
1b
G120
Page: 5 Ed. 03 Date. 01/2016
Doc. Nr.: 59785DL00
Page: 6 Ed. 03 Date. 01/2016
Doc. Nr.: 59785DL00
CUCINE GAS MONOBLOCCO E700XP
GAS RANGES E700XP
Pos
Spare
Part
Code
Factory
Code
Descrizione
Description
Ref./Note
1
0C2526
511821400
GRIGLIA FUOCHI GHISA
CAST IRON GRID
2
0C7723
87089A900
RIPIANO 800mm
TABLE TOP 800mm
ELX 2 0C7733
87089G800
RIPIANO 800mm
TABLE TOP 800mm
ZAN, OEM
2
0C7724
87089AA00
RIPIANO 1200mm
TABLE TOP 1200mm
ELX
2
0C7734
87089G900
RIPIANO 1200mm
TABLE TOP 1200mm
ZAN, OEM
3 * 85089FF00
RIVESTIMENTO LATERALE
EXTERNAL PANEL 800mm
ELX
3 * 85089FJ00
RIVESTIMENTO LATERALE
EXTERNAL PANEL 800mm
ZAN, OEM
3 * 85089FG00
RIVESTIMENTO LATERALE
EXTERNAL PANEL 1200mm
ELX 3 *
85089FK00
RIVESTIMENTO LATERALE
EXTERNAL PANEL 1200mm
ZAN, OEM
4
0C0182
529850500
PIASTRINA FACCIATA-FIANCO
PLATE JOINTING
5
0C2305
560802101
ISOLAMENTO FORNO
INSULATION, OVEN
6 0C6445
538831100
GRIGLIA PROTEZIONE BULBO
PROTECTION PROBE GRID
GAS OVEN
6
0C6444
538862800
GRIGLIA PROTEZIONE BULBO
PROTECTION PROBE GRID
EL. OVEN
7
0C6446
51489AA00
GUIDA GRIGLIA
GRATE LEADING
8
025020
330260842
GRIGLIA FORNO
GRATE, OVEN
a,b,c,d,e,j,l,m,n,o,t,u,v,
w,z,a1, 650x530
8
0C6455
856814402
GRIGLIA FORNO
GRATE, OVEN
f,i,g,h,p,q,r,s, 626x530
9
054114
500847401
SUOLA FORNO
SOLE PLATE
10
050761
315280702
COPERCHIO FORO PILOTA
PILOT COVER
11
0C7248
85089B300
CRUSCOTTO 800mm
CONTROL PANEL 800mm
ELX – GAS OVEN
11
0C7249
85089B500
CRUSCOTTO 800mm
CONTROL PANEL 800mm
ELX – EL OVEN
11
0C7283
87089GD00
CRUSCOTTO 800mm
CONTROL PANEL 800mm
ZAN – GAS OVEN
11
0C7286
87089GM00
CRUSCOTTO 800mm
CONTROL PANEL 800mm
ZAN – EL OVEN
11 * 50389LW00
CRUSCOTTO 800mm
CONTROL PANEL 800mm
OEM – GAS OVEN
11 * 50389LY00
CRUSCOTTO 800mm
CONTROL PANEL 800mm
OEM – EL OVEN
11
0C7250
85089B700
CRUSCOTTO 1200mm
CONTROL PANEL 1200mm
ELX – GAS OVEN
11
0C7721
85589B500
CRUSCOTTO 1200mm
CONTROL PANEL 1200mm
ELX – EL OVEN
11
0C7221
87089GG00
CRUSCOTTO 1200mm
CONTROL PANEL 1200mm
ZAN – GAS OVEN
11
0C7735
87089GS00
CRUSCOTTO 1200mm
CONTROL PANEL 1200mm
ZAN – EL OVEN
11 * 50389M000
CRUSCOTTO 1200mm
CONTROL PANEL 1200mm
OEM – GAS OVEN
12
0C6671
548876S00
GHIERA MANOPOLA FUOCHI ANT.
KNOB RING, FRONT BURNER
ELX
12
0C7243
548879F00
GHIERA MANOPOLA FUOCHI ANT.
KNOB RING, FRONT BURNER
ZAN, OEM
13
0C8645
54887AV00
ASSIEME MANOPOLA "UNIVERSALE"
KNOB ASSEMBLY (KNOB+ADAP)
ELX
13*
0C8715
511851100
SOLO MANOPOLA "UNIVERSALE"
ONLY KNOB
ELX
13
0C7425
548878101
MANOPOLA RUBINETTO GAS
KNOB, GAS TAP
ZAN
13
0C1007
548865600
MANOPOLA RUBINETTO GAS
KNOB, GAS TAP
OEM
13
0C8700
548877W00
MANOPOLA COMMUTATORE
KNOB, REGULATOR
ELX ELECTRIC
13
0C7232
548878201
MANOPOLA COMMUTATORE
KNOB, REGULATOR
ZAN ELECTRIC
13
0A5621
548865500
MANOPOLA COMMUTATORE
KNOB, REGULATOR
OEM ELCTRIC
13
0C6746
548876W00
MANOPOLA COMMUTATORE
KNOB, REGULATOR
A1
14
0C0156
527850500
PIASTRA FISSAGGIO FIANCHI
SIDE PANELS JOINTING PLATE
15
0C7332
548876T00
GHIERA MANOPOLA FUOCHI POS.
KNOB RING, REAR BURNER
ELX
15
0C7244
548879G00
GHIERA MANOPOLA FUOCHI POS.
KNOB RING, REAR BURNER
ZAN, OEM
16
0C7179
548877Z01
MANOPOLA TERMOSTATO VALVOLA
KNOB, VALVE THERMOSTAT
ZAN – GAS OVEN
16
0C5252
548872700
MANOPOLA TERMOSTATO VALVOLA
KNOB, VALVE THERMOSTAT
OEM – GAS OVEN
17
069567
218912211
MOLLETTA
SPRING
Page: 7 Ed. 03 Date. 01/2016
Doc. Nr.: 59785DL00
CUCINE GAS MONOBLOCCO E700XP
GAS RANGES E700XP
Pos
Spare
Part
Code
Factory
Code
Descrizione
Description
Ref./Note
18
0C2021
548863303
MANOPOLA ACCENDITORE VALVOLA
KNOB, GAS VALVE IGNITER
ELX – GAS OVEN
18
0C7181
548878303
MANOPOLA ACCENDITORE VALVOLA
KNOB, GAS VALVE IGNITER
ZAN – GAS OVEN
18
0C0190
548856603
MANOPOLA ACCENDITORE VALVOLA
KNOB, GAS VALVE IGNITER
OEM – GAS OVEN
18
0C6745
548876U00
MANOPOLA ACCENDITORE VALVOLA
KNOB, GAS VALVE IGNITER
KIP – GAS OVEN
19
0C7342
548877400
GHIERA VALVOLA FORNO
KNOB RING, GAS VALVE OVEN
ELX – GAS OVEN
19
0C7241
548879700
GHIERA VALVOLA FORNO
KNOB RING, GAS VALVE OVEN
ZAN, OEM – GAS
OVEN
19
0C7231
548877J00
GHIERA COMMUTATORE
KNOB RING
ELX– EL OVEN
19
0C7343
548877S00
GHIERA TERMOSTATO
KNOB RING
ELX – EL OVEN
19
0C7247
548879U00
GHIERA COMMUTATORE
KNOB RING
ZAN, OEM – EL OVEN
19
0C7242
548879D00
GHIERA TERMOSTATO
KNOB RING
ZAN, OEM – EL OVEN
20
0C8714
54887AP00
SOLO ADATTATORE
ONLY ADAPTOR
ELX
21
0C7274
51589A500
MANIGLIA FORNO
HANDLE, OVEN
ELX
21
0C7226
51589A601
MANIGLIA FORNO
HANDLE, OVEN
ZAN
21
0C7946
83089FY00
MANIGLIA FORNO
HANDLE, OVEN
OEM
22
0C7272
50389G501
PORTA FORNO
OVEN DOOR
23
0C0197
560839601
ISOLAMENTO PORTA FORNO
INSULATION OVEN DOOR
24
0C7273
50389G601
CONTROPORTA FORNO
INNER DOOR
* 0C7271
85589A301
ASSIEME PORTA
COMPLETE DOOR
ELX * 0C7276
85589CH02
ASSIEME PORTA
COMPLETE DOOR
ZAN * 0C7278
85589CQ01
ASSIEME PORTA
COMPLETE DOOR
OEM
25
0C0203
835848100
CERNIERA PORTA
HINGE
26
0C0204
835856900
PIEDE
FOOT 27
53816
543821000
GUARNIZIONE MANOPOLA
KNOB GASKET
28
0C6823
530R01802
TAPPO MANIGLIA
STOPPER FOR HANDLE
ELX
29
0C0218
870838208
FACCIATA FORNO 800mm
FRONT OVEN 800mm
29
0C0219
870838308
FACCIATA FORNO 1200mm
FRONT OVEN 1200mm
31
0C2306
560801904
ISOLANTE DX E SX FORNO
OVEN INSULATION
32
0C7705
50389LM00
GRIGLIA CAMINO
GRATE, CHIMNEY
33
52725
205075423
COPRICERNIERA
HINGE COVER
34
0C7157
50389G300
PORTA VANO
DOOR
ELX, ZAN
34 * 50389MB01
PORTA VANO
DOOR
OEM
35
0C7164
51589A700
MANIGLIA VANO
HANDLE
ELX
35
0C8190
54887A800
MANIGLIA VANO
HANDLE
ZAN
35
0A5021
854864203
MANIGLIA VANO
HANDLE
OEM
36
0C7158
50489CQ00
CONTROPORTA
INNER DOOR
* 0C7163
85589CT01
ASSIEME PORTA VANO
COMPLETE DOOR
ELX * 0C7165
85589CU02
ASSIEME PORTA VANO
COMPLETE DOOR
ZAN * 0C7627
85589CV00
ASSIEME PORTA VANO
COMPLETE DOOR
OEM
37
0C0138
516860801
CERNIERA
HINGE
38
0C1280
518803803
PERNO PORTA
PIVOT
39
0C0139
516860901
CERNIERA
HINGE
40 * 522891100
FONDO ARMADIETTO
BOTTOM PANEL CUPBOARD
41
0C0201
830898200
MAGNETE
MAGNET
42 * 522891200
CELLA ARMADIETTO
TOP PANEL CUPBOARD
Page: 8 Ed. 03 Date. 01/2016
Doc. Nr.: 59785DL00
CUCINE GAS MONOBLOCCO E700XP
GAS RANGES E700XP
Pos
Spare
Part
Code
Factory
Code
Descrizione
Description
Ref./Note
44 * 5038A2301
FONDO CUCINA GAS 800mm
BOTTOM PANEL 800mm
GAS OVEN
44 * 5038A2501
FONDO CUCINA GAS 1200mm
BOTTOM PANEL 1200mm
GAS OVEN
44 * 5038A2601
FONDO CUCINA GAS 1M
BOTTOM PANEL 1000mm
EL. OVEN
44 * 5038A2701
FONDO CUCINA GAS 1200mm
BOTTOM PANEL 1200mm
EL. OVEN
47
0C6891
530R01702
SUPPORTO MANIGLIA
HANDLE SUPPORT
ELX
49 * 522882600
INVOLUCRO FORNO GAS
OVEN SHELL
50 * 522882700
SCHIENALE FORNO GAS
REAR SIDE PANEL OVEN
51 * 533825300
ANTERIORE CAMINO FORNO
FRONT CHIMNEY OVEN
52 * 533825400
POST. CAMINO FORNO
REAR CHIMNEY OVEN
54
0C0165
529835403
SUPPORTO CERNIERA
HOLDER FOR HINGE
55
0C0137
516860700
PIASTRA GIUNZIONE POST.
JOINTING REAR PLATE
58
0C6171
541813800
RONDELLA SILICONE
SILICONE WASHER
101
0C4192
544821000
CONDUTTURA ANTERIORE PILOTA
FRONT PILOT PIPE
102
0C4193
544820900
CONDUTTURA POSTERIORE PILOTA
REAR PILOT PIPE
106
0C0129
510819501
SPARTIFIAMMA DIAM.60
FLAME SPREADER DIA.60
107
0C0127
510819303
BRUCIATORE DIAM.60
BURNER DIA.60
108
0C0125
510819103
VENTURI BRUCIATORE DIAM.60
VENTURI, BURNER DIA.60
109
0C2800
835868200
CONDUTTURA POSTERIORE FUOCHI
REAR BURNER PIPE
110
0C2799
835868100
CONDUTTURA ANTERIORE FUOCHI
FRONTAL BURNER PIPE
111
0C0124
510819003
SUPPORTO VENTURI
HOLDER FOR VENTURI
112
0C0205
835857201
RUBINETTO GAS
GAS TAP
113
52127
215199700
BICONO
DOUBLE CONE
114
0C0211
853856402
RIBALTA 1200mm
MANIFOLD 1200mm
GAS OVEN
114
0C0210
853856303
RIBALTA 800mm
MANIFOLD 800mm
GAS OVEN
114
0C2951
853897300
RIBALTA 1200mm
MANIFOLD 1200mm
EL. OVEN
114
0C0268
853856604
RIBALTA 800mm
MANIFOLD 800mm
EL. OVEN up to 404
114
0CA612
853856605
RIBALTA 800mm
MANIFOLD 800mm
EL. OVEN from 405
115
0C0140
516863900
FILTRO GAS
FILTER
116
59293
543815000
GUARNIZIONE OR
O-RING GASKET
117
0C0121
214162000
RACCORDO X TERMOCOPPIA
NUT, THERMOCOUPLE
118
52125
214164400
RACCORDO
NUT
118a
0C3646
516887500
RACCORDO
CONNECTION
119
0C0202
831800500
TERMOCOPPIA
THERMOCOUPLE
120
0C3644
806854300
PILOTA FUOCHI
PILOT BURNER
120a
0C3643
510823900
SUPPORTO CURVO PER UGELLO
PILOTA
CURVED JET HOLDER
121
53665
515827401
BICONO PER PILOTA D.4
DOUBLE CONE D.4 FOR PILOT
121a
0C3645
516888200
BICONO PER PILOTA D.4
DOUBLE CONE D.4 FOR PILOT
122
0C5247
835859301
VALVOLA GAS
GAS VALVE
122
0C5250
835865601
VALVOLA GAS
GAS VALVE
AUS
123
59161
517808700
BICONO
DOUBLE CONE
124
0C0170
529836101
CHIUSURA PER BRUCIATORE
OVEN BURNER TIGHTENER
125
0C3584
831823400
BRUCIATORE FORNO
OVEN BURNER
126
0C2823
533814300
CONVOGLIATORE
CONVEYOR
128
0C0208
835857602
CONDUTTURA FORNO
OVEN PIPE
129
0C7102
830884101
ASSIEME PILOTA
PILOT ASSEMBLY
Page: 9 Ed. 03 Date. 01/2016
Doc. Nr.: 59785DL00
CUCINE GAS MONOBLOCCO E700XP
GAS RANGES E700XP
Pos
Spare
Part
Code
Factory
Code
Descrizione
Description
Ref./Note
130
0C0172
529836300
PROTEZIONE PER PILOTA
PILOT PROTECTION
131
0C0171
529836201
SQUADRETTA PER PILOTA FORNO
PILOT HOLDER
132
20997
214105101
CONTRODADO PORTAUGELLO
LOCK NUT
133
59250
511805401
PORTAUGELLO
INJECTOR HOLDER
134
54085
830827102
AREATORE
AERATOR
135
57960
214164101
RACCORDO X ELETTRODO
CONNECTION, ELECTRODE
136
0C0121
214162000
RACC.FISSAGGIO TERMOCOPPIA
CONNECTION, THERMOCOUPLE
137
20094
830852501
TERMOCOPPIA
THERMOCOUPLE
138
59380
830863300
ELETTRODO DI ACCENSIONE
ELECTRODE
139
0C0150
516869600
BICONO
DOUBLE CONE
140
0C0149
516869500
RACCORDO 3/8"
CONNECTION 3/8"
141
0C3472
533819600
PARAFIAMMA
FIREPROOF
142
51950
514862501
RACCORDO 3/8"
CONNECTION 3/8"
143
50682
215170716
OGIVA
RING
144
60325
215073101
BICONO
DOUBLE CONE
145
0A2125
214108111
DADO
NUT
146
0C0153
544820801
CONDUTTURA PILOTA FORNO
OVEN PILOT PIPE
147
054029
506833401
GUARNIZIONE PER UGELLO
GASKET, NOZZLE
148
0C7190
636800600
CAVO ACCENDITORE
IGNITION CABLE
LENGTH 1550 MM, 4 Ø

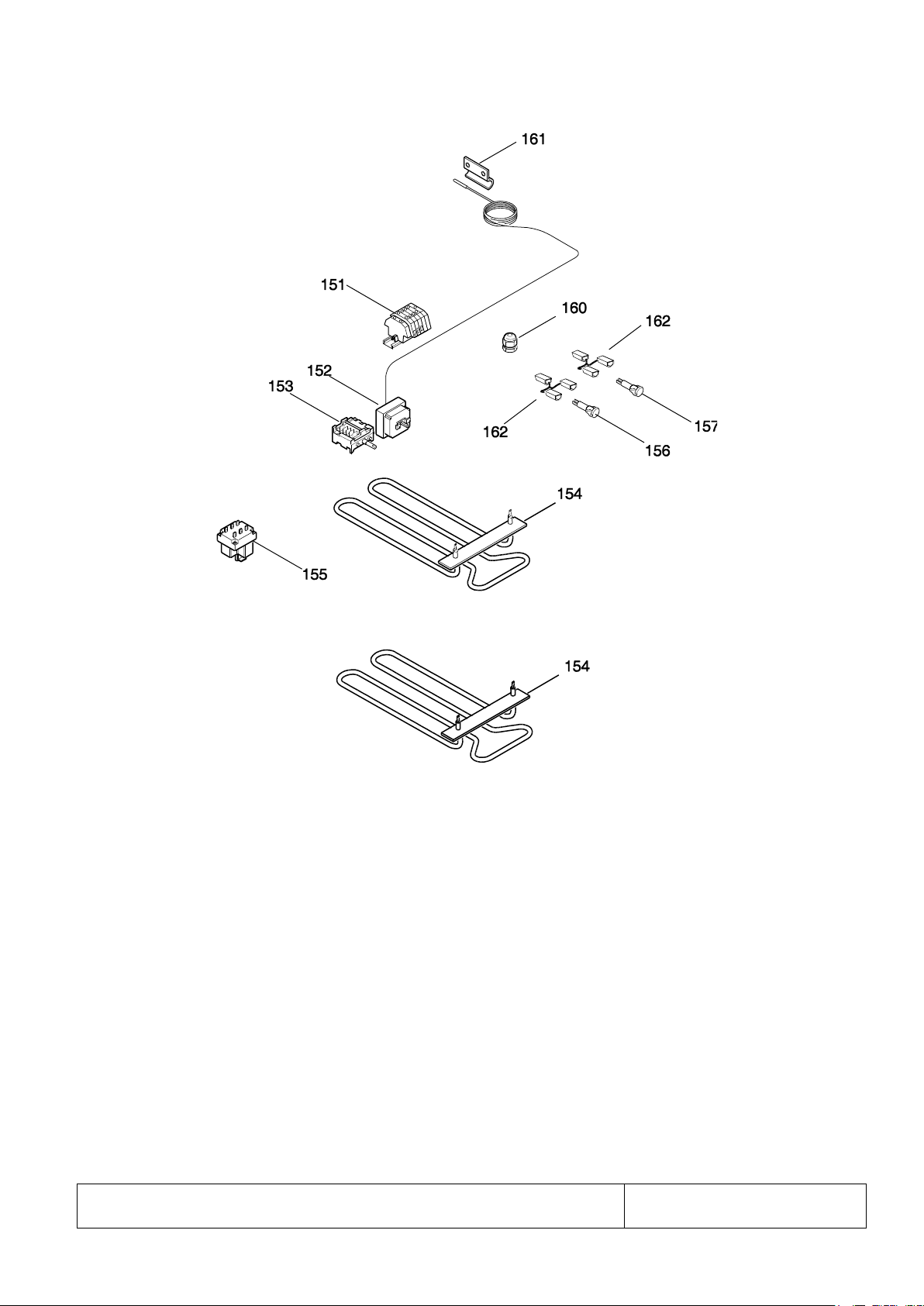

151
058875
639805201
MORSETTIERA
MAIN TERMINAL BLOCK
152
059235
646805302
TERMOSTATO
THERMOSTAT
153
0C0320
641803700
COMMUTATORE
SWITCH
154
0C2813
617832400
RESISTENZA FORNO 1500W 400V
HEATING ELEMENT 1500W 400V
400 V
154
0C3638
617832500
RESISTENZA FORNO 1500W 230V
HEATING ELEMENT 1500W 230V
230 V
155
004600
646808600
LIMITATOR DI TEMPERATURA
SAFETY THERMOSTAT
156
005011
876800102
LAMPADA GIALLA TONDA
YELLOW LAMP
157
005010
876800002
LAMPADE VERDE TONDA
GREEN LAMP
160
0C3550
246522200
PASSACAVO
CORE HITCH
161
PROFILO ARRESTO BULBO
PLATE FOR BULB
162
0C0311
638896300
DROPPING TENSION REGULATOR
RESISTENZA CADUTA TENSIONE
c,d,e,i,h,m,n,o,r,s,v
Loading...
