SPARE PARTS CATALOGUE
Pag
Index
Indice
Note
2
General components
Componenti struttura
Brand/Marchio: All
Factory code: 9PDX
CATALOGO PARTI DI RICAMBIO
FRYTOP E700XP
FRYTOP E700XP
PNC Model Ref Pag. Brand Version Notes
371033 E7FTGDSSO0 a ELX GAS SMOOTH PLATE + OPEN BASE 400
371034 E7FTGDSRO0 b ELX GAS RIBBED PLATE + OPEN BASE 400
371035 E7FTGHSSO0 c ELX GAS SMOOTH PLATE + OPEN BASE 800
371036 E7FTGHSPO0 d ELX GAS SMOOTH + RIBBED PLATE + OPEN BASE 800
371039 E7FTGDCSO0 e ELX GAS SMOOTH CHROME PLATE + OPEN BASE 400
371040 E7FTGHCSO0 f ELX GAS SMOOTH CHROME PLATE + OPEN BASE 800
371052 E7FTEDSSO0 g ELX EL SMOOTH PLATE + OPEN BASE 400
371053 E7FTEDSRO0 h ELX EL RIBBED PLATE + OPEN BASE 400
371054 E7FTEHSSO0 i ELX EL SMOOTH PLATE + OPEN BASE 800
371055 E7FTEHSPO0 l ELX EL SMOOTH + RIBBED PLATE + BASE 800
371059 E7FTEDCSO0 m ELX EL SMOOTH CHROME PLATE + BASE 400
371060 E7FTEHCSO0 n ELX EL SMOOTH CHROME PLATE + BASE 800
372033 Z7FTGDSSO0 o ZAN GAS SMOOTH PLATE + OPEN BASE 400
372034 Z7FTGDSRO0 p ZAN GAS RIBBED PLATE + OPEN BASE 400
372035 Z7FTGHSSO0
372036 Z7FTGHSPO0 r ZAN GAS SMOOTH + RIBBED PLATE + OPEN BASE 800
372039 Z7FTGDCSO0 s ZAN GAS SMOOTH CHROME PLATE + OPEN BASE 400
372040 Z7FTGHCSO0 t ZAN GAS SMOOTH CHROME PLATE + OPEN BASE 800
372052 Z7FTEDSSO0 u ZAN EL SMOOTH PLATE + OPEN BASE 400
372053 Z7FTEDSRO0 v ZAN EL RIBBED PLATE + OPEN BASE 400
372054 Z7FTEHSSO0 z ZAN EL SMOOTH PLATE + OPEN BASE 800
372055 Z7FTEHSPO0 a1 ZAN EL SMOOTH + RIBBED PLATE + BASE 800
372059 Z7FTEDCSO0 b1 ZAN EL SMOOTH CHROME PLATE + BASE 400
372060 Z7FTEHCSO0 c1 ZAN EL SMOOTH CHROME PLATE + BASE 800
q ZAN GAS SMOOTH PLATE + OPEN BASE 800
3,4
5-8
Page: 1 Ed. 2015 06
Gas components
Spare parts list
Componenti gas
Lista ricambi
Doc. Nr.:
59785PL00
From sr. Nr/ Da Ser. Nr.: 116
Page: 2 Ed. 2015 06
Doc. Nr.:
59785PL00
From sr. Nr/ Da Ser. Nr.: 116
Page: 3 Ed. 2015 06
Doc. Nr.:
59785PL00
From sr. Nr/ Da Ser. Nr.: 116
Page: 4 Ed. 2015 06
Doc. Nr.:
59785PL00
From sr. Nr/ Da Ser. Nr.: 116

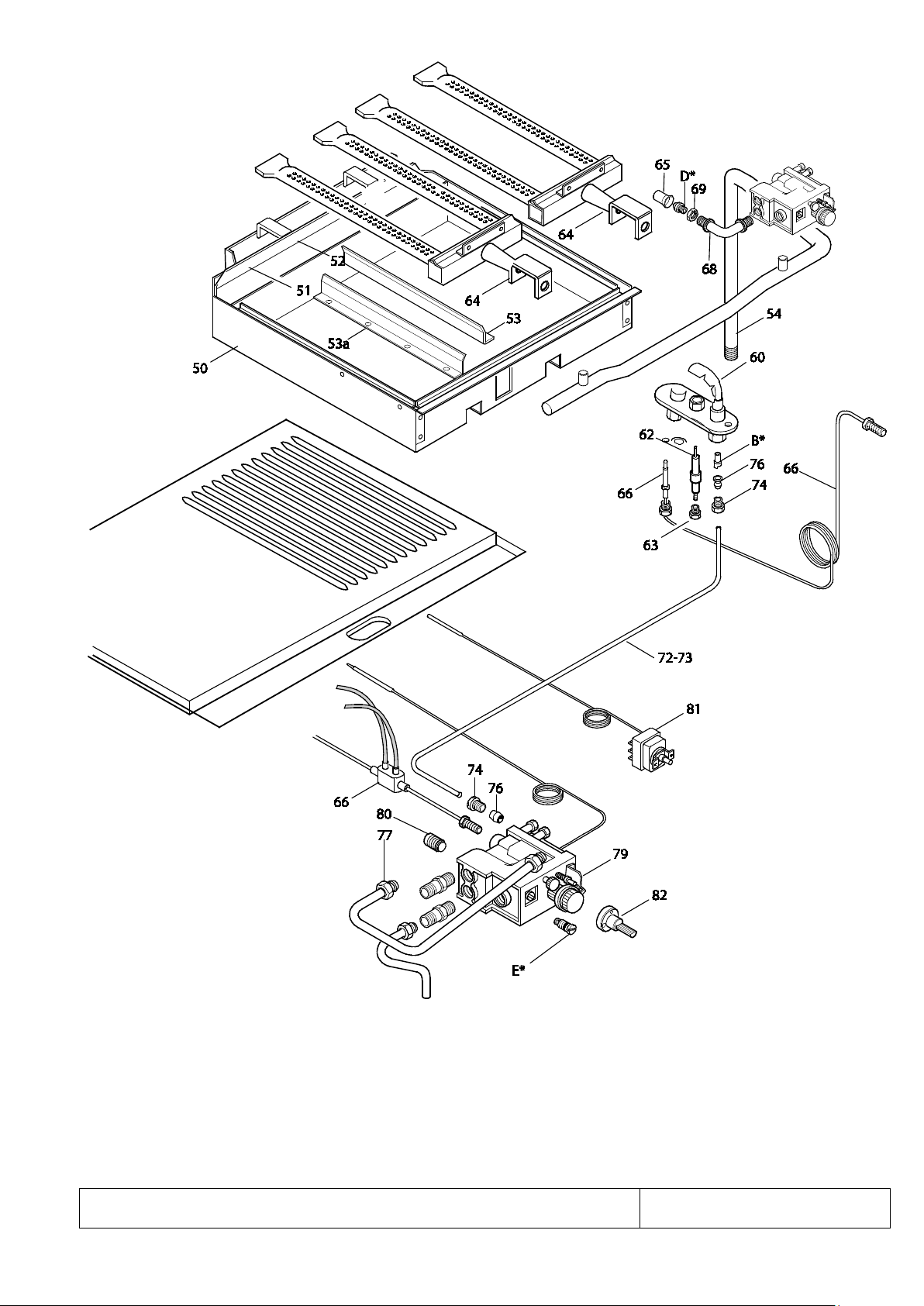

A - Ugello bruciatore / Burner nozzle
0A2102
ø2
2H/2E+
G20 20mbar
0A2077
ø1.85
2H
G20 25mbar
0A2083
ø2.20
2ELL
G25 20mbar
058335
ø1.45
2L
G25 25mbar
059418
ø2.05
2S
G25.1 25mbar
0A2533
ø1.35
3+3B/P
G30 30mbar
002393
ø1.30
3B/P
G30 36mbar
0A2650
ø1.20
3B/P
G30 50mbar
0A2083
ø2.20
No CE
G20 10mbar
0A2306
ø4
No CE
G110 8mbar
059215
n°27
2H/2E+
G20 20mbar
059215
n°27
2H
G20 25mbar
059215
n°27
2ELL
G25 20mbar
059215
n°27
2L
G25 25mbar
059215
n°27
2S
G25.1 25mbar
059216
n°14
3+3B/P
G30 30mbar
059216
n°14
3B/P
G30 36mbar
059216
n°14
3B/P
G30 50mbar
059215
n°27
No CE
G20 10mbar
059356
n°50
No CE
G110 8mbar
C - Vite di minimo / Min screw
002994
n°145
2H/2E+
G20 20mbar
002994
n°145
2H
G20 25mbar
002994
n°145
2ELL
G25 20mbar
002994
n°145
2L
G25 25mbar
002994
n°145
2S
G25.1 25mbar
004595
n°100
3+3B/P
G30 30mbar
004595
n°100
3B/P
G30 36mbar
002926
n°90
3B/P
G30 50mbar
002994
n°145
No CE
G20 10mbar
-
adjust
No CE
G110 8mbar
0A2102
ø2
2H/2E+
G20 20mbar
0A2077
ø1.85
2H
G20 25mbar
0A2083
ø2.20
2ELL
G25 20mbar
058335
ø1.45
2L
G25 25mbar
059418
ø2.05
2S
G25.1 25mbar
0A2533
ø1.35
3+3B/P
G30 30mbar
002393
ø1.30
3B/P
G30 36mbar
0A2650
ø1.20
3B/P
G30 50mbar
0A2081
ø2.30
No CE
G20 10mbar
002979
ø4
No CE
G110 8mbar
E - Vite di minimo Crh/ Min screw Crh
0A5422
n°160
2H/2E+
G20 20mbar
003159
n°140
2H
G20 25mbar
0A5422
n°160
2ELL
G25 20mbar
0A5422
n°160
2L
G25 25mbar
0A5422
n°160
2S
G25.1 25mbar
003321
n°110
3+3B/P
G30 30mbar
004602
n°100
3B/P
G30 36mbar
0C2987
n°90
3B/P
G30 50mbar
004599
n°150
No CE
G20 10mbar
-
adjust
No CE
G110 8mbar
6DGT Code Ref. / Notes
6DGT Code Ref./ Notes
6DGT Code Ref./ Notes
B - Ugello pilota / Pilot nozz le
6DGT Code Ref./ Notes
D - Ugello bruciatore / Burner nozzle
6DGT Code Ref. / Notes
Page: 5 Ed. 2015 06
Doc. Nr.:
59785PL00
From sr. Nr/ Da Ser. Nr.: 116
6DGT
Code
Pagina 2
Page 2
1
0532824600
*
FONDO 400 mm
BOTTOM PANEL 400 mm
1
0532824700
*
FONDO 800 mm
BOTTOM PANEL 800 mm
2
0835856900
0C0204
PIEDE
FOOT
3
0508898900
0C0122
PIASTRA DI RNFO RZ O
5
085089FD01
*
RIVESTIMENTO LATERALE 400 mm
EXTERNAL PANEL 400 mm
ELX
5
085089FH01
*
RIVESTIMENTO LATERALE 400 mm
EXTERNAL PANEL 400 mm
ZAN
5
085089FF01
*
RIVESTIMENTO LATERALE 800 mm
EXTERNAL PANEL 800 mm
ELX
5
085089FJ01
*
RIVESTIMENTO LATERALE 800 mm
EXTERNAL PANEL 800 mm
ZAN
6
0527850500
0C0156
PIASTRA FISSAGGIO FIANCHI
SIDE PANEL JOINTING PLATE
7
087089DL00
0C7913
RIP. PIASTRA FERRO LISCIO 400mm
SHELF, SMOOTH PLATE 400 mm
ELX - EL
7
087089DM00
0C7914
RIP. PIASTRA FE. RI GAT A 4 00mm
SHELF, RIBBED PLATE 400 mm
ELX - EL
7
087089DN00
0C7915
RIP. PIASTRA CROMA TA 4 00m m
SHELF, CHROME SM. PLATE 400 mm
ELX - EL
7
087589BR00
0C8264
RIP. PIASTRA FERRO LISCIO 800mm
SHELF, SMOOTH PLATE 800 mm
ELX - EL
7
087089DT00
0C7920
RIP. PIASTRA FE.1/3 RIGATA 800mm
SHELF, 1/3 RIBBED PLATE 800 mm
ELX - EL
7
087089DU00
0C7921
RIP. PIASTRA CRO MAT A 800mm
SHELF, CHROME SM. PLATE 800 mm
ELX - EL
7
087589CG00
*
RIP. PIASTRA FERRO LISCIO 400mm
SHELF, SMOOTH PLATE 400 mm
ELX - GAS
7
087589CH00
*
RIP. PIASTRA FE. RI GAT A 4 00mm
SHELF, RIBBED PLATE 400 mm
ELX - GAS
7
087589CK00
*
RIP. PIASTRA CRO MAT A 400mm
SHELF, CHROME SM. PLATE 400 mm
ELX - GAS
7
087589CA00
*
RIP. PIASTRA FERRO LISCIO 800mm
SHELF, SMOOTH PLATE 800 mm
ELX - GAS
7
087589CB00
*
RIP. PIASTRA FE.1/3 RIGATA 800mm
SHELF, 1/3 RIBBED PLATE 800 mm
ELX - GAS
7
087589CD00
*
RIP. PIASTRA CRO MAT A 800mm
SHELF, CHROME SM. PLATE 800 mm
ELX - GAS
7
087589CN00
*
RIP. PIASTRA FERRO LISCIO 400mm
SHELF, SMOOTH PLATE 400 mm
ZAN - EL
7
087089JX00
0C8252
RIP. PIASTRA FE. RI GAT A 4 00mm
SHELF, RIBBED PLATE 400 mm
ZAN - EL
7
087089JZ00
0C8253
RIP. PIASTRA CRO MAT A 400mm
SHELF, CHROME SM. PLATE 400 mm
ZAN - EL
7
087589BS00
0C8265
RIP. PIASTRA FERRO LISCIO 800mm
SHELF, SMOOTH PLATE 800 mm
ZAN - EL
7
087089KK00
0C8258
RIP. PIASTRA FE.1/3 RIGATA 800mm
SHELF, 1/3 RIBBED PLATE 800 mm
ZAN - EL
7
087089KJ00
0C8257
RIP. PIASTRA CRO MAT A 800mm
SHELF, CHROME SM. PLATE 800 mm
ZAN - EL
7
087589CP00
*
RIP. PIASTRA FE. RI GAT A 4 00mm
SHELF, RIBBED PLATE 400 mm
ZAN - GAS
7
087589CR00
*
RIP. PIASTRA CRO MAT A 400mm
SHELF, CHROME SM. PLATE 400 mm
ZAN - GAS
7
087589CU00
*
RIP. PIASTRA FERRO LISCIO 800mm
SHELF, SMOOTH PLATE 800 mm
ZAN - GAS
7
087589CV00
*
RIP. PIASTRA FE.1/3 RIGATA 800mm
SHELF, 1/3 RIBBED PLATE 800 mm
ZAN - GAS
7
087589CX00
*
RIP. PIASTRA CRO MAT A 800mm
SHELF, CHROME SM. PLATE 800 mm
ZAN - GAS
8
9
0533886200
*
CIELO VANO 400 mm
BASE TOP 400 mm
9
0533886400
*
CIELO VANO 800 mm
BASE TOP 800 mm
10
11
0502888501
004612
BACINELLA
GASTRONORM BASIN
12
050389WV00
CRUSCOTTO 400 mm
CONTROL PANEL 400 mm
EL
12
050389WW00
CRUSCOTTO 800 mm
CONTROL PANEL 800 mm
EL
12
050389WY00
CRUSCOTTO 400 mm
CONTROL PANEL 400 mm
GAS
12
050389WX00
CRUSCOTTO 400 mm
CONTROL PANEL 400 mm
GAS CHROME
12
050389X000
CRUSCOTTO 800 mm
CONTROL PANEL 800 mm
GAS
12
050389WZ00
CRUSCOTTO 800 mm
CONTROL PANEL 800 mm
GAS CHROME
14
0617817400
004671
RESISTENZA 15 0 0W 230 V
HEATING ELEMENT 15 00W 2 30V
15
0528852101
*
SCATOLA RESISTENZE 400 mm
BOX FOR HEATING ELEM.400 mm
15
0528852201
*
SCATOLA RESISTENZE 800 mm
BOX FOR HEATING ELEM.800 mm
16
0528852301
*
CONTRO SCATOLA 400 mm
INNER BOX, HEAT.ELEM.400 mm
16
0528852401
*
CONTRO SCATOLA 400 mm
INNER BOX, HEAT.ELEM.800 mm
17
0528853201
058613
MORSETTIERA DI ALIMENTAZIONE
MAIN TERMINAL BLO C K
18
0A05400901
0A2134
INTERRUTTORE
SWITCH
19
0646809500
004363
TERMOSTATO
THERMOSTAT
20
0A05414500
0A2205
STAFFA FISSAGGIO
FASTENING PLATE
21
0876800002
005010
LAMPADA VERDE
GREEN LAMP
22
0876800102
005011
LAMPADA GIALLA
YELLOW LAMP
FRYTOP E700XP
FRYTOP E700XP
Pos
Factory Code
Descrizione Description Ref./Note
7 087589CN00 * RIP. PIASTRA FERRO LISCIO 400mm SHELF, SMOOTH PLATE 400 mm ZAN - GAS
0806873800 0C5189 TUBO DI SCARICO DRAIN PIPE
0530884600 0C5188 GUIDA BACINELLA BASIN RUNNERS
