SPARE PARTS CATALOGUE
CATALOGO PARTI DI RICAMBIO
OPEN BASE & ACCESSORIES
BASE APERTA ED ACCESSORI
PNC
MODEL
Pag
Description
371263
E7BAMD00O00
2
OPEN BASE 400MM W/FLANGED FEET X 700MM
371264
E7BAMH00O00
2
OPEN BASE 800MM W/FLANGED FEET X 700MM
371265
E7BAML00O00
2
OPEN BASE 1200MM W/FLANGED FEET X 700MM
391326
E9BAMD00O00
2
OPEN BASE 400MM W/FLANGED FEET X 900MM
391327
E9BAMH00O00
2
OPEN BASE 800MM W/FLANGED FEET X 900MM
391328
E9BAML00O00
2
OPEN BASE 1200MM W/FLANGED FEET X 900MM
371112
E7BAND00O0
2
OPEN BASE 400MM X 700MM
371113
E7BANH00O0
2
OPEN BASE 800MM X 700MM
371114
E7BANL00O0
2
OPEN BASE 1200MM X 700MM
391153
E9BAND00O0
2
OPEN BASE 400MM X 900MM
391154
E9BANH00O0
2
OPEN BASE 800MM X 900MM
391155
E9BANL00O0
2
OPEN BASE 1200MM X 900MM
206350
DOOREL
2
DOOR 700MM & 900MM - ELUX
206342
DOORZAN
2
DOOR 700MM & 900MM - ZAN
206343
DOOR2BRAND
2
DOOR 700MM & 900MM - OEM
206318
2DRW700E
3
DRAWERS 700MM - ELUX
206360
2DRW700Z
3
DRAWERS 700MM - ZAN
206328
2DRW700O
3
DRAWERS 700MM - OEM
206334
2DRW900E
3
DRAWERS 900MM - ELUX
206361
2DRW900Z
3
DRAWERS 900MM - ZAN
206333
2DRW900O
3
DRAWERS 900MM - OEM
206259
HEATKIT
4
HEATER KIT 700MM & 900MM
206245
CENTRSUPP
5
CENTER SUPPORT 700MM & 900MM
206257
GN700BASE
5
GN TRAY RACK 700MM
206145
NSGV
5
GN TRAY RACK 900MM
Index
Pag
General components / componenti generali
- Spare part list / liste ricambi
2,3,4,5
NOTE: not all accessories are
included in this SPC
BOLD: Last Change/ Grassetto= ultima
modifica
From Ser. Nr.
Up to Ser. Nr.
Ed. document pubblication . 2015 – 07
Ed. page revison 2015 - 07
Page 1
Doc. N°
59785U600
DOOR KIT
206342 206343 206350
Pos
Spare
Code
Factory
Code
Descrizione
Description
Ref. /Notes
1
0C3324
806844600
PIEDE CON FLANGIA (MARINE)
MARINE FOOT
2
0C0204
835856900
PIEDE STANDARD
STANDARD FOOT
3
0C0201
830898201
MAGNETE PORTA
DOOR MAGNET
4 0C6171
541813800
RONDELLA SILICONE
SILICONE WASHER
5 6 0C7164
51589A700
MANIGLIA
HANDLE
Elux 6 0C8190
54887A801
MANIGLIA
HANDLE
Zan
6
0A5021
854864203
MANIGLIA
HANDLE
OEM
7
0C0139
516860901
CERNIERA SUP.
UPPER. HINGE, DOOR
8 0C0138
516860801
CERNIERA INF.
BOTTOM HINGE, DOOR
9 0C7156
85089AA04
ASSIEME PORTA (SENZA MANIGLIA)
COMPLETE DOOR (NO HANLE)
Elux, Zan
9 * 85089JX02
ASSIEME PORTA (SENZA MANIGLIA)
COMPLETE DOOR (NO HANLE)
OEM
10
0C7158
50489CQ00
CONTROPORTA
INNER DOOR
11
0C4433
565819900
DISTANZIALE PORTA (ISOLAMENTO)
DOOR SPACER (ISOLATION)
From Ser. Nr.
Up to Ser. Nr.
Ed. document pubblication . 2015 – 07
Ed. page revison 2015 - 07
Page 2
Doc. N°
59785U600

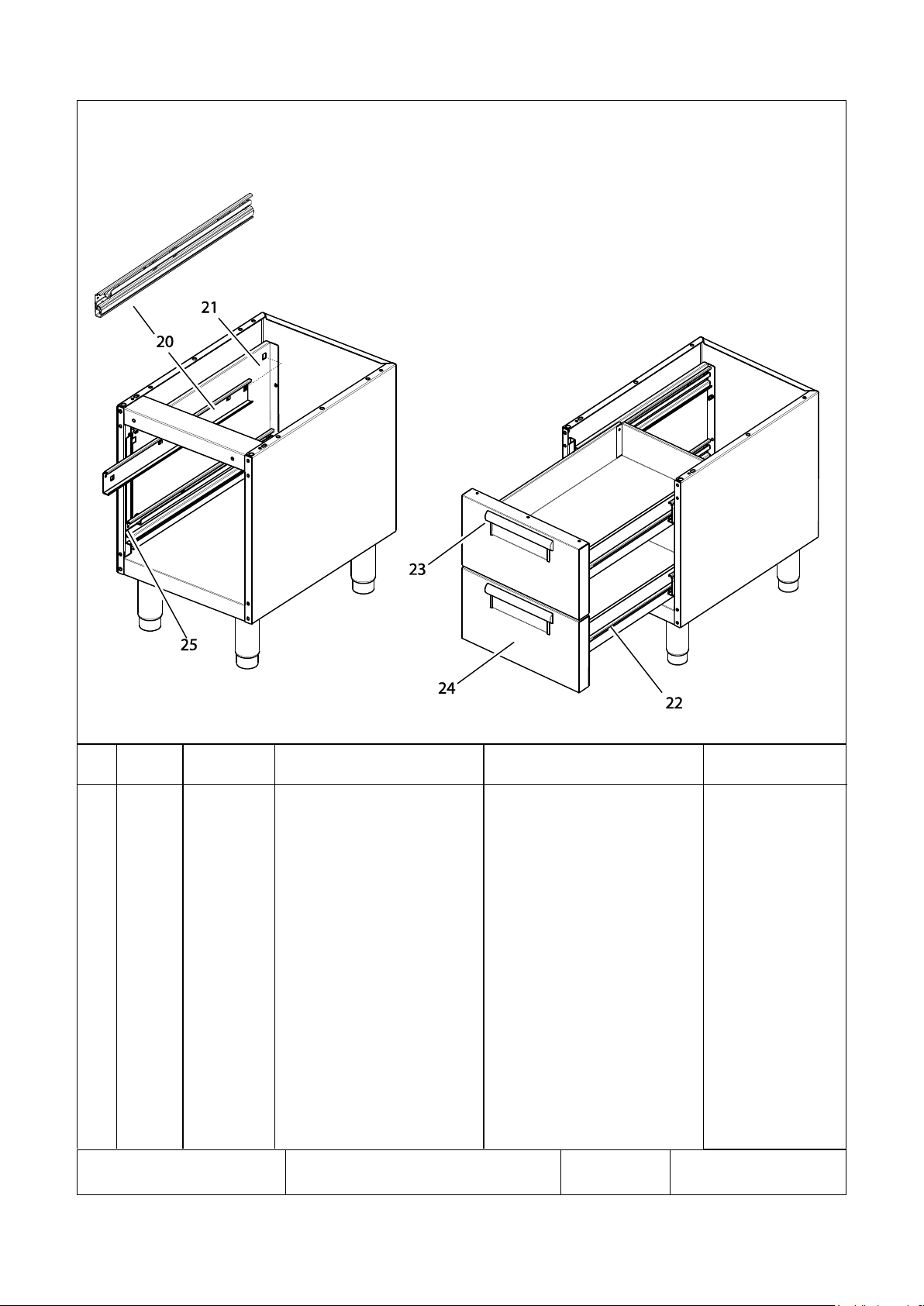

DRAWERS 206328 206318 206360 700MM DEPTH
DRAWERS 206333 206334 206361 900MM DEPTH
Pos
Spare
Code
Factory
Code
Descrizione
Description
Ref. /Notes
20
0C7845
835875Z00
GUIDE CASSETTO con rulliera
( 1 coppia)
DRAWER GUIDE with rollers
(1 pair)
700 & 900
21
0TTU15
50289C902
SUPPORTO GUIDE SX
GUIDE SUPPORT (LEFT SIDE)
700
21
0C9208
50289CD01
SUPPORTO GUIDE SX
GUIDE SUPPORT (LEFT SIDE)
900
21
0TTU14
50289CA02
SUPPORTO GUIDE DX
GUIDE SUPPORT (RIGHT SIDE)
700
21
0C8428
50289CC01
SUPPORTO GUIDE DX
GUIDE SUPPORT (RIGHT SIDE)
900
22
0C9841
85089DK00
CASSETTO CON GUIDE
DRAWER WITH GUIDES
700&900
Pos 20 included
Pos 24 not included
23
0C8769
54887AH00
MANIGLIA
DRAWER HANDLE
ELUX
23
0C8190
54887A801
MANIGLIA
DRAWER HANDLE
ZAN
23
0C7175
548876R02
MANIGLIA
DRAWER HANDLE
OEM
24 * 5038A5T00
FRONTALE CASSETTO
DRAWER FRONT PANEL
24 * 5038A5S00
CONTROCASSETTO
DRAWER FRONT PANEL (BACK
SIDE)
25
052126
214442702
INSERTO FILETTATO
SUPPORT STOPPER
4PCS LEFT
4PSC RIGHT
From Ser. Nr.
Up to Ser. Nr.
Ed. document pubblication . 2015 – 07
Ed. page revison 2015 - 07
Page 3
Doc. N°
59785U600
206259 HEATER KIT
Pos
Spare
Code
Factory
Code
Descrizione
Description
Ref. /Notes
32 * 50289C800
SCATOLA GRUPPO RISCALDANTE
BOX
For 700 pnc’s
33 * 5038AA100
SCATOLA ESTENSIONE
EXTENSION BOX
For 900 pnc’s
34
0C7196
617839G00
RESISTENZA
HEATING ELEMENT
35 * 639804901
MORSETTIERA
TERMINAL BOARD
36
0C0068
544802300
FERMACAVO
CABLE STOPPER
37
005010
876800002
LAMPADA VERDE
GREEN LAMP
38
0A2269
0A05437100
MANOPOLA
KNOB
39
0A2036
0A05211001
INTERRUTTORE BIPOLARE
ON/OFF SWITCH
40
0A2018
0A05005903
TERMOSTATO UNIPOLARE
THERMOSTAT
From Ser. Nr.
Up to Ser. Nr.
Ed. document pubblication . 2015 – 07
Ed. page revison 2015 - 07
Page 4
Doc. N°
59785U600

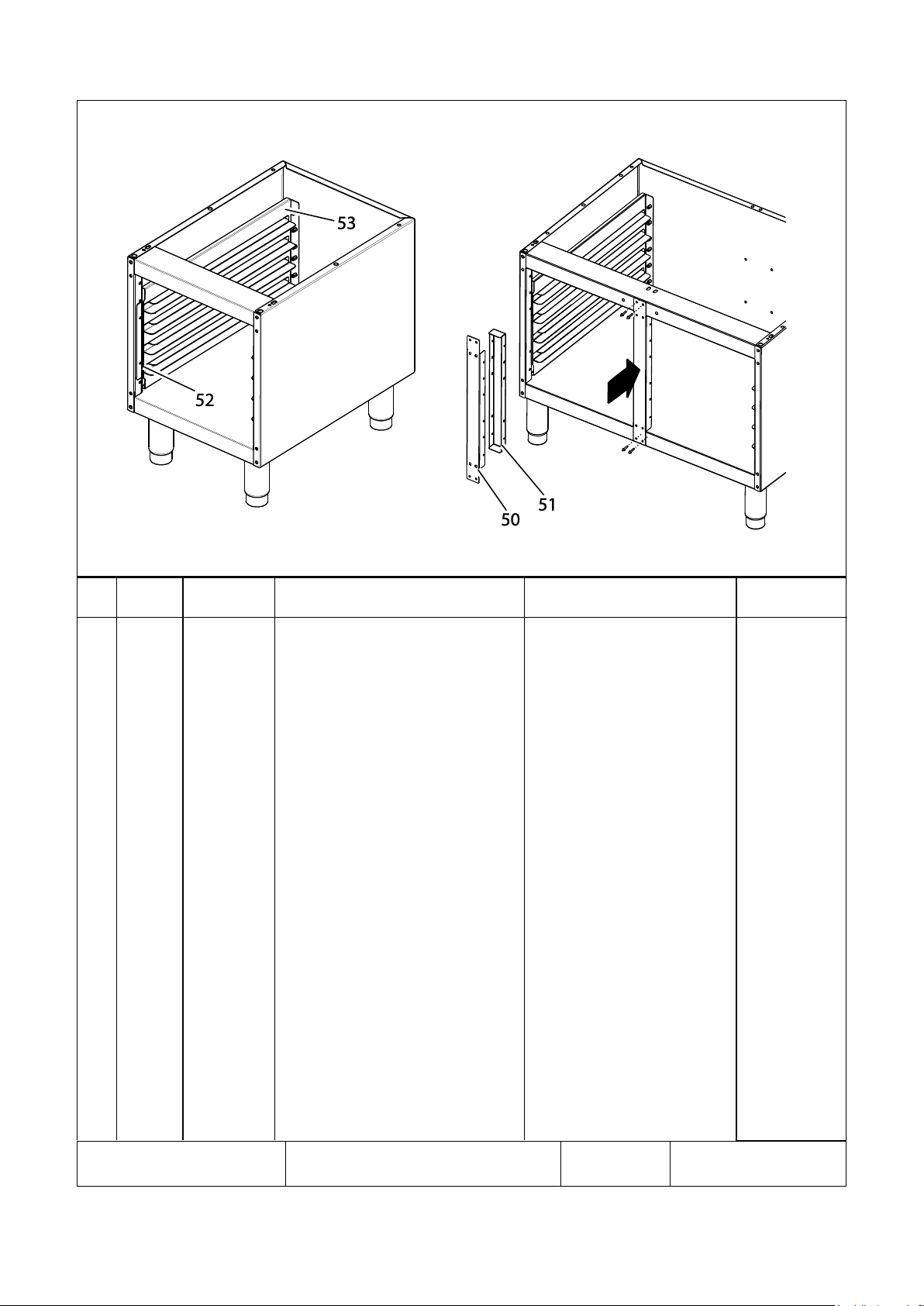

206257 700MM DEPTH 206245 SUPPORT
206145 900MM DEPTH K
Pos
Spare
Code
Factory
Code
Descrizione
Description
Ref. /Notes
50 * 83089HW00
MONTANTE CENTRALE
CENTRAL SUPPORT
51 * 528855800
CHIUSURA POSTERIORE MONT.
CENT.
BACK COVER CENT. SUPP.
52
052126
214442702
INSERTO FILETTATO
SUPPORT STOPPER
2PCS LEFT
2PSC RIGHT
53 * 85089K901
ASSIEME SUPPORTO SX
SUPPORT STRUCTURE
700mm LEFT
*
85089K801
ASSIEME SUPPORTO DX
SUPPORT STRUCTURE
700mm RIGHT
* 853877702
ASSIEME SUPPORTO SX
SUPPORT STRUCTURE
900mm LEFT
* 853877802
ASSIEME SUPPORTO DX
SUPPORT STRUCTURE
900mm RIGHT
From Ser. Nr.
Up to Ser. Nr.
Ed. document pubblication . 2015 – 07
Ed. page revison 2015 - 07
Page 5
Doc. N°
59785U600
