From sr. Nr/ Da Ser. Nr.: 014
From status level / Da scatto: 07 Page: 1 Ed. 2016 02
Doc. Nr.: 875400V00
SPARE PARTS CATALOGUE
CATALOGO PARTI DI RICAMBIO
10 GN 1/1 ELECTRIC CONVECTION / STEAM OVEN
FORNO CONVEZIONE / VAPORE ELETTRICO 10 GN 1/1
PNC
Model
Ref
Group
Level
Page
Notes
236202
FCZ101 EKA
T
FCZ
Level K
2…13
400V 3N 50Hz
236222
FCZ101EKN
U
FCZ
Level K
2…13
230V 3N
237202
FCZ101ETA
A
FCZ
Touch
2…13
400V 3N 50Hz
237212
FCZ101ETH
B
FCZ
Touch
2…13
400V 3N 50Hz P80
237222
FCZ101ETN
C
FCZ
Touch
2…13
230V 3N
237302
FCZ101ETK
h1
FCZ
Touch
2…13
400V 3N 50Hz
238202
FCZ101EBA2
D
FCZ
Level B
2…13
400V 3N 50Hz
238212
FCZ101EBH2
E
FCZ
Level B
2…13
400V 3N 50Hz P80
238222
FCZ101EBN2
F
FCZ
Level B
2…13
230V 3N
238232
FCZ101EBC2
G
FCZ
Level B
2…13
200V 3 60Hz Japan
239202
FCZ101ECA2
H
FCZ
Level C
2…13
400V 3N 50Hz
239212
FCZ101ECH2
I
FCZ
Level C
2…13
400V 3N 50Hz P80
239222
FCZ101ECA2
L
FCZ
Level C
2…13
230V 3N
239342
FCZ101ECAS
g1
FCZ
Level C
2…13
400V 3N 50/60 Hz
266202
AOS101EKA1
Q
AOS
Level K
2…13
400V 3N 50Hz
266222
AOS101EKN1
R
AOS
Level K
2…13
230V 3N
266282
AOS101EKM1
S
AOS
Level K
2…13
208V 3 USA
266322
AOS101EKV1
f1
AOS
Level K
2…13
480V 3 60HZ USA
266352
AOS101EKR1
a1
AOS
Level K
2…13
400V 3N 50/60HZ AUS
267072
AOS101EAQ1
O
AOS
Level A
2…13
Nando's
267202
AOS101ETA1
a
AOS
Touch
2…13
400V 3N 50Hz
267212
AOS101ETH1
b
AOS
Touch
2…13
400V 3N 50Hz P80
267222
AOS101ETN1
c
AOS
Touch
2…13
230V 3N
267232
AOS101ETC1
d
AOS
Touch
2…13
200V 3 60Hz Japan
267242
AOS101ETE1
e
AOS
Touch
2…13
440V 3 Marine
267252
AOS101ETF1
f
AOS
Touch
2…13
400V 3 Marine
267282
AOS101ETM1
h
AOS
Touch
2…13
208V 3 USA
267302
AOS101ETK1
l
AOS
Touch
2…13
400V 3N UK
267322
AOS101ETV1
i1
AOS
Touch
2…13
480V 3 USA
267352
AOS101ETR1
b1
AOS
Touch
2…13
400V 3N 50/60HZ AUS
268202
AOS101EBA2
n
AOS
Level B
2…13
400V 3N
268212
AOS101EBH2
o
AOS
Level B
2…13
400V 3N 50Hz P80
268222
AOS101EBN2
p
AOS
Level B
2…13
230V 3N
268232
AOS101EBC2
q
AOS
Level B
2…13
200V 3 60Hz Japan
268242
AOS101EBE2
r
AOS
Level B
2…13
440V 3 Marine
268252
AOS101EBF2
s
AOS
Level B
2…13
400V 3 Marine
268262
AOS101EB12
l1
AOS
Level B
2…13
440V 3 Marine
268302
AOS101EBH2
t
AOS
Level B
2…13
400V 3N UK
268352
AOS101EBR2
c1
AOS
Level B
2…13
400V 3N 50/60HZ AUS
269202
AOS101ECA2
u
AOS
Level C
2…13
400V 3N 50Hz
269212
AOS101ECH2
v
AOS
Level C
2…13
400V 3N 50Hz P80
269222
AOS101ECN2
z
AOS
Level C
2…13
230V 3N
269242
AOS101ECE2
m1
AOS
Level C
2…13
440V 3 50Hz Marine
269252
AOS101ECF2
n1
AOS
Level C
2…13
400V 3 50Hz Marine
269282
AOS101ECM1
P
AOS
Level C
2…13
208V 3 USA
From sr. Nr/ Da Ser. Nr.: 014
From status level / Da scatto: 07 Page: 2 Ed. 2016 02
Doc. Nr.: 875400V00
269302
AOS101ECK2
M
AOS
Level C
2…13
400V 3N UK
269322
AOS101ECV1
e1
AOS
Level C
2…13
480V 3 60HZ USA
269332
AOS101ECY2
N
AOS
Level C
2…13
400V 30 Bakery
269352
AOS101ECR2
d1
AOS
Level C
2…13
400V 3N 50/60HZ AUS
Pag
Index
Indice
Note
3
4
5
6
7
8...13
Oven cabinet and door.
Water system
Boiler
Electrical components
Accessories
Spare parts list
Cella forno e porta
Impianto idraulico
Boiler
Componenti elettrici
Accessori
Lista ricambi
Brand/Marchio: All
Factory code: 9PDD
From sr. Nr/ Da Ser. Nr.: 014
From status level / Da scatto: 07 Page: 3 Ed. 2016 02
Doc. Nr.: 875400V00
From sr. Nr/ Da Ser. Nr.: 014
From status level / Da scatto: 07 Page: 4 Ed. 2016 02
Doc. Nr.: 875400V00
From sr. Nr/ Da Ser. Nr.: 014
From status level / Da scatto: 07 Page: 5 Ed. 2016 02
Doc. Nr.: 875400V00
From sr. Nr/ Da Ser. Nr.: 014
From status level / Da scatto: 07 Page: 6 Ed. 2016 02
Doc. Nr.: 875400V00
From sr. Nr/ Da Ser. Nr.: 014
From status level / Da scatto: 07 Page: 7 Ed. 2016 02
Doc. Nr.: 875400V00
From sr. Nr/ Da Ser. Nr.: 014
From status level / Da scatto: 07 Page: 8 Ed. 2016 02
Doc. Nr.: 875400V00
10 GN 1/1 ELECTRIC CONVECTION / STEAMER OVEN
FORNO CONVEZIONE / VAPORE ELETTRICO 10 GN 1/1
Pos
Factory
Code
6DGT
Code
Descrizione
Description
Ref./Note
Pagina 2
Page 2
1
0590831300
0C6177
COPERCHIO
COVER
2
0530890900
0C6174
FIANCO DX
RIGHT SIDE PANEL
3
0530892700
0C6190
SCHIENALE
BACK PANEL
3
0530893100
0C6194
SCHIENALE
BACK PANEL
for Marine models
4
0530893300
0C6196
FIANCO SX
LEFT SIDE PANEL
5
0831850900
0C4892
PIEDINO
FOOT
From 2008/01
up to 2012/18
5
0831842202
0C4233
PIEDINO
FOOT
Up to 2007/52
from 2012/19
5
0806872300
0C4823
PIEDINO
FOOT
For Marine Version
6
0806847803
0C4234
CERNIERA SUPERIORE
UPPER HINGE
7
0806861600
0C4235
CERNIERA INFERIORE
LOWER HINGE
8
0873869902
0C4470
VETRO INTERNO
INNER GLASS
*
0850400P00
0C6576
TELAIO PORTA
DOOR CHASSIS
9
0879400500
0C6601
PORTA COMPLETA
COMPLETE DOOR
10
0806859302
0C4476
PROFILO DX-SX
RIGHT AND LEFT TRIM
11
0574400300
0C6559
VETRO ESTERNO
EXTERNAL GLASS
For AOS Version
11
11
0574818501
0574400P00
0C4943
0C7972
VETRO ESTERNO
VETRO ESTERNO
EXTERNAL GLASS
EXTERNAL GLASS
For FCZ Version
For Nando’s Version
12
0543839700
0C4088
GUARNIZIONE SPILLONE
GASKET
13
0543828001
006976
AMMORTIZZATORE
DAMPER
14
0806822000
007007
CERNIERA VETRO INTERNO
HINGE, INNER GLASS
15
0835871801
0C4089
GR.CHIUSURA A SCATTO 'HRS'
CLOSING MECHANISM
16
0510824200
0C4237
SUPPORTO GR.CHIUSURA
SUPPORTO
17
0548871500
0C4090
MANIGLIA CHIUSURA
DOOR HANDLE
18
0516896400
0C4238
DADO FISSAGGIO
NUT FOR DOOR CATCHER
19
0546822600
0C4091
TAPPO PER MANIGLIA 'HRS'
DOOR COVER HANDLE
20
0806859900
0C4092
NASELLO
DOOR CATCHER
21
0699603700
049627
MAGNETE
MAGNET
22
0528869501
0C4239
VASCHETTA RACC.CONDENSA
DOOR DRAIN TRAY
23
0831846901
0C1477
GUARNIZIONE CELLA-PORTA
GASKET
24
0830892205
0C4619
PARETE DI ASPIRAZIONE
SUCTION WALL
25
0518807301
0C3423
MOLLA AGGANCIO PARETE
SPRING
26
0518808600
0C1740
FILTRO FONDO
FILTER
27
0654600000
049621
INTERRUTTORE MAGNETICO
MAGNETIC SWITCH
28
0831831000
0C4240
SPILLONE MULTIPOINT
MEAT PROBE MULTI POINT
For Level TOUCH
28
0831830700
0C4241
SPILLONE SINGOLO PUNTO
MEAT PROBE SINGLE POINT
For Level B, C,K
29
0527865201
0C1505
SUPPORTO SPILLONE
MEAT PROBE SUPPORT
30
0856814000
0C4242
BACINELLA SNODABILE
DRAIN TRAY
31
0806858800
0C4243
TUBO PER CONDENSA 1/1
DRAIN TUBE
32
0516855300
006991
DADO SONDA CELLA
NUT, CAVITY PROBE
33
0543842600
0C4872
TAPPO PER SENSORE
STOPPER FOR SENSOR
34
0214105101
020997
CONTRODADO PORTAUGELLO
LOCK NUT
35
0516809301
002701
RONDELLA TENUTA SONDA
WASHER
36
0543816300
002624
GUARNIZIONE PER SONDA
GASKET
37
0516809400
002623
RACCORDO SONDA CELLA
CONNECTION, CAVITY PROBE
38
0518818000
0C8561
MOLLA PER CHIUSURA
SPRING
41
0806857201
0C4244
COND. FLANGIATO SONDA
FLANGE TUBE
For Level TOUCH
42
0543838300
0C4093
GUARNIZIONE BYPASS/LAMBDA
GASKET
44
0543841300
0C4094
GUARN. VASC. COND. PORTA
GASKET
45
0806873000
0C6351
CONDOTTO FLANGIATO BY-PASS
DUCT, BYPASS PROBE
For Level B, C,K
46
0543828901
007005
GUARN. COND. ARIA-COPERCHIO
GASKET, DUCT
47
0611806001
006998
MOTORE
MOTOR
For Level TOUCH,B
Not for 60Hz version
47
0611809000
0C5287
MOTORE
MOTOR
For Level C
47
0611807300
0C1474
MOTORE
MOTOR
For 60Hz Version
47
0611400100
0C6936
MOTORE
MOTOR
For 480V
48
0543816700
002873
O RING
O RING
From sr. Nr/ Da Ser. Nr.: 014
From status level / Da scatto: 07 Page: 9 Ed. 2016 02
Doc. Nr.: 875400V00
10 GN 1/1 ELECTRIC CONVECTION / STEAMER OVEN
FORNO CONVEZIONE / VAPORE ELETTRICO 10 GN 1/1
Pos
Factory
Code
6DGT
Code
Descrizione
Description
Ref./Note
49
0516808902
002699
CUSCINETTO
BEARING
50
0538815400
0C4138
FLANGIA FISS.TENUTA MOTORE
FLANGE
51
0835400800
-
VENTOLA
FAN
52
0617826900
007066
RESISTENZA (5.6 kW/230V)
HEATING ELEM. (5.6 kW/230V)
For 230V Version
52
0617838900
0C6026
RESISTENZA (5.6 kW/200V)
HEATING ELEM. (5.6 kW/200V)
For 200V Version
52
0617823801
007064
RESISTENZA (5.6 kW/400V)
HEATING ELEM. (5.6 kW/400V)
for 400V models
up to 138…
52
0617400801
0C6501
RESISTENZA (5.6 kW/400V)
HEATING ELEM. (5.6 kW/400V)
for 400V models
from 139…
52
0617827000
0C1936
RESISTENZA (5,6 kW/440V)
HEATING ELEM. (5,6 kW/440V)
For 440V Version
up to 115…
52
0617400Q00
0C7059
RESISTENZA (5,6 kW/440V)
HEATING ELEM. (5,6 kW/440V)
For 440V Version
from 116…
52
0617829200
0C1396
RESISTENZA (5,5 kW/208V USA)
HEAT. ELEM. (5,5 kW/208V USA)
For 208V Version
52
0617829800
0C1500
RESISTENZA (5,5 kW/240 V USA)
HEAT. ELEM. (5,5 kW/240V USA)
For 240V Version
52
0617400400
0C6942
RESISTENZA (5,5 kW/480 V USA)
HEAT. ELEM. (5,5 kW/480V USA)
For 480V USA
52
0617400401
0CA330
RESISTENZA (5,5 kW/480 V USA)
HEAT. ELEM. (5,5 kW/480V USA)
For 480V marine
53
0543816501
002689
GUARNIZIONE RESIST. CELLA
GASKET, CAVITY HEATING EL.
54
0503897402
006253
ANGOLARE RESISTENZE
SUPPORT
55
0503891801
006256
LAMA FISSAGGIO RESISTENZE
SUPPORT
56
0505404N00
0C3830
SUPPORTO RESISTENZE
SUPPORT
57
0527898900
0C4857
PIASTRA CHIUSURA
FLANGE
for Level C,K
59
0856828400
0C4975
CONDOTTO UMIDIFICATORE
HUMIDIFIER PIPNG
for Level C,K
60
0516887101
0C6228
DADO CONDOTTO
NUT HUMIDIFIER
for Level C,K
61 * 0C6465
KIT SONDA LAMBDA
LAMBDA KIT
for level TOUCH
62
0835872002
0C4477
ASSIEME CHIUSURA PORTA
COMPLETE CLOSING MECH.
Up to 6081…
62
0835402M00
*
ASSIEME CHIUSURA PORTA
COMPLETE CLOSING MECH.
From 6091…
63
0830400600
0C6572
MANIGLIA COMPLETA
COMPLETE DOOR HANDLE
for FCZ Group
63
0830400500
0C6569
MANIGLIA COMPLETA
COMPLETE DOOR HANDLE
for AOS Group
64
0830898902
0C6538
SENSORE TEMPERATURA
TEMP. PROBE
65
0830899101
0C6539
SENSORE TEMPERATURA
TEMP. PROBE
66
0543400900
0C7016
GUARNIZIONE PER TUBO
PIPE GASKET
67
0543816601
002692
TAPPO CARICO DISINCROST.
RECHARGE CAP FOR SCALER
68
0543843201
0C4965
GOMMINO CHIUSURA ING.DISIN
GASKET
Pagina 4
Page 4
100
0696808300
0C5516
ELETTROVALVOLA 2 VIE
WATER VALVE 2 WAYS
for Level A,B
101
0543840600
0C4096
GUARNIZIONE FILTRO REFLEX
GASKET
for Level A,B
102
0549801800
0C2312
VALVOLA NON RITORNO
NOT RE-FLOW VALVE
for Level A,B
103
0516879400
0C2313
RACCORDO ENTRATA ACQUA
PIPE FITTING
for Level A,B
105
0831811400
0C1155
ASSIEME FILTRO
FILTER
106
0516896101
0C4198
RACCORDO PORTAGOMMA
PIPE FITTING
107
0544809000
0C1117
VALVOLA NON RITORNO
NOT RE-FLOW VALVE
108
0516871900
0C1116
RACCORDO PER POMPA
CONNECTION, PUPM
109
0543832300
0C1935
O-RING
O-RING
110
0680801201
0C2341
POMPA
PUMP
for 50 Hz
-
KIT POMPA
0C2341+0C1116+0C1935
PUMP KIT
0C2341+0C1116+0C1935
For 50 Hz
110
0680801301
0C2342
POMPA
PUMP
for 60 Hz - -
0C2309
TUBO POMPA - SERBATOIO
PUMP – TANK HOUSE
116
0805400201
0C6202
ASSIEME COLL. LAVAGGIO
CONNECTION,C.S.
117
0806871100
0C6031
ASS. SUPP. ATTACCO GETTO LAV.
SUPPORT
118
0543841400
0C4201
GUARNIZIONE IN RAME
COPPER GARKET
119
0516898301
0C4467
CUSCINETTO GETTO ROTANTE
BEARING
120
0516896000
0C4202
DADO
NUT
121
0806873900
0C5503
GETTO ROTANTE
ROTATING WASHING JET
122
0518807100
007026
MOLLA
SPRING
123
0544808100
0C1151
TAPPO PER SERBATOIO BLU
BLUE CUP
124
0544808200
0C1152
TAPPO PER SERBATOIO ROSSO
RED CUP
125
0544808001
0C4426
SERBATOIO DETERGENTE-BRIL
TANK
From sr. Nr/ Da Ser. Nr.: 014
From status level / Da scatto: 07 Page: 10 Ed. 2016 02
Doc. Nr.: 875400V00
10 GN 1/1 ELECTRIC CONVECTION / STEAMER OVEN
FORNO CONVEZIONE / VAPORE ELETTRICO 10 GN 1/1
Pos
Factory
Code
6DGT
Code
Descrizione
Description
Ref./Note
126
0544808900
0C1154
PARATIA PER SERBATOIO ROSSO
RED BULKHEAD
127
0544808400
0C1153
PARATIA PER SERBATOIO BLU
BLUE BULKHEAD
129
0H22982600
007012
TUBO UMIDIFICATORE
HUMIDIFIER PIPE
for Level A, B
129
0856828600
0C4977
TUBO UMIDIFICATORE
HUMIDIFIER PIPE
for Level C,K
130
0696808200
0C5515
ELETTROVALVOLA
WATER VALVE
for Level C,K
131
0831857200
0C6370
ASSIEME COLLETTORE LAV.
CONNECTION,C.S.
132 0696808600
0C6374
GRUPPO VALVOLE CLEANYNG
VALVE GROUP C.S.
for Level TOUCH, B
not for 60Hz version
132
0696400100
0C6373
GRUPPO VALVOLE CLEANYNG
VALVE GROUP C.S.
for 60 Hz Version
132
0696400300
0C6406
GRUPPO VALVOLE CLEANYNG
VALVE GROUP C.S.
for Level C,K
133
0546825100
0C6222
FORCELLA SICUREZZA
CLIP
134
0646817200
0C6217
PRESSOSTATO ATTACCO RAPID
WATER PRESSURE SWITCH
135
0513805000
0C5426
STAFFA SUPPORTO SERBATOIO
SUPPORT PLATE
136
0546824100
0C6201
GANCIO SERBATOIO
HOOK
137
-
0C6375
KIT RIDUTTORI
FLOW REDUCER KIT
138
-
0C6377
KIT O-RING +BUSSOLA
O-RING +BUSH KIT
139
0219035015
0C6421
ANELLO ELASTICO
ELASTIC RING
140
0505401R00
0C7924
PIASTRINA FISSAGGIO POMPE
FIXING PLAQUE
141
0544400C01
0C8348
VITE TTL
TTL SCREW
Up to 5151…
141
0544400C02
0CA348
VITE TTL
TTL SCREW
From 5161…
141a
0546400J00
0C9538
CAPPUCCIO DI PROT.
PROTECTION CAP
142
0543400R00
0C7925
PASSACAVO
WIRING BUSH
143
0546814600
0C2309
TUBO EXT
EXT. PIPE
144
0246530100
005382
GOMMINO
GASKET
145
0544819400
0C5829
TUBO EPDM BLU
EPDM PIPE
146
0686400100
0C8347
POMPA DEFOND PHOENIX
PHOENIX DEFOND PUMP
Up to 4441…
146
0686400201
0CA112
POMPA CEME
CEME PUMP
From 4451…
147
0835400L00
0C8683
GRUPPO ENTRATA ACQUA
GROUP WATER INLET
147
0835400M00
0C8684
GRUPPO ENTRATA ACQUA
GROUP WATER INLET
For level C,K
Pagina 5
Page 5
200
0878401100
0C9662
KIT ASSIEME BOILER
BOILER ASS.Y KIT
200
0878401000
-
KIT ASSIEME BOILER
BOILER ASS.Y KIT
h1
201
0569806900
0C5836
KIT ISOLAMENTO
KIT INSULATION
202
0543816601
002692
TAPPO
STOPPER
203
0543844800
0C5834
GUARNIZIONE RES. BOILER
GASKET HEAT BOILER
204
0830890500
007033
SONDA DI LIVELLO
LEVEL PROBE
205
0516809501
007117
RACCORDO
CONNECTION
206
0696804201
0C0882
VALVOLA DI SCARICO
DRAIN VALVE
206
0696808500
0C5518
VALVOLA DI SCARICO
DRAIN VALVE
For 60Hz Version
207
207a
0511820300
0543816800
0C3847
002874
MANICOTTO 1"-3/4"
O-RING
CONNECTION 1"-3/4"
SEALING RING
208
0510828000
0C5564
RESCA D12 FILETT 1/4' GAS
PIPE CONNECTION
209
0516879600
0C4099
UGELLO 'ELPIS'1/4'FD3.5-3/8'M
NOZZLE
210
0543842600
0C4872
TAPPO PER SENSORE
STOPPER FOR SENSOR
211
0527898700
0C4856
FLANGIA CHIUS. FORO BOILER
FLANGE
For Level C,K
212
0543842800
0C4963
GUARN. CHIUSURA FORO BOILER
GASKET
For Level C,K
213
0546815103
0C4532
PANNELLO FRONTALE INFERIORE
PANNEL
214
0873881200
0C4248
DOCCETTA
SHOWER
up to 5201…
214
0875402G00
0CA407
DOCCETTA
SHOWER
for l and h1
from 5211...
215
0543844800
0C5834
GUARNIZIONE
GASKET
216
0617836400
0C5840
RES. BOILER (17 kW/400V)
HEAT. EL. BOILER (17 kW/400V)
For 400V Version
216
0617836900
0C6024
RESI. BOILER (17 kW/200V)
HEAT. EL. BOILER (17 kW/200V)
For 200V Version
216
0617844800
0C5843
RESIST. BOILER (17 kW/230V)
HEAT. EL. BOILER (17kW/230V)
For 230V Version
216
0617838300
0C5846
RESIST. BOILER (17 kW/440V)
HEAT. EL. BOILER (17 kW/440V)
For 440V Version
216
0617837100
0C5821
RESIST. BOILER (17 kW/208V USA)
HEAT. EL. BOIL. 17 kW/208V USA
For 208V Version
216
0617837700
0C5824
RESIST. BOILER (17 kW/240V USA)
HEAT. EL. BOIL. 17 kW/240V USA
For 240V Version
216
0617400100
0C6939
RESIST. BOILER (17 kW/480V USA)
HEAT. EL. BOIL. 17 kW/480V USA
For 480V Version
From sr. Nr/ Da Ser. Nr.: 014
From status level / Da scatto: 07 Page: 11 Ed. 2016 02
Doc. Nr.: 875400V00
10 GN 1/1 ELECTRIC CONVECTION / STEAMER OVEN
FORNO CONVEZIONE / VAPORE ELETTRICO 10 GN 1/1
Pos
Factory
Code
6DGT
Code
Descrizione
Description
Ref./Note
217
0543816800
002874
OR BOILER
OR BOILER
218
0527898600
0C4821
FLANGIA BOILER
FLANGE
219
0515857001
055347
DISTANZIALE PER SONDA L=9
SPACER
220
0543400000
0C7033
GUARNIZIONE PORTELLO
GASKET
for level TOUCH
221
0J89061403
0C3443
PORTELLO ISPEZIONE
INSPECTION COVER
222
0546821401
0C8597
PANNELLO FRONTALE INFERIORE
PANEL
For Level B
223
0830899101
0C6539
SONDA BYPASS 1100 BIANCO
BYPASS PROBE 1100mm WHITE
for Level TOUCH e B
Pagina 6
Page 6
300
0806874001
0C5600
MANOPOLA
HANDLE
For level B, C,K
301
0214114900
051263
CONTRODADO
LOCK NUT
For level B, C,K
302
0508836400
002727
RONDELLA
DISK
For level B, C,K
303
0516807301
002662
BOCCOLA
BUSH
For level B, C,K
304
0548400500
0C6549
MEMBRANA TOUCH
LAYER LEV. TOUCH
for TOUCH AOS Group
304
0548400B00
0C6551
MEMBRANA TOUCH
LAYER LEV. TOUCH
for TOUCH FCZ Group
304
0548400F00
0C6553
MEMBRANA LIV.B
LAYER LEV. B
for Level B AOS Group
304
0675855002
0C4948
MEMBRANA LIV.B
LAYER LEV. B
for Level B FCZ Group
304
0548400J00
0C6556
MEMBRANA LIV.C
LAYER LEV. C
for Level C AOS Group
304
304
304
0675855103
0548401900
0675847601
0C4949
0C8084
0C7961
MEMBRANA LIV.C
MEMBRANA LIV.C BAKERY
MEMBRANA NANDO’S
LAYER LEV. C
LAYER LEV.C BAKERY
LAYER NANDO’S
for Level C FCZ Group
for Level C Bakery
for Nando’s Model
304
0548401G00
0C8706
MEMBRANA LIV. TOUCH “K”
LAYER TOUCH “K”AOS MODELS
For Level Touch “K”
AOS Group
305
0870400501
0C6582
CRUSCOTTO TOUCH (NO MEMBR.)
CONT.PANEL TOUCH (NO LAYER)
for TOUCH AOS Group
305
0870400J00
0C6592
CRUSCOTTO TOUCH (NO MEMBR.)
CONT.PANEL TOUCH (NO LAYER)
for TOUCH FCZ group
305
0870400600
0C6583
CRUSCOTTO LIV. B (NO MEMBR.)
CONT.PANEL LEV. B (NO LAYER)
for Level B AOS Group
305
0873896002
0C4902
CRUSCOTTO LIV. B (NO MEMBR.)
CONT.PANEL LEV. B (NO LAYER)
for Level B FCZ Group
305
0870400K00
0C6593
CRUSCOTTO LIV. C (NO MEMBR.)
CONT.PANEL LEV. C (NO LAYER)
for Level C AOS Group
305
305
0873896102
0873895902
0C4903
0C4901
CRUSCOTTO LIV. C (NO MEMBR.)
CRUSCOTTO NANDO’S
CONT.PANEL LEV. C (NO LAYER)
CONT.PANEL NANDO’S
for Level C FCZ Group.
For Nando’s Model
305
0875401U00
0C8711
CRUSCOTTO LIV.TOUCH “K” CON
MEMBRANA
CONTROL PANEL TOUCH “K” WITH
LAYER
For Level Touch “K”
AOS Group
307
675400A00
0C6571
SCHEDA USER INTERFACE
LIV.TOUCH
USER INTERF. BOARD, LEV. TOUCH
for Level TOUCH,K
up to 2441…
307
675400P01
0C8805
SCHEDA USER INTERFACE
LIV.TOUCH
USER INTERF. BOARD, LEV. TOUCH
for Level TOUCH,K
from 2451…
up to 4481…
307
675400P03
0CA070
SCHEDA USER INTERFACE
LIV.TOUCH
USER INTERF. BOARD, LEV. TOUCH
for Level TOUCH,K
from4491…
307
0675838802
0C0041
SCHEDA USER INTERFACE LIV. B
USER INTERF. BOARD, LEV. B
for Level B
307
0675854600
0C4891
SCHEDA USER INTERFACE LIV. C
USER INTERF. BOARD, LEV. C
for Level C
307
0675854602
0C7350
SCHEDA USER INTERFACE LIV.C(1/2
VEL)
USER INTERF. BOARD,LEV. C
(1/2SPEED)
for level C (stard s/n
120…)
307
0675847701
0C3915
SCHEDA USER INTERFACE NANDO’S
USER INTERFACE NANDO’S
for Nando’s model up
to 114…
307
0675837904
0C0043
SCHEDA USER INTERFACE NANDO’S
USER INTERFACE NANDO’S
for Nando’s model
from to115..
308
0675400801
0C6570
SCHEDA POWER TOUCH
MAIN POWER TOUCH
for Level TOUCH,K
308
308
0675851401
0675837808
0C3916
0C0042
SCHEDA POWER
SCHEDA POWER
MAIN POWER
MAIN POWER
For Nando’s up to
114…
for Level B, C,Nando’s
from 115…
309
0546824600
0C5833
PROLUNGA PULSANTE
PROLONG
for Level B, C,K
-
0546814001
0C3750
DISTANZIALE ARCHETTO NYLON
SPACER NYLON
for Level B, C ,K
-
0633847400
0C6564
CABLAGGIO USER - POWER
MAIN - USER CABLE
for TOUCH level
310
0638400Y00
0C6566
CAVO PROLUNGA USB
USB CABLE
for TOUCH level
-
0638400P00
0C6565
CAVO ALIMENTAZIONE USER
SUPPLY CABLE USER
for TOUCH level
311
311
0652803300
0652806100
0C1480
0C4996
FUSIBILE OMEGA 5X20 6,3A T
FUSIBILE 5X20 3.15A T
FUSE OMEGA 5X20 6,3A T
FUSE 5X20 3.15A T
For E,F1
311
0652800901
058871
FUSIBILE RAPIDO 6.30 A
FUSE FAST 6.3 A
For 400V; 230V
311
0652803900
0C2301
FUSIBILE OMEGA 800MA
FUSE OMEGA 800MA
For 400V; 230V
311
0652803100
0C6034
FUSIBILE 1,6A OMEGA
FUSE 1,6A OMEGA
For 200V
From sr. Nr/ Da Ser. Nr.: 014
From status level / Da scatto: 07 Page: 12 Ed. 2016 02
Doc. Nr.: 875400V00
10 GN 1/1 ELECTRIC CONVECTION / STEAMER OVEN
FORNO CONVEZIONE / VAPORE ELETTRICO 10 GN 1/1
Pos
Factory
Code
6DGT
Code
Descrizione
Description
Ref./Note
311
0652805200
0C2236
FUSIBILE 1,6A WEBER
FUSE 1,6A WEBER
For 200V
311
0652804900
0C3650
FUSIBILE 3,15A
FUSE 3,15A
For Marine Version
311
0652805100
0C2230
FUSIBILE RAPIDO 6.30 x3.2A
FUSE FAST 6.3 x 3.2A
For Marine Version
311
0652803300
0C1480
FUSIBILE 6,3 A
FUSE 6,3 A
For 208V; 240V ; 480V
311
0652400000
0C6946
FUSIBILE 3,15A T
FUSE 3,15 A T
For 480V
312
0652802100
0F0031
PORTAFUSIBILE
FUSE HOLDER
For 400V; 230V
312
0652804800
0C2228
PORTAFUSIBILE
FUSE HOLDER
For Marine Version
313
0646812200
007042
LIMITATORE, CELLA
LIMITER, CAVITY
313
0646810802
006314
LIMITATORE, CELLA
LIMITER, CAVITY
for USA models and l1
314
0508840801
002628
FLANGIA
FLANGE
315
0574804900
002627
VETRO
GLASS
316
0543817202
002626
GUARNIZIONE
GASKET
317
0660808300
0C4396
LAMPADA ALOGENA
HALOGEN LAMP
Up to 4361…
317
0660400100
0C9877
LAMPADA ALOGENA
HALOGEN LAMP
From 4371…
318
0660806401
007055
PORTALAMPADA
LAMP HOLDER
319
0508896801
007081
FARFALLA
CLOSER
320
0680802300
0C5501
MOTORIDUTTORE
MOTOREDUCER
Up to 219…
320
0680400100
0C8687
MOTORIDUTTORE
MOTOREDUCER
From 220…
320
0680802400
0C5502
MOTORIDUTTORE
MOTOREDUCER
Up to 244...
for USA models
320
0680802B00
0C8695
MOTORIDUTTORE
MOTOREDUCER
From 245...
for USA models and
pos. l1
321
0856832702
0C5525
ASTA
SHAFT
322
0543828600
007053
GUARNIZIONE
GASKET
323
0831855200
0C5528
CONDOTTO ARIA
DUCT, AIR
324
0624811000
0C4106
VENTILATORE
FAN
325
0694605400
049303
FILTRO ANTIDISTURBO
FILTER
not for Marine e USA
326
0639808600
0F0112
MORSETTIERA
TERMINAL BOARD
326
0639813100
0C6028
MORSETTIERA
TERMINAL BOARD
For 200V Version
327
0694604400
047541
CONDENSATORE 12.5 Mf
CAPACITOR 12.5 MF
for Level K, Touch, A
e B
not for USA models
327
0694806000
0C5526
CONDENSATORE DA 8 MF
CAPACITOR 8 MF
for Level C – not
marine and USA
models
328
0624400100
0C6895
TRASFORMATORE
TRANSFORMER
Up to 3291
except for Japan, USA
and Marine models
328
0624400900
0C9557
TRASFORMATORE
TRANSFORMER
From 3301
except for Japan, USA
and Marine models
328
0624807100
007046
TRASFORMATORE
TRANSFORMER
For Japan models
328
0624807700
0C0949
TRASFORMATORE
TRANSFORMER
for Marine models
except for l1
329
0648803001
058857
RELE
RELE
329
0648722900
088267
RELE
RELE
For 60Hz Version
330
0624807002
007047
ALIMENTATORE SWITCHING
SWITCHING FEEDER
331
0648807300
088477
CONTATTORE K3-10A
CONTACTOR K3-10A
For 400V Version
331
0648807400
006879
CONTATTORE K3-18A
CONTACTOR K3-18A
331
0648807700
007080
CONTATTORE K3-32A
CONTACTOR K3-32A
For 230V; 200V; 208V;
240V
331
0648613200
0L0355
CONTATTORE K3-24A00
CONTACTOR K3-24A00
For 480V
331
0648400000
088557
CONTATTORE K1-09D10
CONTACTOR K1-09D10
For 480V
332
0509803900
0C4459
RIFLETTORE
REFLECTOR
333
0648802601
056466
INT MAGNETO TERMICO
MAGN. THERM. SWITCH
For Marine Version
334
0624400002
0C6945
TRASFORMATORE
TRANSFORMER
For USA models and l1
335
0648802601
056466
RELE
RELE
For 60Hz Version
336
0543843500
0C5451
GUARNIZIONE
GASKET
337
0646814900
0C2983
LIMITATORE, BOILER
LIMITATORE, BOILER
for Level TOUCH e B
except for USA and l1
From sr. Nr/ Da Ser. Nr.: 014
From status level / Da scatto: 07 Page: 13 Ed. 2016 02
Doc. Nr.: 875400V00
10 GN 1/1 ELECTRIC CONVECTION / STEAMER OVEN
FORNO CONVEZIONE / VAPORE ELETTRICO 10 GN 1/1
Pos
Factory
Code
6DGT
Code
Descrizione
Description
Ref./Note
337
0646810902
006433
LIMITATORE, BOILER
LIMITATORE, BOILER
USA (touch and B) and
l1
338
0546400200
0C6547
VASCHETTA USB
USB PLUG
for TOUCH level
339
0541400A00
0C6546
COPERTURA USB
USB COVER
for TOUCH level
342
343
0675858601
0648722900
0C8033
088267
TASTO ON-OFF(INTER.PRINC)
RELE’ SICUREZZA
ON-OFF(MAIN SWITCH)
SECURITY RELE
For TOUCH level
344
0831851002
0C4934
ASSIEME FILTRO CRUSCOTTO
ASS. FILTER CONTROL PANEL
345
0549400F00
0C9991
FILTRO CRUSCOTTO
FILTER CONTROL PANEL
Pagina 7
Page 7

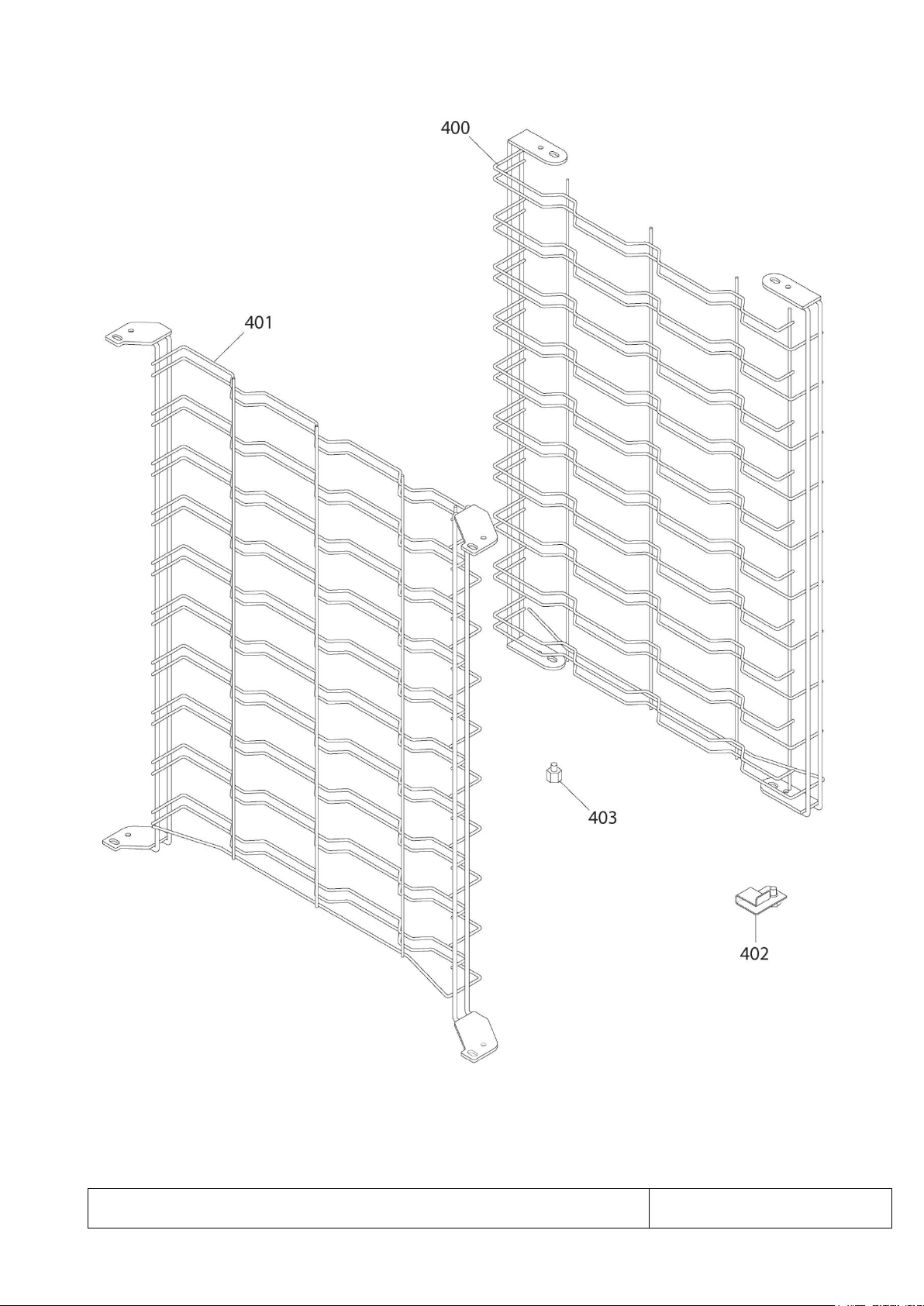

400
0831849200
0C4862
PORTATEGLIE DX P60
TRAY SUPPORT DX P60
For P 60 Version
400
0831852400
0C5015
PORTATEGLIE DX P80
TRAY SUPPORT DX P80
For P 80 Version
401
0831848900
0C4861
PORTATEGLIE SX P60
TRAY SUPPORT SX P60
For P 60 Version
401
0831852300
0C5014
PORTATEGLIE SX P80
TRAY SUPPORT SX P80
For P 80 Version
402
0806872800
0C4961
SUPPORTO CON S.G.
SUPPORT S.G.
403
0511828100
0C5620
SUPPORTO
SUPPORT
*
0527839102
0C1567
ELEM. DX PER STRUTTURA
DX ELEMENT
For Marine Version
*
0527839202
0C1568
ELEM. SX PER STRUTTURA
SX ELEMENT
For Marine Version
*
0853852705
0C3458
ASS.STR. PORTATEGLIE
TRAY SUPPORT
For Marine Version
SONDE DI TEMPERATURA
TEMPERATURE PROBES
0830400N00
0C7028
SONDA CELLA 500mm ROSSA
CAVITY PROBE 500mm RED
0830899001
0C0325
SONDA BOILER 800mm AZZURRA
BOILER PROBE 800mm BLUE
for Level TOUCH e B
0830899101
0C6539
SONDA BYPASS 1100 BIANCO
BYPASS PROBE 1100mm WHITE
for Level TOUCH e B
Loading...
