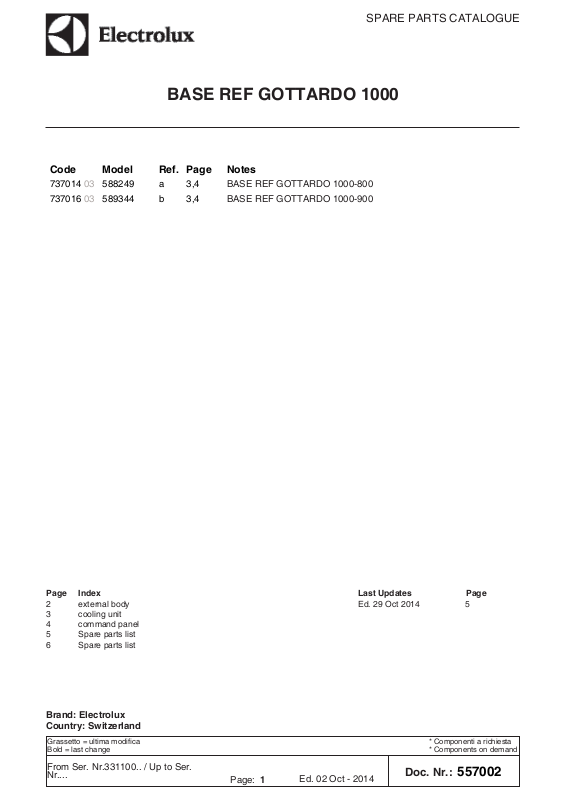

SPARE PARTS CATALOGUE
BASE REF GOTTARDO 1000
Code Model Ref. Page Notes
737014 03 588249 a 3,4 BASE REF GOTTARDO 1000-800
737016 03 589344 b 3,4 BASE REF GOTTARDO 1000-900
Page Index
2 external body
3 cooling unit
4 command panel
5 Spare parts list
6 Spare parts list
Brand: Electrolux
Country: Switzerland
Grassetto = ultima modifi ca
Bold = last change
From Ser. Nr.331100.. / Up to Ser.
Nr....
Page: 1
Last Updates Page
Ed. 29 Oct 2014 5
Ed. 02 Oct - 2014
* Componenti a richiesta
* Components on demand
Doc. Nr.: 557002
external body
8
7
4
2
9
15
5
6
11
12
10
16
3
17
18
6
20
19
21
1
Grassetto = ultima modifi ca
Bold = last change
From Ser. Nr.331100.. / Up to Ser.
Nr....
556002 mob.1000
Page: 2
Ed. 02 Oct - 2014
* Componenti a richiesta
* Components on demand
Doc. Nr.: 557002
27
25
24
22
30
Cooling unit
38
49
32
26
28
23
13
29
36
20
39
37
19
35
33
31
34
Grassetto = ultima modifi ca
Bold = last change
From Ser. Nr.331100.. / Up to Ser.
Nr....
556002 gruppo 1000
Page: 3
Ed. 02 Oct - 2014
* Componenti a richiesta
* Components on demand
Doc. Nr.: 557002
Command
40
42
43
44
1.5ƒ
41
1.5ƒ
47
48
45
46
Grassetto = ultima modifi ca
Bold = last change
From Ser. Nr.331100.. / Up to Ser.
Nr....
556001 comandi 1000
Page: 4
Ed. 02 Oct - 2014
* Componenti a richiesta
* Components on demand
Doc. Nr.: 557002
Pos Code
1 093967 617R09300 Cavo riscaldante Hot frame cable Heizleitung
2 092608 500R01901 Riscontro verticale Vertical frame Vertikaler Rahmen
3 092623 500R68801 Riscontro orizzontale Horizontal Horizontaler Rahmen
4 093968 835R37200 Ass.Cassetto alto Upper Drawer Obere Schublade
5 875R26500 Frontale cassetto alto Front upper drawer Frontblende obere Schublade
6 833R20400 Ass. involucro cassetto Case drawer Seiteneinsatz für Schublade
7 092612 835R13000 Ass. guida DX Right support for drawer Rechte Führungsschiene
8 092613 835R13100 Ass. guida SX Left support for drawer Linke Führungsschiene
9 092625 548R02602 Guarnizione cassetto Drawer gasket Dichtung Schublade
10 093969 835R37300 Ass.Cassetto basso Lower Drawer Untere Schublade
11 875R26600 Frontale cassetto basso Front lower drawer Frontblende untere Schublade
12 092628 501R16100 Fondo Removibile Bottom drawer Bodeneinsatz für Schublade
13 546R11500 Convogliatore aria ventilatore Fan convejor Strömungsaufsatz für Lüfter
16 500R77702 Riscontro per traversa Frame for half support Rahmen für Verstärkung mittig
17 509R17601 Copertura condensatore Condenser cover Kondensatorblende
18 094464 509R17501 Pannello frontale Frontal panel Frontblende Kondensator Up to
18 094465 509R17502 Pannello frontale Frontal panel Frontblende Kondensator From
19 501R95100 Baccinella evaporazione Evaporation basin Verdunstungsbehälter
20 093924 544R03600 Tubo per scarico condensa Water dischage pipe Wassertauschrohr
21 092950 617R05200 PTC 230V PTC 230V PTC 230V
22 092643 830R02402 Evaporatore 2R 12T Evaporator 2R 12T Verdampfer 2R 12T
23 092644 500R68901 Ass. Baccinella evaporatore Evaporator basin Verdamperbecken
24 092176 646R07000 Sonda cella "blu" Cavity probe Fühler blau
25 092183 649R07800 Sonda evaporatore verde Evaporator probe Fühler grün
26 093966 617R09200 Resistenza di sbriname. 150W Heating Elem. defrost 150W Heizelement zum Auftauen 150W
Factory
code
Descrizione Description Bezeichnung
Ref./
Notes
4451...
4461...
27 0A9671 648718900 Termost. di sicurezza +40/+30 Safety thermostat +40/ +30 Sicherheitsthermostat +40/ +30
28 093970 856R21700 Ventilatore 230/50/60HZ Eaporator fan 230/50/60HZ Verdunst.-Ventilator 230/50/60HZ
29 501R07402 Convogliatore int .cella Evaporator Carter Abdeckung d. Verdunstungsein.
30 092642 501R15100 Protezione sonda Probe protection Sondenschutz (Fühlerschutz)
31 092649 830R02301 Condensatore 2R Condensator Kondensator 2R
32 094029 505R16101 Adattatore ventilatore Fan adaptor Lüfteraufsatz Up to
4451...
32 094463 505R16102 Adattatore ventilatore Fan adaptor Lüfteraufsatz From
4461...
33 682F00100 Ventilatore gruppo condens. Condensator fan Lüfter Kondensatoreinheit
34 504F00B00 Custodia ventilatore Protection Fan Schutzabdeckung für Lüfter
35 504F00C00 Supporto ventilatore Fan Support Befestigungsblech für Lüfter
36 093929 858R13200 Ass. Scambiatore Heating exchanger Wärmetauscher Up to
3461...
36 094174 858R13201 Ass. Scambiatore Heating exchanger Wärmetauscher From
3471...
up to
4451...
36 094467 858R13203 Ass. Scambiatore Heating exchanger Wärmetauscher From
4461...
37 084078 805729802 Filtro deidratore 40 gr Dehidrator fi lter 40 gr Entwässerungsfi lter 40 gr
38 0T6191 684R04200 Compressore CAE9470 R404A Compress. CAE9470 R404A Kompressor CAE9470 R404A
Grassetto = ultima modifi ca
Bold = last change
From Ser. Nr.3311... / Up to Ser. Nr....
* Componenti a richiesta
* Components on demand
Ed. 02 Oct - 2014Page: 5
Doc. Nr.: 557002
Pos Code
38 094462 684R10000 Compressore TECUMSH Compressor TECUMSEH Kompressor TECUMSEH
39 093927 835R35900 Guida telescopica Telescopic support Teleskop-Befestigung
40 092658 639R07800 Canalina 40x40 Cover cable Kabelkanal 40 x 40
41 093636 694R00700 Filtro antidisturbo Electrical fi lter Elektronischer Entstörfi lter
42 088267 684722900 Relè Omrom 2A coil 200-240V Relay Relais 2A coil 200-240V
43 092960 646R09603 Scheda xw260K 230V Main board xw260k Hauptplatine xw260K 230V
44 091435 648R02400 Condensatore 1.5 400V Capacitor 1.5 400 V Kondensator 1.5 μF 400V
45 646R09700 Scheda interfaccia User board Bedienblende
46 092958 530R04200 Cornice in acciaio termoreg. Termoregulator frame Frontabdeckung der Bedienblende
47 092948 501R24500 Copertura termoregolatore User board cover Befestistung für Bedienbende
48 092661 546R12600 Guarnizione termoregolatore Termoregulator gasket Schutzabdeckung f. Bedienblende
49 877R65402 Ass. gruppo 1000 Gottardo Ass. cooling unit 1000 got. Kühleinheit thermaline 1000
58
Factory
code
Descrizione Description Bezeichnung
Ref./
Notes
Grassetto = ultima modifi ca
Bold = last change
From Ser. Nr.3311... / Up to Ser. Nr....
* Componenti a richiesta
* Components on demand
Ed. 02 Oct - 2014Page: 6
Doc. Nr.: 557002
