Ecovacs OZMO-900 User Manual

Instruction Manual

Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT! We hope it brings you many years of satisfaction. We believe that your new robot will help keep your home clean and give you more quality time to do other things.

Live Smart. Enjoy Life.

Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our

Customer Service Center where a technician will be able to help you with your specic problem or question.

For more information, please visit the ECOVACS ROBOTICS ofcial website: www.ecovacs.com

The company reserves the right to make technological and/or design changes to this product for continuous improvement.

Instruction Manual

........................................................................................................... 2

Thank you for choosing DEEBOT!

Contents

1. Important Safety Instructions ...........................................................................................................................................4

2. Package Contents ............................................................................................................................................................6

3. Operating and Programming ............................................................................................................................................9

4. Maintenance .....................................................................................................................................................................16

5. Troubleshooting ..............................................................................................................................................................21

6. Technical Specifications .................................................................................................................................................24

1. Important Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical Appliance, basic precautions should always be

followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE SAVE THESE INSTRUCTIONS

1. This Appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the Appliance by a person responsible for their safety.

2. Children should be supervised to ensure that they do not play with the Appliance.

3. Clear the area to be cleaned. Remove power cords and small

objects from the oor that could entangle the Appliance. Tuck

rug fringe under the rug base, and lift items such as curtains

and tablecloths off the oor.

4. If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.

5. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.

6. Please make sure your power supply source voltage matches the power voltage marked on the Docking Station.

7. For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments.

8. Use only the original rechargeable battery and Docking Station provided with the Appliance from the manufacturer. Nonrechargeable batteries are prohibited. For battery information,

please refer to Specications section.

9. Do not use without dust bin and/or lters in place.

10. Do not operate the Appliance in an area where there are lit candles or fragile objects.

11. Do not use in extremely hot or cold environments (below

-5˚C/23˚F or above 40˚C/104˚F).

12. Keep hair, loose clothing, ngers, and all parts of body away from any openings and moving parts.

13. Do not operate the Appliance in a room where an infant or child is sleeping.

14. Do not use Appliance on wet surfaces or surfaces with standing water.

15. Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.

16. Do not use Appliance to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.

17. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything

that could cause a re.

18. Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint,

hair, or anything that may reduce air ow.

19. Take care not to damage the power cord. Do not pull on or carry the Appliance or Docking Station by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep power cord away from hot surfaces.

1. Important Safety Instructions

20. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.

21. Do not use the Docking Station if it is damaged. The power supply is not to be repaired and not to be used any longer if it is damaged or defective.

22. Do not use with a damaged power cord or receptacle. Do not use the Appliance or Docking Station if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.

23. Turn OFF the power switch before cleaning or maintaining the Appliance.

24. The plug must be removed from the receptacle before cleaning or maintaining the Docking Station.

25. Remove the Appliance from the Docking Station, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance.

26. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.

27. Please dispose of used batteries according to local laws and regulations.

28. Do not incinerate the Appliance even if it is severely damaged.

The batteries can explode in a re.

29. When not using the Docking Station for a long period of time, please unplug it.

30. The Appliance must be used in accordance with the directions in this Instruction Manual. ECOVACS ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use.

31. The robot contains batteries that are only replaceable by skilled persons. To replace the robot’s battery, please contact Customer Service.

32. If the robot will not be used for a long time, power OFF the robot for storage and unplug the Docking Station.

33. WARNING: For the purposes of recharging the battery, only use the detachable supply unit CH1630A provided with the Appliance.

For EU Countries

Correct Disposal of this Product

This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To recycle your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can safely recycle this product.

Class II

Short-circuit-proof safety isolating transformer

Switch mode power supply

For indoor use only

2. Package Contents

2.1 Package Contents

Robot

(4) Side Brushes

(2) Washable/Reusable

Microber Cleaning Cloths

Note: Figures and illustrations are reference only and may differ from actual product appearance.

Product design and specications are subject to changes without notice.

Docking Station

Main Brush Option

(Pre-installed)

Cleaning Cloth Plate

Instruction Manual

Direct Suction Option

Sponge Filter and High

Efciency Filter

Quick Start Guide

Reservoir

Multi-function Cleaning

Tool

2.2 Product Diagram

Robot

2. Package Contents

LDS (Laser Distance Sensor)

Anti-collision Sensors and Bumper

RESET Button

Wi-Fi Indicator Light

AUTO Mode Button

Power Switch

Upgrade Port

2. Package Contents

Bottom View

Direct Suction Option

Side Brushes

Main Brush Option

Charging Contacts

Anti-drop Sensors

Reservoir

Water Inlet Cover

Reservoir Release Button

Magnet

Washable/Reusable

Microber Cleaning Cloth

Water Inlet

Cleaning Cloth

Plate

Universal Wheel

3. Operating and Programming

3.1 Notes Before Cleaning

WARNING: Do not use DEEBOT on wet surfaces or surfaces with standing water.

Before using the product on a rug with tasseled edges, please fold the rug edges under.

It may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.

Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place.

Remove power cords and small objects from the oor that the robot

could be obstructed by.

3. Operating and Programming

3.2 Quick Start

Remove Protective Strip

Docking Station Placement

Install Side Brushes

Power ON

3. Operating and Programming

Charge DEEBOT

Note: When DEEBOT completes the cleaning cycle or when the battery

gets low, DEEBOT automatically returns to the Docking Station to recharge itself. DEEBOT can also be sent back to the Docking Station at any time by using the ECOVACS App or by pressing the AUTO Button on the robot for 3 seconds.

Pause

Note: The robot’s Control Panel stops glowing after the robot is paused

for a few minutes. Press the AUTO Mode Button on DEEBOT to wake up the robot.

Start

Power OFF

Note: When DEEBOT is not working, it is recommended to keep it

switched ON and charging.

3. Operating and Programming

Note: For models with App-connectivity, various functions can be performed using the ECOVACS App.

ECOVACS HOME

iOS 9.0 or later Android 4.0 or later

3.3 OZMO Mopping System

3. Operating and Programming

Note: Always keep the Reservoir installed when the robot is cleaning

or charging.

3.4 Choosing a Suction Option

Main Brush Option: The best choice for deep cleaning, with a combination

of the Main Brush and strong suction.

Direct Suction Option: The best choice for daily cleaning. This

Suction Option is specically designed to pick up hair without getting

clogged by it, and is ideal for pet owners.

Install the Direct Suction Option

3. Operating and Programming

Install the Main Brush Option

4. Maintenance

Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station.

4.1 OZMO Mopping System

1 2 3

4 5 6

4.2 Dust Bin and Filters

4. Maintenance

Dust Bin

Filter Net

High Efciency Filter

Sponge Filter

4. Maintenance

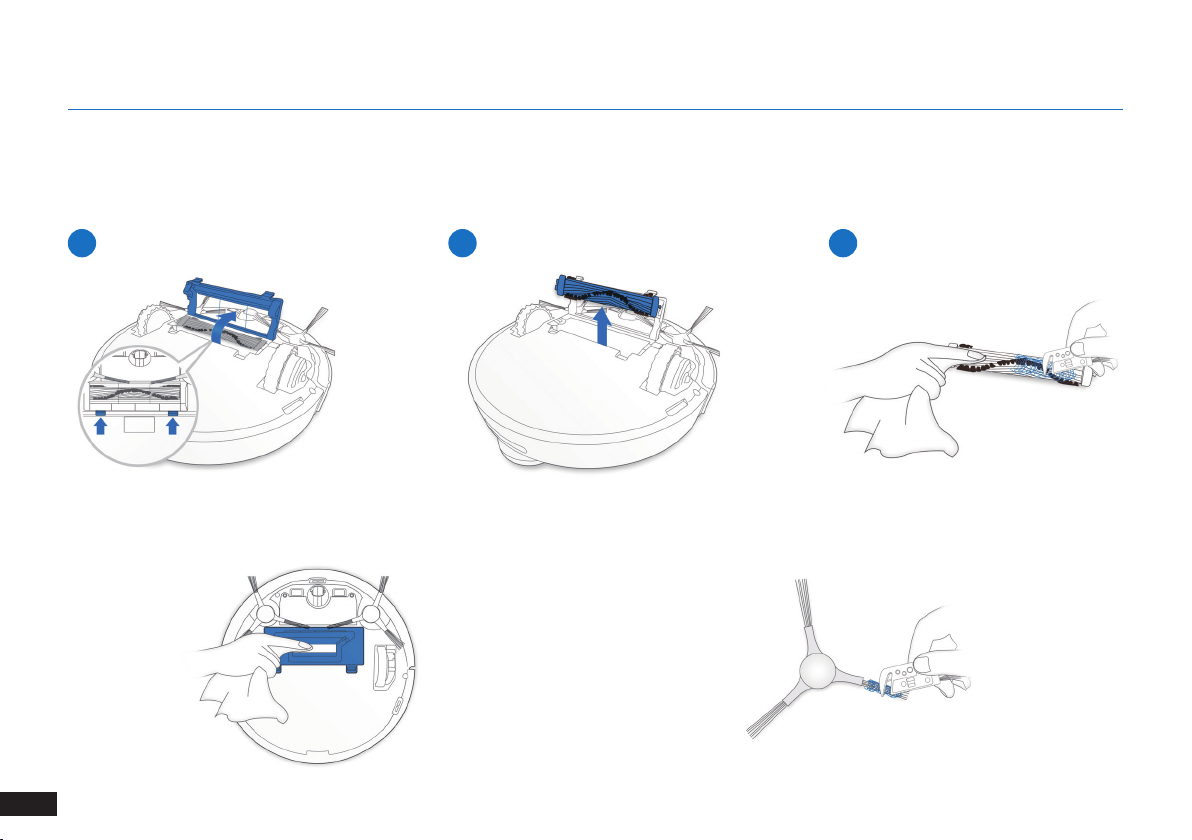

4.3 Main Brush, Direct Suction Option and Side Brushes

Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.

Main Brush

1 2 3

Direct Suction Option Side Brushes

4.4 Other Components

Note: Before cleaning the robot’s Charging Contacts

and Docking Station Pins, turn the robot OFF and unplug the Docking Station.

4. Maintenance

4.5 Regular Maintenance

To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:

Robot Part Maintenance Frequency Replacement Frequency

Cleaning Cloth After each use Every 50 washings

Reservoir/Cleaning Cloth Plate After each use /

Side Brush Once every 2 weeks Every 3-6 months

Main Brush Once per week Every 6-12 months

Sponge Filter/ High Efciency Filter Once per week Every 3-6 months

Universal Wheel

Anti-Drop Sensors

Bumper

Charging Contacts

Docking Station Pins

A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.

Note: ECOVACS manufactures various replacement parts and ttings. Please contact Customer Service for more information on replacement parts.

Once per week /

5. Troubleshooting

No. Malfunction Possible Causes Solutions

DEEBOT is not switched ON. Switch ON DEEBOT.

1 DEEBOT is not charging.

DEEBOT cannot return to the

Docking Station.

DEEBOT gets stuck while

working and stops.

DEEBOT returns to the

Docking Station before it has

nished cleaning.

DEEBOT has not connected to the Docking Station.

The battery is completely discharged.

The Docking Station is not correctly placed. Refer to Section 3.2 to correctly place the Docking Station.

DEEBOT is tangled with something on the oor

(electrical wires, curtains, carpet fringing, etc.).

When the battery gets low, DEEBOT automatically switches to Return to Charger Mode and returns to the Docking Station to recharge itself.

Working time varies according to oor

surface, room complexity and the Cleaning Mode selected.

Be sure that the robot’s Charging Contacts have connected to the Docking Station Pins.

Re-activate the battery. Switch ON. Place DEEBOT on the Docking Station by hand, remove after charging for 3 minutes, repeat 3 times; then charge normally.

DEEBOT will try various ways to free itself. If it is unsuccessful, manually remove the obstacles and restart.

This is normal. No solution necessary.

5. Troubleshooting

No. Malfunction Possible Causes Solutions

DEEBOT does not clean

automatically at the scheduled time.

DEEBOT does not clean the

whole area.

Time Scheduling function is cancelled.

The Continuous Cleaning function is turned

ON and DEEBOT has just nished cleaning

the scheduled cleaning area.

DEEBOT is switched OFF. Switch ON DEEBOT.

The robot’s battery is low.

The robot’s Suction Intake is blocked and/or there is debris stuck in its components.

The cleaning area is not tidy.

Program DEEBOT to clean at specic times using the

ECOVACS App.

This is normal. No solution necessary.

Keep DEEBOT switched ON and connected to the Docking Station to make sure it has a full battery to work at any time.

Power OFF DEEBOT, clean the Dust Bin and invert the robot. Clean the robot’s Suction Intake, Side Brushes and the Main Brush as described in Section 4.

Remove small objects from the oor and tidy up the

cleaning area before DEEBOT starts cleaning.

5. Troubleshooting

No. Malfunction Possible Causes Solutions

DEEBOT misses cleaning

spots to be cleaned, or repeats cleaning the area cleaned.

DEEBOT is not able to connect

to the home Wi-Fi network.

DEEBOT automatically cleans the area missed.

Incorrect home Wi-Fi username or password entered.

DEEBOT is not within range of your home Wi-Fi signal.

Network setup started before DEEBOT was ready.

Your smartphone’s operating system needs to be updated.

This is normal. No solution necessary.

Enter the correct home Wi-Fi username and password.

Make sure DEEBOT is within range of your home Wi-Fi signal.

Turn ON Power Switch. Press the RESET Button using a needle for 3 seconds. DEEBOT is ready for network setup when it plays a musical tune and its Wi-Fi Indicator light

ashes slowly.

Update your smartphone’s operating system. The ECOVACS App runs on iOS 9.0 and above, Android 4.0 and above.

6. Technical Specifications

Model DN5G

Working voltage 14.4V DC

Docking Station Model CH1630A

Input

Note: Technical and design specications may be changed for continuous product improvement.

100-240 V AC, 50/60 Hz, 25W

Output 20 V DC, 0.8 A

Ecovacs Robotics Co., Ltd

No. 18 You Xiang Road, Wuzhong District, Suzhou City, Jiangsu Province, P.R.China

DN5G-EN01-IM2018R01
