1. Important Safety Instructions
When using an electrical appliance, basic precautions should
always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS
APPLIANCE.
SAVE THESE INSTRUCTIONS
1. This Appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
Appliance in a safe way and understand the hazards involved.
Children shall not play with the Appliance. Cleaning and user
maintenance shall not be made by children without supervision.
2. Clear the area to be cleaned. Remove power cords and small
objects from the floor that could entangle the Appliance. Tuck
rug fringe under the rug base, and lift items such as curtains and
3. If there is a drop off in the cleaning area due to a step or stairs,
you should operate the Appliance to ensure that it can detect the
step without falling over the edge. It may become necessary to
place a physical barrier at the edge to keep the unit from falling.
Make sure the physical barrier is not a trip hazard.
4. Only use as described in this manual. Only use attachments
recommended or sold by the manufacturer.
5. Please make sure your power source voltage matches the
power voltage marked on the Docking Station.
6. For INDOOR household use ONLY. Do not use the Appliance in
outdoor, commercial or industrial environments.
7. Use only the original rechargeable battery and Docking Station
provided with the Appliance from the manufacturer. Nonrechargeable batteries are prohibited. For battery information,
8.
2
EN
1. Important Safety Instructions
9. Do not operate the Appliance in an area where there are lit
candles or fragile objects.
10. Do not use in extremely hot or cold environments (below
11. Keep hair, loose clothing, fingers, and all parts of body away
from any openings and moving parts.
12. Do not operate the Appliance in a room where an infant or child
is sleeping.
13. Do not use Appliance on wet surfaces or surfaces with standing water.
14. Do not allow the Appliance to pick up large objects like stones,
large pieces of paper or any item that may clog the Appliance.
15. Do not use Appliance to pick up flammable or combustible
materials such as gasoline, printer or copier toner, or use in
areas where they may be present.
16. Do not use Appliance to pick up anything that is burning or
smoking, such as cigarettes, matches, hot ashes, or anything
17. Do not put objects into the suction intake. Do not use if the
suction intake is blocked. Keep the intake clear of dust, lint, hair,
18. Take care not to damage the power cord. Do not pull on or carry
the Appliance or Docking Station by the power cord, use the power
cord as a handle, close a door on the power cord, or pull power
cord around sharp edges or corners. Do not run Appliance over the
power cord. Keep power cord away from hot surfaces.
19. If the power cord is damaged, it must be replaced by the
manufacturer or its service agent in order to avoid a hazard.
20. The power supply is not to be repaired and not to be used any
longer if it is damaged or defective.
21. Do not use with a damaged power cord or receptacle. Do not
use the Appliance or Docking Station if it is not working properly,
has been dropped, damaged, left outdoors, or come in contact
with water. It must be repaired by the manufacturer or its service
agent in order to avoid a hazard.
EN
3
1. Important Safety Instructions
22. Turn OFF the power switch before cleaning or maintaining the
Appliance.
23. The plug must be removed from the receptacle before cleaning
or maintaining the Docking Station.
24. Remove the Appliance from the Docking Station, and turn OFF
the power switch to the Appliance before removing the battery
for disposal of the Appliance.
25. The battery must be removed and discarded according to local
laws and regulations before disposal of the Appliance.
26. Please dispose of used batteries according to local laws and
regulations.
27. Do not incinerate the Appliance even if it is severely damaged.
28. When not using the Docking Station for a long period of time,
please unplug it.
29. The Appliance must be used in accordance with the directions
in this Instruction Manual. ECOVACS ROBOTICS cannot be
held liable or responsible for any damages or injuries caused by
improper use.
30. The robot contains batteries that are only replaceable by skilled
persons. To replace or remove the battery, please contact
Customer Service.
31. If the robot will not be used for a long time, fully charge the robot
and power OFF for storage and unplug the Docking Station.
32. WARNING:
use the detachable supply unit CH1630A provided with the
appliance.
33. The Remote Control pre-installs two non-rechargeable AAA
batteries. To replace the battery of the Remote Control, please
turn over the Remote Control, press and remove its Battery
Cover. Remove the batteries, and insert the new batteries with
the correct polarity. Reassemble the Battery Cover.
34. Non-rechargeable batteries are not to be recharged.
For the purposes of recharging the battery, only
4
EN
1. Important Safety Instructions
35. Different types of batteries or new and used batteries are not to
be mixed.
36. Batteries of the Remote Control are to be inserted with the
correct polarity.
37. Exhausted batteries are to be removed from the Appliance and
safely disposed of.
38. If the Remote Control is to be stored unused for a long period,
the batteries should be removed.
39. The supply terminals are not to be short-circuited.
For EU Countries
Correct Disposal of this Product
This marking indicates that this product should not be disposed
of with other household wastes throughout the EU. To prevent
possib le har m to the env iro nment or huma n he alt h fr om
uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To recycle your used
device, please use the return and collection systems or contact
the retailer where the product was purchased. They can safely
recycle this product.
Class II
Short-circuit-proof safety isolating transformer
Switch mode power supply
For indoor use only
EN
5
2. Package Contents and Technical Specifications
2.1 Package Contents
Robot
(4) Side Brushes
(2) Washable/Reusable
Docking Station
Main Brush Option
(Pre-installed)
Cleaning Cloth Plate
Remote Control with Batteries
Direct Suction Option
Sponge Filter and
Instruction Manual
Reservoir
2.2 Specifications
Model DD4G, DD4G.**(*=0-9)
Working Voltage 12V DC Rated Power 40W
Docking Station Model CH1630A
Rated Input Voltage 100-240V AC Rated output voltage 20V DC
Rated Output Current 0.8A Rated power
Remote Control Model RC1633
Remote Control Battery Type AAA
Battery
Frequency bands 2412-2472MHz
Maximum RF power transmitted
in the frequency band
Max PA output power at 72.2 Mbps: 17.5 dBm
Max PA output power in 11b mode: 21.5 dBm
Input Voltage 3V DC
Nominal Voltage 1.5V DC
DM88-BYD 3000mAh
25W
Output power of the WIFI module is less than 100mW.
*
6
EN
2. Package Contents and Technical Specifications
2.3 Product Diagram
Robot
14
16
5
1
2
6
7
8
15
17
10
11
3
4
1. Cover
2. AUTO Mode Button
3. Bumper with Anti-
Collision Sensors
4. Reservoir Release Button
5. Anti-Drop Sensors
6. Charging Contacts
Control Panel
1
2
3
Dust Bin
1
2
3
4
5
9
18
7. Side Brushes
8. Main Brush Option
9. Driving Wheels
10. Universal Wheel
11. Battery Pack
12. Water Outlets
13. Reservoir
12
13
14. RESET Button
15. Power Switch
16. Dust Bin
17. Multi-Function Cleaning Tool
18. Roller Wheel
1. Status Indicator Light
2. Wi-Fi Indicator Light
3. AUTO Mode Button
1. Dust Bin Handle
2. Dust Bin Lock
3. Filter Net
4. Sponge Filter
EN
7
2. Package Contents and Technical Specifications
Advanced Mopping System
1
2
3
4
5
Docking Station
1
2
Remote Control
1
2
3
4
5
1. Water Inlet
2. Reservoir
3. Cleaning Cloth Plate
Cleaning Cloth
5. Magnet
1. Infrared Signal Generator
2. Docking Station Pins
1. START/PAUSE Button
2. Direction Control Buttons
3. Return to Charger Mode Button
4. Edge Cleaning Mode Button
5. Spot Cleaning Mode Button
8
EN
3. Operating and Programming
3.1 Notes Before Cleaning
Before operating DEEBOT, take a few moments to survey the area to be
cleaned and remove any obstacles.
Please take care of DEEBOT and assist it at
the cleaning area to put furniture like chairs in their proper place.
Before using the product near an area rug or
on a short-pile area rug with tasseled edges,
please fold area rug edges under themselves.
EN
9
3. Operating and Programming
Please be aware that the robot needs at
least an 8 cm (3.1") clearance to clean under
furniture without complications.
If there is a step or stairs in the cleaning area,
please operate DEEBOT to ensure its AntiDrop Sensors can detect the drop off. It may
be necessary to place a physical barrier at the
edge of the drop off to keep the unit from falling
over the edge.
3.2 Quick Start
Remove the protective strip from the robot’s
*
Bumper before use.
Please do not stand in narrow spaces, such as
hallways, or DEEBOT may fail to identify the
area to be cleaned.
10
EN

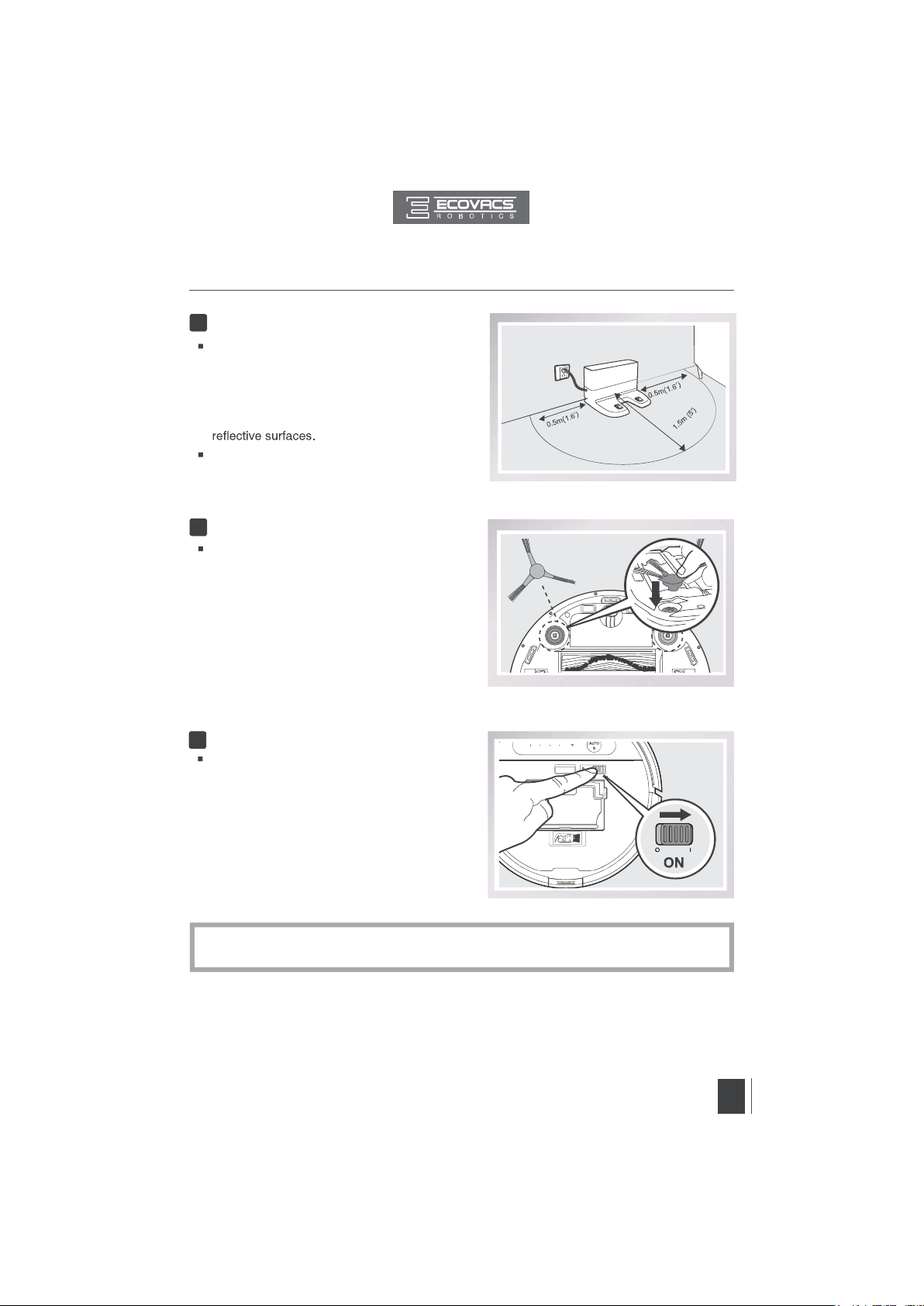

Docking Station Placement
1
Pla ce the Docking Station on a lev el
floor surface against the wall with the
base perpendicular to the ground. Keep
the i mmediate area 1.5m (5') in front
of the charger and 0.5m (1.6') on both
sides of the charger clear of objects and
Plug the Docking Station in.
Install Side Brushes
2
Attach Side Brushes to the bottom of
DEEBOT by pressing a brush into each
slot with the matching color until it clicks.
3. Operating and Programming
Power ON
3
Open the robot’s Top Cover. Turn the
robot's Power Switch to the ON position.
DEEBOT is powered ON when DEEBOT
emits a musical sound and the AUTO
Mode Button stays illuminated.
When DEEBOT is not cleaning, it is suggested to keep it powered ON and charging instead of
*
powered OFF.
EN
11
3. Operating and Programming
4
Charge DEEBOT
Pl ace DEEB O T on the Doc king Sta tion
ma king sure the Char g i ng Co n tact s on
DEEBOT and the Docking Station Pins make
a connection.
Charge DEEBOT for at least 4 hours before
Make sure to turn the robot’s Power Switch to the ON position before charging.
*
* AUTO Mode Button blinks when DEEBOT is charging. AUTO Mode Button stops glowing when
DEEBOT is fully charged.
* When DEEBOT completes the cleaning cycle or when battery power gets low, DEEBOT
automatically returns to the Docking Station to recharge itself. DEEBOT can also be sent back to the
Docking Station at any time by pressing the Return to Charger Button on the Remote Control.
* Empty any remaining water from the Reservoir and remove the Cleaning Cloth Plate before charging
DEEBOT.
5
Start
Press the AUTO Mode Button on DEEBOT or
on the Remote Control. DEEBOT starts to
work immediately in AUTO Cleaning Mode.
12
6 Pause
Pause DEEBOT by pressing the AUTO Mode
Button on DEEBOT or on the Remote Control.
DEEBOT can be directed to move forward,
*
backward, left and right using the Direction
Control Buttons on the Remote Control when
it is Paused.
* The AUTO Mode Button on the robot’s Control
Panel stops glowing after the robot is paused
for more than 10 minutes. Press AUTO Mode
Button on the robot or press any button on the
Remote Control to wake up the robot.
EN
3. Operating and Programming
7

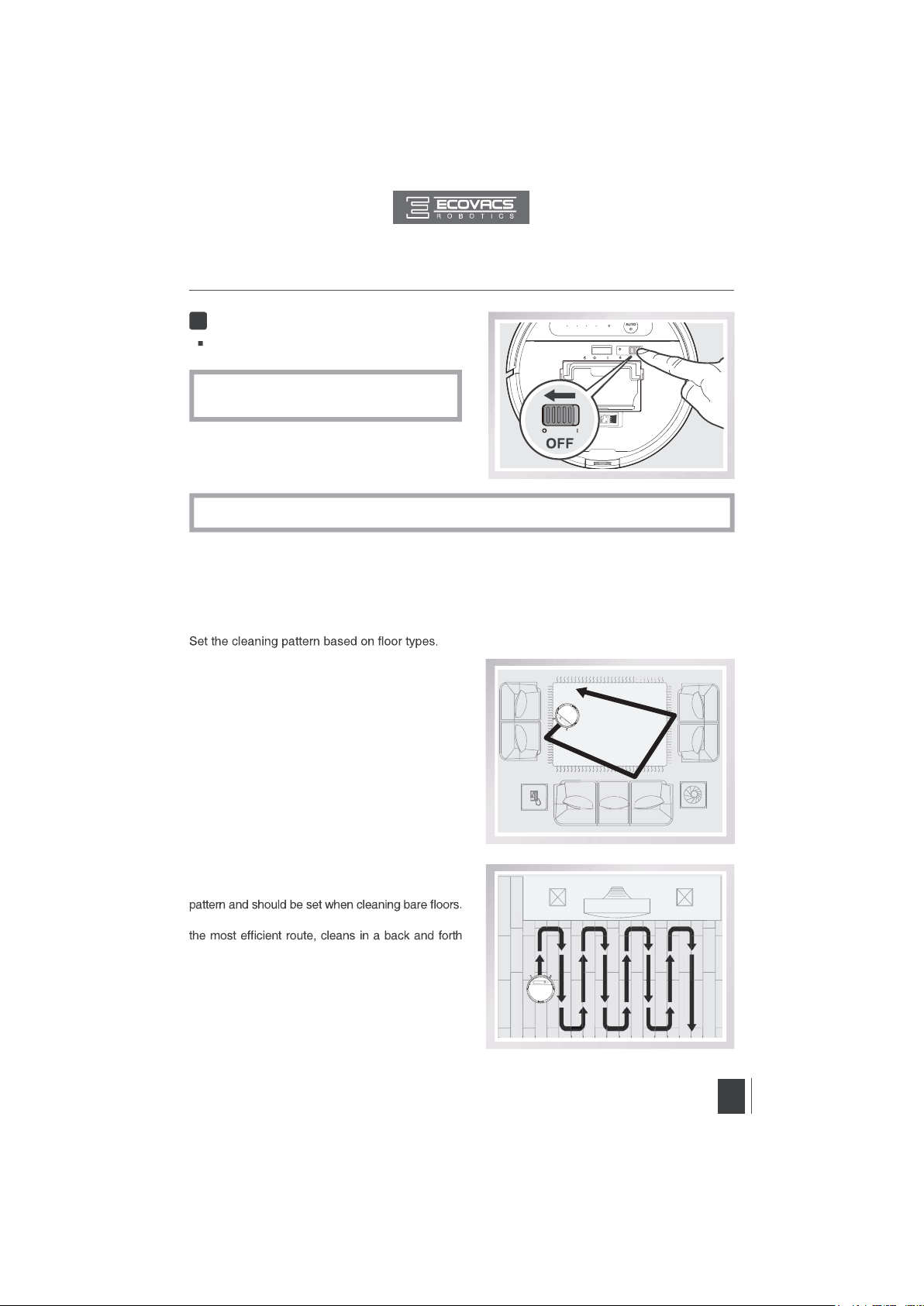

Power OFF
Pause DEEBOT. Open the robot’s Top Cover.
Move the Power Switch to the OFF position.
When DEEBOT is not cleaning, it is suggested
*
to keep it powered ON and charging.
For models with app-connectivity, various functions can be performed using the ECOVACS App.
*
3.3 Cleaning Pattern and Cleaning Mode Selection
DEEBOT has 2 Cleaning Patterns and several cleaning modes to choose from to effectively
clean different floors. Cleaning Patterns and Cleaning modes are selected using the Remote
Control or ECOVACS App.
Set Cleaning Pattern
Random Cleaning Pattern
Random Cleaning Pattern should be set when
cleaning c arpet. In Random Patt ern, DEEBOT
cleans in a straight line and changes directions when
it meets an obstacle.
Programmed Cleaning Pattern (Default Pattern)
Programmed Cleaning Pattern is the robot's default
In Programmed Cleaning Pattern the robot plans
straight-line pattern, returns to clean missed spots,
then cleans room edges before completing the
cleaning cycle.
EN
13
3. Operating and Programming
When Programmed Cleaning Pattern is Set:
* DEEBOT automatically conducts route planning when cleaning. If the robot is paused, moved
route and restart. Therefore, avoid using the Remote Control or moving DEEBOT manually
* DEEBOT may pause temporarily to recalculate its cleaning path. This is normal. Please be
patient, the frequency and duration of the pause is determined by room complexity.
Pattern should be set.
Double-click the AUTO Button on the robot. Cleaning
Pattern is switched when DEEBOT emits two beeps.
Cleaning Patterns can also be set using the ECOVACS App.
DEEBOT uses the set Cleaning Pattern when cleaning in AUTO Cleaning Mode.
Select Cleaning Mode
AUTO Cleaning Mode
1
This is the most commonly used mode and is good
for every day cleaning.
* AUTO Clea ning Mode cl ea ns usin g the
Cleaning Pattern set in the previous step.
Random Cleaning Pattern is best for carpet.
Programmed Cleaning Pattern is best for bare
* When the cleaning cycle is complete, DEEBOT
returns to the Docking Station.
* Use the App to increase the suction power of the robot when in AUTO Cleaning Mode. Press
to switch back to standard suction power. Enabling
14
in the App fro MAX suction power. Press
MAX suction power will consume more battery power.
EN
3. Operating and Programming

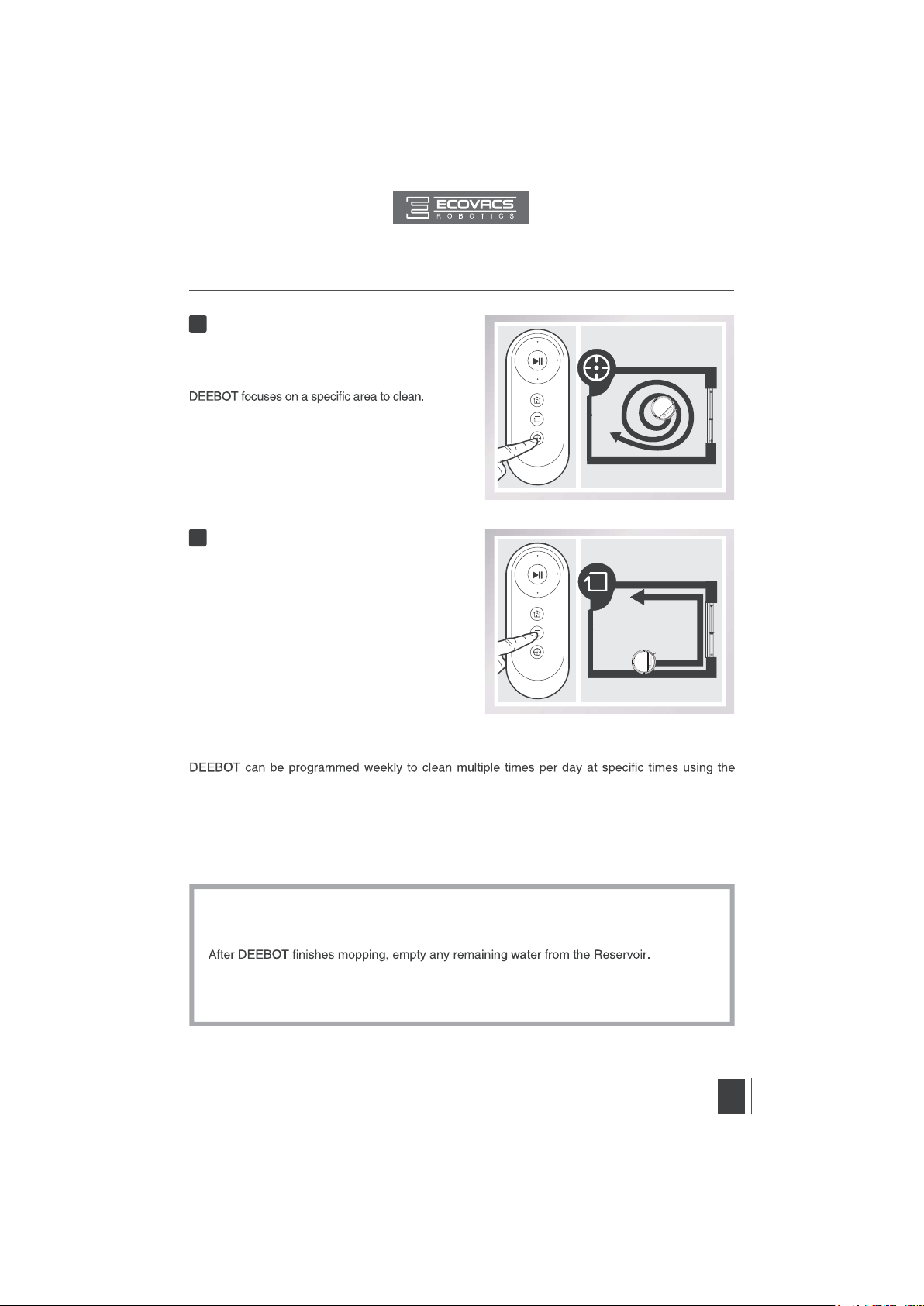

Spot Cleaning Mode
2
(1-5 minutes)
This mode is ap plicable for an area of highly
concentrated dirt or dust. In Spot Cleaning Mode,
3
Edge Cleaning Mode
This mode is good for cleaning the edges and
corn ers of a room. In Edge Cleaning M ode,
DEEBOT cleans along a border (e.g. wall).
3.4 Programming the Robot
ECOVACS App.
3.5 Optional Mopping System
DEEBOT has an optional Mopping System using a Washable/Reusable Microfiber Cleaning
Cloth and Cleaning Cloth Plate attached to a proprietary Reservoir. The washable/reusable
Cleaning Cloth automatically damp mops the floor to a spotless clean.
Empty the Reservoir and remove the Cleaning Cloth Plate before cleaning on carpet.
*
When using the mopping system, fold area rug edges under themselves so DEEBOT will
*
avoid the rug.
*
Empty any remaining water from the Reservoir and remove the Cleaning Cloth Plate before
*
charging DEEBOT.
Always keep the Reservoir installed when the robot is cleaning or charging.
*
EN
15
3. Operating and Programming
Add Water into the Reservoir.1
2
Attach Cleaning Cloth; Install the Cleaning Cloth Plate and the Reservoir.
3
Start
Select the desired Cleaning Mode. DEEBOT sweeps,
lifts, vacuums and mops in the selected mode.
16
EN
3. Operating and Programming

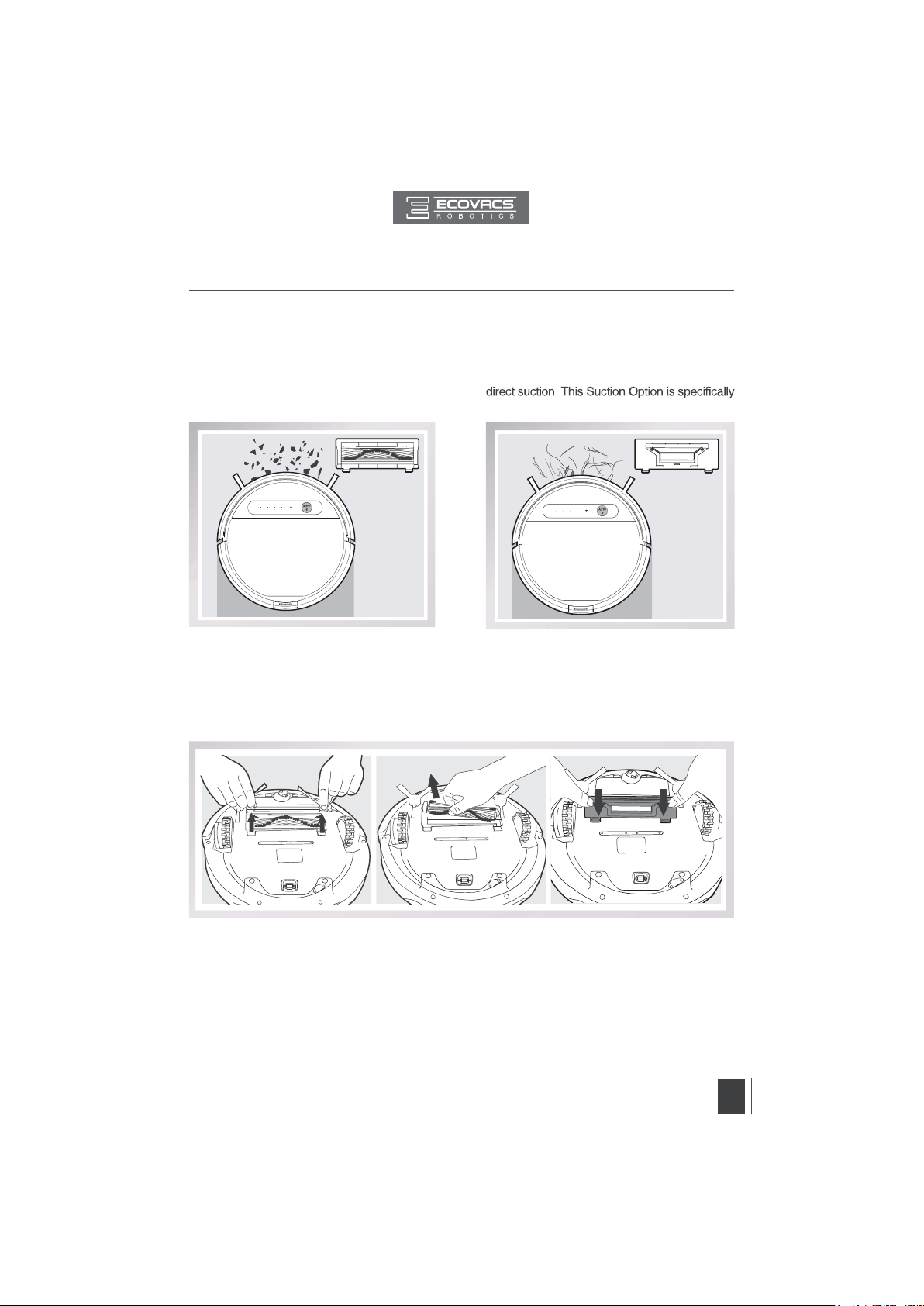

3.6 Choosing a Suction Option
The robot has 2 interchangeable suction options for your convenience.
Main Brush Option:
cleaning with a combination of the Main Brush
and strong suction. The Main Brush Option
comes pre-installed in DEEBOT.
The best choice for deep
Install the Direct Suction Option
Turn the robot over. Push both buttons on the Main Brush Option and remove the Main Brush Cover.
Remove the Main Brush.
Line up the Direct Suction Option tabs with the slots on the bottom of the robot. Press until the component
clicks into place.
Direct Suction Option:
daily cleaning with the Main Brush removed for
designed to pick up hair without tangling.
The best choice for
EN
17
3. Operating and Programming

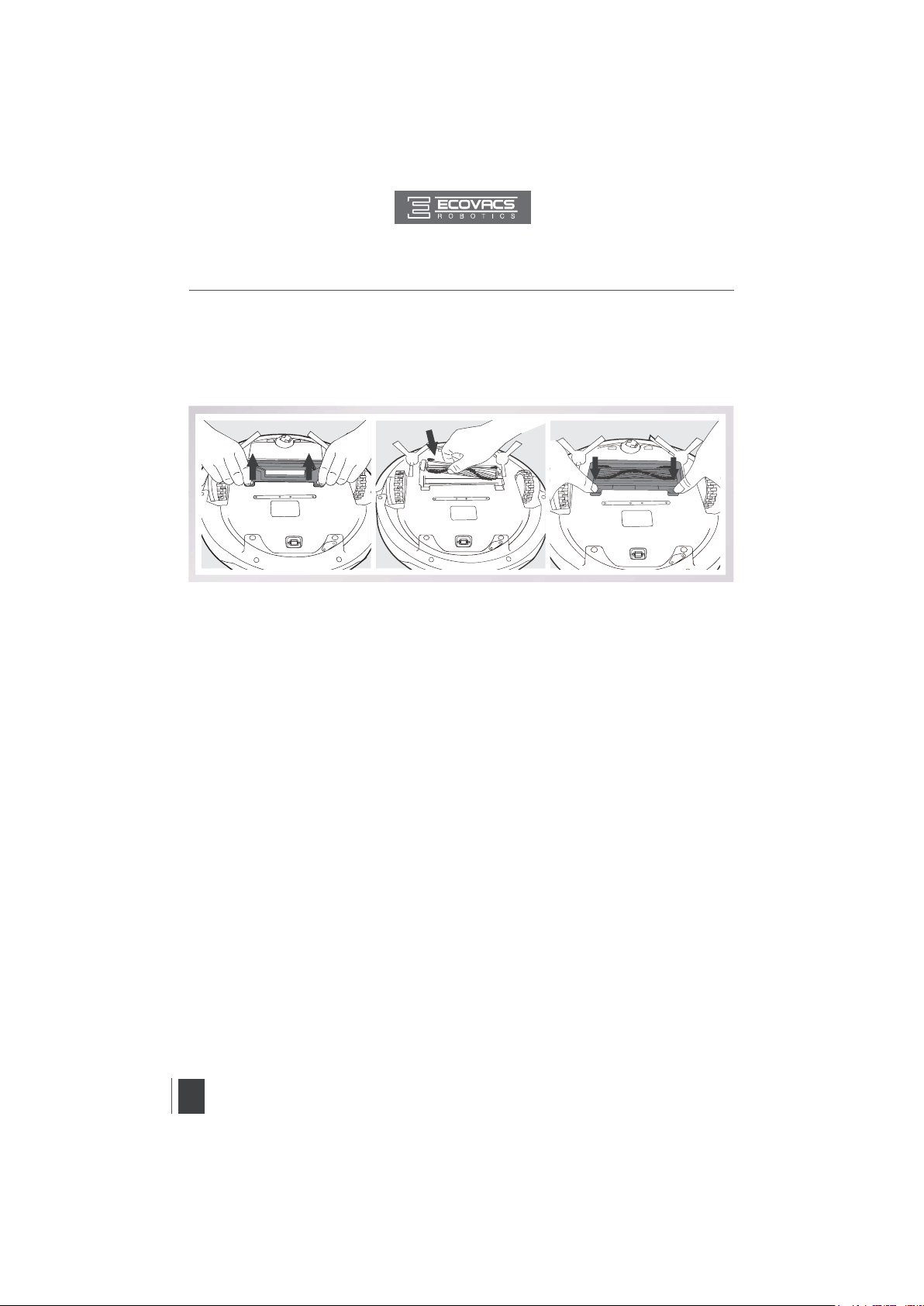

Install the Main Brush Option
Turn the robot over. Push both buttons on the Direct Suction Option and remove Direct Suction Option.
Insert the Main Brush into the bottom of the robot.
Line up the Main Brush Cover tabs with the slots on the bottom of the robot. Press until the component
clicks into place.
18
EN
3. Operating and Programming
3.7 Alarm Indicator and Sounds
If DEEBOT detects a problem and needs your assistance, it emits alarm beeps or the Status
Indicator Light illuminates.
Alarm Sound Indicator Light Problems Solution
/
One Beep
Two Beeps
Three Beeps
Four Beeps
Five Beeps
Six Beeps
Seven Beeps
Eight Beeps
Status Indicator
and goes out
once DEEBOT is
powered ON.
Status Indicator Driving Wheel
Status Indicator
Status Indicator
Status Indicator
Status Indicator
Status Indicator
Status Indicator Anti-Drop Sensor
Status Indicator DEEBOT is powered
DEEBOT has low
battery.
Malfunction
Main Brush Malfunction
Driving Wheel
Malfunction
DEEBOT gets into
trouble while working
and stops.
Dust Bin Malfunction
Low Battery
Side Brush Malfunction
Malfunction
OFF while charging.
Power ON the robot. Manually
place the robot on the Docking
Station and charge.
Check Driving Wheels for
tangled hair or debris and clean.
Check Main Brush for tangled
hair or debris and clean.
Turn over the robot. Press
Driving Wheels to check for a
clicking sound. If they do not
click, please contact Customer
Service.
Manually remove the obstacles
and restart DEEBOT.
Remove the Dust Bin and reinstall it properly. If the robot still
emits the alarm, please contact
Customer Service.
Manually place the robot on the
Docking Station to charge.
Check Side Brush for tangled
hair or debris and clean.
Check Anti-Drop Sensors for
dust and clean.
Power ON the robot.
EN
19
4. Maintenance
Before performing cleaning and maintenance, power OFF DEEBOT and unplug the Docking
Station.

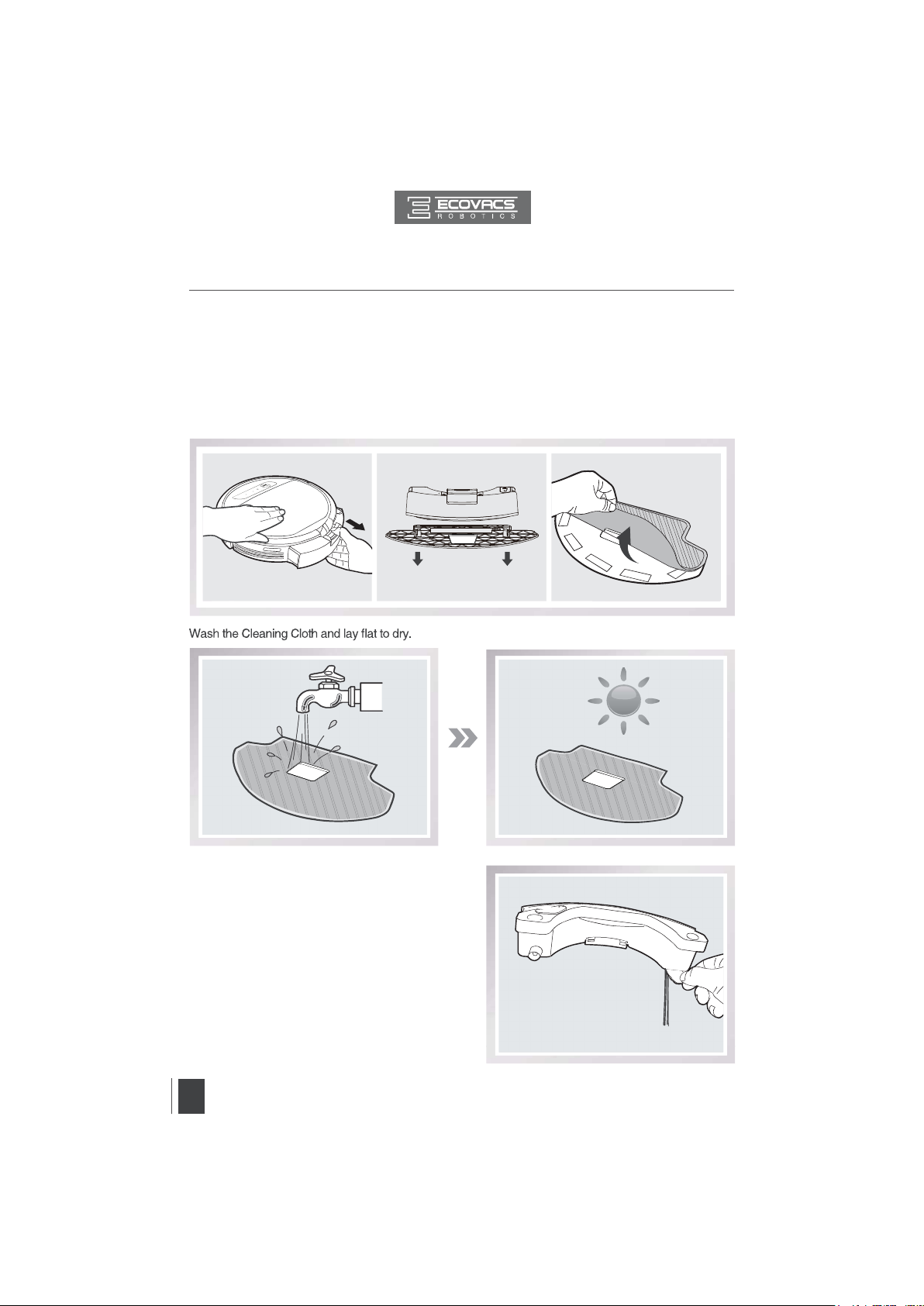

4.1 Mopping System
After DEEBOT finishes mopping, remove the Reservoir from DEEBOT, and maintain the Reservoir,
the Cleaning Cloth and the Cleaning Cloth Plate immediately.
Press the Release Button and pull to remove the Reservoir. Remove the Cleaning Cloth Plate and the
Cleaning Cloth.
Empty any remaining water from the Reservoir.
20
EN
4. Maintenance

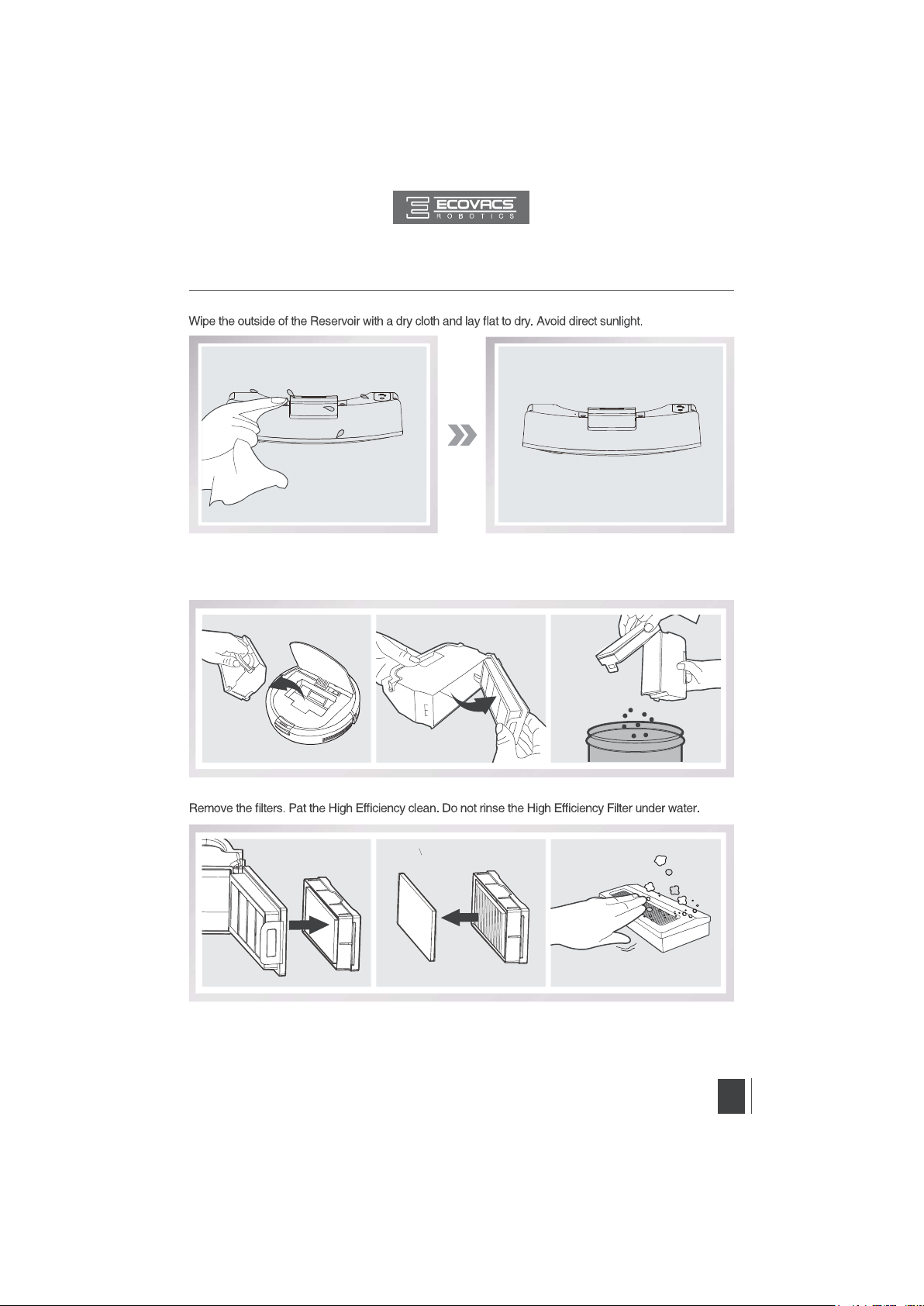

4.2 Dust Bin and Filters
Open the robot’s Top Cover and remove the Dust Bin. Open the Dust Bin Cover and empty the Dust Bin.
EN
21
4. Maintenance
Rinse the Sponge Filter, Dust Bin and Filter Net
under running water. reinstalling.
4.3 Main Brush, Direct Suction Option and Side Brushes
A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this
*
cleaning tool has sharp edges.
Main Brush
Turn the robot over. Push both buttons on the Main Brush Option and remove the Main Brush
cover. Remove the Main Brush. Use the Multi-Function Cleaning Tool to cut off and remove any
hair tangled around the Main Brush. Clean any tangled hair or debris from the Main Brush.
Direct Suction Option
Wipe the Direct Suction Option clean with a dry
cloth.
22
EN
Cleaning the Side Brushes
Remove the Side Brushes. Remove any hair or
debris tangled around the Side Brushes with the
provided Multi-Function Cleaning Tool, and wipe
their slots with a clean cloth.
4.4 Other Components
Use the Multi-Function Cleaning Tool to cut off
and remove any hair tangled around the Universal
Wheel.
4. Maintenance
Wipe the Anti-Drop Sensors with the brush of
the Multi-Function Cleaning Tool to maintain
their effectiveness.
Wipe the Bumper with the brush of the MultiFunction Cleaning Tool.
EN
23
4. Maintenance
Wipe the robot’s Charging Contacts and Docking Stations Pins with a dry cloth to maintain their
effectiveness.
4.5 Regular Maintenance
To keep DEEBOT running a t peak performance, perform the maintenance and replacement
according to the followi ng frequ ency. A multi -Function Clean ing Tool is provide d for easy
maintenance. Handle with care, this cleaning tool has sharp edges.
Robot Part Maintenance Frequency Replacement Frequency
Cleaning Cloth After each use Every 50 washings
24
Dust Bin/Reservoir/
Cleaning Cloth Plate
Side brush Once every 2 weeks Every 3-6 months
Main Brush Once per week Every 6-12 months
Sponge Filter/ High Once per week (twice per
Universal Wheel
Anti-Drop Sensors
Bumper
Charging Contacts
Docking Station Pins
Note:
ECOVACS manufactures various replacement parts and assemblies. Please contact
Customer Service for more information on replacement parts.
After each use /
Once per week /
EN
Every 4-6 months
5. Troubleshooting
Please use this chart to troubleshoot common problems using DEEBOT.
No. Malfunction Possible Causes Solutions
DEEBOT will not
1
charge.
DEEBOT cannot
return to the Docking
2
Station.
DEEBOT gets into
trouble while working
3
and stops.
DEEBOT returns to
the Docking Station
4
cleaning.
DEEBOT is not powered
ON.
DEEBOT has not made a
connection with the Docking
Station.
Docking Station is unplugged
while DEEBOT is powered
ON, which causes battery
consumption.
The battery is completely
discharged.
The Docking Station is not
placed properly.
DEEBOT is tangled with
(electrical cords, drooping
curtains, area rug fringe
etc.).
When battery power gets
low, DEEBOT automatically
switches to Return to
Charger Mode and returns
to the Docking Station to
recharge itself.
Working time varies
room complexity and the
selected Cleaning Mode.
Move the robot’s Power Switch to the
ON position.
Be sure that the robot’s Charging
Contacts have made a connection with
the Docking Station Pins. You may
move the robot manually to make the
connection if necessary.
Plug in the Docking Station and
ensure DEEBOT is powered ON.
Keep DEEBOT on the Docking Station
to make sure it has full battery to work
at any time.
Re-activate the battery. Place DEEBOT
on the Docking Station by hand, remove
after charging for 3 minutes, repeat 3
times; then charge normally.
Refer to section 3.2 to place the
Docking Station properly.
DEEBOT will try various ways
to get itself out of trouble. If it is
unsuccessful, check the Side Brushes
and remove anything tangled around
the Side Brushes, or manually remove
the obstacles and restart.
This is normal. No solution necessary.
This is normal. No solution necessary.
EN
25
5. Troubleshooting
No. Malfunction Possible Causes Solutions
Intelligent Scheduling or
DEEBOT will not
5
clean automatically at
scheduled time.
DEEBOT misses
6
cleaning area.
Time Scheduling function is
cancelled.
DEEBOT is powered OFF. Power ON DEEBOT.
The robot’s battery is low.
The robot’s Suction Intake
is blocked and/or its
components are tangled with
debris.
The cleaning area needs
tidying up.
Please refer to section 3.4 for details.
Keep DEEBOT powered ON and on
the Docking Station to make sure it
has full battery to work at any time.
Turn the robot’s power OFF, clean the
Dust Bin and invert the robot. Clean
the robot’s Suction Intake and Side
Brushes.
Please remove small objects from the
before DEEBOT starts cleaning.
26
EN
Remote Control failure
(effective control range
7
of Remote Control is
5m (16').
The water is not
coming out of the
8
Reservoir when
DEEBOT is mopping.
The batteries in the Remote
Control need to be replaced.
DEEBOT is powered OFF or
the robot’s battery is low.
The infrared signal cannot
be transmitted because the
Infrared Emitter on Remote
Control or the Infrared
Receiver on DEEBOT is
dirty.
There is other equipment
interfering with the infrared
signal to DEEBOT.
The Magnet on the Cleaning
Cloth Plate comes off.
The Reservoir runs out of
water.
The water outlets on the
bottom of DEEBOT are
clogged.
Replace with new batteries making
sure they are installed correctly.
Make sure DEEBOT is powered ON
and fully charged.
Use clean dry cloth to wipe the Infrared
Emitter on Remote Control and the
Infrared Receiver on DEEBOT.
Avoid using the Remote Control near
other equipment using infrared signals.
Please contact Customer Service.
Add water into the Reservoir.
Check the water outlets on the bottom
and clean.
