HB02-82
1
3
6
7
54
24
58
32
47
29
57*,57**
13*,13**
11
52
26
28
22
12
64
23
48
12
27
30
13*,13**
33
18
41
21
31
11
4*,4** 5**
48
501
41 42
503
3935
59
41
25
56
38
2
14A
60
61
37
41
36
62
63
383637
44 45
15*,15**
43
49
16
34
8
40
35
3942
501
9
6
17
10*
19*,19**
63
62
TP-82
10**
49
51
30
53
55
14B
50
20
502
46
1
57*,57**
DWT

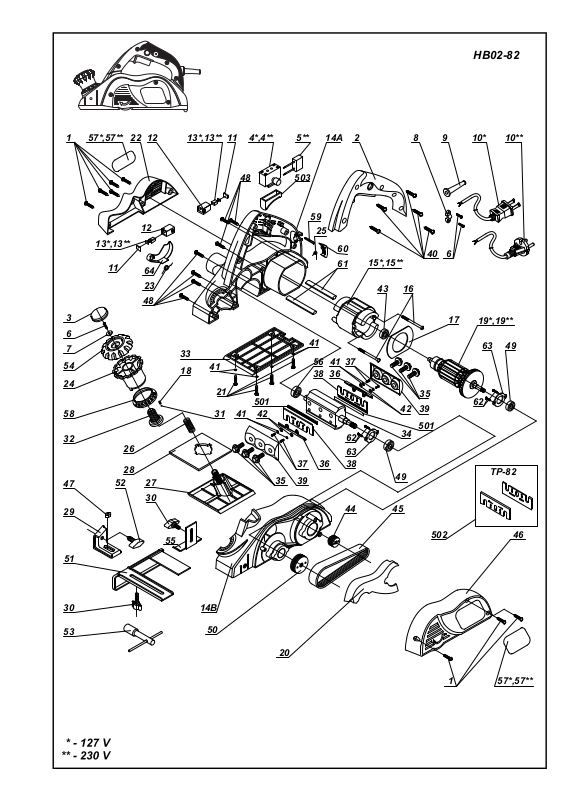

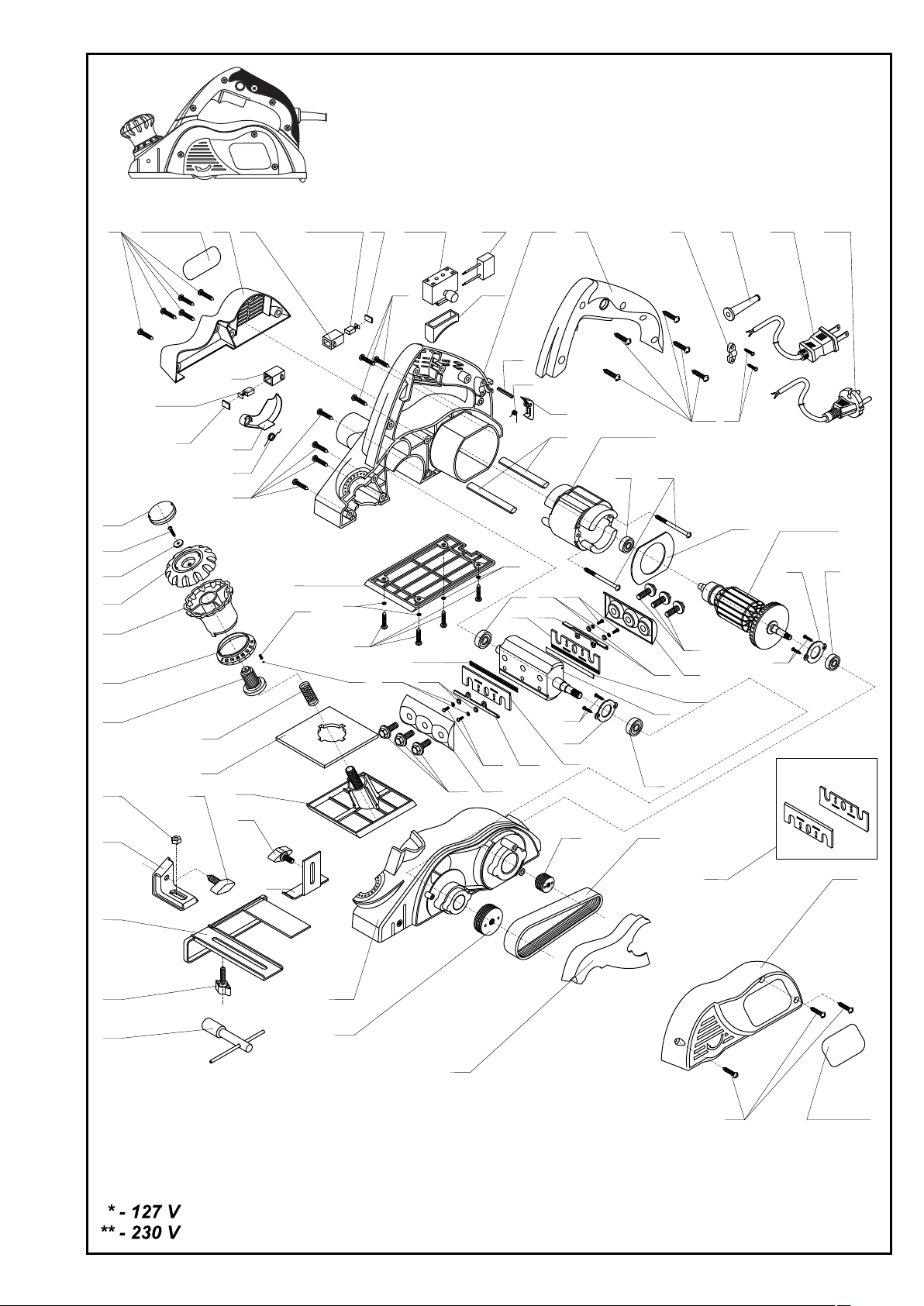

Okt 2009 POWER PLANER HB02-82
PRICE LIST OF SPARE PARTS
Pos. Description (Q-ty)
1 Screw ST4x16 (8)
2 Handle
3 Cap
4 Switch 127-230V
5** Condenser 0.33µF 230V
6 Screw ST4x14 (3)
7 Washer Ø4x12
8 Cord clip
9 Rubber sleeve
10* Cord 127V
10** Cord 230V
11 Brush cap (2)
12 Brush holder (2)
13* Carbon brush (2) 127V
13** Carbon brush (2) 230V
14A Housing A
14B Housing B
15* Stator 127V
15** Stator 230V
16 Screw ST4x58 (2)
17 Guide wind circle
18 Spring Ø4x12
19* Armature 127V
19** Armature 230V
20 Guide wind plank
21 Screw M4x10 (4)
22 Protector
23 Spring for protector plate
24 Knob
25 Spring for blade hook
26 Spring Ø19x48x2,5
27 Front plate
28 Sponge matting
29 Connector
30 Wing screw type 3 M6x16 (2)
31 Steel ball Ø4
32 Regulation nut
33 Rear plate
34 Roller
35 Bolt M6x22 (6)
36 Blade holder (2)
37 Screw M4x6 (4)
38 Second blade holder (2)
39 Blade plank (2)
40 Screw ST4x18 (5)
41 Spring washer Ø4 (8)
42 Washer Ø4 (4)
43 Ball bearing 608.RS
44 Small wheel
45 Belt L=240
46 Belt protector
Part Number
S-075
H-033
N-016
C-017
E-006
S-074
S-003
M-002
M-003
1E-001
E-001
J-006
J-002
1D-002
D-002
H-010
H-020
1B-002
B-002
S-086
I-004
R-039
1A-002
A-002
N-108
S-100
N-048
R-054
N-008
R-053
R-031
L-015
M-030
Q-014
S-062
R-002
S-186
L-013
P-003
S-140
M-075
S-030
G-022
L-010
S-076
S-023
S-001
O-002
K-012
P-001
H-046
Description National
Language (Q-ty)
Price,
USD
47 Nut M6
48 Screw ST4x22 (7)
49 Ball bearing 6000.RS (2)
50 Big wheel
51 Fence guide
52 Wing screw type 3 M6x22
53 Socket wrench
54 Knob cap
55 Rabbet guide
56 Ball bearing 607.RS
57* Brand label (2) 127V
57** Brand label (2) 230V
58 Scale
59 Pin 3x22
60 Blade hook
61 Fixing plank
62 Sunk screw ST4x10 (4)
63 Bearing cover (2)
64 Protect plate
501 Blade TS-82 (2)
502 Blade TP-82 (2)
503 Switch button
S-065
S-078
O-008
K-013
Q-013
S-063
Q-019
N-009
Q-015
O-001
1T-082
T-082
N-021
L-001
N-022
N-023
S-093
M-006
L-023
Q-061
Q-062
I-035
